Toyota Prius (2021 year). Manual in english - part 8

464

PRIUS_OM_OM47E09U_(U)

5-3. Using the storage features

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending on its size or shape.

Bottle holders/door pockets



Front doors



Rear doors

NOTICE

Put the cap on before stowing a bottle. Do not place open bottles or glass
and paper cups containing liquid in the bottle holders.
The contents may spill and glasses may break.

PRIUS_OM_OM47E09U_(U)

465

5-3. Using the storage features

5

In

te

rior

fe

at

ures

Auxiliary boxes



Type A (if equipped)



Type B (if equipped)

Press in the lid.

The overhead console is useful for
temporarily storing small items.

Vehicles  with  the  wireless  char-
ger:



P. 477



Type C (if equipped)

WARNING

Do not store items heavier than 0.44 lb. (200 g).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident. (type A)

466

PRIUS_OM_OM47E09U_(U)

5-3. Using the storage features

Owner’s  manual  etc.  can  be
stored  in  the  left-side  seatback
pocket with the fastener.

Seat back pockets (if equipped)

467

PRIUS_OM_OM47E09U_(U)

5-3. Using the storage features

5

In

te

rior

fe

at

ures

Luggage compartment features

Pull the lever upwards.

Secure  it  with  the  grocery  bag
hooks.

Deck Board

1

2

WARNING

●

If the deck board is opened, close it before driving. In the event of sudden
braking,  an  accident  may  occur  due  to  an  occupant  being  struck  by  the
deck board or the items stored in the auxiliary box.

●

Do not place an object which is easy to roll or taller than the storable por-
tion on the deck under box.

NOTICE

To prevent damage to the deck board, do not apply too much load on the
deck board.

468

PRIUS_OM_OM47E09U_(U)

5-3. Using the storage features



Vehicles with emergency tire puncture repair kit

Raise the hook to use.

The  cargo  hooks  are  provided  for
securing loose items.



Vehicles with spare tire

Open  the  deck  board,  then
raise the hook to use.

Return  the  deck  board  to  its
original position and close it.

Cargo hooks

1

2

PRIUS_OM_OM47E09U_(U)

469

5-3. Using the storage features

5

In

te

rior

fe

at

ures

When using the hooks, press the
bottom side to lift it up.

There  also  is  a  hook  on  the  other
side.

WARNING

To  avoid  injury,  always  return  the  cargo  hooks  to  their  stowed  positions
when not in use.

Grocery bag hooks

NOTICE

In  order to  prevent  damage  to  the  grocery  bag  hooks,  do  not  place  large
objects or objects that weight more than 8.8 lb. (4 kg) onto the hooks.

470

PRIUS_OM_OM47E09U_(U)

5-3. Using the storage features

The warning reflector can be stowed on the center auxiliary box.
(The warning reflector itself is not included as an original equipment)

Depending on the size and shape of the warning reflector case, etc., you may
not be able to store it.

Warning reflector storage space



Vehicles  with  emergency  tire
puncture  repair  kit  (2WD  mod-
els)



Vehicles  with  emergency  tire
puncture repair kit (AWD mod-
els)



Vehicles  with  compact  spare
tire



Vehicles  with  full-size  spare
tire

WARNING

When storing the warning reflector, etc., make sure that it is properly stored.
If  the  warning  reflector  is  not  properly  stored,  it  may  fly  out  during  emer-
gency braking and lead to an accident.

PRIUS_OM_OM47E09U_(U)

471

5-3. Using the storage features

5

In

te

rior

fe

at

ures

■

Installing the luggage cover

Install  one  side  of  the  luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.

■

Using the luggage cover

Pull out the luggage cover and
secure it to the hook brackets.

■

Removing the luggage cover

Push  one  end  of  the  luggage
cover  inward  and  remove  it
from the holder.

Luggage cover (if equipped)

472

PRIUS_OM_OM47E09U_(U)

5-3. Using the storage features

■

Stowing the luggage cover (except vehicles with full-size spare
tire)

Open  the  deck  board  and
secure it with the grocery bag
hooks.

Store cover in the deck under
box.

Close the deck board.

1

2

WARNING

●

Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious injury.

●

Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

●

Make  sure  that  the  rear  edge  of  the  cover  is  laying  flat.  If  the  cover  is
installed with the rear edge raised, the view from the rear window may be
obstructed, which could cause an accident.

●

Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain  passengers
properly.

3

473

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

Other interior features

To  set  the  visor  in  the  forward
position, flip it down.
To set the visor in the side posi-
tion,  flip  down,  unhook,  and
swing it to the side.
To use the side extender, place
the  visor  in  the  side  position,
then slide it backward.

Slide the cover to open.

The  light  turns  on  when  the  cover
is opened.

If the vanity light remain on when the power switch is turned off, the light will
go off automatically after 20 minutes.

Sun visors

1

2

3

Vanity mirrors

NOTICE

To  prevent  12-volt  battery  discharge,  do  not  leave  the  vanity  lights  on  for
extended periods while the hybrid system is off.

474

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
Open the lid.

■

The power outlet can be used when

The power switch is in ACCESSORY or ON mode.

■

When stopping the hybrid system

Disconnect electrical devices with charging functions, such as mobile battery
packs.
If such devices are left connected, the hybrid system may not stop normally.

Power outlets

NOTICE

●

To avoid damaging the power outlets, close the lid when the power outlet
is not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.

●

To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

PRIUS_OM_OM47E09U_(U)

475

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

The USB charging ports are used to supply 2.1 A of electricity at 5 V
to  external  devices.  The  USB  charging  ports  are  for  charging  only.
They are not designed for data transfer or other purposes.
Depending on the external device, it may not charge properly. Refer to
the  manual  included  with  the  device  before  using  a  USB  charging
port.
Open the lid.

■

The USB charging ports can be used when

The power switch is in ACCESSORY or ON mode.

■

Situations in which the USB charging ports may not operate correctly

●

If a device which consumes more than 2.1 A at 5 V is connected

●

If a device designed to communicate with a personal computer, such as a
USB memory device, is connected

●

If the connected external device is turned off (depending on device)

●

If the temperature inside the vehicle is high, such as after the vehicle has
been parked in the sun

■

About connected external devices

Depending on the connected external device, charging may occasionally be
suspended and then start again. This is not a malfunction.

USB charging ports

476

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

NOTICE

■

To prevent damage to the USB charging ports

●

Do not insert foreign objects into the ports.

●

Do not spill water or other liquids into the ports.

●

When  the USB  charging ports are not  in use,  close the  lids. If  a foreign
object or liquid enters a port may cause a short circuit.

●

Do not apply excessive force to or impact the USB charging ports.

●

Do not disassemble or modify the USB charging ports.

■

To prevent damage to external devices

●

Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to an external device.

●

Do not push down on or apply unnecessary force to an external device or
the cable of an external device while it is connected.

■

To prevent 12-volt battery discharge

Do not use the USB charging ports for a long period of time with the hybrid
system stopped.

PRIUS_OM_OM47E09U_(U)

477

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

A portable device can be charged by just placing Qi standard wireless
charge compatible portable devices according to the Wireless Power
Consortium, such as smart phones and mobile batteries, etc., on the
charge area.
This  function  cannot  be  used  with  portable  devices  that  are  larger
than the charging area. Also, depending on the portable device, it may
not operate as normal. Please read the operation manual for portable
devices to be used.

■

The “Qi” symbol

The “Qi” symbol is a trademark of the Wireless Power Consortium.

■

Name for all parts

Power supply switch
Operation indicator light
Charge area

Wireless charger (if equipped)

1

2

3

478

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

■

Using the wireless charger

Press  the  power  supply
switch  of  the  wireless  char-
ger.

Switches  on  and  off  with  each
press  of  the  power  supply
switch.
When  turned  on,  the  operation
indicator light (green) comes on.
Even with the hybrid system off,
the  on/off  state  of  the  power
supply switch is memorized.

Place  the  charging  side  of
the portable device down.

When  charging,  the  operation
indicator  light  (orange)  comes
on.
If  charging  is  not  occurring,  try
placing  the  portable  device  as
close  to  the  center  of  the
charging area as possible.
When charging is complete, the operation indicator light (green) comes
on.

●

Recharging function

• When charging is complete and after a fixed time in the charge

suspension state, charging restarts.

• When the portable device is moved, charging is stopped for a

moment and then it restarts.

1

2

PRIUS_OM_OM47E09U_(U)

479

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

■

Lighting conditions of operation indicator light

*

: Depending  on  the  portable  device,  there  are  cases  where  the  operation

indicator light will continue being lit up orange even after the charging is
complete.

●

When the operation indicator light flashes
When  an  error  occurs,  the  operation  indicator  light  flashes  an
orange color. Handle the error based on the following table.

Operation indicator light

Conditions

Turning off

When  the  Wireless  charger  power  supply  is
off

Green (comes on)

On Standby (charging possible state)

When charging is complete

*

Orange (comes on)

When  placing  the  portable  device  on  the
charging area (detecting the portable device)

Charging

Operation indicator

light

Suspected causes

Handling method

Flashing

repeatedly

once  every  second
(Orange)

Vehicle  to  charger  com-
munication failure.

Contact  your  Toyota
dealer.

Repeatedly

flashes

3 times  continuously
(Orange)

A  foreign  substance  is
between  the  portable
device and charge area.

Remove  the  foreign
substance

from

between

portable

device  and  the  charge
area.

The  portable  device  is
out  of  sync  due  to  the
device being shifted from
its position.

Place

the

portable

device  near  the  center
of the charge area.

Repeatedly

flashes

4 times  continuously
(Orange)

Temperature

rising

within  the  wireless  char-
ger.

Stop  charging  at  once
and

start

charging

again after for a while.

480

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

■

The wireless charger can be operated when

The power switch is in ACCESSORY or ON mode.

■

Usable portable devices

Qi standard wireless charge standard can be used on compatible devices.
However, not all Qi standard devices and compatibility are guaranteed.
Starting with mobile phones and smart phones, it is aimed for low power elec-
trically supplied portable devices of no more than 5W.

■

When covers and accessories are attached to portable devices

Do not charge in situations where cover and accessories not able to handle
Qi are attached to the portable device. Depending on the type of cover and
accessory, it may not be possible to charge. When charging is not performed
even with the portable device placed on the charge area, remove the cover
and accessories.

■

While charging, noise enters the AM radio

Turn off the wireless charger and confirm that the noise has decreased. If the
noise decreases, continuously pushing the power supply switch of the wire-
less charger for 2 seconds, the frequency of the charger can be changed and
the noise can be reduced.
Also, on that occasion, the operation indicator light will flash orange 2 times.

■

Important points of the wireless charger

●

If the electronic key cannot be detected within the vehicle interior, charging
cannot  be  done.  When  the  door  is  opened  and  closed,  charging  may  be
temporarily suspended.

●

When  charging,  the  wireless  charging  device  and  portable  device  will  get
warmer, however this is not a malfunction.
When a portable device gets warm while charging, charging may stop due
to the protection function on the portable device side. In this case, when the
temperature of the portable device drops significantly, charge again.

■

Operation sounds

When the power supply is turned on, while searching for the portable device a
sound will be produced, however this is not a malfunction.

PRIUS_OM_OM47E09U_(U)

481

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

■

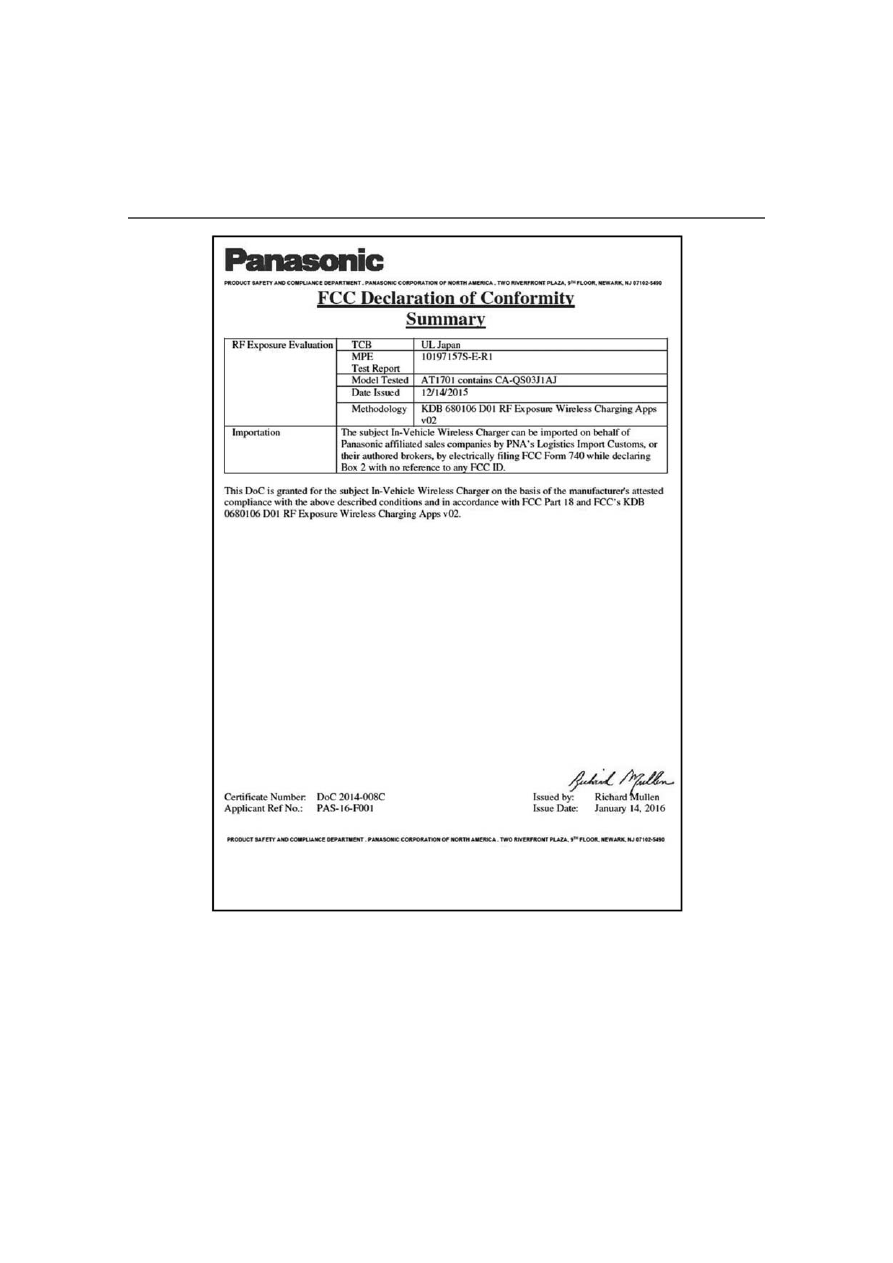

Certifications for the wireless charger

482

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

PRIUS_OM_OM47E09U_(U)

483

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

484

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

WARNING

■

Caution while driving

When charging a portable device, for safety reasons, the driver should not
operate the main part of the portable device while driving.

■

Caution regarding interference with electronic devices

People  with  implantable  cardiac  pacemakers,  cardiac  resynchronization
therapy-pacemakers  or  implantable  cardioverter  defibrillators,  as  well  as
any other electrical medical device, should consult their physician about the
usage of the wireless charger. The operations of the wireless charger may
have an affect on medical devices.

■

To prevent damage or burns

Observe the following precautions.
Failure to do so may result in a possibility of equipment failure and damage,
catch fire, burns due to overheat.

●

Do not insert any metallic objects between the charging area and the por-
table device while charging

●

Do not attach stickers, metallic objects, etc., to the charger area or porta-
ble device

●

Do not cover with cloth, etc., and charge

●

Do not charge portable devices other than designated

●

Do not attempt to dismantle for disassembly or modifications

●

Do not hit or apply a strong force

PRIUS_OM_OM47E09U_(U)

485

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

NOTICE

■

Conditions in which the function may not operate correctly

In the following conditions, it may not operate correctly

●

The portable device is fully charged

●

There is foreign matter between the charge area and portable device

●

The temperature of the portable device gets higher from charging

●

The charging surface of the portable device is facing up

●

The placement of the portable device is out of alignment with the charge
area

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

In addition, excluding the above-mentioned, when the charger does not per-
form  normally  or  the  operation  display  lamp  is  flashing  continuously,  it  is
considered that the wireless charger is malfunctioning. Contact your Toyota
dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as credit cards, or magnetic recording
media, etc., close to the charger while charging, otherwise, data may dis-
appear  under  the  influence  of  magnetism. Also,  do  not  bring  precision
instruments  such  as  wrist  watches,  etc.,  close  to  the  charger,  as  such
objects may break.

●

Do  not  leave  portable  devices  in  the  cabin.  The  temperature  inside  the
cabin may become high, when under the sun, and cause damage to the
device.

■

To prevent 12-volt battery discharge

When the hybrid system is stopped, do not use the wireless charger for a
long time.

486

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

Pull the armrest down for use.

The coat hooks are provided with
the rear assist grips.

Armrest

NOTICE

To prevent damage to the armrest, do not place too much strain on the arm-
rest.

Coat hooks

WARNING

Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS  curtain  shield  airbags  deploy,  these  items  may  become  projectiles,
causing death or serious injury.

PRIUS_OM_OM47E09U_(U)

487

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

An assist grip installed on the ceil-
ing  can  be  used  to  support  your
body while sitting on the seat.

Assist grips

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.

NOTICE

To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.

488

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

Garage door opener



The HomeLink

®

 wireless control system in your vehicle has 3 buttons

which can be programmed to operate 3 different devices. Refer to the
programming  methods  on  the  following  pages  to  determine  the
method which is appropriate for the device.

HomeLink

®

 indicator light

Garage  door  operation  indica-
tors
Buttons

■

Before programming the HomeLink

®

●

During programming, it is possible that garage doors, gates, or
other devices may operate. For this reason, make sure that peo-
ple and objects are clear of the garage door or other devices to
prevent injury or other potential harm.

●

It  is  recommended  that  a  new  battery  be  placed  in  the  remote
control transmitter for more accurate programming.

●

Garage  door  opener  motors  manufactured  after  1995  may  be
equipped with rolling code protection. If this is the case, you may
need  a  stepladder  or  other  sturdy,  safe  device  to  reach  the
“Learn” or “Smart” button on the garage door opener motor.



: If equipped

The garage door opener can be programmed to operate garage
doors,  gates,  entry  doors,  door  locks,  home  lighting  systems,
security systems, and other devices.

HomeLink

®

1

2

3

PRIUS_OM_OM47E09U_(U)

489

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

■

Programming the HomeLink

®

Steps

 through

 must be performed within 60 seconds, other-

wise the indicator light will stop flashing and programming will not
be able to be completed.

Press  and  release  the  HomeLink

®

  button  you  want  to  program

and check that the HomeLink

®

 indicator light flashes orange.

Point  the  remote  control
transmitter  for  the  device  at
the rear view mirror, 1 to 3 in.
(25  to  75  mm)  from  the
HomeLink

®

 buttons.

Keep  the  HomeLink

®

  indicator

light in view while programming.

Program a device.



Programming  a  device  other  than  an  entry  gate  (for  U.S.A.
owners)

Press  and  hold  the  remote  control  transmitter  button  until  the
HomeLink

®

 indicator light changes from slowly flashing orange to

rapidly  flashing  green  (rolling  code)  or  continuously  lit  green
(fixed code), then release the button.



Programming an entry gate (for U.S.A. owners)/Programming
a device in the Canadian market

Press and release the remote control transmitter button at 2 sec-
ond  intervals,  repeatedly,  until  the  HomeLink

®

  indicator  light

changes  from  slowly  flashing  orange  to  rapidly  flashing  green
(rolling code) or continuously lit green (fixed code).

1

3

1

2

3

490

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

Test  the  HomeLink

®

  operation  by  pressing  the  newly  pro-

grammed button and observing the indicator light:

●

Indicator light illuminates: Programming of a fixed code device
has completed. The garage door or other device should oper-
ate when a HomeLink

®

 button is pressed and released.

●

Indicator light flashes rapidly: The garage door opener motor
or  other  device  is  equipped  with  a  rolling  code. To  complete
programming, firmly press and hold the HomeLink

®

 button for

2 seconds then release it.

●

If the garage door or other device does not operate, proceed
to “Programming a rolling code system”.

Repeat the steps above to program another device for any of the
remaining HomeLink

®

 buttons.

■

Programming a rolling code system

2 or more people may be necessary to complete rolling code pro-
gramming.

Locate the “Learn” or “Smart”
button  on  the  garage  door
opener motor in the garage.

This button can usually be found
where the hanging antenna wire
is  attached  to  the  unit.  The
name  and  color  of  the  button
may  vary  by  manufacturer.
Refer  to  the  Owner’s  manual
supplied  with  the  garage  door
opener motor for details.

Press  and  release  the
“Learn” or “Smart” button.
Perform  step

  within  30

seconds  after  performing
step

.

4

5

1

2

3

2

PRIUS_OM_OM47E09U_(U)

491

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

Press  and  hold  the  desired
HomeLink

®

 button (inside the

vehicle)  for  2  seconds  and
release  it.  Repeat  this
sequence

(press/hold/

release)  up  to  3  times  to
complete programming.
If  the  garage  door  opener
motor  operates  when  the
HomeLink

®



button

is

pressed,  the  garage  door
opener motor recognizes the
HomeLink

®

 signal.

■

Enabling 2-way communication with a garage door (only avail-
able for compatible devices)

When enabled, 2-way communication allows you to check the sta-
tus of the opening and closing of a garage door through indicators
in your vehicle.
2-way  communication  is  only  available  if  the  garage  door  opener
motor used is a compatible device. (To check device compatibility,
refer to www.HomeLink.com.)

Within 5 seconds after programming the garage door opener has
been  completed,  if  the  garage  door  opener  motor  is  trained  to
HomeLink

®

, both garage door operation indicators will flash rap-

idly  green  and  the  light  on  the  garage  door  opener  motor  will
blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform steps



and   within the first

10 presses of the HomeLink

®

 button after programming has been

completed.

Press  a  programmed  HomeLink

®

  button  to  operate  a  garage

door.
Within  1  minute  of  pressing  the  HomeLink

®

  button,  after  the

garage door operation has stopped, press the “Learn” or “Smart”
button on the garage door opener motor. Within 5 seconds of the
establishment  of  2-way  communication  with  the  garage  door
opener,  both  garage  door  operation  indicators  in  the  vehicle  will
flash rapidly green and the light on the garage door opener motor
will blink twice, indicating that 2-way communication is enabled.

3

1

2

3

2

3

492

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features

■

Reprogramming a single HomeLink

®

 button

When the following procedure is performed, buttons which already
have devices registered to them can be overwritten:

With one hand, press and hold the desired HomeLink

®

 button.

When the HomeLink

®

 indicator starts flashing orange, continue

to  hold  the  HomeLink

®

  button  and  perform  “Programming  the

HomeLink

®

” step

 (it takes 20 seconds for the HomeLink

®

 indi-

cator to start flashing).

Press  the  appropriate  HomeLink

®

  button.  The  HomeLink

®

  indicator

light should turn on.

The  status  of  the  opening  and
closing of a garage door is shown
by the indicators.

Opening
Closing

This function is only available if the
garage door opener motor used is
a  compatible  device.  (To  check
device  compatibility,  refer  to
www.HomeLink.com.)

The indicators can operate within approximately 820 ft. (250 m) of the
garage door. However, if there are obstructions between the garage
door  and  the  vehicle,  such  as  houses  and  trees,  feedback  signals
from the garage door may not be received. To recall the previous door
operation  status,  press  and  release  either  HomeLink

®

  buttons

 and

 or

 and

 simultaneously. The last

recorded status will be displayed for 3 seconds.

Operating the HomeLink

®

Garage door operation indicators

1

2

1

1

2

Color

Status

Orange (flashing)

Currently opening/closing

Green

Opening/closing has completed

Red (flashing)

Feedback signals cannot be received

PRIUS_OM_OM47E09U_(U)

493

5-4. Using the other interior features

5

In

te

rior

fe

at

ures

Press and hold the 2 outside but-
tons  for  10  seconds  until  the
HomeLink

®



indicator

light

changes  from  continuously  lit
orange to rapidly flashing green.

If you sell your vehicle, be sure to
erase  the  programs  stored  in  the
HomeLink

®

 memory.

■

Codes stored in the HomeLink

®

 memory

●

The  registered  codes  are  not  erased  even  if  the  battery  cable  is  discon-
nected.

●

If  learning  failed  when  registering  a  different  code  to  a  HomeLink

®

  button

that already has a code registered to it, the already registered code will not
be erased.

■

Before programming

●

Install a new battery in the transmitter.

●

The  battery  side  of  the  transmitter  must  be  pointed  away  from  the
HomeLink

®

.

■

Certifications for the garage door opener



For vehicles sold in the U.S.A.

Erasing the entire HomeLink

®

 memory (all three codes)

494

PRIUS_OM_OM47E09U_(U)

5-4. Using the other interior features



For vehicles sold in Canada

■

When support is necessary

Visit on the web at www.homelink.com/toyota or call 1-800-355-3515.

WARNING

■

When programming a garage door or other remote control device

The  garage  door  or  other  device  may  operate,  so  ensure  people  and
objects are out of danger to prevent potential harm.

■

Conforming to federal safety standards

Do  not  use  the  HomeLink

®

  compatible  transceiver  with  any  garage  door

opener or device that lacks safety stop and reverse features as required by
federal safety standards. This includes any garage door that cannot detect
an interfering object. A door or device without these features increases the
risk of death or serious injury.

■

When operating or programming HomeLink

®

Never allow a child to operate or play with the HomeLink

®

 buttons.

495

PRIUS_OM_OM47E09U_(U)

6

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting

the vehicle exterior.......... 496

Cleaning and protecting

the vehicle interior........... 502

6-2. Maintenance

Maintenance

requirements................... 505

General maintenance........ 508
Emission inspection and

maintenance (I/M)
programs......................... 511

6-3. Do-it-yourself

maintenance

Do-it-yourself service

precautions ..................... 512

Hood ................................. 515
Positioning a floor jack ...... 517
Engine compartment......... 518
Tires .................................. 532
Tire inflation pressure ....... 542
Wheels .............................. 545
Air conditioning filter.......... 548
Cleaning the hybrid battery

(traction battery) air intake
vent and filter .................. 551

Wiper insert

replacement .................... 556

Electronic key battery........ 560
Checking and replacing

fuses ............................... 563

Headlight aim .................... 566
Light bulbs......................... 568

496

PRIUS_OM_OM47E09U_(U)

6-1. Maintenance and care

Cleaning and protecting the vehicle exterior

●

Working  from  top  to  bottom,  liberally  apply  water  to  the  vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.

●

Wash  the  vehicle  body  using  a  sponge  or  soft  cloth,  such  as  a
chamois.

●

For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.

●

Wipe away any water.

●

Wax the vehicle when the waterproof coating deteriorates.

If  water  does  not  bead  on  a  clean  surface,  apply  wax  when  the  vehicle
body is cool.

■

Automatic car washes

●

Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.

●

Brushes  used  in  automatic  car  washes  may  scratch  the  vehicle  surface,
parts (wheel, etc.) and harm your vehicle’s paint.

●

Rear  spoiler  may  not  be  washable  in  some  automatic  car  washes. There
may also be an increased risk of damage to vehicle.

■

High pressure car washes

As  water  may  enter  the  cabin,  do  not  bring  the  nozzle  tip  near  the  gaps
around the doors or perimeter of the windows, or spray these areas continu-
ously.

Perform  the  following  to  protect  the  vehicle  and  maintain  it  in
prime condition:

PRIUS_OM_OM47E09U_(U)

497

6-1. Maintenance and care

6

Mainten

ance an

d ca

re

■

Note for a smart key system

If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:

●

Place  the  key  in  a  position  6  ft.  (2  m)  or  more  separate  from  the  vehicle
while the vehicle is being washed. (Take care to ensure that the key is not
stolen.)

●

Set the electronic key to battery-saving mode to disable the smart key sys-
tem. (



P. 198)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by using a neutral detergent.

●

Wash detergent off with water immediately after use.

●

To protect the paint from damage, make sure to observe the following pre-
cautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-

ing or parking in hot weather

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-repellent coating (if equipped)

The following precautions can extend the effectiveness of the water-repellent
coating.

●

Remove any dirt, etc. from the front side windows regularly.

●

Do not allow dirt and dust to accumulate on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.

●

Do not use wax or glass cleaners that contain abrasives when cleaning the
windows.

●

Do not use any metallic objects to remove condensation build up.

■

Plated portions

If dirt cannot be removed, clean the parts as follows:

●

Use  a  soft  cloth  dampened  with  an  approximately  5%  solution  of  neutral
detergent and water to clean the dirt off.

●

Wipe the surface with a dry, soft cloth to remove any remaining moisture.

●

To remove oily deposits, use alcohol wet wipes or a similar product.

498

PRIUS_OM_OM47E09U_(U)

6-1. Maintenance and care

WARNING

■

When washing the vehicle

Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.

■

When  cleaning  the  windshield  (vehicles  with  rain-sensing  windshield
wipers)

●

When a wet rag or similar is held close to the raindrop sensor

●

If something bumps against the windshield

●

If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor

■

Precautions regarding the exhaust pipe

Exhaust gasses cause the exhaust pipe to become quite hot.
When  washing  the  vehicle,  be  careful  not  to  touch  the  pipe  until  it  has
cooled sufficiently, as touching a hot exhaust pipe can cause burns.

■

Precaution  regarding  the  rear  bumper  with  Blind  Spot  Monitor  (if
equipped)

If the paint of the rear bumper is chipped or scratched, the system may mal-
function. If this occurs, consult your Toyota dealer.

Set the wiper switch to the off position.

If  the  wiper  switch  is  in  the

  posi-

tion,  the  wipers  may  operate  unexpect-
edly in the following situations, and may
result  in  hands  being  caught  or  other
serious injuries and cause damage to the
wiper blades.

●

When  the  upper  part  of  the  windshield
where the raindrop sensor is located is
touched by hand

Off

PRIUS_OM_OM47E09U_(U)

499

6-1. Maintenance and care

6

Mainten

ance an

d ca

re

NOTICE

■

To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)

●

Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the

paint surface

• After driving in an area contaminated with soot, oily smoke, mine dust,

iron powder or chemical substances

• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface

●

If the paint is chipped or scratched, have it repaired immediately.

●

To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.

■

To prevent damage to the windshield wiper arms

When  lifting  the  wiper  arms  away  from  the  windshield  pull  the  driver  side
wiper arm upward first, and repeat for the passenger’s side. When returning
the wipers to their original position, do so from the passenger’s side first.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.

●

Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.

500

PRIUS_OM_OM47E09U_(U)

6-1. Maintenance and care

NOTICE

■

Handling the decorative resin parts (for vehicles equipped with 17-

inch wheels)

●

Make  sure  to  observe  the  following  when  handling  wheels  equipped

with decorative resin parts. Failure to observe these precautions may

result in damage to the decorative resin parts or wheels.
• Do not remove the decorative resin parts

When decorative resin parts removal is necessary, contact your Toyota
dealer.

●

If there is rattling in the decorative resin parts, or strange sounds from

the wheel area when driving, have your wheels inspected at your Toy-

ota dealer.

■

When  using an  automatic car wash  (vehicles with  rain-sensing  wind-
shield wipers)

Set the wiper switch to the off position.

If the wiper switch is in the

 position, the wipers may operate and the

wiper blades may be damaged.

• Do not hold the tire by the decora-

tive resin parts to lift up or carry the

tire.

PRIUS_OM_OM47E09U_(U)

501

6-1. Maintenance and care

6

Mainten

ance an

d ca

re

NOTICE

■

When using a high pressure car wash

●

When washing the vehicle, do not let water of the high pressure washer hit
directly or the vicinity of the camera. Due to the shock from the high pres-
sure water, it is possible the device may not operate as normal.

●

Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover),  connectors  or  the  following  parts. The  parts  may  be  damaged  if
they come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

●

Keep the cleaning nozzle at least 11.9 in. (30 cm) away from the vehicle
body.  Otherwise  resin  section,  such  as  moldings  and  bumpers,  may  be
deformed and damaged. Also, do not continuously hold the nozzle in the
same place.

●

Do not spray the lower part of the windshield continuously.
If  water  enters  the air  conditioning system  intake located  near  the  lower
part  of  the  windshield,  the  air  conditioning  system  may  not  operate  cor-
rectly.

●

Do  not  wash  the  underside  of  the  vehicle  using  a  high  pressure  car
washer.

■

When raising the windshield wiper arms

Make  sure  to  hold the hook parts of  the
wiper arms to raise them.
Do not hold only  the wiper blades when
raising them, or it may cause deformation
of the wiper blades.

Hook parts

502

PRIUS_OM_OM47E09U_(U)

6-1. Maintenance and care

Cleaning and protecting the vehicle interior

●

Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.

●

If dirt cannot be removed, wipe it off with a soft cloth dampened with
neutral detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.

●

Remove dirt and dust using a vacuum cleaner.

●

Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approximately 5% neutral wool detergent.

●

Wring out any excess water from the cloth and thoroughly wipe off
all remaining traces of detergent.

●

Wipe  the  surface  with  a  dry,  soft  cloth  to  remove  any  remaining
moisture. Allow the leather to dry in a shaded and ventilated area.

●

Remove dirt and dust using a vacuum cleaner.

●

Wipe it off with a soft cloth dampened with neutral detergent diluted
to approximately 1%.

●

Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.

The following procedures will help protect your vehicle’s interior
and keep it in top condition:

Protecting the vehicle interior

Cleaning the leather areas

Cleaning the synthetic leather areas

PRIUS_OM_OM47E09U_(U)

503

6-1. Maintenance and care

6

Mainten

ance an

d ca

re

■

Caring for leather areas

Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.

■

Shampooing the carpets

There are several commercial foaming-type cleaners available. Use a sponge
or  brush  to  apply  the  foam.  Rub  in  overlapping  circles.  Do  not  use  water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.

■

Seat belts

Clean  with  mild  soap  and  lukewarm  water  using  a  cloth  or  sponge.  Also
check the belts periodically for excessive wear, fraying or cuts.

WARNING

■

Water in the vehicle

●

Do  not  splash  or  spill  liquid  in  the  vehicle,  such  as  on  the  floor,  in  the
hybrid  battery  (traction  battery)  air  intake  vent,  and  in  the  luggage  com-
partment.
Doing so may cause the hybrid battery (traction battery), electrical compo-
nents, etc. to malfunction or catch fire.

●

Do not get any of the SRS components or wiring in the vehicle interior wet.
(



P. 37)

An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.

●

Vehicles with wireless charger:
Do not let the wireless charger (



P. 477) get wet. Failure to do so may

cause the charger to become hot and cause burns or could cause electric
shock resulting in death or serious injury.

■

Cleaning the interior (especially instrument panel)

Do not use polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

504

PRIUS_OM_OM47E09U_(U)

6-1. Maintenance and care

NOTICE

■

Cleaning detergents

●

Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat  portions:  Organic  substances  such  as  benzene  or  gasoline,

alkaline or acidic solutions, dye, and bleach

• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-

hol

●

Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.

■

Preventing damage to leather surfaces

Observe the following precautions to avoid damage to and deterioration of
leather surfaces:

●

Remove any dust or dirt from leather surfaces immediately.

●

Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.

●

Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.

■

Water on the floor

Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.

■

When  cleaning  the  inside  of  the  windshield  (vehicles  with  Toyota
Safety Sense 2.0)

Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
(



P. 289).

■

Cleaning the inside of the rear window

●

Do  not  use  glass  cleaner  to  clean  the  rear  window,  as  this  may  cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.

●

Be careful not to scratch or damage the heater wires.

505

PRIUS_OM_OM47E09U_(U)

6-2. Maintenance

6

Mainten

ance an

d ca

re

Maintenance requirements

General maintenance should be performed on a daily basis. This can
be done by yourself or by a Toyota dealer.

Scheduled  maintenance  should  be  performed  at  specified  intervals
according to the maintenance schedule.

For details about maintenance items and schedules, refer to the “Sched-
uled Maintenance Guide” or “Owner’s Manual Supplement”.

You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect warranty
coverage.

The use of Toyota repair manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s War-
ranty Information Booklet” or “Owner’s Manual Supplement”.

To ensure safe and economical driving, day-to-day care and reg-
ular maintenance are essential. It is the owner’s responsibility to
perform regular checks. Toyota recommends the following main-
tenance:

General maintenance

Scheduled maintenance

Do-it-yourself maintenance

506

PRIUS_OM_OM47E09U_(U)

6-2. Maintenance

■

Repair and replacement

It is recommended that genuine Toyota parts be used for repairs to ensure
performance of each system. If non-Toyota parts are used in replacement or if
a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.

■

Resetting the message indicating maintenance is required (U.S.A. only)

After  the  required  maintenance  is  preformed  according  to  the  maintenance
schedule, please reset the message.
To reset the message, follow the procedures described below:

While the hybrid system is operating, switch the multi-information display to

the

 screen. (



P. 151)

Press

  or

  of  the  meter  control  switches,  select

  (“Vehicle

Settings”), and then press

.

Press

 or

 of the meter control switches, select “Maintenance Sys-

tem”, and then press

.

Press

 or

  of  the  meter  control  switches,  select  “Oil  Maintenance”,

and then press

.

Press

 or

 of the meter control switches, select “Yes”, and then press

.

■

Allow inspection and repairs to be performed by a Toyota dealer

●

Toyota technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the operation of
all systems on your vehicle.

●

Keep  a  copy  of  the  repair  order.  It  proves  that  the  maintenance  that  has
been  performed  is  under  warranty  coverage.  If  any  problem  should  arise
while your vehicle is under warranty, your Toyota dealer will promptly take
care of it.

A  message  will  be  displayed  when  the
reset procedure has been completed.

1

2

3

4

5

PRIUS_OM_OM47E09U_(U)

507

6-2. Maintenance

6

Mainten

ance an

d ca

re

WARNING

■

If your vehicle is not properly maintained

Improper  maintenance  could  result  in  serious  damage  to  the  vehicle  and
possible serious injury or death.

■

Handling of the 12-volt battery

●

Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause  cancer  and  birth  defects  and  other  reproductive  harm.  Work  in  a
well ventilated area.

●

Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia  to  cause  cancer  and  birth  defects  or  other  reproductive  harm. Avoid
exposure and wash any affected area immediately.

●

12-volt battery posts, terminals and related accessories contain lead and
lead  compounds  which  are  known  to  cause  brain  damage.  Wash  your
hands after handling. (



P. 524)

508

PRIUS_OM_OM47E09U_(U)

6-2. Maintenance

General maintenance

Listed below are the general maintenance items that should be
performed  at  the  intervals  specified  in  the  “Owner’s  Warranty
Information  Booklet”  or  “Owner’s  Manual  Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you  notice  should  be  brought  to  the  attention  of  your  Toyota
dealer or qualified service shop for advice.

Engine compartment

Items

Check points

12-volt battery

Check the connections.

 (



P. 524)

Brake fluid

Is the brake fluid at the correct level? (



P. 528)

Engine/power

control

unit coolant

Is  the  engine/power  control  unit  coolant  at  the
correct level?

(



P. 522)

Engine oil

Is the engine oil at the correct level? (



P. 519)

Exhaust system

There  should  not  be  any  fumes  or  strange
sounds.

Radiator/condenser

The radiator and condenser should be free from
foreign objects.

(



P. 524)

Washer fluid

Is there sufficient washer fluid?

(



P. 530)

PRIUS_OM_OM47E09U_(U)

509

6-2. Maintenance

6

Mainten

ance an

d ca

re

Vehicle interior

Items

Check points

Accelerator pedal

• The accelerator pedal should move smoothly

(without uneven pedal effort or catching).

Hybrid

transmission

“Park” mechanism

• When parked on a slope and the shift position

is in P, is the vehicle securely stopped?

Brake pedal

• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clear-

ance from the floor?

 (



P. 671)

• Does  the  brake  pedal  have  the  correct

amount of free play?

 (



P. 671)

Brakes

• The vehicle should not pull to one side when

the brakes are applied.

• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The  brake  pedal  should  not  get  too  close  to

the floor when the brakes are applied.

Head restraints

• Do  the  head  restraints  move  smoothly  and

lock securely?

Indicators/buzzers

• Do  the  indicators  and  buzzers  function  prop-

erly?

Lights

• Do all the lights come on?

Parking brake

• Does  the  parking  brake  pedal  move

smoothly?

• When  parked  on  a  slope  and  the  parking

brake is on, is the vehicle securely stopped?

Seat belts

• Do the seat belts operate smoothly?
• The seat belts should not be damaged.

Seats

• Do the seat controls operate properly?

Steering wheel

• Does the steering wheel rotate smoothly?
• Does  the  steering  wheel  have  the  correct

amount of free play?

• There should not be any strange sounds com-

ing from the steering wheel.

510

PRIUS_OM_OM47E09U_(U)

6-2. Maintenance

Vehicle exterior

Items

Check points

Doors

• Do the doors operate smoothly?

Engine hood

• Does the engine hood lock system work prop-

erly?

Fluid leaks

• There should not be any signs of fluid leakage

after the vehicle has been parked.

Tires

• Is the tire inflation pressure correct?

• The tires should not be damaged or exces-

sively worn.

• Have the tires been rotated according to the

maintenance schedule?

• The wheel nuts should not be loose.

Windshield wipers/
rear window wiper
(if equipped)

• The wiper blades should not show any signs

of  cracking,  splitting,  wear,  contamination  or
deformation.

• The wiper blades should clear the windshield/

rear window without streaking or skipping.

WARNING

■

If the hybrid system is operating

Turn  the  hybrid  system  off  and  ensure  that  there  is  adequate  ventilation
before performing maintenance checks.

511

PRIUS_OM_OM47E09U_(U)

6-2. Maintenance

6

Mainten

ance an

d ca

re

Emission inspection and maintenance (I/M)

programs

The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and
may need  to  be  repaired. Contact  your Toyota  dealer to  service  the
vehicle.

●

When the 12-volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also,  depending  on  your  driving  habits,  the  readiness  codes  may
not be completely set.

●

When the fuel tank cap is loose
The  malfunction  indicator  lamp  comes  on  indicating  a  temporary
malfunction and your vehicle may not pass the I/M test.

The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.

Contact your Toyota dealer to prepare the vehicle for re-testing.

Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of the emission control system.

If the malfunction indicator lamp comes on

Your vehicle may not pass the I/M test in the following situations:

When the malfunction indicator lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the I/M test

512

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

If  you  perform  maintenance  by  yourself,  be  sure  to  follow  the
correct procedure as given in these sections.

Items

Parts and tools

12-volt battery
condition
(



P. 524)

• Grease

• Conventional wrench (for terminal clamp bolts)

Brake fluid level
(



P. 528)

• SAE J1703 or FMVSS No.116 DOT 3 or SAE J1704

or FMVSS No.116 DOT 4 brake fluid

• Rag or paper towel
• Funnel (used only for adding brake fluid)

Engine/power
control  unit  cool-
ant level
(



P. 522)

• “Toyota  Super  Long  Life  Coolant”  or  a  similar  high

quality  ethylene  glycol-based  non-silicate,  non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology

For the U.S.A.:
“Toyota  Super  Long  Life  Coolant”  is  pre-mixed  with
50% coolant and 50% deionized water.

For Canada:
“Toyota  Super  Long  Life  Coolant”  is  pre-mixed  with
55% coolant and 45% deionized water.

• Funnel (used only for adding coolant)

Engine oil level
(



P. 519)

• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)

Fuses (



P. 563)

• Fuse with same amperage rating as original

Hybrid battery
(traction battery)
air intake vent
(



P. 551)

• Vacuum cleaner, etc.

• Phillips screwdriver

Light bulbs
(



P. 568)

• Bulb with same number and wattage rating as origi-

nal

• Phillips screwdriver
• Flathead screwdriver

• Wrench

Radiator and con-
denser (



P. 524)



PRIUS_OM_OM47E09U_(U)

513

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

Tire inflation

pressure

(



P. 542)

• Tire pressure gauge

• Compressed air source

Washer fluid
(



P. 530)

• Water or washer fluid containing antifreeze (for win-

ter use)

• Funnel (used only for adding water or washer fluid)

WARNING

The  engine  compartment  contains  many  mechanisms  and  fluids  that  may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.

■

When working on the engine compartment

●

Make sure that the “Accessory”, “Ignition ON” or mileage display
(



P. 116) on the main display and the “READY” indicator are both off.

●

Keep hands, clothing and tools away from the moving fan.

●

Be  careful  not  to  touch  the  engine,  power  control  unit,  radiator,  exhaust
manifold, etc.  right after driving as  they may  be hot. Oil and  other  fluids
may also be hot.

●

Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.

●

Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.

●

Be extremely cautious when working on the 12-volt battery. It contains poi-
sonous and corrosive sulfuric acid.

■

When working near the electric cooling fans or radiator grille

Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. (



P. 524)

■

Safety glasses

Wear  safety  glasses  to  prevent  flying  or  falling  material,  fluid  spray,  etc.
from getting in your eyes.

Items

Parts and tools

514

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

515

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

Hood

Pull the hood lock release lever.

The hood will pop up slightly.

Pull the auxiliary catch lever to
the left and lift the hood.

Hold the hood open by inserting
the supporting rod into the slot.

Release the lock from the inside of the vehicle to open the hood.

1

2

3

516

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

WARNING

■

Pre-driving check

Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

■

After installing the support rod into the slot

Make sure the rod supports the hood securely from falling down on to your
head or body.

■

When closing the hood

NOTICE

■

When closing the hood

Be sure to return the supporting rod to its clip before closing the hood. Clos-
ing  the  hood  without  returning  the  support  rod  properly  could  cause  the
hood to bend.

When  closing  the  hood,  take  extra  care
to  prevent  your  fingers  etc.  from  being
caught.

517

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

Positioning a floor jack

◆

Front

◆

Rear

2WD models
AWD models

When  using  a  floor  jack,  follow  the  instructions  in  the  manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly.  Improper  placement  may  damage  your  vehicle  or  cause
injury.

1

2

518

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

Engine compartment

Engine coolant reservoir

(



P. 522)

Fuse boxes

 (



P. 563)

Engine oil level dipstick

(



P. 519)

Engine oil filler cap (



P. 520)

Brake fluid reservoir

(



P. 528)

12-volt battery

(



P. 524)

Power control unit coolant
reservoir

 (



P. 522)

Radiator

(



P. 524)

Condenser

 (



P. 524)

Electric cooling fans
Washer fluid tank  (



P. 530)

1

2

3

4

5

6

7

8

9

10

11

PRIUS_OM_OM47E09U_(U)

519

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

Checking the engine oil

Park  the  vehicle  on  level  ground. After  warming  up  the  engine
and turning off the hybrid system, wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.

Low
Normal
Excessive

Wipe the dipstick and reinsert it fully.

Engine oil

1

2

3

4

5

1

2

3

6

520

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

■

Adding engine oil

If  the  oil  level  is  below  or  near
the low level mark, add engine
oil  of  the  same  type  as  that
already in the engine.

Make  sure  to  check  the  oil  type  and  prepare  the  items  needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following
situations,  oil  consumption  may  increase,  and  engine  oil  may  need  to  be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection



P. 668

Oil quantity (Low



 Full)

1.6 qt. (1.5 L, 1.3 Imp.qt.)

Items

Clean funnel

1

2

3

PRIUS_OM_OM47E09U_(U)

521

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

WARNING

■

Used engine oil

●

Used  engine  oil  contains  potentially  harmful  contaminants  which  may
cause  skin  disorders  such  as  inflammation  and  skin  cancer,  so  care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.  Call  your  Toyota  dealer,  service  station  or  auto  parts  store  for
information concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

To prevent serious engine damage

Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

522

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

The coolant level is satisfactory if it is between the “MAX” and “MIN”
lines on the reservoir when the hybrid system is cold.

■

Engine coolant reservoir

Reservoir cap
“MAX” line
“MIN” line

If  the  level  is  on  or  below  the
“MIN” line, add coolant up to the
“MAX” line. (



P. 656)

■

Power control unit coolant reservoir

Reservoir cap
“FULL” line
“LOW” line

If  the  level  is  on  or  below  the
“LOW”  line,  add  coolant  up  to
the “FULL” line. (



P. 658)

Coolant

1

2

3

1

2

3

PRIUS_OM_OM47E09U_(U)

523

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

■

Coolant selection

Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31



F [-35



C])

Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deion-
ized water. (Minimum temperature: -44



F [-42



C])

For more details about coolant, contact your Toyota dealer.

■

If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

WARNING

■

When the hybrid system is hot

Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to prevent it from damaging parts or paint.

524

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

Check the radiator and condenser and clear away any foreign objects.
If  either of  the  above parts  is  extremely  dirty  or you  are not  sure of
their condition, have your vehicle inspected by your Toyota dealer.

Check the 12-volt battery as follows:

■

12-volt battery exterior

Make sure that the 12-volt battery terminals are not corroded and
that there are no loose connections, cracks, or loose clamps.
Terminals

Radiator and condenser

WARNING

■

When the hybrid system is hot

Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

■

When the electric cooling fans are operating

Do not touch the engine compartment.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. Be sure the power switch is off when working near the electric cool-
ing fans or radiator grille.

12-volt battery

PRIUS_OM_OM47E09U_(U)

525

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

■

When opening the cover of the positive (+) battery terminal

■

Before recharging

When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable  and  explosive.  Therefore,  observe  the  following  precautions  before
recharging:

●

If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.

■

After recharging/reconnecting the 12-volt battery

●

Unlocking the doors using the smart key system may not be possible imme-
diately after reconnecting the 12-volt battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.

●

Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. However, the
hybrid system will operate normally from the second attempt.

●

The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to the status it
was in before the 12-volt battery was disconnected. Make sure to turn off
the power before disconnect the 12-volt battery. Take extra care when con-
necting  the  12-volt  battery  if  the  power  switch  mode  prior  to  discharge  is
unknown.

If the system will not start even after multiple attempts at all methods above,
contact your Toyota dealer.

While  pushing  the  portion  shown  in  the
illustration from both sides, lift the end of
the cover up.

526

PRIUS_OM_OM47E09U_(U)

6-3. Do-it-yourself maintenance

WARNING

■

Chemicals in the 12-volt battery

The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:

●

Do not cause sparks by touching the 12-volt battery terminals with tools.

●

Do not smoke or light a match near the 12-volt battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the 12-volt battery.

●

Keep children away from the 12-volt battery.

■

Where to safely charge the 12-volt battery

Always  charge  the  12-volt  battery  in  an  open  area.  Do  not  charge  the
12-volt battery in a garage or closed room where there is insufficient ventila-
tion.

■

How to recharge the 12-volt battery

Only perform a slow charge (5 A or less). The 12-volt battery may explode if
charged at a quicker rate.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

PRIUS_OM_OM47E09U_(U)

527

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

WARNING

■

When disconnecting the 12-volt battery

Do not disconnect the negative (-) terminal on the body side. The discon-
nected negative (-) terminal may touch the positive (+) terminal, which may
cause a short and result in death or serious injury.

NOTICE

■

When recharging the 12-volt battery

Never  recharge  the  12-volt  battery  while  the  hybrid  system  is  operating.
Also, be sure all accessories are turned off.
