5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window defogger
and outside rear view mirror
defoggers switch.

When the rear window defogger

and outside rear view mirror defog-
gers switch is on, the indicator illu-
minates on the rear window
defogger and outside rear view mir-
ror defoggers switch.
The defoggers will automatically
turn off after a while.

■

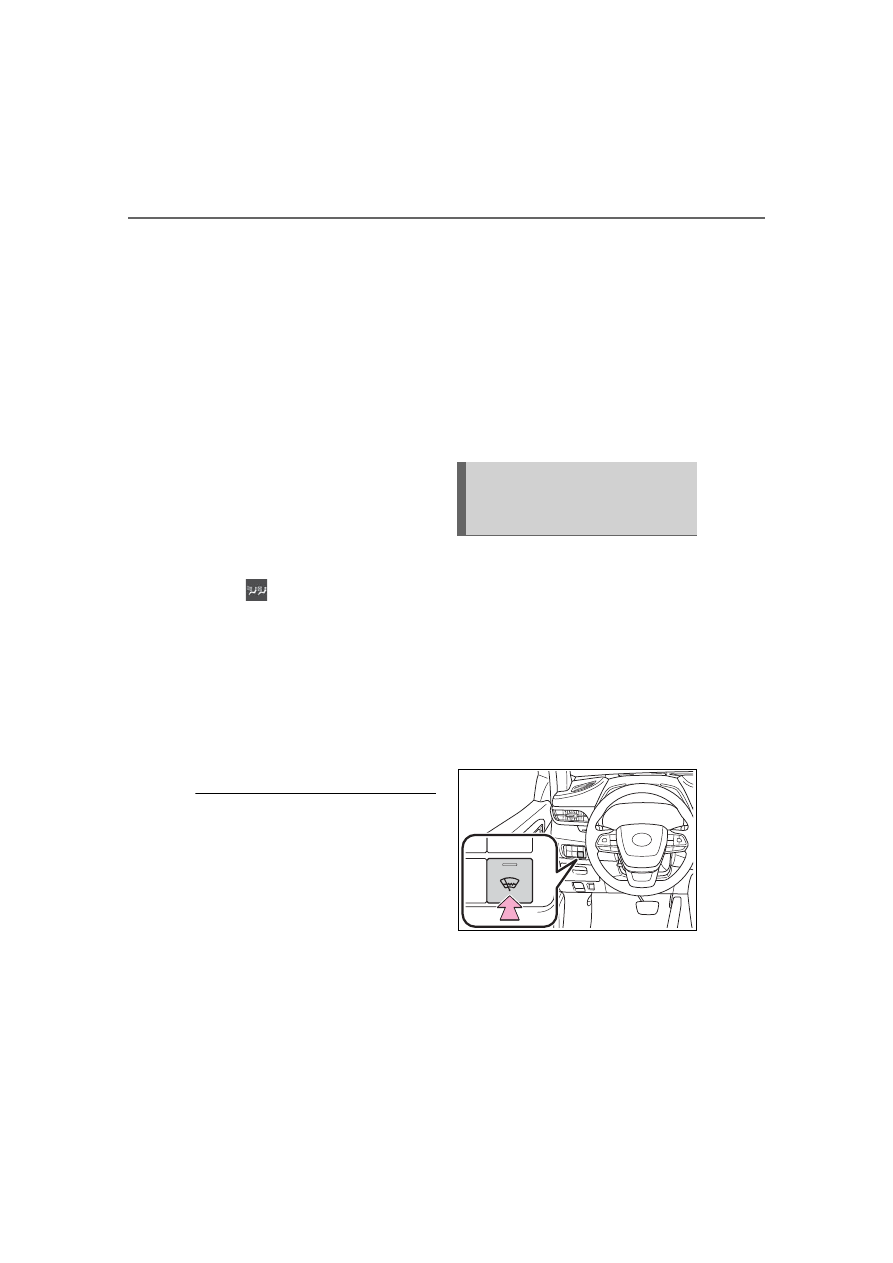

Windshield wiper de-icer

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the windshield wiper
de-icer switch.

When the windshield wiper de-icer
switch is on, the indicator illumi-
nates on the windshield wiper
de-icer switch.
The windshield wiper de-icer will
automatically turn off after a period
of time.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally. This may also reduce fuel

consumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” on will dehu-

midify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows

may fog up more easily.

345

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.322)

■

When the outside temperature

is low

The dehumidification function may

not operate even when the “A/C”

switch is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.439

■

Air conditioning system refrig-

erant

●

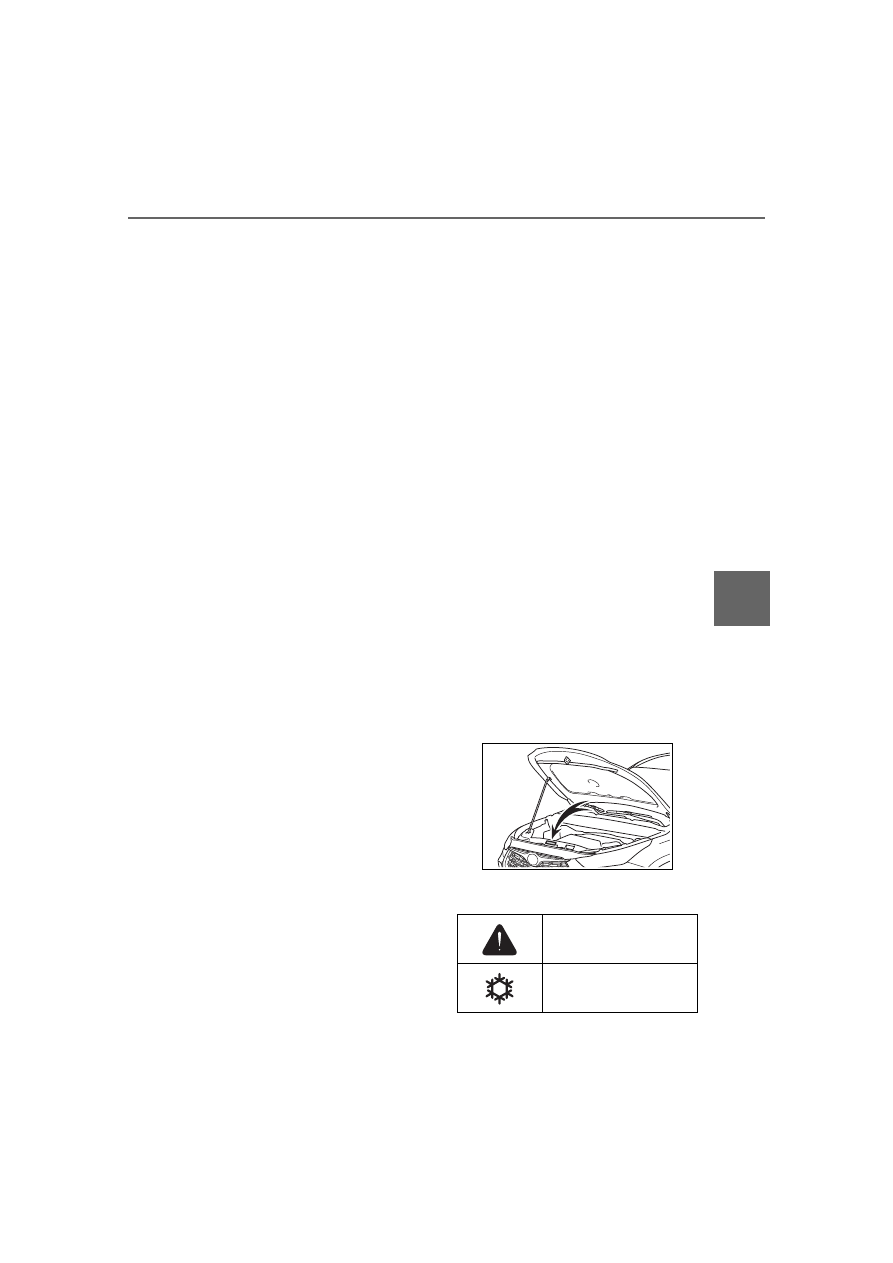

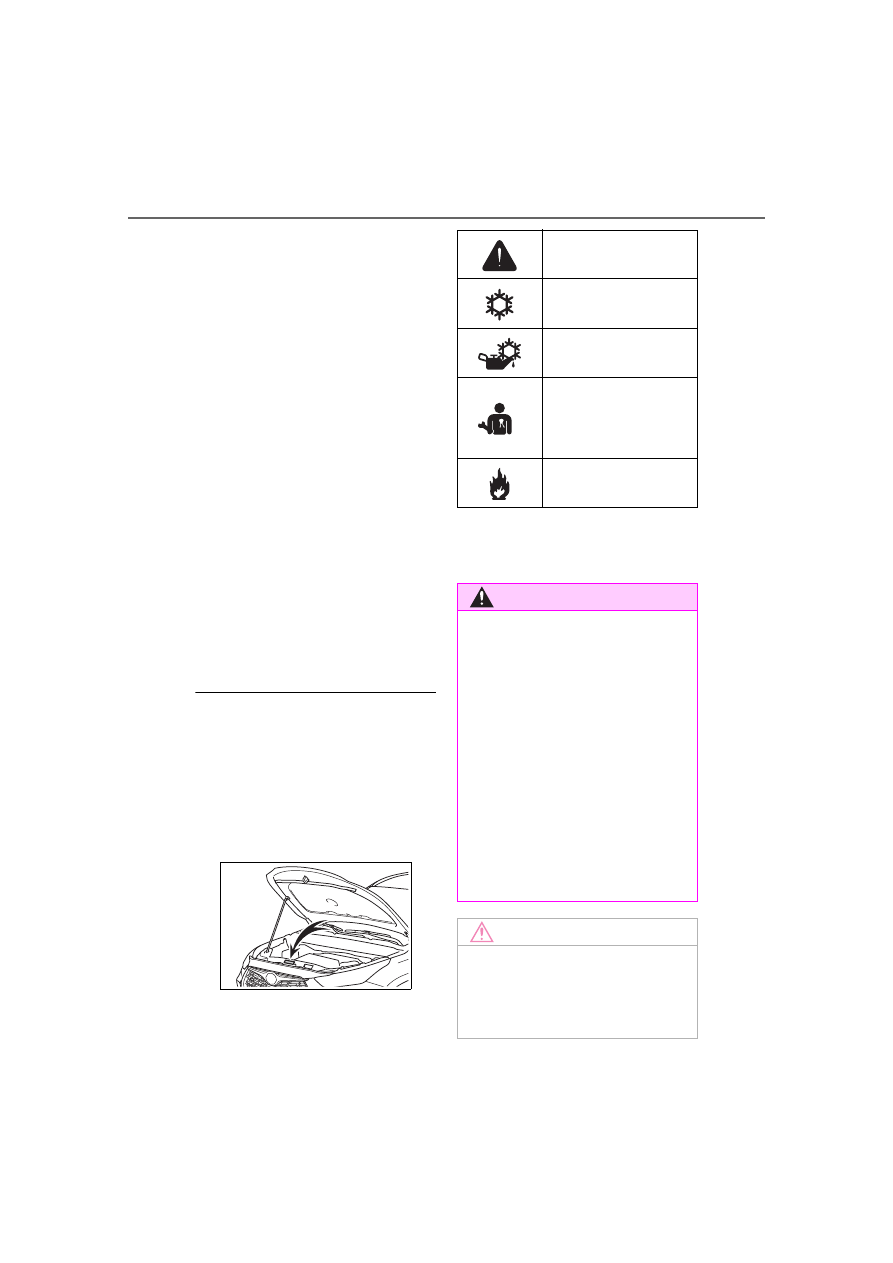

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

Caution

Air conditioning sys-
tem

346

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

■

Customization

Some functions can be customized.

(



P.530)

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

■

When the windshield wiper

de-icer is operating

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper de-icer is on.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

347

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

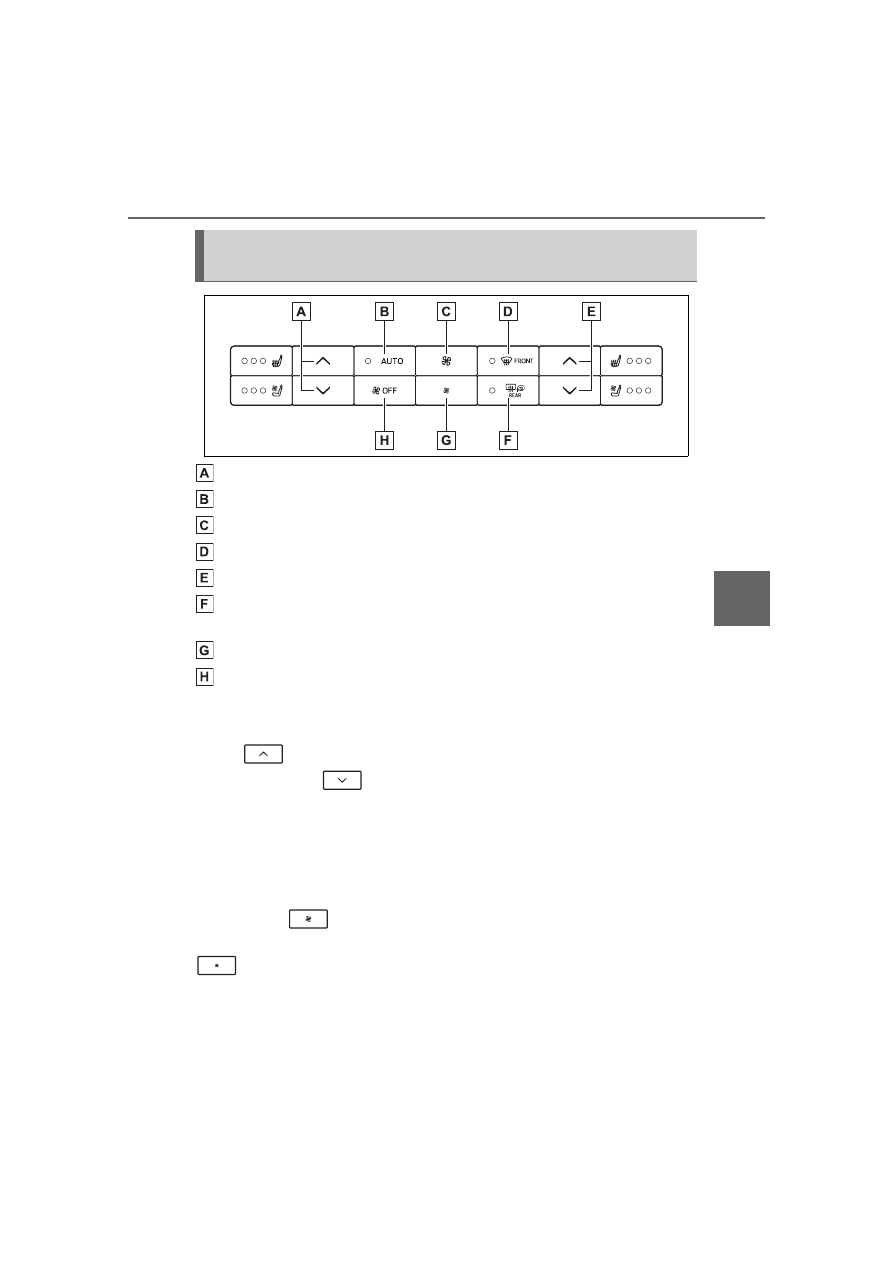

Left-hand side temperature control switch
Automatic mode switch (



P.351)

Fan speed increase switch
Windshield defogger switch
Right-hand side temperature control switch
Rear window defogger and outside rear view mirror defoggers
switch
Fan speed decrease switch
“OFF” switch

■

Adjusting the temperature
setting

Press

 to increase the

temperature and

 to

decrease the temperature.

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

■

Setting the fan speed

Operate the

 switch to

increase the fan speed and the

 switch to decrease the

fan speed.

Pressing the “OFF” switch to turns
off the fan.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.

Air conditioning controls (vehicle with a 12.3-inch dis-
play)

348

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window defogger
and outside rear view mirror
defoggers switch.

When the rear window defogger
and outside rear view mirror defog-
gers switch is on, the indicator illu-
minates on the rear window
defogger and outside rear view mir-
ror defoggers switch.
The defoggers will automatically
turn off after a while.

■

Air conditioning filter



P.439

■

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Customization

Some functions can be customized.

(



P.530)

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

349

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

■

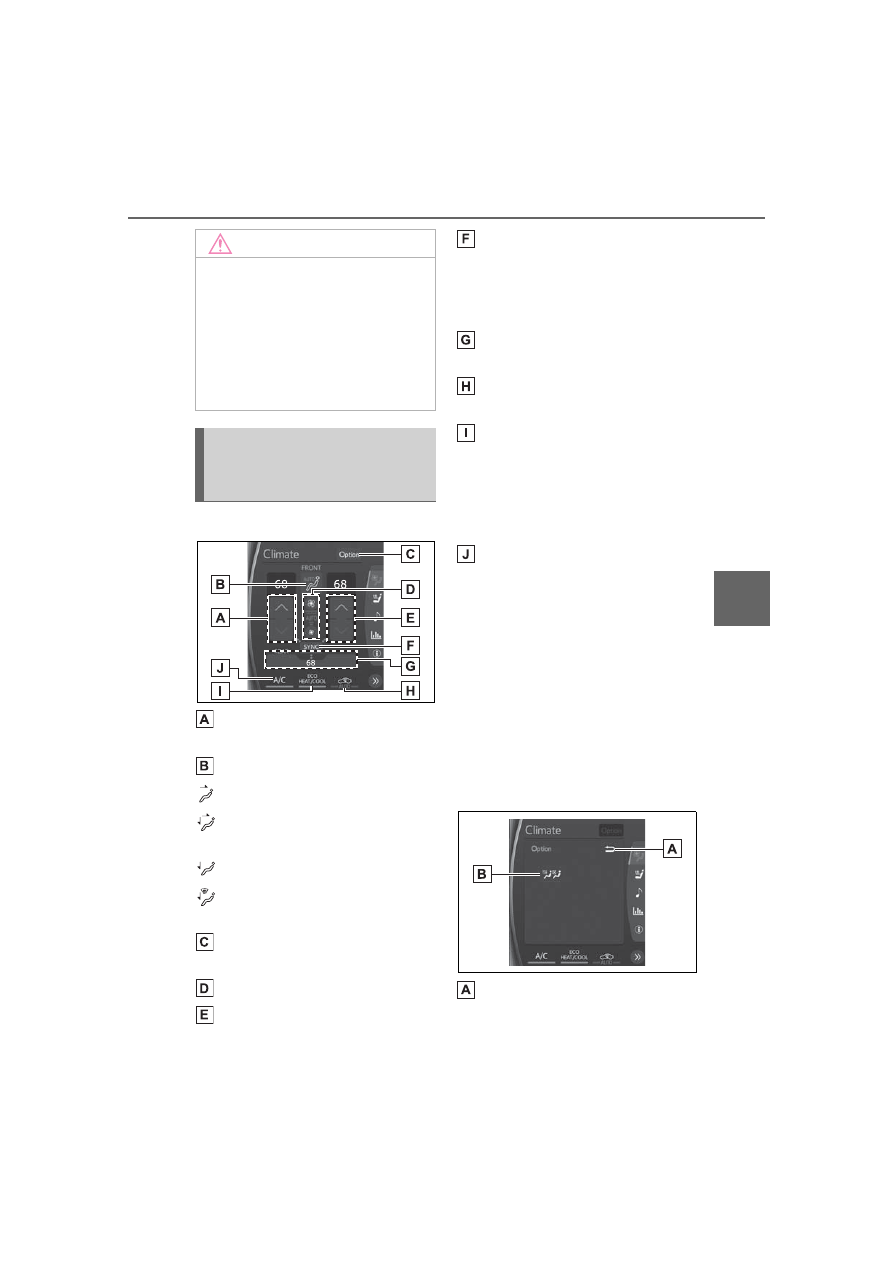

Main control screen

Adjust the left side seat tem-
perature setting
Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and

feet

: Air flows to the feet

: Air flows to the feet and the

windshield defogger operates

Display the option control
screen.
Adjust the fan speed setting
Adjust the right side seat
temperature setting

“SYNC” switch

If the indicator on the “SYNC”
switch is off, the temperature for the
driver, passenger and rear seats
can be adjusted separately.

Display the rear air condition-
ing control screen (



P.356)

Select the outside air and
recirculated air modes
Set eco air conditioning
mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan speed,
etc.

Set cooling and dehumidifi-
cation function

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

■

Option control screen

Select “Option” to display the
option control screen.

The functions can be switched on
and off.
When the function is on, the indica-
tor illuminates on the screen.

Select to display the previous
screen.

NOTICE

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

Front air conditioning
control screen (vehicle
with a 12.3-inch display)

350

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

Select front seat concen-
trated airflow mode
(S-FLOW) (



P.351)

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally. This may also reduce fuel

consumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” on will dehu-

midify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows

may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

Eco air conditioning mode

When Eco drive mode is selected

using the driving mode select

switch, eco air conditioning mode

turns on.
When a drive mode other than Eco

drive mode is selected, eco air con-

ditioning mode may turn off.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.322)

• Turn off Eco air conditioning mode

●

When the driving mode is set to

Eco driving mode, the air condi-

tioning eco mode will be turned on

automatically. Even in this case,

the air conditioning eco mode can

be turned off by pressing the Eco

air conditioning mode switch.

■

When the outside temperature

is low

The dehumidification function may

not operate even when “A/C” is

pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

351

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

1

Press the automatic mode
switch.

The dehumidification function

begins to operate. Air outlets and

fan speed are automatically

adjusted according to the tempera-

ture setting and humidity.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seats. When the front pas-
senger seat is not occupied, air-
flow may switch to only the
driver’s seat. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected

Using automatic mode

NOTICE

■

Humidity sensor

In order to detect fog on the wind-

shield, a sensor which monitors

the temperature of the windshield,

the surround humidity, etc. is

installed.
Follow these points to avoid dam-

aging the sensor:

●

Do not disassemble the sensor

●

Do not spray glass cleaner on

the sensor or subject it to strong

impacts

●

Do not stick anything on the

sensor

Front seat concentrated
airflow mode (S-FLOW)

352

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

in the rear seats



The windshield defogger is
not operating

While operating, the indicator illumi-
nates on the S-FLOW mode switch.

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to all
seats can be switched via switch
operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Select

 on the option control

screen or press the S-FLOW
mode switch on the air condi-
tioning operation panel and
switch the airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to all the
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the hybrid system is

started and at other times depend-

ing on the outside temperature.

●

After the hybrid system is started,

if passengers move around inside

or enter/exit the vehicle, the sys-

tem cannot accurately detect the

presence of passengers and auto-

matic airflow control will not oper-

ate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

■

To return to automatic airflow

control

1

With the indicator off, turn the

power switch off.

2

After 60 minutes or more elapse,

turn the power switch to ON.

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the switch to turn the sys-
tem on/off.
The indicator comes on when
the system is on.

The windshield wiper de-icer will
automatically turn off after a period
of time.

Windshield wiper de-icer
(vehicle with a 12.3-inch
display)

353

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

■

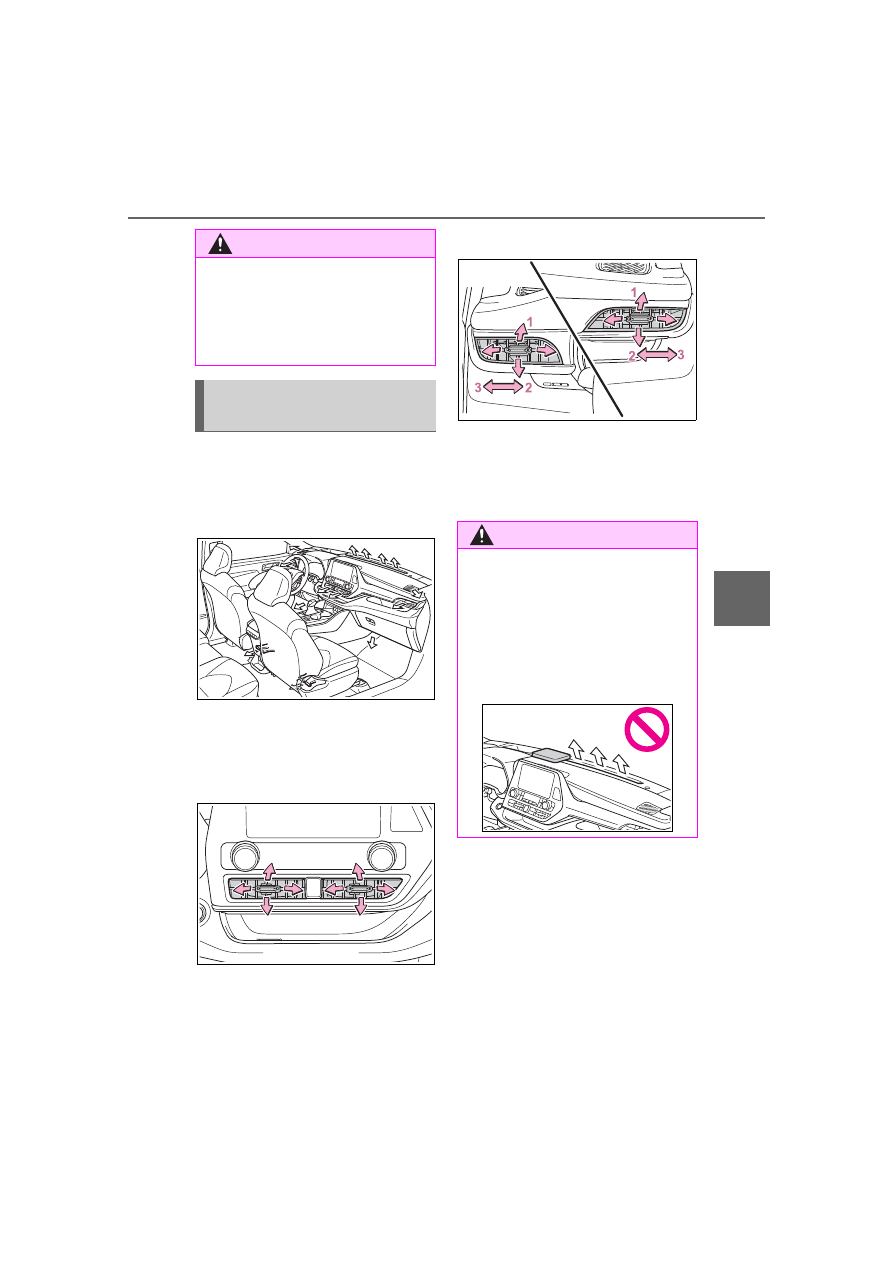

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front center outlets

Direct air flow to the left or right, up
or down



Front side outlets

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

WARNING

■

When the windshield wiper

de-icer is operating

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper deicer is on.

Air outlet layout and oper-
ations

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

354

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

■

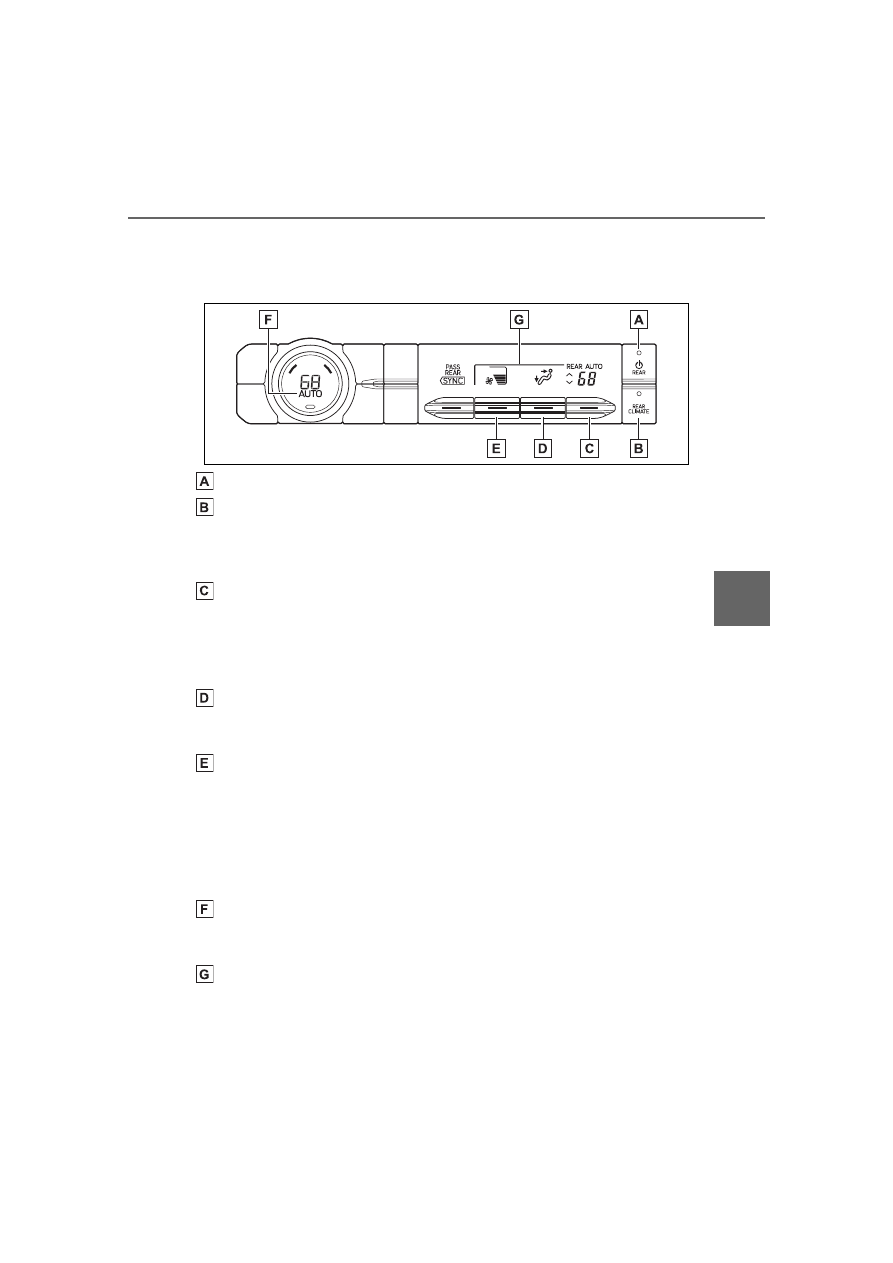

Rear air conditioning control panel

Adjust the rear seats fan speed setting

Press

 to increase the fan speed and

 to decrease the fan

speed.

“OFF” switch

Pressing the “OFF” switch to turns off the fan.

Air flow mode control switch
Automatic mode switch

When the function is on, the indicator illuminates on the control screen.

Adjust the rear seats temperature setting

Press

 to increase the temperature and

 to decrease the tem-

Rear automatic air conditioning system

The air outlets and fan speed are automatically adjusted
according to the temperature setting.

Vehicles with a 8-inch display: The rear air conditioning sys-
tem can be operated using the front air conditioning control
panel and rear air conditioning control panel. Press the
“REAR CLIMATE” switch on the front air condiotioning con-
trol panel to change the rear air conditioning control mode.

Vehicles with a 12.3-inch display: The rear air conditioning
system can be operated using the toyota multi-operation
touch and rear air conditioning control panel. Select “REAR”
on the front air condiotioning control screen to display the
rear air conditioning control screen.

Rear air conditioning control operation

355

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

perature.

■

Front air conditioning control panel (vehicle with a 8-inch dis-
play)

Rear air conditioning system on/off switch
“REAR CLIMATE” switch

The mode switches between the rear air conditioning control mode and
front air conditioning control mode each time the “REAR CLIMATE” switch
is pressed.

Rear seat temperature contorl knob

To set temperature, move the rear seat temperature control knob upward or
downward.
Upward: Increases the temperature
Downward: Decreases the temperature

Airflow mode control knob

The airflow mode control knob can be operated while the rear air condition-
ing control indicator is appeared.

Adjust the rear seats fan speed setting

Rear seats fan speed setting can be adjusted while the rear air conditioning
control indicator is appeared.
To set the fan speed, move the fan speed control knob upward or down-
ward.
Upward: Increases the fan speed
Downward: Decreases the fan speed

Automatic mode switch (



P.357)

The automatic mode switch can be operated when the rear air conditioning
control indicator is displayed.

Rear air conditioning control indicator

When the “REAR CLIMATE” switch is pressed, the rear air conditioning
control indicator is displayed for several seconds.

356

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

■

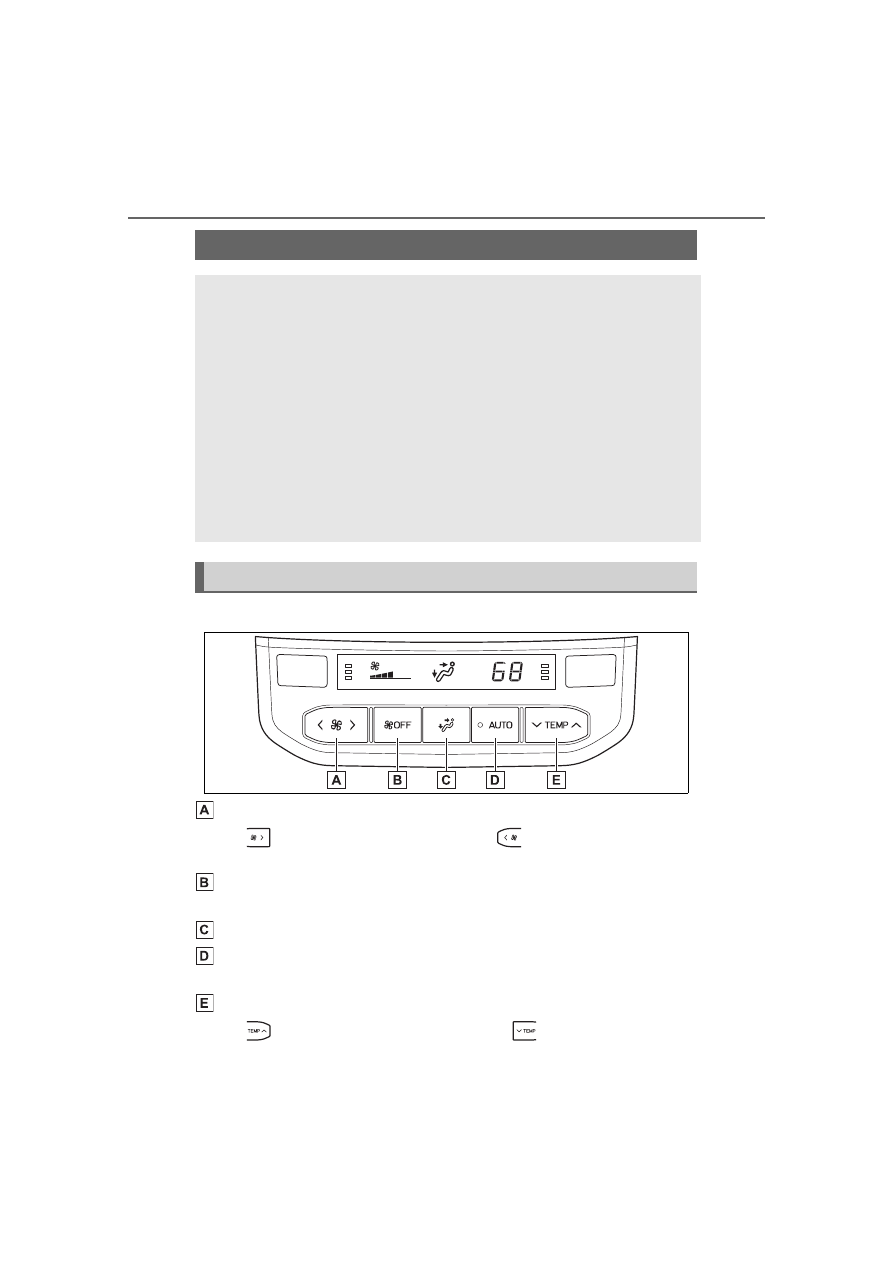

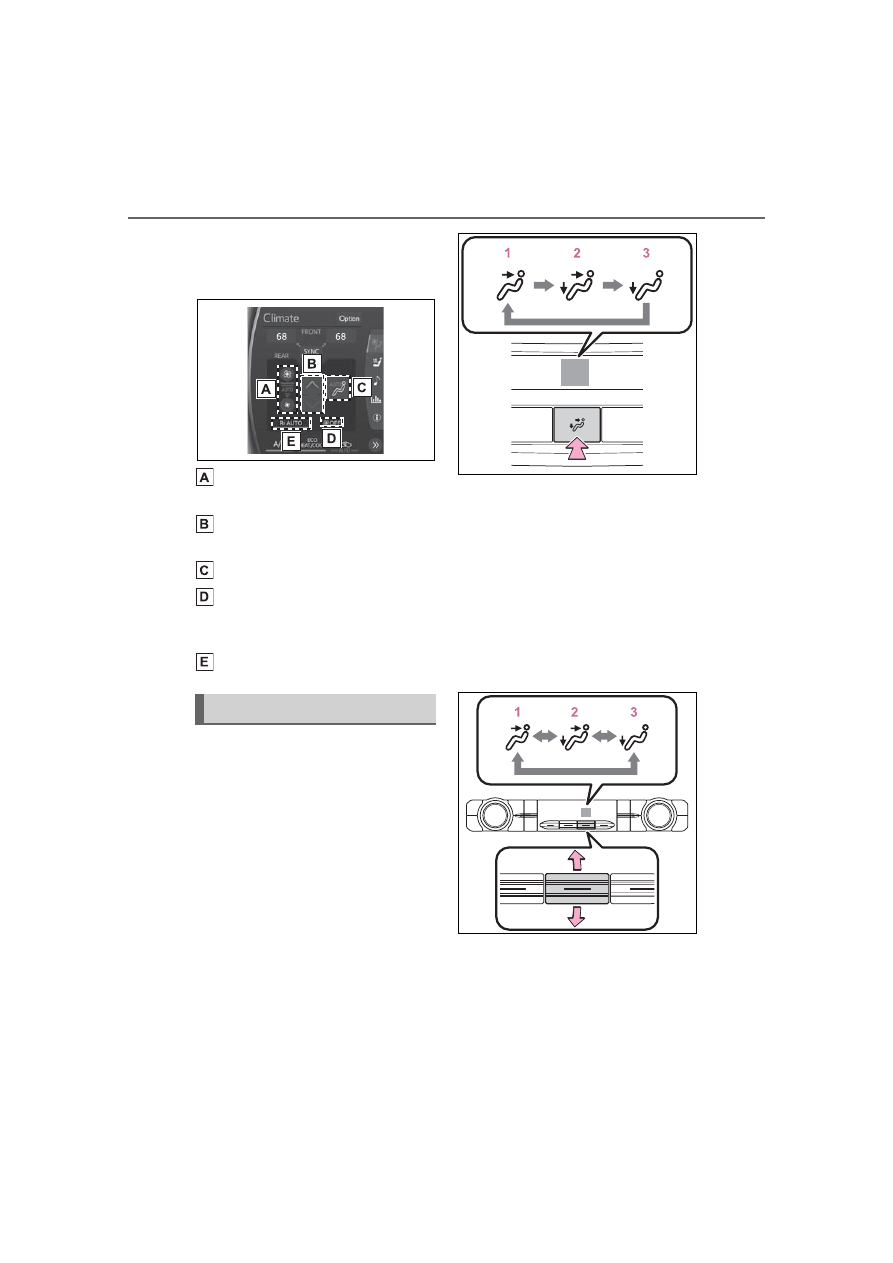

Rear air conditioning con-
trol screen (vehicle with a
12.3-inch display)

Adjust the rear seats fan
speed setting
Adjust the rear seats tem-
perature setting
Air flow mode control switch
“OFF” switch

Pressing the “OFF” switch to turns
off the fan.

Automatic mode switch

■

Rear air conditioning con-
trol panel

To change the airflow mode,
press the airflow mode control
switch.

The air outlets used are switched
each time the switch is pressed.

1

Upper body

2

Upper body and feet

3

Feet

■

Front air conditioning con-
trol panel (vehicle with a
8-inch display)

To change the airflow mode,
move the airflow mode control
knob upward or downward.

1

Upper body

2

Upper body and feet

3

Feet

Change the airflow mode

357

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

■

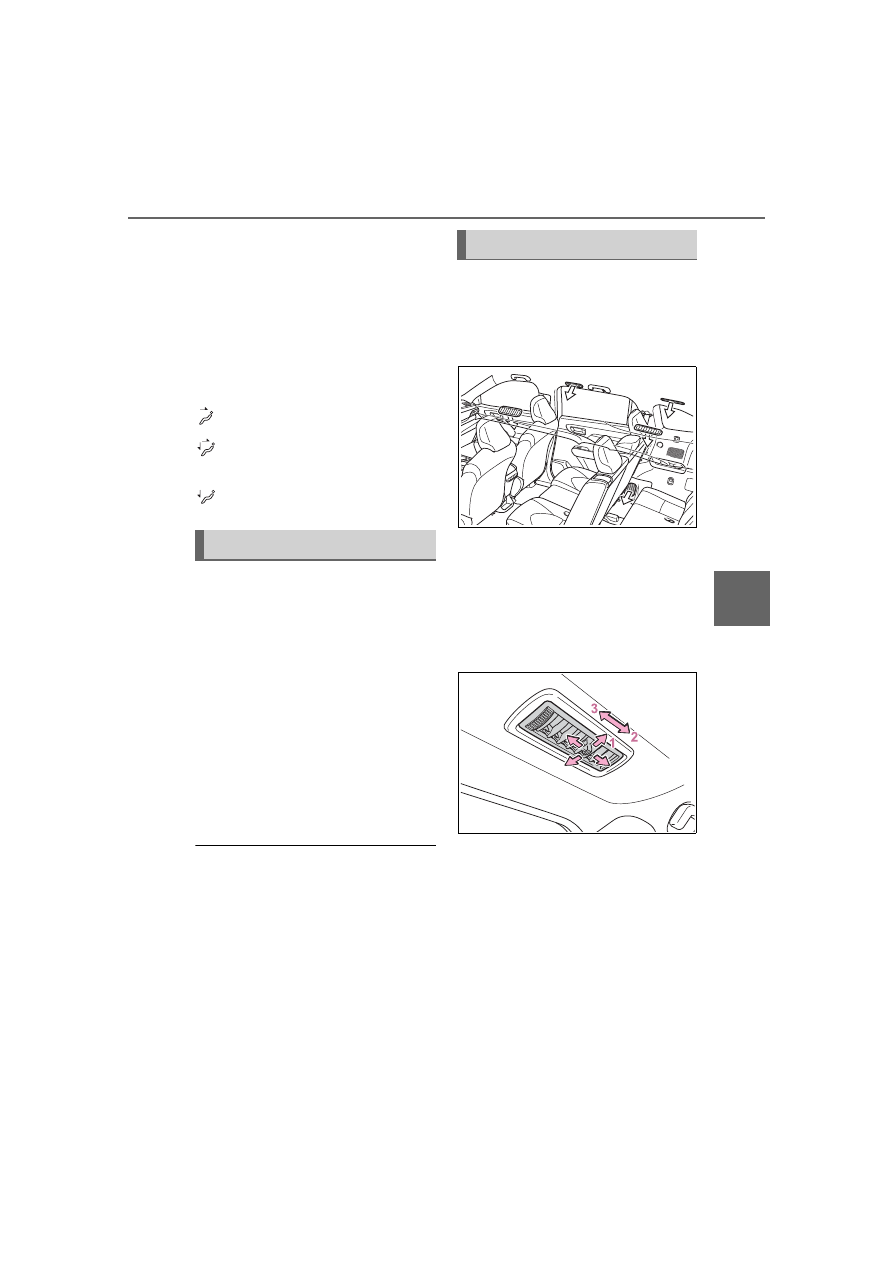

Rear air conditioning con-
trol screen (vehicle with a
12.3-inch display)

To change the airflow mode,
select the airflow mode control
switch.

The air outlets used are switched
each time the switch is selected.

: Air flows to the upper body

: Air flows to the upper body and

feet

: Air flows to the feet

1

Press the automatic mode
switch.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

■

Location of air outlets

The air outlets and air volume
changes according to the
selected air flow mode.

■

Adjusting the position of
and opening and closing
the air outlets

Adjusting the position of and
opening and closing the air out-
lets

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

Using automatic mode

Air outlets

358

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

*

: If equipped

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

Heated steering

wheel

*

/seat heat-

ers

*

/seat ventilators

*



Heated steering wheel

Warms up the grip of the
steering wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good ventilation
using a fan built into the seat

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

359

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

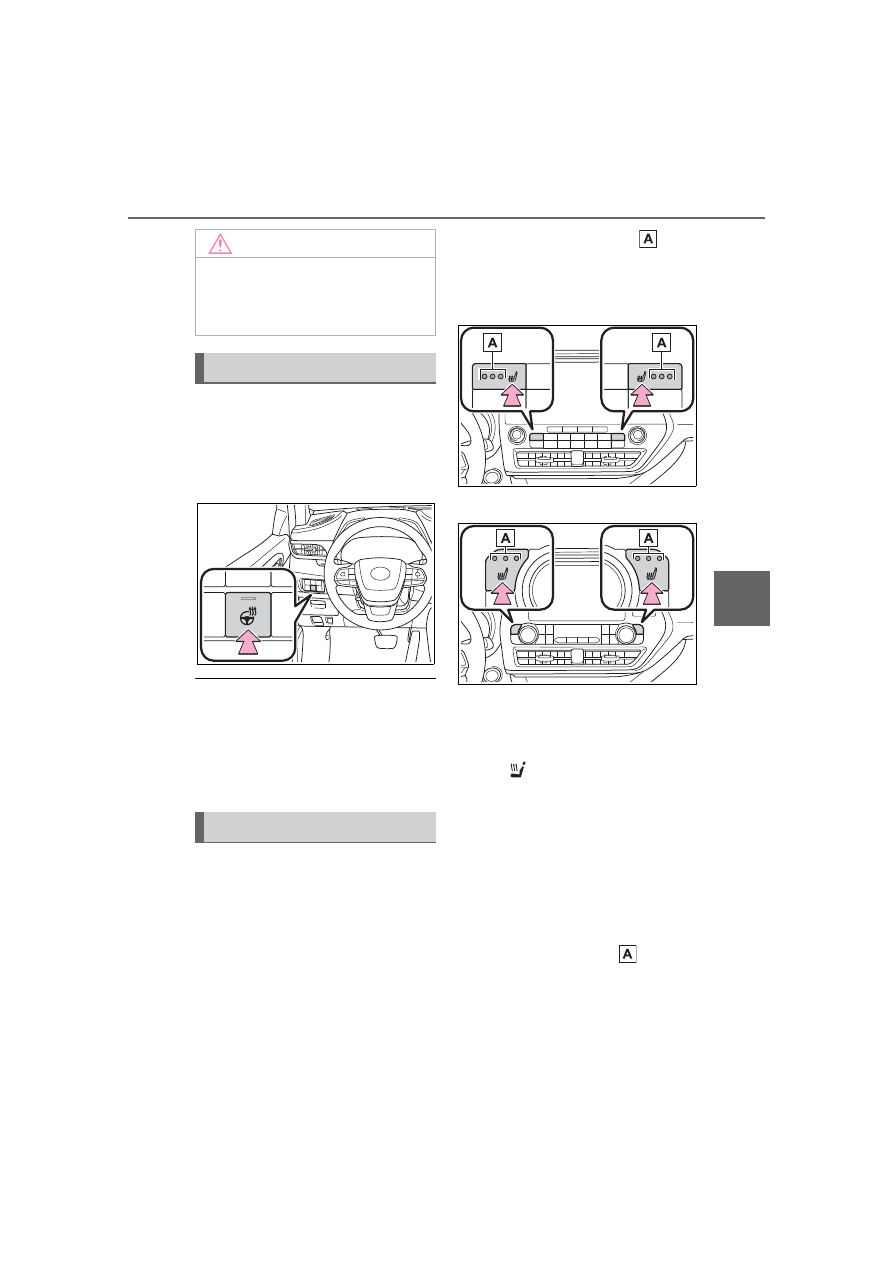

Turns the heated steering wheel
on/off

The indicator light comes on when
the heated steering wheel is oper-
ating.

■

Operation condition

The power switch is in ON.

■

Timer function

The heated steering wheel will auto-

matically turn off after a period of

time.

■

Front (Front air condition-
ing control panel)

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (amber)



lights up during operation.



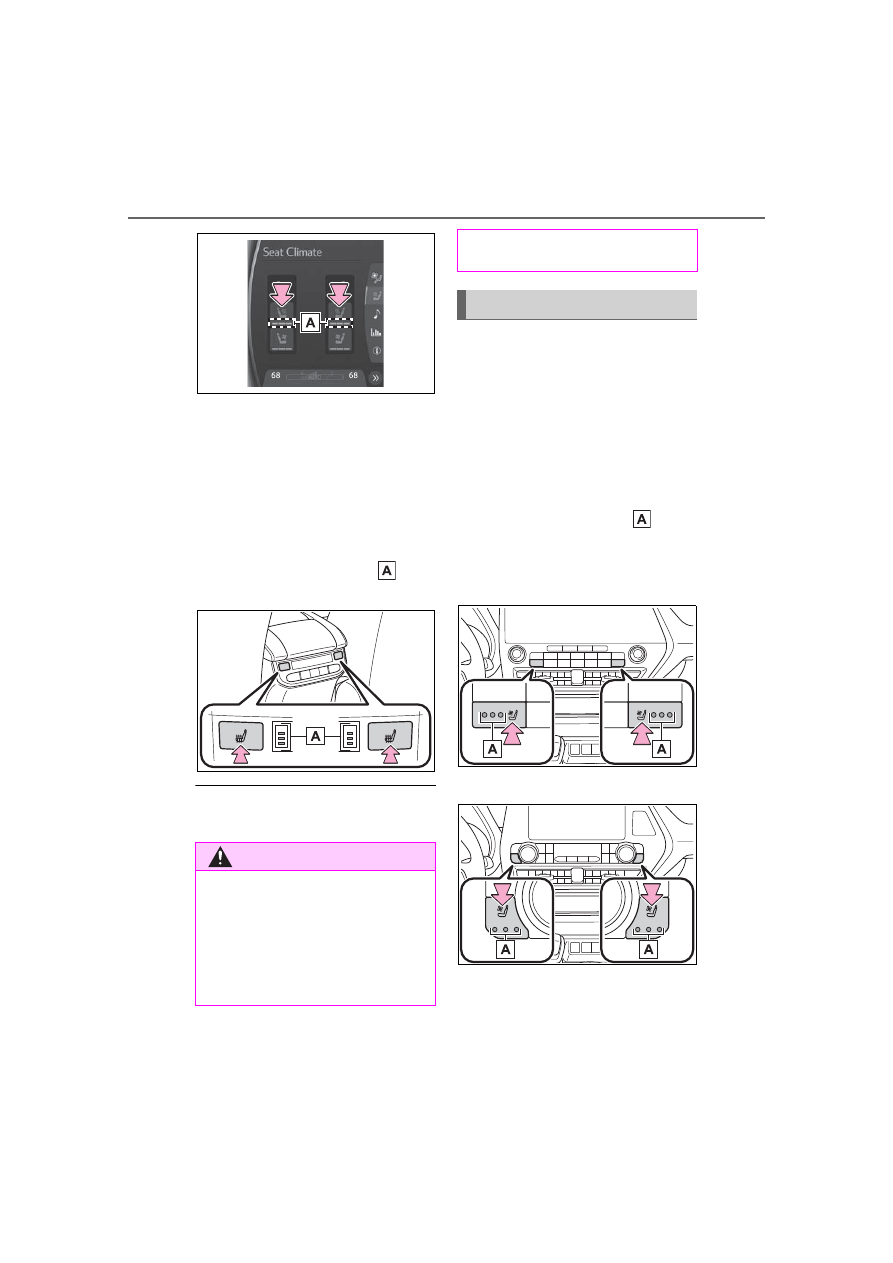

Vehicle with a 12.3-inch dis-
play



Vehicle with a 8-inch display

■

Front (Toyota multi-opera-
tion touch: Vehicle with a
12.3-inch display)

Select

 to display the seats

climate screen.
Each time the switch is selected,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (red)

 lights

up during operation.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not use the functions when the

hybrid system is off.

Heated steering wheel

Seat heaters

360

5-2. Using the air conditioning system and defogger

HIGHLANDER HV_U

■

Rear

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (amber)



lights up during operation.

■

Operation condition

The power switch is in ON.

■

Front air condioning con-
trol panel

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (green)

 lights

up during operation.



Vehicle with a 12.3-inch dis-
play



Vehicle with a 8-inch display

WARNING

■

To prevent overheating and

minor burn injuries

Observe the following precautions

when using the seat heaters.

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

Seat ventilators

361

5-2. Using the air conditioning system and defogger

5

Interior

 featur

es

HIGHLANDER HV_U

■

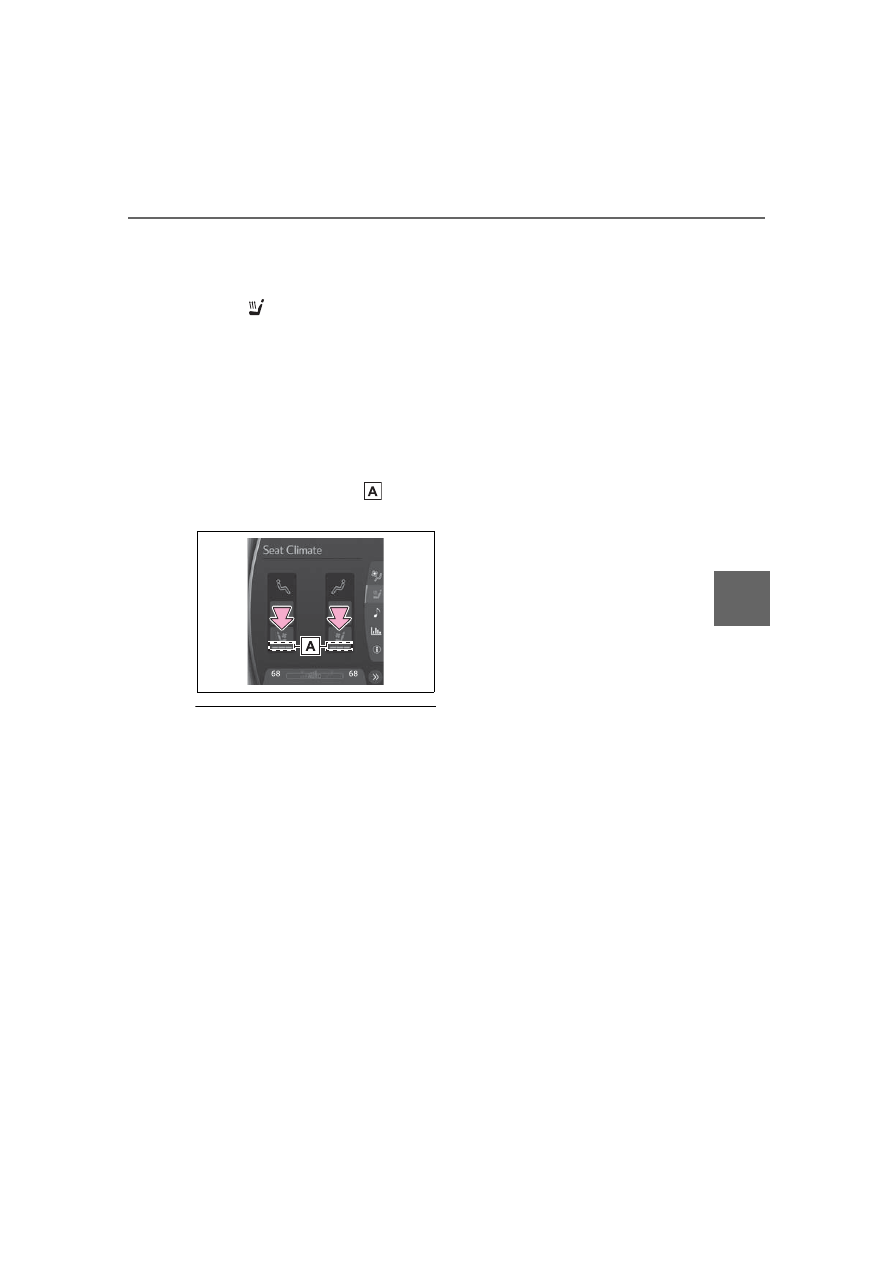

Toyota multi-operation
touch (Vehicle with a
12.3-inch display)

Select

 to display the seat cli-

mate screen.
Each time the switch is selected,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (blue)

 lights

up during operation.

■

Operation condition

The power switch is in ON.

362

5-3. Using the interior lights

HIGHLANDER HV_U

5-3.Using the interior lights

Front personal lights (



P.363)

Front interior lights (



P.363)

Shift lever light
Open tray lights (if equipped)
Door courtesy lights
Ambient lights (if equipped)
Rear personal lights (if equipped) (



P.363)

Rear personal lights (if equipped) (



P.363)

Rear interior light (



P.363)

Outer foot lights (if equipped)

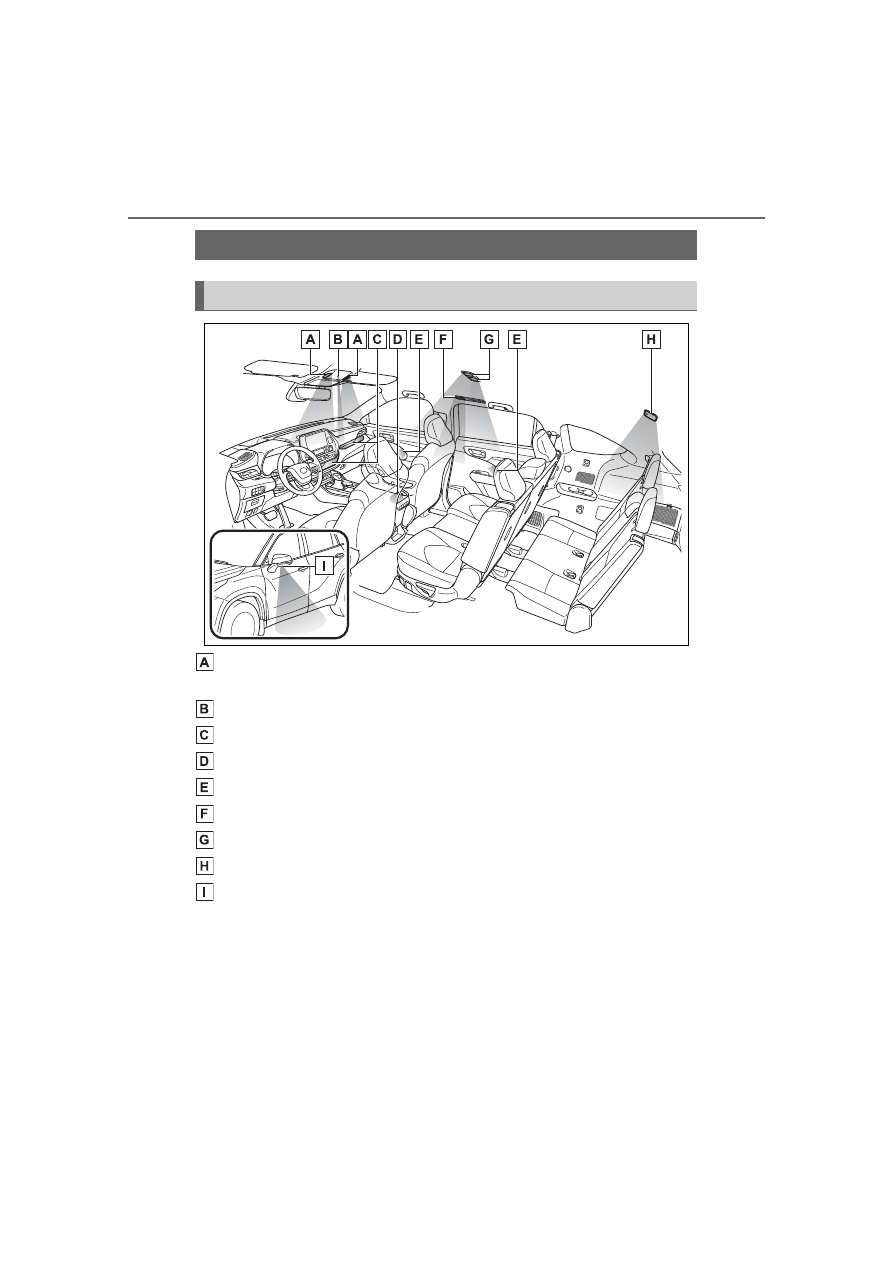

Interior lights list

Location of the interior lights

363

5-3. Using the interior lights

5

Interior

 featur

es

HIGHLANDER HV_U

■

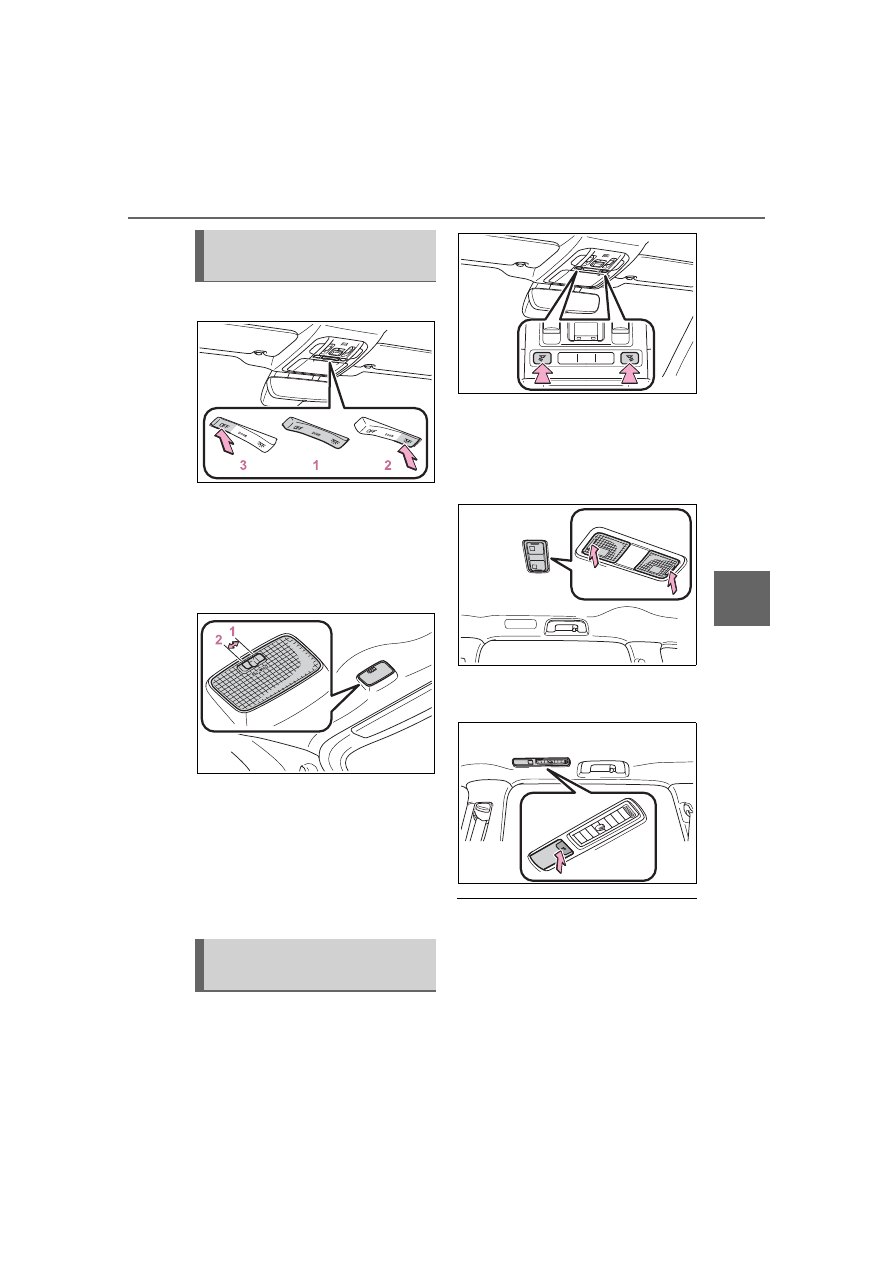

Front interior lights

1

Turns the lights on/off linked
to door positions

2

Turns the lights on

3

Turns the lights off

■

Rear interior lights

1

Turns the door position on

The rear interior light turns on/off
together the front interior lights.
When a door is opened while the
front and rear interior light door
position is on, the lights turn on.

2

Turns the light on

■

Front personal lights

Turns the lights on/off

■

Rear personal lights

Turns the lights on/off



Vehicles without panoramic
moon roof



Vehicles with panoramic
moon roof

■

Illuminated entry system

The lights automatically turn on/off

according to the power switch

mode, the presence of the elec-

tronic key, whether the doors are

locked/unlocked, and whether the

doors are opened/closed.

Operating the interior
lights

Operating the personal
lights

364

5-3. Using the interior lights

HIGHLANDER HV_U

■

To prevent the 12-volt battery

from being discharged

If the interior lights remain on when

the power switch is turned off, the

lights will go off automatically after

20 minutes.

■

The interior lights may turn on

automatically when

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the interior lights will

turn on automatically.
The interior lights will turn off auto-

matically after approximately 20

minutes.
The interior lights can be turned off

manually. However, in order to help

prevent further collisions, it is rec-

ommended that they be left on until

safety can be ensured.
(The interior lights may not turn on

automatically depending on the

force of the impact and conditions of

the collision.)

■

Customization

Some functions can be customized.

(



P.530)

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the hybrid

system is off.

365

5-4. Using the storage features

5

Interior

 featur

es

HIGHLANDER HV_U

5-4.Using the storage features

Auxiliary boxes (



P.368)

Open tray (if equipped) (



P.368)

Glove box (



P.366)

Bottle holders (



P.367)

Cup holders (



P.367)

Console box (



P.366)

List of storage features

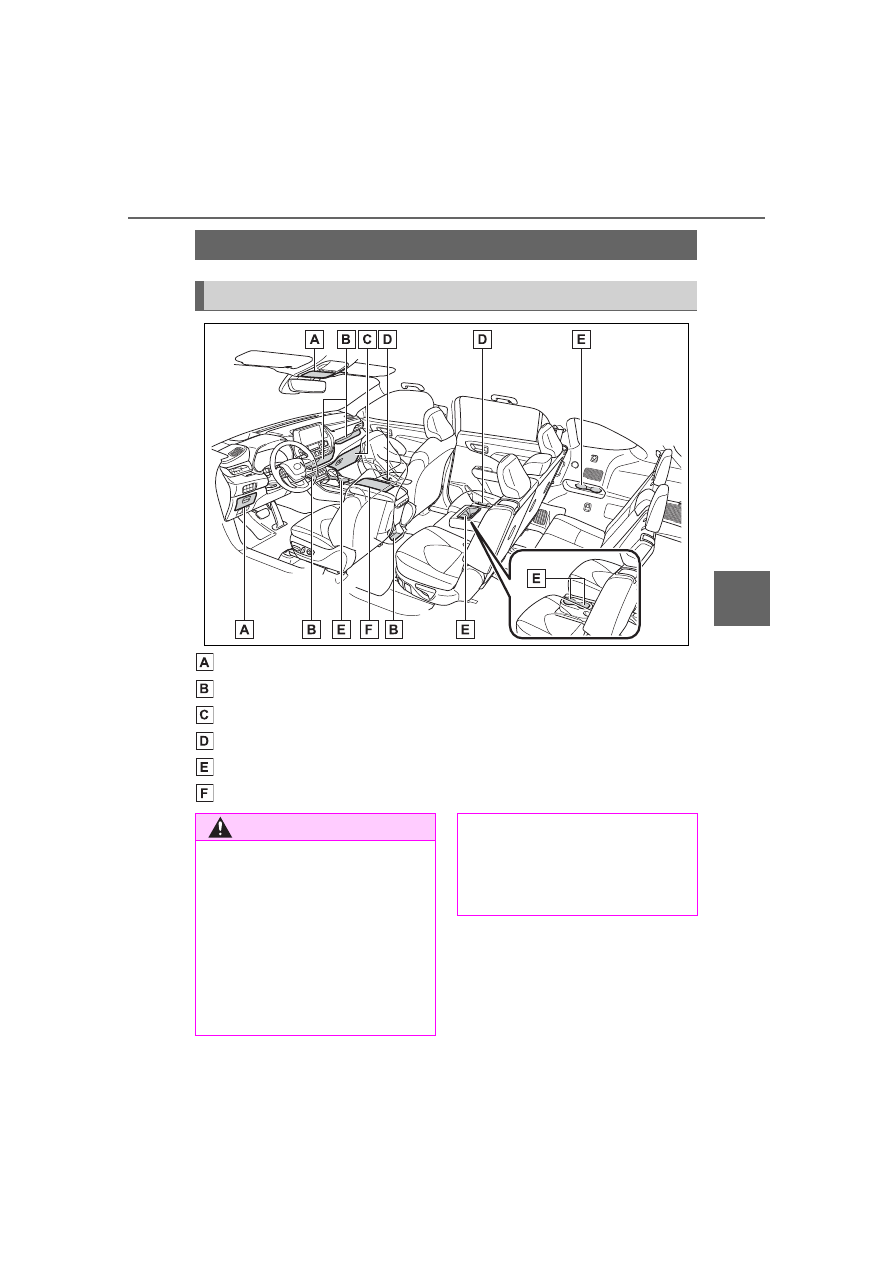

Location of the storage features

WARNING

■

Items that should not be left

in the storage spaces

Do not leave glasses, lighters or

spray cans in the storage spaces,

as this may cause the following

when cabin temperature becomes

high:

●

Glasses may be deformed by

heat or cracked if they come

into contact with other stored

items.

●

Lighters or spray cans may

explode. If they come into con-

tact with other stored items, the

lighter may catch fire or the

spray can may release gas,

causing a fire hazard.

366

5-4. Using the storage features

HIGHLANDER HV_U

1

Unlock with the mechanical
key

2

Lock with the mechanical key

3

Open (pull lever)

■

Glove box light

The glove box light turns on when

the tail lights are on.

1

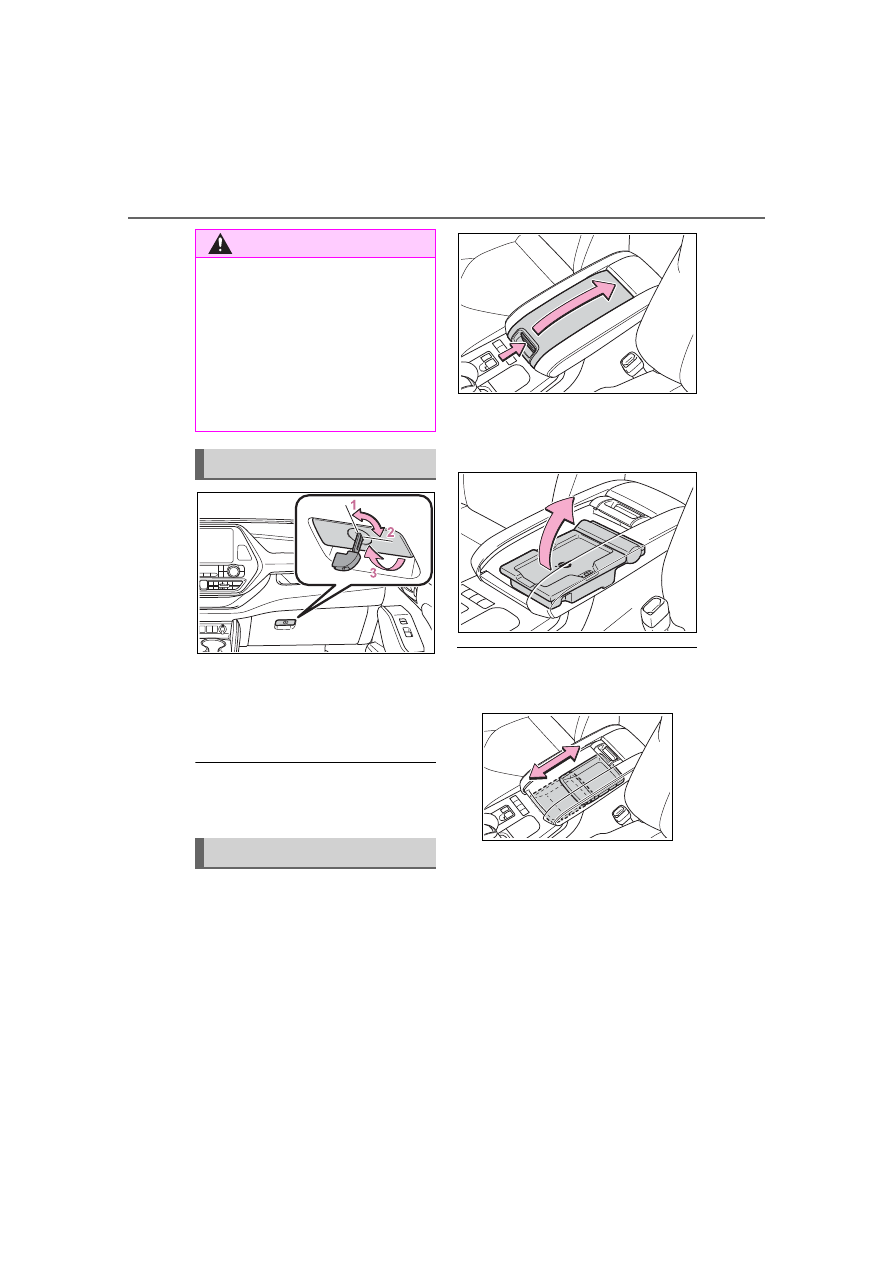

Push the tab and slide the
console box lid.

2

Vehicles with wireless

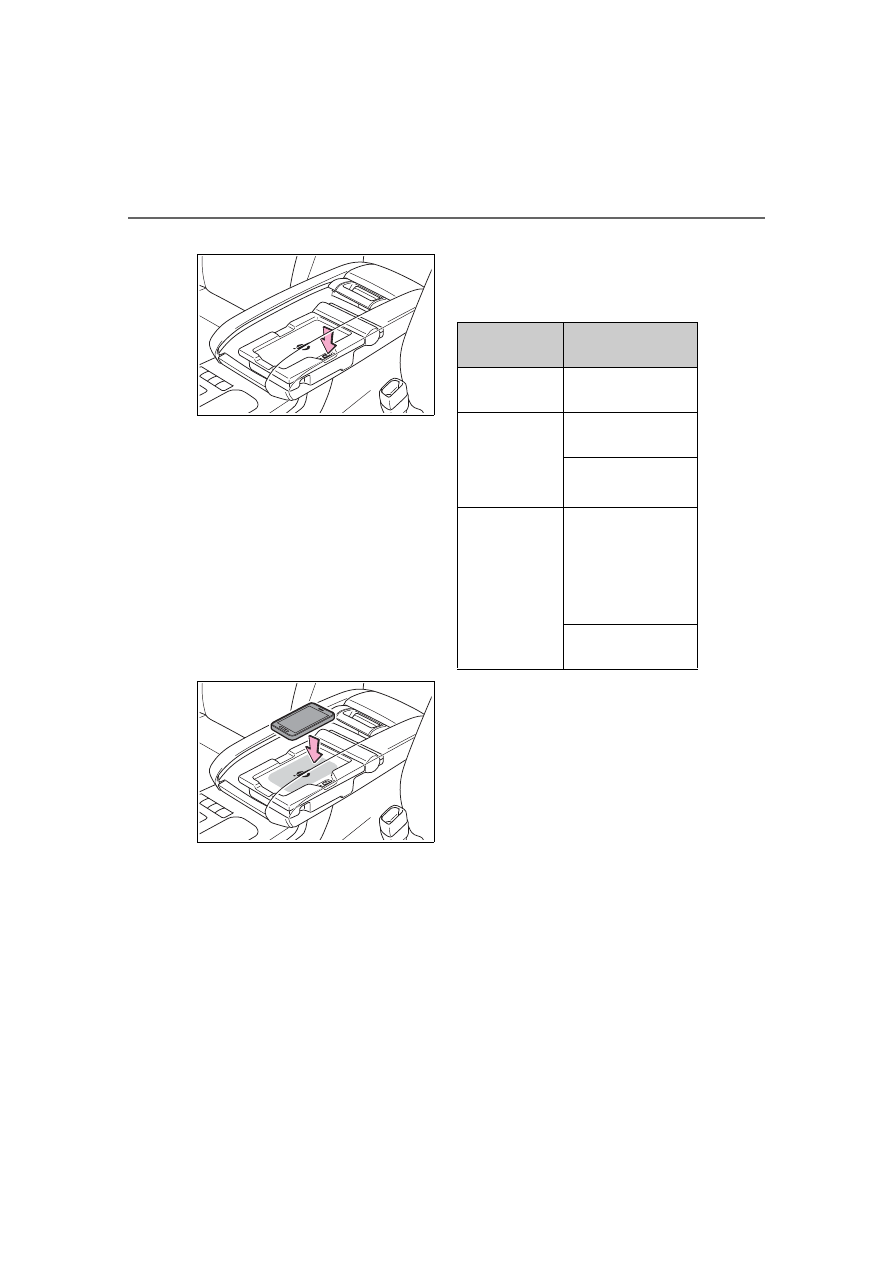

charge: Lift the wireless char-
ger.

■

Tray inside console box

The tray can be slid forward/back-

ward.

WARNING

■

When storage compartments

are not in use

When driving or when the storage

compartments are not in use,

keep the lids closed.
In the event of sudden braking or

sudden swerving, an accident

may occur due to an occupant

being struck by an open lid or the

items stored inside.

Glove box

Console box

367

5-4. Using the storage features

5

Interior

 featur

es

HIGHLANDER HV_U



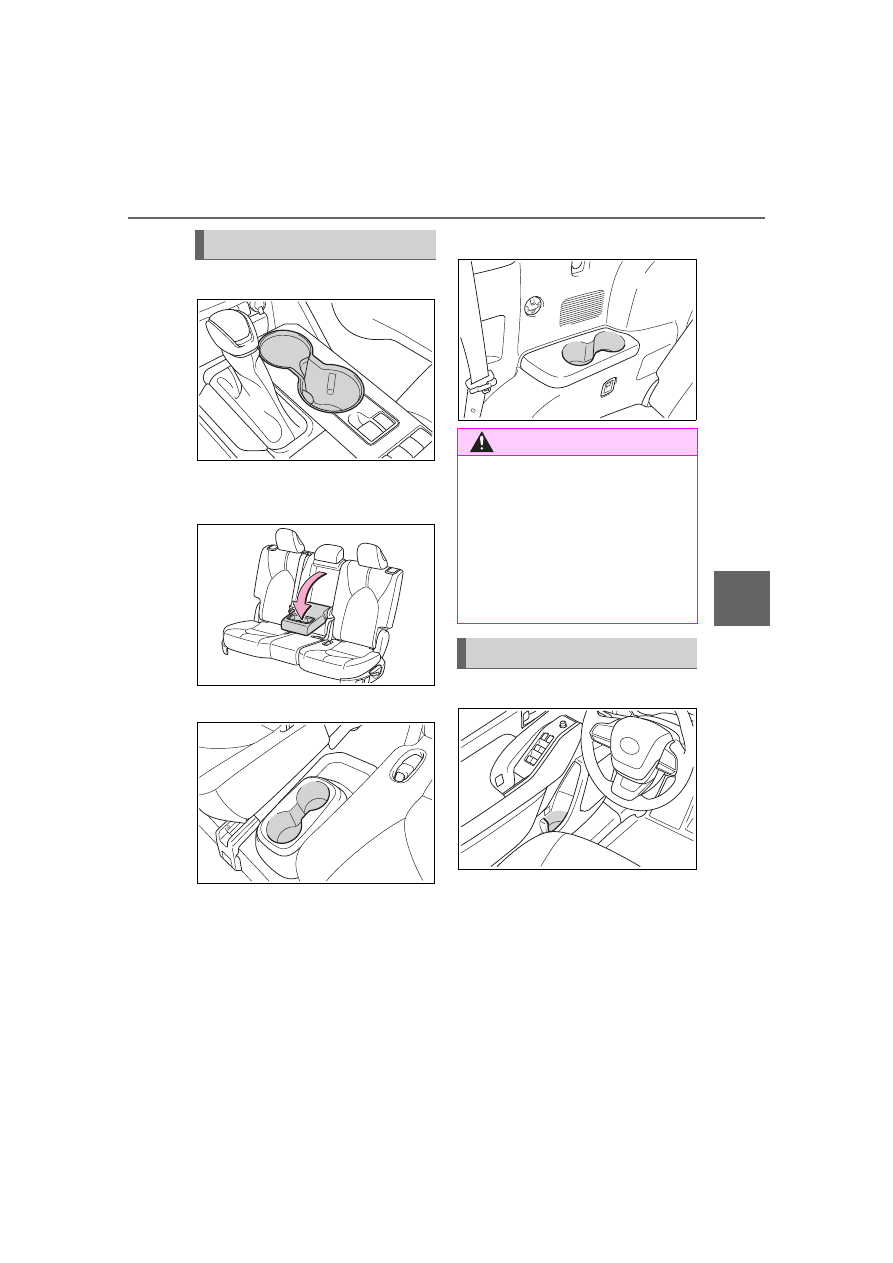

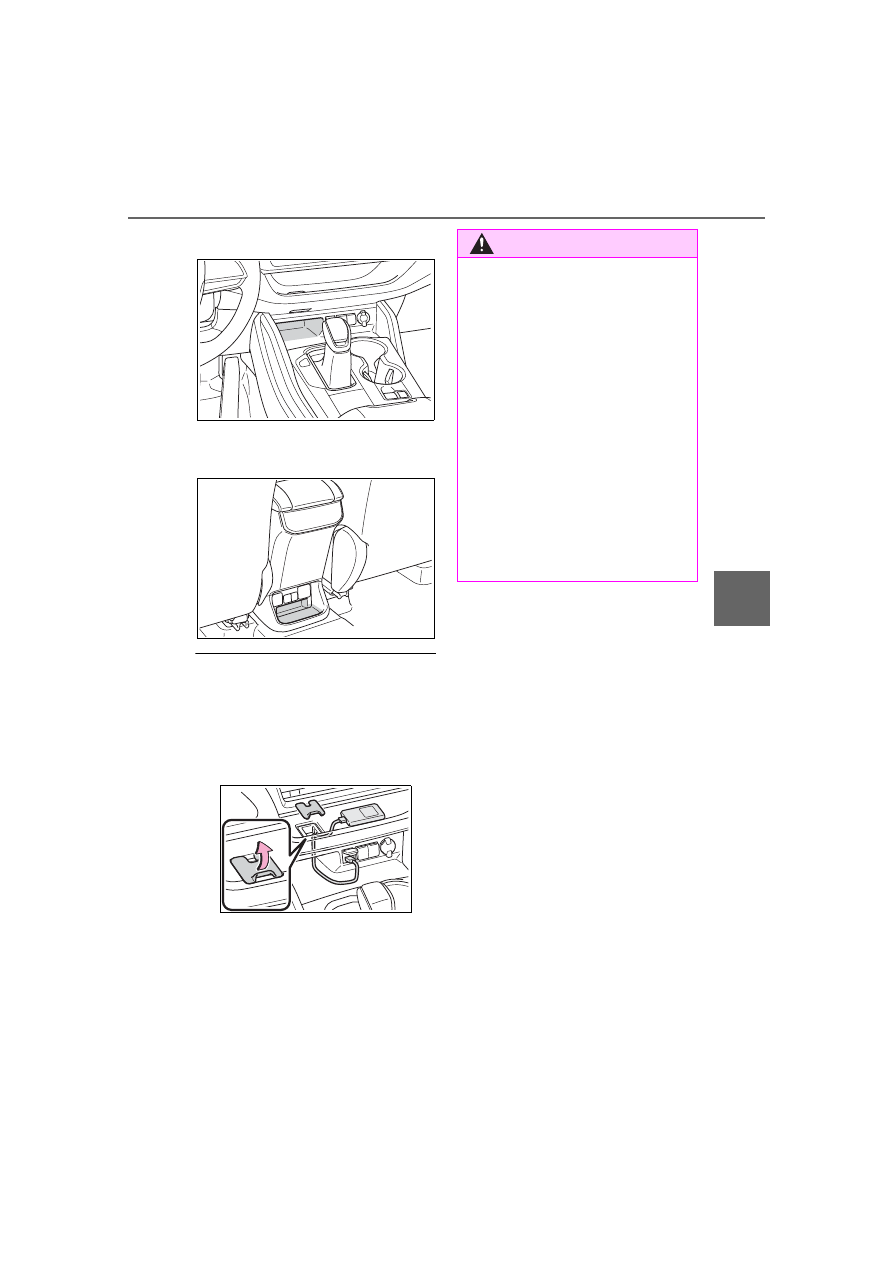

Front seats



Second seats (8-seat models)

Pull the armrest down.



Second seats (7-seat models)



Third seats



Front doors

Cup holders

WARNING

■

Items unsuitable for the cup

holder

Do not place anything other than

cups, aluminum cans, or water

bottles in the cup holders. Other

items may be thrown out of the

holders in the event of an acci-

dent or sudden braking, possibly

causing injury. If possible, cover

hot drinks to prevent burns.

Bottle holders

368

5-4. Using the storage features

HIGHLANDER HV_U



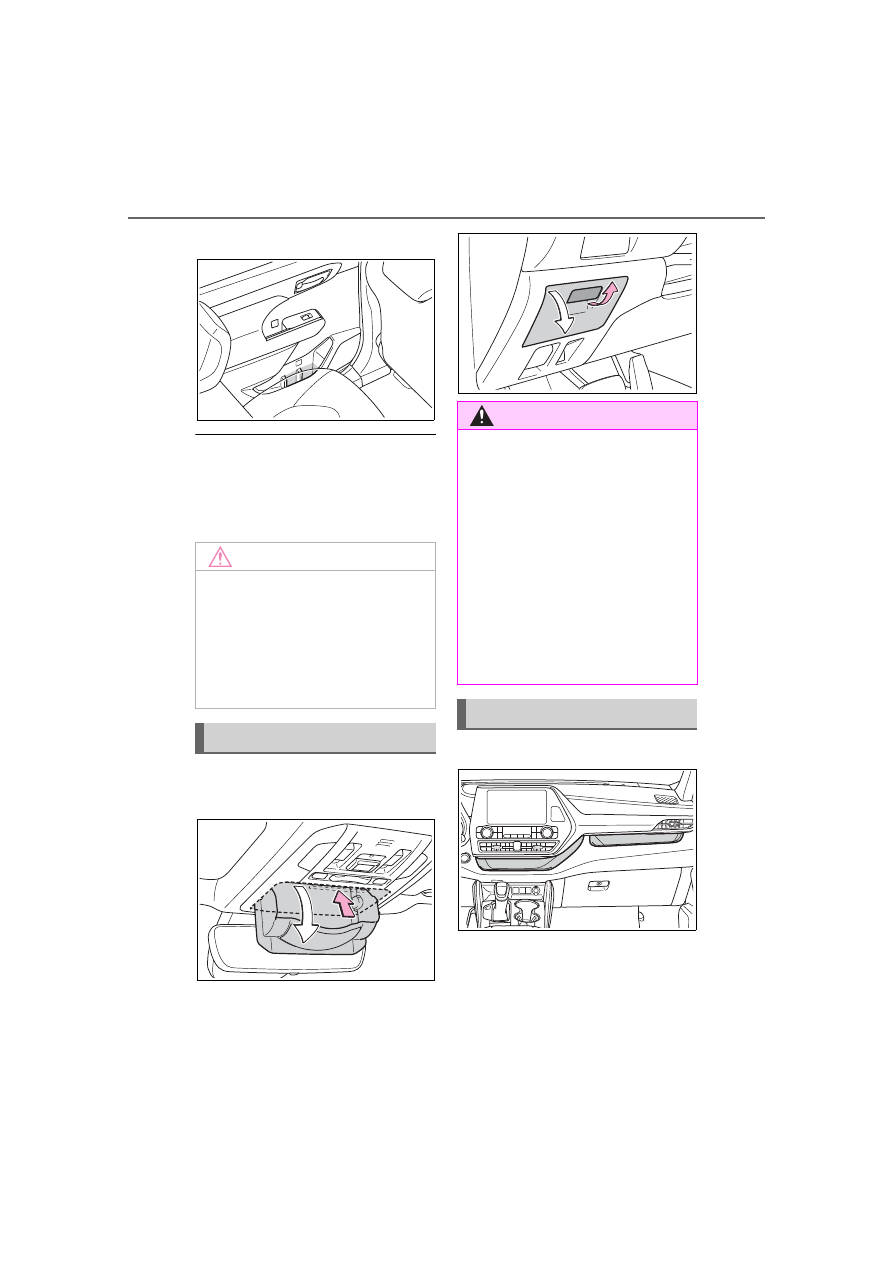

Rear doors

■

Bottle holders

●

When storing a bottle, close the

cap.

●

The bottle may not be stored

depending on its size or shape.



Overhead

Push the lid.



Driver’s side instrument panel

Pull the tab to open.



Instrument panel

NOTICE

■

Items unsuitable for the bottle

holders

Do not place open bottle, glass or

paper cups containing liquid in the

bottle holders. Otherwise, con-

tained liquid may be spilled. Glass

cups may break if used in the bot-

tle holders.

Auxiliary boxes

WARNING

■

Items unsuitable for storing

(Overhead)

Do not store items heavier than

0.44 lb. (200 g).

Doing so may cause the auxiliary

box to open and the items inside

may fall out, resulting in an acci-

dent.

■

Caution while driving

(Driver’s side instrument

panel)

Keep the auxiliary box closed

while driving.

Injuries may result in the event of

an accident or sudden braking.

Open tray

369

5-4. Using the storage features

5

Interior

 featur

es

HIGHLANDER HV_U



Front of console



Rear of console box (if
equipped)

■

Cable pass through (Instru-

ment panel)

The open tray is provided with a

hole that allows cables to be passed

through the tray from the USB port,

USB charging ports or power outlet.
Remove the cover.

WARNING

■

Items unsuitable for the open

tray

Observe the following precautions

when putting items in the open

tray. Failure to do so may cause

items to be thrown out of the tray

in the event of sudden braking or

steering. In these cases, the items

may interfere with pedal operation

or cause driver distraction, result-

ing in an accident.

●

Do not store items in the tray

that can easily shift or roll out.

●

Do not stack items in the tray

higher than the tray’s edge.

●

Do not put items in the tray that

may protrude over the tray’s

edge.

370

5-4. Using the storage features

HIGHLANDER HV_U

Pull down the hook to use.

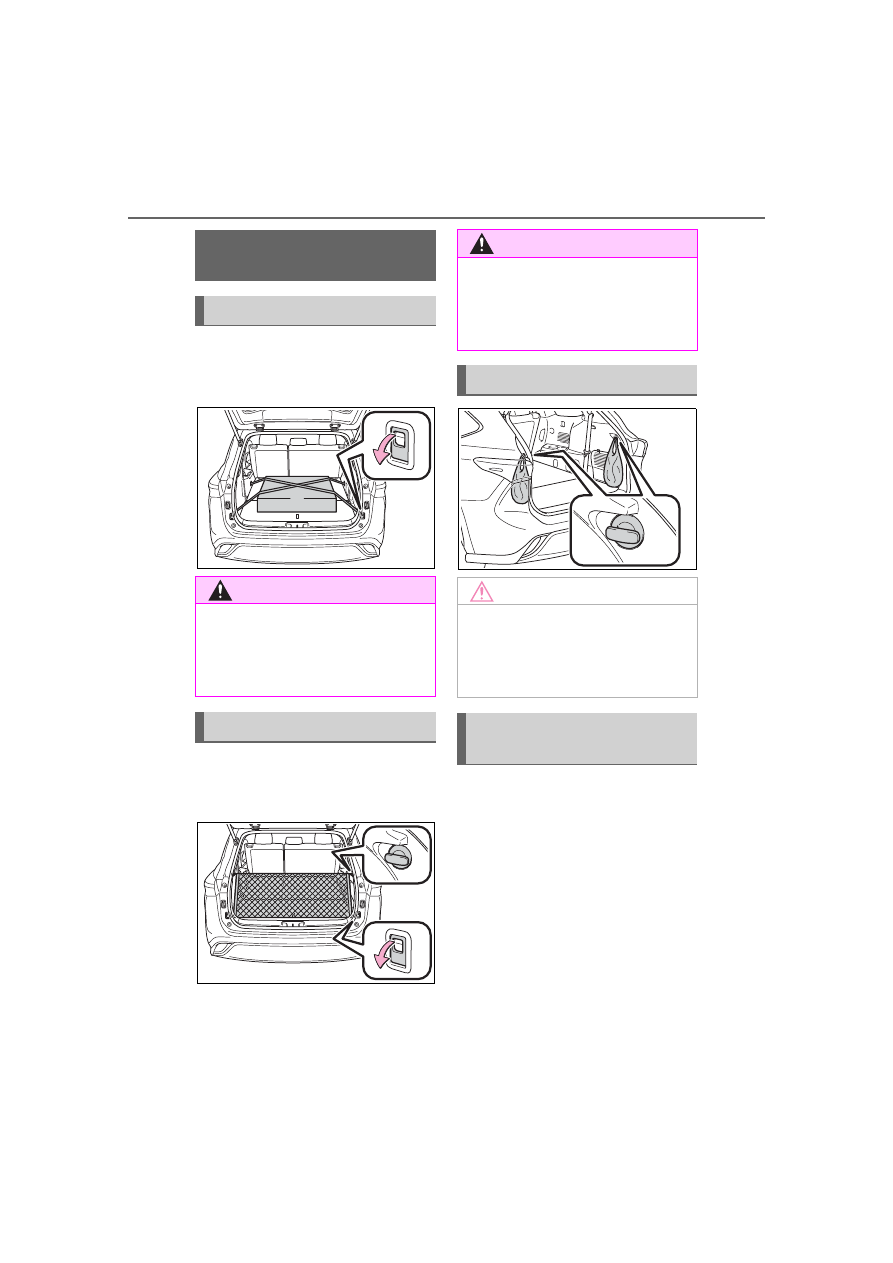

The cargo hooks are provided for
securing loose items.

To hang the cargo net, use the
cargo net hooks and cargo
hooks.

■

Removing the luggage
cover unit (vehicles with-
out side deck board)

1

Fold down the third seats.
(



P.158)

Luggage compart-

ment features

Cargo hooks

WARNING

■

When cargo hooks are not in

use

To avoid injury, always return the

hooks to their stowed positions

when not in use.

Cargo net hooks

WARNING

■

When the cargo net is not in

use

To avoid injury, always return the

hooks to their stowed positions

when not in use.

Grocery bag hooks

NOTICE

■

To prevent damage to the gro-

cery bag hooks

Do not hang any object heavier

than 6.6 lb. (3 kg) on the grocery

bag hooks.

Luggage cover (if
equipped)

371

5-4. Using the storage features

5

Interior

 featur

es

HIGHLANDER HV_U

2

Remove the center deck
board (



P.484) and take out

the luggage cover unit.

■

Removing the luggage
cover unit (vehicles with
side deck board)

1

Fold down the third seats.
(



P.158)

2

Remove the center deck
board (



P.484) and side

deck board (



P.373) and

take out the luggage cover
unit.

■

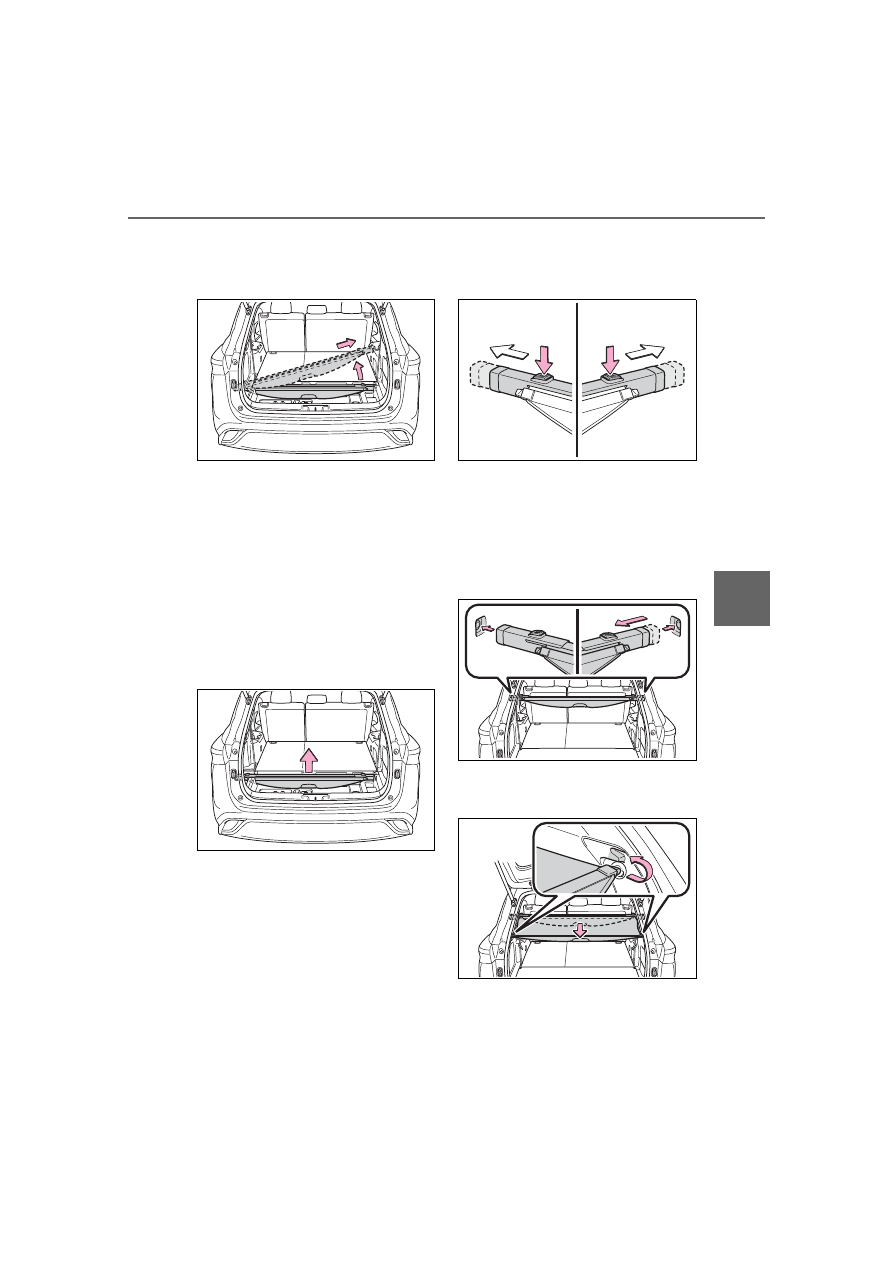

Installing the luggage cover

1

Fold down the third seats.
(



P.158)

2

Press the lock release but-
tons to extend the ends of the
luggage cover unit.

3

To install the luggage cover
unit, with the lock release
buttons facing upward, insert
one end into the recess, then
compress the other end and
insert it into the other recess.

4

Pull out the luggage cover
and hook it onto the anchors.

372

5-4. Using the storage features

HIGHLANDER HV_U

■

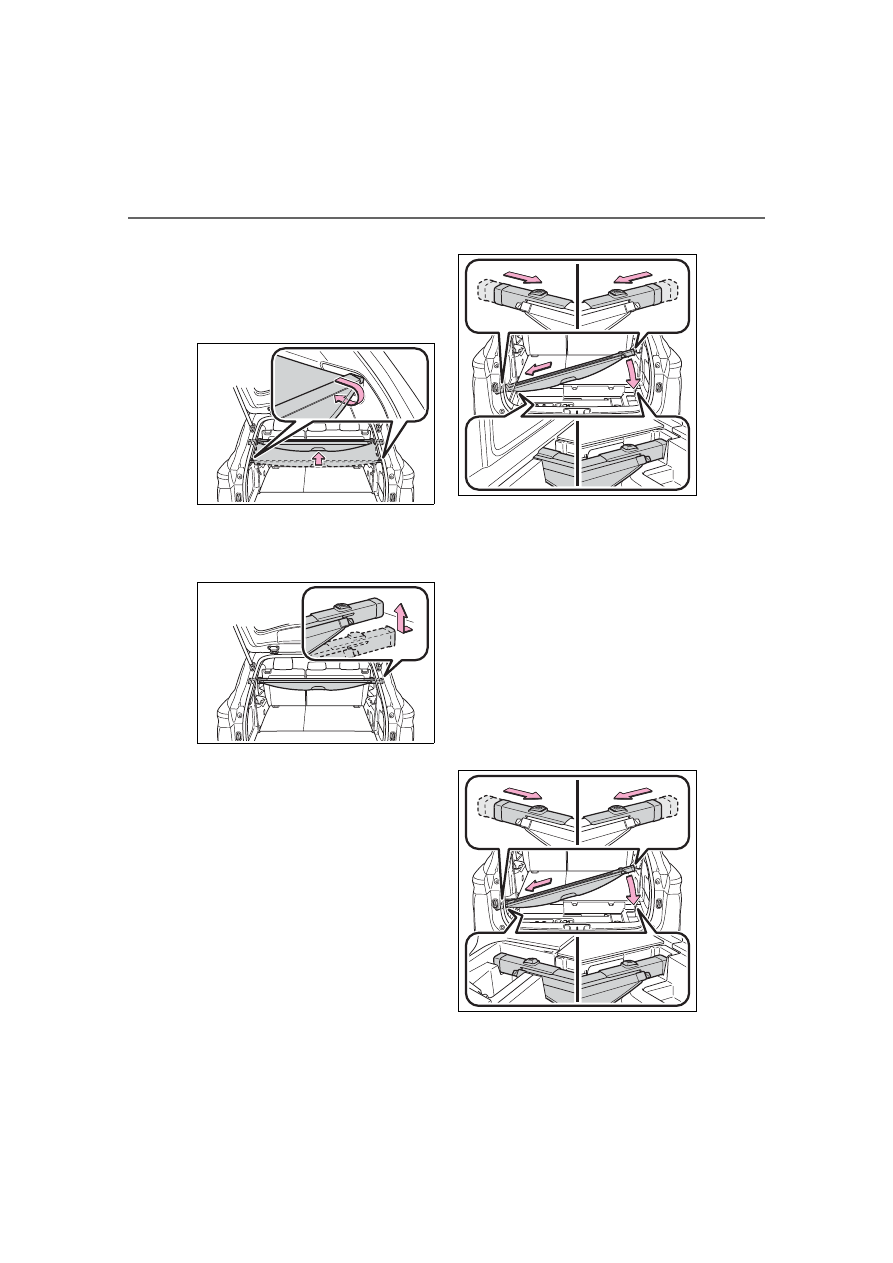

Removing the luggage
cover

1

Release the cover from the
left and right anchors and
allow it to retract.

2

Compress the end of the lug-
gage cover and lift the lug-
gage cover up.

■

Stowing the luggage cover
(vehicles without side deck
board)

1

Remove the center deck
board. (



P.484)

2

To store the luggage cover
unit, compress both ends
until they lock.

Store the unit with the lock release

buttons facing up and the cover

portion facing the rear of the vehi-

cle.

■

Stowing the luggage cover
(vehicles with side deck
board)

1

Remove the center deck
board (



P.484) and the side

deck board. (



P.373)

2

To store the luggage cover
unit, compress both ends
until they lock.

Store the unit with the lock release

buttons facing up and the cover

portion facing the rear of the vehi-

cle.

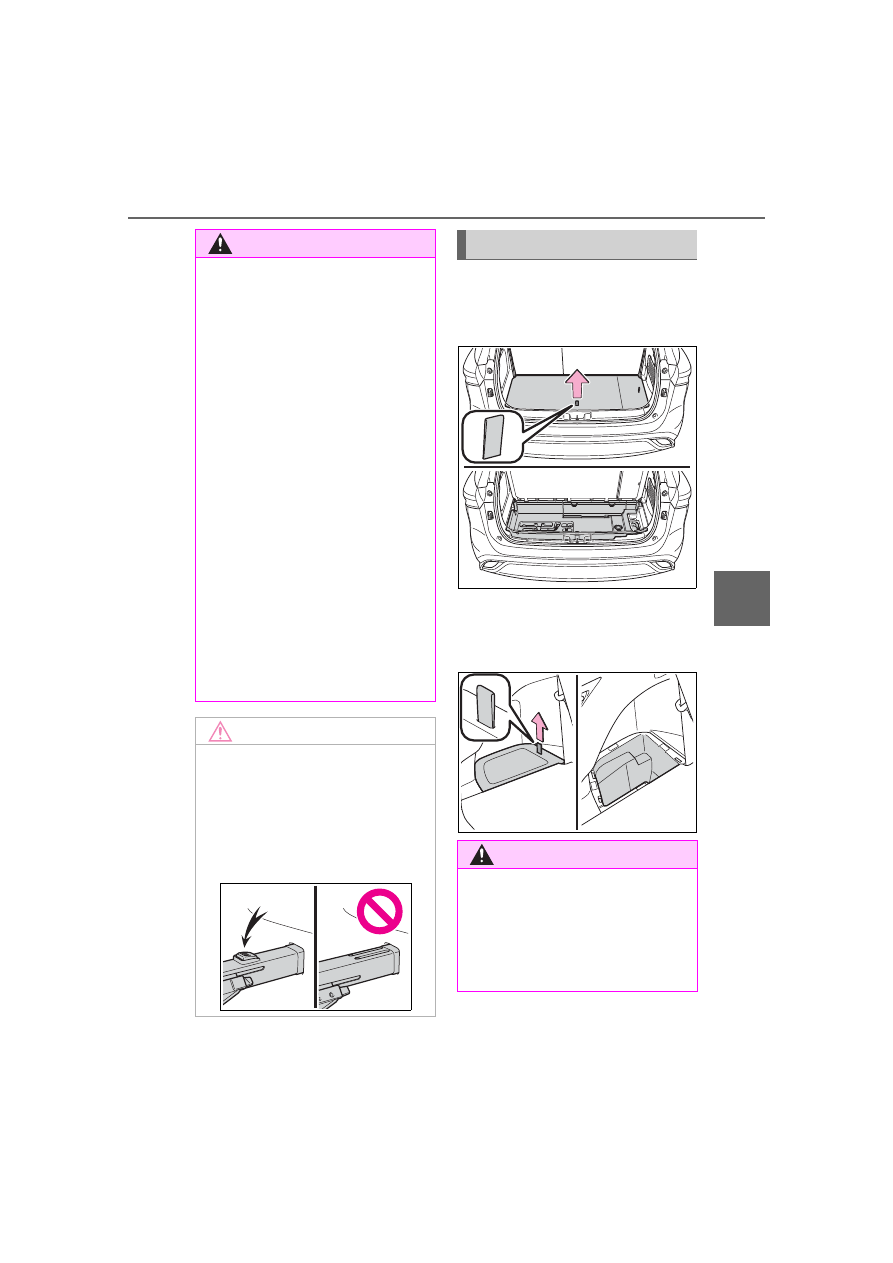

373

5-4. Using the storage features

5

Interior

 featur

es

HIGHLANDER HV_U



Center deck under tray

Pull the strap upwards to open
the center deck board.



Deck side box (if equipped)

Pull the strap upwards to open
the side deck board.

WARNING

■

Luggage cover

●

When installing/stowing the lug-

gage cover, make sure that the

luggage cover is securely

installed/stowed. Failure to do

so may result in serious injury in

the event of sudden braking or a

collision.

●

Do not place anything on the

luggage cover. In the event of

sudden braking or turning, the

item may go flying and strike an

occupant. This could lead to an

unexpected accident, resulting

in death or serious injury.

●

Do not allow children to climb

on the luggage cover. Climbing

on the luggage cover could

result in damage to the luggage

cover, possibly causing death or

serious injury to the child.

●

Do not point the luggage cover

unit at your face or body, as

doing so may cause injuries if

the cover ends extend sud-

denly.

NOTICE

■

When using the luggage

cover

●

Do not put heavy items on the

luggage cover.

●

Install the cover unit in the cor-

rect direction so that the lock

release button faces upward.

Auxiliary boxes

WARNING

■

Caution while driving

Keep the deck board closed. In

the event of sudden braking, an

accident may occur due to an

occupant being struck by the deck

board or the items stored under

the deck board.

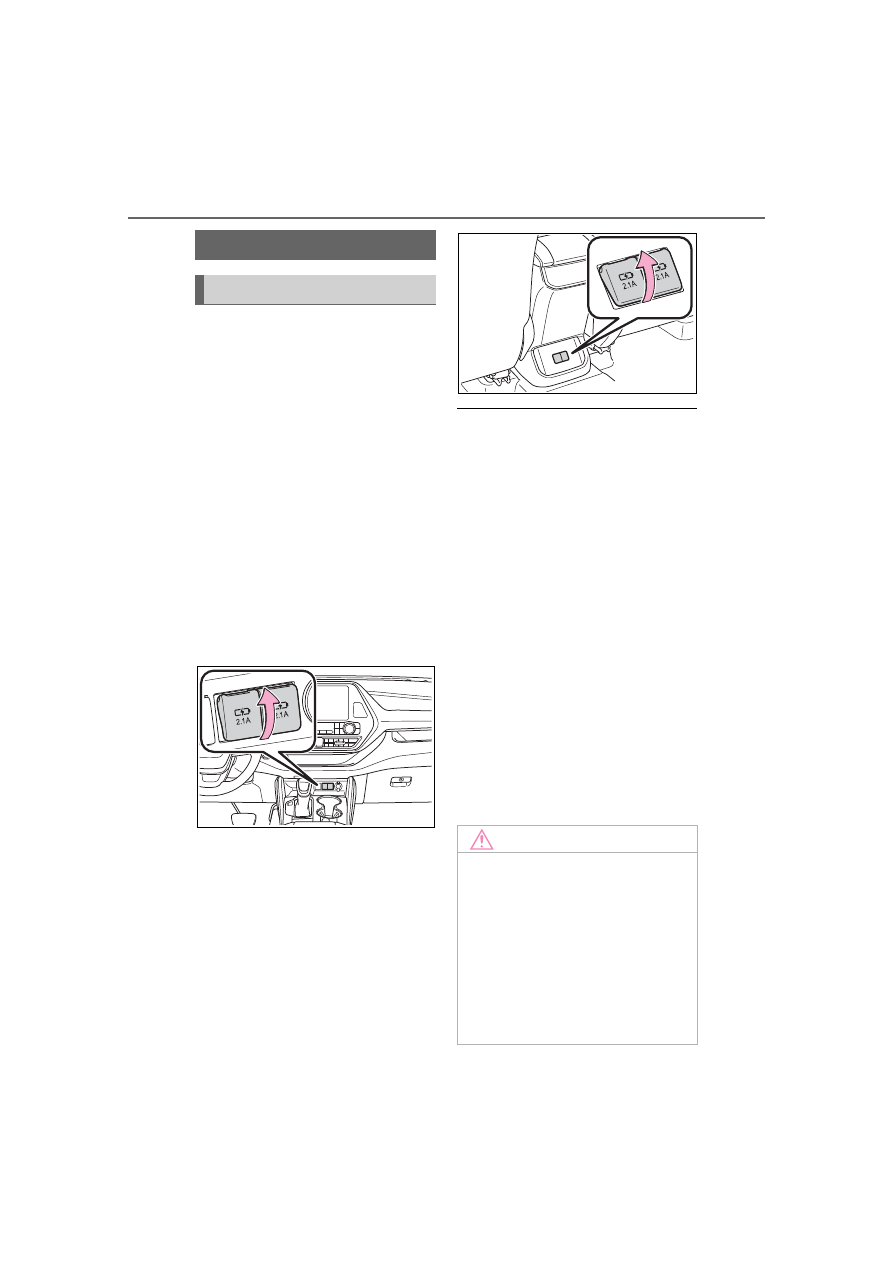

374

5-5. Using the other interior features

HIGHLANDER HV_U

5-5.Using the other interior features

The USB charging ports are
used to supply 2.1 A of electric-
ity at 5 V to external devices.
The USB charging ports are for
charging only. They are not
designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

Using the USB charging
ports



On the instrument panel

Open the lid.



Rear of console box

Open the lid.

■

The USB charging ports can be

used when

The power switch is in ACC or ON.

■

Situations in which the USB

charging ports may not operate

correctly

●

If a device which consumes more

than 2.1 A at 5 V is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

■

About connected external

devices

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

Other interior features

USB charging ports

NOTICE

■

To prevent damage to the

USB charging ports

●

Do not insert foreign objects into

the ports.

●

Do not spill water or other liq-

uids into the ports.

●

When the USB charging ports

are not in use, close the lids. If a

foreign object or liquid enters a

port may cause a short circuit.

375

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

A portable device, such as a
smartphone or mobile battery,
can be charged by just placing it
on the charging area, provided
the device is compatible with the
Qi wireless charging standard
created by the Wireless Power
Consortium.
The wireless charger cannot be
used with a portable device that
is larger than the charging area.
Additionally, depending on the
portable device, the wireless
charger may not operate prop-
erly. Refer to the operation man-

ual of the portable device.

■

The “Qi” symbol

The “Qi” symbol is a trademark
of the Wireless Power Consor-
tium.

■

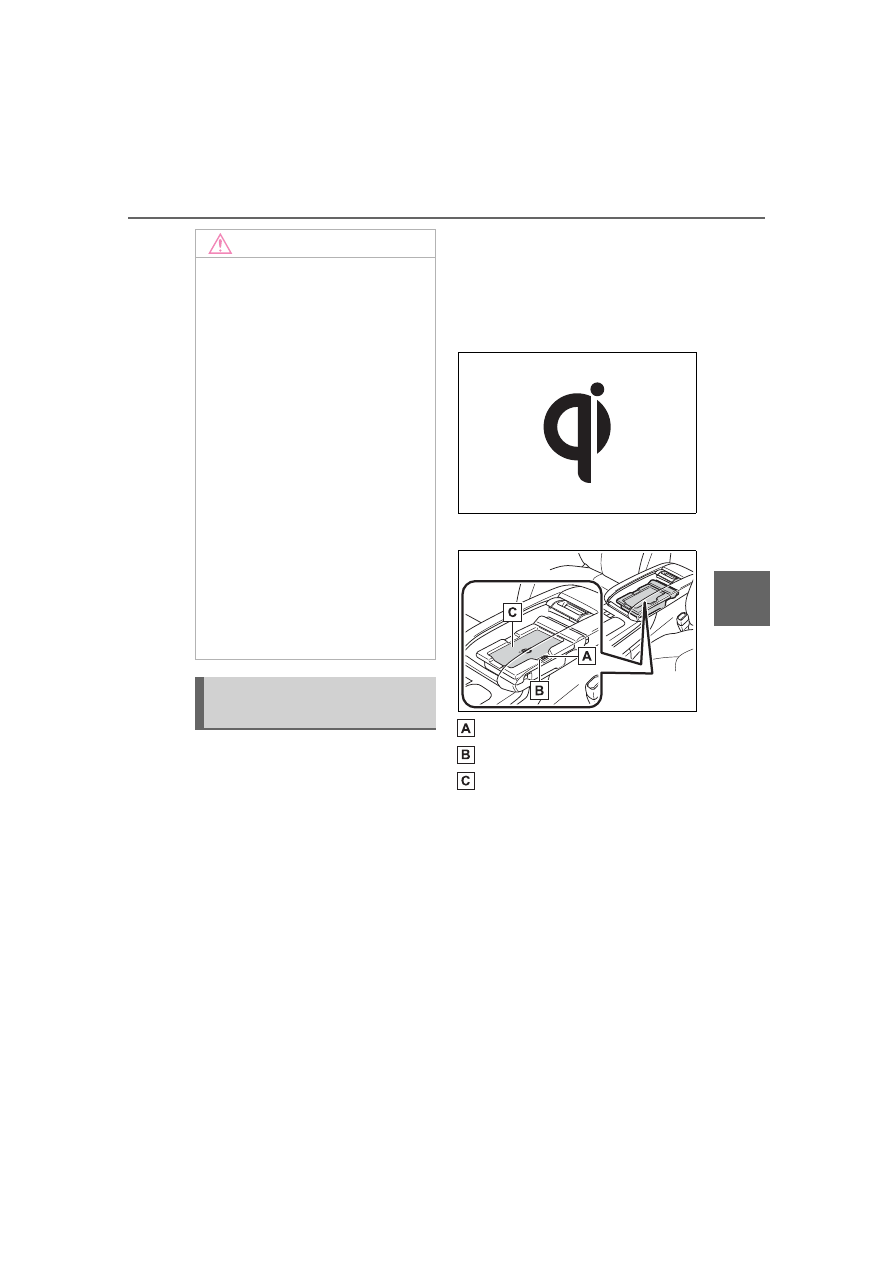

Name for all parts

Power supply switch
Operation indicator light
Charge area

■

Using the wireless charger

1

Push the tab and slide the
console box lid. (



P.366)

2

Press the power supply
switch of the wireless char-
ger.

Pressing the switch again turns the

wireless charger off.
When turned on, the operation indi-

cator light (green) comes on.
When the power switch is turned

off, the on/off state of the wireless

NOTICE

●

Do not apply excessive force to

or impact the USB charging

ports.

●

Do not disassemble or modify

the USB charging ports.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent 12-volt battery dis-

charge

Do not use the USB charging

ports for a long period of time with

the hybrid system stopped.

Wireless charger (if
equipped)

376

5-5. Using the other interior features

HIGHLANDER HV_U

charger will be memorized.

3

Place a portable device on
the charging area with its
charging surface facing
down.

While charging, the operation indi-

cator light (orange) will be illumi-

nated.
If charging does not begin, move

the portable device as close to the

center of the charging area as pos-

sible.
When charging is complete, the

operation indicator light (green) will

illuminate.

■

Recharging function



If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the
wireless charger will restart
charging.



If the portable device is
moved within the charging

area, charging will stop tem-
porarily then restart.

■

Operation indicator light
status

*

: Depending on the portable

device, the operation indicator
light may stay illuminated
(orange) after charging has com-
pleted.

■

If the operation indicator
light blinks

If an error is detected, the oper-
ation indicator light will blink
(orange). Take the appropriate
measures according to the table
below.



Blinks (orange) at a one sec-
ond interval continuously

Operation indi-
cator light

State

Off

The Wireless char-
ger is off

Green (illumi-
nated)

Standby (charging
is possible)

Charging is com-
plete

*

Orange (illumi-
nated)

A portable device
has been placed
on the charging
area (identifying
the portable
device)

Charging in prog-
ress

377

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U



Blinks (orange) 3 times
repeatedly



Blinks (orange) 4 times
repeatedly

■

The wireless charger can be

operated when

The power switch is in ACC or ON.

■

Portable devices that can be

charged

●

Portable devices compatible with

the Qi wireless charging standard

can be charged by the wireless

charger. However, compatibility

with all devices which meet the Qi

wireless charging standard is not

guaranteed.

●

The wireless charger is designed

to supply low power electricity (5

W or less) to a cellular phone,

smartphone, or other portable

device.

■

If a cover or accessory is

attached to the portable device

Do not charge a portable device if a

cover or accessory which is not Qi

compatible is attached. Depending

on the type of cover and/or acces-

sory attached, it may not be possi-

ble to charge the portable device. If

the portable device is placed on the

charging area and does not charge,

remove the cover and/or accesso-

ries.

■

If interference is heard in AM

radio broadcasts while

charging

Turn off the wireless charger and

check if the noise is reduced. If

noise is reduced, press and hold the

power supply switch of the wireless

charger for 2 seconds. The fre-

quency of the wireless charger is

changed and noise may be

reduced. When the frequency is

changed, the operation indicator

light will blink (orange) 2 times.

■

Charging precautions

●

If the electronic key cannot be

detected in the cabin, charging

cannot be performed. When a

door is opened and closed,

charging may be temporarily sus-

pended.

●

While charging, the wireless char-

ger and the portable device will

become warm. This is not a mal-

function. If a portable device

becomes warm while charging

and charging stops due to the pro-

tection function of the portable

device, wait until the portable

device cools down and charge it

Suspected
causes

Measure

Vehicle to
charger com-
munication
failure.

Contact your Toy-
ota dealer.

Suspected
causes

Measure

A foreign
object exists
between the
portable
device and
charging area.

Remove the for-
eign object.

Portable
device is not
positioned
properly on the
charging area.

Move the portable
device toward the
center of the
charging area.

Suspected
causes

Measure

The tempera-
ture of the
wireless char-
ger is exces-
sively high.

Stop charging
immediately and
continue charging
after a while.

378

5-5. Using the other interior features

HIGHLANDER HV_U

again.

■

Sound generated during opera-

tion

When the power supply switch is

turned on or while a portable device

is being identified, operation sounds

may be heard. This is not a malfunc-

tion.

■

Cleaning the wireless charger



P.403

■

Certification for the wireless charger

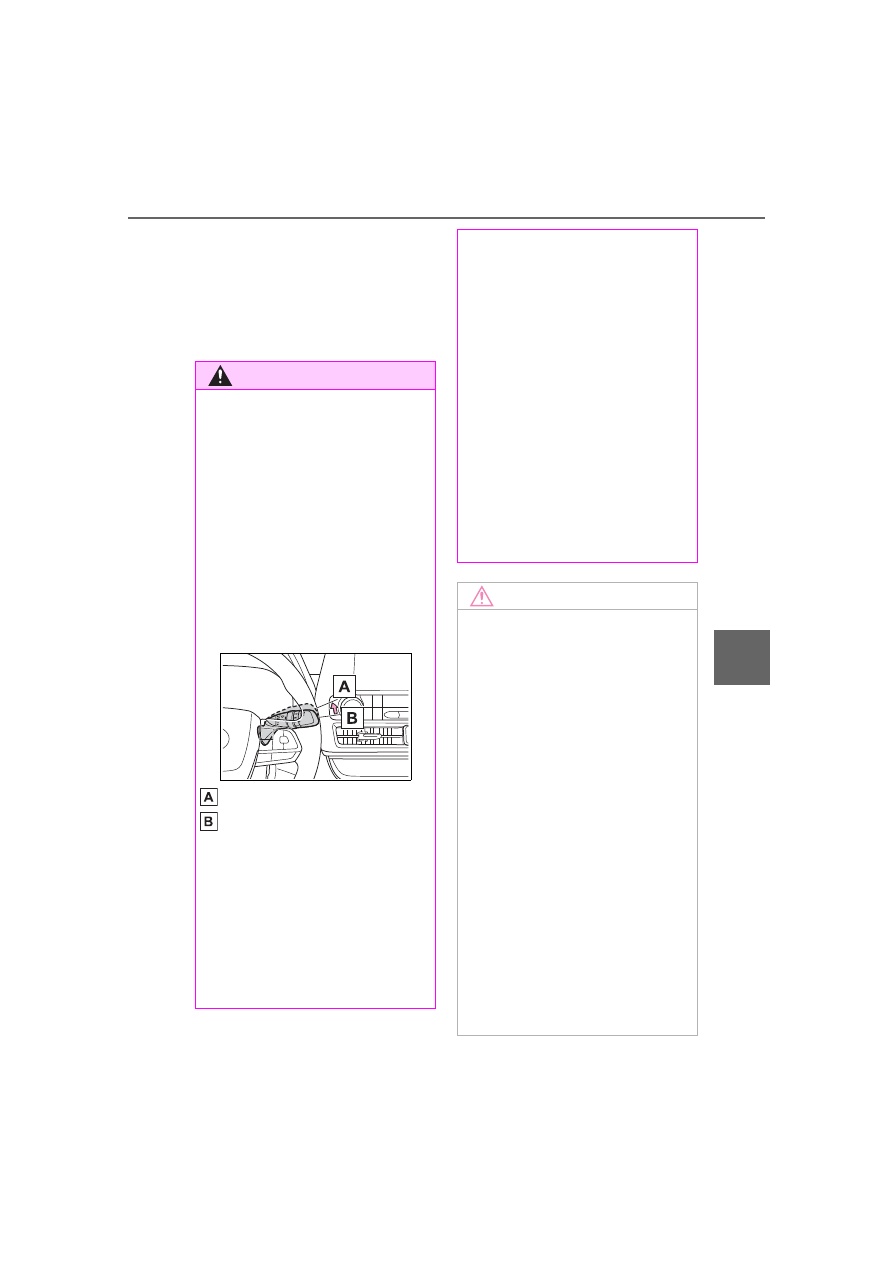

379

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

380

5-5. Using the other interior features

HIGHLANDER HV_U

WARNING

■

Caution while driving

When charging a portable device

while driving, for safety reasons,

the driver should not operate the

portable device.

381

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

WARNING

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger.
Operations of the wireless char-

ger may have an affect on medi-

cal devices.

■

To prevent damage or burns

Observe the following precau-

tions.
Failure to do so may result in the

possibility of fire, equipment fail-

ure or damage, or burns due to

heat.

●

Do not put any metallic objects

between the charging area and

the portable device while

charging.

●

Do not attach metallic objects,

such as aluminum stickers, to

the charging area.

●

Do not cover the wireless char-

ger with a cloth or other object

while charging.

●

Do not attempt to charge porta-

ble devices which are not com-

patible with the Qi wireless

charging standard.

●

Do not disassemble, modify or

remove the wireless charger.

●

Do not apply force or impact to

the wireless charger.

NOTICE

■

Conditions in which the wire-

less charger may not operate

correctly

In the following situations, the

wireless charger may not operate

correctly:

●

When a portable device is fully

charged

●

When there is a foreign object

between the charging area and

portable device

●

When a portable device

becomes hot while charging

●

When a portable device is

placed on the wireless area with

its charging surface facing up

●

When a portable device is not

centered on the charging area

●

When the vehicle is near a TV

tower, electric power plant, gas

station, radio station, large dis-

play, airport or other facility that

generates strong radio waves or

electrical noise

●

When the portable device is in

contact with, or is covered by

any of the following metallic

objects:

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alu-

minum foil inside

• Metallic wallets or bags

• Coins

• Metal hand warmers

• Media such as CDs and DVDs

●

When wireless keys (that emit

radio waves) other than those of

your vehicle are being used

nearby.

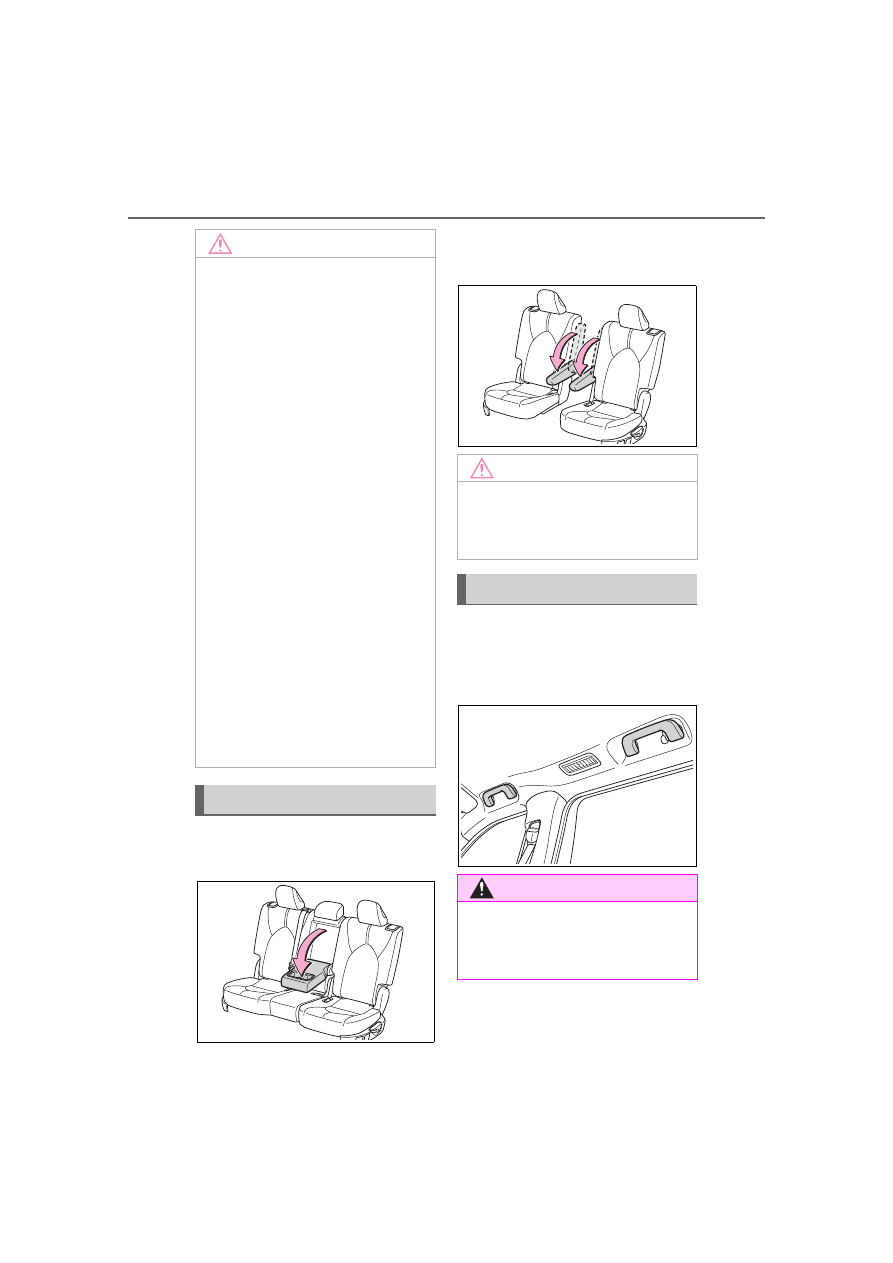

382

5-5. Using the other interior features

HIGHLANDER HV_U



Second seats (8-seat models)

Pull the armrest down for use.



Second seats (7-seat models)

Pull the armrest down for use.

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

NOTICE

If in situations other than above

the wireless charger does not

operate properly or the operation

indicator light is blinking, the wire-

less charger may be malfunction-

ing. Contact your Toyota dealer.

■

To prevent failure or damage

to data

●

Do not bring magnetic cards,

such as a credit card, or mag-

netic recording media, close to

the wireless charger while

charging. Otherwise, data may

be erased due to the influence

of magnetism. Additionally, do

not bring precision instruments

such as wrist watches, close to

the wireless charger, as such

objects may malfunction.

●

Do not leave portable devices in

the cabin. The temperature

inside the cabin may become

high when parked in the sun,

and cause damage to the

device.

■

To prevent 12-volt battery dis-

charge

Do not use the wireless charger

for a long period of time with the

hybrid system is stopped.

Armrest

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

WARNING

■

Assist grip

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

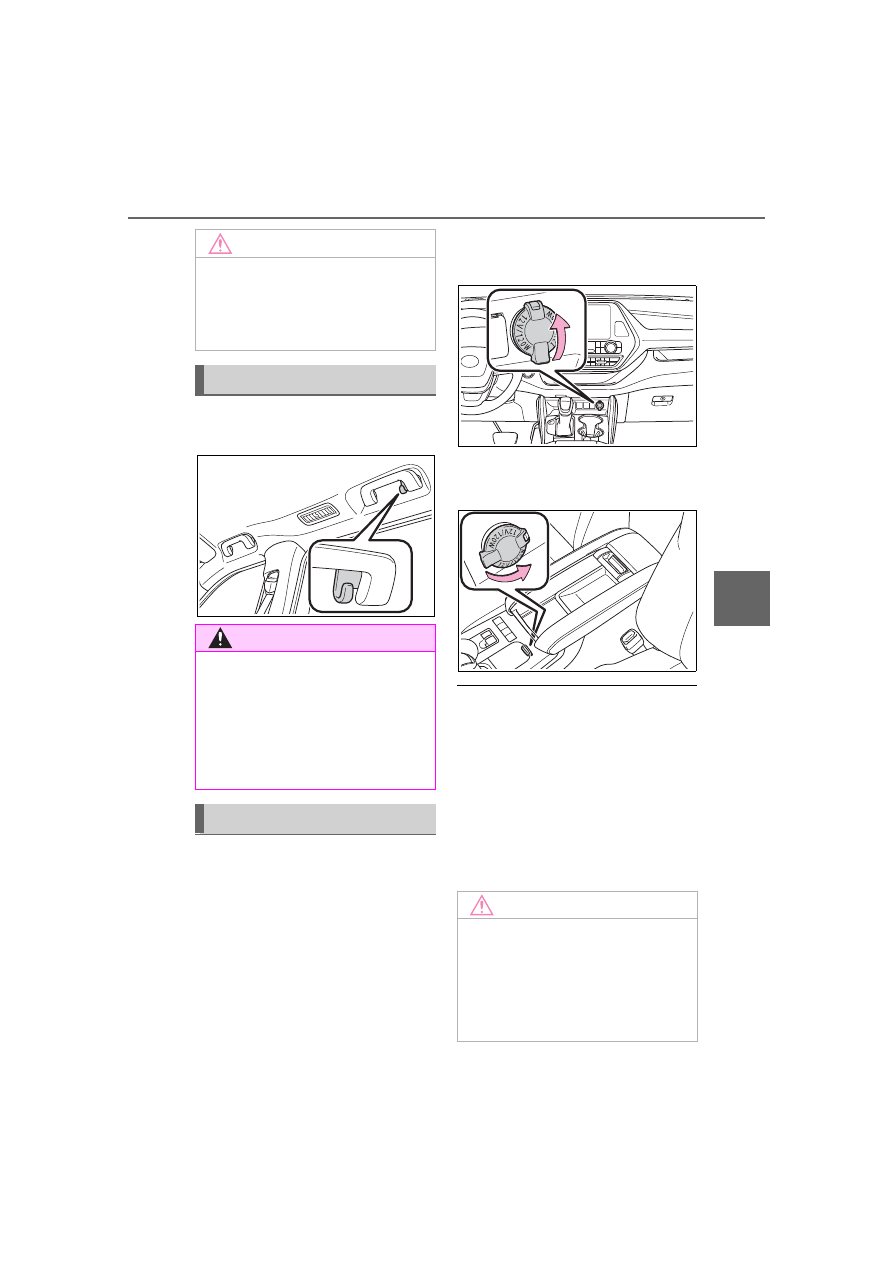

383

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

The coat hooks are provided
with the rear assist grips.

Please use as a power supply
for electronic goods that use
less than 12 VDC/10 A (power
consumption of 120 W).
When using electronic goods,
make sure that the power con-
sumption of all the connected
power outlets is less than 120
W.



On the instrument panel

Open the lid.



Inside the console box

Open the lid.

■

The power outlet can be used

when

The power switch is in ACC or ON.

■

When stopping the hybrid sys-

tem

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the hybrid system may not stop nor-

mally.

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Coat hooks

WARNING

■

Items that must not be hung

on the hook

Do not hang coat hangers or

other hard or sharp objects on the

hook. If the SRS curtain shield air-

bags deploy, these items may

become projectiles, causing death

or serious injury.

Power outlets (12 VDC)

NOTICE

■

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

384

5-5. Using the other interior features

HIGHLANDER HV_U

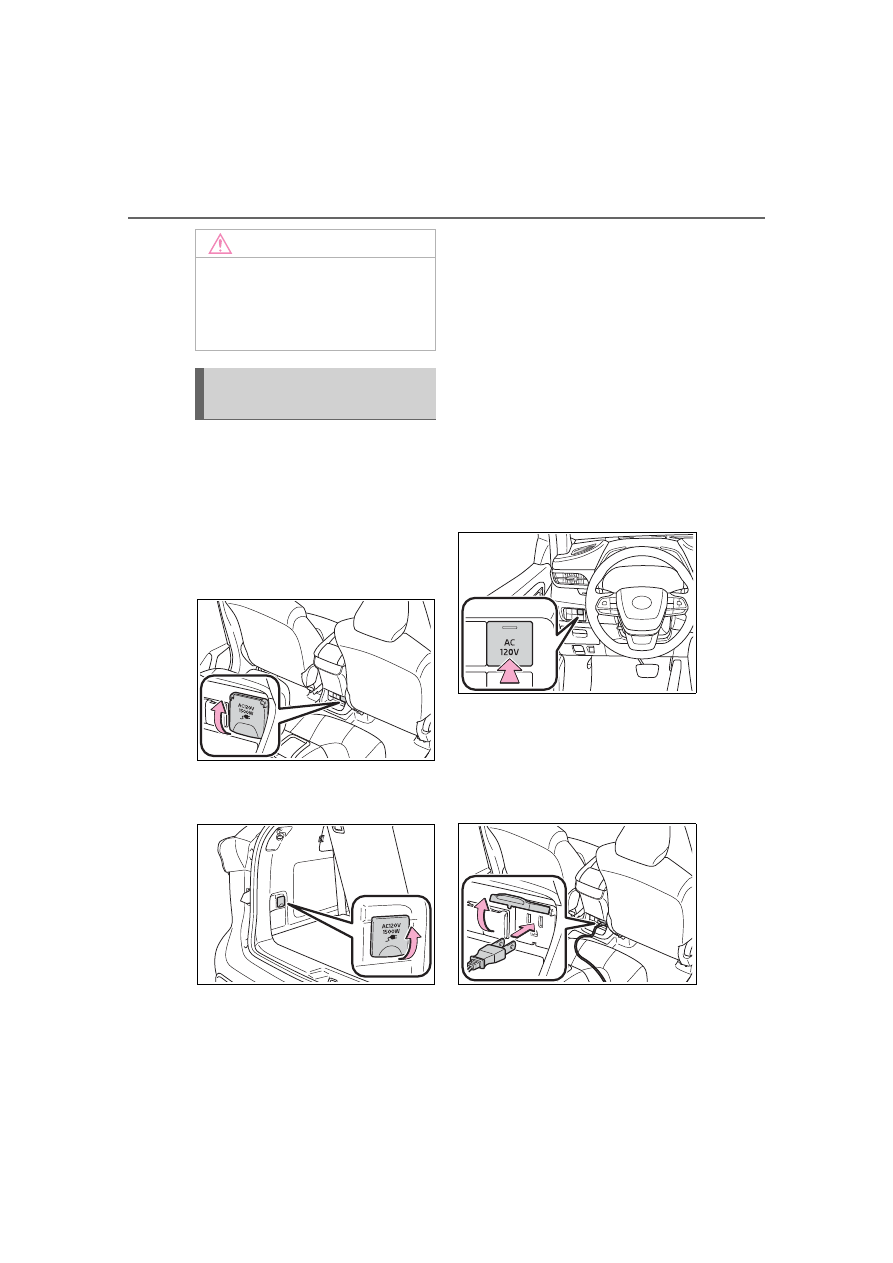

Please use as a power supply
for electronic devices that use
less than 120 VAC (power con-
sumption of 1500 W).

■

Using the power outlets



On the console box

Open the lid.



In the luggage compartment

Open the lid.

■

When turning the power
outlets on

1

Check that the parking brake
is engaged, securely depress
the brake pedal and press
the power switch.

2

Check that the READY indi-
cator is illuminated, and
press the AC120V switch.

The power outlets can be used

when the indicator on the AC120V

switch is illuminated.
The power outlets are turned off/on

each time the AC120V switch is

pressed.

■

When connecting a device

Open the lid, and fully and
securely insert the plug of the
device into the power outlet.



Rear of console box

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not use the power outlet lon-

ger than necessary when the

hybrid system is not running.

Power outlets (120 VAC)
(if equipped)

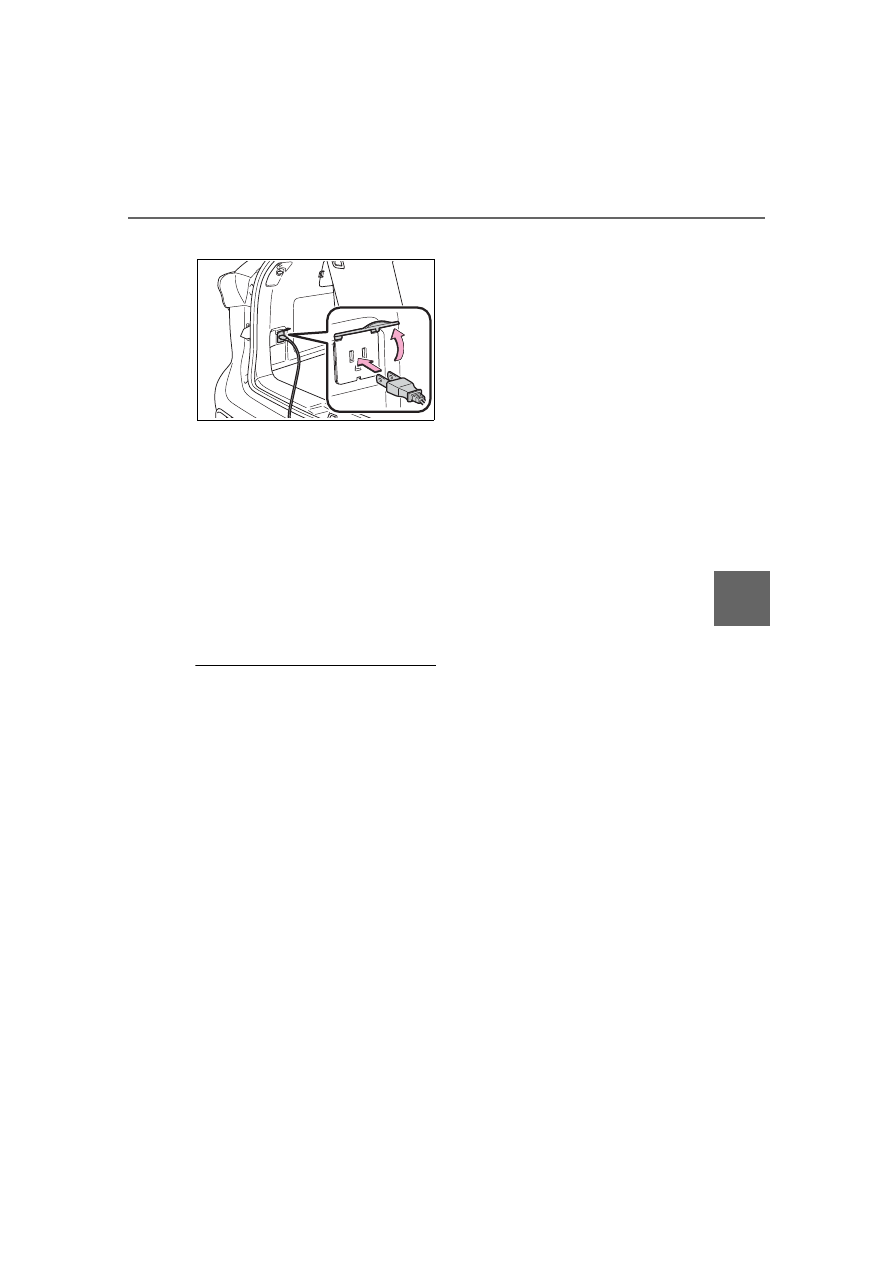

385

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U



Luggage compartment

■

When turning the power
outlets off

1

Turn the connected devices
off.

2

Press the AC120V switch to
turn the power outlets off.

3

Disconnect each plug from
the power outlets.

4

Close the lid of each power
outlet.

■

The power outlet can be used

when

The READY indicator is illuminated.

■

Rules/regulations regarding

idling stop

The engine will start automatically to

charge the hybrid battery (traction

battery) if its charge becomes low.

In some municipalities, if the engine

starts while the vehicle is parked or

stopped, it may violate local rules or

regulations regarding idling stop and

you may be penalized. Make sure to

check the local rules and regula-

tions before using the power outlets

while the vehicle is parked or

stopped.

■

Power outlets

●

When connecting a device, make

sure that the total power con-

sumption of all devices connected

to the 120 VAC power outlets is

less than 1500 W. If a device is

connected and the power con-

sumption is exceeded, a protec-

tion circuit will cut the power

supply and the power outlets will

not be able to be used.

●

Depending on the device to be

used, the current flow may be high

and the initial peak wattage may

exceed 1500 W.

In this case, the protection circuit

may operate, and the power out-

lets may not be able to be used.

●

Depending on the connected

device, it may cause interference

with TV and radio broadcasts.

●

The voltage of the power outlets

cannot be measured with a com-

mercially available electrical tes-

ter. If it is necessary to check the

voltage, have the vehicle

inspected by your Toyota dealer.

●

While a power outlet is being

used, a cooling fan sound may be

heard from near a rear seat. This

does not indicate a malfunction.

■

Devices which may not operate

correctly

The following 120 VAC devices may

not operate properly even if their

power consumption is less than

1500 W:

●

Devices with high initial peak watt-

age

●

Measuring devices that process

precise data

●

Devices that require an extremely

stable power supply

●

Devices that require a constant

power supply from the power out-

let, such as a device with a timer.

■

When the 120 VAC power out-

lets cannot be used

If the AC120V switch is pressed but

the switch indicator does not illumi-

nate, the protection circuit may have

operated.
In this case, perform the appropriate

procedures as follows.

386

5-5. Using the other interior features

HIGHLANDER HV_U

●

Disconnect the plug of each

device from the power outlets,

check that the total power con-

sumption of all devices to be con-

nected to the power outlets is less

than 1500 W, reconnect the

devices and then press the

AC120V switch again.

●

Disconnect the plug of each

device from the power outlets,

check that the devices are not

malfunctioning, reconnect the

devices and then press the

AC120V switch again.

●

Check the charge of the hybrid

battery (traction battery) (



P.117).

If the charge is low, shift the shift

lever to P, allow the engine to run

to charge the hybrid battery (trac-

tion battery), and then press the

AC120V switch again.

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun,

use the air conditioning system to

sufficiently ventilate or cool the

interior, and then press the

AC120V switch again.

●

If the vehicle has been stopped in

a cold area, to protect the hybrid

battery (traction battery), the

power outlets may not be able to

be used. In this case, drive the

vehicle for a while to warm up the

hybrid battery (traction battery),

and then press the AC120V

switch again.

If the power outlets cannot be used

even after performing the appropri-

ate procedures above, have the

vehicle inspected by your Toyota

dealer.

WARNING

■

For safe use

Observe the following precau-

tions.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

●

Do not use devices such as the

following when driving:

• Devices which cannot be prop-

erly secured within the vehicle.

• Devices which may distract the

driver and be a hindrance to

safe driving, such as a TV, DVD

player, etc.

• Unsecured devices which gen-

erate heat, such as a toaster,

microwave, electric heater, elec-

tric kettle, coffee maker, etc., as

they may cause burns or a fire

in the case of sudden braking or

an accident.

• Devices which may fall under

the pedals and prevent the

brake pedal from being

depressed.

●

Do not use devices which pro-

duce steam while the windows

are closed. Doing so may cause

the windows to fog up, reducing

visibility and making it difficult to

drive safely. Also, the steam

may damage or negatively

affect other devices.

●

Do not connect a malfunctioning

device to a power outlet, as

doing so may cause the power

outlets to become inoperable.

●

Do not disconnect the plug of a

device while your hands are wet

or insert a pin or other object

into the power outlet. Also, if a

liquid or snow is on the power

outlet, dry the outlet before

using it.

●

Do not attempt to modify, disas-

semble or repair a power outlet.

Also, do not replace the 120

VAC inverter with a commer-

cially available one. For infor-

mation on repairs, contact your

Toyota dealer.

387

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

WARNING

●

Do not let children touch the

power outlets.

●

Keep the power outlets free of

dust and foreign matter.

●

If the plug of a device fits

loosely in a power outlet, even

though it is fully inserted,

replace the power outlet. For

information on replacement,

contact your Toyota dealer.

■

Using the power outlets while

parked or stopped

Observe the following precau-

tions.

Failure to do so may lead to an

accident, possibly resulting in

death or serious injury.

●

Make sure to engage the park-

ing brake and shift the shift lever

to P.

●

Do not leave the vehicle unat-

tended while the READY indica-

tor is illuminated and a device is

connected to a power outlet.

●

Make sure that the hood is

closed. As the engine will start

automatically depending on the

condition of the vehicle, make

sure that nothing is left near or

contacting the exhaust pipes.

Also, do not put your head or

hands anywhere inside the

engine compartment, as the

cooling fan may operate sud-

denly. Keep hands and clothing

(especially a tie, scarf, etc.)

away from the fan as they may

get caught in a fan.

●

Do not use the power outlets in

an area with poor ventilation or

an enclosed area, such as a

garage without a ventilation or

exhaust system, or in an area

where the vehicle may become

surrounded by snow, as the

exhaust gasses may accumu-

late, causing a lack of oxygen.

●

Do not use the power outlets if

the vehicle has a vehicle cover

installed.

●

Do not sleep in the vehicle while

using devices such as an elec-

tric heater.

■

Devices to be connected

Make sure to read any instruction

manual which came with a device

and observe any warnings on the

device. Do not connect a device

to a power outlet if the device is

malfunctioning or its plug is dam-

aged.

Do not use power outlets for med-

ical devices, as the output of the

power outlet may be cut, depend-

ing on the condition of the vehicle.

NOTICE

Observe the following precau-

tions.

Failure to do so may lead to the

power outlets not operating cor-

rectly or damage to the vehicle or

a connected device.

■

To avoid short circuit or mal-

function

●

Do not set a device which gen-

erates heat near the interior

components or on a seat. Heat

may cause these parts to melt

or burn.

388

5-5. Using the other interior features

HIGHLANDER HV_U

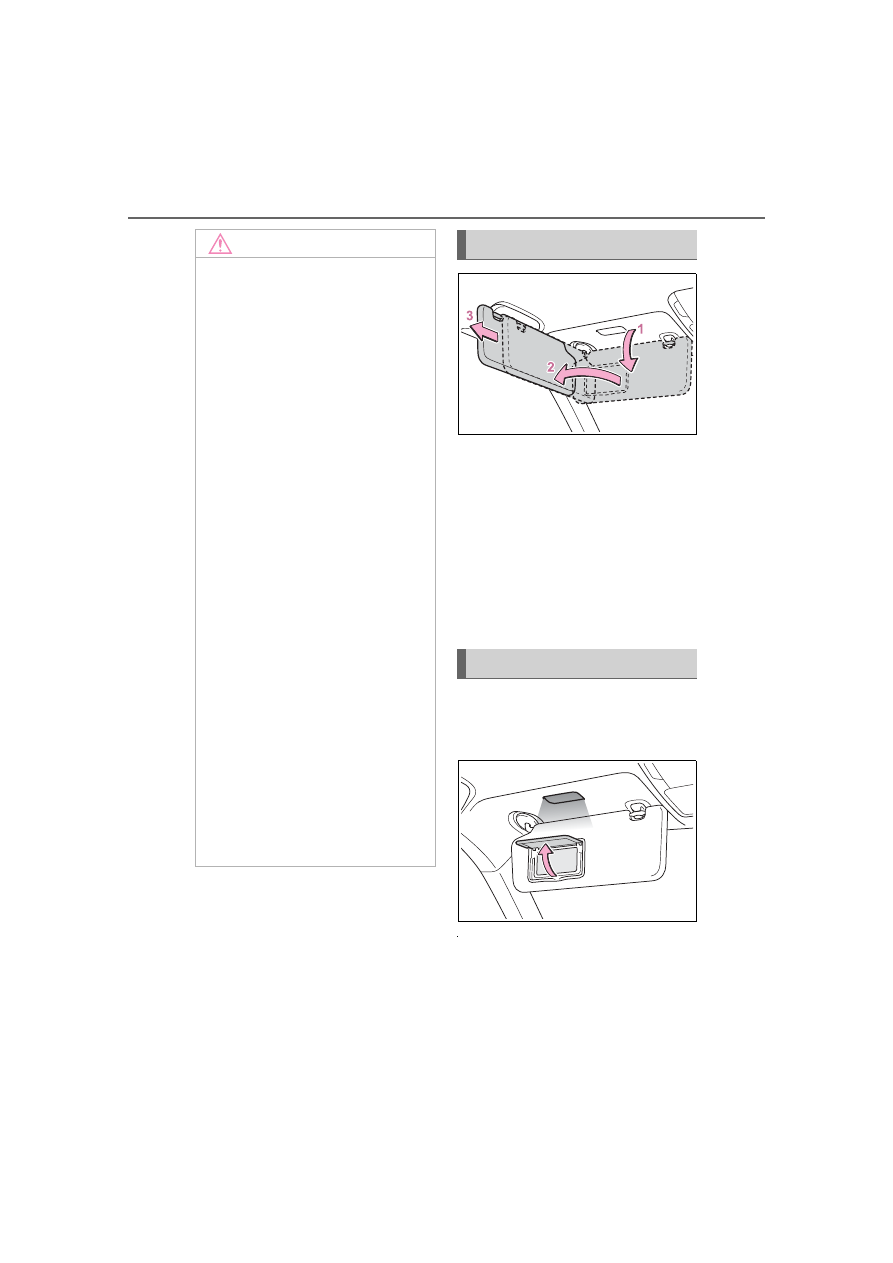

1

To set the visor in the forward
position, flip it down.

2

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

3

To use the side extender,
place the visor in the side
position, then slide it back-
ward.

Open the cover.

The light turns on when the cover is
opened.

■

To prevent 12-volt battery dis-

charge

If the vanity lights remain on when

the power switch is turned off, the

lights will go off automatically after

20 minutes.

NOTICE

●

Do not use devices which are

sensitive to vibration or heat in

the vehicle.

These devices may malfunction

due to vibration while driving or

heat while the vehicle is parked

in the sun.

●

When not using a power outlet,

make sure to close the cover. If

foreign matter or a liquid enters

the power outlet, it may cause a

malfunction or short circuit.

●

Do not use a multi-point outlet

adapter as doing so may over-

load the power outlet.

■

When the ambient tempera-

ture is high

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun,

the power outlets may not be able

to be used. Sufficiently ventilate

the interior or use the air condi-

tioning system to cool the interior

before attempting to use the

power outlets.

■

When the ambient tempera-

ture is low

If the vehicle has been stopped in

a cold area, to protect the hybrid

battery (traction battery), the

power outlets may not be able to

be used. In this case, drive the

vehicle for a while to warm up the

hybrid battery (traction battery).

Sun visors

Vanity mirrors

389

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

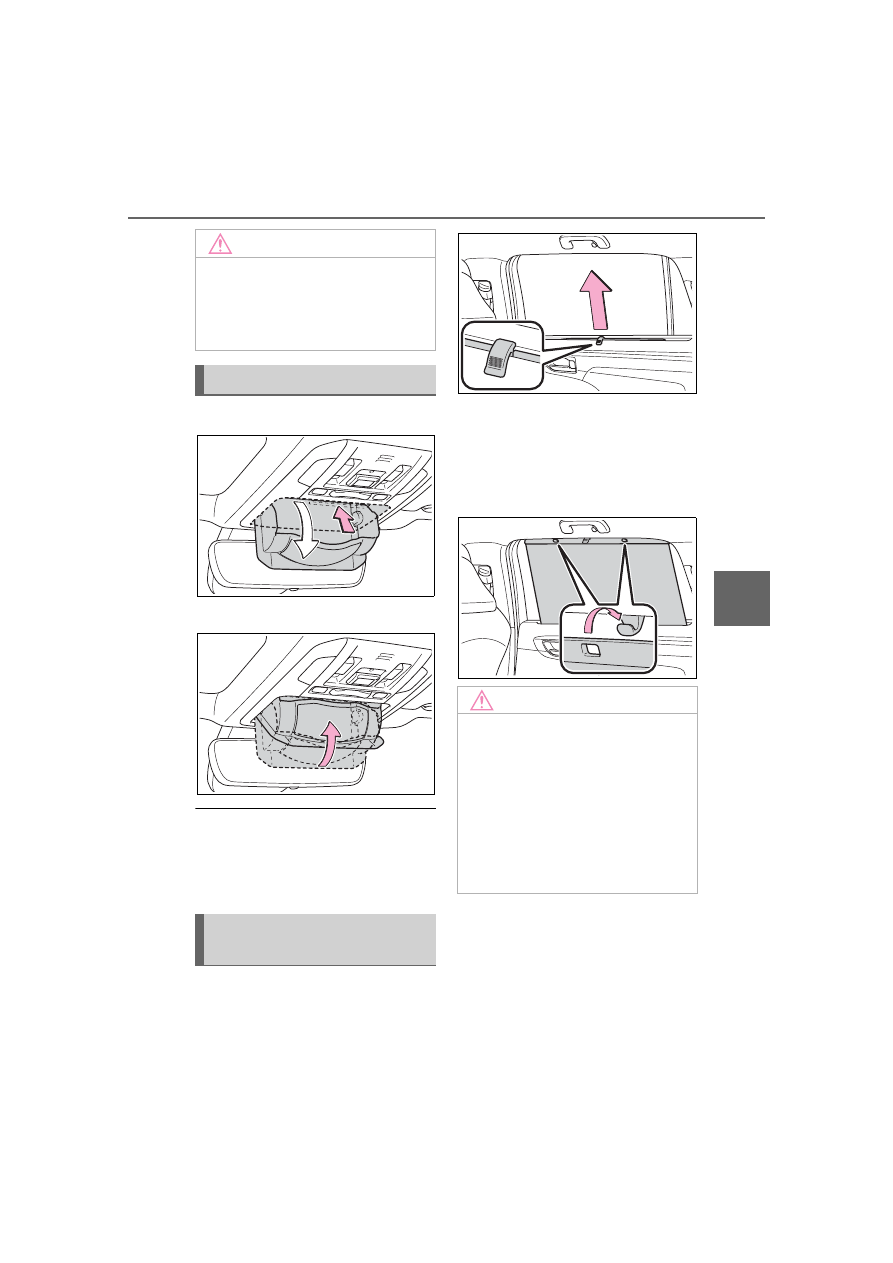

1

Push the lid.

2

Push the lid back up half way.

■

To use the overhead console

from the conversation mirror

state

Fully close the lid, then open it

again. (



P.368)

1

Pull the tab up.

2

Hook the sunshade on to the
anchors.

To lower the sunshade, pull the tab

up slightly to unhook the shade

from the anchors, and lower it

slowly.

NOTICE

■

To prevent the 12-volt battery

from being discharged

Do not leave the vanity lights on

for extended periods while the

hybrid system is off.

Conversation mirror

Rear door sunshades (if
equipped)

NOTICE

■

To ensure normal operation

of the sunshades

●

Do not put anything in an area

where it may interfere with the

operation of a rear door sun-

shade.

●

To prevent damage to the rear

door sunshades, do not apply

excessive load or attach items

to the rear door sunshades.

390

5-5. Using the other interior features

HIGHLANDER HV_U

*

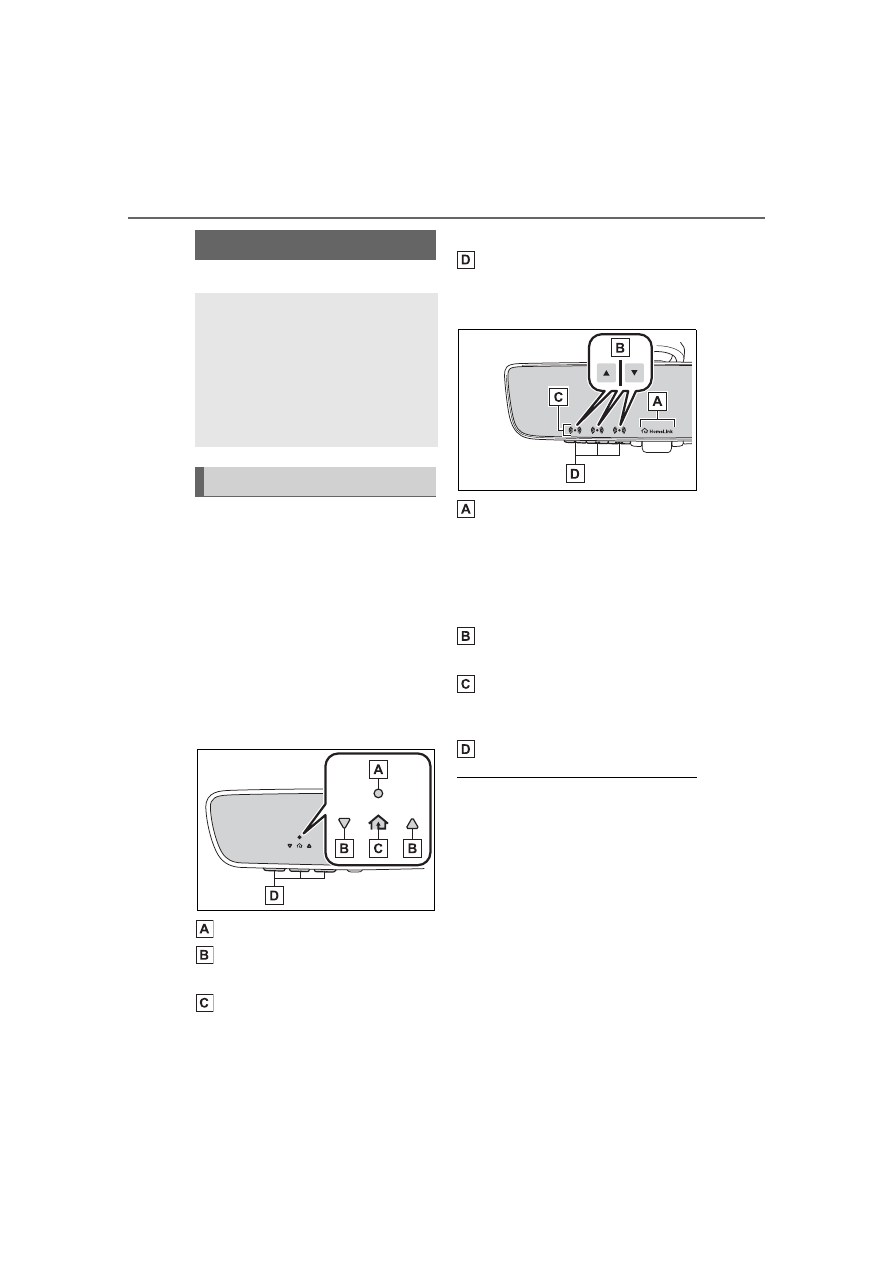

: If equipped

The HomeLink

®

 wireless control

system in your vehicle has 3
buttons which can be pro-
grammed to operate 3 different
devices. Refer to the program-
ming methods on the following
pages to determine the method
which is appropriate for the
device.



Vehicles with auto anti-glare
inside rear view mirror

HomeLink

®

 indicator light

Garage door operation indi-
cators

HomeLink

®

 icon

Illuminates while HomeLink

®

 is

operating.

Buttons



Vehicles with Digital Rearview
Mirror

HomeLink

®

 logo

Appears while HomeLink

®

 is oper-

ating. When the menu button
(



P.167) is pressed, the logo dis-

appears even while the HomeLink

®



is operating.

Garage door operation indi-
cators

HomeLink

®

 indicator light

Illuminates above each button
selected.

Buttons

■

Codes stored in the Home-
Link

®

 memory

●

The registered codes are not

erased even if the 12-volt battery

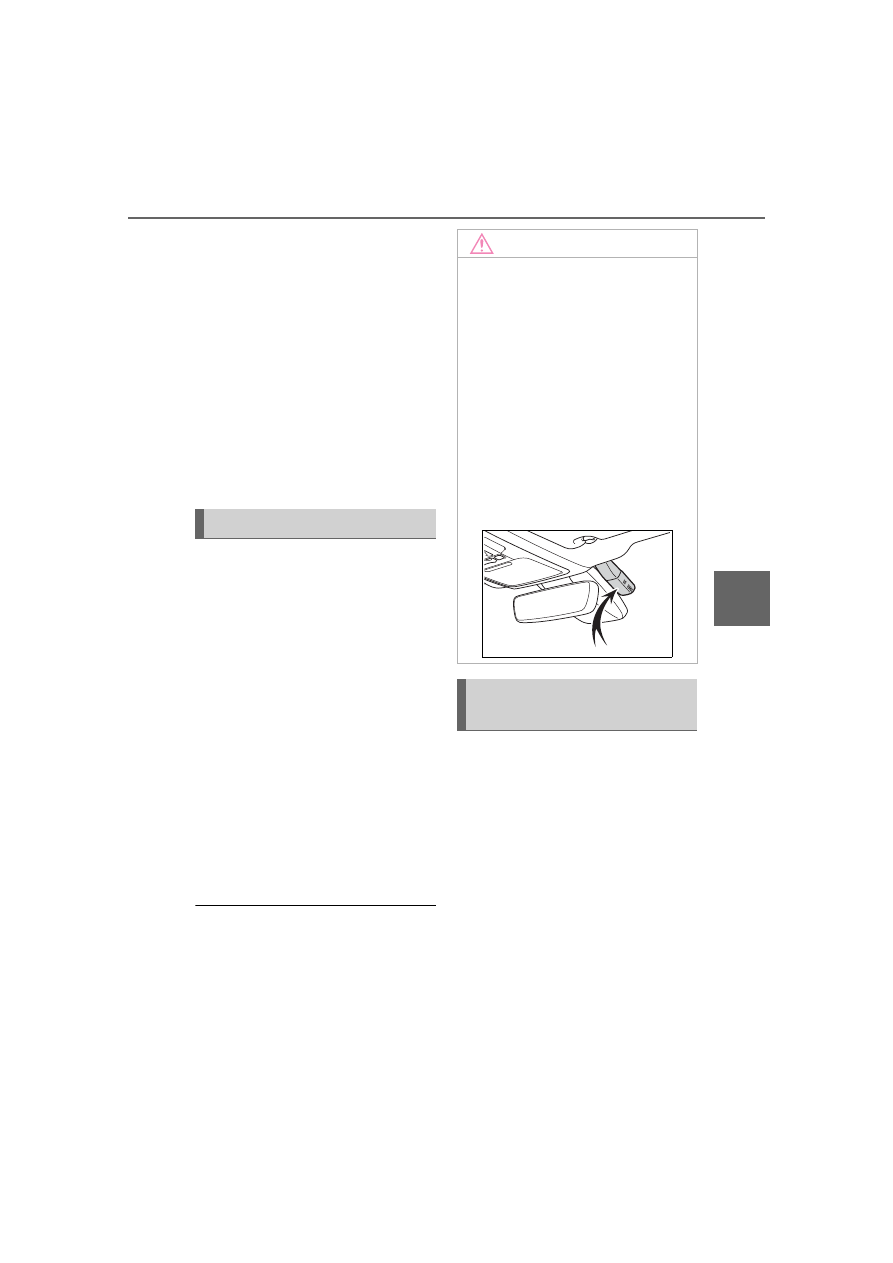

cable is disconnected.

●

If learning failed when registering
a different code to a HomeLink

®



button that already has a code

registered to it, the already regis-

tered code will not be erased.

Garage door opener

*

The garage door opener can
be programmed using the
HomeLink

®

 to operate

garage doors, gates, entry
doors, door locks, home
lighting systems, security
systems, and other devices.

System components

391

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

■

Certification for the garage door opener

■

When support is necessary

Visit on the web at

www.homelink.com/toyota or call

1-800-355-3515.

WARNING

■

When programming a garage

door or other remote control

device

The garage door or other device

may operate, so ensure people

and objects are out of danger to

prevent potential harm.

■

Conforming to federal safety

standards

Do not use the HomeLink

®

 com-

patible transceiver with any

garage door opener or device that

lacks safety stop and reverse fea-

tures as required by federal safety

standards.
This includes any garage door

that cannot detect an interfering

object. A door or device without

these features increases the risk

of death or serious injury.

■

When operating or program-
ming HomeLink

®

Never allow a child to operate or
play with the HomeLink

®

 buttons.

392

5-5. Using the other interior features

HIGHLANDER HV_U

■

Before programming Home-
Link

®



During programming, it is pos-
sible that garage doors,
gates, or other devices may
operate. For this reason,
make sure that people and
objects are clear of the
garage door or other devices
to prevent injury or other
potential harm.



It is recommended that a new
battery be placed in the
remote control transmitter for
more accurate programming.



Garage door opener motors
manufactured after 1995 may
be equipped with rolling code
protection. If this is the case,
you may need a stepladder or
other sturdy, safe device to
reach the “Learn” or “Smart”
button on the garage door
opener motor.

■

Programming HomeLink

®

Steps

1

 through

3

 must be per-

formed within 60 seconds, oth-
erwise the HomeLink

®

 indicator

light will stop flashing and pro-
gramming will not be success-
fully completed.

1

Press and release the Home-
Link

®

 button you want to pro-

gram and check that the

HomeLink

®

 indicator light

flashes (orange).

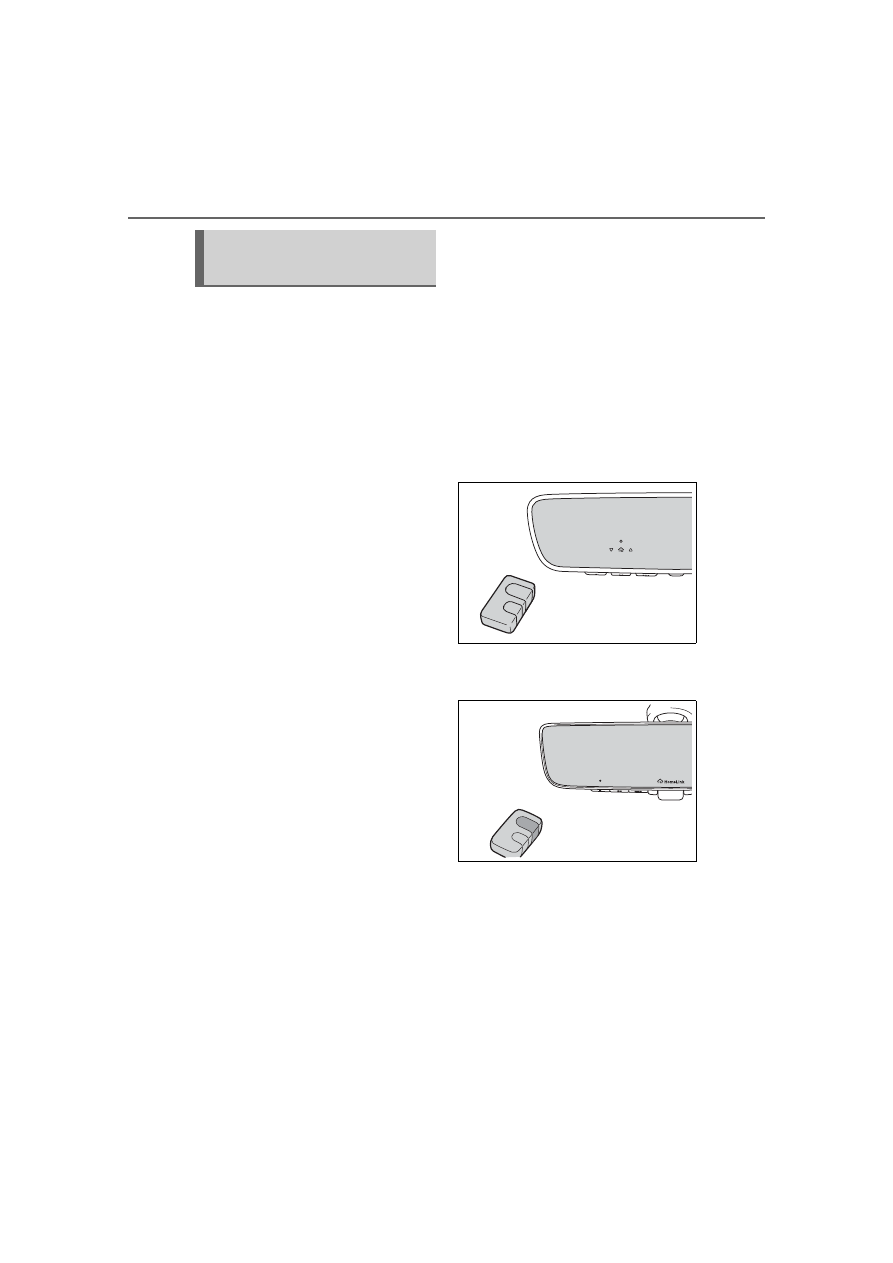

2

Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the
HomeLink

®

 buttons.

Keep the HomeLink

®

 indicator light

in view while programming.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rearview
Mirror

3

Program a device.

Programming the Home-
Link

®

393

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U



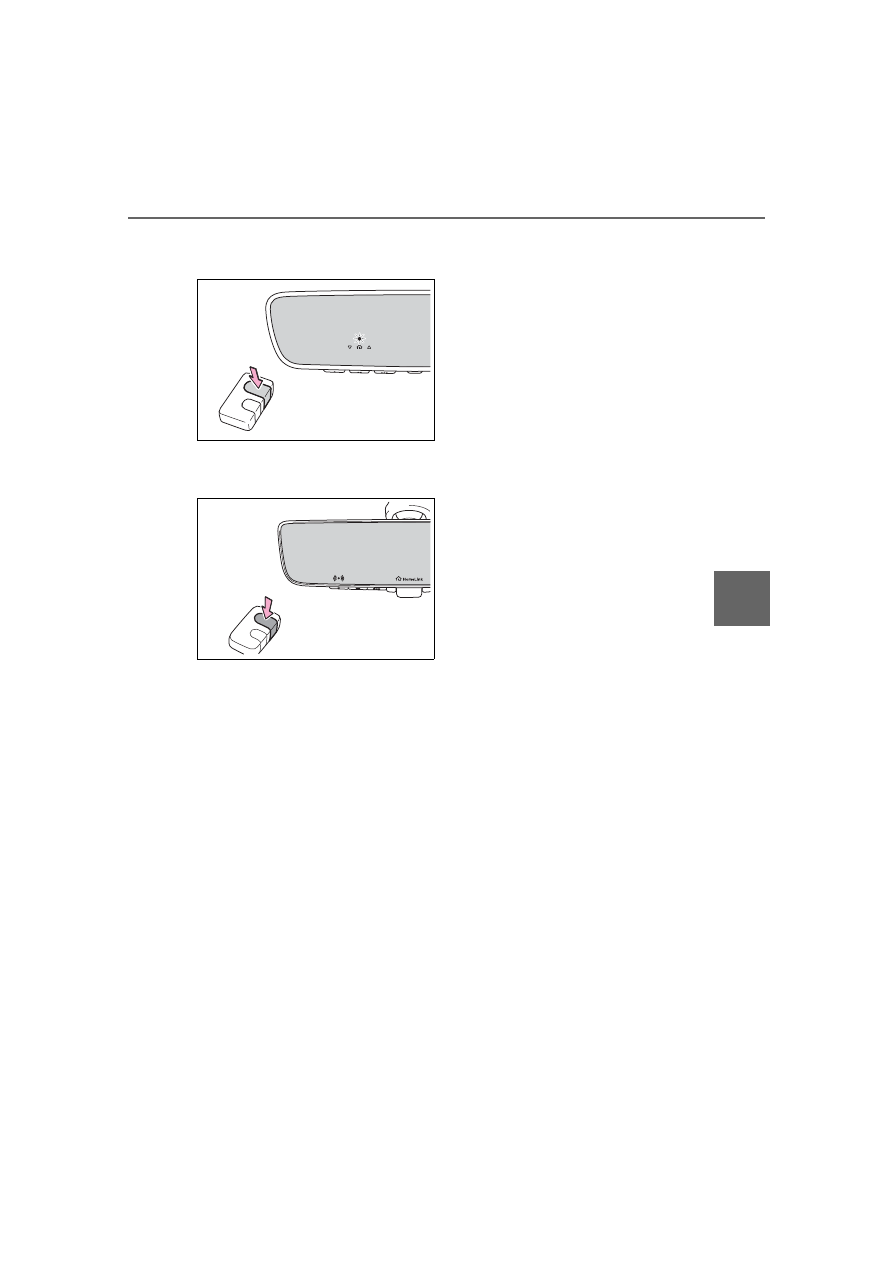

Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rearview
Mirror



Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the remote con-
trol transmitter button until the
HomeLink

®

 indicator light

changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button.



Programming an entry gate
(for U.S.A. owners)/Program-
ming a device in the Cana-
dian market

Press and release the remote
control transmitter button at 2

second intervals, repeatedly,
until the HomeLink

®

 indicator

light changes from slowly flash-
ing (orange) to rapidly flashing
(green) (rolling code) or continu-
ously lit (green) (fixed code).

4

Test the HomeLink

®

 opera-

tion by pressing the newly
programmed button and
observing the indicator light:



HomeLink

®

 indicator light illu-

minates: Programming of a
fixed code device has com-
pleted. The garage door or
other device should operate
when a HomeLink

®

 button is

pressed and released.



HomeLink

®

 indicator light

flashes rapidly: The garage
door opener motor or other
device is equipped with a roll-
ing code. To complete pro-
gramming, firmly press and
hold the HomeLink

®

 button

for 2 seconds then release it.



If the garage door or other
device does not operate, pro-
ceed to “Programming a roll-
ing code system”.

5

Repeat the steps above to
program another device for
any of the remaining Home-
Link

®

 buttons.

■

Programming a rolling code
system

Two or more people may be
necessary to complete rolling

394

5-5. Using the other interior features

HIGHLANDER HV_U

code programming.

1

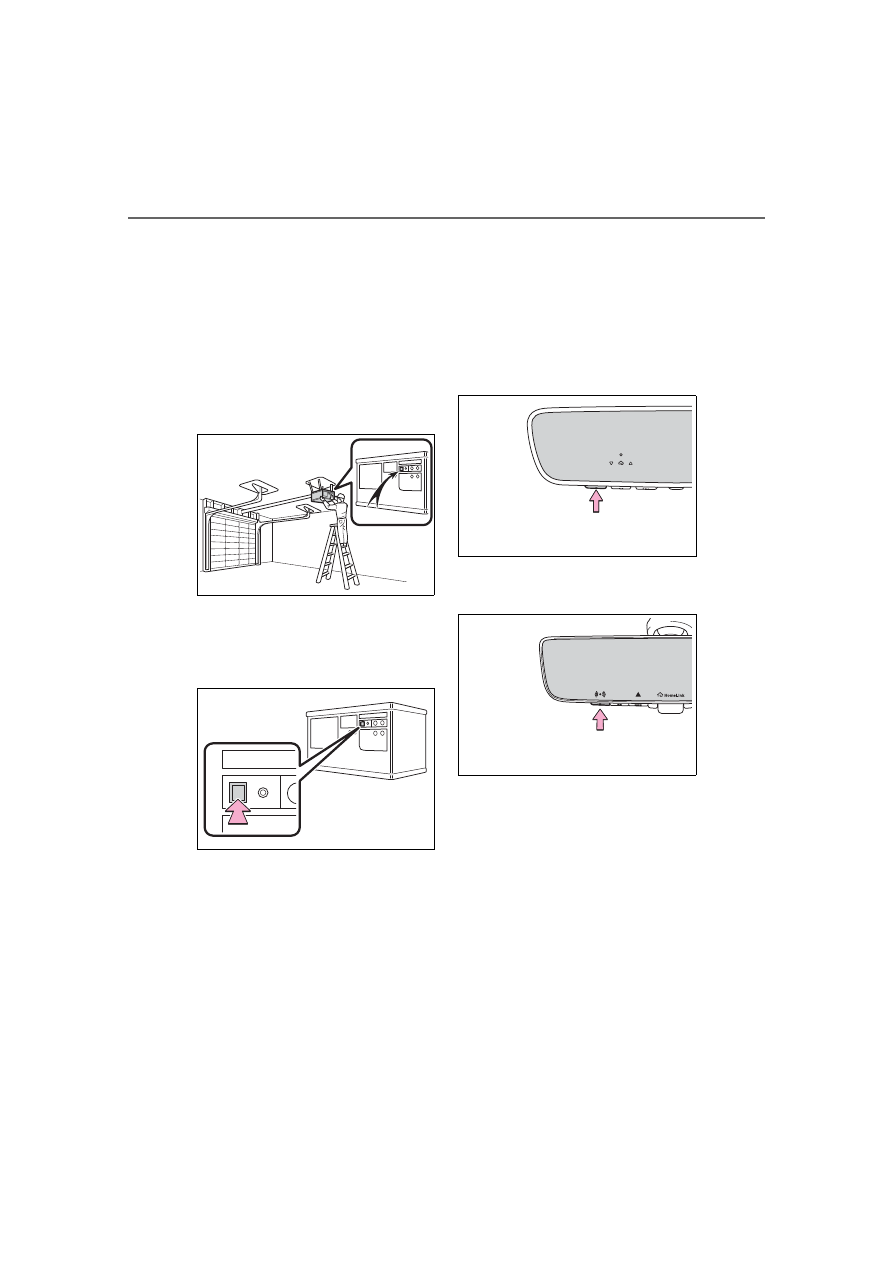

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found

where the hanging antenna wire is

attached to the unit. The name and

color of the button may vary by

manufacturer. Refer to the owner’s

manual supplied with the garage

door opener motor for details.

2

Press and release the
“Learn” or “Smart” button.

Perform

3

 within 30 seconds after

performing

2

.

3

Press and hold the desired
HomeLink

®

 button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence
(press/hold/release) up to 3
times to complete program-
ming.
If the garage door opener

motor operates when the
HomeLink

®

 button is

pressed, the garage door
opener motor recognizes the
HomeLink

®

 signal.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rearview
Mirror

■

Enabling 2-way communi-
cation with a garage door
(only available for compati-
ble devices)

When enabled, 2-way communi-
cation allows you to check the
status of the opening and clos-
ing of a garage door through
indicators in your vehicle.
2-way communication is only
available if the garage door
opener motor used is a compati-

395

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

ble device. (To check device
compatibility, refer to
www.homelink.com.)

1

Within 5 seconds after pro-
gramming the garage door
opener has been completed,
if the garage door opener
motor is trained to Home-
Link

®

, both garage door

operation indicators will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

If the indicators do not flash, per-

form

2

 and

3

 within the first 10

presses of the HomeLink

®

 button

after programming has been com-

pleted.

2

Press a programmed Home-
Link

®

 button to operate a

garage door.

3

Within 1 minute of pressing
the HomeLink

®

 button, after

the garage door operation
has stopped, press the
“Learn” or “Smart” button on
the garage door opener
motor. Within 5 seconds of
the establishment of 2-way
communication with the
garage door opener, both
garage door operation indica-
tors in the vehicle will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-

ing that 2-way communica-
tion is enabled.

■

Reprogramming a single
HomeLink

®

 button

When the following procedure is
performed, buttons which
already have devices registered
to them can be overwritten:

1

Press and hold the desired
HomeLink

®

 button.

2

When the HomeLink

®

 indica-

tor starts flashing orange,
release the HomeLink

®

 but-

ton and perform “Program-
ming HomeLink

®

”

1

 (it takes

20 seconds for the Home-
Link

®

 indicator to start flash-

ing).

■

Before programming

●

Install a new battery in the trans-

mitter.

●

The battery side of the transmitter

must be pointed away from the
HomeLink

®

 buttons.

Press the appropriate Home-
Link

®

 button. The HomeLink

®



indicator light should turn on.
The status of the opening and
closing of a garage door is
shown by the garage door
opener indicators.

Operating HomeLink

®

396

5-5. Using the other interior features

HIGHLANDER HV_U



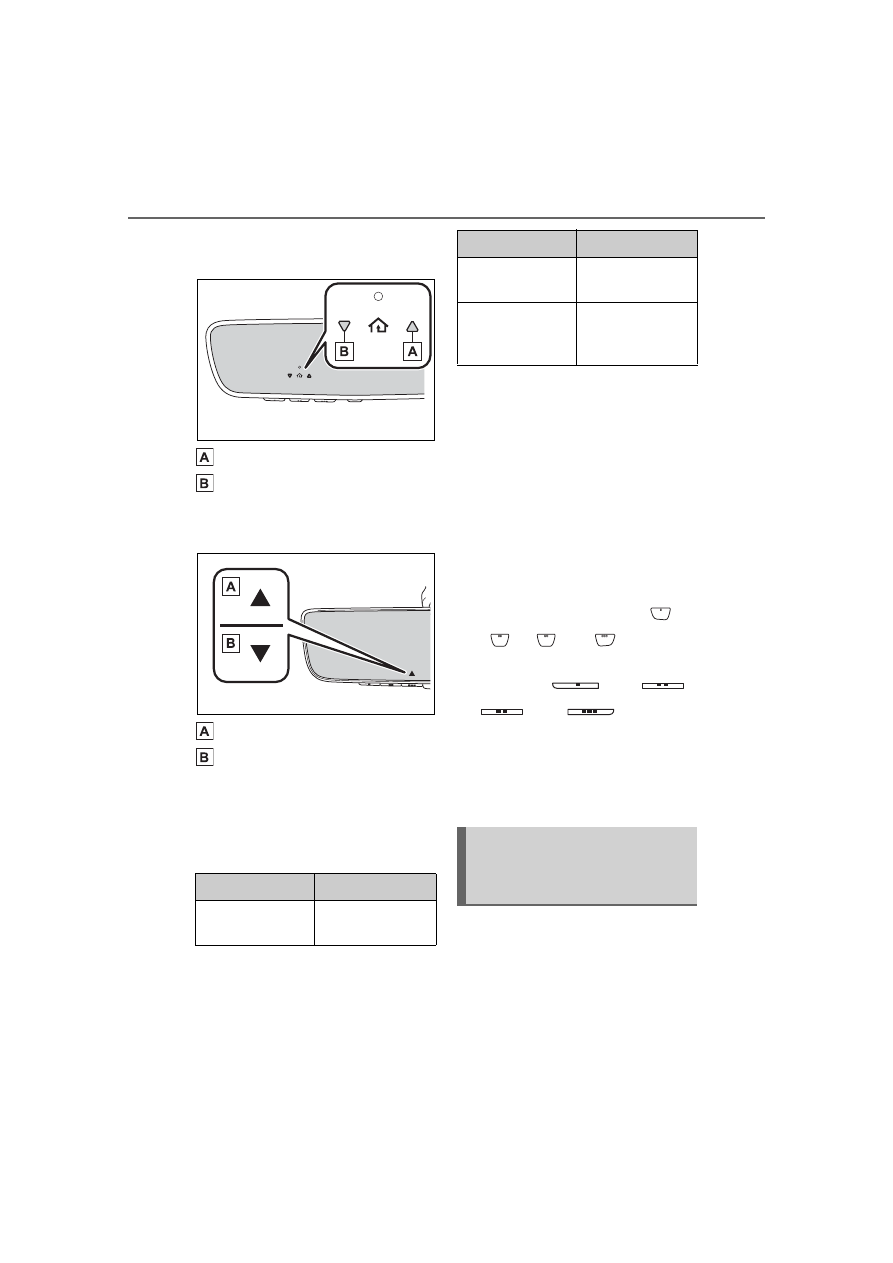

Vehicles with auto anti-glare
inside rear view mirror

Opening
Closing



Vehicles with Digital Rearview
Mirror

Opening
Closing

This function is only available if the
garage door opener motor used is a
compatible device. (To check
device compatibility, refer to
www.homelink.com.)

The indicators can operate
within approximately 820 ft. (250
m) of the garage door. However,
if there are obstructions
between the garage door and
the vehicle, such as houses and
trees, feedback signals from the
garage door may not be
received.
To recall the previous door oper-
ation status, press and release
either HomeLink

®

 buttons



and

 or

 and

 (vehicles

with auto anti-glare inside rear
view mirror),

 and



or

 and

 (vehicles

with Digital Rearview Mirror),
simultaneously. The last
recorded status will be dis-
played for 3 seconds.

Press and hold the 2 outside
buttons for 10 seconds until the
HomeLink

®

 indicator light

changes from continuously lit
(orange) to rapidly flashing
(green).

Color

Status

Orange (flash-

ing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback sig-

nals cannot be

received

Erasing the entire Home-
Link

®

 memory (all three

codes)

Color

Status

397

5-5. Using the other interior features

5

Interior

 featur

es

HIGHLANDER HV_U

If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink

®

 memory.



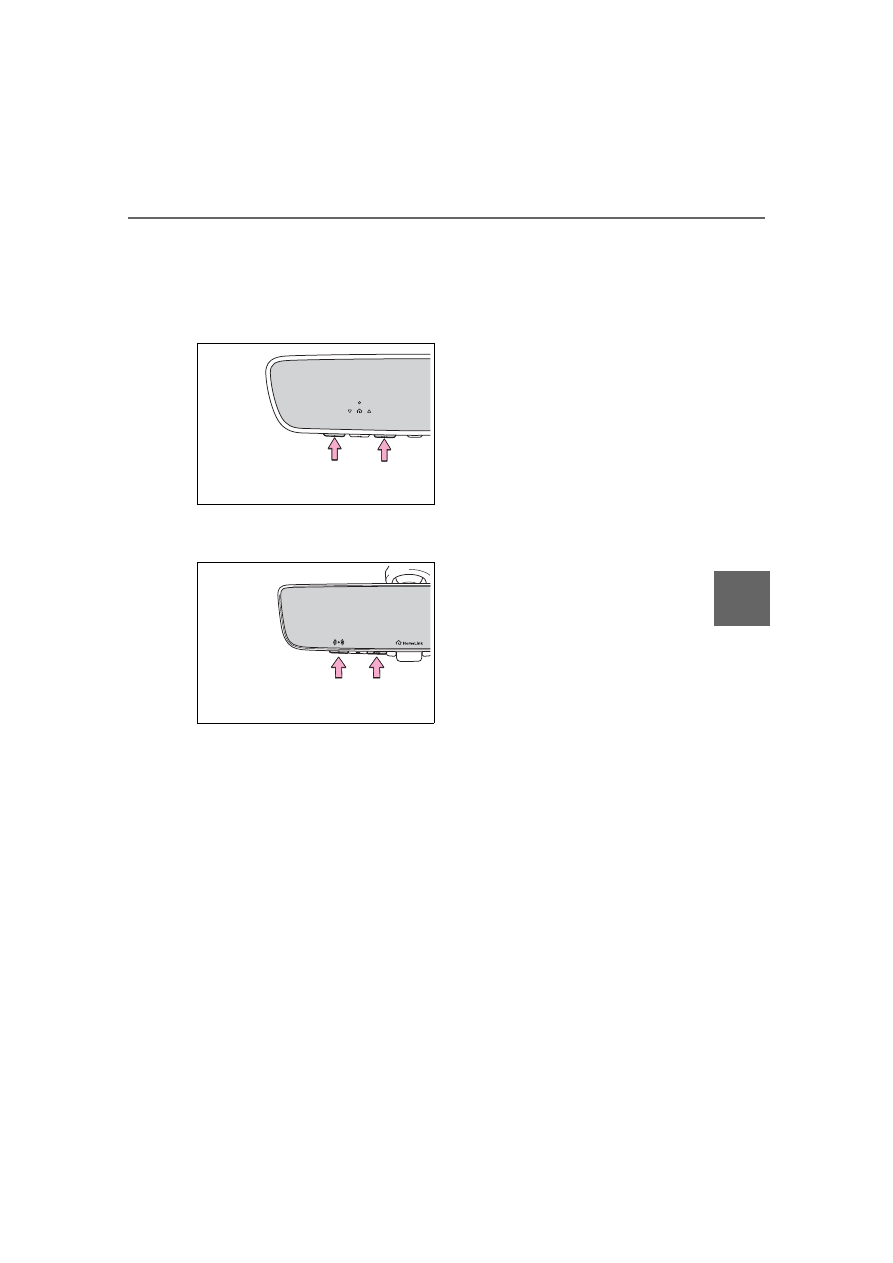

Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rearview
Mirror

398

5-5. Using the other interior features

HIGHLANDER HV_U

399

6

6

Maintena

nce
 a

nd ca

re

HIGHLANDER HV_U

Maintenance and care

.

6-1. Maintenance and care

Cleaning and protecting the

vehicle exterior ..........

400

Cleaning and protecting the

vehicle interior ...........

403

6-2. Maintenance

Maintenance requirements

..................................

406

General maintenance..

408

Emission inspection and

maintenance (I/M) pro-
grams ........................

410

6-3. Do-it-yourself mainte-

nance

Do-it-yourself service pre-

cautions.....................

412

Hood ...........................

414

Positioning a floor jack

..................................

415

Engine compartment...

416

12-volt battery .............

421

Tires ............................

424

Tire inflation pressure..

436

Wheels ........................

438

Air conditioning filter....

439

Cleaning the hybrid battery

(traction battery) air intake
vents and filter...........

441

Electronic key battery..

444

Checking and replacing

fuses..........................

446

Headlight aim ..............

448

Light bulbs...................

449

400

6-1. Maintenance and care

HIGHLANDER HV_U

6-1.Maintenance and care



Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.



Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.



For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.



Wipe away any water.



Wax the vehicle when the
waterproof coating deterio-
rates.

If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors

• Turn off the power back door
Start washing from the front of the

vehicle. Extend the mirrors before

driving.

●

Brushes used in automatic car

washes may scratch the vehicle

surface, parts (wheel, etc.) and

harm your vehicle’s paint.

●

Rear spoiler may not be washable

in some automatic car washes.

There may also be an increased

risk of damage to vehicle.

■

High pressure car washes

As water may enter the cabin, do

not bring the nozzle tip near the

gaps around the doors or perimeter

of the windows, or spray these

areas continuously.

■

When using a car wash

If the door handle becomes wet

while the electronic key is within the

effective range, the door may lock

and unlock repeatedly. In that case,

follow the following correction pro-

cedures to wash the vehicle:

●

Place the key in a position 6 ft. (2

m) or more separate from the

vehicle while the vehicle is being

washed. (Take care to ensure that

the key is not stolen.)

●

Set the electronic key to bat-

tery-saving mode to disable the

smart key system. (



P.147)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by

using a neutral detergent.

●

Wash detergent off with water

immediately after use.

●

To protect the paint from damage,

make sure to observe the follow-

ing precautions.

• Do not use acidic, alkaline or

abrasive detergent

• Do not use hard brushes

• Do not use detergent on the

wheels when they are hot, such

as after driving or parking in hot

weather

■

Bumpers

Do not scrub with abrasive cleaners.

■

Plated portions

If dirt cannot be removed, clean the

parts as follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neu-

Cleaning and protect-

ing the vehicle exte-

rior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Cleaning instructions

401

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re

HIGHLANDER HV_U

tral detergent and water to clean

the dirt off.

●

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

●

To remove oily deposits, use alco-

hol wet wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of

the engine compartment. Doing

so may cause the electrical com-

ponents, etc. to catch fire.

■

When cleaning the windshield

(vehicles with rain-sensing

windshield wipers)

Set the wiper switch to off.

If the switch is in “AUTO”, the wip-

ers may operate unexpectedly in

the following situations, and may

result in hands being caught or

other serious injuries and cause

damage to the wiper blades.

Off
AUTO

●

When the upper part of the

windshield where the raindrop

sensor is located is touched by

hand

●

When a wet rag or similar is

held close to the raindrop sen-

sor

●

If something bumps against the

windshield

●

If you directly touch the raindrop

sensor body or if something

bumps into the raindrop sensor

■

Precautions regarding the

exhaust pipe

Exhaust gasses cause the

exhaust pipe to become quite hot.

When washing the vehicle, be

careful not to touch the pipe until it

has cooled sufficiently, as touch-

ing a hot exhaust pipe can cause

burns.

■

Precaution regarding the rear

bumper with Blind Spot Moni-

tor

If the paint of the rear bumper is

chipped or scratched, the system

may malfunction. If this occurs,

consult your Toyota dealer.

NOTICE

■

To prevent paint deteriora-

tion and corrosion on the

body and components (alumi-

num wheels, etc.)

●

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

402

6-1. Maintenance and care

HIGHLANDER HV_U

NOTICE

●

If the paint is chipped or

scratched, have it repaired

immediately.

●

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

●

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

■

When using an automatic car

wash (vehicles with

rain-sensing windshield wip-

ers)

Set the wiper switch to the off

position.

If the wiper switch is in “AUTO”,

the wipers may operate and the

wiper blades may be damaged.

■

When using a high pressure

car wash

●

When washing the vehicle, do

not spray the camera or its sur-

rounding area directly with a

high pressure washer. Shock

applied from high pressure

water may cause the device to

not operate normally.

●

Do not spray water directly on

the radar which is equipped

behind the emblem. Otherwise

it may cause the device to be

damaged.

●

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), connectors or

the following parts. The parts

may be damaged if they come

into contact with high-pressure

water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

●

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicle body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged.

Also, do not continuously hold the

nozzle in the same place.

●

Do not spray the lower part of

the windshield continuously.

If water enters the air conditioning

system intake located near the

lower part of the windshield, the

air conditioning system may not

operate correctly.

●

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

403

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re

HIGHLANDER HV_U



Remove dirt and dust using a
vacuum cleaner. Wipe dirty
surfaces with a cloth damp-
ened with lukewarm water.



If dirt cannot be removed,
wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.
Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

■

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

■

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Protecting the vehicle
interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in

the vehicle, such as on the floor,

in the hybrid battery (traction

battery) air vents, and in the lug-

gage compartment.

Doing so may cause the hybrid

battery, electrical components,

etc. to malfunction or catch fire.

●

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet.

(



P.34)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

●

Vehicles with wireless charger:

Do not let the wireless charger

(



P.375) get wet. Failure to do

so may cause the charger to

become hot and cause burns or

could cause electric shock

resulting in death or serious

injury.

■

Cleaning the interior (espe-

cially instrument panel)

Do not use polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

404

6-1. Maintenance and care

HIGHLANDER HV_U



Remove dirt and dust using a
vacuum cleaner.



Wipe off any excess dirt and
dust with a soft cloth damp-
ened with diluted detergent.

Use a diluted water solution of
approximately 5% neutral wool
detergent.



Wring out any excess water
from the cloth and thoroughly
wipe off all remaining traces
of detergent.



Wipe the surface with a dry,
soft cloth to remove any
remaining moisture. Allow the
leather to dry in a shaded and
ventilated area.

■

Caring for leather areas

Toyota recommends cleaning the

interior of the vehicle at least twice a

year tomaintain the quality of the

vehicle’s interior.

NOTICE

• Seats: Alkaline or acidic solu-

tions, such as thinner, benzene,

and alcohol

●

Do not use polish wax or polish

cleaner. The instrument panel’s

or other interior part’s painted

surface may be damaged.

■

Preventing damage to leather

surfaces

Observe the following precautions

to avoid damage to and deteriora-

tion of leather surfaces:

●

Remove any dust or dirt from

leather surfaces immediately.

●

Do not expose the vehicle to

direct sunlight for extended peri-

ods of time. Park the vehicle in

the shade, especially during

summer.

●

Do not place items made of

vinyl, plastic, or containing wax

on the upholstery, as they may

stick to the leather surface if the

vehicle interior heats up signifi-

cantly.

■

Water on the floor

Do not wash the vehicle floor with

water.

Vehicle systems such as the

audio system may be damaged if

water comes into contact with

electrical components such as the

audio system above or under the

floor of the vehicle. Water may

also cause the body to rust.

■

When cleaning the inside of

the windshield

Do not allow glass cleaner to con-

tact the lens. Also, do not touch

the lens. (



P.243)

■

Cleaning the inside of the rear

window

●

Do not use glass cleaner to

clean the rear window, as this

may cause damage to the rear

window defogger heater wires

or antenna. Use a cloth damp-

ened with lukewarm water to

gently wipe the window clean.

Wipe the window in strokes run-

ning parallel to the heater wires

or antenna.

●

Be careful not to scratch or

damage the heater wires or

antenna.

Cleaning the leather areas

405

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re

HIGHLANDER HV_U



Remove dirt and dust using a
vacuum cleaner.



Wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.



Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

Cleaning the synthetic
leather areas

406

6-2. Maintenance

HIGHLANDER HV_U

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

■

Allow inspection and repairs to

be performed by a Toyota

dealer

●

Toyota technicians are

well-trained specialists and are

kept up to date with the latest ser-

vice information. They are well

informed about the operation of all

systems on your vehicle.

●

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be
performed on a daily basis. This
can be done by yourself or by a
Toyota dealer.

Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.

For details about maintenance
items and schedules, refer to the
“Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”.

Maintenance require-

ments

To ensure safe and econom-
ical driving, day-to-day care
and regular maintenance
are essential. It is the
owner’s responsibility to
perform regular checks.
Toyota recommends the fol-
lowing maintenance:

WARNING

■

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

■

Handling of the 12-volt bat-

tery

●

Engine exhaust, some of its

constituents, and a wide variety

of automobile components con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects and

other reproductive harm. Work

in a well ventilated area.

●

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

●

12-volt battery posts, terminals

and related accessories con-

tain lead and lead compounds

which are known to cause brain

damage. Wash your hands after

handling. (



P.421)

General maintenance

Scheduled maintenance

407

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER HV_U

■

Resetting the message indicat-

ing maintenance is required

After the required maintenance is

preformed according to the mainte-

nance schedule, please reset the

message.To reset the message, fol-

low the procedures described

below:



4.2-inch display

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch, select

 and

then press and hold

 .

3

Press

 or

 of the meter

control switch, select “Scheduled

Maintenance” and then press

 .

4

Select “Yes” and press

.

5

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.



7-inch display

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch, select

 and

then press and hold

 .

3

Press

 or

 of the meter

control switch, select “Scheduled

Maintenance” and then press

 .

4

Select “Yes” and press

.

5

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.

You can perform some mainte-
nance procedures by yourself.
Please be aware that do-it-your-
self maintenance may affect
warranty coverage.

The use of Toyota Repair Manuals
is recommended.
For details about warranty cover-
age, refer to the separate “Owner’s
Warranty Information Booklet” or
“Owner’s Manual Supplement”.

Do-it-yourself mainte-
nance
