216

4-2. Driving procedures

HIGHLANDER HV_U

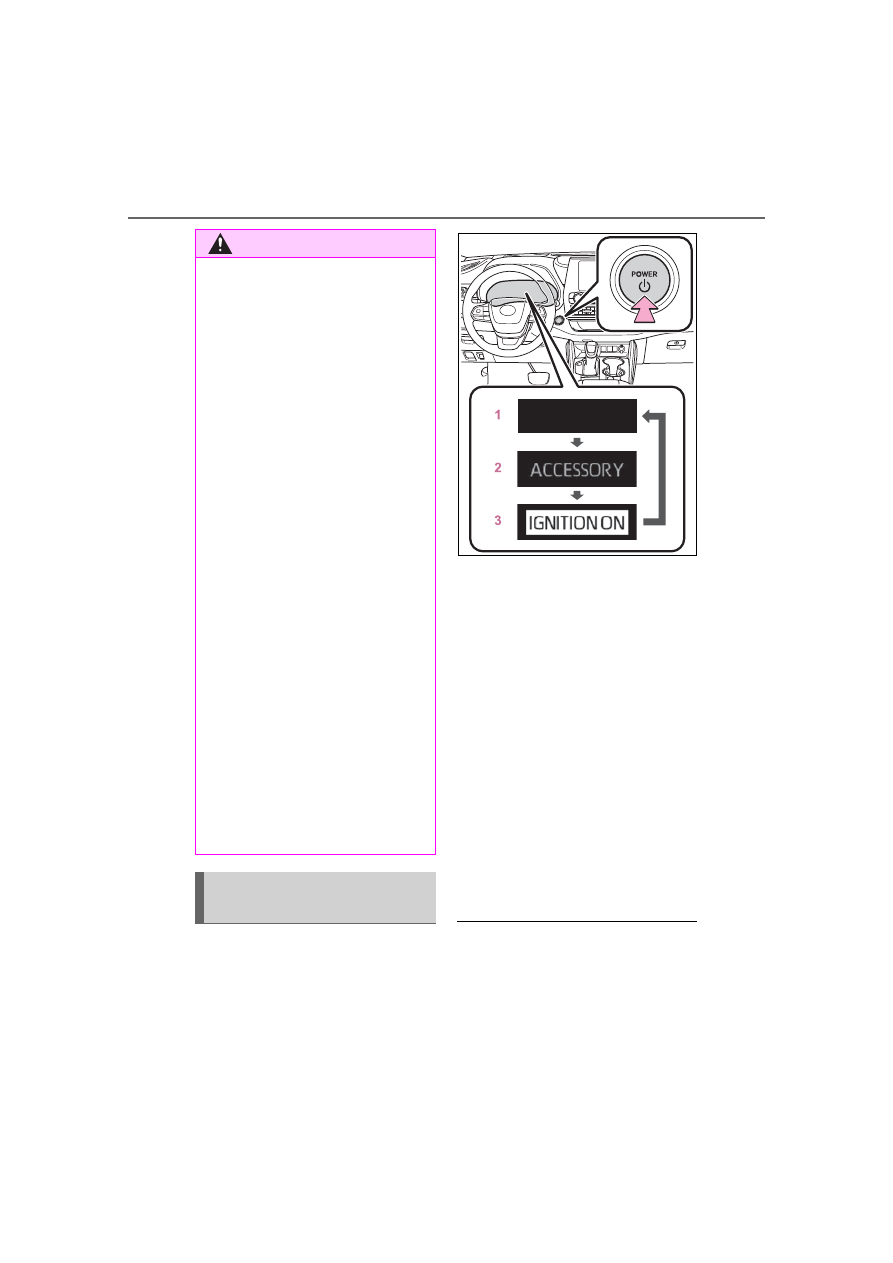

Modes can be changed by
pressing the power switch with
brake pedal released. (The
mode changes each time the
switch is pressed.)

1

OFF

*

The emergency flashers can be
used.

2

ACC

Some electrical components such
as the audio system can be used.
“ACCESSORY” will be displayed
on the multi-information display.

3

ON

All electrical components can be
used.
“IGNITION ON” will be displayed on
the multi-information display.

*

: If the shift lever is in a position

other than P when turning off the
hybrid system, the power switch
will be turned to ACC, not to OFF.

■

Auto power off function

If the vehicle is left in ACC for more

than 20 minutes or ON (the hybrid

system is not operating) for more

than an hour with the shift lever in P,

the power switch will automatically

turn off. However, this function can-

WARNING

●

To restart the hybrid system

after performing an emergency

shutdown, shift the shift lever to

N and then press the power

switch.

■

When parking

Exhaust gases include harmful

carbon monoxide (CO), which is

colorless and odorless. Observe

the following precautions.
Failure to do so may cause

exhaust gases to enter the vehicle

and may lead to an accident

caused by light-headedness, or

may lead to death or a serious

health hazard.

●

If the vehicle is in a poorly venti-

lated area or a closed area,

such as a garage, stop the

hybrid system.

●

Do not leave the vehicle with

the hybrid system operating for

a long time. If such a situation

cannot be avoided, park the

vehicle in an open space and

ensure that exhaust fumes do

not enter the vehicle interior.

●

Do not leave the hybrid system

operating in an area with snow

build-up, or where it is snowing.

If snowbanks build up around

the vehicle while the hybrid sys-

tem is operating, exhaust gases

may collect and enter the vehi-

cle.

Changing power switch
modes

217

4-2. Driving procedures

4

Dr

iv

ing

HIGHLANDER HV_U

not entirely prevent 12-volt battery

discharge. Do not leave the vehicle

with the power switch in ACC or ON

for long periods of time when the

hybrid system is not operating.

If the hybrid system is stopped
with the shift lever in a position
other than P, the power switch
will not be turned off but instead
be turned to ACC. Perform the
following procedure to turn the
switch off:

1

Check that the parking brake
is set.

2

Shift the shift lever to P.

3

Check that “ACCESSORY” is
displayed on the multi-infor-
mation display and press the
power switch shortly and
firmly.

4

Check that “ACCESSORY”
or “IGNITION ON” on the

multi-information display are
off.

NOTICE

■

To prevent 12-volt battery dis-

charge

●

Do not leave the power switch

in ACC or ON for long periods of

time without the hybrid system

on.

●

If “ACCESSORY” or “IGNITION

ON” is displayed on the

multi-information display, the

power switch is not off. Exit the

vehicle after turning the power

switch off.

When stopping the hybrid
system with the shift lever
in a position other than P

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not stop the hybrid system

when the shift lever is in a position

other than P. If the hybrid system

is stopped in another shift lever

position, the power switch will not

be turned off but instead be

turned to ACC. If the vehicle is left

in ACC, 12-volt battery discharge

may occur.

218

4-2. Driving procedures

HIGHLANDER HV_U

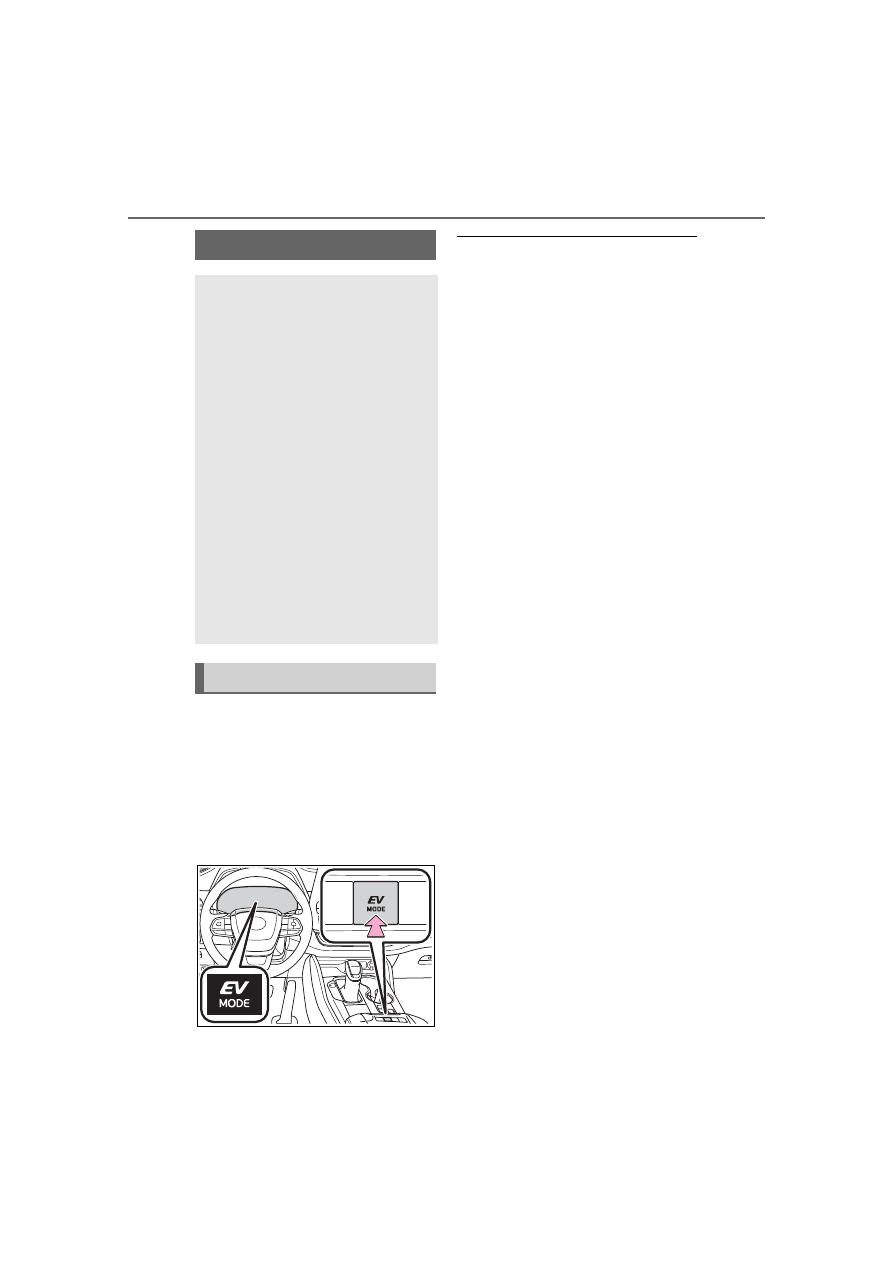

Turns EV drive mode on/off

When EV drive mode is turned on,
the EV drive mode indicator will
come on. Pressing the switch when
in EV drive mode will return the
vehicle to normal driving (using the
gasoline engine and electric motor
[traction motor]).

■

Situations in which EV drive

mode cannot be turned on

It may not be possible to turn EV

drive mode on in the following situa-

tions. If it cannot be turned on, a

buzzer will sound and a message

will be shown on the multi-informa-

tion display.

●

The temperature of the hybrid sys-

tem is high.

The vehicle has been left in the

sun, driven on a hill, driven at high

speeds, etc.

●

The temperature of the hybrid sys-

tem is low.

The vehicle has been left in tem-

peratures lower than about 32°F

(0 °C) for a long period of time,

etc.

●

The gasoline engine is warming

up.

●

The hybrid battery (traction bat-

tery) is low.

The remaining battery level indi-

cated in the energy monitor dis-

play is low. (



P.117)

●

Vehicle speed is high.

●

The accelerator pedal is

depressed firmly or the vehicle is

on a hill, etc.

●

The windshield defogger is in use.

■

Switching to EV drive mode

when the gasoline engine is

cold

If the hybrid system is started while

the gasoline engine is cold, the gas-

oline engine will start automatically

after a short period of time in order

to warm up. In this case, you will

become unable to switch to EV drive

mode.
After the hybrid system has started

and the “READY” indicator has illu-

minated, press the EV drive mode

switch before the gasoline engine

starts to switch to EV drive mode.

EV drive mode

In EV drive mode, electric
power is supplied by the
hybrid battery (traction bat-
tery), and only the electric
motor (traction motor) is
used to drive the vehicle.

This mode allows you to
drive in residential areas
early in the morning and
late at night, or in indoor
parking lots, etc., without
concern for noises and gas
emissions.

However, when the Acoustic
Vehicle Alerting System is
active, the vehicle may pro-
duce sound.

Operating instructions

219

4-2. Driving procedures

4

Dr

iv

ing

HIGHLANDER HV_U

■

Automatic cancelation of EV

drive mode

When driving in EV drive mode, the

gasoline engine may automatically

restart in the following situations.

When EV drive mode is canceled, a

buzzer will sound, the EV drive

mode indicator will go off after flash-

ing, and a message is displayed on

the multi-information display.

●

The hybrid battery (traction bat-

tery) becomes low.

The remaining battery level indi-

cated in the energy monitor dis-

play is low. (



P.117)

●

Vehicle speed is high.

●

The accelerator pedal is

depressed firmly or the vehicle is

on a hill, etc.

■

Possible driving distance when

driving in EV drive mode

EV drive mode’s possible driving

distance ranges from a few hundred

meters to approximately 0.6 mile (1

km). However, depending on vehicle

conditions, there are situations

when EV drive mode cannot be

used.

(The distance that is possible

depends on the hybrid battery [trac-

tion battery] level and driving condi-

tions.)

■

Fuel economy

The hybrid system is designed to

achieve the best possible fuel econ-

omy during normal driving (using

the gasoline engine and electric

motor [traction motor]). Driving in

EV drive mode more than neces-

sary may lower fuel economy.

■

If “EV Mode Unavailable” is

shown on the multi-information

display

The EV drive mode is not available.

The reason the EV drive mode is

not available (the vehicle is idling,

battery charge is low, vehicle speed

is higher than the EV drive mode

operating speed range or accelera-

tor pedal is depressed too much)

may be displayed. Use the EV drive

mode when it becomes available.

■

If “EV Mode Deactivated” is

shown on the multi-information

display

The EV drive mode has been auto-

matically canceled. The reason the

EV drive mode is not available (the

battery charge is low, vehicle speed

is higher than the EV drive mode

operating speed range or accelera-

tor pedal is depressed too much)

may be displayed. Drive the vehicle

for a while before attempting to turn

on the EV drive mode again.

WARNING

■

Caution while driving

When driving in EV drive mode,

pay special attention to the area

around the vehicle. Because

there is no engine noise, pedestri-

ans, people riding bicycles or

other people and vehicles in the

area may not be aware of the

vehicle starting off or approaching

them, so take extra care while

driving. Therefore, take extra care

while driving even if the acoustic

vehicle alerting system is active.

220

4-2. Driving procedures

HIGHLANDER HV_U

*1

:To improve fuel efficiency and

reduce noise, shift the shift lever
to D for normal driving.

*2

:By selecting shift ranges using S

mode, you can control accelerat-
ing force and engine braking
force.

■

When driving with dynamic

radar cruise control with

full-speed range activated

Even when switching the driving

mode to sport mode with the intent

of enabling engine braking, engine

braking will not activate because

dynamic radar cruise control with

full-speed range will not be can-

celed.

■

Restraining sudden start

(Drive-Start Control)



P.191

: While the power switch is in

ON and the brake pedal
depressed

*

, shift the shift lever

while pushing the shift release
button on the shift knob.

: Shift the shift lever while

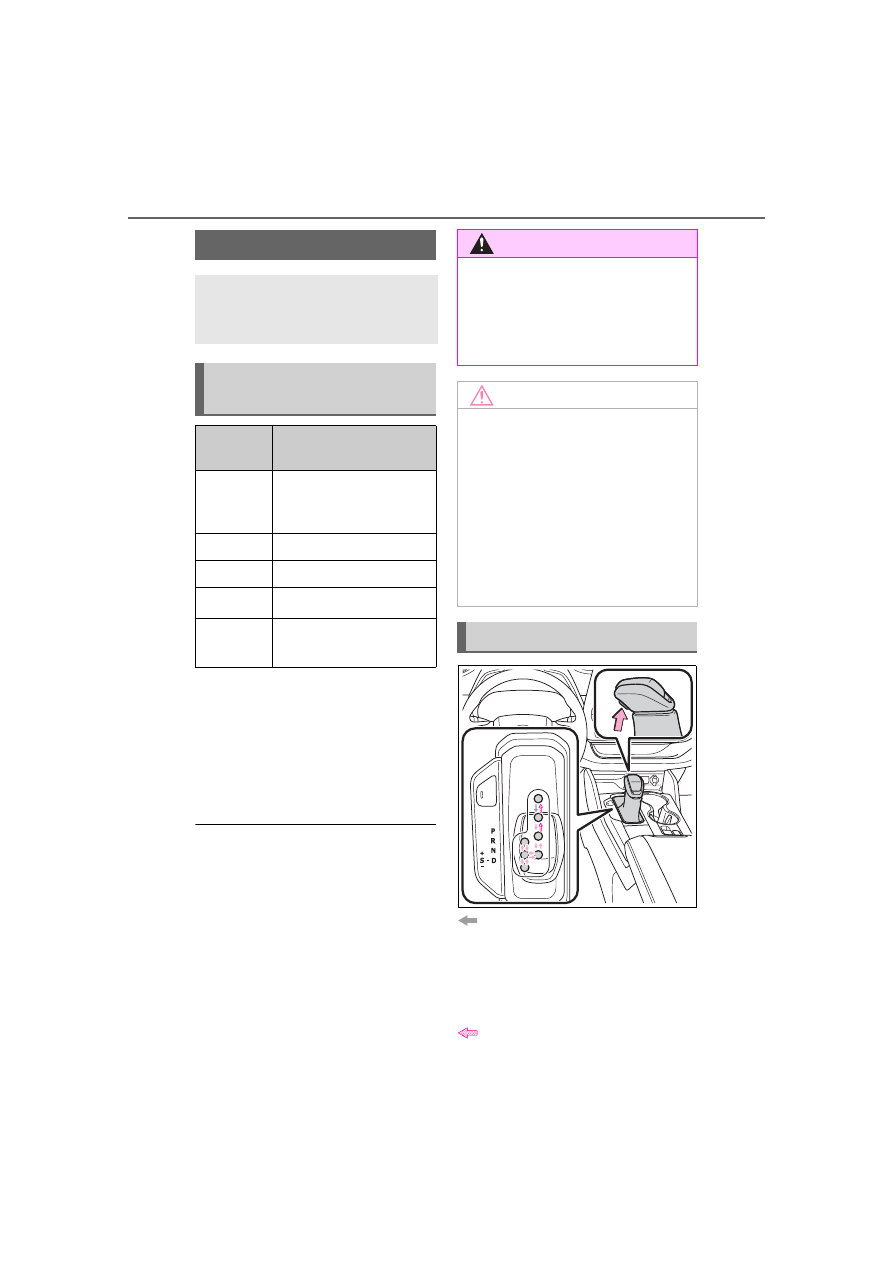

Hybrid transmission

Select the shift position
depending on your purpose
and situation.

Shift position purpose
and functions

Shift posi-

tion

Objective or function

P

Parking the vehi-

cle/starting the hybrid

system

R

Reversing

N

Neutral

D

Normal driving

*1

S

S mode driving

*2



(



P.222)

WARNING

■

When driving on slippery

road surfaces

Be careful of downshifting and

sudden acceleration, as this could

result in the vehicle skidding to

the side or spinning.

NOTICE

■

Hybrid battery (traction bat-

tery) charge

If the shift lever is in N, the hybrid

battery (traction battery) will not

be charged even when the engine

is running. Therefore, if the vehi-

cle is left with the shift lever in N

for a long period of time, the

hybrid battery (traction battery)

will discharge, and this may result

in the vehicle not being able to

start.

Shifting the shift lever

221

4-2. Driving procedures

4

Dr

iv

ing

HIGHLANDER HV_U

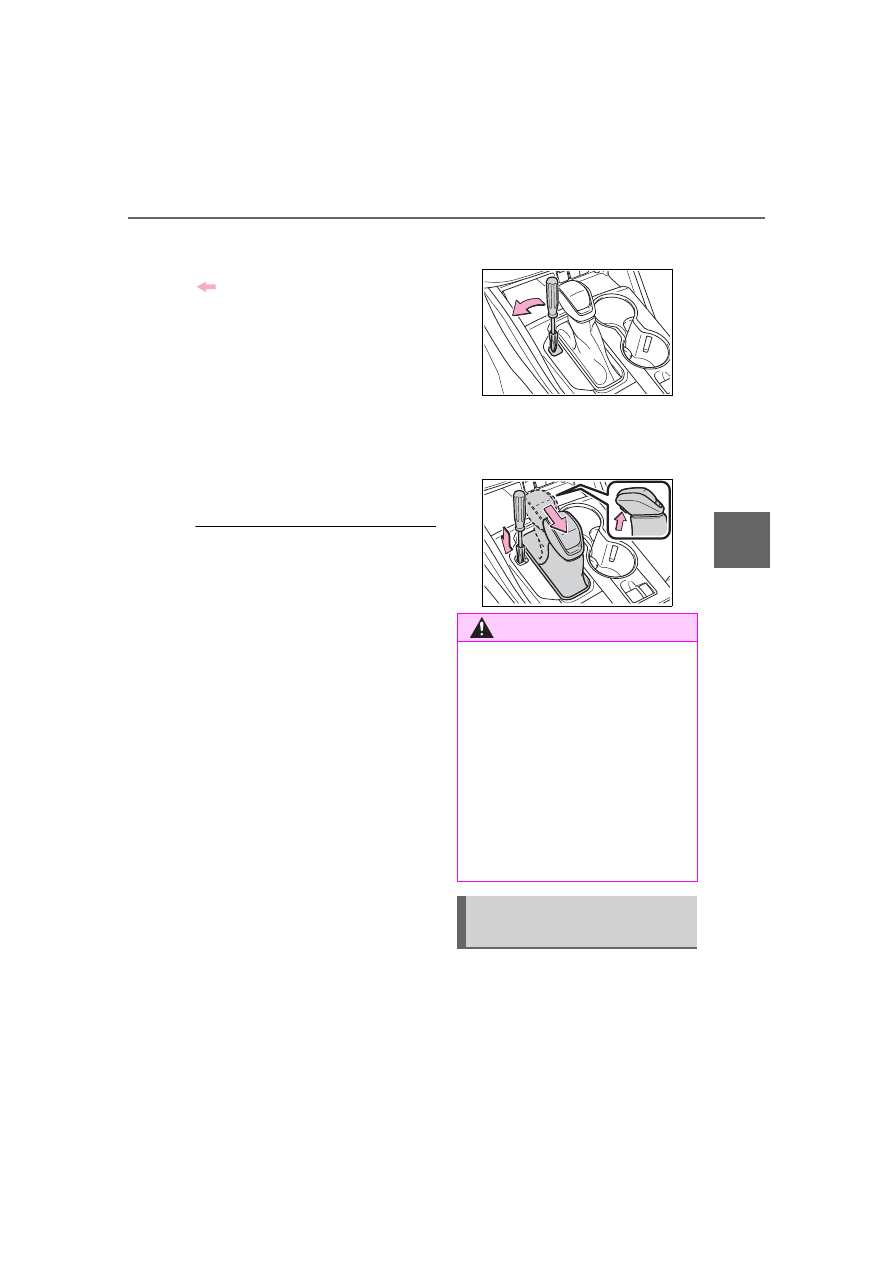

pushing the shift release button
on the shift knob.

: Shift the shift lever normally.

When shifting the shift lever
between P and D, make sure that
the vehicle is completely stopped
and the brake pedal is depressed.

*

: For the vehicle to be able to be

shifted from P, the brake pedal
must be depressed before the
shift release button is pushed. If
the shift release button is pushed
first, the shift lock will not be
released.

■

Shift lock system

The shift lock system is a system to

prevent accidental operation of the

shift lever in starting.
The shift lever can be shifted from P

only when the power switch is in ON

and the brake pedal is being

depressed.

■

If the shift lever cannot be

shifted from P

First, check whether the brake pedal

is being depressed.
If the shift lever cannot be shifted

with your foot on the brake pedal,

there may be a problem with the

shift lock system. Have the vehicle

inspected by your Toyota dealer

immediately.
The following steps may be used as

an emergency measure to ensure

that the shift lever can be shifted.
Releasing the shift lock:

1

Turn the power switch to ON and

check that the parking brake is

set. (



P.216, 224)

2

Turn the power switch to off.

3

Depress the brake pedal.

4

Pry the cover up with a flathead

screwdriver or equivalent tool.

To prevent damage to the cover,

cover the tip of the screwdriver with

a rag.

5

Press and hold the shift lock

override button.

The shift lever can be shifted while

both buttons are pressed.



P.322

WARNING

■

To prevent an accident when

releasing the shift lock

Before pressing the shift lock

override button, make sure to set

the parking brake and depress the

brake pedal.

If the accelerator pedal is acci-

dentally depressed instead of the

brake pedal when the shift lock

override button is pressed and the

shift lever is shifted out of P, the

vehicle may suddenly start, possi-

bly leading to an accident result-

ing in death or serious injury.

Selecting the driving
mode

222

4-2. Driving procedures

HIGHLANDER HV_U

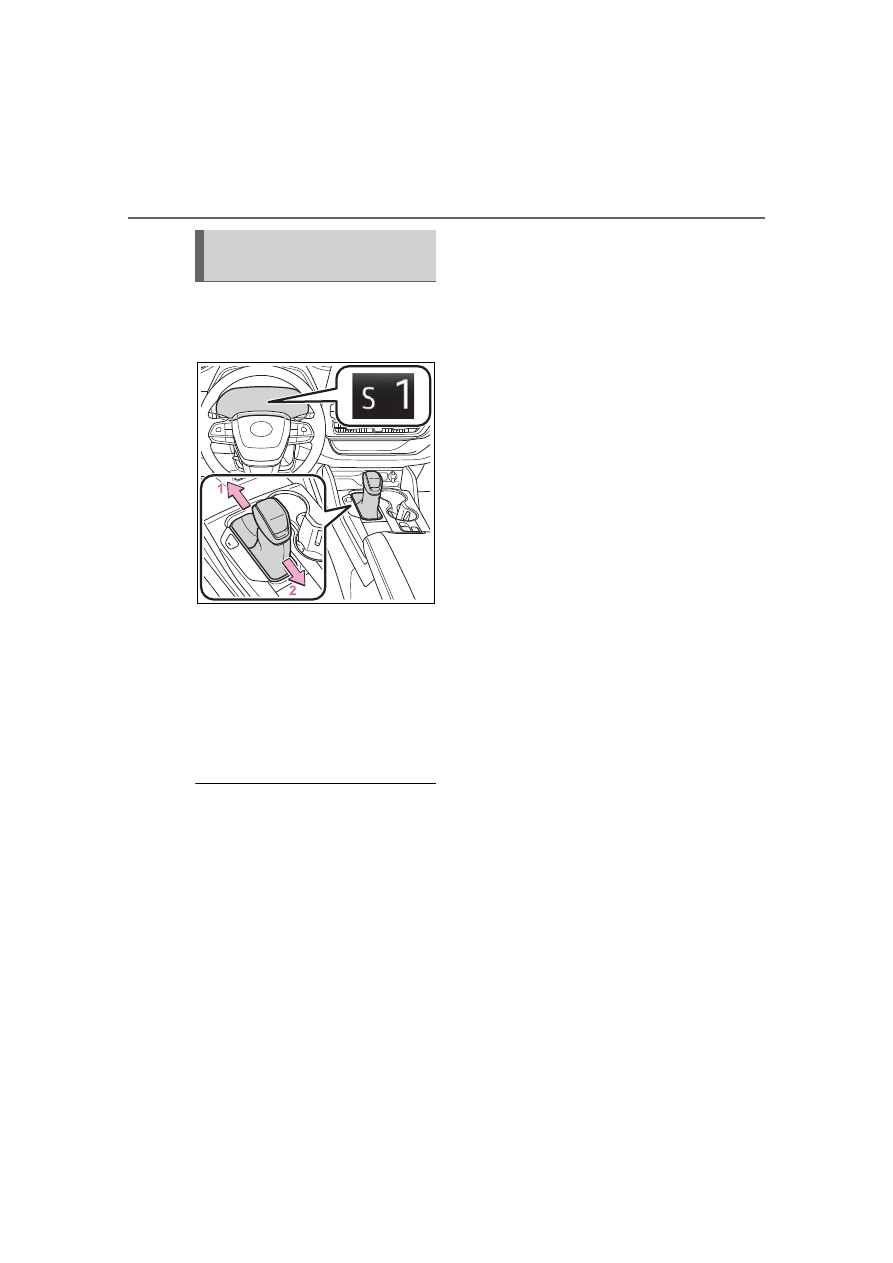

When the shift lever is in the S
position, the shift lever can be
operated as follows:

1

Upshifting

2

Downshifting

The selected shift range, from S1 to
S6, will be displayed on the
multi-information display.
The initial shift range in S mode is
set automatically to S4 or S5
according to vehicle speed.

■

S mode

●

You can choose from 6 levels of

accelerating force and engine

braking force.

●

A lower shift range will provide

greater accelerating force and

engine braking force than a higher

shift range, and the engine revolu-

tions will also increase.

●

To prevent the engine from

over-revving, upshifting may auto-

matically occur when the shift

range is 4 or lower.

●

When the shift range is 4 or lower,

holding the shift lever toward “+”

sets the shift range to 6.

■

Downshifting restrictions warn-

ing buzzer

To help ensure safety and driving

performance, downshifting opera-

tion may sometimes be restricted. In

some circumstances, downshifting

may not be possible even when the

shift lever is operated. (A buzzer will

sound twice.)

■

If the S indicator does not come

on or the D indicator is dis-

played even after shifting the

shift lever to S

This may indicate a malfunction in

the hybrid transmission system.

Have the vehicle inspected by your

Toyota dealer immediately. (In this

situation, the hybrid transmission

will operate in the same manner as

when the shift lever is in D.)

Changing shift ranges in
S mode

223

4-2. Driving procedures

4

Dr

iv

ing

HIGHLANDER HV_U

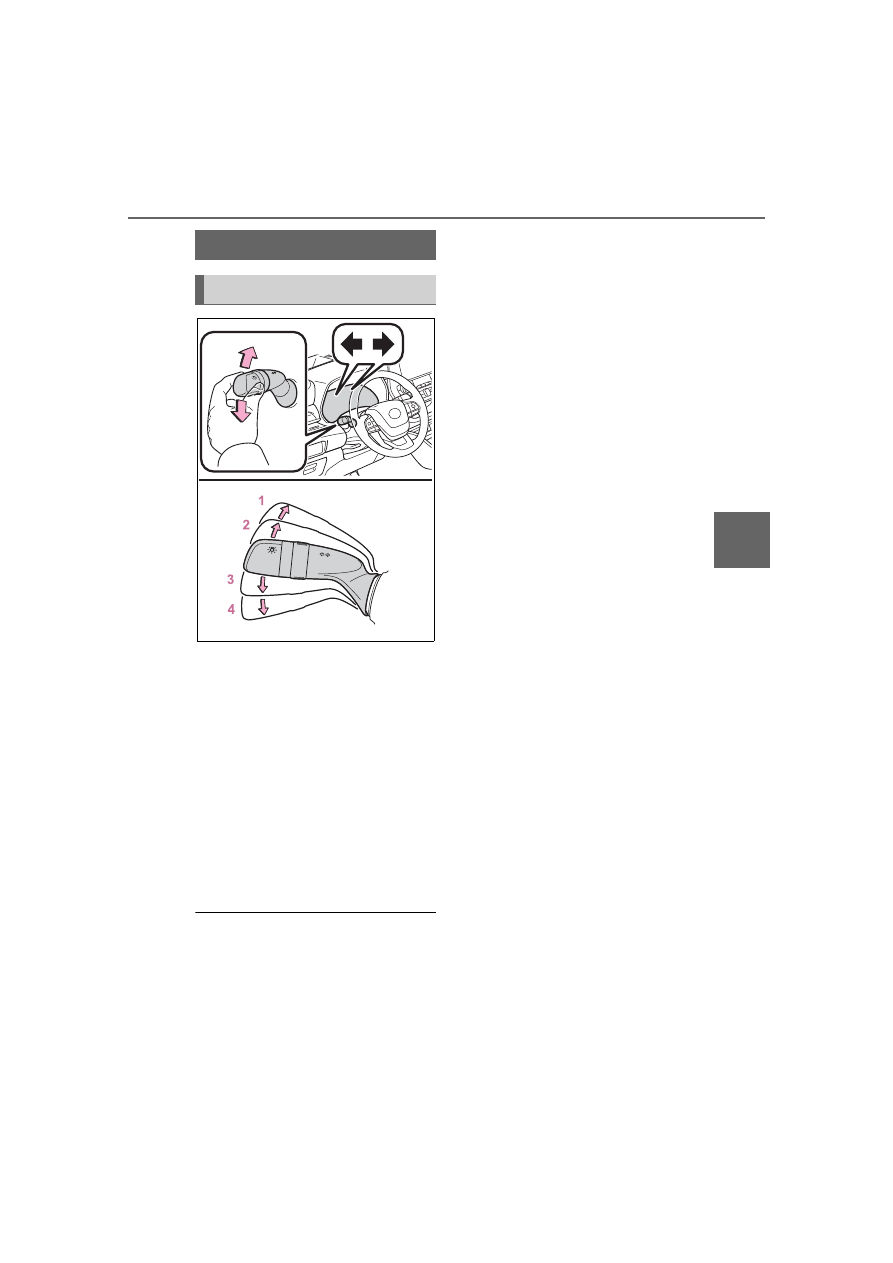

1

Right turn

2

Lane change to the right
(move the lever partway and
release it)

The right hand signals will flash 3
times.

3

Lane change to the left
(move the lever partway and
release it)

The left hand signals will flash 3
times.

4

Left turn

■

Turn signals can be operated

when

The power switch is in ON.

■

If the indicator flashes faster

than usual

Check that a light bulb in the front or

rear turn signal lights has not

burned out.

Turn signal lever

Operating instructions

224

4-2. Driving procedures

HIGHLANDER HV_U

■

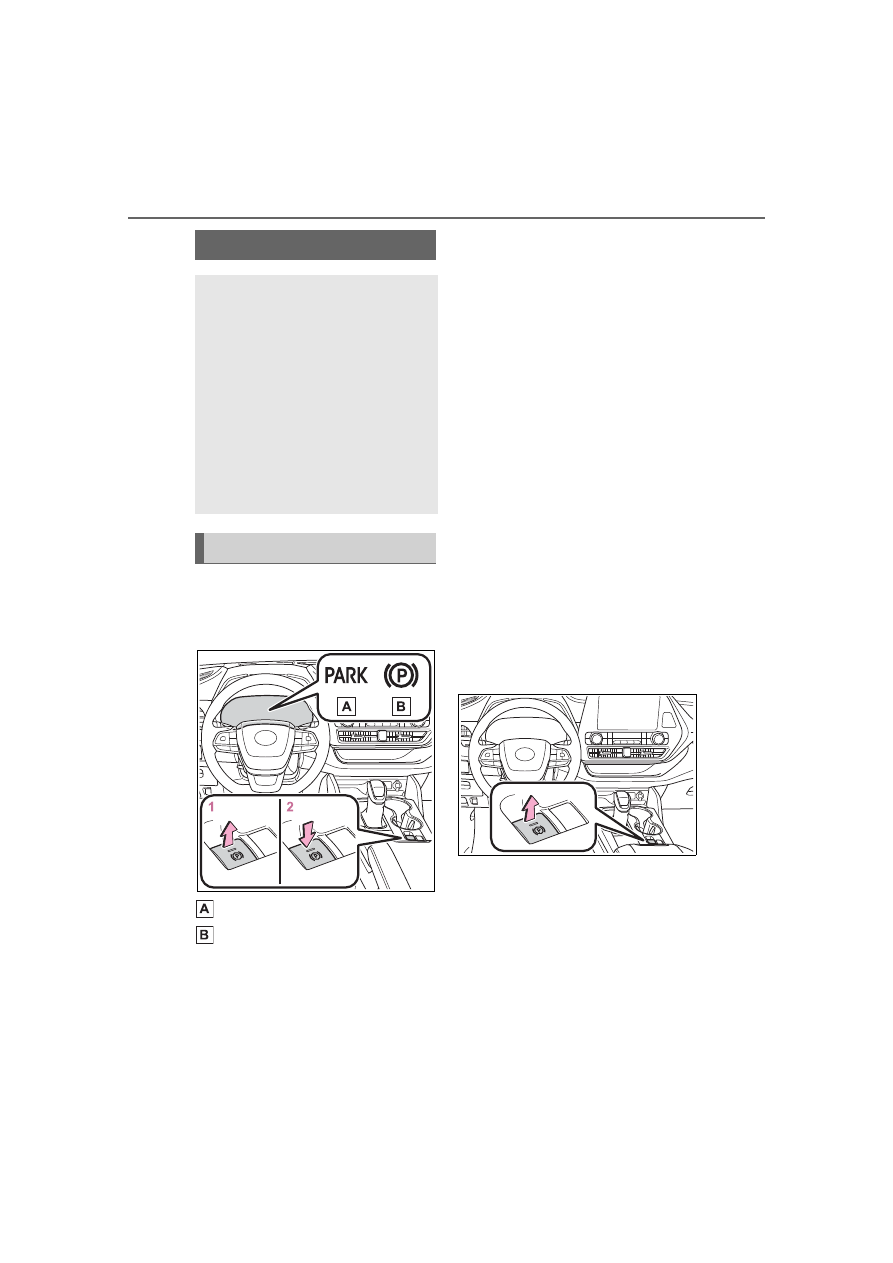

Using the manual mode

The parking brake can be set
and released manually.

U.S.A.
Canada

1

Pull the switch to set the
parking brake

The parking brake indicator light
and parking brake light will turn on.

Pull and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-
ing brake while driving.

2

Push the switch to release
the parking brake

• Operate the parking brake switch

while depressing the brake pedal.

• Parking brake automatic release

function (



P.225)

Make sure that the parking brake
indicator light and parking brake
light turn off.
If the parking brake indicator light
and parking brake light flashes,
operate the switch again. (



P.473)

■

Turns automatic mode on

While the vehicle is stopped,
pull and hold the parking brake
switch until a “EPB Shift Inter-
lock Function Activated” is
shown on the multi-information
display.

When the automatic mode is
turned on, the parking brake
operates as follows.



When the shift lever is moved
out of P, the parking brake will
be released, and the parking
brake indicator light and park-
ing brake light turn off.

Parking brake

The parking brake can be
set or released automati-
cally or manually.

In automatic mode, the
parking brake can be set or
released automatically
according to the shift lever
operation. Also, even in
automatic mode, the park-
ing brake can be set or
released manually.

Operating instructions

225

4-2. Driving procedures

4

Dr

iv

ing

HIGHLANDER HV_U



When the shift lever is moved
into P, the parking brake will
be set, and the parking brake
indicator light and parking
brake light turn on.

Operate the shift lever with the
brake pedal depressed.

■

Turns automatic mode off

While the vehicle is stopped,
press and hold the parking
brake switch until a “EPB Shift
Interlock Function Deactivated”
is shown on the multi-informa-
tion display.

■

Parking brake operation

●

When the power switch is not in

ON, the parking brake cannot be

released using the parking brake

switch.

●

When the power switch is not in

ON, automatic mode (automatic

brake setting and releasing) is not

available.

■

Parking brake automatic

release function

The parking brake will be released

automatically when the accelerator

pedal is slowly depressed under the

following conditions:

●

The driver’s door is closed

●

The driver is wearing the seat belt

●

The shift lever is in a forward or

reverse position.

●

The malfunction indicator lamp or

brake system warning light is not

illuminated

If the automatic release function

does not operate, release the park-

ing brake manually.

■

If “Parking Brake Temporarily

Unavailable” is displayed on

the multi-information display

If the parking brake is operated

repeatedly over a short period of

time, the system may restrict opera-

tion to prevent overheating. If this

happens, refrain from operating the

parking brake. Normal operation will

return after about 1 minute.

■

If “Parking Brake Unavailable”

is displayed on the multi-infor-

mation display

Operate the parking brake switch. If

the message does not disappear

after operating the switch several

times, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer immediately.

■

Parking brake operation sound

When the parking brake operates, a

motor sound (whirring sound) may

be heard. This does not indicate a

malfunction.

■

Parking brake indicator light

and parking brake light

●

Depending on the power switch

mode, the parking brake indicator

light and parking brake light will

turn on and stay on as described

below:

ON: Comes on until the parking

brake is released.

Not in ON: Stays on for approxi-

mately 15 seconds.

●

When the power switch is turned

off with the parking brake set, the

parking brake indicator light and

parking brake light will stay on for

about 15 seconds. This does not

indicate a malfunction.

226

4-2. Driving procedures

HIGHLANDER HV_U

■

When the parking brake switch

malfunctions

Automatic mode (automatic brake

setting and releasing) will be turned

on automatically.

■

Parking the vehicle



P.190

■

Parking brake engaged warning

buzzer

A buzzer will sound if the vehicle is

driven with the parking brake

engaged. “Parking Brake ON” is dis-

played on the multi-information dis-

play.

■

Warning messages and buzzers

Warning messages and buzzers are

used to indicate a system malfunc-

tion or to inform the driver of the

need for caution. If a warning mes-

sage is shown on the multi-informa-

tion display, read the message and

follow the instructions.

■

If the brake system warning

light comes on



P.466

■

Usage in winter time



P.333

WARNING

■

When parking the vehicle

Do not leave a child in the vehicle

alone. The parking brake may be

released unintentionally and there

is the danger of the vehicle mov-

ing that may lead to an accident

resulting in death or serious injury.

■

Parking brake switch

Do not set any objects near the

parking brake switch. Objects

may interfere with the switch and

may lead the parking brake to

unexpectedly operate.

NOTICE

■

When parking the vehicle

Before you leave the vehicle, shift

the shift lever to P, set the parking

brake and make sure that the

vehicle does not move.

■

When the system malfunc-

tions

Stop the vehicle in a safe place

and check the warning messages.

■

When the parking brake can-

not be released due to a mal-

function

Driving the vehicle with the park-

ing brake set will lead to brake

components overheating, which

may affect braking performance

and increase brake wear.
Have the vehicle inspected by

your Toyota dealer immediately if

this occurs.

227

4-2. Driving procedures

4

Dr

iv

ing

HIGHLANDER HV_U

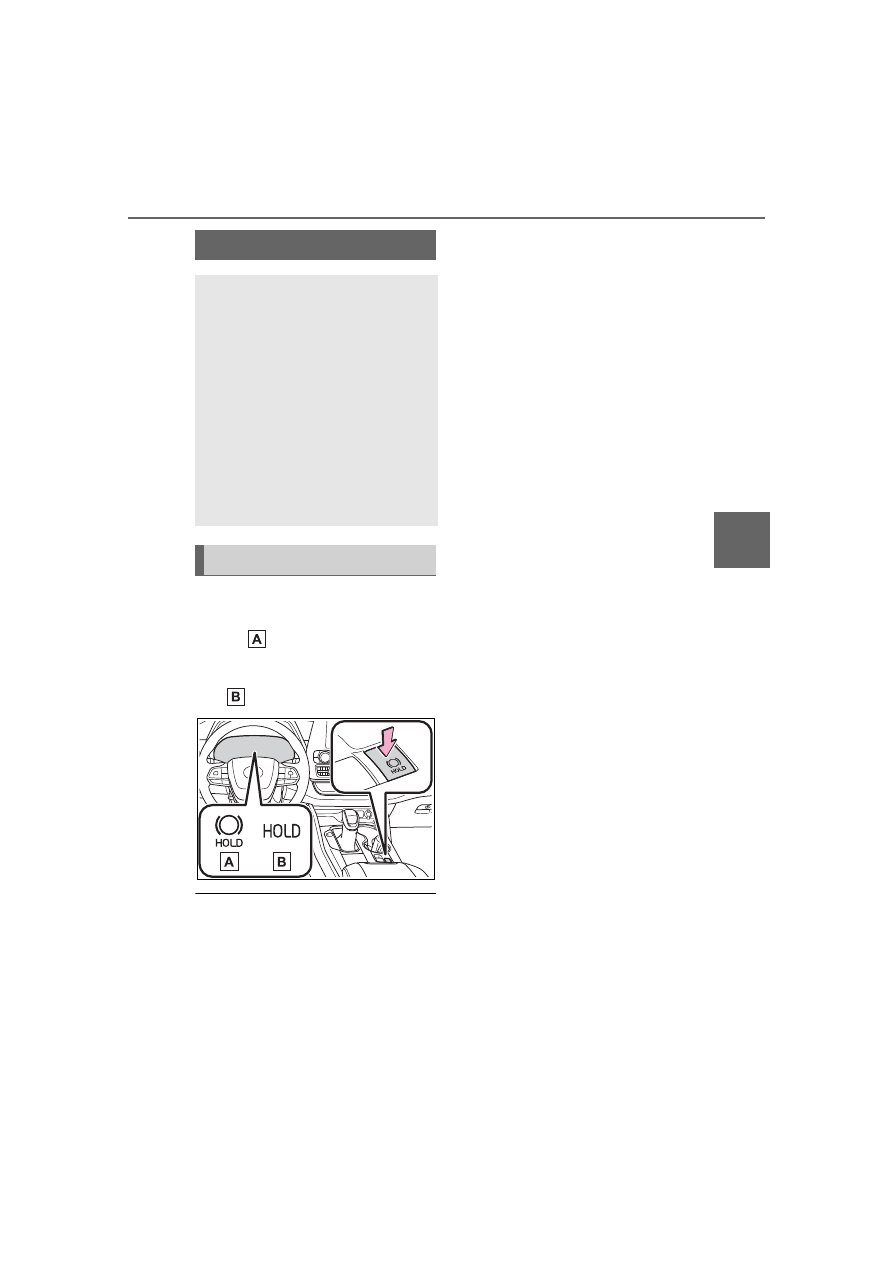

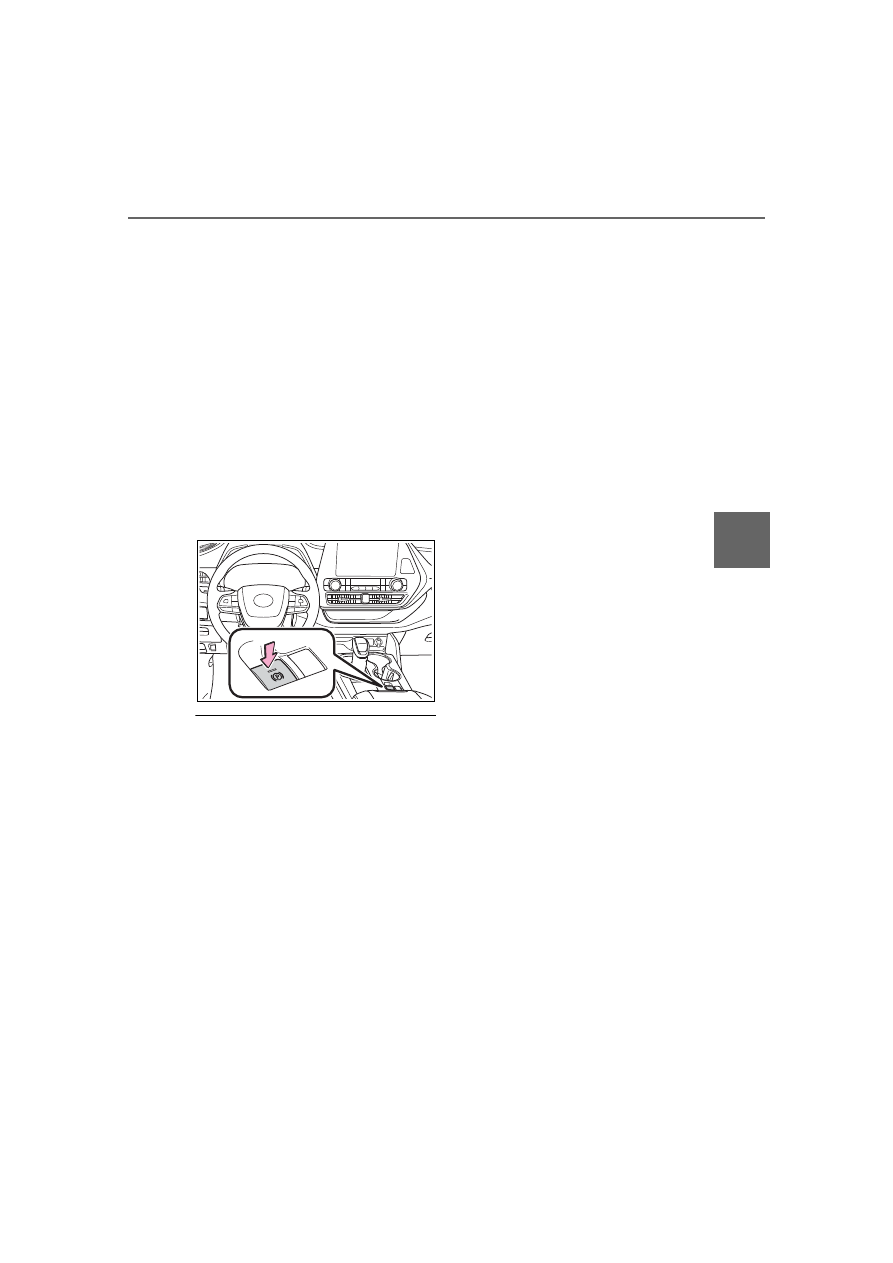

Turns the brake hold system on

The brake hold standby indicator
(green)

 comes on. While the

system is holding the brake, the
brake hold operated indicator (yel-
low)

 comes on.

■

Brake hold system operating

conditions

The brake hold system cannot be

turned on in the following condi-

tions:

●

The driver’s door is not closed.

●

The driver is not wearing the seat

belt.

●

The parking brake is engaged.

If any of the conditions above are

detected when the brake hold sys-

tem is enabled, the system will turn

off and the brake hold standby indi-

cator light will go off. In addition, if

any of the conditions are detected

while the system is holding the

brake, a warning buzzer will sound

and a message will be shown on the

multi-information display. The park-

ing brake will then be set automati-

cally.

■

Brake hold function

●

If the brake pedal is left released

for a period of about 3 minutes

after the system has started hold-

ing the brake, the parking brake

will be set automatically. In this

case, a warning buzzer sounds

and a message is shown on the

multi-information display.

●

To turn the system off while the

system is holding the brake, firmly

depress the brake pedal and

press the button again.

●

The brake hold function may not

hold the vehicle when the vehicle

is on a steep incline. In this situa-

tion, it may be necessary for the

driver to apply the brakes. A warn-

ing buzzer will sound and the

multi-information display will

inform the driver of this situation. If

a warning message is shown on

the multi-information display, read

the message and follow the

instructions.

■

When the parking brake is set

automatically while the system

is holding the brakes

Perform any of the following opera-

tions to release the parking brake.

●

Depress the accelerator pedal.

(The parking brake will not be

released automatically if the seat

belt is not fastened.)

●

Operate the parking brake switch

with the brake pedal depressed.

Make sure that the parking brake

Brake Hold

The brake hold system
keeps the brake applied
when the shift lever is in D,
S or N with the system on
and the brake pedal has
been depressed to stop the
vehicle. The system
releases the brake when the
accelerator pedal is
depressed with the shift
lever in D or S to allow
smooth start off.

Enabling the system

228

4-2. Driving procedures

HIGHLANDER HV_U

indicator light goes off. (



P.224)

■

When an inspection at your

Toyota dealer is necessary

When the brake hold standby indi-

cator (green) does not illuminate

even when the brake hold switch is

pressed with the brake hold system

operating conditions met, the sys-

tem may be malfunctioning. Have

the vehicle inspected at your Toyota

dealer.

■

If “Brake Hold Malfunction

Press Brake to Deactivate Visit

Your Dealer” or “Brake Hold

Malfunction Visit Your Dealer”

is displayed on the multi-infor-

mation display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

Warning messages and buzzers

Warning messages and buzzers are

used to indicate a system malfunc-

tion or to inform the driver of the

need for caution. If a warning mes-

sage is shown on the multi-informa-

tion display, read the message and

follow the instructions.

■

If the brake hold operated indi-

cator flashes



P.473

WARNING

■

When the vehicle is on a

steep incline

When using the brake hold sys-

tem on a steep incline, exercise

caution. The brake hold function

may not hold the vehicle in such a

situation.

■

When stopped on a slippery

road

The system cannot stop the vehi-

cle when the gripping ability of the

tires has been exceeded. Do not

use the system when stopped on

a slippery road.

NOTICE

■

When parking the vehicle

The brake hold system is not

designed for use when parking

the vehicle for a long period of

time. Turning the power switch off

while the system is holding the

brake may release the brake,

which would cause the vehicle to

move. When operating the power

switch, depress the brake pedal,

shift the shift lever to P and set

the parking brake.

229

4-3. Operating the lights and wipers

4

Dr

iv

ing

HIGHLANDER HV_U

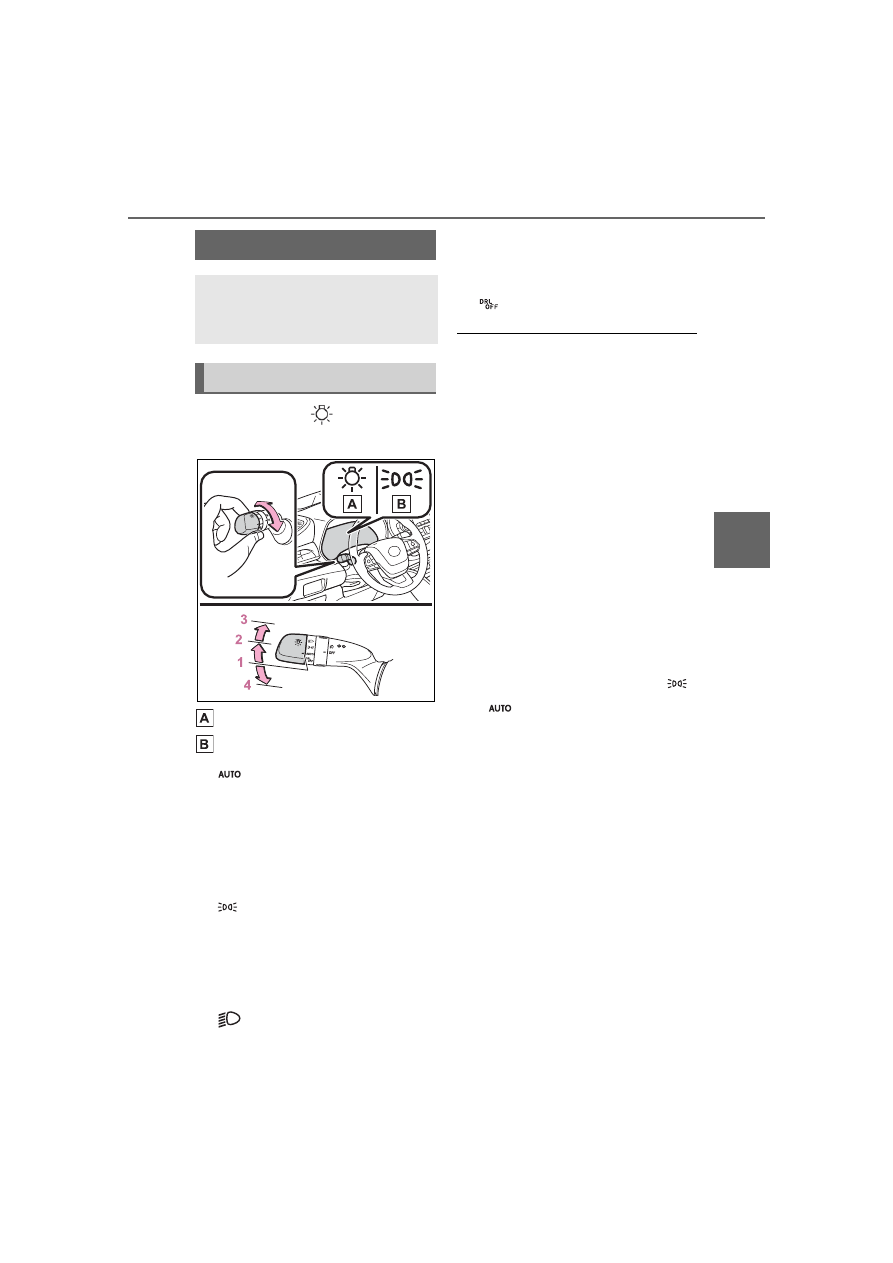

4-3.Operating the lights and wipers

Operating the

 switch

turns on the lights as follows:

U.S.A.
Canada

1

 The headlights, daytime

running lights (



P.229) and

all the lights listed below turn
on and off automatically.
(When the power switch is in
ON.)

2

 The side marker, park-

ing, tail, license plate, instru-
ment panel lights, and
daytime running lights
(



P.229) turn on.

3

 The headlights and all

lights listed above (except
daytime running lights) turn
on.

4

 (U.S.A.) Off

■

Daytime running light system

●

Vehicles without projector head-

lights: The daytime running lights

illuminate using the same lights as

the low beam headlights and illu-

minate dimmer than the low beam

headlights.

●

Vehicles with projector head-

lights: The daytime running lights

illuminate using the same lights as

the parking lights and illuminate

brighter than the parking lights.

●

To make your vehicle more visible

to other drivers during daytime

driving, the daytime running lights

turn on automatically when all of

the following conditions are met.

(The daytime running lights are

not designed for use at night.)

• The hybrid system is started

• The parking brake is released
• The headlight switch is in the



or

*

 position

*

: When the surroundings are bright

The daytime running lights remain

on after they illuminate, even if the

parking brake is set again.

●

For the U.S.A.: Daytime running

lights can be turned off by operat-

ing the switch.

●

Compared to turning on the head-

lights, the daytime running light

system offers greater durability

and consumes less electricity, so

it can help improve fuel economy.

Headlight switch

The headlights can be oper-
ated manually or automati-
cally.

Operating instructions

230

4-3. Operating the lights and wipers

HIGHLANDER HV_U

■

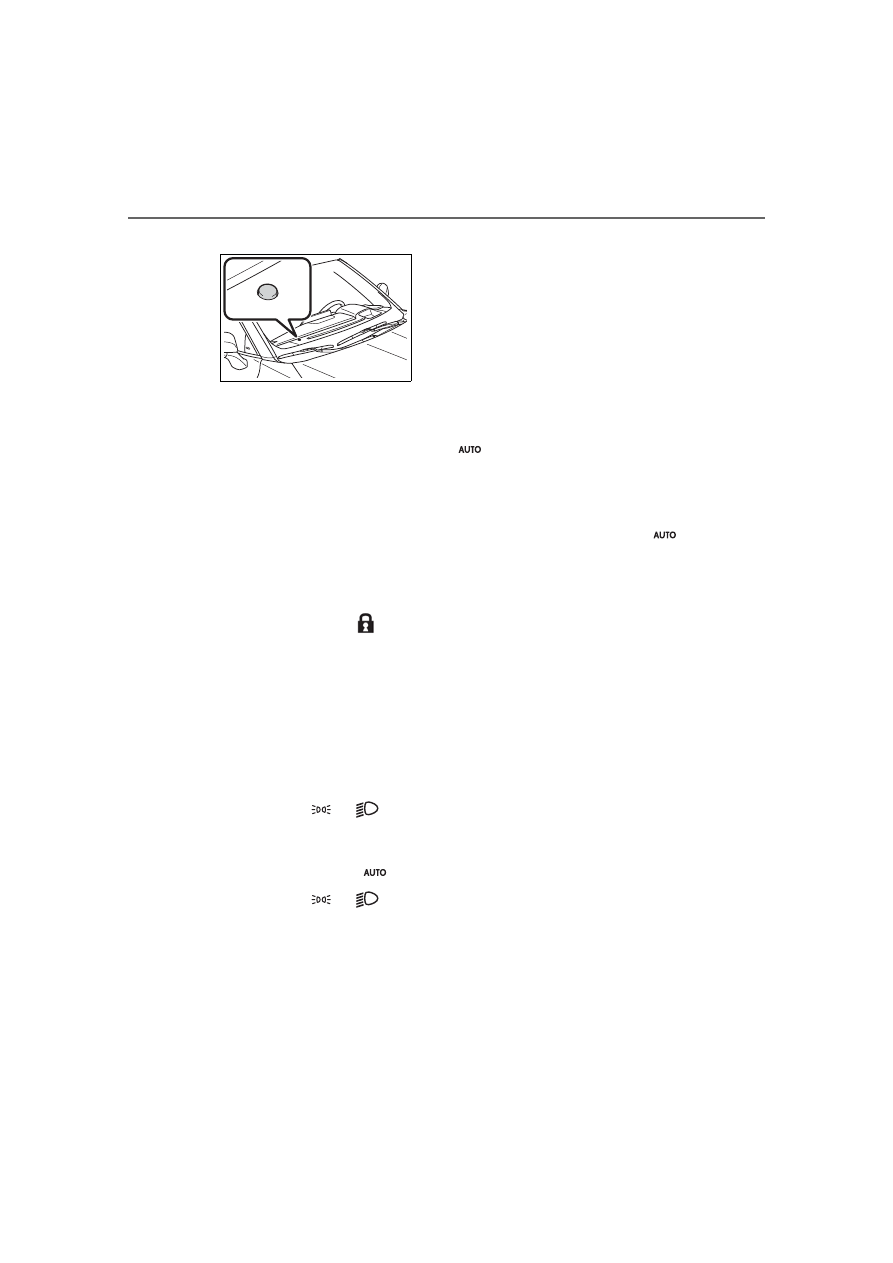

Headlight control sensor

The sensor may not function prop-

erly if an object is placed on the sen-

sor, or anything that blocks the

sensor is affixed to the windshield.

Doing so interferes with the sensor

detecting the level of ambient light

and may cause the automatic head-

light system to malfunction.

■

Automatic light off system

●

When the headlights are on: The

headlights and tail lights turn off

30 seconds after a door is opened

and closed if the power switch is

turned to ACC or OFF. (The lights
turn off immediately if

 on the

key is pressed after all the doors

are closed.)

●

When only the tail lights are on:

The tail lights turn off automati-

cally if the power switch is turned

to ACC or OFF and the driver’s

door is opened.

Except for Canada: To turn the lights

on again, turn the power switch to

ON, or turn the light switch off once
and then back to

 or

.

For Canada: To turn the lights on

again, turn the power switch to ON,
or turn the light switch to

 once

and then back to

 or

.

■

Automatic headlight leveling

system (if equipped)

The level of the headlights is auto-

matically adjusted according to the

number of passengers and the load-

ing condition of the vehicle to

ensure that the headlights do not

interfere with other road users.

■

Light reminder buzzer

A buzzer sounds when the power

switch is turned off or turned to ACC

and the driver’s door is opened

while the lights are turned on.

■

Welcome lighting

The parking lights and tail lights

automatically turn on at night when

the doors are unlocked using the

entry function or wireless remote

control if the light switch is in the

 position.

■

Windshield wiper linked head-

light illumination

When driving during daytime with
the headlight switch turned to

, if

the windshield wipers are used, the

headlights will turn on automatically

after several seconds to help

enhance the visibility of your vehi-

cle.

■

12-volt battery-saving function

In order to prevent the 12-volt bat-

tery of the vehicle from discharging,

if the headlights and/or tail lights are

on when the power switch is turned

off the 12-volt battery-saving func-

tion will operate and automatically

turn off all the lights after approxi-

mately 20 minutes. When the power

switch is turned to ON, the 12-volt

battery-saving function will be dis-

abled.

When any of the following are per-

formed, the 12-volt battery-saving

function is canceled once and then

reactivated. All the lights will turn off

automatically 20 minutes after the

12-volt battery-saving function has

been reactivated:

●

When the headlight switch is oper-

ated

●

When a door is opened or closed

■

Customization

Some functions can be customized.

(



P.530)

231

4-3. Operating the lights and wipers

4

Dr

iv

ing

HIGHLANDER HV_U

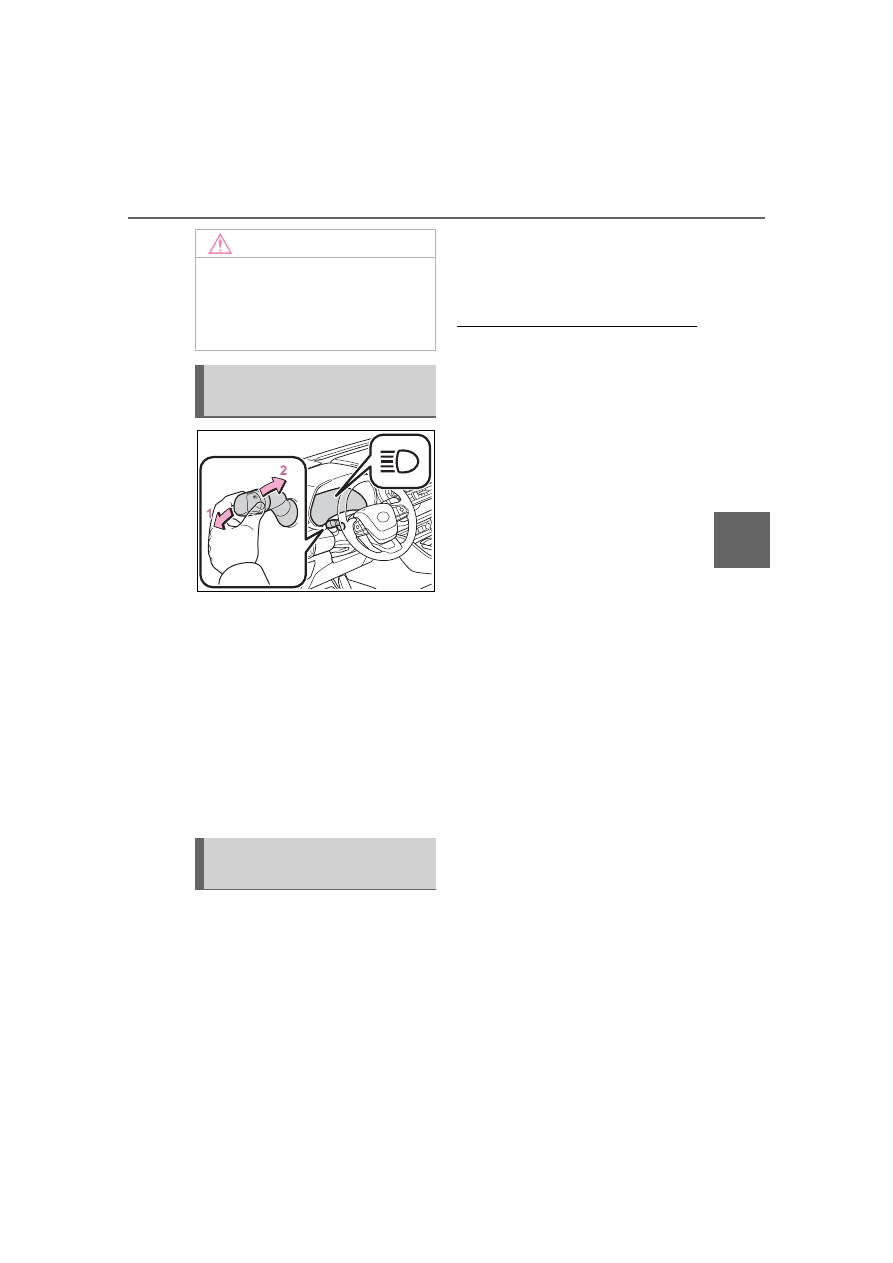

1

With the headlights on, push
the lever away from you to
turn on the high beams.

Pull the lever toward you to the
center position to turn the high
beams off.

2

Pull the lever toward you and
release it to flash the high
beams once.

You can flash the high beams with
the headlights on or off.

AFS (Adaptive Front-lighting
System) secures excellent visi-
bility at intersections and on
curves by automatically adjust-
ing the direction of the light axis
of the headlights according to
vehicle speed and the degree of

the tire’s angle as controlled by
steering input.

AFS operates at speeds of 6 mph
(10 km/h) or higher.

■

Customization

Some functions can be customized.

(



P.530)

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the hybrid

system is off.

Turning on the high beam
headlights

AFS (Adaptive Front-light-
ing System) (if equipped)

232

4-3. Operating the lights and wipers

HIGHLANDER HV_U

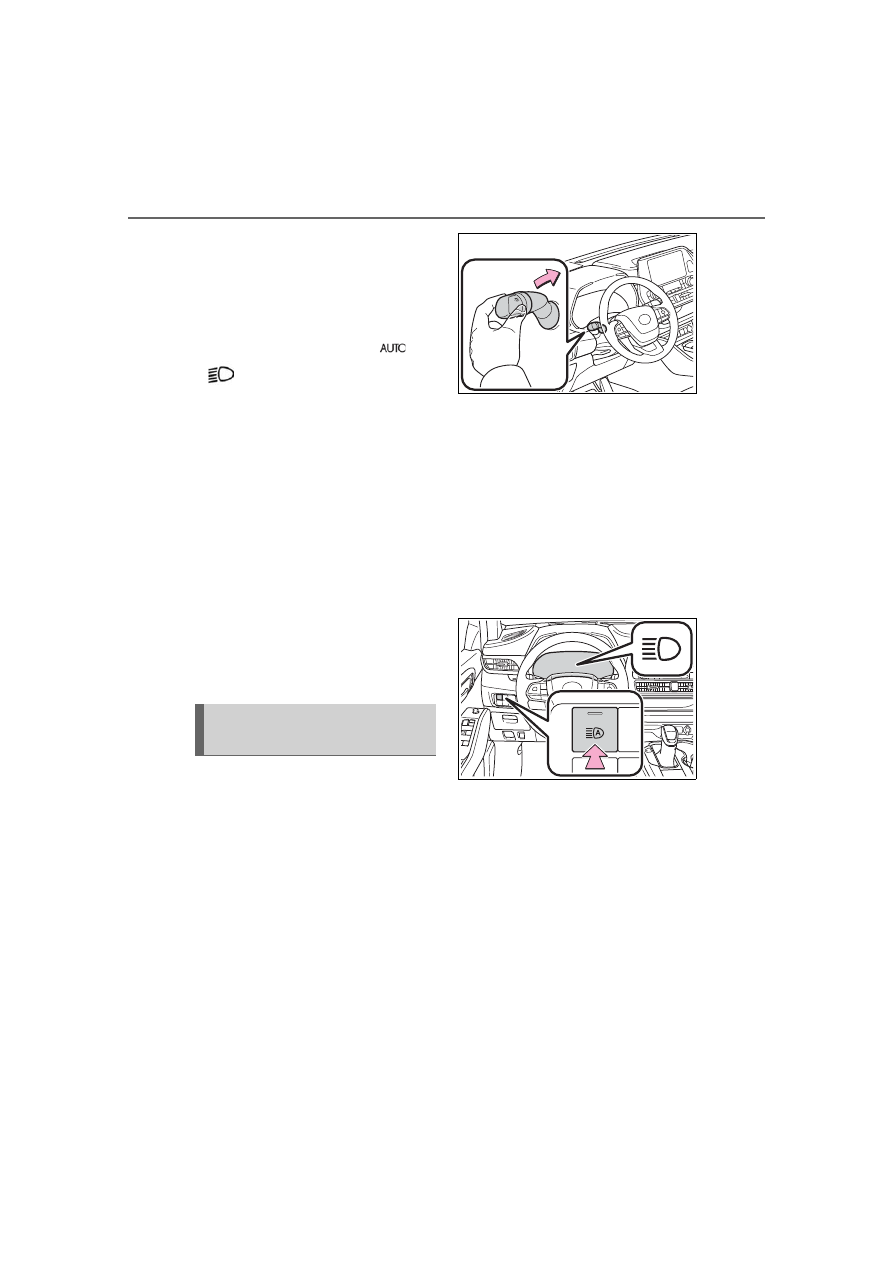

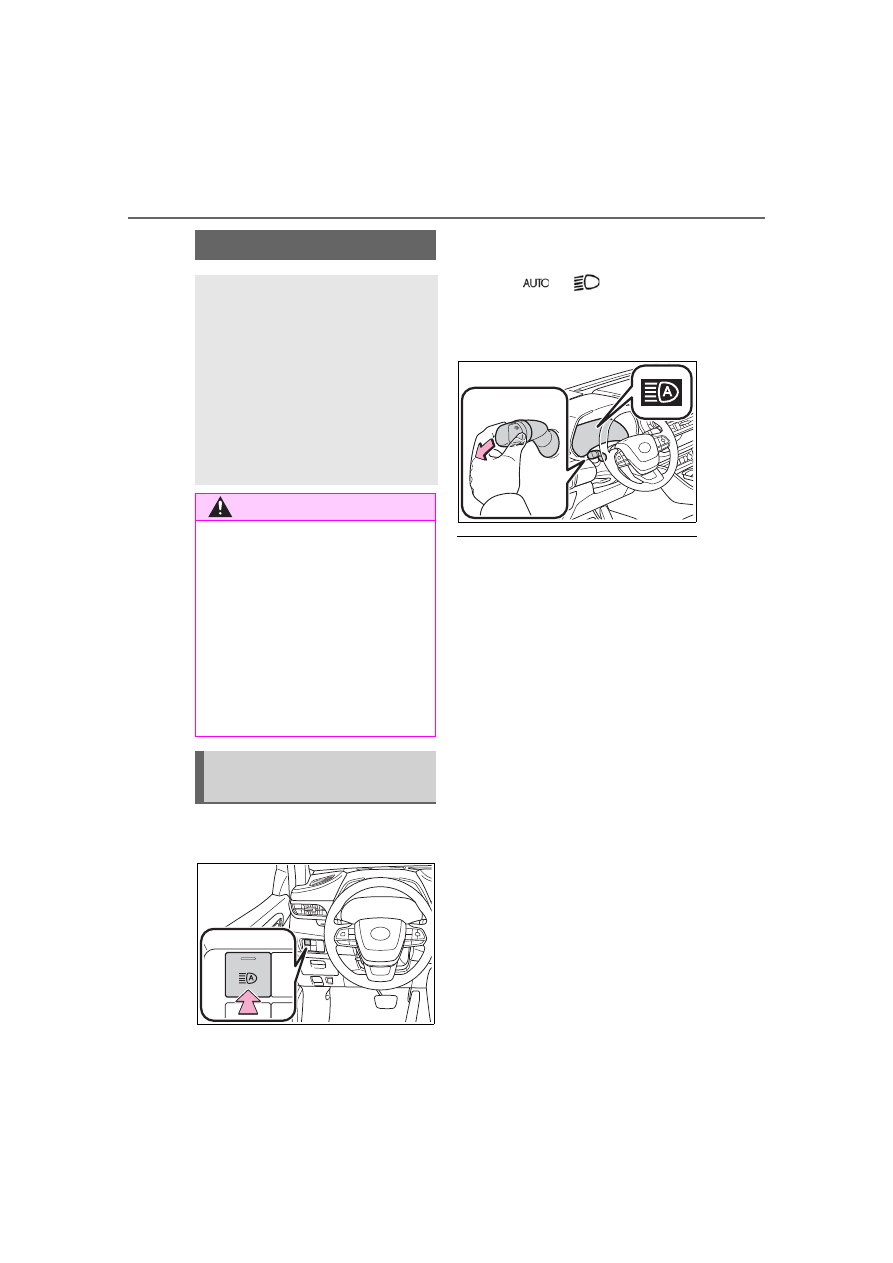

1

Press the Automatic High
Beam switch.

2

Push the lever away from
you with the headlight switch

in the

 or

 position.

The Automatic High Beam indicator

will come on when the system is

operating.

■

Conditions to turn the high

beams on/off automatically

●

When all of the following condi-

tions are met, the high beams will

be turned on automatically (after

approximately 1 second):

• The vehicle speed is approxi-

mately 21 mph (34 km/h) or more.

• The area ahead of the vehicle is

dark.

• There are no vehicles ahead with

headlights or tail lights turned on.

• There are few streetlights on the

road ahead.

●

If any of the following conditions is

met, the high beams will turn off

automatically:

• The vehicle speed is below

approximately 17 mph (27 km/h).

• The area ahead of the vehicle is

not dark.

• Vehicles ahead have their head-

lights or tail lights turned on.

• There are many streetlights on the

road ahead.

■

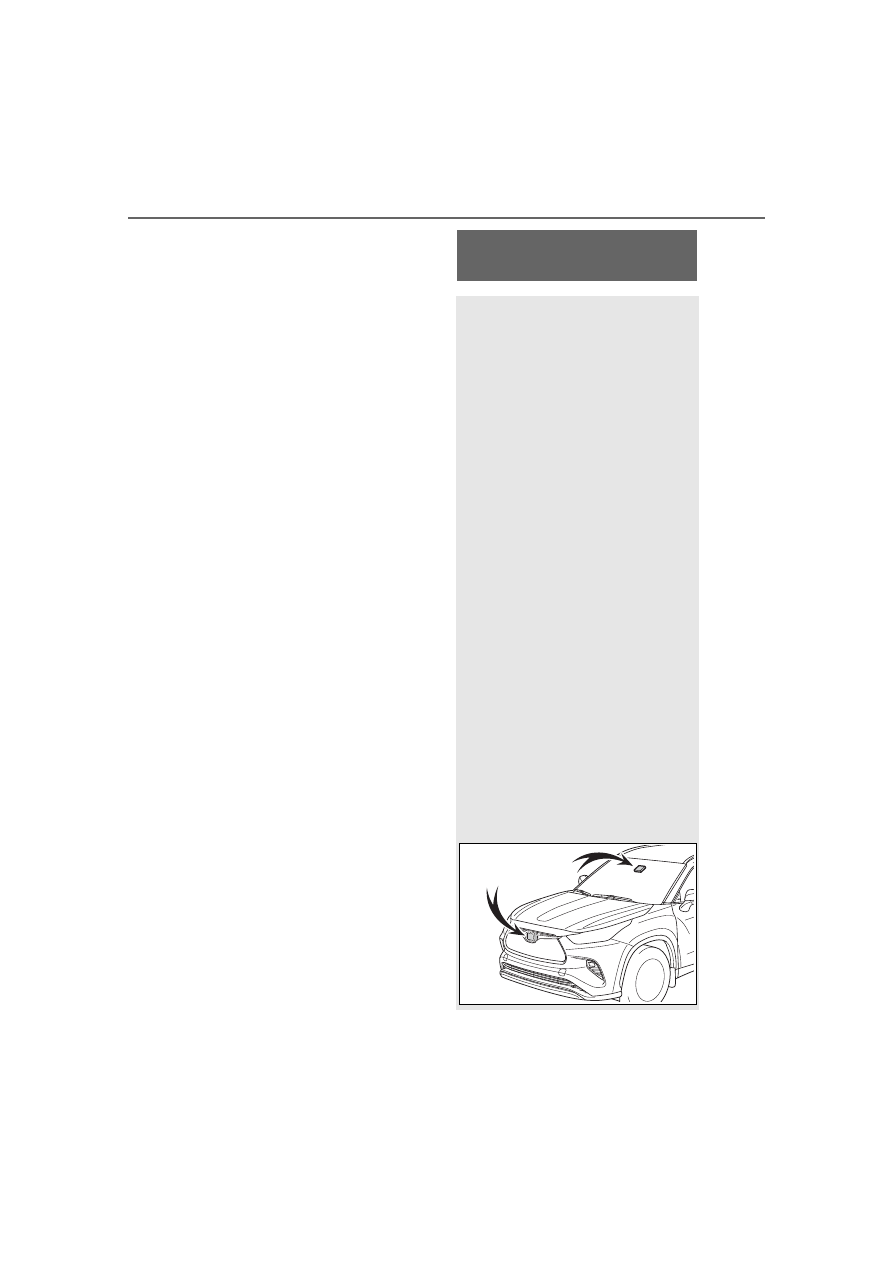

Camera sensor detection infor-

mation

●

The high beams may not be auto-

matically turned off in the following

situations:

• When a vehicle suddenly appears

Automatic High Beam

The Automatic High Beam
uses a camera sensor
located behind the upper
portion of the windshield to
assess the brightness of the
lights of vehicles ahead,
streetlights, etc., and auto-
matically turns the high
beams on or off as neces-
sary.

WARNING

■

Limitations of the Automatic

High Beam

Do not overly rely on the Auto-

matic High Beam. Always drive

safely, taking care to observe your

surroundings and turning the high

beams on or off manually if nec-

essary.

■

To prevent incorrect opera-

tion of the Automatic High

Beam system

Do not overload the vehicle.

Activating the Automatic
High Beam

233

4-3. Operating the lights and wipers

4

Dr

iv

ing

HIGHLANDER HV_U

from around a curve

• When the vehicle is cut in front of

by another vehicle

• When vehicles ahead cannot be

detected due to repeated curves,

road dividers or roadside trees

• When vehicles ahead appear in a

faraway lane on a wide road

• When the lights of vehicles ahead

are not on

●

The high beams may be turned off

if a vehicle ahead that is using fog

lights without its headlights turned

on is detected.

●

House lights, street lights, traffic

signals, and illuminated billboards

or signs and other reflective

objects may cause the high

beams to change to the low

beams, or the low beams to

remain on.

●

The following factors may affect

the amount of time taken for the

high beams to turn on or off:

• The brightness of the headlights,

fog lights, and tail lights of vehi-

cles ahead

• The movement and direction of

vehicles ahead

• When a vehicle ahead only has

operational lights on one side

• When a vehicle ahead is a

two-wheeled vehicle

• The condition of the road (gradi-

ent, curve, condition of the road

surface, etc.)

• The number of passengers and

amount of luggage in the vehicle

●

The high beams may turn on or off

unexpectedly.

●

Bicycles or similar vehicles may

not be detected.

●

In the following situations the sys-

tem may not be able to correctly

detect the surrounding brightness

level. This may cause the low

beams to remain on or the high

beams to flash or dazzle pedestri-

ans or vehicles ahead. In such a

case, it is necessary to manually

switch between the high and low

beams.

• When driving in inclement weather

(heavy rain, snow, fog, sand-

storms, etc.)

• When the windshield is obscured

by fog, mist, ice, dirt, etc.

• When the windshield is cracked or

damaged

• When the camera sensor is

deformed or dirty

• When the temperature of the cam-

era sensor is extremely high

• When the surrounding brightness

level is equal to that of headlights,

tail lights or fog lights

• When headlights or tail lights of

vehicles ahead are turned off,

dirty, changing color, or not aimed

properly

• When the vehicle is hit by water,

snow, dust, etc. from a preceding

vehicle

• When driving through an area of

intermittently changing brightness

and darkness

• When frequently and repeatedly

driving ascending/descending

roads, or roads with rough, bumpy

or uneven surfaces (such as

stone-paved roads, gravel roads,

etc.)

• When frequently and repeatedly

taking curves or driving on a wind-

ing road

• When there is a highly reflective

object ahead of the vehicle, such

as a sign or mirror

• When the back of a preceding

vehicle is highly reflective, such as

a container on a truck

• When the vehicle’s headlights are

damaged or dirty, or are not aimed

properly

• When the vehicle is listing or titling

due to a flat tire, a trailer being

towed, etc.

• When the headlights are changed

between the high beams and low

beams repeatedly in an abnormal

manner

• When the driver believes that the

high beams may be flashing or

dazzling pedestrians or other driv-

ers

234

4-3. Operating the lights and wipers

HIGHLANDER HV_U

■

Temporarily lowering sensor

sensitivity

The sensitivity of the sensor can be

temporarily lowered.

1

Turn the power switch off while

the following conditions are met.

●

The headlight switch is in

 or

.

●

The headlight switch lever is in

high beam position.

●

Automatic High Beam switch is

on.

2

Turn the power switch to ON.

3

Within 60 seconds after step

2

,

repeat pulling the headlight

switch lever to the original posi-

tion then pushing it to the high

beam position quickly 10 times,

then leave the lever in high beam

position.

4

If the sensitivity is changed, the

Automatic High Beam indicator

is turn on and off 3 times.

Automatic High Beam (headlights)

may turn on even when the vehicle

is stopped.

■

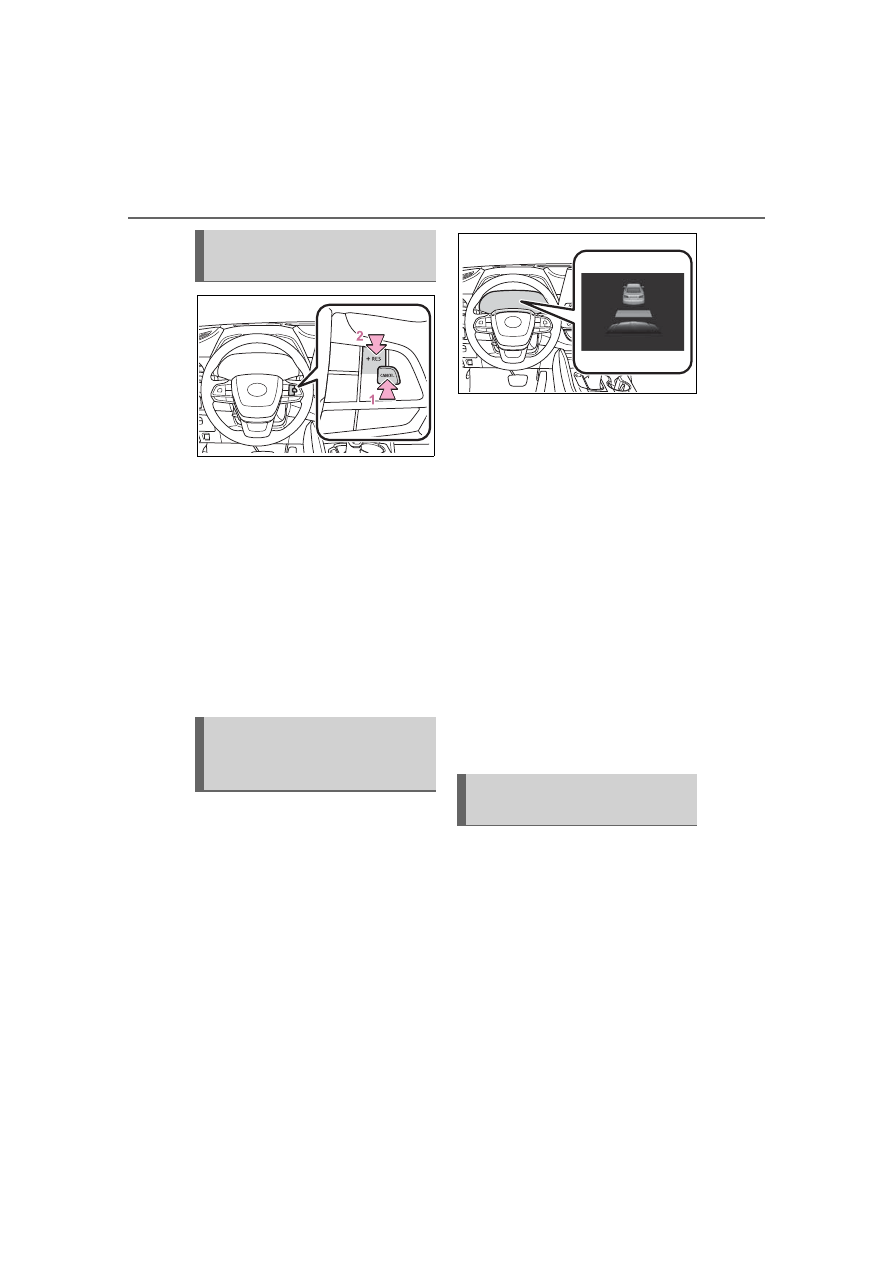

Switching to the low beams

Pull the lever to its original posi-
tion.

The Automatic High Beam indicator
will turn off.
Push the lever away from you to
activate the Automatic High Beam
system again.

■

Switching to the high
beams

Press the Automatic High Beam
switch.

The Automatic High Beam indicator
will turn off and the high beam indi-
cator will turn on.
Press the switch to activate the
Automatic High Beam system
again.

Turning the high beams
on/off manually

235

4-3. Operating the lights and wipers

4

Dr

iv

ing

HIGHLANDER HV_U

1

 (U.S.A.) or

 (Canada)

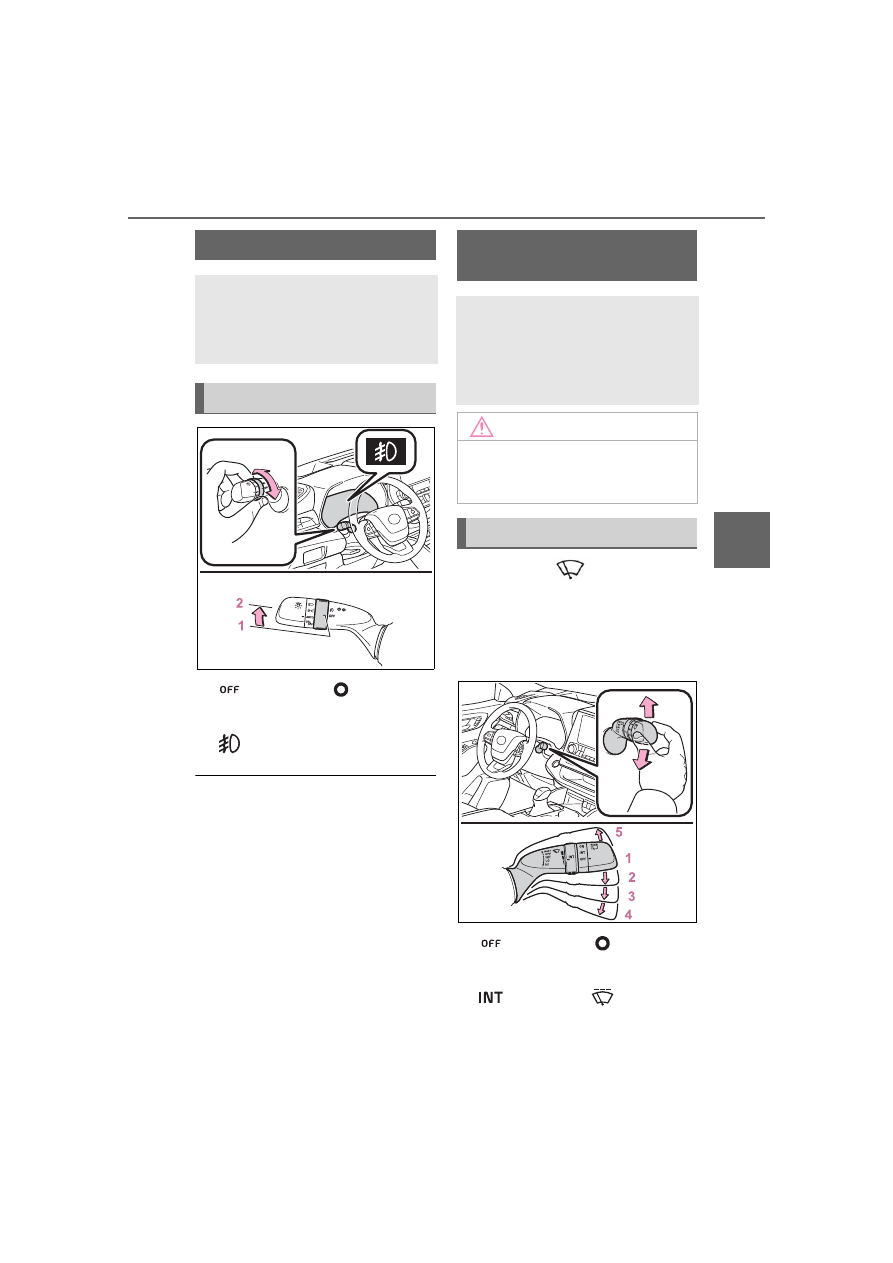

Turns the fog lights off

2

 Turns the fog lights on

■

Fog lights can be used when

The headlights are on in low beam.

Operate the

 lever oper-

ates the wipers or washer as fol-
lows.



Intermittent windshield wip-
ers with interval adjuster

1

 (U.S.A.) or

 (Canada)

Off

2

 (U.S.A.) or

 (Canada)

Intermittent operation

Fog light switch

The fog lights secure excel-
lent visibility in difficult driv-
ing conditions, such as in
rain and fog.

Operating instructions

Windshield wipers and

washer

Operating the lever can
switch between automatic
operation and manual oper-
ation, or can use the
washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they

may damage the windshield.

Operating the wiper lever

236

4-3. Operating the lights and wipers

HIGHLANDER HV_U

3

 (U.S.A.) or

 (Canada)

Low speed operation

4

 (U.S.A.) or

 (Canada)

High speed operation

5

 (U.S.A.) or

 (Canada)

Temporary operation

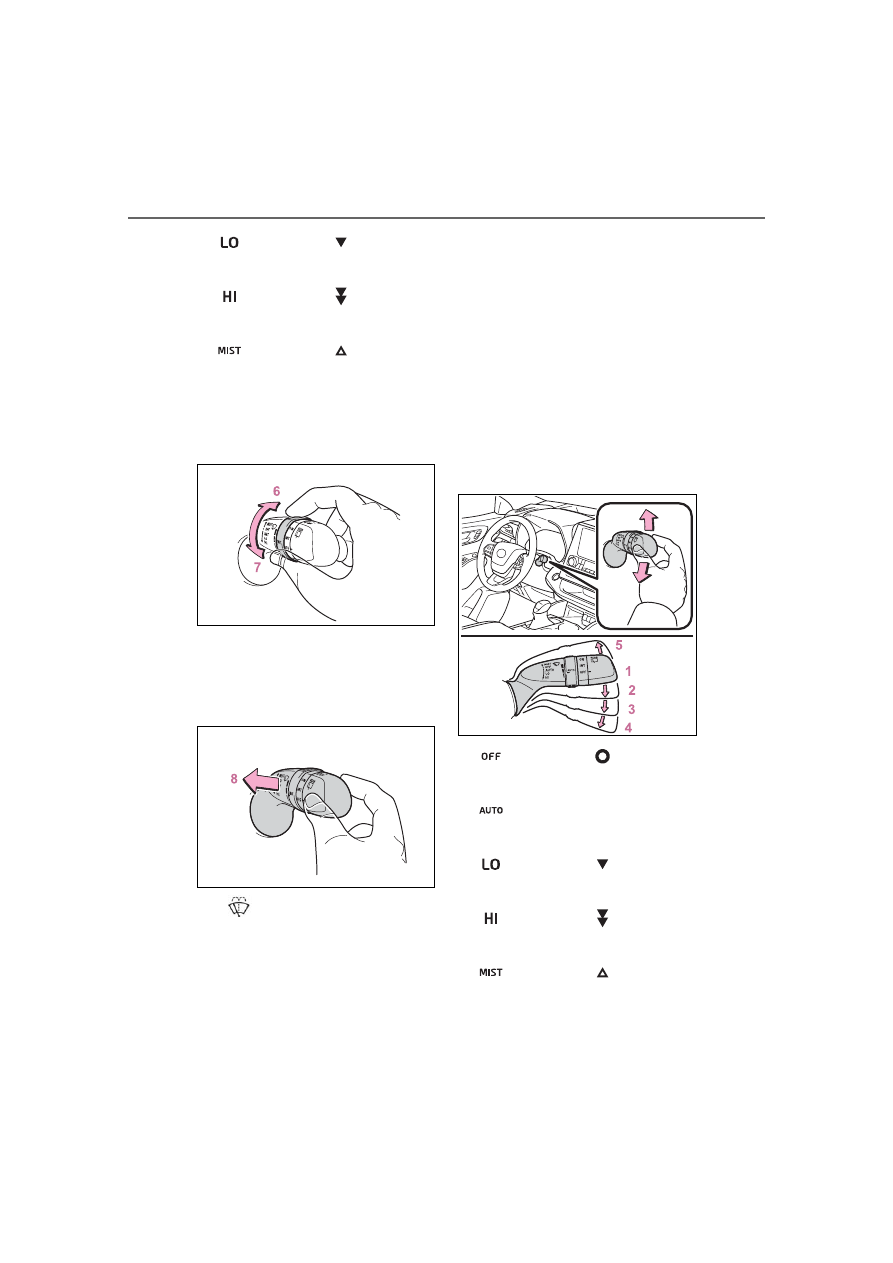

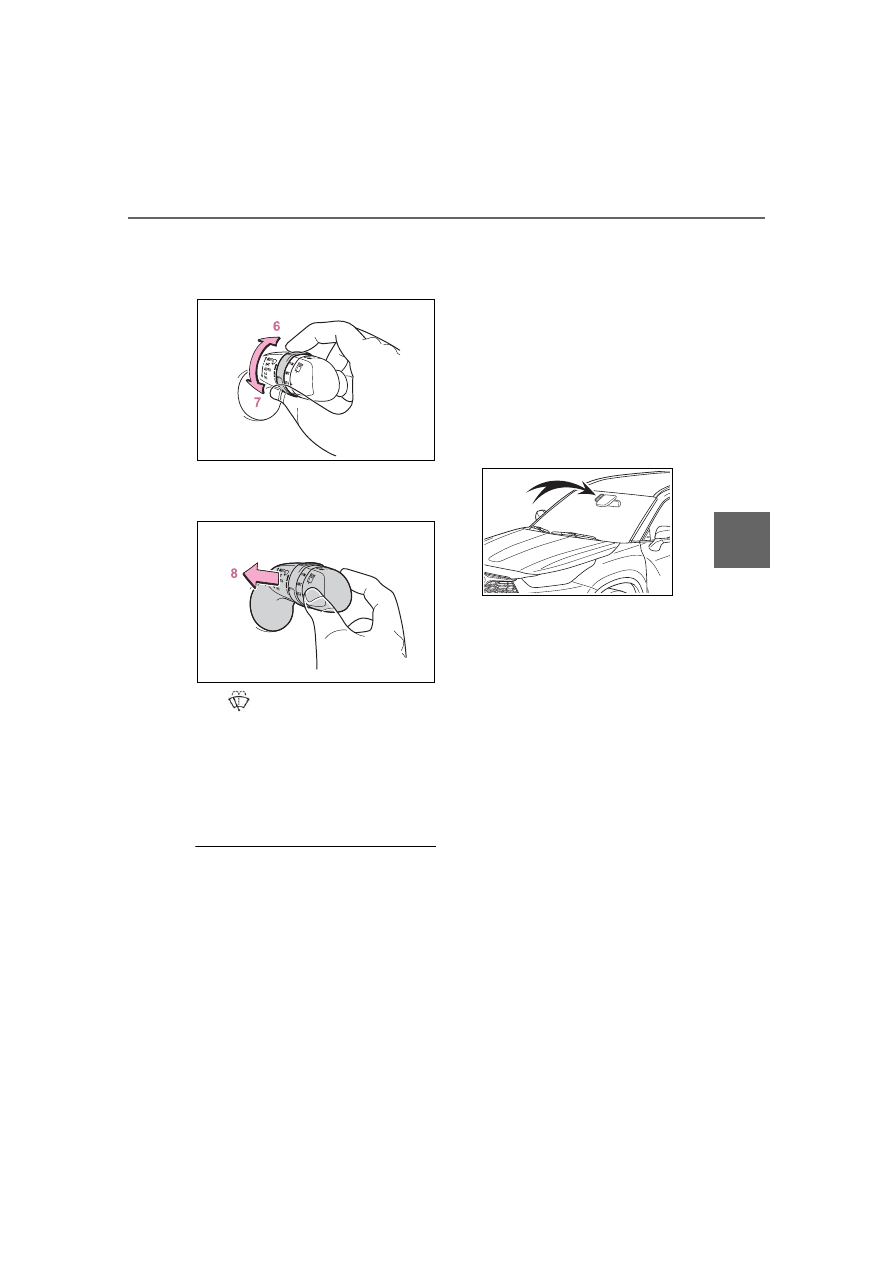

Wiper intervals can be adjusted
when intermittent operation is
selected.

6

Increases the intermittent
windshield wiper frequency

7

Decreases the intermittent
windshield wiper frequency

8

 Washer/wiper dual

operation

Pulling the lever operates the wip-
ers and washer.
Wipers will automatically operate a
couple of times after the washer
squirts.



Rain-sensing windshield wip-
ers

When “AUTO” is selected, the
wipers will operate automatically
when the sensor detects falling
rain. The system automatically
adjusts wiper timing in accor-
dance with rain volume and
vehicle speed.
The sensor sensitivity can be
adjusted when “AUTO” is
selected.

1

 (U.S.A.) or

 (Canada)

Off

2

 Rain-sensing wiper oper-

ation

3

 (U.S.A.) or

 (Canada)

Low speed operation

4

 (U.S.A.) or

 (Canada)

High speed operation

5

 (U.S.A.) or

 (Canada)

Temporary operation

When AUTO mode is selected,

237

4-3. Operating the lights and wipers

4

Dr

iv

ing

HIGHLANDER HV_U

the sensor sensitivity can be
adjusted by turning the switch
ring.

6

Increases the sensitivity

7

Decreases the sensitivity

8

 Washer/wiper dual

operation

Pulling the lever operates the wip-
ers and washer.
The wipers will automatically oper-
ate a couple of times after the
washer squirts.

■

The windshield wipers and

washer can be operated when

The power switch is in ON.

■

Dripping prevention wiper

sweep

After washing and wiping operation

several times, the wipers operate

one more time after a short delay to

prevent dripping. However, this

function will not operate while driv-

ing.

■

Effects of vehicle speed on

wiper operation

Vehicle speed affects the intermit-

tent wiper interval.

■

Raindrop sensor (vehicles with

rain-sensing windshield wipers)

●

The raindrop sensor judges the

amount of raindrops.

An optical sensor is adopted. It

may not operate properly when

sunlight from the rising or setting

of the sun intermittently strikes the

windshield, or if bugs, etc. are

present on the windshield

●

If the wiper switch is turned to the

“AUTO” position while the power

switch is in ON, the wipers will

operate once to show that AUTO

mode is activated.

●

When the sensor sensitivity ring is

turned toward high while in

“AUTO” position, the wipers will

operate once to indicate that the

sensor sensitivity is enhanced.

●

If the temperature of the raindrop

sensor is 185°F (85°C) or higher,

or 5°F (-15°C) or lower, automatic

operation may not occur. In this

case, operate the wipers in any

mode other than AUTO mode.

■

If no windshield washer fluid

sprays

Check that the washer nozzles are

not blocked, if there is washer fluid

in the washer fluid tank.

■

Front door opening linked wind-

shield wiper stop function

(vehicles with rain-sensing

windshield wipers)

When “AUTO” is selected and the

238

4-3. Operating the lights and wipers

HIGHLANDER HV_U

windshield wipers are operating, if a

front door is opened, the operation

of the windshield wipers will be

stopped to prevent anyone enter-

ing/exiting the vehicle from being

sprayed by water from the wipers,

provided the vehicle is stopped with

the parking brake applied or the shift

lever in P. When the front door is

closed, wiper operation will resume.

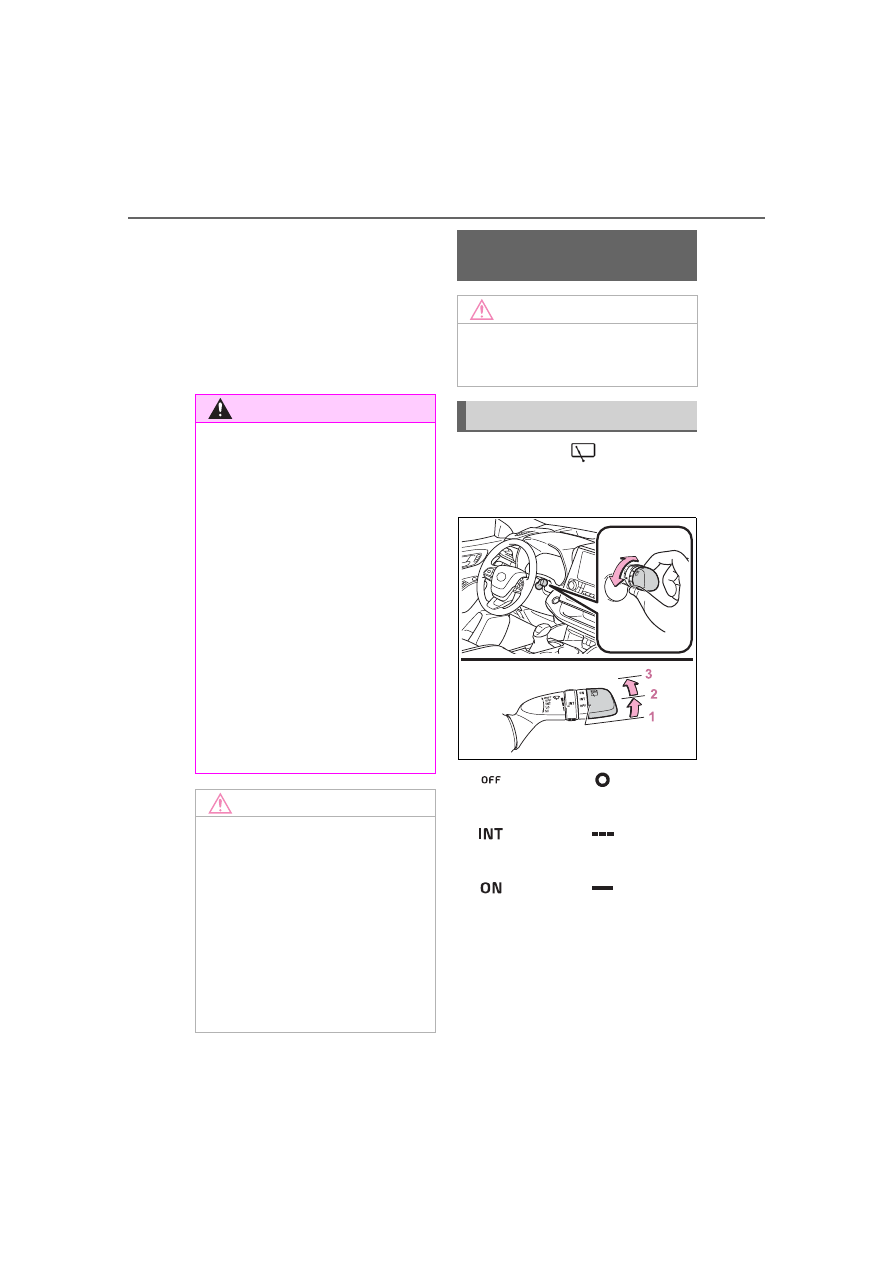

Operating the

 switch

operates the rear wiper as fol-
lows.

1

 (U.S.A.) or

 (Canada)

Off

2

 (U.S.A.) or

 (Canada)

Intermittent operation

3

 (U.S.A.) or

 (Canada)

Normal operation

WARNING

■

Caution regarding the use of

windshield wipers in AUTO

mode (vehicles with

rain-sensing windshield wip-

ers)

The windshield wipers may oper-

ate unexpectedly if the sensor is

touched or the windshield is sub-

ject to vibration in AUTO mode.

Take care that your fingers, etc.

do not become caught in the

windshield wipers.

■

Caution regarding the use of

washer fluid

When it is cold, do not use the

washer fluid until the windshield

becomes warm. The fluid may

freeze on the windshield and

cause low visibility. This may lead

to an accident, resulting in death

or serious injury.

NOTICE

■

When the washer fluid tank is

empty

Do not operate the switch continu-

ally as the washer fluid pump may

overheat.

■

When a nozzle becomes

blocked

In this case, contact your Toyota

dealer.

Do not try to clear it with a pin or

other object. The nozzle will be

damaged.

Rear windshield wiper

and washer

NOTICE

■

When the rear window is dry

Do not use the wiper, as it may

damage the rear window.

Operating the wiper lever

239

4-3. Operating the lights and wipers

4

Dr

iv

ing

HIGHLANDER HV_U

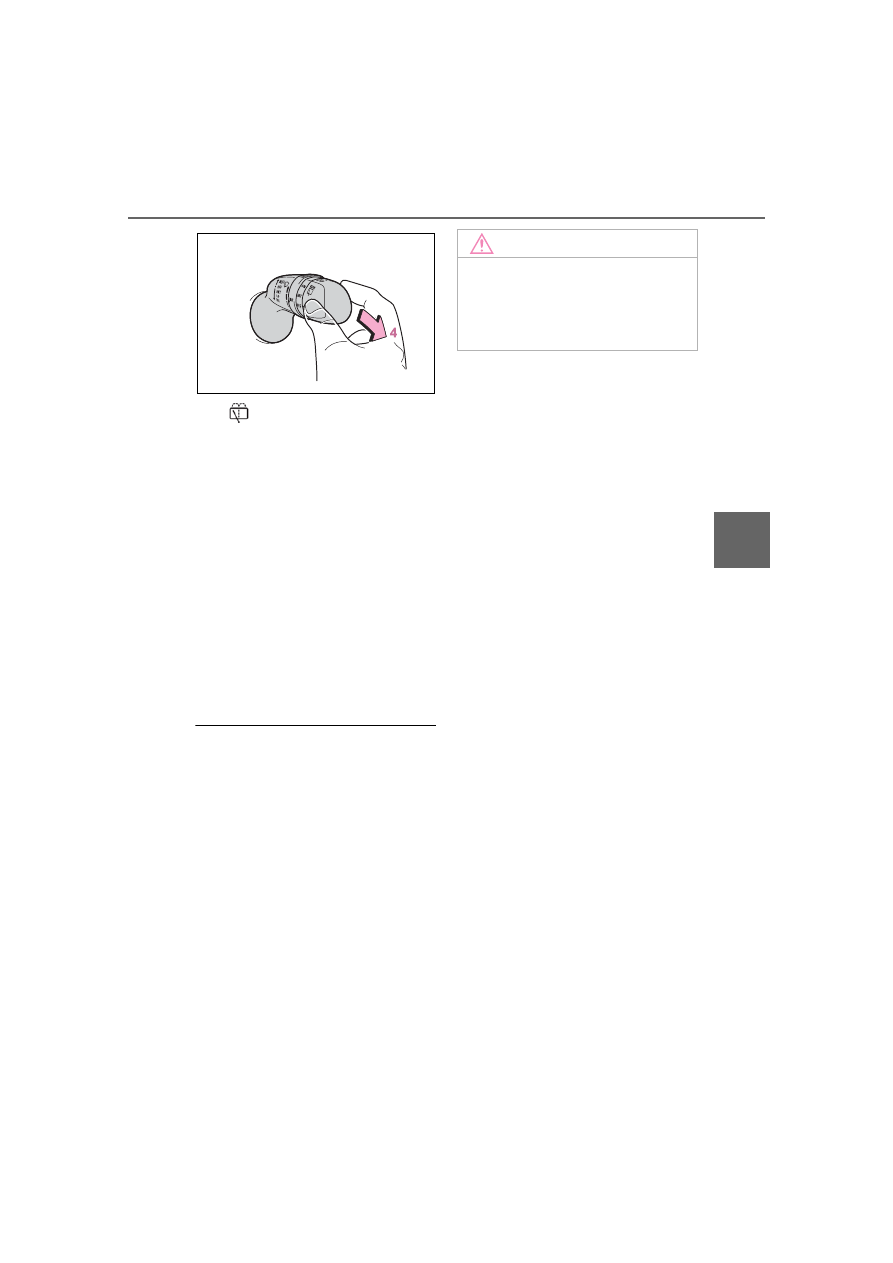

4

 Washer/wiper dual

operation

Pushing the lever operates the
wiper and washer.
The wiper will automatically operate
a couple of times after the washer
squirts.
The washer will automatically oper-
ate and clean the camera for the
Digital Rearview Mirror

*1

 (



P.172)

and rear camera

*2

.

*1

:If equipped

*2

:Refer to “NAVIGATION AND

MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

■

The rear window wiper and

washer can be operated when

The power switch is in ON.

■

If no washer fluid sprays

Check that the washer nozzle is not

blocked if there is washer fluid in the

washer fluid tank.

■

Reverse-linked rear window

wiper function

When the shift lever is shifted to R

when the front wipers are operating,

the rear window wiper will operate

once.

■

Customization

Setting of the reverse-linked func-

tion can be changed. (



P.530)

NOTICE

■

When the washer fluid tank is

empty

Do not operate the switch continu-

ally as the washer fluid pump may

overheat.

240

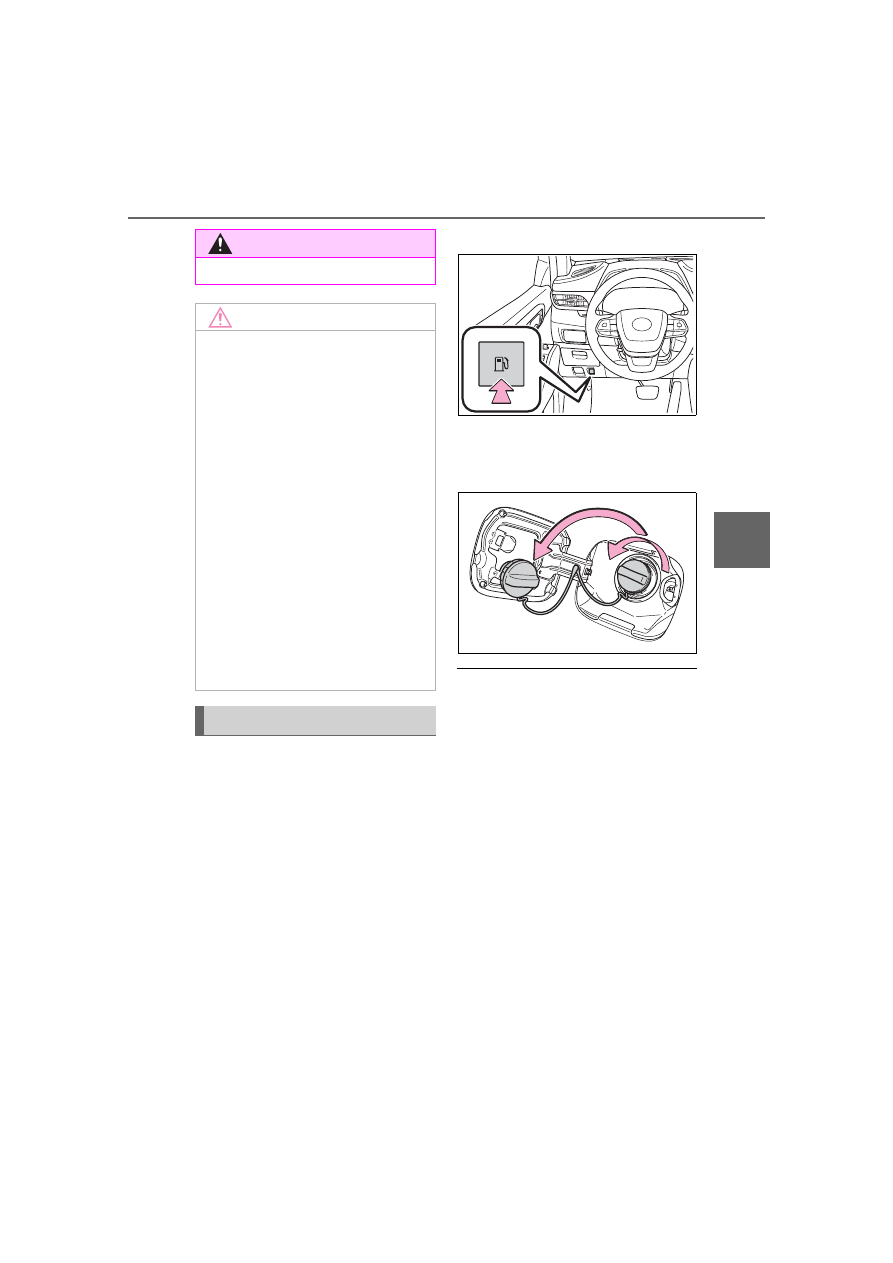

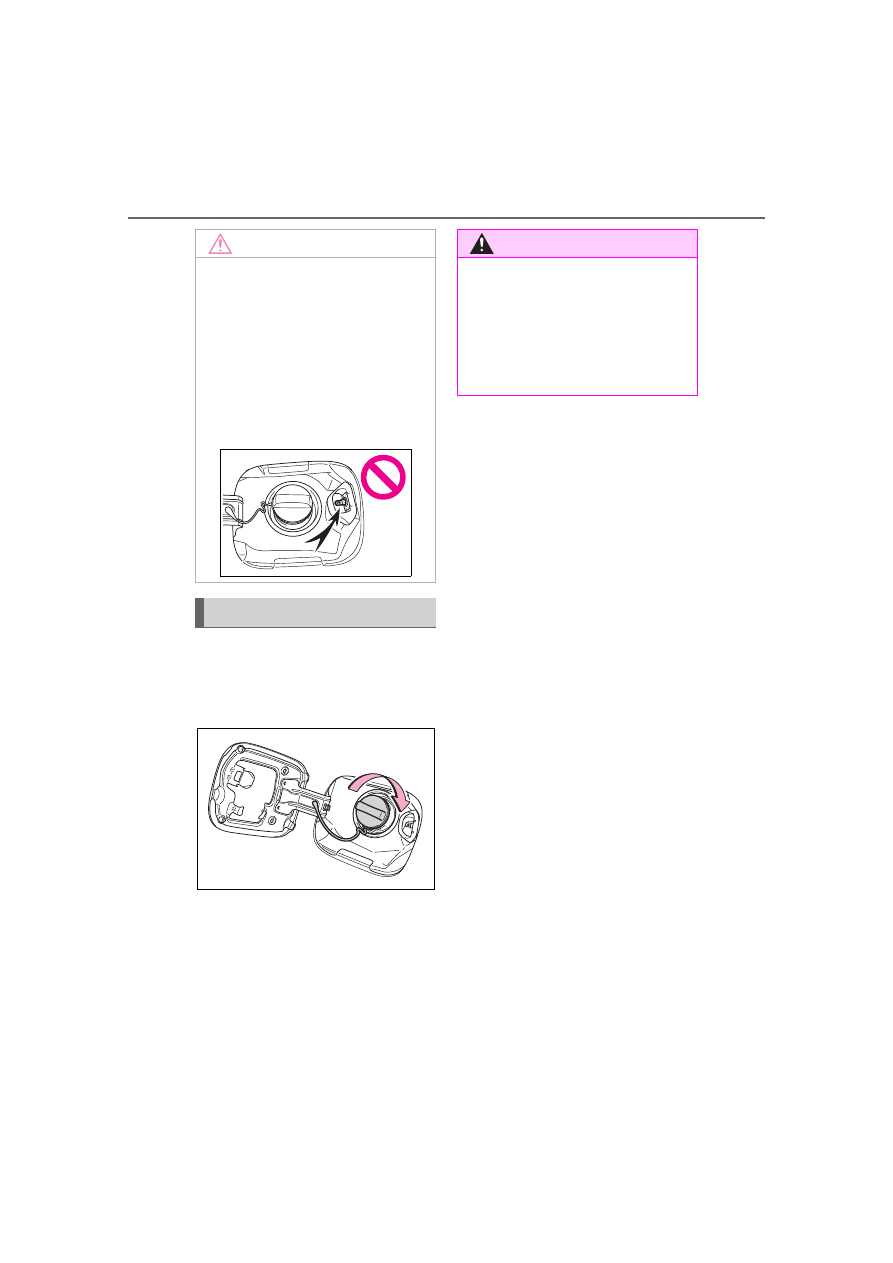

4-4. Refueling

HIGHLANDER HV_U

4-4.Refueling



Close all the doors and win-
dows, and turn the power
switch off.



Confirm the type of fuel.

■

Fuel types



P.518

■

Fuel tank opening for unleaded

gasoline

To help prevent incorrect fueling,

your vehicle has a fuel tank opening

that only accommodates the spe-

cial nozzle on unleaded fuel pumps.

Opening the fuel tank

cap

The fuel tank of your vehicle
has a special structure,
which requires a reduction
in fuel tank pressure before
refueling. After the opener
switch has been pressed, it
will take several seconds
until the vehicle is ready for
refueling.

Before refueling the vehi-
cle

WARNING

■

When refueling the vehicle

Observe the following precautions

while refueling the vehicle. Failure

to do so may result in death or

serious injury.

●

After exiting the vehicle and

before opening the fuel door,

touch an unpainted metal sur-

face to discharge any static

electricity. It is important to dis-

charge static electricity before

refueling because sparks result-

ing from static electricity can

cause fuel vapors to ignite while

refueling.

●

Always hold the grips on the

fuel tank cap and turn it slowly

to remove it.

A whooshing sound may be

heard when the fuel tank cap is

loosened. Wait until the sound

cannot be heard before fully

removing the cap. In hot

weather, pressurized fuel may

spray out of the filler neck and

cause injury.

●

Do not allow anyone that has

not discharged static electricity

from their body to come close to

an open fuel tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that

are harmful if inhaled.

●

Do not smoke while refueling

the vehicle.

Doing so may cause the fuel to

ignite and cause a fire.

●

Do not return to the vehicle or

touch any person or object that

is statically charged.

This may cause static electricity

to build up, resulting in a possi-

ble ignition hazard.

■

When refueling

Observe the following precautions

to prevent fuel overflowing from

the fuel tank:

●

Securely insert the fuel nozzle

into the fuel filler neck.

●

Stop filling the tank after the fuel

nozzle automatically clicks off.

241

4-4. Refueling

4

Dr

iv

ing

HIGHLANDER HV_U

1

Press the switch to open the
fuel filler door.

The fuel filler door will open within

about 10 seconds of the switch

being pressed. Before refueling is

possible, a message will be shown

on the multi-information display to

indicate the progress of the fuel

filler door opener.

2

Turn the fuel tank cap slowly
to remove it and hang it on
the back of the fuel filler door.

■

If the fuel filler door cannot be

opened



P.495

WARNING

●

Do not top off the fuel tank.

NOTICE

■

Refueling

●

Finish refueling within 30 min-

utes. If more than 30 minutes

passes, the internal valve

closes. In this condition, fuel

may spill out if you continue to

refuel the vehicle. About 5 min-

utes after the valve is closed, a

message “Close Fuel Lid” will

appear on the multi-information

display. To refuel the vehicle

again, tighten the fuel tank cap

and close the fuel filler door,

and then press the opener

switch again.

●

Do not spill fuel during refueling.

Doing so may damage the vehi-

cle, such as causing the emis-

sion control system to operate

abnormally or damaging fuel

system components or the vehi-

cle’s painted surface.

Opening the fuel tank cap

242

4-4. Refueling

HIGHLANDER HV_U

After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.

NOTICE

■

When refueling

When refueling your vehicle,

make sure that the fuel filler door

lock is not pushed by the fuel noz-

zle boot, etc., as this may cause a

valve to close, possibly resulting

in a fuel spill.
If the fuel filler door lock has been

pushed, operate the fuel filler door

opener switch in the vehicle

before continuing to refuel.

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank

cap

Do not use anything but a genu-

ine Toyota fuel tank cap designed

for your vehicle. Doing so may

cause a fire or other incident

which may result in death or seri-

ous injury.

243

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

4-5.Using the driving support systems

■

PCS (Pre-Collision System)



P.249

■

LTA (Lane Tracing Assist)



P.260

■

AHB (Automatic High
Beam)



P.232

■

RSA (Road Sign Assist)

*



P.283

*

: If equipped

■

Dynamic radar cruise con-
trol with full-speed range



P.271

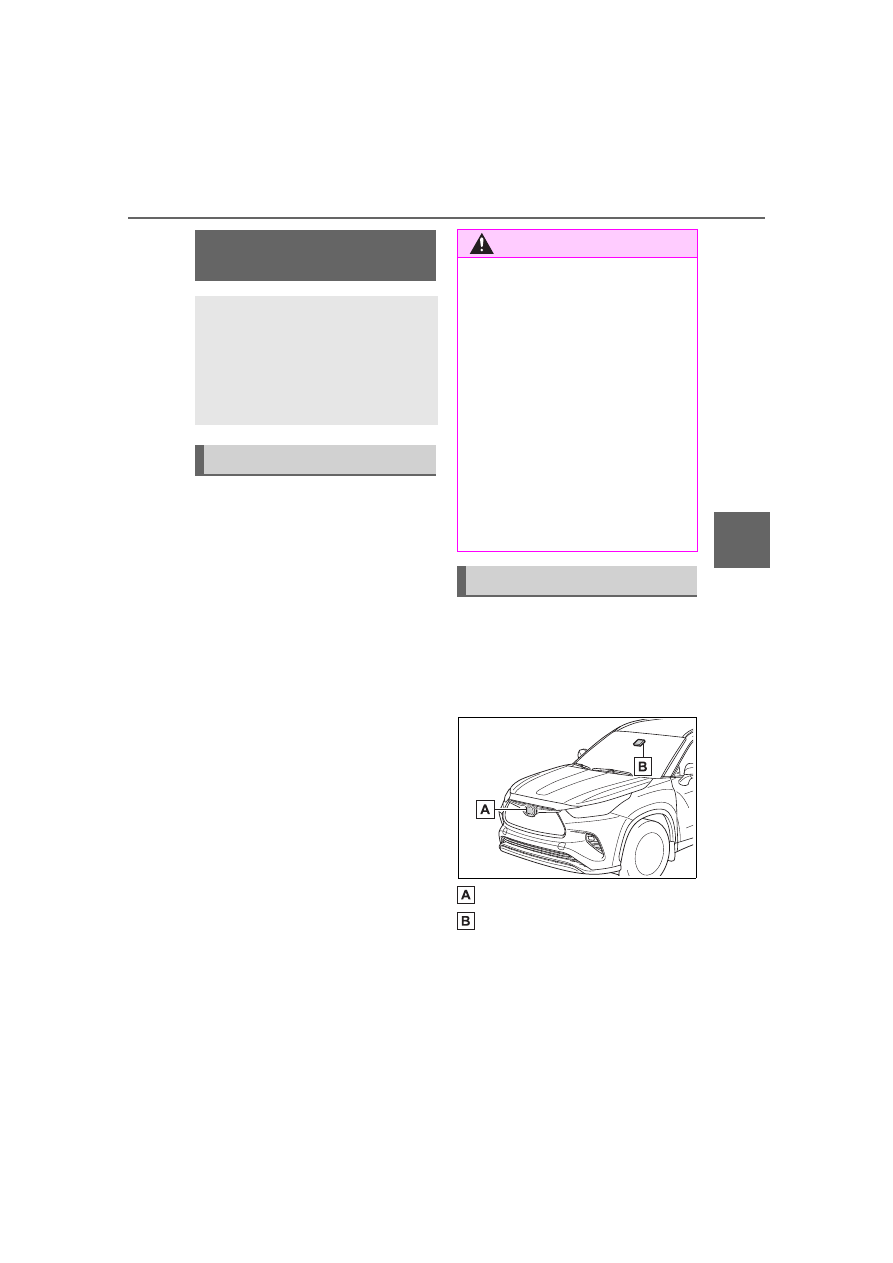

Two types of sensors, located
behind the front grille and wind-
shield, detect information neces-
sary to operate the drive assist
systems.

Radar sensor
Front camera

Toyota Safety Sense

2.5 +

The Toyota Safety Sense 2.5
+ consists of the following
drive assist systems and
contributes to a safe and
comfortable driving experi-
ence:

Driving assist system

WARNING

■

Toyota Safety Sense 2.5 +

The Toyota Safety Sense 2.5 + is

designed to operate under the

assumption that the driver will

drive safely, and is designed to

help reduce the impact to the

occupants and the vehicle in the

case of a collision or assist the

driver in normal driving condi-

tions.
As there is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’s surroundings and

driving safely.

Sensors

244

4-5. Using the driving support systems

HIGHLANDER HV_U

WARNING

■

To avoid malfunction of the

radar sensor

Observe the following precau-

tions.
Otherwise, the radar sensor may

not operate properly, possibly

leading to an accident resulting in

death or serious injury.

●

Keep the radar sensor and the

radar sensor cover clean at all

times.

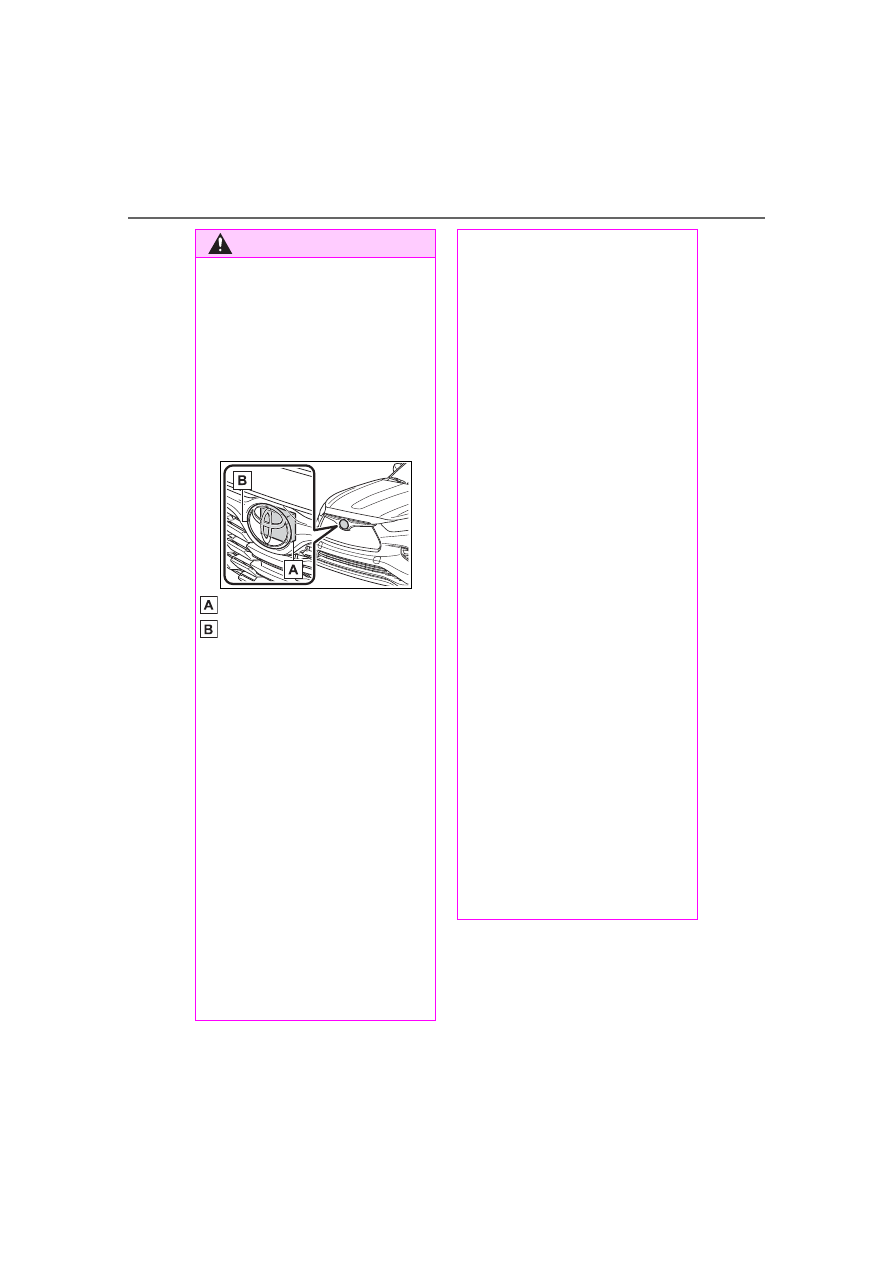

Radar sensor
Radar sensor cover

If the front of the radar sensor or
the front or back of the radar sen-
sor cover is dirty or covered with
water droplets, snow, etc., clean
it.
Clean the radar sensor and radar
sensor cover with a soft cloth to
avoid damaging them.

●

Do not attach accessories,

stickers (including transparent

stickers) or other items to the

radar sensor, radar sensor

cover or surrounding area.

●

Do not subject the radar sensor

or its surrounding area to a

strong impact.

If the radar sensor, front grille,

or front bumper has been sub-

jected to a strong impact, have

the vehicle inspected by your

Toyota dealer.

●

Do not disassemble the radar

sensor.

●

Do not modify or paint the radar

sensor or radar sensor cover.

●

In the following cases, the radar

sensor must be recalibrated.

Contact your Toyota dealer for

details.

• When the radar sensor or front

grille are removed and installed,

or replaced

• When the front bumper is

replaced

■

To avoid malfunction of the

front camera

Observe the following precau-

tions.
Otherwise, the front camera may

not operate properly, possibly

leading to an accident resulting in

death or serious injury.

●

Keep the windshield clean at all

times.

• If the windshield is dirty or cov-

ered with an oily film, water

droplets, snow, etc., clean the

windshield.

• If a glass coating agent is

applied to the windshield, it will

still be necessary to use the

windshield wipers to remove

water droplets, etc. from the

area of the windshield in front of

the front camera.

• If the inner side of the wind-

shield where the front camera is

installed is dirty, contact your

Toyota dealer.

245

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

WARNING

●

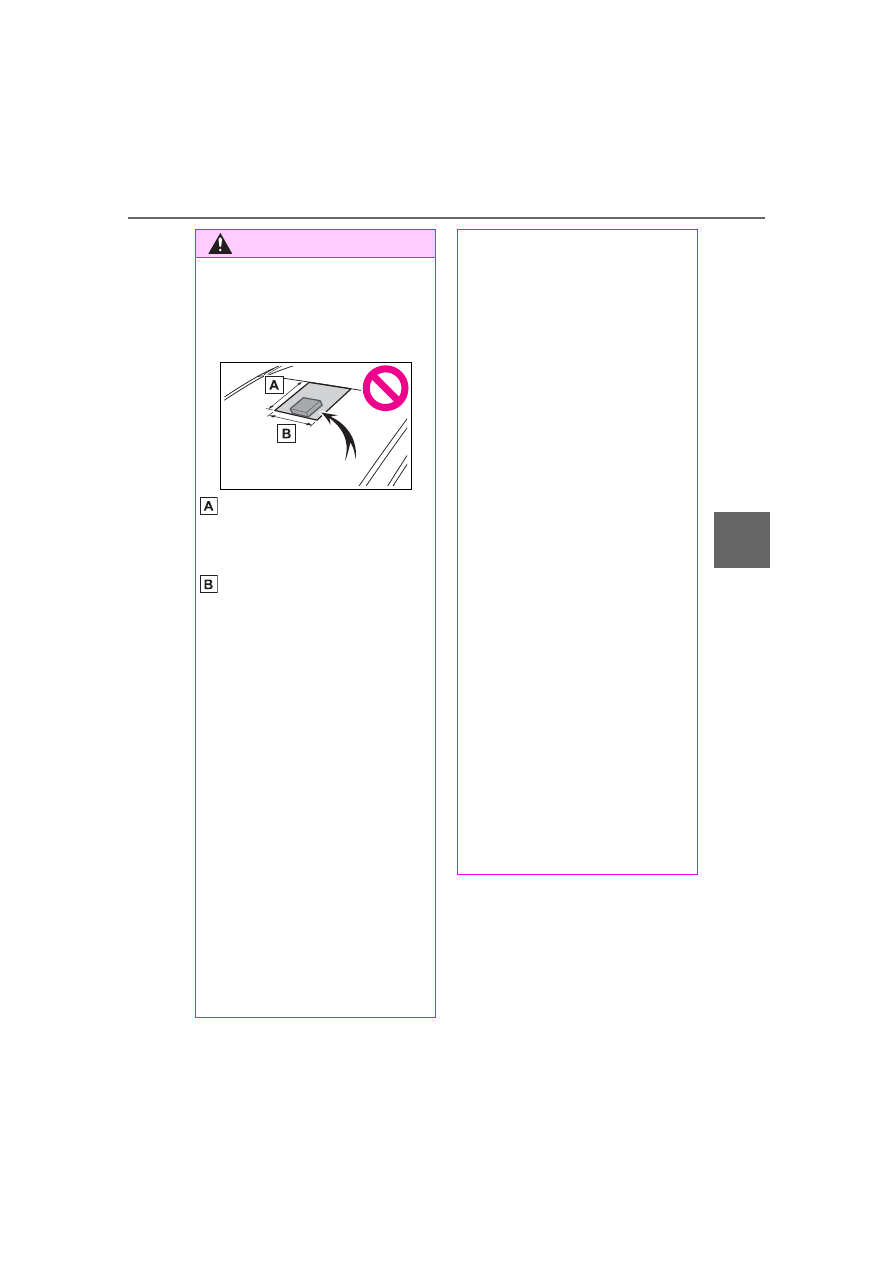

Do not attach objects, such as

stickers, transparent stickers,

etc., to the outer side of the

windshield in front of the front

camera (shaded area in the

illustration).

From the top of the windshield
to approximately 0.4 in. (1 cm)
below the bottom of the front
camera
Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. [10 cm]
to the right and left from the
center of the front camera)

●

If the part of the windshield in

front of the front camera is

fogged up or covered with con-

densation or ice, use the wind-

shield defogger to remove the

fog, condensation or ice.

(



P.344)

●

If water droplets cannot be

properly removed from the area

of the windshield in front of the

front camera by the windshield

wipers, replace the wiper insert

or wiper blade.

●

Do not attach window tint to the

windshield.

●

Replace the windshield if it is

damaged or cracked.

After replacing the windshield,

the front camera must be recali-

brated. Contact your Toyota

dealer for details.

●

Do not allow liquids to contact

the front camera.

●

Do not allow bright lights to

shine into the front camera.

●

Do not dirty or damage the front

camera.

When cleaning the inside of the

windshield, do not allow glass

cleaner to contact the lens of

the front camera. Also, do not

touch the lens.

If the lens is dirty or damaged,

contact your Toyota dealer.

●

Do not subject the front camera

to a strong impact.

●

Do not change the installation

position or direction of the front

camera or remove it.

●

Do not disassemble the front

camera.

●

Do not modify any components

of the vehicle around the front

camera (inside rear view mirror,

etc.) or ceiling.

●

Do not attach any accessories

to the hood, front grille or front

bumper that may obstruct the

front camera. Contact your Toy-

ota dealer for details.

●

If a surfboard or other long

object is to be mounted on the

roof, make sure that it will not

obstruct the front camera.

●

Do not modify the headlights or

other lights.

246

4-5. Using the driving support systems

HIGHLANDER HV_U

■

Certification



Except for vehicles sold in Canada



For vehicles sold in Canada

247

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in

the system.

●

In the following situations, perform the actions specified in the table. When

the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Toyota dealer.

Situation

Actions

When the area around a camera is
covered with dirt, moisture (fogged
up, covered with condensation, ice,
etc.), or other foreign matter

Using the wiper and A/C function,
remove the dirt and other attached
matter (



P.344).

248

4-5. Using the driving support systems

HIGHLANDER HV_U

●

In the following situations, if the situation has changed (or the vehicle has

been driven for some time) and the normal operating conditions are

detected, the message will disappear and the system will become opera-

tional.

If the message does not disappear, contact your Toyota dealer.

• When the temperature around the radar sensor is outside of the opera-

tional range, such as when the vehicle is in the sun or in an extremely cold

environment

• When the front camera cannot detect objects in front of the vehicle, such

as when driving in the dark, snow, or fog, or when bright lights are shining

into the front camera

• Depending on the conditions in the vicinity of the vehicle, the radar may

judge the surrounding environment can not be properly recognized. In that

case, “Pre-Collision System Unavailable See Owner's Manual” is dis-

played.

When the temperature around the
front camera is outside of the opera-
tional range, such as when the vehi-
cle is in the sun or in an extremely
cold environment

If the front camera is hot, such as
after the vehicle had been parked in
the sun, use the air conditioning sys-
tem to decrease the temperature
around the front camera.
If a sunshade was used when the
vehicle was parked, depending on its
type, the sunlight reflected from the
surface of the sunshade may cause
the temperature of the front camera
to become excessively high.

If the front camera is cold, such after
the vehicle is parked in an extremely
cold environment, use the air condi-
tioning system to increase the tem-
perature around the front camera.

The area in front of the front camera
is obstructed, such as when the
hood is open or a sticker is attached
to the part of the windshield in front
of the front camera.

Close the hood, remove the sticker,
etc. to clear the obstruction.

When “Pre-Collision System Radar
In Self Calibration Unavailable See
Owner's Manual” is displayed.

Check whether there is attached
materials on the radar sensor and
radar sensor cover, and if there is,
remove it.

Situation

Actions

249

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

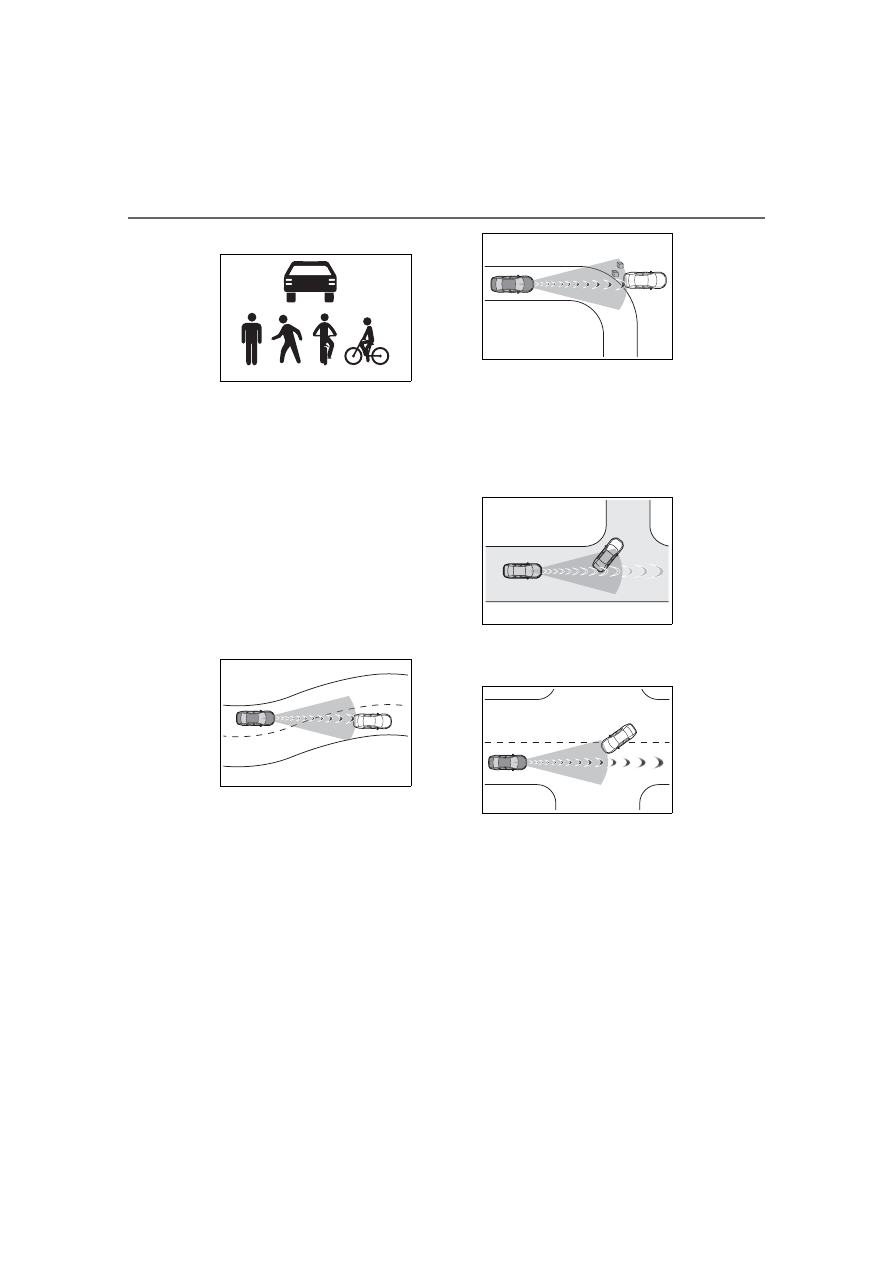

The system can detect the fol-
lowing (The detectable objects
differs depending on the func-
tion.):



Vehicles



Bicyclists



Pedestrians

■

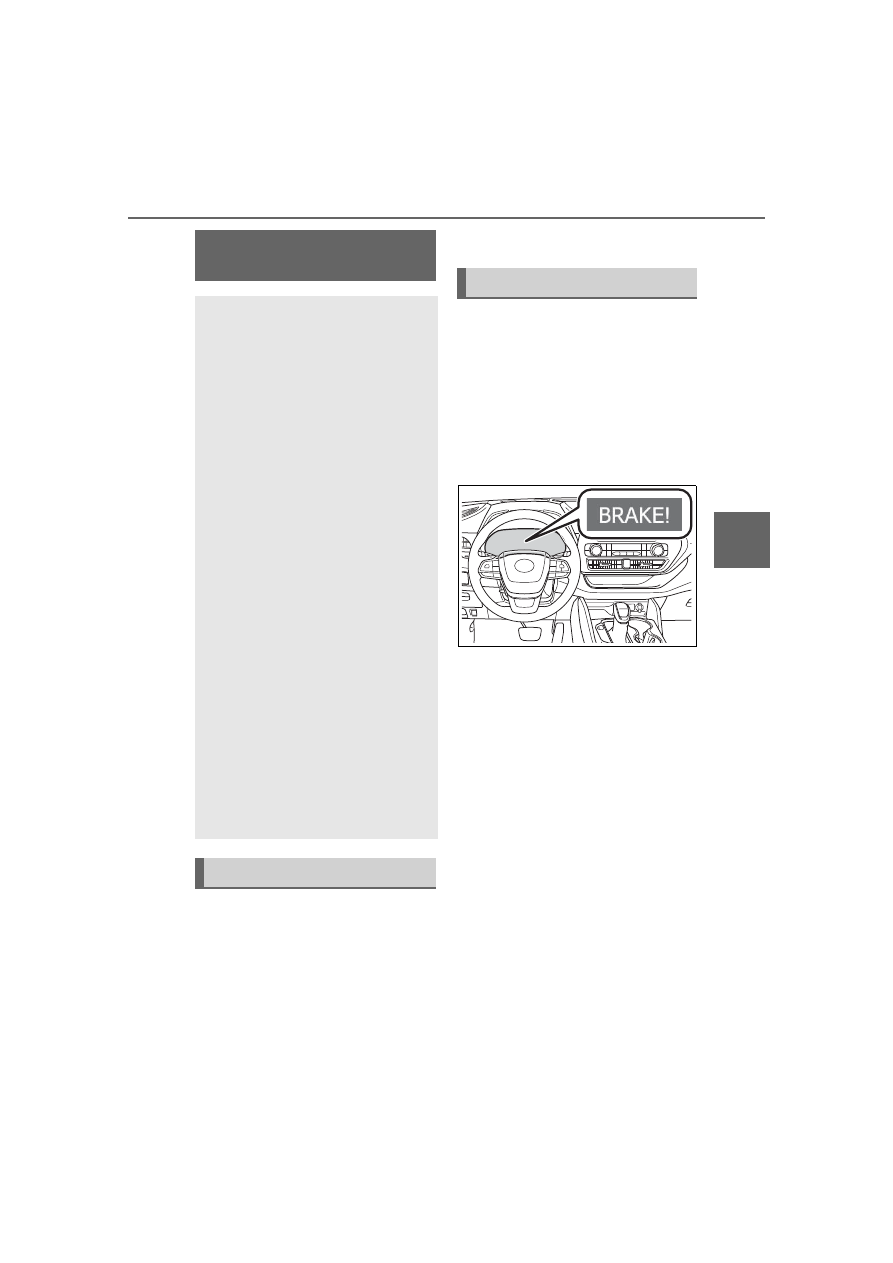

Pre-collision warning

When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the
multi-information display to urge
the driver to take evasive action.

■

Pre-collision brake assist

When the system determines
that the possibility of a frontal
collision is high, the system
applies greater braking force in
relation to how strongly the
brake pedal is depressed.

■

Pre-collision braking

If the system determines that
the possibility of a frontal colli-
sion is extremely high, the
brakes are automatically applied
to help avoid the collision or
reduce the impact of the colli-
sion.

■

Emergency steering assist

If the system determines that
the possibility of a frontal colli-

PCS (Pre-Collision Sys-

tem)

The pre-collision system
uses a radar sensor and
front camera to detect
objects (



P.249) in front of

the vehicle. When the sys-
tem determines that the
possibility of a frontal colli-
sion with an object is high, a
warning operates to urge
the driver to take evasive
action and the potential
brake pressure is increased
to help the driver avoid the
collision. If the system
determines that the possi-
bility of a frontal collision
with an object is extremely
high, the brakes are auto-
matically applied to help
avoid the collision or help
reduce the impact of the col-
lision.

The pre-collision system can
be disabled/enabled and the
warning timing can be
changed. (



P.252)

Detectable objects

System functions

250

4-5. Using the driving support systems

HIGHLANDER HV_U

sion is high and that there is suf-
ficient space for the vehicle to
be steered into within its lane,
and the driver has begun eva-
sive maneuver or steering,
emergency steering assist will
assist the steering movements
to help enhance the vehicle sta-
bility and for lane departure pre-
vention. During operation, the
indicator will illuminate in green.

■

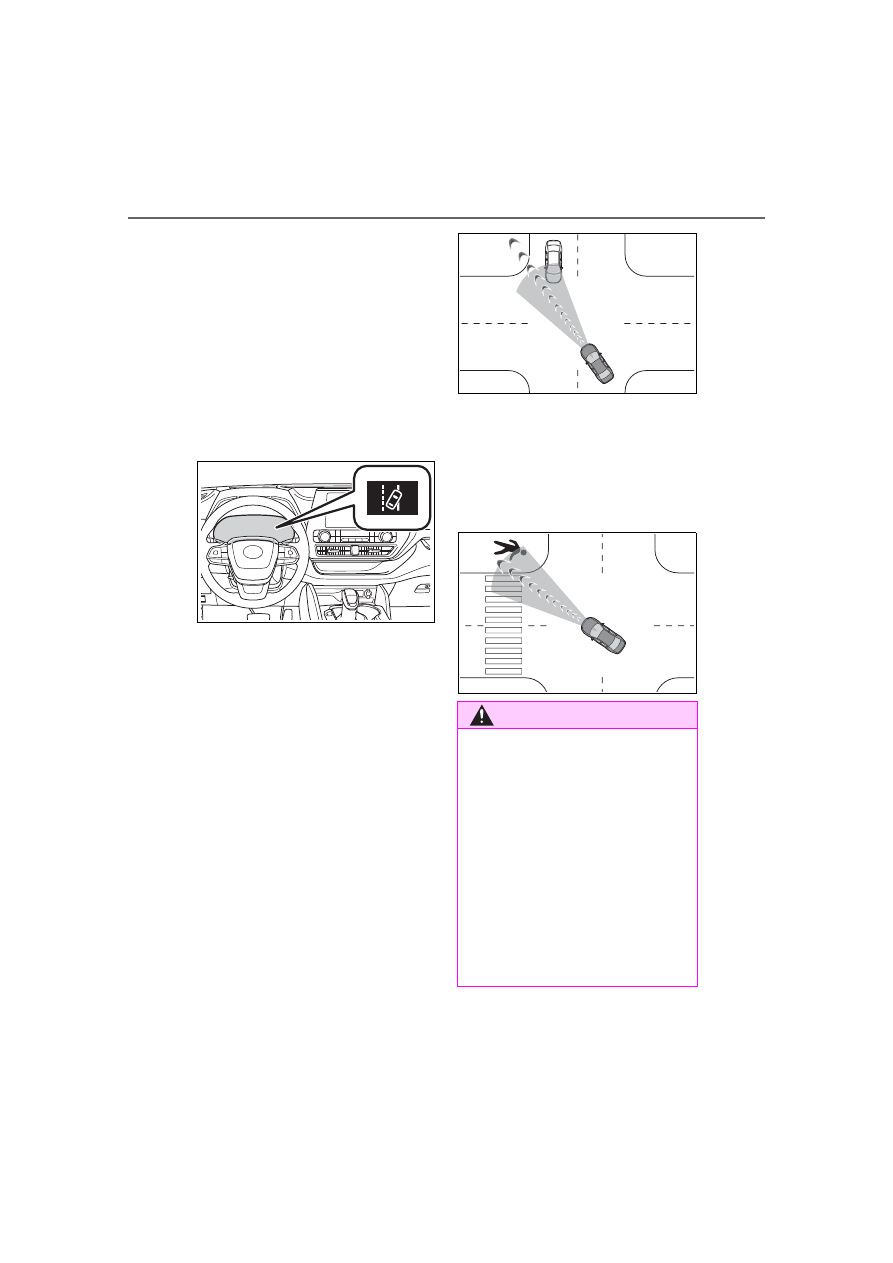

Intersection right/left turn
assistance

If the system determines that
there is a high possibility of a
collision in the following situa-
tions, it will assist with Pre-colli-
sion warning and, if necessary
Pre-collision braking.
Depending on the configuration
of the intersection, it may not be
possible to support.



When you turn right/left at an
intersection and cross the
path of an oncoming vehicle



When you turn right/left,
pedestrian is detected in the
forward direction and esti-
mated to enter your vehicle’s
path (bicyclists are not
detected.)

WARNING

■

Limitations of the pre-colli-

sion system

●

The driver is solely responsible

for safe driving. Always drive

safely, taking care to observe

your surroundings.

Do not use the pre-collision sys-

tem instead of normal braking

operations under any circum-

stances. This system will not

prevent collisions or lessen col-

lision damage or injury in every

situation. Do not overly rely on

this system. Failure to do so

may lead to an accident, result-

ing in death or serious injury.

251

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

WARNING

●

Although this system is

designed to help avoid a colli-

sion or help reduce the impact

of the collision, its effectiveness

may change according to vari-

ous conditions, therefore the

system may not always be able

to achieve the same level of

performance.

Read the following conditions

carefully. Do not overly rely on

this system and always drive

carefully.

• Conditions under which the sys-

tem may operate even if there is

no possibility of a collision:



P.256

• Conditions under which the sys-

tem may not operate properly:



P.257

●

Do not attempt to test the oper-

ation of the pre-collision system

yourself.

Depending on the objects used

for testing (dummies, card-

board objects imitating detect-

able objects, etc.), the system

may not operate properly, possi-

bly leading to an accident.

■

Pre-collision braking

●

When the pre-collision braking

function is operating, a large

amount of braking force will be

applied.

●

If the vehicle is stopped by the

operation of the pre-collision

braking function, the pre-colli-

sion braking function operation

will be canceled after approxi-

mately 2 seconds. Depress the

brake pedal as necessary.

●

The pre-collision braking func-

tion may not operate if certain

operations are performed by the

driver. If the accelerator pedal is

being depressed strongly or the

steering wheel is being turned,

the system may determine that

the driver is taking evasive

action and possibly prevent the

pre-collision braking function

from operating.

●

In some situations, while the

pre-collision braking function is

operating, operation of the func-

tion may be canceled if the

accelerator pedal is depressed

strongly or the steering wheel is

turned and the system deter-

mines that the driver is taking

evasive action.

●

If the brake pedal is being

depressed, the system may

determine that the driver is tak-

ing evasive action and possibly

delay the operation timing of the

pre-collision braking function.

■

Emergency steering assist

●

As emergency steering assist

operation will be canceled when

the system determines that lane

departure prevention function

has been completed.

●

Emergency steering assist may

not operate or may be cancel in

the following cases as the sys-

tem may determine the driver is

taking actions.

• If the accelerator pedal is being

depressed strongly, the steering

wheel is being operated sharply,

the brake pedal is being

depressed or the turn signal

lever is being operated. In this

case, the system may deter-

mine that the driver is taking

evasive action and the emer-

gency steering assist may not

operate.

252

4-5. Using the driving support systems

HIGHLANDER HV_U

■

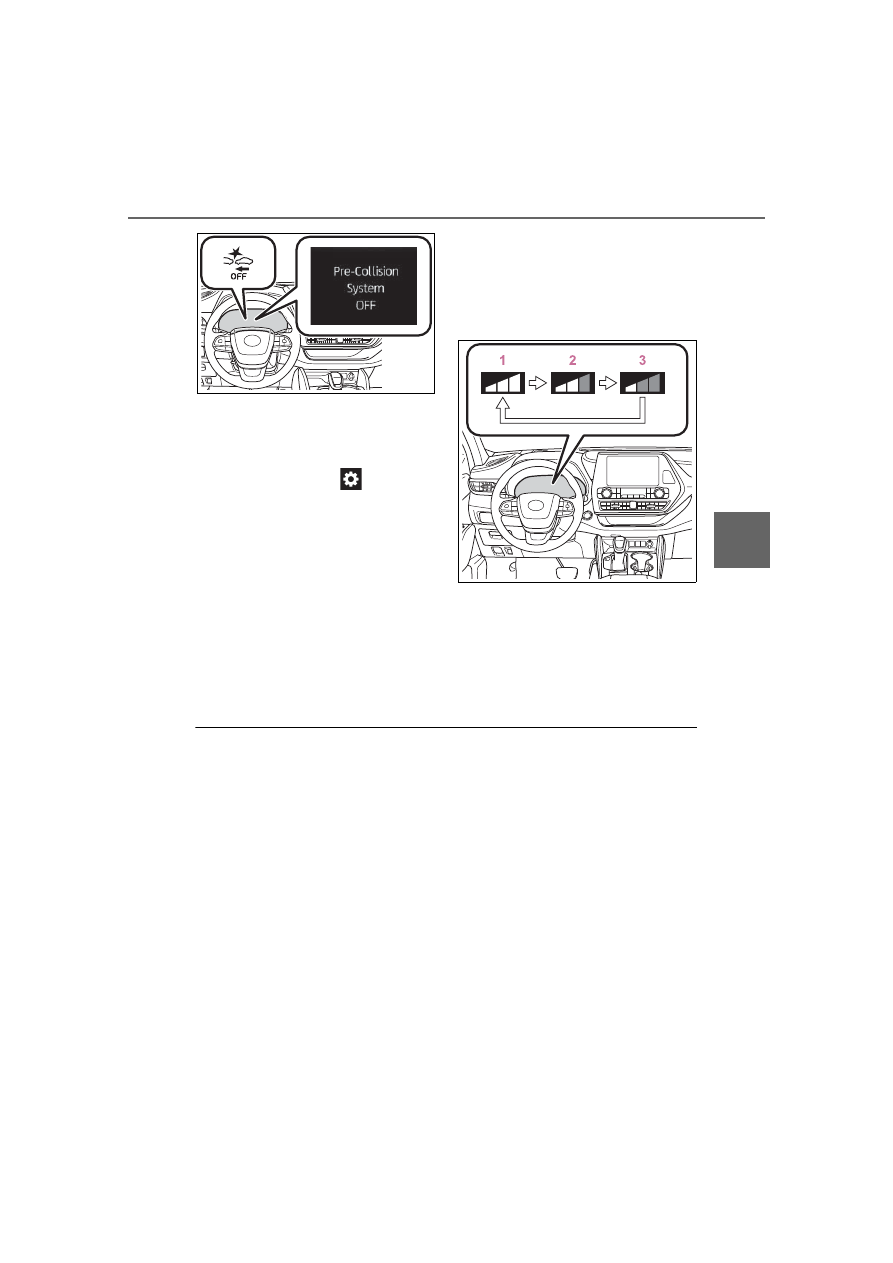

Enabling/disabling the
pre-collision system

The pre-collision system can be
enabled/disabled on

 (



P.97,

107) of the multi-information dis-
play.

The system is automatically
enabled each time the power
switch is turned to ON.

If the system is disabled, the
PCS warning light will turn on
and a message will be displayed
on the multi-information display.

WARNING

• In some situations, while the

emergency steering assist is

operating, operation of the func-

tion may be canceled if the

accelerator pedal is depressed

strongly, the steering wheel is

operated sharply or the brake

pedal is being depressed and

the system determines that the

driver is taking evasive action.

• When the emergency steering

assist is operating, if the steer-

ing wheel is held firmly or is

operated in the opposite direc-

tion to that which the system is

generating torque, the function

may be canceled.

■

When to disable the pre-colli-

sion system

In the following situations, disable

the system, as it may not operate

properly, possibly leading to an

accident resulting in death or seri-

ous injury:

●

When the vehicle is being towed

●

When your vehicle is towing

another vehicle

●

When transporting the vehicle

via truck, boat, train or similar

means of transportation

●

When the vehicle is raised on a

lift with the hybrid system on

and the tires are allowed to

rotate freely

●

When inspecting the vehicle

using a drum tester such as a

chassis dynamometer or speed-

ometer tester, or when using an

on vehicle wheel balancer

●

When a strong impact is applied

to the front bumper or front

grille, due to an accident or

other reasons

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When tires of a size other than

specified are installed

●

When tire chains are installed

●

When a compact spare tire or

an emergency tire puncture

repair kit is used

●

If equipment (snow plow, etc.)

that may obstruct the radar sen-

sor or front camera is temporar-

ily installed to the vehicle

Changing settings of the
pre-collision system

253

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

■

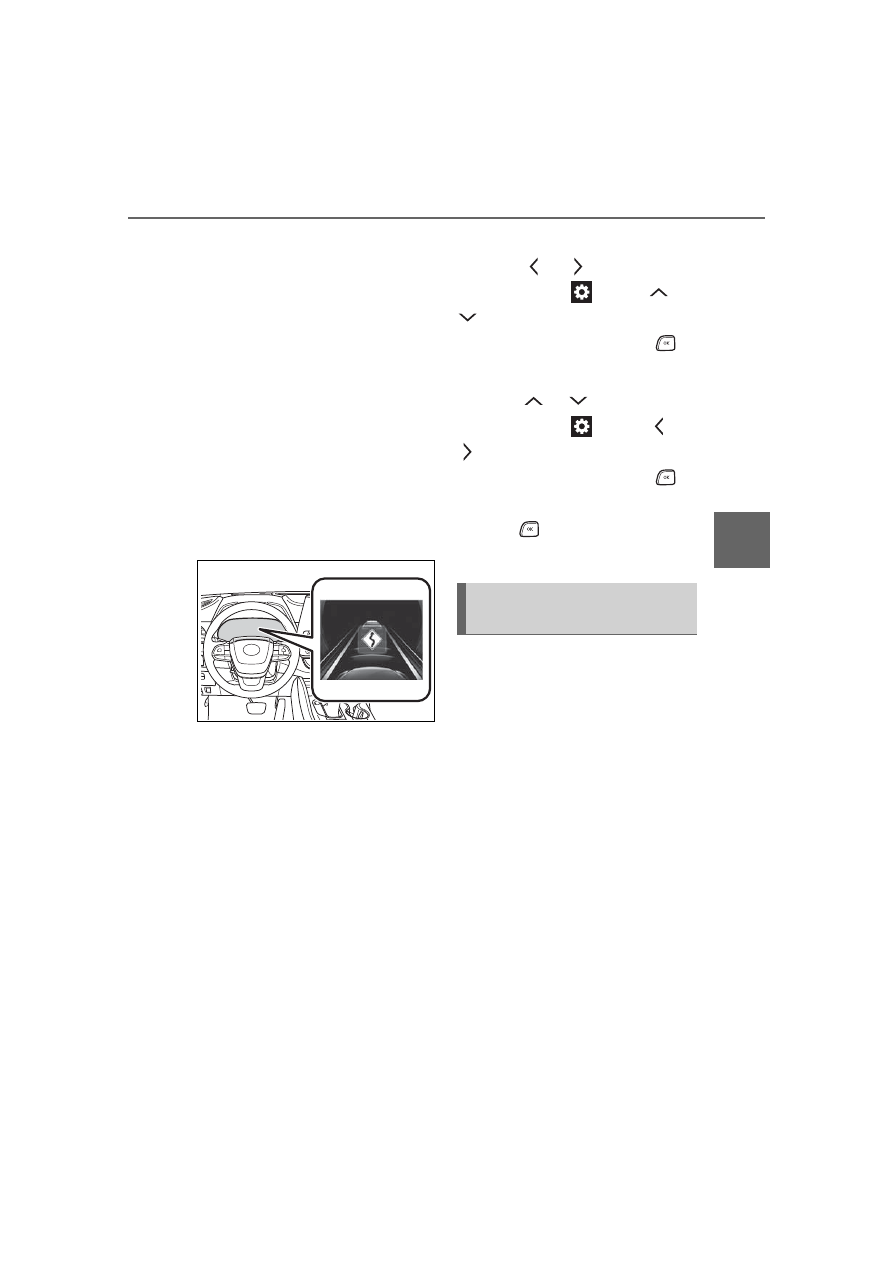

Changing the pre-collision
warning timing

The pre-collision warning timing
can be changed on

 (



P.97,

107) of the multi-information dis-
play.

The warning timing setting is
retained when the power switch is
turned OFF. However, if the pre-col-
lision system is disabled and
re-enabled, the operation timing will
return to the default setting (mid-
dle).

If the pre-collision warning tim-
ing is changed, emergency

steering assist timing will also
be changed accordingly. If late
is selected, emergency steering
assist would not operate in case
of an emergency.

1

Early

2

Middle

This is the default setting.

3

Late

■

Operational conditions for each pre-collision function

The pre-collision system is enabled and the system determines that the pos-

sibility of a frontal collision with a detected object is high.
The system may not operate in the following situations:
• If a 12-volt battery terminal has been disconnected and reconnected and

then the vehicle has not been driven for a certain amount of time

• If the shift lever is in R
The operation speeds and operation cancellation for each function is listed

below.

●

Pre-collision warning

254

4-5. Using the driving support systems

HIGHLANDER HV_U

While the pre-collision warning function is operating, if the steering wheel is

operated heavily or suddenly, the pre-collision warning may be cancelled.

●

Pre-collision brake assist

●

Pre-collision braking

If either of the following occur while the pre-collision braking function is oper-

ating, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.

●

Emergency steering assist

When the turn signal lights are flashing, emergency steering assist will not

operate in case of an emergency.

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

preceding and stopped
vehicles

Approx. 7 to 110 mph
(10 to 180 km/h)

Approx. 7 to 110 mph
(10 to 180 km/h)

Oncoming vehicles

Approx. 7 to 110 mph
(10 to 180 km/h)

Approx. 13 to 110 mph
(20 to 180 km/h)

Bicyclists and pedestri-
ans

Approx. 7 to 50 mph (10
to 80 km/h)

Approx. 7 to 50 mph (10
to 80 km/h)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Preceding and stopped
vehicles

Approx. 20 to 110 mph
(30 to 180 km/h)

Approx. 20 to 110 mph
(30 to 180 km/h)

Bicyclists and pedestri-
ans

Approx. 20 to 50 mph
(30 to 80 km/h)

Approx. 20 to 50 mph
(30 to 80 km/h)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Preceding and stopped
vehicles

Approx. 7 to 110 mph
(10 to 180 km/h)

Approx. 7 to 110 mph
(10 to 180 km/h)

Oncoming vehicles

Approx. 7 to 110 mph
(10 to 180 km/h)

Approx. 13 to 110 mph
(20 to 180 km/h)

Bicyclists and pedestri-
ans

Approx. 7 to 50 mph (10
to 80 km/h)

Approx. 7 to 50 mph (10
to 80 km/h)

255

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

If any of the following occur while the emergency steering assist function is

operating, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.
• The brake pedal is depressed.

●

Intersection right/left turn assistance (pre-collision warning)

When the turn signal lights are not flashing, support for turning left or right at

an intersection which targets oncoming vehicles does not work.

●

Intersection right/left turn assistance (pre-collision braking)

When the turn signal lights are not flashing, support for turning left or right at

an intersection which targets oncoming vehicles does not work.

■

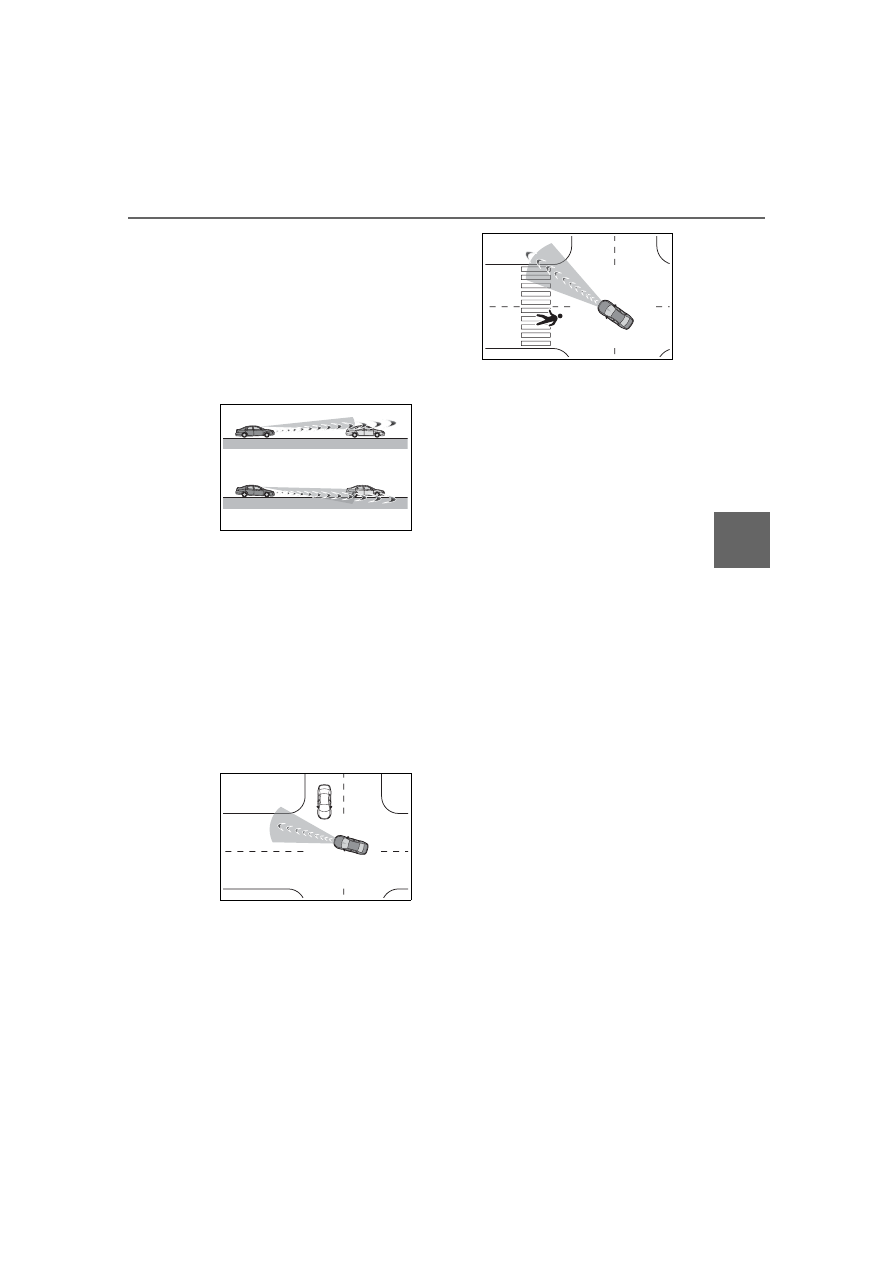

Object detection function

The system detects objects based

on their size, profile, motion, etc.

However, an object may not be

detected depending on the sur-

rounding brightness and the motion,

posture, and angle of the detected

object, preventing the system from

operating properly. (



P.257)

The illustration shows an image of

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Preceding and stopped
vehicles, bicyclists and
pedestrians

Approx. 25 to 50 mph
(40 to 80 km/h)

Approx. 25 to 50 mph
(40 to 80 km/h)

Detectable

objects

Vehicle speed

Oncoming vehicle

speed

Relative speed

between your

vehicle and object

Oncoming vehi-
cles

Approx. 7 to 15
mph (10 to 25
km/h)

Approx. 20 to 35
mph (30 to 55
km/h)

Approx. 25 to 50
mph (40 to 80
km/h)

Pedestrians

Approx. 7 to 15
mph (10 to 25
km/h)

—

Approx. 7 to 15
mph (10 to 25
km/h)

Detectable

objects

Vehicle speed

Oncoming vehicle

speed

Relative speed

between your

vehicle and object

Oncoming vehi-
cles

Approx. 10 to 15
mph (15 to 25
km/h)

Approx. 20 to 28
mph (30 to 45
km/h)

Approx. 28 to 43
mph (45 to 70
km/h)

Pedestrians

Approx. 7 to 15
mph (10 to 25
km/h)

—

Approx. 7 to 15
mph (10 to 25
km/h)

256

4-5. Using the driving support systems

HIGHLANDER HV_U

detectable objects.

■

Conditions under which the

system may operate even if

there is no possibility of a colli-

sion

●

In some situations such as the fol-

lowing, the system may determine

that there is a possibility of a fron-

tal collision and operate.

• When passing a detectable object,

etc.

• When changing lanes while over-

taking a detectable object, etc.

• When approaching a detectable

object in an adjacent lane or on

the roadside, such as when

changing the course of travel or

driving on a winding road

• When rapidly closing on a detect-

able object, etc.

• When approaching objects on the

roadside, such as detectable

objects, guardrails, utility poles,

trees, or walls

• When there is a detectable object

or other object by the roadside at

the entrance of a curve

• When there are patterns or paint

in front of your vehicle that may be

mistaken for a detectable object

• When the front of your vehicle is

hit by water, snow, dust, etc.

• When overtaking a detectable

object that is changing lanes or

making a right/left turn

• When passing a detectable object

in an oncoming lane that is

stopped to make a right/left turn

• When a detectable object

approaches very close and then

stops before entering the path of

your vehicle

• If the front of your vehicle is raised

or lowered, such as when on an

uneven or undulating road surface

• When driving on a road sur-

rounded by a structure, such as in

a tunnel or on an iron bridge

• When there is a metal object

(manhole cover, steel plate, etc.),

steps, or a protrusion in front of

your vehicle

• When passing under an object

257

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

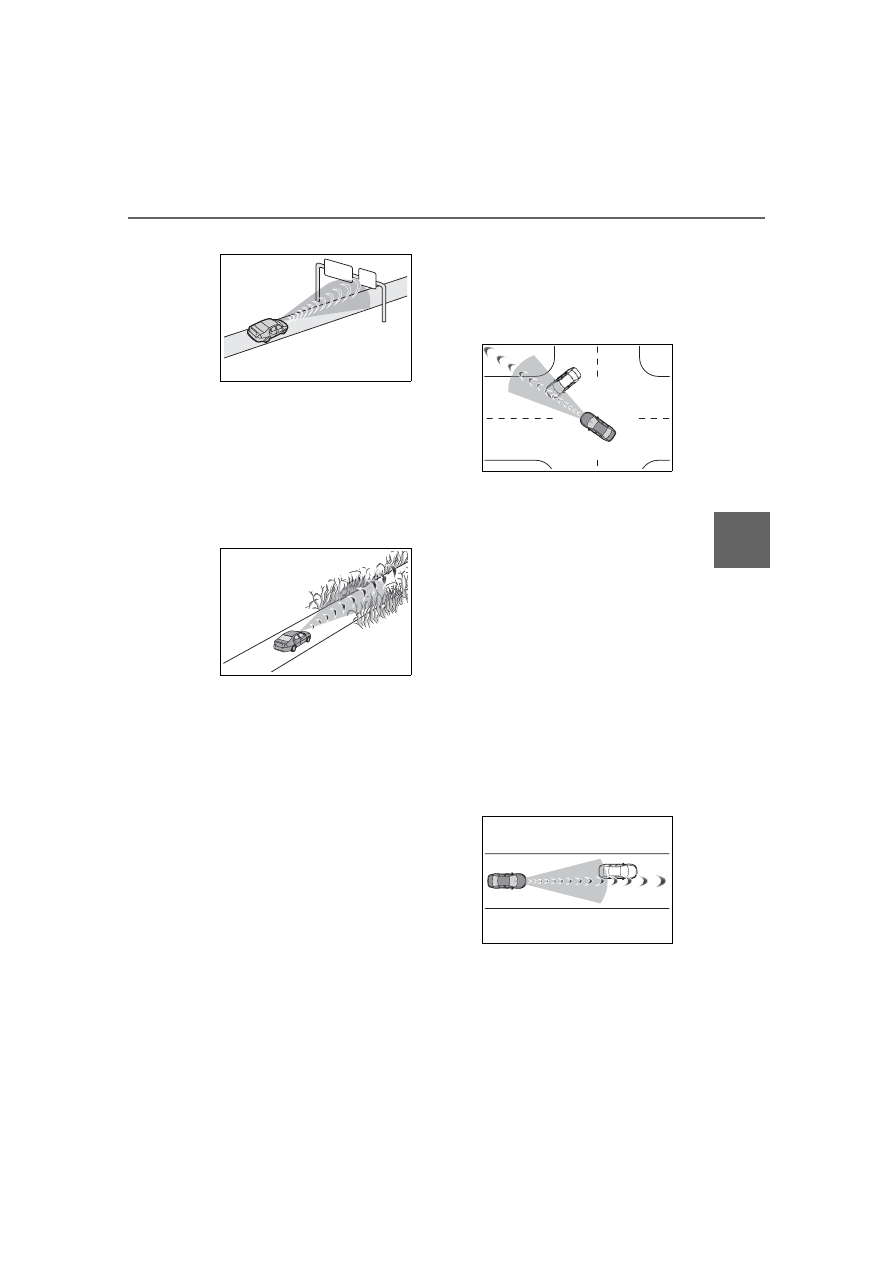

(road sign, billboard, etc.)

• When approaching an electric toll

gate barrier, parking area barrier,

or other barrier that opens and

closes

• When using an automatic car

wash

• When driving through or under

objects that may contact your

vehicle, such as thick grass, tree

branches, or a banner

• When driving through steam or

smoke

• When driving near an object that

reflects radio waves, such as a

large truck or guardrail

• When driving near a TV tower,

broadcasting station, electric

power plant, radar equipped vehi-

cles, etc., or other location where

strong radio waves or electrical

noise may be present

• When there are many things

which can reflect the radio waves

of the radar in the vicinity (tunnels,

truss bridges, gravel roads, snow

covered road that have tracks,

etc.)

• While making a right/left turn,

when an oncoming vehicle or a

crossing pedestrian has already

exited the path of your vehicle

• While making a right/left turn,

closely in front of an oncoming

vehicle or a crossing pedestrian.

• While making a right/left turn,

when an oncoming vehicle or a

crossing pedestrian stops before

entering the path of your vehicle

• While making a right/left turn,

when an oncoming vehicle turns

right/left in front of your vehicle

• While steering into the direction of

oncoming traffic

■

Situations in which the system

may not operate properly

●

In some situations such as the fol-

lowing, an object may not be

detected by the radar sensor and

front camera, preventing the sys-

tem from operating properly:

• When a detectable object is

approaching your vehicle

• When your vehicle or a detectable

object is wobbling

• If a detectable object makes an

abrupt maneuver (such as sudden

swerving, acceleration or deceler-

ation)

• When your vehicle approaches a

detectable object rapidly

• When a detectable object is not

directly in front of your vehicle

• When a detectable object is near

a wall, fence, guardrail, manhole

cover, vehicle, steel plate on the

road, etc.

• When a detectable object is under

a structure

258

4-5. Using the driving support systems

HIGHLANDER HV_U

• When part of a detectable object

is hidden by an object, such as

large baggage, an umbrella, or

guardrail

• When there are many things

which can reflect the radio waves

of the radar in the vicinity (tunnels,

truss bridges, gravel roads, snow

covered road that have tracks,

etc.)

• When there is an effect on the

radio waves to the radar that is

installed on another vehicle

• When multiple detectable objects

are close together

• If the sun or other light is shining

directly on a detectable object

• When a detectable object is a

shade of white and looks

extremely bright

• When a detectable object appears

to be nearly the same color or

brightness as its surroundings

• If a detectable object cuts or sud-

denly emerges in front of your

vehicle

• When the front of your vehicle is

hit by water, snow, dust, etc.

• When a very bright light ahead,

such as the sun or the headlights

of oncoming traffic, shines directly

into the front camera

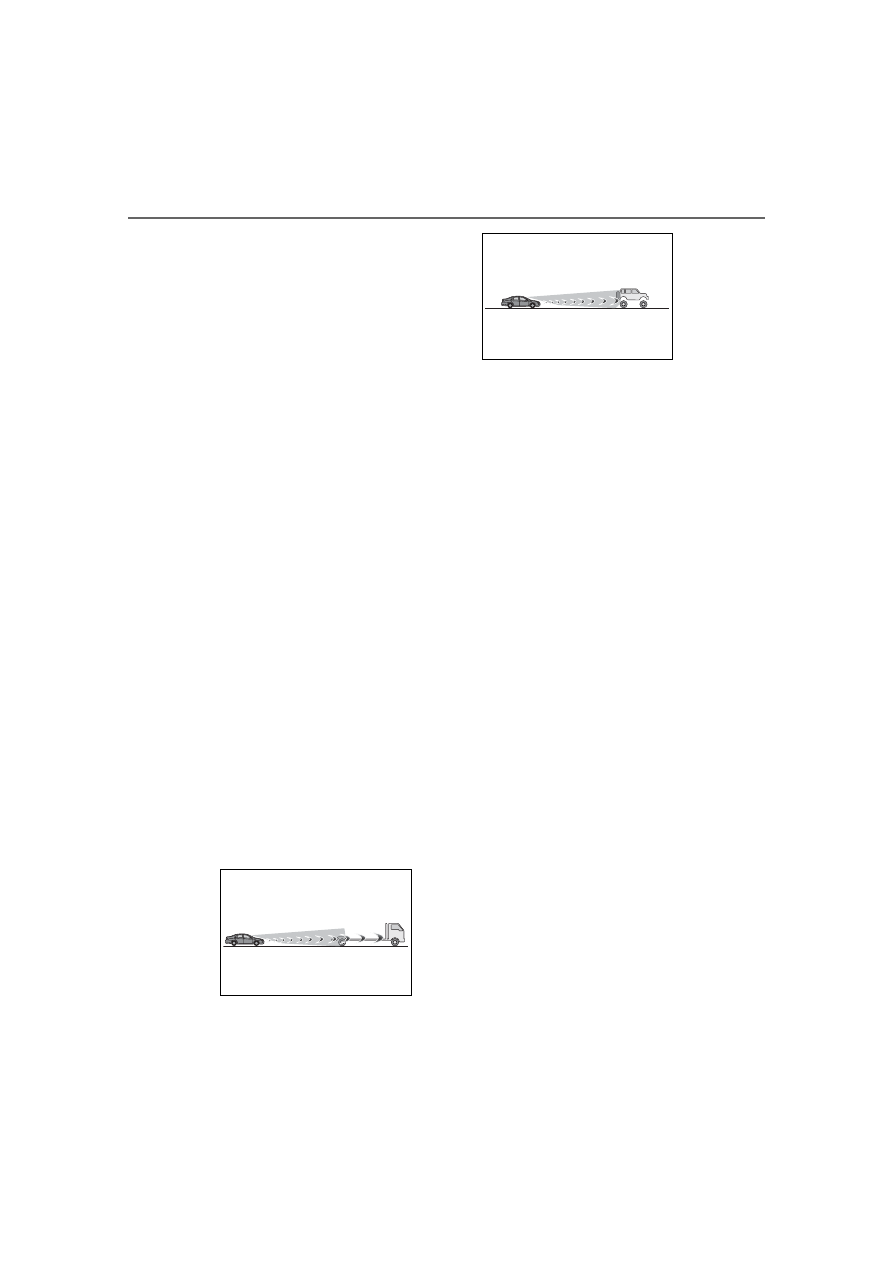

• When approaching the side or

front of a vehicle ahead

• If a vehicle ahead is a motorcycle

• If a vehicle ahead is narrow, such

as a personal mobility vehicle

• If a preceding vehicle has a small

rear end, such as an unloaded

truck

• If a preceding vehicle has a low

rear end, such as a low bed trailer

• If a vehicle ahead has extremely

high ground clearance

• If a vehicle ahead is carrying a

load which protrudes past its rear

bumper

• If a vehicle ahead is irregularly

shaped, such as a tractor or side

car

• If a vehicle ahead is a child sized

bicycle, a bicycle that is carrying a

large load, a bicycle ridden by

more than one person, or a

uniquely shaped bicycle (bicycle

with a child seat, tandem bicycle,

etc.)

• If a pedestrian/or the riding height

of a bicyclist ahead is shorter than

approximately 3.2 ft. (1 m) or taller

than approximately 6.5 ft. (2 m)

• If a pedestrian/bicyclist is wearing

oversized clothing (a rain coat,

long skirt, etc.), making their sil-

houette obscure

• If a pedestrian is bending forward

or squatting or bicyclist is bending

forward

• If a pedestrian/bicyclist is moving

fast

• If a pedestrian is pushing a

stroller, wheelchair, bicycle or

other vehicle

• When driving in inclement weather

such as heavy rain, fog, snow or a

sandstorm

• When driving through steam or

smoke

• When the surrounding area is dim,

such as at dawn or dusk, or while

at night or in a tunnel, making a

detectable object appear to be

nearly the same color as its sur-

roundings

• When driving in a place where the

surrounding brightness changes

suddenly, such as at the entrance

or exit of a tunnel

• After the hybrid system has

259

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

started the vehicle has not been

driven for a certain amount of time

• While making a left/right turn and

for a few seconds after making a

left/right turn

• While driving on a curve and for a

few seconds after driving on a

curve

• If your vehicle is skidding

• If the front of the vehicle is raised

or lowered

• If the wheels are misaligned

• If a wiper blade is blocking the

front camera

• The vehicle is being driven at

extremely high speeds

• When driving on a hill

• If the radar sensor or front camera

is misaligned

• When driving in a traffic lane sep-

arated by more than one lane

where oncoming vehicles are driv-

ing while making a right/left turn

• When largely out of place with the

opposite facing targeted oncom-

ing vehicle during a right/left turn

• While making a right/left turn,

when a pedestrian approaches

from behind or side of your vehicle

●

In addition to the above, in some

situations, such as the following,

the emergency steering assist

may not operate.

• When the white (yellow) lane lines

are difficult to see, such as when

they are faint, diverging/merging,

or a shadow is cast upon them

• When the lane is wider or nar-

rower than normal

• When there is a light and dark pat-

tern on the road surface, such as

due to road repairs

• When the target is too close

• When there is insufficient safe or

unobstructed space for the vehicle

to be steered into

• If oncoming vehicle is present

• If VSC function is operating

●

In some situations such as the fol-

lowing, sufficient braking force or

steering force may not be

obtained, preventing the system

from performing properly:

• If the braking functions cannot

operate to their full extent, such as

when the brake parts are

extremely cold, extremely hot, or

wet

• If the vehicle is not properly main-

tained (brakes or tires are exces-

sively worn, improper tire inflation

pressure, etc.)

• When the vehicle is being driven

on a gravel road or other slippery

surface

• When the road surface has deep

wheel tracks

• When driving on a hill road

• When driving on a road that has

inclines to the left or right

■

If VSC is disabled

●

If VSC is disabled (



P.327), the

260

4-5. Using the driving support systems

HIGHLANDER HV_U

pre-collision brake assist and

pre-collision braking functions are

also disabled.

●

The PCS warning light will turn on

and “VSC Turned OFF Pre-Colli-

sion Brake System Unavailable”

will be displayed on the

multi-information display.

LTA (Lane Tracing

Assist)

While driving on a road with
clear white (yellow) lane
lines, the LTA system warns
the driver if the vehicle may
deviate from the current
lane or course

*

, and also

can slightly operate the
steering wheel to help avoid
deviation from the lane or
course

*

. Also, while the

dynamic radar cruise con-
trol with full-speed range
(



P.271) is operating, this

system will operate the
steering wheel to maintain
the vehicle’s lane position.

The LTA system recognizes
white (yellow) lane lines or a
course

*

 using the front cam-

era. Additionally, it detects
preceding vehicles using
the front camera and radar.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

261

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

WARNING

■

Before using LTA system

●

Do not rely solely upon the LTA

system. The LTA system does

not automatically drive the vehi-

cle or reduce the amount of

attention that must be paid to

the area in front of the vehicle.

The driver must always assume

full responsibility for driving

safely by paying careful atten-

tion to the surrounding condi-

tions and operating the steering

wheel to correct the path of the

vehicle. Also, the driver must

take adequate breaks when

fatigued, such as from driving

for a long period of time.

●

Failure to perform appropriate

driving operations and pay care-

ful attention may lead to an

accident, resulting in death or

serious injury.

■

Situations unsuitable for LTA

system

In the following situations, use the

LTA switch to turn the system off.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

●

Vehicle is driven on a road sur-

face which is slippery due to

rainy weather, fallen snow,

freezing, etc.

●

Vehicle is driven on a snow-cov-

ered road.

●

White (yellow) lines are difficult

to see due to rain, snow, fog,

dust, etc.

●

Vehicle is driven in a temporary

lane or restricted lane due to

construction work.

●

Vehicle is driven in a construc-

tion zone.

●

A spare tire, tire chains, etc. are

equipped.

●

When the tires have been

excessively worn, or when the

tire inflation pressure is low.

●

When your vehicle is towing a

trailer or during emergency tow-

ing.

■

Preventing LTA system mal-

functions and operations per-

formed by mistake

●

Do not modify the headlights or

place stickers, etc. on the sur-

face of the lights.

●

Do not modify the suspension

etc. If the suspension etc. needs

to be replaced, contact your

Toyota dealer.

●

Do not install or place anything

on the hood or grille. Also, do

not install a grille guard (bull

bars, kangaroo bar, etc.).

●

If your windshield needs

repairs, contact your Toyota

dealer.

■

Conditions in which functions

may not operate properly

In the following situations, the

functions may not operate prop-

erly and the vehicle may depart

from its lane. Drive safely by

always paying careful attention to

your surroundings and operate

the steering wheel to correct the

path of the vehicle without relying

solely on the functions.

262

4-5. Using the driving support systems

HIGHLANDER HV_U

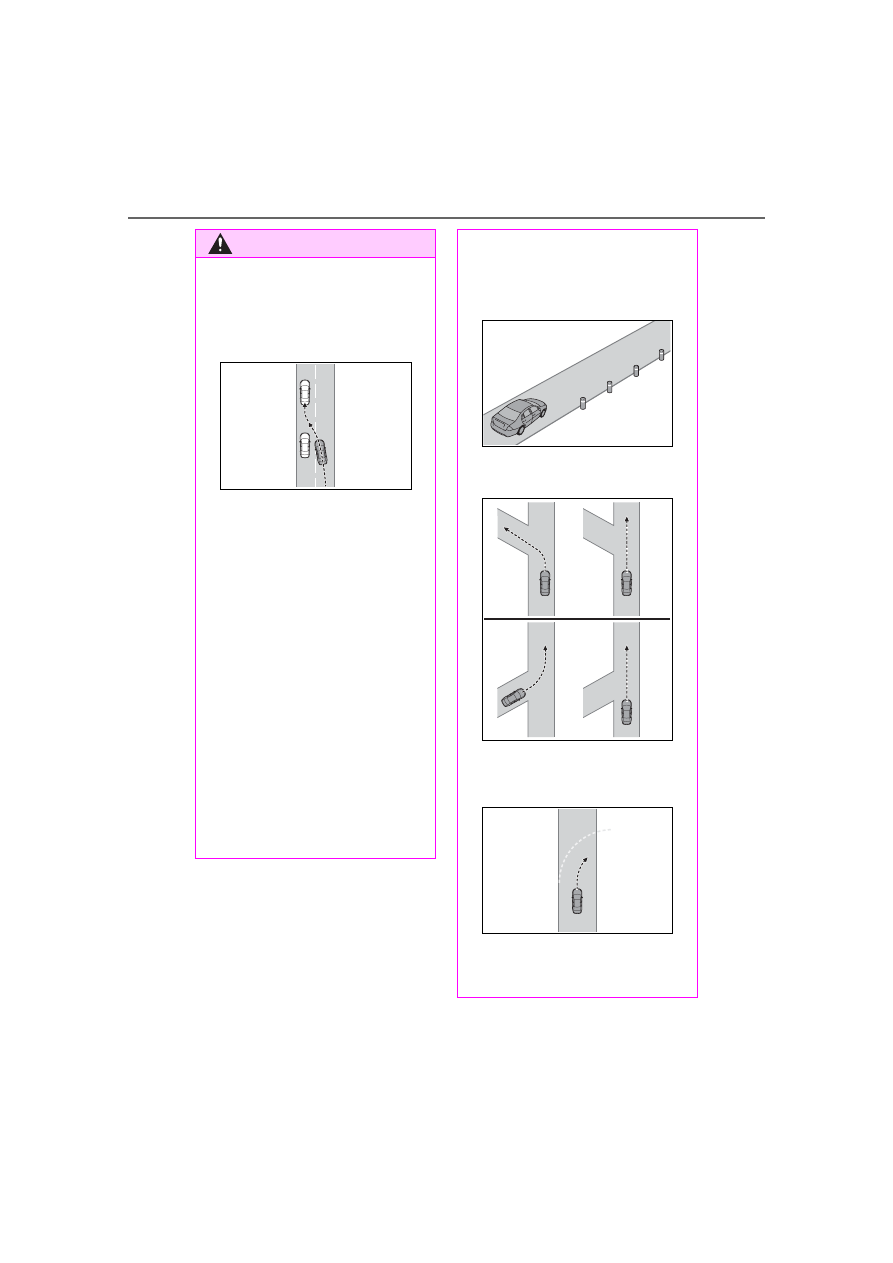

WARNING

●

When the follow-up cruising dis-

play is displayed (



P.266) and

the preceding vehicle changes

lanes. (Your vehicle may follow

the preceding vehicle and also

change lanes.)

●

When the follow-up cruising dis-

play is displayed (



P.266) and

the preceding vehicle is sway-

ing. (Your vehicle may sway

accordingly and depart from the

lane.)

●

When the follow-up cruising dis-

play is displayed (



P.266) and

the preceding vehicle departs

from its lane. (Your vehicle may

follow the preceding vehicle and

depart from the lane.)

●

When the follow-up cruising dis-

play is displayed (



P.266) and

the preceding vehicle is being

driven extremely close to the

left/right lane line. (Your vehicle

may follow the preceding vehi-

cle and depart from the lane.)

●

Vehicle is being driven around a

sharp curve.

●

Objects or patterns that could

be mistaken for white (yellow)

lines are present on the side of

the road (guardrails, reflective

poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white

(yellow) lines, etc. are present

due to road repair.

●

There are shadows on the road

that run parallel with, or cover,

the white (yellow) lines.

263

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

WARNING

●

The vehicle is driven in an area

without white (yellow) lines,

such as in front of a tollgate or

checkpoint, or at an intersec-

tion, etc.

●

The white (yellow) lines are

cracked, “Botts’ dots”, “Raised

pavement marker” or stones are

present.

●

The white (yellow) lines cannot

be seen or are difficult to see

due to sand, etc.

●

The vehicle is driven on a road

surface that is wet due to rain,

puddles, etc.

●

The traffic lines are yellow

(which may be more difficult to

recognize than lines that are

white).

●

The white (yellow) lines cross

over a curb, etc.

●

The vehicle is driven on a bright

surface, such as concrete.

●

If the edge of the road is not

clear or straight.

●

The vehicle is driven on a sur-

face that is bright due to

reflected light, etc.

●

The vehicle is driven in an area

where the brightness changes

suddenly, such as at the

entrances and exits of tunnels,

etc.

●

Light from the headlights of an

oncoming vehicle, the sun, etc.

enters the camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road

which tilts left or right, or a wind-

ing road.

●

The vehicle is driven on an

unpaved or rough road.

●

The traffic lane is excessively

narrow or wide.

●

The vehicle is extremely tilted

due to carrying heavy luggage

or having improper tire pres-

sure.

●

The distance to the preceding

vehicle is extremely short.

●

The vehicle is moving up and

down a large amount due to

road conditions during driving

(poor roads or road seams).

●

When driving in a tunnel or at

night with the headlights off or

when a headlight is dim due to

its lens being dirty or it being

misaligned.

●

The vehicle is struck by a cross-

wind.

●

The vehicle is affected by wind

from a vehicle driven in a

nearby lane.

●

The vehicle has just changed

lanes or crossed an intersec-

tion.

●

Tires which differ by structure,

manufacturer, brand or tread

pattern are used.

●

When tires of a size other than

specified are installed.

●

Snow tires, etc. are equipped.

●

The vehicle is being driven at

extremely high speeds.

264

4-5. Using the driving support systems

HIGHLANDER HV_U

■

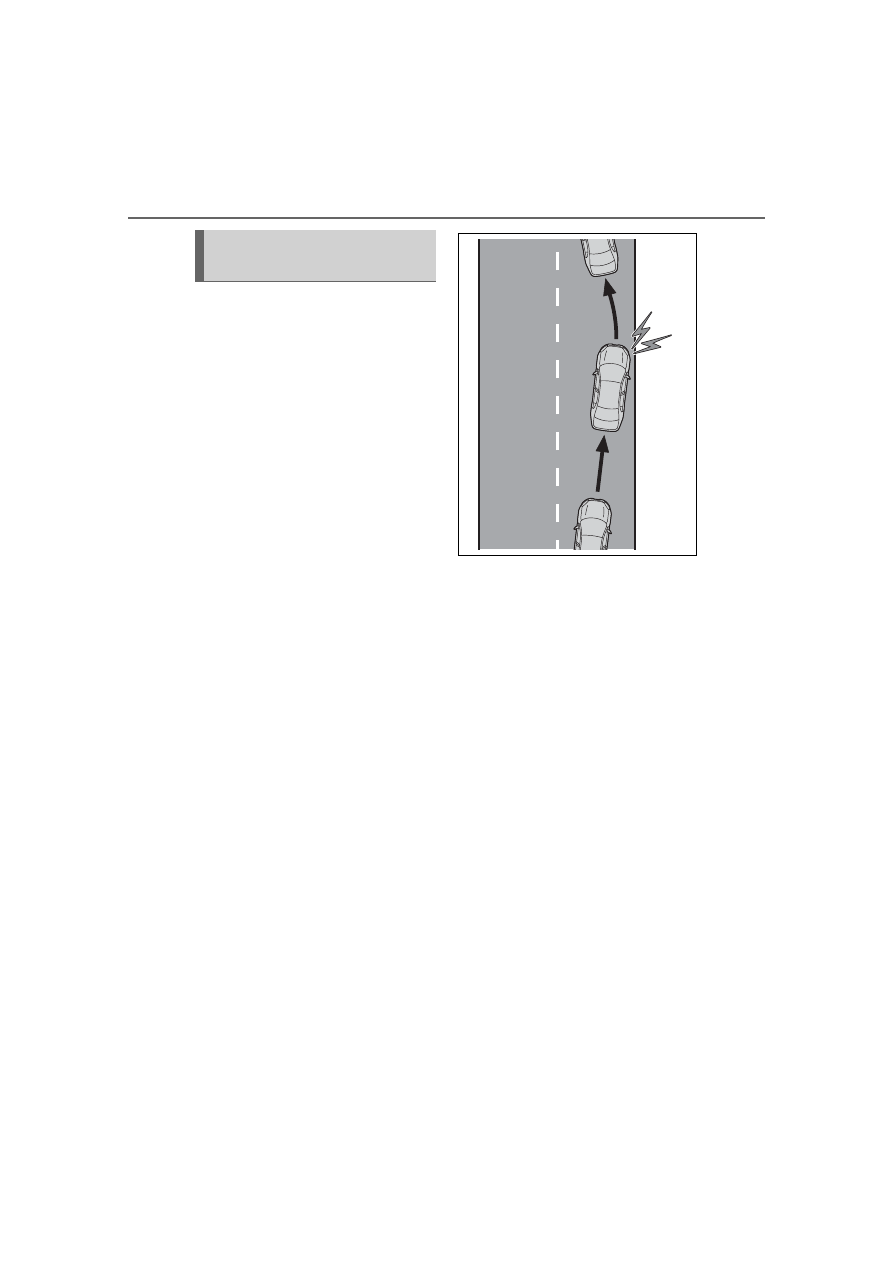

Lane departure alert func-
tion

When the system determines
that the vehicle might depart
from its lane or course

*

, a warn-

ing is displayed on the
multi-information display, and a
warning buzzer will sound to
alert the driver.

When the warning buzzer sounds,
check the area around your vehicle
and carefully operate the steering
wheel to move the vehicle back to
the center of the lane.
When the system determines that
the vehicle might depart from its
lane and that the possibility of a col-
lision with an overtaking vehicle in
the adjacent lane is high, the lane
departure alert will operate even if
the turn signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Steering assist function

When the system determines
that the vehicle might depart
from its lane or course

*

, the sys-

tem provides assistance as nec-
essary by operating the steering
wheel in small amounts for a
short period of time to keep the
vehicle in its lane.

When the system determines that
the vehicle might depart from its
lane and that the possibility of a col-
lision with an overtaking vehicle in
the adjacent lane is high, the steer-
ing assist function will operate even
if the turn signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

Functions included in LTA
system

265

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

■

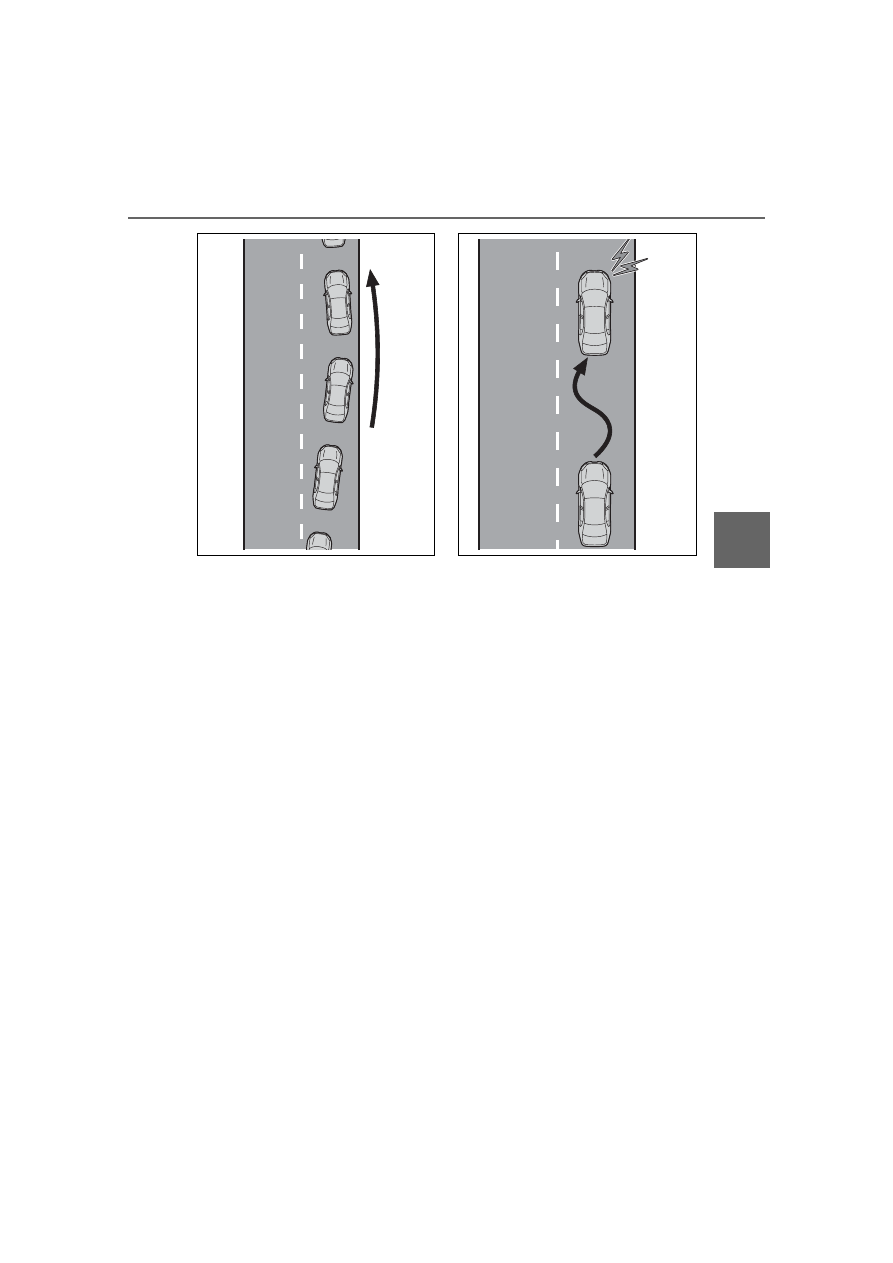

Vehicle sway warning func-
tion

When the vehicle is swaying
within a lane, the warning
buzzer will sound and a mes-
sage will be displayed on the
multi-information display to alert
the driver.

■

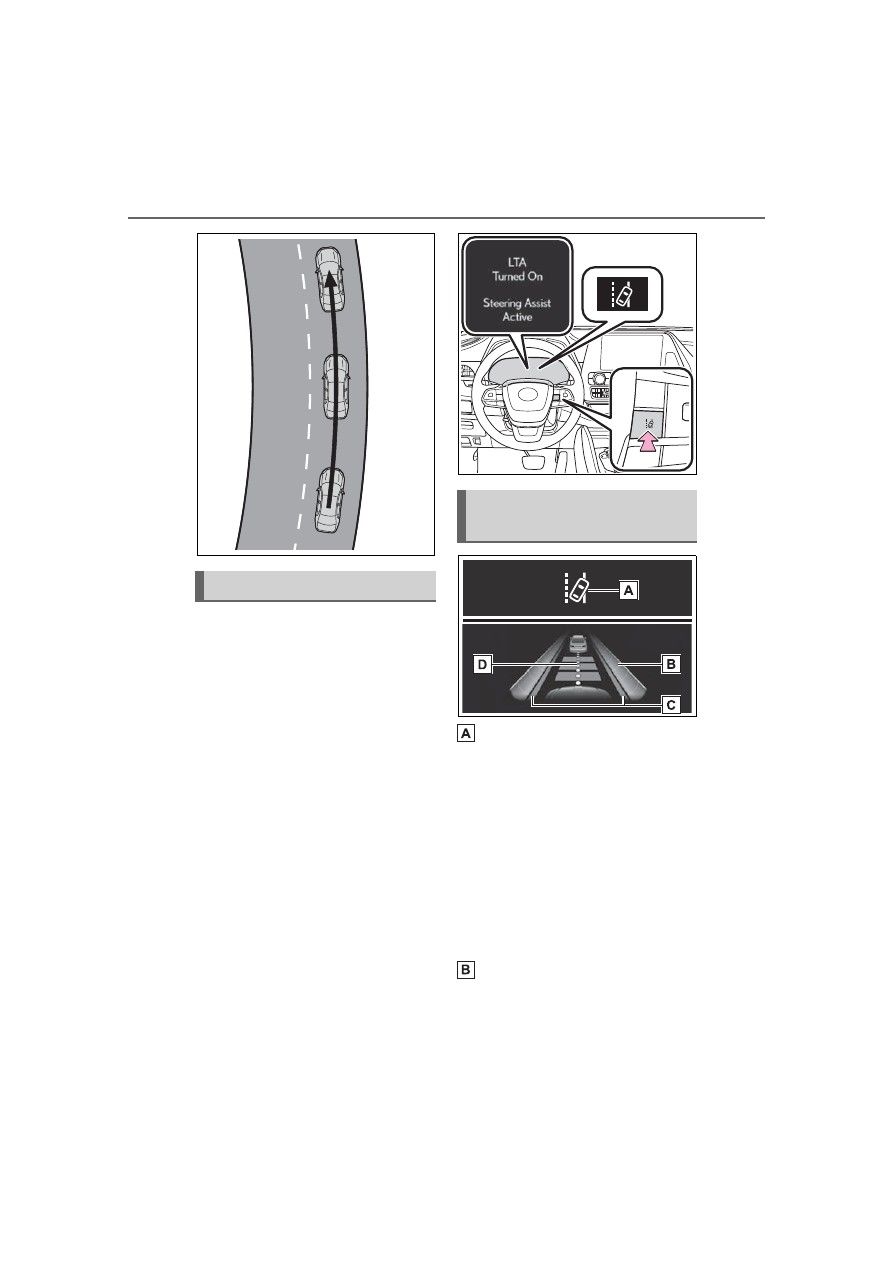

Lane centering function

This function is linked with
dynamic radar cruise control
with full-speed range and pro-
vides the required assistance by
operating the steering wheel to
keep the vehicle in its current
lane.

When dynamic radar cruise control
with full-speed range is not operat-
ing, the lane centering function
does not operate.
In situations where the white (yel-
low) lane lines are difficult to see or
are not visible, such as when in a
traffic jam, this function will operate
to help follow a preceding vehicle
by monitoring the position of the
preceding vehicle.

266

4-5. Using the driving support systems

HIGHLANDER HV_U

Press the LTA switch to turn the
LTA system on.

The LTA indicator illuminates and a
message is displayed on the
multi-information display.
Press the LTA switch again to turn
the LTA system off.
When the LTA system is turned on
or off, operation of the LTA system
continues in the same condition the
next time the hybrid system is
started.

LTA indicator

The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white: LTA system is
operating.
Illuminated in green: Steering wheel
assistance of the steering assist
function or lane centering function
is operating.
Flashing in orange: Lane departure
alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-informa-
tion display is switched to the driv-

Turning LTA system on

Indications on multi-infor-
mation display

267

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

ing support system information
display.
Indicates that steering wheel assis-
tance of the steering assist function
or lane centering function is operat-
ing.
Both outer sides of the lane are dis-
played: Indicates that steering
wheel assist of the lane centering
function is operating.
One outer side of the lane is dis-
played: Indicates that steering
wheel assist of the steering assist
function is operating.
Both outer sides of the lane are
flashing: Alerts the driver that their
input is necessary to stay in the
center of the lane (lane centering
function).

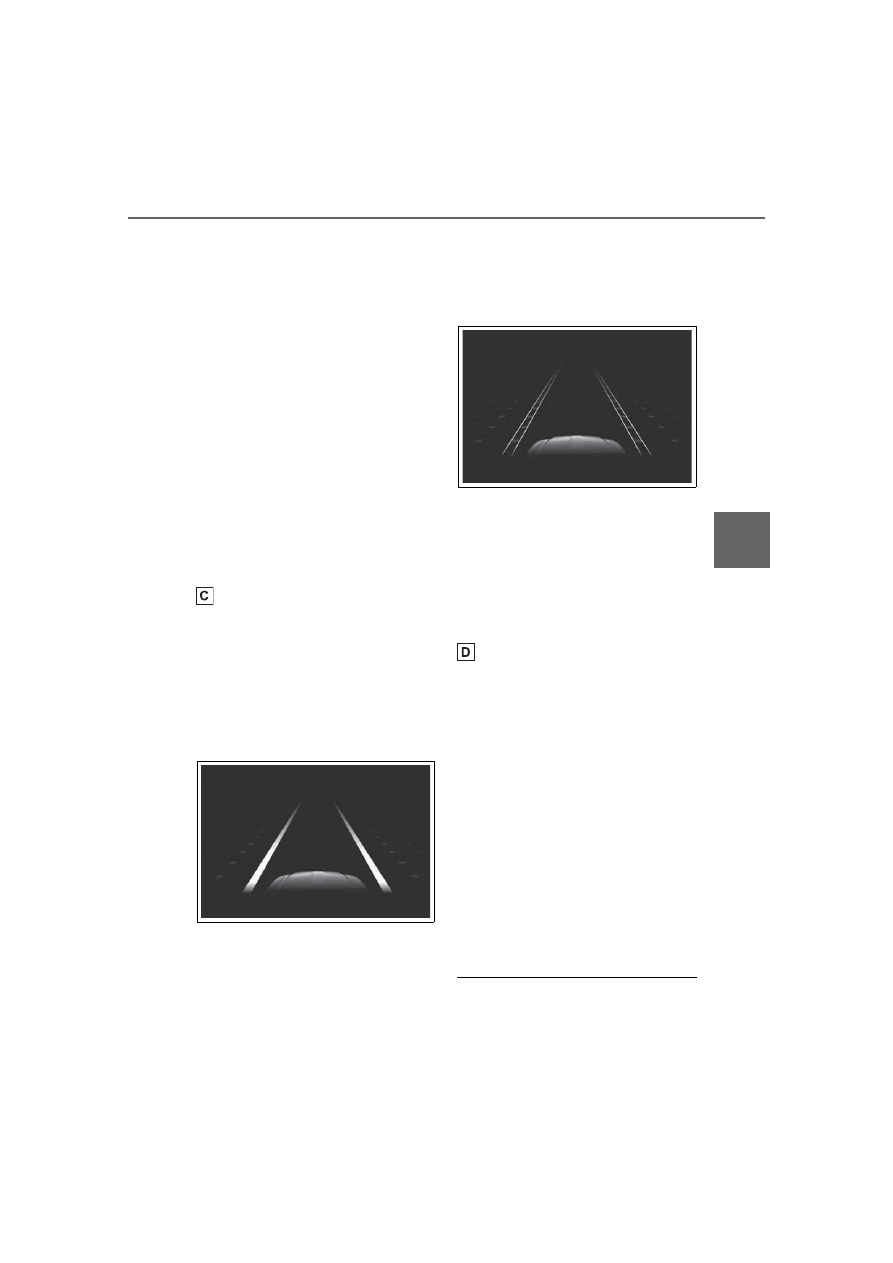

Lane departure alert function
display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
display.



Inside of displayed lines is
white

Indicates that the system is rec-
ognizing white (yellow) lines or a
course

*

. When the vehicle

departs from its lane, the white
line displayed on the side the

vehicle departs from flashes
orange.



Inside of displayed lines is
black

Indicates that the system is not
able to recognize white (yellow)
lines or a course

*

 or is temporar-

ily canceled.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

Follow-up cruising display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
display.
Indicates that steering assist of the
lane centering function is operating
by monitoring the position of a pre-
ceding vehicle.
When the follow-up cruising display
is displayed, if the preceding vehi-
cle moves, your vehicle may move
in the same way. Always pay care-
ful attention to your surroundings
and operate the steering wheel as
necessary to correct the path of the
vehicle and ensure safety.

■

Operation conditions of each

function

●

Lane departure alert function

268

4-5. Using the driving support systems

HIGHLANDER HV_U

This function operates when all of

the following conditions are met.

• LTA is turned on.

• Vehicle speed is approximately 32

mph (50 km/h) or more.

*1

• System recognizes white (yellow)

lane lines or a course

*2

. (When a

white [yellow] line or course

*2

 is

recognized on only one side, the

system will operate only for the

recognized side.)

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

(Except when another vehicle is in

the lane on the side where the

turn signal was operated)

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.270)

*1

:The function operates even if the

vehicle speed is less than
approximately 32 mph (50 km/h)
when the lane centering function
is operating.

*2

:Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

●

Steering assist function

This function operates when all of

the following conditions are met in

addition to the operation conditions

for the lane departure alert function.

• Vehicle is not accelerated or

decelerated by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

●

Vehicle sway warning function

This function operates when all of

the following conditions are met.
• Setting for “Sway Warning” in



of the multi-information display is

set to “ON”. (



P.97, 107)

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• No system malfunctions are

detected. (



P.270)

●

Lane centering function

This function operates when all of

the following conditions are met.

• LTA is turned on.
• Setting for “Lane Center” in

 of

the multi-information display are

set to “ON”. (



P.97, 107)

• This function recognizes white

(yellow) lane lines or the position

of a preceding vehicle (except

when the preceding vehicle is

small, such as a motorcycle).

• The dynamic radar cruise control

with full-speed range is operating

in vehicle-to-vehicle distance con-

trol mode.

• Width of traffic lane is approxi-

mately 10 to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.270)

• Vehicle does not accelerate or

decelerate by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.269)

• The vehicle is being driven in the

center of a lane.

• Steering assist function is not

operating.

■

Temporary cancelation of func-

tions

●

When operation conditions are no

longer met, a function may be

temporarily canceled. However,

when the operation conditions are

met again, operation of the func-

tion is automatically restored.

269

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

(



P.267)

●

If the operation conditions

(



P.267) are no longer met while

the lane centering function is

operating, the buzzer may sound

to indicate that the function has

been temporarily canceled.

■

Steering assist function/lane

centering function

●

Depending on the vehicle speed,

lane departure situation, road con-

ditions, etc., the driver may not

feel the function is operating or

the function may not operate at

all.

●

The steering control of the func-

tion is overridden by the driver’s

steering wheel operation.

●

Do not attempt to test the opera-

tion of the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be diffi-

cult to hear due to external noise,

audio playback, etc.

●

If the edge of the course

*

 is not

clear or straight, the lane depar-

ture alert function may not oper-

ate.

●

It may not be possible for the sys-

tem to determine if there is a dan-

ger of a collision with a vehicle in

an adjacent lane.

●

Do not attempt to test the opera-

tion of the lane departure alert

function.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Hands off steering wheel warn-

ing

In the following situations, a warning

message urging the driver to hold

the steering wheel and the symbol

shown in the illustration are dis-

played on the multi-information dis-

play to warn the driver. The warning

stops when the system determines

that the driver holds the steering

wheel. Always keep your hands on

the steering wheel when using this

system, regardless of warnings.

●

When the system determines the

driver is not holding the steering

wheel while the lane centering

function is operating.

If the driver continues to keep their
hands off of the steering wheel, the
buzzer sounds, the driver is warned
and the function is temporarily can-
celed. This warning also operates in
the same way when the driver con-
tinuously operates the steering
wheel only a small amount.

●

When the system determines that

the vehicle may deviate from the

lane while driving around a curve

while the lane centering function is

operating.

Depending on the vehicle condition

and road conditions, the warning

may not operate. Also, if the system

determines that the vehicle is driv-

ing around a curve, warnings will

occur earlier than during

straight-lane driving.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

steering wheel assist of the steer-

ing assist function is operating.

If the driver continues to keep their
hands off of the steering wheel and
the steering wheel assist is operat-
ing, the buzzer sounds and the
driver is warned. Each time the
buzzer sounds, the continuing time
of the buzzer becomes longer.

270

4-5. Using the driving support systems

HIGHLANDER HV_U

■

Vehicle sway warning function

When the system determines that

the vehicle is swaying while the

vehicle sway warning function is

operating, a buzzer sounds and a

warning message urging the driver

to rest and the symbol shown in the

illustration are simultaneously dis-

played on the multi-information dis-

play.

Depending on the vehicle and road

conditions, the warning may not

operate.

■

Warning message

If the following warning message is

displayed on the multi-information

display and the LTA indicator illumi-

nates in orange, follow the appropri-

ate troubleshooting procedure. Also,

if a different warning message is

displayed, follow the instructions

displayed on the screen.

●

“LTA Malfunction Visit Your

Dealer”

The system may not be operating

properly. Have the vehicle inspected

by your Toyota dealer.

●

“LTA Unavailable”

The system is temporarily canceled

due to a malfunction in a sensor

other than the front camera. Turn

the LTA system off, wait for a little

while, and then turn the LTA system

back on.

●

“LTA Unavailable at Current

Speed”

The function cannot be used as the

vehicle speed exceeds the LTA

operation range. Drive slower.

■

Customization

Function settings can be changed.

(Customizable features:



P.530)

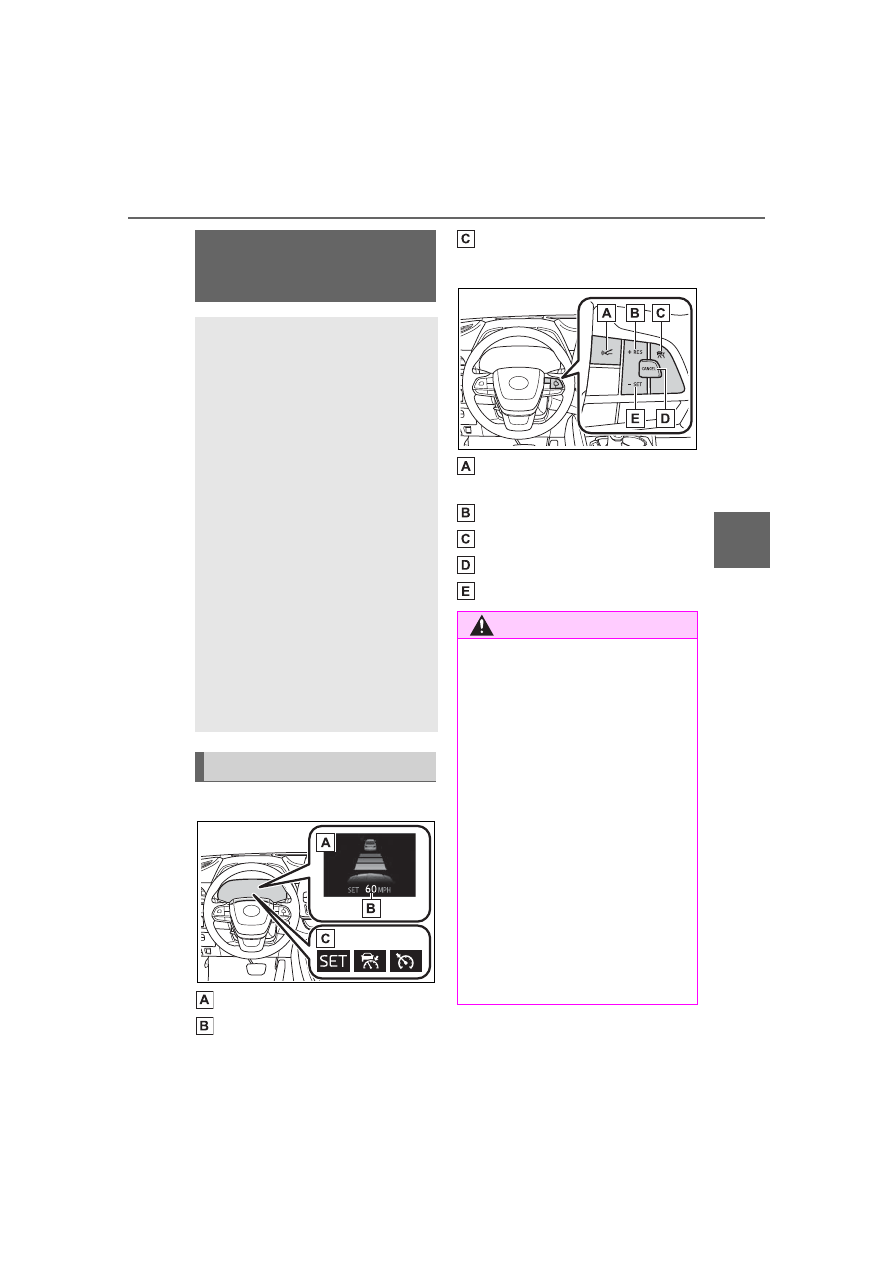

271

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

■

Meter display

Multi-information display
Set speed

Indicators

■

Operation switches

Vehicle-to-vehicle distance
switch
“+RES” switch
Cruise control main switch
Cancel switch
“-SET” switch

Dynamic radar cruise

control with full-speed

range

In vehicle-to-vehicle dis-
tance control mode, the
vehicle automatically accel-
erates, decelerates and
stops to match the speed
changes of the preceding
vehicle even if the accelera-
tor pedal is not depressed.
In constant speed control
mode, the vehicle runs at a
fixed speed.

Use the dynamic radar
cruise control with
full-speed range on free-
ways and highways.



Vehicle-to-vehicle distance
control mode (



P.274)



Constant speed control
mode (



P.279)

System Components

WARNING

■

Before using dynamic radar

cruise control with full-speed

range

●

Driving safely is the sole

responsibility of the driver. Do

not rely solely on the system,

and drive safely by always pay-

ing careful attention to your sur-

roundings.

●

The dynamic radar cruise con-

trol with full-speed range pro-

vides driving assistance to

reduce the driver’s burden.

However, there are limitations to

the assistance provided.

Read the following conditions

carefully. Do not overly rely on

this system and always drive

carefully.

• When the sensor may not be

correctly detecting the vehicle

ahead:



P.281

272

4-5. Using the driving support systems

HIGHLANDER HV_U

WARNING

• Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly:



P.282

●

Set the speed appropriately

depending on the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for check-

ing the set speed.

●

Even when the system is func-

tioning normally, the condition of

the preceding vehicle as

detected by the system may dif-

fer from the condition observed

by the driver. Therefore, the

driver must always remain alert,

assess the danger of each situ-

ation and drive safely. Relying

solely on this system or assum-

ing the system ensures safety

while driving can lead to an

accident, resulting in death or

serious injury.

●

Switch the dynamic radar cruise

control with full-speed range

setting to off, using the cruise

control main switch when not in

use.

■

Cautions regarding the driv-

ing assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Failure to do so may

cause an accident resulting in

death or serious injury.

●

Assisting the driver to measure

following distance

The dynamic radar cruise control

with full-speed range is only

intended to help the driver in

determining the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead. It is not a mechanism that

allows careless or inattentive driv-

ing, and it is not a system that can

assist the driver in low-visibility

conditions.

It is still necessary for driver to

pay close attention to the vehi-

cle’s surroundings.

●

Assisting the driver to judge

proper following distance

The dynamic radar cruise control

with full-speed range determines

whether the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead is within a set range. It is

not capable of making any other

type of judgement. Therefore, it is

absolutely necessary for the

driver to remain vigilant and to

determine whether or not there is

a possibility of danger in any

given situation.

●

Assisting the driver to operate

the vehicle

The dynamic radar cruise control

with full-speed range does not

include functions which will pre-

vent or avoid collisions with vehi-

cles ahead of your vehicle.

Therefore, if there is ever any

possibility of danger, the driver

must take immediate and direct

control of the vehicle and act

appropriately in order to ensure

the safety of all involved.

273

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

WARNING

■

Situations unsuitable for

dynamic radar cruise control

with full-speed range

Do not use dynamic radar cruise

control with full-speed range in

any of the following situations.

Doing so may result in inappropri-

ate speed control and could

cause an accident resulting in

death or serious injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

Vehicle speed may exceed the

set speed when driving down a

steep hill.

●

At entrances to freeways and

highways

●

When weather conditions are

bad enough that they may pre-

vent the sensors from detecting

correctly (fog, snow, sand-

storm, heavy rain, etc.)

●

When there is rain, snow, etc.

on the front surface of the radar

or front camera

●

In traffic conditions that require

frequent repeated acceleration

and deceleration

●

When your vehicle is towing a

trailer or during emergency tow-

ing

●

When an approach warning

buzzer is heard often

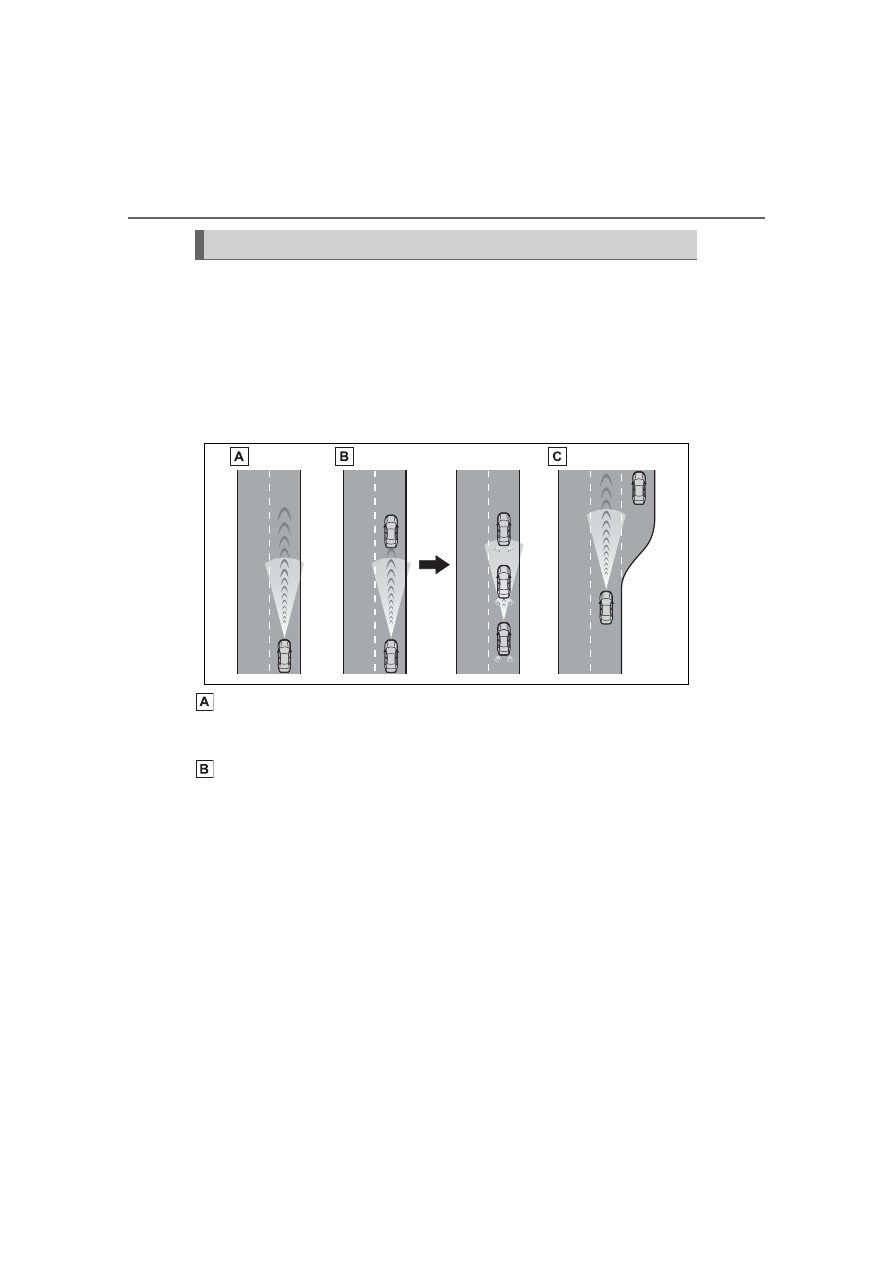

274

4-5. Using the driving support systems

HIGHLANDER HV_U

This mode employs a radar to detect the presence of vehicles up to
approximately 328 ft. (100 m) ahead, determines the current vehi-
cle-to-vehicle following distance, and operates to maintain a suitable
following distance from the vehicle ahead. The desired vehi-
cle-to-vehicle distance can also be set by operating the vehi-
cle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may
become shorter.

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is nec-
essary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is
stopped by system control). After the vehicle ahead starts off, pressing the
“+RES” switch or depressing the accelerator pedal (start-off operation) will
resume follow-up cruising. If the start-off operation is not performed, system
control continues to keep your vehicle stopped.

Driving in vehicle-to-vehicle distance control mode

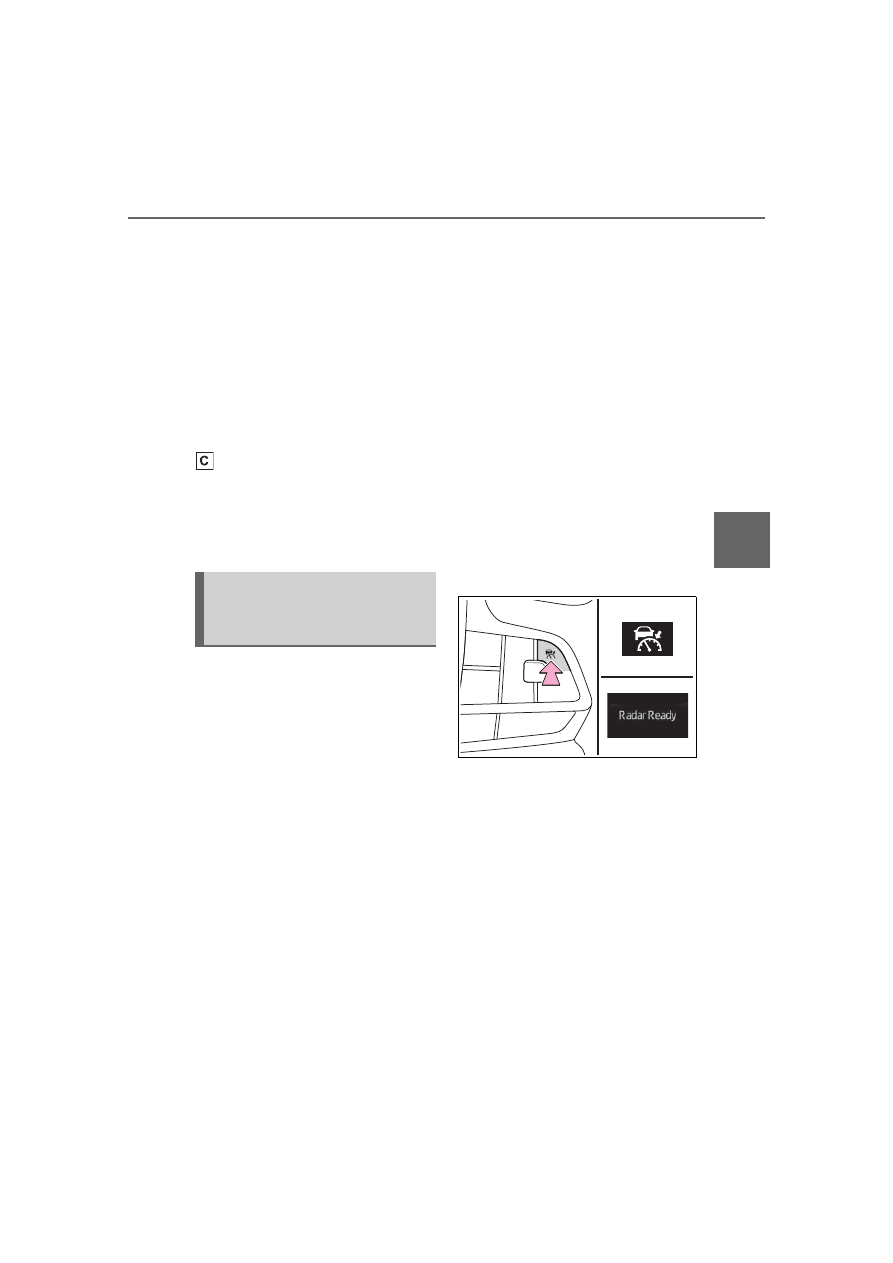

275

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

When the turn signal lever is operated and your vehicle moves to an over-
taking lane while driving at 50 mph (80 km/h) or more, the vehicle will accel-
erate to help to overtake a passing vehicle.
The system’s identification of what is an overtaking lane may be determined
solely based on the location of the steering wheel in the vehicle (left side
driver position versus right side driver position.) If the vehicle is driven to a
region where the overtaking lane is on a different side from where the vehi-
cle is normally driven, the vehicle may accelerate when the turn signal lever
is operated in the opposite direction to the overtaking lane (e.g., if the driver
normally operates the vehicle in a region where the overtaking lane is to the
right but then drives to a region where the overtaking lane is to the left, the
vehicle may accelerate when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

1

Press the cruise control main
switch to activate the cruise
control.

Dynamic radar cruise control indi-

cator will come on and a message

will be displayed on the multi-infor-

mation display. Press the switch

again to deactivate the cruise con-

trol.
If the cruise control main switch is

pressed and held for 1.5 seconds

or more, the system turns on in

constant speed control mode.

(



P.279)

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

Setting the vehicle speed
(vehicle-to-vehicle dis-
tance control mode)

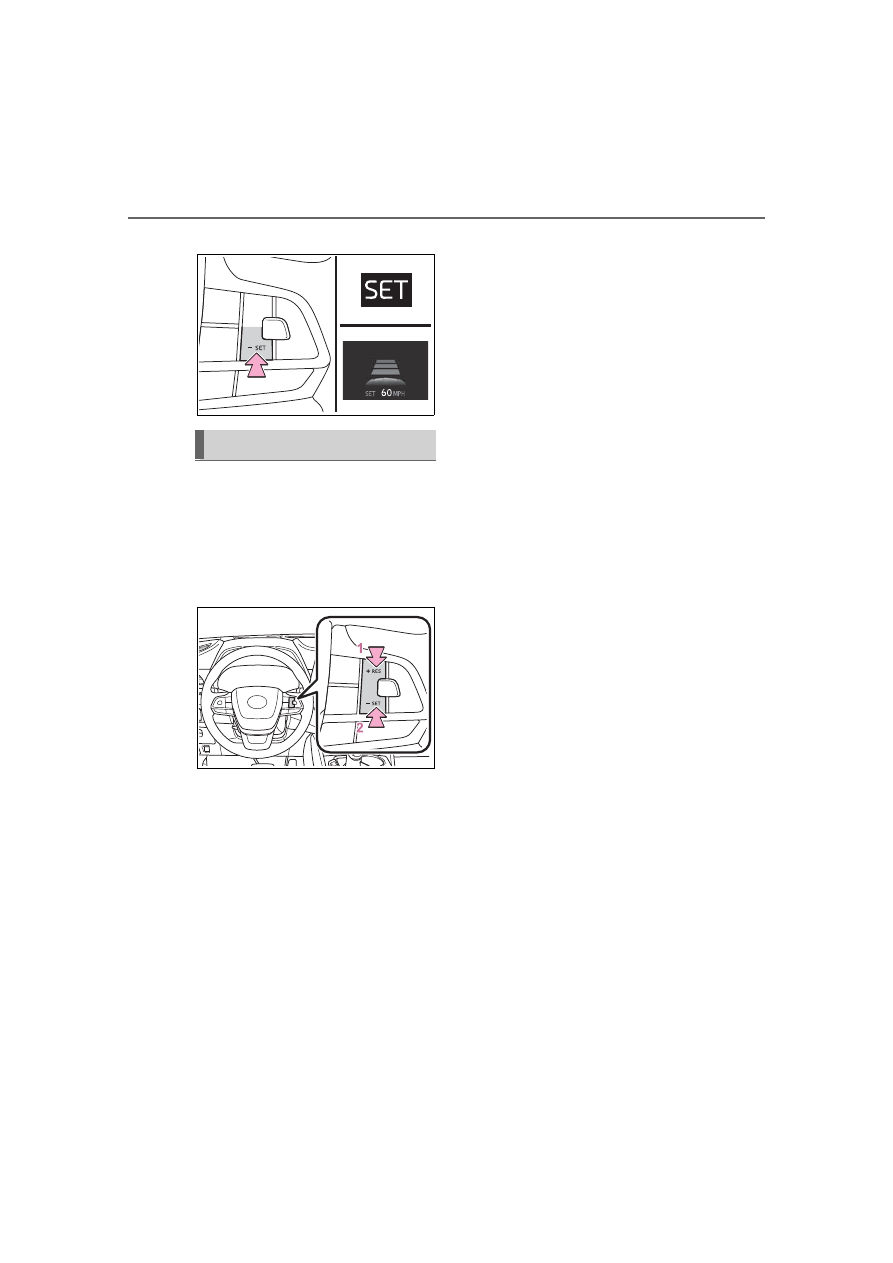

276

4-5. Using the driving support systems

HIGHLANDER HV_U

set speed.



Adjusting the set speed by the
switch

To change the set speed, press
the “+RES” or “-SET” switch
until the desired set speed is
displayed.

1

Increases the speed (Except
when the vehicle has been
stopped by system control in
vehicle-to-vehicle distance
control mode)

2

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.

In the vehicle-to-vehicle dis-
tance control mode, the set

speed will be increased or
decreased as follows:



For the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 1 mph (1.6 km/h)

*1

 or

1 km/h (0.6 mph)

*2

 increments for

as long as the switch is held



For Canada and Puerto Rico

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 5 mph (8 km/h)

*1

 or 5

km/h (3.1 mph)

*2

 increments for as

long as the switch is held

In the constant speed control
mode (



P.279), the set speed

will be increased or decreased
as follows:

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: The speed will
continue to change while the switch
is held.

*1

:When the set speed is shown in

“MPH”

*2

:When the set speed is shown in

“km/h”



Increasing the set speed by
the accelerator pedal

1

Accelerate with accelerator
pedal operation to the
desired vehicle speed

Adjusting the set speed

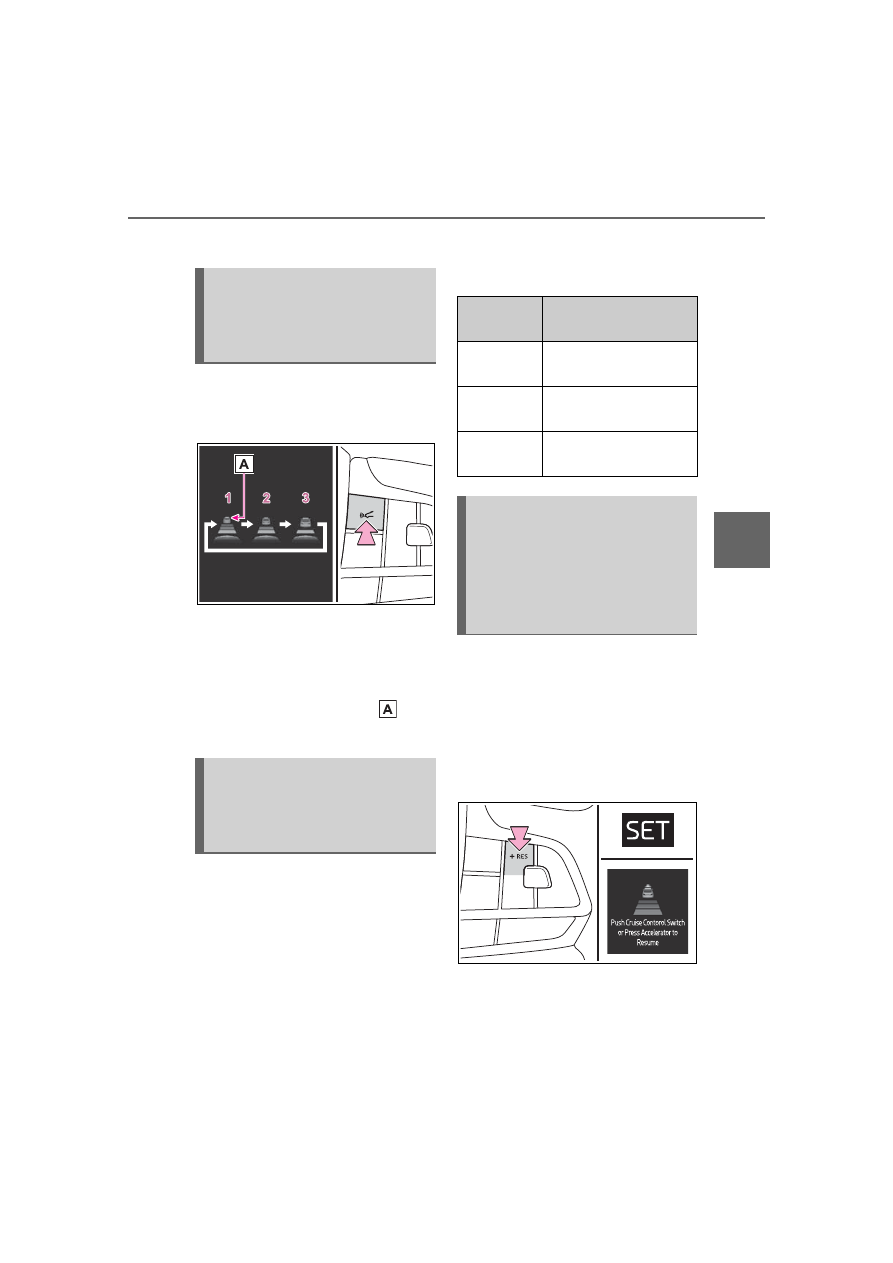

277

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

2

Press the “-SET” switch

Pressing the switch changes the
vehicle-to-vehicle distance as
follows:

1

Long

2

Medium

3

Short

If a vehicle is running ahead of you,
the preceding vehicle mark

 will

also be displayed.

Select a distance from the table
below. Note that the distances
shown correspond to a vehicle
speed of 50 mph (80 km/h).
Vehicle-to-vehicle distance
increases/decreases in accor-
dance with vehicle speed. When
the vehicle is stopped by system
control, the vehicle stops at a

certain vehicle-to-vehicle dis-
tance depending on the situa-
tion.

After the vehicle ahead of you
starts off, press the “+RES”
switch.
Your vehicle will also resume
follow-up cruising if the acceler-
ator pedal is depressed after the
vehicle ahead of you starts off.

Changing the vehi-
cle-to-vehicle distance
(vehicle-to-vehicle dis-
tance control mode)

Vehicle-to-vehicle dis-
tance settings (vehi-
cle-to-vehicle distance
control mode)

Distance

options

Vehicle-to-vehicle dis-

tance

Long

Approximately 160 ft.

(50 m)

Medium

Approximately 130 ft.

(40 m)

Short

Approximately 100 ft.

(30 m)

Resuming follow-up
cruising when the vehicle
has been stopped by sys-
tem control (vehi-
cle-to-vehicle distance
control mode)

278

4-5. Using the driving support systems

HIGHLANDER HV_U

1

Pressing the cancel switch
cancels the speed control.

The speed control is also canceled
when the brake pedal is depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)

2

Pressing the “+RES” switch
resumes the cruise control
and returns vehicle speed to
the set speed.

When your vehicle is too close
to a vehicle ahead, and suffi-
cient automatic deceleration via
the cruise control is not possi-
ble, the display will flash and the
buzzer will sound to alert the
driver. An example of this would
be if another driver cuts in front
of you while you are following a
vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.

■

Warnings may not occur
when

In the following instances, warn-
ings may not occur even when
the vehicle-to-vehicle distance is
small.



When the speed of the pre-
ceding vehicle matches or
exceeds your vehicle speed



When the preceding vehicle is
traveling at an extremely slow
speed



Immediately after the cruise
control speed was set



When depressing the acceler-
ator pedal

While driving in vehicle-to-vehi-
cle distance control mode, this
function will reduce the vehicle
speed, if it is determined to be
necessary.

■

Function operation

When the steering wheel begins
to be turned, the vehicle speed
will begin being reduced. When

Canceling and resuming
the speed control

Approach warning (vehi-
cle-to-vehicle distance
control mode)

Curve speed reduction
function

279

4-5. Using the driving support systems

4

Dr

iv

ing

HIGHLANDER HV_U

the steering wheel is returned to
the center position, the vehicle
speed reduction will end.
Depending on the situation, the
vehicle speed will then return to
the vehicle-to-vehicle distance
control mode set speed.
In situations where vehi-
cle-to-vehicle distance control
needs to operate, such as when
a preceding vehicle cuts in front
of your vehicle, the curve speed
reduction function will be can-
celed.

■

Operation display

Displayed when the vehicle
speed is being reduced.
When the vehicle speed reduc-
tion ends, the display will disap-
pear.

■

Changing the settings of
the curve speed reduction
function

The curve speed reduction func-
tion can be enabled/disabled
and the vehicle speed reduction
strength can be adjusted.



4.2-inch display

Press the

 or

 meter control

switch to select

. Press

 or

 to select “Curve Speed

Reduction” and then press

.



7-inch display

Press the

 or

 meter control

switch to select

. Press

 or

 to select “Curve Speed

Reduction” and then press

.

The setting will change each
time the

 meter control switch

is pressed.

When constant speed control
mode is selected, your vehicle
will maintain a set speed without
controlling the vehicle-to-vehi-
cle distance. Select this mode
only when vehicle-to-vehicle dis-
tance control mode does not
function correctly due to a dirty
radar, etc.

1

With the cruise control off,
press and hold the cruise
control main switch for 1.5
seconds or more.

Immediately after the switch is

pressed, the dynamic radar cruise

control indicator will come on. After-

wards, it switches to the cruise con-

trol indicator.
Switching to constant speed control

mode is only possible when operat-

ing the switch with the cruise con-

Selecting constant speed
control mode
