approximately 5% solution of neu-

tral detergent and water to clean

the dirt off.

●

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

●

To remove oily deposits, use alco-

hol wet wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of

the engine compartment. Doing

so may cause the electrical com-

ponents, etc. to catch fire.

■

When cleaning the windshield

(vehicles with rain-sensing

windshield wipers)

Set the wiper switch to off.

If the switch is in “AUTO”, the wip-

ers may operate unexpectedly in

the following situations, and may

result in hands being caught or

other serious injuries and cause

damage to the wiper blades.

Off
AUTO

●

When the upper part of the

windshield where the raindrop

sensor is located is touched by

hand

●

When a wet rag or similar is

held close to the raindrop sen-

sor

●

If something bumps against the

windshield

●

If you directly touch the raindrop

sensor body or if something

bumps into the raindrop sensor

■

Precautions regarding the

exhaust pipe

Exhaust gasses cause the

exhaust pipe to become quite hot.

When washing the vehicle, be

careful not to touch the pipe until it

has cooled sufficiently, as touch-

ing a hot exhaust pipe can cause

burns.

■

Precaution regarding the rear

bumper with Blind Spot Moni-

tor (if equipped)

If the paint of the rear bumper is

chipped or scratched, the system

may malfunction. If this occurs,

consult your Toyota dealer.

NOTICE

■

To prevent paint deteriora-

tion and corrosion on the

body and components (alumi-

num wheels, etc.)

●

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

398

6-1. Maintenance and care

HIGHLANDER_U

NOTICE

●

If the paint is chipped or

scratched, have it repaired

immediately.

●

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

●

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

■

When using an automatic car

wash (vehicles with

rain-sensing windshield wip-

ers)

Set the wiper switch to the off

position.

If the wiper switch is in “AUTO”,

the wipers may operate and the

wiper blades may be damaged.

■

When using a high pressure

car wash

●

When washing the vehicle, do

not spray the camera or its sur-

rounding area directly with a

high pressure washer. Shock

applied from high pressure

water may cause the device to

not operate normally.

●

Do not spray water directly on

the radar which is equipped

behind the emblem. Otherwise

it may cause the device to be

damaged.

●

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), connectors or

the following parts. The parts

may be damaged if they come

into contact with high-pressure

water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

●

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicle body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged.

Also, do not continuously hold the

nozzle in the same place.

●

Do not spray the lower part of

the windshield continuously.

If water enters the air conditioning

system intake located near the

lower part of the windshield, the

air conditioning system may not

operate correctly.

●

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

399

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U



Remove dirt and dust using a
vacuum cleaner. Wipe dirty
surfaces with a cloth damp-
ened with lukewarm water.



If dirt cannot be removed,
wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.
Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

■

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

■

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Protecting the vehicle
interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in

the vehicle.

Doing so may cause electrical

components, etc. to malfunc-

tion or catch fire.

●

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet.

(



P.34)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

●

Vehicles with wireless charger:

Do not let the wireless charger

(



P.376) get wet. Failure to do

so may cause the charger to

become hot and cause burns or

could cause electric shock

resulting in death or serious

injury.

■

Cleaning the interior (espe-

cially instrument panel)

Do not use polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

• Seats: Alkaline or acidic solu-

tions, such as thinner, benzene,

and alcohol

400

6-1. Maintenance and care

HIGHLANDER_U



Remove dirt and dust using a
vacuum cleaner.



Wipe off any excess dirt and
dust with a soft cloth damp-
ened with diluted detergent.

Use a diluted water solution of
approximately 5% neutral wool
detergent.



Wring out any excess water
from the cloth and thoroughly
wipe off all remaining traces
of detergent.



Wipe the surface with a dry,
soft cloth to remove any
remaining moisture. Allow the
leather to dry in a shaded and
ventilated area.

■

Caring for leather areas

Toyota recommends cleaning the

interior of the vehicle at least twice a

year tomaintain the quality of the

vehicle’s interior.

NOTICE

●

Do not use polish wax or polish

cleaner. The instrument panel’s

or other interior part’s painted

surface may be damaged.

■

Preventing damage to leather

surfaces

Observe the following precautions

to avoid damage to and deteriora-

tion of leather surfaces:

●

Remove any dust or dirt from

leather surfaces immediately.

●

Do not expose the vehicle to

direct sunlight for extended peri-

ods of time. Park the vehicle in

the shade, especially during

summer.

●

Do not place items made of

vinyl, plastic, or containing wax

on the upholstery, as they may

stick to the leather surface if the

vehicle interior heats up signifi-

cantly.

■

Water on the floor

Do not wash the vehicle floor with

water.

Vehicle systems such as the

audio system may be damaged if

water comes into contact with

electrical components such as the

audio system above or under the

floor of the vehicle. Water may

also cause the body to rust.

■

When cleaning the inside of

the windshield

Do not allow glass cleaner to con-

tact the lens. Also, do not touch

the lens. (



P.229)

■

Cleaning the inside of the rear

window

●

Do not use glass cleaner to

clean the rear window, as this

may cause damage to the rear

window defogger heater wires

or antenna. Use a cloth damp-

ened with lukewarm water to

gently wipe the window clean.

Wipe the window in strokes run-

ning parallel to the heater wires

or antenna.

●

Be careful not to scratch or

damage the heater wires or

antenna.

Cleaning the leather areas

401

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U



Remove dirt and dust using a
vacuum cleaner.



Wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.



Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

Cleaning the synthetic
leather areas

402

6-2. Maintenance

HIGHLANDER_U

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

■

Allow inspection and repairs to

be performed by a Toyota

dealer

●

Toyota technicians are

well-trained specialists and are

kept up to date with the latest ser-

vice information. They are well

informed about the operation of all

systems on your vehicle.

●

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be
performed on a daily basis. This
can be done by yourself or by a
Toyota dealer.

Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.

For details about maintenance
items and schedules, refer to the
“Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”.

Maintenance require-

ments

To ensure safe and econom-
ical driving, day-to-day care
and regular maintenance
are essential. It is the
owner’s responsibility to
perform regular checks.
Toyota recommends the fol-
lowing maintenance:

WARNING

■

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

■

Handling of the battery

●

Engine exhaust, some of its

constituents, and a wide variety

of automobile components con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects and

other reproductive harm. Work

in a well ventilated area.

●

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

●

Battery posts, terminals and

related accessories contain lead

and lead compounds which are

known to cause brain damage.

Wash your hands after han-

dling. (



P.416)

General maintenance

Scheduled maintenance

403

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

■

Resetting the message indicat-

ing maintenance is required

After the required maintenance is

preformed according to the mainte-

nance schedule, please reset the

message.To reset the message, fol-

low the procedures described

below:



4.2-inch display

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch, select

 and

then press and hold

 .

3

Press

 or

 of the meter

control switch, select “Scheduled

Maintenance” and then press

 .

4

Select “Yes” and press

.

5

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.



7-inch display

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch, select

 and

then press and hold

 .

3

Press

 or

 of the meter

control switch, select “Scheduled

Maintenance” and then press

 .

4

Select “Yes” and press

.

5

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.

You can perform some mainte-
nance procedures by yourself.
Please be aware that do-it-your-
self maintenance may affect
warranty coverage.

The use of Toyota Repair Manuals
is recommended.
For details about warranty cover-
age, refer to the separate “Owner’s
Warranty Information Booklet” or
“Owner’s Manual Supplement”.

Do-it-yourself mainte-
nance

404

6-2. Maintenance

HIGHLANDER_U

General maintenance

Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
“Owner’s Warranty Informa-
tion Booklet” or “Owner’s
Manual Supplement/Sched-
uled Maintenance Guide”. It
is recommended that any
problem you notice should
be brought to the attention
of your Toyota dealer or
qualified service shop for
advice.

WARNING

■

If the engine is running

Turn the engine off and ensure

that there is adequate ventilation

before performing maintenance

checks.

Engine compartment

Items

Check points

Battery

Check the connec-
tions. (



P.416)

Brake fluid

Is the brake fluid at
the correct level?
(



P.416)

Engine coolant

Is the engine cool-
ant at the correct
level? (



P.415)

Engine oil

Is the engine oil at
the correct level?
(



P.412)

Exhaust sys-
tem

There should not
be any fumes or
strange sounds.

Radiator/con-
denser

The radiator and
condenser should
be free from for-
eign objects.
(



P.416)

Washer fluid

Is there sufficient
washer fluid?
(



P.418)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should
move smoothly
(without uneven
pedal effort or
catching).

Automatic
transmission
“Park” mecha-
nism

• When parked on

a slope and the
shift lever is in P,
is the vehicle
securely
stopped?

Items

Check points

405

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have
appropriate
clearance from
the floor?
(



P.504)

• Does the brake

pedal have the
correct amount
of free play?
(



P.504)

Brakes

• The vehicle

should not pull to
one side when
the brakes are
applied.

• The brakes

should work
effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get
too close to the
floor when the
brakes are
applied.

Head
restraints

• Do the head

restraints move
smoothly and
lock securely?

Horn

• Works properly?

Indica-
tors/buzzers

• Do the indica-

tors and buzzers
function prop-
erly?

Items

Check points

Lights

• Do all the lights

come on?

• Are the head-

lights aimed cor-
rectly? (



P.440)

Parking brake

• Does the park-

ing brake switch
operate nor-
mally?

• When parked on

a slope and the
parking brake is
on, is the vehicle
securely
stopped?

Seat belts

• Do the seat belts

operate
smoothly?

• The seat belts

should not be
damaged.

Seats

• Do the seat con-

trols operate
properly?

Steering wheel

• Does the steer-

ing wheel rotate
smoothly?

• Does the steer-

ing wheel have
the correct
amount of free
play?

• There should not

be any strange
sounds coming
from the steer-
ing wheel.

Items

Check points

406

6-2. Maintenance

HIGHLANDER_U

The OBD system determines
that a problem exists some-
where in the emission control
system. Your vehicle may not
pass the I/M test and may need
to be repaired. Contact your
Toyota dealer to service the
vehicle.



When the battery is discon-
nected or discharged

Readiness codes that are set
during ordinary driving are erased.
Also, depending on your driving
habits, the readiness codes may
not be completely set.



When the fuel tank cap is
loose

Vehicle exterior

Items

Check points

Doors

• Do the doors

operate
smoothly?

Engine hood

• Does the engine

hood lock system
work properly?

Fluid leaks

• There should not

be any signs of
fluid leakage
after the vehicle
has been parked.

Tires

• Is the tire infla-

tion pressure
correct?

• The tires should

not be damaged
or excessively
worn.

• Have the tires

been rotated
according to the
maintenance
schedule?

• The wheel nuts

should not be
loose.

Windshield
wipers/rear
window wiper

• The wiper blades

should not show
any signs of
cracking, split-
ting, wear, con-
tamination or
deformation.

• The wiper blades

should clear the
windshield/rear
window without
streaking or skip-
ping.

Emission inspection

and maintenance (I/M)

programs

Some states have vehicle
emission inspection pro-
grams which include OBD
(On Board Diagnostics)
checks. The OBD system
monitors the operation of
the emission control sys-
tem.

If the malfunction indica-
tor lamp comes on

Your vehicle may not pass
the I/M test in the follow-
ing situations:

407

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

The malfunction indicator lamp
comes on indicating a temporary
malfunction and your vehicle may
not pass the I/M test.

The error code in the OBD sys-
tem will not be cleared unless
the vehicle is driven 40 or more
times.

Contact your Toyota dealer to
prepare the vehicle for re-test-
ing.

When the malfunction
indicator lamp still
remains on after several
driving trips

If your vehicle does not
pass the I/M test

408

6-3. Do-it-yourself maintenance

HIGHLANDER_U

6-3.Do-it-yourself maintenance

Do-it-yourself service

precautions

If you perform maintenance
by yourself, be sure to fol-
low the correct procedure
as given in these sections.

Maintenance

Items

Parts and tools

Battery condi-
tion (



P.416)

• Warm water
• Baking soda
• Grease
• Conventional

wrench (for ter-
minal clamp
bolts)

Brake fluid
level (



P.416)

• FMVSS No.116

DOT 3 or SAE
J1703 brake fluid

• Rag or paper

towel

• Funnel (used

only for adding
brake fluid)

Engine cool-
ant level
(



P.415)

• “Toyota Super

Long Life Cool-
ant” or a similar
high quality eth-
ylene gly-
col-based
non-silicate,
non-amine,
non-nitrite and
non-borate cool-
ant with long-life
hybrid organic
acid technology
For the U.S.A.:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 50% cool-
ant and 50%
deionized water.
For Canada:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 55% cool-
ant and 45%
deionized water.

• Funnel (used

only for adding
coolant)

Engine oil level
(



P.412)

• “Toyota Genuine

Motor Oil” or
equivalent

• Rag or paper

towel

• Funnel (used

only for adding
engine oil)

Fuses
(



P.438)

• Fuse with same

amperage rating
as original

Items

Parts and tools

409

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

Headlight aim
(



P.440)

• Phillips-head

screwdriver

Light bulbs
(



P.441)

• Bulb with same

number and
wattage rating as
original

• Phillips-head

screwdriver

• Flathead screw-

driver

• Wrench

Radiator and
condenser
(



P.416)



Tire inflation
pressure
(



P.431)

• Tire pressure

gauge

• Compressed air

source

Washer fluid
(



P.418)

• Water or washer

fluid containing
antifreeze (for
winter use)

• Funnel (used

only for adding
water or washer
fluid)

WARNING

The engine compartment contains

many mechanisms and fluids that

may move suddenly, become hot,

or become electrically energized.

To avoid death or serious injury,

observe the following precautions.

■

When working on the engine

compartment

●

Keep hands, clothing and tools

away from the moving fan and

engine drive belt.

Items

Parts and tools

●

Be careful not to touch the

engine, radiator, exhaust mani-

fold, etc. right after driving as

they may be hot. Oil and other

fluids may also be hot.

●

Do not leave anything that may

burn easily, such as paper and

rags, in the engine compart-

ment.

●

Do not smoke, cause sparks or

expose an open flame to fuel or

the battery. Fuel and battery

fumes are flammable.

●

Be extremely cautious when

working on the battery. It con-

tains poisonous and corrosive

sulfuric acid.

■

When working near the elec-

tric cooling fan or radiator

grille

Be sure the engine switch is off.

With the engine switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. (



P.416)

■

Safety glasses

Wear safety glasses to prevent

flying or falling material, fluid

spray, etc. from getting in your

eyes.

NOTICE

■

If you remove the air cleaner

filter

Driving with the air cleaner filter

removed may cause excessive

engine wear due to dirt in the air.

410

6-3. Do-it-yourself maintenance

HIGHLANDER_U

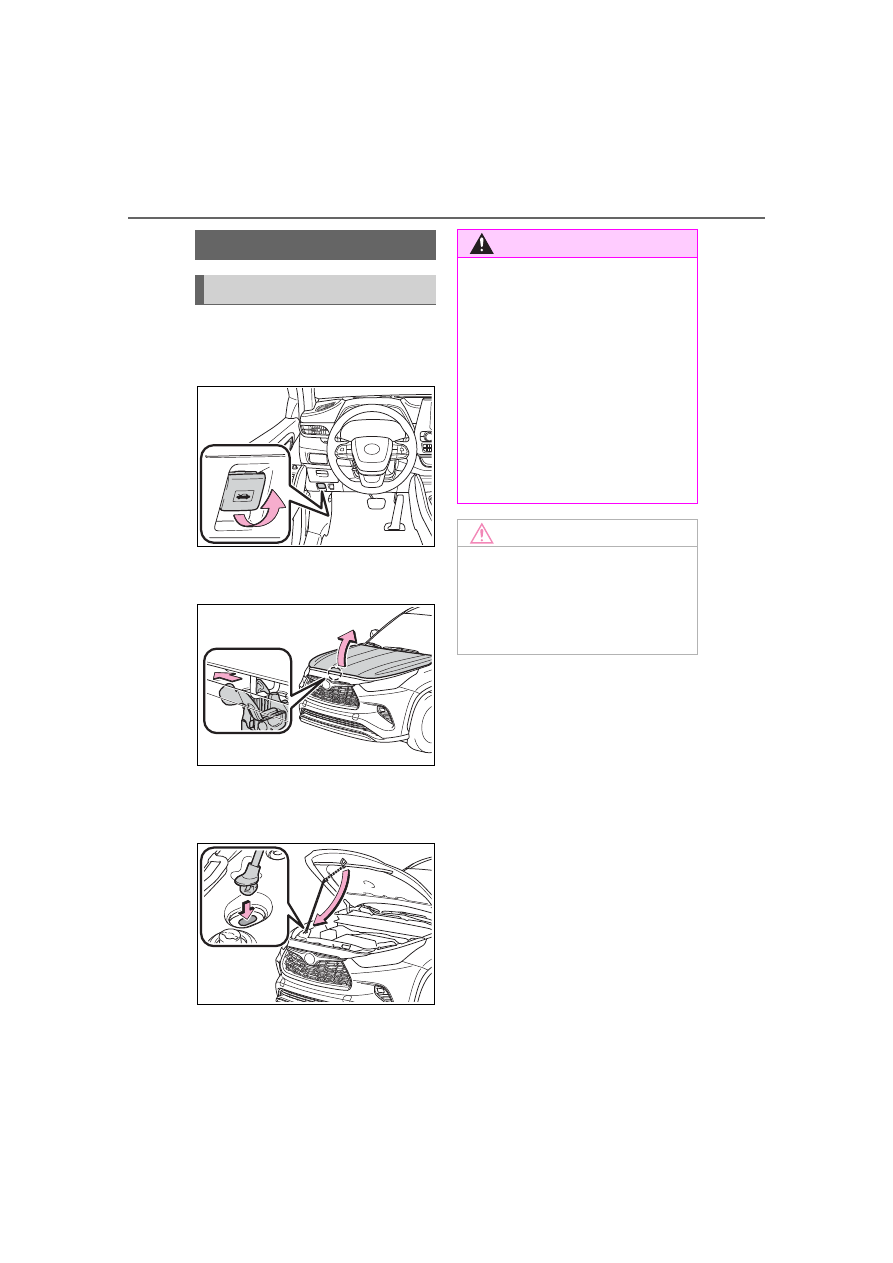

1

Pull the hood lock release
lever.

The hood will pop up slightly.

2

Pull up the auxiliary catch
lever and lift the hood.

3

Hold the hood open by insert-
ing the support rod into the
slot.

Hood

Opening the hood

WARNING

■

Pre-driving check

Check that the hood is fully closed

and locked.

If the hood is not locked properly,

it may open while the vehicle is in

motion and cause an accident,

which may result in death or seri-

ous injury.

■

After installing the support

rod into the slot

Make sure the rod supports the

hood securely preventing it from

falling down onto your head or

body.

NOTICE

■

When closing the hood

Be sure to return the support rod

to its clip before closing the hood.

Closing the hood with the support

rod not clipped could cause the

hood to bend.

411

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

■

Front

■

Rear

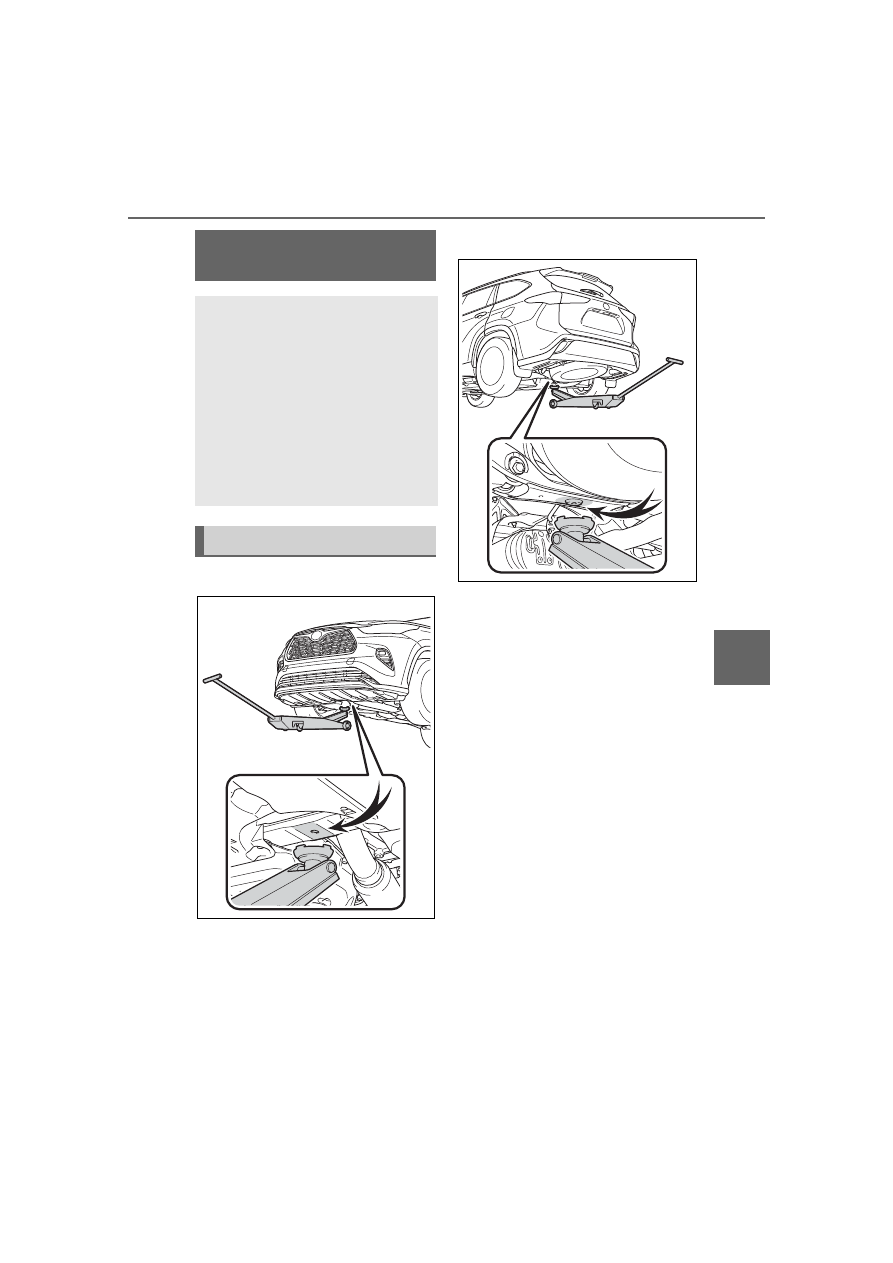

Positioning a floor

jack

When using a floor jack, fol-
low the instructions in the
manual provided with the
jack and perform the opera-
tion safely.
When raising your vehicle
with a floor jack, position
the jack correctly. Improper
placement may damage
your vehicle or cause injury.

Location of the jack point

412

6-3. Do-it-yourself maintenance

HIGHLANDER_U

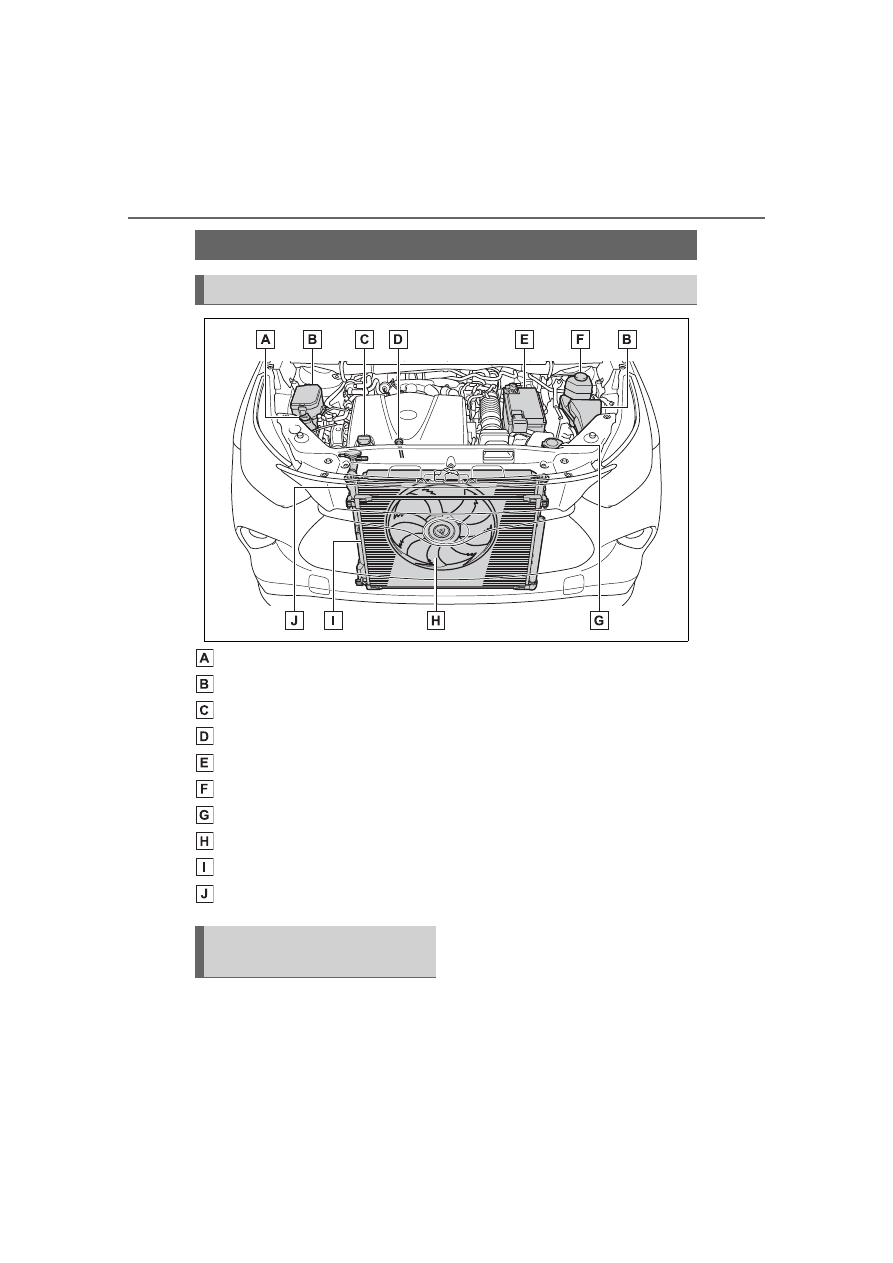

Engine coolant reservoir (



P.415)

Fuse boxes (



P.438)

Engine oil filler cap (



P.413)

Engine oil level dipstick (



P.412)

Battery (



P.416)

Brake fluid reservoir (



P.416)

Washer fluid tank (



P.418)

Electric cooling fan
Condenser (



P.416)

Radiator (



P.416)

With the engine at operating
temperature and turned off,
check the oil level on the dip-

stick.

■

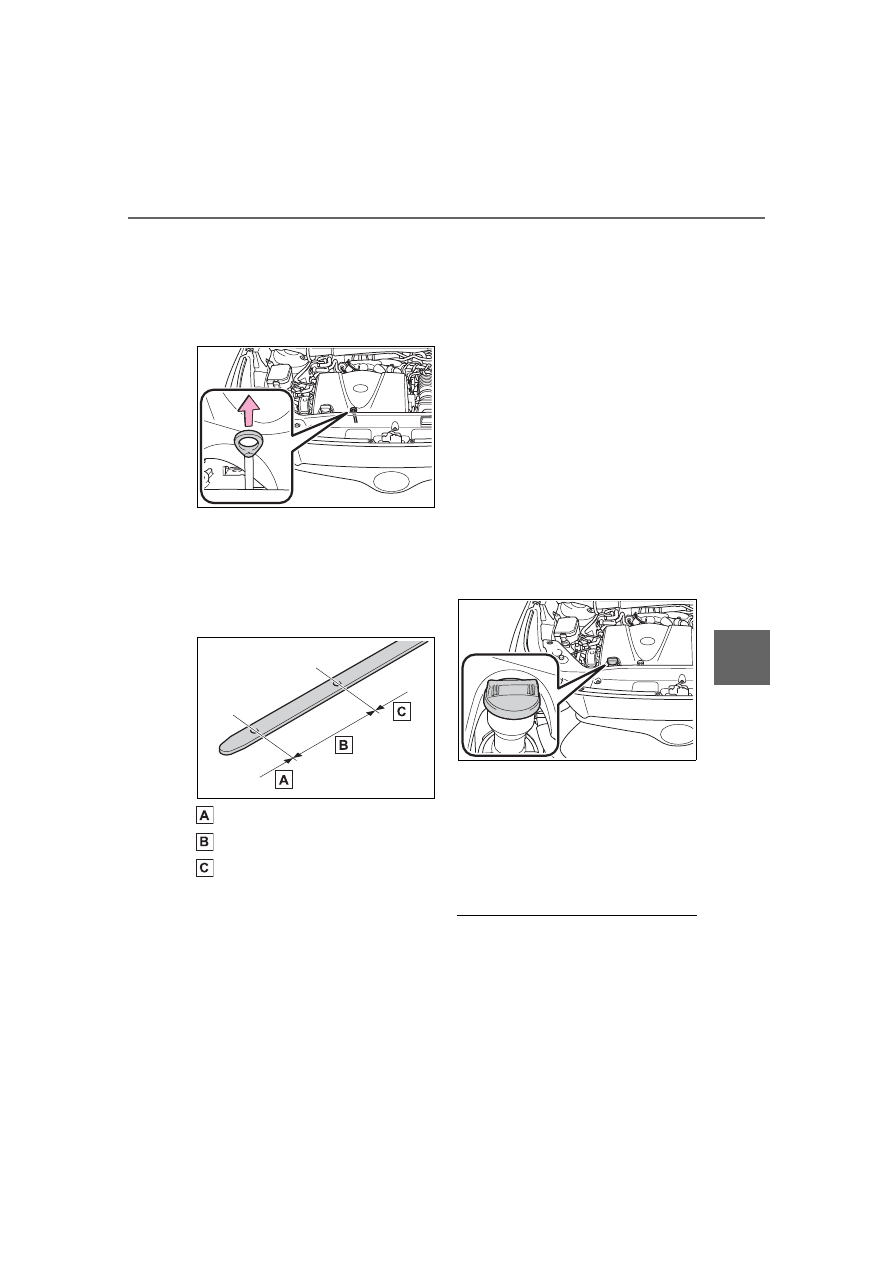

Checking the engine oil

1

Park the vehicle on level
ground. After warming up the
engine and turning it off, wait

Engine compartment

Components

Checking and adding the
engine oil

413

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

more than 5 minutes for the
oil to drain back into the bot-
tom of the engine.

2

Holding a rag under the end,
pull the dipstick out.

3

Wipe the dipstick clean.

4

Reinsert the dipstick fully.

5

Holding a rag under the end,
pull the dipstick out and
check the oil level.

Low
Normal
Excessive

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

6

Wipe the dipstick and reinsert
it fully.

■

Checking the oil type and
preparing the item needed

Make sure to check the oil type
and prepare the items needed
before adding oil.



Engine oil selection



P.502



Oil quantity (Low



 Full)

1.9 qt. (1.8 L, 1.6 Imp. qt.)



Item
Clean funnel

■

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

1

Remove the oil filler cap by
turning it counterclockwise.

2

Add engine oil slowly, check-
ing the dipstick.

3

Install the oil filler cap by
turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will

be consumed while driving. In the

following situations, oil consump-

tion may increase, and engine oil

may need to be refilled in between

oil maintenance intervals.

414

6-3. Do-it-yourself maintenance

HIGHLANDER_U

●

When the engine is new, for

example directly after purchasing

the vehicle or after replacing the

engine

●

If low quality oil or oil of an inap-

propriate viscosity is used

●

When driving at high engine

speeds or with a heavy load,

when towing, or when driving

while accelerating or decelerating

frequently

●

When leaving the engine idling for

a long time, or when driving fre-

quently through heavy traffic

■

If the oil is spilled on the engine

cover

To prevent the engine cover from

being damaged, remove any engine

oil from the engine cover as soon as

possible using a neutral detergent.

Do not use an organic solvent such

as brake cleaner.

■

After changing the engine oil

The engine oil maintenance data

should be reset. Perform the follow-

ing procedures:



4.2-inch display

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch, select

 and

then press and hold

 .

3

Press

 or

 of the meter

control switch, select “Oil Mainte-
nance” and then press

.

4

Select “Yes” and press

.

5

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.



7-inch display

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch, select

 and

then press and hold

 .

3

Press

 or

 of the meter

control switch, select “Oil Mainte-
nance” and then press

 .

4

Select “Yes” and press

.

5

A message will be displayed on

the multi-information display

when the reset procedure has

been completed.

WARNING

■

Used engine oil

●

Used engine oil contains poten-

tially harmful contaminants

which may cause skin disorders

such as inflammation and skin

cancer, so care should be taken

to avoid prolonged and

repeated contact. To remove

used engine oil from your skin,

wash thoroughly with soap and

water.

●

Dispose of used oil and filters

only in a safe and acceptable

manner. Do not dispose of used

oil and filters in household trash,

in sewers or onto the ground.

Call your Toyota dealer, service

station or auto parts store for

information concerning recy-

cling or disposal.

●

Do not leave used engine oil

within the reach of children.

NOTICE

■

To prevent serious engine

damage

Check the oil level on a regular

basis.

415

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

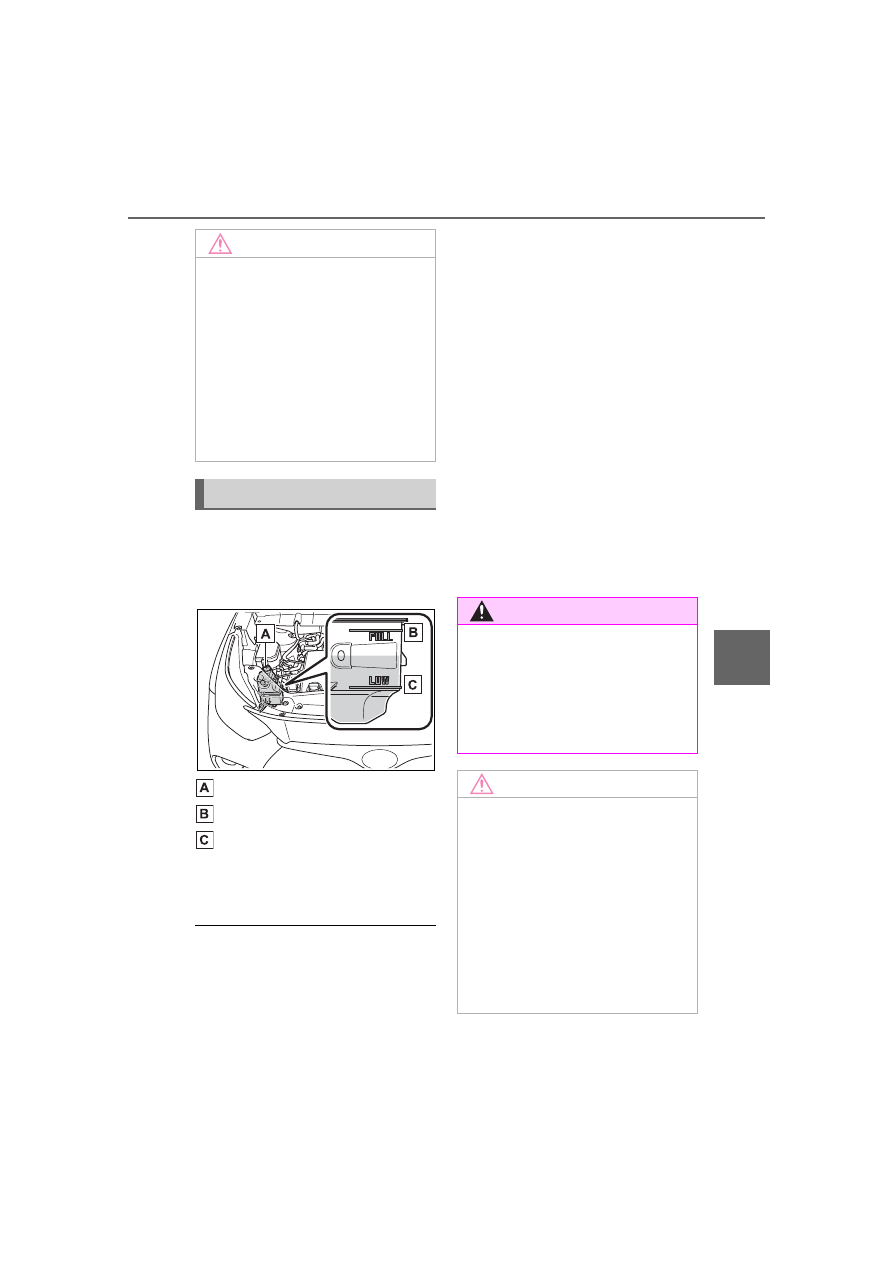

The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir
when the engine is cold.

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (



P.495)

■

Coolant selection

Only use “Toyota Super Long Life

Coolant” or a similar high quality

ethylene glycol based non-silicate,

non-amine, non-nitrite, and

non-borate coolant with long-life

hybrid organic acid technology.

U.S.A.:
“Toyota Super Long Life Coolant” is

a mixture of 50% coolant and 50%

deionized water. (Minimum tem-

perature: -31°F [-35°C])
Canada:
“Toyota Super Long Life Coolant” is

a mixture of 55% coolant and 45%

deionized water. (Minimum tem-

perature: -44°F [-42°C])
For more details about coolant, con-

tact your Toyota dealer.

■

If the coolant level drops within

a short time of replenishing

Visually check the radiator, hoses,

engine coolant reservoir cap, drain

cock and water pump.

If you cannot find a leak, have your

Toyota dealer test the cap and

check for leaks in the cooling sys-

tem.

NOTICE

■

When replacing the engine oil

●

Be careful not to spill engine oil

on the vehicle components.

●

Avoid overfilling, or the engine

could be damaged.

●

Check the oil level on the dip-

stick every time you refill the

vehicle.

●

Be sure the engine oil filler cap

is properly tightened.

Checking the coolant

WARNING

■

When the engine is hot

Do not remove the engine coolant

reservoir cap and radiator cap.
The cooling system may be under

pressure and may spray hot cool-

ant if the cap is removed, causing

serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct

mixture of water and antifreeze

must be used to provide proper

lubrication, corrosion protection

and cooling. Be sure to read the

antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to

prevent it from damaging parts or

paint.

416

6-3. Do-it-yourself maintenance

HIGHLANDER_U

Check the radiator and con-
denser and clear away any for-
eign objects. If either of the
above parts is extremely dirty or
you are not sure of their condi-
tion, have your vehicle
inspected by your Toyota dealer.

■

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

■

Adding fluid

Make sure to check the fluid
type and prepare the necessary
item.



Fluid type

SAE J1703 or FMVSS No.116 DOT
3 brake fluid
SAE J1704 or FMVSS No.116 DOT
4 brake fluid



Item
Clean funnel

■

Brake fluid can absorb moisture

from the air

Excess moisture in the brake fluid

can cause a dangerous loss of brak-

ing efficiency. Use only newly

opened brake fluid.

Check the battery as follows.

■

Battery exterior

Make sure that the battery termi-
nals are not corroded and that
there are no loose connections,
cracks, or loose clamps.

Checking the radiator and
condenser

WARNING

■

When the engine is hot

Do not touch the radiator or con-

denser as they may be hot and

cause serious injuries, such as

burns.

Checking and adding the
brake fluid

WARNING

■

When filling the reservoir

Take care as brake fluid can harm

your hands and eyes and damage

painted surfaces.

If fluid gets on your hands or in

your eyes, flush the affected area

with clean water immediately.
If you still experience discomfort,

see a doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level

to go down slightly as the brake

pads wear out or when the fluid

level in the accumulator is high.

If the reservoir needs frequent

refilling, there may be a serious

problem.

Battery

417

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

Terminals
Hold-down clamp

■

Before recharging

When recharging, the battery pro-

duces hydrogen gas which is flam-

mable and explosive. Therefore,

observe the following precautions

before recharging:

●

If recharging with the battery

installed on the vehicle, be sure to

disconnect the ground cable.

●

Make sure the power switch on

the charger is off when connecting

and disconnecting the charger

cables to the battery.

■

After recharging/reconnecting

the battery

The engine may not start. Follow the

procedure below to initialize the sys-

tem.

1

Shift the shift lever to P.

2

Open and close any of the doors.

3

Restart the engine.

●

Unlocking the doors using the

smart key system may not be pos-

sible immediately after reconnect-

ing the battery. If this happens,

use the wireless remote control or

the mechanical key to lock/unlock

the doors.

●

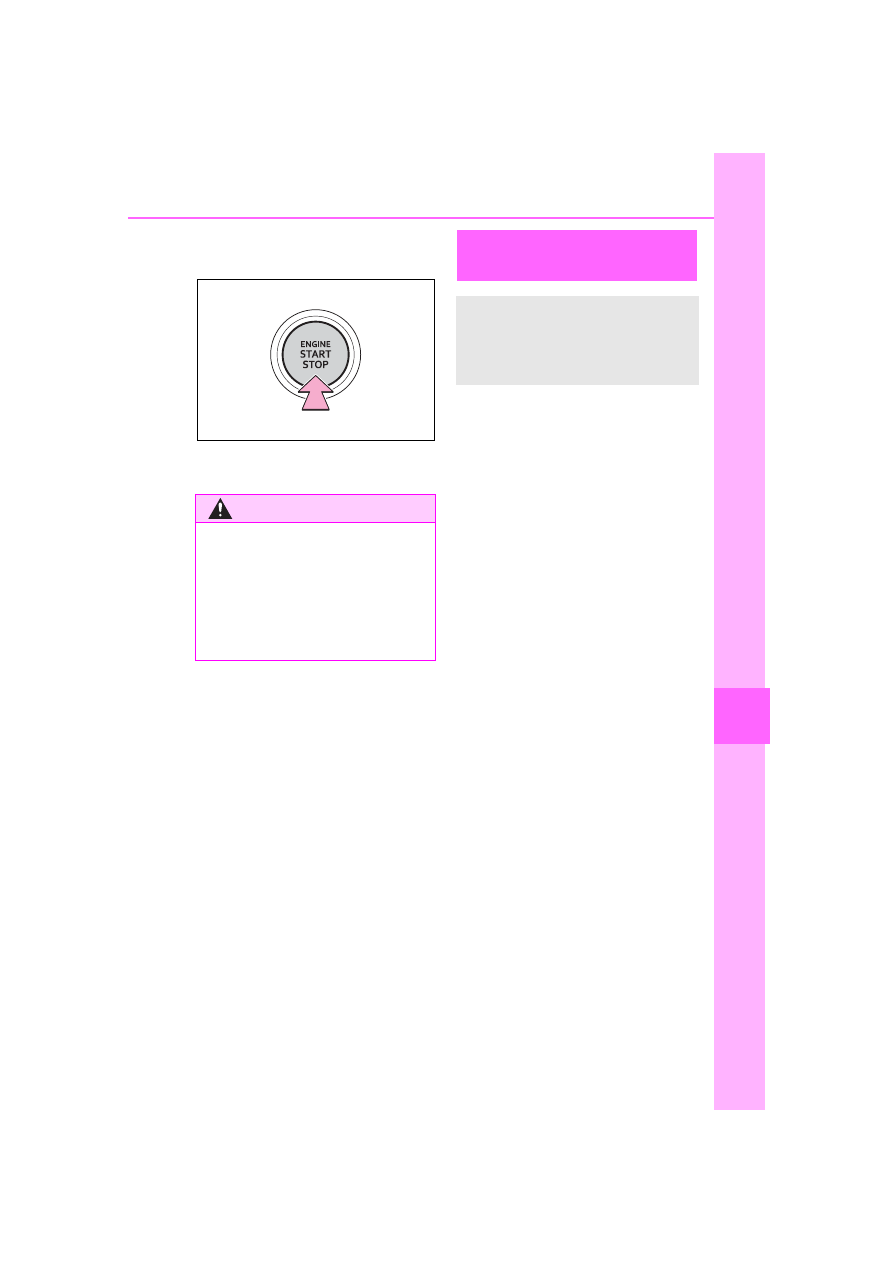

Start the engine with the engine

switch in ACC. The engine may

not start with the engine switch

turned off. However, the engine

will operate normally from the sec-

ond attempt.

●

The engine switch mode is

recorded by the vehicle. If the bat-

tery is disconnected and recon-

nected, the vehicle will return the

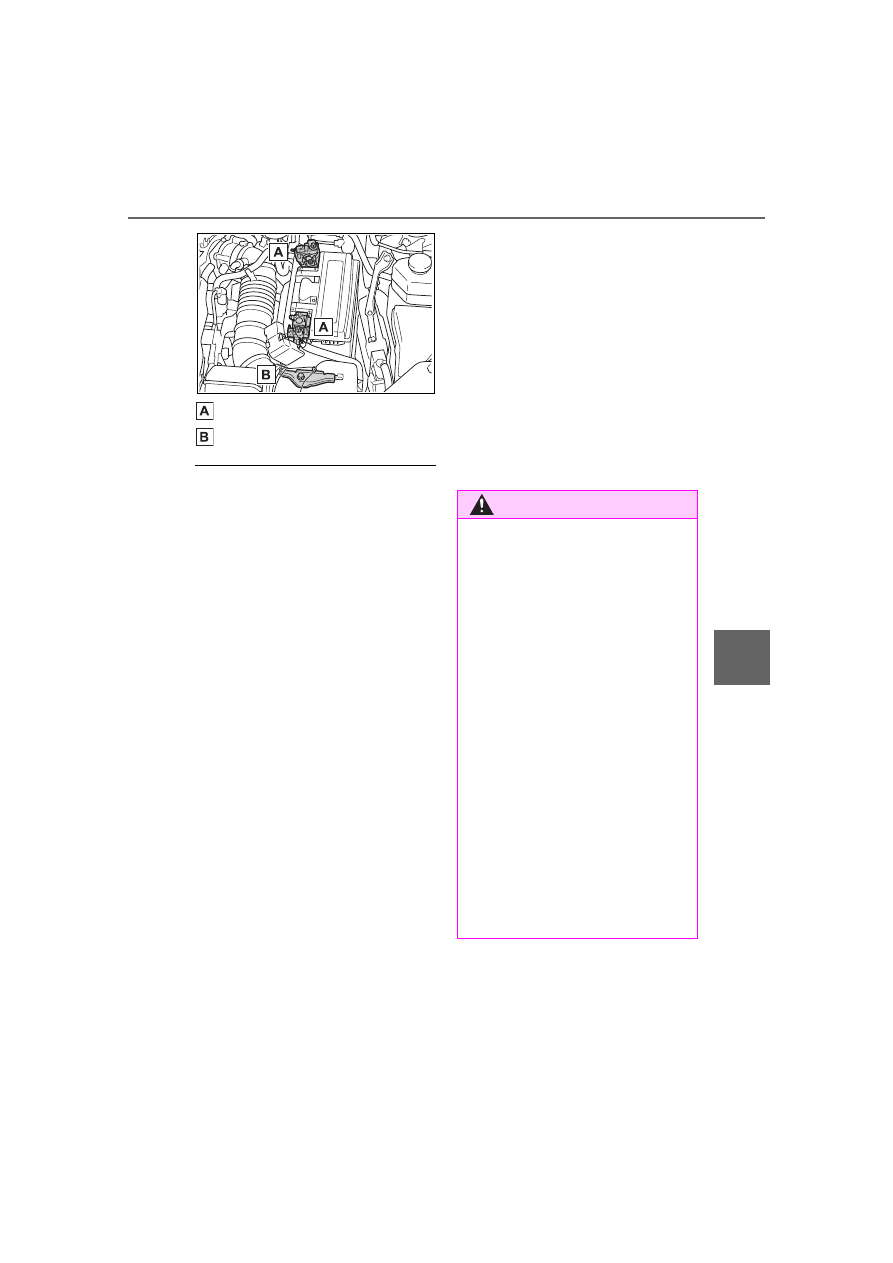

engine switch mode to the status it

was in before the battery was dis-

connected. Make sure to turn off

the engine before disconnecting

the battery. Take extra care when

connecting the battery if the

engine switch mode prior to the

battery being disconnected is

unknown.

If the system will not start even after

multiple attempts, contact your Toy-

ota dealer.

WARNING

■

Chemicals in the battery

Batteries contain poisonous and

corrosive sulfuric acid and may

produce hydrogen gas which is

flammable and explosive. To

reduce the risk of death or serious

injury, take the following precau-

tions while working on or near the

battery:

●

Do not cause sparks by touch-

ing the battery terminals with

tools.

●

Do not smoke or light a match

near the battery.

●

Avoid contact with eyes, skin

and clothes.

●

Never inhale or swallow electro-

lyte.

●

Wear protective safety glasses

when working near the battery.

●

Keep children away from the

battery.

418

6-3. Do-it-yourself maintenance

HIGHLANDER_U

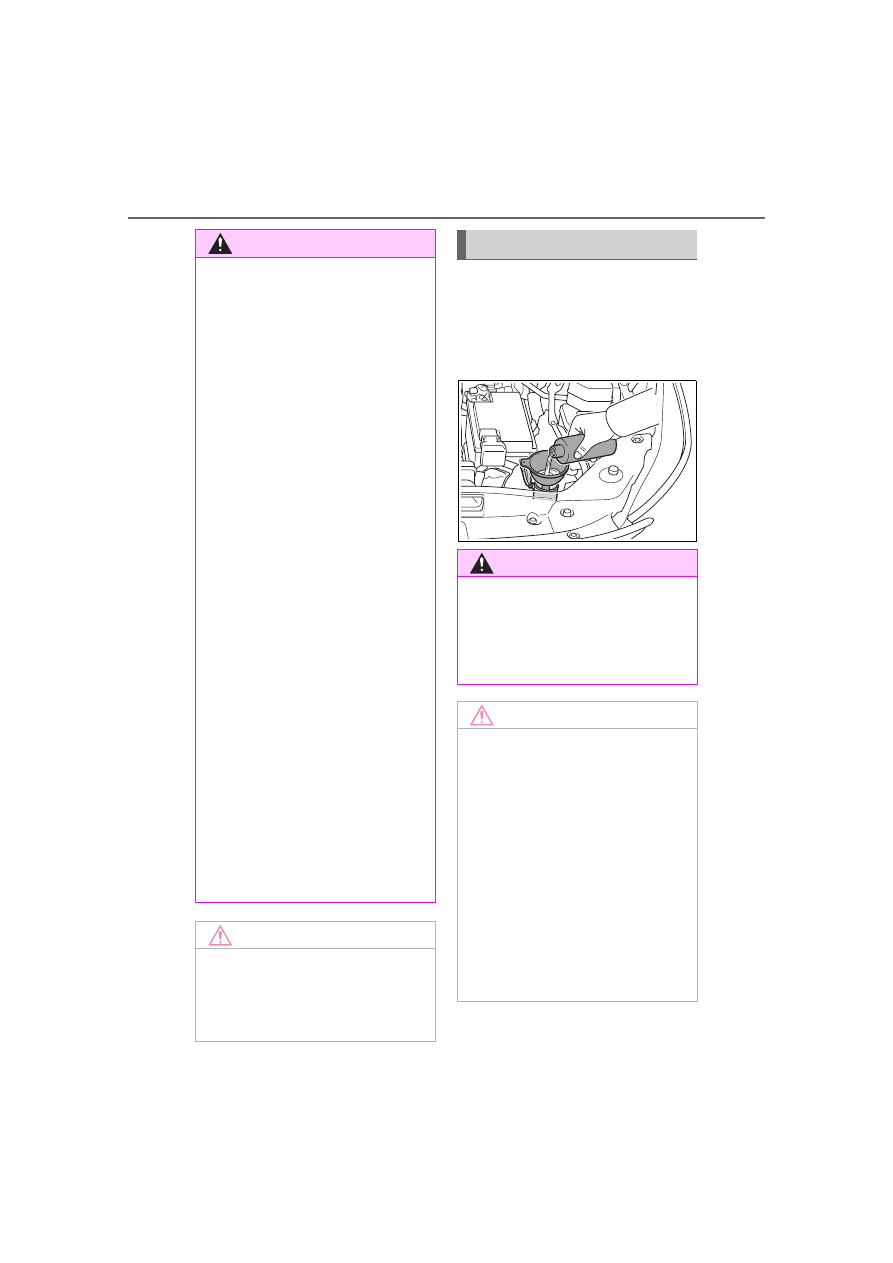

If any washer does not work or
the warning message appears
on the multi-information display,
the washer tank may be empty.
Add washer fluid.

WARNING

■

Where to safely charge the

battery

Always charge the battery in an

open area. Do not charge the bat-

tery in a garage or closed room

where there is insufficient ventila-

tion.

■

How to recharge the battery

Only perform a slow charge (5 A

or less). The battery may explode

if charged at a quicker rate.

■

Emergency measures regard-

ing electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean

water for at least 15 minutes

and get immediate medical

attention. If possible, continue

to apply water with a sponge or

cloth while traveling to the near-

est medical facility.

●

If electrolyte gets on your skin

Wash the affected area thor-

oughly. If you feel pain or burn-

ing, get medical attention

immediately.

●

If electrolyte gets on your

clothes

It can soak through clothing on

to your skin. Immediately take

off the clothing and follow the

procedure above if necessary.

●

If you accidentally swallow elec-

trolyte

Drink a large quantity of water

or milk. Get emergency medical

attention immediately.

NOTICE

■

When recharging the battery

Never recharge the battery while

the engine is running. Also, be

sure all accessories are turned

off.

Washer fluid

WARNING

■

When adding washer fluid

Do not add washer fluid when the

engine is hot or running as

washer fluid contains alcohol and

may catch fire if spilled on the

engine, etc.

NOTICE

■

Do not use any fluid other

than washer fluid

Do not use soapy water or engine

antifreeze instead of washer fluid.
Doing so may cause streaking on

the vehicle’s painted surfaces, as

well as damaging the pump lead-

ing to problems of the washer

fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as

necessary.
Refer to the freezing tempera-

tures listed on the label of the

washer fluid bottle.

419

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

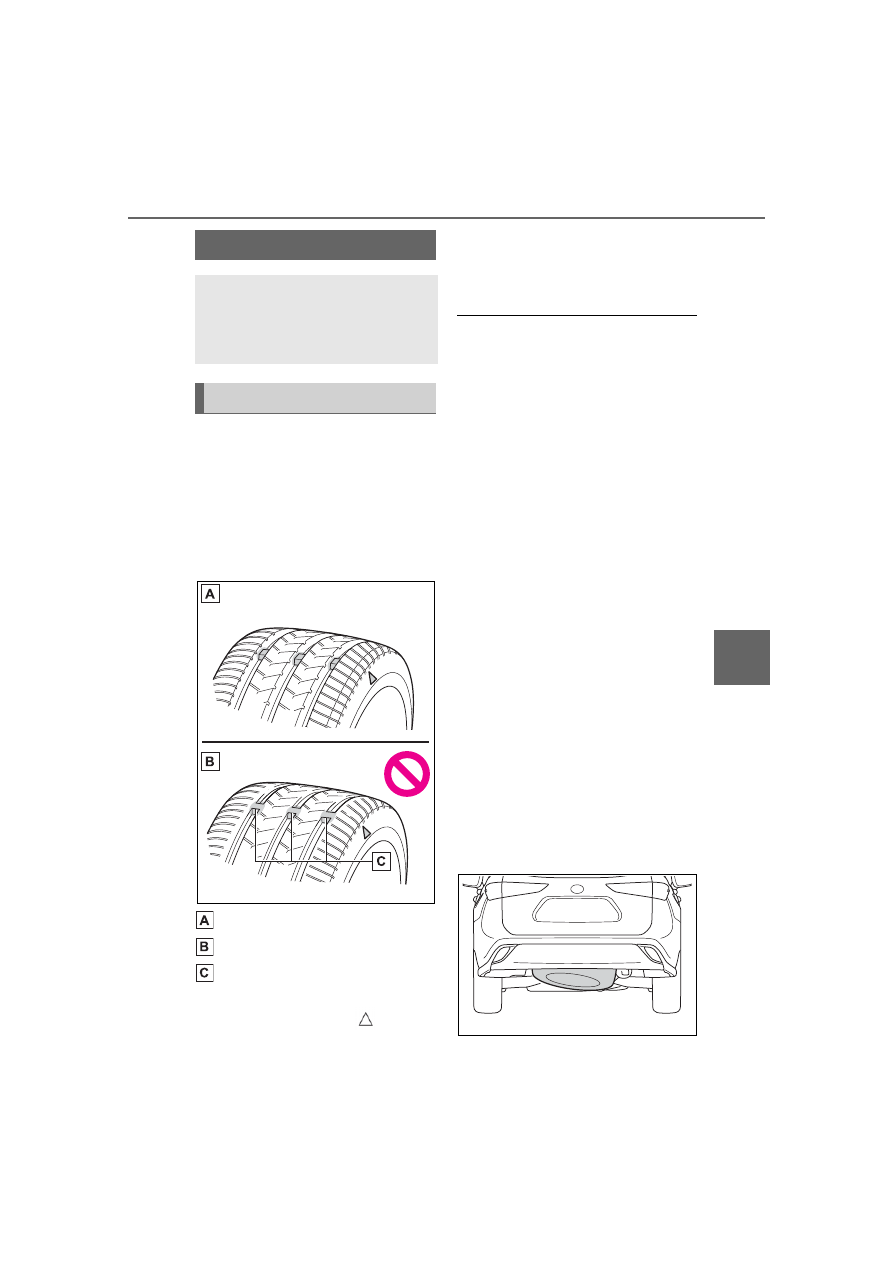

Check if the treadwear indica-
tors are showing on the tires.
Also check the tires for uneven
wear, such as excessive wear
on one side of the tread.
Check the spare tire condition
and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators
is shown by a “TWI” or “

” mark,

etc., molded into the sidewall of
each tire.
Replace the tires if the treadwear
indicators are showing on a tire.

■

When to replace your vehicle’s

tires

Tires should be replaced if:

●

The treadwear indicators are

showing on a tire.

●

You have tire damage such as

cuts, splits, cracks deep enough

to expose the fabric, and bulges

indicating internal damage.

●

A tire goes flat repeatedly or can-

not be properly repaired due to the

size or location of a cut or other

damage.

If you are not sure, consult with your

Toyota dealer.

■

Tire life

Any tire over 6 years old must be

checked by a qualified technician

even if it has seldom or never been

used or damage is not obvious.

■

Proper storage of the spare tire

As an improperly stored spare tire

may cause damage to the wire

cable that holds it, check that the

spare tire is stored properly on a

daily basis.

●

If the stored spare tire appears to

be slanted or rattles while driving,

the spare tire may not be properly

stored. Store the spare tire again

by performing the following tire

change procedure correctly:

Tires

Replace or rotate tires in
accordance with mainte-
nance schedules and tread-
wear.

Checking tires

420

6-3. Do-it-yourself maintenance

HIGHLANDER_U

1

If the spare tire is slanted, the

hoist assembly may be stuck in

the wheel opening. If the spare

tire rattles while driving, it may

not be fully raised. Lower the

spare tire to the ground and

make sure that the hoist assem-

bly is perpendicular to the wheel

opening.

2

Raise the tire slowly and steadily

until a click is heard and the jack

handle skips.

If the spare tire cannot be lowered,

the wire cable may be severed.

Have the vehicle inspected at your

Toyota dealer.

■

Maximum load of tire

Check that the number given by

dividing the maximum load by 1.10

of the replacement tire is greater

than 1/2 of the Gross Axle Weight

Ratings (GAWR) of either the front

axle or the rear axle, whichever is

greater.
For the GAWR, see the Certification

Label.

For the maximum load of the tire,

see the load limit at maximum cold

tire inflation pressure mentioned on

the sidewall of the tire. (



P.511)

■

Tire types

●

Summer tires

Summer tires are high-speed perfor-
mance tires best suited to highway
driving under dry conditions. Since
summer tires do not have the same
traction performance as snow tires,
summer tires are inadequate for

driving on snow-covered or icy
roads. For driving on snow-covered
roads or icy roads, the use of snow
tires is recommended. When install-
ing snow tires, be sure to replace all
four tires.

●

All season tires

All season tires are designed to pro-
vide better traction in snow and to
be adequate for driving in most win-
ter conditions as well as for use
year-round. All season tires, how-
ever, do not have adequate traction
performance compared with snow
tires in heavy or loose snow. Also,
all season tires fall short in accelera-
tion and handling performance com-
pared with summer tires in highway
driving.

●

Snow tires

For driving on snow-covered roads
or icy roads, we recommend using
snow tires. If you need snow tires,
select tires of the same size, con-
struction and load capacity as the
originally installed tires. Since your
vehicle has radial tires as original
equipment, make sure your snow
tires also have radial construction.
Do not install studded tires without
first checking local regulations for
possible restrictions. Snow tires
should be installed on all wheels.
(



P.327)

■

If the tread on snow tires wears

down below 0.16 in. (4 mm)

The effectiveness of the tires as

snow tires is lost.

421

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

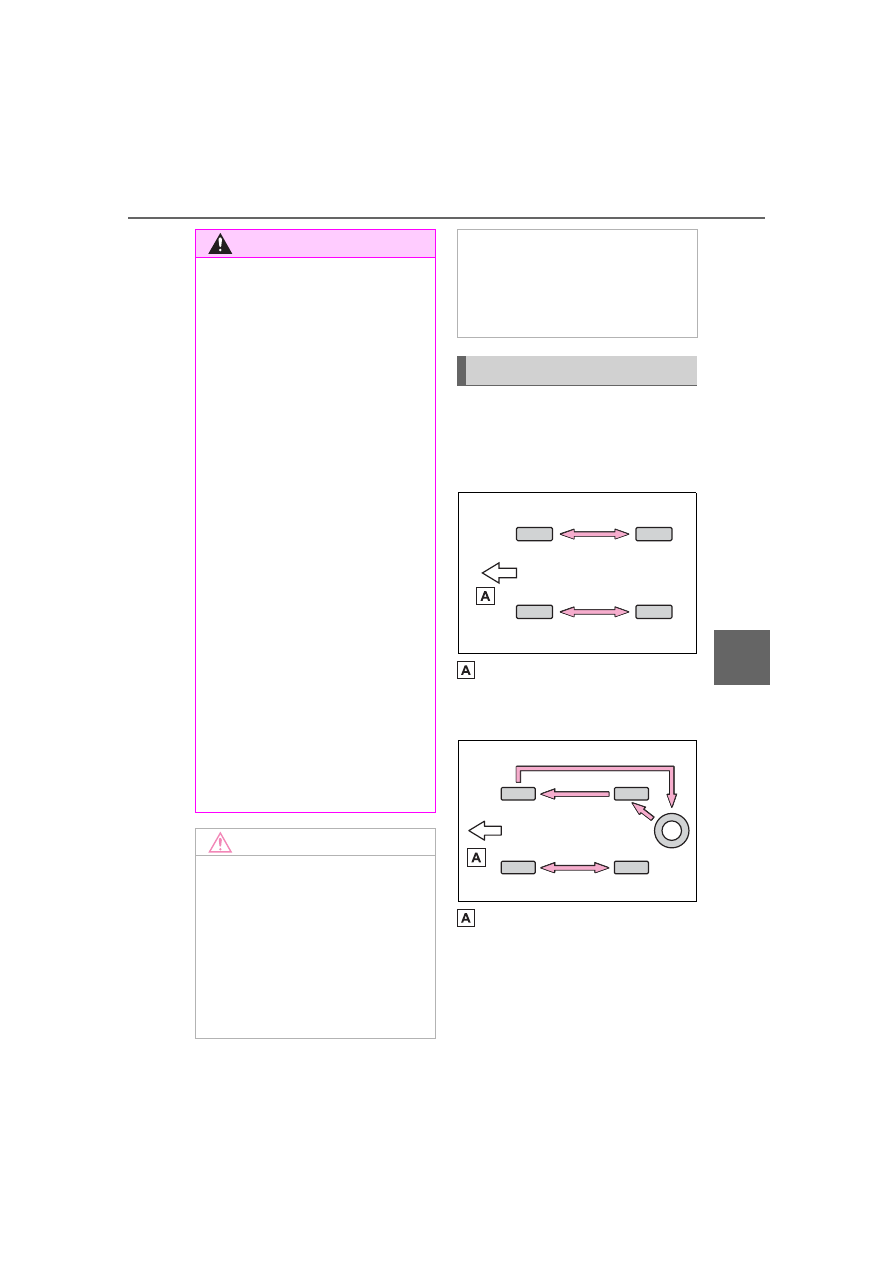

Rotate the tires in the order
shown.



Vehicles with a compact
spare tire

Front



Vehicles with a full-size spare
tire

Front

To equalize tire wear and extend
tire life, Toyota recommends that
tire rotation is carried out at the
same interval as tire inspection.
Do not fail to initialize the tire pres-

WARNING

■

When inspecting or replacing

tires

Observe the following precautions

to prevent accidents.

Failure to do so may cause dam-

age to parts of the drive train as

well as dangerous handling char-

acteristics, which may lead to an

accident resulting in death or seri-

ous injury.

●

Do not mix tires of different

makes, models or tread pat-

terns.

Also, do not mix tires of remark-

ably different treadwear.

●

Do not use tire sizes other than

those recommended by Toyota.

●

Do not mix differently con-

structed tires (radial, bias-belted

or bias-ply tires).

●

Do not mix summer, all season

and snow tires.

●

Do not use tires that have been

used on another vehicle.

Do not use tires if you do not

know how they were used previ-

ously.

●

Vehicles with a compact spare

tire: Do not tow if your vehicle

has a compact spare tire

installed.

NOTICE

■

Driving on rough roads

Take particular care when driving

on roads with loose surfaces or

potholes.

These conditions may cause

losses in tire inflation pressure,

reducing the cushioning ability of

the tires. In addition, driving on

rough roads may cause damage

to the tires themselves, as well as

the vehicle’s wheels and body.

■

If tire inflation pressure of

each tire becomes low while

driving

Do not continue driving, or your

tires and/or wheels may be

ruined.

Tire rotation

422

6-3. Do-it-yourself maintenance

HIGHLANDER_U

sure warning system after tire rota-
tion.

Your vehicle is equipped with a
tire pressure warning system
that uses tire pressure warning
valves and transmitters to detect
low tire inflation pressure before
serious problems arise.



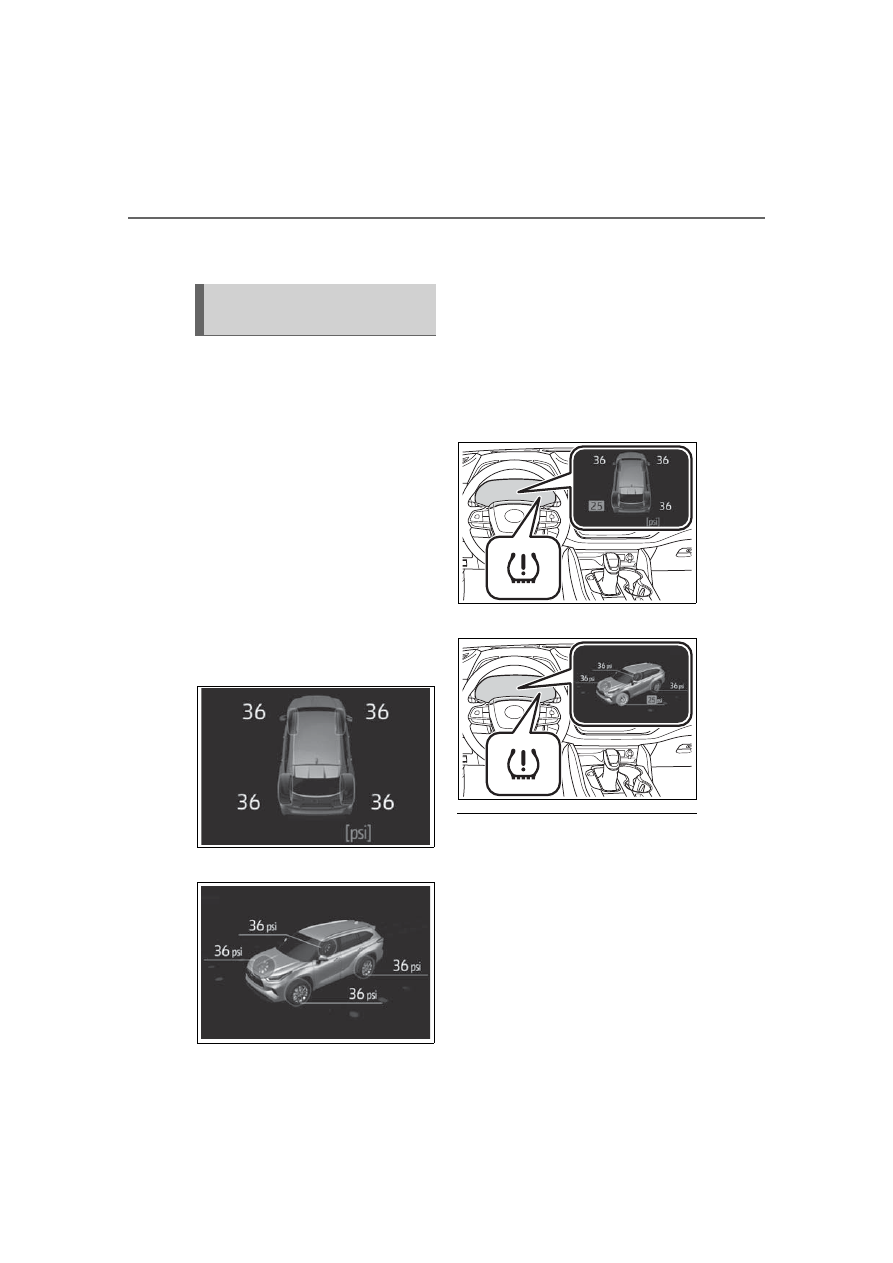

The tire pressure detected by
the tire pressure warning sys-
tem can be displayed on the
multi-information display.
(



P.84, 93)

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.



4.2-inch display



7-inch display



If the tire pressure drops
below a predetermined level,
the driver is warned by a
screen display and a warning
light. (



P.462)

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.



4.2-inch display



7-inch display

■

Routine tire inflation pressure

checks

The tire pressure warning system

does not replace routine tire inflation

pressure checks. Make sure to

check tire inflation pressure as part

of your routine of daily vehicle

checks.

■

Situations in which the tire

pressure warning system may

not operate properly

●

In the following cases, the tire

pressure warning system may not

Tire pressure warning
system

423

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

operate properly.

• If non-genuine Toyota wheels are

used.

• A tire has been replaced with a

tire that is not an OE (Original

Equipment) tire.

• A tire has been replaced with a

tire that is not of the specified size.

• Tire chains, etc. are equipped.

• An auxiliary-supported run-flat tire

is equipped.

• If a window tint that affects the

radio wave signals is installed.

• If there is a lot of snow or ice on

the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is

extremely higher than the speci-

fied level.

• If the spare tire is in a location

subject to poor radio wave signal
reception.

*

• If wheel without the tire pressure

warning valve and transmitter is

used.

• If the ID code on the tire pressure

warning valves and transmitters is

not registered in the tire pressure

warning computer.

*

: Vehicles with full-size spare tire

only

●

Performance may be affected in

the following situations.

• Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

• When carrying a portable radio,

cellular phone, cordless phone or

other wireless communication

device

●

If tire position information is not

correctly displayed due to the

radio wave conditions, the display

may be corrected by driving and

changing the radio wave condi-

tions.

●

When the vehicle is parked, the

time taken for the warning to start

or go off could be extended.

●

When tire inflation pressure

declines rapidly for example when

a tire has burst, the warning may

not function.

■

Warning performance of the tire

pressure warning system

The warning of the tire pressure

warning system will change in

accordance with the conditions

under which it was initialized. For

this reason, the system may give a

warning even if the tire pressure

does not reach a low enough level,

or if the pressure is higher than the

pressure that was adjusted to when

the system was initialized.

424

6-3. Do-it-yourself maintenance

HIGHLANDER_U

■

Tire pressure warning system certification

When replacing tires or wheels,
tire pressure warning valves and
transmitters must also be
installed.

Installing tire pressure
warning valves and trans-
mitters

425

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

When new tire pressure warning
valves and transmitters are
installed, new ID codes must be
registered in the tire pressure
warning computer and the tire
pressure warning system must
be initialized. Have tire pressure
warning valves and transmitter
ID codes registered by your Toy-
ota dealer. (



P.428)

■

Replacing tires and wheels

If the ID code of the tire pressure

warning valve and transmitter is not

registered, the tire pressure warning

system will not work properly. After

driving for about 20 minutes, the tire

pressure warning light blinks for 1

minute and stays on to indicate a

system malfunction.

■

The tire pressure warning
system must be initialized
in the following circum-
stances:



When the tire inflation pres-
sure is changed such as
when changing traveling
speed.



When the tire inflation pres-
sure is changed such as
when the tire size is changed.



When rotating the tires.



After registering the ID codes.
(



P.428)

When the tire pressure warning
system is initialized, the current
tire inflation pressure is set as
the benchmark pressure.

NOTICE

■

Repairing or replacing tires,

wheels, tire pressure warn-

ing valves, transmitters and

tire valve caps

●

When removing or fitting the

wheels, tires or the tire pressure

warning valves and transmit-

ters, contact your Toyota dealer

as the tire pressure warning

valves and transmitters may be

damaged if not handled cor-

rectly.

●

Make sure to install the tire

valve caps. If the tire valve caps

are not installed, water could

enter the tire pressure warning

valves and the tire pressure

warning valves could be bound.

●

When replacing tire valve caps,

do not use tire valve caps other

than those specified. The cap

may become stuck.

■

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire. (



P.424)

Initializing the tire pres-
sure warning system

426

6-3. Do-it-yourself maintenance

HIGHLANDER_U

■

How to initialize the tire
pressure warning system



4.2-inch display

1

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.505)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Turn the engine switch to
ON.

4

Press

 or

 of the meter

control switch to select

.

5

Press

 or

 of the meter

control switch, select

 and

then press and hold

.

6

Press

 or

 of the meter

control switch, select “TPWS”
and then press

.

7

Press

 or

 of the meter

control switch, select “Set
Pressure” and then press
and hold

.



7-inch display

1

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.505)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Turn the engine switch to
ON.

4

Press

 or

 of the meter

control switch to select

.

5

Press

 or

 of the meter

control switch, select

 and

then press and hold

.

6

Press

 or

 of the meter

control switch, select “TPWS”
and then press

.

7

Press

 or

 of the meter

control switch, select “Set
Pressure” and then press
and hold

.

“Setting Tire Pressure Warning
System” will be displayed on the
multi-information display and the
tire pressure warning light will
blink 3 times.
When the message disappears,
initialization is complete.
A message is displayed on the
multi-information display. Also,
“--” is displayed for inflation
pressure of each tire on the
multi-information display while

427

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

the tire pressure warning sys-
tem determines the position.
Drive the vehicle at approxi-
mately 25 mph (40 km/h) or
more for approximately 10 to 30
minutes until the inflation pres-
sure of each tire is displayed on
the multi-information display.
When initialization is complete,
the inflation pressure of each
tire will be displayed on the
multi-information display.
Even if the vehicle is not driven
at approximately 25 mph (40
km/h) or more, initialization can
be completed by driving for a
long time. However, if initializa-
tion does not complete after
driving for 1 hour or more, park
the vehicle in a safe place for
approximately 20 minutes and
then drive the vehicle again.

■

Initializing the tire pressure

warning system

Initialize the system with the tire

inflation pressure adjusted to the

specified level.

■

Initialization procedure

●

Make sure to carry out initializa-

tion after adjusting the tire inflation

pressure.

Also, make sure the tires are cold

before carrying out initialization or

tire inflation pressure adjustment.

●

If you have accidentally turned the

engine switch off during initializa-

tion, it is not necessary to restart

the initialization again as initializa-

tion will restart automatically when

the engine switch has been turned

to ON for the next time.

●

If you accidentally restart the ini-

tialization when initialization is not

necessary, adjust the tire inflation

pressure to the specified level

when the tires are cold, and con-

duct initialization again.

●

While the position of each tire is

being determined and the inflation

pressures are not being displayed

on the multi-information display, if

the inflation pressure of a tire

drops, the tire pressure warning

light will come on.

■

When initialization of the tire

pressure warning system has

failed

Initialization may take longer to

complete if the vehicle is driven on

an unpaved road. When performing

initialization, drive on a paved road if

possible. Depending on the driving

environment and condition of the

tires, initialization will be completed

in approximately 10 to 30 minutes. If

initialization is not complete after

driving approximately 10 to 30 min-

utes, continue driving for a while.
If the inflation pressure of each tire

is not displayed after driving for

approximately 1 hour, perform the

following procedure.

●

Park the vehicle in a safe place for

approximately 20 minutes. Then

drive straight (with occasional left

and right turns) at approximately

25 mph (40 km/h) or more for

approximately 10 to 30 minutes.

However, in the following situations,

the tire inflation pressure will not be

recorded and the system will not

operate properly. Perform initializa-

tion again.

●

If the vehicle is reversed during

initialization, the data up to that

point is reset, so perform the ini-

tialization procedure again from

the beginning.

●

When operating the tire pressure

warning reset switch, the tire pres-

sure warning light does not blink 3

times.

428

6-3. Do-it-yourself maintenance

HIGHLANDER_U

●

After performing initialization, the

tire pressure warning light blinks

for 1 minute then stays on while

driving.

If the inflation pressure of each tire

is still not displayed, have the vehi-

cle inspected by your Toyota dealer.

Every tire pressure warning
valve and transmitter has a
unique ID code. When replacing
a tire pressure warning valve
and transmitter, it is necessary
to register the ID code. When
registering the ID codes, per-
form the following procedure.



4.2-inch display

1

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.505)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Turn the engine switch to
ON.

4

Press

 or

 of the meter

control switch to select

.

5

Press

 or

 of the meter

control switch, select

 and

then press and hold

.

6

Press

 or

 of the meter

control switch, select “TPWS”
and then press

.

7

Press

 or

 of the meter

control switch, select
“Change Wheel” and then
press

 until the tire pres-

sure warning light starts
slowly blinking 3 times.

The change wheel set mode is acti-

vated and registration is started.
Then a message will be displayed

on the multi-information display.

When registration is being per-

formed, the tire pressure warning

light will blink for approximately 1

minute then illuminate and “--” will

be displayed for the inflation pres-

sure of each tire on the multi-infor-

mation display.

8

Drive the vehicle at approxi-
mately 25 mph (40 km/h) or
more for approximately 10 to
30 minutes.

When registration is completed, the

tire pressure warning light will go off

and the inflation pressure of each

tire will be displayed on the

multi-information display.

WARNING

■

When initializing the tire pres-

sure warning system

Do not initializing tire inflation

pressure without first adjusting

the tire inflation pressure to the

specified level. Otherwise, the tire

pressure warning light may not

come on even if the tire inflation

pressure is low, or it may come on

when the tire inflation pressure is

actually normal.

Registering ID codes

429

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, registration can be com-

pleted by driving for a long time.

However, if registration does not

complete after driving for 1 hour or

more, perform the procedure again

from the beginning.

9

Initialize the tire pressure
warning system. (



P.426)



7-inch display

1

Park the vehicle in a safe
place and turn the engine
switch off.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.505)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Turn the engine switch to
ON.

4

Press

 or

 of the meter

control switch to select

.

5

Press

 or

 of the meter

control switch, select

 and

then press and hold

.

6

Press

 or

 of the meter

control switch, select “TPWS”
and then press

.

7

Press

 or

 of the meter

control switch, select
“Change Wheel” and then

press

 until the tire pres-

sure warning light starts
slowly blinking 3 times.

The change wheel set mode is acti-

vated and registration is started.
Then a message will be displayed

on the multi-information display.

When registration is being per-

formed, the tire pressure warning

light will blink for approximately 1

minute then illuminate and “--” will

be displayed for the inflation pres-

sure of each tire on the multi-infor-

mation display.

8

Drive the vehicle at approxi-
mately 25 mph (40 km/h) or
more for approximately 10 to
30 minutes.

When registration is completed, the

tire pressure warning light will go off

and the inflation pressure of each

tire will be displayed on the

multi-information display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, registration can be com-

pleted by driving for a long time.

However, if registration does not

complete after driving for 1 hour or

more, perform the procedure again

from the beginning.

9

Initialize the tire pressure
warning system. (



P.426)

■

When registering ID codes

●

ID code registration is performed

while driving at a vehicle speed of

approximately 25 mph (40 km/h)

or more.

●

Before performing ID code regis-

tration, make sure that no wheels

with tire pressure warning valve

and transmitters installed are near

the vehicle.

●

Make sure to initialize the tire

pressure warning system after

430

6-3. Do-it-yourself maintenance

HIGHLANDER_U

registering the ID codes. If the

system is initialized before regis-

tering the ID codes, the initialized

values will be invalid.

●

ID codes can be registered by

yourself, but depending on the

driving conditions and driving

environment, registration may

take some time to complete.

■

Canceling ID code registration

●

To cancel ID code registration

after it has been started, turn the

engine switch off before driving

the vehicle. If the vehicle is driven

after ID code registration is

started, to cancel registration, per-

form the ID code registration start

procedure again and turn the

engine switch off before driving.

●

If ID code registration has been

canceled, the tire pressure warn-

ing light will blink for approxi-

mately 1 minute when the engine

switch is turned to ON and then

illuminate. The tire pressure warn-

ing system will be operational

when the tire pressure warning

light turns off.

●

If the warning light does not turn

off even after several minutes

have elapsed, ID code registration

may not have been canceled cor-

rectly. To cancel registration, per-

form the ID code registration start

procedure again and then turn the

engine switch off before driving.

■

If ID codes are not registered

properly

In the following situations, ID code

registration may take longer than

usual to be completed or may not be

possible. Normally, registration com-

pletes within approximately 30 min-

utes.

●

Vehicle is not parked for approxi-

mately 20 minutes or more before

driving

●

Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

●

Vehicle is driven on unpaved

roads

●

Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles

Wheel with tire pressure warning

valve and transmitter installed is

inside or near the vehicle
If registration does not complete

after driving for 1 hour or more, per-

form the ID code registration proce-

dure again from the beginning.

●

If the vehicle is reversed during

registration, the data up to that

point is reset, so perform the reg-

istration procedure again from the

beginning.

●

In the following situations, ID code

registration will not be started or

was not completed properly and

the system will not operate prop-

erly. Perform the ID code registra-

tion procedure again.

• If, when attempting to start ID

code registration, the tire pressure

warning light does not blink slowly

3 times.

• If, when the vehicle has been

driven for about 20 minutes after

performing ID code registration,

the tire pressure warning light

blinks for approximately 1 minute

and then illuminates.

If the ID codes cannot be registered

even when performing the above

procedure, contact your Toyota

dealer.

431

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

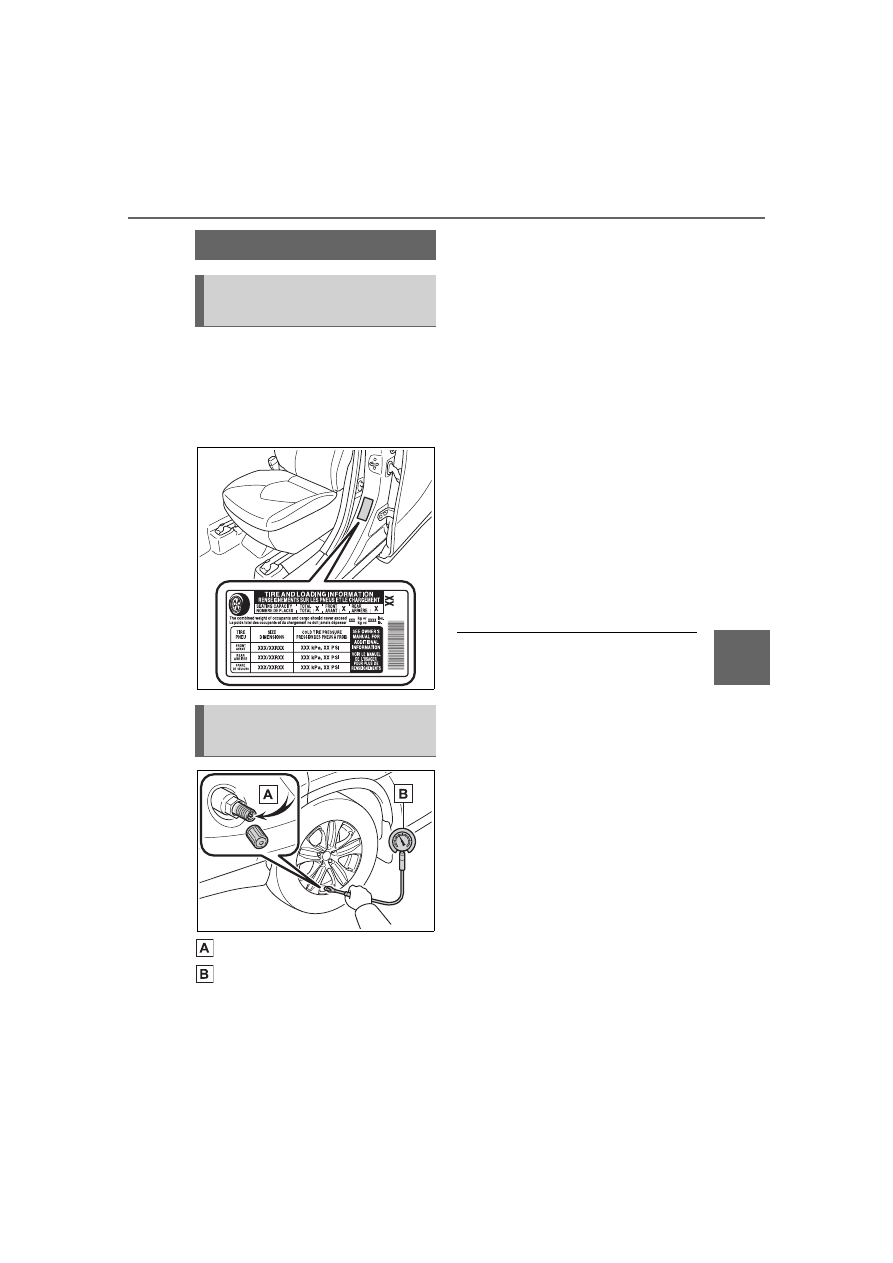

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.505)

Tire valve
Tire pressure gauge

1

Remove the tire valve cap.

2

Press the tip of the tire pres-
sure gauge onto the tire
valve.

3

Read the pressure using the
gauge gradations.

4

If the tire inflation pressure is
not at the recommended
level, adjust the pressure.
If you add too much air, press
the center of the valve to
deflate.

5

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

6

Put the tire valve cap back
on.

■

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month. Do not forget to

check the spare.

■

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor

handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

■

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

Tire inflation pressure

Checking the specified
tire inflation pressure

Inspection and adjust-
ment procedure

432

6-3. Do-it-yourself maintenance

HIGHLANDER_U

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight

should be placed so that the vehi-

cle is balanced.

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

433

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

*

.

Replacement wheels are avail-
able at your Toyota dealer.

*

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, tire pressure warning

valves and transmitters must be

installed. (



P.424)

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire.

Doing so may result in an acci-

dent, causing death or serious

injury.

■

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively tight-

ened, leading to bolt or disc wheel

damage. In addition, the oil or

grease can cause the wheel nuts

to loosen and the wheel may fall

off, causing an accident and

resulting in death or serious injury.

Remove any oil or grease from

the wheel bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels. Doing so could cause the

tire to leak air during driving, pos-

sibly causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

434

6-3. Do-it-yourself maintenance

HIGHLANDER_U



Use only Toyota wheel nuts
and wrenches designed for
use with your aluminum
wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

1

Turn the engine switch off.

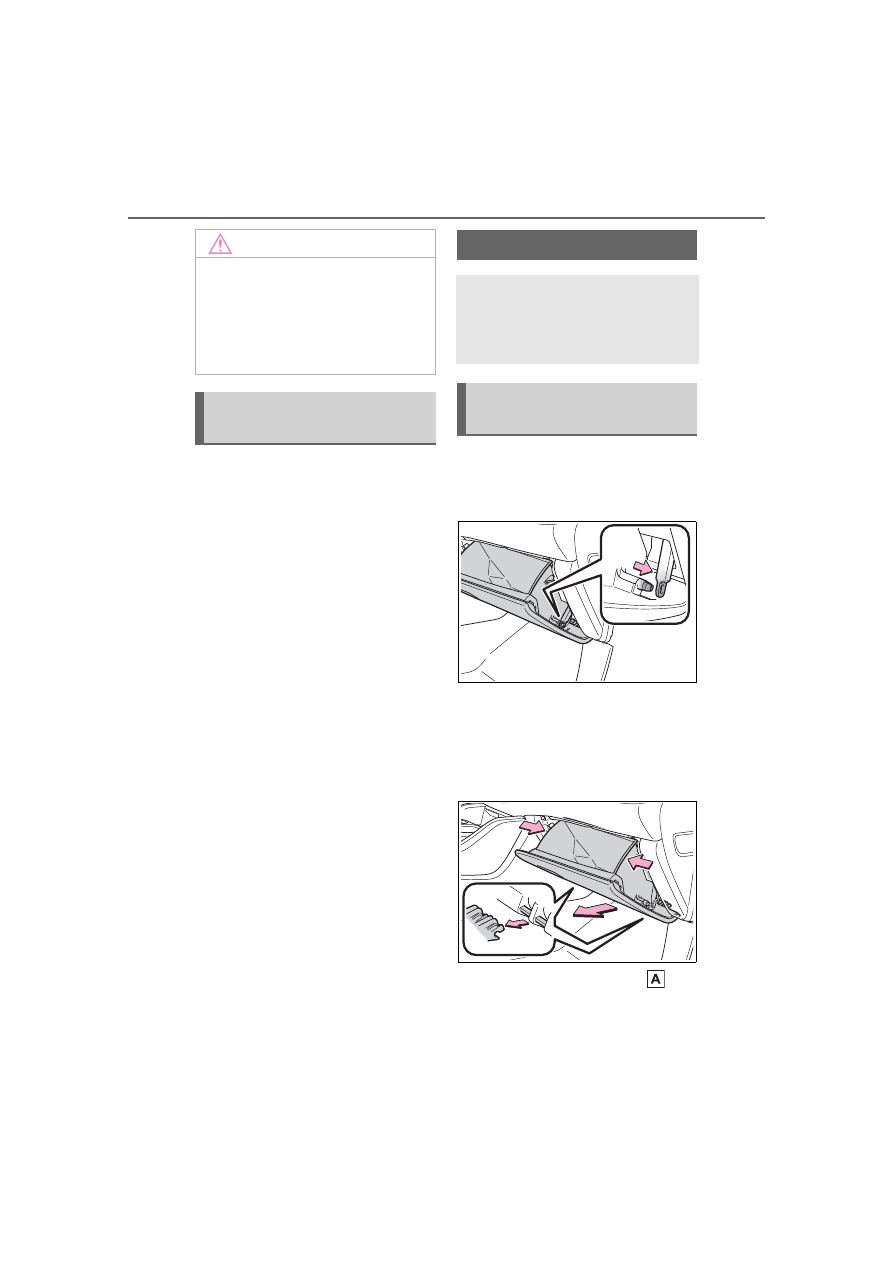

2

Open the glove box. Slide off
the damper.

3

Push in the glove box on the
vehicle’s outer side to discon-
nect the claws. Then pull out
the glove box and disconnect
the lower claws.

4

Unlock the filter cover ( ),
pull the filter cover out of the

NOTICE

●

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removing the air condi-
tioning filter

435

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

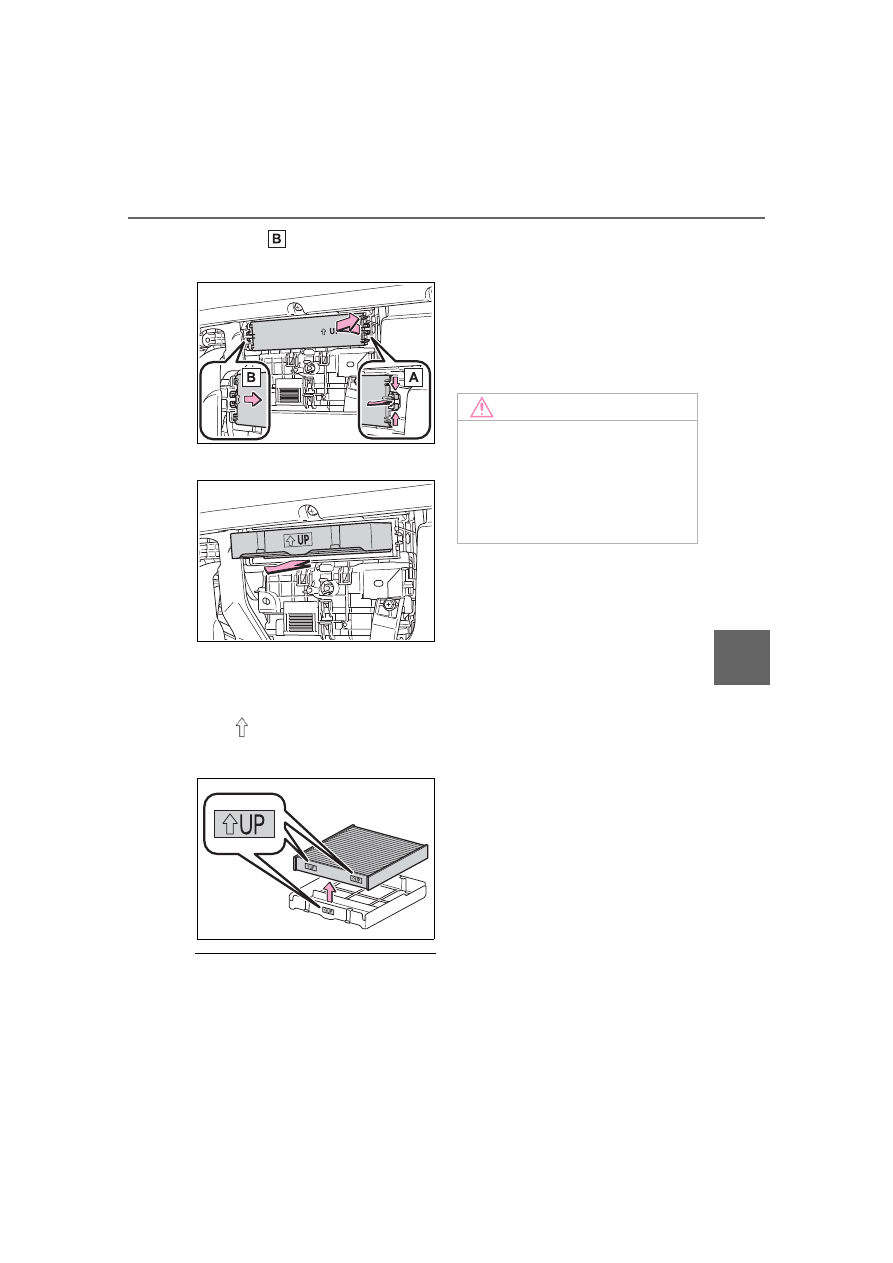

claws ( ), and remove the
filter cover.

5

Remove the filter case.

6

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter and the filter case should be

pointing up.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance Guide”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

436

6-3. Do-it-yourself maintenance

HIGHLANDER_U

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to the local laws.

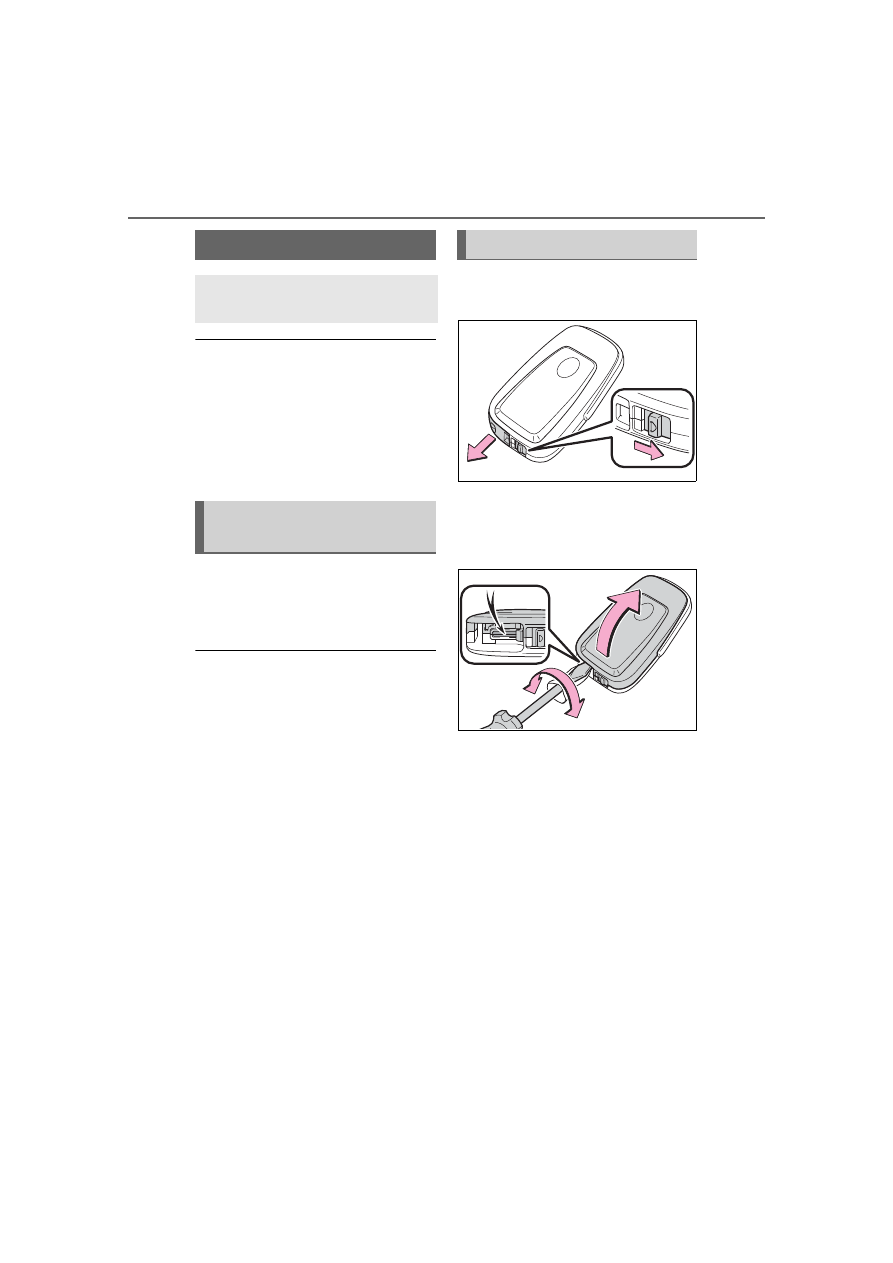

1

Release the lock and remove
the mechanical key.

2

Remove the key cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

3

Remove the depleted battery.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
When removing the battery, use a

screwdriver of an appropriate size.

Insert a new battery with the “+” ter-

Electronic key battery

Replace the battery with a
new one if it is depleted.

You will need the follow-
ing items:

Replacing the battery

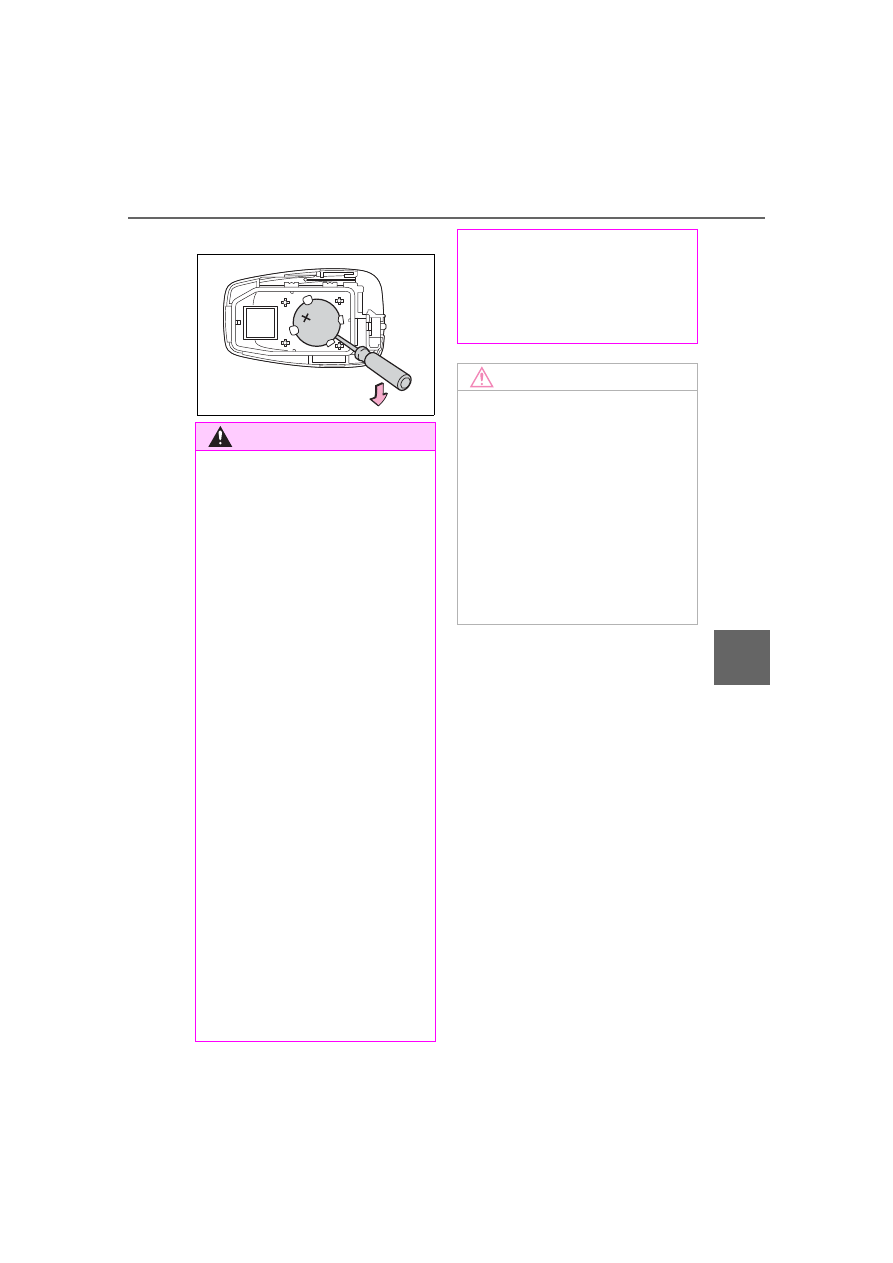

437

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

minal facing up.

WARNING

■

Battery precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

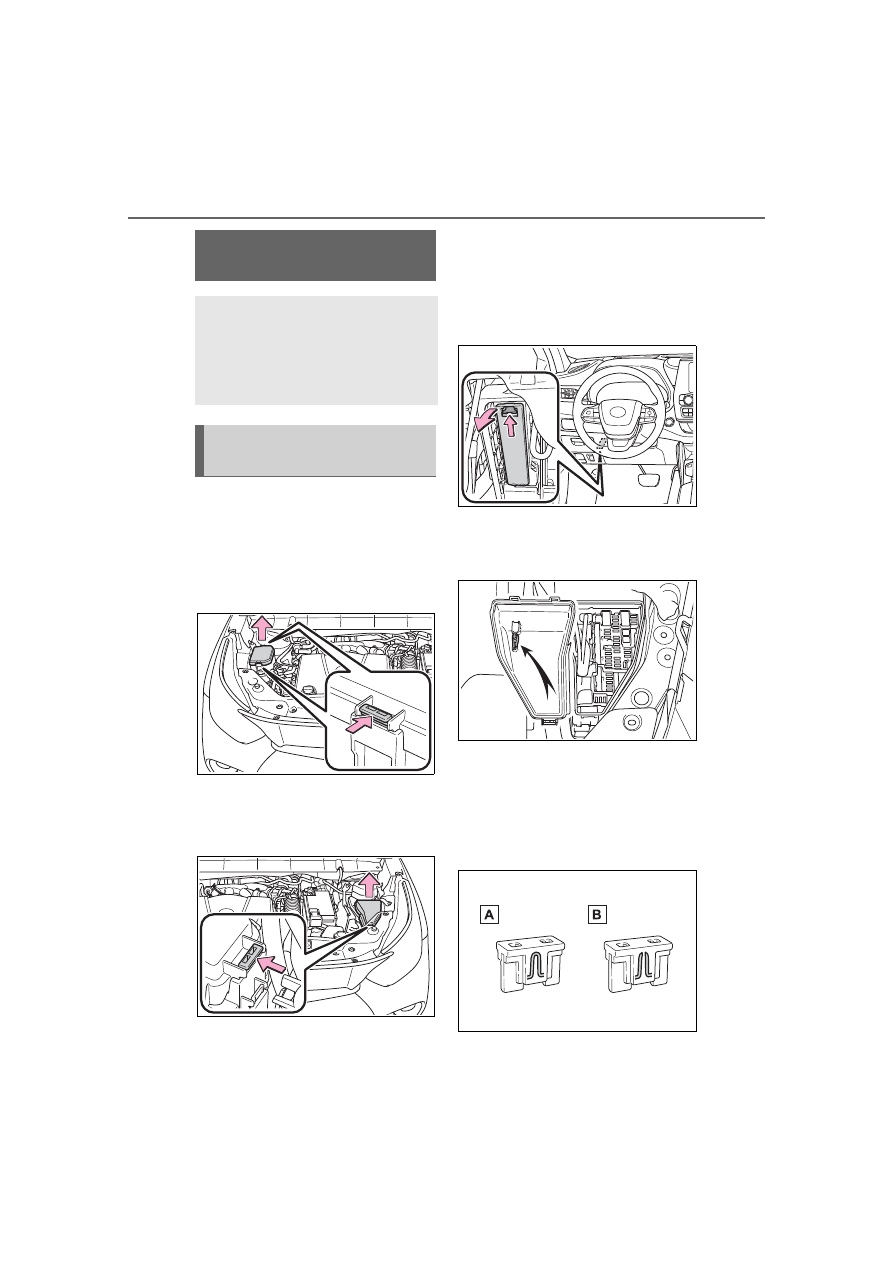

438

6-3. Do-it-yourself maintenance

HIGHLANDER_U

1

Turn the engine switch off.

2

Open the fuse box cover.



Engine compartment: type A
fuse box (if equipped)

Push the tab in and lift the lid off.



Engine compartment: type B
fuse box

Push the tab in and lift the lid off.



Under the driver’s side instru-
ment panel

Remove the lid.
Make sure to push the claw when
removing/installing the lid.

3

Remove the fuse.

Only type A fuse can be removed

using the pullout tool.

4

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



Type A

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

439

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

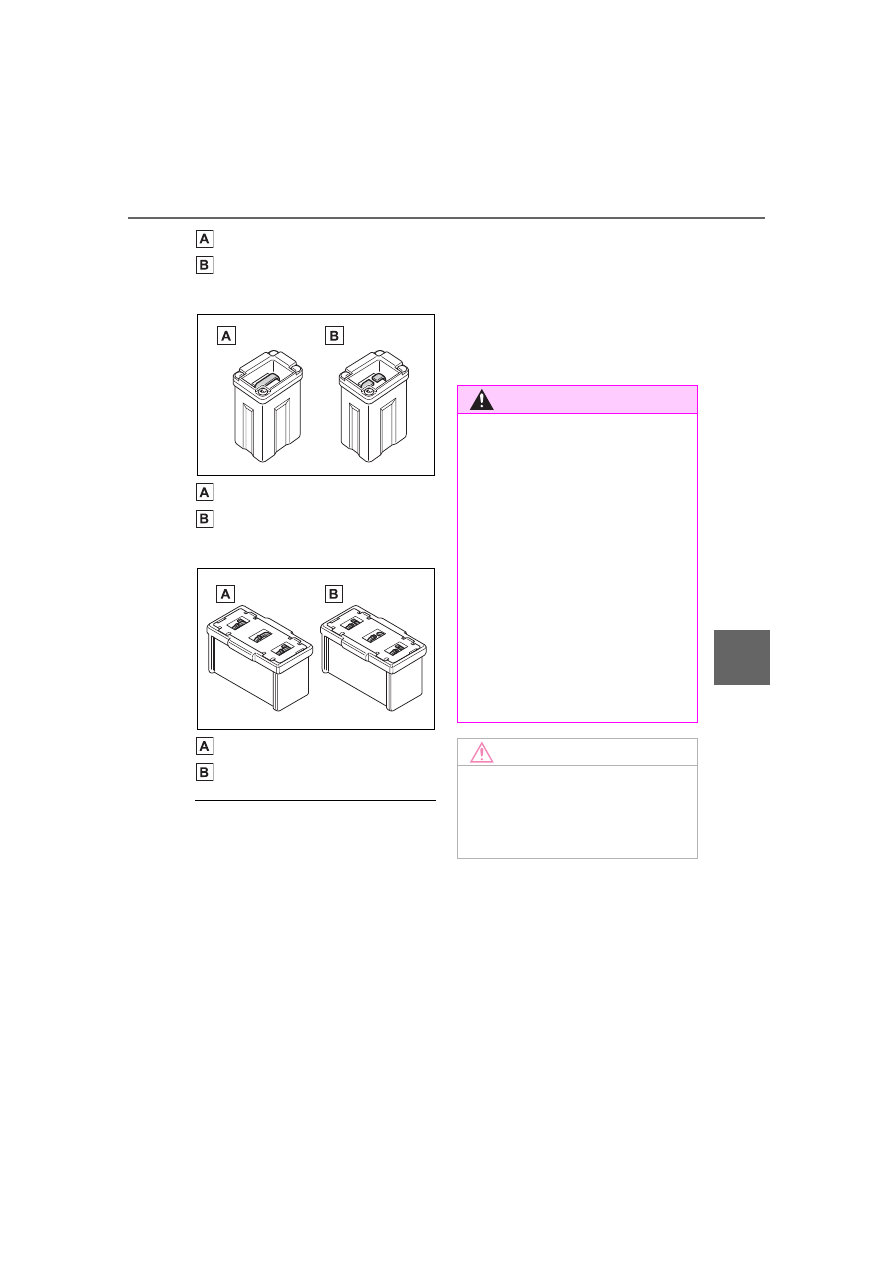

Normal fuse
Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse

■

After a fuse is replaced

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.441)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle. Because certain

bulbs are connected to circuits

designed to prevent overload,

non-genuine parts or parts not

designed for this vehicle may be

unusable.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

440

6-3. Do-it-yourself maintenance

HIGHLANDER_U

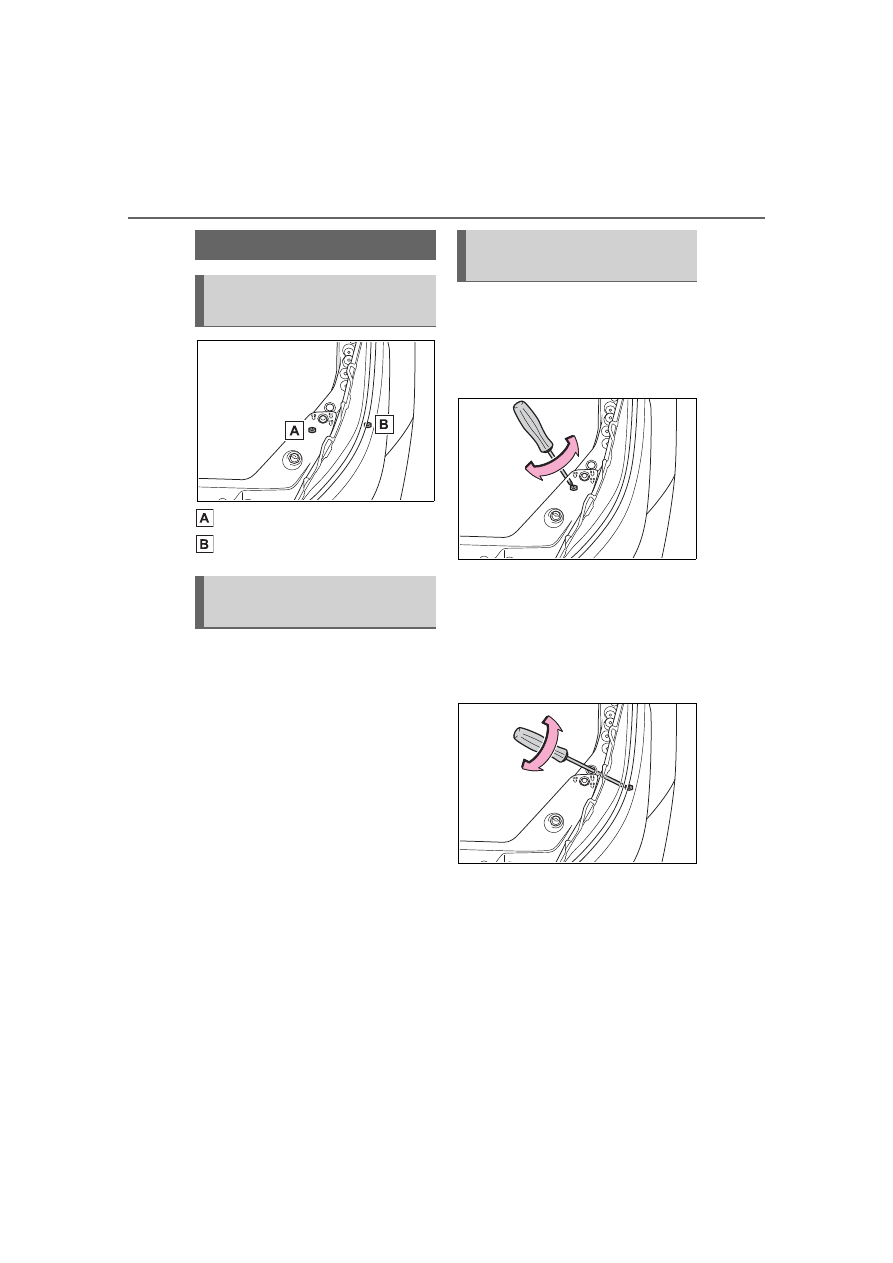

Adjustment bolt A
Adjustment bolt B



Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.



Park the vehicle on level
ground.



Make sure the tire inflation
pressure is at the specified
level.



Have someone sit in the
driver’s seat.



Bounce the vehicle several
times.

1

Using a Phillips-head screw-
driver, turn bolt A in either
direction.

Remember the turning direction

and the number of turns.

2

Turn bolt B the same number
of turns and in the same
direction as step

1

.

If the headlight cannot be adjusted

using this procedure, take the vehi-

cle to your Toyota dealer to adjust

the headlight aim.

Headlight aim

Vertical movement adjust-
ing bolts

Before checking the head-
light aim

Adjusting the headlight
aim

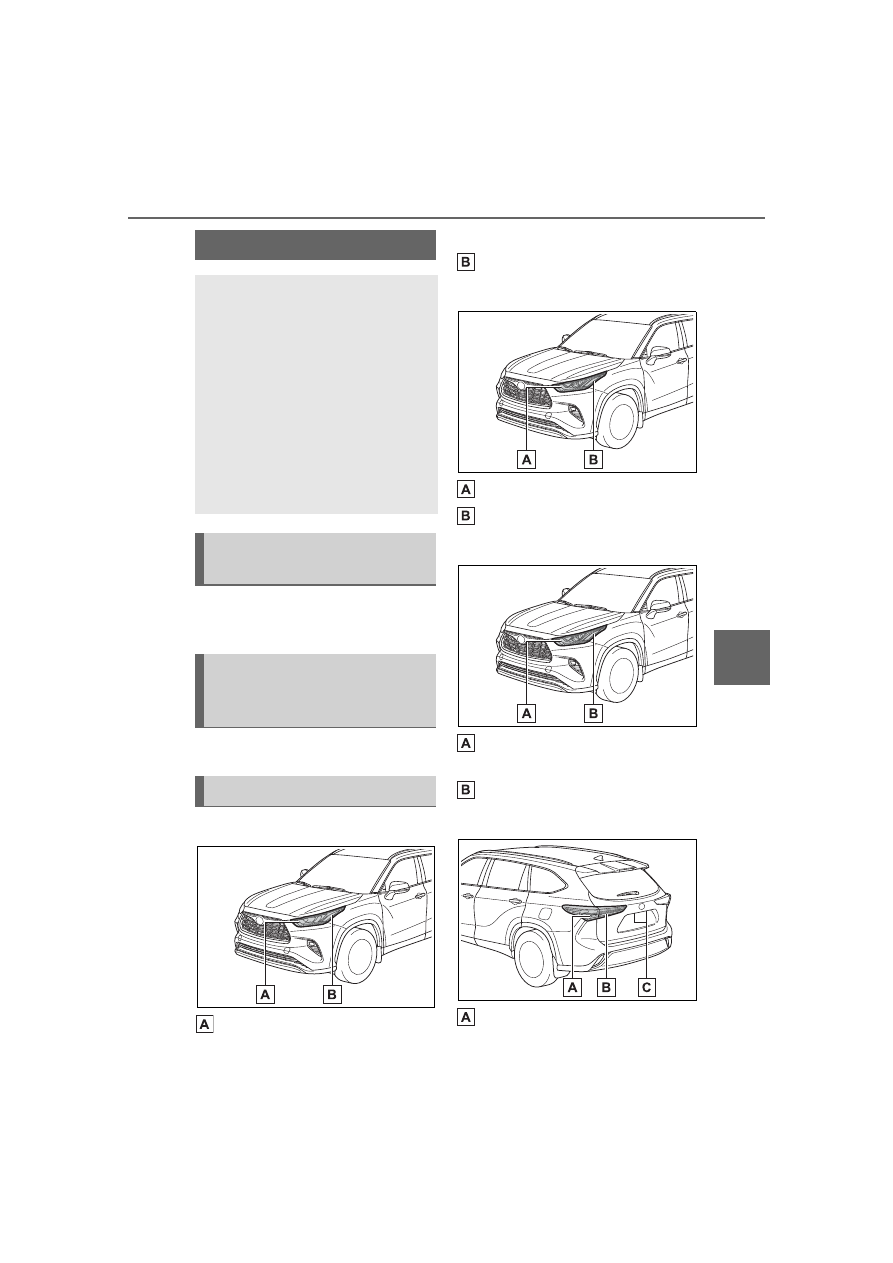

441

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

Check the wattage of the light
bulb to be replaced. (



P.507)



P.526



Front (type A)

Front turn signal lights/park-

ing lights
Front side marker lights



Front (type B)

Front turn signal lights
Front side marker lights



Front (type C)

Front turn signal lights/park-
ing lights
Front side marker lights



Rear

Rear turn signal lights

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.

For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Turning off the power
back door main switch (if
equipped)

Bulb locations

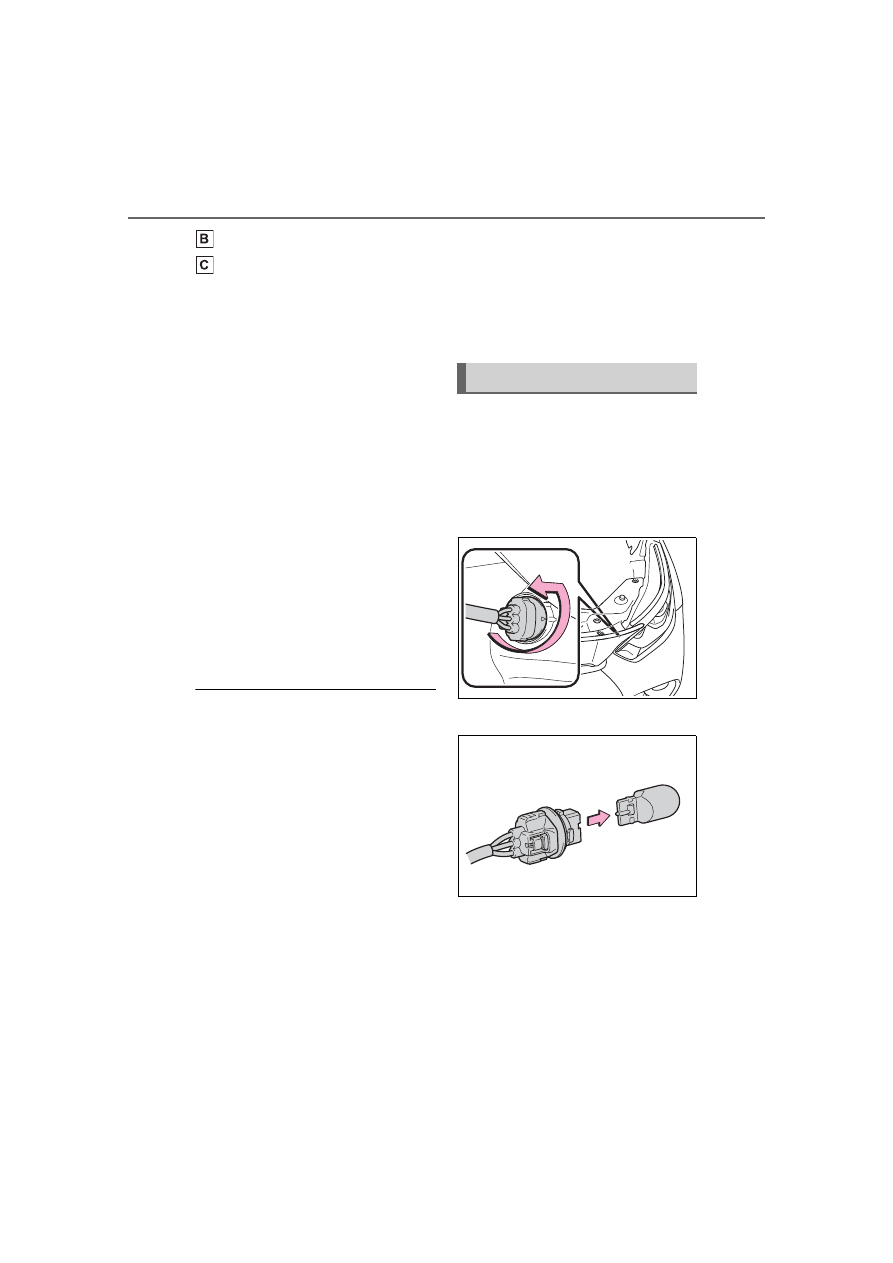

442

6-3. Do-it-yourself maintenance

HIGHLANDER_U

Back-up lights
License plate lights

■

Lights that need to be
replaced by your Toyota
dealer



Headlight low beams



Headlight high beams



Daytime running lights (types
A and C)



Daytime running lights/park-
ing lights (type B)



Front fog lights (if equipped)



Side turn signal lights



Tail lights/stop lights



Rear side marker lights



Tail lights



High mounted stoplight



Outer foot lights (if equipped)

■

LED lights

The lights other than the following

lights each consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

●

Front turn signal lights/parking

lights (types A and C)

●

Front turn signal lights (type B)

●

Front side marker lights

●

Rear turn signal lights

●

Back-up lights

●

License plate lights

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the light lens does

not indicate a malfunction. Contact

your Toyota dealer for more informa-

tion in the following situations:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the light.

■

When replacing light bulbs



P.439

■

Front turn signal
lights/parking lights (types
A and C) and front turn sig-
nal lights (type B)

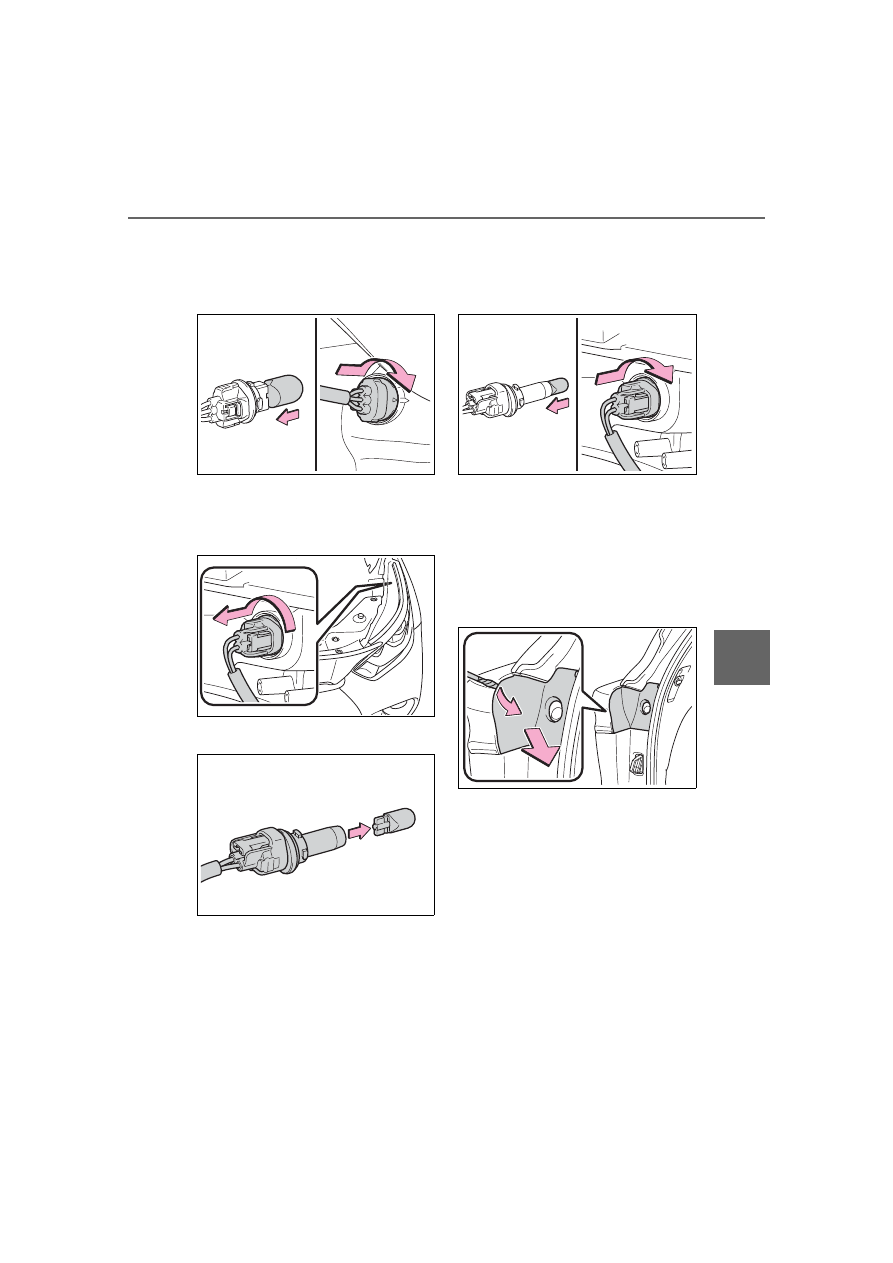

1

Turn the bulb base counter-
clockwise and remove it.

2

Remove the light bulb.

3

Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning the bulb base
clockwise.

After installing the bulb base, wig-

gle it lightly to make sure it is

Replacing light bulbs

443

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

securely installed and turn the lights

and turn signal lights on to visually

check that there is no light leaking

from between the bulb base and

light unit.

■

Front side marker lights

1

Turn the bulb base counter-
clockwise and remove it.

2

Remove the light bulb.

3

Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning the bulb base
clockwise.

After installing the bulb base, wig-

gle it lightly to make sure it is

securely installed and turn the lights

on to visually check that there is no

light leaking from between the bulb

base and light unit.

■

Rear turn signal lights

1

Open the back door and
using a flathead screwdriver,
remove the cover.

To prevent damage to the vehicle,

wrap the tip of the flathead screw-

driver with tape, etc.

2

Remove the securing 2
screws and light unit.

Remove the light unit by pulling it

straight back from the rear of the

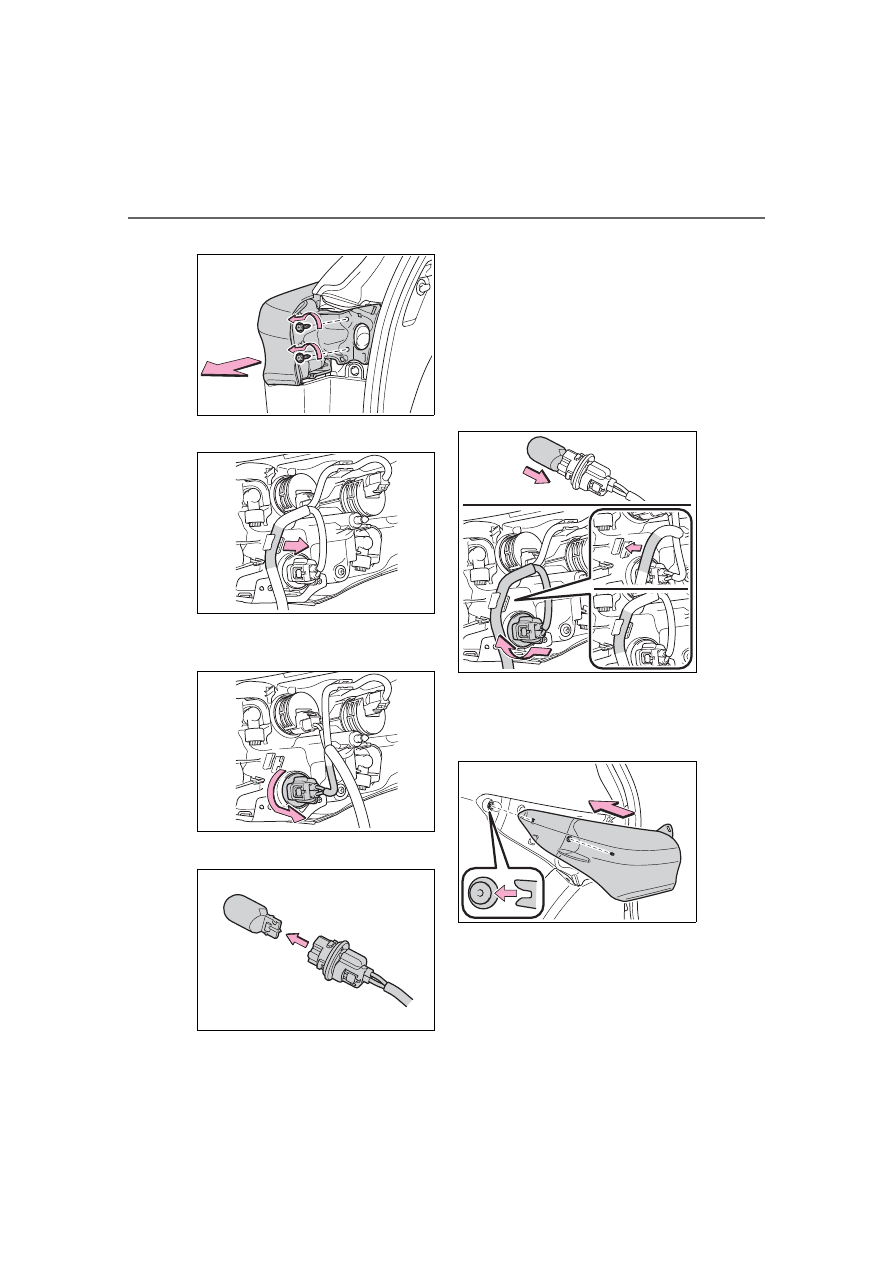

444

6-3. Do-it-yourself maintenance

HIGHLANDER_U

vehicle.

3

Disconnect the wire harness.

4

Turn the bulb base counter-
clockwise and remove it.

5

Remove the light bulb.

6

Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.

After installing the bulb base, wig-

gle it lightly to make sure it is

securely installed and turn on the

turn signal lights to visually check

that there is no light leaking from

between the bulb base and light

unit.

7

Install the light unit.

Align the 2 guides and push the

light unit toward the front of the

vehicle to install it.

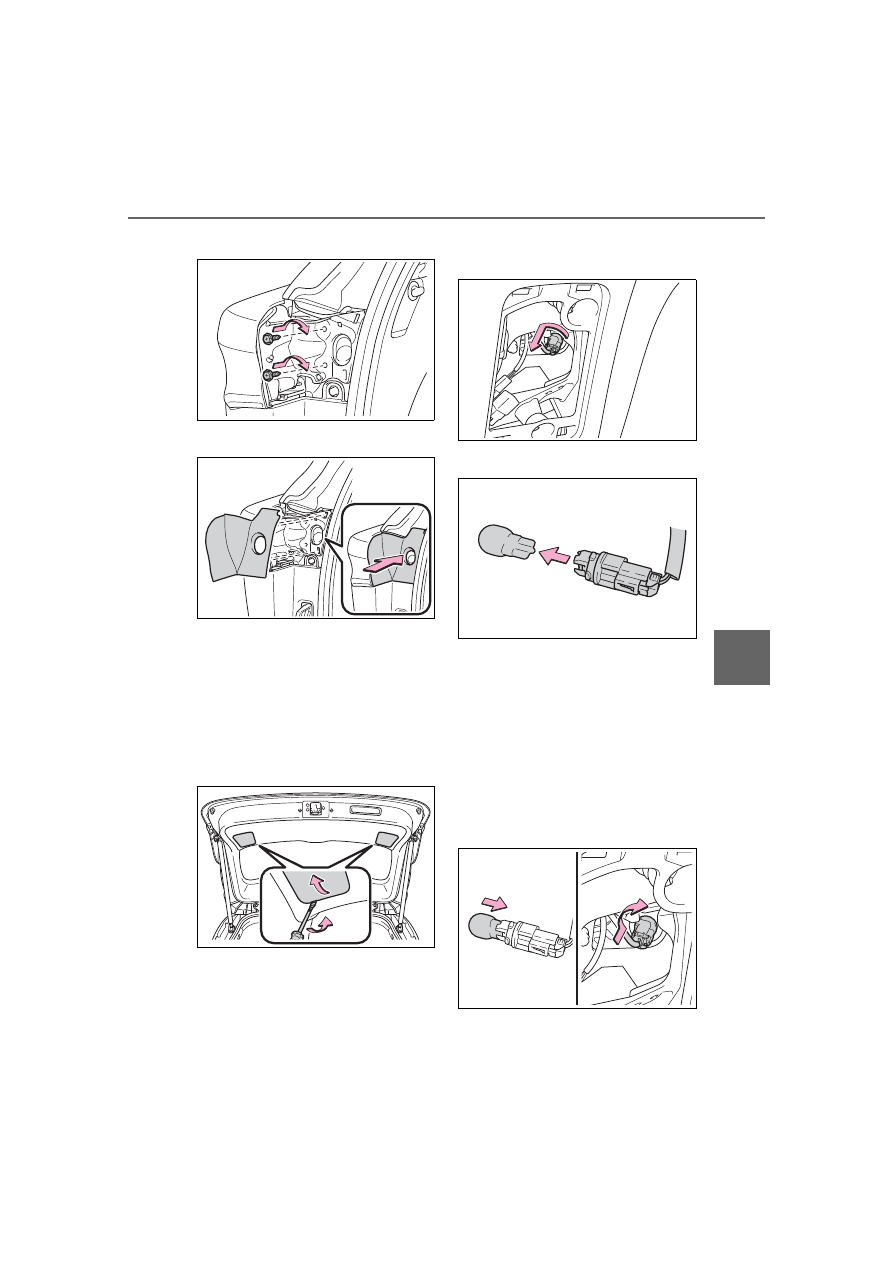

445

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

8

Install the 2 screws.

9

Install the cover.

■

Back-up lights

1

Open the back door and
remove the cover.

Using a flathead screwdriver,

remove the cover.
To prevent damage to the vehicle,

wrap the tip of the flathead screw-

driver with tape, etc.

2

Turn the bulb base counter-
clockwise and remove it.

3

Remove the light bulb.

4

Install a new light bulb, and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.

After installing the bulb base, wig-

gle it lightly to make sure it is

securely installed and turn on the

back-up lights to visually check that

there is no light leaking from

between the bulb base and light

unit.

5

Install the cover.

446

6-3. Do-it-yourself maintenance

HIGHLANDER_U

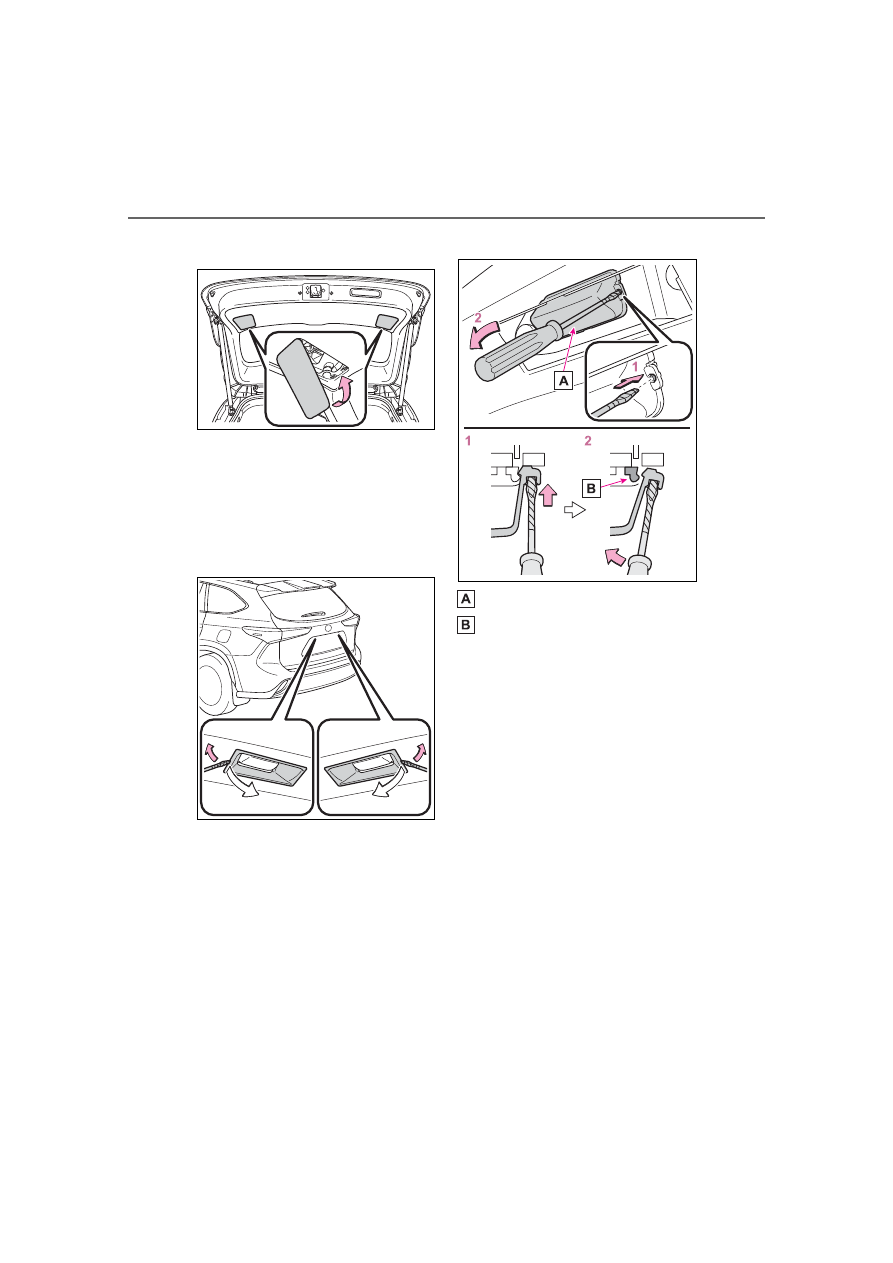

Align the tabs of the cover with the

grooves and install the cover.

■

License plate lights

1

Remove the cover.

Using a flathead screwdriver,

remove the cover.
To prevent damage to the vehicle,

wrap the tip of the flathead screw-

driver with tape, etc.

2

Remove the lens.

Lens
Hook

1

Insert a small flathead screw-
driver, etc. into either the
right or left hole of the lens.

2

Push the screwdriver side-
ways in the direction of the
arrow shown in the illustra-
tion, disengage the hook, and
then remove the lens.

To prevent damage to the vehicle,
wrap the tip of the screwdriver with
tape, etc.

447

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

HIGHLANDER_U

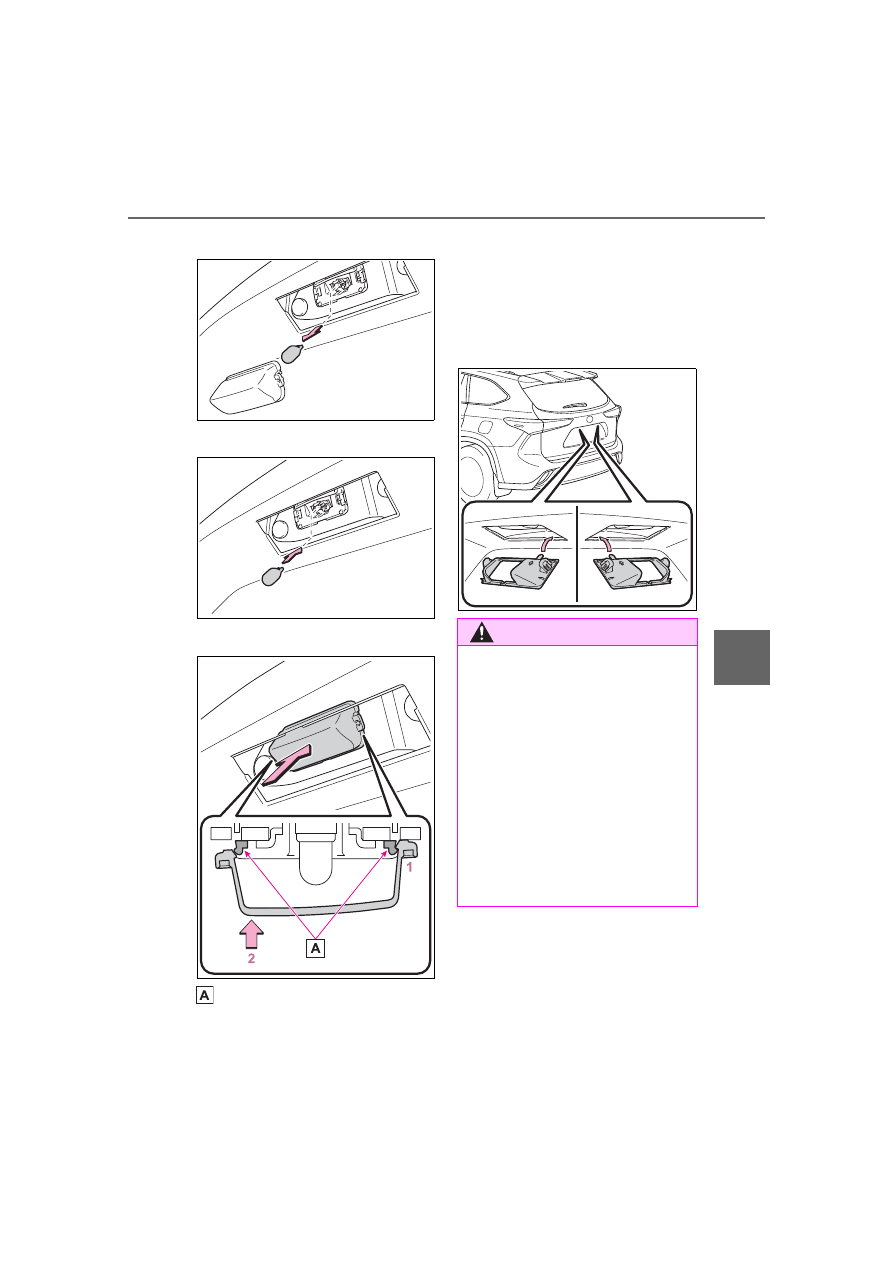

3

Remove the light bulb.

4

Install a new light bulb.

5

Install the lens.

Hooks

1

Fit the lens into either the

right or left hooks.

2

Push the lens into place.

After installation, confirm that the
lens is properly installed by gently
pulling it.

6

Install the cover.

WARNING

■

To prevent injury

Before performing any light bulb

replacement procedure, be sure

to turn the engine switch off. Fail-

ure to do so may result in burns

from hot components or a part of

your body may get caught on an

operating component, possibly

causing serious injury.

■

Replacing light bulbs

●

Turn off the lights. Do not

attempt to replace the bulb

immediately after turning off the

lights.The bulbs become very

hot and may cause burns.

448

6-3. Do-it-yourself maintenance

HIGHLANDER_U

WARNING

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb. Also, if the bulb

is scratched or dropped, it may

blow out or crack.

●

Fully install light bulbs and any

parts used to secure them. Fail-

ure to do so may result in heat

damage, fire, or water entering

the light unit. This may damage

the lights or cause condensa-

tion to build up on the lens.

●

Do not attempt to repair or dis-

assemble light bulbs, connec-

tors, electric circuits or

component parts.

Doing so may result in death or

serious injury due to electric

shock.

■

To prevent damage or fire

●

Make sure bulbs are fully

seated and locked.

●

Check the wattage of the bulb

before installing to prevent heat

damage.

449

7

7

Whe

n tr

ouble

 ar

ises

HIGHLANDER_U

When trouble arises

.

7-1. Essential information

Emergency flashers ....

450

If your vehicle has to be

stopped in an emergency

..................................

450

If the vehicle is trapped in

rising water................

451

7-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

453

If you think something is

wrong ........................

456

Fuel pump shut off system

..................................

457

If a warning light turns on or

a warning buzzer sounds

..................................

458

If a warning message is dis-

played........................

468

If you have a flat tire....

472

If the engine will not start

..................................

486

If you lose your keys ...

487

If the fuel filler door cannot

be opened .................

488

If the electronic key does

not operate properly ..

489

If the vehicle battery is dis-

charged .....................

491

If your vehicle overheats

..................................

495

If the vehicle becomes stuck

..................................

497

450

7-1. Essential information

HIGHLANDER_U

7-1.Essential information

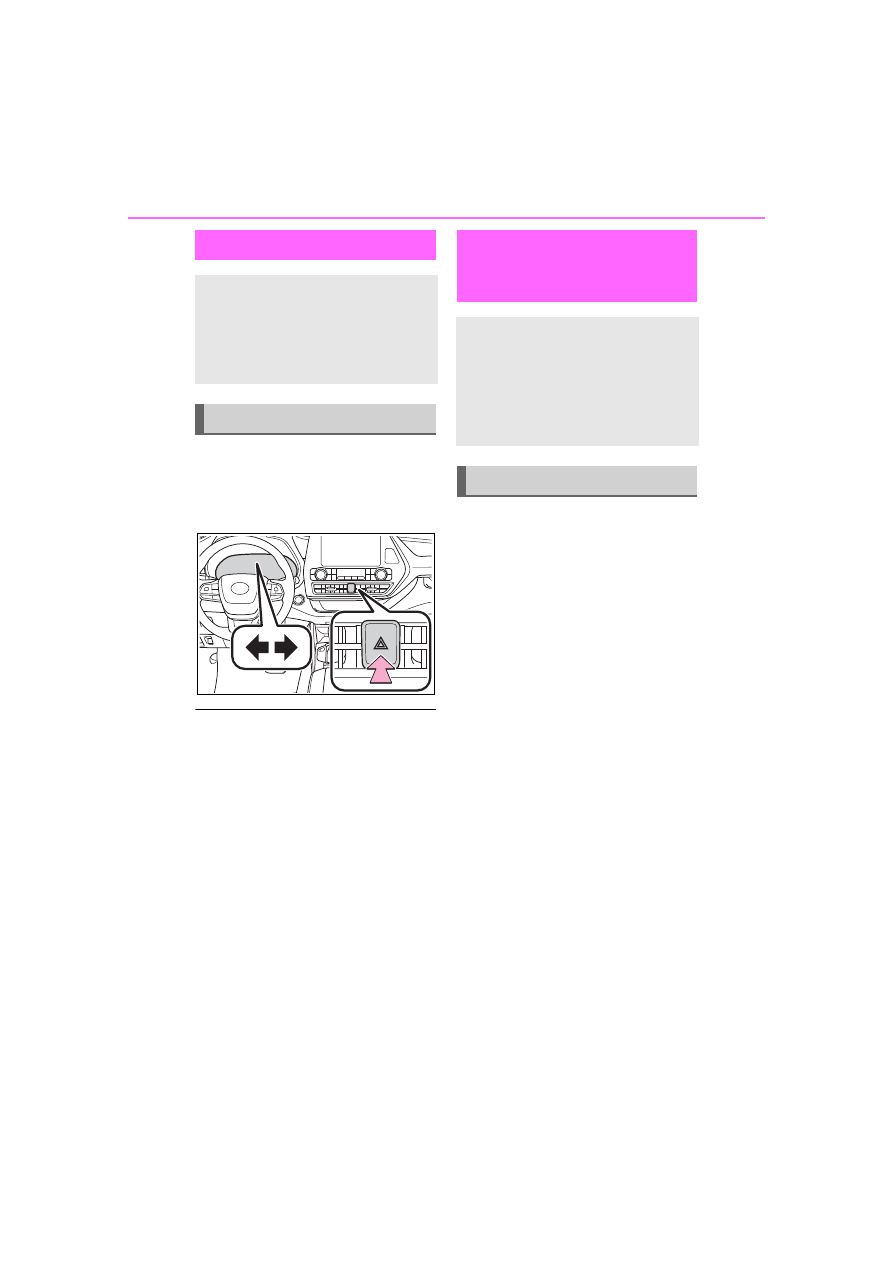

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

engine is not operating, the bat-

tery may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice.

(The emergency flashers may not

turn on automatically depending

on the force of the impact and

conditions of the collision.)

1

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

2

Shift the shift lever to N.



If the shift lever is shifted to N

3

After slowing down, stop the
vehicle in a safe place by the
road.

4

Stop the engine.



If the shift lever cannot be
shifted to N

3

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

4

To stop the engine, press and
hold the engine switch for 2
consecutive seconds or

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to
a breakdown, etc.

Operating instructions

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehicle
using the following proce-
dure:

Stopping the vehicle

451

7-1. Essential information

7

W

he

n

tro

ub

le

 ar

is

es

HIGHLANDER_U

more, or press it briefly 3
times or more in succession.

5

Stop the vehicle in a safe
place by the road.



Remove the seat belt first.



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and exit
the vehicle through the win-
dow.



If the window can not be
opened using the power win-
dow switch, remain calm, wait
until the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle, and then open the door
and exit the vehicle.

WARNING

■

If the engine has to be turned

off while driving

Power assist for the brakes and

steering wheel will be lost, making

the brake pedal harder to depress

and the steering wheel heavier to

turn. Decelerate as much as pos-

sible before turning off the engine.

If the vehicle is

trapped in rising water

In the event the vehicle is
submerged in water, remain
calm and perform the fol-
lowing.

452

7-1. Essential information

HIGHLANDER_U

■

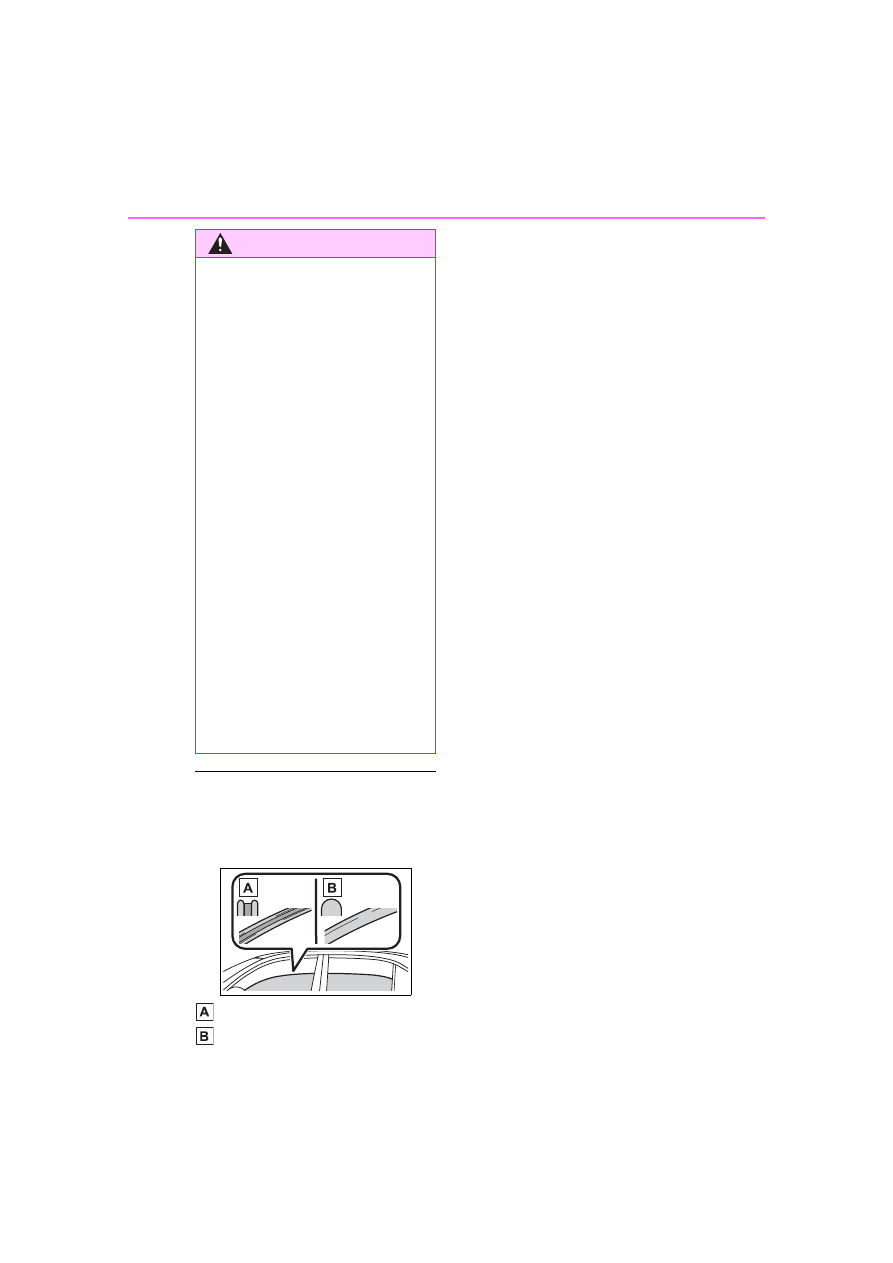

How to distinguish laminated

glass

When looking from the cross-sec-

tional view point, laminated glass is

two sheets of glass pasted together.

Laminated glass
Tempered glass

WARNING

■

Using an emergency ham-
mer

*1

 for emergency escape

The rear side windows and rear

window of this vehicle can be

shattered by an emergency ham-
mer

*1

 used for emergency

escape, however, since the wind-
shield and front side windows

*2



are laminated glass they can not

be shattered by an emergency
hammer

*1

.

*1

:Contact your Toyota dealer or

aftermarket accessory manu-
facturer for further information
about an emergency hammer.

*2

:Vehicles with laminated glass

■

Escaping the vehicle from the

window

There are cases where escaping

the vehicle from the window is not

possible due to seating position,

passenger body type, etc.

When using an emergency ham-

mer, consider your seat location

and the size of the window open-

ing to ensure that the opening is

accessible and large enough to

escape.

453

7-2. Steps to take in an emergency

7

W

he

n

tro

ub

le

 ar

is

es

HIGHLANDER_U

7-2.Steps to take in an emergency

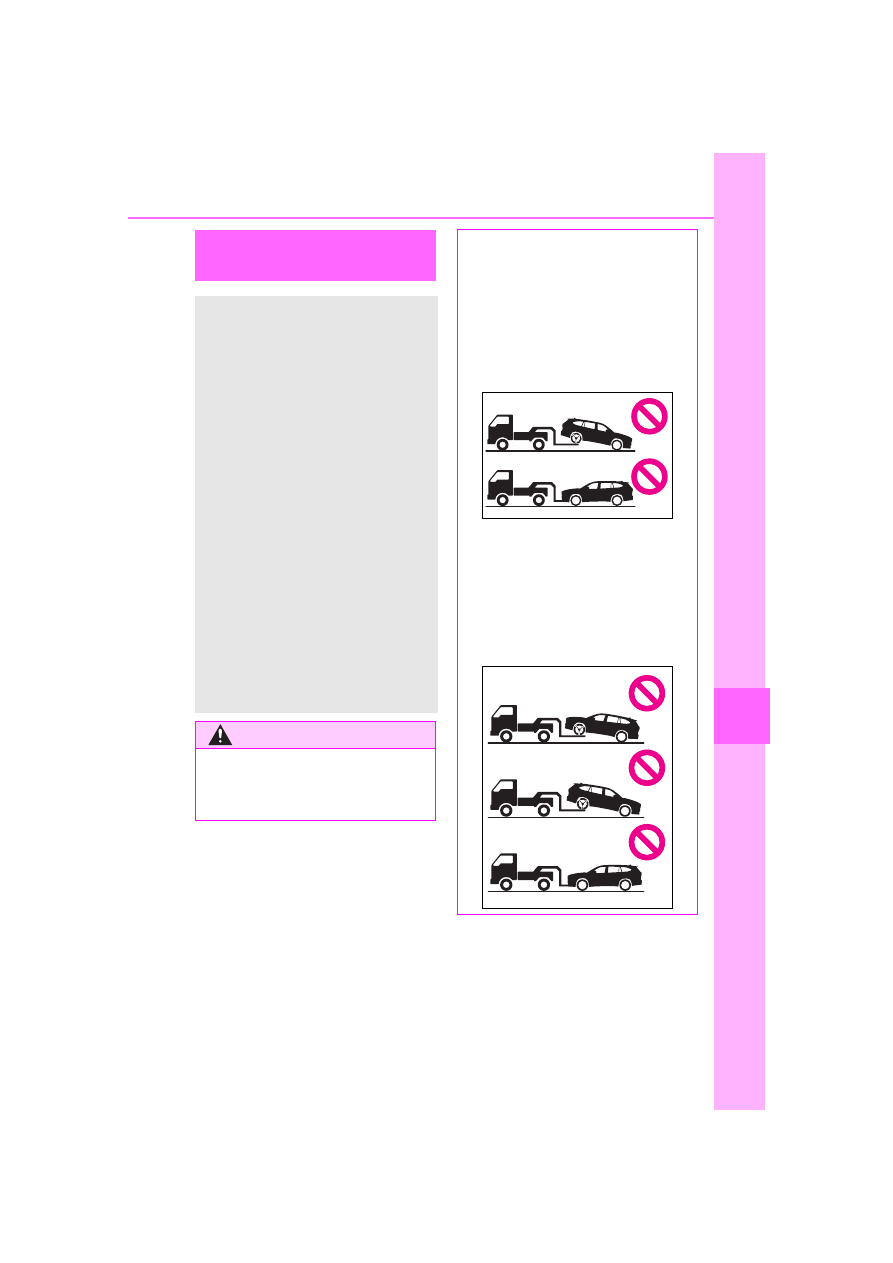

If your vehicle needs

to be towed

If towing is necessary, we
recommend having your
vehicle towed by your Toy-
ota dealer or commercial
towing service, using a
wheel-lift type truck or flat-
bed truck.

Use a safety chain system
for all towing, and abide by
all state/provincial and local
laws.

If towing your vehicle with a
wheel-lift type truck from
the front, the vehicle’s rear
wheels and axles must be in
good conditions. (



P.455)

If they are damaged, use a
towing dolly or flatbed
truck.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

When towing the vehicle



2WD models

Be sure to transport the vehicle

with the front wheels raised or

with all four wheels raised off the

ground. If the vehicle is towed

with the front wheels contacting

the ground, the drivetrain and

related parts may be damaged.



AWD models

Be sure to transport the vehicle

with all four wheels raised off the

ground. If the vehicle is towed

with the tires contacting the

ground, the drivetrain or related

parts may be damaged, the vehi-

cle may fly off the truck.

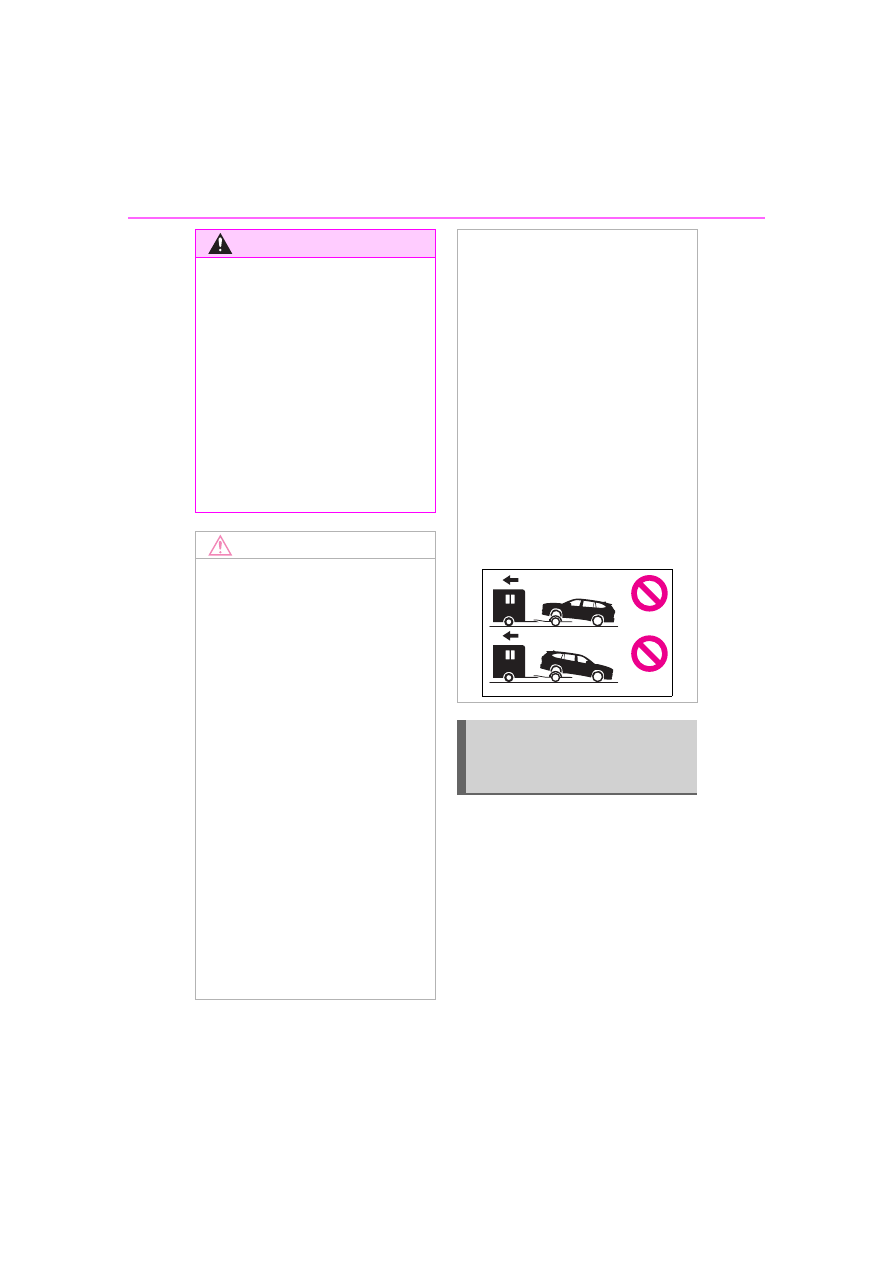

454

7-2. Steps to take in an emergency

HIGHLANDER_U

The following may indicate a
problem with your transmission.
Contact your Toyota dealer or
commercial towing service
before towing.



The engine is running but the
vehicle does not move.



The vehicle makes an abnor-
mal sound.

WARNING

■

While towing

●

When towing using cables or

chains, avoid sudden starts, etc.

which place excessive stress on

the towing eyelets, cables or

chains. The towing eyelets,

cables or chains may become

damaged, broken debris may hit

people, and cause serious dam-

age.

●

Do not turn the engine switch

off.

There is a possibility that the

steering wheel is locked and

cannot be operated.

NOTICE

■

To prevent damage to the

vehicle when towing using a

wheel-lift type truck

●

Do not tow the vehicle from the

rear when the engine switch is

off. The steering lock mecha-

nism is not strong enough to

hold the front wheels straight.

●

When raising the vehicle,

ensure adequate ground clear-

ance for towing at the opposite

end of the raised vehicle. With-

out adequate clearance, the

vehicle could be damaged while

being towed.

■

To prevent damage to the

vehicle when towing with a

sling-type truck

Do not tow with a sling-type truck,

either from the front or rear.

■

To prevent damage to the

vehicle during emergency

towing

Do not secure cables or chains to

the suspension components.

■

When towing a vehicle

equipped with a Stop & Start

system (if equipped)

If it is necessary to tow the vehicle

with all 4 wheels on the ground,

perform the following procedure

before towing the vehicle, in order

to protect the system.

Turn the engine switch off and

then start the engine or turn the

engine switch to ON.

■

Recreational towing (behind

motor home, etc.)

Never dinghy tow your vehicle to

prevent causing serious damage

to the Dynamic Torque Control

AWD system (AWD models) or

Dynamic Torque Vectoring AWD

system (AWD models) and trans-

mission. (



P.201)

Situations when it is nec-
essary to contact dealers
before towing

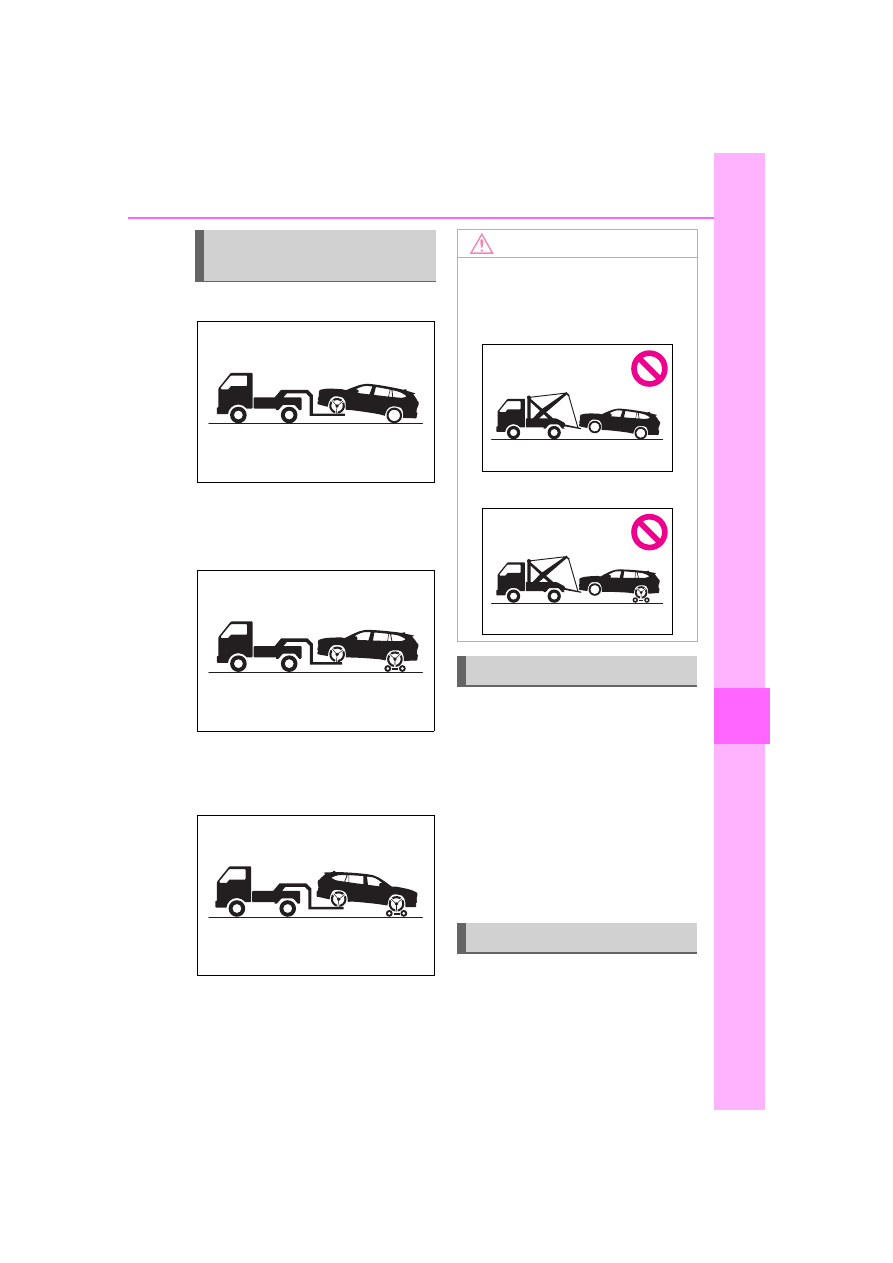

455

7-2. Steps to take in an emergency

7

W

he

n

tro

ub

le

 ar

is

es

HIGHLANDER_U



From the front (2WD models)

Release the parking brake.

Turn automatic mode off. (



P.212)



From the front (AWD models)

Use a towing dolly under the
rear wheels.



From the rear

Use a towing dolly under the
front wheels.

When using a flat-bed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner's manual of the flat-bed
truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the engine switch off.

A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must

Towing with a wheel-lift
type truck

NOTICE

■

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.



2WD models



AWD models

Using a flatbed truck

Emergency towing

456

7-2. Steps to take in an emergency

HIGHLANDER_U

be in good condition.



Fluid leaks under the vehicle
(Water dripping from the air
conditioning after use is nor-
mal.)



Flat-looking tires or uneven
tire wear



Engine coolant temperature
gauge needle continually
points higher than normal



Changes in exhaust sound



Excessive tire squeal when
cornering



Strange noises related to the
suspension system



Pinging or other noises
related to the engine



Engine missing, stumbling or
running roughly



Appreciable loss of power



Vehicle pulls heavily to one

If you think something

is wrong

If you notice any of the fol-
lowing symptoms, your
vehicle probably needs
adjustment or repair. Con-
tact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

457

7-2. Steps to take in an emergency

7

W

he

n

tro

ub

le

 ar

is

es

HIGHLANDER_U

side when braking



Vehicle pulls heavily to one
side when driving on a level
road



Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor

Follow the procedure below to
restart the engine after the sys-
tem is activated.

1

Turn the engine switch to
ACC or turn it OFF.

2

Restart the engine.

Fuel pump shut off

system

To minimize the risk of fuel
leakage when the engine
stalls or when an airbag
inflates upon collision, the
fuel pump shut off system
stops the supply of fuel to
the engine.

Restarting the engine

NOTICE

■

Before starting the engine

Inspect the ground under the

vehicle.

If you find that fuel has leaked

onto the ground, the fuel system

has been damaged and is in need

of repair. Do not restart the

engine.

458

7-2. Steps to take in an emergency

HIGHLANDER_U

■

Brake system warning light

■

Brake system warning light

■

High coolant temperature warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display.

If a warning light turns on or a warning buzzer

sounds

Calmly perform the following actions if any of the warning
lights comes on or flashes. If a light comes on or flashes, but
then goes off, this does not necessarily indicate a malfunction
in the system. However, if this continues to occur, have the
vehicle inspected by your Toyota dealer.

Actions to the warning lights or warning buzzers

Warning light

Details/Actions

(U.S.A.)

or

(red)

(Canada)

Indicates that:



The brake fluid level is low; or



The brake system is malfunctioning



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.

Warning light

Details/Actions

(yellow)

Indicates a malfunction in the electric parking brake



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

Indicates that the engine coolant temperature is too high



Immediately stop the vehicle in a safe place.
Handling method (



P.495)

459

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 ar

ises

HIGHLANDER_U

■

Charging system warning light

■

Low engine oil pressure warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display.

■

Malfunction indicator lamp

■

SRS warning light

Warning light

Details/Actions

Indicates a malfunction in the vehicle’s charging system



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.

Warning light

Details/Actions

Indicates that the engine oil pressure is too low



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.

Warning light

Details/Actions

(U.S.A.)

or

(Canada)

Indicates a malfunction in:



The electronic engine control system;



The electronic throttle control system; or



The electronic automatic transmission control system



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.

Warning light

Details/Actions

Indicates a malfunction in:



The SRS airbag system;



The front passenger occupant classification system; or



The seat belt pretensioner system



Have the vehicle inspected by your Toyota dealer
immediately.

460

7-2. Steps to take in an emergency

HIGHLANDER_U

■

ABS warning light

■

Brake Override System warning light/Drive-Start Control
warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display.

■

Electric power steering system warning light (warning
buzzer)

Warning light

Details/Actions

(U.S.A.)

or

(Canada)

Indicates a malfunction in:



The ABS; or



The brake assist system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

When a buzzer sounds:



Brake Override System is malfunctioning;



Drive-Start Control is operating;



Drive-Start Control is malfunctioning; or



Parking Support Brake function (for static objects) (if
equipped) is operating



Follow the instructions displayed on the multi-infor-
mation display.

When a buzzer does not sound:
Brake Override System is operating



Release the accelerator pedal and depress the brake
pedal.

Warning light

Details/Actions

(red/yellow)

Indicates a malfunction in the EPS (Electric Power Steer-
ing) system



Have the vehicle inspected by your Toyota dealer
immediately.
