Toyota Corolla (2021 year). Manual in english - part 9

525

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

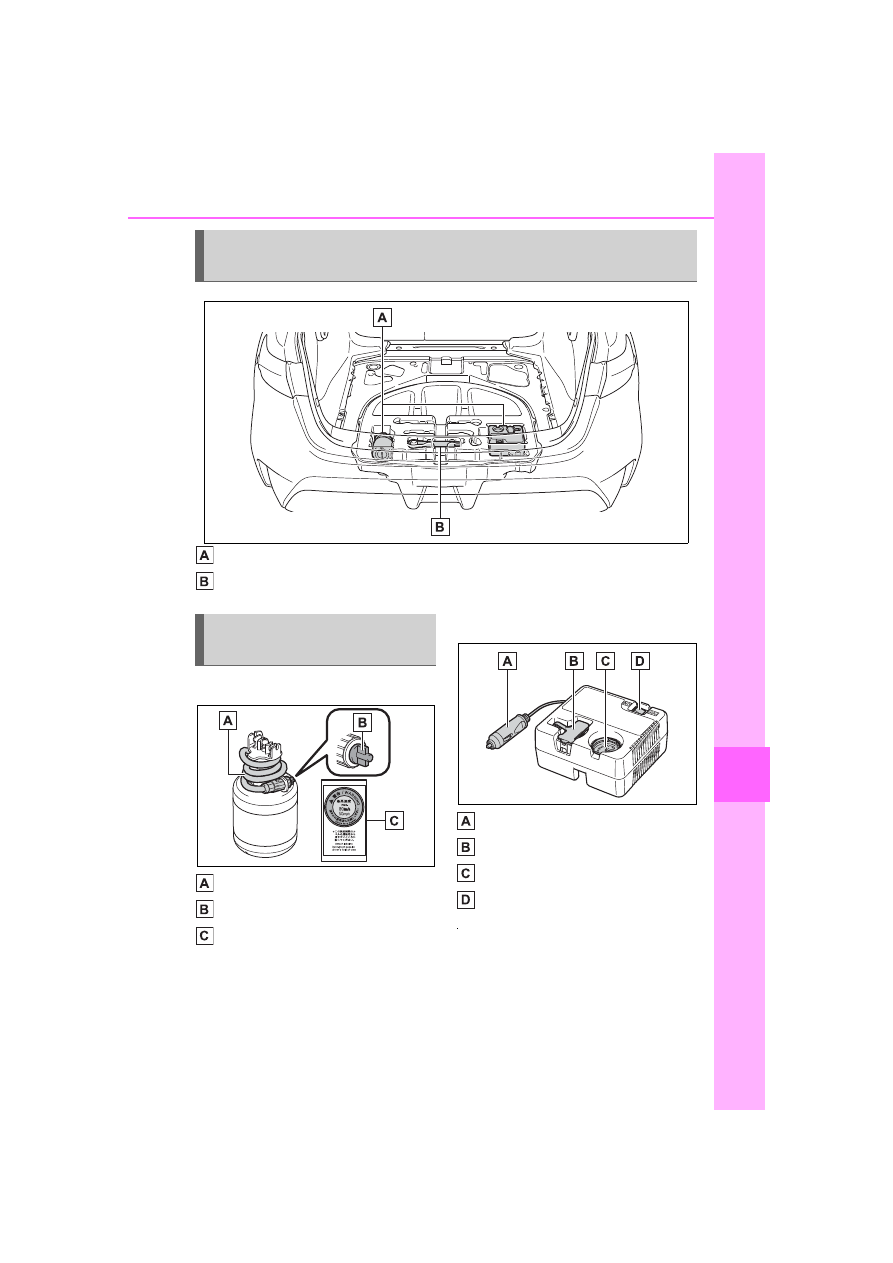

Emergency tire puncture repair kit
Towing eyelet



Bottle

Hose
Air release cap
Sticker



Compressor

Power plug
Rubber stopper
Air pressure gauge
Compressor switch

■

Note for checking the emer-

gency tire puncture repair kit

Check the sealant expiry date occa-

sionally.

The expiry date is shown on the bot-

tle. Do not use sealant whose expiry

date has already passed. Other-

Location of the emergency tire puncture repair kit and
towing eyelet

Emergency tire puncture
repair kit components

526

8-2. Steps to take in an emergency

COROLLA_U

wise, repairs conducted using the

emergency tire puncture repair kit

may not be performed properly.

■

Emergency tire puncture repair

kit

●

The emergency tire puncture

repair kit is for filling the car tire

with air.

●

The sealant has a limited life

span. The expiry date is marked

on the bottle. The sealant should

be replaced before the expiry

date. Contact your Toyota dealer

for replacement.

●

The sealant stored in the emer-

gency tire puncture repair kit can

be used only once to temporarily

repair a single tire. If the sealant in

the bottle and other parts of the kit

have been used and need to be

replaced, contact your Toyota

dealer.

●

The compressor can be used

repeatedly.

●

The sealant can be used when the

outside temperature is from -40°F

(-40°C) to 140°F (60°C).

●

The kit is exclusively designed for

size and type of tires originally

installed on your vehicle. Do not

use it for tires that a different size

than the original ones, or for any

other purposes.

●

If the sealant gets on your clothes,

it may stain.

●

If the sealant adheres to a wheel

or the surface of the vehicle body,

the stain may not be removable if

it is not cleaned at once. Immedi-

ately wipe away the sealant with a

wet cloth.

●

During operation of the repair kit,

a loud operation noise is pro-

duced. This does not indicate a

malfunction.

●

Do not use to check or to adjust

the tire pressure.

1

Lift the deck mat. (



P.433)

2

Take out the emergency tire
puncture repair kit. (



P.525)

1

Take out the repair kit from
the plastic bag.

WARNING

■

Caution while driving

●

Store the repair kit in the trunk.

Injuries may result in the event

of an accident or sudden brak-

ing.

●

The repair kit is exclusively only

for your vehicle.

Do not use repair kit on other

vehicles, which could lead to an

accident causing death or seri-

ous injury.

●

Do not use repair kit for tires

that are different size than the

original ones, or for any other

purpose. If the tires have not

been completely repaired, it

could lead to an accident caus-

ing death or serious injury.

■

Precautions for use of the

sealant

●

Ingesting the sealant is hazard-

ous to your health. If you ingest

sealant, consume as much

water as possible, and then

immediately consult a doctor.

●

If sealant gets in eyes or

adheres to skin, immediately

wash it off with water. If discom-

fort persists, consult a doctor.

Taking out the emer-
gency tire puncture repair
kit

Emergency repair method

527

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

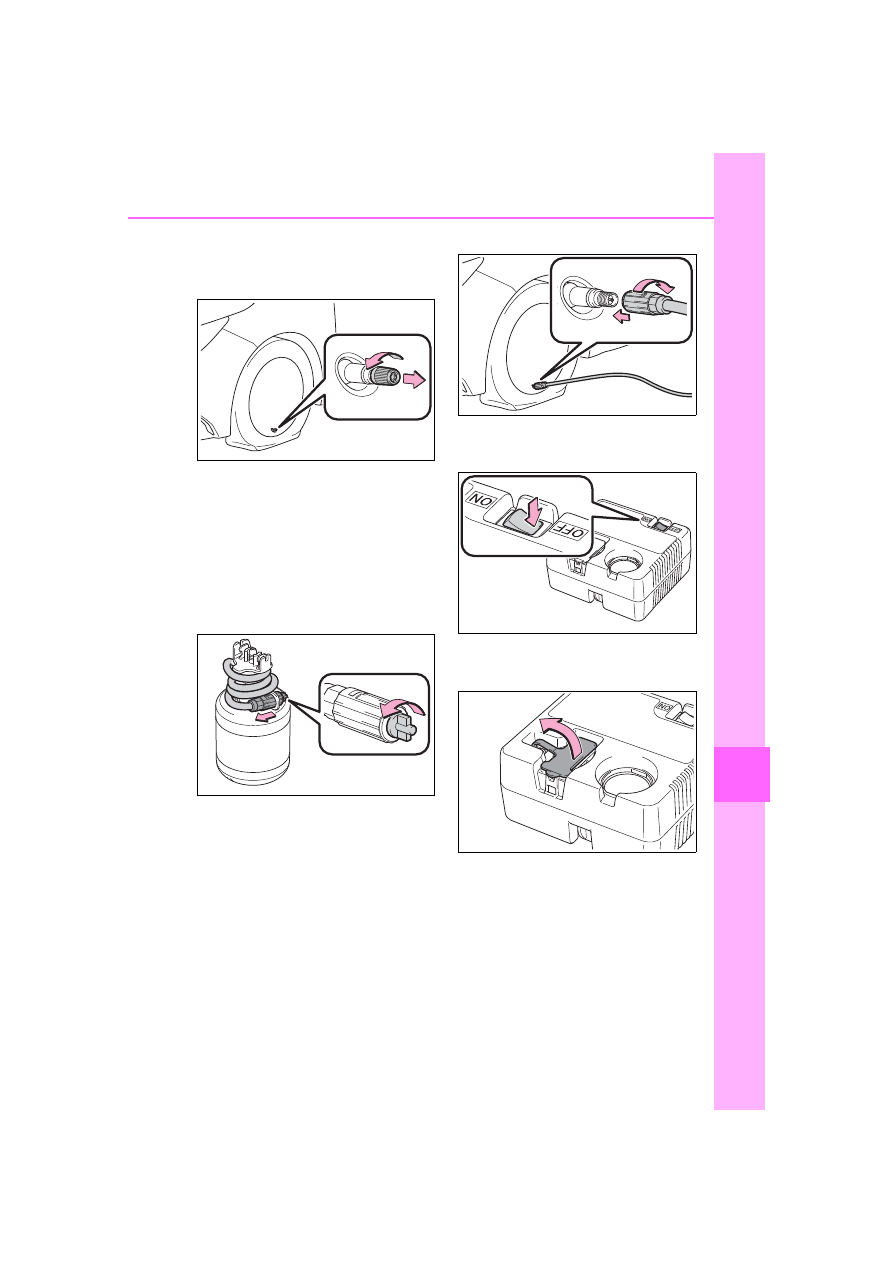

2

Remove the valve cap from
the valve of the punctured
tire.

3

Extend the hose. Remove
the air release cap from the
hose.

Attach the sticker enclosed with the

bottle on the specified locations.

(See step

10

.)

You will use the air release cap

again. Therefore keep it in a safe

place.

4

Connect the hose to the
valve.

Screw the end of the hose clock-

wise as far as possible.

5

Make sure that the compres-
sor switch is off.

6

Lift the rubber stopper on the
compressor.

528

8-2. Steps to take in an emergency

COROLLA_U

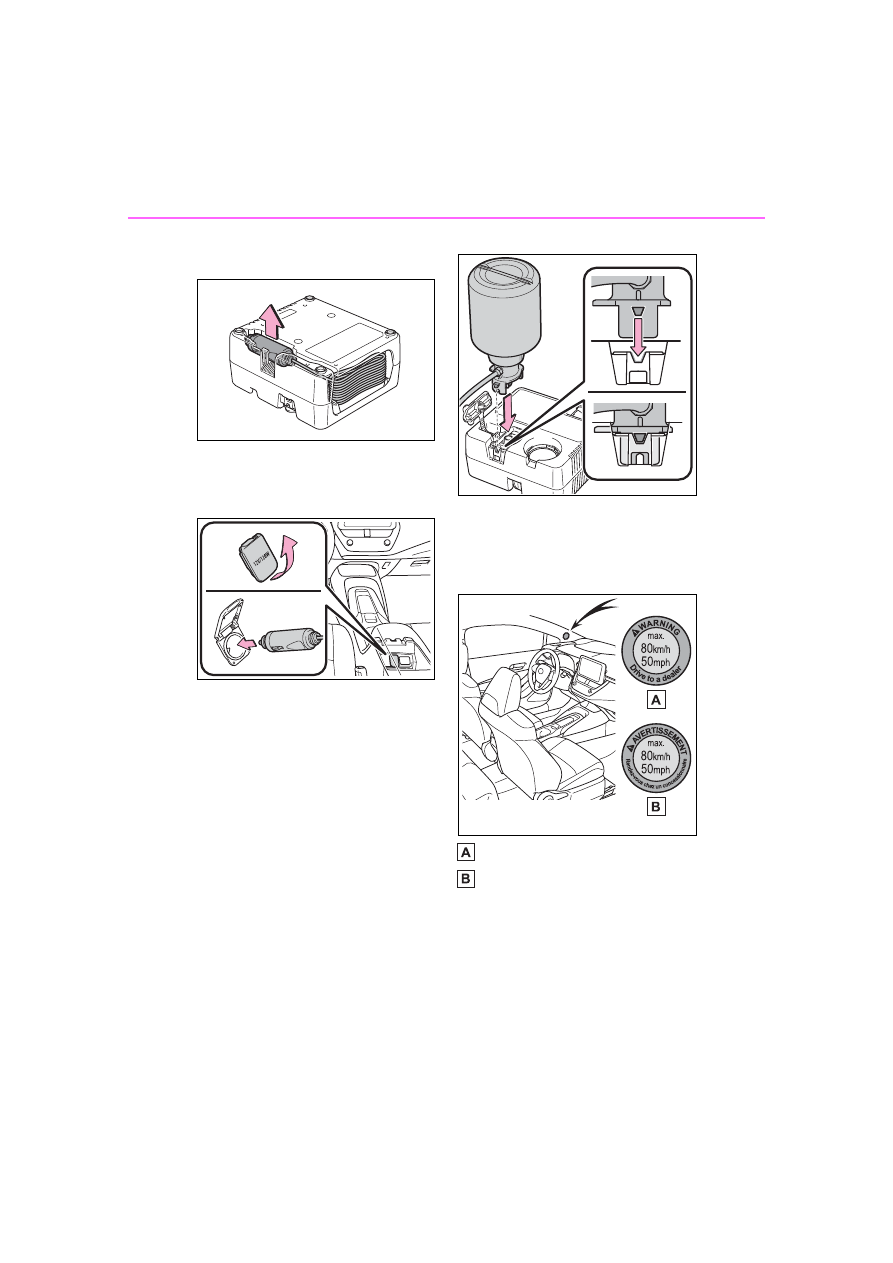

7

Remove the power plug from
the compressor.

8

Connect the power plug to
the power outlet socket.
(



P.435)

9

Connect the bottle to the
compressor.

As shown in the illustration, insert

the bottle securely into the com-

pressor until the upper side of the

mark on the bottle is aligned with

the upper end of the notch.

10

Attach the sticker provided

with the tire puncture repair
kit to a position easily seen
from the driver’s seat.

U.S.A.
Canada

11

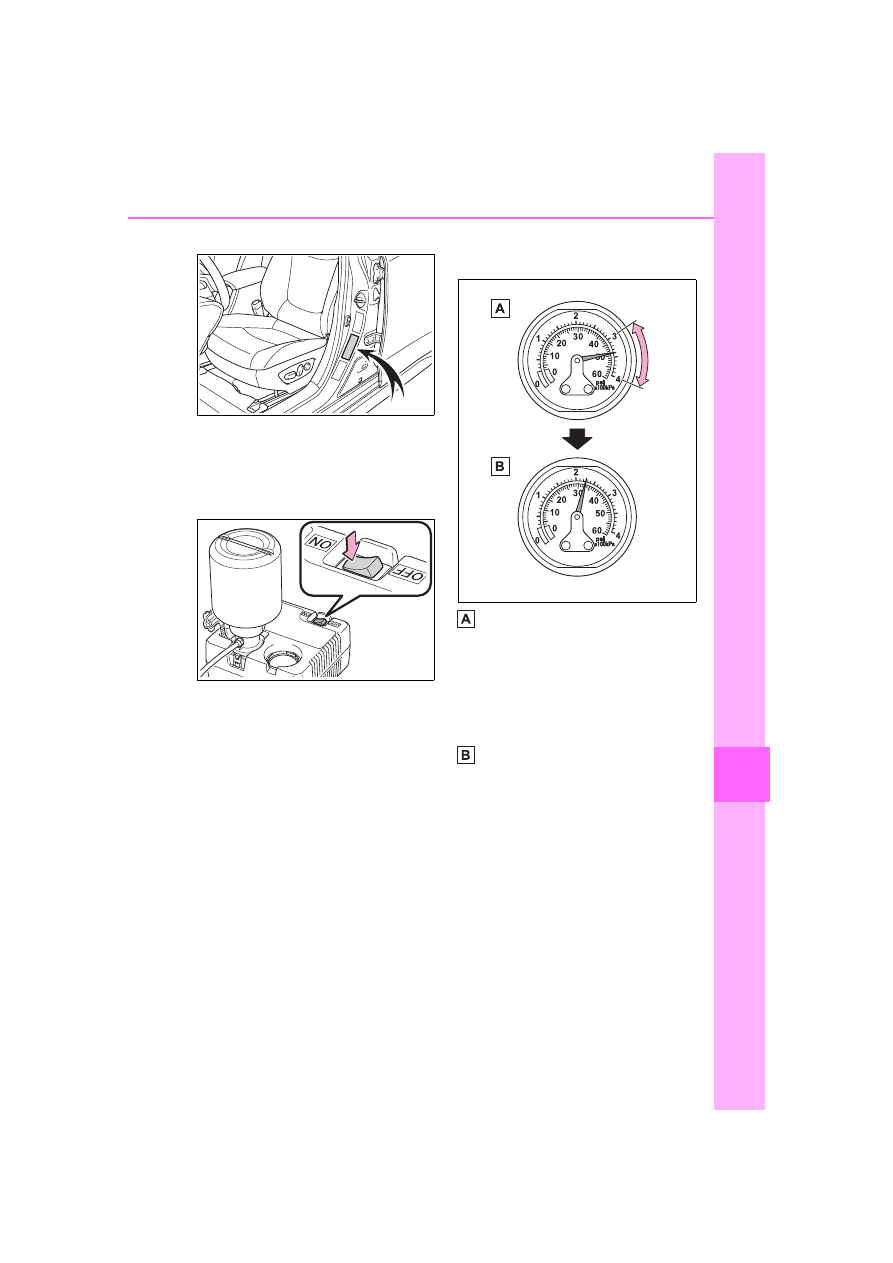

Check the specified tire infla-

tion pressure.

Tire inflation pressure is specified

on the label on the driver’s side pil-

529

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

lar as shown. (



P.564)

12

Start the engine.

13

To inject the sealant and

inflate the tire, turn the com-
pressor switch on.

14

Inflate the tire until the speci-

fied air pressure is reached.

The sealant will be injected
and the pressure will spike to
between 44 psi (300 kPa, 3.0
kgf/cm

2

 or bar) and 58 psi

(400 kPa, 4.0 kgf/cm

2

 or bar),

then gradually decrease.
The air pressure gauge will
display the actual tire inflation
pressure about 1 to 5 min-
utes after the switch is turned
on.

Turn the compressor switch off and

then check the tire inflation pres-

sure. Being careful not to over

inflate, check and repeat the infla-

tion procedure until the specified

tire inflation pressure is reached.
The tire can be inflated for about 5

to 20 minutes (depending on the

outside temperature). If the tire

inflation pressure is still lower than

the specified point after inflation for

25 minutes, the tire is too damaged

530

8-2. Steps to take in an emergency

COROLLA_U

to be repaired. Turn the compres-

sor switch off and contact your Toy-

ota dealer.
If the tire inflation pressure exceeds

the specified air pressure, let out

some air to adjust the tire inflation

pressure. (



P.531, 564)

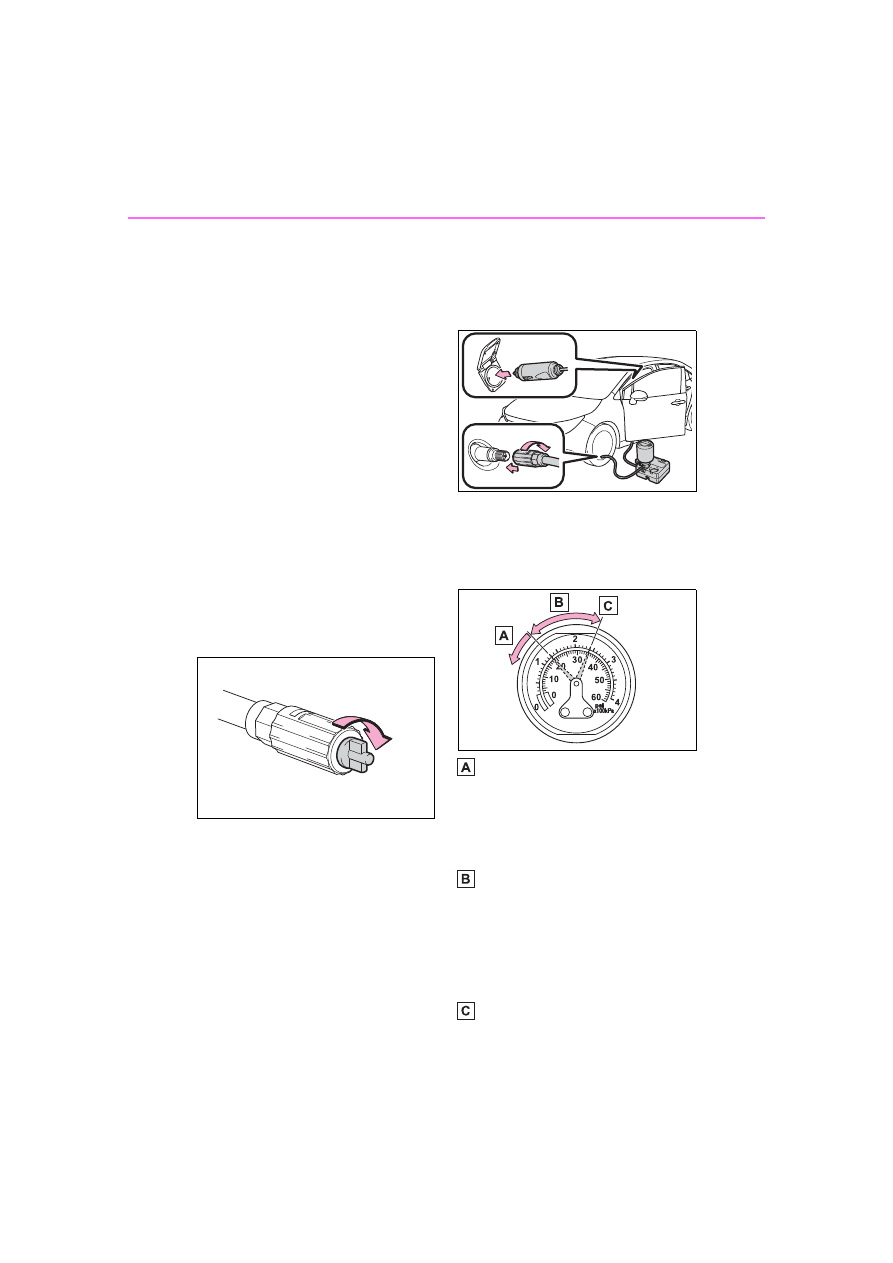

15

With the compressor switch

off, disconnect the hose from
the valve on the tire and then
pull out the power plug from
the power outlet socket.

Some sealant may leak when the

hose is removed.

16

Install the valve cap onto the

valve of the emergency
repaired tire.

17

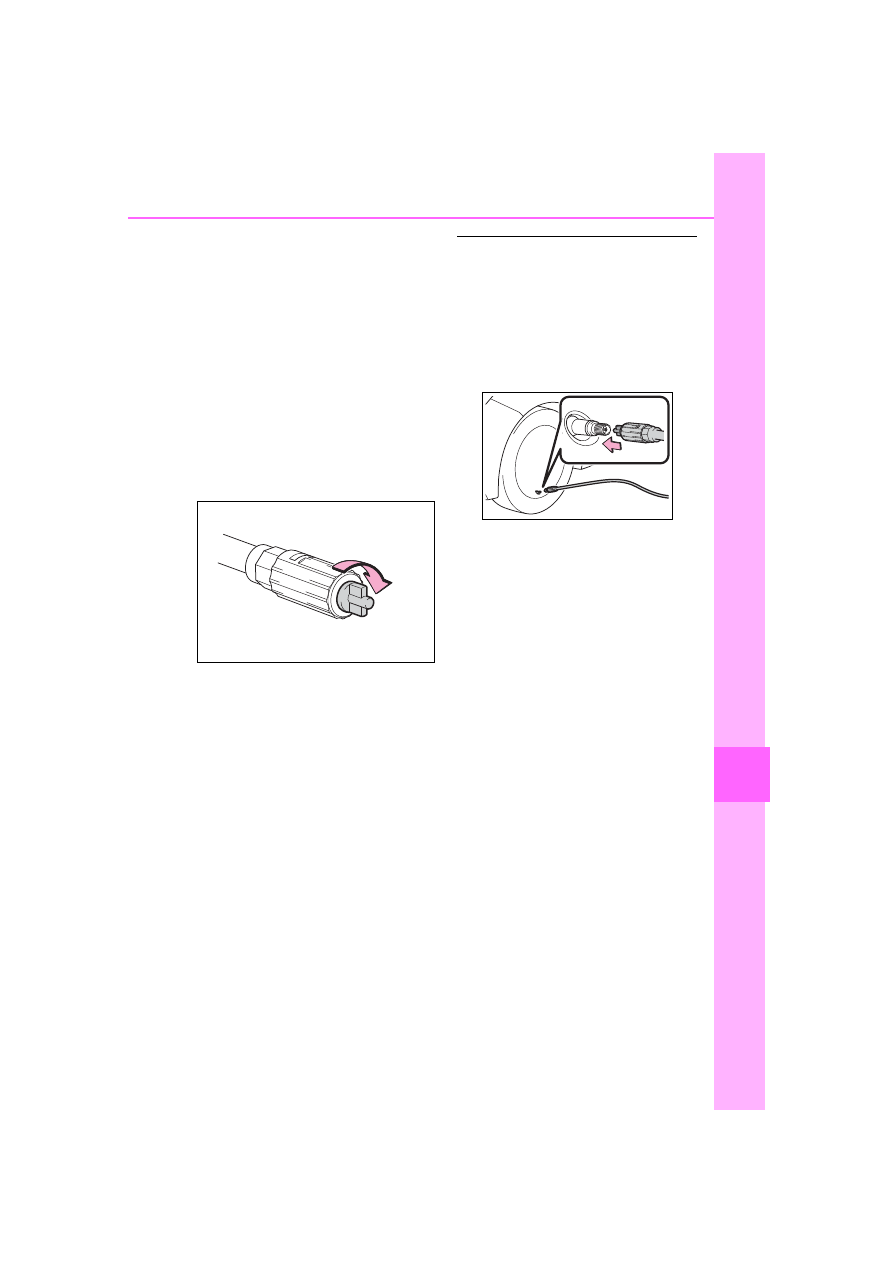

Attach the air release cap to

the end of the hose.

If the air release cap is not

attached, the sealant may leak and

the vehicle may get dirty.

18

Temporarily store the bottle

in the trunk while it is con-
nected to the compressor.

19

To spread the liquid sealant

evenly within the tire, imme-
diately drive safely for about
3 miles (5 km) below 50 mph
(80 km/h).

20

After driving, stop your vehi-

cle in a safe place on a hard,

flat surface and reconnect
the repair kit.

Remove the air release cap from

the hose before reconnecting the

hose.

21

Turn the compressor switch

on and wait for several sec-
onds, then turn it off. Check
the tire inflation pressure.

If the tire inflation pressure is
under 19 psi (130 kPa, 1.3
kgf/cm

2

 or bar): The puncture

cannot be repaired. Contact
your Toyota dealer.
If the tire inflation pressure is
19 psi (130 kPa, 1.3
kgf/cm

2

or bar) or higher, but

less than the specified air
pressure: Proceed to step

22

.

If the tire inflation pressure is
the specified air pressure

531

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

(



P.564): Proceed to step

23

.

22

Turn the compressor switch

on to inflate the tire until the
specified air pressure is
reached. Drive for about 3
miles (5 km) and then per-
form step

20

.

23

Attach the air release cap to

the end of the hose.

If the air release cap is not

attached, the sealant may leak and

the vehicle may get dirty.

24

Store the bottle in the trunk

while it is connected to the
compressor.

25

Taking precautions to avoid

sudden braking, sudden
acceleration and sharp turns,
drive carefully at under 50
mph (80 km/h) to the nearest
Toyota dealer that is less
than 62 miles (100 km) away
for tire repair or replacement.

When having the tire repaired or

replaced, make sure to tell the Toy-

ota dealer that the sealant is

injected.

■

If the tire is inflated to more

than the specified air pressure

1

Disconnect the hose from the

valve.

2

Install the air release cap to the

end of the hose and push the

protrusion on the air release cap

into the tire valve to let some air

out.

3

Disconnect the hose from the

valve, remove the air release cap

from the hose and then recon-

nect the hose.

4

Turn the compressor switch on

and wait for several seconds,

and then turn it off. Check that

the air pressure indicator shows

the specified air pressure.

(



P.564)

If the air pressure is under the des-

ignated pressure, turn the compres-

sor switch on again and repeat the

inflation procedure until the speci-

fied air pressure is reached.

■

The valve of a tire that has been

repaired (vehicles without a tire

pressure warning system)

After a tire is repaired with the emer-

gency tire puncture repair kit, the

valve should be replaced.

■

After a tire is repaired with the

emergency tire puncture repair

kit (vehicles with a tire pressure

warning system)

●

The tire pressure warning valve

and transmitter should be

replaced.

●

Even if the tire inflation pressure is

at the recommended level, the tire

pressure warning light may come

532

8-2. Steps to take in an emergency

COROLLA_U

on/flash.

WARNING

■

Do not drive the vehicle with

a flat tire

Do not continue driving with a flat

tire.

Driving even a short distance with

a flat tire can damage the tire and

the wheel beyond repair.
Driving with a flat tire may cause a

circumferential groove on the side

wall. In such a case, the tire may

explode when using a repair kit.

■

When fixing the flat tire

●

Stop your vehicle in a safe and

flat area.

●

Do not touch the wheels or the

area around the brakes immedi-

ately after the vehicle has been

driven.

After the vehicle has been

driven, the wheels and the area

around the brakes may be

extremely hot. Touching these

areas with hands, feet or other

body parts may result in burns.

●

Connect the valve and hose

securely with the tire installed

on the vehicle. If the hose is not

properly connected to the valve,

air leakage may occur as seal-

ant may be sprayed out.

●

If the hose comes off the valve

while inflating the tire, there is a

risk that the hose will move

abruptly due to air pressure.

●

After inflation of the tire has

completed, the sealant may

splatter when the hose is dis-

connected or some air is let out

of the tire.

●

Follow the operation procedure

to repair the tire. If the proce-

dures not followed, the sealant

may spray out.

●

Keep back from the tire while it

is being repaired, as there is a

chance of it bursting while the

repair operation is being per-

formed. If you notice any cracks

or deformation of the tire, turn

off the compressor switch and

stop the repair operation imme-

diately.

●

The repair kit may overheat if

operated for a long period of

time. Do not operate the repair

kit continuously for more than

40 minutes.

●

Parts of the repair kit become

hot during operation. Be careful

handling the repair kit during

and after operation. Do not

touch the metal part connecting

the bottle and the compressor. It

will be extremely hot.

●

Do not attach the vehicle speed

warning sticker to an area other

than the one indicated. If the

sticker is attached to an area

where an SRS airbag is located,

such as the pad of the steering

wheel, it may prevent the SRS

airbag from operating properly.

■

Driving to spread the liquid

sealant evenly

Observe the following precautions

to reduce the risk of accidents.

Failing to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Drive the vehicle carefully at a

low speed. Be especially careful

when turning and cornering.

●

If the vehicle does not drive

straight or you feel a pull

through the steering wheel, stop

the vehicle and check the fol-

lowing.

• Tire condition. The tire may

have separated from the wheel.

533

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

WARNING

• Tire inflation pressure. If the tire

inflation pressure is 19 psi (130
kPa, 1.3 kgf/cm

2

 or bar) or less,

the tire may be severely dam-

aged.

NOTICE

■

When performing an emer-

gency repair

●

A tire should only be repaired

with the emergency tire punc-

ture repair kit if the damage is

caused by a sharp object such

as nail or screw passing through

the tire tread.

Do not remove the sharp object

from the tire. Removing the

object may widen the opening

and disenable emergency repair

with the repair kit.

●

The repair kit is not waterproof.

Make sure that the repair kit is

not exposed to water, such as

when it is being used in the rain.

●

Do not put the repair kit directly

onto dusty ground such as sand

at the side of the road. If the

repair kit vacuums up dust etc.,

a malfunction may occur.

■

Precautions for the emer-

gency tire puncture repair kit

●

The repair kit power source

should be 12 V DC suitable for

vehicle use. Do not connect the

repair kit to any other source.

●

If fuel splatters on the repair kit,

the repair kit may deteriorate.

Take care not to allow fuel to

contact it.

●

Place the repair kit in a storage

to prevent it from being exposed

to dirt or water.

●

Store the repair kit in the trunk

out of reach of children.

●

Do not disassemble or modify

the repair kit. Do not subject

parts such as the air pressure

indicator to impacts. This may

cause a malfunction.

■

To avoid damage to the tire

pressure warning valves and

transmitters (vehicles with a

tire pressure warning system)

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. After

use of liquid sealant, make sure to

replace the tire pressure warning

valve and transmitter when repair-

ing or replacing the tire. (



P.480)

534

8-2. Steps to take in an emergency

COROLLA_U



Stop the vehicle in a safe
place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to P (con-
tinuously variable transmis-
sion) or R (manual
transmission).



Stop the engine.



Turn on the emergency flash-
ers.

If you have a flat tire

(vehicles with a spare

tire)

Your vehicle is equipped
with a spare tire. The flat tire
can be replaced with the
spare tire.

For details about tires:



P.475

WARNING

■

If you have a flat tire

Do not continue driving with a flat

tire. Driving even a short distance

with a flat tire can damage the tire

and the wheel beyond repair,

which could result in an accident.

Before jacking up the
vehicle

535

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

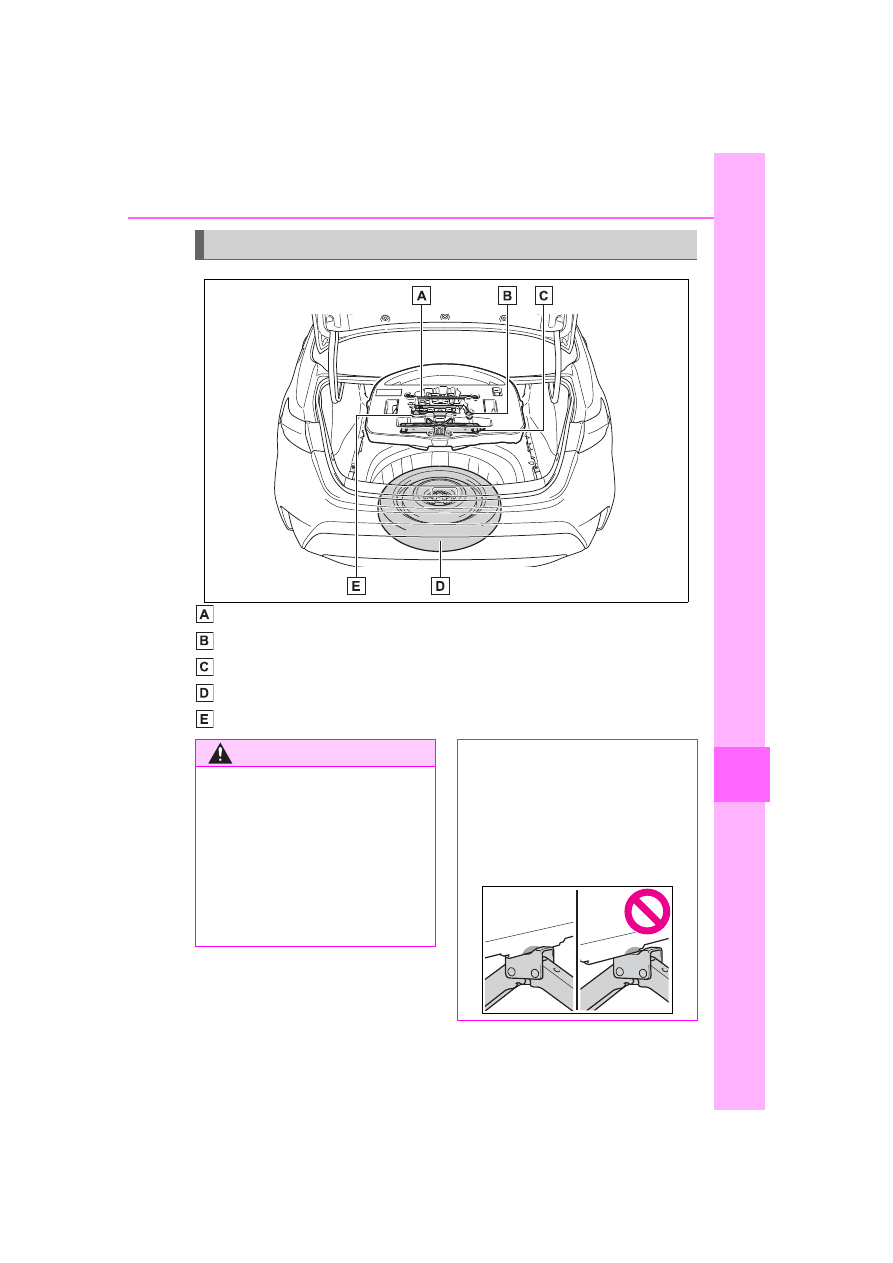

Jack handle
Wheel nut wrench
Jack
Spare tire
Towing eyelet (if equipped)

Location of the spare tire, jack and tools

WARNING

■

Using the tire jack

Observe the following precau-

tions. Improper use of the tire jack

may cause the vehicle to sud-

denly fall off the jack, leading to

death or serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

Only use the tire jack that

comes with this vehicle for

replacing a flat tire. Do not use it

on other vehicles, and do not

use other tire jacks for replacing

tires on this vehicle.

●

Put the jack properly in its jack

point.

536

8-2. Steps to take in an emergency

COROLLA_U

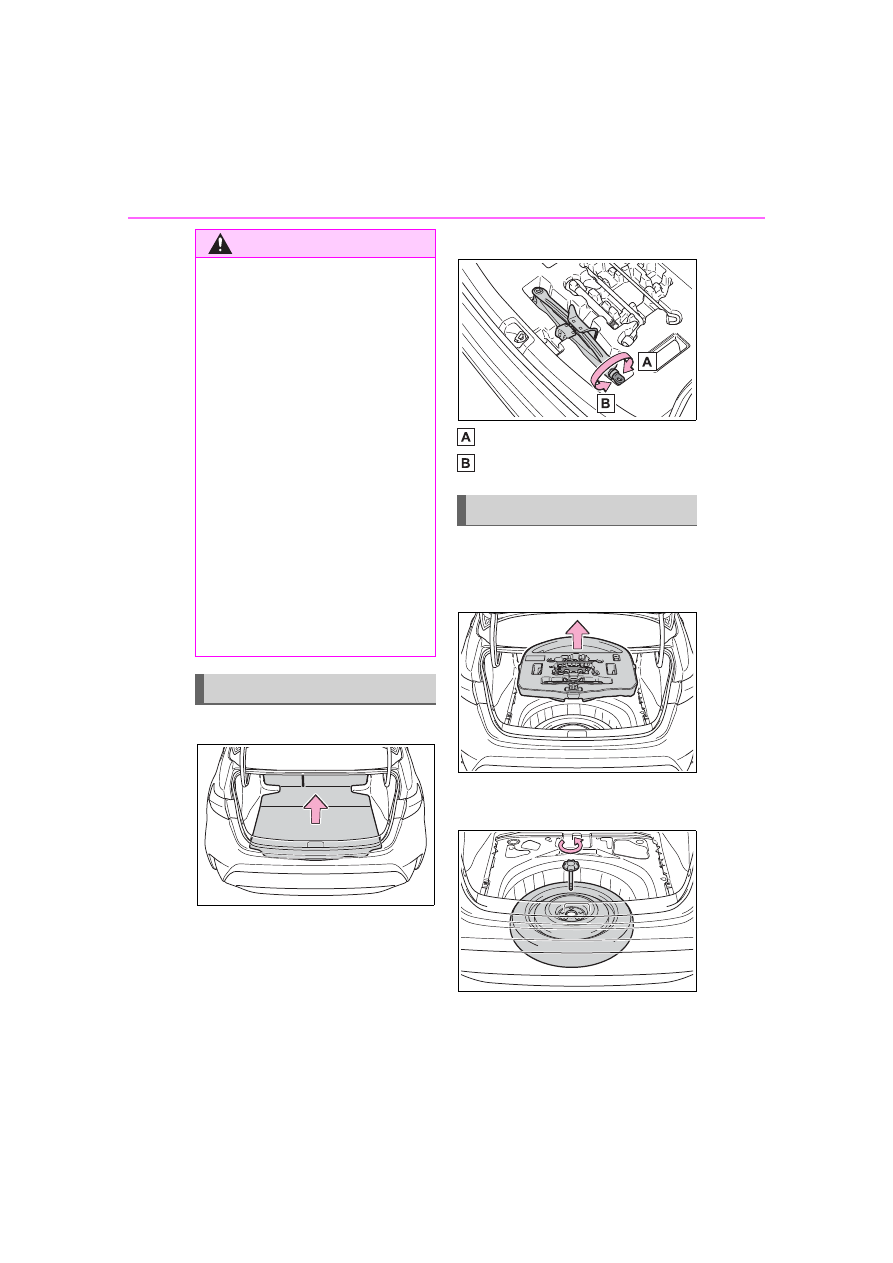

1

Remove the deck mat.

2

Take out the jack.

For tightening
For loosening

1

Remove the deck mat.
(



P.536)

2

Remove the tool tray.

3

Loosen the center fastener
that secures the spare tire.

WARNING

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the engine or drive

the vehicle while the vehicle is

supported by the jack.

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Taking out the jack

Taking out the spare tire

537

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

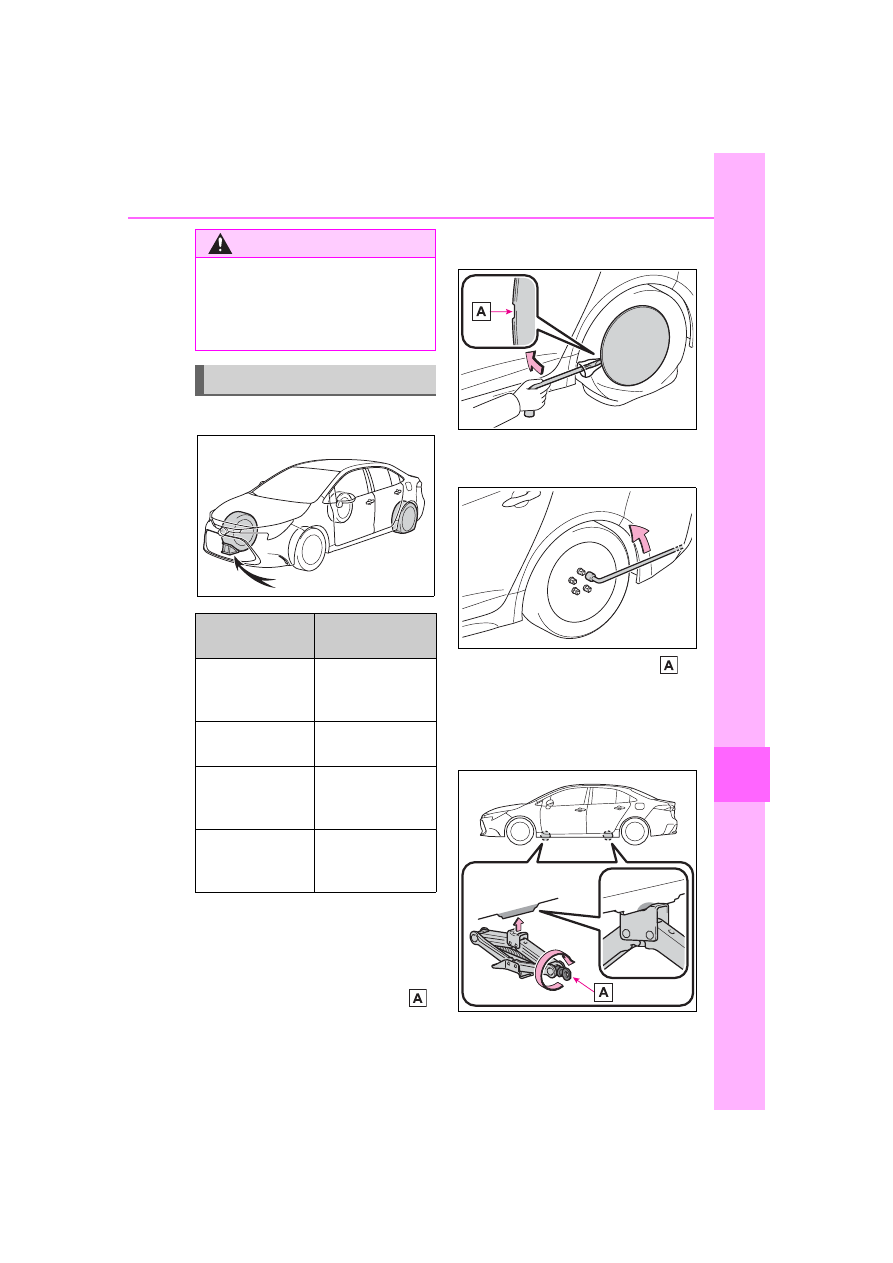

1

Chock the tires.

2

Vehicles with a steel wheel:
Remove the wheel ornament
(if equipped) using the
wrench.

Insert the wrench into the notch



on the wheel cap.

To protect the wheel ornament,

place a rag between the wrench

and the wheel ornament.

3

Slightly loosen the wheel
nuts (one turn).

4

Turn the tire jack portion
by hand until the center of the
recessed portion of the jack
is in contact with the center of
the jack point.

WARNING

■

When storing the spare tire

Be careful not to catch fingers or

other body parts between the

spare tire and the body of the

vehicle.

Replacing a flat tire

Flat tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

538

8-2. Steps to take in an emergency

COROLLA_U

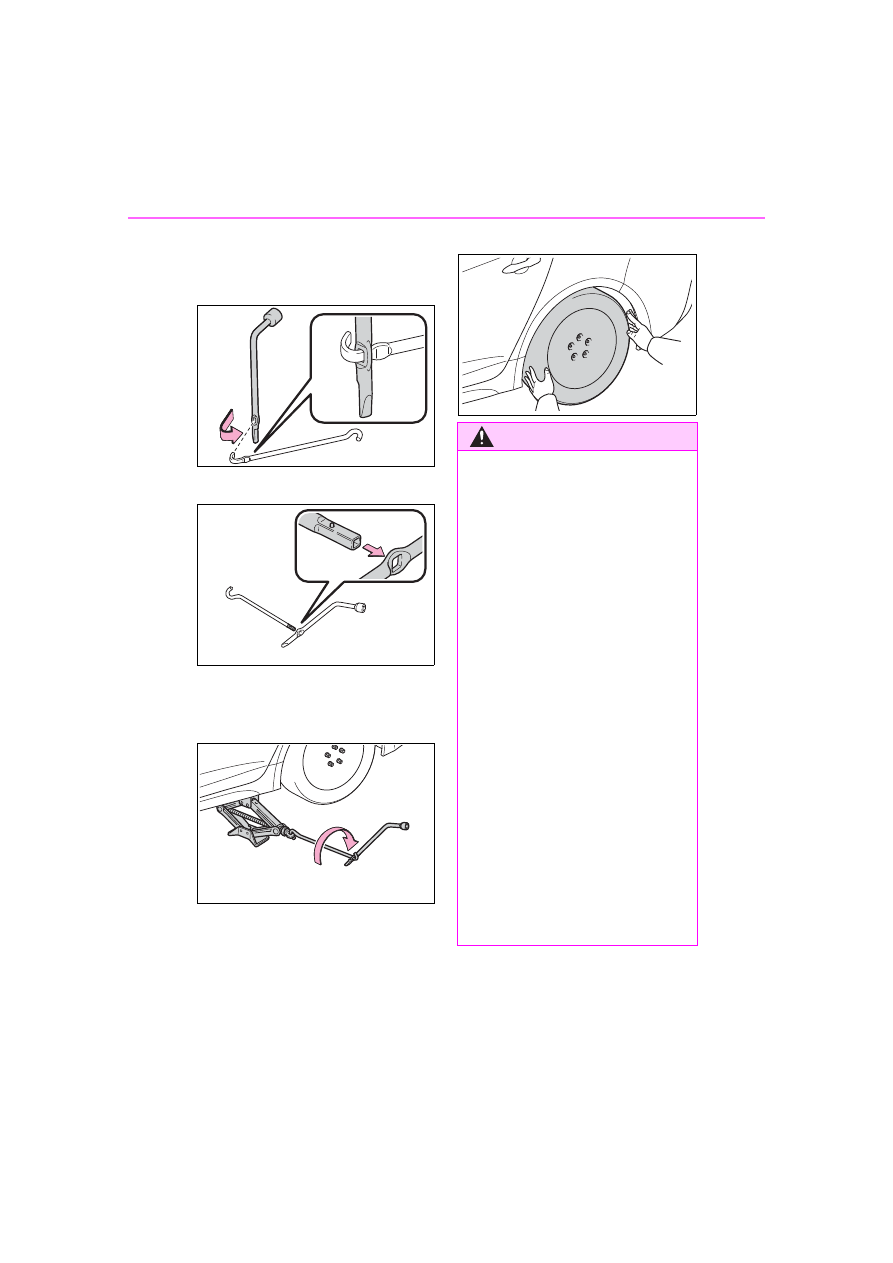

5

Assemble the jack handle
extension.



Type A



Type B

6

Raise the vehicle until the tire
is slightly raised off the
ground.

7

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven. After the vehi-

cle has been driven the disc

wheels and the area around the

brakes will be extremely hot.

Touching these areas with

hands, feet or other body parts

while changing a tire, etc. may

result in burns.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

539

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

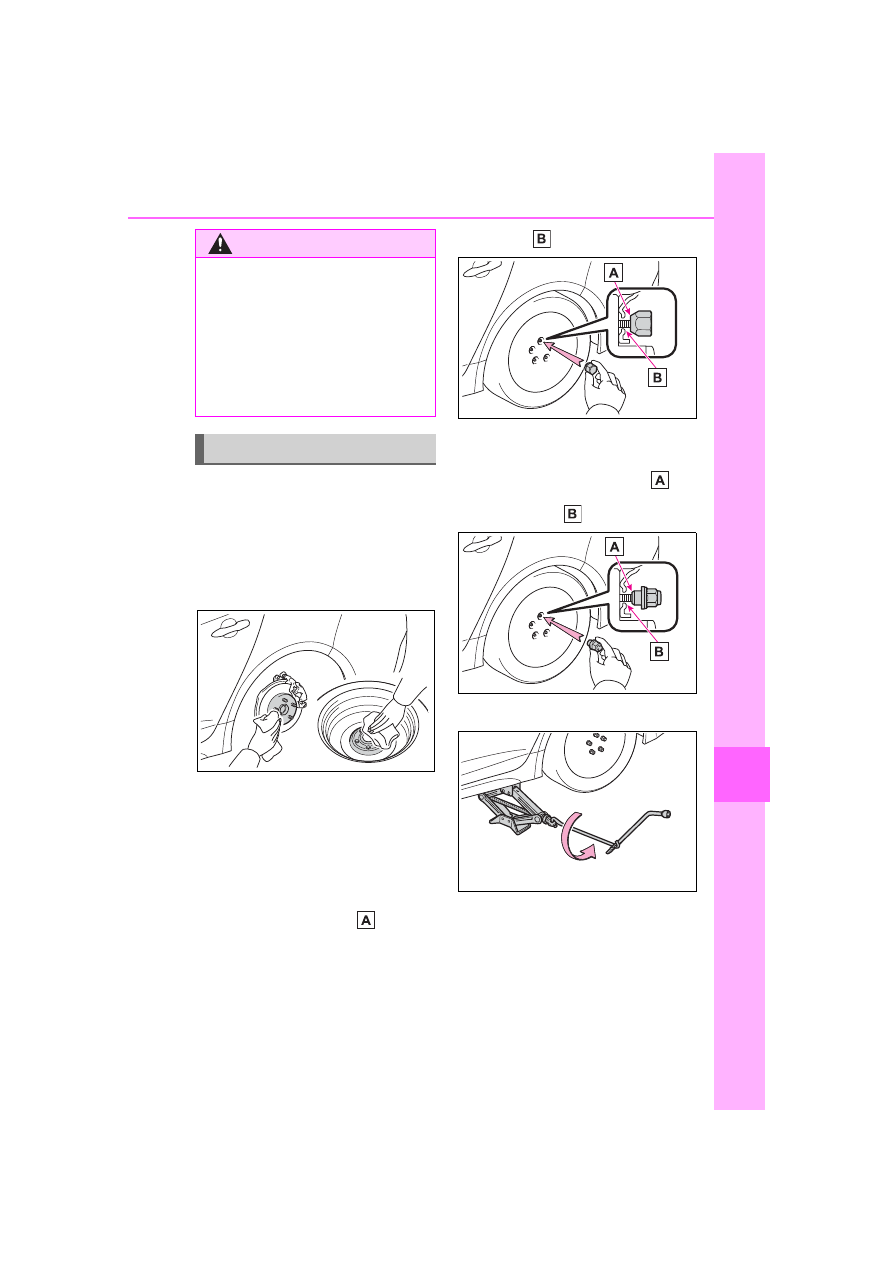

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

2

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

When replacing a steel wheel with

a steel wheel (including a compact

spare tire), tighten the wheel nuts
until the tapered portion

 comes

into loose contact with the disc

wheel seat

.

When replacing an aluminum wheel

with a steel wheel (including a com-

pact spare tire), tighten the wheel
nuts until the tapered portion



comes into loose contact with the
disc wheel seat

.

3

Lower the vehicle.

4

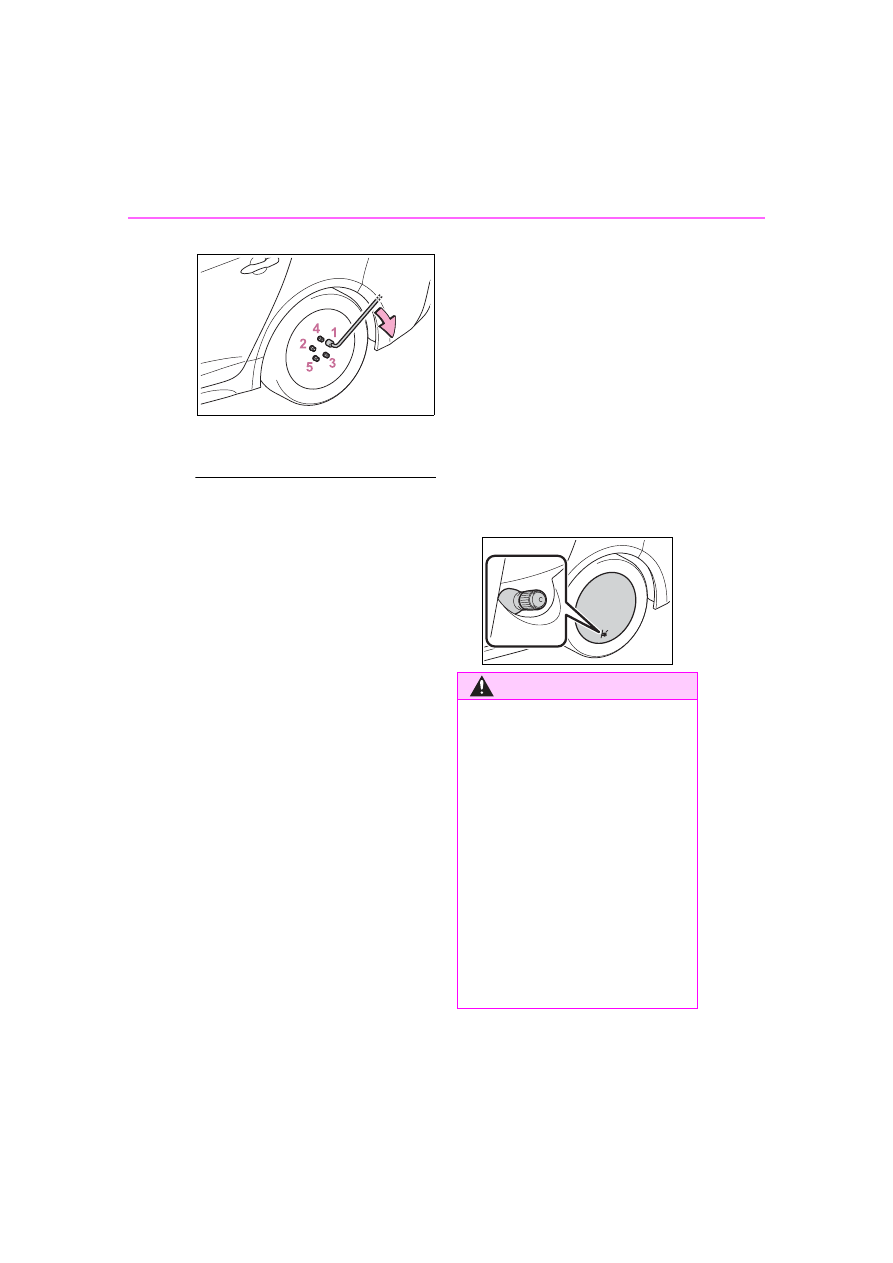

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Tightening torque:

WARNING

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

Installing the spare tire

540

8-2. Steps to take in an emergency

COROLLA_U

76 ft•lbf (103 N•m, 10.5 kgf•m)

5

Stow the flat tire, tire jack and
all tools.

■

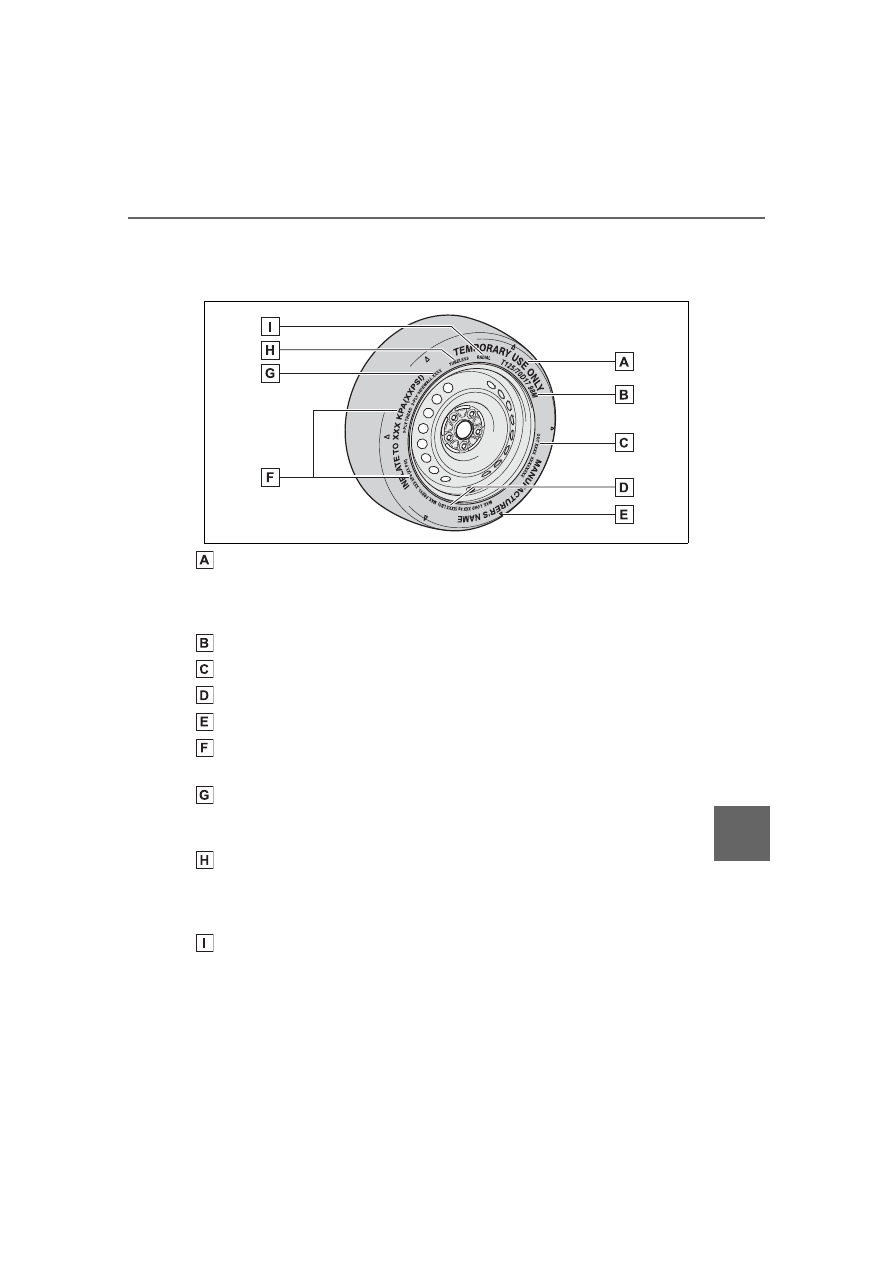

The compact spare tire

●

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tempo-

rarily, and only in an emergency.

●

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (



P.564)

■

When the compact spare tire is

equipped

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with stan-

dard tires.

■

After completing the tire

change (vehicles with a tire

pressure warning system)

The tire pressure warning system

must be reset. (



P.481)

■

When using the compact spare

tire (vehicles with a tire pres-

sure warning system)

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

■

If you have a flat front tire on a

road covered with snow or ice

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

1

Replace a rear tire with the com-

pact spare tire.

2

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

3

Fit tire chains to the front tires.

■

When reinstalling the wheel

ornament (steel wheels except

compact spare tire)

Align the cutout of the wheel orna-

ment with the valve stem as shown

in the illustration.

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

●

Do not use more than one com-

pact spare tires simultaneously.

●

Replace the compact spare tire

with a standard tire as soon as

possible.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

541

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

WARNING

■

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:

• ABS & Brake assist

• VSC

• TRAC

• Automatic High Beam

• AFS (Adaptive Front-lighting

System) (if equipped)

• Dynamic radar cruise control

with full-speed range (if

equipped)

• Dynamic radar cruise control (if

equipped)

• EPS

• PCS (Pre-Collision System)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• LTA (Lane Tracing Assist) (if

equipped)

• Tire pressure warning system (if

equipped)

• BSM (Blind Spot Monitor) (if

equipped)

• RCTA (Rear Cross Traffic Alert)

function (if equipped)

• Rear view monitor system

• Navigation system (if equipped)

■

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.

The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

■

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

■

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle.

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with

standard tires. Be careful when

driving over uneven road sur-

faces.

■

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire. Tire chains may

damage the vehicle body and

adversely affect driving perfor-

mance.

■

When replacing the tires

(vehicles with a tire pressure

warning system)

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

542

8-2. Steps to take in an emergency

COROLLA_U

One of the following may be the
cause of the problem:



There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.



The engine may be flooded.
Try to restart the engine again
following correct starting pro-
cedures. (



P.163, 164)



There may be a malfunction
in the engine immobilizer sys-
tem. (



P.80)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.546)

NOTICE

■

To avoid damage to the tire

pressure warning valves and

transmitters (vehicles with a

tire pressure warning system)

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire.

If the engine will not

start

If the engine will not start
even though correct starting
procedures are being fol-
lowed (



P.163, 164), con-

sider each of the following
points:

The engine will not start
even though the starter
motor operates normally.

The starter motor turns
over slowly, the interior
lights and headlights are
dim, or the horn does not
sound or sounds at a low
volume.

543

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U



The battery terminal connec-
tions may be loose or cor-
roded. (



P.472)

The engine starting system may
be malfunctioning due to an
electrical problem such as elec-
tronic key battery depletion or a
blown fuse. However, an interim
measure is available to start the
engine. (



P.543)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.546)



One or both of the battery ter-
minals may be disconnected.
(



P.472)



There may be a malfunction
in the steering lock system.

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the engine does not start,
the following steps can be used
as an interim measure to start
the engine if the engine switch is
functioning normally.
Do not use this starting proce-
dure except in case of emer-
gency.

1

Set the parking brake.
(



P.180, 181)

2

Check that the shift lever is in
P (continuously variable
transmission) or N (manual
transmission).

3

Turn the engine switch to
ACC.

4

Press and hold the engine
switch for about 15 seconds
while depressing the brake
pedal (continuously variable
transmission) or clutch pedal
(manual transmission) firmly.

Even if the engine can be started
using the above steps, the system
may be malfunctioning. Have the
vehicle inspected by your Toyota
dealer.

The starter motor does
not turn over (vehicles
with a smart key system)

The starter motor does
not turn over, the interior
lights and headlights do
not turn on, or the horn
does not sound.

Emergency start function
(vehicles with a smart key
system)

544

8-2. Steps to take in an emergency

COROLLA_U

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on. (Custom-

izable features:



P.581)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.127)

Use the mechanical key
(



P.114) in order to perform the

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using the other key (vehi-
cles without a smart key
system) or mechanical key
(vehicles with a smart key
system) and the key number
stamped on your key num-
ber plate.

Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

(vehicles with a smart key

system)

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

If the electronic key

does not operate prop-

erly (vehicles with a

smart key system)

If communication between
the electronic key and vehi-
cle is interrupted (



P.127)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the engine
can be started by following
the procedure below.

NOTICE

■

In case of a smart key system

malfunction or other

key-related problems

Take your vehicle with all the elec-

tronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking
the doors

545

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

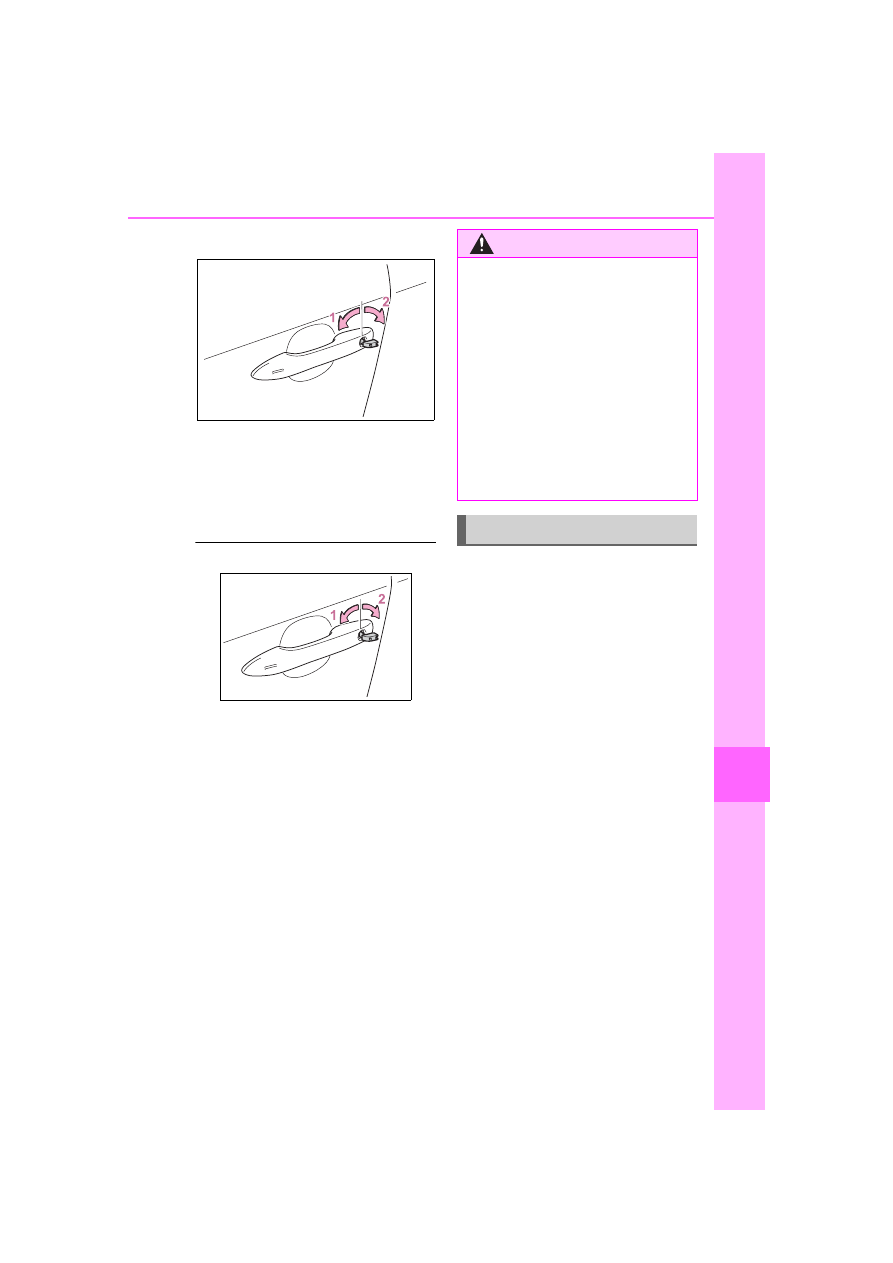

following operations:

1

Locks all the doors

2

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.

■

Key linked functions

1

Closes the windows and moon
roof

*1

 (turn and hold)

*2

2

Opens the windows and moon
roof

*1

 (turn and hold)

*2

*1

:If equipped

*2

:This setting must be customized

at your Toyota dealer.

1

Vehicles with a continuously
variable transmission:
Ensure that the shift lever is
in P and depress the brake
pedal.
Vehicles with a manual trans-
mission: Shift the shift lever
to N and depress the clutch
pedal.

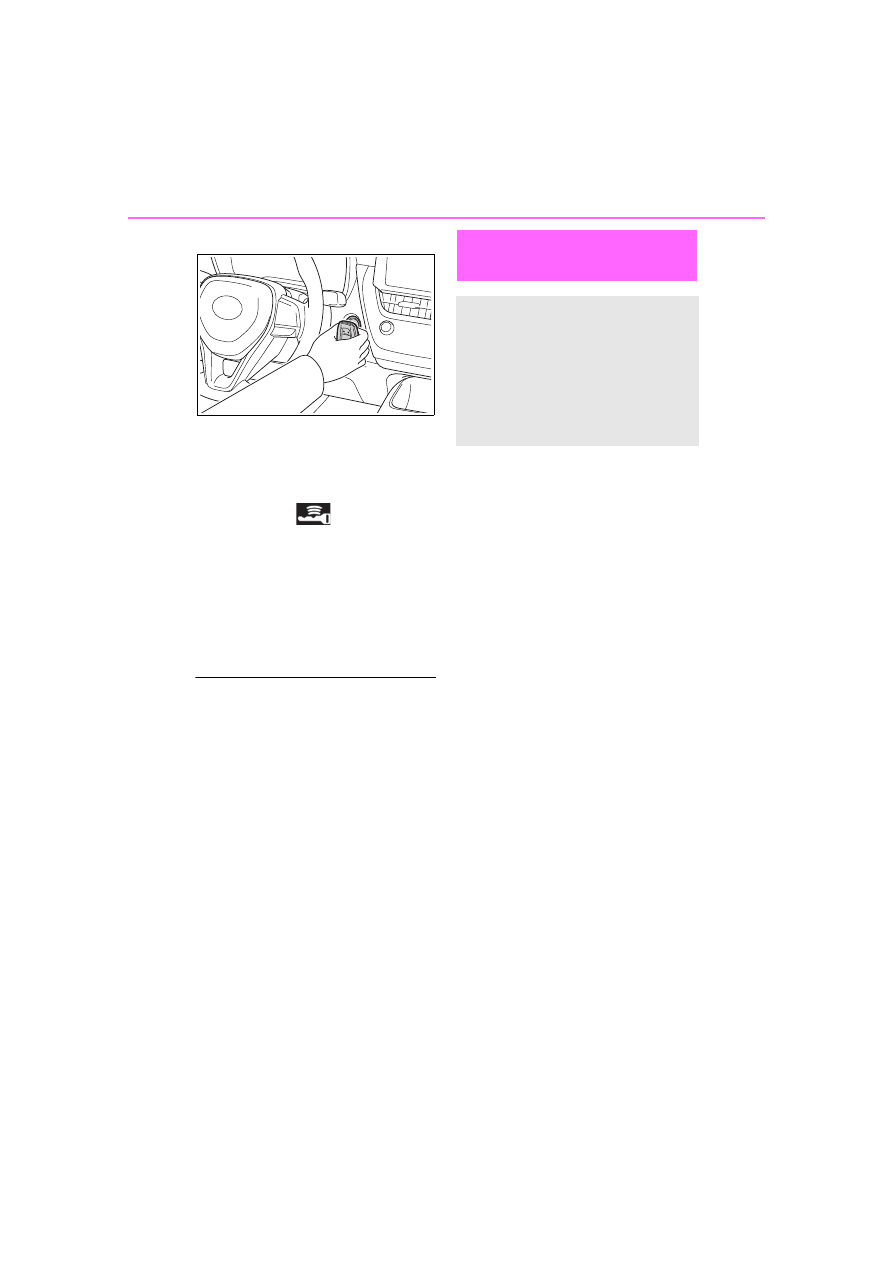

2

Touch the Toyota emblem
side of the electronic key to
the engine switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the engine switch will turn to

WARNING

■

When using the mechanical

key and operating the power

windows or moon roof (if

equipped)

Operate the power window or

moon roof after checking to make

sure that there is no possibility of

any passenger having any of their

body parts caught in the window

or moon roof.

Also, do not allow children to

operate the mechanical key. It is

possible for children and other

passengers to get caught in the

power window or moon roof.

Starting the engine

546

8-2. Steps to take in an emergency

COROLLA_U

ACC.

3

Firmly depress the brake
pedal (continuously variable
transmission) or clutch pedal
(manual transmission) and
check that

 is shown on

the multi-information display.

4

Press the engine switch
shortly and firmly.

In the event that the engine still
cannot be started, contact your
Toyota dealer.

■

Stopping the engine

Shift the shift lever to P (continu-

ously variable transmission) or N

(manual transmission) and press

the engine switch as you normally

do when stopping the engine.

■

Electronic key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.489)

■

Changing engine switch modes

Release the brake pedal (continu-

ously variable transmission) or

clutch pedal (manual transmission)

and press the engine switch in step

3

 above.

The engine does not start and

modes will be changed each time

the switch is pressed. (



P.167)

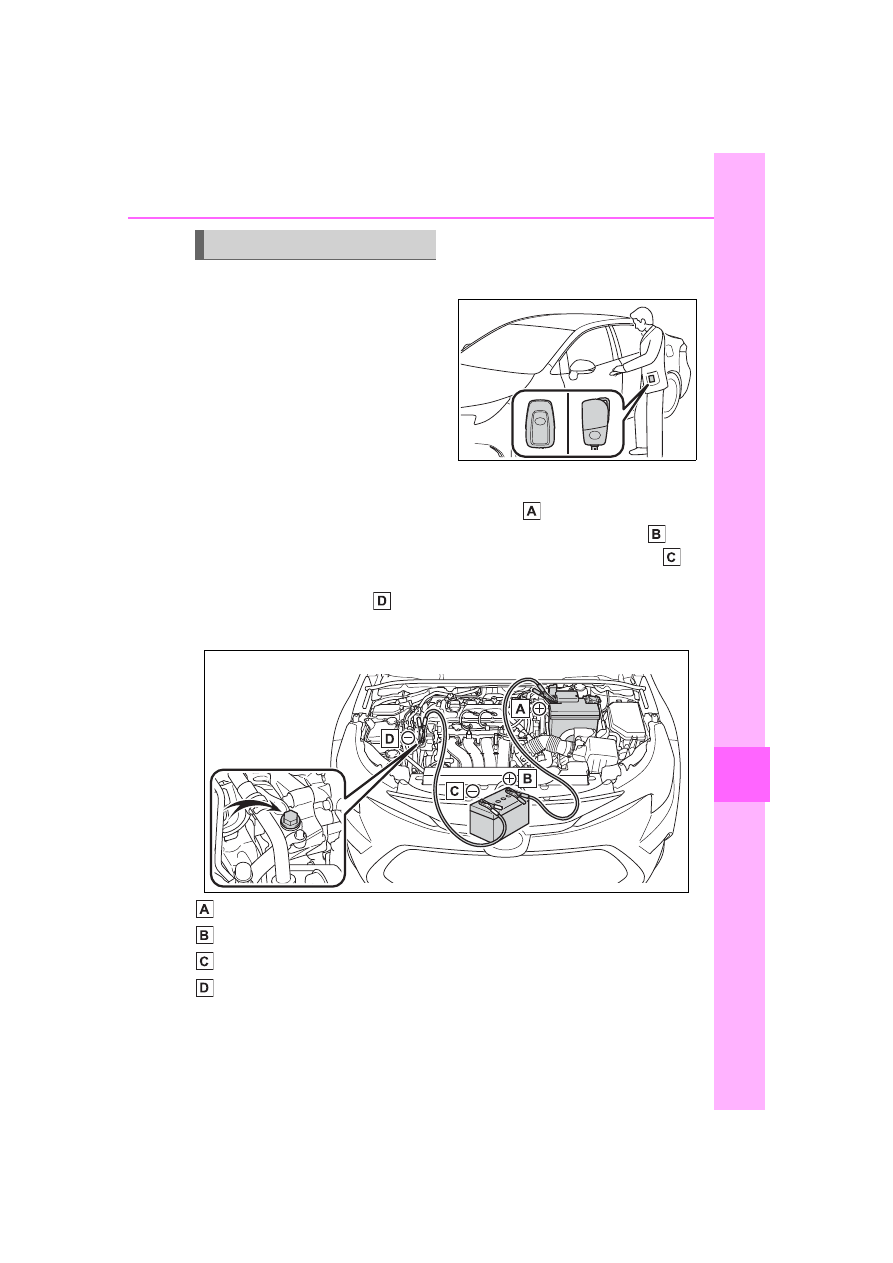

If the vehicle battery

is discharged

The following procedures
may be used to start the
engine if the vehicle’s bat-
tery is discharged.
You can also call your Toy-
ota dealer or a qualified
repair shop.

547

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

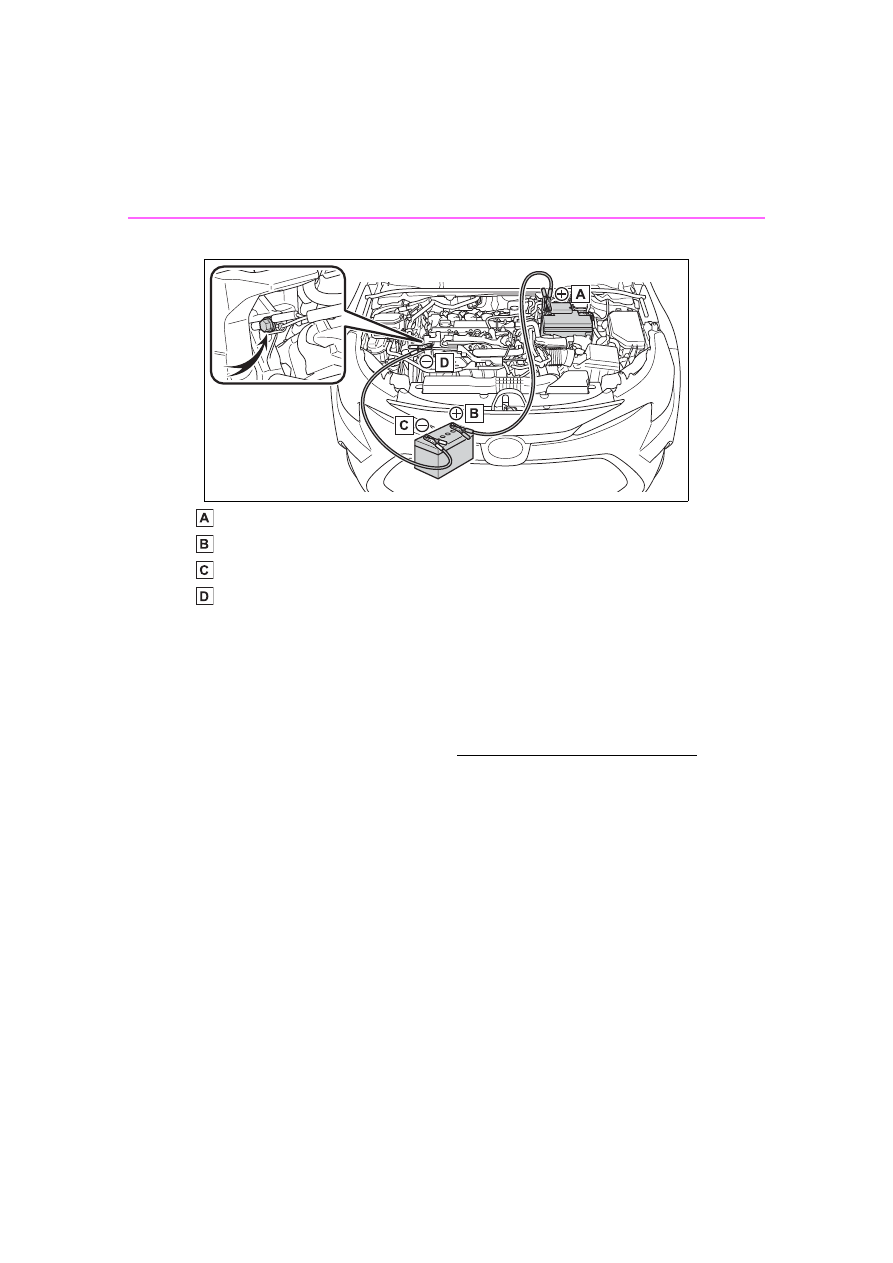

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

1

Vehicles with an alarm
(



P.82): Confirm that the

electronic key (vehicles with
a smart key system) or key
(vehicles without a smart key
system) is being carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and doors locked. (



P.83)

2

Open the hood. (



P.464)

3

Connect a positive jumper cable clamp to   on your vehicle and
connect the clamp on the other end of the positive cable to   on
the second vehicle. Then, connect a negative cable clamp to
on the second vehicle and connect the clamp at the other end of
the negative cable to  .



1.8 L 4-cylinder (2ZR-FAE) engine

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery
and any moving parts as shown in the illustration

Restarting the engine

548

8-2. Steps to take in an emergency

COROLLA_U



2.0 L 4-cylinder (M20A-FKS) engine

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery
and any moving parts as shown in the illustration

4

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and
maintain at that level for
approximately 5 minutes to
recharge the battery of your
vehicle.

5

Vehicles with a smart key
system: Open and close any
of the doors of your vehicle
with the engine switch OFF.

6

Maintain the engine speed of
the second vehicle and start
the engine of your vehicle by
turning the engine switch to
ON.

7

Once the vehicle’s engine
has started, remove the
jumper cables in the exact

reverse order from which
they were connected.

Once the engine starts, have the
vehicle inspected at your Toyota
dealer as soon as possible.

■

Starting the engine when the

battery is discharged

The engine cannot be started by

push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the

audio system while the engine is

off.

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the battery is removed or

discharged

●

Information stored in the ECU is

549

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

cleared. When the battery is

depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.589)

■

When removing the battery ter-

minals

When the battery terminals are

removed, the information stored in

the ECU is cleared. Before remov-

ing the battery terminals, contact

your Toyota dealer.

■

Charging the battery

The electricity stored in the battery

will discharge gradually even when

the vehicle is not in use, due to nat-

ural discharge and the draining

effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the battery may discharge,

and the engine may be unable to

start. (The battery recharges auto-

matically during driving.)

■

When recharging or replacing

the battery (vehicles with a

smart key system)

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the bat-

tery is discharged. Use the wire-

less remote control or the

mechanical key to lock or unlock

the doors.

●

The engine may not start on the

first attempt after the battery has

recharged but will start normally

after the second attempt. This is

not a malfunction.

●

The engine switch mode is memo-

rized by the vehicle. When the

battery is reconnected, the system

will return to the mode it was in

before the battery was dis-

charged. Before disconnecting the

battery, turn the engine switch off.

If you are unsure what mode the

engine switch was in before the

battery discharged, be especially

careful when reconnecting the

battery.

■

When replacing the battery

●

Use a battery that conforms to

European regulations.

●

Use a battery with the same case

size as the previous battery and

an equivalent 20 hour rate capac-

ity (20HR) or greater.

• If the sizes differ, the battery can-

not be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the battery may discharge and the

engine may not be able to start.

●

For details, consult your Toyota

dealer.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding battery fires or

explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

550

8-2. Steps to take in an emergency

COROLLA_U

1

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the engine.

2

If you see steam: Carefully lift
the hood after the steam sub-
sides.
If you do not see steam:
Carefully lift the hood.

3

After the engine has cooled
down sufficiently, inspect the

WARNING

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the battery.

■

Battery precautions

The battery contains poisonous

and corrosive acidic electrolyte,

while related parts contain lead

and lead compounds. Observe

the following precautions when

handling the battery:

●

When working with the battery,

always wear safety glasses and

take care not to allow any bat-

tery fluids (acid) to come into

contact with skin, clothing or the

vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the battery support,

terminals, and other bat-

tery-related parts.

●

Do not allow children near the

battery.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan or engine drive belt.

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The engine coolant tem-
perature gauge (



P.91, 95)

is in the red zone or a loss
of engine power is experi-
enced. (For example, the
vehicle speed does not
increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

551

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

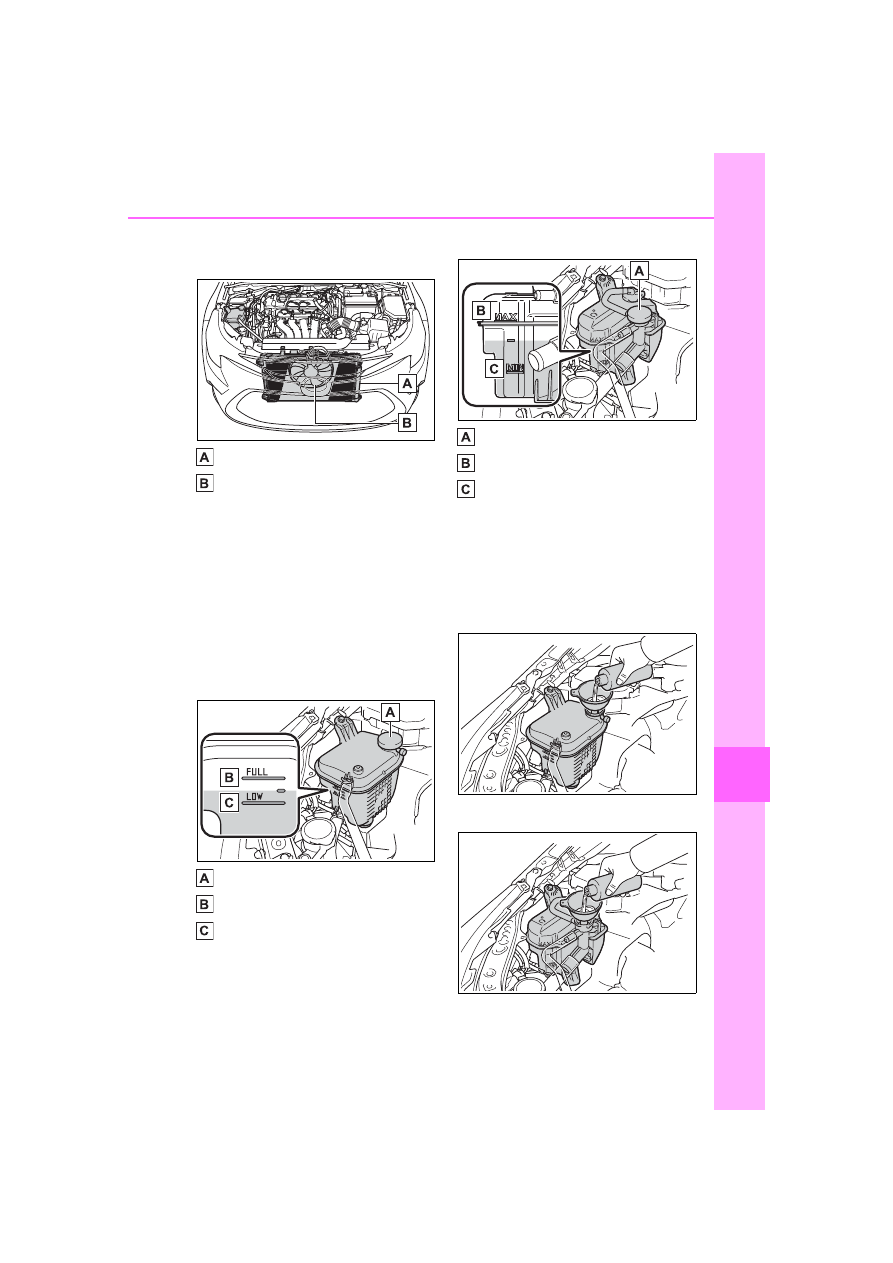

hoses and radiator core (radi-
ator) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

4

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines (type
A) or “MAX” and “MIN” lines
(type B) on the reservoir.



Type A

Reservoir cap
“FULL” line
“LOW” line



Type B

Reservoir cap
“MAX” line
“MIN” line

5

Add engine coolant if neces-
sary.

Water can be used in an emer-

gency if engine coolant is unavail-

able.



Type A



Type B

6

Start the engine and turn the
air conditioning system on to

552

8-2. Steps to take in an emergency

COROLLA_U

check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, turn the air

conditioning system on and off

repeatedly. (The fan may not oper-

ate in freezing temperatures.)

7

If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating: Have
the vehicle inspected at the
nearest Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions. Failure to do so may result

in serious injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fan and belts.

Failure to do so may cause the

hands or clothing to be caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the engine and

radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the

engine has cooled down suffi-

ciently. Adding cool coolant to a

hot engine too quickly can cause

damage to the engine.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust etc.).

●

Do not use any coolant additive.

553

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

COROLLA_U

1

Stop the engine. Set the
parking brake and shift the
shift lever to P (continuously
variable transmission) or N
(manual transmission).

2

Remove the mud, snow or
sand from around the front
wheels.

3

Place wood, stones or some
other material under the front
wheels to help provide trac-
tion.

4

Restart the engine.

5

Shift the shift lever to D or R
(continuously variable trans-
mission) or 1 or R (manual
transmission) and release
the parking brake. Then,
while exercising caution,
depress the accelerator
pedal.

■

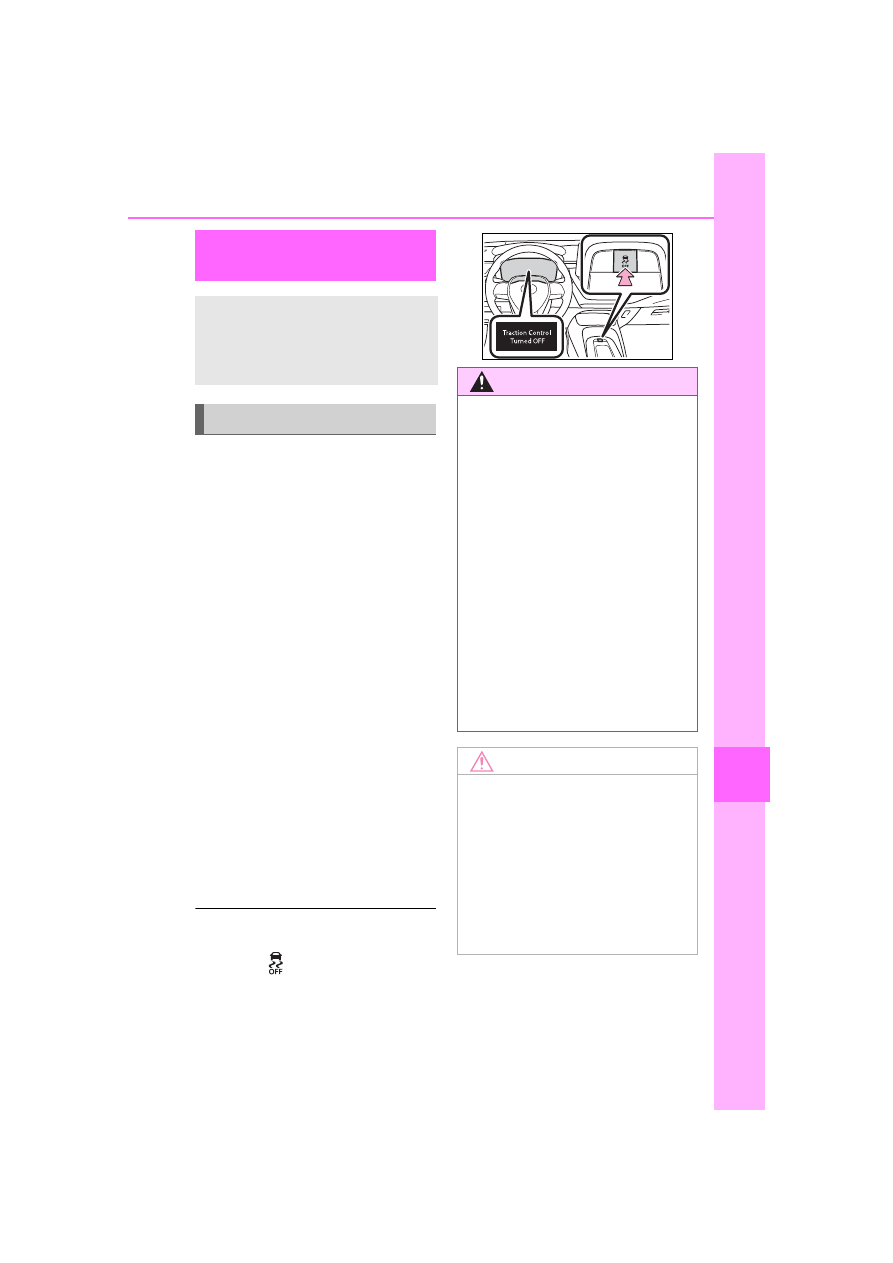

When it is difficult to free the

vehicle

Press the

 switch to turn off

TRAC.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

(vehicles with a continuously

variable transmission)

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the front wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

554

8-2. Steps to take in an emergency

COROLLA_U

555

9

9

Vehicle

 specificatio

ns

COROLLA_U

Vehicle specifications

.

9-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

556

Fuel information ..........

568

Tire information ...........

570

9-2. Customization

Customizable features

..................................

581

9-3. Initialization

Items to initialize .........

589

556

9-1. Specifications

COROLLA_U

9-1.Specifications

*1

:Unladen vehicles

*2

:1.8 L 4-cylinder (2ZR-FAE) engine

*3

:2.0 L 4-cylinder (M20A-FKS) engine

*4

:Except for APEX models

*5

:For APEX models

*6

:For Guam and Saipan

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

182.3 in. (4630 mm)

*2

182.5 in. (4635 mm)

*3, 4

182.8 in. (4643 mm)

*5

Overall width

70.1 in. (1780 mm)

*4

70.1 in. (1781 mm)

*5

Overall height

*1

55.9 in. (1420 mm)

*5

56.5 in. (1435 mm)

*4

57.3 in. (1455 mm)

*4, 6

Wheelbase

106.3 in. (2700 mm)

Tread

Front

60.1 in. (1527 mm)

*4, 6

60.3 in. (1531 mm)

Rear

60.0 in. (1525 mm)

*2, 6

60.1 in. (1526 mm)

*3, 4, 6

60.4 in. (1534 mm)

Vehicle capacity weight
(Occupants + luggage)

825 lb. (375 kg)

*2

860 lb. (390 kg)

*3

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

557

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

■

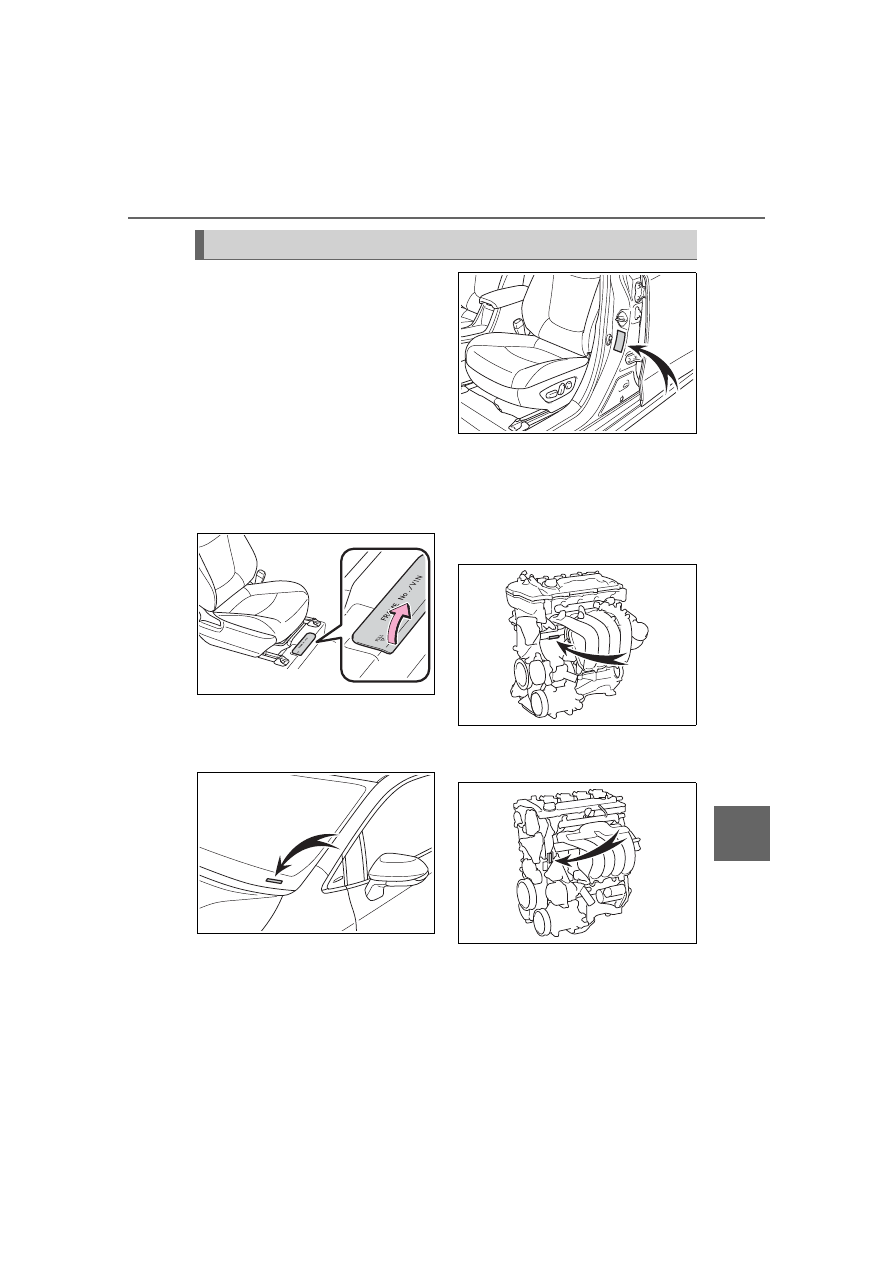

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
On some models: This number
is stamped under the right-hand
front seat.

This number is also stamped on
the top left of the instrument
panel.

This number is also on the Certi-
fication Label.

■

Engine number

The engine number is stamped
on the engine block as shown.



1.8 L 4-cylinder (2ZR-FAE)
engine



2.0 L 4-cylinder (M20A-FKS)
engine

Vehicle identification

558

9-1. Specifications

COROLLA_U

■

Oil capacity (Drain and refill
[Reference

*

])

*

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-5 multi-
grade engine oil
Recommended viscosity: SAE
0W-20

Engine

Model

1.8 L 4-cylinder (2ZR-FAE)

2.0 L 4-cylinder
(M20A-FKS)

Type

4-cylinder in line, 4-cycle,
gasoline

4-cylinder in line, 4-cycle,
gasoline

Bore and stroke

3.17



 3.48 in. (80.5



 88.3

mm)

3.17



 3.84 in. (80.5



 97.6

mm)

Displacement

109.7 cu. in. (1798 cm

3

)

121.3 cu. in. (1987 cm

3

)

Valve clearance

Automatic adjustment

Drive belt tension Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)

13.2 gal. (50.0 L, 11.0 Imp. gal.)

Lubrication system (1.8 L
4-cylinder [2ZR-FAE]
engine)

With filter

4.4 qt. (4.2 L, 3.7 Imp.
qt.)

Without
filter

4.1 qt. (3.9 L, 3.4 Imp.
qt.)

559

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

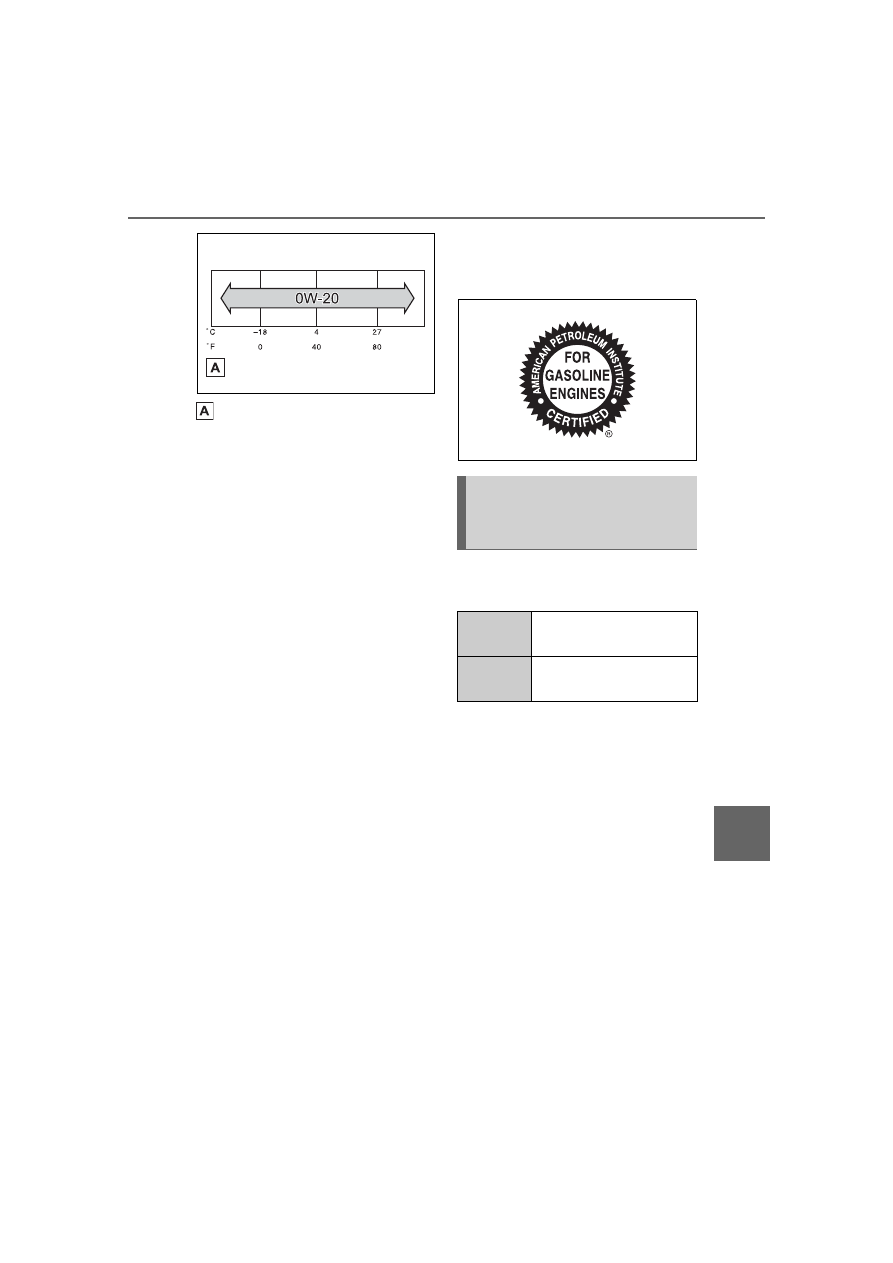

Outside temperature

SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 20 in 0W-20 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is

added to some oil containers to
help you select the oil you
should use.

■

Oil capacity (Drain and refill
[Reference

*

])

*

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: API SN/RC multi-
grade engine oil
Recommended viscosity: SAE

Lubrication system (2.0 L
4-cylinder [M20A-FKS]
engine)

With filter

4.9 qt. (4.6 L, 4.0 Imp.
qt.)

Without

filter

4.5 qt. (4.3 L, 3.8 Imp.
qt.)

560

9-1. Specifications

COROLLA_U

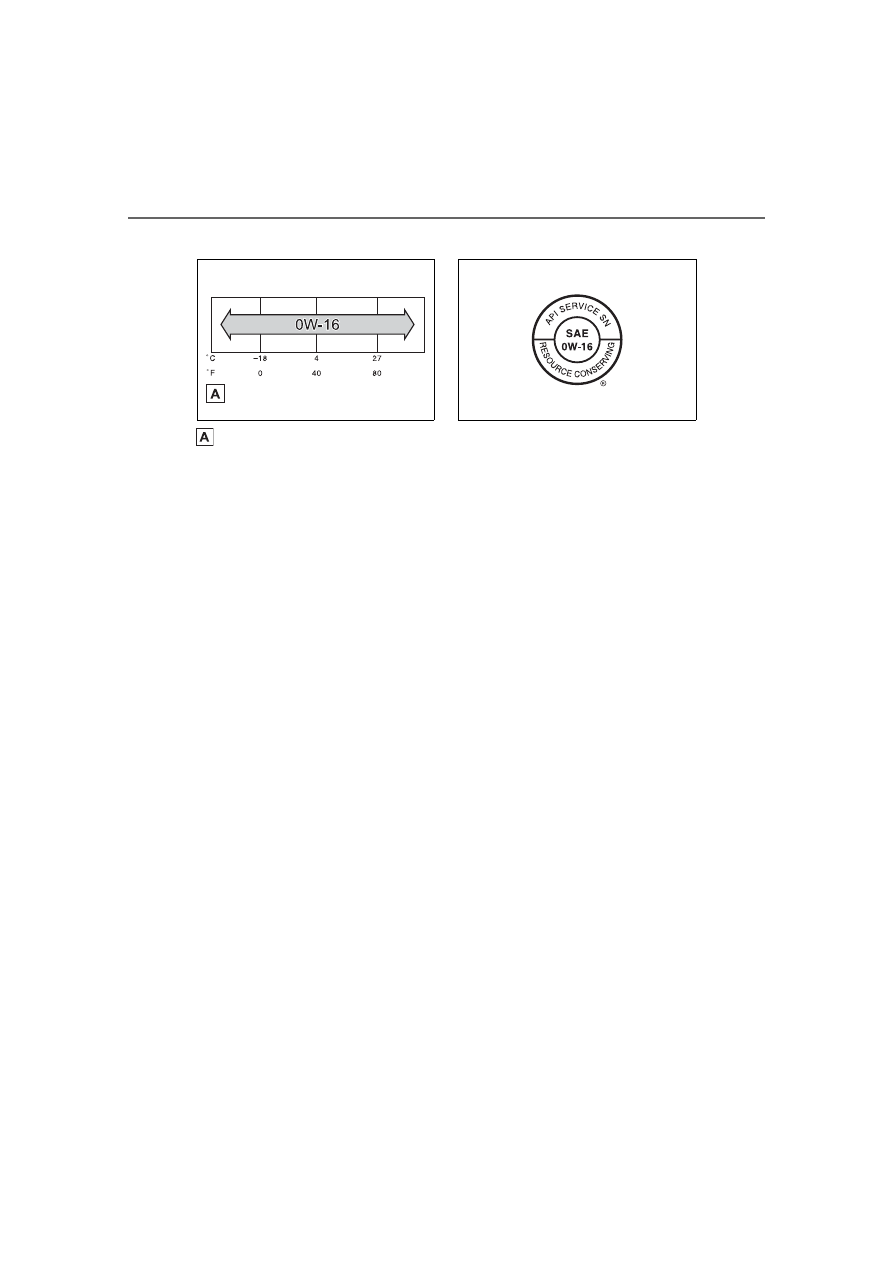

0W-16

Outside temperature

SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
API registered mark is added to
some oil containers to help you

select the oil you should use.

561

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

*

: To determine if your vehicle's engine coolant reservoir is type A or type B,

refer to "Checking the engine coolant". (



P.470)

Cooling system

Capacity (Reference)



1.8 L 4-cylinder (2ZR-FAE) engine

Continuously variable transmission:
6.1 qt. (5.8 L, 5.1 Imp. qt.)
Manual transmission:
5.9 qt. (5.6 L, 4.9 Imp. qt.)



2.0 L 4-cylinder (M20A-FKS) engine (vehicles
with a type A engine coolant reservoir)

*

Continuously variable transmission:
6.6 qt. (6.2 L, 5.5 Imp. qt.)
Manual transmission:
6.2 qt. (5.9 L, 5.2 Imp. qt.)



2.0 L 4-cylinder (M20A-FKS) engine (vehicles
with a type B engine coolant reservoir)

*

Continuously variable transmission:
6.8 qt. (6.4 L, 5.6 Imp. qt.)
Manual transmission:
6.4 qt. (6.1 L, 5.4 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make



1.8 L 4-cylinder (2ZR-FAE) engine

DENSO FC16HR-Q8



2.0 L 4-cylinder (M20A-FKS) engine

DENSO FC20HR-Q8

Gap

0.032 in. (0.8 mm)

562

9-1. Specifications

COROLLA_U

*

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Continuously variable transmission

Fluid capacity

*



1.8 L 4-cylinder (2ZR-FAE) engine

7.9 qt. (7.5 L, 6.6 Imp. qt.)



2.0 L 4-cylinder (M20A-FKS) engine

9.0 qt. (8.5 L, 7.5 Imp. qt.)

Fluid type

Toyota Genuine CVT Fluid FE

NOTICE

■

Continuously variable transmission fluid type

Using continuously variable transmission fluid other than the above type

may cause abnormal noise or vibration, or damage the continuously vari-

able transmission of your vehicle.

Manual transmission

Gear oil capacity (Reference)



1.8 L 4-cylinder (2ZR-FAE) engine

2.5 qt. (2.4 L, 2.1 Imp. qt.)



2.0 L 4-cylinder (M20A-FKS) engine

1.6 qt. (1.5 L, 1.3 Imp. qt.)

Gear oil type

“TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” or equivalent

563

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

NOTICE

■

Manual transmission gear oil type

●

Please be aware that depending on the particular characteristics of the

gear oil used or the operating conditions, idle sound, shift feeling and/or

fuel efficiency may be different or affected and, in the worst case, dam-

age to the vehicle’s transmission.

Toyota recommends to use “TOYOTA Genuine Manual Transmission

Gear Oil LV GL-4 75W” to achieve optimal performance.

●

Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmis-

sion Gear Oil LV GL-4 75W” at the factory.

Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil

LV GL-4 75W” or an equivalent oil of matching quality that satisfies the

above specifications.

Please contact your Toyota dealer for further details.

Clutch

Pedal free play

0.1



 0.6 in. (3



 15 mm)

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Brakes

Pedal clearance

*1

4.1 in. (105 mm) Min.

Pedal free play

0.04



 0.24 in. (1



 6 mm)

Parking brake lever travel

*2, 3

5



 8 clicks

Brake pad wear limit



Front

0.06 in. (1.5 mm)



Rear

Vehicles without a electric parking brake:
0.06 in. (1.5 mm)
Vehicles with a electric parking brake:
0.08 in. (2.0 mm)

564

9-1. Specifications

COROLLA_U

*1

:Minimum pedal clearance when depressed with a force of 67.4 lbf (300

N, 30.6 kgf) while the engine is running.

*2

:If equipped

*3

:Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,

20.4 kgf)

*4

:Make sure to confirm that the brake system warning light (yellow) does

not illuminate. (If the brake system warning light illuminates, refer to
P.511.)



Type A

Parking brake indicator

*4

When pulling the parking brake switch for
1 to 2 seconds: comes on
When pushing the parking brake switch for
1 to 2 seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

195/65R15 91S, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

2

 or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

15



 6 1/2J, 17



 4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

565

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U



Type B



Type C



Type D

Tire size

205/55R16 91H, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

16



 7J, 17



 4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/40R18 88V, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)



Rear

30 psi (210 kPa, 2.1 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18



 8J, 17



 4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

195/65R15 91S

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

2

 or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)



Spare

None

Wheel size

15



 6 1/2J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

566

9-1. Specifications

COROLLA_U



Type E



Type F

Tire size

205/55R16 91H

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)



Spare

None

Wheel size

16



 7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/40R18 88W, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)



Rear

30 psi (210 kPa, 2.1 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18



 8J, 17



 4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

W

Type

Exterior

Front side marker lights

—

5

A

Front turn signal /parking lights
(vehicles without side turn signal
lights)

7444NA

28/8

B

Rear side marker lights (bulb
type)

—

5

A

Rear turn signal lights

—

21

B

Back-up lights

—

16

A

567

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

A: Wedge base bulbs (clear)
B: Wedge base bulbs (amber)
C: Double end bulbs

Interior

Front interior lights/personal
lights

—

5

A

Vanity lights (if equipped)

—

8

A

Rear interior light

—

8

C

Trunk light

—

5

A

Light bulbs

Bulb No.

W

Type

568

9-1. Specifications

COROLLA_U

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid the build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to

15% ethanol.

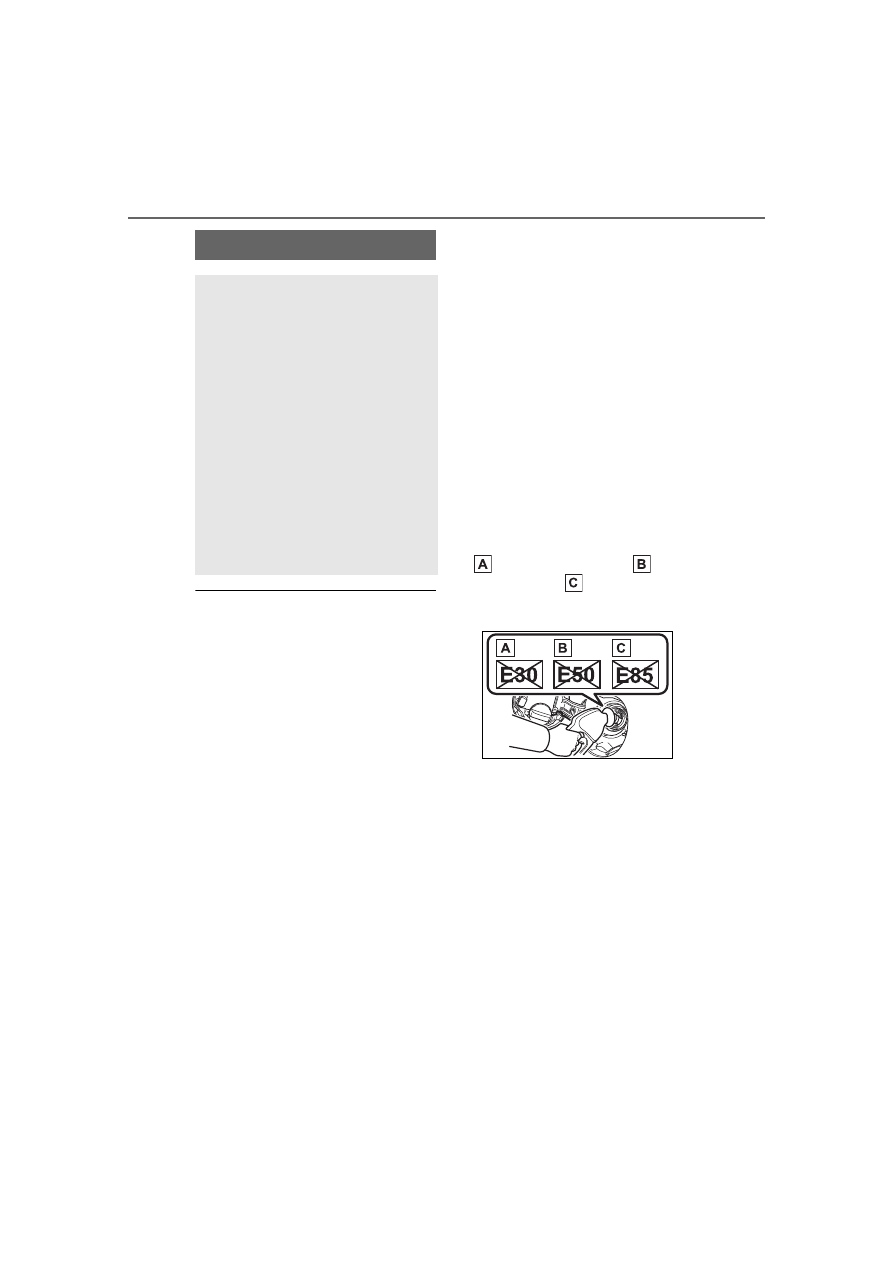

DO NOT use any flex-fuel or gas-

oline that could contain more than

15% ethanol, including from any

pump labeled E30 (30% ethanol
[

]), E50 (50% ethanol [

]), E85

(85% ethanol [

]) (which are only

some examples of fuel containing

more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 87.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the use

of gasoline that contains MMT. If

fuel containing MMT is used, your

emission control system may be

Fuel information

You must only use unleaded
gasoline.
Select octane rating of 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A.

569

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s

three-way catalytic converters

causing the emission control

system to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

570

9-1. Specifications

COROLLA_U



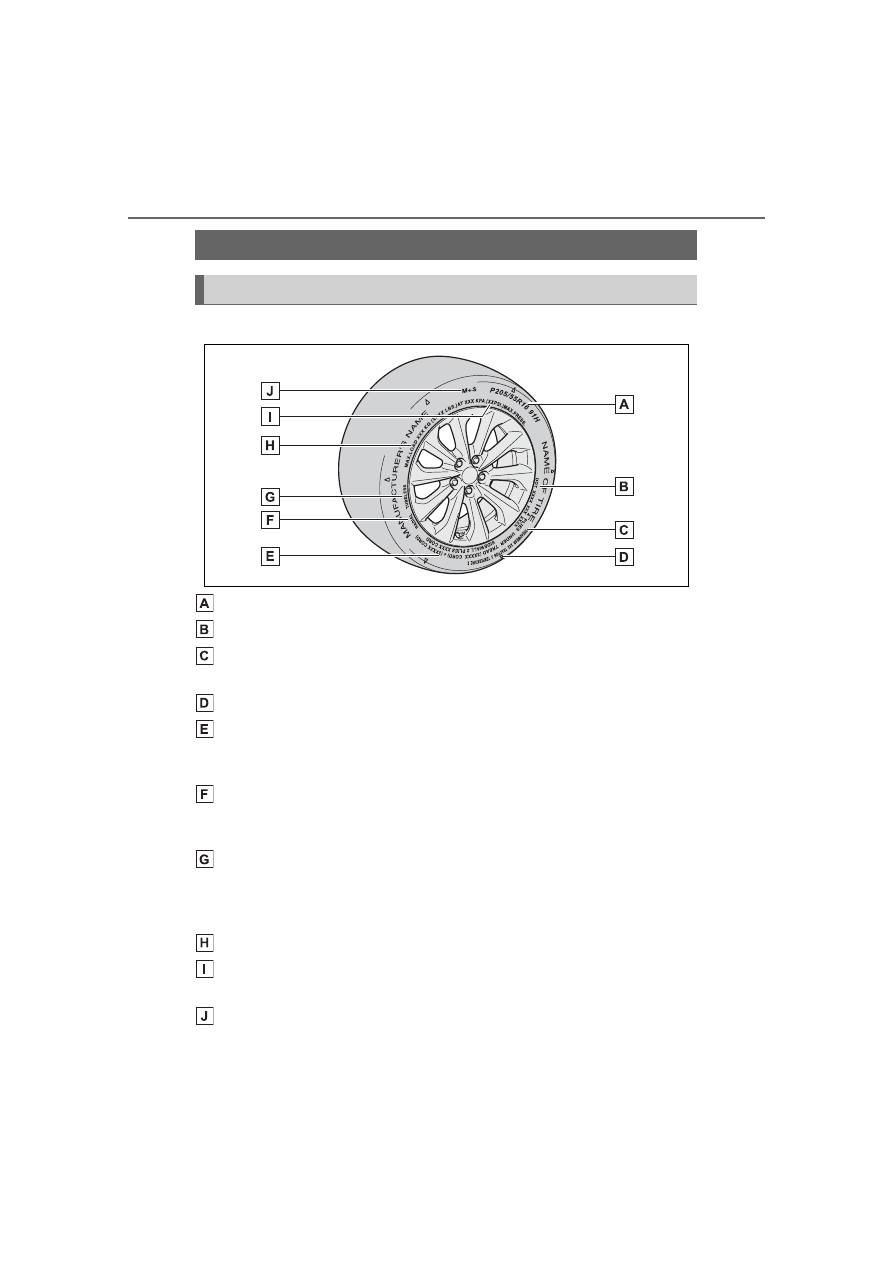

Full-size tire

Tire size (



P.572)

DOT and Tire Identification Number (TIN) (



P.572)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators (



P.475)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.475)

Maximum cold tire inflation pressure (



P.564)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires (



P.476)

Tire information

Typical tire symbols

571

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.



Compact spare tire

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY”
molded on its sidewall. This tire is designed for temporary emergency use
only.

Tire size (



P.572)

DOT and Tire Identification Number (TIN) (



P.572)

Load limit at maximum cold tire inflation pressure (



P.475)

Location of treadwear indicators (



P.475)

Maximum cold tire inflation pressure (



P.564)

This means the pressure to which a tire may be inflated.

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

572

9-1. Specifications

COROLLA_U



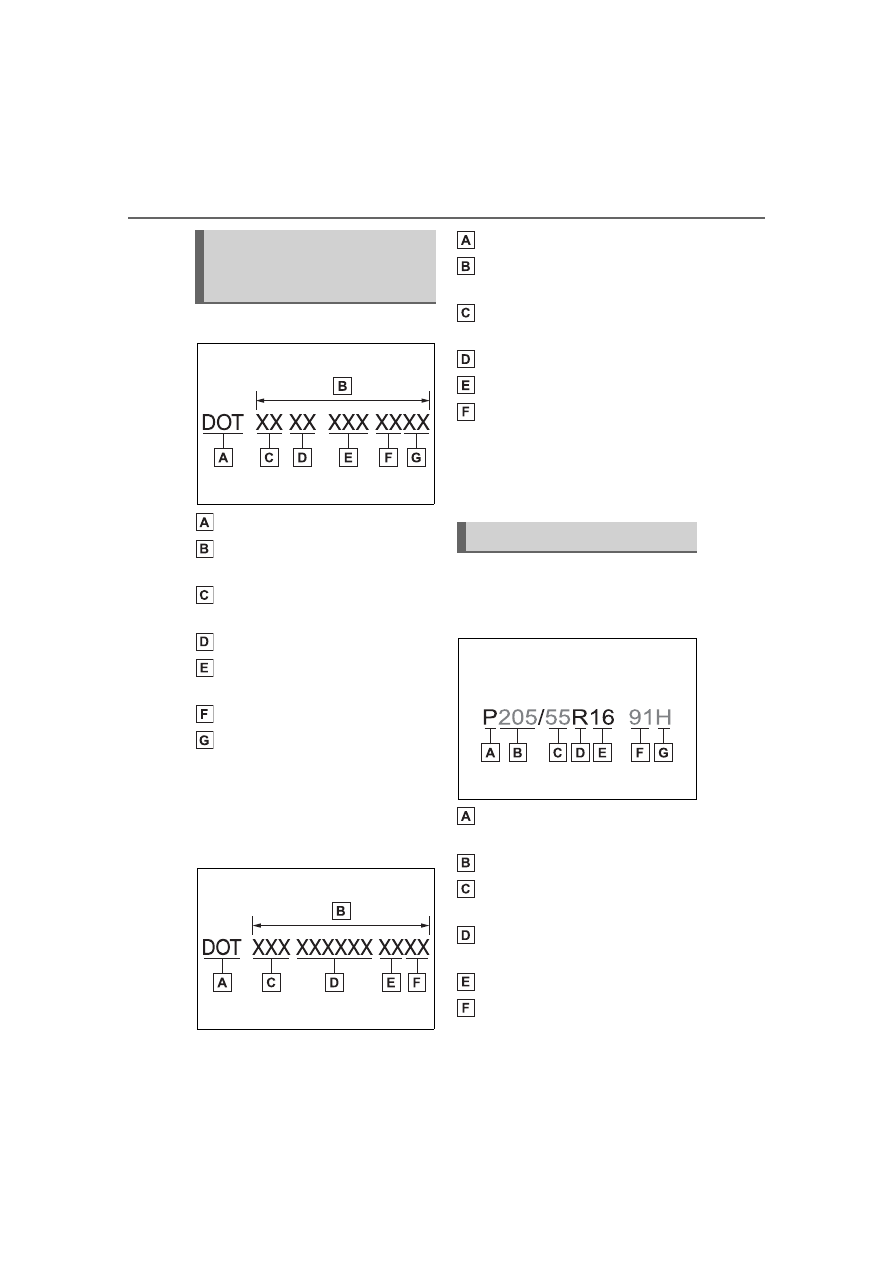

Type A

DOT symbol

*

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year

*

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.



Type B

DOT symbol

*

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code
Manufacturing week
Manufacturing year

*

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio (tire height to
section width)
Tire construction code (R =
Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)

Typical DOT and Tire
Identification Number
(TIN)

Tire size

573

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

Speed symbol (alphabet with
one letter)

■

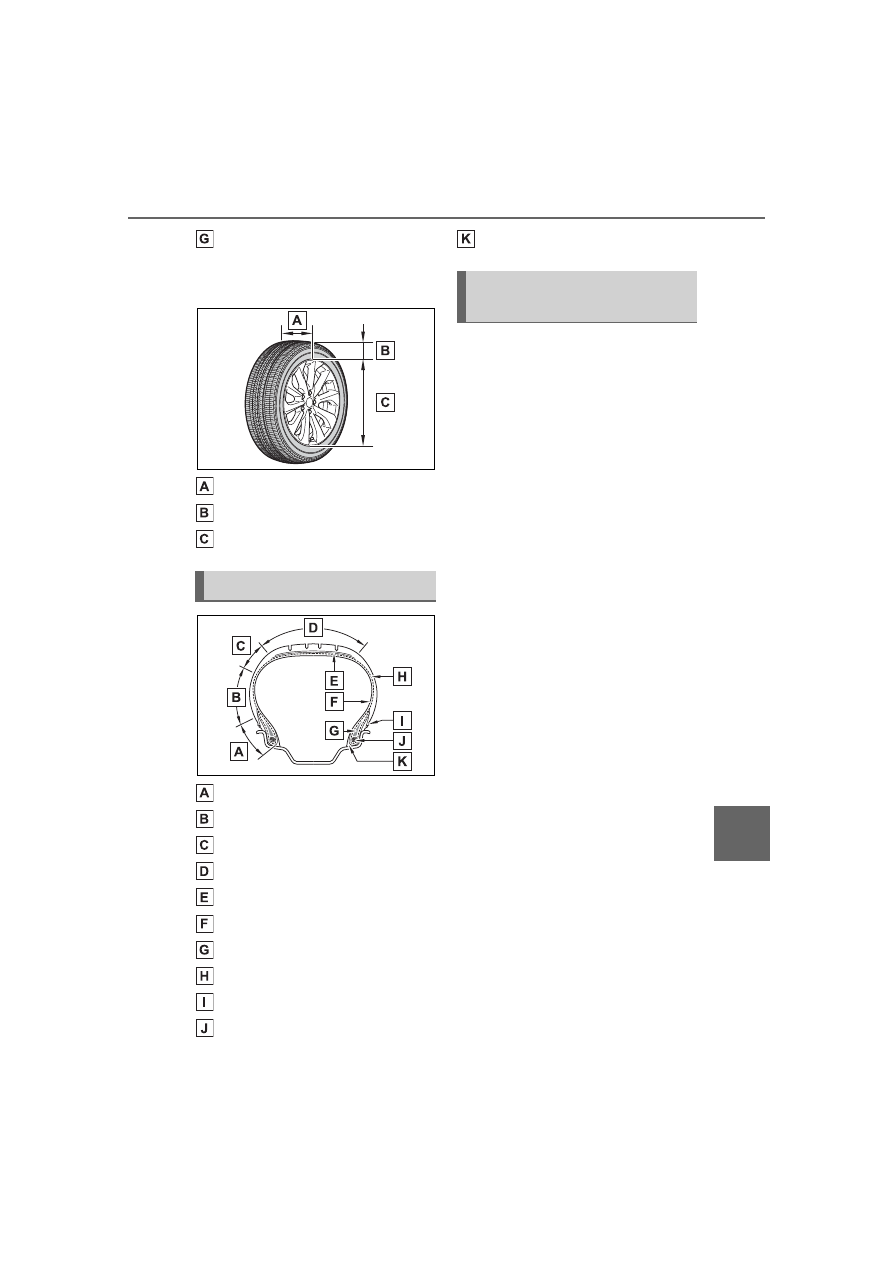

Tire dimensions

Section width
Tire height
Wheel diameter

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
tion on uniform tire quality grad-
ing.

Your Toyota dealer will help answer
any questions you may have as you
read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable
on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150

Tire section names

Uniform Tire Quality
Grading

574

9-1. Specifications

COROLLA_U

would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use. Performance may differ
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement
as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

■

Temperature A, B, C

The temperature grades are A

(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of
performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pressure

Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km
under that condition

Maximum inflation pressure

The maximum cold inflated pressure to
which a tire may be inflated, shown on the
sidewall of the tire

575

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

Recommended inflation pres-
sure

Cold tire inflation pressure recommended
by a manufacturer

Accessory weight

The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio and heater, to the extent that
these items are available as fac-
tory-installed equipment (whether installed
or not)

Curb weight

The weight of a motor vehicle with stan-
dard equipment, including the maximum
capacity of fuel, oil and coolant, and if so
equipped, air conditioning and additional
weight optional engine

Maximum loaded vehicle
weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant weight

150 lb. (68 kg) times the number of occu-
pants specified in the second column of
Table 1

*

 that follows

Occupant distribution

Distribution of occupants in a vehicle as
specified in the third column of Table 1

*



below

Production options weight

The combined weight of installed regular
production options weighing over 5 lb. (2.3
kg) in excess of the standard items which
they replace, not previously considered in
curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated

Tire related term

Meaning

576

9-1. Specifications

COROLLA_U

Rim diameter (Wheel diame-
ter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation
for a rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity weight (Total
load capacity)

The rated cargo and luggage load plus 150
lb. (68 kg) times the vehicle’s designated
seating capacity

Vehicle maximum load on the
tire

The load on an individual tire that is deter-
mined by distributing to each axle its share
of the maximum loaded vehicle weight,
and dividing by two

Vehicle normal load on the tire

The load on an individual tire that is deter-
mined by distributing to each axle its share
of curb weight, accessory weight, and nor-
mal occupant weight (distributed in accor-
dance with Table 1

*

 below), and dividing by

two

Weather side

The surface area of the rim not covered by
the inflated tire

Bead

The part of the tire that is made of steel
wires, wrapped or reinforced by ply cords
and that is shaped to fit the rim

Bead separation

A breakdown of the bond between compo-
nents in the bead

Bias ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate
angles substantially less than 90 degrees
to the centerline of the tread

Carcass

The tire structure, except tread and side-
wall rubber which, when inflated, bears the
load

Chunking

The breaking away of pieces of the tread
or sidewall

Cord

The strands forming the plies in the tire

Tire related term

Meaning

577

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

Cord separation

The parting of cords from adjacent rubber
compounds

Cracking

Any parting within the tread, sidewall, or
innerliner of the tire extending to cord
material

CT

A pneumatic tire with an inverted flange
tire and rim system in which the rim is
designed with rim flanges pointed radially
inward and the tire is designed to fit on the
underside of the rim in a manner that
encloses the rim flanges inside the air cav-
ity of the tire

Extra load tire

A tire designed to operate at higher loads
and at higher inflation pressures than the
corresponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating
medium within the tire

Innerliner separation

The parting of the innerliner from cord
material in the carcass

Intended outboard sidewall

(a) The sidewall that contains a whitewall,
bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or
(b) The outward facing sidewall of an
asymmetrical tire that has a particular side
that must always face outward when
mounted on a vehicle

Light truck (LT) tire

A tire designated by its manufacturer as
primarily intended for use on lightweight
trucks or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to
carry for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum
permissible inflation pressure for that tire

Tire related term

Meaning

578

9-1. Specifications

COROLLA_U

Maximum permissible inflation
pressure

The maximum cold inflation pressure to
which a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, side-
wall, or innerliner that extends to cord
material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors
of the sidewalls of an inflated tire, including
elevations due to labeling, decorations, or
protective bands or ribs

Passenger car tire

A tire intended for use on passenger cars,
multipurpose passenger vehicles, and
trucks, that have a gross vehicle weight
rating (GVWR) of 10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between
adjacent plies

Pneumatic tire

A mechanical device made of rubber,
chemicals, fabric and steel or other materi-
als, that, when mounted on an automotive
wheel, provides the traction and contains
the gas or fluid that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substan-
tially 90 degrees to the centerline of the
tread

Reinforced tire

A tire designed to operate at higher loads
and at higher inflation pressures than the
corresponding standard tire

Section width

The linear distance between the exteriors
of the sidewalls of an inflated tire, exclud-
ing elevations due to labeling, decoration,
or protective bands

Sidewall

That portion of a tire between the tread
and bead

Tire related term

Meaning

579

9-1. Specifications

9

Vehicle

 specificatio

ns

COROLLA_U

*

: Table 1 -Occupant loading and distribution for vehicle normal load for var-

ious designated seating capacities

Sidewall separation

The parting of the rubber compound from
the cord material in the sidewall

Snow tire

A tire that attains a traction index equal to
or greater than 110, compared to the
ASTM E-1136 Standard Reference Test
Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard
Test Method for Single Wheel Driving Trac-
tion in a Straight Line on Snow-and
Ice-Covered Surfaces, and which is

marked with an Alpine Symbol (

) on at

least one sidewall

Test rim

The rim on which a tire is fitted for testing,
and may be any rim listed as appropriate
for use with that tire

Tread

That portion of a tire that comes into con-
tact with the road

Tread rib

A tread section running circumferentially
around a tire

Tread separation

Pulling away of the tread from the tire car-
cass

Treadwear indicators (TWI)

The projections within the principal
grooves designed to give a visual indica-
tion of the degrees of wear of the tread

Wheel-holding fixture

The fixture used to hold the wheel and tire
assembly securely during testing

Tire related term

Meaning

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution in

a normally loaded vehi-

cle

2 through 4

2

2 in front

5 through 10

3

2 in front, 1 in second

seat

580

9-1. Specifications

COROLLA_U

11 through 15

5

2 in front, 1 in second

seat, 1 in third seat, 1 in

fourth seat

16 through 20

7

2 in front, 2 in second

seat, 2 in third seat, 1 in

fourth seat

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution in

a normally loaded vehi-

cle

581

9-2. Customization

9

Vehicle

 specificatio

ns

COROLLA_U

9-2.Customization

■

Changing by using the
audio system screen

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” or “Vehicle”
on the “Setup” screen.

Various setting can be changed.

Refer to the list of settings that can

be changed for details.

■

Changing by using the
meter control switches

1

Press

 or

 of the meter

control switch to select

.

2

Press

 or

 of the meter

control switch to select the
desired item to be custom-
ized.

3

Press or press and hold

.

The available settings will differ
depending on if

 is pressed or

pressed and held. Follow the

instructions on the display.

Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.

Settings that can be changed using the audio system screen
Settings that can be changed using the meter control switches

Customizable features

Your vehicle includes a vari-
ety of electronic features
that can be personalized to
suit your preferences. The
settings of these features
can be changed using the
multi-information display,
the audio system screen, or
at your Toyota dealer.

Customizing vehicle fea-
tures

WARNING

■

During customization

As the engine needs to be run-

ning during customization, ensure

that the vehicle is parked in a

place with adequate ventilation. In

a closed area such as a garage,

exhaust gases including harmful

carbon monoxide (CO) may col-

lect and enter the vehicle. This

may lead to death or a serious

health hazard.

NOTICE

■

During customization

To prevent battery discharge,

ensure that the engine is running

while customizing features.

Customizable features

582

9-2. Customization

COROLLA_U

Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, — = Not available

■

Gauges, meters and multi-information display (



P.86, 91, 95,

100)

*1

:For details about each function:



P.104

*2

:The default setting varies according to country.

Function

*1

Default setting Customized setting

Language

English

French

O O —

Spanish

Units

*2

miles (MPG)

km (km/L)

— O —

km (L/100 km)

miles (MPG Impe-

rial)

Speedometer display

*3

Analog

Digital

— O —

Eco Driving Indicator
Light

*4

On

Off

— O —

Fuel economy display

Total average

(Average fuel

consumption

[after reset])

Trip average (Aver-

age fuel consump-

tion [after start])

— O —

Tank average

(Average fuel con-

sumption [after

refuel])

Audio system linked dis-
play

On

Off

— O —

Drive information type

After start

After reset

— O —

Drive information items
(First item)

Distance

Average vehicle

speed

— O —

Elapsed time

Drive information items
(Second item)

Elapsed time

Average vehicle

speed

— O —

Distance

Pop-up display

On

Off

— O —

583

9-2. Customization

9

Vehicle

 specificatio

ns

COROLLA_U

*3

:7-inch display

*4

:If equipped

■

Door lock (



P.117, 122, 544)

*

: Vehicles with a continuously variable transmission

■

Smart key system

*

 and wireless remote control

*

 (



P.117, 125)

Function

Default setting Customized setting

Unlocking using a key

Driver’s door

unlocked in

one step, all

doors

unlocked in

two step

All doors unlocked

in one step

— — O

Automatic door locking
function

*

Shift position

linked door

locking opera-

tion

Off

O — O

Speed linked door

locking operation

Automatic door unlock-
ing function

*

Shift position

linked door

unlocking

operation

Off

O — O

Driver’s door linked

door unlocking

operation

Locking/unlocking of the
trunk when all doors are
locked/unlocked

On

Off

— — O

Function

Default setting Customized setting

Operating signal (Buzz-
ers)

5

Off

O — O

1 to 7

Operation signal (Emer-
gency flashers)

On

Off

O — O

Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked

60 seconds

Off

O — O

30 seconds

120 seconds

Open door warning
buzzer

On

Off

— — O

584

9-2. Customization

COROLLA_U

*

: If equipped

■

Smart key system

*

 (



P.117, 125)

*

: If equipped

■

Wireless remote control

*

 (



P.112, 117, 122)

*

: If equipped

Function

Default setting Customized setting

Smart key system

On

Off

— — O

Smart door unlocking

Driver’s door

All the doors

O — O

Time elapsed before
unlocking all the door
when gripping and hold-
ing the driver’s door
handle

2.0 seconds

Off

— — O

1.5 seconds

2.5 seconds

Number of consecutive
door lock operations

2 times

As many as

desired

— — O

Function

Default setting Customized setting

Wireless remote control

On

Off

— — O

Unlocking operation

Driver’s door

unlocked in

one step, all

doors

unlocked in

two step

All doors unlocked

in one step

O — O

Trunk unlocking opera-
tion

Press and hold

(short)

One short press

— — O

Push twice

Press and hold

(long)

Off

Theft deterrent panic
mode

On

Off

— — O

Locking operation when
door opened

On

Off

O — O

585

9-2. Customization

9

Vehicle

 specificatio

ns

COROLLA_U

■

Power windows and moon roof

*

 (



P.142, 145)

*

: If equipped

■

Moon roof

*

 (



P.145)

*

: If equipped

■

Automatic light control system (



P.186)

Function

Default setting Customized setting

Mechanical key linked
operation

Off

On

— — O

Wireless remote control
linked operation

Off

On (open only)

— — O

Wireless remote control
linked operation signal
(buzzer)

On

Off

— — O

Function

Default setting Customized setting

Linked operation of com-
ponents when key is
used (open only)

Slide only

Tilt only

— — O

Linked operation of com-
ponents when wireless
remote control is used

Slide only

Tilt only

— — O

Function

Default setting Customized setting

Light sensor sensitivity

Standard

-2 to 2

O — O

Time elapsed before
headlights automatically
turn off after doors are
closed

30 seconds

Off

O — O

60 seconds

90 seconds

Windshield wiper linked
headlight illumination

On

Off

— — O

586

9-2. Customization

COROLLA_U

■

Lights (



P.186)

*1

:Except for Canada

*2

:If equipped

■

PCS (Pre-Collision System) (



P.203)

■

LTA (Lane Tracing Assist)

*

/LDA (Lane Departure Alert with

steering control)

*

 (



P.211, 221)

*

: If equipped

■

RSA (Road Sign Assist)

*

 (



P.250)

Function

Default setting Customized setting

Daytime running light
system

On

Off

*1

O — O

AFS (Adaptive Front-
lighting System)

*2

On

Off

— — O

Function

Default setting Customized setting

PCS (Pre-Collision Sys-
tem)

On

Off

— O —

Adjust alert timing

Middle

Far

— O —

Near

Function

Customized setting

Lane centering function

*

On, Off

— O —

Steering assist function

On, Off

— O —

Alert sensitivity

High, Standard

— O —

Vehicle sway warning function

On, Off

— O —

Vehicle sway warning sensitivity

High, Standard, Low

— O —

Function

Default setting Customized setting

RSA (Road Sign Assist)

On

Off

— O —

587

9-2. Customization

9

Vehicle

 specificatio

ns

COROLLA_U

*

: If equipped

■

BSM (Blind Spot Monitor)

*

 (



P.253)

*

: If equipped

■

RCTA (Rear Cross Traffic Alert) function

*

 (



P.258)

*

: If equipped

Excess speed notifica-
tion method

Display only

No notification

— O —

Display and buzzer

Excess speed notifica-
tion level

1 mph (2 km/h)

3 mph (5 km/h)

— O —

5 mph (10 km/h)

Other notifications
method (No-entry notifi-
cation)

Display only

No notification

— O —

Display and buzzer

Function

Default setting Customized setting

BSM (Blind Spot Moni-
tor)

On

Off

— O —

Outside rear view mirror
indicator brightness

Bright

Dim

— O —

Alert timing for pres-
ence of approaching
vehicle (sensitivity)

Intermediate

Early

— O —

Late

Only when vehicle

detected in blind

spot

Function

Default setting Customized setting

RCTA (Rear Cross Traf-
fic Alert) function

On

Off

— O —

Buzzer volume

Level 2

Level 1

— — O

Level 3

Function

Default setting Customized setting

588

9-2. Customization

COROLLA_U

■

Automatic air conditioning system

*

 (



P.421)

*

: If equipped

■

Illumination (



P.428)

*

: If equipped

■

Vehicle customization

●

When the smart key system is off,

Smart door unlocking cannot be

customized.

●

When the doors remain closed

after unlocking the doors and the

automatic door lock function is

activated, the signals will be gen-

erated in accordance with the

operation signal (buzzer) and the

operation signal (emergency

flashers) settings.

■

In the following situations, cus-

tomize mode in which the set-

tings can be changed through

the multi-information display

will automatically be turned off

●

The engine switch is turned off.

●

The vehicle begins to move while

the customize mode screen is dis-

played.

Function

Default setting Customized setting

A/C auto switch opera-
tion

On

Off

O — O

Function

Default setting Customized setting

Time elapsed before the
interior lights turn off

15 seconds

Off

O — O

7.5 seconds

30 seconds

Operation after the
engine switch is turned
off

On

Off

— — O

Operation when the
doors are unlocked

On

Off

— — O

Operation when you
approach the vehicle
with the electronic key
on your person

*

On

Off

— — O

Cup holder lights

*

 and

center tray light

*

On

Off

— — O

Door trim lights

*

On

Off

— — O
