518

8-1. Specifications

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-

sure

Tire  pressure  when  the  vehicle  has  been

parked  for  three  hours  or  more,  or  has  not

been driven more than 1 mile or 1.5 km under

that condition

Maximum

inflation

pressure

The maximum cold inflated pressure to which

a tire may be inflated, shown on the sidewall

of the tire

Recommended  infla-

tion pressure

Cold tire inflation pressure recommended by a

manufacturer

Accessory weight

The combined weight (in excess of those stan-

dard  items  which  may  be  replaced)  of  hybrid

transmission,  power  steering,  power  brakes,

power  windows,  power  seats,  radio  and

heater, to the extent that these items are avail-

able  as  factory-installed  equipment  (whether

installed or not)

Curb weight

The  weight  of  a  motor  vehicle  with  standard

equipment, including the maximum capacity of

fuel,  oil  and  coolant,  and  if  so  equipped,  air

conditioning  and  additional  weight  optional

engine

Maximum loaded vehi-

cle weight

The sum of:

(a) Curb weight

(b) Accessory weight

(c) Vehicle capacity weight

(d) Production options weight

Normal

occupant

weight

150 lb. (68 kg) times the number of occupants

specified  in  the  second  column  of  Table  1

*

that follows

Occupant distribution

Distribution of occupants in a vehicle as speci-

fied in the third column of Table 1

*

 below

519

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

Production

options

weight

The combined weight of installed regular pro-

duction options weighing over 5 lb. (2.3 kg) in

excess  of  the  standard  items  which  they

replace,  not  previously  considered  in  curb

weight  or  accessory  weight,  including  heavy

duty  brakes,  ride  levelers,  roof  rack,  heavy

duty 12-volt battery, and special trim

Rim

A  metal  support  for  a  tire  or  a  tire  and  tube

assembly  upon  which  the  tire  beads  are

seated

Rim diameter

(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a

rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle

capacity

weight

(Total

load

capacity)

The rated cargo and luggage load plus 150 lb.

(68 kg) times the vehicle’s designated seating

capacity

Vehicle maximum load

on the tire

The  load  on  an  individual  tire  that  is  deter-

mined by distributing to each axle its share of

the  maximum  loaded  vehicle  weight,  and

dividing by two

Vehicle normal load on

the tire

The  load  on  an  individual  tire  that  is  deter-

mined by distributing to each axle its share of

curb  weight,  accessory  weight,  and  normal

occupant  weight  (distributed  in  accordance

with Table 1

*

 below), and dividing by two

Weather side

The surface area of the rim not covered by the

inflated tire

Bead

The part of the tire that is made of steel wires,

wrapped or reinforced by ply cords and that is

shaped to fit the rim

Bead separation

A  breakdown  of  the  bond  between  compo-

nents in the bead

Tire related term

Meaning

520

8-1. Specifications

Bias ply tire

A  pneumatic  tire  in  which  the  ply  cords  that

extend  to  the  beads  are  laid  at  alternate

angles  substantially  less  than  90  degrees  to

the centerline of the tread

Carcass

The  tire  structure,  except  tread  and  sidewall

rubber which, when inflated, bears the load

Chunking

The  breaking  away  of  pieces  of  the  tread  or

sidewall

Cord

The strands forming the plies in the tire

Cord separation

The  parting  of  cords  from  adjacent  rubber

compounds

Cracking

Any parting within the tread, sidewall, or inner-

liner of the tire extending to cord material

CT

A  pneumatic  tire  with  an  inverted  flange  tire

and  rim  system  in  which  the  rim  is  designed

with  rim  flanges  pointed  radially  inward  and

the  tire  is  designed  to  fit  on  the  underside  of

the  rim  in  a  manner  that  encloses  the  rim

flanges inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and

at  higher  inflation  pressures  than  the  corre-

sponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The  layer(s)  forming  the  inside  surface  of  a

tubeless tire that contains the inflating medium

within the tire

Innerliner separation

The parting of the innerliner from cord material

in the carcass

Intended

outboard

sidewall

(a)The  sidewall  that  contains  a  whitewall,

bears  white  lettering,  or  bears  manufacturer,

brand,  and/or  model  name  molding  that  is

higher  or  deeper  than  the  same  molding  on

the other sidewall of the tire, or

(b)The  outward  facing  sidewall  of  an  asym-

metrical  tire  that  has  a  particular  side  that

must always face outward when mounted on a

vehicle

Tire related term

Meaning

521

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

Light truck (LT) tire

A  tire  designated  by  its  manufacturer  as  pri-

marily  intended  for  use  on  lightweight  trucks

or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry

for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum per-

missible inflation pressure for that tire

Maximum  permissible

inflation pressure

The maximum cold inflation pressure to which

a tire may be inflated

Measuring rim

The  rim  on  which  a  tire  is  fitted  for  physical

dimension requirements

Open splice

Any parting at any junction of tread, sidewall,

or innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The  linear  distance  between  the  exteriors  of

the sidewalls of an inflated tire, including ele-

vations due to labeling, decorations, or protec-

tive bands or ribs

Passenger car tire

A  tire  intended  for  use  on  passenger  cars,

multipurpose passenger vehicles, and trucks,

that  have  a  gross  vehicle  weight  rating

(GVWR) of 10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A  parting  of  rubber  compound  between  adja-

cent plies

Pneumatic tire

A  mechanical  device  made  of  rubber,  chemi-

cals, fabric and steel or other materials, that,

when  mounted  on  an  automotive  wheel,  pro-

vides the traction and contains the gas or fluid

that sustains the load

Radial ply tire

A  pneumatic  tire  in  which  the  ply  cords  that

extend to the beads are laid at substantially 90

degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and

at  higher  inflation  pressures  than  the  corre-

sponding standard tire

Tire related term

Meaning

522

8-1. Specifications

*

: Table 1



 Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Section width

The  linear  distance  between  the  exteriors  of

the sidewalls of an inflated tire, excluding ele-

vations due to labeling, decoration, or protec-

tive bands

Sidewall

That  portion  of  a  tire  between  the  tread  and

bead

Sidewall separation

The parting of the rubber compound from the

cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or

greater  than  110,  compared  to  the ASTM  E-

1136  Standard  Reference  Test  Tire,  when

using  the  snow  traction  test  as  described  in

ASTM  F-1805-00,  Standard  Test  Method  for

Single  Wheel  Driving  Traction  in  a  Straight

Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol (

 )

on at least one sidewall

Test rim

The rim on which a tire is fitted for testing, and

may  be  any  rim  listed  as  appropriate  for  use

with that tire

Tread

That  portion  of  a  tire  that  comes  into  contact

with the road

Tread rib

A  tread  section  running  circumferentially

around a tire

Tread separation

Pulling away of the tread from the tire carcass

Treadwear  indicators

(TWI)

The  projections  within  the  principal  grooves

designed  to  give  a  visual  indication  of  the

degrees of wear of the tread

Wheel-holding fixture

The  fixture  used  to  hold  the  wheel  and  tire

assembly securely during testing

Tire related term

Meaning

523

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution

in a normally loaded

vehicle

2 through 4

2

2 in front

5 through 10

3

2 in front, 1 in second

seat

11 through 15

5

2 in front, 1 in second

seat, 1 in third seat, 1

in fourth seat

16 through 20

7

2 in front, 2 in second

seat, 2 in third seat, 1

in fourth seat

524

8-2. Customization

When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the shift lever in P and the parking brake set.

■

Changing on the audio system screen

Press the “MENU” button.
Select “Setup” on the “Menu” screen.
Select “General” or “Vehicle” on the “Setup” screen.

Various setting can be changed. Refer to the list of settings that can
be changed for details.

■

Changing using the multi-information display



P. 111

Customizable features

Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, on the
audio system screen, or at your Toyota dealer.

Customizing vehicle features

1

2

3

525

8-2. Customization

8

Ve
hicle

 spe
cifi

cations

Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.

Settings that can be changed on the audio system screen
Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, — = Not available

■

Vehicle Proximity Notification System (



P. 76)

Customizable features

1

2

Function

Default setting

Customized setting

The  volume  of  Vehicle
Proximity

Notification

System sound

Level 0

Level +1

— O

Level +2

1

2

526

8-2. Customization

■

Gauges, meters and multi-information display (



P. 98, 102)

*

: The default setting varies according to country.

■

Door lock (



P. 138, 144, 482)

Function

Default setting

Customized setting

Language

English

French

O —

Spanish

Units

*

miles (MPG US)

miles (MPG Imperial)

O —

km (L/100 km)

km (km/L)

Convenience services
(Suggestion function)

On

On

(when the vehicle is

stopped)

O O

Off

1

2

Function

Default setting

Customized setting

Unlocking

using

a

mechanical key

Driver’s door

unlocked in one

step, all doors

unlocked in two

steps

All doors unlocked in

one step

— O

Automatic door lock

Shift position

linked door lock-

ing operation

Off

O O

Speed linked door

locking operation

Automatic door unlock

Shift position

linked door

unlocking opera-

tion

Off

O O

Driver’s door linked

door unlocking oper-

ation

Locking/unlocking  of  the
trunk when all doors are
locked/unlocked

On

Off

— O

1

2

527

8-2. Customization

8

Ve
hicle

 spe
cifi

cations

■

Smart key system and wireless remote control
(



P. 138, 144, 148)

■

Smart key system (



P. 138, 144, 148)

Function

Default setting

Customized setting

Operating signal
(Buzzers)

5

Off to 7

O O

Operation signal
(Emergency flashers)

On

Off

O O

Time  elapsed  before
automatic

door

lock

function  is  activated  if
door  is  not  opened  after
being unlocked

60 seconds

Off

O O

30 seconds

120 seconds

Open

door

warning

buzzer

On

Off

— O

1

2

Function

Default setting

Customized setting

Smart key system

On

Off

— O

Time  elapsed  before
unlocking  all  the  door
when  gripping  and  hold-
ing the driver’s door han-
dle

2 seconds

Off

— O

Number  of  consecutive
door lock operations

2 times

As many as desired — O

1

2

528

8-2. Customization

■

Wireless remote control (



P. 134, 138, 144)

■

Power windows and moon roof

*

 (



P. 173, 177)

*

: If equipped

Function

Default setting

Customized setting

Wireless remote control

On

Off

— O

Unlocking operation

Driver’s door

unlocked in one

step, all doors

unlocked in two

steps

All doors unlocked in

one step

O O

Trunk  unlocking  opera-
tion

Press and hold

(short)

One short press

— O

Push twice

Press and hold (long)

Off

Panic function

On

Off

— O

Reservation lock

On

Off

O O

1

2

Function

Default setting

Customized setting

Mechanical  key  linked
operation

Off

On

— O

Wireless  remote  control
linked operation

Off

On (open only)

— O

Wireless  remote  control
linked  operation  signal
(buzzer)

On

Off

— O

1

2

529

8-2. Customization

8

Ve
hicle

 spe
cifi

cations

■

Moon roof

*

 (



P. 177)

*

: If equipped

■

Driving position memory

*

 (



P. 159)

*

: If equipped

■

Automatic light control system (



P. 218)

Function

Default setting

Customized setting

Linked operation of com-
ponents  when  mechani-
cal  key  is  used  (open
only)

Slide only

Tilt only

— O

Linked operation of com-
ponents  when  wireless
remote control is used

Slide only

Tilt only

— O

1

2

Function

Default setting

Customized setting

Selecting doors linked to
the  memory  recall  func-
tion

Driver’s door

All doors

— O

Driver’s  seat  movement
when exiting the vehicle

Standard

Off

O O

Partial

Steering  wheel  move-
ment

Tilt only

Telescopic only

O O

Tilt & telescopic

Off

1

2

Function

Default setting

Customized setting

Light sensor sensitivity

Standard

-2 to 2

O O

Time  elapsed  before
headlights  automatically
turn  off  after  doors  are
closed

30 seconds

Off

O O

60 seconds

90 seconds

1

2

530

8-2. Customization

■

Lights (



P. 218)

■

Intuitive parking assist

*

 (



P. 292)

*

: If equipped

■

BSM (Blind Spot Monitor) (



P. 277)

■

RCTA (Rear Cross Traffic Alert) (



P. 277)

Function

Default setting

Customized setting

Daytime  running  light
system

On

Off

O O

Welcome lighting

On

Off

— O

Windshield  wiper  linked
headlight illumination

On

Off

— O

1

2

Function

Default setting

Customized setting

Detection distance of the
front center sensor

Far

Near

— O

Detection distance of the
rear center sensor

Far

Near

— O

1

2

Function

Default setting

Customized setting

Outside  rear  view  mirror
indicator brightness

Bright

Dim

— O

1

2

Function

Default setting

Customized setting

Buzzer volume

2

1 to 3

— O

1

2

531

8-2. Customization

8

Ve
hicle

 spe
cifi

cations

■

Automatic air conditioning system (



P. 338)

■

Illumination (



P. 352)

*

:

If equipped

Function

Default setting

Customized setting

A/C  auto  switch  opera-
tion

Auto

Manual

O O

1

2

Function

Default setting

Customized setting

Time  elapsed  before
lights turn off

15 seconds

Off

O O

7.5 seconds

30 seconds

Operation

after

the

power switch turned off

On

Off

— O

Operation

when

the

doors are unlocked

On

Off

— O

Operation  when  you
approach  the  vehicle
with  the  electronic  key
on your person

On

Off

— O

Ambient lights

*

On

Off

— O

1

2

532

8-2. Customization

WARNING

■

During customization

As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.

NOTICE

■

During customization

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

533

9

Ve
hicle

 spe
cifi

cations

8-3. Items to initialize

Items to initialize

The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:

Item

When to initialize

Reference

Message  indicating  mainte-
nance is required

• After the maintenance is per-

formed

P. 393

Tire pressure warning sys-

tem

• When the tire inflation pres-

sure  is  changed  such  as

when  changing  traveling

speed or load weight

• When the tire inflation pres-

sure  is  changed  such  as

when  the  tire  size  is

changed

• When rotating the tires

• After  performing  the  trans-

mitter  ID  code  registration

procedure

P. 417

Intelligent Clearance Sonar
(ICS) (If equipped)

• After reconnecting or chang-

ing the 12-volt battery

P. 311

534

8-3. Items to initialize

9

535

For owners

Reporting safety defects for

U.S. owners............................. 536

536

Reporting safety defects for U.S. owners

If  you  believe  that  your  vehicle  has  a  defect  which  could  cause  a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion  to  notifying Toyota  Motor  Sales,  U.S.A.,  Inc.  (Toll-free:  1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order  a  recall  and  remedy  campaign.  However,  NHTSA  cannot
become involved  in individual problems between you,  your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at  1-888-327-4236  (TTY:  1-800-424-9153);  go  to

http://

www.safercar.gov

  ;  or  write  to:  Administrator,  NHTSA,  1200  New

Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from

http://www.safercar.gov

.

537

Index

What to do if...

(Troubleshooting) .................... 538

Alphabetical index ..................... 542

For information regarding the equipment listed below, refer to “NAV-
IGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

• Navigation system
• Audio/visual system
• Toyota parking assist monitor
• Panoramic view monitor
• Toyota Entune

538

What to do if... (Troubleshooting)

What to do if... (Troubleshooting)

●

If  you lose your mechanical  keys,  new  genuine mechanical  keys  can be
made by your Toyota dealer. (



P. 135)

●

If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact your Toyota dealer immediately. (



P. 137)

●

Is the key battery weak or depleted? (



P. 439)

●

Is the power switch in ON mode?
When locking the doors, turn the power switch off. (



P. 197)

●

Is the electronic key left inside the vehicle?
When  locking  the  doors,  make  sure  that  you  have  the  electronic  key  on
your person.

●

The  function  may  not  operate  properly  due  to  the  condition  of  the  radio
wave. (



P. 151)

●

Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (



P. 141)

●

The function to prevent the electronic key from being left inside the trunk
will operate and you can open the trunk as usual. Take the key out from the
trunk. (



P. 145)

If  you  have  a  problem,  check  the  following  before  contacting
your Toyota dealer.

The doors cannot be locked, unlocked, opened or closed

You lose your keys

The doors cannot be locked or unlocked

The rear door cannot be opened

The trunk lid is closed with the electronic key left inside

539

What to do if... (Troubleshooting)

●

Did you press the power switch while firmly depressing the brake pedal?
(



P. 196)

●

Is the shift lever in P? (



P. 198)

●

Is the electronic key anywhere detectable inside the vehicle? (



P. 148)

●

Is the steering wheel unlocked? (



P. 199)

●

Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
(



P. 483)

●

Is the 12-volt battery discharged? (



P. 485)

●

Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in ON mode. (



P. 209)

●

It is locked automatically to prevent theft of the vehicle. (



P. 199)

●

Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. (



P. 173)

●

The auto power off function will be operated if the vehicle is left in ACCES-
SORY  or  ON  mode  (the  hybrid  system  is  not  operating)  for  a  period  of
time. (



P. 198)

If you think something is wrong

The hybrid system does not start

The shift lever cannot be shifted from P even if you depress
the brake pedal

The steering wheel cannot be turned after the hybrid system
is stopped

The windows do not open or close by operating the power
window switches

The power switch is turned off automatically

540

What to do if... (Troubleshooting)

●

The seat belt reminder light is flashing
Are the driver and the passenger wearing the seat belts? (



P. 456)

●

The parking brake indicator is on
Is the parking brake released? (



P. 212)

Depending on the situation, other types of warning buzzer may also sound.

(



P. 453, 463)



●

Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (



P. 88)

Do one of the following to stop the alarm:

• Unlock the doors.
• Open the trunk using the entry function or wireless remote control.
• Turn the power switch to ACCESSORY or ON mode, or start the hybrid

system.

●

Is the message displayed on the multi-information display?
Check the message on the multi-information display. (



P. 463)

●

When a warning light turns on or a warning message is displayed, refer to
P. 453, 463.

A warning buzzer sounds during driving

An alarm is activated and the horn sounds

A warning buzzer sounds when leaving the vehicle

A warning light turns on or a warning message is displayed

541

What to do if... (Troubleshooting)

●

Stop the vehicle in a safe place and replace the flat tire with the spare
tire. (



P. 469)

●

Try  the  procedure  for  when  the  vehicle  becomes  stuck  in  mud,  dirt,  or
snow. (



P. 496)

When a problem has occurred

If you have a flat tire

The vehicle becomes stuck

542

Alphabetical index

Alphabetical index

A/C ............................................ 338

Air conditioning filter ............. 432
Automatic air

conditioning system............ 338

ABS

(Anti-lock Brake System)...... 323

Warning light......................... 454

AGC (Auto glide control) ........ 322
Air conditioning filter .............. 432
Air conditioning

system.................................... 338

Air conditioning filter ............. 432
Automatic air conditioning

system ................................ 338

S-FLOW mode...................... 341

Airbags ....................................... 34

Airbag operating conditions .... 43
Airbag precautions for

your child .............................. 37

Correct driving posture ........... 26
Curtain shield airbag

operating conditions ............. 44

Curtain shield airbag

precautions........................... 40

Front passenger occupant

classification system............. 48

General airbag precautions .... 37
Locations of airbags................ 34
Modification and disposal

of airbags.............................. 42

Side airbag operating

conditions ............................. 44

Side airbag precautions .......... 37
Side and curtain shield

airbags operating
conditions ............................. 44

Side and curtain shield

airbags precautions .............. 37

SRS airbags............................ 34
SRS warning light ................. 454

Alarm .......................................... 88
Ambient lights ......................... 354
Anchor brackets ........................ 58
Antennas

(smart key system) ............... 148

Anti-lock Brake System

(ABS) ...................................... 323

Warning light......................... 454

Approach warning................... 272
Armrest..................................... 375
Assist grips.............................. 375
Audio/visual system

*

Auto glide control (AGC) ........ 322
Automatic air

conditioning system ............. 338

Air conditioning filter ............. 432

Automatic High Beam ............. 222
Automatic light control

system.................................... 218

Auxiliary boxes........................ 359

A

543

Alphabetical index

Back-up lights

Replacing light bulb .............. 444

Battery (12-volt battery) .......... 411

Battery checking ................... 411
If the battery is discharged.... 485
Preparing and checking

before winter....................... 333

Replacing.............................. 489

Battery (traction battery)........... 79
Blind Spot Monitor (BSM) ....... 277

Blind Spot Monitor

function............................... 281

Rear Cross Traffic Alert

function............................... 283

Bottle holders .......................... 357
Brake

Brake Hold ............................ 216
Fluid ...................................... 505
Parking brake........................ 212
Warning light......................... 453

Brake assist ............................. 323
Brake Hold................................ 216

Warning light......................... 455

Brake override system ............ 183
Break-in tips ............................ 184
Brightness control

Ambient lights ....................... 354
Instrument panel light

control................................... 99

BSM (Blind Spot Monitor) ....... 277

Blind Spot Monitor

function............................... 281

Rear Cross Traffic Alert

function............................... 283

Care

Aluminum wheels ................. 387
Exterior ................................. 386
Interior .................................. 389
Seat belts.............................. 390

Cargo capacity......................... 193
Cargo net.................................. 361
Chains ...................................... 334
Child restraint system............... 54

Booster seats, definition ......... 55
Booster seats, installation....... 64
Convertible seats, definition ... 55
Convertible seats,

installation ............................ 62

Front passenger occupant

classification system ............ 48

Infant seats, definition............. 55
Infant seats, installation .......... 61
Installing CRS

with LATCH anchors ............ 59

Installing CRS

with seat belts ...................... 61

Installing CRS

with top tether strap.............. 65

B

C

*

: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

544

Alphabetical index

Child safety ................................ 53

12-volt battery

precautions................. 413, 490

Airbag precautions.................. 37
Battery precautions....... 413, 490
Child restraint system ............. 54
How your child should wear

the seat belt.......................... 30

Installing child restraints ......... 58
Moon roof precautions .......... 180
Power window lock switch .... 173
Power window precautions ... 176
Rear door child-protectors .... 141
Removed electronic key

battery precautions............. 440

Seat belt extender

precautions........................... 33

Seat belt precautions .............. 32
Seat heater precautions........ 349
Trunk precautions ................. 146

Child-protectors....................... 141
Cleaning ........................... 386, 389

Aluminum wheels.................. 387
Exterior ................................. 386
Interior................................... 389
Seat belts.............................. 390

Coat hooks............................... 376
Condenser................................ 408
Console box............................. 356
Consumption

screen ............................ 106, 128

Coolant

Capacity................................ 504
Checking............................... 407
Preparing and checking

before winter ...................... 333

Cooling system........................ 407

Hybrid system

overheating ........................ 492

Cornering lights....................... 219
Cruise control

Dynamic radar cruise control

with full-speed range .......... 264

Cup holders ............................. 358
Curtain shield airbags............... 35
Customizable features ............ 524

545

Alphabetical index

Daytime running light

system.................................... 219

Defogger

Outside rear view mirrors...... 343
Rear window ......................... 343
Windshield ............................ 343

Dimensions .............................. 500
Dinghy towing.......................... 195
Display

Dynamic radar cruise control

with full-speed range .......... 264

LDA (Lane Departure Alert

with steering control) .......... 259

Multi-information display ....... 102
Warning messages ............... 463

Do-it-yourself maintenance .... 399
Door courtesy lights

Location ................................ 352
Wattage ................................ 507

Door lock

Doors .................................... 138
Smart key system ................. 138
Wireless remote control ........ 138

Doors ........................................ 138

Automatic door locking

and unlocking systems....... 141

Door lock .............................. 140
Outside rear view mirrors ..... 170
Rear door child-protector...... 141
Side doors ............................ 138
Side windows........................ 173

Drive-Start Control .................. 184
Driver’s seat belt

reminder light ........................ 456

Driver’s seat position

memory .................................. 159

Driving

Break-in tips.......................... 184
Correct posture....................... 26
Driving mode select

switches ............................. 321

Hybrid vehicle driving tips..... 330
Procedures ........................... 182
Winter drive tips.................... 333

Driving information ................. 106
Driving position memory ........ 159

Memory recall function ......... 162
Power easy access

system................................ 159

Dynamic radar cruise control

with full-speed range ............ 264

D

546

Alphabetical index

ECO Accelerator Guidance..... 109
Eco drive mode........................ 321
Eco guide ................................. 109
Eco score ................................. 109
EDR

(Event data recorder) .............. 10

Electric motor

(traction motor) ....................... 79

Electric Power Steering

(EPS)....................................... 324

Warning light......................... 455

Electronic key .......................... 134

Battery-saving function ......... 150
If the electronic key does

not operate properly ........... 482

Replacing the battery............ 439

Emergency flashers ................ 446

Emergency, in case of

If a warning buzzer

sounds................................ 453

If a warning light turns on ..... 453
If a warning message is

displayed ............................ 463

If the 12-volt battery is

discharged.......................... 485

If the electronic key does not

operate properly ................. 482

If the hybrid system

will not start ........................ 480

If the vehicle is trapped in

rising water......................... 448

If you have a flat tire ............. 469
If you lose your keys..... 135, 137
If you think something is

wrong ................................. 452

If your vehicle becomes

stuck................................... 496

If your vehicle has to be

stopped in an emergency... 447

If your vehicle needs to be

towed.................................. 449

If your vehicle overheats....... 492

E

547

Alphabetical index

Engine

ACCESSORY mode ............. 197
Compartment ........................ 403
Engine switch........................ 196
Hood ..................................... 401
How to start the hybrid

system ................................ 196

Identification number ............ 501
If your vehicle has to be

stopped in an
emergency.......................... 447

Ignition switch

(power switch) .................... 196

Overheating .......................... 492
Power switch......................... 196

Engine coolant

Capacity................................ 504
Checking............................... 407
Preparing and checking

before winter....................... 333

Engine coolant temperature

gauge........................................ 98

Engine oil

Capacity................................ 503
Checking............................... 404
Preparing and checking

before winter....................... 333

Engine switch .......................... 196
Enhanced VSC ......................... 323
Entune Audio Plus

*

Entune Premium Audio

*

EPS

(Electric Power Steering) ..... 324

Warning light......................... 455

EV drive mode ......................... 202
Event data recorder

(EDR) ........................................ 10

Exclusive jump starting

terminal .................................. 485

Flat tire ..................................... 469
Floor mats .................................. 24
Fluid

Brake .................................... 505
Hybrid transmission .............. 505
Washer ................................. 410

Front interior light ................... 353
Front passenger occupant

classification system.............. 48

Front passenger’s seat belt

reminder light ........................ 456

Front personal lights............... 353
Front seat heaters ................... 349
Front seats ............................... 155

Adjustment............................ 155
Cleaning ............................... 389
Correct driving posture ........... 26
Driving position memory ....... 159
Head restraints ..................... 164
Power easy access

system................................ 159

Seat heaters ......................... 349
Seat ventilators..................... 349

F

*

: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

548

Alphabetical index

Front side marker lights

Light switch ........................... 218
Replacing light bulbs............. 444

Front turn signal lights

Replacing light bulbs............. 444
Turn signal lever ................... 211

Fuel

Capacity................................ 502
Fuel gauge.............................. 98
Information............................ 508
Refueling............................... 230
Type.............................. 502, 508
Warning light......................... 456

Fuel consumption............ 106, 131
Fuel filler door.......................... 230

If the fuel filler door

cannot be opened............... 234

Refueling............................... 230

Fuses ........................................ 441

Garage door opener ................ 377
Gauges ....................................... 98
Glove box ................................. 356
Grocery bag hooks.................. 361

Head restraints ........................ 164
Head-up display....................... 121
Headlights ................................ 218

Automatic High Beam........... 222
Light switch........................... 218
Replacing light bulbs ............ 444
Windshield wiper linked

headlight illumination.......... 220

Heated steering wheel ............ 349
Heaters

Automatic air

conditioning system............ 338

Outside rear view mirrors ..... 343
Seat heaters ......................... 349

High mounted stoplight

Replacing.............................. 444

High voltage components ........ 79
Hill-start assist control ........... 323
Hood ......................................... 401
Hooks

Coat hooks ........................... 376
Grocery bag hooks ............... 361
Retaining hooks (floor mat) .... 24

Horn .......................................... 167
HUD (Head-up display) ........... 121
Hybrid battery

(traction battery) ..................... 79

Hybrid battery

(traction battery) air
intake vent ....................... 80, 434

G

H

549

Alphabetical index

Hybrid system............................ 75

Emergency shut off system .... 80
Energy monitor/

consumption screen ........... 128

EV drive mode ...................... 202
High voltage components ....... 79
Hybrid System Indicator........ 100
Hybrid system precautions ..... 79
Hybrid vehicle driving tips ..... 330
If the hybrid system

will not start ........................ 480

Overheating .......................... 492
Power (ignition) switch.......... 196
Starting the hybrid system .... 196
Vehicle proximity notification

system .................................. 76

Hybrid System Indicator ......... 100
Hybrid transmission................ 205

If the shift lever

cannot be shifted from P .... 209

Paddle shift switches ............ 208
S mode ................................. 207

I/M test ...................................... 398
ICS (Intelligent Clearance

Sonar)..................................... 300

Warning light......................... 455
Warning messages............... 311

Identification

Engine .................................. 501
Vehicle.................................. 501

Ignition switch

(power switch)....................... 196

Illuminated entry system ........ 354
Immobilizer system ................... 86
Indicators ................................... 95
Initialization

Intelligent Clearance

Sonar.................................. 311

Items to initialize ................... 533
Tire pressure

warning system .................. 416

Inside rear view mirror............ 168
Instrument panel light

control...................................... 99

Intelligent Clearance

Sonar (ICS) ............................ 300

Warning light......................... 455
Warning messages............... 311

Interior lights ........................... 352

Switch ................................... 353

Intuitive parking assist ........... 292

I

550

Alphabetical index

Jack

Positioning the jack............... 402
Vehicle-equipped jack........... 469

Jack handle .............................. 469
Jam protection function

Moon roof.............................. 178
Power window....................... 173

Keyless entry

Smart key system ......... 138, 144
Wireless remote

control......................... 138, 145

Keys .......................................... 134

Battery-saving function ......... 150
Electronic key ....................... 134
Engine switch........................ 196
If the electronic key does

not operate properly ........... 482

If you lose your keys ..... 135, 137
Key number plate.................. 134
Keyless entry ........................ 134
Mechanical key ..................... 135
Power switch......................... 196
Replacing the battery............ 439
Warning buzzer..................... 149
Wireless remote control ........ 134

Knee airbags .............................. 34

Lane Departure Alert with

steering control (LDA) .......... 253

Language (multi-

information display).............. 116

LATCH anchors ......................... 59
LDA (Lane Departure Alert

with steering control) ........... 253

Lever

Auxiliary catch lever.............. 401
Hood lock release lever ........ 401
Internal trunk release lever ... 146
Shift lever.............................. 205
Tilt and telescopic steering

lock release lever ............... 166

Turn signal lever ................... 211
Wiper lever ........................... 226

License plate lights

Light switch........................... 218
Replacing light bulbs ............ 444

Light bulbs

Replacing.............................. 444

Lights

Automatic High Beam........... 222
Cornering lights .................... 219
Daytime running light

system................................ 219

Door courtesy lights.............. 352
Headlight switch ................... 218
Illuminated entry system....... 354
Interior lights ......................... 353
Interior lights list.................... 352
Personal lights ...................... 353
Replacing light bulbs ............ 444
Trunk light............................. 145
Turn signal lever ................... 211
Vanity lights .......................... 362
Wattage ................................ 507
Welcome lighting .................. 221

Load capacity .......................... 193
Lock steering column ............. 199

J

K

L

551

Alphabetical index

Maintenance

Do-it-yourself maintenance... 399
General maintenance ........... 394
Maintenance data ................. 500
Maintenance

requirements ...................... 392

Resetting the message

indicating maintenance
is required........................... 393

Malfunction indicator lamp..... 454
Master warning light................ 456
Memory recall function ........... 162
Meter

Head-up display.................... 121
Indicators ................................ 95
Instrument panel light

control................................... 99

Meters..................................... 98
Multi-information display ....... 102
Settings................................. 111
Warning lights ......................... 93
Warning messages ............... 463

Mirrors

Inside rear view mirror .......... 168
Outside rear view mirror

defoggers ........................... 343

Outside rear view mirrors ..... 170
Vanity mirrors ....................... 362

Moon roof................................. 177

Door lock linked moon roof

operation ............................ 178

Jam protection function ........ 178
Operation.............................. 177

Multi-information display........ 102

Driving information................ 106
Dynamic radar cruise control

with full-speed range .......... 264

Language.............................. 116
LDA (Lane Departure Alert

with steering control) .......... 259

Outside temperature............... 98
PCS (Pre-Collision

System) .............................. 245

Settings................................. 111
Suggestion function .............. 118
Warning messages............... 463

M

552

Alphabetical index

Navigation system

*

Noise from under vehicle............ 6

Odometer.................................... 98
Oil

Engine oil .............................. 503

Opener

Fuel filler door ....................... 233
Hood ..................................... 401
Trunk..................................... 144

Outside rear view mirrors ....... 170

Adjusting and folding ............ 170
Blind spot monitor (BSM)...... 277
Linked mirror function

when reversing ................... 171

Mirror position memory ......... 159
Outside rear view mirror

defoggers ........................... 343

Outside temperature

display...................................... 98

Overheating, Hybrid

system.................................... 492

Paddle shift switches.............. 208
Panic mode .............................. 135
Panoramic view monitor

*

Parking brake........................... 212

Parking brake engaged

warning buzzer/
message............................. 215

Warning light......................... 454

Parking lights........................... 218

Light switch........................... 218
Replacing light bulbs ............ 444

PCS (Pre-Collision

System) .................................. 242

Warning light......................... 455

Personal lights......................... 353
Power control unit..................... 79
Power control unit coolant ..... 407

Capacity................................ 504
Checking............................... 407
Preparing and checking

before winter ...................... 333

Power outlet............................. 363
Power steering

(Electric power steering
system) .................................. 324

Warning light......................... 455

Power switch ........................... 196
Power windows ....................... 173

Door lock linked window

operation ............................ 175

Jam protection function ........ 173
Operation.............................. 173
Window lock switch .............. 173

Pre-Collision System

(PCS) ...................................... 242

Warning light......................... 455

N

O

P

553

Alphabetical index

Radar cruise control

(dynamic radar cruise
control with full-speed
range) ..................................... 264

Radiator .................................... 408
Rear Camera Detection

Function ................................. 288

Rear Cross Traffic Alert .......... 283
Rear Cross Traffic

Auto Brake ............................. 302

Rear passengers’ seat belt

reminder light ........................ 456

Rear personal lights ................ 353
Rear seat

Folding down ........................ 157

Rear seat heaters..................... 349
Rear side marker lights

Light switch ........................... 218
Replacing light bulbs............. 444

Rear turn signal lights

Replacing light bulbs............. 444
Turn signal lever ................... 211

Rear view mirror

Inside rear view mirror .......... 168
Outside rear view mirrors ..... 170

Rear window defogger............ 343
Refueling .................................. 230

Capacity................................ 502
Fuel types ..................... 502, 508
If the fuel filler door

cannot be opened .............. 234

Opening the fuel tank cap..... 233

Replacing

Electronic key battery ........... 439
Fuses.................................... 441
Light bulbs ............................ 444
Tires...................................... 469

Reporting safety defects

for U.S. owners...................... 536

Resetting the message

indicating maintenance is
required.................................. 393

Road accident cautions ............ 83

R

*

: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

554

Alphabetical index

Safety Connect .......................... 69
Seat belt reminder light........... 456
Seat belts.................................... 28

Adjusting the seat belt ............ 29
Automatic Locking

Retractor............................... 30

Child restraint system

installation ............................ 58

Cleaning and maintaining

the seat belt........................ 390

Emergency Locking

Retractor............................... 30

How to wear your seat belt ..... 28
How your child should wear

the seat belt.......................... 30

Pregnant women, proper

seat belt use ......................... 31

Reminder light and buzzer.... 456
Seat belt extender................... 30
Seat belt pretensioners........... 29
SRS warning light ................. 454

Seat heaters ............................. 349
Seat ventilators........................ 349
Seating capacity ...................... 193

Seats................................. 155, 157

Adjustment.................... 155, 157
Adjustment

precautions................. 156, 158

Child seats/child restraint

system installation................ 58

Cleaning ............................... 389
Driving position memory ....... 159
Folding down the rear

seatbacks ........................... 157

Front seat heaters ................ 349
Head restraints ..................... 164
Power easy access

system................................ 159

Properly sitting in the seat ...... 26
Rear seat heaters ................. 349
Seat ventilators..................... 349

Secondary Collision Brake..... 324
Sensor

Automatic headlight

system................................ 220

Automatic High Beam

system................................ 222

Camera sensor ..................... 237
Humidity sensor.................... 348
Inside rear view mirror .......... 169
Intuitive parking assist .......... 292
LDA (Lane Departure Alert

with steering control) .......... 253

Radar sensor ........................ 237

S

555

Alphabetical index

Service reminder

indicators ................................. 92

Service plug ............................... 79
Shift lever ................................. 205

Hybrid transmission .............. 205
If the shift lever cannot

be shifted from P ................ 209

S mode ................................. 207

Shift lock system ..................... 209
Side airbags ............................... 35
Side marker lights ................... 218

Light switch ........................... 218
Replacing light bulbs............. 444

Side mirrors ............................. 170

Adjusting and folding ............ 170
BSM (Blind Spot Monitor) ..... 277
Heaters ................................. 343

Side turn signal lights

Replacing light bulbs............. 444
Turn signal lever ................... 211

Smart key system .................... 148

Antenna location ................... 148
Entry functions .............. 138, 144
Starting the hybrid system .... 196

Snow tires ................................ 335

Spare tire.................................. 469

Inflation pressure .................. 506
Storage location.................... 469

Spark plug................................ 504
Specifications .......................... 500
Speedometer.............................. 98
Sport mode .............................. 321
Steering lock

Column lock release ............. 199

Steering wheel ......................... 166

Adjustment............................ 166
Heated steering wheel.......... 349
Meter control switches.......... 103
Power easy access

system................................ 159

Stoplights

Replacing light bulbs ............ 444

Storage feature ........................ 355
Storage precautions................ 355
Stuck

If the vehicle becomes

stuck................................... 496

Sun visors ................................ 362
Sunshade

Roof ...................................... 178

556

Alphabetical index

Switches

Automatic High Beam

switch ................................. 222

Brake hold switch.................. 216
Cruise control switch............. 264
Door lock switches................ 140
Driving mode select

switches.............................. 321

Driving position memory

switches.............................. 159

Emergency flasher switch..... 446
EV drive mode switch ........... 202
Fuel door opener switch ....... 233
Garage door opener

switches.............................. 377

Heated steering wheel .......... 349
Ignition switch ....................... 196
LDA (Lane Departure Alert

with steering control)
switch ................................. 258

Light switch ........................... 218
Meter control switches .......... 103
“MOOD” switch ..................... 354
Moon roof switches............... 177

“ODO/TRIP” switch............... 104
Outside rear view mirror

switches ............................. 170

Paddle shift switches ............ 208
Parking brake switch ............ 212
Power door lock switch......... 140
Power switch ........................ 196
Power window switches........ 173
Rear window and outside

rear view mirror
defoggers switch ................ 343

Seat heater switches ............ 349
Seat ventilators switches ...... 349
“SOS” button........................... 69
Tilt and telescopic steering

lock release switch ............. 166

Trunk opener switch ............. 144
Vehicle-to-vehicle

distance switch................... 264

VSC OFF switch ................... 324
Window lock switch .............. 173
Windshield wiper and

washer switch..................... 226

Wireless charger switch........ 366

557

Alphabetical index

Tachometer ................................ 98
Tail lights

Light switch ........................... 218
Replacing light bulbs............. 444

Theft deterrent system

Alarm ...................................... 88
Immobilizer system ................. 86

Tire inflation pressure............. 427

Maintenance data ................. 506
Warning light......................... 456

Tire information ....................... 511

Glossary................................ 518
Size....................................... 514
Tire identification number ..... 513
Uniform Tire Quality

Grading............................... 516

Tire pressure warning system

Initializing .............................. 417
Installing tire pressure

warning valve and
transmitters......................... 417

Registering ID codes ............ 419
Warning light......................... 456

Tires.......................................... 415

Chains .................................. 334
Checking............................... 415
Glossary ............................... 518
If you have a flat tire ............. 469
Inflation pressure .................. 506
Replacing.............................. 469
Rotating tires ........................ 415
Size....................................... 506
Snow tires............................. 335
Spare tire .............................. 469
Tire pressure warning

system................................ 416

Uniform Tire Quality

Grading .............................. 516

Warning light......................... 456

Tools......................................... 469
Top tether strap ......................... 65
Total load capacity .................. 193
Towing

Dinghy towing ....................... 195
Emergency towing ................ 449
Trailer towing ........................ 194

Toyota Entune

*

Toyota parking assist

monitor

*

Toyota Safety Sense P............ 235

Automatic High Beam........... 222
Dynamic radar cruise control

with full-speed range .......... 264

LDA (Lane Departure Alert

with steering control) .......... 253

PCS (Pre-Collision

System) .............................. 242

T

*

: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

558

Alphabetical index

TRAC (Traction Control) ......... 323
Traction battery

(hybrid battery)........................ 79

Traction Control (TRAC) ......... 323
Traction motor

(electric motor) ........................ 75

Trailer towing  .......................... 194
Transmission

Driving mode select

switches.............................. 321

Hybrid transmission .............. 205
If the shift lever cannot be

shifted from P ..................... 209

Paddle shift switches ............ 208
S mode ................................. 207

Trip meters ................................. 98
Trunk......................................... 144

Cargo net .............................. 361
Grocery bag hooks ............... 361
Internal trunk release lever ... 146
Smart key system ................. 144
Trunk light ............................. 145
Trunk opener ........................ 144
Wireless remote control ........ 145

Trunk light

Trunk light ............................. 145
Wattage ................................ 507

Turn signal lights

Replacing light bulbs............. 444
Turn signal lever ................... 211

USB charging port................... 364

Vanity lights ............................. 362

Wattage ................................ 507

Vanity mirrors .......................... 362

Vanity lights .......................... 362

Vehicle data recording................ 8
Vehicle identification

number................................... 501

Vehicle proximity notification

system...................................... 76

Vehicle Stability Control

(VSC) ...................................... 323

VSC

(Vehicle Stability Control) .... 323

Warning buzzers

Approach warning................. 272
Brake system........................ 453
Downshifting ......................... 208
Electric power steering

system................................ 455

Intuitive parking assist .......... 295
Lane departure alert

function............................... 254

Light reminder....................... 220
Open door............................. 142
Open hood............................ 401
Open moon roof.................... 179
Open trunk............................ 145
Parking brake ....................... 454
Pre-collision warning ............ 242
Seat belt reminder ................ 456
Vehicle sway warning ........... 256

U

V

W

559

Alphabetical index

Warning lights............................ 93

ABS....................................... 454
Brake hold operated

indicator.............................. 455

Brake Override System......... 454
Brake system ........................ 453
Charging system................... 453
Drive-Start Control ................ 454
Driver’s seat belt

reminder ............................. 456

Electric power steering ......... 455
Front passenger’s

seat belt reminder............... 456

High coolant temperature ..... 453
ICS OFF indicator ................. 455
LDA indicator ........................ 455
Low engine oil pressure........ 453
Low fuel level ........................ 456
Malfunction indicator lamp .... 454
Master warning light.............. 456
Parking brake indicator ......... 454
PCS warning light ................. 455
Rear passengers’

seat belt reminder light ....... 456

Seat belt reminder light......... 456
Slip indicator ......................... 456
SRS ...................................... 454
Tire pressure......................... 456

Warning messages.................. 463

Washer ..................................... 226

Checking............................... 410
Preparing and checking

before winter ...................... 333

Switch ................................... 226

Washing and waxing............... 386
Weight ...................................... 500

Cargo capacity...................... 193
Load limits ............................ 193
Vehicle capacity weight ........ 500

Wheels...................................... 430

Replacing.............................. 430
Size....................................... 506

Window glasses ...................... 173
Window lock switch ................ 173
Windows................................... 173

Power windows..................... 173
Rear window defogger.......... 343
Washer ................................. 226

Windshield wipers................... 226
Winter driving tips................... 333
Wireless charger ..................... 366
Wireless remote control ......... 134

Battery-Saving Function ....... 150
Locking/Unlocking ........ 138, 145
Panic mode........................... 135
Replacing the battery............ 439

560

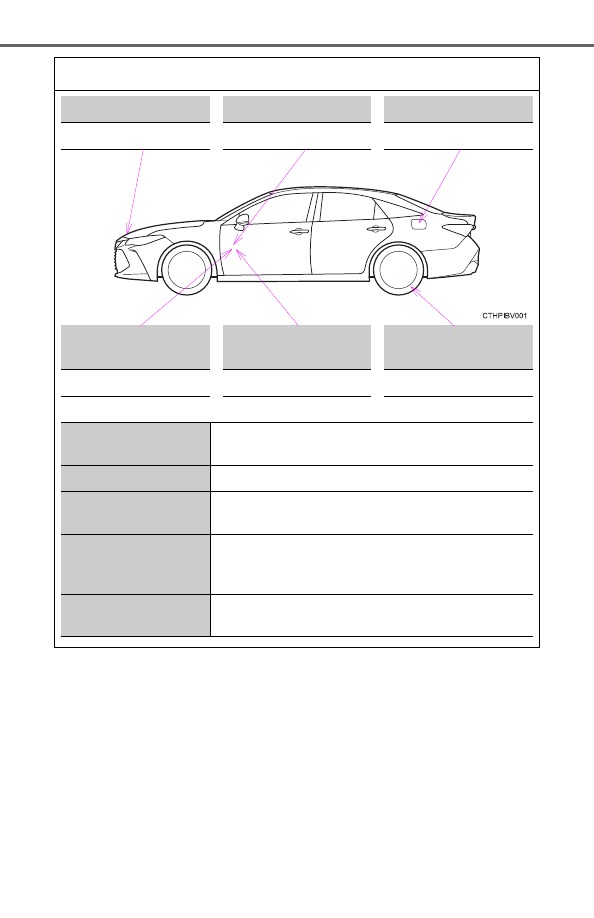

GAS STATION INFORMATION

Auxiliary catch lever

Trunk opener

Fuel filler door

P. 401

P. 144

P. 230

Hood lock release

lever

Fuel filler

door opener

Tire inflation

pressure

P. 401

P. 230

P. 506

Fuel tank capacity
(Reference)

13 gal. (49.3 L, 10.8 Imp. gal.)

Fuel type

P. 502, 508

Cold tire inflation

pressure

P. 506

Engine oil capacity
(Drain and refill —
reference)

P. 503

Engine oil type

“Toyota Genuine Motor Oil” or equivalent

P. 503
