Toyota Corolla Hatchback (2020 year). Manual in english - part 5

258

5-2. Basic information before operation

COROLLA H/B_U

Operations are performed by touching the touch screen directly with
your finger.

*

: The above operations may not be performed on all screens.

●

Flick operations may not be per-

formed smoothly at high altitudes.

This system is operated mainly
by the buttons on the screen.
(Referred to as screen buttons
in this manual.)

When a screen button is
touched, a beep sounds. (To set
the beep sound:



P.290)

●

If the system does not respond to

touching a screen button, move

your finger away from the screen

and then touch it again.

●

Dimmed screen buttons cannot be

operated.

Touch screen

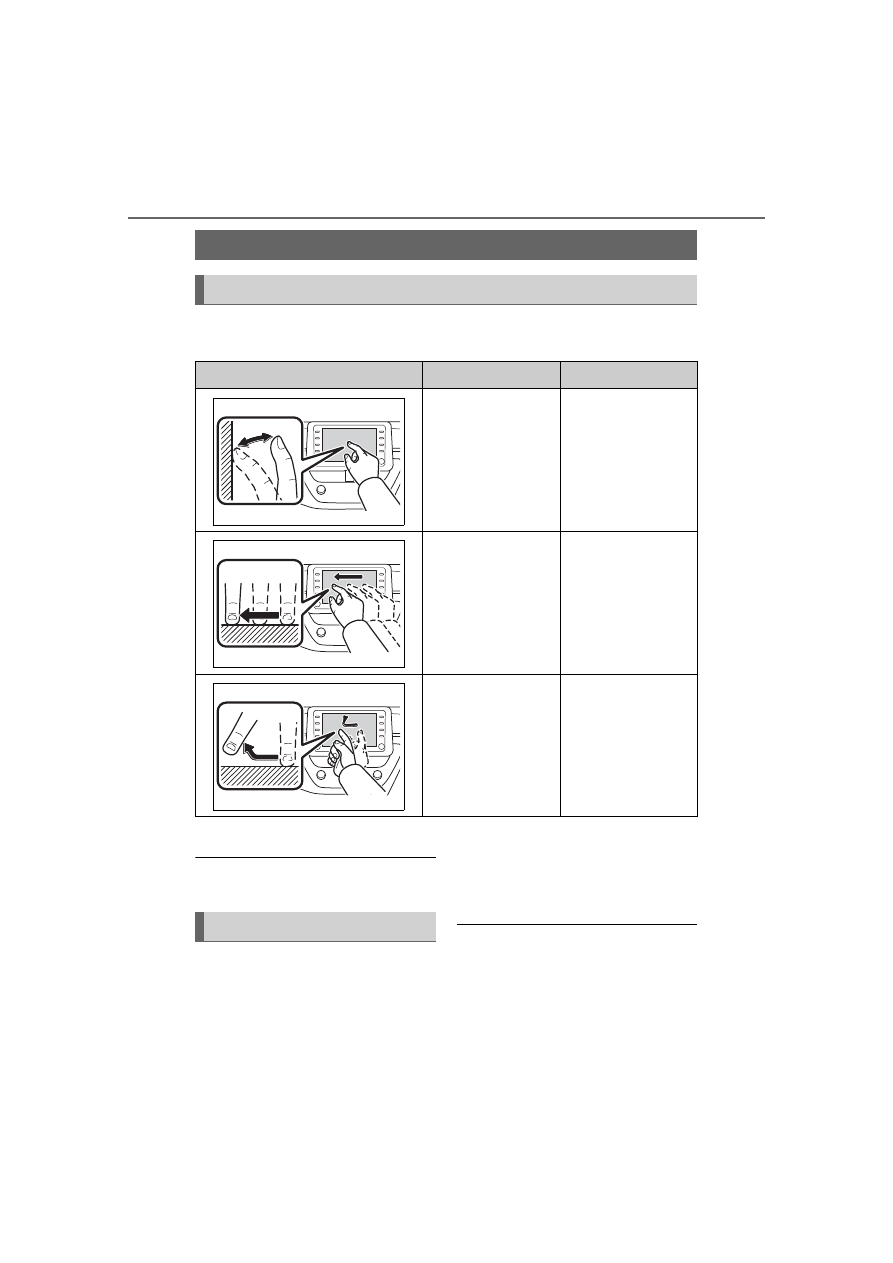

Touch screen gestures

Operation method

Outline

Main use



Touch

Quickly touch and
release once.



Selecting an item
on the screen



Drag

*

Touch the screen
with your finger,
and move the
screen to the
desired position.



Scrolling the lists



Flick

*

Quickly move the
screen by flicking
with your finger.



Scrolling the main
screen page

Touch screen operation

259

5-2. Basic information before operation

COROLLA H/B_U

5

A

ud

io

●

The displayed image may become

darker and moving images may

be slightly distorted when the

screen is cold.

●

In extremely cold conditions, the

screen may not be displayed and

the data input by a user may be

deleted. Also, the screen buttons

may be harder than usual to

depress.

●

When you look at the screen

through polarized material such as

polarized sunglasses, the screen

may be dark and hard to see. If

so, look at the screen from differ-

ent angles, adjust the screen set-

tings on the display settings

screen or take off your sun-

glasses.

●

When

 is displayed on the

screen, select

 to return to

the previous screen.

The operable areas of the
capacitive touch screen buttons
use capacitive touch sensors
and may not operate properly in
the following situations:



If the screen is dirty or wet



If a source of strong electro-

magnetic waves is brought
near the screen



If a glove is worn during oper-
ation



If the screen is touched by a
fingernail



If a stylus is used to operate
the buttons



If your palm touches the oper-
able area of another button
during operation



If a button is touched quickly



If the operable part of a
capacitive touch screen but-
ton is touched by or covered
with a metal object, such as
the following, it may not oper-
ate properly:

• Magnetic isolation cards
• Metallic foil, such as the inner

packaging of a cigarette box

• Metallic wallets or bags
• Coins
• Discs, such as a CD or DVD



If the operable part of a
capacitive touch screen but-
ton is wiped, it may operate
unintentionally.



If the capacitive touch screen
button is being touched when
the engine switch is changed
to ACC or ON, the button may
not operate properly. In this
case, remove anything touch-
ing the button, turn the engine
switch off and then turn it to
ACC or ON, or restart the sys-

NOTICE

●

To prevent damaging the

screen, lightly touch the screen

buttons with your finger.

●

Do not use objects other than

your finger to touch the screen.

●

Wipe off fingerprints using a

glass cleaning cloth. Do not use

chemical cleaners to clean the

screen, as they may damage

the touch screen.

Capacitive touch screen
buttons

260

5-2. Basic information before operation

COROLLA H/B_U

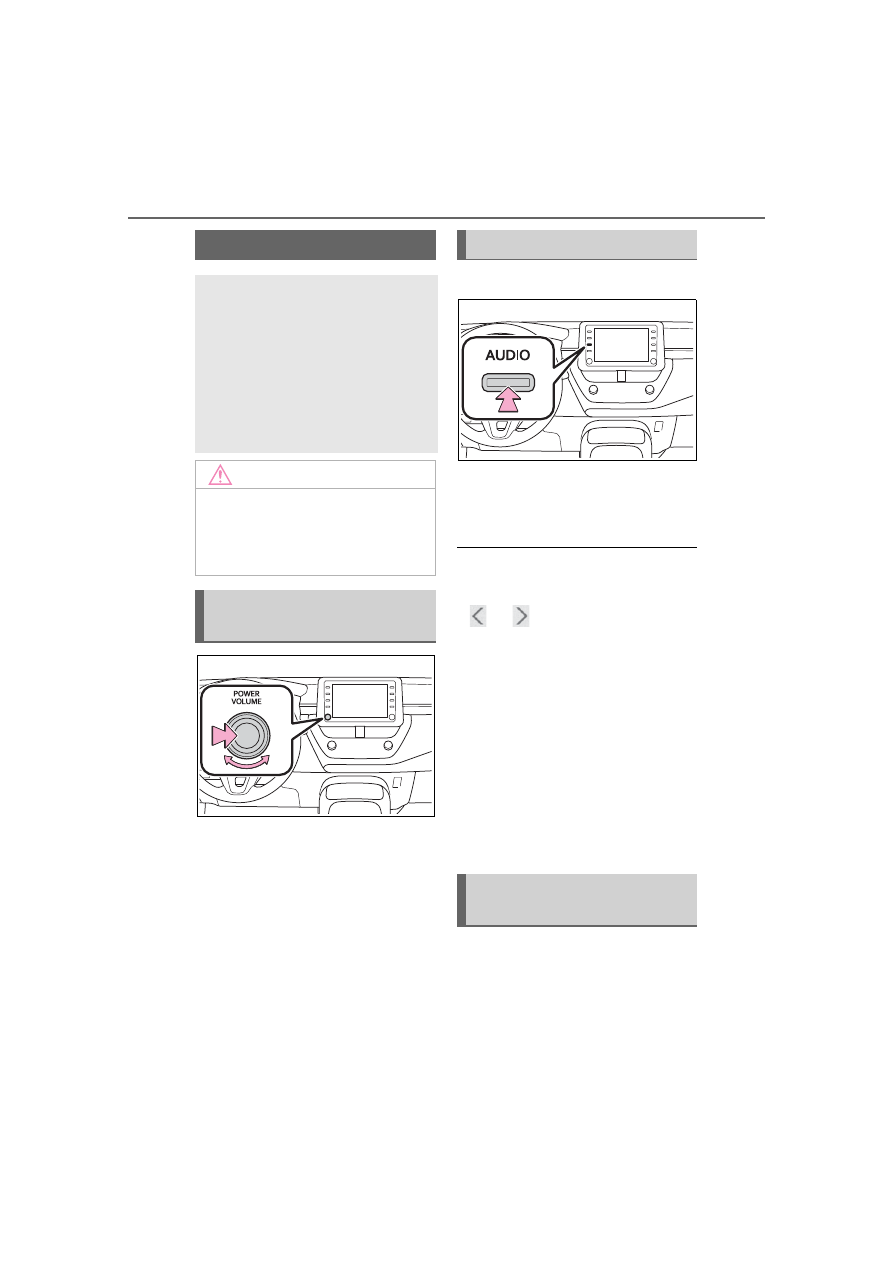

tem by press and hold the
“POWER VOLUME” knob for
3 seconds or more.

●

Capacitive touch screen button

sensor sensitivity can be adjusted.

(



P.290)

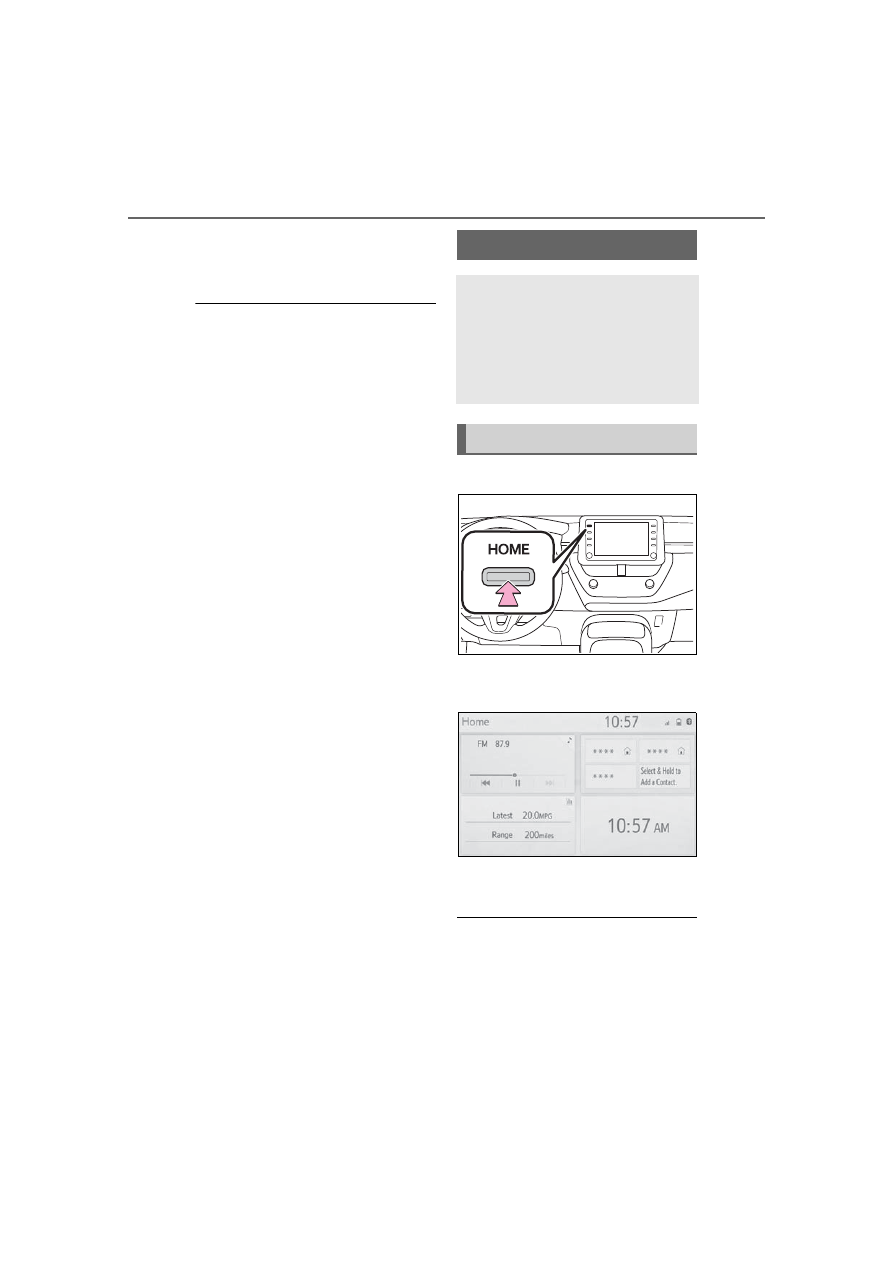

1

Press the “HOME” button.

2

Check that the home screen
is displayed.



Selecting a screen will display
it full screen.

●

The display information and area

on the home screen can be cus-

tomize.

●

The home screen can be set to

several types of split layouts

Home screen

On the home screen, multi-
ple screens, such as the
audio/visual system screen,
hands-free screen and clock
screen, can be displayed
simultaneously.

Home screen operation

261

5-2. Basic information before operation

COROLLA H/B_U

5

Audio

The display information/area on
the home screen and the home
screen layout can be changed.

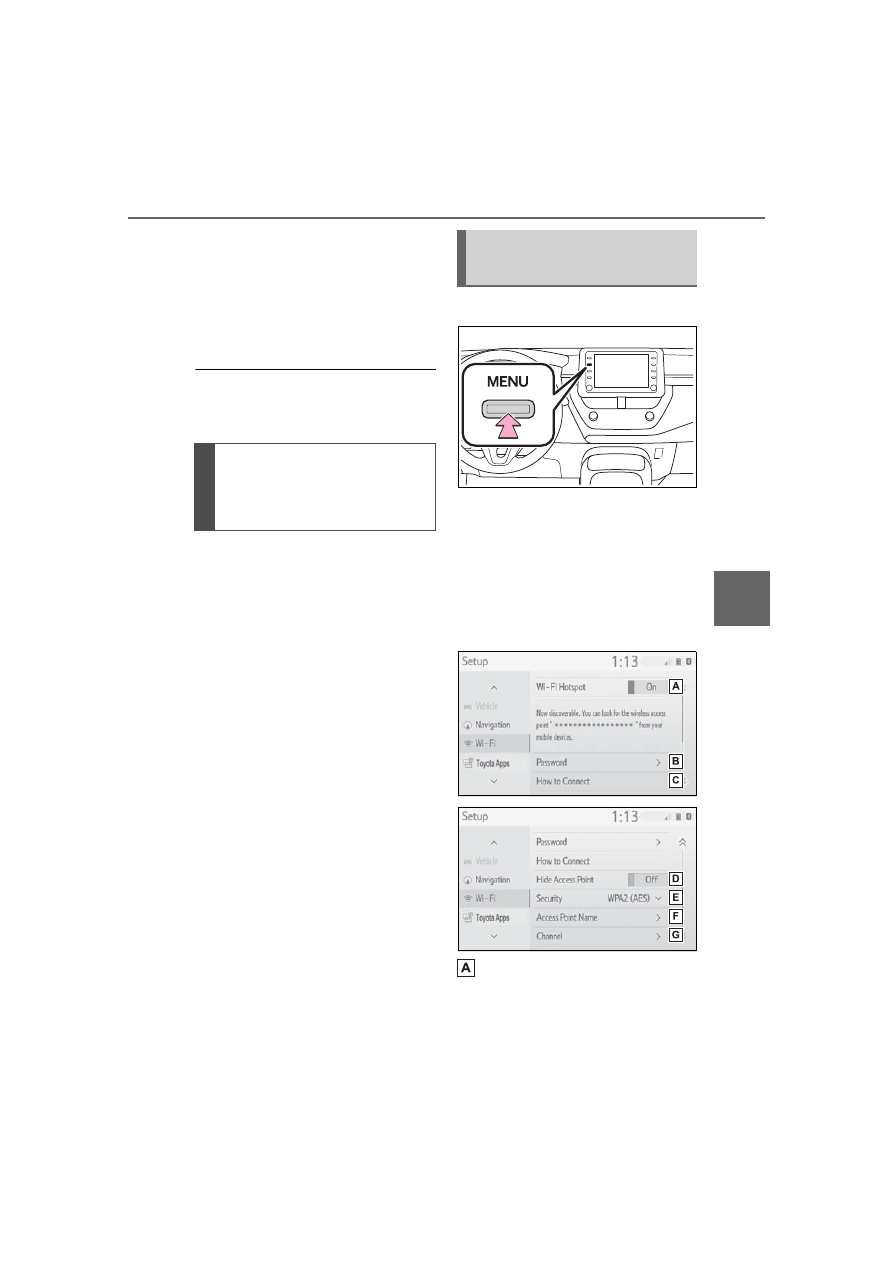

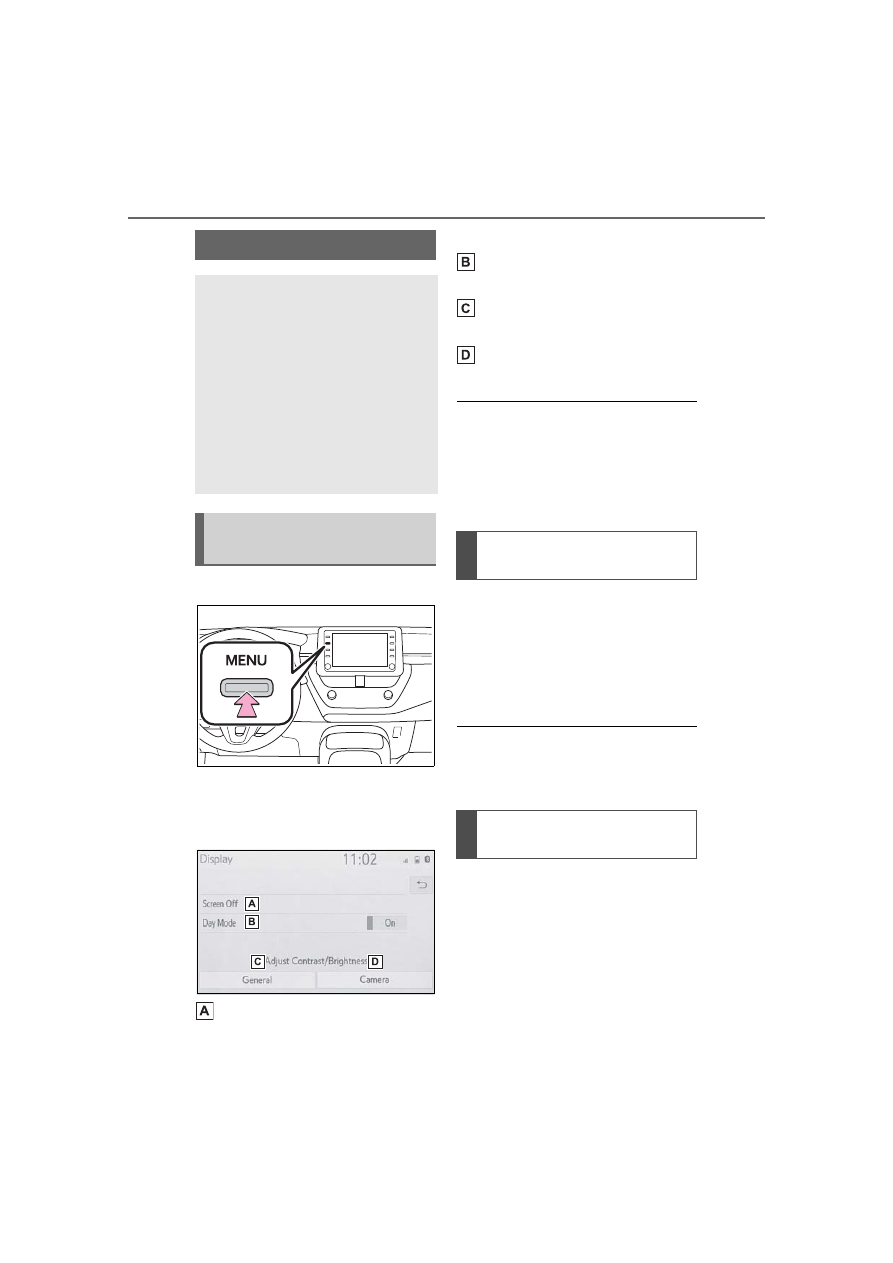

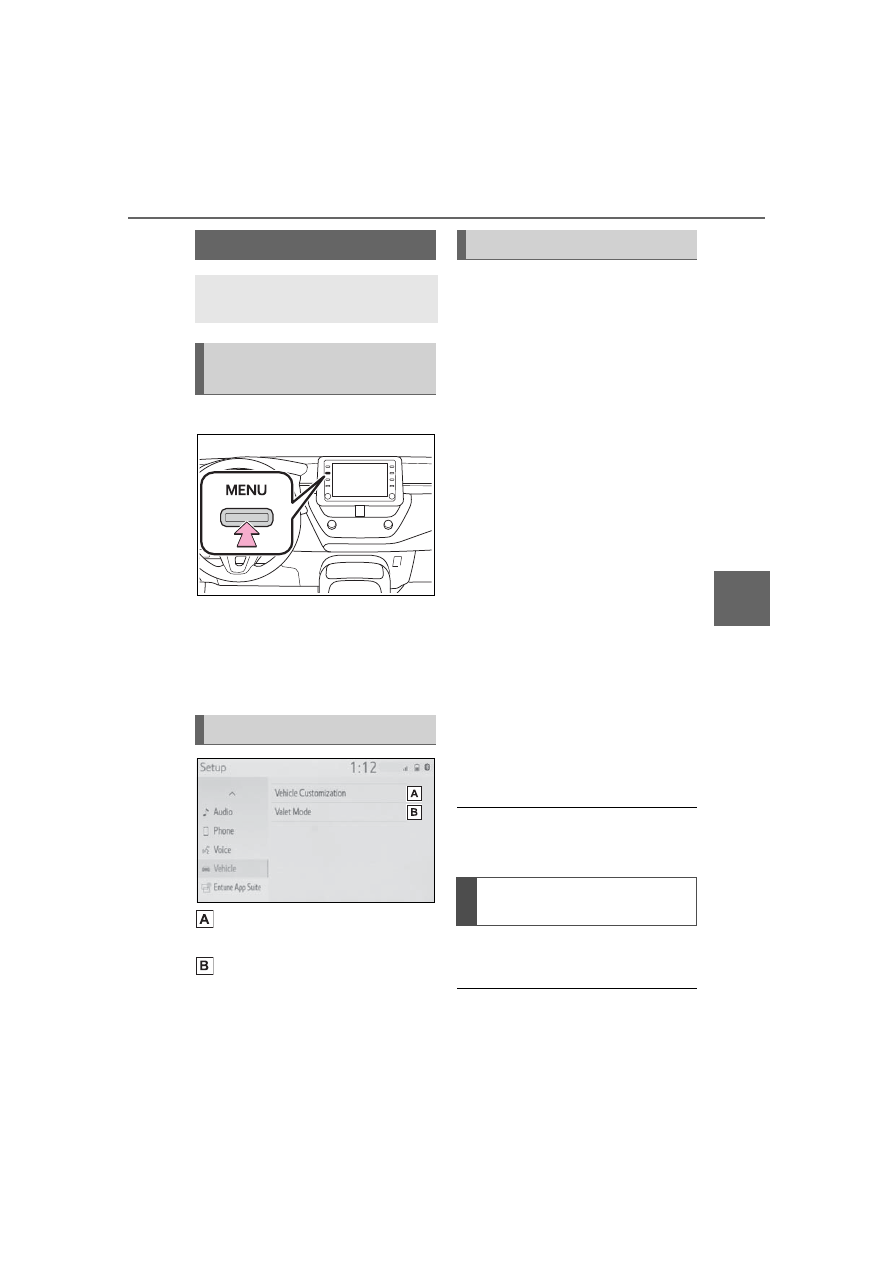

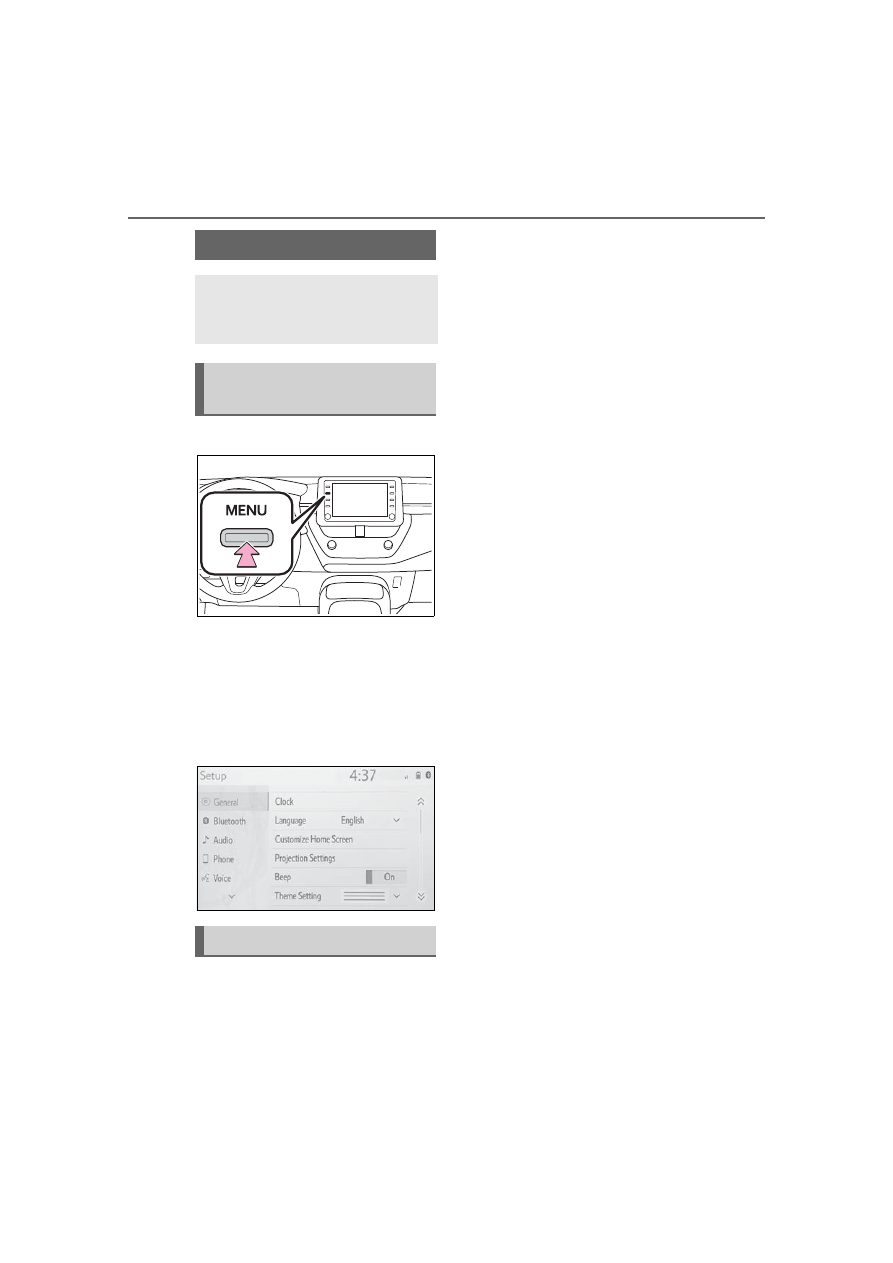

1

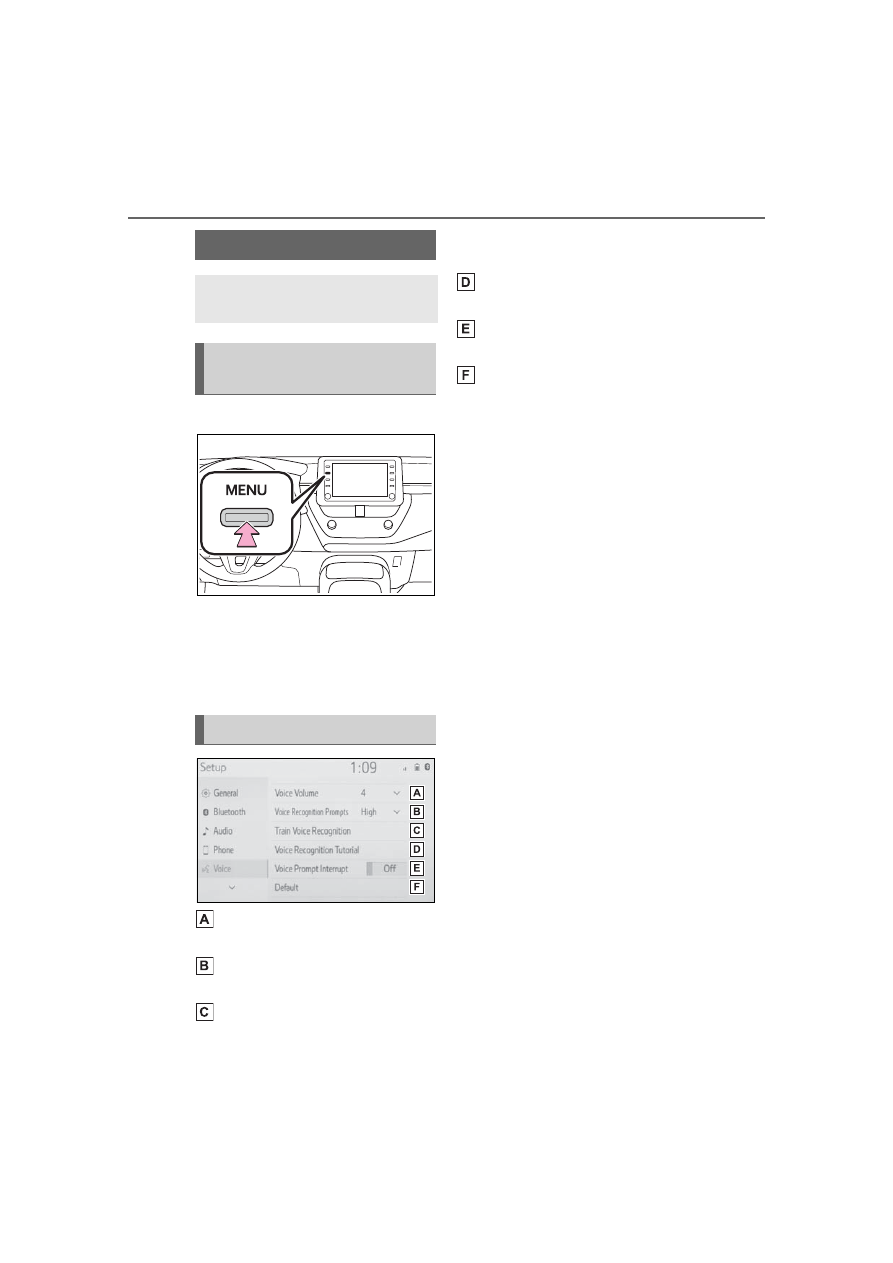

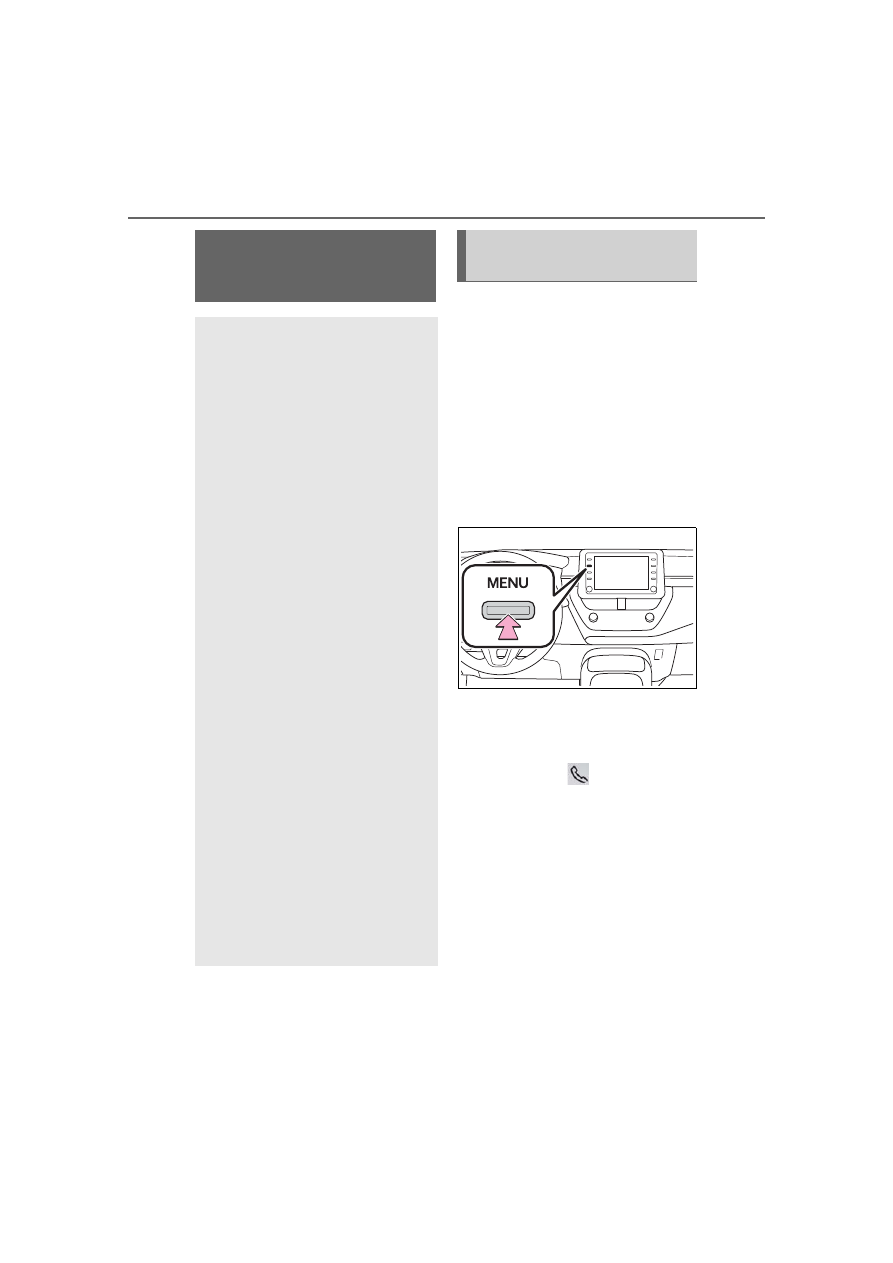

Press the “MENU” button.

2

Select “Setup”.



If the general settings screen
is not displayed, select “Gen-
eral”.

3

Select “Customize Home
Screen”.

4

Select the items to be set.

Select to change the display
information and area on the
home screen.
Select to change the home
screen layout.

When searching by a name or
entering data, letters and num-
bers can be entered via the
screen.

Text field. Entered charac-
ter(s) will be displayed.
Select to erase one charac-
ter.
Select and hold to continue
erasing characters.
Select to move the cursor.
Select to choose predictive
text candidate for entered
text. (



P.262)

Select to display a list of pre-
dictive text candidates when
there is more than one.
(



P.262)

Select to enter desired char-
acters.
Select to enter characters in
lower case or in upper case.

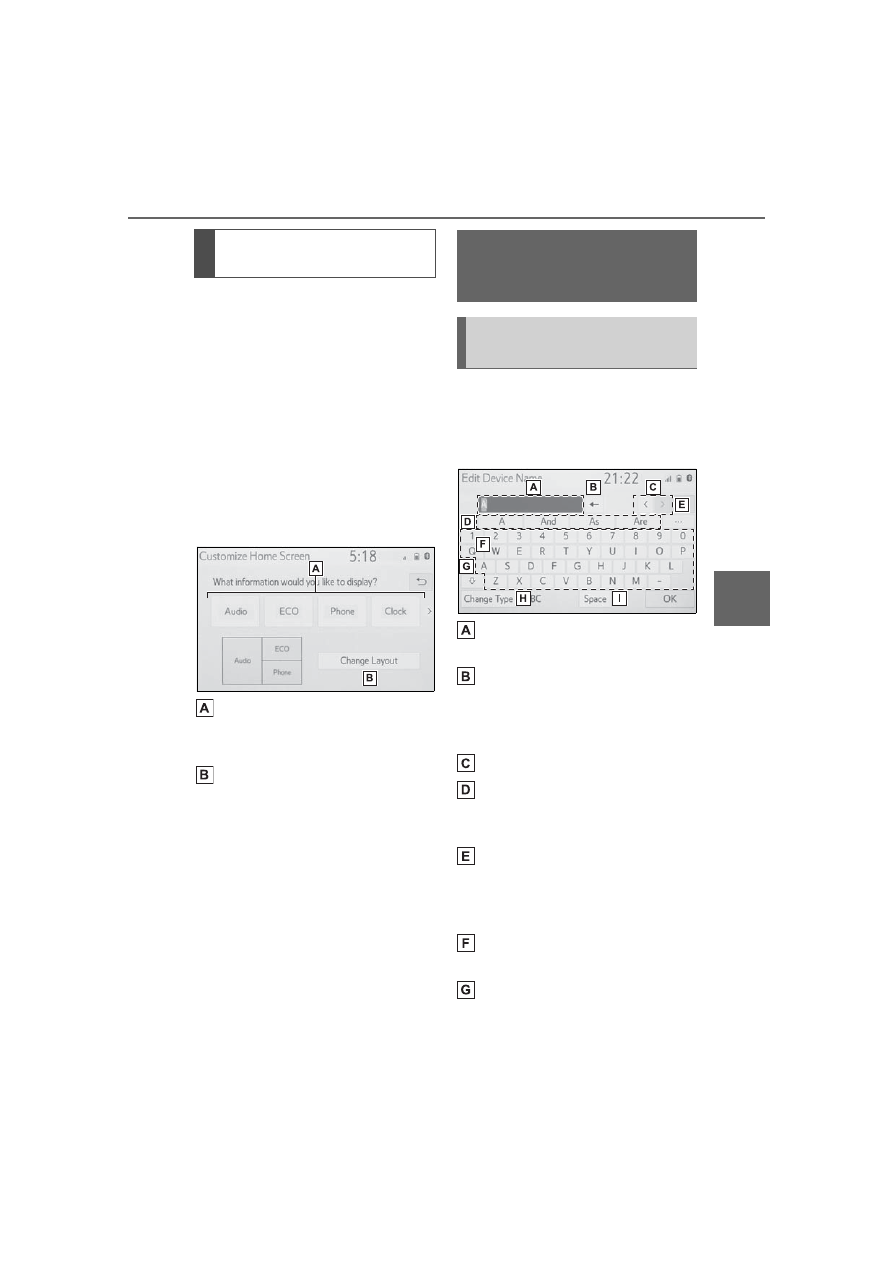

Customizing the home
screen

Entering letters and

numbers/list screen

operation

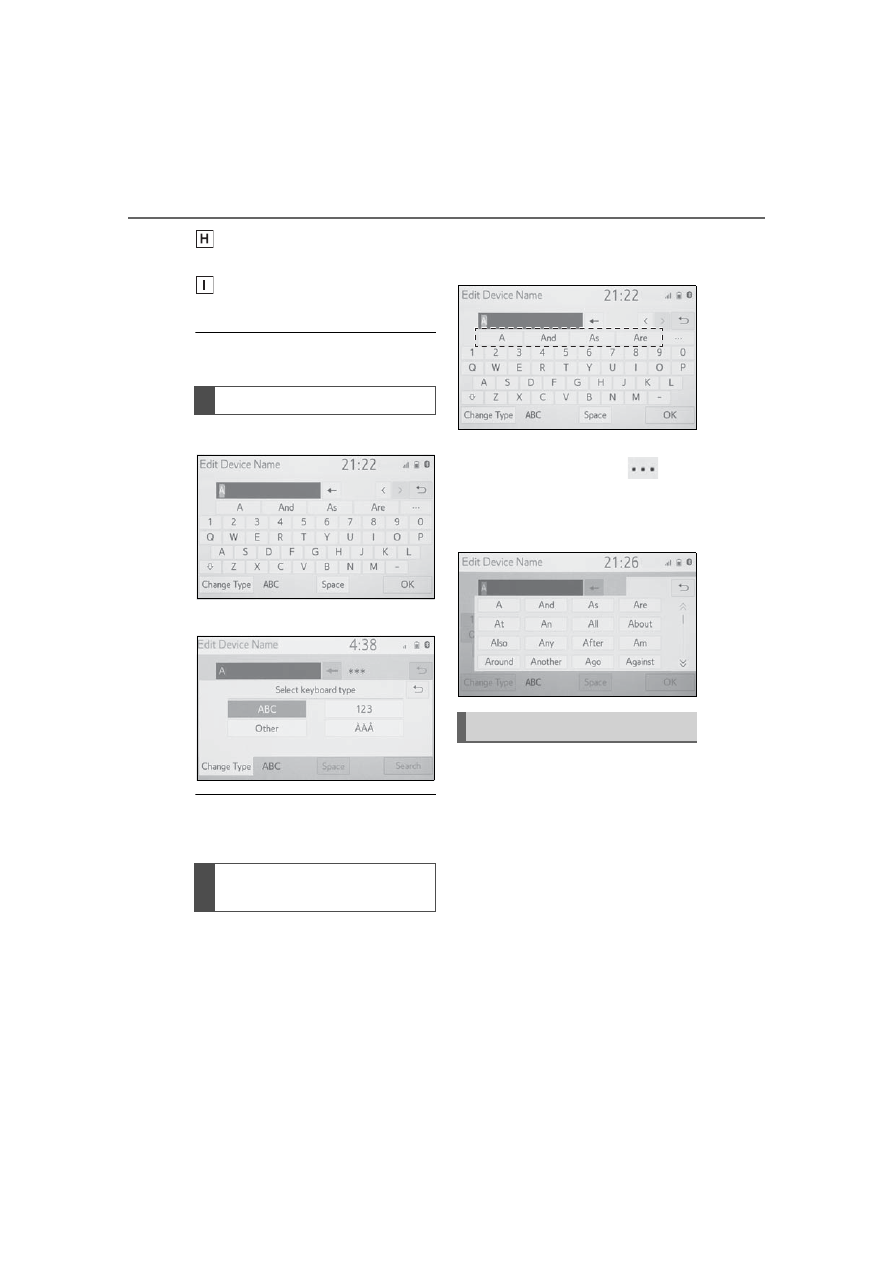

Entering letters and num-
bers

262

5-2. Basic information before operation

COROLLA H/B_U

Select to change character
types. (



P.262)

Select to make a space on
cursor.

●

Keyboard layout can be changed.

(



P.290)

1

Select “Change Type”.

2

Select the desired character.

●

Depending on the screen being

displayed, it may not possible to

change keyboard characters.

When text is input, the system
predicts the text that may com-
plete the currently unconfirmed
text and displays predictive
replacement candidates that
match the beginning of the text.

1

Input text.

2

Select the desired candidate.



To select a candidate that is
not displayed, select

,

and then select the desired
predictive replacement candi-
date.

The list screen may be dis-
played after entering characters.
When a list is displayed, use the
appropriate screen button to
scroll through the list.

Changing character type

Displaying predictive text
candidates

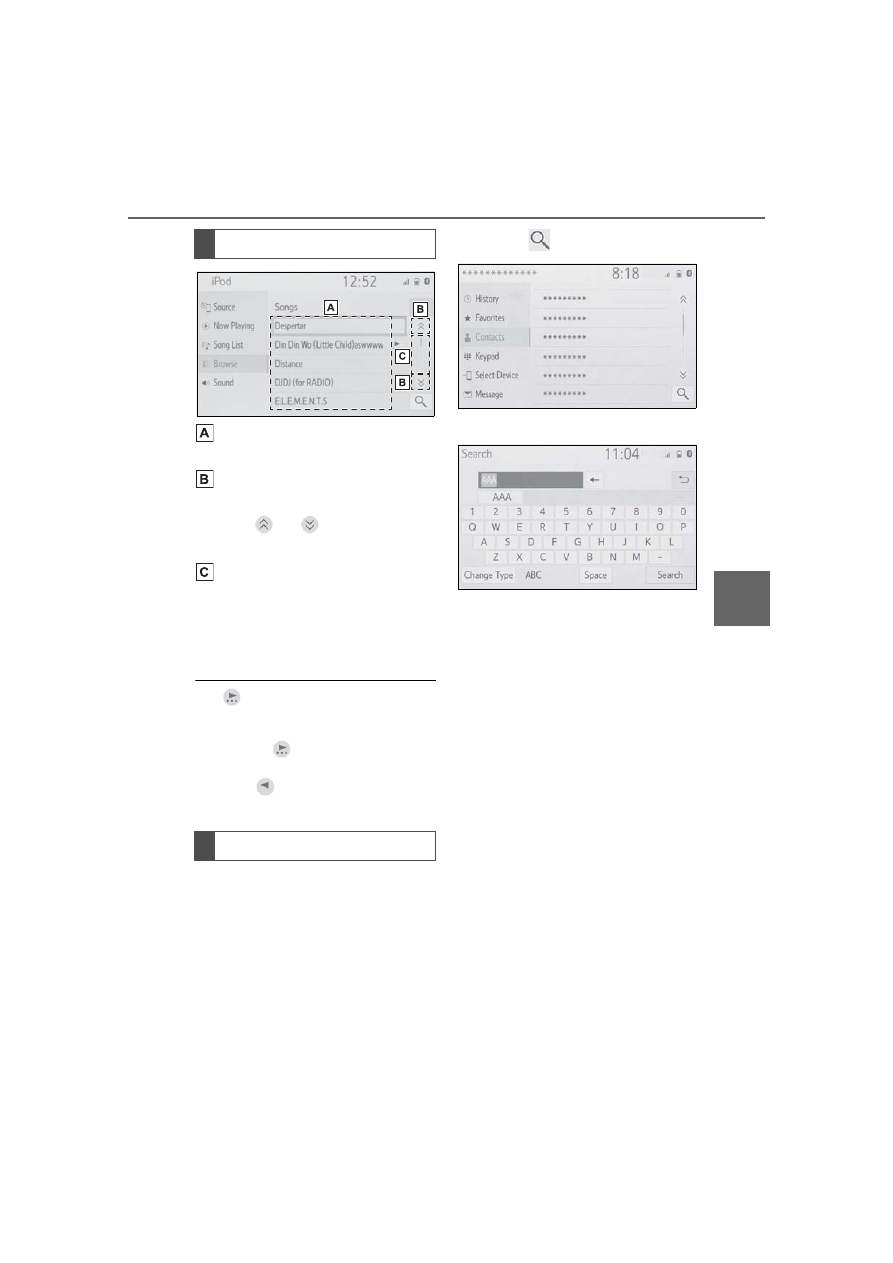

List screen

263

5-2. Basic information before operation

COROLLA H/B_U

5

Audio

To scroll up/down the list,
flick the list up/down.
Select to skip to the next or
previous page. Select and
hold

 or

 to scroll

through the displayed list.
Indicates the position of the
displayed entries in the entire
list.
To scroll up/down pages,
drag the bar.

●

If

 appears to the right of an

item name, the complete name is

too long to display.

• Select to

 scroll to the end of

the name.

• Select

 to move to the begin-

ning of the name.

Items are displayed in the list
with the most similar results of
the search at the top.

1

Select

.

2

Input text.

3

Select “Search”.

4

The list is displayed.

Scrolling list screen

Searching a list

264

5-2. Basic information before operation

COROLLA H/B_U

1

Press the “MENU” button.

2

Select “Display”.

3

Select the desired items to
be set.

Select to turn the screen off.
To turn it on, press any but-

ton.
Select to turn day mode
on/off. (



P.264)

Select to adjust the screen
display. (



P.264)

Select to adjust the camera
display.

●

When the screen is viewed

through polarized sunglasses, a

rainbow pattern may appear on

the screen due to optical charac-

teristics of the screen. If this is dis-

turbing, please operate the screen

without polarized sunglasses.

Depending on the position of the
headlight switch, the screen
changes to day or night mode.
This feature is available when
the headlight is switched on.

1

Select “Day Mode”.

●

If the screen is set to day mode

with the headlight switch turned

on, this condition is memorized

even with the engine turned off.

The contrast and brightness of
the screen can be adjusted
according to the brightness of
your surroundings.

1

Select “General” or “Cam-
era”.

2

Select the desired item.



“Display (General)” screen

Screen adjustment

The contrast and brightness
of the screen display and
the image of the camera dis-
play can be adjusted. The
screen can also be turned
off, and/or changed to either
day or night mode.

(For information regarding
audio/visual screen adjust-
ment:



P.300)

Displaying the screen
adjustment screen

Changing between day
and night mode

Adjusting the con-
trast/brightness

265

5-2. Basic information before operation

COROLLA H/B_U

5

Audio

only: Select “<” or “>” to select
the desired display.

• “Contrast”
“+”: Select to strengthen the con-
trast of the screen.
“-”: Select to weaken the contrast of
the screen.
• “Brightness”
“+”: Select to brighten the screen.
“-”: Select to darken the screen.

Linking multi-informa-

tion display and the

system

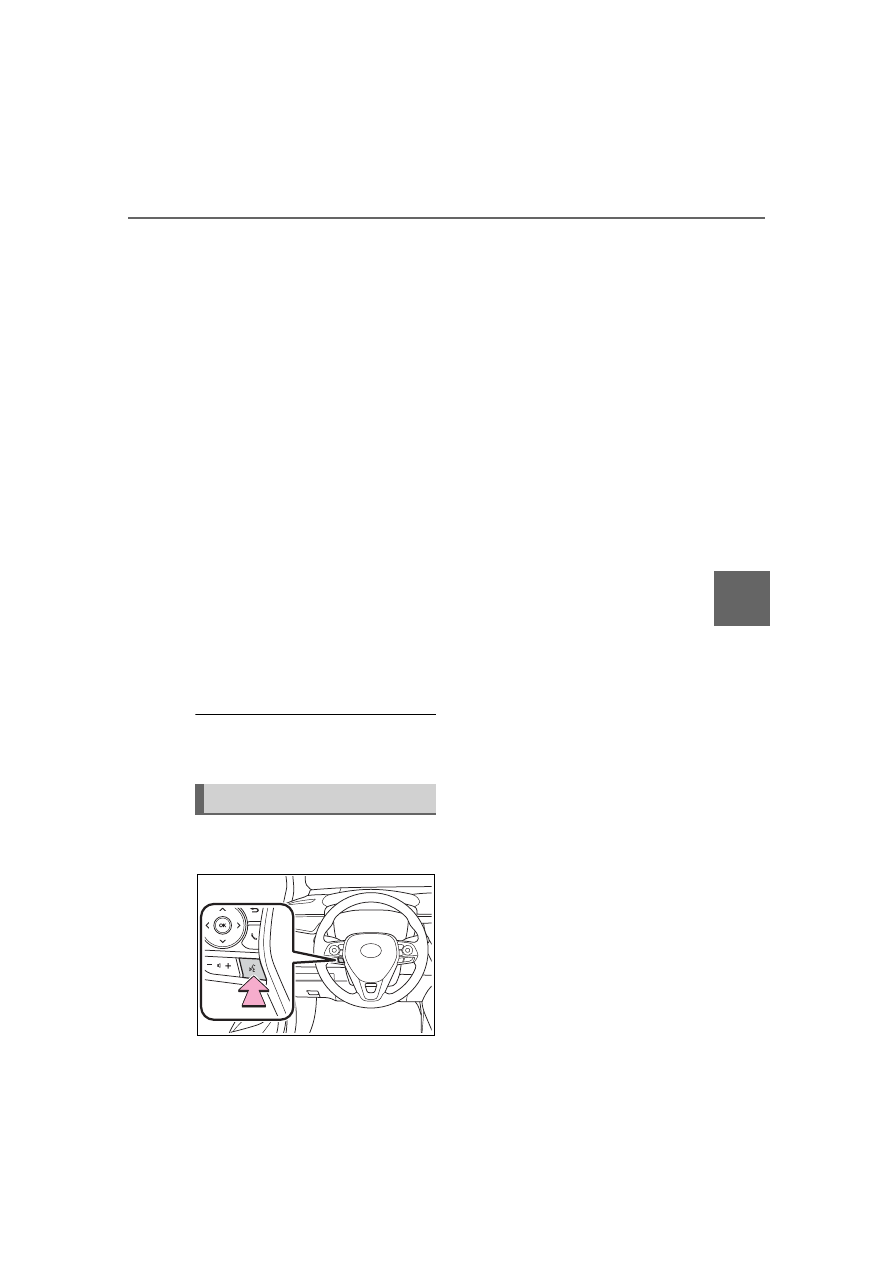

The following functions of
the system are linked with
the multi-information dis-
play in the instrument clus-
ter:



Audio



Phone

*

etc.

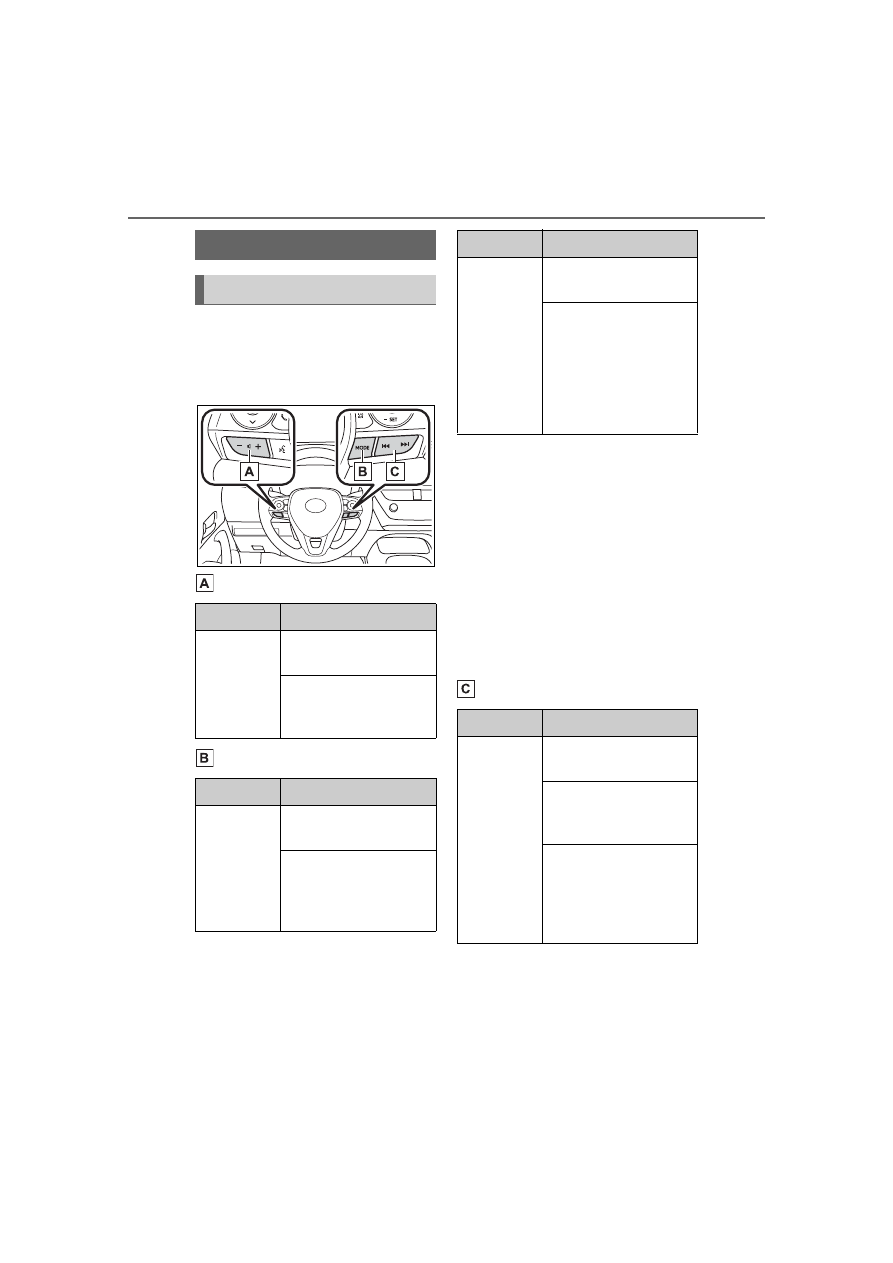

These functions can be
operated using multi-infor-
mation display control
switches on the steering
wheel. (



P.83)

*

: When an Apple CarPlay con-

nection is established, this
function will be unavailable.

266

5-3. Connectivity settings

COROLLA H/B_U

5-3.Connectivity settings

■

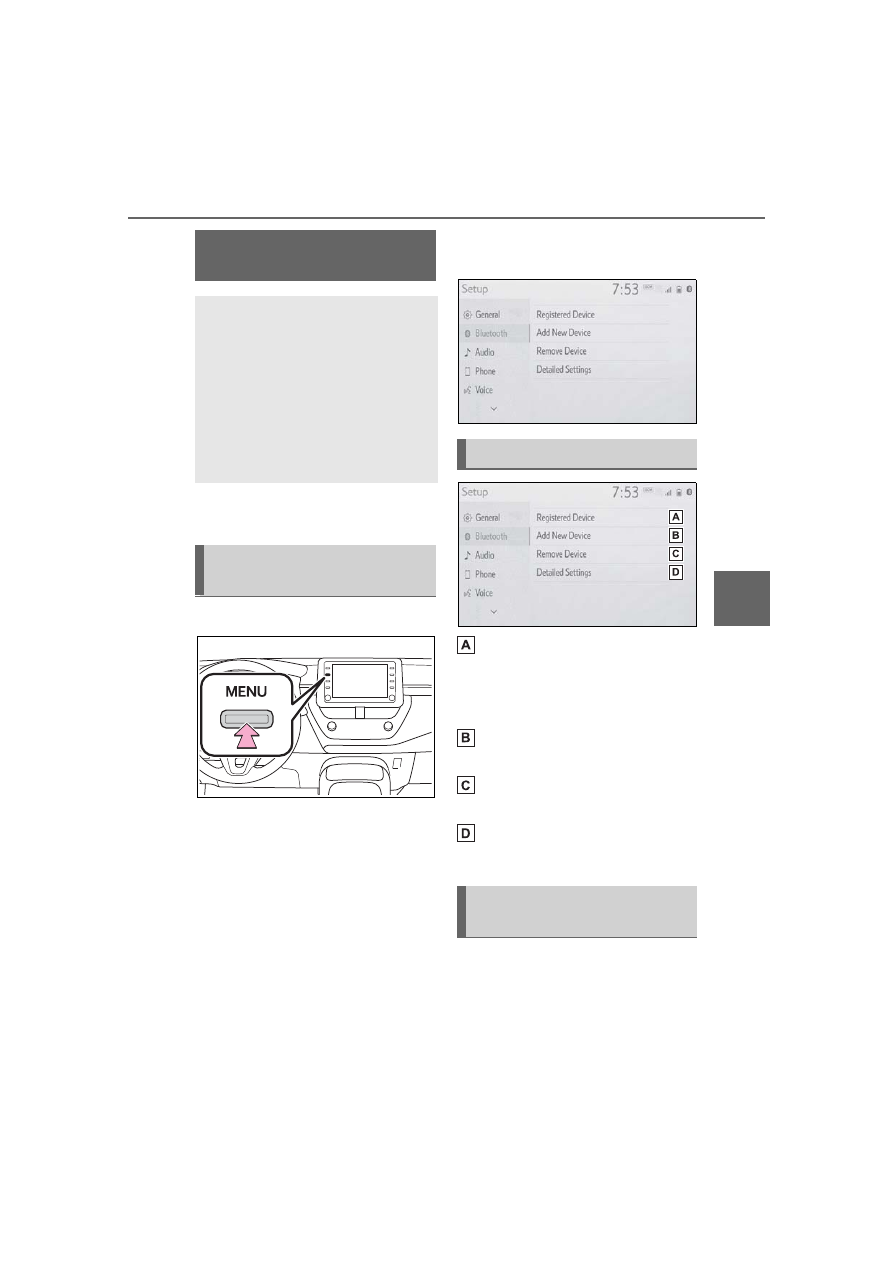

Registering from the sys-
tem

1

Turn the Bluetooth

®

 connec-

tion setting of your cellular
phone on.



This function is not available
when Bluetooth

®

 connection

setting of your cellular phone
is set to off.

2

Press the “MENU” button.

3

Select “Phone”.



Operations up to this point
can also be performed by
pressing the

 switch on the

steering wheel or the
“PHONE” button on the instru-
ment panel.

Registering/Connect-

ing a Bluetooth

®



device

To use the hands-free sys-
tem, it is necessary to regis-
ter a Bluetooth

®

 phone with

the system.

Once the phone has been
registered, it is possible to
use the hands-free system.

This operation cannot be
performed while driving.

When an Apple CarPlay
connection is established,
Bluetooth

®

 functions of the

system will become unavail-
able and any connected
Bluetooth

®

 devices will be

disconnected.

When connecting to
Android Auto, a Bluetooth

®



connection will be made
automatically.

*

When an Android Auto con-
nection is established,
some Bluetooth

®

 functions

other than hands-free sys-
tem cannot be used.

*

*

: This function is not made avail-

able in some countries or
areas.

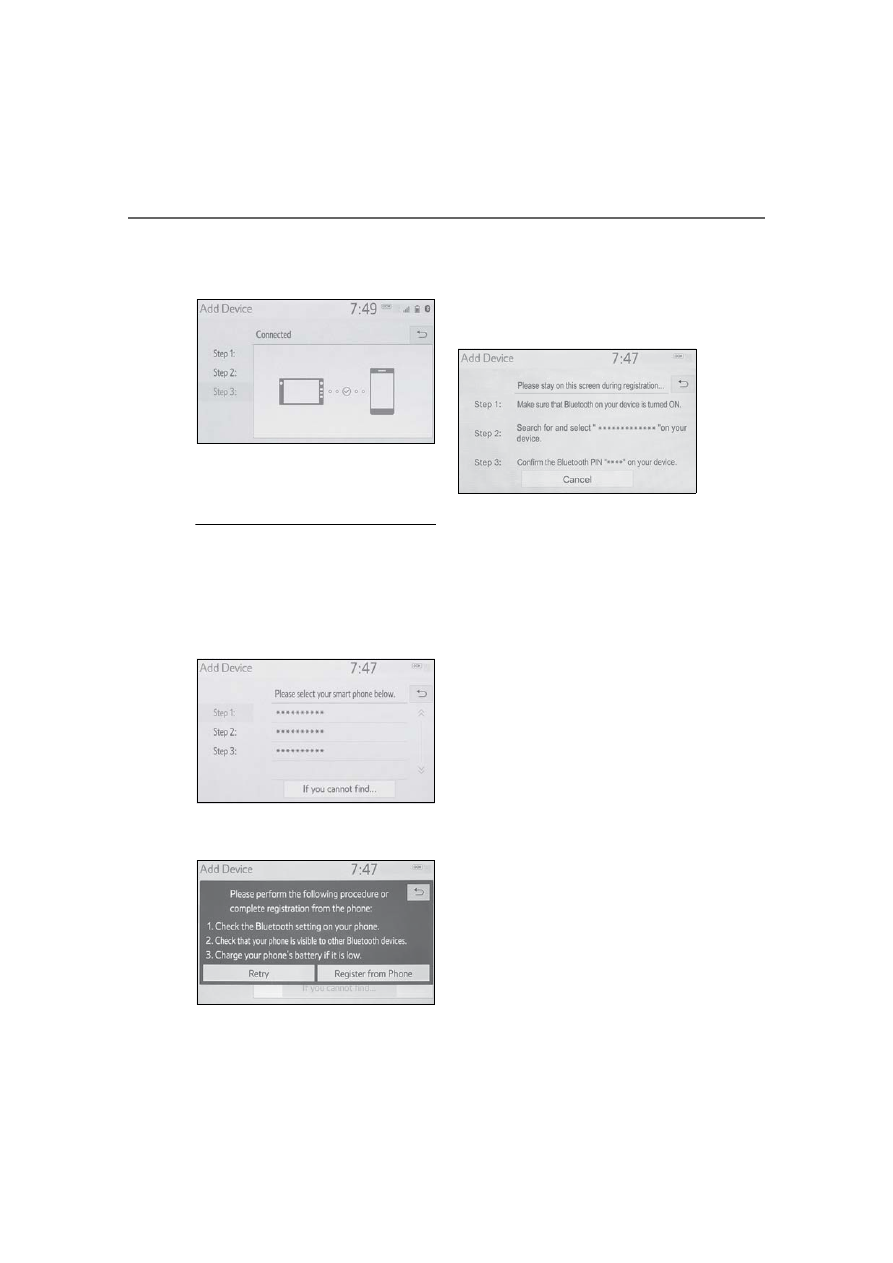

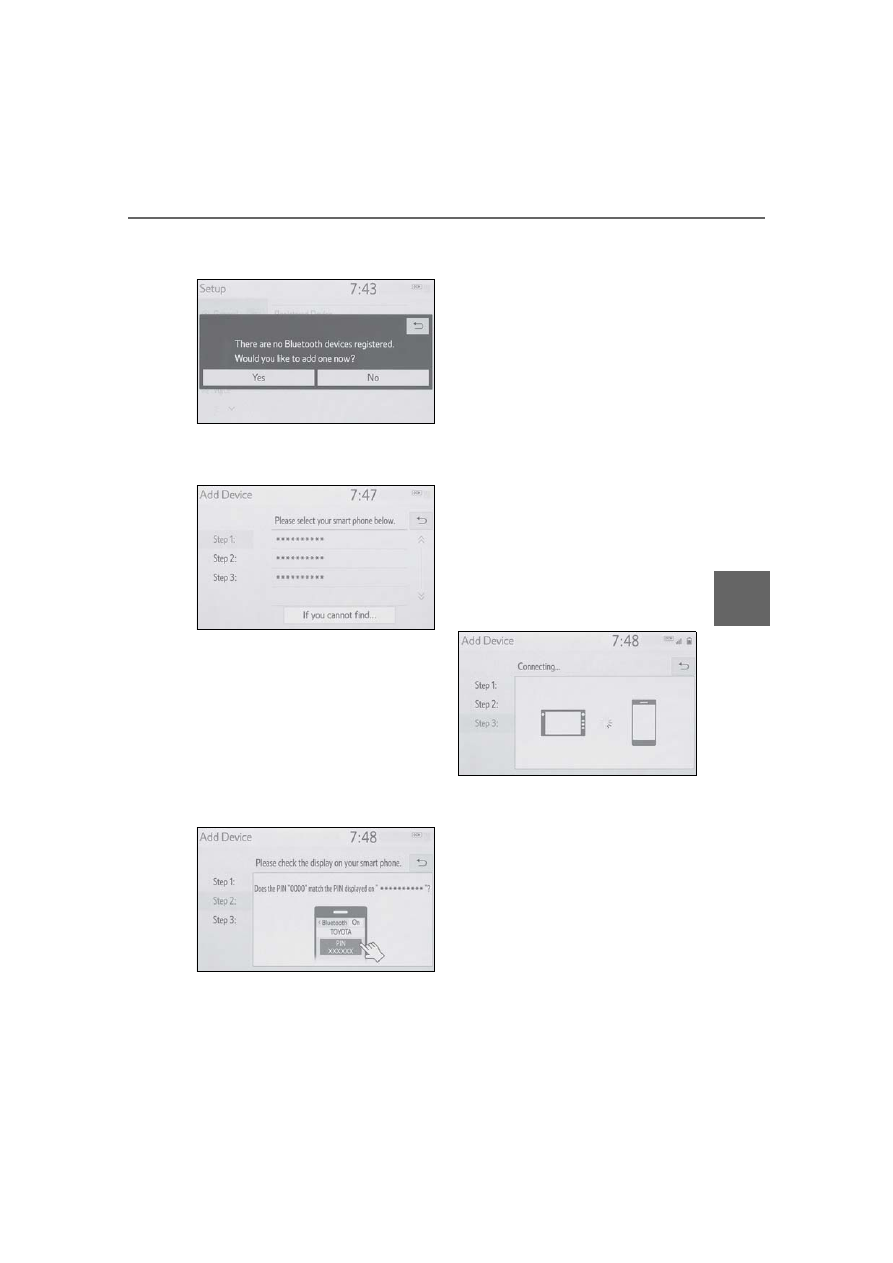

Registering a Bluetooth

®



phone for the first time

267

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

4

Select “Yes” to register a
phone.

5

Select the desired Bluetooth

®



device.



If the desired Bluetooth

®



phone is not on the list, select
“If you cannot find...” and fol-
low the guidance on the
screen. (



P.268)

6

Register the Bluetooth

®



device using your Blue-
tooth

®

 device.



For details about operating
the Bluetooth

®

 device, see

the manual that comes with it.



A PIN code is not required for
SSP (Secure Simple Pairing)
compatible Bluetooth

®



devices. Depending on the
type of Bluetooth

®

 device

being connected, a message
confirming registration may
be displayed on the Blue-
tooth

®

 device’s screen.

Respond and operate the
Bluetooth

®

 device according

to the confirmation message.

7

Check that the following
screen is displayed, indicat-
ing pairing was successful (a
Bluetooth

®

 link has been

established but registration is
not yet complete).



The system is connecting to
the registered device.



At this stage, the Bluetooth

®



functions are not yet avail-
able.

268

5-3. Connectivity settings

COROLLA H/B_U

8

Check that “Connected” is
displayed and registration is
complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

If a cellular phone does not oper-

ate properly after being con-

nected, turn the cellular phone off

and on and then connect it again.

■

Registering from phone

1

Select “If you cannot find…”.

2

Select “Register from
Phone”.

3

Check that the following
screen is displayed, and reg-
ister the Bluetooth

®

 device

using your Bluetooth

®



device.



For details about operating
the Bluetooth

®

 device, see

the manual that comes with it.



A PIN code is not required for
SSP (Secure Simple Pairing)
compatible Bluetooth

®



devices. Depending on the
type of Bluetooth

®

 device

being connected, a message
confirming registration may
be displayed on the Blue-
tooth

®

 device’s screen.

Respond and operate the
Bluetooth

®

 device according

to the confirmation message.

4

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

7

.

(



P.266)

269

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

To use the Bluetooth

®

 audio, it is

necessary to register an audio
player with the system.
Once the player has been regis-
tered, it is possible to use the
Bluetooth

®

 audio.

This operation cannot be per-
formed while driving.
For details about registering a

Bluetooth

®

 device:



P.266

When an Apple CarPlay con-
nection is established, Blue-
tooth

®

 functions of the system

will become unavailable and any
connected Bluetooth

®

 devices

will be disconnected.
When an Android Auto connec-
tion is established, some Blue-
tooth® functions other than
hands-free system cannot be
used.

*

*

: This function is not made available in some countries or areas.

1

Turn the Bluetooth

®

 connec-

tion setting of your audio
player on.



This function is not available
when the Bluetooth

®

 connec-

tion setting of your audio
player is set to off.

2

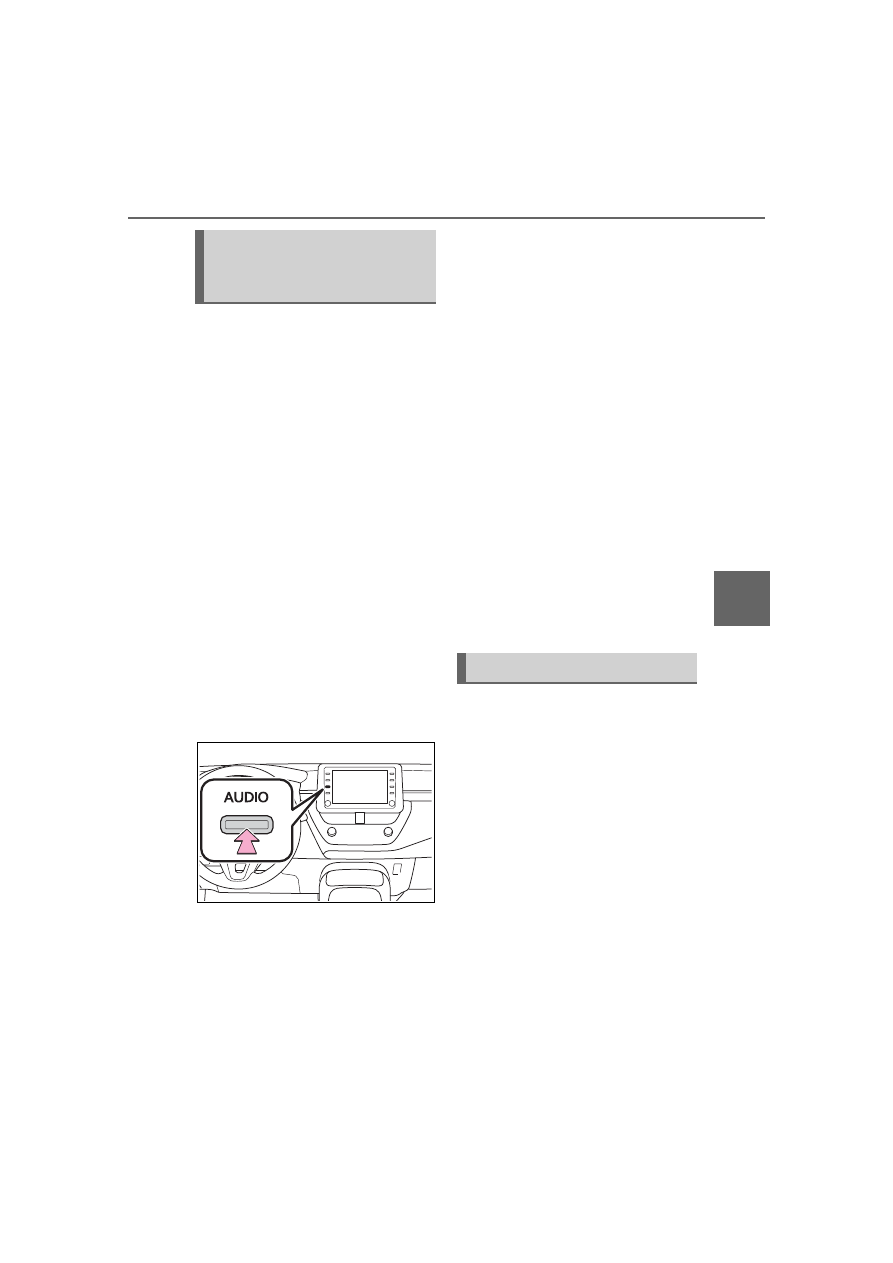

Press the “AUDIO” button.

3

Select “Source” on the audio
screen or press “AUDIO” but-
ton again.

4

Select “Bluetooth”.

5

Select “Yes” to register an
audio player.

6

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.266)

This system supports the follow-
ing services.

■

Bluetooth

®

 Core Specifica-

tion



Ver. 2.0 (Recommended: Ver.
4.1 +EDR)

■

Profiles



HFP (Hands Free Profile) Ver.
1.0 (Recommended: Ver. 1.7)

• This is a profile to allow

hands-free phone calls using a
cellular phone or head set. It has
outgoing and incoming call func-
tions.



OPP (Object Push Profile)
Ver. 1.1 (Recommended: Ver.

Registering a Bluetooth

®



audio player for the first
time

Profiles

270

5-3. Connectivity settings

COROLLA H/B_U

1.2)

• This is a profile to transfer con-

tacts data.



PBAP (Phone Book Access
Profile) Ver. 1.0 (Recom-
mended: Ver. 1.2)

• This is a profile to transfer phone-

book data.



MAP (Message Access Pro-
file) Ver. 1.0 (Recommended:
Ver. 1.2)

• This is a profile to use phone

message functions.



SPP (Serial Port Profile) Rec-
ommended: Ver. 1.2

• This is a profile to use the Toyota

audio multimedia function.



A2DP (Advanced Audio Dis-
tribution Profile) Ver. 1.0 (Rec-
ommended: Ver. 1.3)

• This is a profile to transmit stereo

audio or high quality sound to the
audio system.



AVRCP (Audio/Video Remote
Control Profile) Ver. 1.0 (Rec-
ommended: Ver. 1.6)

• This is a profile to allow remote

control the A/V equipment.

●

This system is not guaranteed to
operate with all Bluetooth

®



devices.

●

If your cellular phone does not

support HFP, registering the Blue-
tooth

®

 phone or using OPP,

PBAP, MAP or SPP profiles indi-

vidually will not be possible.

●

If the connected Bluetooth

®



device version is older than rec-

ommended or incompatible, the

Bluetooth

®

 device function may

not work properly.

●

Refer to https://www.toy-

ota.com/audio multimedia in the

United States,

https://www.toyota.ca/connected

in Canada, and

http://www.toyotapr.com/audio

multimedia in Puerto Rico, to find
approved Bluetooth

®

 phones for

this system.

●

Certification

Bluetooth is a registered trademark

of Bluetooth SIG, Inc.

271

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

*

: This function is not made avail-

able in some countries or areas.

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Bluetooth”.

4

Select the desired item to be
set.

Connecting a Bluetooth

®



device and editing the Blue-
tooth

®

device information

(



P.271, 274)

Registering a Bluetooth

®



device (



P.273)

Deleting a Bluetooth

®

 device

(



P.274)

Setting the Bluetooth

®

 sys-

tem (



P.276)

Up to 5 Bluetooth

®

 devices

(Phones (HFP) and audio play-
ers (AVP)) can be registered.

If more than 1 Bluetooth

®

 device

Setting Bluetooth

®



details

When an Apple CarPlay
connection is established,
this function will be unavail-
able.

*

When an Android Auto con-
nection is established,
some functions will be
unavailable.

*

Displaying the Blue-
tooth

®

 setup screen

Bluetooth

®

 setup screen

Connecting a Bluetooth

®



device

272

5-3. Connectivity settings

COROLLA H/B_U

has been registered, select
which device to connect to.

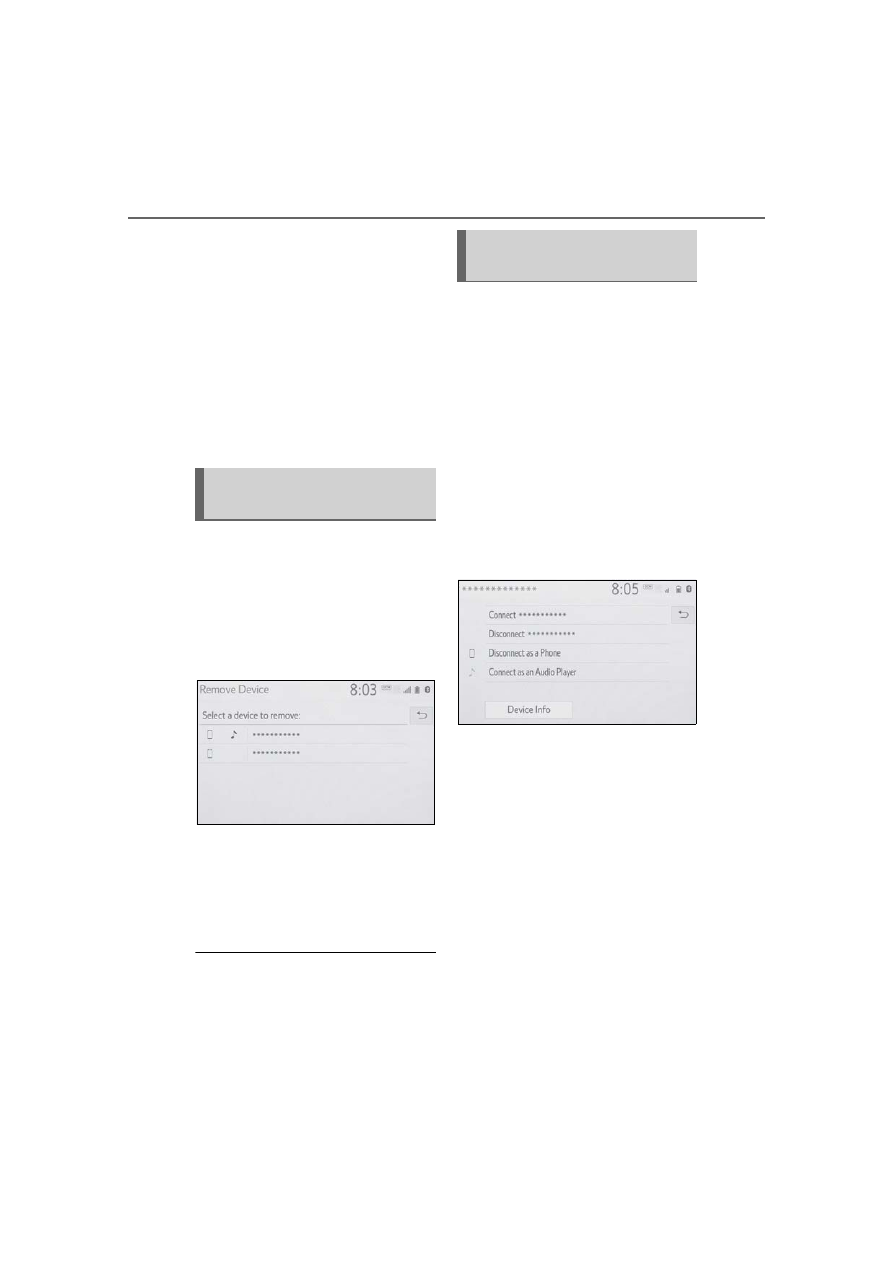

1

Display the Bluetooth

®

 set-

tings screen. (



P.271)

2

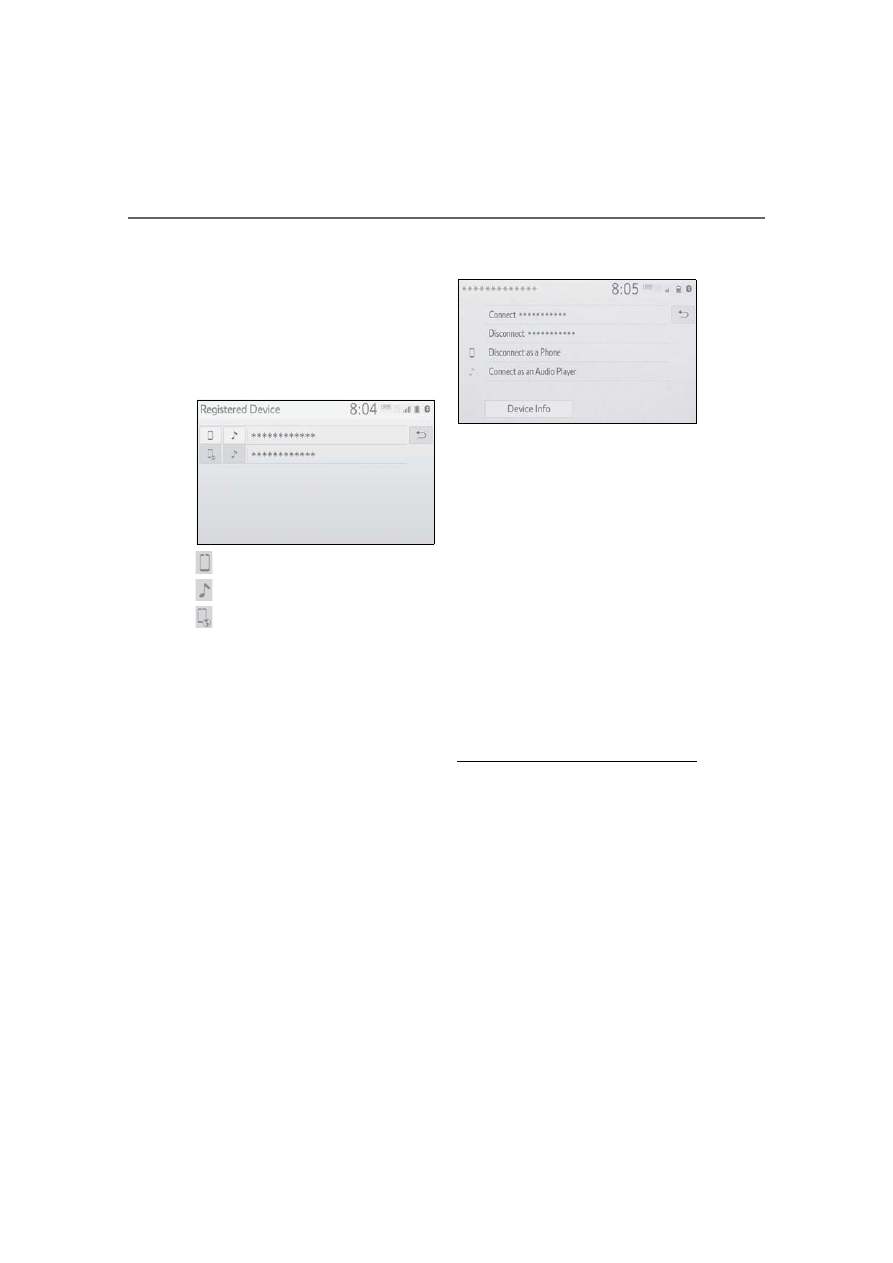

Select “Registered Device”.

3

Select the device to be con-
nected.

: Phone

: Audio player

: Phone/Toyota apps services



The profile icon for a currently
connected device will be dis-
played in color.



Selecting a profile icon which
is not currently connected will
switch the connection to the
function.



If the desired Bluetooth

®



device is not on the list, select
“Add New Device” to register
the device. (



P.273)

4

Select the desired connec-
tion.



“Device Info”: Select to con-
firm and change the Blue-
tooth

®

 device information.

(



P.274)



When another Bluetooth

®



device is connected



To disconnect the Bluetooth

®



device, select “Yes”.

5

Check that a confirmation
screen is displayed when the
connection is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

It may take time if the device con-

nection is carried out during Blue-
tooth

®

 audio playback.

●

Depending on the type of Blue-
tooth

®

 device being connected, it

may be necessary to perform

additional steps on the device.

●

When disconnecting a Bluetooth

®



device, it is recommended to dis-

connect using the system.

■

Connecting a Bluetooth

®



device in a different way
(from phone top screen)



P.345

273

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

■

Connecting a Bluetooth

®



device in a different way
(from phone setup screen)



P.359

■

Connecting a Bluetooth

®



device in a different way
(from Bluetooth

®

 audio

screen)



P.316

■

Auto connection mode

To turn auto connection mode
on, set “Bluetooth Power” to on.
(



P.276) Leave the Bluetooth

®



device in a location where the
connection can be established.



When the engine switch is in
ACC or ON, the system
searches for a nearby regis-
tered device.



The system will connect with
the registered device that was
last connected, if it is nearby.
When automatic connection
priority is set to on and there
is more than one registered
Bluetooth

®

 phone available,

the system will automatically
connect to the Bluetooth

®



phone with the highest prior-
ity. (



P.276)

■

Connecting manually

When the auto connection has
failed or “Bluetooth Power” is
turned off, it is necessary to con-
nect the Bluetooth

®

 device man-

ually.

1

Display the Bluetooth

®

 set-

tings screen. (



P.271)

2

Follow the steps in “Connect-
ing a Bluetooth

®

 device” from

step

2

. (



P.271)

■

Reconnecting the Blue-
tooth

®

 phone

If a Bluetooth

®

 phone is discon-

nected due to poor reception
from the Bluetooth

®

 network

when the engine switch is in
ACC or ON, the system auto-
matically reconnects the Blue-
tooth

®

 phone.

Up to 5 Bluetooth

®

 devices can

be registered.

Bluetooth

®

 compatible phones

(HFP) and audio players (AVP)
can be registered simultane-
ously.
This operation cannot be per-
formed while driving.

1

Display the Bluetooth

®

 set-

tings screen. (



P.271)

2

Select “Add New Device”.



When another Bluetooth

®



device is connected



To disconnect the Bluetooth

®



device, select “Yes”.

Registering a Bluetooth

®



device

274

5-3. Connectivity settings

COROLLA H/B_U



When 5 Bluetooth

®

 devices

have already been registered



A registered device needs to
be replaced. Select “Yes”, and
select the device to be
replaced.

3

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.266)

This operation cannot be per-
formed while driving.

1

Display the Bluetooth

®

 set-

tings screen. (



P.271)

2

Select “Remove Device”.

3

Select the desired device.

4

Select “Yes” when the confir-
mation screen appears.

5

Check that a confirmation
screen is displayed when the
operation is complete.

●

When deleting a Bluetooth

®



phone, the contact data will be

deleted at the same time.

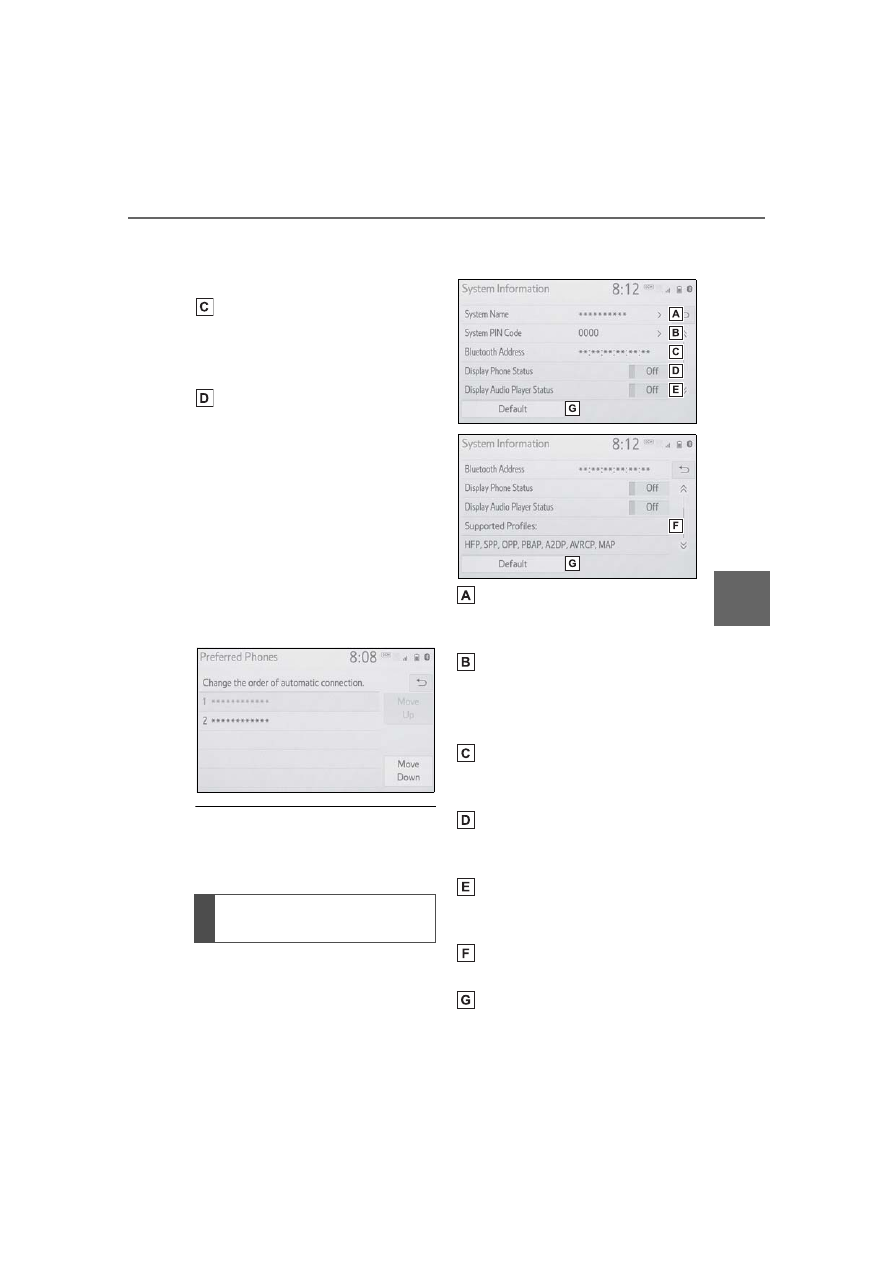

The Bluetooth

®

 device’s infor-

mation can be displayed on the
screen. The displayed informa-
tion can be edited.
This operation cannot be per-
formed while driving.

1

Display the Bluetooth

®

 set-

tings screen. (



P.271)

2

Select “Registered Device”.

3

Select the desired device to
be edited.

4

Select “Device Info”.

Deleting a Bluetooth

®



device

Editing the Bluetooth

®



device information

275

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

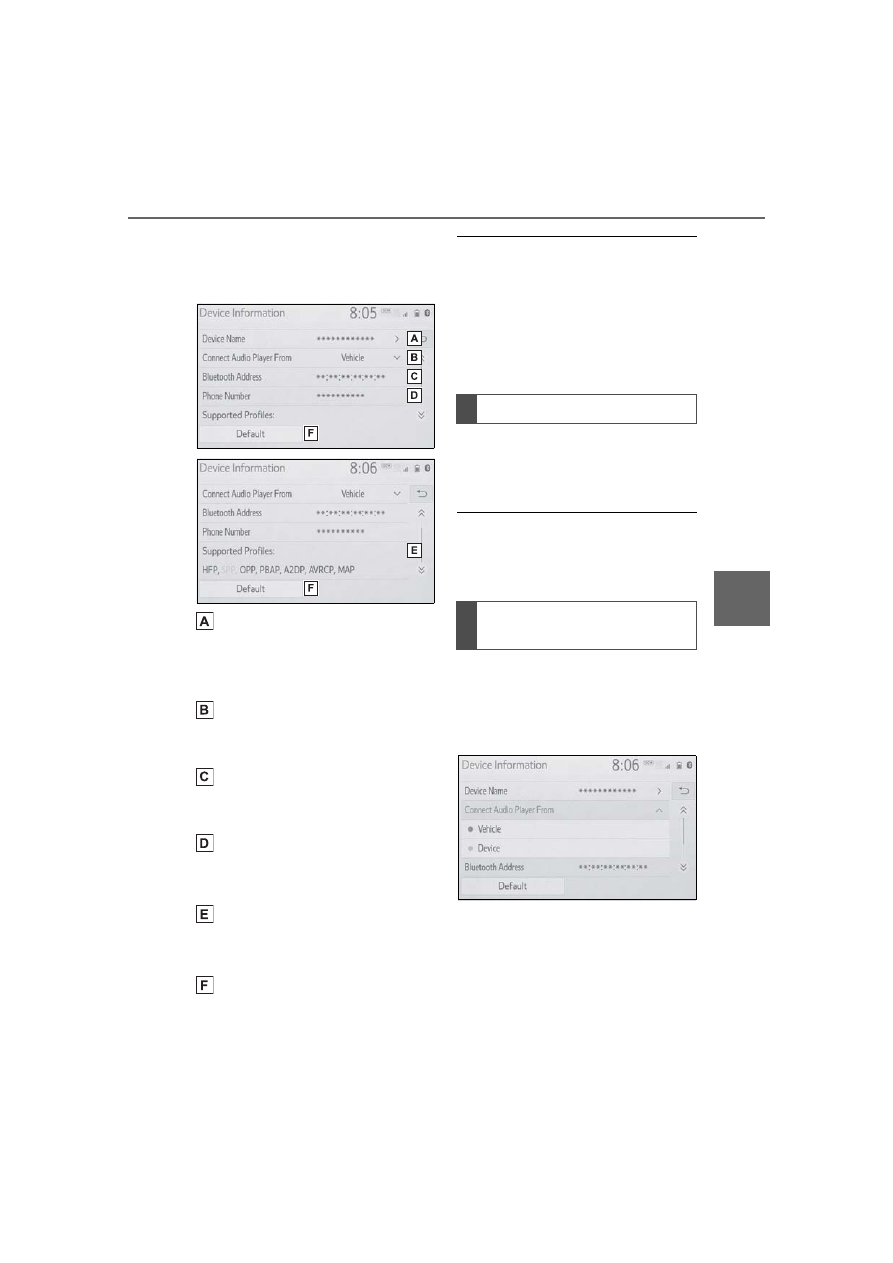

5

Confirm and change the
Bluetooth

®

 device informa-

tion.

The name of the Bluetooth

®



device is displayed. It can be
changed to a desired name.
(



P.275)

Select to set the Bluetooth

®



audio player connection
method. (



P.275)

Device address is unique to
the device and cannot be
changed.
Phone number is unique to
the Bluetooth

®

 phone and

cannot be changed.
Compatibility profile is unique
to the Bluetooth

®

 device and

cannot be changed.
Select to reset all setup
items.

●

If 2 Bluetooth

®

 devices have been

registered with the same device

name, the devices can be distin-

guished referring to the device’s

address.

●

Depending on the type of Blue-
tooth

®

 phone, some information

may not be displayed.

1

Select “Device Name”.

2

Enter the name and select
“OK”.

●

Even if the device name is

changed, the name registered in
your Bluetooth

®

 device does not

change.

1

Select “Connect Audio Player
From”.

2

Select the desired connec-
tion method.

“Vehicle”: Select to connect the

audio player from the vehicle’s

audio/visual system.
“Device”: Select to connect the

vehicle’s audio/visual system from

the audio player.



Depending on the audio

Changing a device name

Setting audio player con-
nection method

276

5-3. Connectivity settings

COROLLA H/B_U

player, the “Vehicle” or
“Device” connection method
may be best. As such, refer to
the manual that comes with
the audio player.

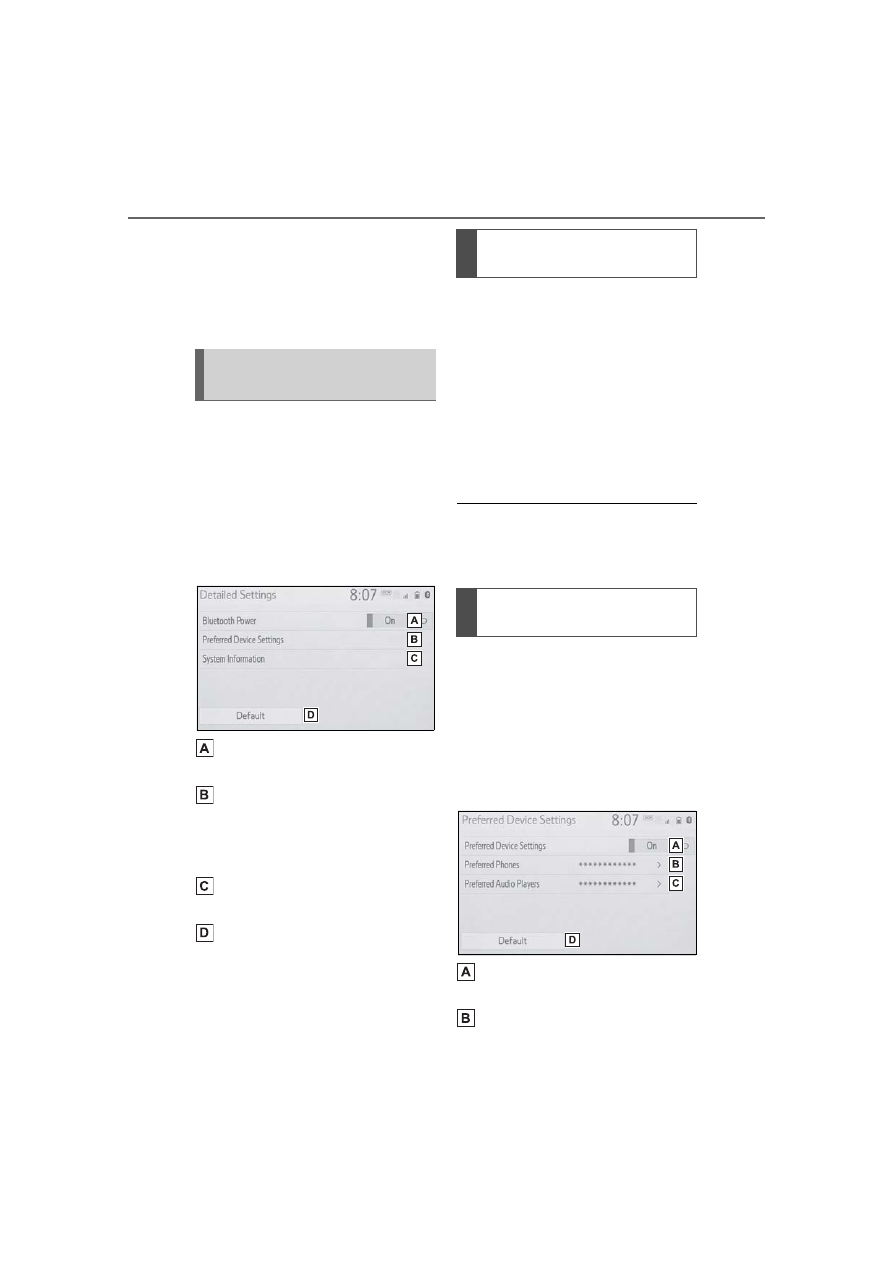

The Bluetooth

®

 settings can be

confirmed and changed.

1

Display the Bluetooth

®

 set-

tings screen. (



P.271)

2

Select “Detailed Settings”.

3

Select the desired item to be
set.

Select to set Bluetooth

®

 con-

nection on/off. (



P.276)

Select to change the auto-
matic connection priority of
the registered Bluetooth

®



devices. (



P.276)

Select to edit the system
information. (



P.277)

Select to reset all setup
items.

1

Select “Bluetooth Power”.

When “Bluetooth Power” is on:
The Bluetooth

®

 device is auto-

matically connected when the
engine switch is in ACC or ON.
When “Bluetooth Power” is off:
The Bluetooth

®

 device is dis-

connected, and the system will
not connect to it next time.

●

While driving, the auto connection

state can be changed from off to

on, but cannot be changed from

on to off.

The automatic connection prior-
ity of the registered Bluetooth

®



devices can be changed.

1

Select “Preferred Device Set-
tings”.

2

Select the desired item to be
set.

Select to set automatic con-
nection priority on/off.
Select to change the auto-

“Detailed Settings”
screen

Changing “Bluetooth
Power”

Setting automatic connec-
tion priority

277

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

matic connection priority of
the registered Bluetooth

®



phones. (



P.277)

Select to change the auto-
matic connection priority of
the registered Bluetooth

®



audio players. (



P.277)

Select to reset all setup
items.

■

Changing Bluetooth

®



device automatic connec-
tion priority

1

Select “Preferred Phones” or
“Preferred Audio Players”.

2

Select the desired Bluetooth

®



device and select “Move Up”
or “Move Down” to change
the preferred order.

●

A newly registered Bluetooth

®



device will automatically be given

the highest automatic connection

priority.

1

Select “System Information”.

2

Select the desired item to be
set.

Displays system name. Can
be changed to a desired
name. (



P.278)

PIN code used when the
Bluetooth

®

 device was regis-

tered. Can be changed to a
desired code. (



P.278)

Device address is unique to
the device and cannot be
changed.
Select to set the connection
status display of the phone
on/off.
Select to set the connection
status display of the audio
player on/off.
Compatibility profile of the
system
Select to reset all setup
items.

Editing the system infor-
mation

278

5-3. Connectivity settings

COROLLA H/B_U

■

Editing the system name

1

Select “System Name”.

2

Enter a name and select
“OK”.

■

Editing the PIN code

1

Select “System PIN Code”.

2

Enter a PIN code and select
“OK”.

*

: If equipped

1

Enable the Wi-Fi

®

 Hotspot

function. (



P.279)

2

Disable the “Hide Access
Point” function. (



P.279)

3

Search for the vehicle access
point using the device you
wish to connect.



For details about operating
the device, refer to the docu-
mentation which came with it.

Wi-Fi

®

 Hotspot

*

By connecting a device to
the vehicle via Wi-Fi

®

, it can

access the internet through
the DCM.



To use this function, a
Wi-Fi

®

 Hotspot service sub-

scription from Verizon Wire-
less is required. Contact
your Toyota dealer for
details.



This function is not made
available in some countries
or areas.

Connecting a device to
the in-vehicle access
point

Searching for and con-
necting a device to the
vehicle access point

279

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

4

Operate the device to con-
nect it to the vehicle access
point.



To check the vehicle access
point password, check “Pass-
word”. (



P.279)

●

Hints for connecting to the vehicle
via Wi-Fi

®

 can be displayed.

(



P.279)

1

Enable the Wi-Fi

®

 Hotspot

function. (



P.279)

2

Enable the “Hide Access
Point” function. (



P.278)

3

Enter the access point name
(SSID) into the device you
wish to connect and connect
it.



To check the vehicle access
point password, check “Pass-
word”. (



P.279)



The security settings on the
device must be the same as
that displayed for “Security”.
(



P.279)



For details about operating
the device, refer to the docu-
mentation which came with it.

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Wi-Fi

*

”.

*

: Wi-Fi

®

 is a registered trademark

of Wi-Fi Alliance

®

.

4

Select the desired item to be
set.

Select to enable/disable the
Wi-Fi

®

 Hotspot function.

(



P.280)

Connecting a device to the
in-vehicle access point
using the access point
name (SSID)

Changing the Wi-Fi

®

 set-

tings

280

5-3. Connectivity settings

COROLLA H/B_U

Select to check/change the
access point password.
(



P.280)

Select to display hints for
connecting to the vehicle via
Wi-Fi

®

.

Select to make the access
point searchable/unsearch-
able.
Select to check/change the
security protocol of the
access point (for authentica-
tion and encryption).
(



P.281)

Select to change the access
point name (SSID). (



P.281)

Select to change the Wi-Fi

®



connection channel (within
the 2.4GHz frequency band).
(



P.281)

●

If any settings have been

changed, it will be necessary to
reset the Wi-Fi

®

 system to com-

plete the changes. To reset the
Wi-Fi

®

 system, select “Yes” on the

pop-up displayed after changing

the settings.

When the Wi-Fi

®

 Hotspot func-

tion is enabled, the system
checks for a valid Hotspot ser-
vice subscription.
If a hotspot service subscription
has not been started, connect
your device to the in-vehicle

access point to start your sub-
scription. A trial subscription
may be available.

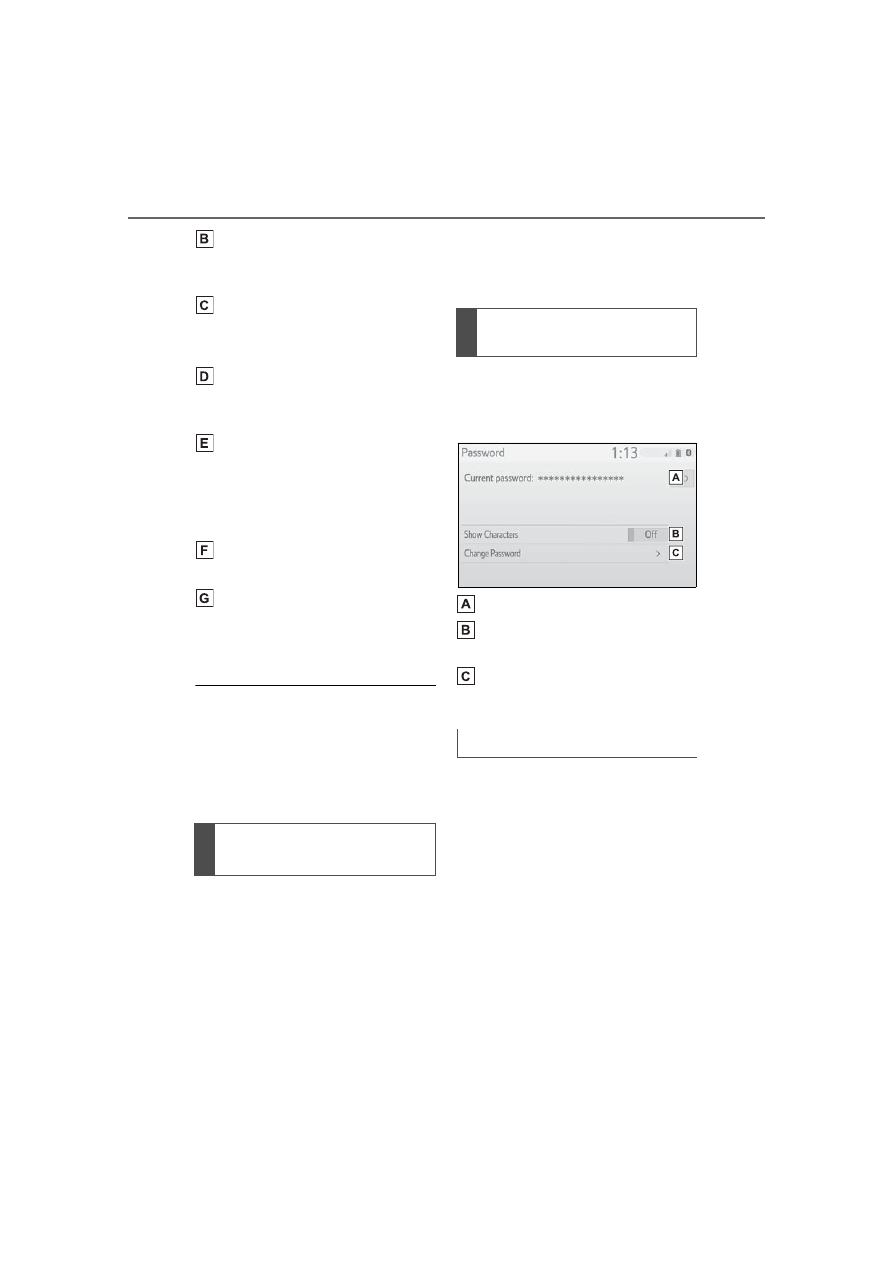

1

Select “Password”.

2

Check that the following
screen is displayed.

Displays the password
Select to display/hide the
entered password.
Select to change the pass-
word.

1

Select “Change Password”.

2

Enter the desired password
and select “OK”.



When setting/changing a
password, observe the follow-
ing guidelines to help prevent
the password from being
cracked by a third party:

• Use an 8-character or longer

password consisting of letters
and numbers. (Non-ASCII char-
acters will not be recognized by
the system.)

Enabling/disabling the
Wi-Fi

®

 Hotspot function

Checking/changing the
password

Changing the password

281

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

• Change the password regularly.
• If you write the password down,

do not leave it somewhere where
it would be visible.

• Do not use the same or a similar

password to that for other
accounts.

• Avoid using easy to identify

words, such as your vehicle’s
model name or license plate
number, simple dictionary words,
or words with simple obfuscation,
such as c@t (for cat), as your
password.

1

Select “Security”.

2

Select the desired security
protocol.

1

Select “Access Point Name”.

2

Enter the desired access
point name (SSID) and select
“OK”.

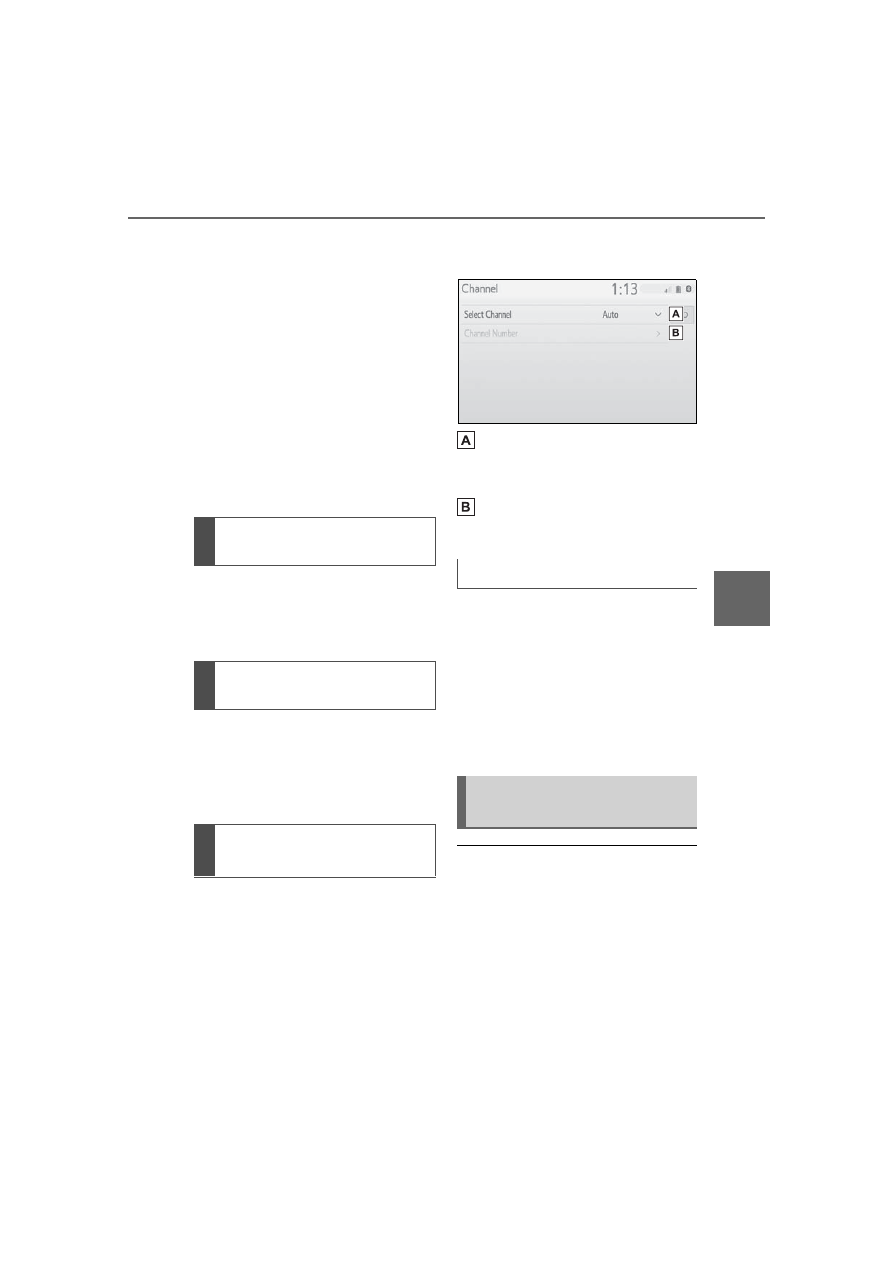

1

Select “Channel”.

2

Check that the following
screen is displayed.

Select to change the chan-
nel selection to auto-
matic/manual.
When “Manual” is selected,
select to change the channel.

1

Set “Select Channel” to
“Manual”.

2

Select “Channel Number”.

3

Enter the desired channel
number and select “OK”.



Channels 1 through 11 can be
selected.

●

If a connected device is taken out
of the Wi-Fi

®

 connection area, the

connection will be severed.

●

If the vehicle is driven out of the

cellular communication coverage

area, connecting to the internet
via the Wi-Fi

®

 Hotspot will not be

possible.

●

If a Bluetooth

®

 device is used

while a device is connected using
the Wi-Fi

®

 Hotspot function, the

Changing the security pro-
tocol

Changing the access point
name (SSID)

Selecting a Wi-Fi

®

 connec-

tion channel

Changing the channel

Wi-Fi

®

 function operating

hints

282

5-3. Connectivity settings

COROLLA H/B_U

communication speed may

decrease.

●

If the vehicle is near a radio

antenna, radio station or other

source of strong radio waves and

electrical noise, communication

may be slow or impossible.

The condition of Wi-Fi

®

 connec-

tion appears on the right upper
side of the screen. (



P.254)



Communication standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (2.4GHz)



Security
WPA™
WPA2™

• WPA™ and WPA2™ are trade-

marks of Wi-Fi Alliance

®

.

WARNING

●

Use Wi-Fi

®

 devices only when

safe and legal to do so.

●

Your audio unit is fitted with
Wi-Fi

®

 antennas. People with

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should maintain a reasonable

distance between themselves
and the Wi-Fi

®

 antennas.

The radio waves may affect the

operation of such devices.

●

Before using Wi-Fi

®

 devices,

users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Conditions displayed with
Wi-Fi

®

 icon

Specifications

283

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

*

: This function is not made avail-

able in some countries or areas.

*

: This function is not made avail-

able in some countries or areas.

1

Enable Siri on the device to
be connected.

2

Connect the device to the
USB port. (



P.299)

3

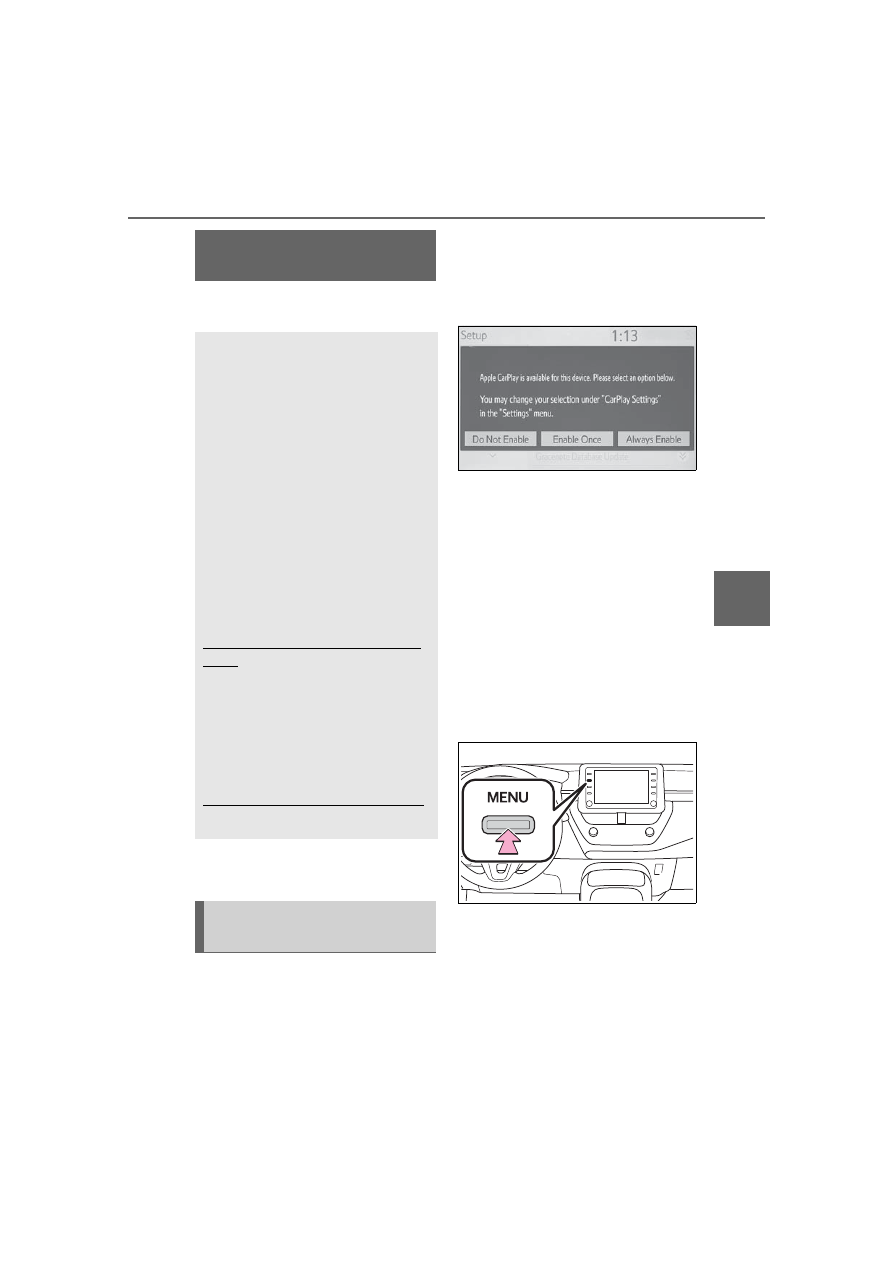

Select “Always Enable” or
“Enable Once”.



If “Do Not Enable” is selected,
an Apple CarPlay connection
will not be established. In this
case, the device can be oper-
ated as a normal Apple
device, such as an iPod.



Depending on the device con-
nected, it may take approxi-
mately 3 to 6 seconds before
an Apple CarPlay connection
is established.

4

Press the “MENU” button.

Apple Car-

Play/Android Auto

*

Apple CarPlay allows some
applications, such as Map,
Phone, and Music, to be
used on the system.

When an Apple CarPlay
connection is established,
Apple CarPlay compatible
applications will be dis-
played on the system dis-
play.



Compatible device

Apple iPhone (iOS Ver. 9.3 or
later) that supports Apple Car-
Play. For details, refer to

https://www.apple.com/ios/car

play/

.

Android devices with Android OS
ver 5.0 or higher which support
Android Auto and have the
Android Auto application
installed.
For details, refer to

https://www.android.com/auto/
.

*

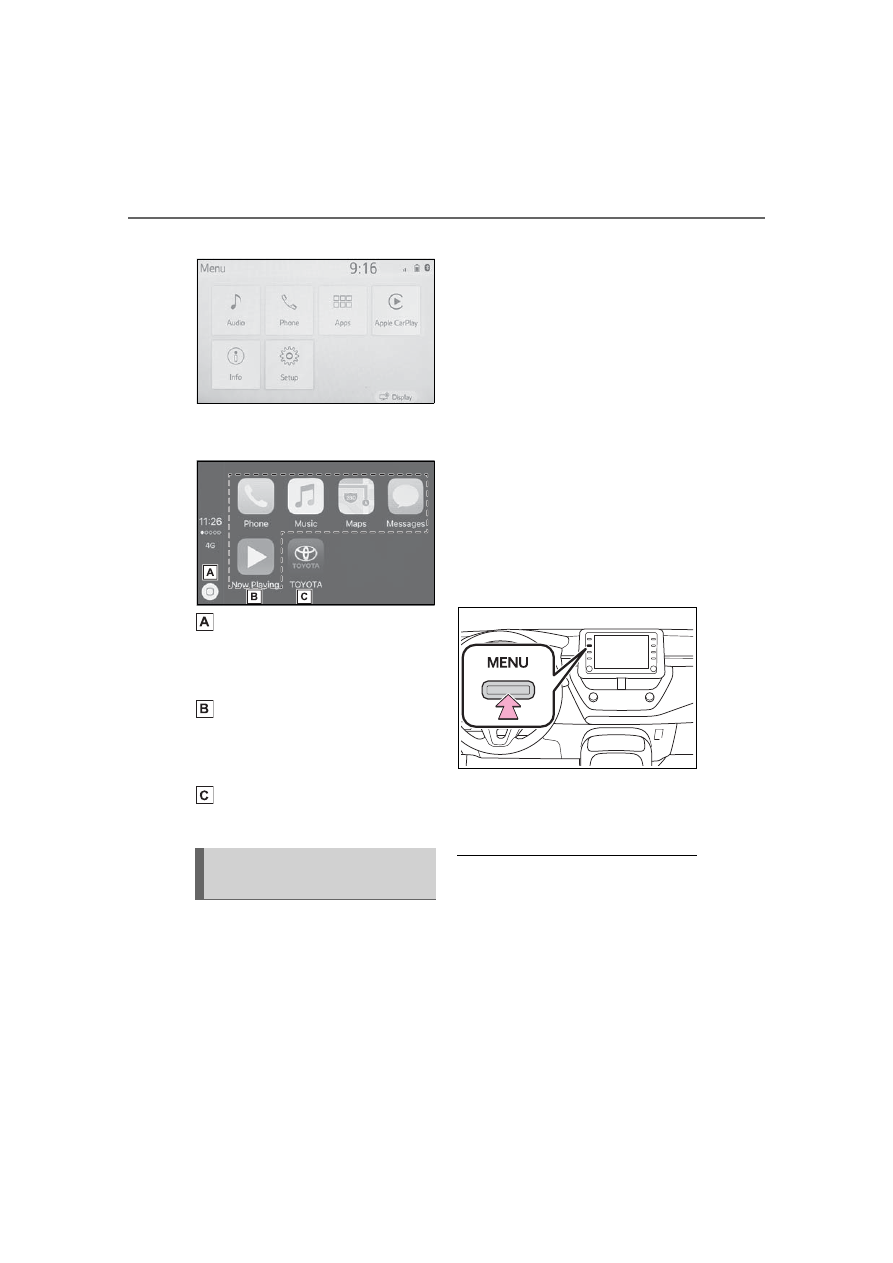

Establishing an Apple
CarPlay connection

284

5-3. Connectivity settings

COROLLA H/B_U

5

Select the “Apple CarPlay”.

6

Check that home screen of
Apple CarPlay is displayed.

Select to display the home
screen of Apple CarPlay.
Touch and hold to activate
Siri.
Select to start the application.
User can use any iPhone
application supported by
Apple CarPlay.
Select to display the system
screen.

1

Check that the Android Auto
application is installed to the
device to be connected.

2

Connect the device to the
USB port. (



P.299)

3

Select “On” to enable the
function.



“Off”: Select to not enable
Android Auto. Android Auto
will remain off until “Android
Auto” of “Projection Settings”
on the general settings screen
is turned on.



Depending on the device con-
nected, it may take approxi-
mately 3 to 6 seconds before
the system returns to previous
screen.



The screen may change to
“step

6

” depending on the

system.

4

Press the “MENU” button.

5

Select “Android Auto”.

6

Check that home screen of
Android Auto is displayed.

●

When an Apple CarPlay/Android

Auto connection is established,

the function of some system but-

tons will change.

●

When an Apple CarPlay/Android

Auto connection is established,

some system functions, such as

the following, will be replaced by

similar Apple CarPlay/Android

Auto functions or will become

unavailable:

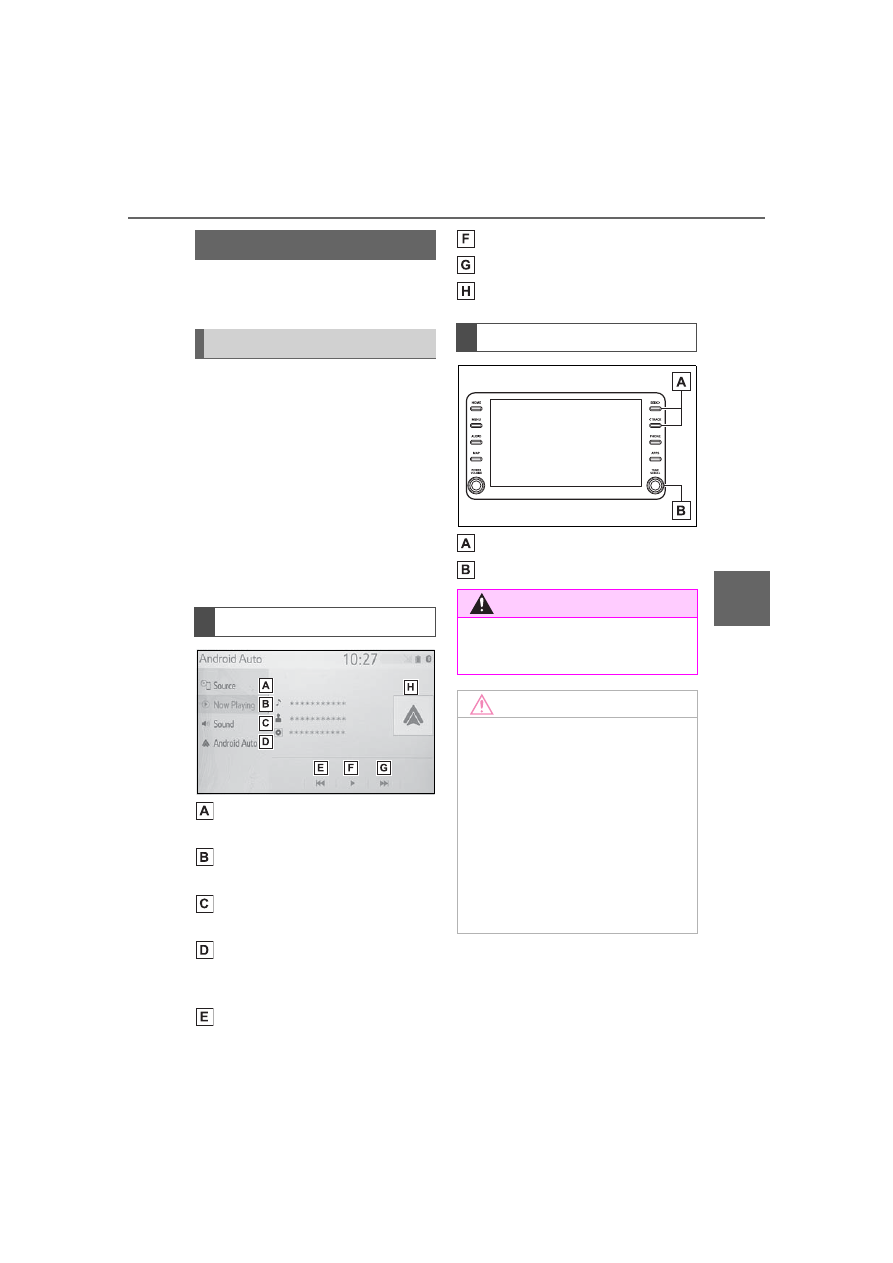

Establishing an Android
Auto connection

285

5-3. Connectivity settings

COROLLA H/B_U

5

A

ud

io

• iPod (Audio Playback)

• Hands-free Phone

• USB audio/USB video
• Bluetooth

®

 audio

• Bluetooth

®

 phone (Apple CarPlay

only)

• Toyota apps

●

The guidance volume can be

changed on the voice settings

screen. (



P.294)

●

To disable Apple CarPlay while a

device is connected, set “Apple

CarPlay” on the general settings

screen to off. (



P.290)

●

Apple CarPlay/Android Auto is an

application developed by Apple

Inc/Google LLC. Its functions and

services may be terminated or

changed without notice depending

on the connected device’s opera-

tion system, hardware and soft-

ware, or due to changes in Apple

CarPlay/Android Auto specifica-

tions.

●

For a list of the apps supported by

Apple CarPlay or Android Auto,

refer to their respective website.

●

While using these functions, vehi-

cle and user information, such as

location and vehicle speed, will be

shared with the respective appli-

cation publisher and the cellular

service provider.

●

By downloading and using each

application, you agree to their

terms of use.

●

Data for these functions is trans-

mitted using the internet and may

incur charges.

For information about data trans-

mission fees, contact your cellular

service provider.

●

Depending on the application, cer-

tain functions, such as music play-

back, may be restricted.

●

As the applications for each func-

tion are provided by a third-party,

they may be subject to change or

discontinuation without notice.

For details, refer to the website of

the function.

●

If the USB cable is disconnected,

operation of Apple Car-

Play/Android Auto will end.

At this time, sound output will stop

and change to the system screen.

●

Use of the Apple CarPlay logo

means that a vehicle user inter-

face meets Apple performance

standards. Apple is not responsi-

ble for the operation of this vehicle

or its compliance with safety and

regulatory standards. Please note

that the use of this product with

iPhone or iPod may affect wire-

less performance.

●

CarPlay, iPhone, iPod, iPod nano,

iPod touch, and Lightning are

trademarks of Apple Inc., regis-

tered in the U.S. and other coun-

tries. Apple CarPlay is a

trademark of Apple Inc.

●

Android and Android Auto are

trademarks of Google LLC.

WARNING

●

Do not connect iPhone or oper-

ate the controls while driving.

286

5-3. Connectivity settings

COROLLA H/B_U

If you are experiencing difficulties with Apple CarPlay/Android Auto,
check the following table.

NOTICE

●

Do not leave your iPhone in the

vehicle. In particular, high tem-

peratures inside the vehicle

may damage the iPhone.

●

Do not push down on or apply

unnecessary pressure to the

iPhone while it is connected as

this may damage the iPhone or

its terminal.

●

Do not insert foreign objects into

the port as this may damage the

iPhone or its terminal.

Troubleshooting

Symptom

Solution

An Apple Car-
Play/Android Auto con-
nection cannot be
established.

Check if the device supports Apple Car-
Play/Android Auto.
Check if Apple CarPlay/Android Auto is
enabled on the connected device.
Check if that the Android Auto application is
installed to the device to be connected.
For details, refer to
Apple CarPlay: https://www.apple.com/ios/car-
play/.
Android Auto: https://www.android.com/auto/.

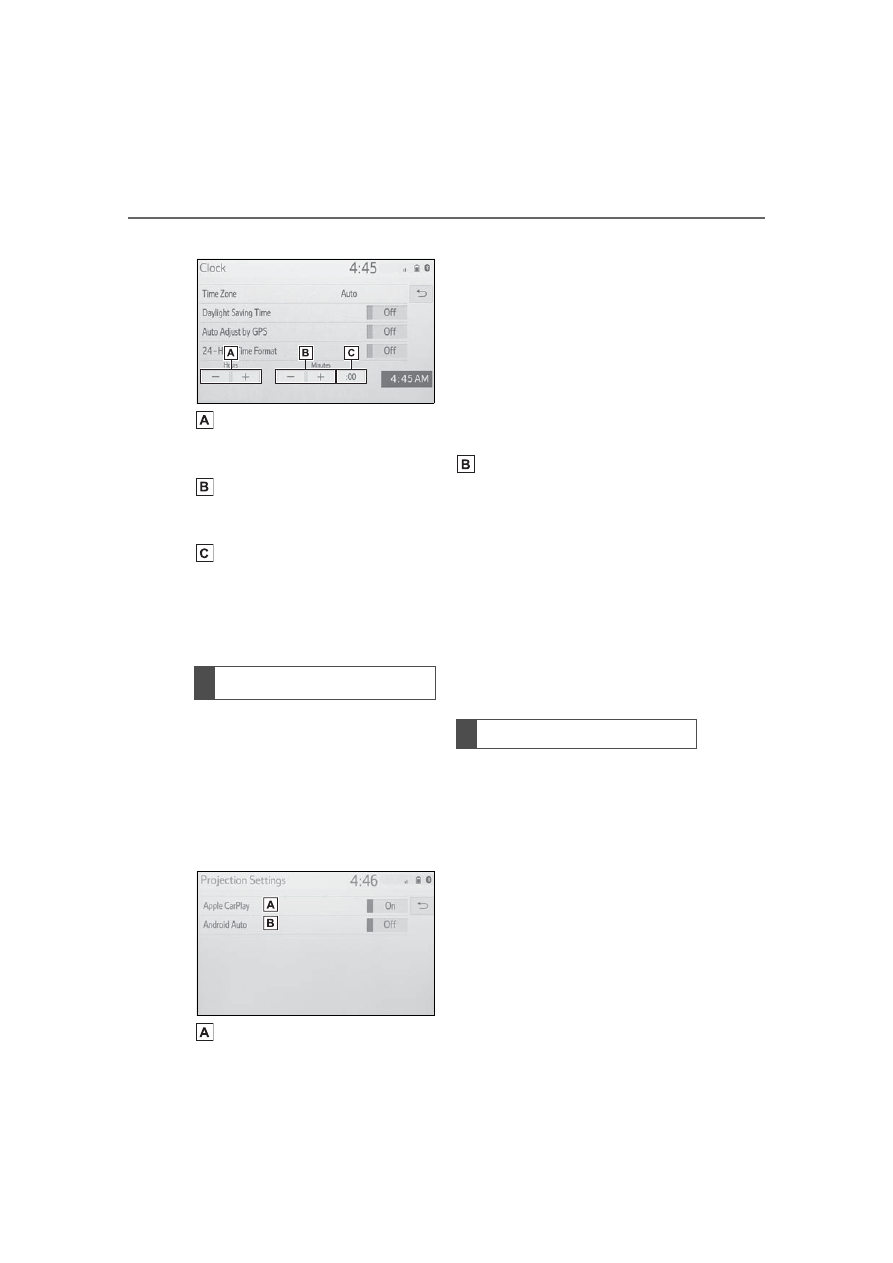

Check if “Apple CarPlay”/“Android Auto” of
“Projection Settings” on the general settings
screen is set to on. (



P.290)

Check if the USB cable being used is securely
connected to the device and USB port.
Check that the device is connected directly to
the USB port of the system and not connected
to a USB hub.
For Apple CarPlay: Check if the Lightning cable
being used is certified by Apple. Check if Siri is
enabled.

After checking all of the above, try to establish
an Apple CarPlay/Android Auto connection.
(



P.283, 284)

287

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

When an Apple Car-
Play/Android Auto con-
nection is established and
a video is being played,
the video is not displayed,
but audio is output
through the system.

As the system is not designed to play video
through Apple CarPlay/Android Auto, this is not
a malfunction.

Although an Apple Car-
Play/Android Auto con-
nection is established,
audio is not output
through the system.

The system may muted or the volume may be
low. Increase the system volume.

The Apple Car-
Play/Android Auto screen
has artifacts and/or audio
from Apple Car-
Play/Android Auto has
noise.

Check if the USB cable being used to connect
the device to the system is damaged.
To check if the USB cable is damaged inter-
nally, connect the device to another system,
such as a PC, and check if the device is recog-
nized by the connected system. (The device
should begin charging when connected.)

After checking all of the above, try to establish
an Apple CarPlay/Android Auto connection.
(



P.283, 284)

The map display of the

Apple CarPlay Maps app

cannot be enlarged or

contracted with pinch

multi-touch gestures.

As the Apple CarPlay Maps app is not compati-
ble with pinch multi-touch gestures, this is not a

malfunction.

Symptom

Solution

288

5-3. Connectivity settings

COROLLA H/B_U

During Apple CarPlay

music application (Apple

Music, Spotify, etc.) play-

back, if the iPhone is

operated to start and play

audio from an application

that is not compatible with

Apple CarPlay* and the

onboard device volume is
changed, the audio of the

incompatible application

stops and the system

resumes playback of the

original music application.

This operation is performed according to the

specification of the onboard device, this is not a

malfunction.

After interrupt audio (such

as navigation route guid-

ance) is played from an

application that is not

compatible with Apple

CarPlay while the onboard

device is playing audio,

the system does not

resume playback of the

original audio.

This operation is performed according to the

specification of the onboard device, this is not a

malfunction.

Manually change the audio source by yourself.

Or, do not use applications that are not compat-

ible with Apple CarPlay.

*

 Due to some naviga-

tion applications are compatible from iOS 12,

update to the latest iOS and application ver-

sions.

When using Apple Car-

Play, route guidance

arrows and turn by turn

navigation are not dis-

played on the multi-infor-

mation display and

system display.

When using Android Auto,

turn by turn navigation is

not displayed on the

multi-information display

and system display.

This is not a malfunction as display of these

items is not possible with this function.

Symptom

Solution

289

5-3. Connectivity settings

COROLLA H/B_U

5

Audio

*

: Applications not compatible with Apple CarPlay are applications installed

on the iPhone that are not displayed on the Apple CarPlay screen appli-
cation list. (such as visual voicemail)

When using Android Auto,
hands-free call audio can-

not be heard from the

vehicle’s speakers.

Disconnect the phone from the USB cable and

check if hands-free call audio can be heard

using the hands-free system.

Connect the phone to the system using Android

Auto, turn up the volume on the system and
check if hands-free call audio can be heard.

Check if other sounds can be heard from the

vehicle’s speakers.

Symptom

Solution

290

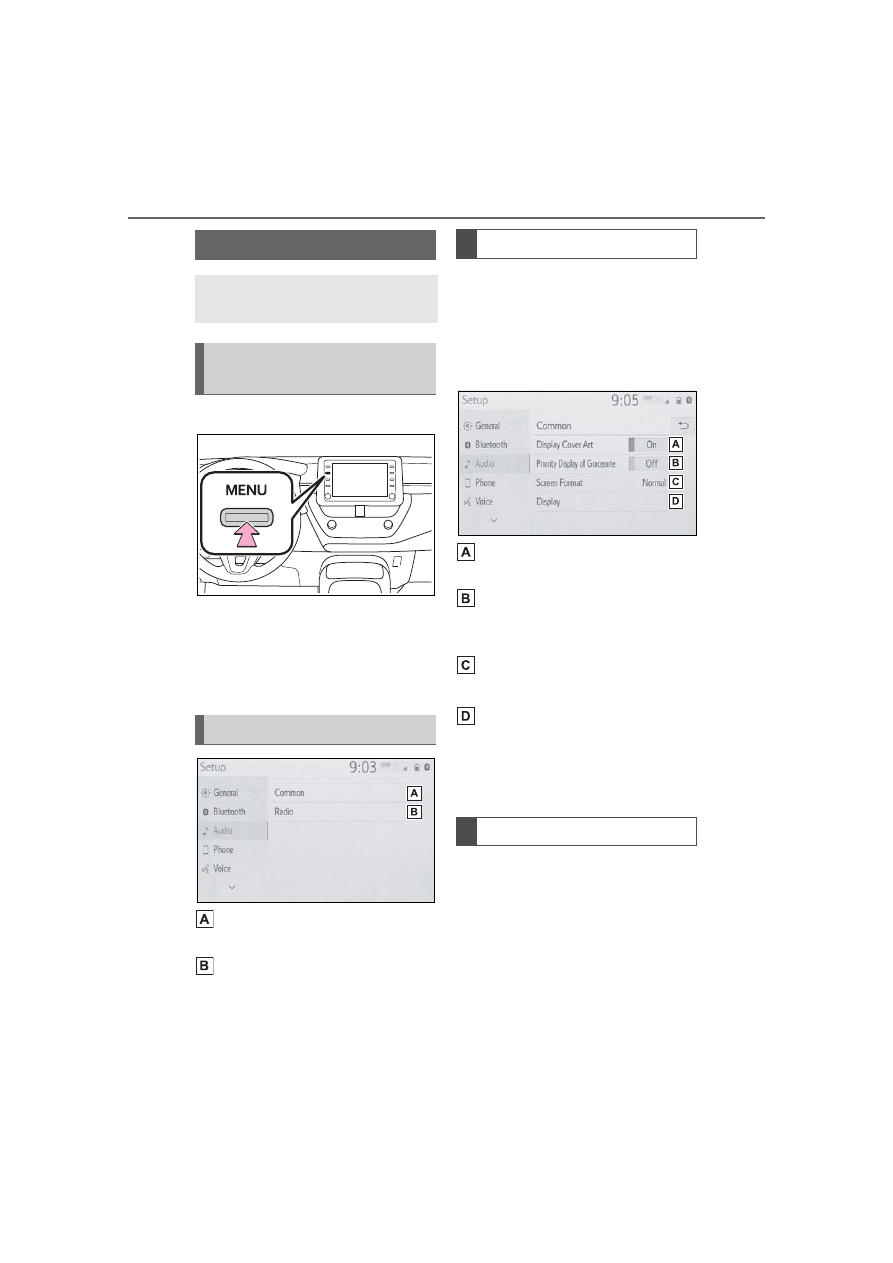

5-4. Other settings

COROLLA H/B_U

5-4.Other settings

1

Press the “MENU” button.

2

Select “Setup”.



If the general settings screen
is not displayed, select “Gen-
eral”.

3

Select the desired items to
be set.



“Clock”

Select to change the time zone and
select “On” or “Off” for daylight sav-
ing time, automatic adjustment of

the clock, etc. (



P.291)



“Language”

Select to change the language. The
language setting of Apple Car-
Play/Android Auto can only be
changed on the connected device.



“Customize Home Screen”

Select to change the display infor-
mation/area on the home screen
and the home screen layout.
(



P.260)



“Theme Setting”

Select to change the screen theme
setting.



“Beep”

Select to turn the beep sound
on/off.



“Units of Measurement”

Select to change the unit of mea-
sure for distance/fuel consumption.



“Keyboard Layout”

Select to change the keyboard lay-
out.



“Delete Keyboard History”

Select to delete the keyboard his-
tory.



“Memorize Keyboard History”

Select to set the memorize key-
board history on/off.



“Animation”

Select to turn the animations on/off.



“Projection Settings”

*1

Select to set automatic Apple Car-
Play/Android Auto connection
establishment on/off. (



P.292)



“Driver Setting”

General settings

Settings are available for
clock, operation sounds,
etc.

Displaying the general
settings screen

General settings screen

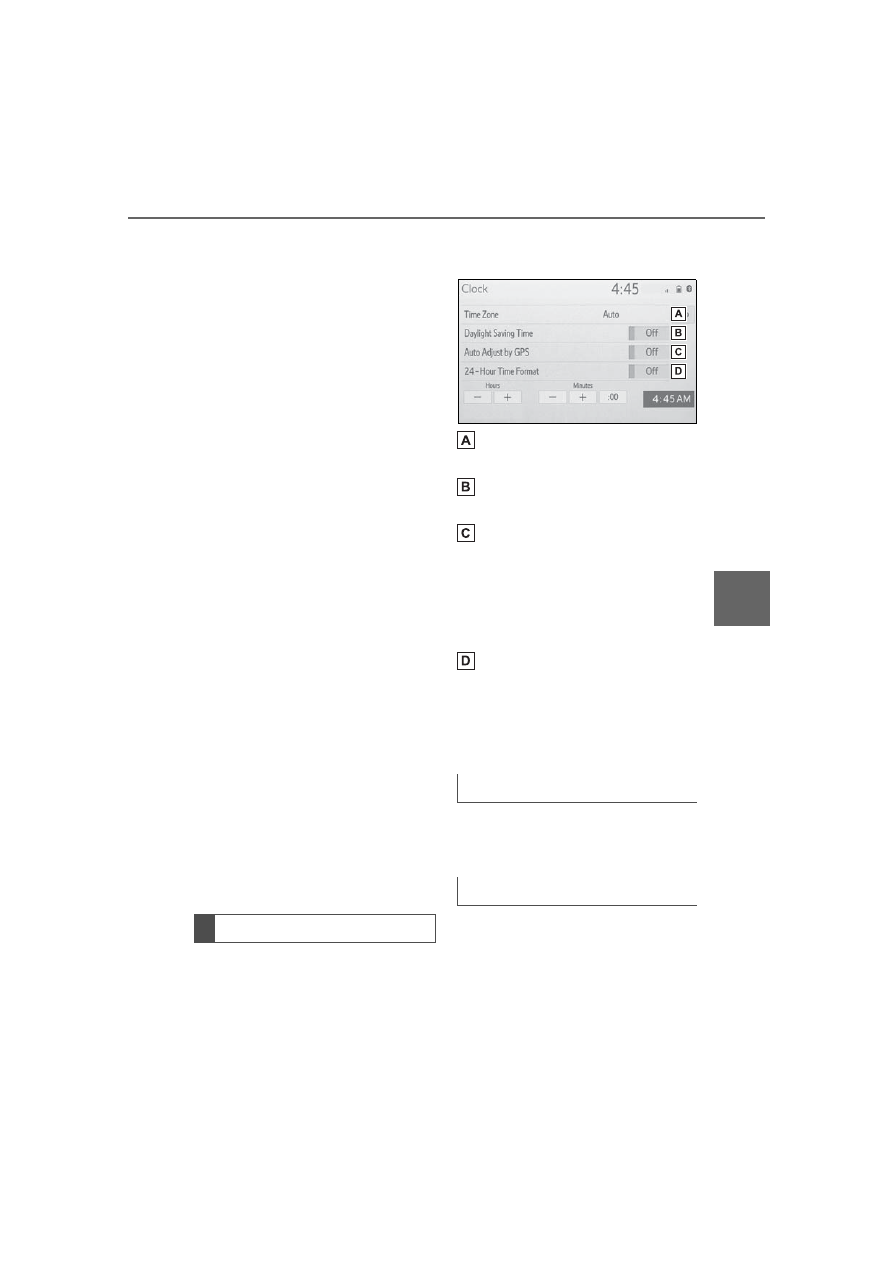

291

5-4. Other settings

COROLLA H/B_U

5

Audio

Select to change the driver set-
tings. (



P.292)



“Delete Personal Data”

Select to delete personal data.
(



P.293)



“Software Update”

Select to update software versions.
For details, contact your Toyota
dealer.



“Software Update Setting”

*2

Select to set software update set-
ting. (



P.293)



“Gracenote Database
Update”

Select to update Gracenote

®

 data-

base versions. For details, contact
your Toyota dealer.



“Software Information”

Select to display the software infor-
mation. Notices related to third
party software used in this product
are enlisted. (This includes instruc-
tions for obtaining such software,
where applicable.)



“SW Sensitivity Level”

Select to change the capacitive
touch screen button sensitivity to 1
(low), 2 (medium), or 3 (high).

*1

:This function is not made avail-

able in some countries or areas.

*2

:If equipped

1

Display the general settings
screen. (



P.290)

2

Select “Clock”.

3

Select the desired items to
be set.

Select to change the time
zone. (



P.291)

Select to set daylight saving
time on/off.
Select to set automatic
adjustment of the clock by
GPS on/off.
When set to off, the clock can
be manually adjusted.
(



P.291)

Select to set the 24 hour time
format on/off.
When set to off, the clock is
displayed in 12 hour time for-
mat.

1

Select “Time Zone”.

2

Select the desired time zone.

When “Auto Adjust by GPS” is
turned off, the clock can be
manually adjusted.

1

Select “Auto Adjust by GPS”
to set to off.

Clock settings

Setting the time zone

Manual clock setting

292

5-4. Other settings

COROLLA H/B_U

2

Adjust the clock manually.

Select “+” to set the time for-
ward one hour and “-” to set
the time back one hour.
Select “+” to set the time for-
ward one minute and “-” to
set the time back one minute.
Select to round to the nearest
hour.
e.g.
1:00 to 1:29



 1:00

1:30 to 1:59



 2:00

*

: This function is not made avail-

able in some countries or areas.

1

Display the general settings
screen. (



P.290)

2

Select “Projection Settings”.

3

Select the desired items to
be set.

Select to turn Apple CarPlay

connection establishment
on/off when a compatible
iPhone is connected to the
system via USB. (



P.283)

Depending on the system,
this setting cannot be
changed when a device is
connected to the system via
USB. Disconnect the device
before attempting to change
the setting.
Select to turn Android Auto
connection establishment
on/off when a compatible
device is connected to the
system via USB. (



P.284)

Depending on the system,
this setting cannot be
changed when a device is
connected to the system via
USB. Disconnect the device
before attempting to change
the setting.

The driver settings feature will
allow the system to link some
preferences (such as audio pre-
sets, screen theme, language,
etc.) to a paired Bluetooth

®



phone.

1

Display the general settings
screen. (



P.290)

2

Select “Driver Setting”.

Projection settings

*

Driver settings

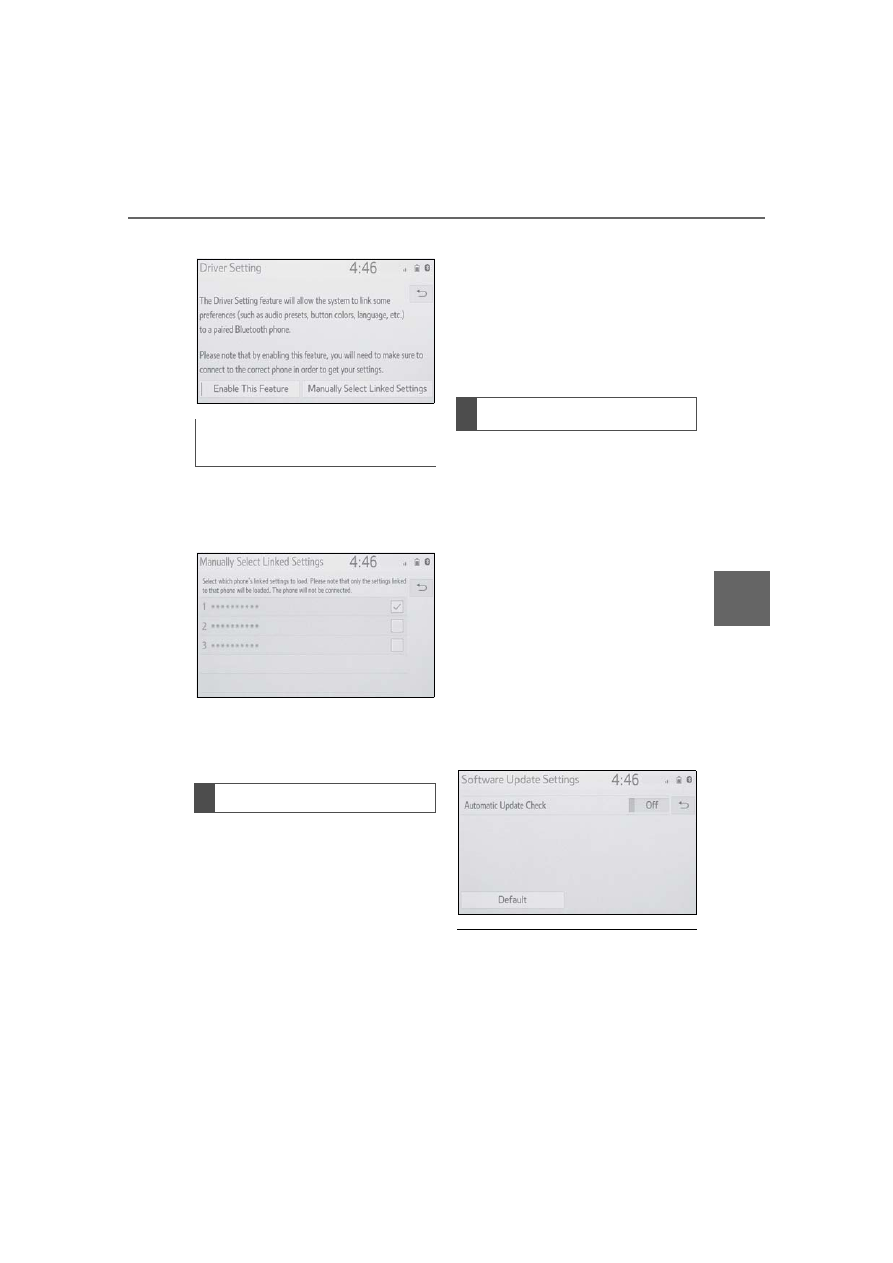

293

5-4. Other settings

COROLLA H/B_U

5

Audio

3

Select “Enable This Feature”.

1

Select “Manually Select
Linked Settings”.

2

Select the desired phone.



After a few seconds, loaded
screen automatically switches
to the home screen.

Registered or changed per-
sonal settings will be deleted or
returned to their default condi-
tions.

1

Display the general settings
screen. (



P.290)

2

Select “Delete Personal
Data”.

3

Select “Delete”.

4

Select “Yes” when the confir-
mation screen appears.

Examples of settings that can be

returned to their default conditions:



Audio settings



Phone settings

etc.

*

: This function is not made avail-

able in some countries or areas.

When the automatic update
check function is enabled, if a
software update is available
from the Toyota response cen-
ter, a message will be displayed.

1

Display the general settings
screen. (



P.290)

2

Select “Software Update Set-
ting”.

3

Select “Automatic Update
Check” to enable/disable the
automatic update check func-
tion.

●

When software update information

is displayed, contact your Toyota

dealer.

Manually select linked set-
tings

Deleting personal data

Software update settings

*

294

5-4. Other settings

COROLLA H/B_U

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Voice”.

4

Select the desired items to
be set.

Select to adjust the volume of
voice guidance.
Select to set the voice recog-
nition prompts.
Select to train voice recogni-
tion.

The voice command system
adapts the user accent.
Select to start the voice rec-
ognition tutorial.
Select to set the voice
prompt interrupt on/off.
Select to reset all setup
items.

Voice settings

Voice volume, etc. can be
set.

Displaying the voice set-
tings screen

Voice settings screen

295

5-4. Other settings

COROLLA H/B_U

5

Audio

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Vehicle”.

4

Select the desired items to
be set.

Select to set vehicle customi-
zation. (



P.531)

Select to set valet mode.
(



P.295)

The security system can be set
to on by entering a security code
(4-digit number).
When set to on, the system will
become inoperative once the
electrical power source is dis-
connected until the security
code is entered.

1

Display the vehicle settings
screen. (



P.295)

2

Select “Valet Mode”.

3

Enter the 4-digit personal
code and select “OK”.

4

Enter the same 4-digit per-
sonal code again and select
“OK”.



The system will request that
you input the security code
again to confirm that you
remember it correctly.



When valet mode activates,
the system stops and a secu-
rity code (4-digit number)
standby screen is displayed.

●

If the 4-digit personal code is for-

gotten, please contact your Toyota

dealer.

1

Enter the 4-digit personal
code and select “OK”.

●

If an incorrect security code

(4-digit number) is entered 6

times, the system will not accept

Vehicle settings

Settings are available for
vehicle customization, etc.

Displaying the vehicle
settings screen

Vehicle settings screen

Setting the valet mode

If the valet mode has been
activated

296

5-4. Other settings

COROLLA H/B_U

another security code (4-digit

number) for 10 minutes.

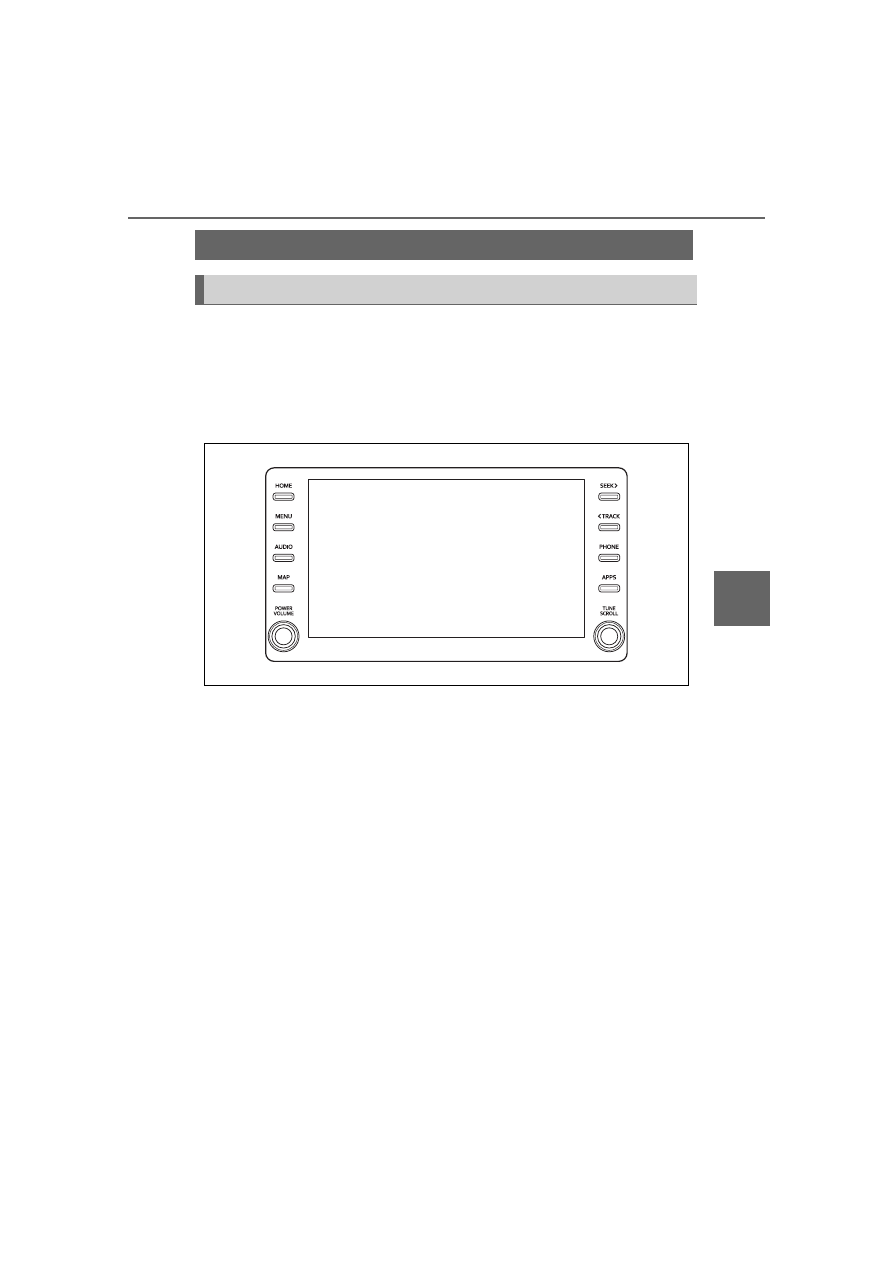

297

5-5. Using the audio/visual system

COROLLA H/B_U

5

Audio

5-5.Using the audio/visual system

The audio control screen can be reached by the following methods:



From the “AUDIO” button

1

Press the “AUDIO” button.



From the “MENU” button

1

Press the “MENU” button, then select “Audio”.

• Using the radio (



P.302)

• Playing a USB memory (



P.308)

• Playing an iPod/iPhone (Apple CarPlay

*

) (



P.310)

• Using the Android Auto

*

 (



P.313)

• Playing a Bluetooth

®

 device (



P.314)

• Using the steering wheel audio switches (



P.318)

• Audio system settings (



P.320)

*

: This function is not made available in some countries or areas.

Quick reference

Functional overview

298

5-5. Using the audio/visual system

COROLLA H/B_U

“POWER VOLUME” knob:
Press to turn the audio/visual
system on and off. The system
turns on in the last mode used.
Turn this knob to adjust the vol-
ume.

1

Press the “AUDIO” button.

2

Select “Source” or press
“AUDIO” button again.

3

Select the desired source.

●

Dimmed screen buttons cannot be

operated.

●

When there are two pages, select

 or

 to change the page.

●

When an Apple CarPlay/Android

Auto connection is established,

some system functions, such as

the following, will be replaced by

similar Apple CarPlay/Android

Auto function or will become
unavailable

*

:

• iPod (Audio Playback)

• USB audio/USB video
• Bluetooth

®

 audio

• Toyota apps

*

: This function is not made avail-

able in some countries or areas.

1

Display the audio source
selection screen. (



P.298)

2

Select “Reorder”.

Some basics

This section describes
some of the basic features
of the audio/visual system.
Some information may not
pertain to your system.

Your audio/visual system
works when the engine
switch is in ACC or ON.

NOTICE

●

To prevent the battery from

being discharged, do not leave

the audio/visual system on lon-

ger than necessary when the

engine is not running.

Turning the system on
and off

Selecting an audio source

Reordering the audio
source

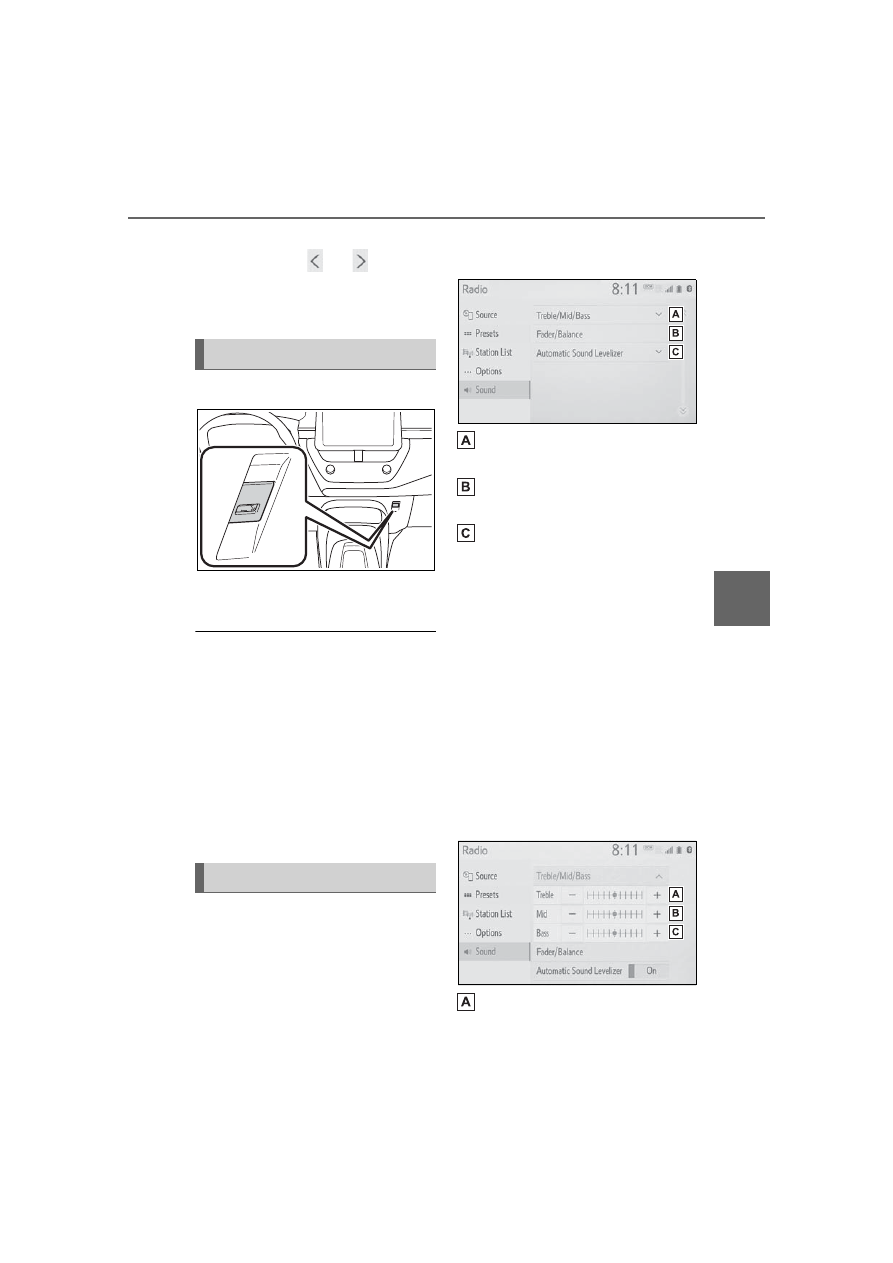

299

5-5. Using the audio/visual system

COROLLA H/B_U

5

Audio

3

Select the desired audio
source then

 or

 to reor-

der.

4

Select “OK”.

1

Connect a device.



Turn on the power of the
device if it is not turned on.

●

If a USB hub is plugged-in, two

devices can be connected at a

time.

●

Even if a USB hub is used to con-

nect more than two USB devices,

only the first two connected

devices will be recognized.

●

If a USB hub that has more than

two ports is connected to the USB

port, devices connected to the

USB hub may not charge or be

operable, as the supply of current

may be insufficient.

1

Display the audio control
screen. (



P.298)

2

Select “Sound”.

3

Select the desired item to be
set.

Select to set the tre-
ble/mid/bass. (



P.299)

Select to set the fader/bal-
ance. (



P.300)

Select to set the Automatic
Sound Levelizer. (



P.300)

■

Treble/Mid/Bass

How good an audio program
sounds is largely determined by
the mix of the treble, mid and
bass levels. In fact, different
kinds of music and vocal pro-
grams usually sound better with
different mixes of treble, mid
and bass.

1

Select “Treble/Mid/Bass”.

2

Select the desired screen
button.

Select “+” or “-” to adjust
high-pitched tones.

USB port

Sound settings

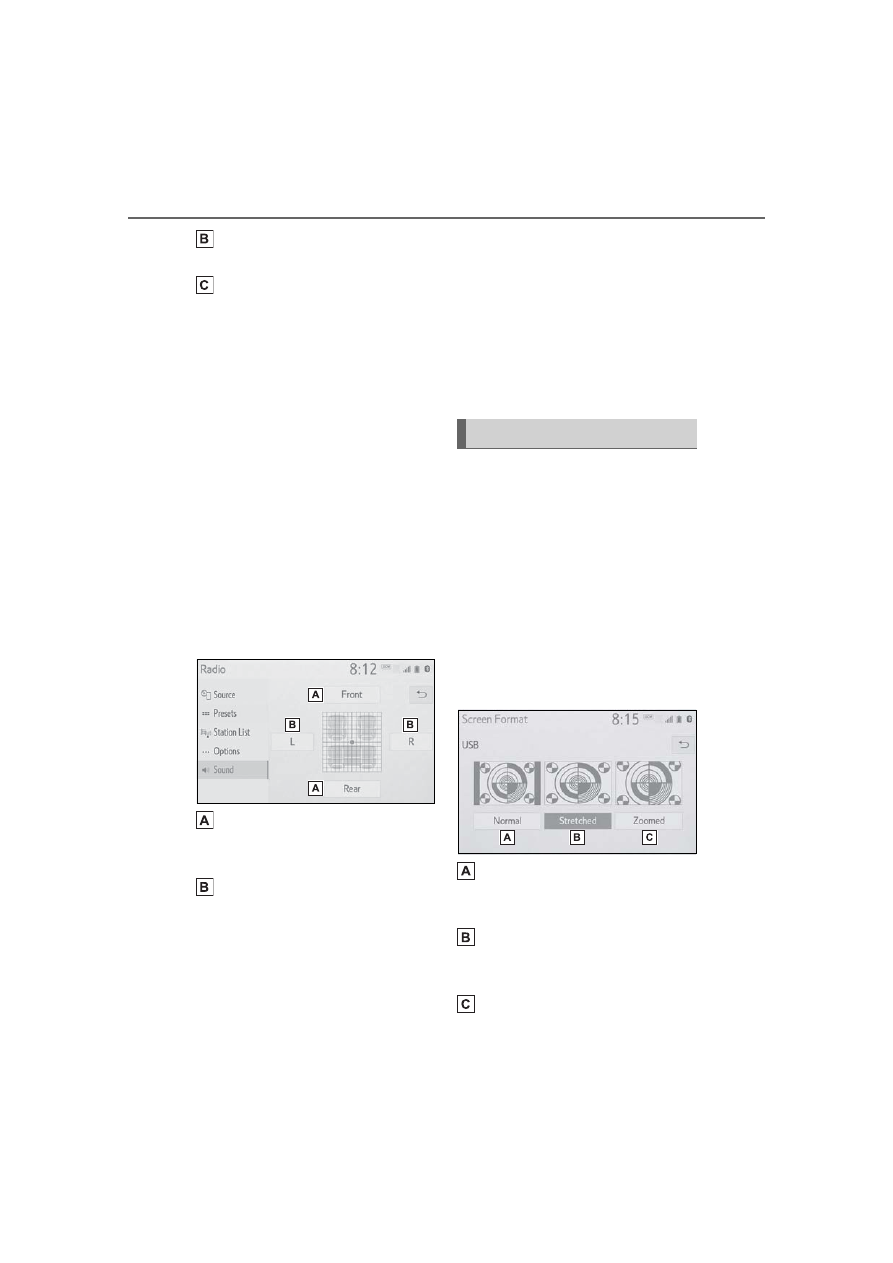

300

5-5. Using the audio/visual system

COROLLA H/B_U

Select “+” or “-” to adjust
mid-pitched tones.
Select “+” or “-” to adjust
low-pitched tones.

■

Fader/Balance

A good balance of the left and
right stereo channels and of the
front and rear sound levels is
also important.
Keep in mind that when listening
to a stereo recording or broad-
cast, changing the right/left bal-
ance will increase the volume of
1 group of sounds while
decreasing the volume of
another.

1

Select “Fader/Balance”.

2

Select the desired screen
button.

Select to adjust the sound
balance between the front
and rear speakers.
Select to adjust the sound
balance between the left and
right speakers.

■

Automatic sound levelizer
(ASL)

The system adjusts to the opti-
mum volume and tone quality

according to vehicle speed to
compensate for increased road
noise, wind noise, or other
noises while driving.

1

Select “Automatic Sound
Levelizer”.

2

Select “High”, “Mid”, “Low” or
“Off”.

■

Screen format settings

The screen format can be
selected for USB video.

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Audio”.

4

Select “Common”.

5

Select “Screen Format”.

6

Select the desired item to be
adjusted.

Select to display a 4 : 3
screen, with either side in
black.
Select to enlarge the image
horizontally and vertically to
full screen.
Select to enlarge the image
by the same ratio horizontally

Audio screen adjustment

301

5-5. Using the audio/visual system

COROLLA H/B_U

5

Audio

and vertically.

■

Contrast and brightness
adjustment

The contrast and brightness of
the screen can be adjusted.

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Audio”.

4

Select “Common”.

5

Select “Display”.

6

Select the desired item to be
adjusted.



“Contrast”

“+”: Select to strengthen the con-
trast of the screen.
“-”: Select to weaken the contrast of
the screen.



“Brightness”

“+”: Select to brighten the screen.
“-”: Select to darken the screen.

●

Depending on the audio source,

some functions may not be avail-

able.

1

Press this switch to operate
the voice command system.



The voice command system
and its list of commands can
be operated. (



P.334)

Voice command system

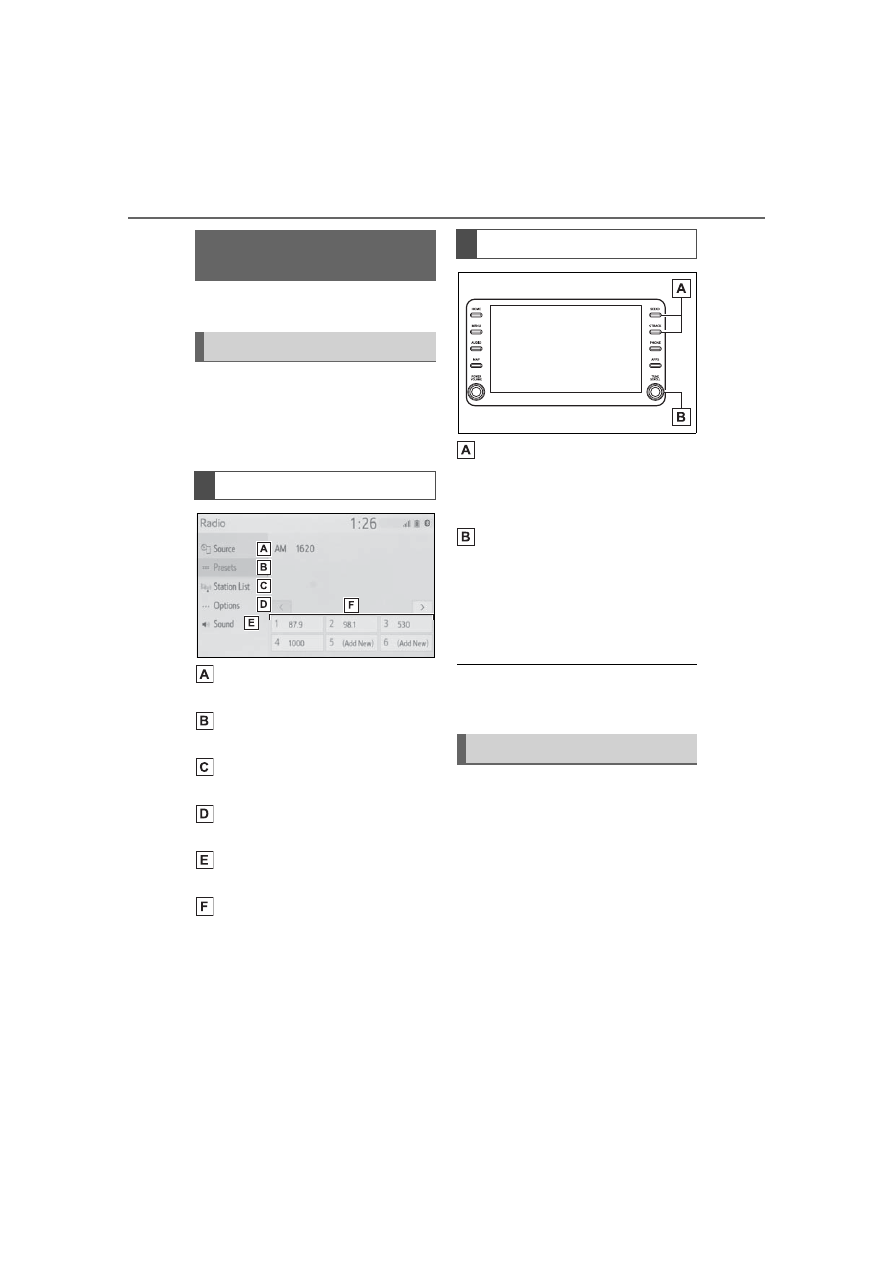

302

5-6. Radio operation

COROLLA H/B_U

5-6.Radio operation

*

: If equipped

The radio operation screen can
be reached by the following
methods:



P.298

Select to display the audio
source selection screen.
Select to display the preset
stations screen. (



P.302)

Select to display a list of
receivable stations. (



P.303)

Select to display the radio
options screen. (



P.303)

Select to display the sound
setting screen. (



P.299)

Select to tune to preset sta-
tions/channels. (



P.302)

Press to seek for stations in
the relevant program type.
Press and hold for continu-
ous seek.
Turn to step up/down fre-
quencies.
Turn to move up/down the
station. Also, the knob can be
used to enter selections on
the list screens by pressing it.

●

The radio automatically changes

to stereo reception when a stereo

broadcast is received.

Radio mode has a mix preset
function, which can store up to
36 stations (6 stations per page
x 6 pages) from any of the AM,
FM or SXM bands.

1

Tune in the desired station.

AM/FM/SiriusXM

®

 Sat-

ellite Radio

*

Overview

Control screen

Control panel

Presetting a station

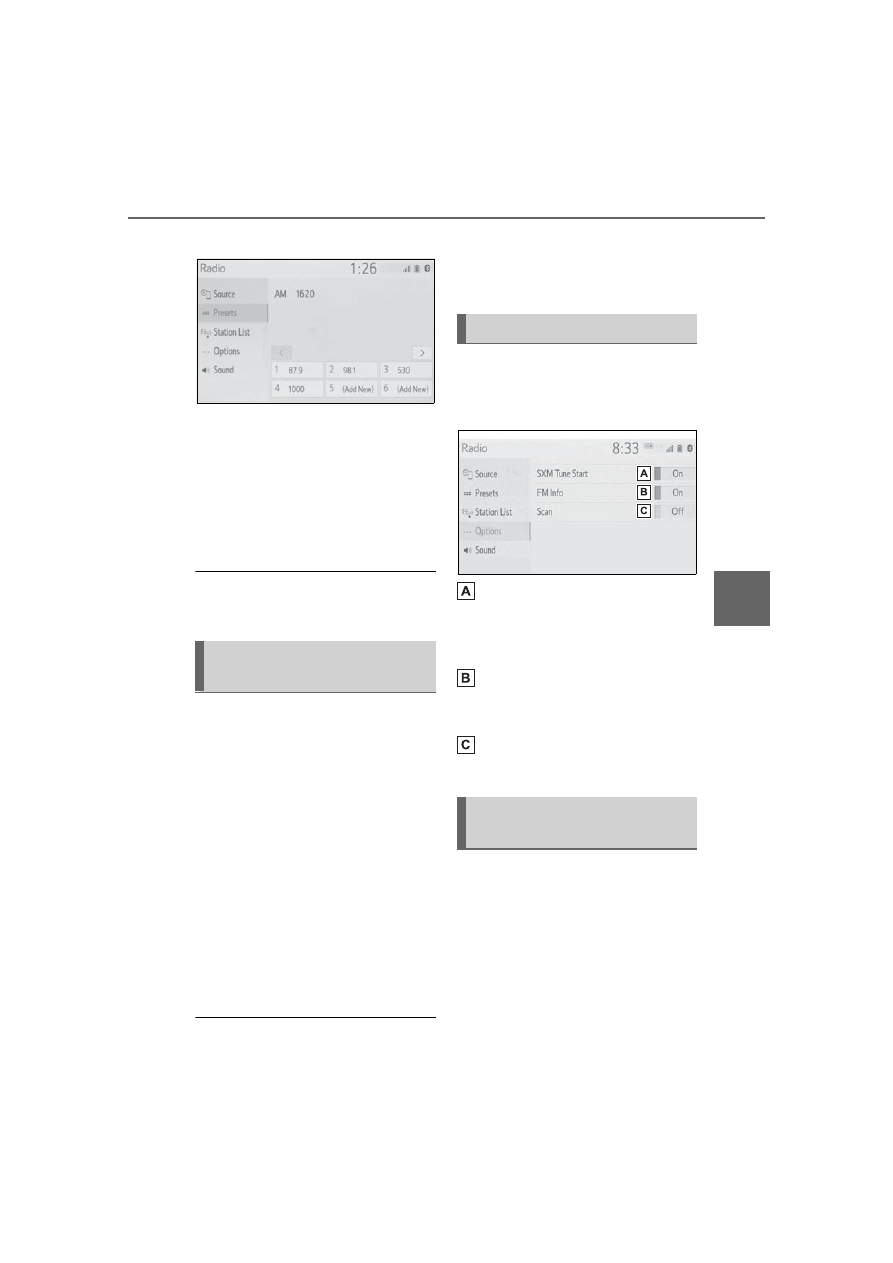

303

5-6. Radio operation

COROLLA H/B_U

5

Audio

2

Select and hold “(Add New)”.



When “(Add New)” is
selected, a confirmation mes-
sage appears. Select “Yes”
and select “OK”.



To change the preset station
to a different one, select and
hold the preset station.

●

The number of preset radio sta-

tions displayed on the screen can

be changed. (



P.320)

1

Select “Station List”.

2

Select “AM”, “FM” or “SXM”.



Select the desired program
genre when the genre selec-
tion screen is displayed.

3

Select the desired station.

■

Refreshing the station list

1

Select “Refresh”.

“Cancel Refresh”: Select to can-
cel the refresh.
“Source”: Select to change to
another audio source while
refreshing.

●

The audio/visual system sound is

muted during refresh operation.

●

In some situations, it may take

some time to update the station

list.

1

Select “Options”.

2

Select the desired item to be
set.

When “SXM Tune Start” is
turned on, the current song is
played from the beginning
when you select the channel.
Analog FM only: Select to
display RBDS text mes-
sages.
Select to scan for receivable
stations.

This audio/visual system is
equipped with Radio Broadcast
Data Systems (RBDS). RBDS
mode allows text messages to
be received from radio stations
that utilize RBDS transmitters.
When RBDS is on, the radio can
do the following functions.
• Only selecting stations of a

Selecting a station from
the list

Radio options

Radio broadcast data sys-
tem

304

5-6. Radio operation

COROLLA H/B_U

particular program type

• Displaying messages from

radio stations

• Searching for a stronger sig-

nal station

RBDS features are available
only when listening to an FM
station that broadcasts RBDS
information and the “FM Info”
function is on. (



P.303)

All SiriusXM services, including
satellite radio and data services,
plus streaming services, require
a subscription, sold separately
or as a package by Sirius XM
Radio Inc. (U.S.A.) or Sirius XM
Canada Inc. (Canada), after any
trial subscription which may be
included with your vehicle pur-
chase or lease. To subscribe
after your trial subscription, call
1-877-447-0011 (U.S.A.) or
1-877-438-9677 (Canada).

■

Important information
about your subscription

Your SiriusXM services will
automatically stop at the end of
your trial unless you decide to
subscribe. If you decide to con-
tinue service, the paid subscrip-
tion plan you choose will
automatically renew and you will
be charged the rate in effect at
that time and according to your
chosen payment method. Fees

and taxes apply. You may can-
cel at any time by calling
1-866-635-2349. See SiriusXM
Customer Agreement for com-
plete terms at www.siri-
usxm.com (U.S.A.) or
www.siriusxm.ca (Canada). All
fees and programming subject
to change. Traffic information
not available in all markets.

●

About SiriusXM Services

• Most in-car trials today include

SiriusXM’s best package — All

Access. It includes every channel

available on your radio, plus

streaming.

●

SiriusXM All Access Subscription

• Listen everywhere with All

Access. You get every channel

available in your ride, plus you can

listen on the app and online — so

you can enjoy the best SiriusXM

How to subscribe to Siri-
usXM Radio Services

NOTICE

●

It is prohibited to copy, decom-

pile, disassemble, reverse engi-

neer, hack, manipulate, or

otherwise make available any

technology or software incorpo-

rated in receivers compatible

with the SiriusXM Satellite

Radio System or that support

the SiriusXM website, the

streaming service or any of its

content. Furthermore, the
AMBE

®

 voice compression soft-

ware included in this product is

protected by intellectual prop-

erty rights including patent

rights, copyrights, and trade

secrets of Digital Voice Sys-

tems, Inc.

●

Note: this applies to SiriusXM

Satellite Radio receivers only

and not SiriusXM Ready

devices.

305

5-6. Radio operation

COROLLA H/B_U

5

Audio

has to offer, anywhere life takes

you. It’s the only package that

gives you all of our premium pro-

gramming, including Howard
Stern, every NFL, MLB

®

 and NBA

game, every NASCAR

®

 race,

NHL

®

 games, 24/7 talk channels

dedicated to the biggest leagues,

and more. You get all kinds of

commercial-free music, including

artist-dedicated channels and

more, plus sports, news, talk and

entertainment.

●

Radio operation

• Look for the Sirius, XM, SiriusXM,

Band, SAT, AUX, Radio or Source

button and you’re in. If you can’t

hear us, it’s easy to get started:

U.S.A.:

Locate your Radio ID by turning to

Channel 0. If you don’t see your

number there, go to siri-

usxm.com/activationhelp to find it.

Visit siriusxm.com/refresh or call

1-855-MYREFRESH (697-3373)

to send a refresh signal to your

radio.

Canada:

Locate your Radio ID by turning to

Channel 0.

Visit siriusxm.ca/refresh to send a

refresh signal to your radio or call

1-888-539-7474 for service.

Each SiriusXM tuner is identified
with a unique radio ID. The radio
ID is required when activating
an SiriusXM service or when
reporting a problem.



If “Ch 000” is selected using
the “TUNE SCROLL” knob,
the ID code, which is 8 alpha-
numeric characters, will be
displayed. If another channel
is selected, the ID code will no
longer be displayed. The
channel (000) alternates
between displaying the radio
ID and the specific radio
code.

When problems occur with the SiriusXM tuner, a message will
appear on the screen. Referring to the table below to identify the
problem, take the suggested corrective action.

Displaying the radio ID

Refer to the table below to identify the problem and take
the suggested corrective action

Message

Explanation

“Check
Antenna”

The SiriusXM antenna is not connected. Check whether the
SiriusXM antenna cable is attached securely. Contact your
Toyota dealer for assistance.

A short circuit occurs in the antenna or the surrounding
antenna cable. Contact your Toyota dealer for assistance.

“No Signal”

The SiriusXM signal is too weak at the current location. Wait
until your vehicle reaches a location with a stronger signal.

306

5-6. Radio operation

COROLLA H/B_U

“Chan
Unavailable”

The channel you selected is not broadcasting any program-
ming. Select another channel.

“Ch Unsub-
scribed”

The channel you selected is no longer available. Wait for
about 2 seconds until the radio returns to the previous chan-
nel or “Ch 001”. If it does not change automatically, select
another channel.

Message

Explanation

307

5-6. Radio operation

COROLLA H/B_U

5

Audio

1

Display the audio source
selection screen. (



P.298)

2

Select the desired application
screen button.



The internet radio application
screen is displayed.



Perform operations accord-
ing to the displayed applica-
tion screen.



For the instrument panel
operation method:



P.298



If a compatible phone is
already registered, it will be
connected automatically.

●

Other applications can be acti-

vated while listening to internet

radio.

●

Some parts of applications can be

adjusted using the switches on the

steering wheel.

●

For additional information, refer to

https://www.toy-

ota.com/audio-multimedia or call

1-800-331-4331 in the United

States,

https://www.toyota.ca/connected

or call

1-888-869-6828 in Canada, and

http://www.toy-

otapr.com/audio-multimedia or call

1-877-855-8377 in Puerto Rico.

Internet radio

One of Toyota apps Connect
features is the ability to lis-
ten to internet radio. In
order to use this service, a
compatible phone and the
system needs to be set up.
For details:



P.379

Listening to internet radio

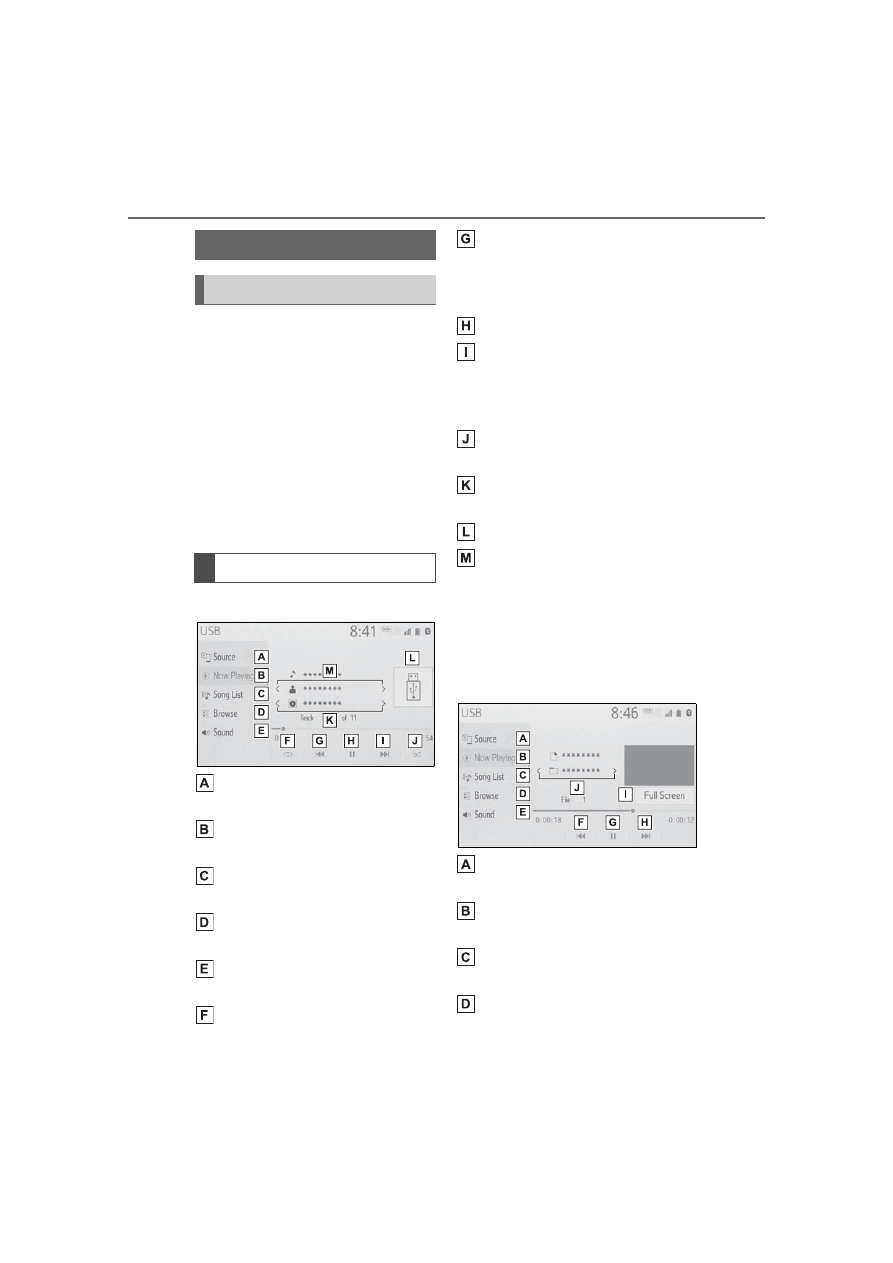

308

5-7. Media operation

COROLLA H/B_U

5-7.Media operation

The USB memory operation
screen can be reached by the
following methods:



P.298



Connecting a USB memory
(



P.299)

When an Apple CarPlay/Android
Auto connection is established,
this function will be unavailable.

*

*

: This function is not made avail-

able in some countries or areas.



USB audio

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the sound
setting screen. (



P.299)

Select to set repeat playback.
(



P.309)

Select to change the
file/track.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the
file/track.
Select and hold to fast for-
ward.
Select to set random play-
back. (



P.309)

Select to change the
folder/album.
Displays cover art
Select to change the artist.



USB video

1

Select “Browse”.

2

Select “Videos”.

3

Select the desired folder and
file.

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.

USB memory

Overview

Control screen

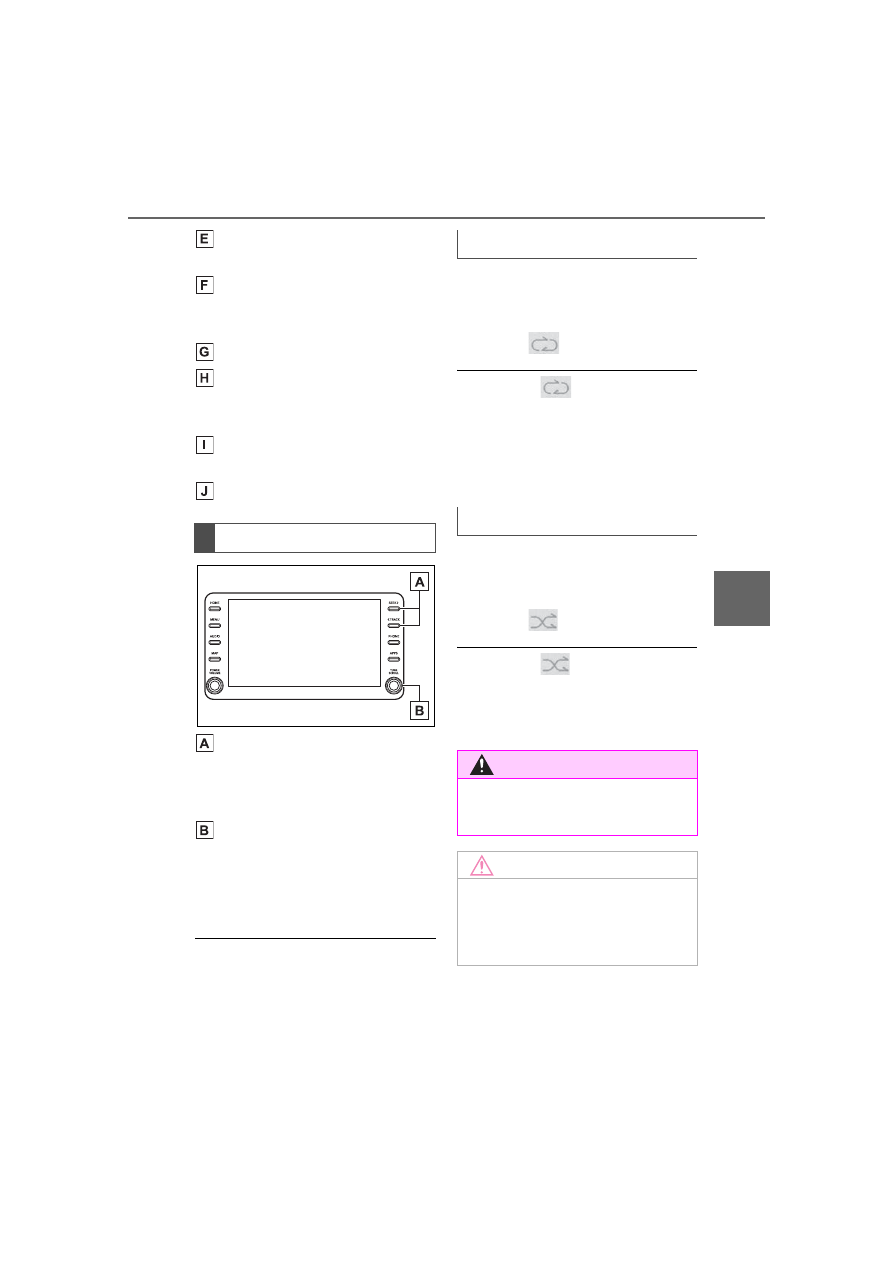

309

5-7. Media operation

COROLLA H/B_U

5

A

ud

io

Select to display the sound
setting screen. (



P.299)

Select to change the file.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the file.
Select and hold to fast for-
ward.
Select to display a full screen
image.
Select to change the folder.

Press to change the
file/track.
Press and hold to fast for-
ward/rewind.
Turn to change the file/track.
Turn to move up/down the
list. Also, the knob can be
used to enter selections on
the list screens by pressing it.

●

While the vehicle is being driven,

this function can only output

sound.

●

If tag information exists, the

file/folder names will be changed

to track/album names.

The file/track or folder/album
currently being listened to can
be repeated.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:



When random playback is off

• file/track repeat



 folder/album

repeat



 off



When random playback is on

• file/track repeat



 off

Files/tracks or folders/albums
can be automatically and ran-
domly selected.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:

• random (1 folder/album random)



 folder/album random (all

folder/album random)



 off

Control panel

Repeating

Random order

WARNING

●

Do not operate the player’s con-

trols or connect the USB mem-

ory while driving.

NOTICE

●

Do not leave your portable

player in the car. In particular,

high temperatures inside the

vehicle may damage the porta-

ble player.

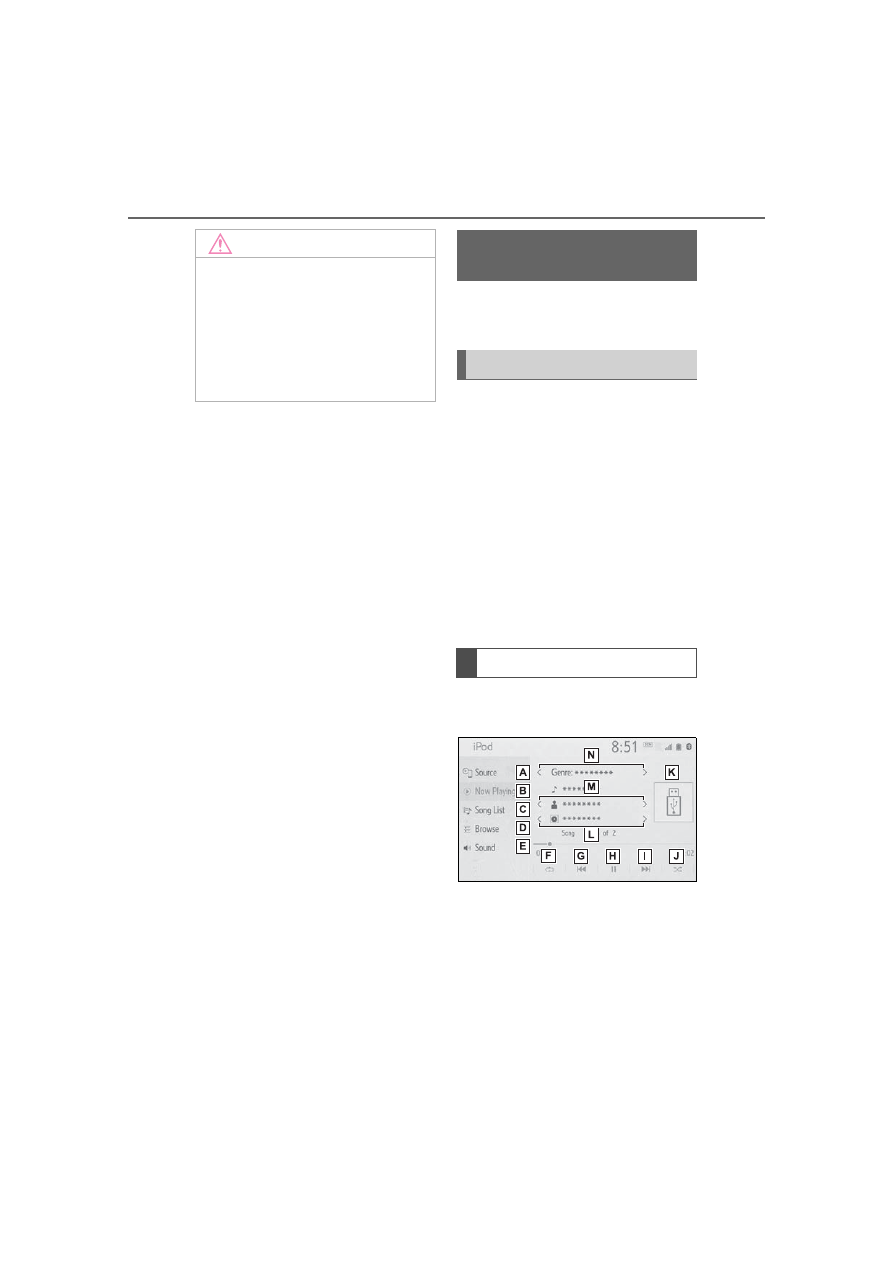

310

5-7. Media operation

COROLLA H/B_U

*

: This function is not made avail-

able in some countries or areas.

The iPod/iPhone(Apple Car-
Play) operation screen can be
reached by the following meth-
ods:



P.298



Connecting an iPod/iPhone
(



P.283, 299)

When an Android Auto connec-
tion is established, this function
will be unavailable.

*

*

: This function is not made avail-

able in some countries or areas.



An Apple CarPlay connection
is not established

NOTICE

●

Do not push down on or apply

unnecessary pressure to the

portable player while it is con-

nected as this may damage the

portable player or its terminal.

●

Do not insert foreign objects into

the port as this may damage the

portable player or its terminal.

iPod/iPhone (Apple

CarPlay

*

)

Overview

Control screen

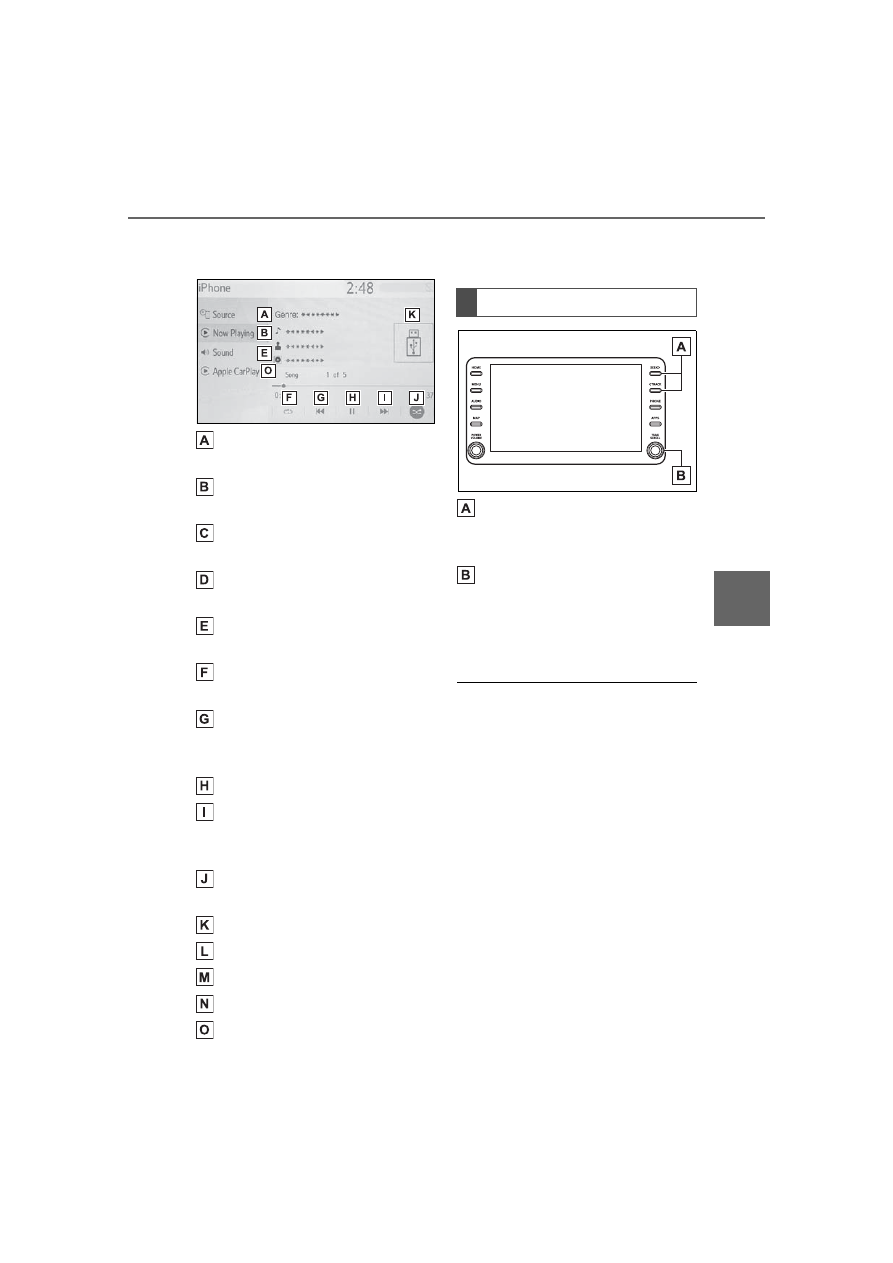

311

5-7. Media operation

COROLLA H/B_U

5

Audio



An Apple CarPlay connection
is established

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the sound
setting screen. (



P.299)

Select to set repeat playback.
(



P.312)

Select to change the track.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast for-
ward.
Select to set random play-
back. (



P.312)

Displays cover art
Select to change the album.
Select to change the artist.
Select to change the playlist.
Select to display the audio

control screen of Apple Car-
Play.

Press to change the track.
Press and hold to fast for-
ward/rewind.
Turn to change the track.
Turn to move up/down the
list. Also, the knob can be
used to enter selections on
the list screens by pressing it.

●

Some functions may not be avail-

able depending on the type of

model.

●

When an iPod/iPhone is con-

nected using a genuine

iPod/iPhone cable, the

iPod/iPhone starts charging its

battery.

●

Depending on the iPod/iPhone,

the video sound may not be able

to be heard.

●

Depending on the iPod/iPhone

and the songs in the iPod/iPhone,

a cover art may be displayed. This

function can be changed to “On”

or “Off”. (



P.320) It may take time

to display the cover art, and the

iPod/iPhone may not be operated

while the cover art display is in

process.

●

When an iPod/iPhone is con-

nected and the audio source is

Control panel

312

5-7. Media operation

COROLLA H/B_U

changed to iPod/iPhone mode,

the iPod/iPhone will resume play-

ing from the same point it was last

used.

●

Tracks selected by operating a

connected iPod/iPhone may not

be recognized or displayed prop-

erly.

●

The system may not function

properly if a conversion adapter is

used to connect a device.

The track currently being lis-
tened to can be repeated.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:



When shuffle is off (iPhone 5 or

later)

• track repeat



 album repeat



 off



When shuffle is off (iPhone 4s or

earlier)

• track repeat



 off



When shuffle is on

• track repeat



 off

Tracks or albums can be auto-
matically and randomly
selected.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:

• shuffle (1 album shuffle)



 album

shuffle (all album shuffle)



 off

Repeating

Random order

WARNING

●

Do not operate the player’s con-

trols or connect the iPod/iPhone

while driving.

NOTICE

●

Do not leave your portable

player in the vehicle. In particu-

lar, high temperatures inside the

vehicle may damage the porta-

ble player.

●

Do not push down on or apply

unnecessary pressure to the

portable player while it is con-

nected as this may damage the

portable player or its terminal.

●

Do not insert foreign objects into

the port as this may damage the

portable player or its terminal.

313

5-7. Media operation

COROLLA H/B_U

5

A

ud

io

*

: This function is not made avail-

able in some countries or areas.

The Android Auto operation
screen can be reached by the
following methods:



P.298



Connecting an Android device
(



P.283, 284)

When an Apple CarPlay con-
nection is established, this func-
tion will be unavailable.

*

*

: This function is not made avail-

able in some countries or areas.

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display the sound
setting screen. (



P.299)

Select to display the audio
control screen of Android
Auto.
Select to change the track.

Select to play/pause.
Select to change the track.
Displays cover art

Press to change the track.
Turn to change the track.

Android Auto

*

Overview

Control screen

Control panel

WARNING

●

Do not connect smartphone or

operate the controls while driv-

ing.

NOTICE

●

Do not leave your smartphone

in the vehicle. In particular, high

temperatures inside the vehicle

may damage the smartphone.

●

Do not push down on or apply

unnecessary pressure to the

smartphone while it is con-

nected as this may damage the

smartphone or its terminal.

●

Do not insert foreign objects into

the port as this may damage the

smartphone or its terminal.

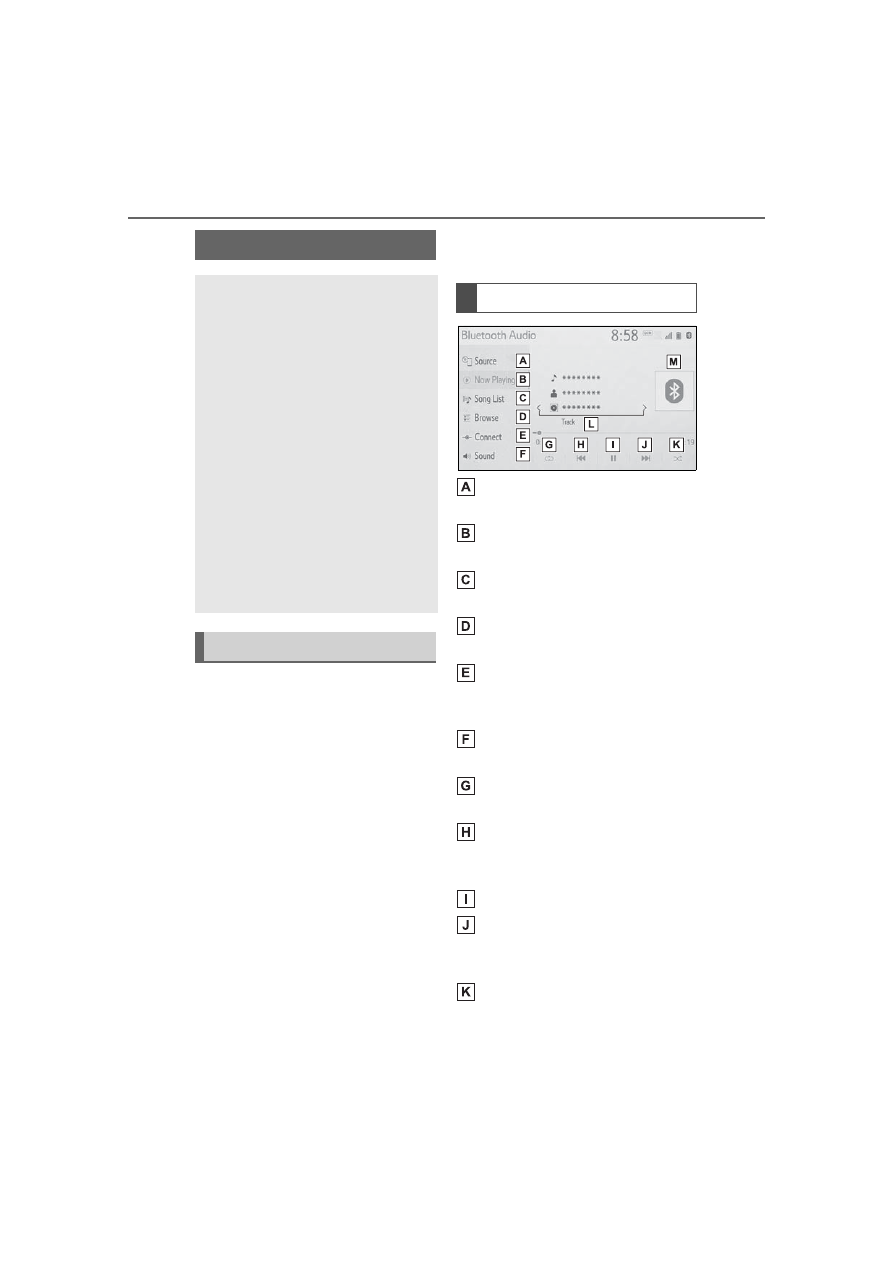

314

5-7. Media operation

COROLLA H/B_U

The Bluetooth

®

 audio operation

screen can be reached by the
following methods:



P.298



Connecting a Bluetooth

®



audio device (



P.316)

Depending on the type of porta-
ble player connected, some
functions may not be available
and/or the screen may look dif-
ferently than shown in this man-
ual.
When an Apple CarPlay/Android
Auto connection is established,
Bluetooth

®

 audio will be sus-

pended and become unavail-
able.

*

*

: This function is not made avail-

able in some countries or areas.

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the portable
device connection screen.
(



P.316)

Select to display the sound
setting screen. (



P.299)

Select to set repeat playback.
(



P.315)

Select to change the track.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast for-
ward.
Select to set random play-
back. (



P.315)

Bluetooth

®

 audio

The Bluetooth

®

 audio sys-

tem enables users to enjoy
listening to music that is
played on a portable player
on the vehicle speakers via
wireless communication.

This audio/visual system
supports Bluetooth

®

, a wire-

less data system capable of
playing portable audio
music without cables. If
your device does not sup-
port Bluetooth

®

, the Blue-

tooth

®

 audio system will not

function.

Overview

Control screen

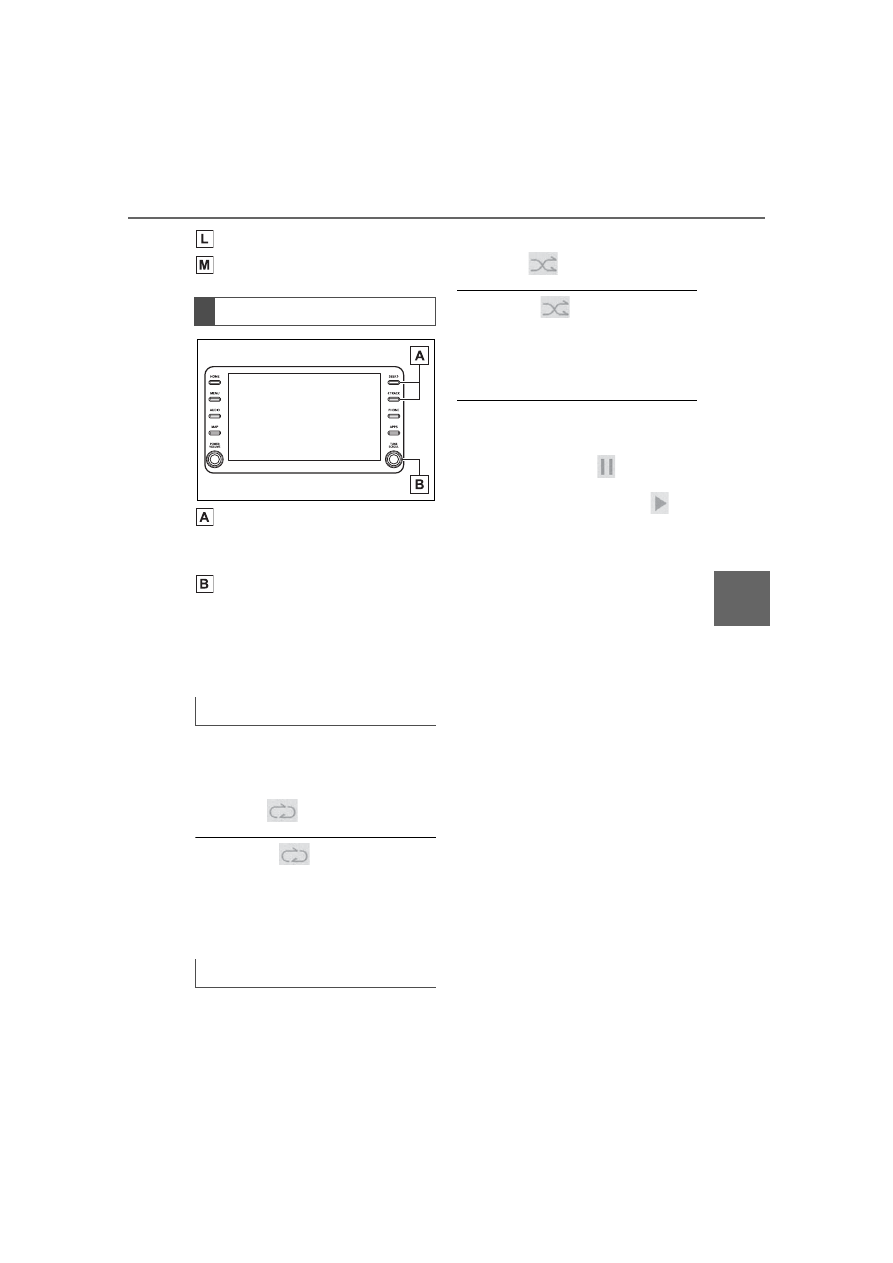

315

5-7. Media operation

COROLLA H/B_U

5

Audio

Select to change the album.
Displays cover art

Press to change the track.
Press and hold to fast for-
ward/rewind.
Turn to change the track.
Turn to move up/down the
list. Also, the knob can be
used to enter selections on
the list screens by pressing it.

The track or album currently
being listened to can be
repeated.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:



When random playback is off

• track repeat



 album repeat



 off



When random playback is on

• track repeat



 off

Tracks or albums can be auto-
matically and randomly

selected.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:

• random (1 album random)





album random (all album random)



 off

●

Depending on the Bluetooth

®



device that is connected to the

system, the music may start play-
ing when selecting

 while it is

paused. Conversely, the music
may pause when selecting



while it is playing.

●

In the following conditions, the

system may not function:

• The Bluetooth

®

 device is turned

off.

• The Bluetooth

®

 device is not con-

nected.

• The Bluetooth

®

 device has a low

battery.

●

When using the Bluetooth

®

 audio

and Wi-Fi

®

 Hotspot functions at

the same time, the following prob-

lems may occur:

• It may take longer than normal to

connect to the Bluetooth

®

 device.

• The sound may cut out.

●

It may take time to connect the
phone when Bluetooth

®

 audio is

being played.

●

For operating the portable player,

see the instruction manual that

comes with it.

●

If the Bluetooth

®

 device is discon-

nected due to poor reception from
the Bluetooth

®

 network when the

engine switch is in ACC or ON,

the system automatically recon-

nects the portable player.

●

If the Bluetooth

®

 device is discon-

nected on purpose, such as it was

Control panel

Repeating

Random order

316

5-7. Media operation

COROLLA H/B_U

turned off, this does not happen.

Reconnect the portable player

manually.

●

Bluetooth

®

 device information is

registered when the Bluetooth

®



device is connected to the Blue-
tooth

®

 audio system. When selling

or disposing of the vehicle,
remove the Bluetooth

®

 audio

information from the system.

(



P.293)

●

In some situations, sound output
via the Bluetooth

®

 audio system

may be out of sync with the con-

nected device or output intermit-

tently.

To use the Bluetooth

®

 audio

system, it is necessary to regis-
ter a Bluetooth

®

 device with the

system.



Registering an additional
device

1

Display the Bluetooth

®

 audio

control screen. (



P.314)

2

Select “Connect”.

3

Select “Add Device”.



When another Bluetooth

®

device is connected, a confir-
mation screen will be dis-
played. To disconnect the
Bluetooth

®

 device, select

“Yes”.

4

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.266)



Selecting a registered device

1

Display the Bluetooth

®

 audio

control screen. (



P.314)

2

Select “Connect”.

3

Select the desired device to
be connected.

WARNING

●

Do not operate the player’s con-

trols or connect to the Blue-
tooth

®

 audio system while

driving.

●

Your audio unit is fitted with
Bluetooth

®

 antennas. People

with implantable cardiac pace-

makers, cardiac resynchroniza-

tion therapy-pacemakers or

implantable cardioverter defibril-

lators should maintain a reason-

able distance between
themselves and the Bluetooth

®



antennas. The radio waves may

affect the operation of such

devices.

●

Before using Bluetooth

®



devices, users of any electrical

medical device other than

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should consult the manufacturer

of the device for information

about its operation under the

influence of radio waves. Radio

waves could have unexpected

effects on the operation of such

medical devices.

NOTICE

●

Do not leave your portable

player in the vehicle. In particu-

lar, high temperatures inside the

vehicle may damage the porta-

ble player.

Registering/Connecting a
Bluetooth

®

 device

317

5-7. Media operation

COROLLA H/B_U

5

Audio

4

Check that a confirmation
screen is displayed when the
connection is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

318

5-8. Audio/visual remote controls

COROLLA H/B_U

5-8.Audio/visual remote controls

Some parts of the audio/visual
system can be adjusted using
the switches on the steering
wheel.

Volume control switch

“MODE” switch

*1

:If equipped

*2

:If cached radio is enabled, press-

ing and holding the “MODE”
switch pauses the broadcast.
(Press and hold again to play
back the cached radio program.)

*3

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

*4

:When an Android Auto is estab-

lished, this function will be
unavailable.

Seek switch

Steering switches

Steering switch operation

Mode

Operation/function

All

Press: Volume
up/down

Press and hold (0.8
sec. or more): Volume
up/down continuously

Mode

Operation/function

AM/FM/

SXM

*1

Press: Change audio
modes

Press and hold (0.8
sec. or more): Mute
(Press and hold again
to resume the sound.)

USB

*3, 4

,

iPod/iPhon

e

*4

,

Android

Auto

*3

,

Bluetooth

®



audio

*3, 4

,

APPS

*3, 4

Press: Change audio
modes

Press and hold (0.8
sec. or more): Pause
(Press and hold again
to resume the play
mode.)

Mode

Operation/function

AM/FM

Press: Preset chan-
nel up/down

Press and hold (0.8
sec. or more): Seek
up/down

Press and hold (1.5
sec. or more): Seek
up/down continuously
while the switch is
being pressed

Mode

Operation/function

319

5-8. Audio/visual remote controls

COROLLA H/B_U

5

Audio

*1

:If equipped

*2

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

*3

:When an Android Auto is estab-

lished, this function will be
unavailable.

●

In the APPS mode, some opera-

tion may be done on the screen

depend on the selected APPS.

SXM

*1

Press: Preset chan-
nel up/down

Press and hold (0.8
sec. or more): Seek
for stations in the rele-
vant program
type/channel category

Press and hold (1.5
sec. or more): Fast
channel up/down

USB

*2, 3

,

iPod/iPhon

e

*3

, Blue-

tooth

®



audio

*2, 3

Press: Track/file
up/down

Press and hold (0.8
sec. or more): Fast
forward/rewind

Android

Auto

*2

Press: Track up/down

Mode

Operation/function

320

5-9. Audio settings

COROLLA H/B_U

5-9.Audio settings

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Audio”.

4

Select the desired items to
be set.

Select to set the common
settings. (



P.320)

Select to set the radio set-
tings. (



P.320)

1

Display the audio settings
screen. (



P.320)

2

Select “Common”.

3

Select the desired items to
be set.

Select to set the cover art
display on/off.
Select to prioritize the display
of information from the Gra-
cenote database.
Select to change the screen
size.

*

 (



P.300)

Select to display the image
quality adjustment screen.

*



(



P.301)

*

: Only in USB video mode

1

Display the audio settings
screen. (



P.320)

2

Select “Radio”.

3

Select the desired number of
preset radio stations dis-
played on the screen.

Setup

Detailed audio settings can
be programmed.

Displaying the audio set-
tings screen

Audio settings screen

Common settings

Radio settings

321

5-10. Tips for operating the audio/visual system

COROLLA H/B_U

5

A

ud

io

5-10.Tips for operating the audio/visual system

●

The use of a cellular phone inside

or near the vehicle may cause a

noise from the speakers of the

audio/visual system which you are

listening to. However, this does

not indicate a malfunction.

Usually, a problem with radio
reception does not mean there
is a problem with the radio



 it

is just the normal result of condi-
tions outside the vehicle.
For example, nearby buildings
and terrain can interfere with FM
reception. Power lines or phone
wires can interfere with AM sig-
nals. And of course, radio sig-
nals have a limited range. The
farther the vehicle is from a sta-
tion, the weaker its signal will
be. In addition, reception condi-
tions change constantly as the
vehicle moves.
Here, some common reception
problems that probably do not
indicate a problem with the radio
are described.

■

FM

Fading and drifting stations:
Generally, the effective range of

FM is about 25 miles (40 km).
Once outside this range, you
may notice fading and drifting,
which increase with the distance
from the radio transmitter. They
are often accompanied by dis-
tortion.
Multi-path: FM signals are
reflective, making it possible for
2 signals to reach the vehicle’s
antenna at the same time. If this
happens, the signals will cancel
each other out, causing a
momentary flutter or loss of
reception.
Static and fluttering: These
occur when signals are blocked
by buildings, trees or other large
objects. Increasing the bass
level may reduce static and flut-
tering.
Station swapping: If the FM sig-
nal being listened to is inter-
rupted or weakened, and there
is another strong station nearby
on the FM band, the radio may
tune in the second station until
the original signal can be picked
up again.

■

AM

Fading: AM broadcasts are
reflected by the upper atmo-
sphere



 especially at night.

These reflected signals can
interfere with those received
directly from the radio station,
causing the radio station to
sound alternately strong and
weak.

Operating information

NOTICE

●

To avoid damage to the

audio/visual system:

• Be careful not to spill beverages

over the audio/visual system.

Radio
