Toyota Tundra (2019 year). Instruction - part 23

353

5-6. Using an external device

Mu
ltim

●

AAC file compatibility
• Compatible standards

MPEG4/AAC-LC

• Compatible sampling frequencies

11.025/12/16/22.05/24/32/44.1/48 (kHz)

• Compatible bit rates

16-320 (kbps)

• Compatible channel modes: 1 ch and 2 ch

●

File names
The only files that can be recognized as MP3/WMA/AAC and played are
those with the extension .mp3 or .wma.

●

ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track
title and artist name in the same way as with ID3 tags.

●

MP3, WMA and AAC playback
• When a device containing MP3, WMA and AAC files is connected, all

files in the USB memory device are checked. Once the file check is fin-
ished, the first MP3, WMA and AAC file is played. To make the file check
finish more quickly, we recommend that you do not include any files other
than MP3, WMA and AAC files or create any unnecessary folders.

• When a USB memory device is connected and the audio source is

changed to USB memory mode, the USB memory device will start play-
ing the first file in the first folder. If the same device is removed and
reconnected (and the contents have not been changed), the USB mem-
ory device will resume play from the same point in which it was last used.

●

Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than
MP3, WMA and AAC files, they will be skipped (not played).

●

Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit

rate of at least 128 kbps and a sampling frequency of 44.1 kHz.

• There is a wide variety of freeware and other encoding software for MP3,

WMA and AAC files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.

• Microsoft, Windows, and Windows Media are the registered trademarks

of Microsoft Corporation in the U.S.A. and other countries.

354

5-6. Using an external device

WARNING

■

While driving
Do not connect a USB memory device or operate the device controls.

NOTICE

■

To prevent damage to the USB memory device or its terminals

●

Do not leave the USB memory device in the vehicle. The temperature
inside the vehicle may become high, resulting in damage to the USB
memory device.

●

Do not push down on or apply unnecessary pressure to the USB memory
device while it is connected.

●

Do not insert foreign objects into the port.

355

5-6. Using an external device

Mu
ltim

Using the AUX port

P. 328

■

Operating portable audio players connected to the multimedia system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio player itself.

■

When using a portable audio player connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio player.

To use the AUX port, connect a portable player, then select
“AUX” on the “Select Audio Source” screen.

Connecting a portable audio player

WARNING

■

While driving
Do not connect a portable audio player or operate the device controls.

356

5-7. Connecting Bluetooth

Preparations to use wireless communica-

tion

■

About Bluetooth

■

Certification



For vehicles sold in the U.S.A.
FCC ID: ACJ932YEAP01A727
NOTE:
<§15.19(a)(3)> This device complies with part 15 of the FCC Rules. Opera-
tion  is  subject  to  the  following  two  conditions:  (1)  This  device  may  not
cause  harmful  interference,  and  (2)  this  device  must  accept  any  interfer-
ence received, including interference that may cause undesired operation.
FCC WARNING:
<§15.21>  Changes  or  modifications  not  expressly  approved  by  the  party
responsible  for  compliance  could  void  the  user’s  authority  to  operate  the
equipment.
CAUTION:
<§2.1091> Radio frequency radiation exposure information:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance of 20 cm between the radiator and your body. This
transmitter must not be co-located or operating in conjuction with any other
antenna or transmitter.

The following can be performed using Bluetooth

wireless com-

munication:

■

A portable audio player can be operated and listened to via
multimedia system

■

Hands-free phone calls can be made via a cellular phone

In order to use wireless communication, register and connect a
Bluetooth

device by performing the following procedures.

The Bluetooth

word mark and logos are

registered  trademarks  owned  Bluetooth
SIG, Inc. and any use of such marks by
Panasonic  Corporation  is  under  license.
Other  trademarks  and  trade  names  are
those of their respective owners.

357

5-7. Connecting Bluetooth

Mu
ltim



For vehicles sold in Canada
NOTE:
This  device  complies  with  Industry  Canada  licence-exempt  RSS  stan-
dard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interfer-
ence,  including  interference  that  may  cause  undesired  operation  of  the
device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux  appareils  radio  exempts  de  licence.  L’exploitation  est  autorisée  aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi,  même  si  le  brouillage  est  susceptible  d’en  compromettre  le
fonctionnement.
NOTE:
This radio transmitter (identify the device by certification number, or model
number if Category II) has been approved by Industry Canada to operate
with the antenna types listed below with the maximum permissible gain and
required  antenna  impedance  for  each  antenna  type  indicated.  Antenna
types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certifi-
cation ou son numéro de modèle s’il fait partie du matériel de catégorie II) a
été  approuvé  par  Industrie  Canada  pour  fonctionner  avec  les  types
d’antenne  énumérés  ci-dessous  et  ayant  un  gain  admissible  maximal  et
l’impédance requise pour chaque type d’antenne. Les types d’antenne non
inclus  dans  cette  liste,  ou  dont  le  gain  est  supérieur  au  gain  maximal
indiqué, sont strictement interdits pour l’exploitation de l’émetteur.

358

5-7. Connecting Bluetooth

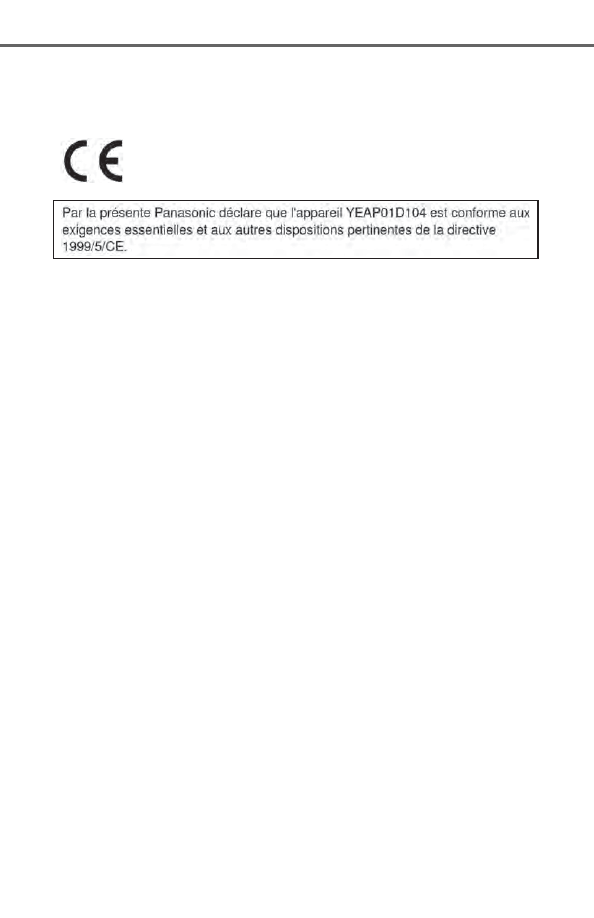

Access to http://www.ptc.panasonic.eu/,enter the below Model No. into the
keyword search box, you can download the latest “DECLARATION of CON-
FORMITY” (DoC).
Model No. YEAP01D104

359

5-7. Connecting Bluetooth

Mu
ltim

Device registration/connection flow

1. Register the Bluetooth

device to be used with multimedia

system (

P. 361, 3 62 , 363)

2. Connect the Bluetooth

device to be used

(

P. 365)

To be used for audio

To be used for hands-free
phone

3. Start Bluetooth

connec-

tion (

P. 365)

3. Start Bluetooth

connec-

tion (

P. 365)

4. Check connection status

(

P. 369)

4. Check connection status

(

P. 371)

5. Use Bluetooth

audio

(

P. 369)

5. Use Bluetooth

phone

(

P. 370)

360

5-7. Connecting Bluetooth

To display the screen shown below, press the “SETUP” button and
select “Bluetooth” on the “Setup” screen.

Select to connect the device to
be used with multimedia sys-
tem. (

P. 365)

Select to register a Bluetooth

device to be used with multime-
dia system. (

P. 363)

Select

set

detailed

Bluetooth

system settings.

(

P. 368)

Select to delete registered devices. (

P. 364)

Registering and connecting from the “Bluetooth Setup” screen

361

5-7. Connecting Bluetooth

Mu
ltim

Registering a Bluetooth

audio player for

the first time

Turn the Bluetooth

connection setting of your audio player on.

This function is not available when the Bluetooth

connection setting of

your audio player is set to off.

Press the “AUDIO” button.
Select “

Audio” on the “Select Audio Source” screen.

Follow the steps in “How to registering a Bluetooth

device” from

step

. (

P. 363)

To use the Bluetooth

Audio, it is necessary to register an audio

player with the system.
Once the player has been registered, it is possible to use the
Bluetooth

Audio.

This operation cannot be performed while driving.
For details about registering a Bluetooth

device (

P. 363)

362

5-7. Connecting Bluetooth

Registering a Bluetooth

phone for the first

time

Turn the Bluetooth

connection setting of your cellular phone on.

Press the

button.

Select “YES” to register a phone.
Follow the steps in “How to registering a Bluetooth

device” from

step

. (

P. 363)

To use the hands-free system, it is necessary to register a
Bluetooth

phone with the system.

Once the phone has been registered, it is possible to use the
hands-free system.
For details about registering a Bluetooth

device (

P. 363)

363

5-7. Connecting Bluetooth

Mu
ltim

Registering a Bluetooth

device

Display the “Bluetooth Setup” screen. (

P. 360)

Select “Add”.
When  this  screen  is  displayed,
search for the device name dis-
played  on  this  screen  on  the
screen  of  your  Bluetooth

device.

For details about operating the
Bluetooth

device, see the manual

that comes with it.
To cancel the registration, select
“Cancel”.

device using your Bluetooth

device.

A PIN-code is not required for SSP (Secure Simple Pairing) compatible
Bluetooth

devices. Depending on the type of Bluetooth

device being

connected, a message confirming registration may be displayed on the
Bluetooth

device’s screen. Respond and operate the Bluetooth

device

according to the confirmation message.

Check that this screen is dis-
played when registration is
complete.

Bluetooth

compatible phones (HFP) and portable audio players

(AVP) can be registered simultaneously. You can register up to 5
Bluetooth

devices.

How to register a Bluetooth

device

364

5-7. Connecting Bluetooth

Select “OK” when the connection status changes from “Connect-
ing...” to “Connected”.

If an error message is displayed, follow the guidance on the screen to try
again.

Registration can be performed from screens other than the “Bluetooth
Setup” screen.

■

When registering from the “Bluetooth Audio” screen

Display the “Bluetooth Audio” screen. (

P. 369)

Select “Select Device”.
Follow the steps in “How to registering a Bluetooth

device” from

step

. (

P. 363)

Display the “Bluetooth Setup” screen. (

P. 360)

Select “Remove”.
Select the desired device.
A confirmation message will be displayed, select “Yes” to delete the
device.
Check that a confirmation screen is displayed when the operation is
complete.

Deleting a Bluetooth

device

365

5-7. Connecting Bluetooth

Mu
ltim

Connecting a Bluetooth

device

Press the “SETUP” button.
Select “Bluetooth” on the “Setup” screen.
Select the device to be con-
nected.

Supported profile icons will be dis-
played.

Phone
Audio player

Supported profile icons for cur-
rently connected devices will illumi-
nate.
Dimmed icons can be selected to connect to the function directly.

To turn auto connection mode on, set “Bluetooth Power” to on.
(

P. 368)

When you register a phone, auto connection will be activated. Always
set it to this mode and leave the Bluetooth

phone in a place where a

connection can be established.

When the engine switch is turned to the “ACC” or “ON” position, the sys-
tem will search for a nearby cellular phone you have registered.
Next, the system automatically connects with the most recent of the
phones connected to in the past. Then, the connection result is displayed.

Up to 5 Bluetooth

devices (Phones (HFP) and audio players

(AVP)) can be registered.
If more than 1 Bluetooth

device has been registered, select

which device to connect to.

Auto connection

366

5-7. Connecting Bluetooth

When auto connection has failed or “Bluetooth Power” is turned off,
you must connect the Bluetooth

device manually.

Follow the steps in “Connecting a Bluetooth

device” from step

(

P. 365)



Registering an additional device

Select “Select Device” on the “Bluetooth Audio” screen.
For more information:

P. 363



Selecting a registered device

Select “Select Device” on the “Bluetooth Audio” screen.
For more information:

P. 365

■

Reconnecting a Bluetooth

phone

If the system cannot connect due to poor signal strength with the engine
switch in the “ACC” or “ON” position, the system will automatically attempt to
reconnect.
If the system is attempting to connect to a Bluetooth

phone and the Blue-

tooth

phone is turned off and then back on, the system will attempt to recon-

nect.

Manual connection

Connecting a Bluetooth

audio player
