9-1. Specifications
551

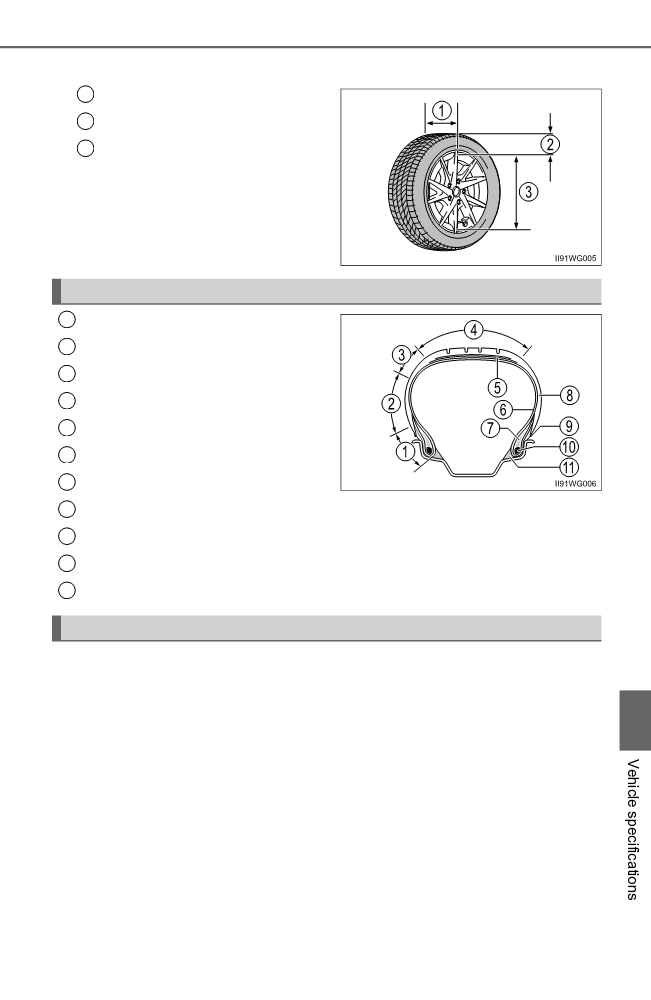

■ Tire dimensions
1
Section width
2
Tire height
3
Wheel diameter
Tire section names
1
Bead
2
Sidewall
3
Shoulder
4
Tread
5
Belt
6
Inner liner
7
Reinforcing rubber
8
Carcass
9
Rim lines
10
Bead wires
11
Chafer
Uniform Tire Quality Grading
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
9
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answer any questions you may have as you
read this information.
■ DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.
For example: Treadwear 200 Traction AA Temperature A
552
9-1. Specifications
■ Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2) times
as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of
their use. Performance may differ significantly from the norm due to
variations in driving habits, service practices and differences in road
characteristics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning)
traction.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degen-
erate and reduce tire life, and excessive temperature can lead to sud-
den tire failure.
Grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No.
109.
Grades B and A represent higher levels of performance on the labora-
tory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately
or in combination, can cause heat buildup and possible tire failure.
9-1. Specifications
553
Glossary of tire terminology
Tire related term
Meaning
Tire pressure when the vehicle has been parked
Cold tire inflation pres-
for three hours or more, or has not been driven
sure
more than 1 mile or 1.5 km under that condition
The maximum cold inflated pressure to which a
Maximum inflation pres-
tire may be inflated, shown on the sidewall of the
sure
tire
Recommended inflation
Cold tire inflation pressure recommended by a
pressure
manufacturer
The combined weight (in excess of those stan-
dard items which may be replaced) of hybrid
transmission, power steering, power brakes,
Accessory weight
power windows, power seats, radio and heater,
to the extent that these items are available as
factory-installed equipment (whether installed or
not)
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
Curb weight
fuel, oil and coolant, and if so equipped, air con-
ditioning and additional weight optional engine
The sum of:
(a) Curb weight
Maximum loaded vehi-
(b) Accessory weight
cle weight
(c) Vehicle capacity weight
(d) Production options weight
150 lb. (68 kg) times the number of occupants
Normal occupant weight
specified in the second column of Table 1* that
follows
Distribution of occupants in a vehicle as speci-
Occupant distribution
fied in the third column of Table 1* below
9
554
9-1. Specifications
Tire related term
Meaning
The combined weight of installed regular produc-
tion options weighing over
5 lb.
(2.3 kg) in
excess of the standard items which they replace,
Production
options
not previously considered in curb weight or
weight
accessory weight, including heavy duty brakes,
ride levelers, roof rack, heavy duty 12-volt bat-
tery, and special trim
A metal support for a tire or a tire and tube
Rim
assembly upon which the tire beads are seated
Rim diameter
Nominal diameter of the bead seat
(Wheel diameter)
Rim size designation
Rim diameter and width
The industry manufacturer’s designation for a
Rim type designation
rim by style or code
Rim width
Nominal distance between rim flanges
The rated cargo and luggage load plus 150 lb.
Vehicle capacity weight
(68 kg) times the vehicle’s designated seating
(Total load capacity)
capacity
The load on an individual tire that is determined
Vehicle maximum load
by distributing to each axle its share of the maxi-
on the tire
mum loaded vehicle weight, and dividing by two
The load on an individual tire that is determined
by distributing to each axle its share of curb
Vehicle normal load on
weight, accessory weight, and normal occupant
the tire
weight (distributed in accordance with Table 1*
below), and dividing by two
The surface area of the rim not covered by the
Weather side
inflated tire
The part of the tire that is made of steel wires,
Bead
wrapped or reinforced by ply cords and that is
shaped to fit the rim
9-1. Specifications
555
Tire related term
Meaning
A breakdown of the bond between components
Bead separation
in the bead
A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
Bias ply tire
substantially less than 90 degrees to the center-
line of the tread
The tire structure, except tread and sidewall rub-
Carcass
ber which, when inflated, bears the load
The breaking away of pieces of the tread or side-
Chunking
wall
Cord
The strands forming the plies in the tire
The parting of cords from adjacent rubber com-
Cord separation
pounds
Any parting within the tread, sidewall, or inner-
Cracking
liner of the tire extending to cord material
A pneumatic tire with an inverted flange tire and
rim system in which the rim is designed with rim
flanges pointed radially inward and the tire is
CT
designed to fit on the underside of the rim in a
manner that encloses the rim flanges inside the
air cavity of the tire
A tire designed to operate at higher loads and at
Extra load tire
higher inflation pressures than the correspond-
ing standard tire
Groove
The space between two adjacent tread ribs
The layer(s) forming the inside surface of a tube-
Innerliner
less tire that contains the inflating medium within
the tire
9
The parting of the innerliner from cord material in
Innerliner separation
the carcass
556
9-1. Specifications
Tire related term
Meaning
(a) The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other
Intended outboard side-
sidewall of the tire, or
wall
(b) The outward facing sidewall of an asymmetri-
cal tire that has a particular side that must
always face outward when mounted on a
vehicle
A tire designated by its manufacturer as primarily
Light truck (LT) tire
intended for use on lightweight trucks or multi-
purpose passenger vehicles
The maximum load that a tire is rated to carry for
Load rating
a given inflation pressure
The load rating for a tire at the maximum permis-
Maximum load rating
sible inflation pressure for that tire
Maximum permissible
The maximum cold inflation pressure to which a
inflation pressure
tire may be inflated
The rim on which a tire is fitted for physical
Measuring rim
dimension requirements
Any parting at any junction of tread, sidewall, or
Open splice
innerliner that extends to cord material
Outer diameter
The overall diameter of an inflated new tire
The linear distance between the exteriors of the
sidewalls of an inflated tire, including elevations
Overall width
due to labeling, decorations, or protective bands
or ribs
A tire intended for use on passenger cars, multi-
purpose passenger vehicles, and trucks, that
Passenger car tire
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.
Ply
A layer of rubber-coated parallel cords
A parting of rubber compound between adjacent
Ply separation
plies
9-1. Specifications
557
Tire related term
Meaning
A mechanical device made of rubber, chemicals,
fabric and steel or other materials, that, when
Pneumatic tire
mounted on an automotive wheel, provides the
traction and contains the gas or fluid that sus-
tains the load
A pneumatic tire in which the ply cords that
Radial ply tire
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
A tire designed to operate at higher loads and at
Reinforced tire
higher inflation pressures than the correspond-
ing standard tire
The linear distance between the exteriors of the
Section width
sidewalls of an inflated tire, excluding elevations
due to labeling, decoration, or protective bands
Sidewall
That portion of a tire between the tread and bead
The parting of the rubber compound from the
Sidewall separation
cord material in the sidewall
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-1136
Standard Reference Test Tire, when using the
snow traction test as described in ASTM F-1805-
Snow tire
00, Standard Test Method for Single Wheel Dri-
ving Traction in a Straight Line on Snow-and Ice-
Covered Surfaces, and which is marked with an
Alpine Symbol (
) on at least one sidewall
The rim on which a tire is fitted for testing, and
Test rim
may be any rim listed as appropriate for use with
that tire
That portion of a tire that comes into contact with
Tread
9
the road
A tread section running circumferentially around
Tread rib
a tire
558
9-1. Specifications
Tire related term
Meaning
Tread separation
Pulling away of the tread from the tire carcass
The projections within the principal grooves
Treadwear indicators
designed to give a visual indication of the
(TWI)
degrees of wear of the tread
The fixture used to hold the wheel and tire
Wheel-holding fixture
assembly securely during testing
*: Table 1 Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Designated seating
Occupant distribution in
Vehicle normal load,
capacity, Number of
a normally loaded
Number of occupants
occupants
vehicle
2 through 4
2
2 in front
2 in front, 1 in second
5 through 10
3
seat
2 in front, 1 in second
11 through 15
5
seat, 1 in third seat, 1 in
fourth seat
2 in front, 2 in second
16 through 20
7
seat, 2 in third seat, 1 in
fourth seat
9-2. Customization
559
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display,
Entune Audio or Entune Premium Audio with Navigation, or at
your Toyota dealer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizing vehicle features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.
■ Changing using the multi-information display
1
Press
or
of the meter control switches, select
,
and then press
2
Press
or
of the meter control switches, select the item,
and then press
3
Press
or
of the meter control switches, select the desired
setting, and then press
To go back to the previous screen or exit the customize mode,
press
■ Changing using the Entune Audio (if equipped)
Press the “SETUP” button.
1
9
2
Select “Vehicle” on the “Setup” screen and select “Vehicle Cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
560
9-2. Customization
■ Changing using the Entune Premium Audio with Navigation (if
equipped)
1
Press the “APPS” button on the navigation system.
2
Select “Setup” on the “APPS” screen.
3
Select “Vehicle” on the “Setup” screen and select “Vehicle Cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Customizable features
Settings that can be changed using the multi-information display
1
Vehicles with Entune Audio or Entune Premium Audio with Naviga-
2
tion: Settings that can be changed using the Entune Audio or
Entune Premium Audio with Navigation
3
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, - =Not available
■ Door lock (P. 114, 521)
Default
Customized
Function
1
2
3
setting
setting
Speed linked
-
O
O
Shift position
Automatic door locking
linked
Off
-
O
O
Driver’s door
-
O
O
Automatic door unlock-
Shift position
linked
ing
linked
Off
-
O
O
9-2. Customization
561
■ Smart key system and wireless remote control (P. 124, 110)
Default
Customized
Function
1
2
3
setting
setting
Off
Operation
signal
5
-
O
O
(buzzer)
1 to 7
Operation signal (emer-
On
Off
-
O
O
gency flashers)
Open door reminder
buzzer (when locking the
On
Off
-
-
O
vehicle)
Time elapsed before the
Off
automatic door lock
function is activated if a
60 seconds
30 seconds
-
O
O
door is not opened after
being unlocked
120 seconds
■ Smart key system (P. 124)
Default
Customized
Function
1
2
3
setting
setting
Smart door unlocking
Driver’s door
All the doors
-
O
O
Number of consecutive
As many as
2 times
-
-
O
door lock operations
desired
9
562
9-2. Customization
■ Wireless remote control (P. 110)
Default
Customized
Function
1
2
3
setting
setting
Wireless remote control
On
Off
-
-
O
Driver’s
door
unlocked in first
All
doors
Unlocking operation
step, all doors
unlocked in first
-
O
O
unlocked in sec-
step
ond step
Panic function
On
Off
-
-
O
■ Automatic light control system (P. 182)
Default
Customized
Function
1
2
3
setting
setting
Off
Time elapsed before the
30 seconds
60 seconds
-
O
O
headlights turn off
90 seconds
Light sensor sensitivity
Level 0
Level -2 to 2
-
O
O
9-2. Customization
563
■ Illumination (P. 368)
Default
Customized
Function
1
2
3
setting
setting
Off
Time elapsed before the
15 seconds
7.5 seconds
-
O
O
interior lights turn off
30 seconds
Operation after
the
power switch is turned
On
Off
-
-
O
off
Operation when the
doors are unlocked with
the smart key system or
On
Off
-
-
O
the wireless remote con-
trol
function or the
mechanical key
Operation when you
approach the vehicle
On
Off
-
-
O
with the electronic key
on your person
Footwell lighting*
On
Off
-
-
O
Footwell lighting control*
On
Off
-
-
O
*: if equipped
9
564
9-2. Customization
■ Instrument cluster (P. 90)
Default
Customized
Function
1
2
3
setting
setting
Sensor sensitivity for
darkening the bright-
ness of the instrument
Standard
-2 to 2
-
-
O
cluster depending on the
outside brightness
Sensor sensitivity for
returning the brightness
of the instrument cluster
Standard
-2 to 2
-
-
O
to the original level
depending on the out-
side brightness
French
Language
English
O
-
O
Spanish
km (km/L)
miles
km
Units
(MPG USA)
O
-
O
(L/100km)
miles
(MPG Imperial)
Pop-up display
On
Off
O
-
O
■ LDA (Lane Departure Alert with steering control) (P. 217)
Default
Customized
Function
1
2
3
setting
setting
Steering Assist function
On
Off
O
—
—
Alert sensitivity
Standard
High
O
—
—
Vehicle sway warning
On
Off
O
—
—
function
Low
Vehicle sway warning
Standard
O
—
—
sensitivity
High
9-2. Customization
565
■ PCS (Pre-Collision system) (P. 205)
Default
Customized
Function
1
2
3
setting
setting
PCS (Pre-Collision sys-
On
Off
O
—
—
tem)
Far
Alert timing
Middle
O
—
—
Near
■ Automatic air conditioning system (P. 360)
Default
Customized
Function
1
2
3
setting
setting
A/C auto switching oper-
Off
On
-
O
O
ation
Heating/cooling opera-
tion minimized in Eco
On
Off
-
-
O
drive mode
Switching between out-
side air and recirculated
On
Off
-
-
O
air mode linked to A/C
auto switch operation
■ Panoramic roof shades* (P. 384)
Default
Customized
Function
1
2
3
setting
setting
Door lock linked auto-
On
Off
-
-
O
matic closing function
*: If equipped
■ Seat belt reminder (P. 480)
9
Default
Customized
Function
1
2
3
setting
setting
Vehicle speed linked
seat
belt
reminder
On
Off
-
-
O
buzzer
566
9-2. Customization
■ Reverse buzzer (P. 177)
Default
Customized
Function
1
2
3
setting
setting
Signal (buzzer) when the
Intermittent
Single
-
-
O
shift position is in R
■ Vehicle customization
●When the Speed linked door locking function and the Shift position linked
door locking function are both on, the door lock operates as follows.
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door
locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door
locking function will operate.
● When the smart key system is off, Smart door unlocking cannot be custom-
ized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function is activated, the signals will be generated in accordance
with the operation signal (buzzer) and the operation signal (emergency
flashers) settings.
■ In the following situations, customize mode will automatically be turned
off.
● A warning message appears after the customize mode screen is displayed.
●The power switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
WARNING
■ Cautions during customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.
9-3. Initialization
567
Item to initialize
The following Item must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle.
Item
When to initialize
Reference
• When rotating the tires on vehi-
Tire pressure warn-
cles with differing front and rear
P. 432
ing system
tire inflation pressures
• When changing the tire size
9
