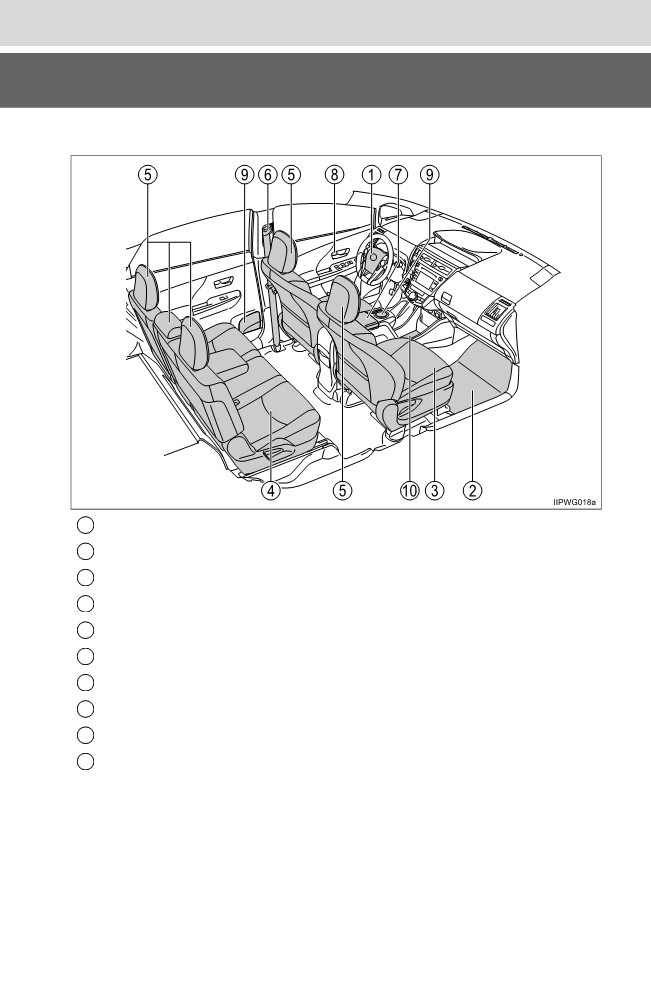

■Interior
1
SRS airbags
P. 41
2
Floor mats
P. 28
3
Front seats
P. 131
4
Rear seats
P. 135
5
Head restraints
P. 138
6
Seat belts
P. 32
7
Console box
P. 372
8
Inside lock buttons
P. 116
9
Cup holders/bottle holders/door pockets
P. 373
10
Auxiliary boxes
P. 375
Pictorial index
25

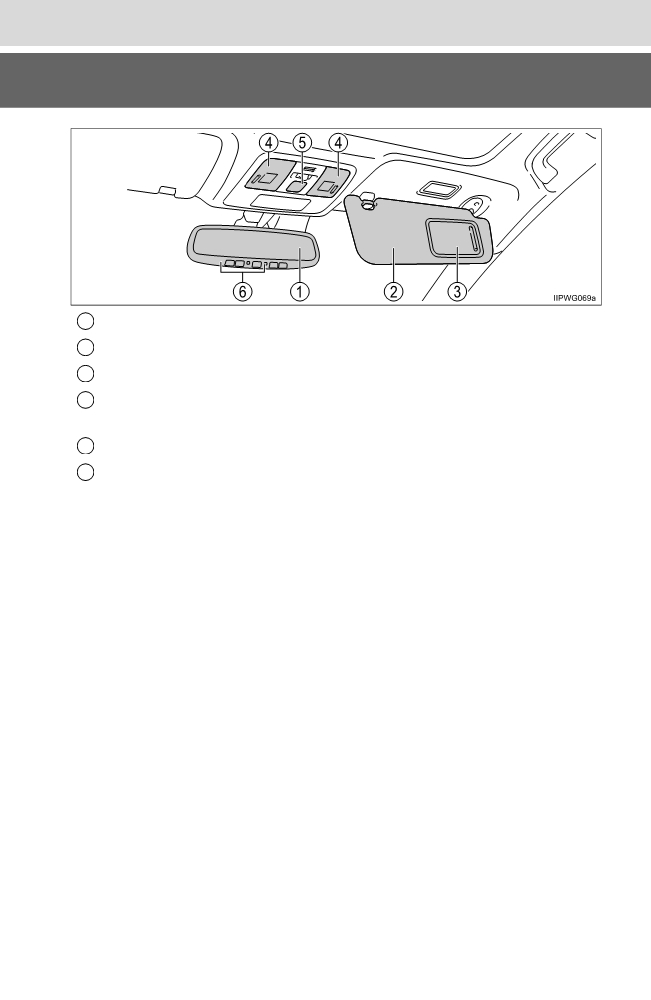

1
Inside rear view mirror
P. 142
2
Sun visors
P. 380
3
Vanity mirrors
P. 380
4
Interior lights*1, 2
P. 368
Personal lights*2
P. 368
5
Panoramic roof shade switch*3
P. 384
6
Garage door opener switches*3
P. 386
*1: The illustration shows the front, but they are also equipped in the rear.
*2: For vehicles without panoramic roof, the switch shape may differ.
*3: If equipped
26
Pictorial index
27
For safety and security
1
1-1. For safe use
Before driving
28
For safe driving
30
Seat belts
32
SRS airbags
41
Front passenger occupant
classification system
53
Safety information for
children
58
Child restraint systems
59
Installing child restraints
63
Exhaust gas precautions
73
1-2. Hybrid system
Hybrid system features
74
Hybrid system
precautions
78
1-3. Theft deterrent system
Immobilizer system
83
28
1-1. For safe use
Before driving

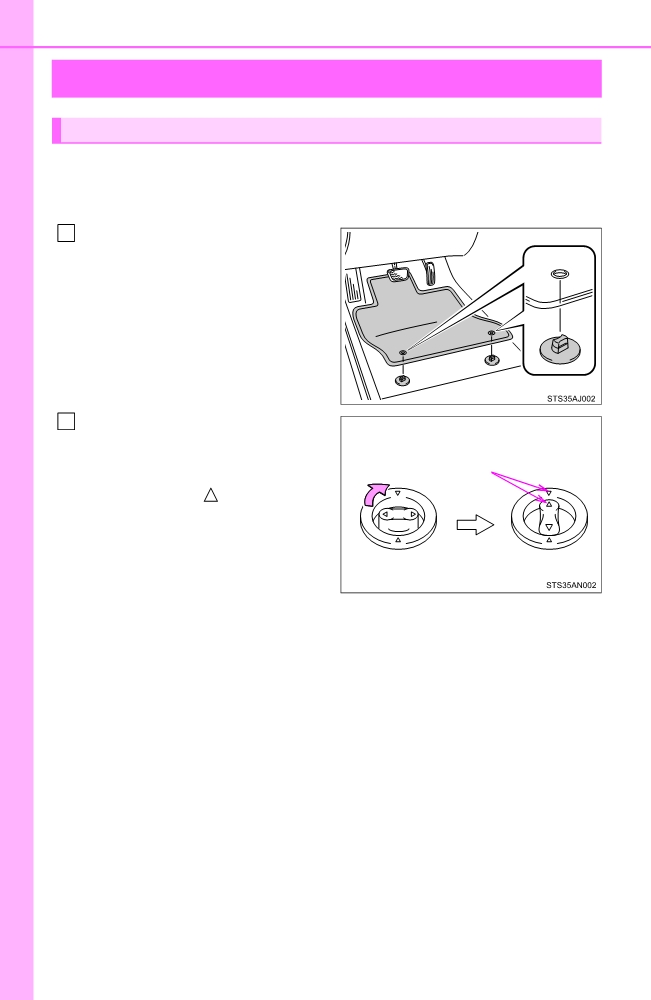

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
1
into the floor mat eyelets.
Turn the upper knob of each
2
retaining hook (clip) to secure
the floor mats in place.
*
*: Always align the
marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
1-1. For safe use
29
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
1
■ When installing the driver’s floor mat

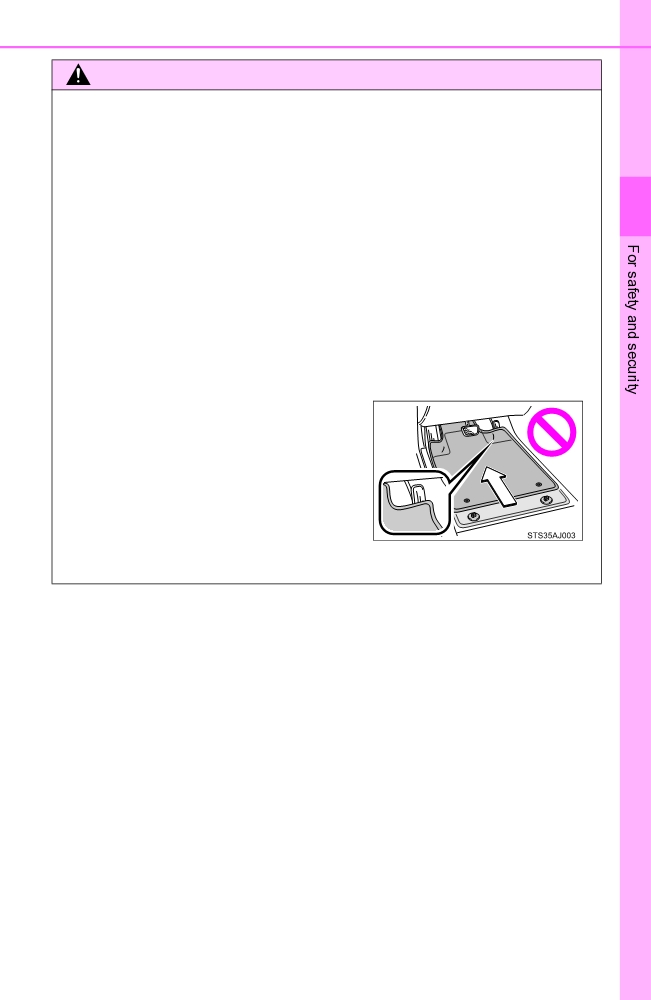

● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks
(clips). Be
especially careful to perform this check
after cleaning the floor.
●With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.
30
1-1. For safe use
For safe driving
For safe driving, adjust the seat and mirror to an appropriate
position before driving.

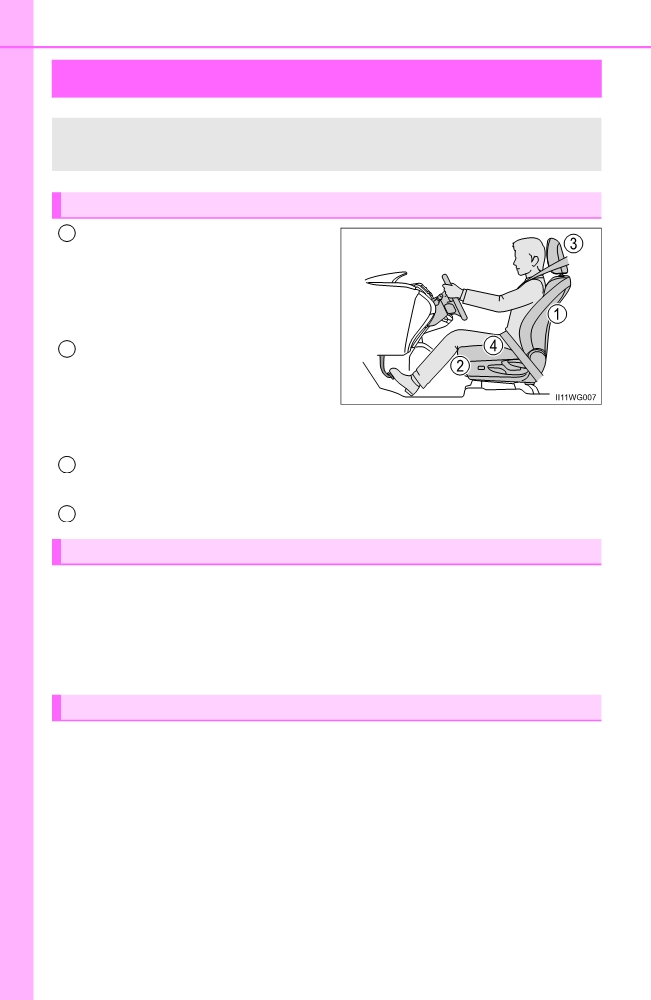

Correct driving posture
Adjust the angle of the seat-
1
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 131)
Adjust the seat so that you can
2
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 131)
Lock the head restraint in place with the center of the head restraint
3
closest to the top of your ears. (P. 138)
Wear the seat belt correctly. (P. 32)
4
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 32)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 59)
Adjusting the mirrors
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 142, 144)
1-1. For safe use
31
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
1
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
32
1-1. For safe use
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
● Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.

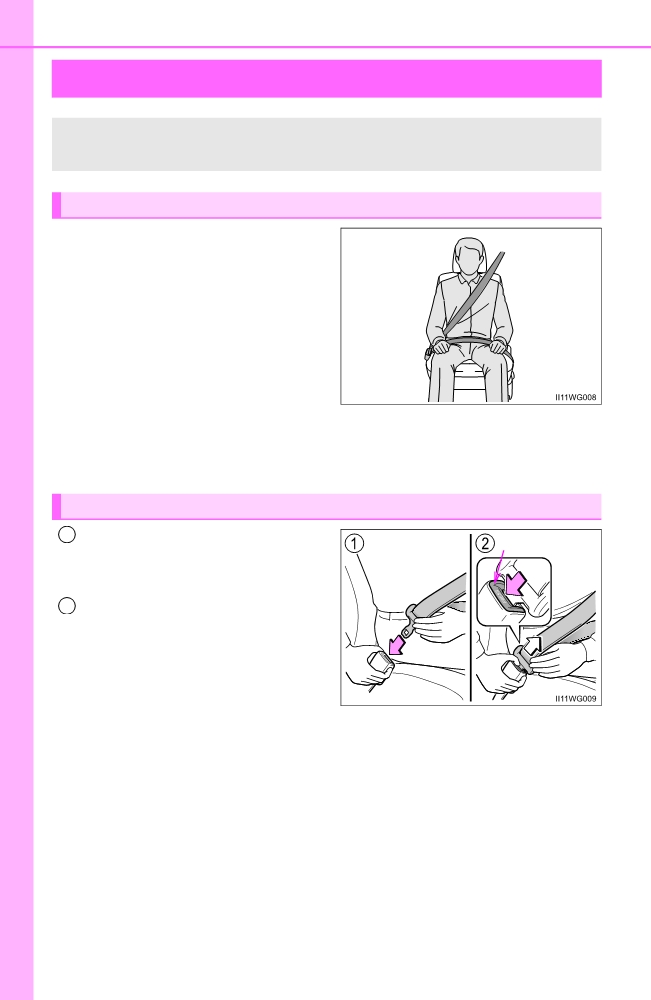

Fastening and releasing the seat belt (except rear center seat)
1
To fasten the seat belt, push the
Release button
plate into the buckle until a click
sound is heard.
To release the seat belt, press
2
the release button with a hand
on the plate.
1-1. For safe use
33

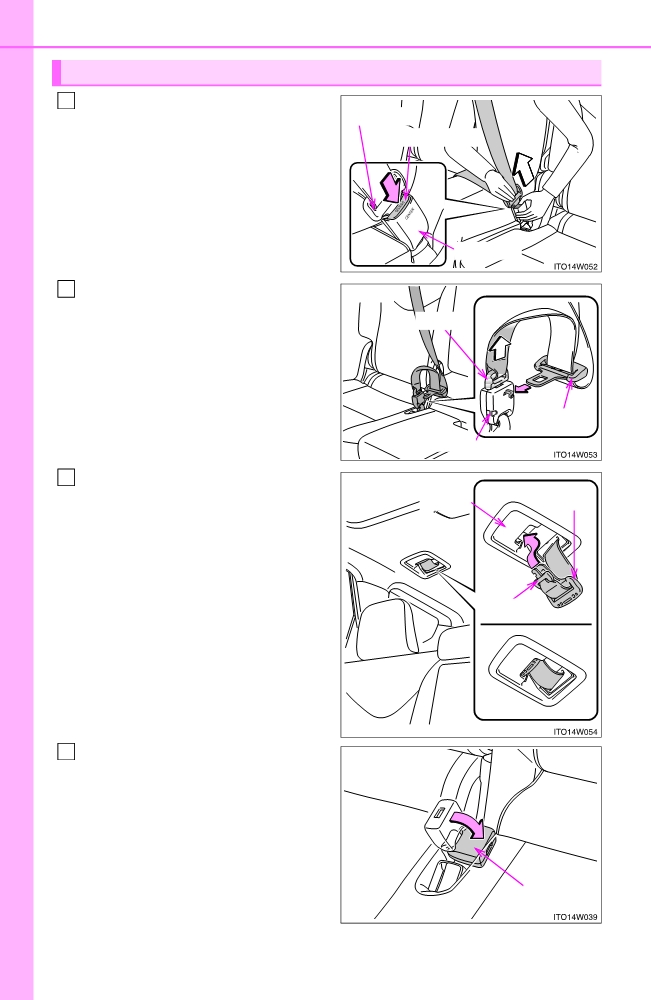

Fastening the seat belt (rear center seat)
Press the plate to release, and
1
pull out the seat belt.
1
2
Connect by inserting plate B
Plate B
into buckle B until a click sound
is heard.
Buckle B
Secure the belt by inserting
3
plate A into buckle A until a
Plate A
click sound is heard.
Buckle A
34
1-1. For safe use

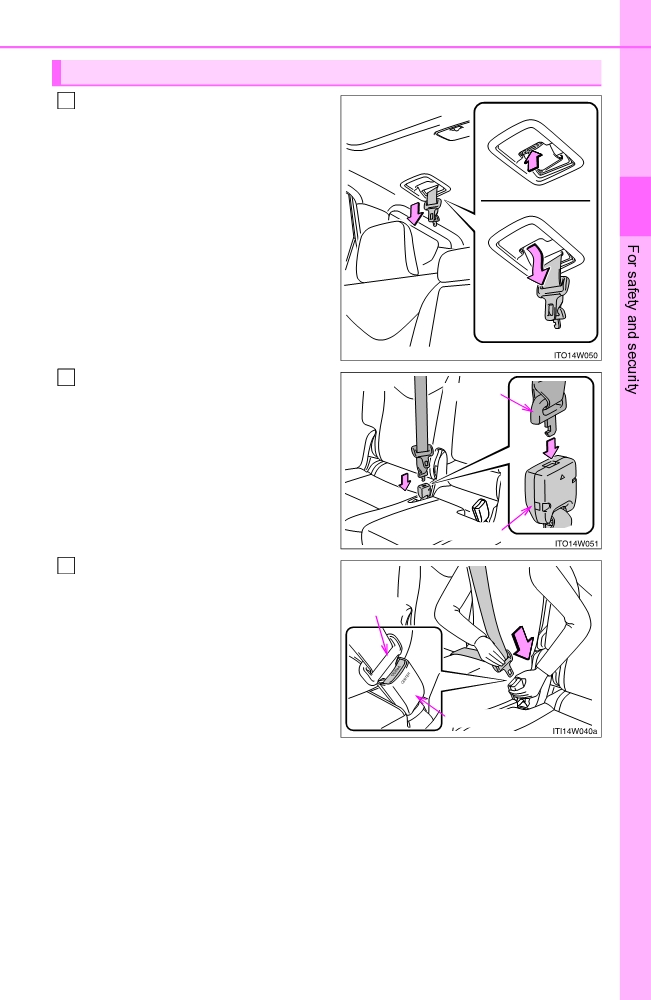

Releasing the seat belt (rear center seat)
1
Press the release button on
Plate A
buckle A with a hand on the
Release button
plate A and release the belt.
Buckle A
Use plate A etc. to push the
2
button on buckle B, and uncou-
Plate B
ple plate B.
Plate A
Buckle B
3
Put plates A and B on top of
each other and insert them into
Holder
Plate A
the holder.
Insert the plates firmly.
Plate B
4
Stow the buckle B.
Buckle B
1-1. For safe use
35

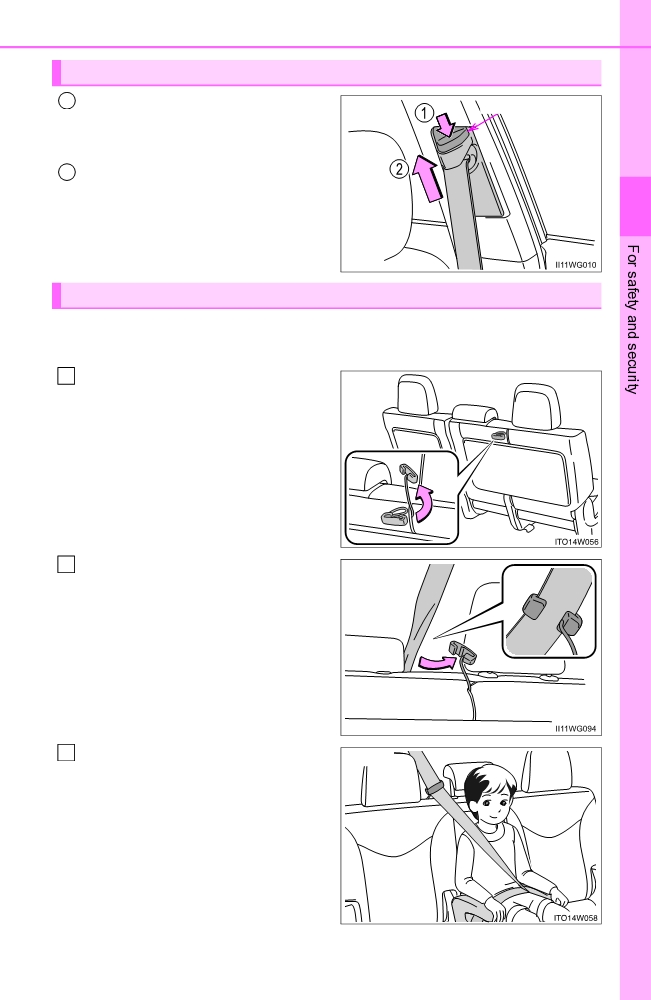

Adjusting the seat belt shoulder anchor height (front seats)
1
Push the seat belt shoulder
Release button
anchor down while pressing the
release button.
2
Push the seat belt shoulder
anchor up.
1
Move the height adjuster up and
down as needed until you hear a
click.
Seat belt comfort guide (rear center seat)
If the shoulder belt sits close to a person’s neck, use the seat belt
comfort guide.
1
Pull the comfort guide from the
seatback pocket.
2
Slide the belt past the slot of the
guide.
The elastic cord must be behind
the seat belt.
3
Buckle the seat belt and posi-
tion it comfortably.
36
1-1. For safe use

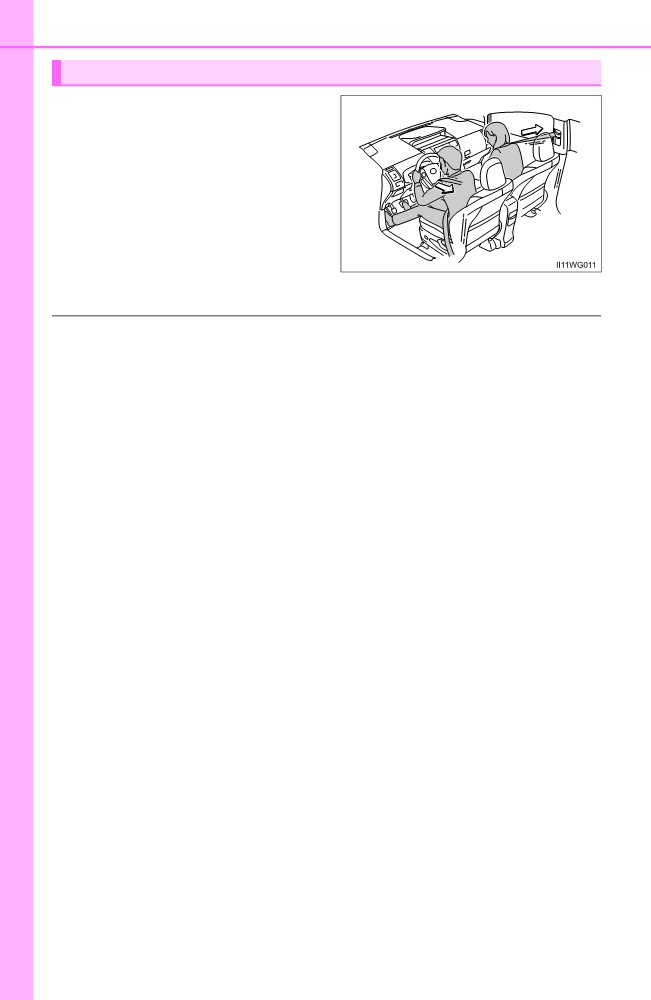

Seat belt pretensioners (front seats)
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. (P. 63)
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 59)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (P. 32)
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
1-1. For safe use
37
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt extender
is available from your Toyota dealer free
of charge.
1
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
■ Wearing a seat belt
●Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.

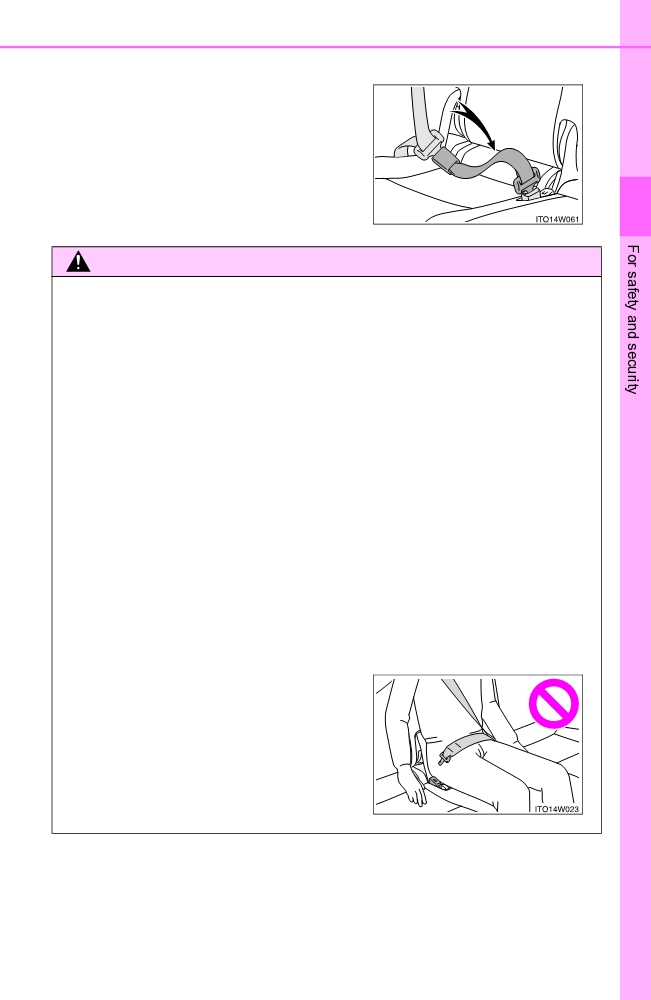

● When using the seat belts of the outboard rear seats, ensure that the seat
belts are not in the seat belt hangers. (P. 136)
■ When using the rear center seat belt
Do not use the rear center seat belt with
either buckle released.
38
1-1. For safe use
WARNING

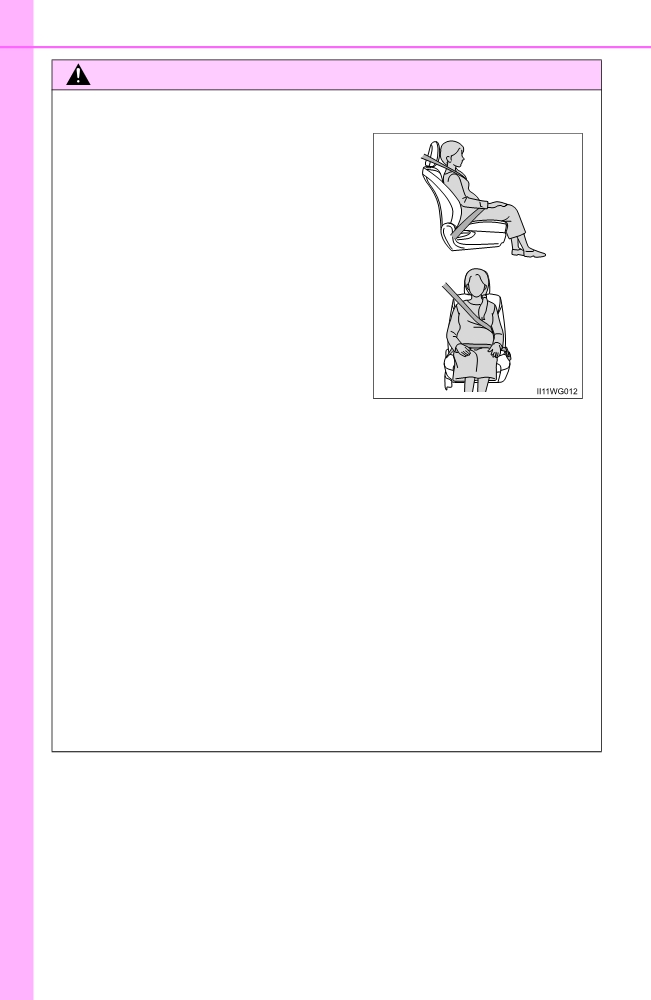

■Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (P. 32)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 32)
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
● Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
●If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
1-1. For safe use
39
WARNING
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (P. 35)
1
■Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
●Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
■ Using a seat belt comfort guide
Failure to observe the following precautions could reduce the effectiveness
of the seat belt in an accident, causing death or serious injury.
● Make sure the belt is not twisted and that it lies flat. The elastic cord must
be behind the belt and the guide must be on the front.
● To reduce the chance of injury in case of a sudden stop, sudden swerve or
accident while driving, remove and store the comfort guide in its pocket
when it is not in use.
● Always make sure the shoulder belt is positioned across the center of the
shoulder. The belt should be kept away from the neck, and should not fall
off the shoulder.
40
1-1. For safe use
WARNING
■ Using a seat belt extender
● Do not wear the seat belt extender if you can fasten the seat belt without
the extender.
● Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increas-
ing the risk of death or serious injury in the event of an accident.
● The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.
NOTICE
■ When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
