544
7-3. Do-it-yourself maintenance
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 545)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
HIGHLANDER_HV_U (OM0E032U)
7-3. Do-it-yourself maintenance
545
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (→P. 649)
Turning off the power back door main switch (if equipped)
→P. 133
7
HIGHLANDER_HV_U (OM0E032U)
546
7-3. Do-it-yourself maintenance

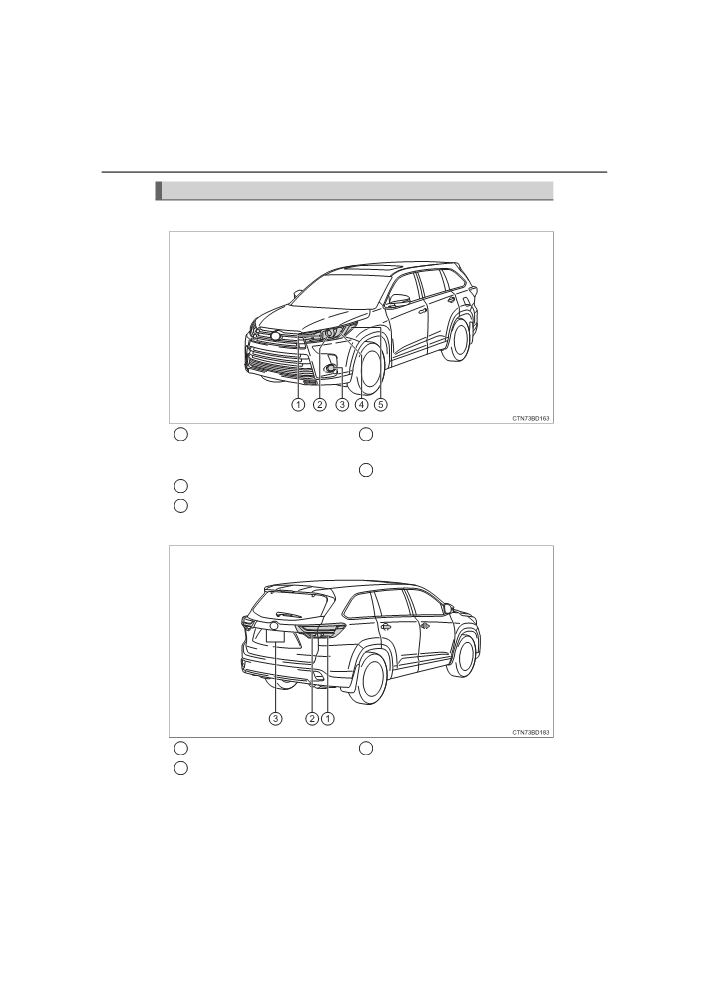

Bulb locations
■ Front
1
Headlight high beam/day-
4
Front turn signal light/parking
time running light
(if
light (if equipped)
equipped)
5
Front side marker light
2
Headlight low beam
3
Front fog light (if equipped)
■ Rear
1
Rear turn signal light
3
License plate lights
2
Back-up light
HIGHLANDER_HV_U (OM0E032U)
7-3. Do-it-yourself maintenance
547

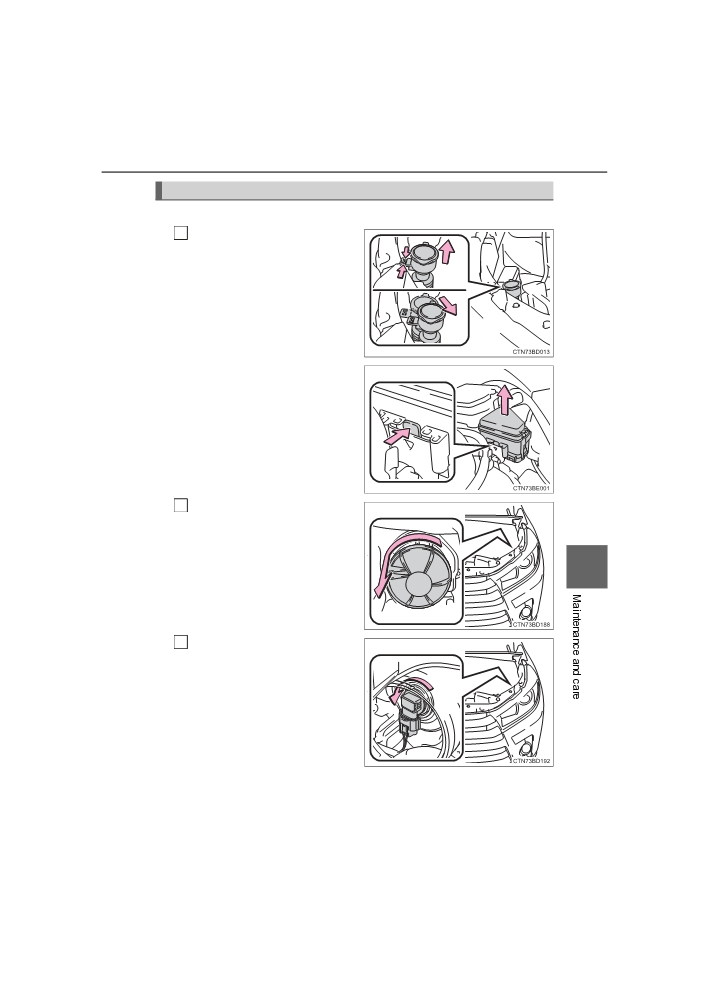

Replacing light bulbs
■ Headlight low beams
For the right side only:
1
Remove the washer fluid
tank opening.
For the left side only:
Remove the fuse box.
2
Turn the cover counterclock-
wise.
7
3
Turn the bulb base counter-
clockwise.
HIGHLANDER_HV_U (OM0E032U)
548
7-3. Do-it-yourself maintenance

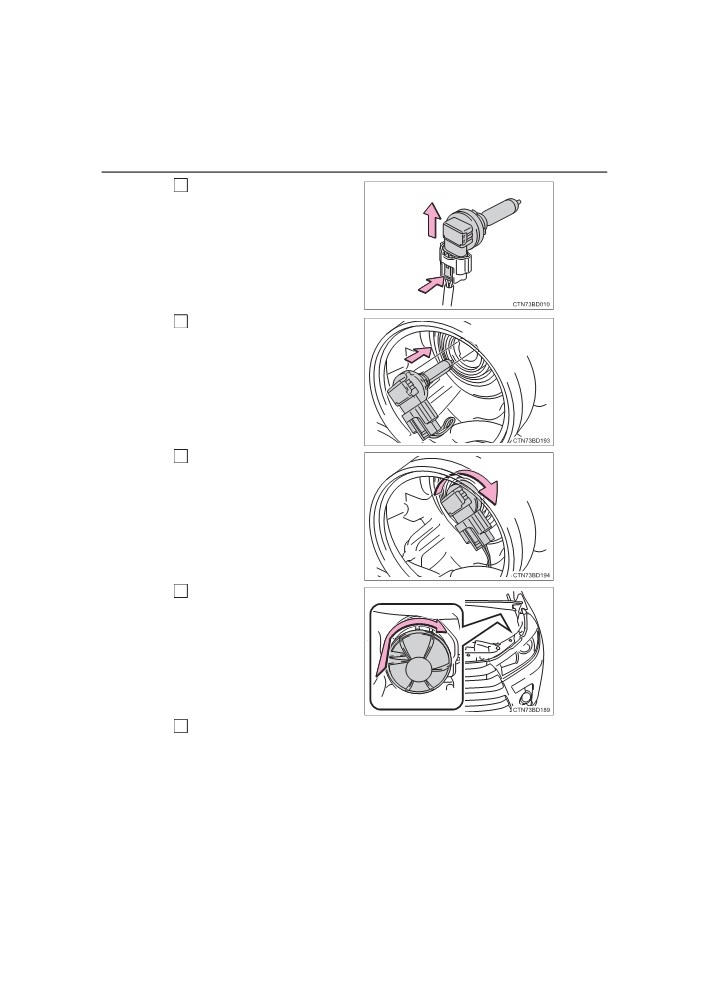

4
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
5
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
6
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlight low beams on
once and visually confirm that
no light is leaking through the
mounting.
7
Turn the cover clockwise and
install it.
For the right side only: Install the washer fluid tank.
8
For the left side only: Install the fuse box.
HIGHLANDER_HV_U (OM0E032U)
7-3. Do-it-yourself maintenance
549

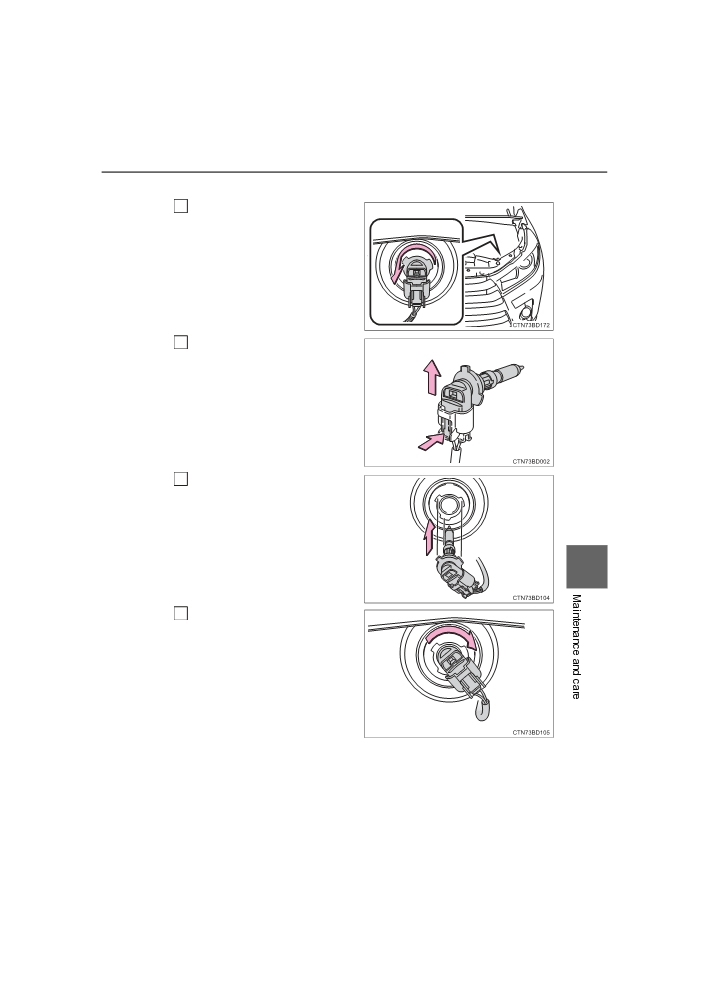

■ Headlight high beams/daytime running lights (if equipped)
1
Turn the bulb base counter-
clockwise.
Unplug the connector while
2
pressing the lock release.
Replace the light bulb, and
3
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
7
4
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
HIGHLANDER_HV_U (OM0E032U)
550
7-3. Do-it-yourself maintenance

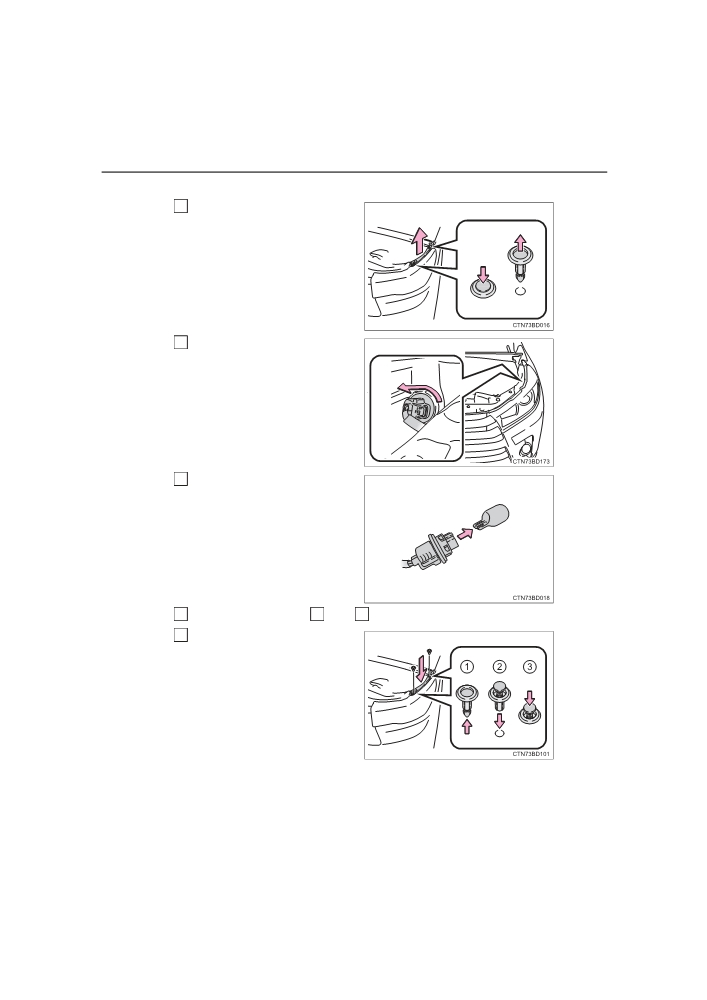

■ Front turn signal lights/parking lights (if equipped)
1
Remove the
2 clips and
remove the side cover.
2
Turn the bulb base counter-
clockwise.
Remove the light bulb.
3
4
Install by conducting
3
and
2
with the directions reversed.
5
Install the side cover and
then install the 2 clips.
HIGHLANDER_HV_U (OM0E032U)
7-3. Do-it-yourself maintenance
551

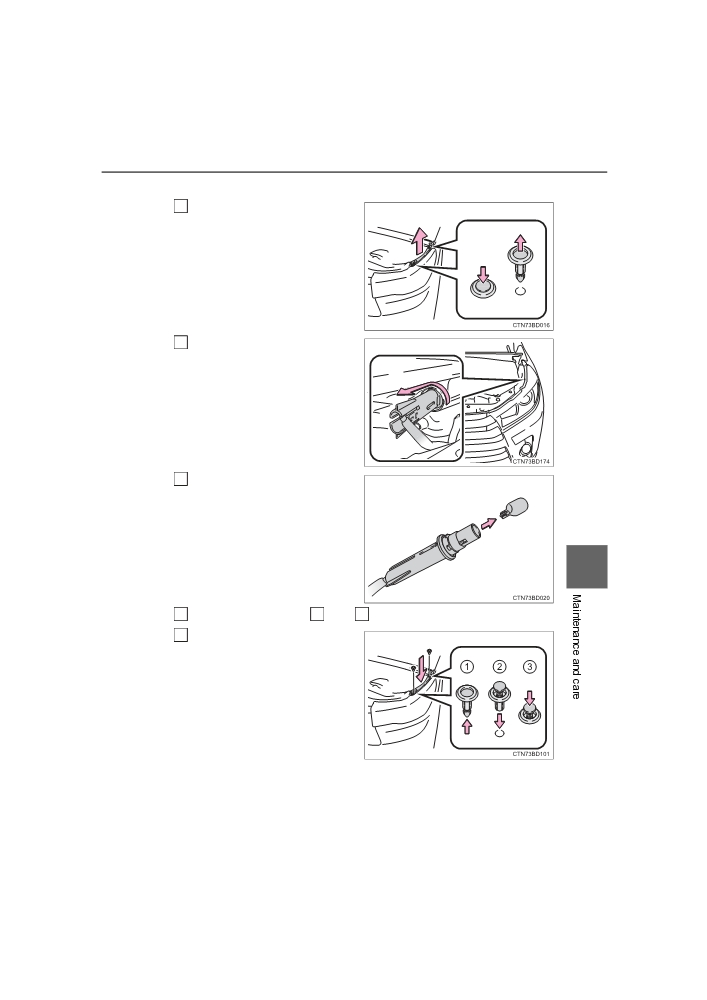

■ Front side marker lights
1
Remove the
2 clips and
remove the side cover.
2
Turn the bulb base counter-
clockwise.
Remove the light bulb.
3
7
4
Install by conducting
2
and
3
with the directions reversed.
5
Install the side cover and
then install the 2 clips.
HIGHLANDER_HV_U (OM0E032U)
552
7-3. Do-it-yourself maintenance

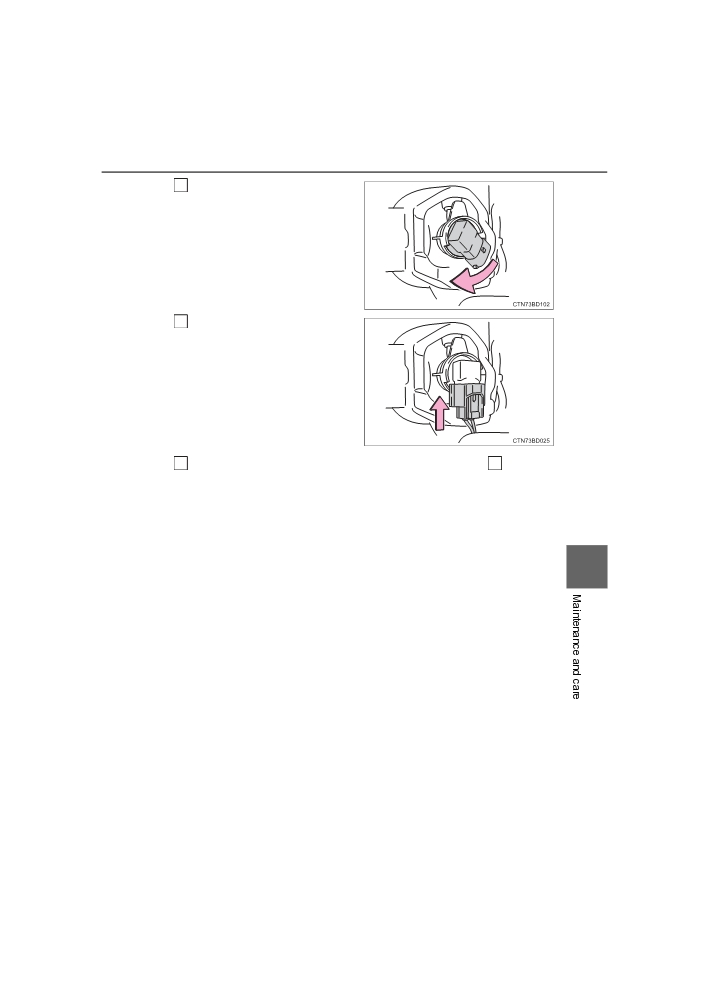

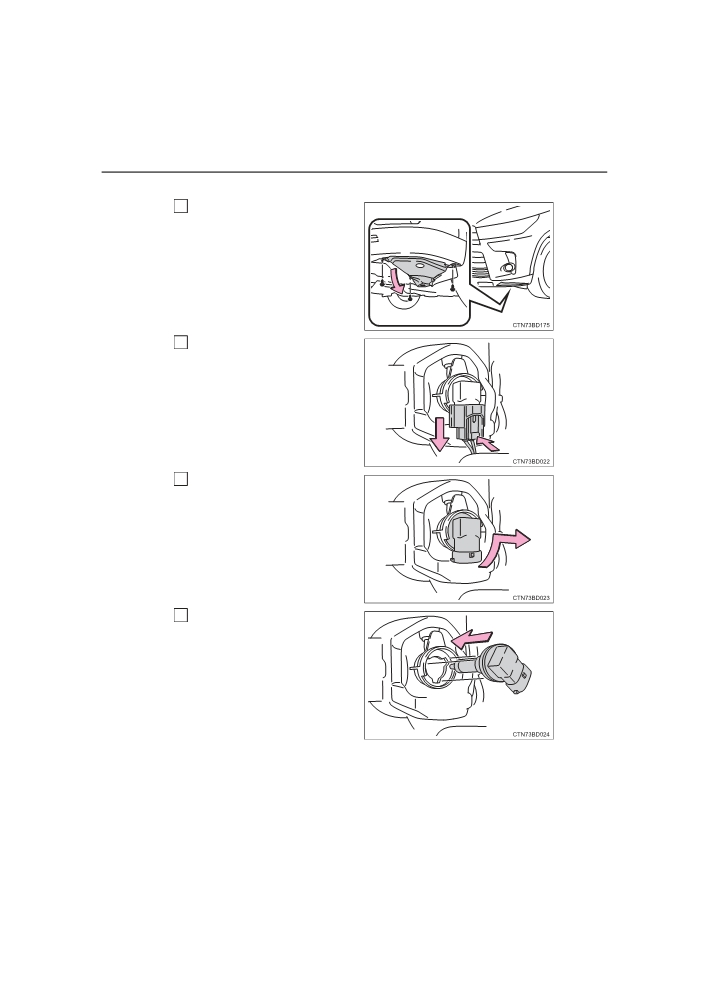

■ Front fog lights (if equipped)
Remove the 3 screws and
1
partly remove the fender
liner.
Unplug the connector while
2
pressing the lock release.
3
Turn the bulb base counter-
clockwise.
Install a new light bulb.
4
Align the 3 tabs on the light bulb
with the mounting and insert.
HIGHLANDER_HV_U (OM0E032U)
7-3. Do-it-yourself maintenance
553
5
Turn clockwise and secure
the bulb base.
Install the connector.
6
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
7
When installing the fender liner, install by conducting
1
with the
directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
7
HIGHLANDER_HV_U (OM0E032U)
554
7-3. Do-it-yourself maintenance

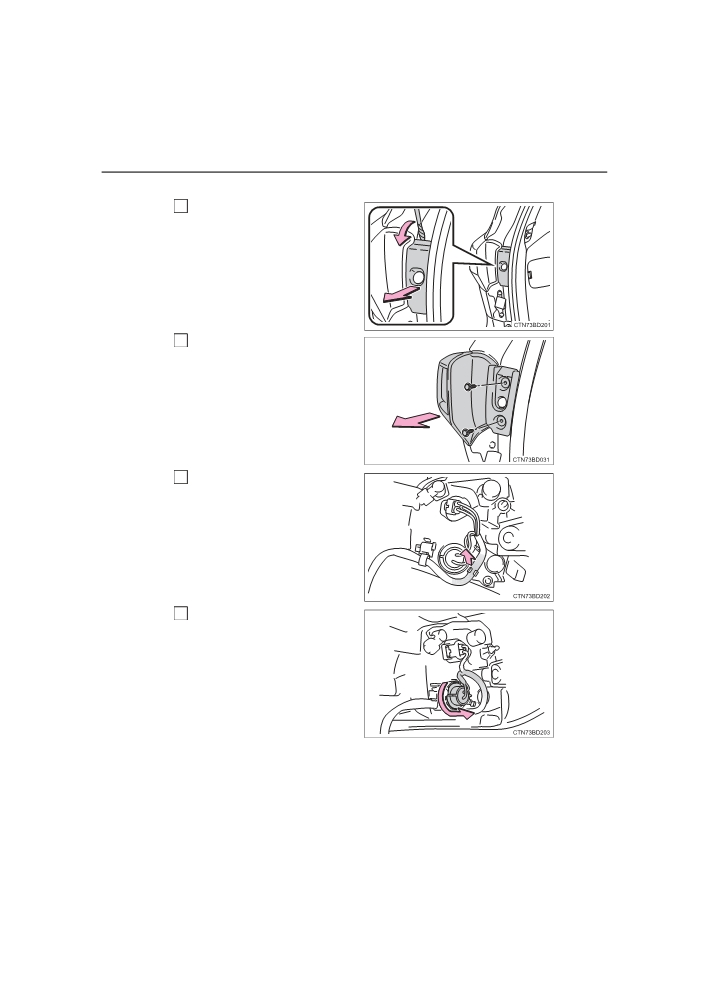

■ Rear turn signal lights
Open the back door and
1
remove the cover.
Insert a flathead screwdriver
into the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
2
Remove the 2 screws, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Remove the wire harness.
3
4
Turn the bulb base counter-
clockwise.
HIGHLANDER_HV_U (OM0E032U)
7-3. Do-it-yourself maintenance
555

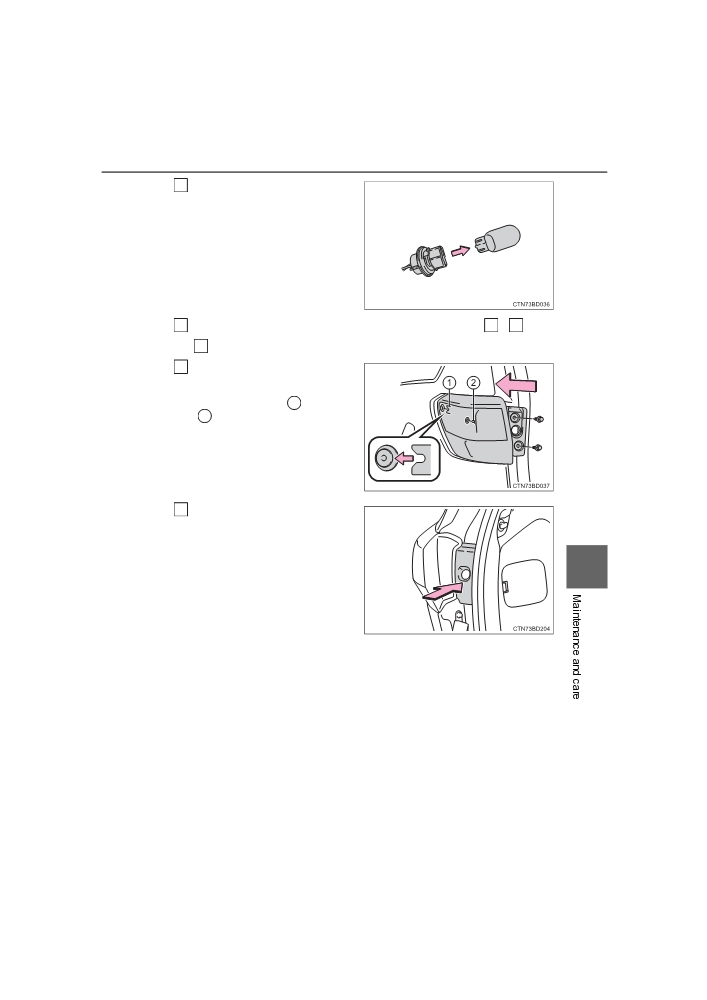

5
Remove the light bulb.
6
When installing the light bulb, install by conducting
5
,
4
and
3
with the directions reversed.
7
Install the lamp assembly
and then install the 2 screws.
Align the guide
(
1
) and pin
(
2
) on the lamp assembly with
the mounting when installing it.
8
Install the cover.
7
HIGHLANDER_HV_U (OM0E032U)
556
7-3. Do-it-yourself maintenance

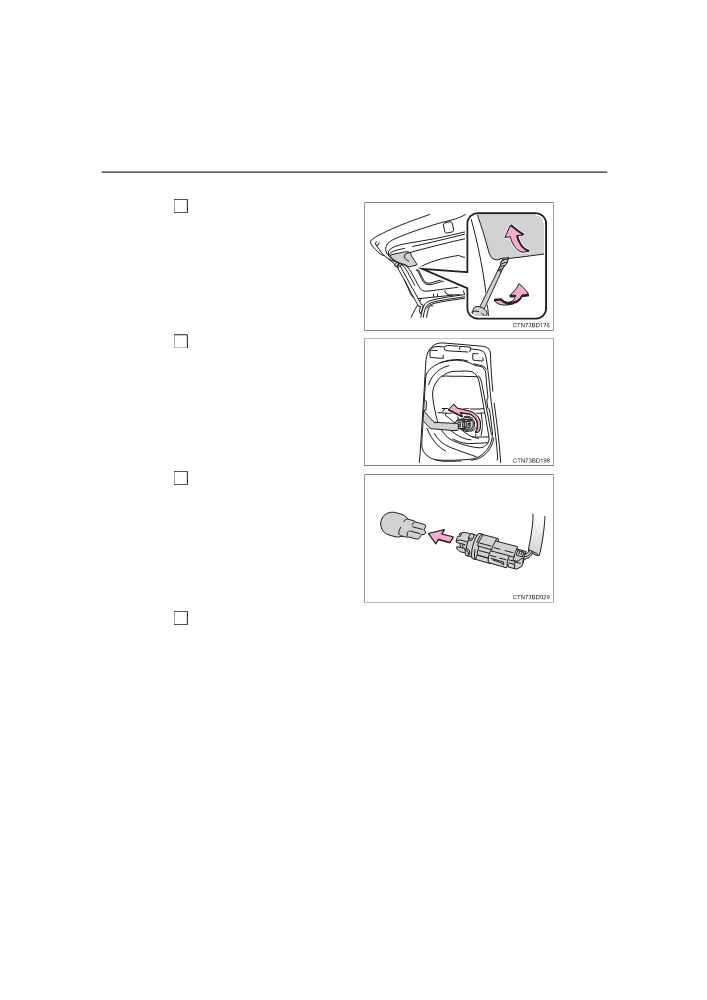

■ Back-up lights
Open the back door and
1
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
2
Turn the bulb base counter-
clockwise.
3
Remove the light bulb.
4
When installing, reverse the steps listed.
HIGHLANDER_HV_U (OM0E032U)
7-3. Do-it-yourself maintenance
557

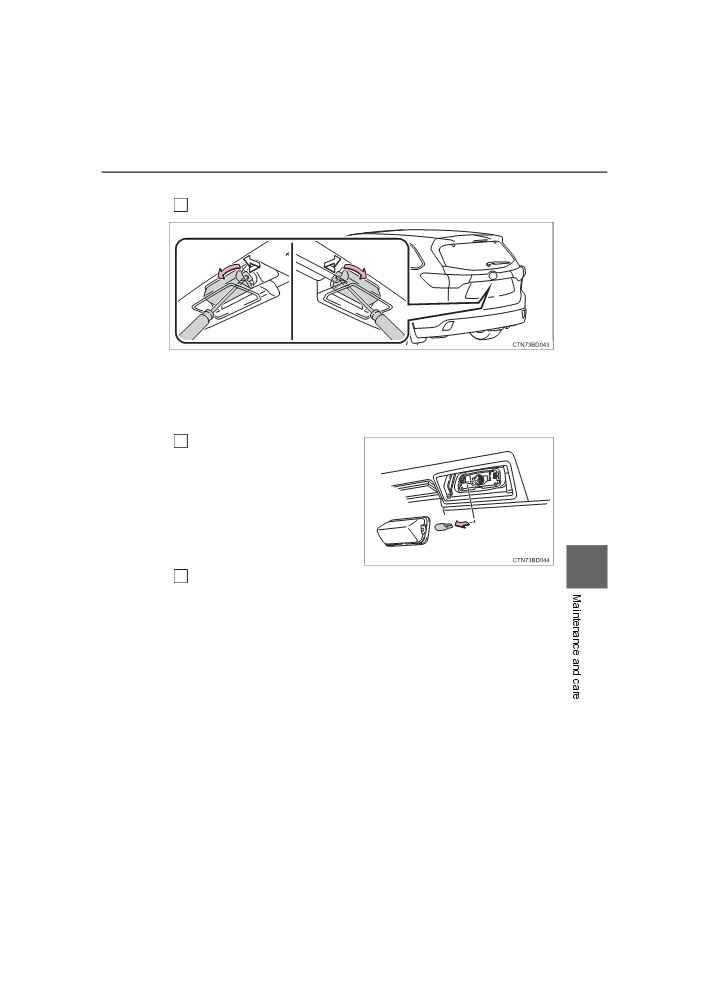

■ License plate lights
Remove the lens.
1
Insert a properly sized screwdriver into the hole of the lens on the
inner side and disengage the claw and pry the lens toward the
outer side as shown in the illustration.
To prevent damaging the vehicle, wrap the tip of the screwdriver with
tape.
Remove the light bulb.
2
7
When installing, reverse the steps listed.
3
HIGHLANDER_HV_U (OM0E032U)
558
7-3. Do-it-yourself maintenance
■ Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Side turn signal lights
● Daytime running lights/parking lights (LED type)
● Stop lights
● Rear side marker lights
● Stop/tail lights
● High mounted stoplight
● Outer foot lights (if equipped)
■LED light bulbs
The side turn signal lights, daytime running lights/parking lights (LED type),
stop lights, rear side marker lights, stop/tail lights, high mounted stoplight and
outer foot lights (if equipped) consist of a number of LEDs. If any of the LEDs
burns out, take your vehicle to your Toyota dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
→P. 544
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
HIGHLANDER_HV_U (OM0E032U)
559
When trouble arises
8
8-1. Essential information
Emergency flashers
560
If your vehicle has
to be stopped in
an emergency
561
8-2.
Steps to take in
an emergency
If your vehicle needs
to be towed
562
If you think something
is wrong
566
If a warning light turns
on or a warning
buzzer sounds
567
If a warning message
is displayed
576
If you have a flat tire
596
If the hybrid system
will not start
620
If the electronic key
does not operate
properly
622
If the 12-volt battery
is discharged
625
If your vehicle
overheats
630
If the vehicle becomes
stuck
634
HIGHLANDER_HV_U (OM0E032U)
560
8-1. Essential information

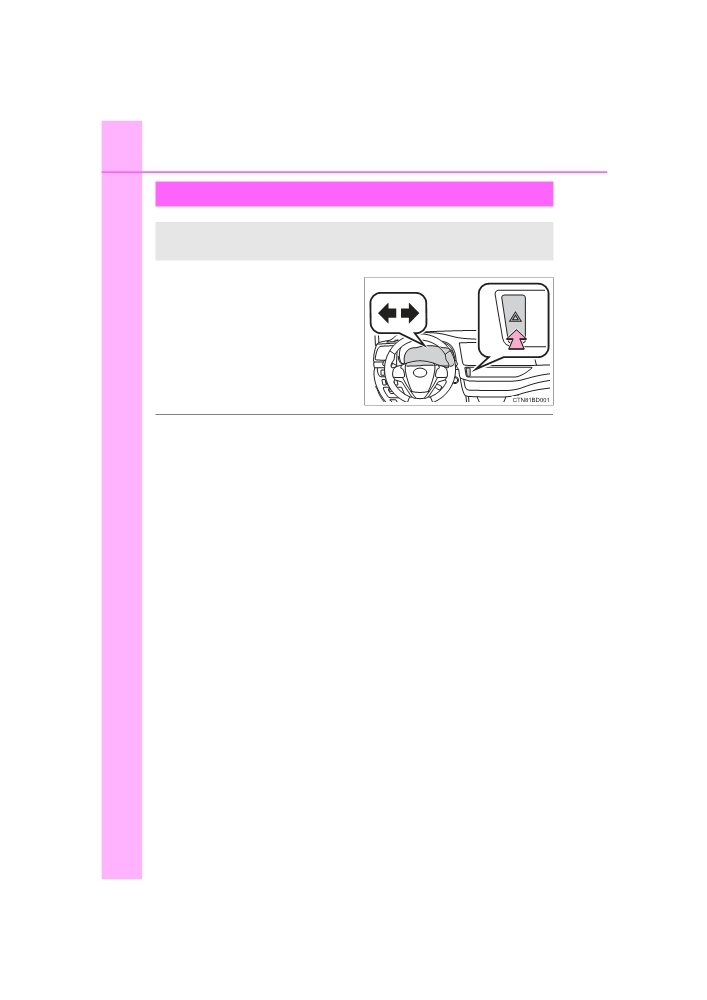

Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped on the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt bat-
tery may discharge.
