Toyota Camry Hybrid (2018 year). Instruction

449

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

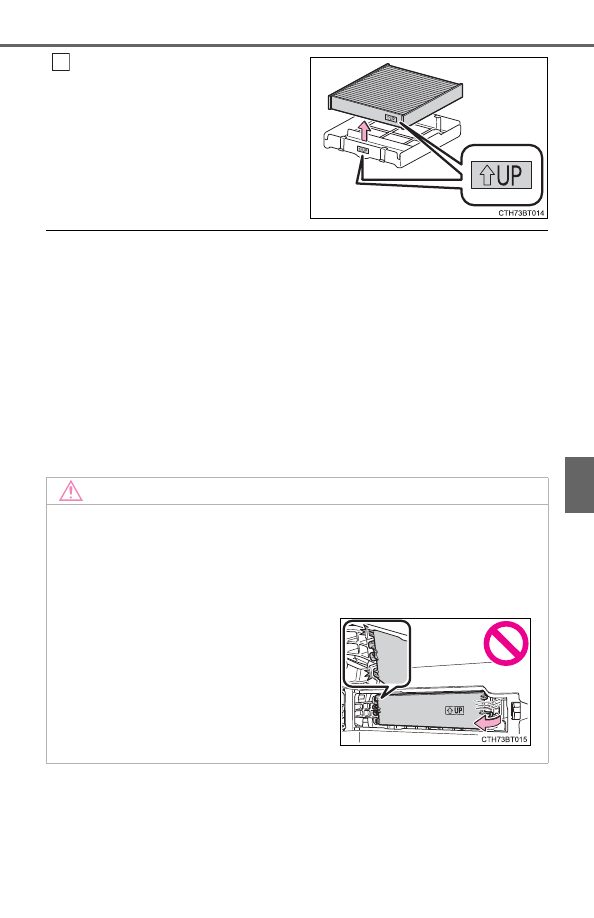

Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.

The “

↑UP” marks shown on the fil-

ter and the filter case should be
pointing up.

■

Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Schedule maintenance guide” or “Owner’s Manual Supplement”.)

■

If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.

■

Air conditioning filter with deodorizing function
When fragrances are placed in your vehicle, the deodorizing effect may
become significantly weakened in a short period.

When an air conditioning odor comes out continuously, replace the air condi-
tioning filter.

NOTICE

■

When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

■

To prevent damage to the filter cover

When moving the filter cover in the direc-
tion of arrow to release the fitting, pay
attention not to apply excessive force to
the claws. Otherwise, the claws may be
damaged.

450

6-3. Do-it-yourself maintenance

Remove the dust from the air
intake vent with a vacuum
cleaner, etc.

Make sure to only use a vacuum to
suck out dust and clogs. Attempt-
ing to blow out dust and clogs
using an airgun, etc. may push it
into the air intake vent. (

→P. 454)

If dust and clogs cannot be completely removed with the air intake
vent cover installed, remove the cover and clean the filter.

Turn the power switch off.

Using a Phillips screwdriver,
remove the clip.

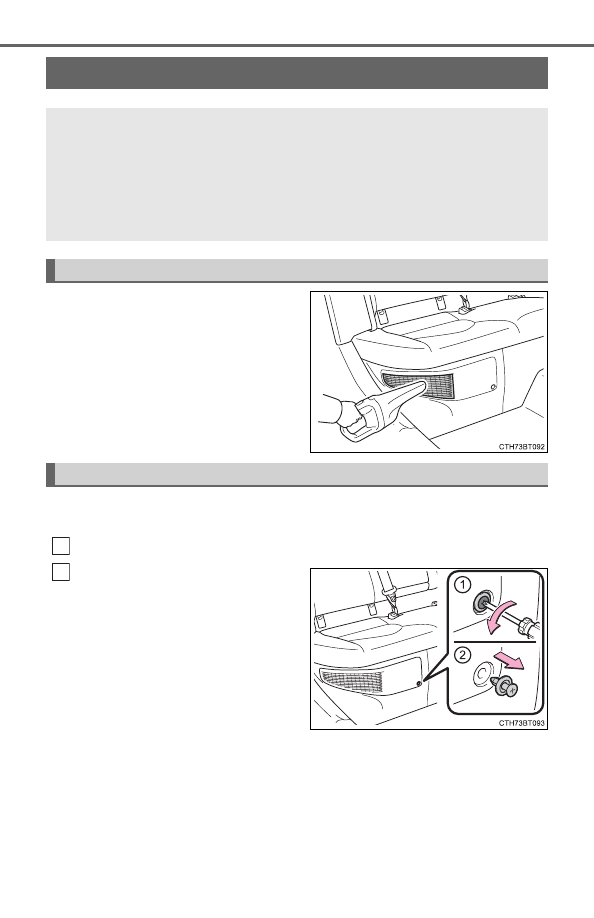

Hybrid battery (traction battery) air intake vent

To prevent an increase in fuel consumption, visually inspect the
hybrid battery (traction battery) air intake vent periodically for
dust and clogs. If it is dusty or clogged or if “Maintenance
Required for Traction Battery Cooling Parts See Owner’s Man-
ual” is displayed on the multi-information display, clean the air
intake vent using the following procedures:

Cleaning the air intake vent

If dust and clogs cannot be completely removed

1
2

451

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

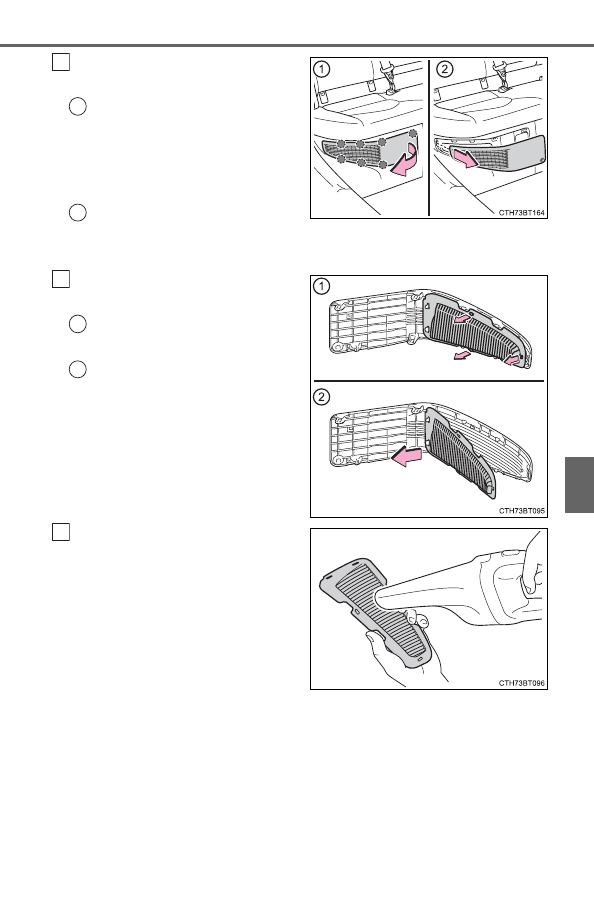

Remove the air intake vent
cover.

Pull the cover as shown in
the illustration to disengage
the 7 claws, starting from the
claw in the upper right cor-
ner.

Pull the cover toward the
front of the vehicle to remove
it.

Remove the air intake vent fil-
ter.

Disengage the 3 claws as
shown in the illustration.

Remove the filter from the
cover.

Remove the dust and clogs
from the filter using a vacuum
cleaner, etc.

Make sure to also remove the dust
and clogs from the inside of the air
intake vent cover.

452

6-3. Do-it-yourself maintenance

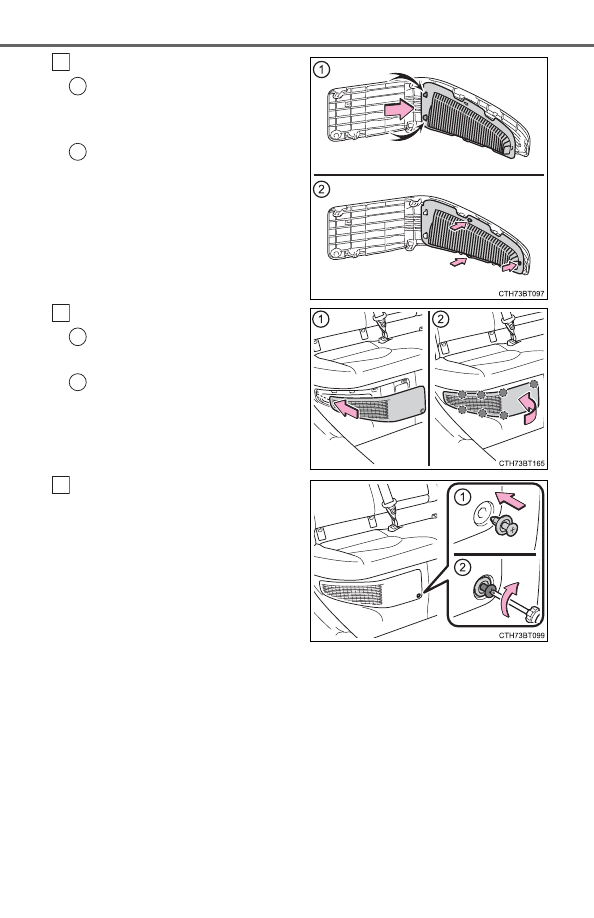

Reinstall the filter to the cover.

Engage the filter to the 2
claws as shown in the illus-
tration.

Engage the 3 claws to install
the filter.

Make sure that the filter is not
crooked or deformed when install-
ing it.

Install the air intake vent cover.

Insert the tab of the cover as
shown in the illustration.

Push the cover to engage the
7 claws.

Using a Phillips screwdriver,
install the clip.

453

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

■

Scheduled maintenance of the air intake vent is necessary when
In some situations such as when the vehicle is used frequently or in heavy
traffic or dusty areas, the air intake vent may need to be cleaned more regu-
larly. For details, refer to “Schedule maintenance guide” or “Owner’s Manual
Supplement”.

■

Cleaning the air intake vent

●

Dust in the air intake vent may interfere with the cooling of the hybrid battery
(traction battery). If the hybrid battery (traction battery) overheats, the dis-
tance that the vehicle can be driven using the electric motor (traction motor)
may be reduced and the fuel consumption may increase.
Inspect and clean the air intake vent periodically.

●

Improper handling of the air intake vent cover and filter may result in dam-
age to them. If you have any concerns about cleaning the filter, contact your
Toyota dealer.

■

If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is displayed on the multi-information display

●

If this warning message is displayed on the multi-information display,
remove the air intake vent cover and clean the filter. (

→P. 450)

●

After cleaning the air intake vent, start the hybrid system and check that the
warning message is no longer displayed.
It may take approximately 20 minutes after the hybrid system is started until
the warning message disappears. If the warning message does not disap-
pear, have the vehicle inspected by your Toyota dealer.

WARNING

■

When cleaning the air intake vent
Do not use water or other liquids to clean the air intake vent. If water is
applied to the hybrid battery (traction battery) or other components, a mal-
function or fire may occur.

■

When removing the air intake vent cover
Do not touch the service plug located near the air intake vent. (

→P. 80)

454

6-3. Do-it-yourself maintenance

NOTICE

■

When cleaning the air intake vent

■

To prevent damage to the vehicle

●

Do not allow water or foreign matter to enter the air intake vent when the
cover is removed.

●

Carefully handle the removed filter so that it will not be damaged.
If the filter is damaged, have it replaced with a new filter by your Toyota
dealer.

●

Make sure to reinstall the filter and cover to their original positions after
cleaning.

●

Do not install anything to the air intake vent other than the exclusive filter
for this vehicle or use the vehicle without the filter installed.

■

If “Maintenance Required for Traction Battery Cooling Parts See
Owner’s Manual” is displayed on the multi-information display
If the vehicle is continuously driven with the warning message displayed,
the hybrid battery (traction battery) may overheat, possibly causing a mal-
function. If the warning message is displayed, clean the air intake vent
immediately.

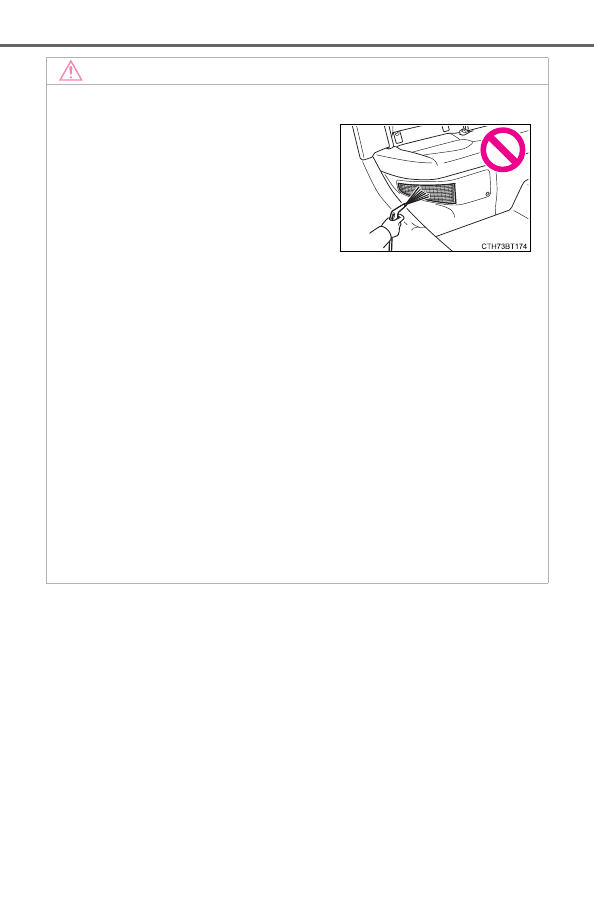

When cleaning the air intake vent, make
sure to only use a vacuum to suck out
dust and clogs. If a compressed air blow
gun, etc. is used to blow out dust and
clogs, the dust or clogs may be pushed
into the air intake vent, which may affect
the performance of the hybrid battery
(traction battery) and cause a malfunc-
tion.

455

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2032

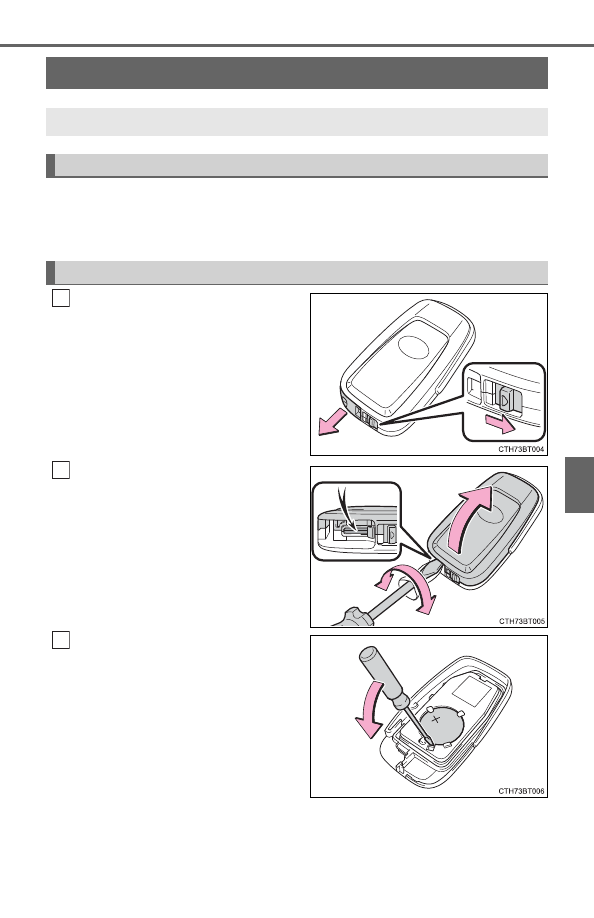

Release the lock and remove
the mechanical key.

Remove the key cover.

To prevent damage to the key,
cover the tip of the flathead screw-
driver with a rag.

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the
electronic key module may stick to
the cover and the battery may not
be visible. In this case, remove the
electronic key module in order to
remove the battery.

Insert a new battery with the “+” terminal facing up.

Electronic key battery

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery

456

6-3. Do-it-yourself maintenance

When installing the key cover and mechanical key, install by con-
ducting

and

with

the directions reversed.

Operate the

switch and check that the doors can

be locked/unlocked.

■

When replacing the key battery
Be careful not to lose the battery or any other small parts.

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.

●

Replace only with the same or equivalent type recommended by the manu-
facturer.

●

Dispose of used batteries according to local laws.

■

If the key battery is depleted
The following symptoms may occur:

●

The smart key system and wireless remote control will not function properly.

●

The operational range will be reduced.

WARNING

■

Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.

NOTICE

■

For normal operation after replacing the battery
Observe the following precautions to prevent accidents:

●

Always work with dry hands.
Moisture may cause the battery to rust.

●

Do not touch or move any other component inside the remote control.

●

Do not bend either of the battery terminals.

457

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

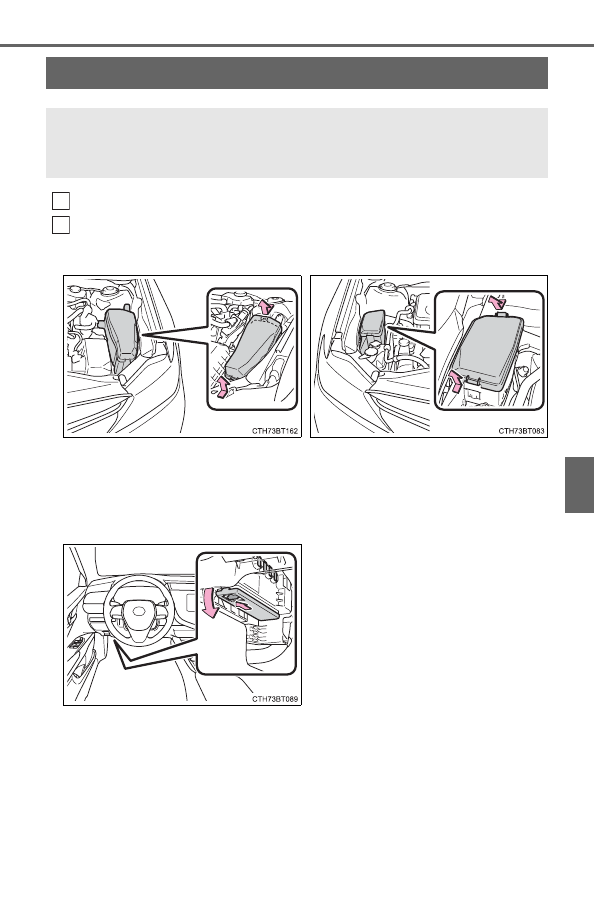

Turn the power switch off.

Open the fuse box cover.

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1
2



Engine compartment (type A)



Engine compartment (type B)

Push the tabs in and lift the lid off.

Push the tabs in and lift the lid
off.



Under the driver’s side instru-
ment panel

Remove the lid.

Make sure to push the claw when
removing/installing the lid.

458

6-3. Do-it-yourself maintenance

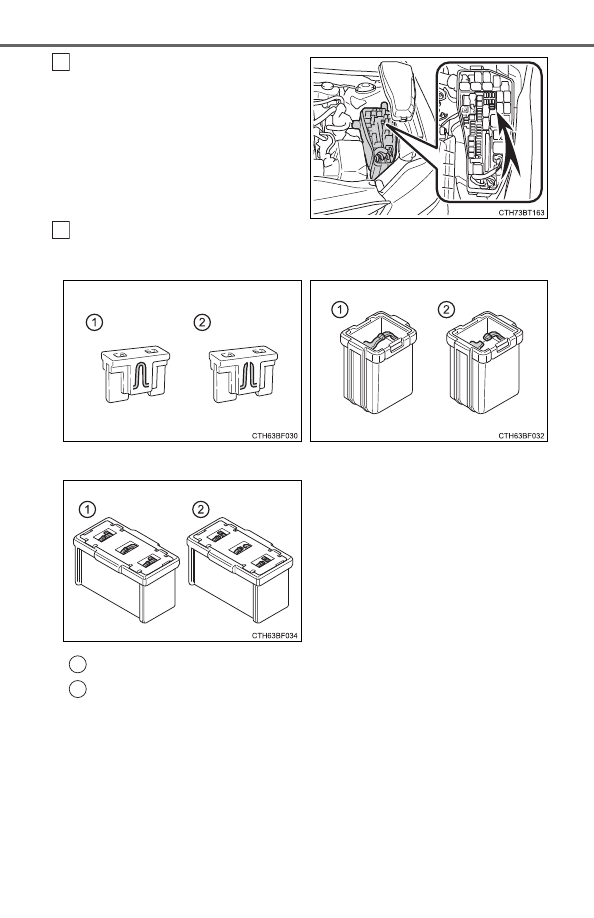

Remove the fuse with the pull-
out tool.

Only type A fuses can be removed
using the pullout tool.

Check if the fuse is blown.

Normal fuse

Blown fuse

Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.



Type A



Type B



Type C

1
2

459

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (

→P. 460)

●

If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.

■

If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

460

6-3. Do-it-yourself maintenance

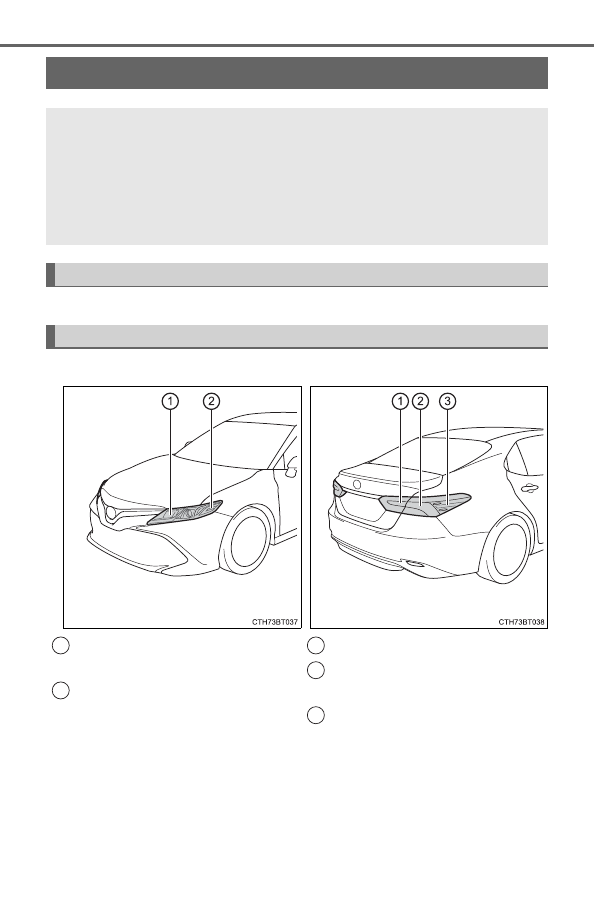

Check the wattage of the light bulb to be replaced. (

→P. 534)

Light bulbs

You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.

For more information about replacing other light bulbs, contact
your Toyota dealer.

Preparing for light bulb replacement

Bulb locations



Front



Rear

Front turn signal/parking lights
(bulb type)

Front side marker lights (bulb
type)

Back-up lights (bulb type)

Rear turn signal lights (bulb
type)

Rear side marker lights (bulb
type)

1
2

461

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

■

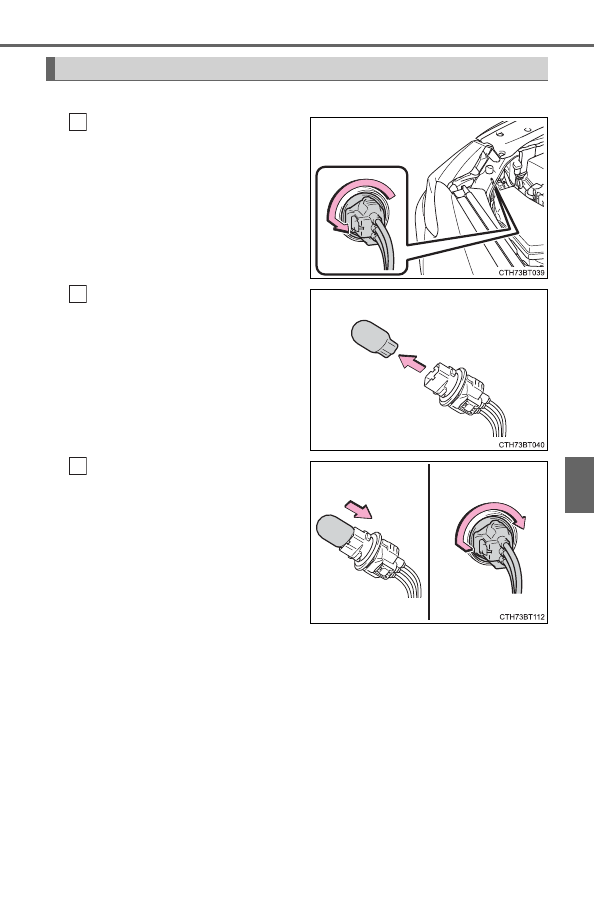

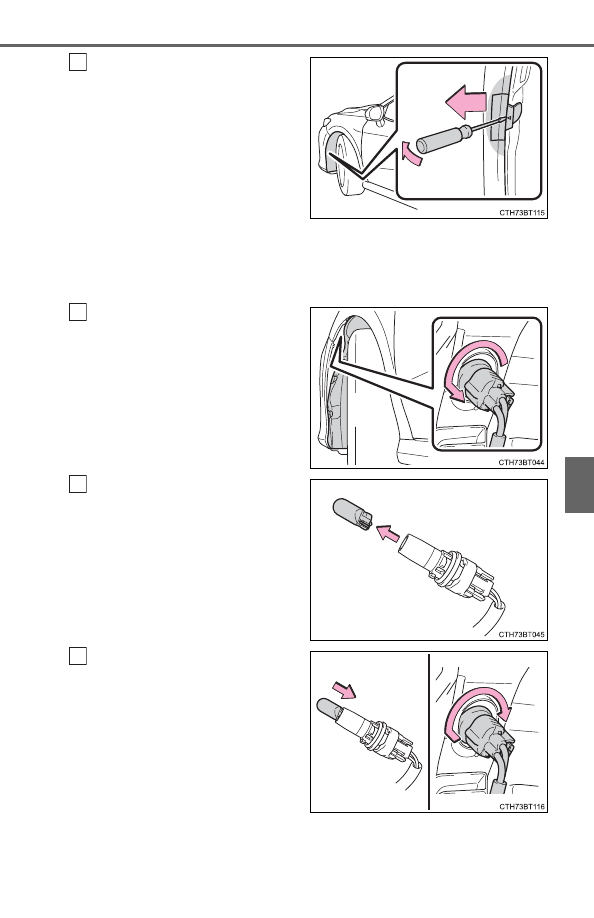

Front turn signal/parking lights (bulb type)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.

Replacing light bulbs

462

6-3. Do-it-yourself maintenance

■

Front side marker lights (bulb type)

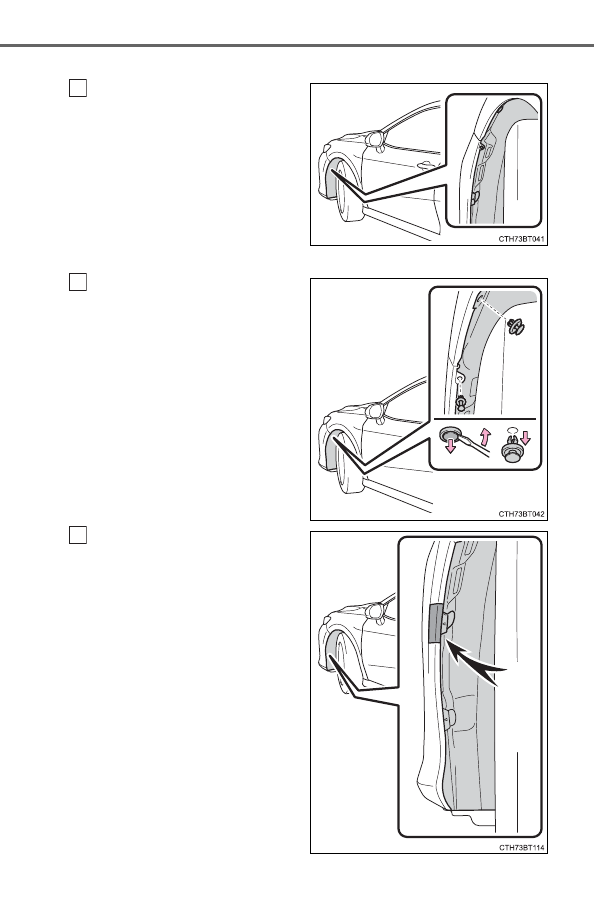

To ensure enough space to
perform work, turn the steer-
ing wheel to move the front
wheel away from the light
bulb to be replaced.

Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.

Remove the fender liner
clips.

To protect the front bumper
from being damaged, apply
protective tape around the
clip as shown in the illustra-
tion.

Use masking tape, etc. Do not
use duct tape, as it may leave
residue or damage the paint
when removed.

463

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

Insert a small flathead screw-
driver between the front
bumper and fender liner at
the position marked with a
“

∇” and then separate the

front bumper from the fender
liner.

To separate the front bumper
from the fender liner, pry up the
fender liner while pulling the
front bumper outward as shown
in the illustration.

Pull back the fender liner and
turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb and
then install the bulb base to
the light unit by inserting it
and turning it clockwise.

464

6-3. Do-it-yourself maintenance

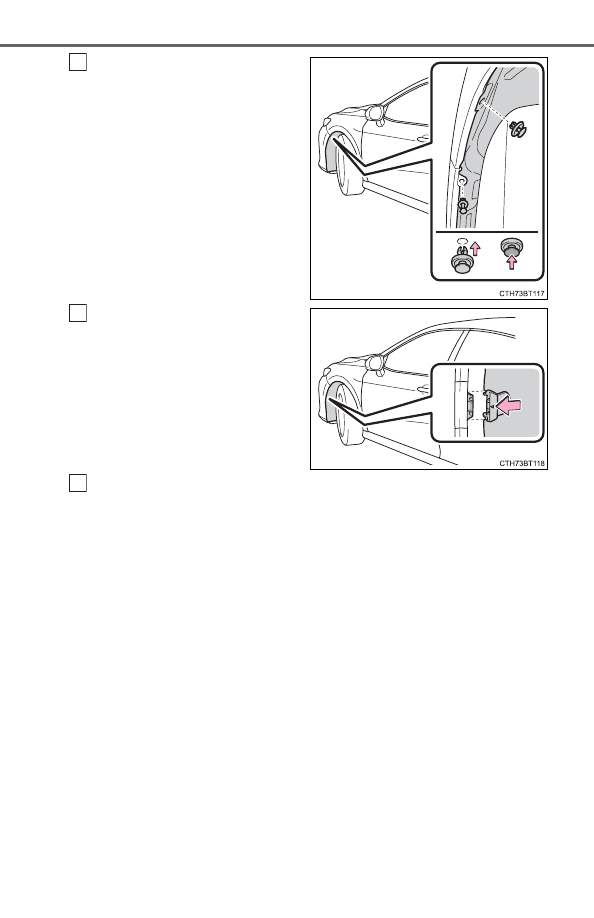

Return the fender liner to its
original position, and install
the clips.

Make sure that the fender liner
is correctly positioned on the
inner side of the front bumper.

To Install the fender liner to
the front bumper, engage the
clip to the front bumper.

Remove the protective tape.

Toyota Camry Hybrid (2018 year). Instruction - part 29
