Toyota Camry Hybrid (2018 year). Instruction

433

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

Select “Change Wheel” then
press and hold

until

the tire pressure warning
light blinks slowly 3 times.

Then a message will be dis-
played on the multi-information
display.

When registration is being per-
formed, the tire pressure warn-
ing light will blink for
approximately 1 minute then
illuminate and “- -” will be dis-
played for the inflation pres-
sure of each tire on the multi-
information display.

Drive straight (with occasional left and right turns) at approxi-
mately 25 mph (40 km/h) or more for approximately 10 to 30 min-
utes.

Registration is complete when the tire pressure warning light turns
off and the inflation pressure of each tire is displayed on the multi-
information display.

Registration may take longer than approximately 1 hour in certain
situations, such as when the vehicle is stopped for a long time at
traffic lights, etc. (

→P. 439)

After registering the ID codes, make sure to initialize the tire pres-
sure warning system. (

→P. 430)

434

6-3. Do-it-yourself maintenance

■

When to replace your vehicle’s tires
Tires should be replaced if:

●

The treadwear indicators are showing on a tire.

●

You have tire damage such as cuts, splits, cracks deep enough to
expose the fabric, and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be properly repaired due to the size
or location of a cut or other damage

If you are not sure, consult with your Toyota dealer.

■

Replacing tires and wheels
If the ID codes of the tire pressure warning valve and transmitters are not
registered, the tire pressure warning system will not work properly. In this
case, after driving for about 20 minutes, the tire pressure warning light will
blink for approximately 1 minute and then illuminate to indicate a system
malfunction.

■

Tire life
Any tire over 6 years old must be checked by a qualified technician even
if it has seldom or never been used or damage is not obvious.

■

Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation
pressure checks. Make sure to check tire inflation pressure as part of
your routine of daily vehicle checks.

■

Low profile tires (vehicles with 18-inch wheels)
Generally, low profile tires will wear more rapidly and tire grip perfor-
mance will be reduced on snowy and/or icy roads when compared to
standard tires. Be sure to use snow tires on snowy and/or icy roads and
drive carefully at a speed appropriate for road and weather conditions.

■

Maximum load of tire
Check that the maximum load of the replacement tire is greater than 1/2
of the Gross Axle Weight Ratings (GAWR) of either the front axle or the
rear axle, whichever is greater.

For the GAWR, see the Certification
Label. For the maximum load of the tire,
see the load limit at maximum cold tire
inflation pressure mentioned on the
sidewall of the tire. (

→P. 538)

435

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

■

Tire types

●

Summer tires

Summer tires are high-speed performance tires best suited to highway
driving under dry conditions. Since summer tires do not have the same
traction performance as snow tires, summer tires are inadequate for
driving on snow-covered or icy roads. For driving on snow-covered
roads or icy roads, the use of snow tires is recommended. When install-
ing snow tires, be sure to replace all four tires.

●

All season tires

All season tires are designed to provide better traction in snow and to
be adequate for driving in most winter conditions as well as for use
year-round. All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose snow. Also, all
season tires fall short in acceleration and handling performance com-
pared with summer tires in highway driving.

●

Snow tires

For driving on snow-covered roads or icy roads, we recommend using
snow tires. If you need snow tires, select tires of the same size, con-
struction and load capacity as the originally installed tires. Since your
vehicle has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires without
first checking local regulations for possible restrictions. Snow tires
should be installed on all wheels. (

→P. 338)

■

If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.

436

6-3. Do-it-yourself maintenance

■

Situations in which the tire pressure warning system may not oper-
ate properly

●

In the following situations, the tire pressure warning system may not
operate properly.

• If non-genuine Toyota wheels are used.
• If a tire has been replaced with a tire that is not an OE (Original

Equipment) tire.

• If a tire has been replaced with a tire that is not of the specified size.
• If tire chains, etc. are installed.
• If a window tint that affects radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is much higher than the specified level.
• If wheels not equipped with tire pressure warning valve and transmit-

ter are used.

• If the ID codes of the tire pressure warning valve and transmitters are

not registered in the tire pressure warning computer.

●

Performance may be affected in the following situations.

• When driving near a TV tower, electric power plant, gas station, radio

station, large display, airport or other facility that generates strong
radio waves or electrical noise

• When carrying a portable radio, cellular phone, cordless phone or

other wireless communication device

Vehicles with a tire inflation pressure display function: If tire position
information is not correctly displayed due to the radio wave conditions,
the display may be corrected by changing the location of the vehicle as
the radio wave conditions may change.

●

When the vehicle is stopped, the time taken for the warning to start or
turn off may be longer.

●

When the inflation pressure of a tire drops rapidly, for example when a
tire has burst, the warning may not operate.

437

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

■

Initialization procedure

●

Make sure to perform the initialization procedure after adjusting the tire
inflation pressure.
Also, make sure the tires are cold before performing the initialization
procedure or adjusting the tire inflation pressure.

●

If the power switch is turned off during initialization, it is not necessary to
restart the initialization procedure from the beginning as it will begin
automatically when the power switch is turned back to ON mode.

●

If initialization has accidentally been started when it is not necessary,
adjust the tire inflation pressure to the specified level when the tires are
cold and then perform the initialization procedure again.

●

Vehicles with a tire inflation pressure display function: While the position
of each tire is being determined and the inflation pressures are not being
displayed on the multi-information display, if the inflation pressure of a
tire drops, the tire pressure warning light will come on.

■

Warning performance of the tire pressure warning system
The warning of the tire pressure warning system will change in accor-
dance with the conditions under which it was initialized. For this reason,
the system may give a warning even if the tire pressure does not reach a
low enough level, or if the pressure is higher than the pressure that was
adjusted to when the system was initialized.

■

If the tire pressure warning system is not initialized properly



Vehicles without a tire inflation pressure display function

Initialization can be completed in a few minutes. However, in the following
cases, the settings have not been recorded and the system will not oper-
ate properly. If repeated attempts to record tire inflation pressure settings
are unsuccessful, have the vehicle inspected by your Toyota dealer.

●

If initialization is attempted and the tire pressure warning light does not
blink 3 times.

●

If, when the vehicle has been driven for about 20 minutes after perform-
ing initialization, the tire pressure warning light blinks for approximately
1 minute and then illuminates.

438

6-3. Do-it-yourself maintenance



Vehicles with a tire inflation pressure display function

●

In the following situations, initialization may take longer than usual to be
completed or may not be possible. (Usually, the vehicle will need to be
driven for approximately 10 to 30 minutes to complete initialization.)
If initialization is not complete after driving approximately 30 minutes,
continue driving for a while.

• If the vehicle is driven on an unpaved road, it may take longer to com-

plete initialization.

• If the vehicle is backed up while performing initialization, data col-

lected during initialization will be cleared and it will take longer than
normal to complete.

• If the vehicle is driven in heavy traffic or another situation where other

vehicles are driven close by, it may take time for the system to recog-
nize the tire pressure warning valve and transmitters of your vehicle
over those of other vehicles.

If initialization is not complete after driving for approximately 1 hour,
park the vehicle in a safe place for approximately 20 minutes and then
drive the vehicle again.

●

In the following situations, initialization will not be started or was not
completed properly and the system will not operate properly. Perform
the initialization procedure again.

• If, when attempting to start initialization, the tire pressure warning light

does not blink 3 times.

• If, when the vehicle has been driven for about 20 minutes after per-

forming initialization, the tire pressure warning light blinks for approxi-
mately 1 minute and then illuminates.

●

If initialization cannot be completed after performing the above proce-
dure, contact your Toyota dealer.

■

When registering ID codes (vehicles with a tire inflation pressure dis-
play function)

●

Before performing ID code registration, make sure that no wheels with
tire pressure warning valve and transmitters installed are near the vehi-
cle.

●

Make sure to initialize the tire pressure warning system after registering
the ID codes. If the system is initialized before registering the ID codes,
the initialized values will be invalid.

●

As the tires will be warm when registration is completed, make sure to
allow the tires to cool before performing initialization.

439

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

■

Canceling ID code registration (vehicles with a tire inflation pressure
display function)

●

To cancel ID code registration after it has been started, turn the power
switch off before driving the vehicle.
If the vehicle is driven after ID code registration is started, to cancel reg-
istration, perform the ID code registration start procedure again and turn
the power switch off before driving.

●

If ID code registration has been canceled, the tire pressure warning light
will blink for approximately 1 minute when the power switch is turned to
ON mode and then illuminate. The tire pressure warning system will be
operational when the tire pressure warning light turns off.

●

If the warning light does not turn off even after several minutes have
elapsed, ID code registration may not have been cancelled correctly. To
cancel registration, perform the ID code registration start procedure
again and then turn the power switch off before driving.

■

If ID codes are not registered properly (vehicles with a tire inflation
pressure display function)

●

In the following situations, ID code registration may take longer than
usual to be completed or may not be possible. (Usually, the vehicle will
need to be driven for approximately 10 to 30 minutes to complete ID
code registration.)
If ID code registration is not complete after driving for approximately 30
minutes, continue driving for a while.

• If the vehicle is driven on an unpaved road, it may take longer than

normal to complete registration.

• If the vehicle is backed up while performing registration, data col-

lected during registration will be cleared, and it will take longer than
normal to complete.

• If the vehicle is driven in heavy traffic or another situation where other

vehicles are driven close by, it may take time for the system to recog-
nize the tire pressure warning valve and transmitters of your vehicle
over those of other vehicles.

• If a wheel with a tire pressure warning valve and transmitter installed

is inside or near the vehicle, registration of the ID codes for the
installed wheels may not be possible.

If ID registration is not complete after driving for approximately 1 hour,
park the vehicle in a safe place for approximately 20 minutes and then
perform the ID code registration procedure again.

440

6-3. Do-it-yourself maintenance

●

In the following situations, ID code registration will not be started or was
not completed properly and the system will not operate properly. Per-
form the ID code registration procedure again.

• If, when attempting to start ID code registration, the tire pressure

warning light does not blink slowly 3 times.

• If, when the vehicle has been driven for about 20 minutes after per-

forming ID code registration, the tire pressure warning light blinks for
approximately 1 minute and then illuminates.

●

If ID code registration cannot be completed after performing the above
procedure, contact your Toyota dealer.

■

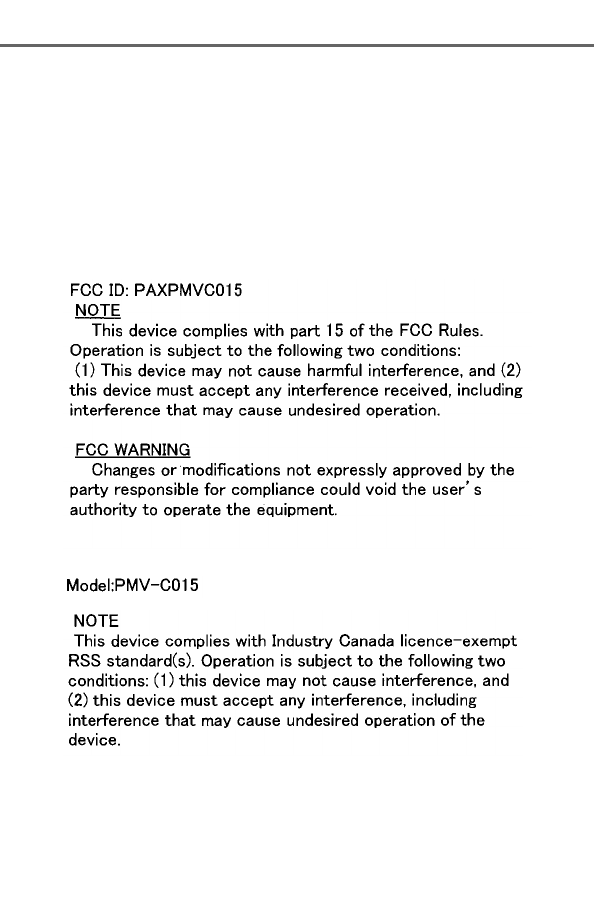

Tire pressure warning system certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada

441

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

WARNING

■

When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as
dangerous handling characteristics, which may lead to an accident
resulting in death or serious injury.

●

Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.

●

Do not use tire sizes other than those recommended by Toyota.

●

Do not mix differently constructed tires (radial, bias-belted or bias-ply
tires).

●

Do not mix summer, all season and snow tires.

●

Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.

■

When initializing the tire pressure warning system
Do not initialize the tire pressure warning system without first adjusting
the tire inflation pressure to the specified level. Otherwise, the tire pres-
sure warning light may not come on even if the tire inflation pressure is
low, or it may come on when the tire inflation pressure is actually nor-
mal.

442

6-3. Do-it-yourself maintenance

NOTICE

■

Repairing or replacing tires, wheels, tire pressure warning valve
and transmitters and tire valve caps

●

When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitters, contact your Toyota dealer as the tire pressure
warning valve and transmitters may be damaged if not handled cor-
rectly.

●

Make sure to install the tire valve caps. If the tire valve caps are not
installed, water may enter the valves of the tire pressure warning valve
and transmitters and the valves may become stuck.

●

When replacing tire valve caps, do not use tire valve caps other than
those specified. The cap may become stuck.

■

To avoid damage to the tire pressure warning valve and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (

→P. 430)

■

Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot-
holes.
These conditions may cause losses in tire inflation pressure, reducing
the cushioning ability of the tires. In addition, driving on rough roads
may cause damage to the tires themselves, as well as the vehicle’s
wheels and body.

■

Low profile tires (vehicles with 18-inch wheels)
Low profile tires may cause greater damage than usual to the tire wheel
when sustaining impact from the road surface. Therefore, pay attention
to the following:

●

Be sure to use proper tire inflation pressure. If tires are under-inflated,
they may be damaged more severely.

●

Avoid potholes, uneven pavement, curbs and other road hazards. Fail-
ure to do so may lead to severe tire and wheel damage.

■

If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

443

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

The recommended cold tire infla-
tion pressure and tire size are dis-
played on the tire and loading
information label. (

→P. 532)

Tire inflation pressure

444

6-3. Do-it-yourself maintenance

Tire valve

Tire pressure gauge

Remove the tire valve cap.

Press the tip of the tire pressure gauge onto the tire valve.

Read the pressure using the gauge gradations.

If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.

After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leakage.

Put the tire valve cap back on.

■

Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once
a month.
Do not forget to check the spare.

■

Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drivetrain

If a tire needs frequent inflating, have it checked by your Toyota dealer.

Inspection and adjustment procedure

1
2

1
2
3
4

445

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

■

Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:

●

Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold tire
inflation pressure reading.

●

Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appear-
ance.

●

It is normal for the tire inflation pressure to be higher after driving as
heat is generated in the tire. Do not reduce tire inflation pressure after
driving.

●

Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is
balanced.

WARNING

■

Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur
which could lead to an accident resulting in death or serious injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting from overheated tires

●

Air leaking from between tire and wheel

●

Wheel deformation and/or tire damage

●

Greater possibility of tire damage while driving (due to road hazards,
expansion joints, sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.

446

6-3. Do-it-yourself maintenance

When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset

Replacement wheels are available at your Toyota dealer.

: Conventionally referred to as “offset”.

Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened

● Use only Toyota wheel nuts and wrenches designed for use with

your aluminum wheels.

● When rotating, repairing or changing your tires, check that the

wheel nuts are still tight after driving 1000 miles (1600 km).

● Be careful not to damage the aluminum wheels when using tire

chains.

● Use only Toyota genuine balance weights or equivalent and a plas-

tic or rubber hammer when balancing your wheels.

■

When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valve
and transmitters that allow the tire pressure warning system to provide
advance warning in the event of a loss in tire inflation pressure. When-
ever wheels are replaced, tire pressure warning valve and transmitters
must be installed. (

→P. 430)

Wheels

If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.

Wheel selection

Aluminum wheel precautions (if equipped)

447

6-3. Do-it-yourself maintenance

Mai

tenan

ce and care

WARNING

■

When replacing wheels

●

Do not use wheels that are a different size from those recommended in
the Owner’s Manual, as this may result in a loss of handling control.

●

Never use an inner tube in a leaking wheel which is designed for a
tubeless tire. Doing so may result in an accident, causing death or seri-
ous injury.

■

When installing the wheel nuts

●

Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an
accident and resulting in death or serious injury. Remove any oil or
grease from the wheel bolts or wheel nuts.

NOTICE

■

Replacing tire pressure warning valve and transmitters

●

Because tire repair or replacement may affect the tire pressure warn-
ing valve and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valve and transmitters at your
Toyota dealer.

●

Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valve and transmitters may not work properly
with non-genuine wheels.

●

Be sure to install the wheel nuts with
the tapered ends facing inward.
Installing the nuts with the tapered
ends facing outward can cause the
wheel to break and eventually cause
the wheel to come off while driving,
which could lead to an accident
resulting in death or serious injury.

Tapered
portion

448

6-3. Do-it-yourself maintenance

Turn the power switch off.

Open the glove box and
remove the glove box cover
inside the glove box.

Remove the filter cover.

Unlock the filter cover.

Move the filter cover in the
direction of the arrow, and
then pull it out of the claws.

Remove the filter case.

There may be foreign objects on
top of the air conditioning filter.

Air conditioning filter

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.

Removal method

1
2

Toyota Camry Hybrid (2018 year). Instruction - part 28
