Toyota Aygo (2017 year). Instruction - part 2

Pictorial index

17

1

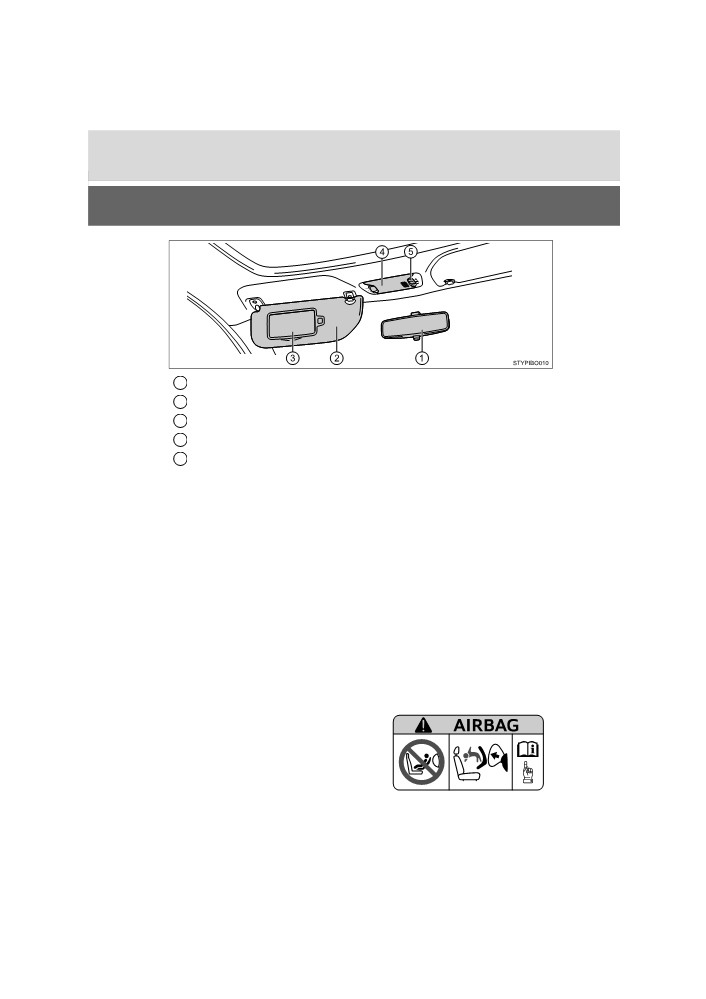

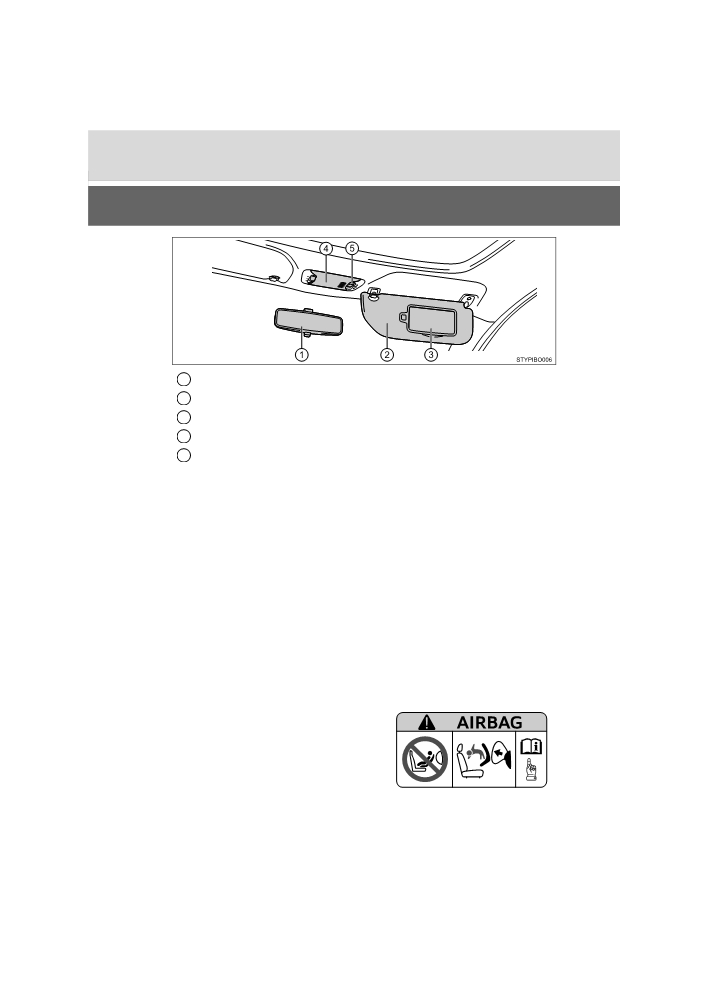

Inside rear view mirror

P. 128

2

Sun visors*1

P. 305

3

Vanity mirrors

P. 305

4

Interior lights

P. 298

5

Canvas top switch*2

P. 134

*1: NEVER use a rearward facing child

restraint on a seat protected by an

ACTIVE AIRBAG in front of it, DEATH

or SERIOUS INJURY to the CHILD

can occur. (P. 67)

*2: If equipped

AYGO_OM_Europe_OM99P46E

18

Pictorial index

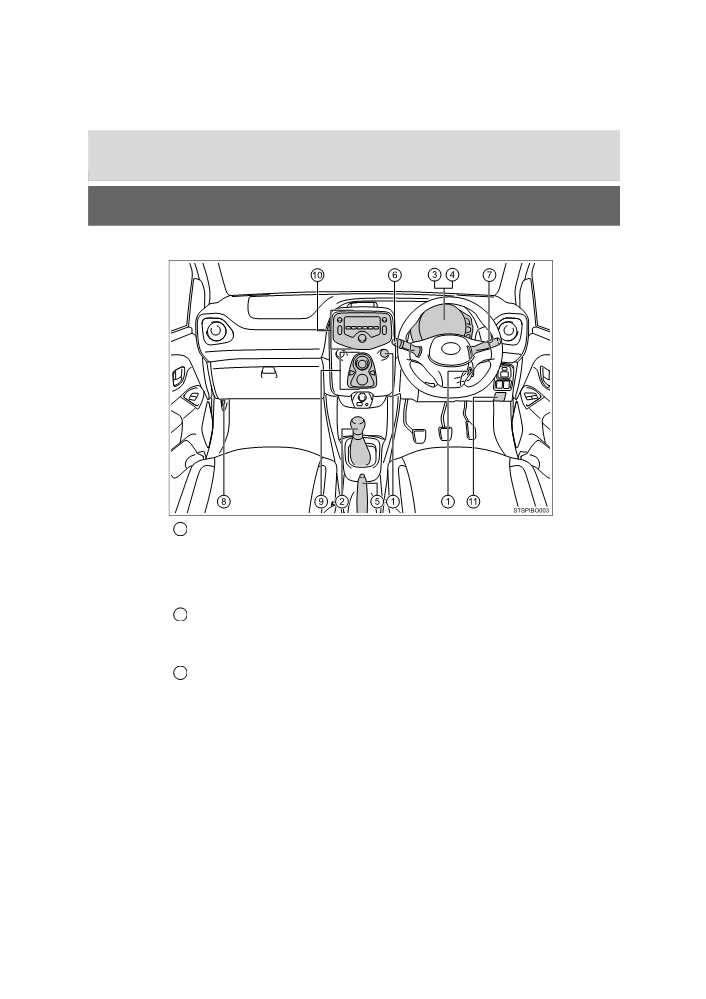

■Instrument panel (Right-hand drive vehicles)

1

Engine switch

P. 149, 152

Starting the engine

P. 149, 152

Changing the engine switch positions/modes

P. 149, 154

Emergency stop of the engine

P. 373

When the engine will not start

P. 420

Warning light*1

P. 387, 391

2

Shift lever

P. 157, 162

Changing the shift position

P. 157, 162

Precautions against towing

P. 375

When the shift lever does not move*2

P. 422

3

Meters

P. 83

Reading the meters

P. 83

Adjusting the instrument cluster light

P. 88

Warning lights/indicator lights

P. 78

When the warning lights come on

P. 383

AYGO_OM_Europe_OM99P46E

Pictorial index

19

4

Drive monitor display

P. 85

5

Parking brake lever

P. 165

Applying/releasing

P. 165

Precautions against winter season

P. 224

Warning buzzer

P. 383

6

Turn signal lever

P. 164

Headlight switch

P. 166

Headlights/front position lights/tail lights/

daytime running lights*3

P. 166

Front fog lights*3/rear fog lights

P. 170

7

Wiper and washer switch

P. 172, 174

Usage (front)

P. 172

Usage (rear)

P. 174

Adding washer fluid

P. 336

8

Hood lock release lever

P. 322

9

Manual air conditioning system*3

P. 284

Automatic air conditioning system*3

P. 290

Usage

P. 284, 290

Rear window defogger

P. 286, 292

10

Audio system*3

P. 228

Multimedia system*3, 4

11

Fuel filler door opener

P. 178

*1: Vehicles with a smart entry & start system

*2: Vehicles with a multi-mode manual transmission

*3: If equipped

*4: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.

AYGO_OM_Europe_OM99P46E

20

Pictorial index

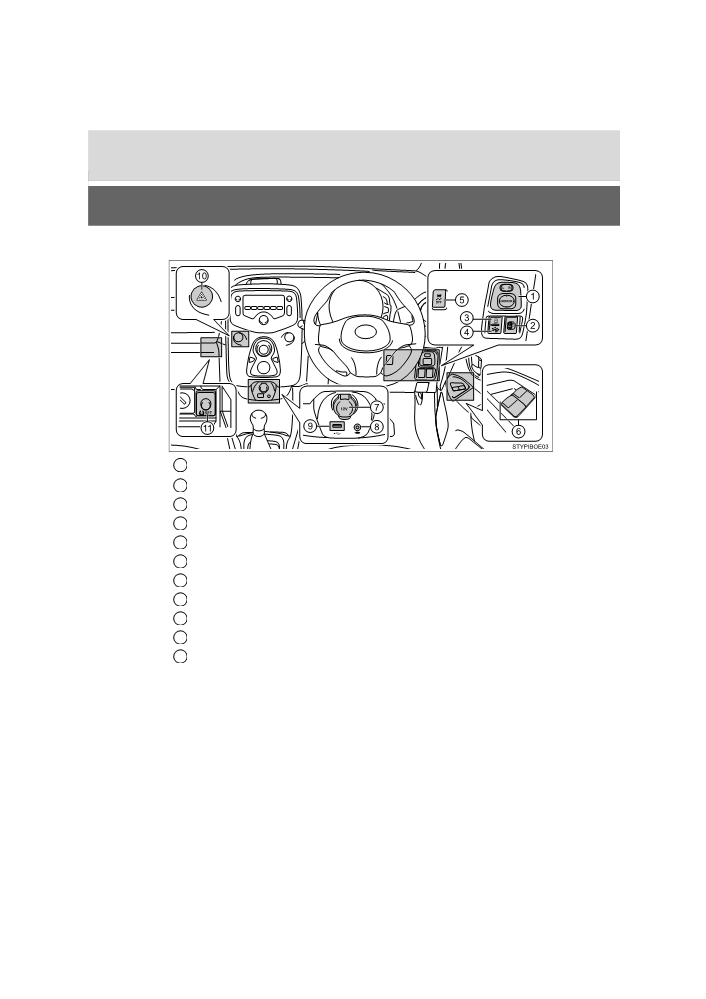

■Switches (Right-hand drive vehicles)

1

Outside rear view mirror switches*1

P. 129

2

Headlight leveling dial

P. 167

3

Stop & Start cancel switch*1

P. 211

4

PCS switch*1

P. 189

5

VSC off switch*1

P. 218

6

Power window switches*1

P. 131

7

Power outlet

P. 308

8

AUX port*1, 3

P. 231

9

USB port*1, 3

P. 231

10

Emergency flasher switch

P. 372

11

Tire pressure warning reset switch*1

P. 339

AYGO_OM_Europe_OM99P46E

Pictorial index

21

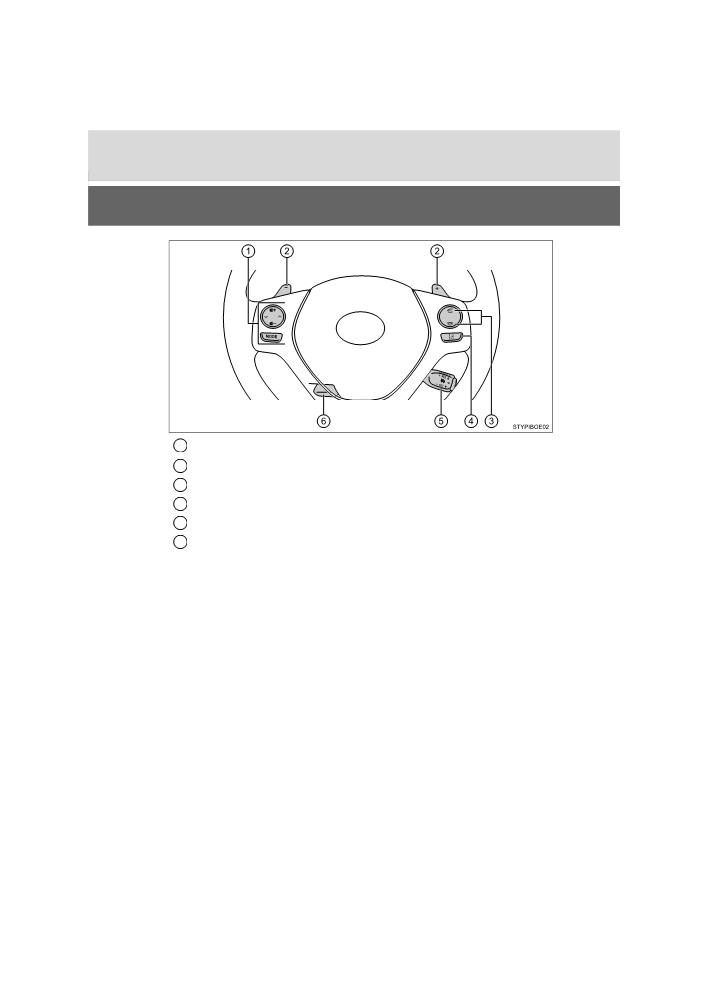

1

Audio remote control switches*1, 3

P. 230

2

Paddle shift switches*2

P. 157

3

Telephone switches*1, 3

P. 261

4

LDA (Lane Departure Alert) switch*1

P. 200

5

Speed limiter switch*1

P. 206

6

Tilt steering lock release lever

P. 126

*1: If equipped

*2: Vehicles with a multi-mode manual transmission

*3: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.

AYGO_OM_Europe_OM99P46E

22

Pictorial index

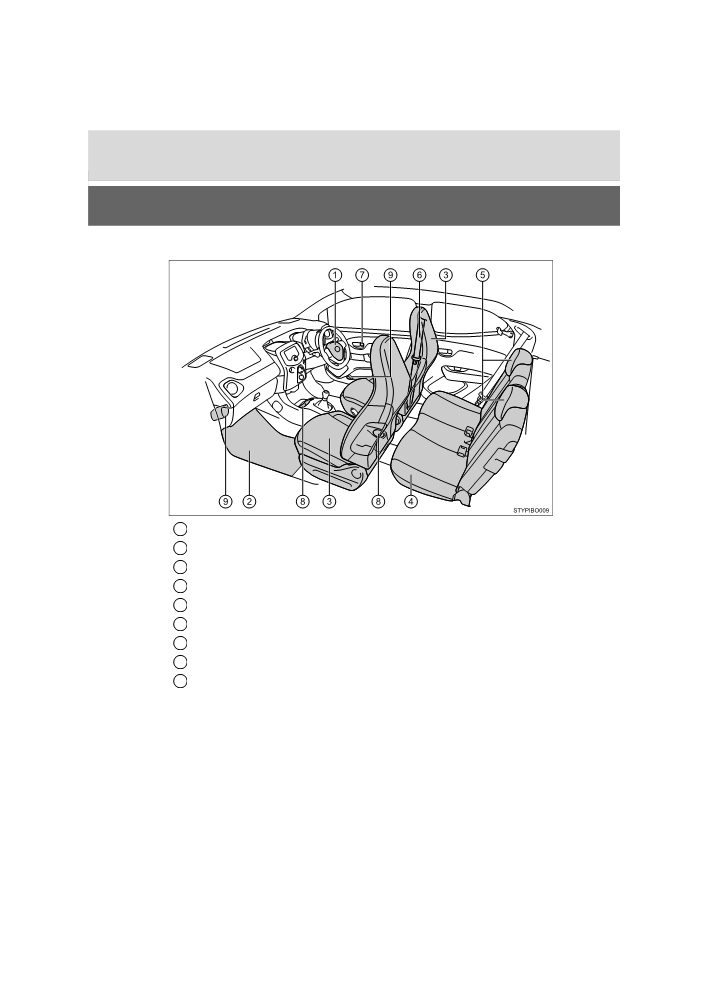

■Interior (Right-hand drive vehicles)

1

SRS airbags

P. 34

2

Floor mats

P. 26

3

Front seats

P. 121

4

Rear seats

P. 123

5

Head restraints

P. 125

6

Seat belts

P. 30

7

Inside lock buttons

P. 104

8

Cup holders

P. 300

9

Bottle holders

P. 301

AYGO_OM_Europe_OM99P46E

Pictorial index

23

1

Inside rear view mirror

P. 128

2

Sun visors*1

P. 305

3

Vanity mirrors

P. 305

4

Interior lights

P. 298

5

Canvas top switch*2

P. 134

*1: NEVER use a rearward facing child

restraint on a seat protected by an

ACTIVE AIRBAG in front of it, DEATH

or SERIOUS INJURY to the CHILD

can occur. (P. 67)

*2: If equipped

AYGO_OM_Europe_OM99P46E

24

Pictorial index

AYGO_OM_Europe_OM99P46E

26

1-1. For safe use

Before driving

Floor mat

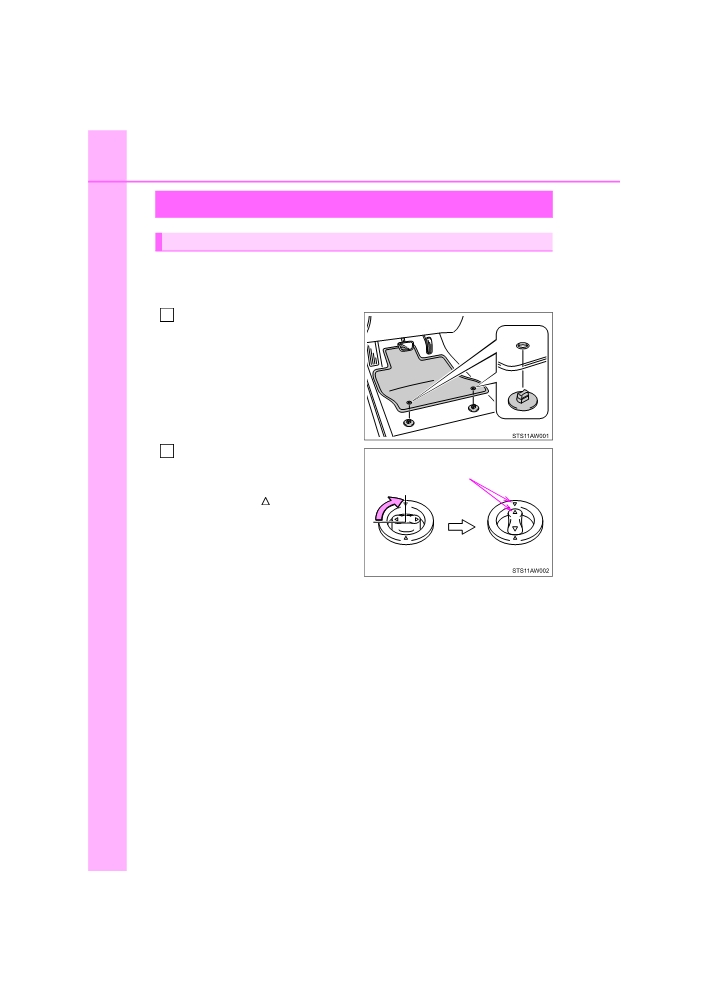

Use only floor mats designed specifically for vehicles of the same

model and model year as your vehicle. Fix them securely in place

onto the carpet.

Insert the retaining hooks (clips)

1

into the floor mat eyelets.

Turn the upper knob of each

2

retaining hook (clip) to secure

*

the floor mats in place.

*: Always align the marks.

The shape of the retaining hooks (clips) may differ from that shown in the

illustration.

AYGO_OM_Europe_OM99P46E

1-1. For safe use

27

WARNING

Observe the following precautions.

Failure to do so may cause the driver’s floor mat to slip, possibly interfering

with the pedals while driving. An unexpectedly high speed may result or it may

become difficult to stop the vehicle. This could lead to an accident, resulting in

death or serious injury.

1

■ When installing the driver’s floor mat

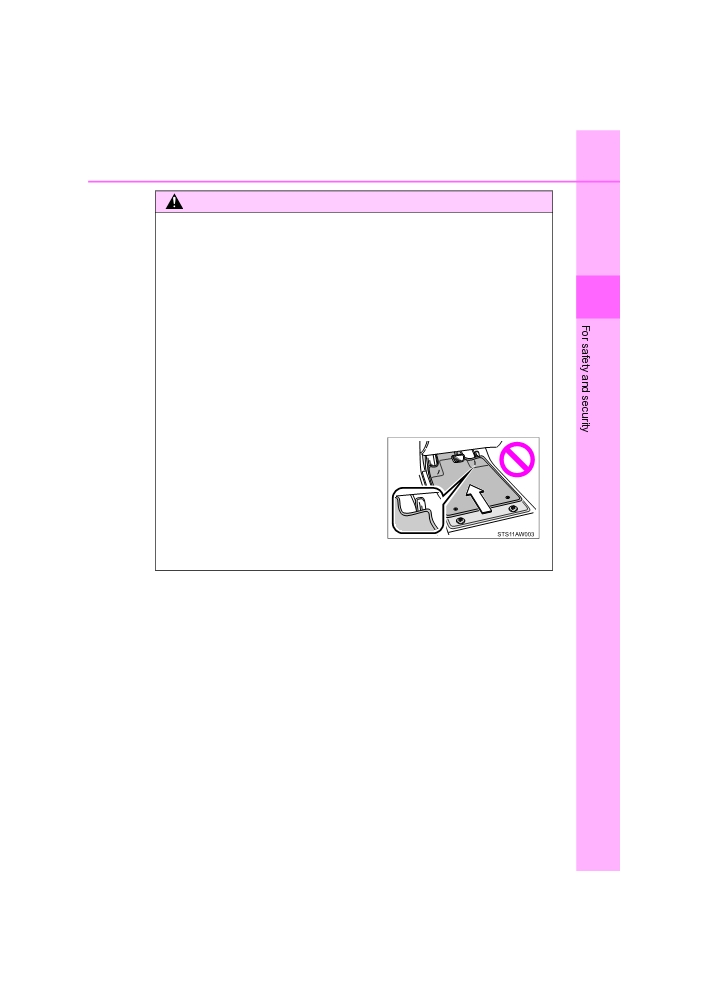

●Do not use floor mats designed for other models or different model year

vehicles, even if they are Toyota Genuine floor mats.

●Only use floor mats designed for the driver’s seat.

● Always install the floor mat securely using the retaining hooks (clips) pro-

vided.

●Do not use two or more floor mats on top of each other.

●Do not place the floor mat bottom-side up or upside-down.

■ Before driving

●Check that the floor mat is securely

fixed in the correct place with all the

provided retaining hooks

(clips). Be

especially careful to perform this check

after cleaning the floor.

●With the engine stopped and the shift

lever in N, fully depress each pedal to

the floor to make sure it does not inter-

fere with the floor mat.

AYGO_OM_Europe_OM99P46E

28

1-1. For safe use

For safety drive

For safe driving, adjust the seat and mirror to an appropriate

position before driving.

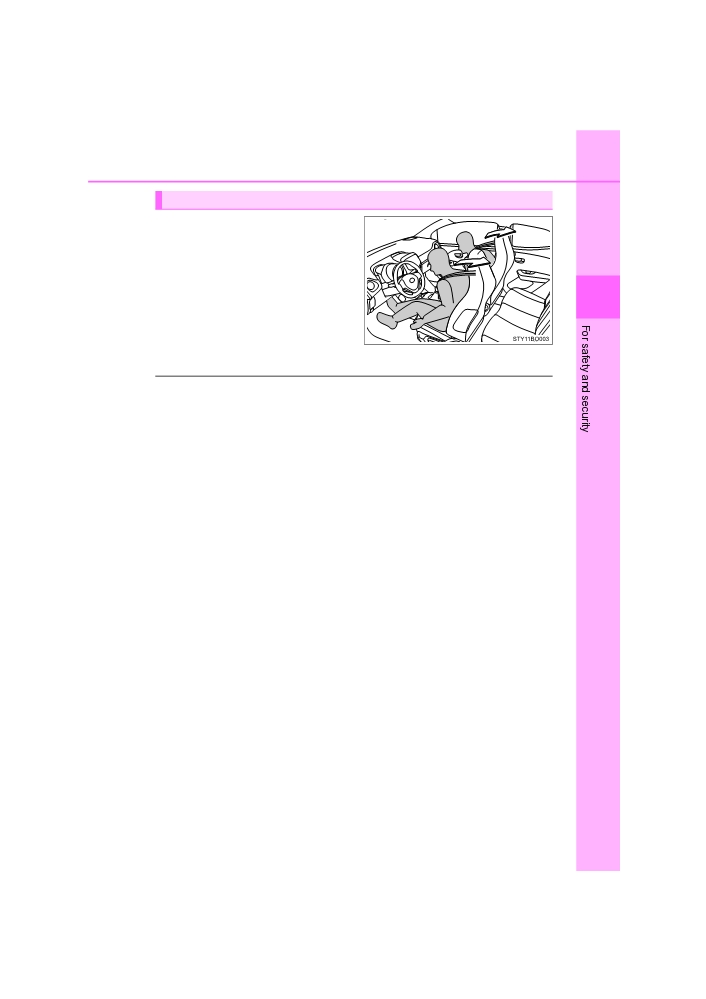

Correct driving posture

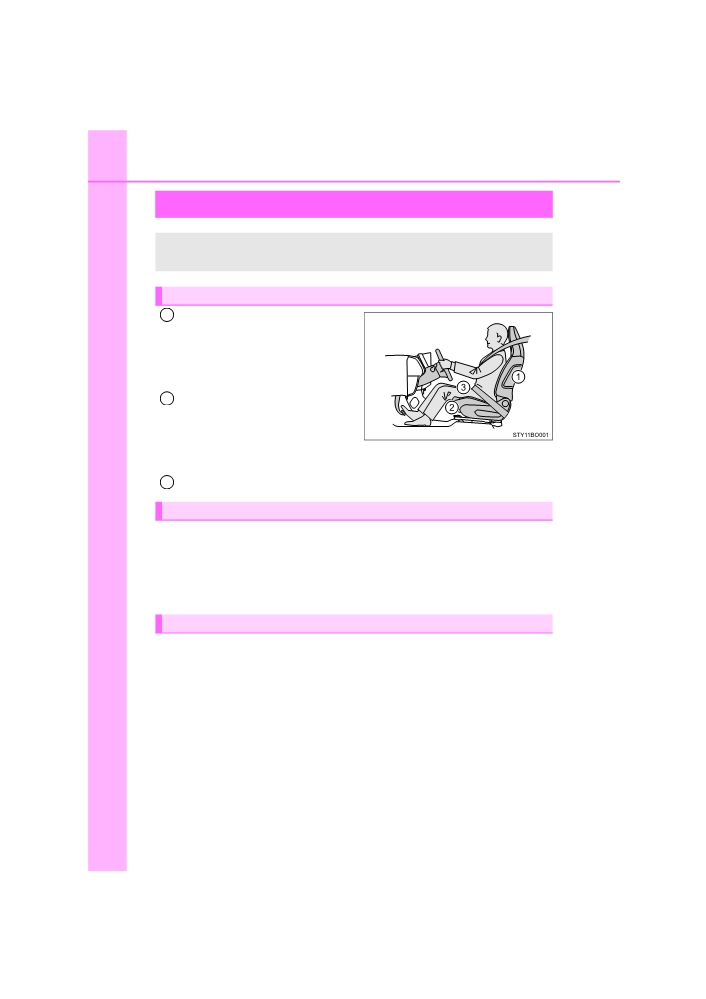

Adjust the angle of the seat-

1

back so that you are sitting

straight up and so that you do

not have to lean forward to

steer. (P. 121)

Adjust the seat so that you can

2

depress the pedals fully and so

that your arms bend slightly at

the elbow when gripping the

steering wheel. (P. 121, 126)

Wear the seat belt correctly. (P. 30)

3

Correct use of the seat belts

Make sure that all occupants are wearing their seat belts before driv-

ing the vehicle. (P. 30)

Use a child restraint system appropriate for the child until the child

becomes large enough to properly wear the vehicle’s seat belt.

(P. 49)

Adjusting the mirrors

Make sure that you can see backward clearly by adjusting the inside

and outside rear view mirrors properly. (P. 128, 129)

AYGO_OM_Europe_OM99P46E

30

1-1. For safe use

Seat belts

Make sure that all occupants are wearing their seat belts before

driving the vehicle.

Correct use of the seat belts

● Extend the shoulder belt so that

it comes fully over the shoulder,

but does not come into contact

with the neck or slide off the

shoulder.

● Position the lap belt as low as

possible over the hips.

● Adjust the position of the seat-

back. Sit up straight and well

back in the seat.

● Do not twist the seat belt.

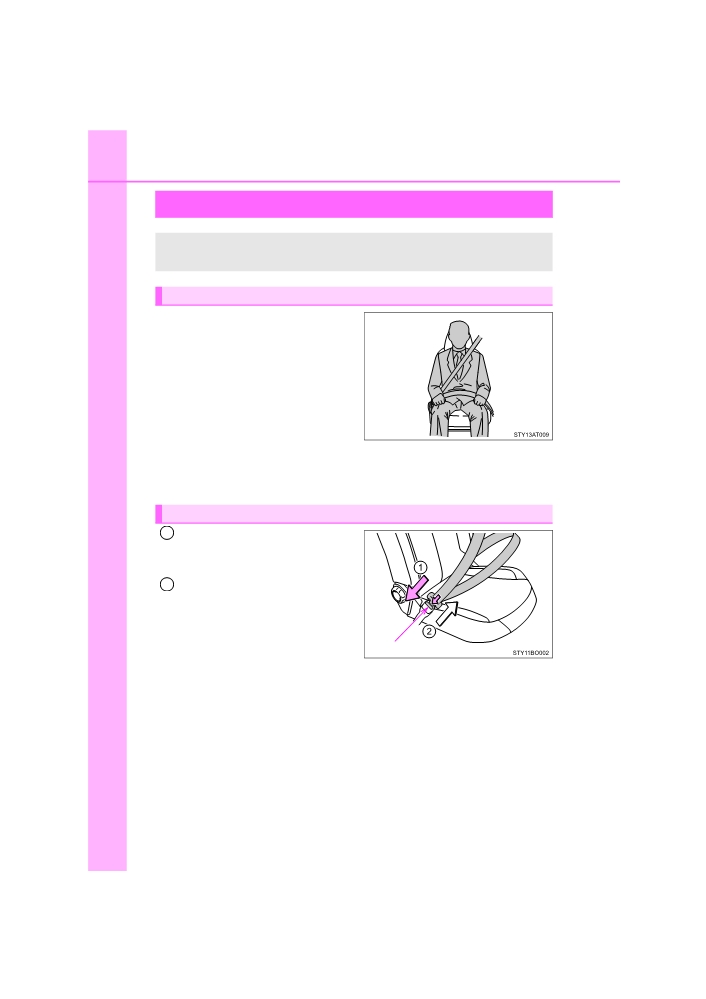

Fastening and releasing the seat belt

To fasten the seat belt, push the

1

plate into the buckle until a click

sound is heard.

2

To release the seat belt, press

the release button.

Release button

AYGO_OM_Europe_OM99P46E

1-1. For safe use

31

Seat belt pretensioners (front seats)

The pretensioners help the seat

belts to quickly restrain the occu-

pants by retracting the seat belts

when the vehicle is subjected to

certain types of severe frontal or

1

side collision.

The pretensioners do not activate

in the event of a minor frontal

impact, a minor side impact, a rear

impact or a vehicle rollover.

■ Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also

lock if you lean forward too quickly. A slow, easy motion will allow the belt to

extend so that you can move around fully.

■ Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult

size.

●Use a child restraint system appropriate for the child, until the child

becomes large enough to properly wear the vehicle’s seat belt. (P. 49)

● When the child becomes large enough to properly wear the vehicle’s seat

belt, follow the instructions regarding seat belt usage. (P. 30)

■ Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for

the first collision, but will not activate for the second or subsequent collisions.

■ Seat belt regulations

If seat belt regulations exist in the country where you reside, please contact

any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional for seat belt replacement or installation.

AYGO_OM_Europe_OM99P46E

32

1-1. For safe use

WARNING

Observe the following precautions to reduce the risk of injury in the event of

sudden braking, sudden swerving or an accident.

Failure to do so may cause death or serious injury.

■ Wearing a seat belt

● Ensure that all passengers wear a seat belt.

● Always wear a seat belt properly.

●Each seat belt should be used by one person only. Do not use a seat belt

for more than one person at once, including children.

● Toyota recommends that children be seated in the rear seat and always

use a seat belt and/or an appropriate child restraint system.

● To achieve a proper seating position, do not recline the seat more than

necessary. The seat belt is most effective when the occupants are sitting

up straight and well back in the seats.

●Do not wear the shoulder belt under your arm.

● Always wear your seat belt low and snug across your hips.

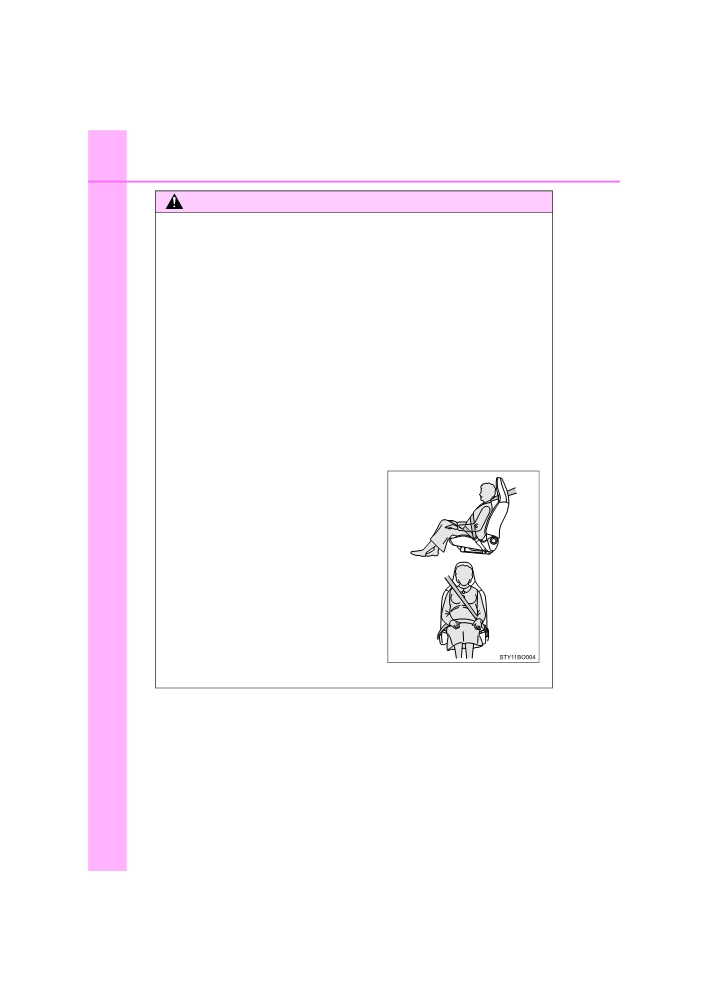

■ Pregnant women

Obtain medical advice and wear the seat

belt in the proper way. (P. 30)

Women who are pregnant should posi-

tion the lap belt as low as possible over

the hips in the same manner as other

occupants, extending the shoulder belt

completely over the shoulder and avoid-

ing belt contact with the rounding of the

abdominal area.

If the seat belt is not worn properly, not

only the pregnant woman, but also the

fetus could suffer death or serious injury

as a result of sudden braking or a colli-

sion.

AYGO_OM_Europe_OM99P46E
