6-3. Using the storage features

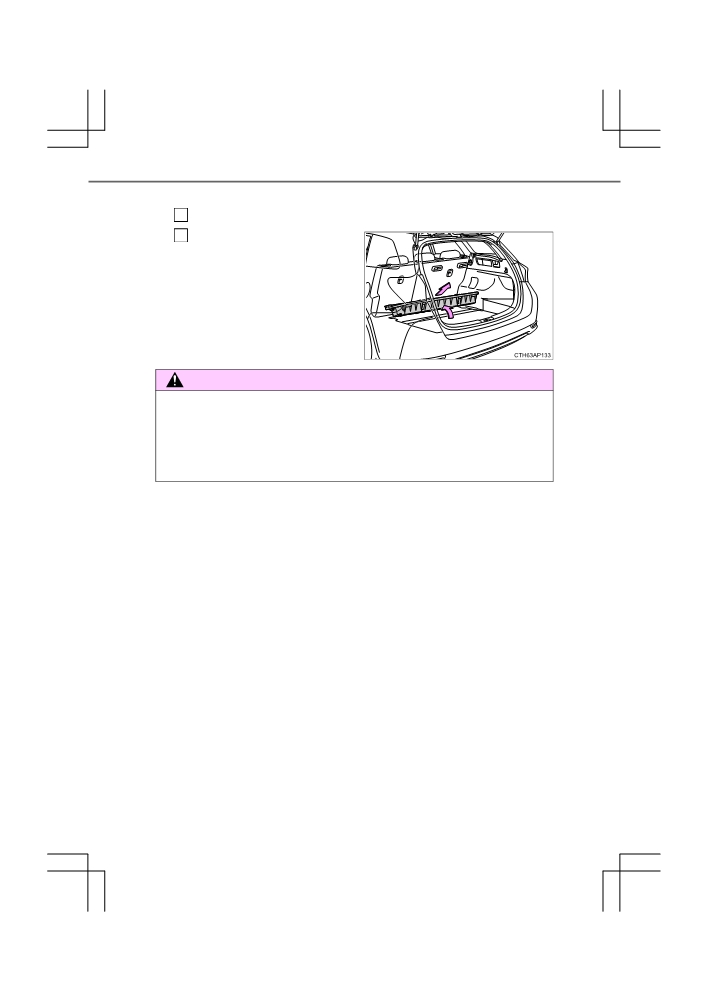

Storage box
1
Remove the front and rear center deck boards.
2
Lift the storage box and pull it
toward you to remove it.
WARNING
● Do not place anything on the center deck boards when operating the
board. Otherwise, your fingers may be caught or an accident may result
causing injuries.
● Do not drive with any of the center deck boards opened. Items may fall out
and cause injury.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-3. Using the storage features
409

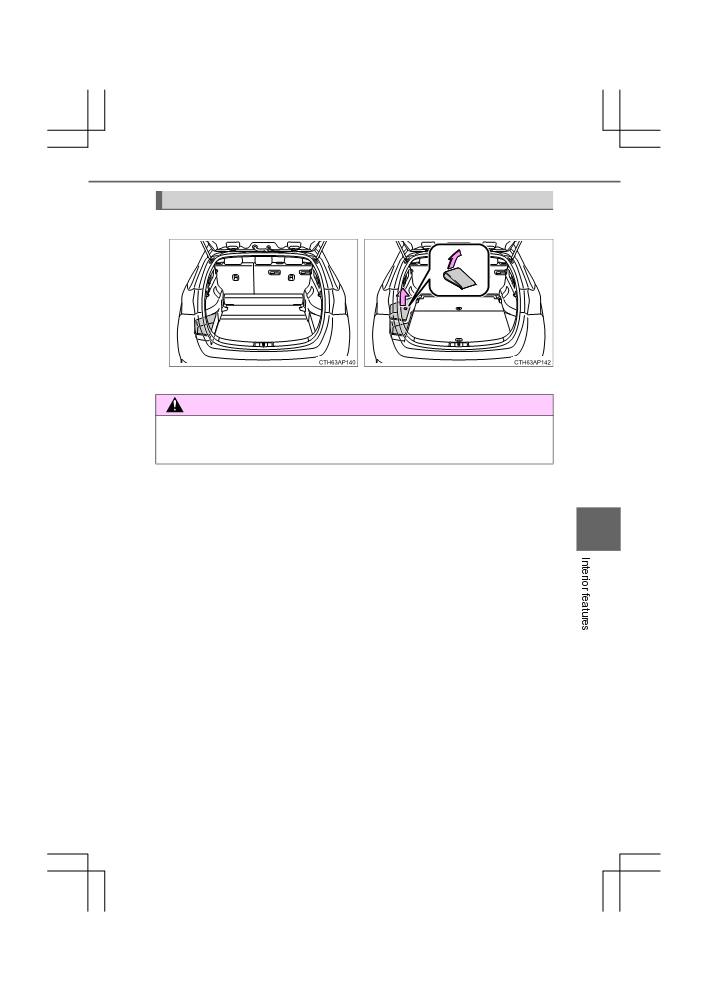

Auxiliary boxes
Type A
Type B
Lift the side deck boards.
WARNING
Type B only: Do not drive with any of the side deck boards opened. Items
may fall out and cause injury.
6
AURIS HV Touring
Sports_EE
(OM12L18E)
410
6-3. Using the storage features
Luggage cover

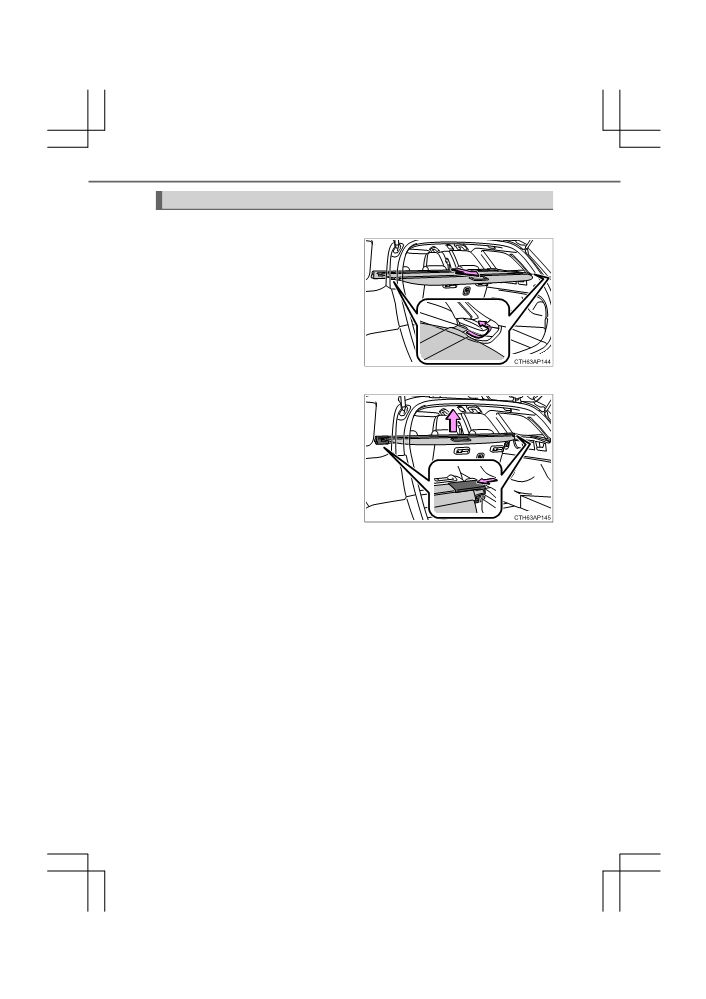

■ Using the luggage cover
Pull out the luggage cover and
engage it to the anchors.
■ Removing the luggage cover
Push in both sides of the lug-
gage cover unit and lift it up.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-3. Using the storage features
411

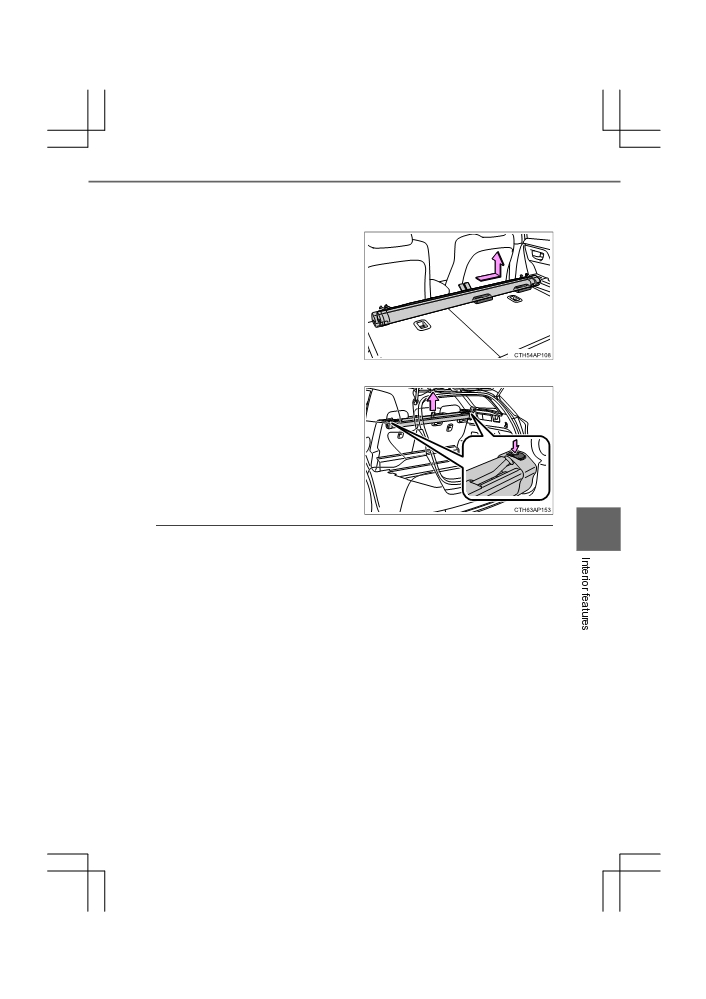

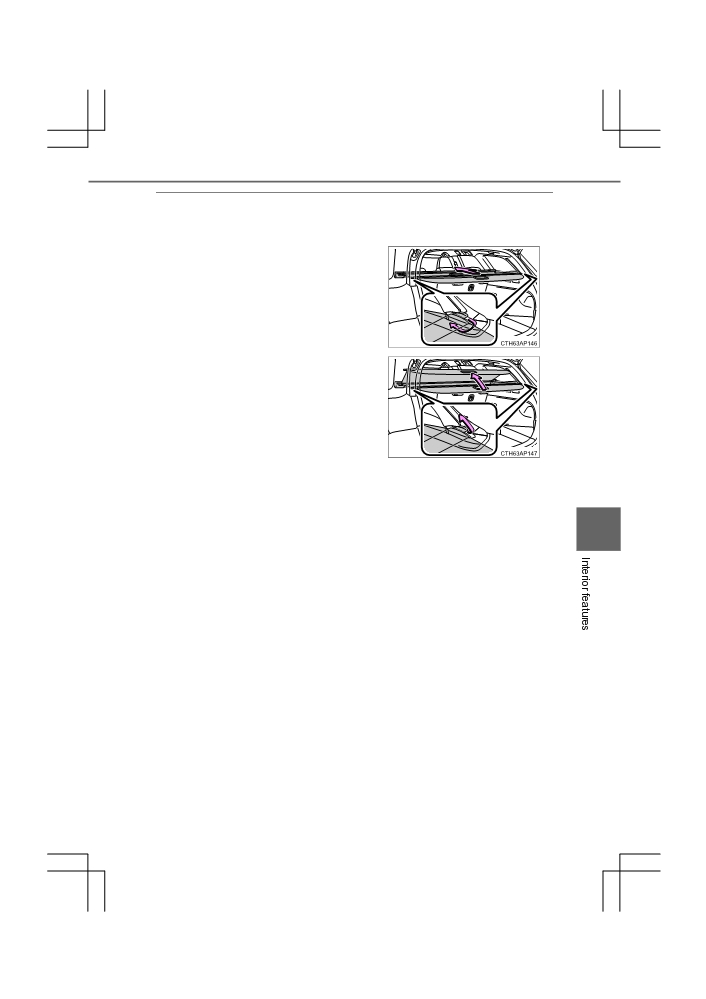

■Opening the luggage cover
Besides rolling it back fully, the luggage cover can also be temporarily lifted
for better access to the luggage compartment.
● To roll back: Pull the luggage cover
backward and down to unhook it from
the anchors then let it roll back.
● To temporarily lift: Pull the luggage cover
slightly toward you then lift it along the
groove.
6
AURIS HV Touring
Sports_EE
(OM12L18E)
412
6-3. Using the storage features
WARNING
■ When installing the luggage cover
Make sure that the luggage cover is securely installed. Failure to do so may
result in serious injury in the event of sudden braking or a collision.
■ When using the luggage cover
Observe the following precautions. If the vehicle is driven with the luggage
cover lifted up, the driver’s rear view will be obscured, possibly causing an
accident that may lead to death or serious injury.
● When closing the luggage cover, make sure that both left and right hooks
are securely engaged to the anchors. If the hooks are not engaged
securely, the hooks may be accidentally disengaged, causing the luggage
cover to lift up.
● When carrying cargo taller than the installation height of the luggage
cover, do not use the luggage cover. Otherwise, the hooks may be acci-
dentally disengaged, causing the luggage cover to lift up.
● Do not drive with the luggage cover lifted up.
■ Caution for the luggage cover
● Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-3. Using the storage features
413
Partition net (if equipped)

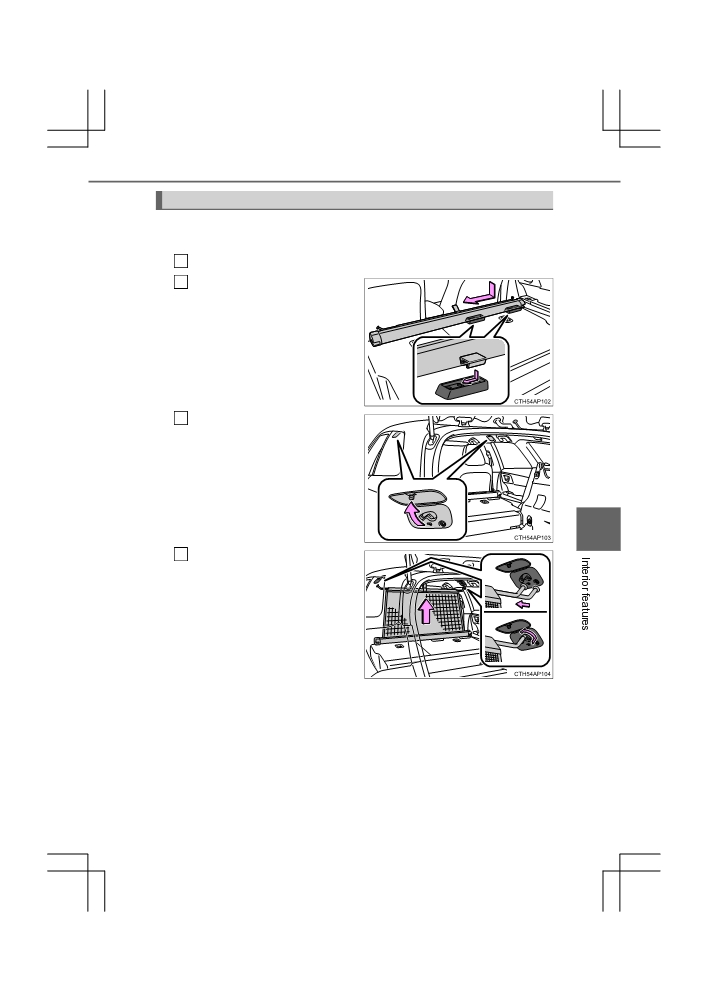

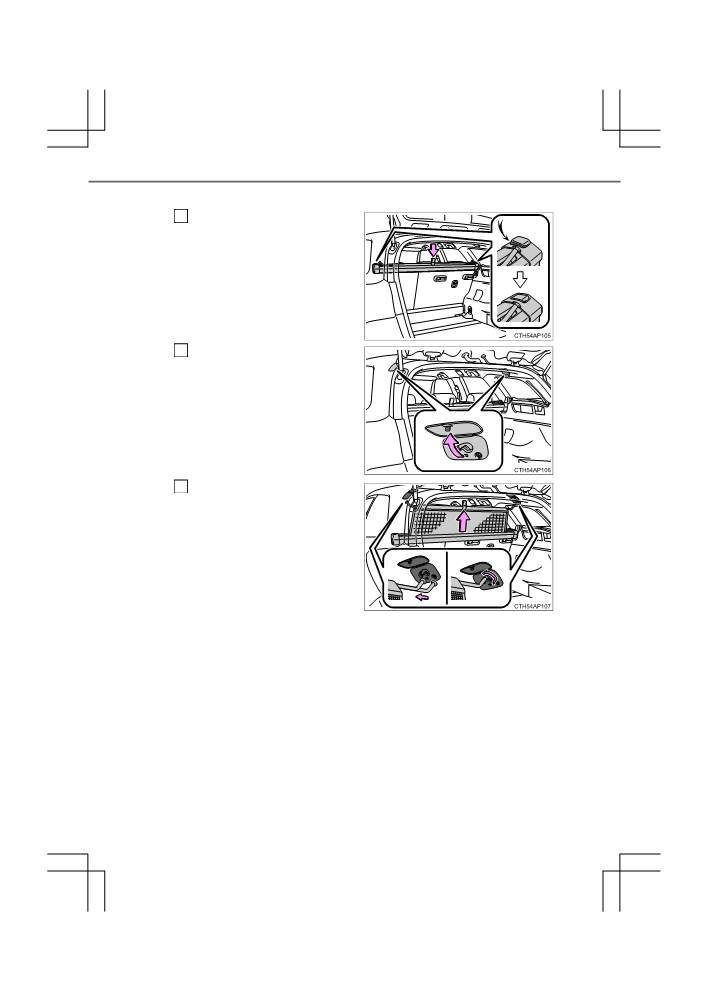

■ Using the partition net
Front position
1
Fold the rear seatbacks down. (P. 175)
2
Install the partition net unit to
the anchors on the right
seatback. When the anchors
are engaged, slide the parti-
tion net unit leftward.
3
Open the anchor covers on
both sides.
6
Pull out the net, push in the
4
left and right hooks and
engage them to the anchors.
If the net is pulled out slowly, it
may lock partway. To pull it out
fully, allow the net to roll back
slightly then pull it out again.
AURIS HV Touring
Sports_EE
(OM12L18E)
414
6-3. Using the storage features
Rear position
Install the partition net unit
1
behind the rear seats to the
anchors on the side deck.
When the partition net unit is
secured, the lock release but-
tons are pushed in and the red
marking on the button's sidewall
is not visible.
2
Open the anchor covers on
both sides.
Pull out the net, push in the
3
left and right hooks and
engage them to the anchors.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-3. Using the storage features
415
■ Removing the partition net
Front position
Slide the partition net unit right-
ward to disengage the anchors
and lift it.
After removing the partition net
unit, return the rear seat backs
to their original position.
Rear position
Push the left and right lock
release buttons and lift up the
partition net unit.
6
■ Locking of the partition net partway when pulled out
The partition net is designed to lock partway, at the length suited for use in
the rear position, when pulled out slowly. (Quickly pulling out the partition net
will allow it to be pulled out to its full length.)
To release the lock: allow the net to roll back slightly then pull it out again.
AURIS HV Touring
Sports_EE
(OM12L18E)
416
6-3. Using the storage features
WARNING
■ When installing the partition net
Make sure that the partition net unit is securely installed. Failure to do so
may result in serious injury in the event of sudden braking or a collision.
■ When using the partition net
Make sure that the hooks are engaged in
the correct position on the anchors. Fail-
ure to do so may result in serious injury in
the event of sudden braking or a colli-
sion.
■ Storage precaution
As the partition net is not designed to protect passengers and driver from all
type of luggage stored in the luggage compartment if thrown, make sure
that the luggage is securely fixed even if the partition net is used.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-4. Other interior features
417
Other interior features

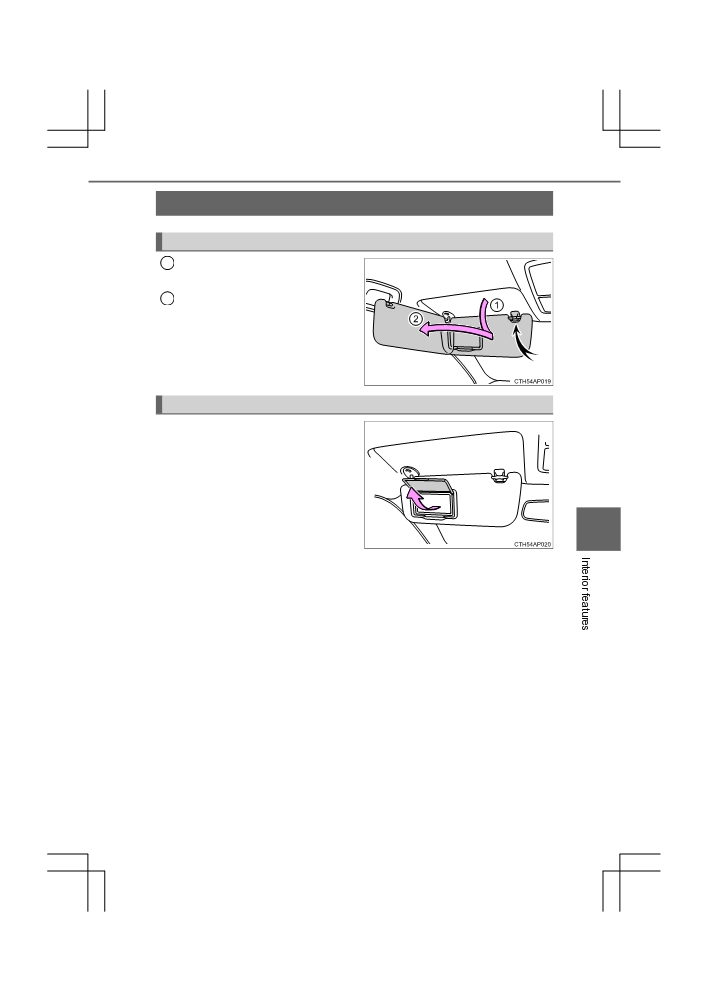

Sun visors
To set the visor in the forward
1
position, flip it down.
To set the visor in the side posi-
2
tion, flip down, unhook, and
swing it to the side.
Vanity mirrors
Open the cover.
6
AURIS HV Touring
Sports_EE
(OM12L18E)
418
6-4. Other interior features
Clock

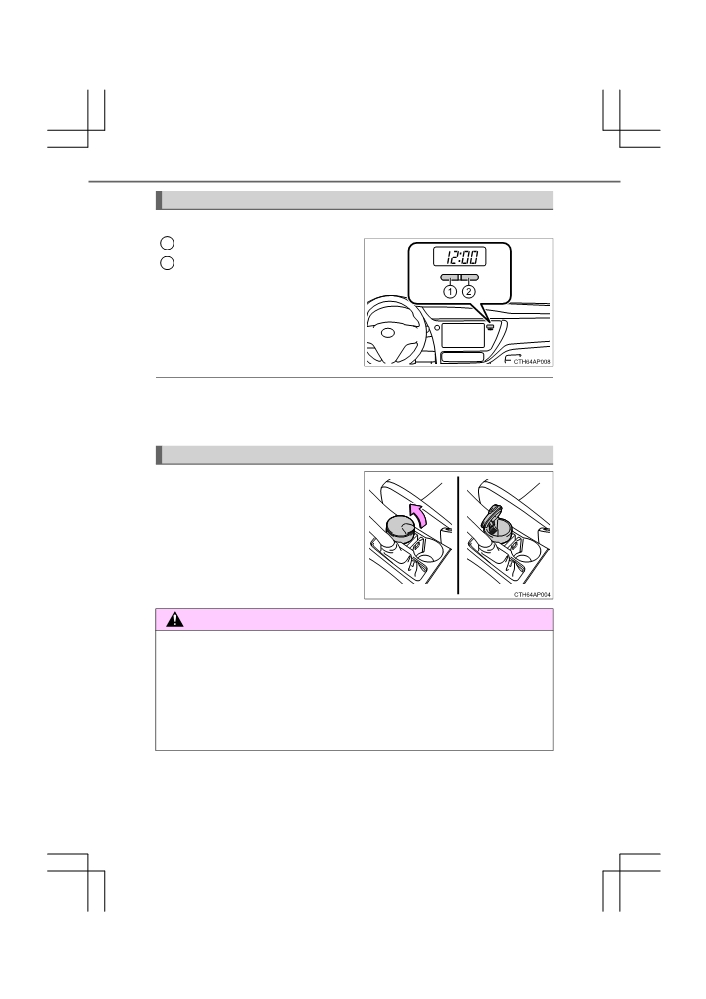

The clock can be adjusted by pressing the buttons.
1
Adjusts the hours
2
Adjusts the minutes
● The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● When the 12-volt battery terminals are disconnected and reconnected, the
clock will automatically be set to 1:00.
Portable ashtray (if equipped)
The ashtray can be installed in a
cup holder. (P. 403)
WARNING
● When not in use, keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
● To prevent fire, fully extinguish matches and cigarettes before putting them
in the ashtray, then make sure the ashtray is fully closed.
● To prevent fire, do not place paper or any other type of flammable object in
the ashtray.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-4. Other interior features
419
Power outlets

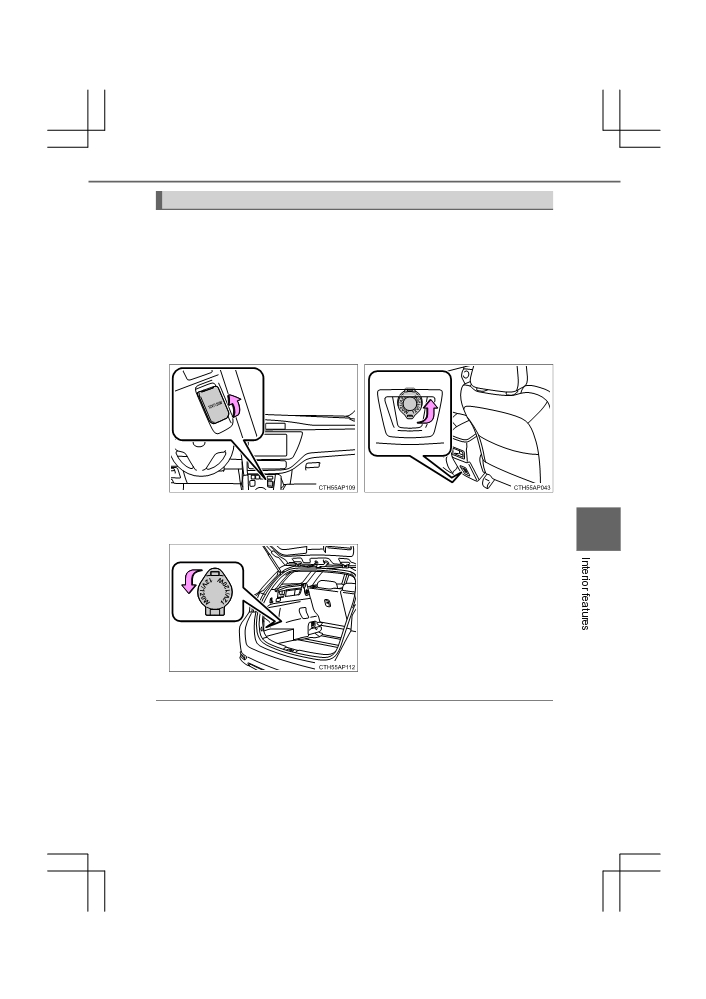

For front and rear: Please use as a power supply for electronic goods
that use less than 12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make sure that the power consumption
of all the connected power outlets is less than 120 W.
For luggage compartment: Please use as a power supply for elec-
tronic goods that use less than 12 VDC/10 A (power consumption of
120 W).
Front
Rear
Open the cover.
Open the cover.
Luggage compartment
6
Open the cover.
The power outlet can be used when the power switch is in ACCESSORY or
ON mode.
AURIS HV Touring
Sports_EE
(OM12L18E)
420
6-4. Other interior features
NOTICE
● To avoid damaging the power outlet, close the power outlet cover when
the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

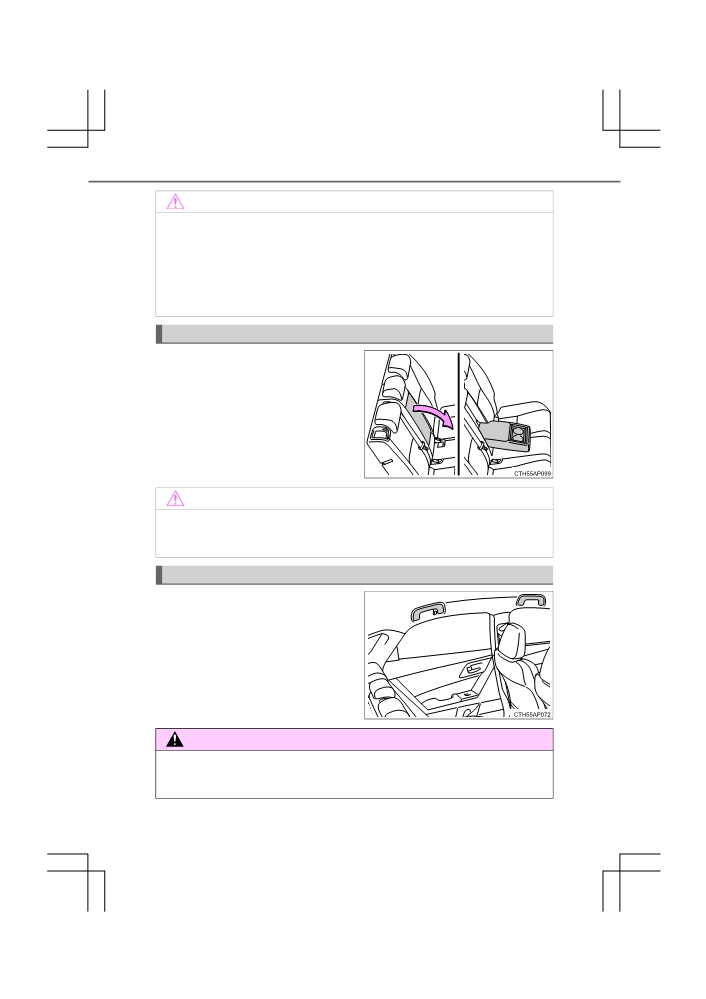

Armrest (if equipped)
Fold down the armrest for use.
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.
Assist grips
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-4. Other interior features
421
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.
Coat hooks
Coat hooks are provided on the
rear assist grips.
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.
6
Panoramic roof shade (if equipped)

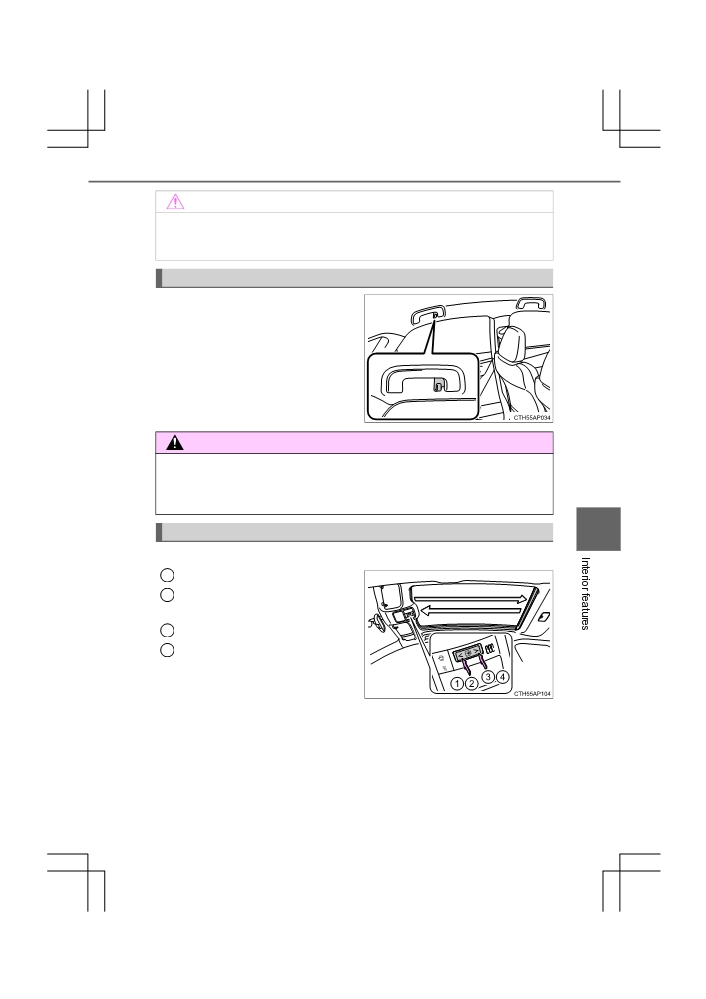

Use the overhead switch to open or close the panoramic roof shade.
1
Closing
2
Automatic full-closing
(press
and hold)*
3
Opening
4
Automatic full-opening
(press
and hold)*
*: Pressing either side of the switch
will stop the panoramic roof shade
travel partway.
AURIS HV Touring
Sports_EE
(OM12L18E)
422
6-4. Other interior features
■ The panoramic roof shade can be operated when
The power switch is in ON mode.
■ Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
■ If the panoramic roof shade does not open/close automatically
Press the open side of the switch to open the panoramic roof shade.
1
Press and hold the open side of the switch until the panoramic roof shade
2
opens fully and then closes slightly.
After this procedure is completed, check that the automatic opening/closing
function is available.
If the automatic opening/closing function does not work properly, have the
vehicle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the panoramic roof shade
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the panoramic roof shade is
being operated.
● Do not allow children to operate the panoramic roof shade.
Closing a panoramic roof shade on someone can cause death or serious
injury.
The driver is responsible for instructing children not to operate the pan-
oramic roof shade.
■ Jam protection function
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.
AURIS HV Touring
Sports_EE
(OM12L18E)
423
Maintenance and care
7
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior
424
Cleaning and protecting
the vehicle interior
428
7-2. Maintenance
Maintenance
requirements
431
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions
434
Hood
436
Positioning a floor jack
438
Engine compartment
439
12-volt battery
446
Tires
451
Tire inflation pressure
465
Wheels
467
Air conditioning filter
469
Electronic key battery
471
Checking and replacing
fuses
474
Light bulbs
479
AURIS HV Touring
Sports_EE
(OM12L18E)
424
7-1. Maintenance and care
Cleaning and protecting the vehicle
exterior
Perform the following to protect the vehicle and maintain it in
prime condition:
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■Automatic car washes
● Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
AURIS HV Touring
Sports_EE
(OM12L18E)
