374
5-8. Bluetooth® Audio
Selecting an album
Press
“
” or
“
” to select the desired album.
Selecting a track
Press the “SEEK>” or “<TRACK” button to select the desired track.
Playing and pausing a track
Press
“
” to play or pause a track.
Fast-forwarding and reversing a track
To fast-forward or reverse, press and hold the “SEEK>” or “<TRACK”
button.
Random playback
Pressing
“RDM” changes the random playback mode in the
following order:
Album random All track random Off
AURIS HV Touring
Sports_EE
(OM12L18E)
5-8. Bluetooth® Audio
375
Repeat play
Pressing
“RPT” changes the repeat play mode in the following
order:
Track repeat Album repeat Off
Switching the display
Press
“Text”.
Track title and artist name are displayed on the display.
To return to the previous display, press
“Text” or
“Back”.
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
5
AURIS HV Touring
Sports_EE
(OM12L18E)
376
5-9. Bluetooth® Phone
Making a phone call
To enter the “PHONE” or “TEL” mode, press the off-hook switch.
Dialing by selecting a name
1
Select “Phonebook” using the “<SELECT”, “TUNE>” and “SETUP/
ENTER” buttons.
Select the desired name using the “<SELECT”, “TUNE>” and
2
“SETUP/ENTER” buttons and press the off-hook switch.
By pressing
“Add S. Dial” and then one of the speed dial but-
tons while the desired name is selected, the selected item can be reg-
istered as a speed dial.
Press
“A-Z” to display the registered names in alphabetical
order of the initial.
Speed dialing
1
Select “Speed dials” using the “<SELECT”, “TUNE>” and “SETUP/
ENTER” buttons.
Press the desired preset button and press the off-hook switch.
2
To delete a registered speed dial, after selecting the desired preset
button press
“Delete” and then press
“Yes”.
Dialing by entering the number
1
Select
“Dial by number” using the
“<SELECT”, “TUNE>” and
“SETUP/ENTER” buttons.
2
Enter the phone number and press the off-hook switch.
AURIS HV Touring
Sports_EE
(OM12L18E)
5-9. Bluetooth® Phone
377
Dialing from call histories
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
1
using the “<SELECT”, “TUNE>” and “SETUP/ENTER” buttons.
Select the desired number using the “<SELECT”, “TUNE>” and
2
“SETUP/ENTER” buttons and press the off-hook switch.
The following operations can be performed:
● Registering a number as a speed dial
Press
“Add S. Dial” and then press the desired preset but-
ton.
● Deleting the selected number
Press
“Delete” and press
“Yes”.
5
AURIS HV Touring
Sports_EE
(OM12L18E)
378
5-9. Bluetooth® Phone
Receiving a phone call
Answering the phone
Press the off-hook switch.
Refusing a call
Press the on-hook switch.
Receiving a call when on another call
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
Adjusting the ringtone volume when receiving a call
Change the ringtone volume using the “VOL-” or “VOL+” button.
To decrease the volume: Press the “VOL-” button.
To increase the volume: Press the “VOL+” button.
AURIS HV Touring
Sports_EE
(OM12L18E)
5-9. Bluetooth® Phone
379
Speaking on the phone
Transferring a call
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of
the phone.
b. Press
* “Phone”.
*: This operation can be performed only when transferring a call from the cel-
lular phone to the system during a call.
Muting your voice
Press
“Mute”.
Inputting digits
5
Press
“0 - 9” and use the “<SELECT”, “TUNE>” and “SETUP/
ENTER” buttons to input the desired digits.
• To send the input digits, press
“Send”.
• When finished, press
“Wait” to return to the previous screen.
Setting call volume
Change the call volume using the “VOL-” or “VOL+” button.
To decrease the volume: Press the “VOL-” button.
To increase the volume: Press the “VOL+” button.
AURIS HV Touring
Sports_EE
(OM12L18E)
380
5-9. Bluetooth® Phone
■ When talking on the phone
● Do not talk at the same time as the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certain functions may not be available.
■ Situations where the system may not recognize your voice
● When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise
AURIS HV Touring
Sports_EE
(OM12L18E)
5-10. Bluetooth®
381
Bluetooth®
■When using the Bluetooth® audio/Phone
● In the following situations, the system may not function.
• The portable player does not support Bluetooth®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or is touching or covered by metal objects
● There may be a delay if a cellular phone connection is made during
Bluetooth® audio playback.
● Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. (P. 367)
■About Bluetooth®
5
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
■ Compatible models
● Bluetooth® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth® audio system. However, please note that some
functions may be limited depending on the type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
AURIS HV Touring
Sports_EE
(OM12L18E)
382
5-10. Bluetooth®

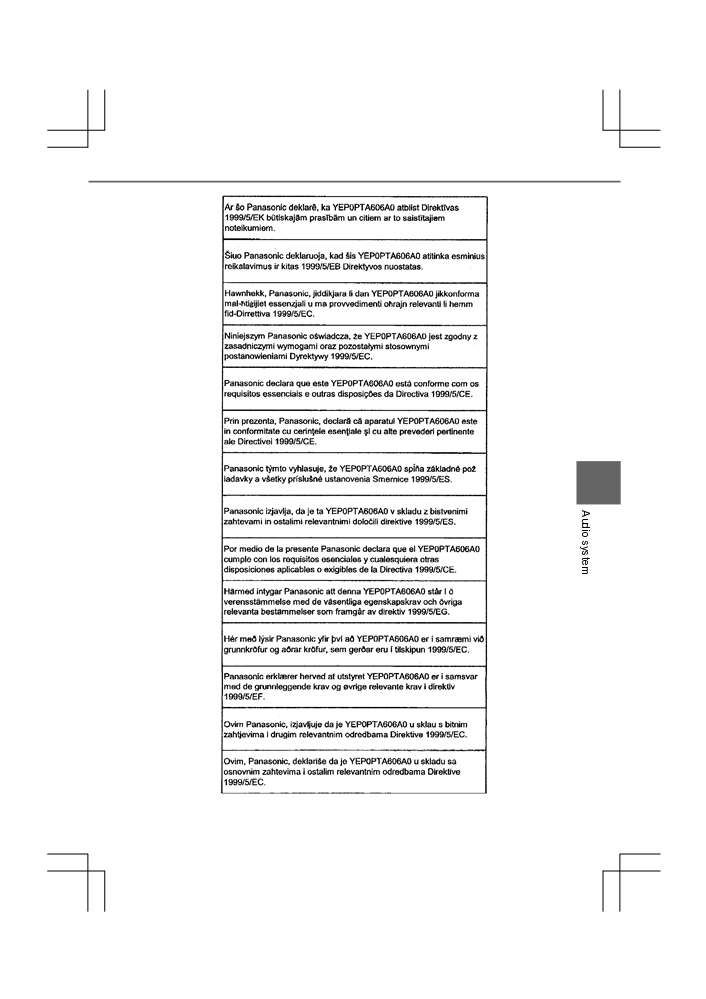

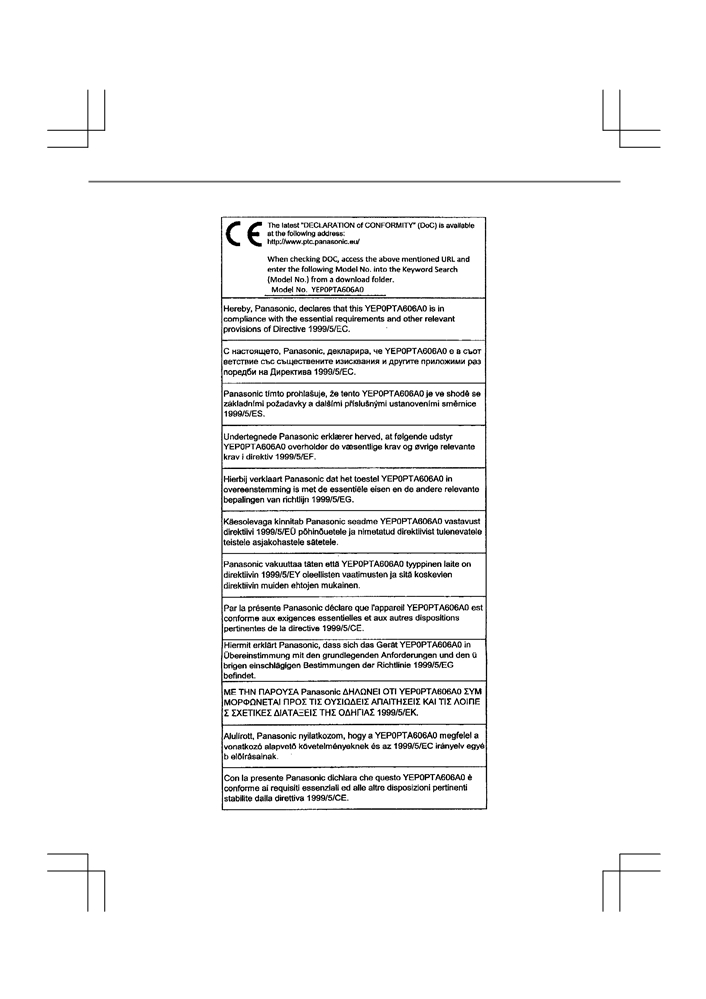

■ Certification
AURIS HV Touring
Sports_EE
(OM12L18E)
®
5-10. Bluetooth
383
5
AURIS HV Touring
Sports_EE
(OM12L18E)
384
5-10. Bluetooth®
WARNING
■ While driving
Do not operate the portable audio player, cellular phone or connect a device
to the Bluetooth® system.
■ Caution regarding interference with electronic devices
● Your audio unit is fitted with Bluetooth® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth® antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.
AURIS HV Touring
Sports_EE
(OM12L18E)
385
Interior features
6
6-1. Using the air conditioning
6-4. Other interior features
system and defogger
Other interior features
417
Automatic air conditioning
• Sun visors
417
system
386
• Vanity mirrors
417
Seat heaters
395
• Clock
418
6-2. Using the interior lights
• Portable ashtray
418
Interior lights list
396
• Power outlets
419
• Interior lights
397
• Armrest
420
• Vanity lights
397
• Assist grips
420
• Personal lights
398
• Coat hooks
421
6-3. Using the storage features
• Panoramic roof
List of storage features
400
shade
421
• Glove box
401
• Console box
401
• Bottle holders
402
• Cup holders
403
• Auxiliary boxes
404
Luggage compartment
features
405
AURIS HV Touring
Sports_EE
(OM12L18E)
386
6-1. Using the air conditioning system and defogger
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive
vehicles.
Also, the display and button positions will differ depending on
the type of the system.
Air conditioning controls
Without dual control mode
AURIS HV Touring
Sports_EE
(OM12L18E)
6-1. Using the air conditioning system and defogger
387
With dual control mode
■ Adjusting the temperature setting
1
Increases the temperature
2
Decreases the temperature
6
■ Fan speed setting
1
Increases the fan speed
2
Decreases the fan speed
AURIS HV Touring
Sports_EE
(OM12L18E)
388
6-1. Using the air conditioning system and defogger
■ Change the airflow mode
To change the airflow mode,
move the airflow change knob
upward or downward.
The air outlets used are
changed each time the knob is
operated.
1
Air flows to the upper body.
2
Air flows to the upper body
and feet.
3
Air flows to the feet.
4
Air flows to the feet and the
Airflow change knob
windshield defogger oper-
ates.
Using automatic mode
1
Press
The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
2
Adjust the temperature setting.
3
To stop the operation, press
■ Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
AURIS HV Touring
Sports_EE
(OM12L18E)
6-1. Using the air conditioning system and defogger
389
■ Adjusting the temperature for driver and passenger seats sep-
arately (vehicles with dual control mode)
To turn on the dual control mode, perform any of the following pro-
cedures:
● Press
● Adjust the passenger’s side temperature setting.
The indicator comes on when the dual control mode is on.
Other functions
■ Switching between outside air and recirculated air modes
Vehicles without dual control mode
Press
to change to recirculated air mode.
Press
to change to outside air mode.
When recirculated air mode is selected, the indicator on
illu-
6
minates.
When outside air mode is selected, the indicator on
illumi-
nates.
Vehicles with dual control mode
Press
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time
is pressed.
AURIS HV Touring
Sports_EE
(OM12L18E)
390
6-1. Using the air conditioning system and defogger
■ Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the front side windows early, turn the air
flow and temperature up.
To return to the previous mode, press
again when the windshield
is defogged.
■ Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press
The defoggers will automatically turn off after a period of time.
■ Blower customization
Fan speed settings can be changed.
1
Press
2
Press
3
Each time
is pressed, the fan speed changes as follows.
“MEDIUM”“SOFT”“FAST”
AURIS HV Touring
Sports_EE
(OM12L18E)
