5-5. Using an external device
Listening to an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers. Press the “MODE” button until “iPod” is displayed.
Connecting an iPod
P. 326

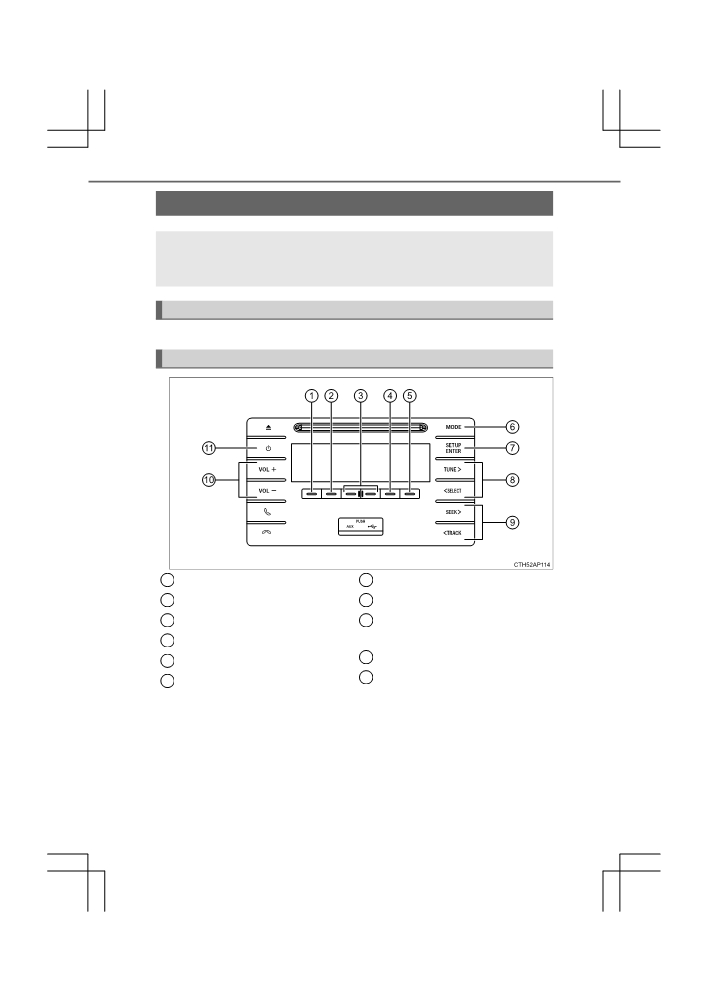

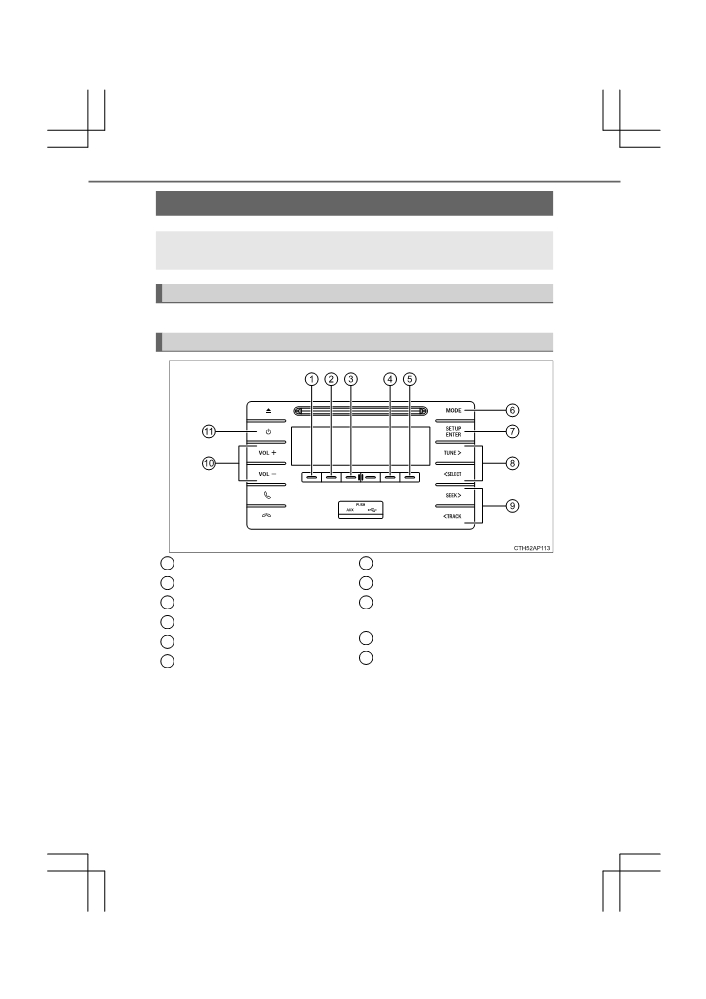

Control panel
1
Display text message
7
Set up menu
2
Display lists
8
Song selector
3
iPod menu mode
9
Select a song, fast-forward or
reverse
4
Repeat play
10
Volume
5
Shuffle playback
11
Power
6
Mode select button
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
341
Selecting a play mode
1
Press
“Menu” to select iPod menu mode.
2
Pressing the “TUNE>” button changes the play mode in the follow-
ing order:
“Playlists”“Artists”“Albums”“Songs”
“Podcasts”“Genres”“Composers”“Audiobooks”
Press the “SETUP/ENTER” button to select the desired play mode.
3
5
AURIS HV Touring
Sports_EE
(OM12L18E)
342
5-5. Using an external device
■ Play mode list
First
Second
Third
Fourth
Play mode
selection
selection
selection
selection
“Playlists”
Playlist
Song
-
-
“Artists”
Artist
Album
Song
-
“Albums”
Album
Song
-
-
“Songs”
Song
-
-
-
“Podcasts”
Podcast
Episode
-
-
“Genres”
Genre
Artist
Album
Song
“Composers”
Composer
Album
Song
-
“Audiobooks”
Audiobook
Chapter
-
-
■ Selecting a list
1
Press the “<SELECT” or “TUNE>” button to display the first
selection list.
2
Press the “SETUP/ENTER” button to select the desired item.
Pressing this button changes the display to the second selection list.
3
Repeat the procedure to select the desired item.
To return to the previous selection list, press
“Back”.
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
343
Selecting a song
Press the “<SELECT”, “TUNE>”, “<TRACK” or “SEEK>” button to
select the desired song.
Selecting a song from the song list
1
Press
“List”.
The song list will be displayed.
2
Press the “<SELECT” or “TUNE>” button to select a song.
3
Press the “SETUP/ENTER” button to play the song.
To return to the previous display, press
“Back”.
Fast-forwarding and reversing a song
To fast-forward or reverse, press and hold the “SEEK>” or “<TRACK”
button.
Repeat play
5
Press
“RPT”.
To cancel, press
“RPT” again.
Shuffle playback
Pressing
“RDM” changes the shuffle playback mode in the fol-
lowing order:
Track shuffle Album shuffle Off.
Switching the display
Press
“Text”.
Track title, Artist name and Album title are shown on the display.
To return to the previous display, press
“Text” or
“Back”.
AURIS HV Touring
Sports_EE
(OM12L18E)
344
5-5. Using an external device
Adjusting sound quality and volume balance
1
Press the “SETUP/ENTER” button to enter Set up menu mode.
2
Press the “<SELECT” or “TUNE>” button to change sound modes.
(P. 327)
■About iPod
● “Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
■iPod functions
● When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. If a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it once again may resolve the problem.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
● When the battery level of an iPod is very low, the iPod may not operate. If
so, charge the iPod before use.
● Supported models (P. 346)
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
345
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
■ Display
P. 335
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Message
Cause/Correction procedures
This indicates that the data in the iPod cannot
“iPod error”
be read.
This indicates that the iPod may be malfunc-
“Error 3”
tioning.
This indicates that an over current error has
“Error 4”
occurred.
5
This indicates that an iPod communication
“Error 5”
error has occurred.
This indicates that an authentication error has
“Error 6”
occurred.
This indicates that there is no music data in
“No songs”
the iPod.
This indicates that some available songs are
“No playlists”
not found in a selected playlist.
This indicates that the version of the iPod is
“Update your iPod”
not compatible. Upgrade your iPod software
to the latest version.
AURIS HV Touring
Sports_EE
(OM12L18E)
346
5-5. Using an external device
■ Compatible models
The following iPod, iPod nano, iPod classic, iPod touch and iPhone
devices can be used with this system.
● Made for
• iPod (5th generation)
• iPod touch (5th generation)
• iPod touch (4th generation)
• iPod touch (Late 2009)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic (Late 2009)
• iPod classic (2nd generation)
• iPod classic
• iPod nano (7th generation)
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
● Maximum number of lists in device: 9999
● Maximum number of songs in device: 65535
● Maximum number of songs per list: 65535
WARNING
■ Caution while driving
Do not connect iPod or operate the controls.
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
347
NOTICE
■ To prevent damage to iPod
● Do not leave the iPod in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the iPod.
● Do not push down on or apply unnecessary pressure to the iPod while it is
connected.
● Do not insert foreign objects into the port.
5
AURIS HV Touring
Sports_EE
(OM12L18E)
348
5-5. Using an external device
Listening to a USB memory device
Connecting a USB memory device enables you to enjoy music
from the vehicle speakers. Press the “MODE” button until “USB”
is displayed.
Connecting a USB memory
P. 326
Control panel
1
Display text message
7
Open the selected file
2
Display folder lists
8
Select a file
3
Select a folder
9
Select a file, fast-forward or
reverse
4
Repeat play
10
Volume
5
Random playback
11
Power
6
Mode select button
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
349
Selecting a folder
■ Selecting folders one at a time
Press
“
” or
“
” to select the desired folder.
■ Selecting a folder and file from a folder list
1
Press
“List”.
The folder list will be displayed.
2
Press the “<SELECT” or “TUNE>” button to select a folder or file.
3
Press the “SETUP/ENTER” button to open the selected file/
folder.
To return to the previous display, press
“Back”.
■ Returning to the first folder
Press and hold
“
” until you hear a beep.
Selecting a file
Press the “<SELECT”, “TUNE>”, “<TRACK” or “SEEK>” button to
5
select the desired file.
Fast-forwarding and reversing a file
To fast-forward or reverse, press and hold the “SEEK>” or “<TRACK”
button.
AURIS HV Touring
Sports_EE
(OM12L18E)
350
5-5. Using an external device
Repeat play
Pressing
“RPT” changes the repeat playback mode in the fol-
lowing order:
File repeat Folder repeat* Off.
*: Not available when RDM (random playback) is selected
Random playback
Pressing
“RDM” changes the random playback mode in the
following order:
Folder random Disc random Off.
Switching the display
Press
“Text”.
Track title, Artist name and Album title (MP3 only) are displayed on the dis-
play.
To return to the previous display, press
“Text” or
“Back”.
■ USB memory functions
● Depending on the USB memory that is connected to the system, the device
itself may not be operable and certain functions may not be available. If the
device is inoperable or a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it may resolve the problem.
● If the USB memory still does not begin operation after being disconnected
and reconnected, format the device.
■ Display
P. 335
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
351
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Message
Cause/Correction procedures
This indicates that the data in the USB mem-
“USB error”
ory cannot be read.
This indicates that the USB memory may be
“Error 3”
malfunctioning.
This indicates that an over current error has
“Error 4”
occurred.
This indicates that the USB memory commu-
“Error 5”
nication error has occurred.
This indicates that no MP3/WMA files are
“No music”
included on the USB memory device.
5
AURIS HV Touring
Sports_EE
(OM12L18E)
352
5-5. Using an external device
■ USB memory
● Compatible devices
USB memory that can be used for MP3 and WMA playback
● Compatible device formats
The following device formats can be used:
• USB communication formats: USB 2.0 FS (12 Mbps)
• File formats: FAT12/16/32 (Windows)
• Correspondence class: Mass storage class
MP3 and WMA files written in any format other than those listed above may
not play correctly, and their file names and folder names may not be dis-
played correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum number of folders in a device: 999 (including the root)
• Maximum number of files in a device: 9999
• Maximum number of files per folder: 255
● MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards that can be used and to
the media/formats on which the files are recorded.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III,
MPEG2.5)
• Compatible sampling frequencies
MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz)
MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz)
MPEG2.5: 8, 11.025, 12 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 AUDIO LAYERII, III: 32-320 (kbps)
MPEG2 AUDIO LAYERII, III: 8-160 (kbps)
MPEG2.5: 8-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
353
● WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
HIGH PROFILE 32, 44.1, 48 (kHz)
• Compatible bit rates
HIGH PROFILE 32-320 (kbps, CBR)
● File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, 2.4 ID3
tags. (The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
● MP3 and WMA playback
• When a device containing MP3 or WMA files is connected, all files in the
USB memory are checked. Once the file check is finished, the first MP3
5
or WMA file is played. To make the file check finish more quickly, we rec-
ommend that you do not include any files other than MP3 or WMA files or
create any unnecessary folders.
• When the USB memory is connected and the audio source is changed to
USB memory mode, the USB memory will start playing the first file in the
first folder. If the same device is removed and reinserted (and the con-
tents have not been changed), the USB memory will resume play from
the same point in which it was last used.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be skipped (not played).
● Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3
and WMA files on the market, and depending on the status of the encod-
ing and the file format, poor sound quality or noise at the start of playback
may result. In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
AURIS HV Touring
Sports_EE
(OM12L18E)
354
5-5. Using an external device
WARNING
■ Caution while driving
Do not connect USB memory or operate the controls.
NOTICE
■ To prevent damage to USB memory
● Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the device.
● Do not push down on or apply unnecessary pressure to the USB memory
while it is connected.
● Do not insert foreign objects into the port.
AURIS HV Touring
Sports_EE
(OM12L18E)
5-5. Using an external device
355
Using the AUX port
This port can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers. Press the “MODE” but-
ton until “AUX” is displayed.
Connecting a portable player
P. 326
■ Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
5
AURIS HV Touring
Sports_EE
(OM12L18E)
356
5-6. Using Bluetooth® devices
Bluetooth® audio/phone
The following can be performed using Bluetooth® wireless com-
munication:
■ Bluetooth® audio
The Bluetooth® audio system enables you to enjoy music on a
portable player from the vehicle speakers via wireless communi-
cation.
This audio system supports Bluetooth®, a wireless data system
capable of playing portable audio music without cables. If your
portable player does not support Bluetooth®, the Bluetooth®
audio system cannot be used.
■ Bluetooth® phone (hands-free phone system)
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone to
the system, and without operating the cellular phone.
AURIS HV Touring
Sports_EE
(OM12L18E)
