Toyota Prius+ (2016 year). Instruction - part 7
102
1-3. Theft deterrent system
■ Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor are canceled.
● After the intrusion sensor are canceled, pressing the power switch or
unlocking the doors using the entry function or wireless remote control will
re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.

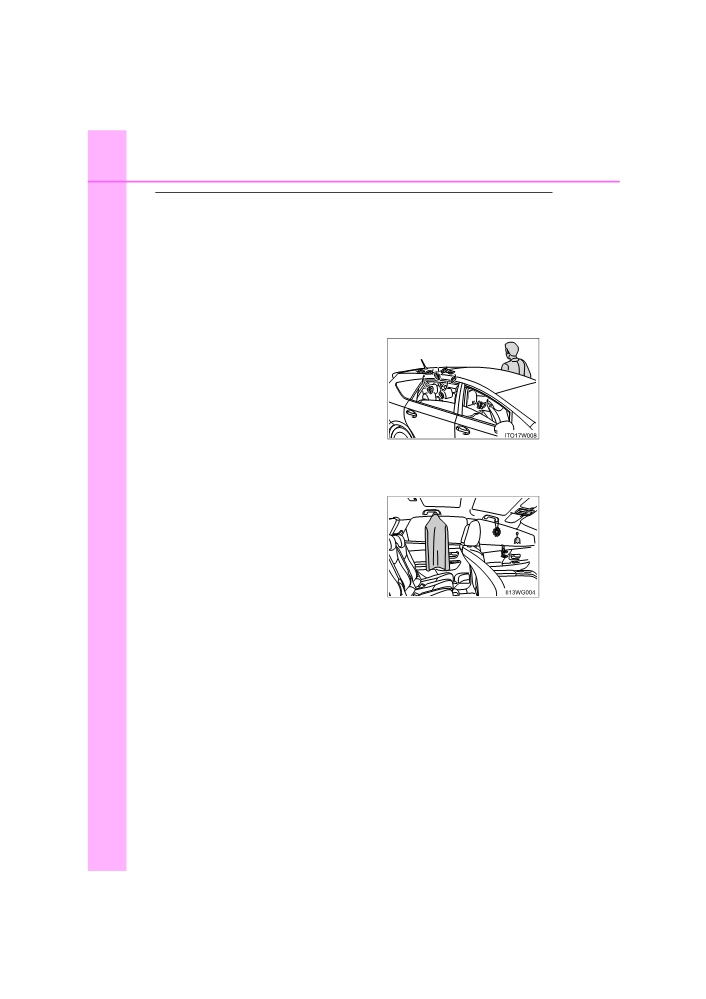

■ Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
●A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
●Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
●Places with extreme vibrations or noises, or situations in which the vehicle is
subject to repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
PRIUS +_OM_OM47B24E_(EE)
1-3. Theft deterrent system
103

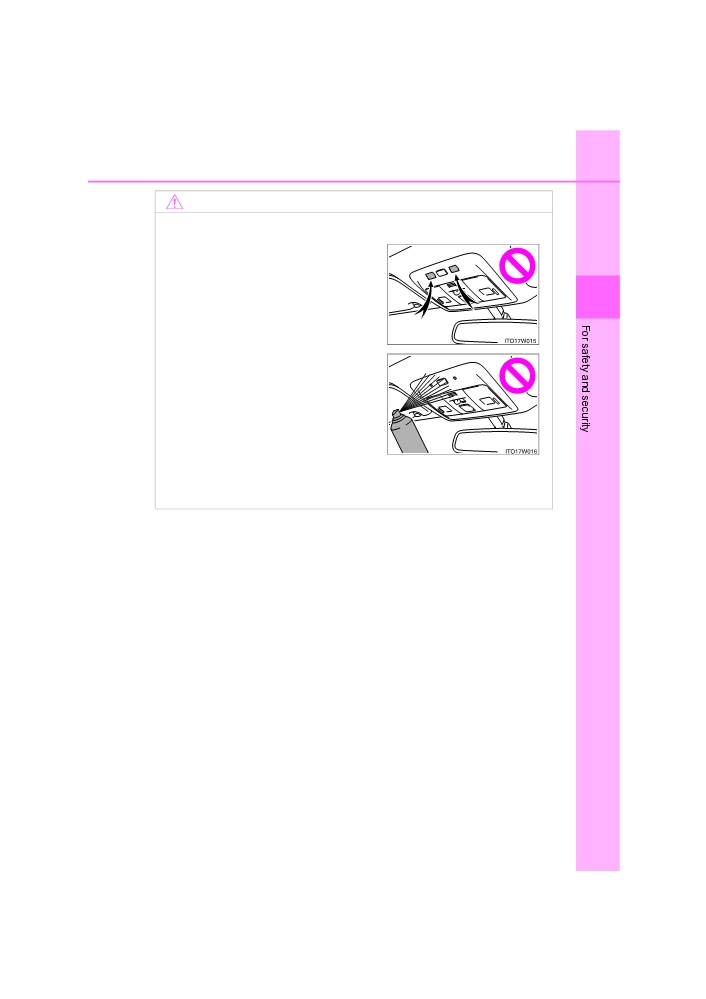

NOTICE
■ To ensure the intrusion sensor functions correctly
● To ensure that the sensors operate
properly, do not touch or cover them.
1
●Do not spray air fresheners or other
products directly into the sensor holes.
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
PRIUS +_OM_OM47B24E_(EE)
104
1-3. Theft deterrent system
PRIUS +_OM_OM47B24E_(EE)
105
Instrument cluster
2
2.
Instrument cluster
Warning lights and
indicators
106
Gauges and meters
111
Multi-information
display
120
Head-up display
128
Energy monitor/
consumption screen
133
PRIUS +_OM_OM47B24E_(EE)
106
2. Instrument cluster

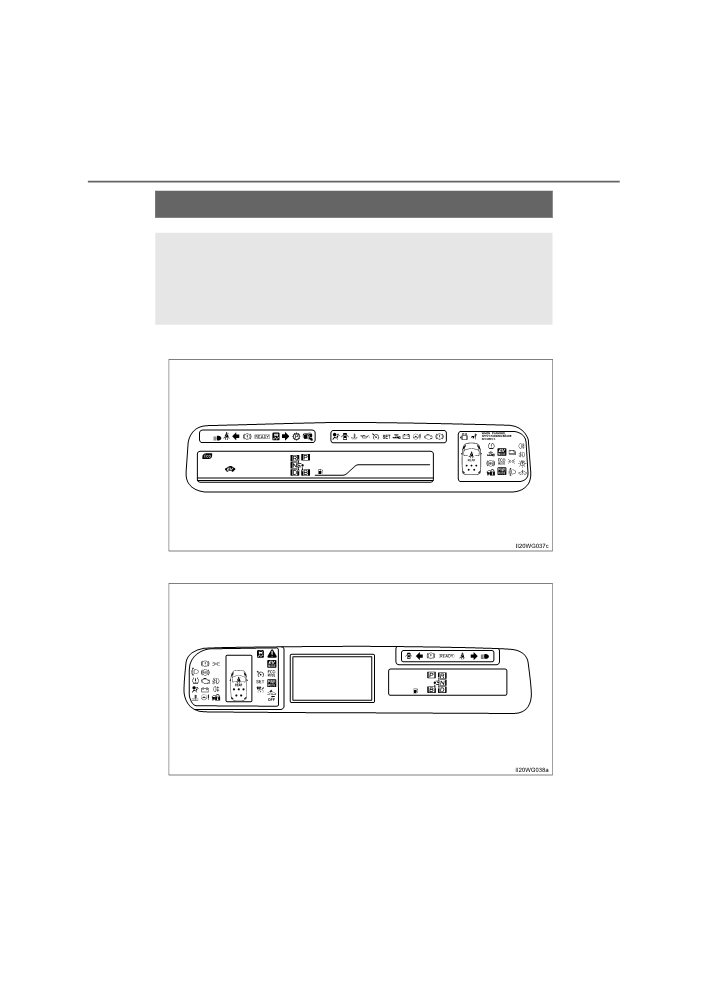

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
X Vehicles without multi-information display
X Vehicles with multi-information display
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
107

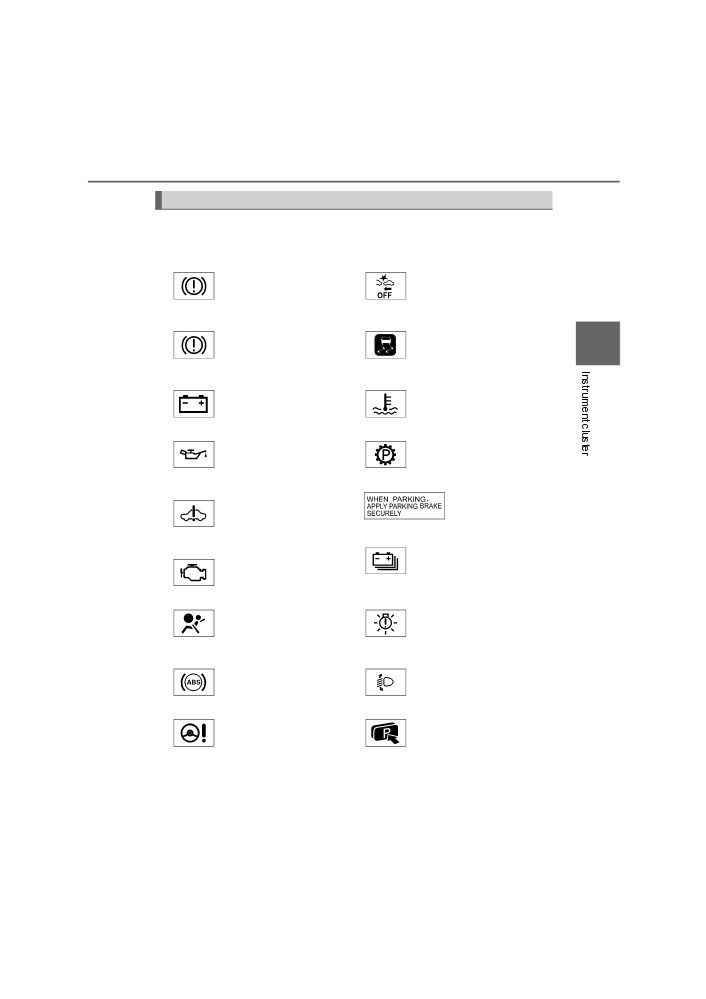

Warning lights
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
*1
*1, 2
Brake system warning
PCS warning light
light (→P. 387)
(→P. 389)
(Red)
(If equipped)
*1
*1
Brake system warning
Slip indicator light
2
light (→P. 387)
(→P. 389)
(Yellow)
*1
*1
High coolant
Charging system
temperature warning
warning light (→P. 387)
light (→P. 391)
*1
*1
Low engine oil pressure
Parking lock system
warning light (→P. 388)
warning light (→P. 389)
(If equipped)
(If equipped)
Parking lock
*1
Hybrid system warning
system warning
light (→P. 388)
message
(If equipped)
(→P. 390)
(If equipped)
*1
Malfunction indicator
Hybrid battery indicator
lamp (→P. 388)
light (→P. 390)
(If equipped)
*1
*1
SRS warning light
LED headlight warning
(→P. 388)
light (→P. 390)
(If equipped)
*1
*1
Automatic headlight
ABS warning light
leveling system warning
(→P. 388)
light (→P. 391)
*1
*1
Electric power steering
P position request
system warning light
indicator light (→P. 390)
(→P. 388)
(Flashes)
(If equipped)
PRIUS +_OM_OM47B24E_(EE)
108
2. Instrument cluster

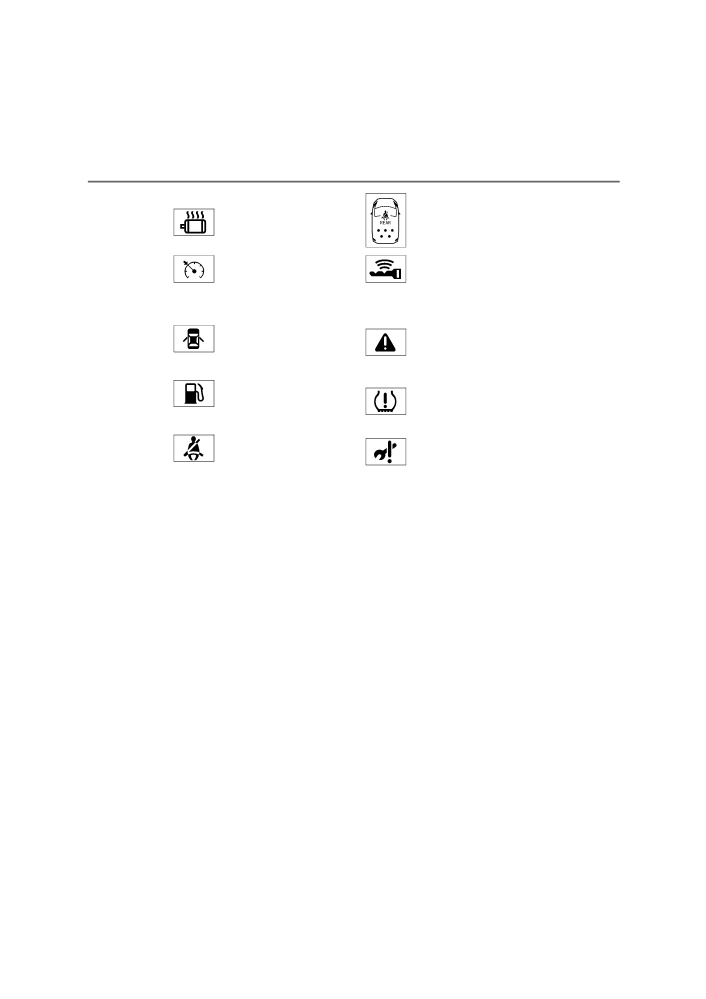

*1
Rear passengers’ seat
Hybrid system overheat
belt reminder light
warning light (→P. 391)
(→P. 392)
(If equipped)
Smart entry & start
Cruise control indicator
system warning light
(→P. 391)
(Yellow)
(Yellow)
(→P. 397)
(If equipped)
(If equipped)
*1
Open door warning light
Master warning light
(→P. 391)
(→P. 392)
(If equipped)
*1
Low fuel level warning
Tire pressure warning
light (→P. 391)
light (→P. 392)
Driver’s and front
*1
Go to service warning
passenger’s seat belt
light (→P. 393)
reminder light (→P. 392)
(If equipped)
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
109

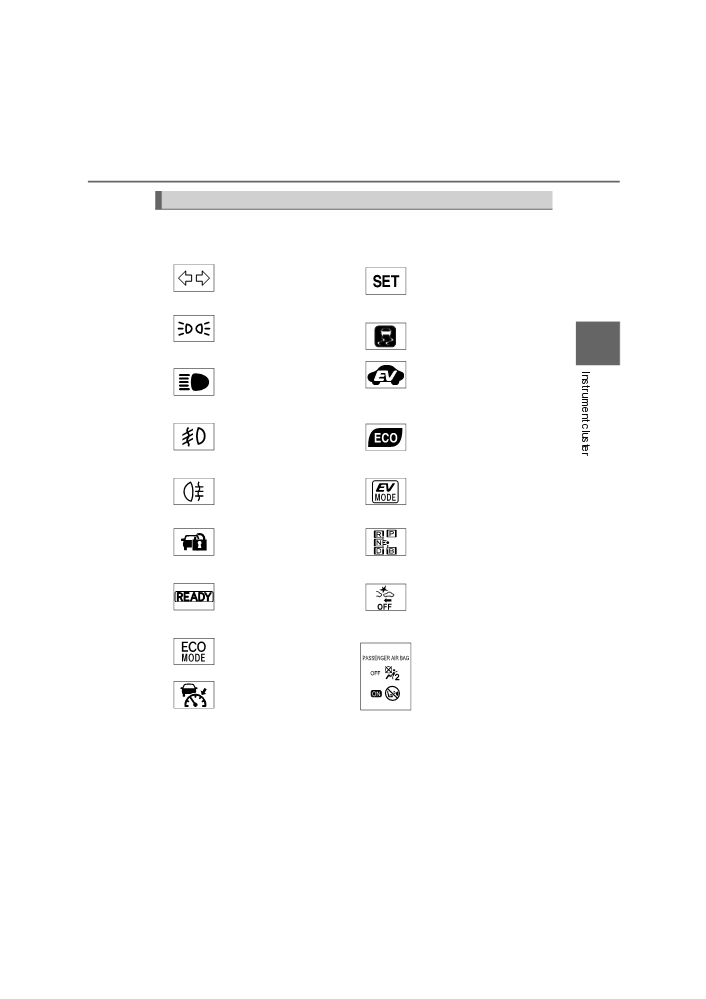

Indicators
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Turn signal indicator
“SET” indicator
(→P. 221)
(→P. 235, 239)
*1, 2
Tail light indicator
Slip indicator
(→P. 223)
(→P. 257)
2
Headlight high beam
EV indicator (→P. 116)
indicator (→P. 224)
(If equipped)
*1
Front fog light indicator
Eco Driving Indicator
(→P. 226)
Light (→P. 116)
(If equipped)
Rear fog light indicator
EV drive mode indicator
(→ P. 226)
(→P. 214)
Security indicator
Shift position indicators
(→P. 91, 98)
(→P. 216)
*1, 3
“READY” indicator
PCS warning light
(→P. 207)
(→P. 263)
(If equipped)
*4
“ECO MODE” indicator
(→P. 255)
“PASSENGER AIR
BAG” indicator (→P. 56)
Radar cruise control
indicator (→P. 239)
(If equipped)
PRIUS +_OM_OM47B24E_(EE)
110
2. Instrument cluster

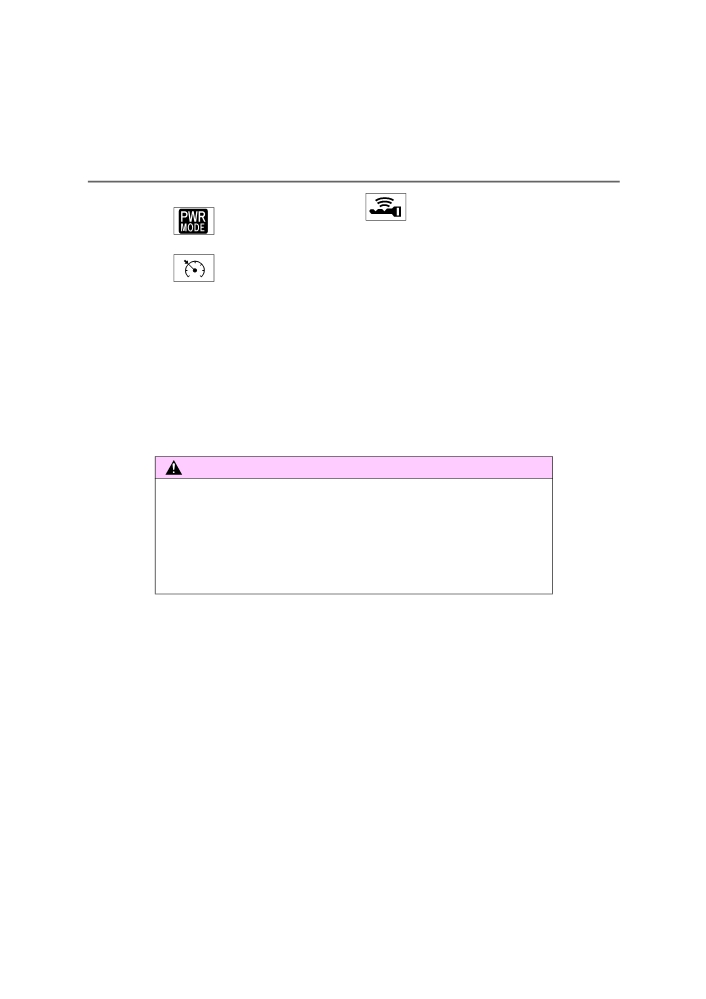

Smart entry & start
“PWR MODE” indicator
system indicator
(→P. 255)
(Green)
(→P. 207)
(If equipped)
Cruise control indicator
(→P. 235, 239)
(Green)
*1: These lights turn on when the power switch is turned to the ON mode to
indicate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: This light illuminates on the center panel.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
111

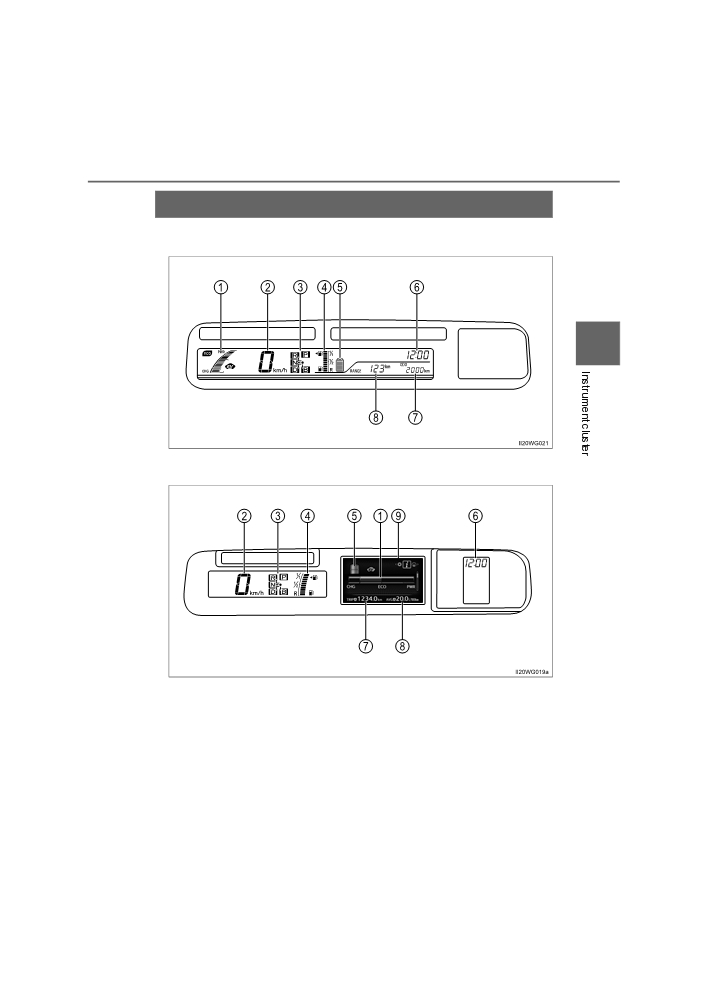

Gauges and meters
X Left-hand drive vehicles without multi-information display
2
X Left-hand drive vehicles with multi-information display
PRIUS +_OM_OM47B24E_(EE)
112
2. Instrument cluster

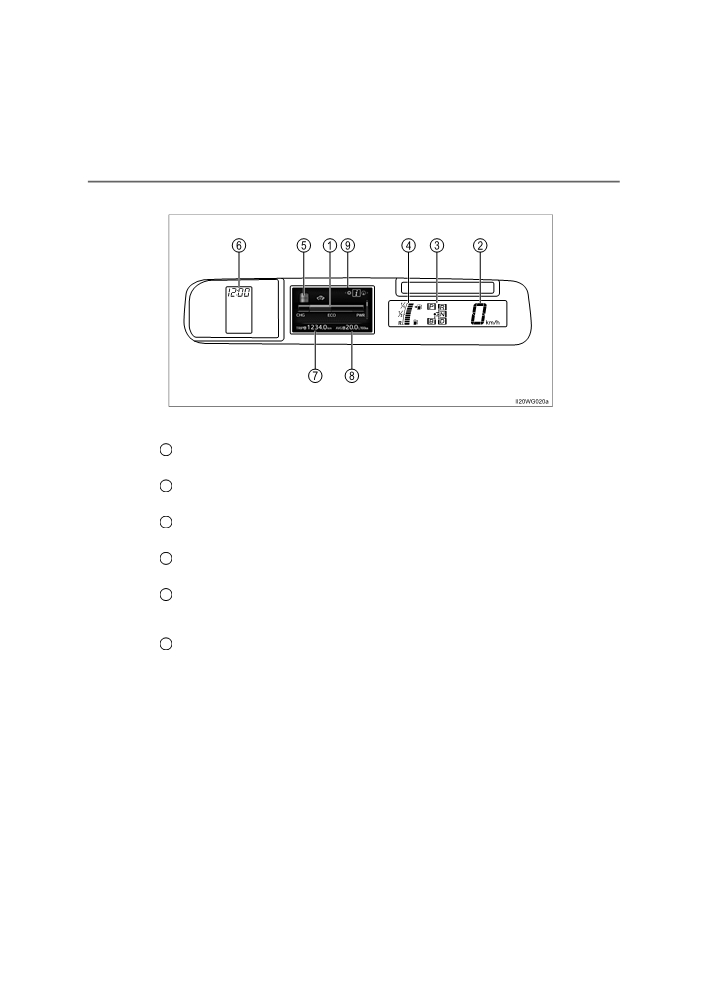

X Right-hand drive vehicles
The units used on the meters may differ depending on the target
region.
Hybrid System Indicator
1
Displays hybrid system output or regeneration level
2
Speedometer
Displays the vehicle speed
Shift position indicators
3
Displays the selected shift position. (→P. 216)
4
Fuel gauge
Displays the quantity of fuel remaining in the tank
Hybrid battery (traction battery) status
5
The amount of charge remaining in the hybrid battery (traction battery) is
shown by 8 bars.
6
Clock
Displays the time. (Adjustment procedure: →P. 303)
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
113
7
Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
8
Trip information display
Displays fuel consumption, etc.
9
Multi-information display
2
Presents the driver with a variety of driving-related data (→P. 120)
Displays warning messages in case of a malfunction (→P. 400)

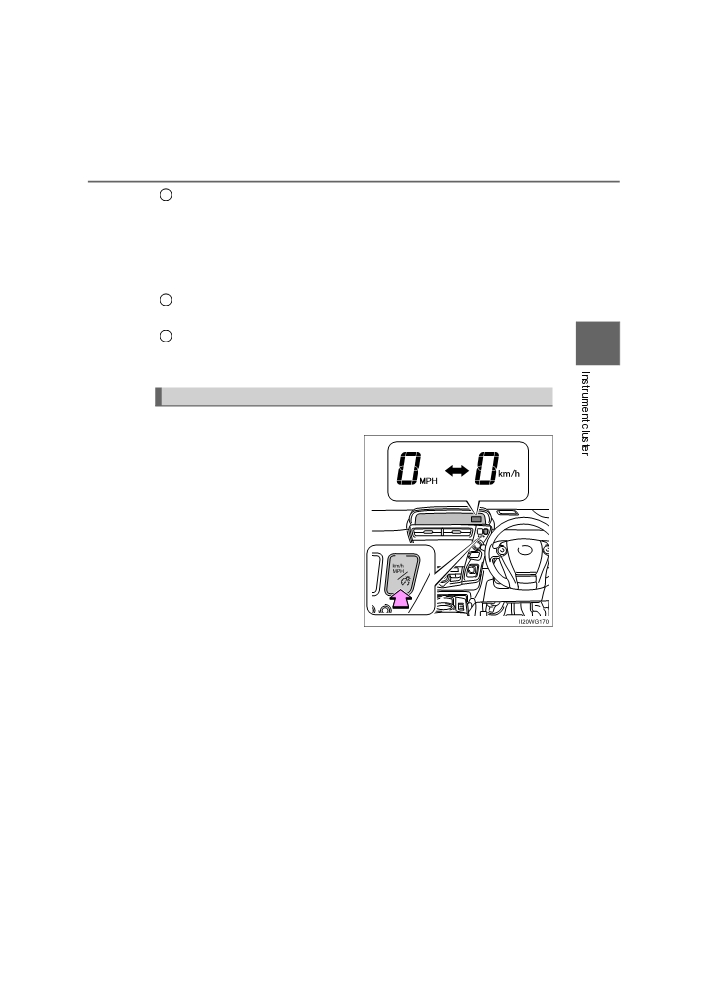

MPH or km/h button (if equipped)
The speed units can be selected.
Press the button to switch the dis-
play between MPH and km/h.
PRIUS +_OM_OM47B24E_(EE)
114
2. Instrument cluster

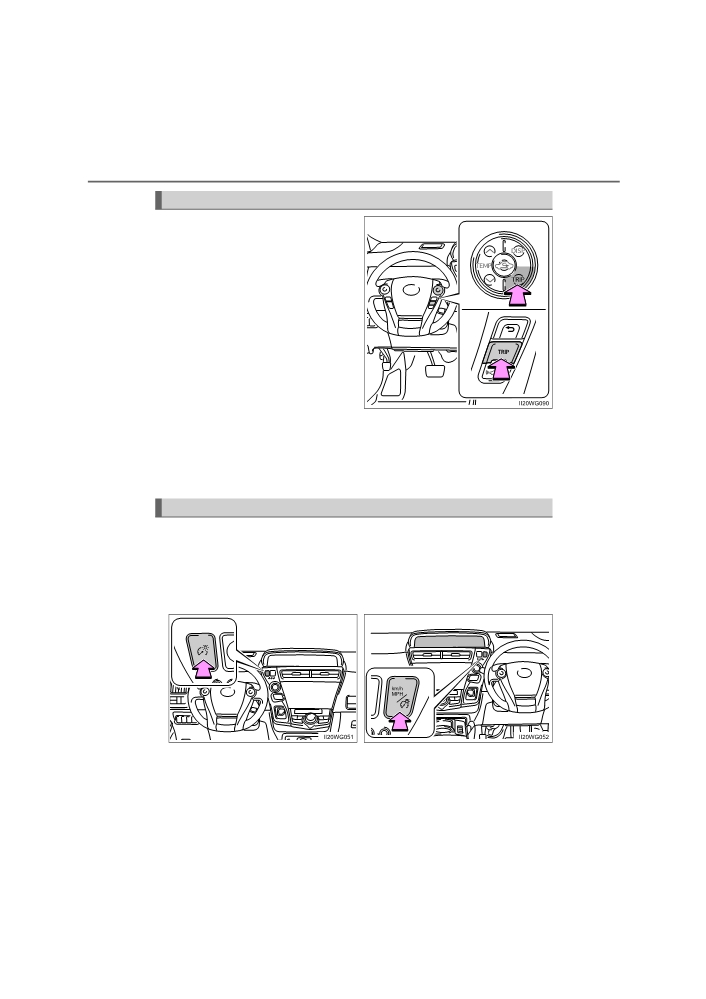

Changing the display
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the TRIP button will reset
the trip meter.
• While the odometer is being dis-
played, or when the odometer/trip
meter are not being displayed,
the average fuel consumption
from the last reset will be dis-
played.
• While the trip meter is being dis-
played, the average fuel con-
sumption will be displayed in
accordance with the trip meter
distance from the last reset.
• The function can be reset by pressing the TRIP button for longer than 1
second when the average fuel consumption is displayed on the trip
meter.
Use the displayed average fuel consumption as a reference.
Instrument cluster light control
The brightness of the instrument cluster lights can be adjusted by 4
steps each time the button is pressed.
The reduced brightness can be canceled by pressing and holding the but-
ton. To turn on this function, press the button again.
X Type A
X Type B
When the tail light is on, the brightness of the instrument cluster lights
can be adjusted. (For vehicles with the automatic light control system,
the lights can be adjusted when the tail light is on and the surrounding
area is dark.)
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
115
Trip information display (vehicles without multi-information dis-
play)
Items displayed can be switched
by pressing the DISP button.
2
■ Current fuel consumption
Displays the instant fuel consumption.
■ Average fuel consumption
The average fuel consumption is displayed on both the odometer
and the trip meter.
The function can be reset by pressing the DISP button for longer
than 1 second when the average fuel consumption is displayed on
the odometer.
Use the displayed average fuel consumption as a reference.
■ Cruising range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion.
As a result, the actual distance that can be driven may differ from
that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the power switch off. If the vehicle is refu-
eled without turning the power switch off, the display may not be
updated.

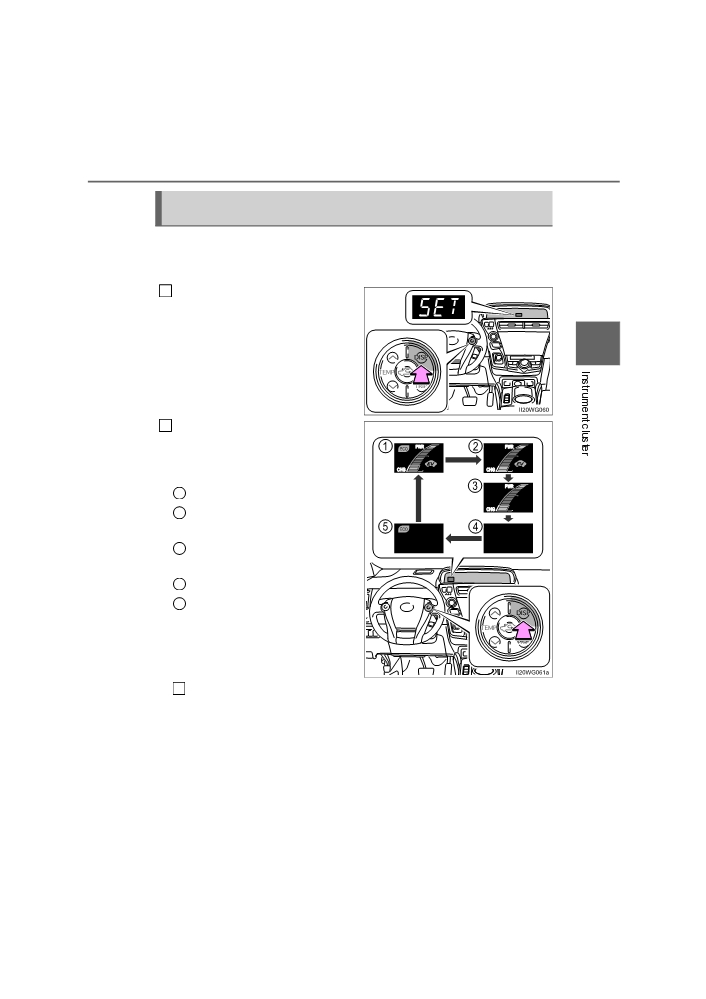

■ “SET” screen
The items displayed on Hybrid System Indicator can be setup.
(→P. 117)
PRIUS +_OM_OM47B24E_(EE)
116
2. Instrument cluster

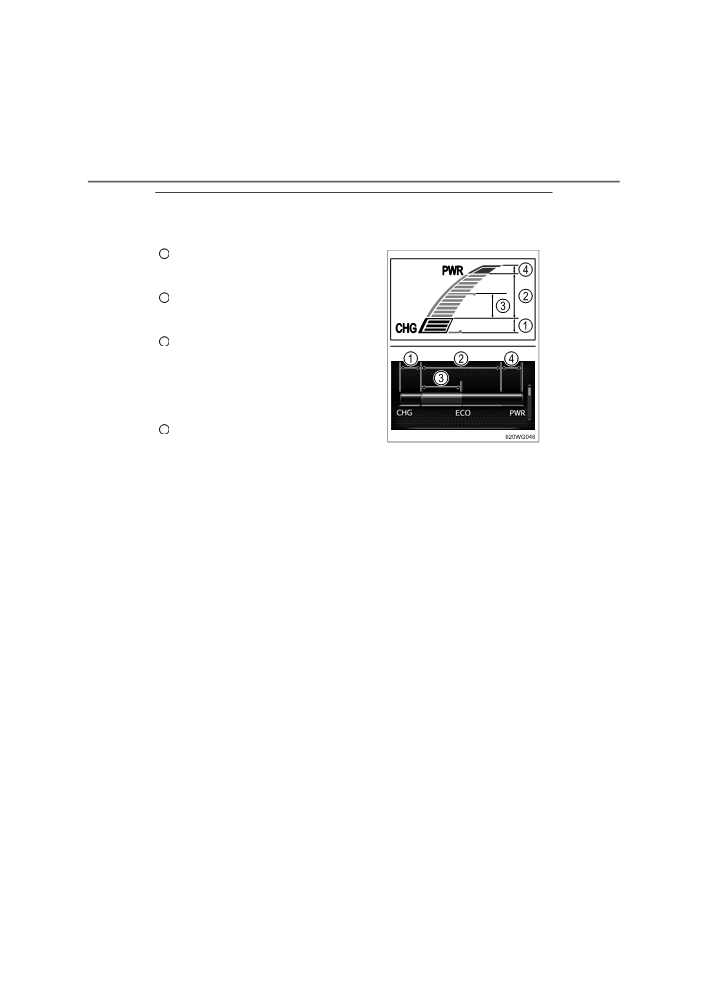

Hybrid System Indicator
Hybrid System Indicator displays the hybrid system power output and
regenerative charging and provides Eco-friendly driving assistance in
accordance with the driving conditions and the acceleration.
■ Names and meaning of each icons
Eco Driving Indicator Light
1
(vehicles without multi-infor-
mation display)
Turns on when the vehicle is
driven in Eco-friendly.
2
Hybrid System Indicator
→P. 118
3
EV indicator
The EV indicator comes on
when the vehicle is driven using
only the electric motor (traction
motor) or the gasoline engine is
stopped.
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
117
Changing Hybrid System Indicator settings (vehicles without
multi-information display)
The items displayed on Hybrid System Indicator can be changed by
operating the DISP button. Fully stop the vehicle and set the parking
brake, and then press the P position switch.

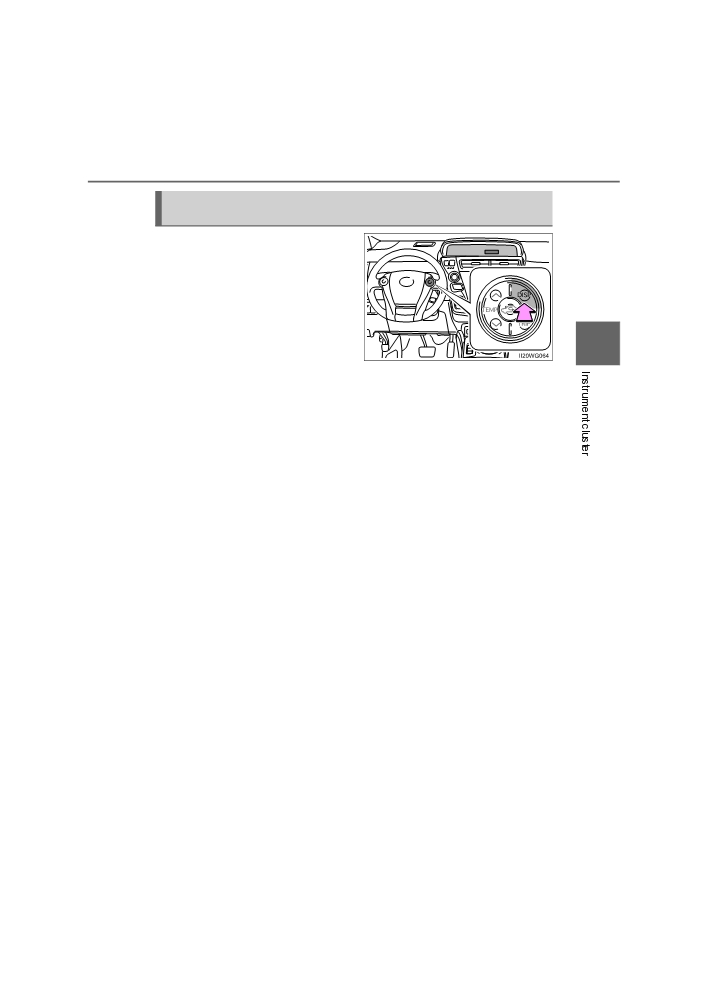

After pressing the DISP button
1
to display the “SET” screen on
the trip information display,
press and hold the DISP button
2
for 1 second or more.
The
“SET” display and Hybrid
System Indicator will flash.
2
Press the DISP button while the
display is flashing to select the
items to be displayed.
The display items will flash.
1
Display all
2
Display Hybrid System Indi-
cator and EV indicator
3
Display Hybrid System Indi-
cator only
4
Display none
5
Display Eco Driving Indicator
Light only
3
Press and hold the DISP button for 1 second or more to com-
plete the setup.
If setup is not completed by pressing and holding the DISP button for 1
second or more, or if nothing is operated within approximately 10 sec-
onds, the screen will return and the settings will be lost.
PRIUS +_OM_OM47B24E_(EE)
118
2. Instrument cluster
■ The meters and display illuminate when
The power switch is in ON mode.
■ Hybrid System Indicator
1
Charge area
Shows that energy is being recovered
via the regenerative brake.
2
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
3
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
4
Power area
Shows that an Eco-friendly driving
range is being exceeded
(during full
power driving etc.)
●By keeping the indicator within Eco area, more Eco-friendly driving can be
achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■Eco Driving Indicator Light (vehicles without multi-information display)
When all of the following conditions are satisfied and the Eco-friendly driving,
the light will illuminate:
●Driving with the shift position in D
● Either normal mode or Eco drive mode is selected, and EV drive mode or
power mode are not in use (→P. 214, 255)
● The vehicle speed is approximately 130 km/h (80 mph) or below.
Eco Driving Indicator Light can be set to activated or deactivated. (→P. 117)
PRIUS +_OM_OM47B24E_(EE)
