Toyota Verso S (2014 year). Instruction - part 36

6-1. Specifications

Engine

Gasoline engine

Model

1NR-FE

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

72.5  80.5 mm (2.85  3.17 in.)

Displacement

1329 cm3 (81.1 cu.in.)

Valve clearance

Automatic adjustment

(engine cold)

Drive belt tension

Automatic adjustment

Diesel engine

Model

1ND-TV

Type

4-cylinder in line, 4-cycle, diesel

Bore and stroke

73.0  81.5 mm (2.87  3.21 in.)

Displacement

1364 cm3 (83.2 cu.in.)

Valve clearance

Intake: 0.11 0.17 mm (0.004 0.007 in.)

(engine cold)

Exhaust: 0.14 0.20 mm (0.006 0.008 in.)

Drive belt tension

Automatic adjustment

NOTICE

6

Drive belt type

The high strength drive belt is used for the generator side drive belt. When

replacing the drive belt, use Toyota genuine drive belt or equivalent high

strength drive belt. If the high strength drive belt is not used, durability of the

belt may become less than expected. The high strength drive belt is a belt

with Aramid core which has higher strength compared to usually available

belts with PET or PEN core.

525

6-1. Specifications

Fuel

Gasoline engine

EU area:

Unleaded gasoline conforming to European stan-

Fuel type

dard EN228 only

Except EU area:

Unleaded gasoline only

Research octane num-

95 or higher

ber

Fuel tank capacity

42 L (11.1 gal., 9.2 Imp. gal.)

(Reference)

Diesel engine

EU area:

Diesel fuel conforming to European standard

Fuel type

EN590

Except EU area:

Diesel fuel that contains 50 ppm or less of sulfur

Cetane number

48 or higher

Fuel tank capacity

42 L (11.1 gal., 9.2 Imp. gal.)

(Reference)

526

6-1. Specifications

Lubrication system

Oil capacity

(Drain and refill

 reference*)

With filter

1NR-FE engine

3.4 L (3.6 qt., 3.0 Imp. qt.)

1ND-TV engine

3.9 L (4.1 qt., 3.4 Imp. qt.)

Without filter

1NR-FE engine

3.2 L (3.4 qt., 2.8 Imp. qt.)

1ND-TV engine

3.5 L (3.7 qt., 3.1 Imp. qt.)

*: The engine oil capacity is a reference quantity to be used when changing the

engine oil. Warm up and turn off the engine, wait more than 5 minutes, and

check the oil level on the dipstick.

6

527

6-1. Specifications

 Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-

ommends the use of approved “Toyota Genuine Motor Oil”. Another

motor oil of matching quality can also be used.

1NR-FE engine

Oil grade:

0W-20, 5W-20, 5W-30 and 10W-30:

API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN

“Resource-Conserving”; or ILSAC multigrade engine oil

15W-40 and 20W-50:

API grade SL, SM or SN multigrade engine oil

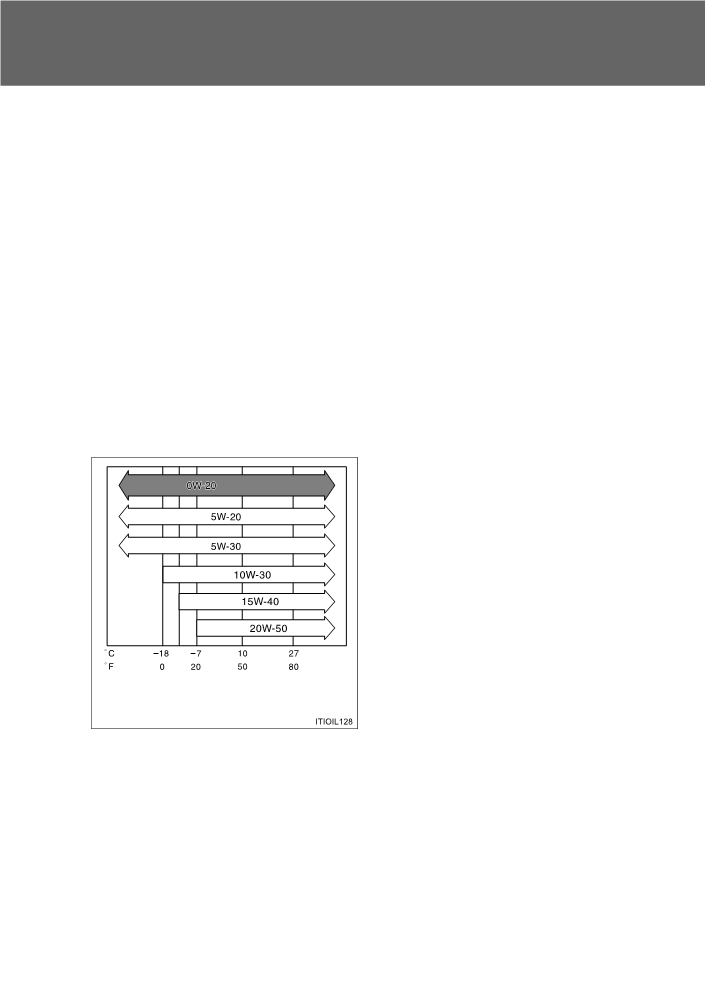

Recommended viscosity (SAE):

SAE 0W-20 is filled into your

Preferred

Toyota vehicle at manufacturing,

and the best choice for good fuel

economy and good starting in

cold weather.

If SAE 0W-20 oil is not available,

SAE 5W-30 oil may be used.

However, it should be replaced

with SAE 0W-20 at the next oil

Temperature range anticipated before

change.

next oil change.

If you use SAE

10W-30 or a

higher viscosity engine oil in

extremely low temperatures, the

engine may become difficult to

start, so SAE 0W-20, 5W-20 or

5W-30 engine oil is recom-

mended.

528

6-1. Specifications

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is oper-

ated at high speeds, or under extreme load conditions.

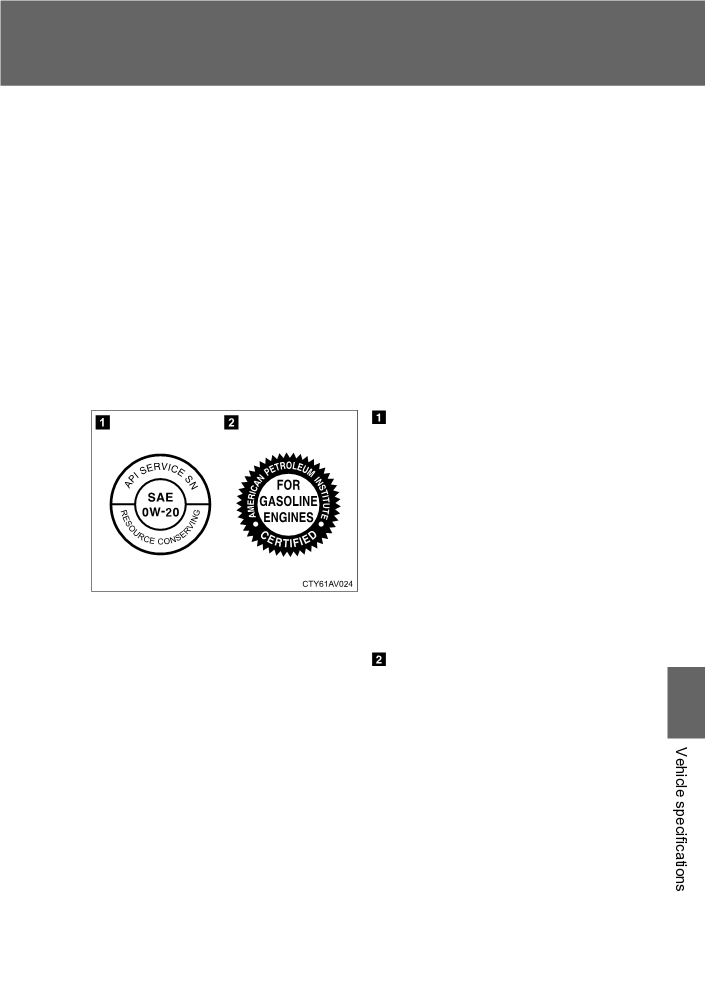

How to read oil container labels:

Either or both API registered marks are added to some oil containers

to help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SN”

means the oil quality designation

by American Petroleum Institute

(API).

Center portion:

“SAE

0W-20”

means the SAE viscosity grade.

Lower

portion:

“Resource-

Conserving” means that the oil

has fuel-saving and environmen-

tal protection capabilities.

ILSAC Certification Mark

The International Lubricant Speci-

6

fication

Advisory Committee

(ILSAC) Certification Mark is dis-

played on the front of the con-

tainer.

529

6-1. Specifications

1ND-TV engine

Oil grade: ACEA C2

NOTICE

Using engine oil other than ACEA C2 may damage the catalytic converter.

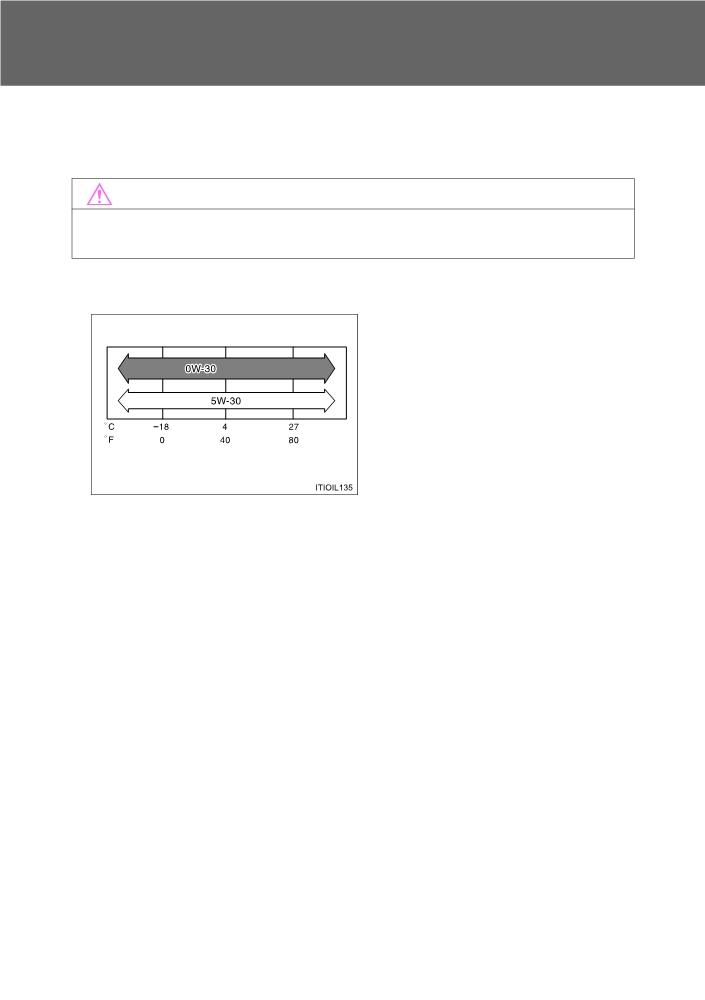

Recommended viscosity (SAE):

SAE 0W-30 is filled into your

Toyota vehicle at manufacturing,

Preferred

and the best choice for good fuel

economy and good starting in

cold weather.

Temperature range anticipated before

next oil change.

Oil viscosity (0W-30 is explained here as an example):

• The 0W in 0W-30 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 30 in 0W-30 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is oper-

ated at high speeds, or under extreme load conditions.

530

6-1. Specifications

Cooling system

Multidrive

1NR-FE

4.8 L (5.1 qt., 4.2 Imp. qt.)

engine

Manual transmission

Capacity

4.6 L (4.9 qt., 4.0 Imp. qt.)

(Refer-

Without power heater

ence)

1ND-TV

4.9 L (5.2 qt., 4.3 Imp. qt.)

engine

With power heater

5.3 L (5.6 qt., 4.7 Imp. qt.)

Use either of the following:

• “Toyota Super Long Life Coolant”

• A similar high-quality ethylene glycol-based non-

Coolant type

silicate, non-amine, non-nitrite, and non-borate

coolant with long-life hybrid organic acid technol-

ogy

Do not use plain water alone.

Ignition system (gasoline engine only)

Spark plug

Make

DENSO SC16HR11

Gap

1.1 mm (0.043 in.)

NOTICE

6

 Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

531

6-1. Specifications

Electrical system

Battery

12.6  12.8 V Fully charged

12.2  12.4 V Half charged

Open voltage* at

11.8  12.0 V Discharged

20C (68F):

(*: Voltage checked 20 minutes after

the engine and all the lights turned

off)

Charging rates

5 A max.

Multidrive

Fluid capacity (Reference)

6.42 L (6.79 qt., 5.65 Imp. qt.)

Fluid type

Toyota Genuine CVT FLUID FE

The fluid capacity is the quantity of reference. If replacement is neces-

sary, contact any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional.

NOTICE

Multidrive fluid type

Using Multidrive fluid other than “Toyota Genuine CVT FLUID FE” may

cause deterioration in shift quality, locking up of your transmission accompa-

nied by vibration, and ultimately damage the transmission of your vehicle.

532

6-1. Specifications

Manual transaxle

Gear oil capacity (Reference)

2.4 L (2.5 qt., 2.1 Imp. qt.)

TOYOTA Genuine Manual Transmission

Gear oil type

Gear Oil LV API GL-4

Recommended gear oil

SAE 75W

viscosity

NOTICE

 Manual transaxle gear oil

Using a manual transmission gear oil other than “TOYOTA Genuine Manual

Transmission Gear Oil LV API GL-4 SAE 75W” may cause occurrences of

rattling noises while idling and poor fuel consumption.

Clutch

Pedal free play

5  15 mm (0.2  0.6 in.)

SAE J1703 or FMVSS No.116 DOT 3 or

Fluid type

SAE J1704 or FMVSS No.116 DOT 4

6

533

6-1. Specifications

Brakes

Left-hand drive vehicles

1NR-FE

88 mm (3.46 in.) Min.

engine

Right-hand drive vehicles

Pedal clearance*1

79 mm (3.11 in.) Min.

1ND-TV

85 mm (3.35 in.) Min.

engine

Pedal free play

1  6 mm (0.04  0.24 in.)

Parking brake lever travel *2

8  11 clicks

SAE J1703 or FMVSS No.116 DOT 3 or

Fluid type

SAE J1704 or FMVSS No.116 DOT 4

*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,

67.4 lbf) while the engine is running

*2: Parking brake lever travel when pulled up with a force of 196 N (20 kgf, 44

lbf)

Steering

Free play

Less than 30 mm (1.2 in.)

534

6-1. Specifications

Tires and wheels

185/65R15 88H, 185/60R16 86H,

Tire size

T135/70D16 100M

Tire inflation pressure

(Recommended cold tire

230 kPa (2.3 kgf/cm2 or bar, 33 psi)

inflation pressure)

Tire inflation pressure

(compact spare)

420 kPa (4.2 kgf/cm2 or bar, 60 psi)

(Recommended cold tire

inflation pressure)

15  5 1/2 J, 16  5 1/2 J, 16  4T (compact

Wheel size

spare)

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

6

535

6-1. Specifications

Light bulbs

Light bulbs

W

Type

Headlights

55

A

Front fog lights (if equipped)

55

B

Front turn signal lights

21

D

Exterior

Back-up light

16

C

Rear fog light

21

C

License plate lights

5

C

Rear turn signal lights

21

D

Personal lights*1

8

C

Personal/interior lights*2

8

C

Interior

Interior light

8

E

Luggage compartment light

5

E

A: HIR2 halogen bulbs

B: H11 halogen bulbs

C: Wedge base bulbs (clear)

D: Wedge base bulbs (amber)

E: Double end bulbs

*1: Vehicles without a panoramic roof shade

*2: Vehicles with a panoramic roof shade

536

6-1. Specifications

Fuel information

Gasoline engine

EU area:

Your vehicle must use only unleaded gasoline conforming to Euro-

pean standard EN228.

For optimum engine performance, select unleaded gasoline with a

Research Octane Number of 95 or higher.

Except EU area:

Your vehicle must use only unleaded gasoline.

For optimum engine performance, select unleaded gasoline with a

Research Octane Number of 95 or higher.

Diesel engine

EU area:

Your vehicle must use only diesel fuel conforming to European

standard EN590.

Except EU area:

Your vehicle must use only diesel fuel that contains 50 ppm or less

of sulfur and has a cetane number of 48 or higher.

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehicle has a fuel tank opening that

only accommodates the special nozzle on unleaded fuel pumps.

6

 If you plan to drive in foreign countries

Low sulfur diesel fuel may not be available, so please check the availability

with your distributor.

 If your engine knocks

 Consult any authorized Toyota dealer or repairer, or another duly quali-

fied and equipped professional.

 You may occasionally notice light knocking for a short time while acceler-

ating or driving uphill. This is normal and there is no need for concern.

537

6-1. Specifications

NOTICE

 Notice on diesel fuel quality

 Do not use improper fuels. If improper fuels are used, the engine will be

damaged.

 Do not use a fuel that contains more than 50 ppm of sulphur.

Use of such a high sulphur fuel may damage the engine.

Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under

names such as “B30” or “B100” and fuel containing a large amount of

FAME should not be used. The use of these fuels will damage the vehi-

cle's fuel system. In case of any doubt, ask any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional.

 Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold

under names such as “B30” or “B100” and fuel containing a large amount

of FAME should not be used. Your vehicle can use diesel mixed with 5%

max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-

tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-

eling is carried out only from a source where fuel specification and quality

can be guaranteed. In case of any doubt, ask any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

6

539

Content   ..  34  35  36  37   ..
