5-2. Steps to take in an emergency

Diesel engine

STEP

3

After the engine has cooled

down sufficiently, inspect the

hoses and radiator core (radia-

tor) for any leaks.

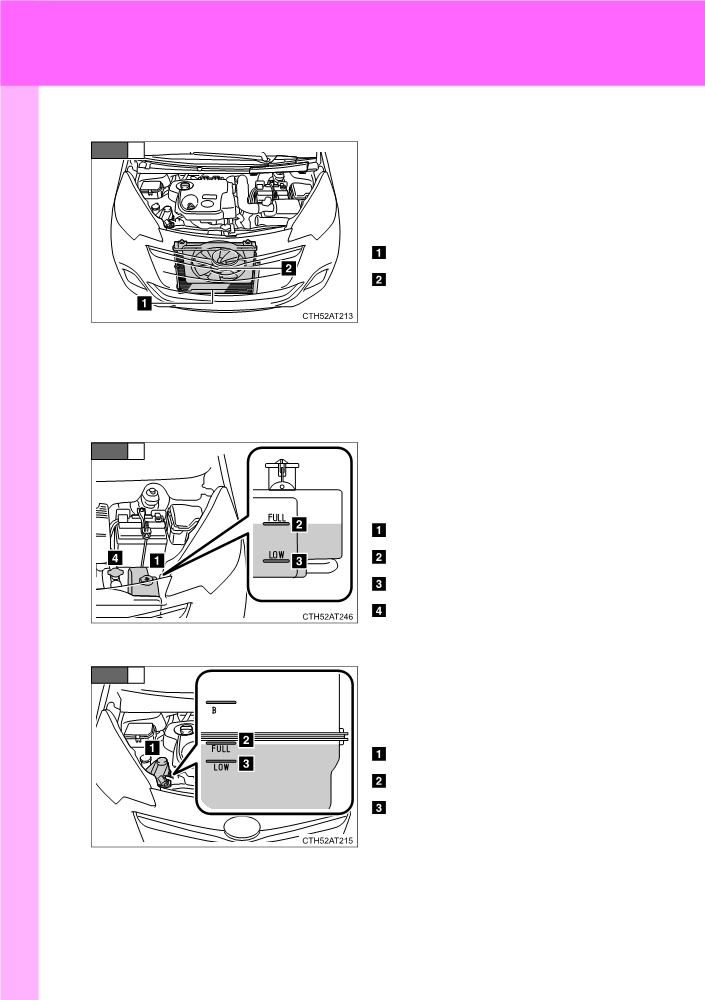

Radiator

Cooling fan

If a large amount of coolant leaks,

immediately contact any autho-

rized Toyota dealer or repairer, or

another duly qualified and

equipped professional.

Gasoline engine

STEP

4

The coolant level is satisfactory if

it is between the

“FULL” and

“LOW” lines on the reservoir.

Reservoir

“FULL”

“LOW”

Radiator cap

Diesel engine

STEP

4

The coolant level is satisfactory if

it is between the

“FULL” and

“LOW” lines on the reservoir.

Reservoir

“FULL”

“LOW”

510

5-2. Steps to take in an emergency

Gasoline engine

STEP

5

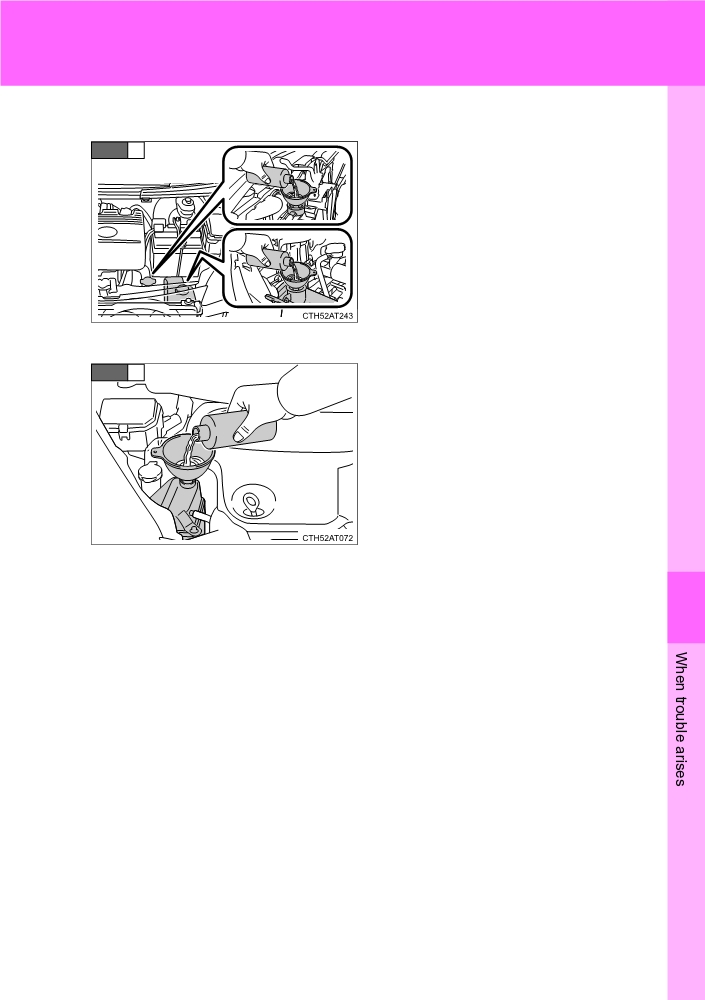

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

Diesel engine

STEP

5

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

5

511

5-2. Steps to take in an emergency

STEP

6

Start the engine and turn the air conditioning system on to

check that the radiator cooling fan operates and to check for

coolant leaks from the radiator or hoses.

The fan operates when the air conditioning system is turned on

immediately after a cold start. Confirm that the fan is operating by

checking the fan sound and air flow. If it is difficult to check these,

turn the air conditioning system on and off repeatedly.

(The fan may not operate in freezing temperatures.)

If the fan is not operating:

STEP

7

Stop the engine immediately and contact any authorized

Toyota dealer or repairer, or another duly qualified and

equipped professional.

If the fan is operating:

Have the vehicle inspected at the nearest authorized

Toyota dealer or repairer, or another duly qualified and

equipped professional.

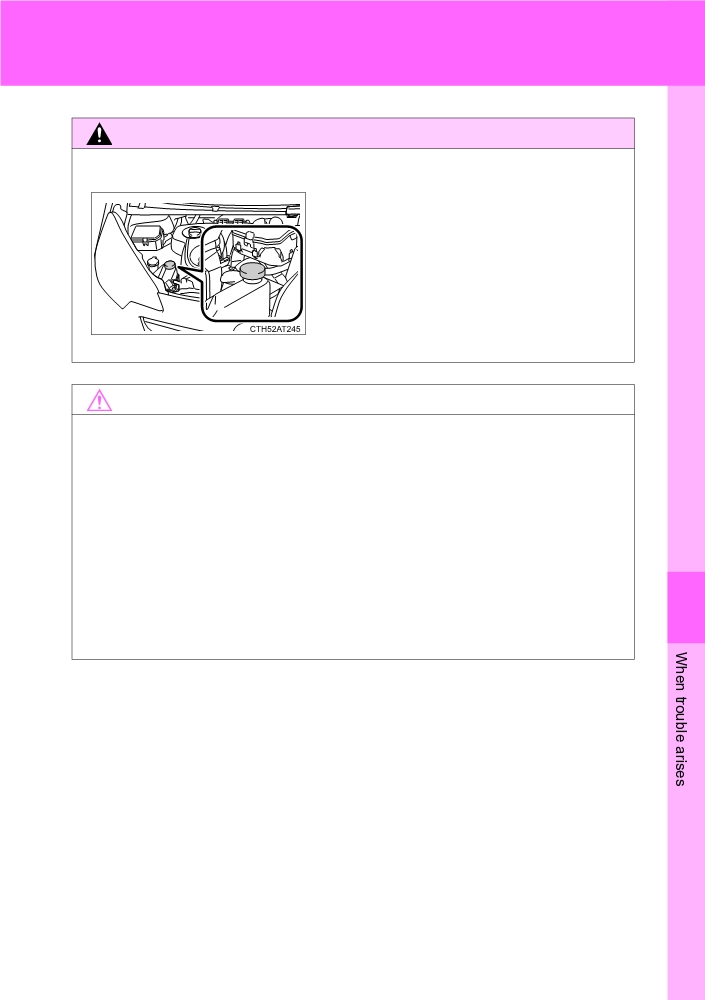

CAUTION

 To prevent an accident or injury when inspecting under the hood of

your vehicle

 If steam is seen coming from under the hood, do not open the hood until

the steam has subsided. The engine compartment may be very hot, caus-

ing serious injuries such as burns.

 Keep hands and clothing (especially a tie, a scarf or a muffler) away from

the fans and belts. Failure to do so may cause the hands or clothing to be

caught, resulting in serious injury.

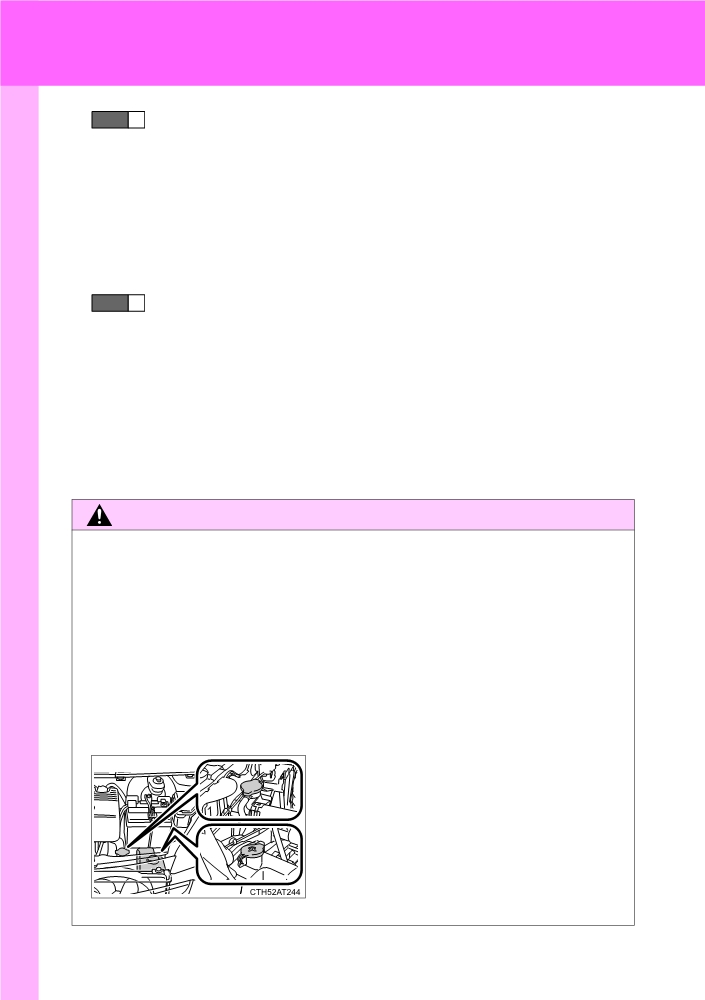

Gasoline engine

 Do not loosen the radiator cap and the

coolant reservoir cap while the engine

and radiator are hot.

Serious injury, such as burns, may

result from hot coolant and steam

released under pressure.

512

5-2. Steps to take in an emergency

CAUTION

Diesel engine

 Do not loosen the coolant reservoir cap

while the engine and radiator are hot.

Serious injury, such as burns, may

result from hot coolant and steam

released under pressure.

NOTICE

When adding engine coolant

Wait until the engine has cooled down before adding engine coolant.

When adding coolant, do so slowly. Adding cool coolant to a hot engine too

quickly can cause damage to the engine.

 To prevent damage to the cooling system

Observe the following precautions:

 Avoid contaminating the coolant with foreign matter (such as sand or dust

etc.).

5

 Do not use any coolant additive.

513

5-2. Steps to take in an emergency

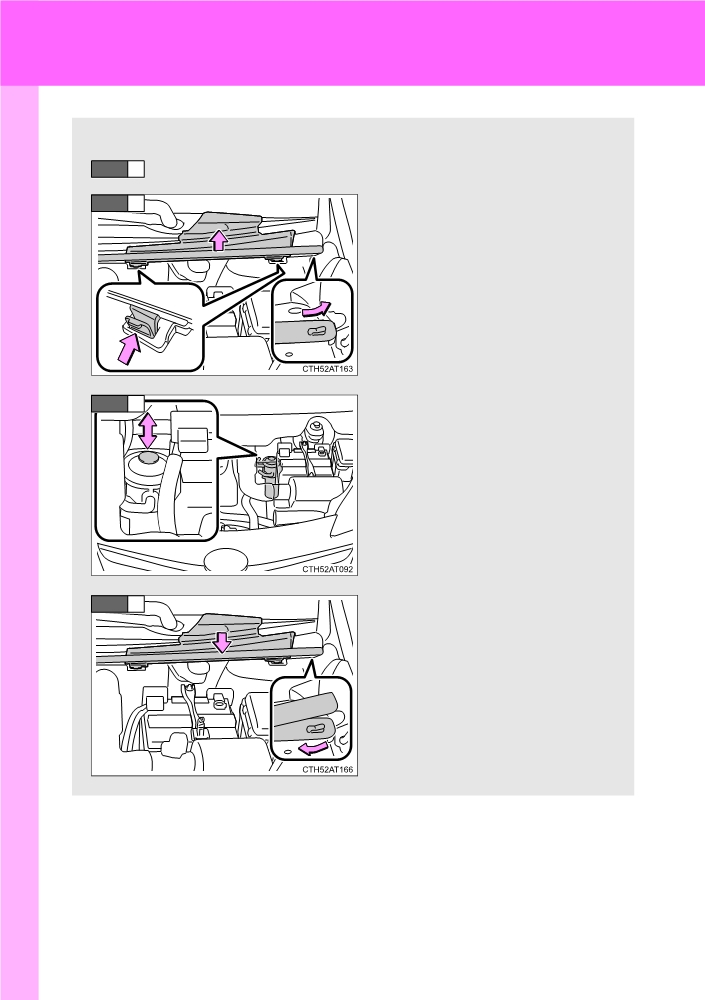

If you run out of fuel and the engine stalls (diesel engine only)

If you run out of fuel and the engine stalls:

STEP

1

Refuel your vehicle.

STEP

2

Pull the rubber strip on the

edge to unhook it from the

cover, and then push the tabs

in and lift the cover off.

STEP

3

To bleed the fuel system,

operate the priming pump until

you feel more resistance.

STEP

4

Reinstall the cover, and then

hook the rubber strip's groove

onto the cover.

514

5-2. Steps to take in an emergency

Start the engine. (P. 173, 182)

STEP

5

If the engine does not start after the above steps have been per-

formed, wait for 10 seconds and then try steps 2 and 3 again. If

the engine still does not start, contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped profes-

sional.

After starting the engine, depress the accelerator pedal lightly until

the engine runs smoothly.

NOTICE

 When restarting the engine

 Do not crank the engine before refueling and operating the priming pump.

This may damage the engine and fuel system.

 Vehicles without a smart entry & start system: Do not crank for more than

30 seconds at a time. This may overheat the starter and wiring system.

5

515

5-2. Steps to take in an emergency

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle

becomes stuck in mud, dirt or snow:

STEP

1

Vehicles with a Multidrive: Stop the engine. Set the parking

brake and shift the shift lever in P.

Vehicles with a manual transmission: Stop the engine. Set

the parking brake and shift the shift lever in N.

STEP

2

Remove the mud, snow or sand from around the stuck tire.

STEP

3

Place wood, stones or some other material under the tires

to help provide traction.

STEP

4

Restart the engine.

STEP

5

Vehicles with a Multidrive: Shift the shift lever to the D or R

and carefully apply the accelerator to free the vehicle.

Vehicles with a manual transmission: Shift the shift lever to

1 or R and carefully apply the accelerator to free the vehi-

cle.

Turn off TRC and VSC if these functions are hampering your

attempts to free the vehicle. (P. 241)

CAUTION

 When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the sur-

rounding area is clear to avoid striking other vehicles, objects or people. The

vehicle may also lunge forward or lunge back suddenly as it becomes free.

Use extreme caution.

 When shifting the shift lever (Vehicles with a Multidrive)

Be careful not to shift the shift lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may

cause an accident resulting in death or serious injury.

516

5-2. Steps to take in an emergency

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the

vehicle in the normal way, stop the vehicle using the following pro-

cedure:

STEP

1

Steadily step on the brake pedal with both feet and firmly

depress it.

Do not pump the brake pedal repeatedly as this will increase the

effort required to slow the vehicle.

STEP

2

Shift the shift lever to N.

If the shift lever is shifted to N

STEP

3

After slowing down, stop the vehicle in a safe place by the

road.

STEP

4

Stop the engine.

If the shift lever cannot be shifted to N

STEP

3

Keep depressing the brake pedal with both feet to reduce

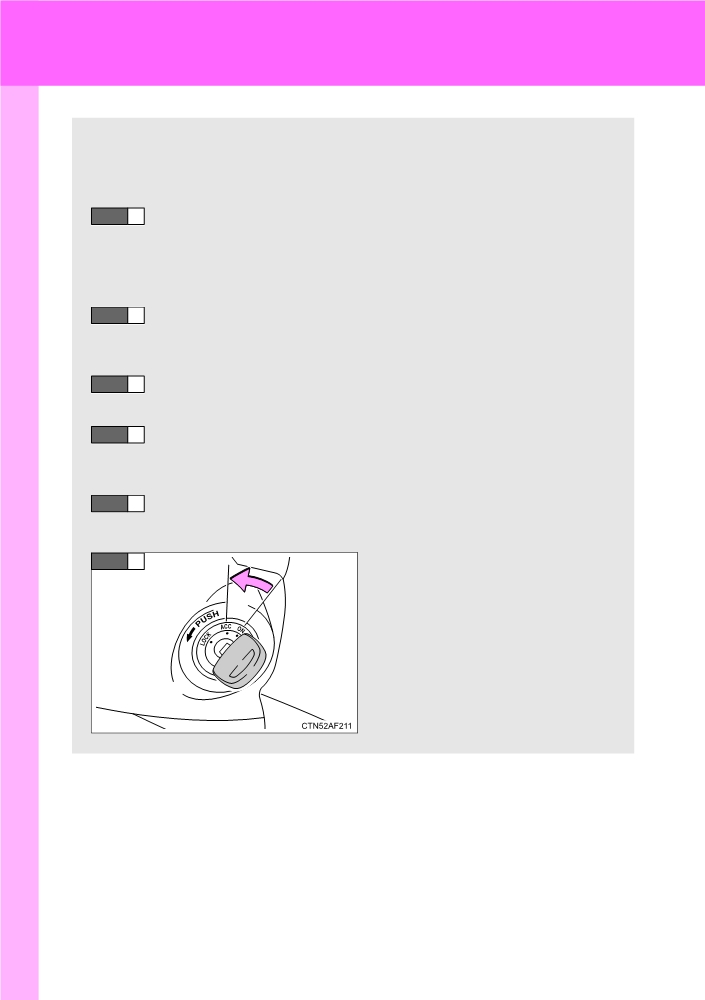

vehicle speed as much as possible.

STEP

4

Vehicles without a smart entry

& start system: Stop the

engine by turning the engine

switch to the “ACC” position.

518

5-2. Steps to take in an emergency

STEP

4

Vehicles with a smart entry &

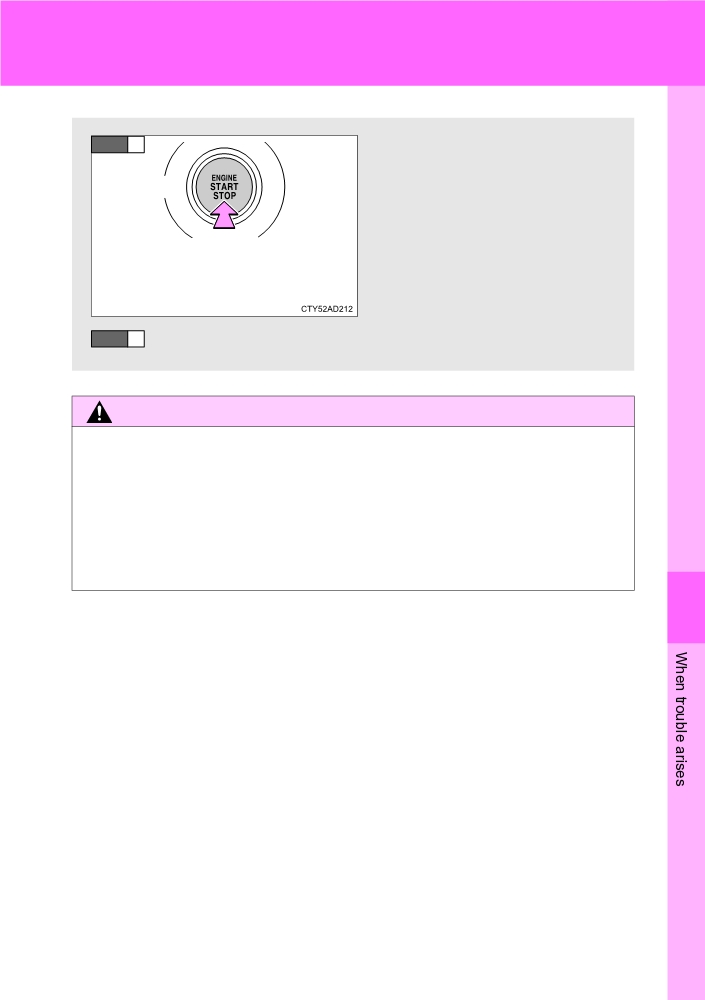

start system: To stop the

engine, press and hold the

“ENGINE START STOP”

switch for 2 consecutive sec-

Press and hold for 2 seconds or more,

onds or more, or press it

or press briefly 3 times or more

briefly 3 times or more in suc-

cession.

Stop the vehicle in a safe place by the road.

STEP

5

CAUTION

 If the engine has to be turned off while driving

 Power assist for the brakes and steering wheel will be lost, making the

brake pedal harder to depress and the steering wheel heavier to turn.

Decelerate as much as possible before turning off the engine.

 Vehicles without a smart entry & start system: Never attempt to remove

the key, as doing so will lock the steering wheel.

5

519

5-2. Steps to take in an emergency

520

6-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

3990 mm (157.1 in.)

Overall width

1695 mm (66.7 in.)

Overall height*1

1595 mm (62.8 in.)

Wheelbase

2550 mm (100.4 in.)

Front

1470 mm (57.9 in.)

Tread

Rear

1460 mm (57.5 in.)

Left-hand drive vehicles

Manual transmission

1505 kg (3318 lb.)*2,4

1535 kg (3384 lb.)*2,5

1515 kg (3340 lb.)*3,4

1545 kg (3406 lb.)*3,5

Multidrive

1NR-FE

1540 kg (3395 lb.)*2

Gross vehicle

engine

1550 kg (3417 lb.)*3

mass

Right-hand drive vehicles

Manual transmission

1515 kg (3340 lb.)*4

1545 kg (3406 lb.)*5

Multidrive

1550 kg (3417 lb.)

1ND-TV

1575 kg (3472 lb.)*4

engine

1600 kg (3527 lb.)*5

522

6-1. Specifications

Maximum permissi-

Front

900 kg (1985 lb.)

ble axle capacity

Rear

825 kg (1819 lb.)

Drawbar load

50 kg (110 lb.)

with

800 kg (1764 lb.)

brake

Towing capacity

without

550 kg (1213 lb.)

brake

*1: Unladen vehicles

*2: Vehicles without Stop & Start system

*3: Vehicles with Stop & Start system

*4: Except vehicles with leather wrapped steering wheel

*5: Vehicles with leather wrapped steering wheel

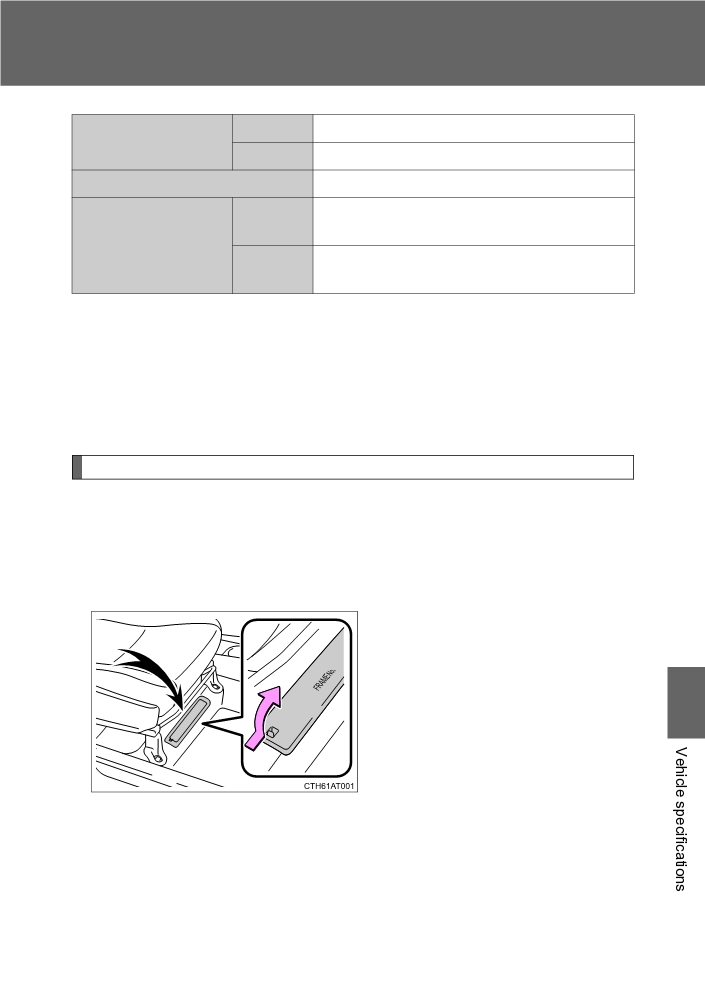

Vehicle identification

 Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for

your vehicle. This is the primary identification number for your

Toyota. It is used in registering the ownership of your vehicle.

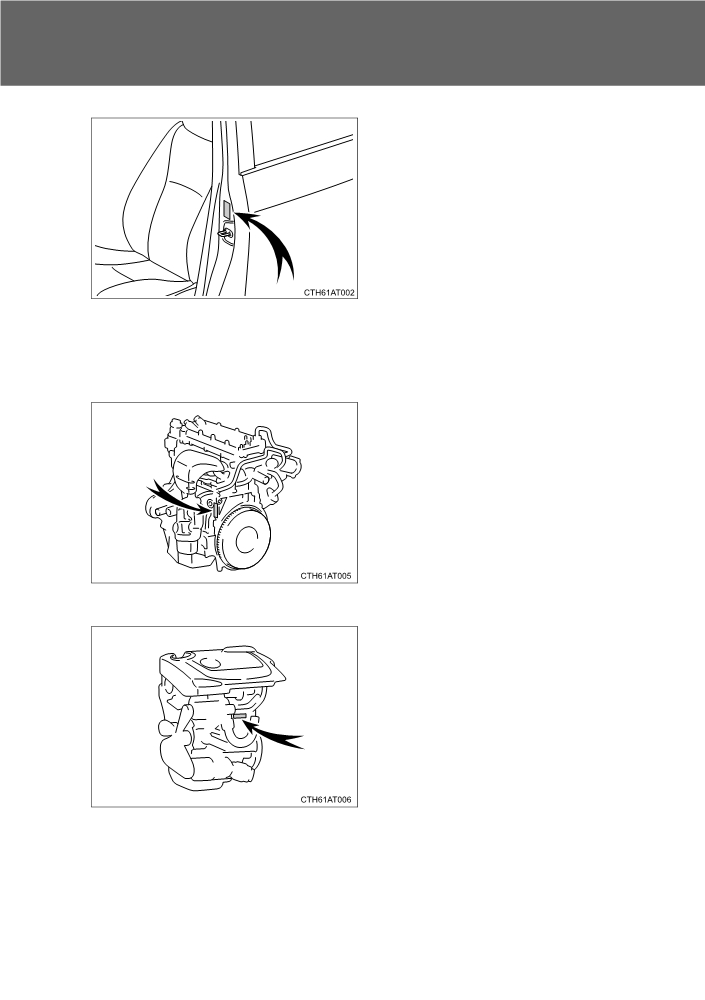

This number is stamped under

the right-hand front seat.

6

523

6-1. Specifications

This number is also on the man-

ufacturer’s label on the left-hand

side center pillar.

 Engine number

The engine number is stamped on the engine block as shown.

1NR-FE engine

1ND-TV engine
