5-2. Steps to take in an emergency
Warning light
Warning light/Details
Fuel filter warning light (diesel engine only)
Indicate that the amount of accumulated water in the fuel
filter has reached the specified level.
Cruise control indicator light (if equipped)
Indicates a malfunction in the cruise control system.
(Yellow)
Smart entry & start system indicator light (If equipped)
(Flashes in
Indicates a malfunction in the smart entry & start system.
yellow for 15
seconds.)
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Warning light
Warning light/Details
Correction procedure
Parking brake indicator
light (warning buzzer)*1
Release the parking brake.
Indicates that the parking
brake is not released.
Open door warning light
(warning buzzer)*2
Check that all doors are
Indicates that a door is not
closed.
fully closed.
450
5-2. Steps to take in an emergency
Warning light
Warning light/Details
Correction procedure
Low fuel level warning
light
Gasoline engine: Indi-
cates that remaining fuel is
about 5.8 L (1.5 gal., 1.3
Refuel the vehicle.
Imp. gal.) or less.
Diesel engine: Indicates
that remaining fuel is
about 6.4 L (1.7 gal., 1.4
Imp. gal.) or less.
Driver’s and front passen-
ger’s seat belt reminder
light (warning buzzer)*3
Fasten the seat belt.
(On the instru-
Warns the driver and front
ment cluster)
passenger to fasten their
seat belts.
Rear passengers’ seat
belt reminder lights
(warning buzzer)*3
Fasten the seat belt.
(On the center
Warns the rear passen-
panel)
gers to fasten their seat
belts.
5
Low engine oil level warn-
ing light (diesel engine
Check the level of engine
only)
oil, and add if necessary.
Indicates that engine oil
level is low.
451
5-2. Steps to take in an emergency
Warning light
Warning light/Details
Correction procedure
To clean the DPF catalytic
converter, drive the vehicle
at a speed of 65 km/h (40
mph) or greater for 20 to 30
minutes as much as possi-
ble until the DPF system
DPF system warning light
warning light turns off.*4
(diesel engine only)
Do not turn off the engine as
• Indicates that the DPF cat-
much as possible until the
alytic converter needs to
DPF system warning light
be cleaned due to
turns off.
repeated short trips and/or
If it is not possible to drive
low-speed driving.
the vehicle at speeds of 65
• Indicates that the amount
km/h (40 mph) or greater, or
of accumulated deposits in
the DPF system warning
the DPF catalytic con-
light does not turn off even
verter has reached the
after driving for more than
specified level.
30 minutes, have the vehi-
cle inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped pro-
fessional.
Engine oil change
reminder light (diesel
engine only)
Indicates that the engine
oil is scheduled to be
Check the engine oil, and
changed.
change if necessary. After
Flashes approximately
changing the engine oil, the
14500 km (9000 miles)
(Flashes)
oil change system should
after the engine oil is
be reset. (P. 374)
changed. (P. 459) (The
indicator will not work
properly unless the oil
maintenance date has
been reset).
452
5-2. Steps to take in an emergency
Warning light
Warning light/Details
Correction procedure
Engine oil change
reminder light (diesel
Check and change the
engine only)
engine oil and oil filter by
Indicates that the engine
any authorized Toyota
oil should be changed.
dealer or repairer, or
Comes on approximately
another duly qualified and
(Comes on)
15000 km (9300 miles)
equipped professional. After
after the engine oil is
changing the engine oil, the
changed (and the oil main-
oil change system should
tenance data has been
be reset. (P. 374)
reset).
Tire pressure warning
light
Adjust the tire inflation pres-
sure to the specified level.
The light will turn off after a
few minutes. In case the
When the light comes on:
light does not turn off even
Low tire inflation pressure
if the tire inflation pressure
such as
is adjusted, have the sys-
• Natural causes (P. 458)
tem checked by any
• Flat tire (P. 462, 475)
authorized Toyota dealer
5
or repairer, or another duly
qualified and equipped
professional.
When the light comes on
Have the system checked
after blinking for 1 minute:
by any authorized Toyota
Malfunction in the tire pres-
dealer or repairer, or
sure warning system
another duly qualified and
(P. 459)
equipped professional.
453
5-2. Steps to take in an emergency
*1: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*3: Driver's and passengers seat belt reminders:
The driver’s and passengers seat belt buzzer sounds to alert the driver and
passengers that their seat belt is not fastened. The buzzer sounds once
when the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat
belt is still unfastened after 30 seconds elapse, the buzzer will sound inter-
mittently for 30 seconds, followed by a different tone for 90 more seconds.
*4: The DPF system warning light may not turn off when the engine oil change
reminder light is on. In this event, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
454
5-2. Steps to take in an emergency
Follow the correction procedures. (vehicles with a smart entry &
start system)
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Interior
Exterior
Warning
Correction
Warning light/Details
buzzer
buzzer
light
procedure
Smart entry & start system
indicator light (vehicles with
a Multidrive)
• Change the
The electronic key was car-
shift position
ried outside the vehicle and
to P.
Continuous
Continuous
the driver’s door was opened
• Bring the
(Flashes
and closed while any shift
electronic key
in yellow)
position other than P was
back into the
selected without turning off
vehicle.
the “ENGINE START STOP”
switch.
Smart entry & start system
indicator light
Vehicles with a Multidrive:
The electronic key was car-
5
ried outside the vehicle and
the driver’s door was opened
Turn the
and closed while the shift
“ENGINE
position P was selected with-
START
out turning off the “ENGINE
STOP” switch
Once
3 times
START STOP” switch.
off or bring
(Flashes
Except vehicle with a Multid-
the electronic
in yellow)
rive: The electronic key was
key back into
carried outside the vehicle
the vehicle.
and a door other than the
driver’s door was opened
and closed while the
“ENGINE START STOP”
switch was in a mode other
than off.
455
5-2. Steps to take in an emergency
Interior
Exterior
Warning
Correction
Warning light/Details
buzzer
buzzer
light
procedure
Smart entry & start system
indicator light
Indicates that a door other
than the driver’s door has
Confirm the
been opened and closed with
location of the
Once
3 times
(Flashes
the “ENGINE START STOP”
electronic
in yellow)
switch in any mode other
key.
than off and the electronic
key outside of the detection
area.
Smart entry & start system
Turn the
indicator light
“ENGINE
An attempt was made to exit
START
Continuous
the vehicle with the elec-
Once
STOP” switch
(10 seconds)
tronic key and lock the doors
(Flashes
off and lock
in yellow)
without first turning the
the doors
“ENGINE START STOP”
again.
switch off.
Smart entry & start system
indicator light
Confirm the
Indicates that the electronic
location of the
(Flashes
Once
key is not present when
electronic
in yellow
attempting to start the
key.
for 15
engine.
seconds.)
Smart entry & start system
Confirm that
indicator light
the electronic
9 times
An attempt was made to
key is inside
(Flashes
drive when the regular key
the vehicle.
in yellow)
was not inside the vehicle.
Smart entry & start system
Replace the
(Flashes
indicator light
Once
battery.
in yellow
Indicates that the electronic
(P. 403)
for 15
key battery is low.
seconds.)
456
5-2. Steps to take in an emergency
Interior
Exterior
Warning
Correction
Warning light/Details
buzzer
buzzer
light
procedure
Smart entry & start system
Release the
(Flashes
indicator light
Once
steering lock.
quickly in
Indicates that the steering
(P. 179)
green for
lock has not been released.
15 sec-
onds.)
Except vehi-
cles with a
manual trans-
mission:
Touch the
electronic key
Smart entry & start system
to the
indicator light
“ENGINE
•
When the doors were
START
unlocked with the mechani-
STOP” switch
cal key and then the
while
“ENGINE START STOP”
depressing
switch was pressed, the
the brake
(Flashes
Once
electronic key could not be
pedal.
5
in yellow
detected in the vehicle.
Vehicles with
for 30
•
The electronic key could
a manual
seconds.)
not be detected in the vehi-
transmission:
cle even after the “ENGINE
Touch the
START STOP” switch was
electronic key
pressed two consecutive
to the
times.
“ENGINE
START
STOP” switch
while
depressing
with the
clutch pedal.
457
5-2. Steps to take in an emergency
If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle
immediately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, as soon as possible.
Passenger detection sensor and passenger seat belt reminder
If luggage is placed on a passenger seat, the passenger detection sensor
may cause the warning light to flash even if a passenger is not sitting in
the seat.
If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing
the tire pressure warning reset switch will not turn off the tire pressure warn-
ing light.
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not turn
off even though the flat tire has been replaced with the spare tire. Replace
the spare tire with the repaired tire and adjust the tire inflation pressure. The
tire pressure warning light will go off after a few minutes.
458
5-2. Steps to take in an emergency
If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
If tires not equipped with tire pressure warning valves and transmitters
are used
If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
If the tire inflation pressure is 500 kPa (5.1 kgf/cm2 or bar, 73 psi) or
higher
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
If electronic devices or facilities using similar radio wave frequencies are
nearby
If a radio set at a similar frequency is in use in the vehicle
If a window tint that affects the radio wave signals is installed
If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings
If non-genuine Toyota wheels are used (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
5
If tire chains are used
If the tire pressure warning light frequently comes on after blinking for
1 minute
If the tire pressure warning light frequently comes on after blinking for 1 min-
ute when the “ENGINE START STOP” switch (vehicles with a smart entry &
start system) or the engine switch (vehicles without a smart entry & start sys-
tem) is turned on, have it checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If the engine oil change reminder light flashes (diesel engine only)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder light will flash.
459
5-2. Steps to take in an emergency
Engine oil change reminder light comes on (diesel engine only)
Replace the engine oil and oil filter when the engine oil change reminder
light does not come on even if you have driven over 15000 km (9300 miles)
after the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illu-
minated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
CAUTION
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
When driving to clean the DPF catalytic converter (diesel engine only)
When driving, pay sufficient attention to weather, road conditions, terrain and
traffic conditions, and be sure to observe traffic laws and/or regulations. Fail-
ure to do so may cause an unexpected accident, resulting in death or seri-
ous injury.
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
460
5-2. Steps to take in an emergency
CAUTION
If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
If the fuel filter warning light comes on (diesel engine only)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
When the DPF system warning light comes on (diesel engine only)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator lamp
may come on. If this happens, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
5
461
5-2. Steps to take in an emergency
If you have a flat tire (vehicles with a spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Vehicles with a Multidrive: Shift the shift lever to P.
Vehicles with a manual transmission: Shift the shift lever to R.
Stop the engine.
Turn on the emergency flashers.

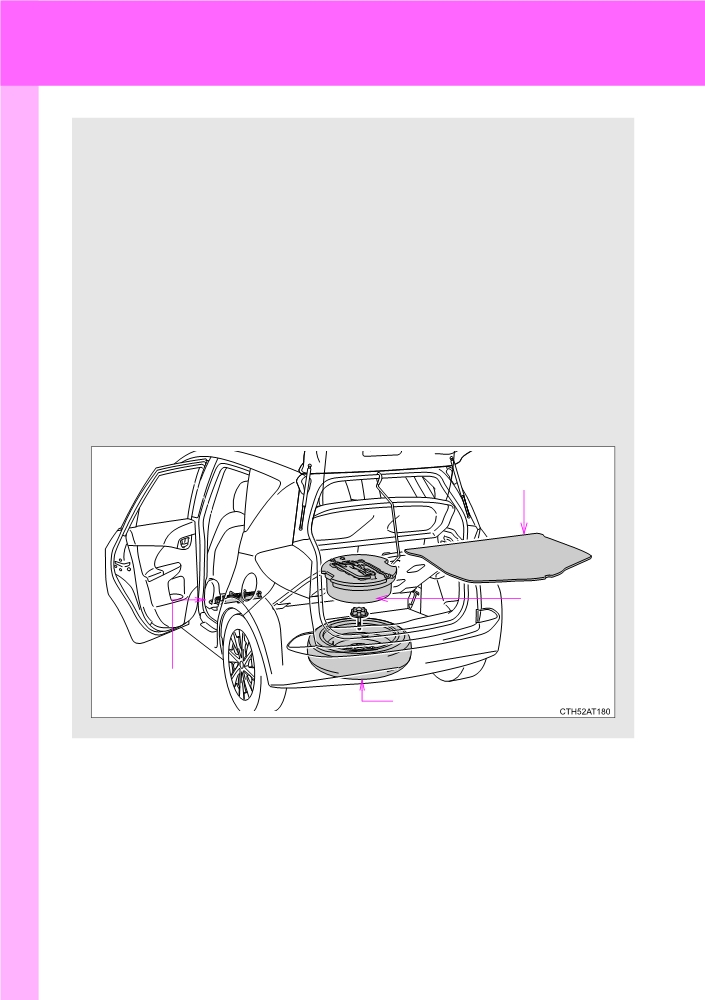

Location of the spare tire, jack and tools
Deck board
Tool tray
Jack
Spare tire
462
5-2. Steps to take in an emergency

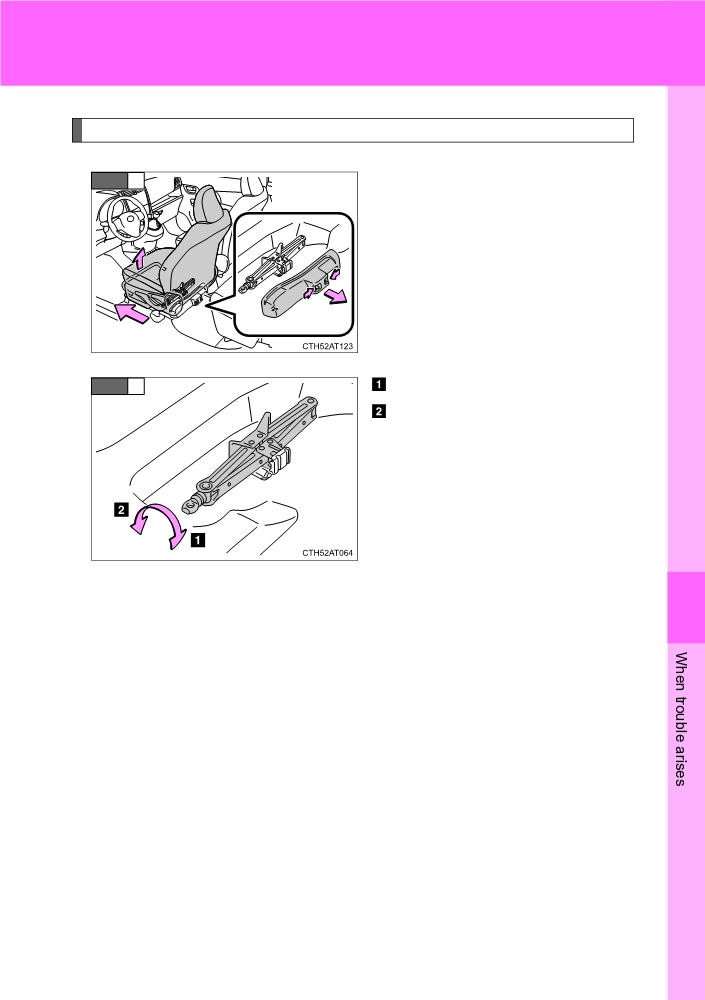

Taking out the jack
STEP
1
Move the front left seat to the
front most position and remove
the cover.
STEP
2
Tighten
Loosen
5
463
5-2. Steps to take in an emergency

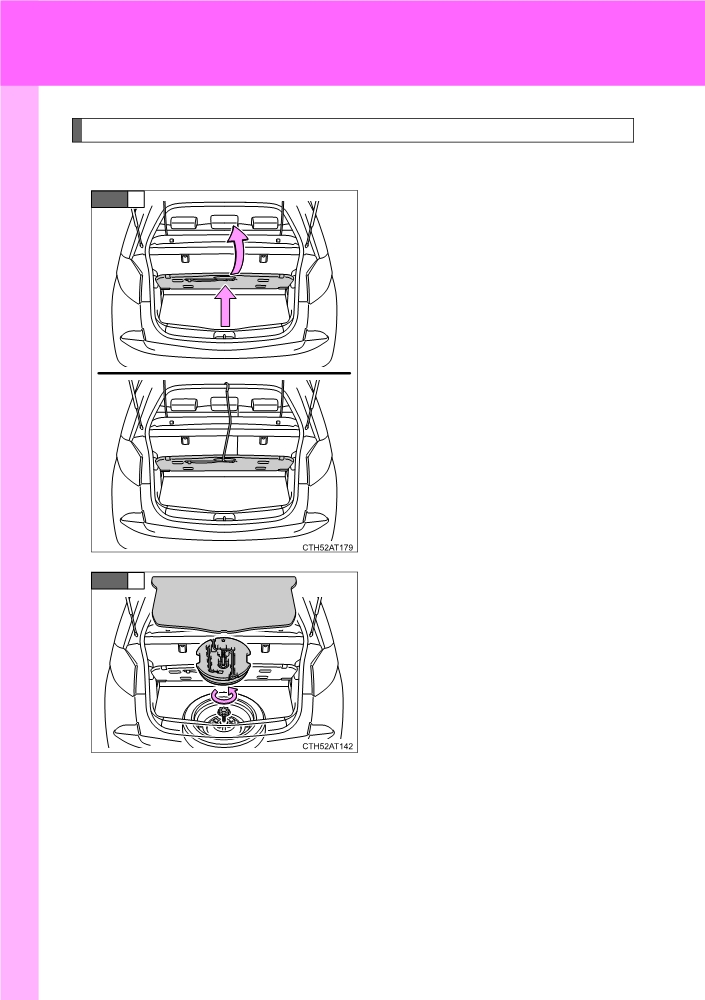

Taking out the spare tire
Without auxiliary box
STEP
1
Lift the dual-level deck board and
attach the hook. (P. 350)
STEP
2
Remove the deck board and tool
tray.
Loosen the center fastener that
secures the spare tire.
464
