Toyota Verso S (2014 year). Instruction - part 29

4-3. Do-it-yourself maintenance

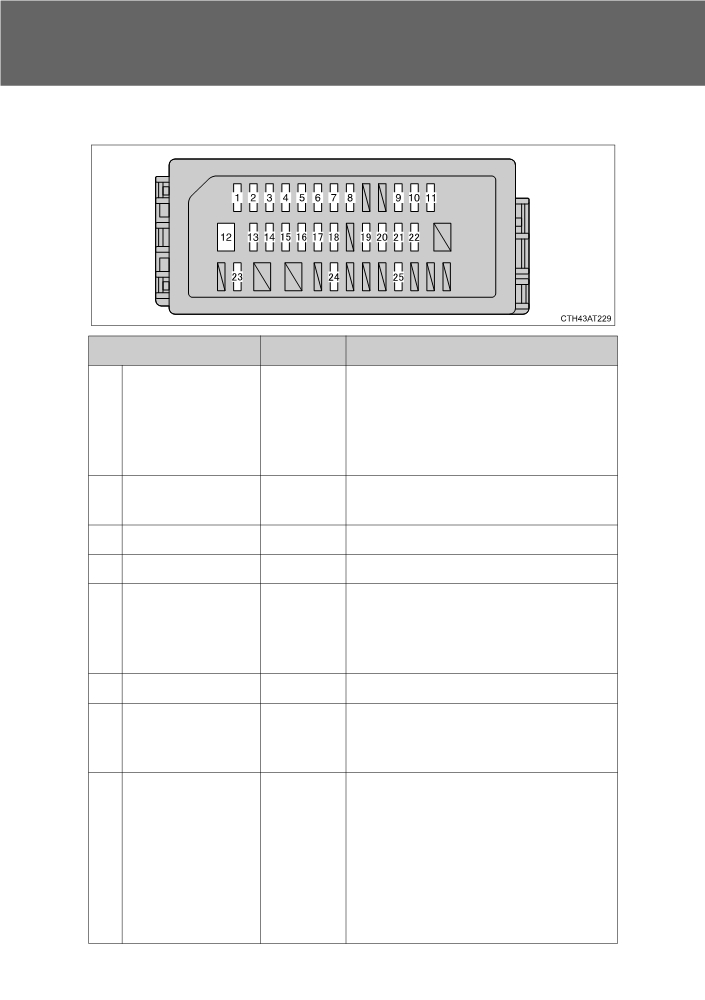

 Under the instrument panel

Fuse

Ampere

Circuit

Front position lights, tail lights,

license plate lights, front fog lights,

1

TAIL NO.2

10 A

rear fog light, multiport fuel injection

system/sequential multiport fuel

injection system, gauge and meters

Gauge and meters, instrument

2

PANEL

5 A

panel lights, switch illumination

3

DOOR R/R

20 A

Power windows

4

DOOR P

20 A

Power windows

Electric cooling fan, rear window

defogger, electric power steering,

5

ECU-IG NO.1

5 A

main body ECU, windshield wipers,

VSC, tire pressure warning system

6

ECU-IG NO.2

5 A

ABS, VSC, Stop & Start system

Air conditioning system, power

7

A/C

7.5 A

heater, rear window defogger, out-

side rear view mirror defoggers

Back-up light, shift lock control sys-

tem, rear seat belt reminder lights,

auto anti-glare inside rear view mir-

ror, Multidrive, audio system, pan-

8

GAUGE

10 A

oramic roof shade, multiport fuel

injection system/sequential multi-

port fuel injection system, rain sen-

sor

420

4-3. Do-it-yourself maintenance

Fuse

Ampere

Circuit

9

WASHER

15 A

Windshield washer

10

WIPER

20 A

Windshield wipers

11

WIPER RR

15 A

Rear window wiper

12

P/W

30 A

Power windows

13

DOOR R/L

20 A

Power windows

14

DOOR

20 A

Power windows

15

CIG

15 A

Power outlets

Main body ECU, outside rear view

16

ACC

5 A

mirrors, audio system, Stop & Start

system, shift lock control system

17

D/L

25 A

Power door lock system

18

OBD

7.5 A

On-board diagnosis system

19

FOG RR

7.5 A

Rear fog light, gauge and meters

4

Multiport fuel injection system/

sequential multiport fuel injection

system, smart entry & start system,

20

STOP

7.5 A

ABS, VSC, stop lights, high

mounted stoplight, shift lock control

system

21

AM1

7.5 A

Starting system

22

FOG FR

15 A

Front fog lights, gauge and meters

Multiport fuel injection system/

23

D-D/L

25 A

sequential multiport fuel injection

system

24

SHADE

25 A

Panoramic roof shade

25

S-HTR

15 A

Seat heaters

421

4-3. Do-it-yourself maintenance

 After a fuse is replaced

 If the lights do not turn on even after the fuse has been replaced, a bulb

may need replacement. (P. 423)

 If the replaced fuse blows again, have the vehicle inspected by any

authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

 If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

When replacing light bulbs

Toyota recommends that you use genuine Toyota products designed for this

vehicle.

Because certain bulbs are connected to circuits designed to prevent over-

load, non-genuine parts or parts not designed for this vehicle may be unus-

able.

CAUTION

 To prevent system breakdowns and vehicle fire

Observe the following precautions.

Failure to do so may cause damage to the vehicle and possibly a fire or

injury.

 Never use a fuse of a higher amperage rating than that indicated, or use

any other object in place of a fuse.

 Always use a genuine Toyota fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

 Do not modify the fuses or fuse boxes.

NOTICE

Before replacing fuses

Have the cause of electrical overload determined and repaired by any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional as soon as possible.

422

4-3. Do-it-yourself maintenance

Light bulbs

You may replace the following bulbs by yourself. The difficulty level

of replacement varies depending on the bulb. If necessary bulb

replacement seems difficult to perform, contact any authorized

Toyota dealer or repairer, or another duly qualified and equipped

professional.

For more information about replacing other light bulbs, contact any

authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

 Preparing for light bulb replacement

Check the wattage of the light bulb to be replaced. (P. 536)

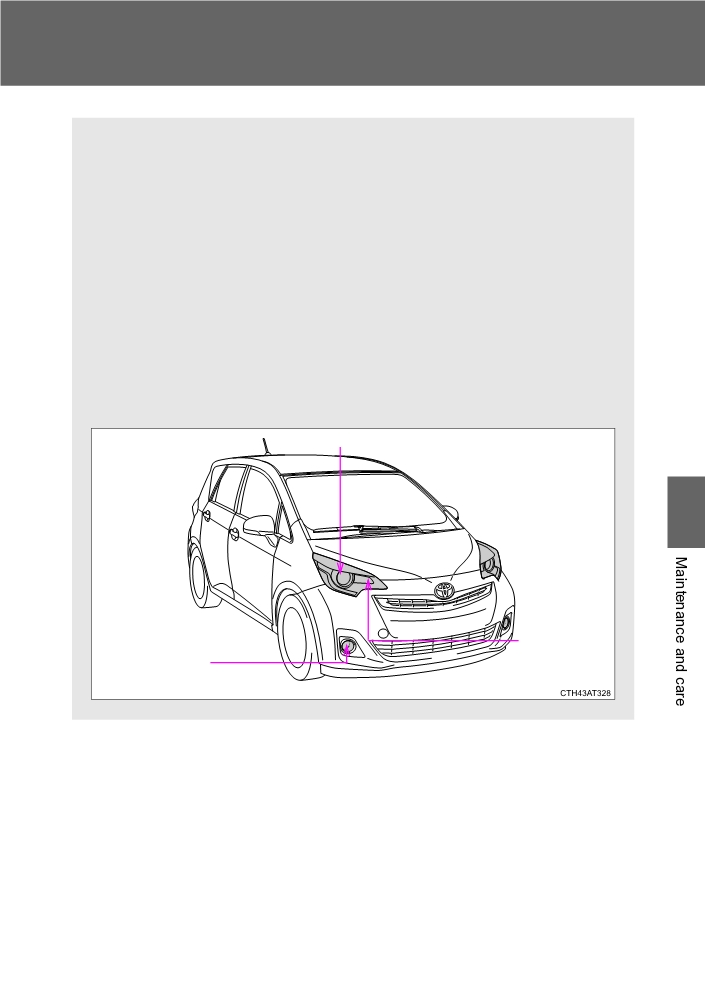

 Front bulb locations

Headlights

4

Front turn

signal lights

Front fog lights

(if equipped)

423

4-3. Do-it-yourself maintenance

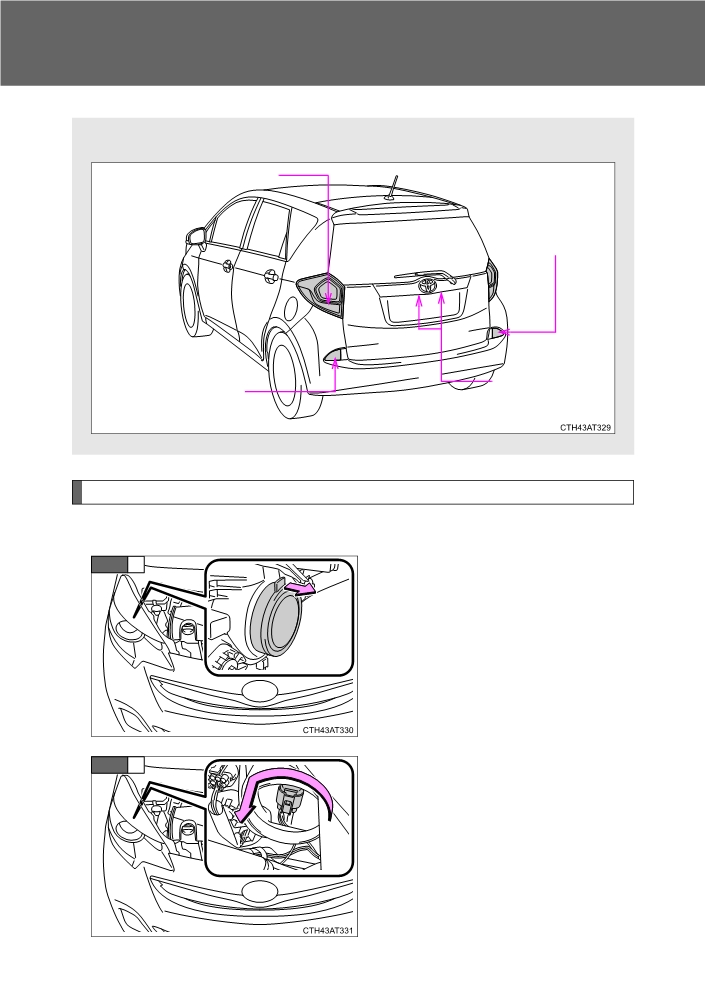

 Rear bulb locations

Rear turn signal lights

Rear fog light (for

left-hand traffic)/

Back-up light (for

right-hand traffic)

Rear fog light

(for

right-hand traffic)/

License plate

Back-up light

(for

lights

left-hand traffic)

Replacing light bulbs

 Headlights

STEP 1

Remove the cover.

STEP 2

Turn the bulb base counterclock-

wise remove it.

424

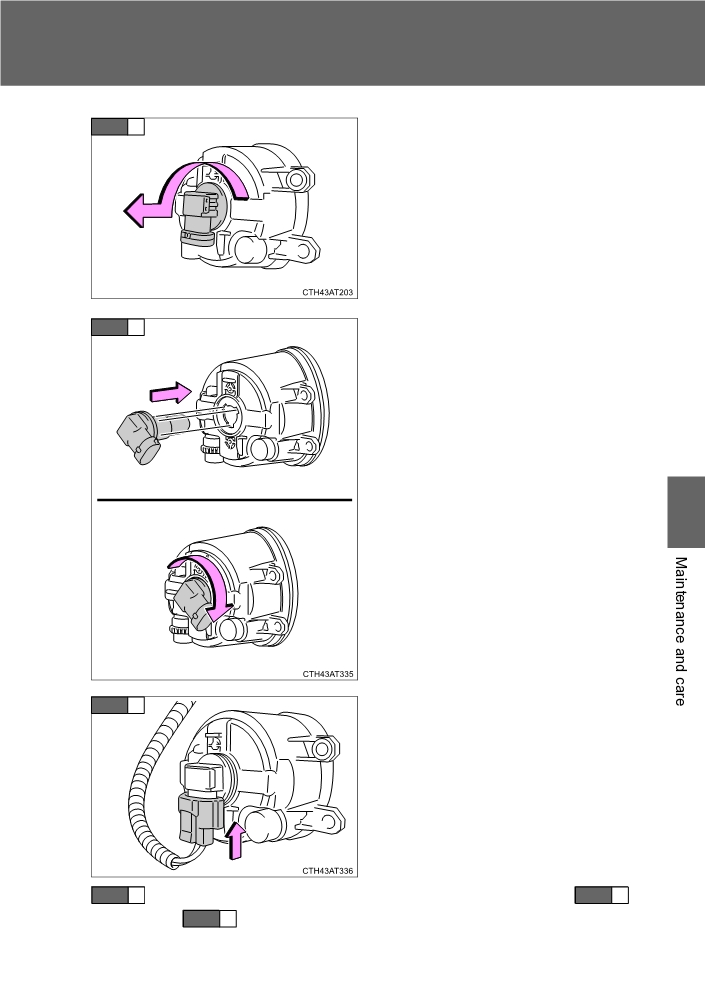

4-3. Do-it-yourself maintenance

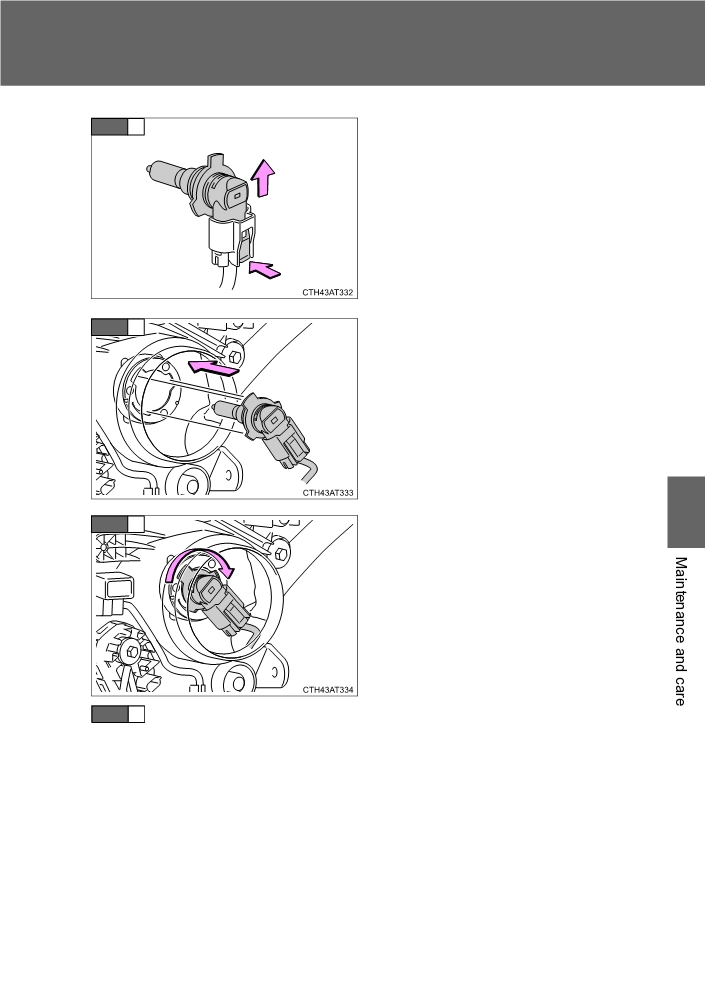

STEP

3

Unplug the connector while

pressing the lock release.

STEP

4

Replace the light bulb, and install

the bulb base.

Align the 3 tabs on the light bulb

with the mounting and insert.

4

STEP

5

Turn and secure the bulb base.

Shake the bulb base gently to

check that it is not loose, turn the

headlights on once and visually

confirm that no light is leaking

through the mounting.

Install the cover.

STEP

6

425

4-3. Do-it-yourself maintenance

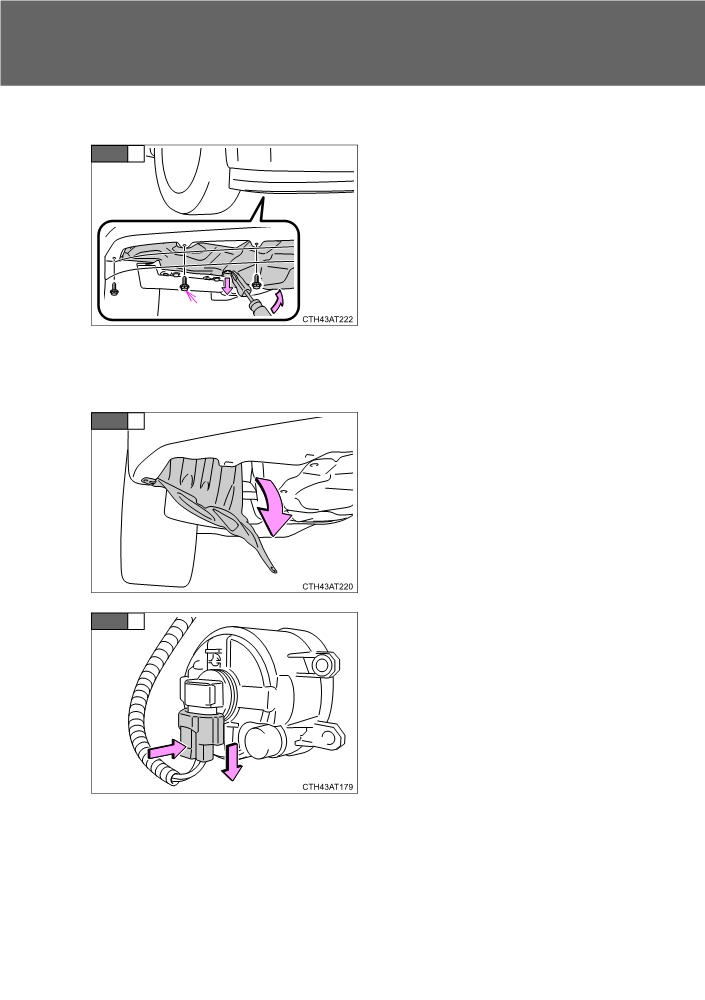

 Front fog lights (if equipped)

STEP

1

Vehicles without a front

spoiler

Remove the 2 screws and a clip.

Vehicles with a front spoiler

Remove the 3 screws and a clip.

The front spoiler will come off on

*

that side when the screws are

removed.

*: Vehicles with a front

spoiler only

STEP

2

Partly remove the fender liner.

STEP

3

Unplug the connector while

depressing the lock release.

426

4-3. Do-it-yourself maintenance

STEP

4

Turn the bulb base counterclock-

wise.

STEP

5

Replace the light bulb, and install

the bulb base.

Align the 3 tabs on the light bulb

with the mounting and insert.

Turn clockwise and secure the

bulb base.

4

STEP

6

Install the connector.

Shake the connector gently to

check that it is not loose, turn the

front fog lights on once and visu-

ally confirm that no light is leaking

through the mounting.

STEP

7

When installing the fender liner, install by conducting

STEP

2

and

STEP

1

with the directions reversed.

427

4-3. Do-it-yourself maintenance

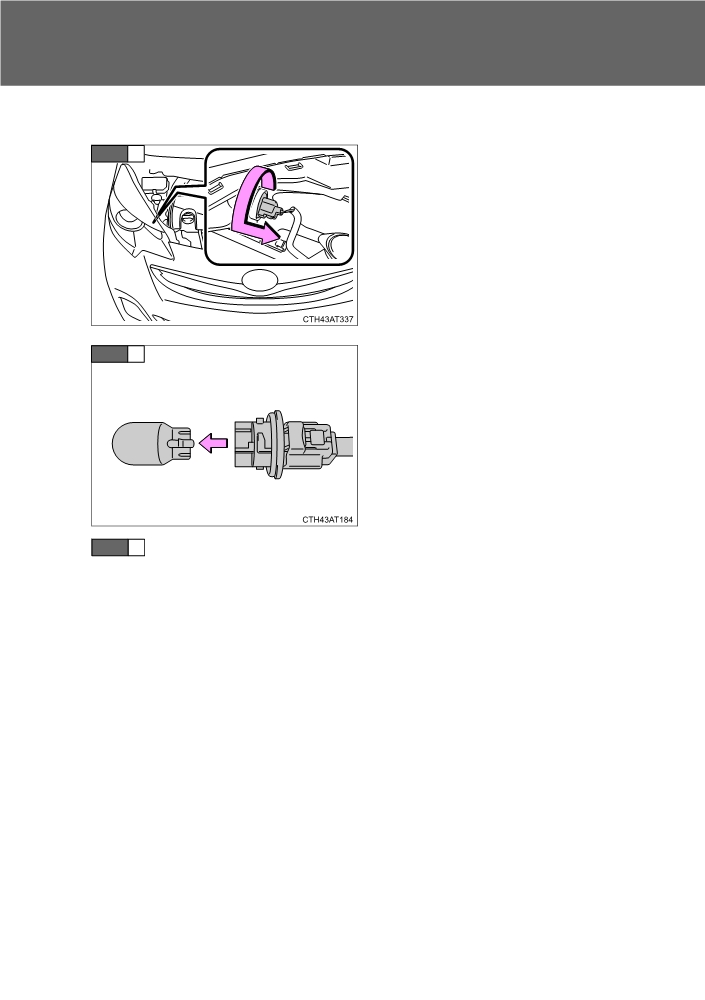

 Front turn signal lights

STEP 1

Turn the bulb base counterclock-

wise.

STEP

2

Remove the light bulb.

STEP

3

When installing, reverse the steps listed.

428

4-3. Do-it-yourself maintenance

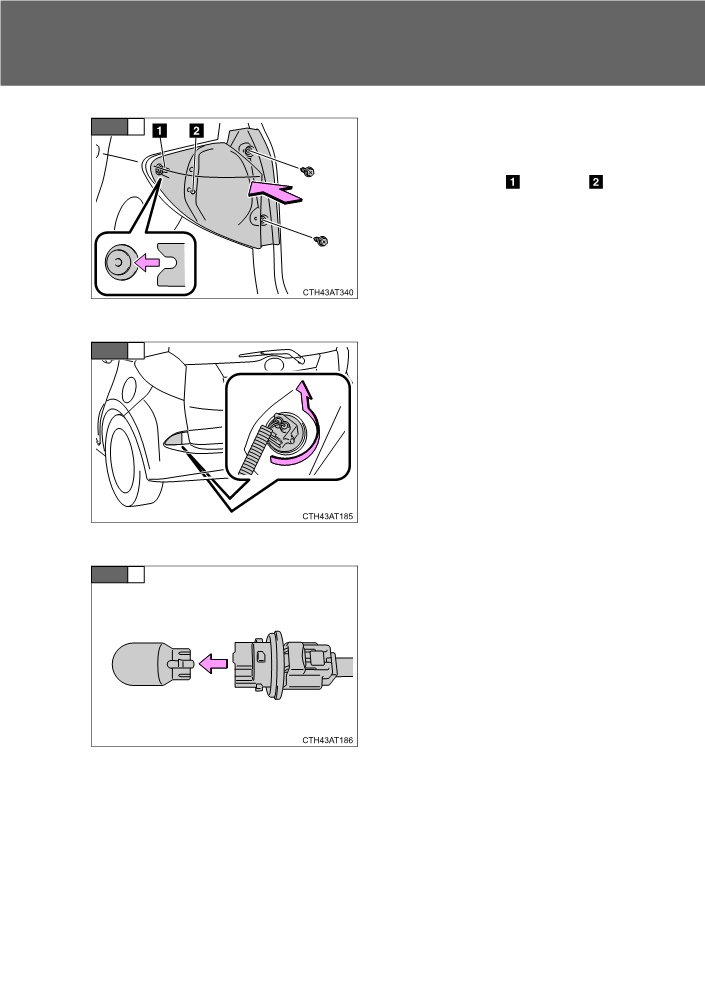

 Rear turn signal lights

STEP

1

Open the back door and remove

the 2 bolts and lamp assembly.

STEP

2

Turn the bulb base counterclock-

wise.

4

STEP

3

Remove the light bulb.

STEP

4

When installing the light bulb, install by conducting

STEP

3

and

STEP

2

with the directions reversed.

429

4-3. Do-it-yourself maintenance

STEP

5

Install the lamp assembly and

then install the 2 bolts.

Align the guide

and pin

on

the lamp assembly with the

mounting when installing

it.

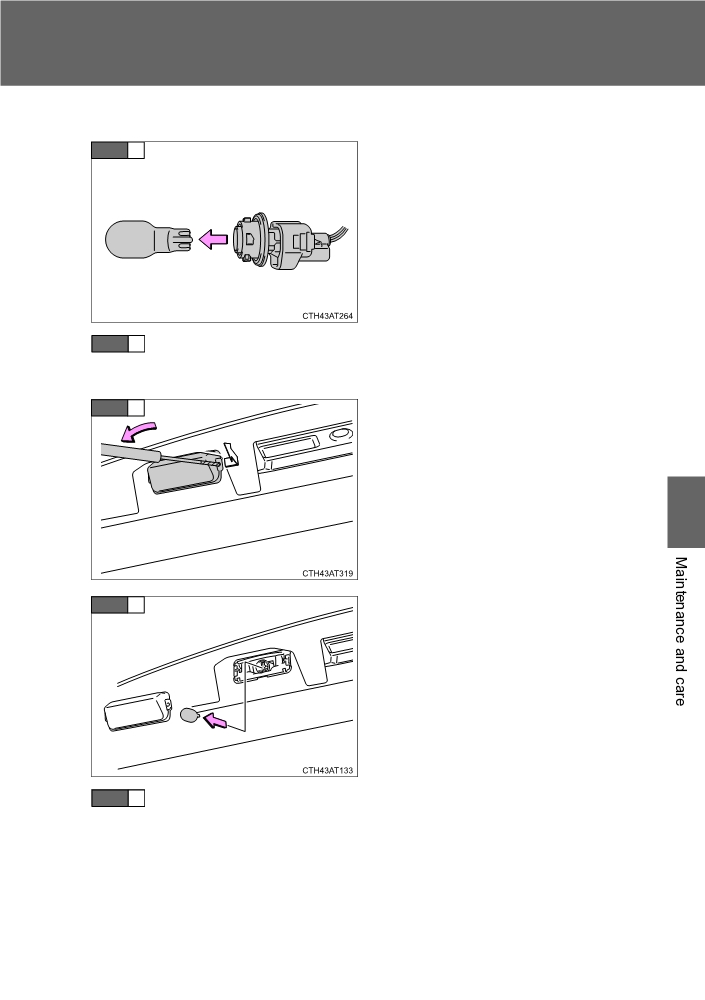

 Back-up light/rear fog light

STEP 1

Turn the bulb base counterclock-

wise.

Rear fog light

STEP

2

Remove the light bulb.

430

4-3. Do-it-yourself maintenance

Back-up light

STEP

2

Remove the light bulb.

STEP

3

When installing, reverse the steps listed.

 License plate lights

STEP

1

Remove the cover.

Insert a properly sized screw-

driver into the hole of the cover,

and ply off the cover as shown in

the illustration.

4

To prevent damaging the vehicle,

wrap the screwdriver with a tape.

STEP

2

Remove the light bulb.

STEP

3

When installing, reverse the steps listed.

431

4-3. Do-it-yourself maintenance

CAUTION

Replacing light bulbs

 Turn off the lights. Do not attempt to replace the bulb immediately after

turning off the lights.

The bulbs become very hot and may cause burns.

 Do not touch the glass portion of the light bulb with bare hands. When it is

unavoidable to hold the glass portion, use and hold with a clean dry cloth

to avoid getting moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

 Fully install light bulbs and any parts used to secure them. Failure to do so

may result in heat damage, fire, or water entering the headlight unit. This

may damage the headlights or cause condensation to build up on the lens.

 To prevent damage or fire

Make sure bulbs are fully seated and locked.

4

433
