4-3. Do-it-yourself maintenance
STEP
3

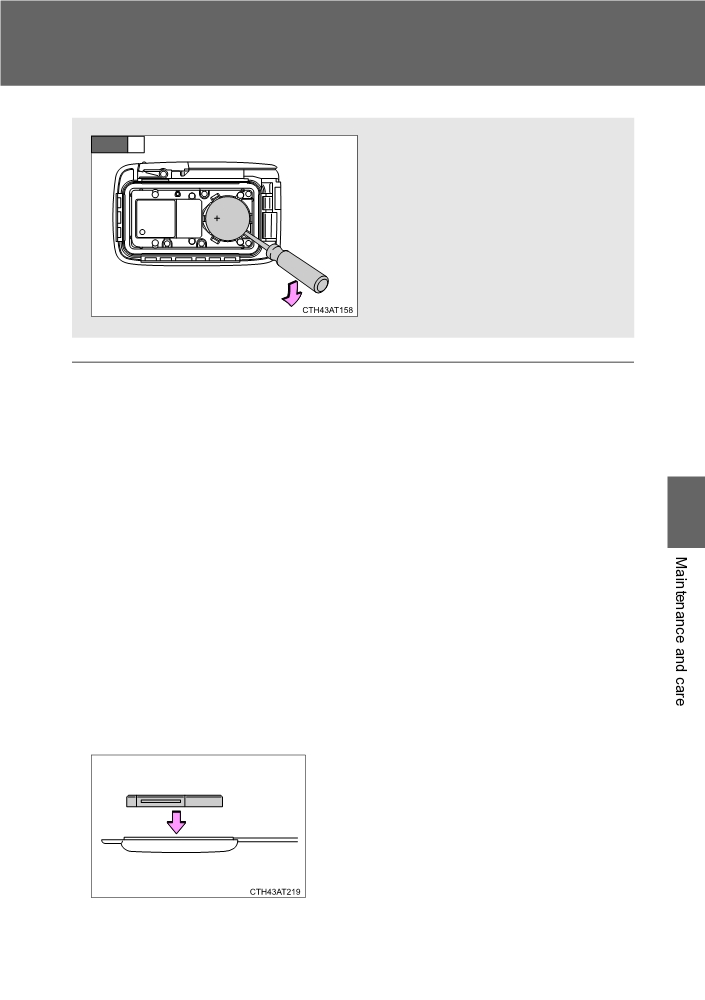

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
Use a CR2016 (vehicles without a smart entry & start system) or
CR1632 (vehicles with a smart entry & start system) lithium battery
Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, local electrical appli-
ance shops or camera stores.
Replace only with the same or equivalent type recommended by the
4
manufacturer.
Dispose of used batteries according to local laws.
If the key battery is depleted
The following symptoms may occur:
The smart entry & start system (if equipped) and wireless remote control
will not function properly.
The operational range will be reduced.
When replacing the module (vehicles without a smart entry and start
system)
Replace the module from right above.
Replacing it from diagonally above may
prevent the key buttons from operating
properly.
405
4-3. Do-it-yourself maintenance
CAUTION
Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
Certification for the lithium battery
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other component inside the remote control.
Do not bend either of the battery terminals.
406
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart entry & start system
STEP
1
Turn the engine switch off.
Vehicles with a smart entry & start system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
STEP 2

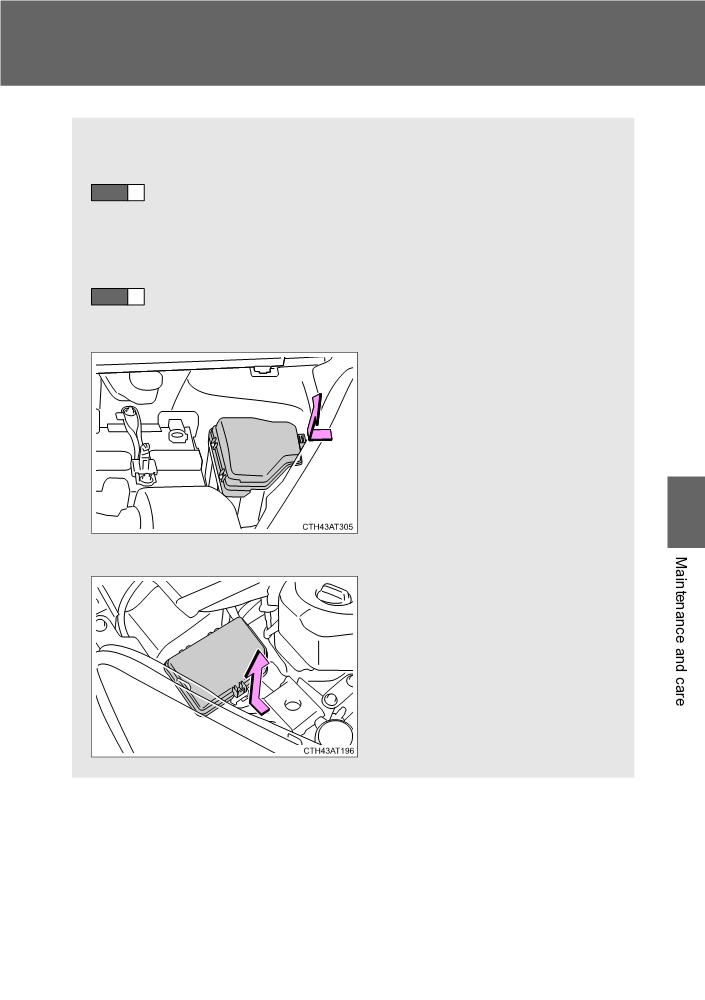

Engine compartment (type A fuse box)
Push the tab in and lift the lid
off.
4
Engine compartment (type B fuse box)
Push the tab in and lift the lid
off.
407
4-3. Do-it-yourself maintenance

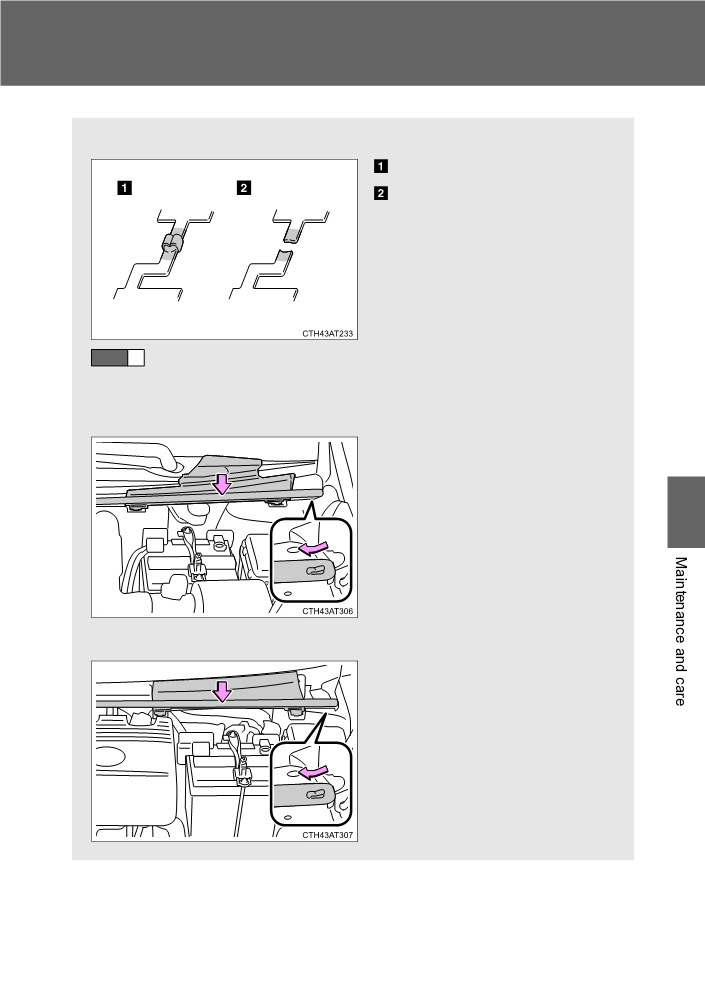

Engine compartment (type C fuse box for the left-hand drive
vehicles)

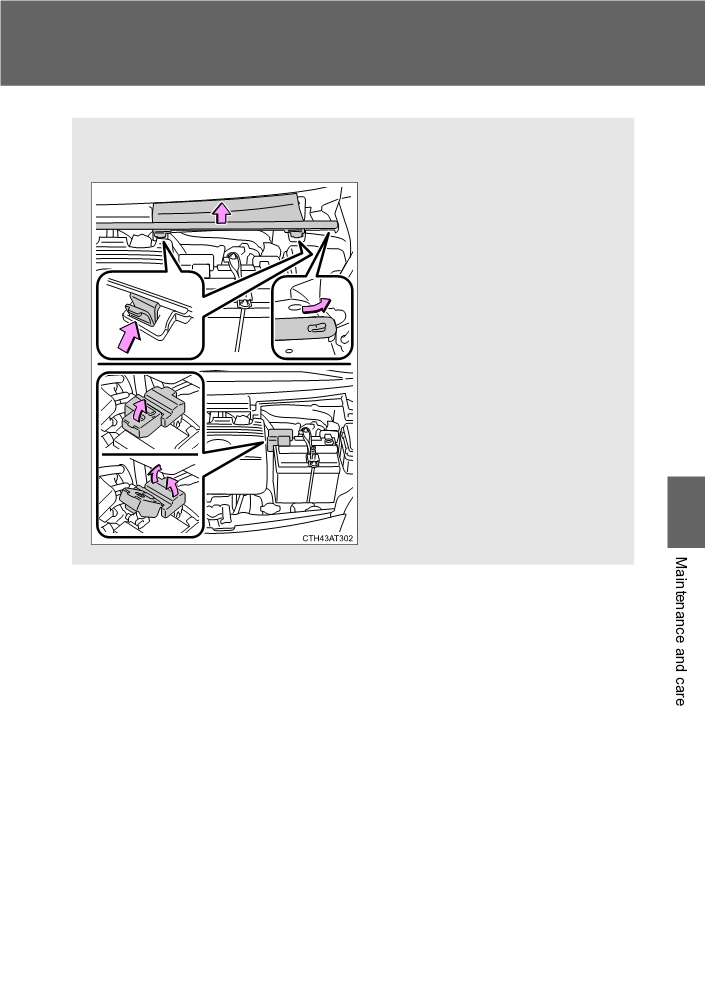

Pull the rubber strip on the
edge to unhook it from the
cover, and then push the tabs
in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
408
4-3. Do-it-yourself maintenance

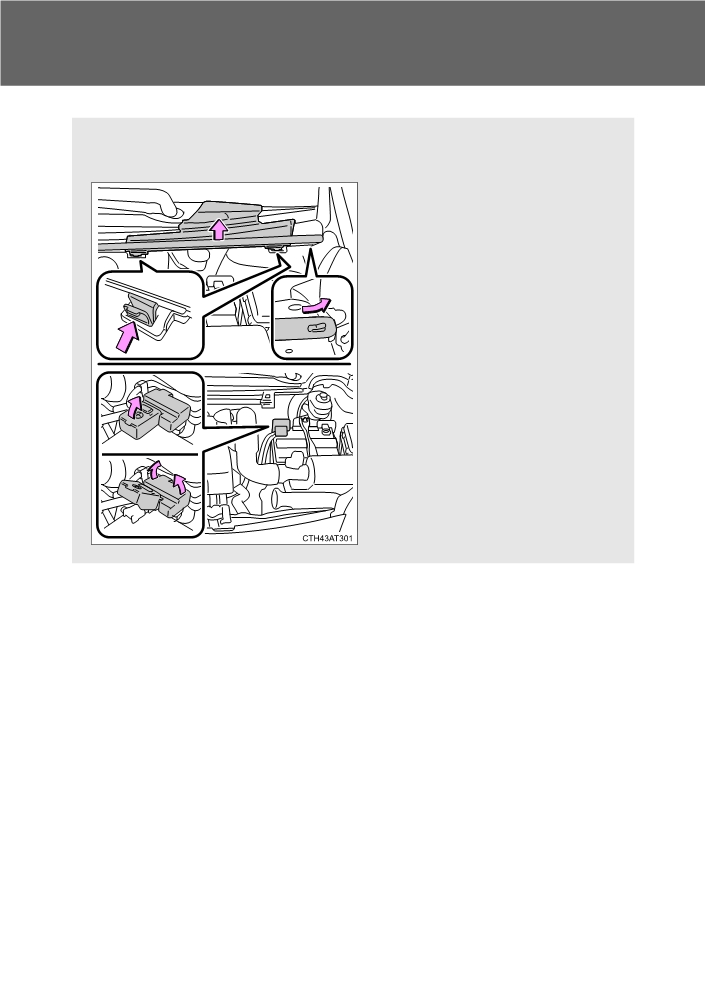

Engine compartment (type C fuse box for the right-hand drive
vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the tabs
in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
4
409
4-3. Do-it-yourself maintenance

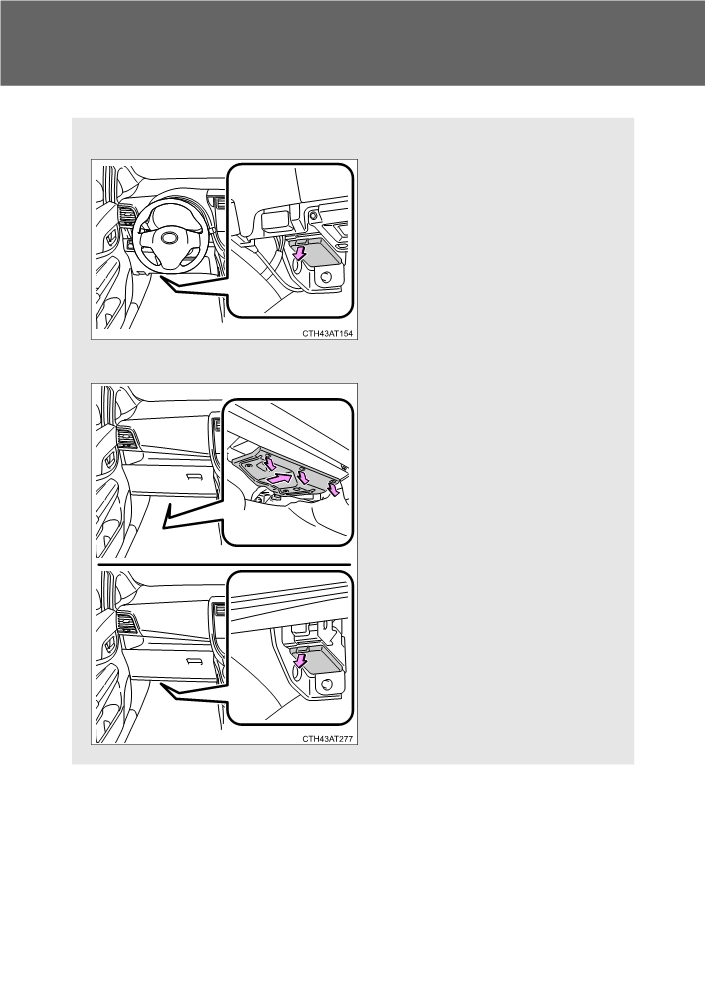

Under the instrument panel (left-hand drive vehicles)
Remove the lid.
Under the instrument panel (right-hand drive vehicles)
Remove the cover and then
remove the lid.
Do not pull off the cover using
excessive force as it is
attached to the footwell light.
410
4-3. Do-it-yourself maintenance
STEP
3
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 414) for details about which fuse to check.
STEP
4
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
The pullout tool is located on
the back of the type A fuse box
cover.
STEP
5

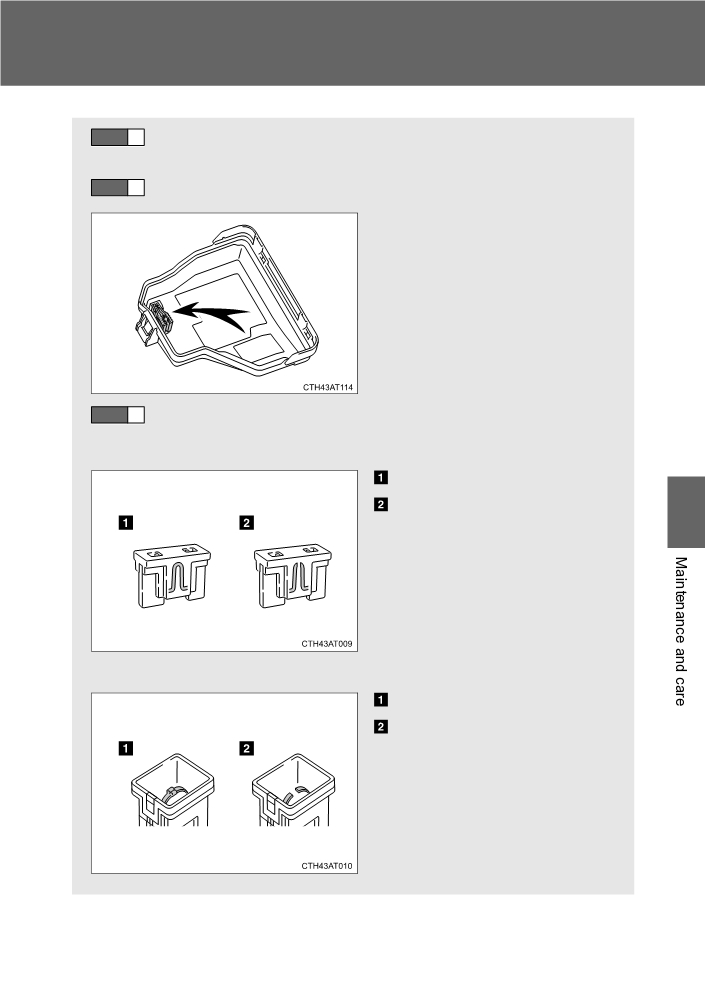

Check if the fuse is blown.
Type A
Normal fuse
Blown fuse
4
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Type B
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
411
4-3. Do-it-yourself maintenance

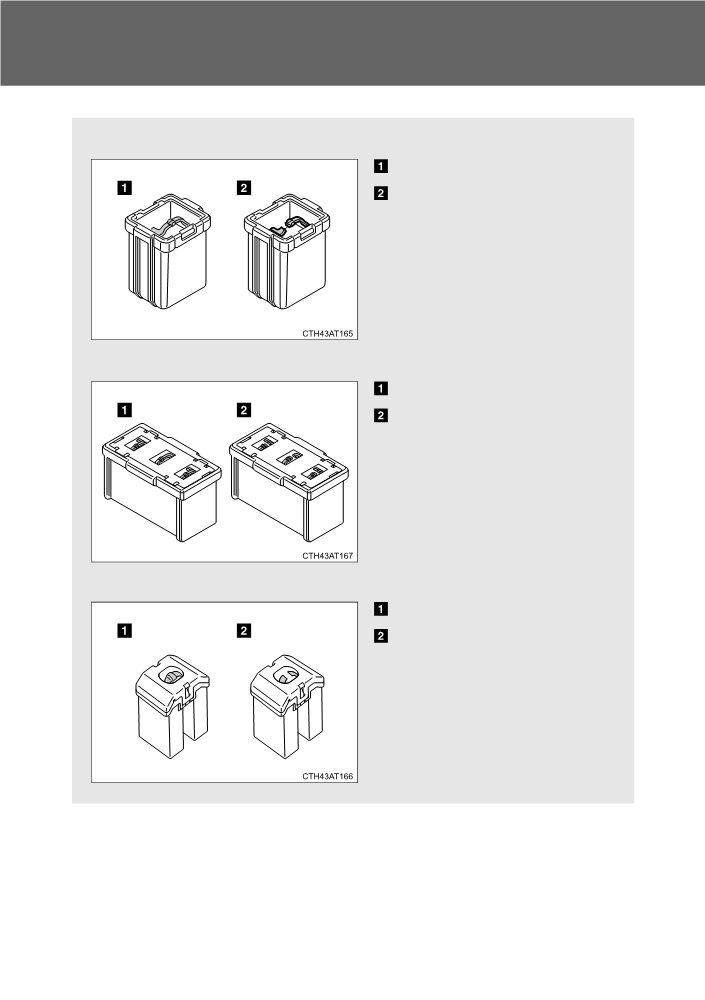

Type C
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Type D
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Type E
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
412
4-3. Do-it-yourself maintenance
Type F
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
STEP
6
Reinstall the cover and rubber strip. (type C fuse box cover
only)
Left hand drive vehicles
4
Right hand drive vehicles
413
4-3. Do-it-yourself maintenance

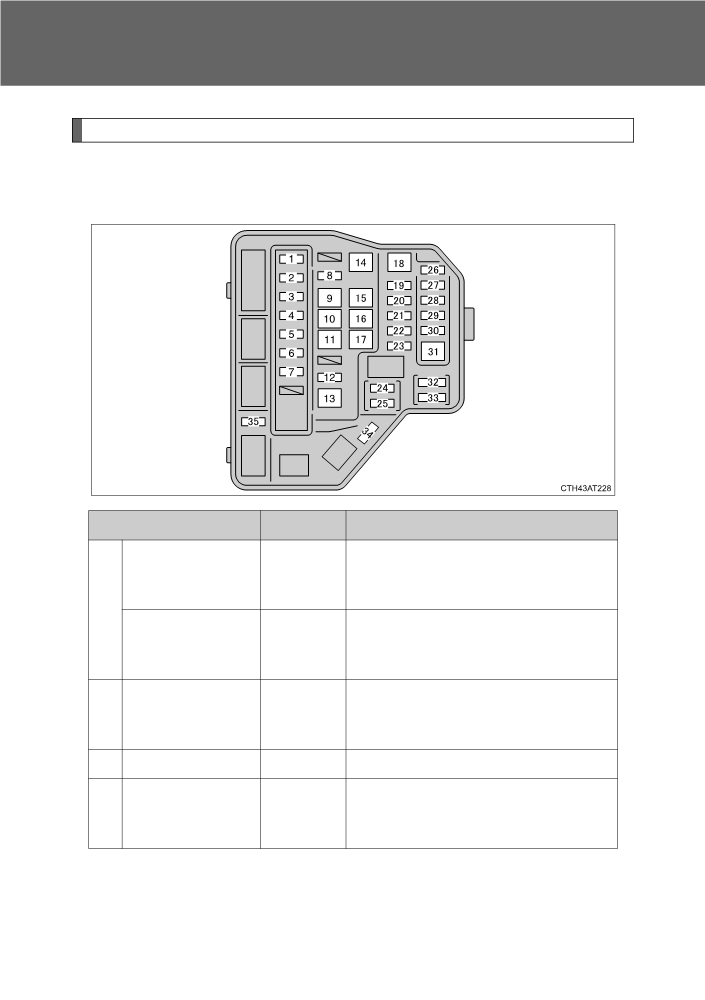

Fuse layout and amperage ratings
Engine compartment
Type A

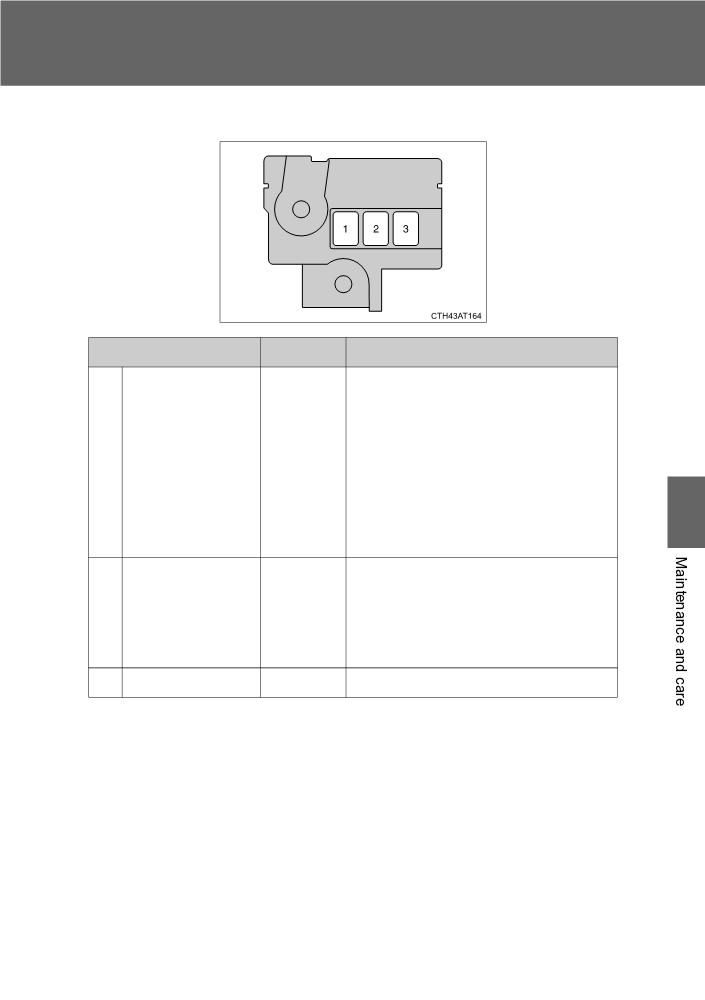

Fuse
Ampere
Circuit
Multiport fuel injection system/
EFI MAIN*1
20 A
sequential multiport fuel injection
system
1
Multiport fuel injection system/
ECD MAIN*2
30 A
sequential multiport fuel injection
system, EFI NO.2
Multiport fuel injection system/
2
EFI NO.3
7.5 A
sequential multiport fuel injection
system
3
HORN
10 A
Horn
Stop & Start system, multiport fuel
4
EFI NO.2
10 A
injection system/sequential multi-
port fuel injection system
414
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
Smart entry & start system, multi-
port fuel injection system/sequen-
tial multiport fuel injection system,
5
IG2
10 A
SRS airbag system, steering lock
system, stop lights, Stop & Start
system
Multiport fuel injection system/
6
IGN
15 A
sequential multiport fuel injection
system
Gauge and meters, Stop & Start
7
MET
7.5 A
system
Power heater, multiport fuel injec-
8
PWR HTR*2
25 A
tion system/sequential multiport
fuel injection system
9
EPS
50 A
Electric power steering
10
ABS NO.2
30 A
ABS, VSC
4
11
DEF
30 A
Rear window defogger
12
SPARE
10 A
Spare fuse
PTC heater, outside rear view mir-
13
PTC
80 A
ror defoggers
14
HTR
40 A
Air conditioning system
15
H-LP CLN
30 A
16
RDI FAN
30 A
Electric cooling fan
17
ABS NO.1
50 A
ABS, VSC
18
BBC*3
40 A
Stop & Start system
19
ST
30 A
Starting system
20
AMP
15 A
21
D/L NO.2
25 A
Power door lock
22
D.C.C.
30 A
DOME, ECU-B NO.1
23
STR LOCK
20 A
Steering lock system
415
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
Main body ECU, smart entry & start
24
ECU-B NO.1
5 A
system
25
DOME
15 A
Interior lights, audio system, VSC
Multiport fuel injection system/
26
ETCS
10 A
sequential multiport fuel injection
system
27
HAZ
10 A
Turn signal lights
Multiport fuel injection system/
sequential multiport fuel injection
28
AM2
7.5 A
system, smart entry & start system,
starting system
Gauge and meters, power door
lock, wireless remote control, Stop
29
ECU-B NO.2
5 A
& Start system, smart entry & start
system, air conditioning system,
tire pressure warning system
30
ALT-S
7.5 A
EFI MAIN, ECD MAIN, EFI NO.2,
31
R/I
50 A
EFI NO.3, IG2, IGN, MET, HORN
32
SPARE
20 A
Spare fuse
33
SPARE
30 A
Spare fuse
34
MIR-HTR
10 A
Multiport fuel injection system/
35
ID/UP
7.5 A
sequential multiport fuel injection
system
*
1: Vehicles with a gasoline engine
*2: Vehicles with a diesel engine
*3: Vehicles with a 1NR-FE engine (with a Stop & Start system)
416
4-3. Do-it-yourself maintenance

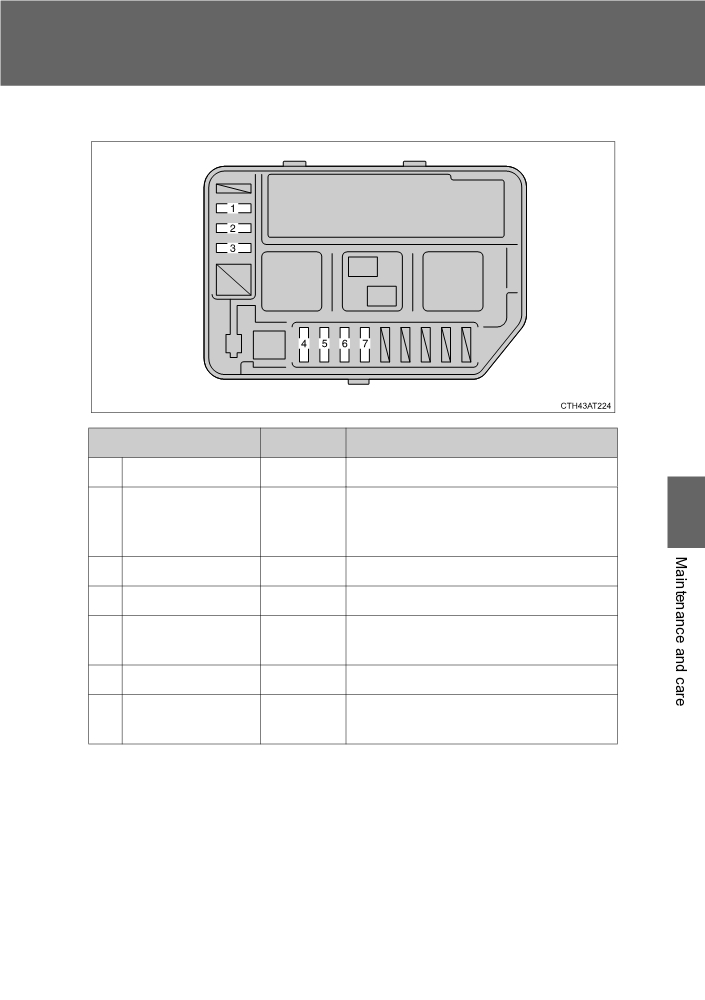

Type B
Fuse
Ampere
Circuit
1
EU-DRL
7.5 A
Multiport fuel injection system/
4
2
S-HORN
10 A
sequential multiport fuel injection
system
3
H-LP MAIN
7.5 A
Headlights
4
H-LP RH HI
10 A
Right-hand headlight (high beam)
Left-hand headlight (high beam),
5
H-LP LH HI
10 A
gauge and meters
6
H-LP RH LO
10 A
Right-hand headlight (low beam)
Left-hand headlight (low beam),
7
H-LP LH LO
10 A
manual headlight leveling dial
417
4-3. Do-it-yourself maintenance

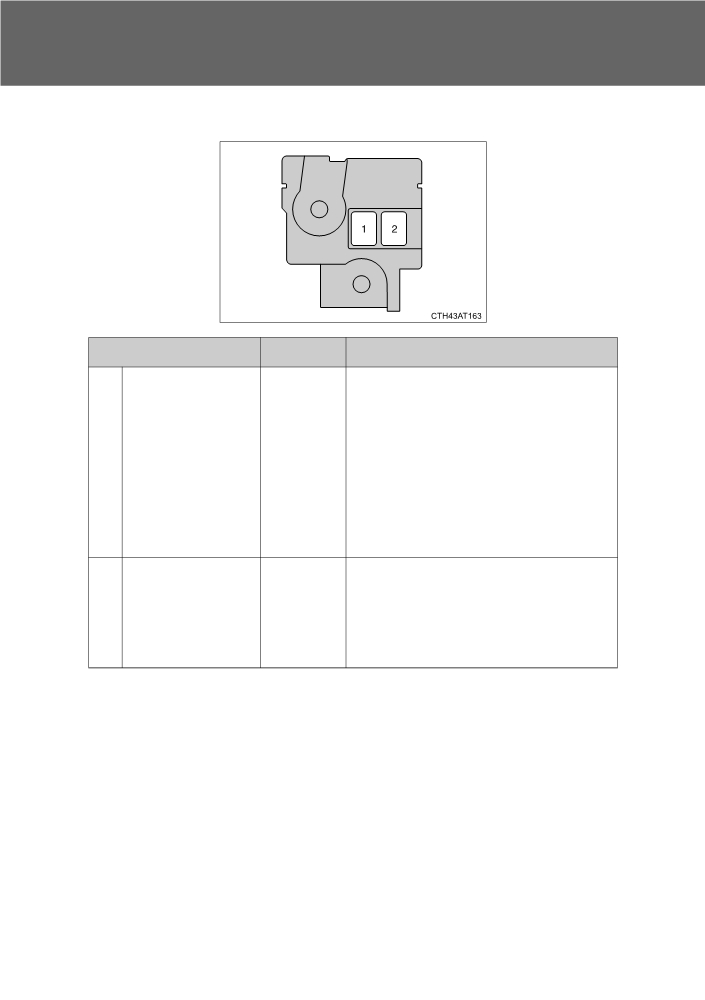

Type C (vehicles with a gasoline engine)
Fuse
Ampere
Circuit
EPS, ABS NO.2, DEF, PTC, HTR,
RDI FAN, ABS NO.1, TAIL NO.2,
PANEL, DOOR R/R, DOOR P,
ECU-IG NO.1, ECU-IG NO.2, A/C,
1
ALT
120 A
GAUGE, WASHER, WIPER,
WIPER RR, P/W, DOOR R/L,
DOOR, CIG, ACC, D/L, OBD, FOG
RR, STOP, AM1, FOG FR, D-D/L,
SHADE, S-HTR
BBC, ST, D/L NO.2, D.C.C., STR
LOCK, ETCS, HAZ, AM2, ECU-B
2
MAIN
80 A
NO.2, R/I, S-HORN, H-LP MAIN,
H-LP RH HI, H-LP LH HI, H-LP RH
LO, H-LP LH LO
418
4-3. Do-it-yourself maintenance
Type C (vehicles with a diesel engine)
Fuse
Ampere
Circuit
PWR HTR, EPS, ABS NO.2, DEF,
PTC, HTR, RDI FAN, ABS NO.1,
TAIL NO.2, PANEL, DOOR R/R,
DOOR P, ECU-IG NO.1, ECU-IG
1
ALT
120 A
NO.2, A/C, GAUGE, WASHER,
WIPER, WIPER RR, P/W, DOOR
R/L, DOOR, CIG, ACC, D/L, OBD,
4
FOG RR, STOP, AM1, FOG FR,
D-D/L, SHADE, S-HTR
ST, D/L NO.2, D.C.C., STR LOCK,
ETCS, HAZ, AM2, ECU-B NO.2,
2
MAIN
80 A
R/I, H-LP MAIN, H-LP RH HI, H-LP
LH HI, H-LP RH LO, H-LP LH LO,
MMT
3
GLOW DC/DC
80 A
Engine glow system
