Toyota Solara (2008 year). Instruction - part 18

’08 Solara_U (L/O 0802)

Garage door opener

R

The garage door opener (

Indicator light

Universal Transceiver) is manufactured

under license from HomeLinkR and can

HomeLinkr

be programmed to operate garage

doors, gates, entry doors, door locks,

home lighting systems, and security

25 to

systems, etc.

75 mm

(a) Programming the HomeLinkR

(1 to 3 in.)

The HomeLinkR in your vehicle has 3

buttons and you can store one program

for each button.

Hand−held

garage

Buttons

To ensure correct programming into the

transmitter

HomeLinkR, install a new battery in the

Coupe

Coupe

hand−held transmitter prior to program-

ming.

The battery side of the hand−held trans-

Indicator light

mitter must be pointed away from the

HomeLinkR during the programming pro-

cess.

HomeLinkr

For Canadian users, follow the procedure

in

“Programming an entrance gate/pro-

25 to

gramming all devices in the Canadian

75 mm

(1 to 3 in.)

market”.

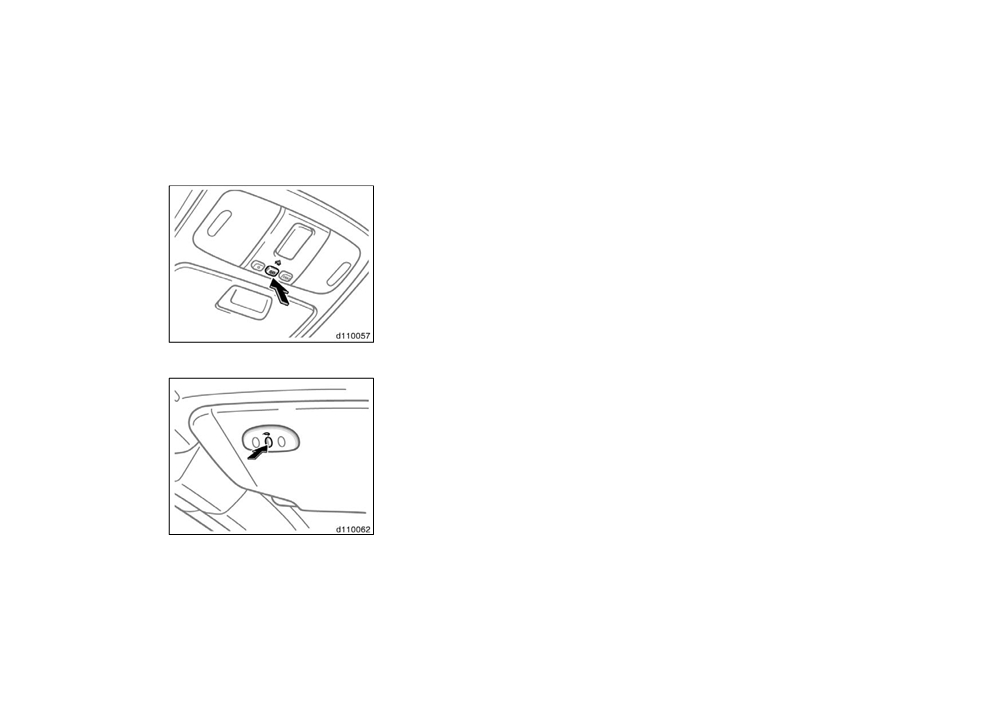

1. Decide which of

3 HomeLinkR buttons

you want to program.

Hand−held

garage

Buttons

transmitter

Convertible

Convertible

247

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

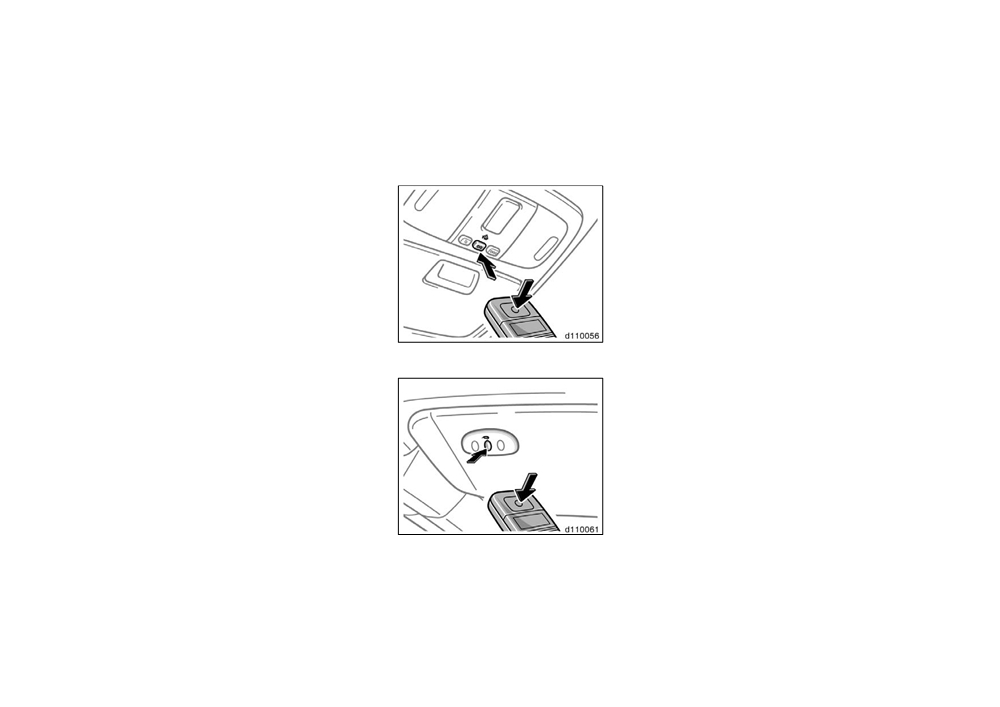

2. Place your hand−held garage transmit-

3. Simultaneously press and hold the

ter

25 to 75 mm (1 to 3 in.) away from

hand−held garage transmitter button

the surface of the HomeLinkR.

along with the selected HomeLinkR but-

ton.

Keep the indicator light on the HomeLinkR

in view while programming.

Do not release the buttons until step

4

has been completed.

4. When the indicator light on the

HomeLinkR changes from a slow to a

rapid flash after

20 seconds, you can

release both buttons.

Coupe

Convertible

248

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

5. Test the operation of the HomeLinkR by

Programming a rolling code system

pressing the newly programmed button.

If

your device is

“Rolling Code”

If programming a garage door opener,

equipped, it is necessary to follow

check to see if the garage door opens

steps

1 through

4 under the heading

and closes.

“Programming the HomeLinkR” before

If the garage door does not operate, iden-

proceeding with the steps listed below.

tify if your garage transmitter is of the

1. Locate the “training” button on the ceil-

“Rolling Code” type. Press and hold the

ing mounted garage door opener motor.

programmed HomeLinkR button. The ga-

The exact location and color of the

rage door has the rolling code feature if

button may vary by brand of garage

the indicator light

(on the HomeLinkR)

door opener. Refer to the owner’s

flashes rapidly and then remains lit after

guide supplied by the garage door

2 seconds. If your garage transmitter is

opener manufacturer for the location of

the

“Rolling Code” type, proceed to the

Coupe

this

“training” button.

heading “Programming a rolling code sys-

2. Press the

“training” button on the ceil-

tem”.

ing mounted garage door opener motor.

6. Repeat steps 2 through 5 for each re-

Following this step, you have 30 seconds

maining HomeLinkR button to program

in which to initiate step

3 below.

another device.

3. Press and release the vehicle’s pro-

grammed HomeLinkR button twice. The

garage door may open. If the door

does open, the programming process is

complete. If the door does not open,

press and release the button a third

time. This third press and release will

complete the programming process by

opening the garage door.

Convertible

249

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

The ceiling mounted garage door opener

6. Test the operation of the HomeLinkR by

motor

should

now recognize the

pressing the newly programmed button.

HomeLinkR unit and be able activate the

Check to see if the gate/device oper-

garage door up/down.

ates correctly.

4. Repeat steps 1 through 3 for each re-

7. Repeat steps 1 through 6 for each re-

maining HomeLinkR button to program

maining HomeLinkR button to program

another rolling code system.

another device.

Programming an entrance gate/program-

Programming other devices

ming all devices in the Canadian market

To program other devices such as home

1. Decide which of the 3 HomeLinkR but-

security systems, home door locks or

tons you want to program.

lighting, contact your authorized Toyota

dealer for assistance.

2. Place your hand−held gate/device

transmitter

25 to

75 mm (1 to 3 in.)

Reprogramming a button

Coupe

away from the surface of the

Individual HomeLinkR buttons cannot be

HomeLinkR.

erased, however, to reprogram a single

Keep the indicator light on the HomeLinkR

button, follow the procedure “Programming

in view while programming.

the HomeLinkR”.

3. Press

and hold

the

selected

(b) Operating the HomeLinkR

HomeLinkR button.

To operate the HomeLinkR, press the

4. Continuously press and release (cycle)

appropriate HomeLinkR button to activate

the hand−held gate/device transmitter

the programmed device. The HomeLinkR

button every two seconds until step

5

indicator light should come on. The

is complete.

HomeLinkR continues to send the signal

for up to

20 seconds as long as the

5. When the indicator light on the

button is pressed.

HomeLinkR changes from a slow to a

rapid flash after

20 seconds, you can

release both buttons.

Convertible

250

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

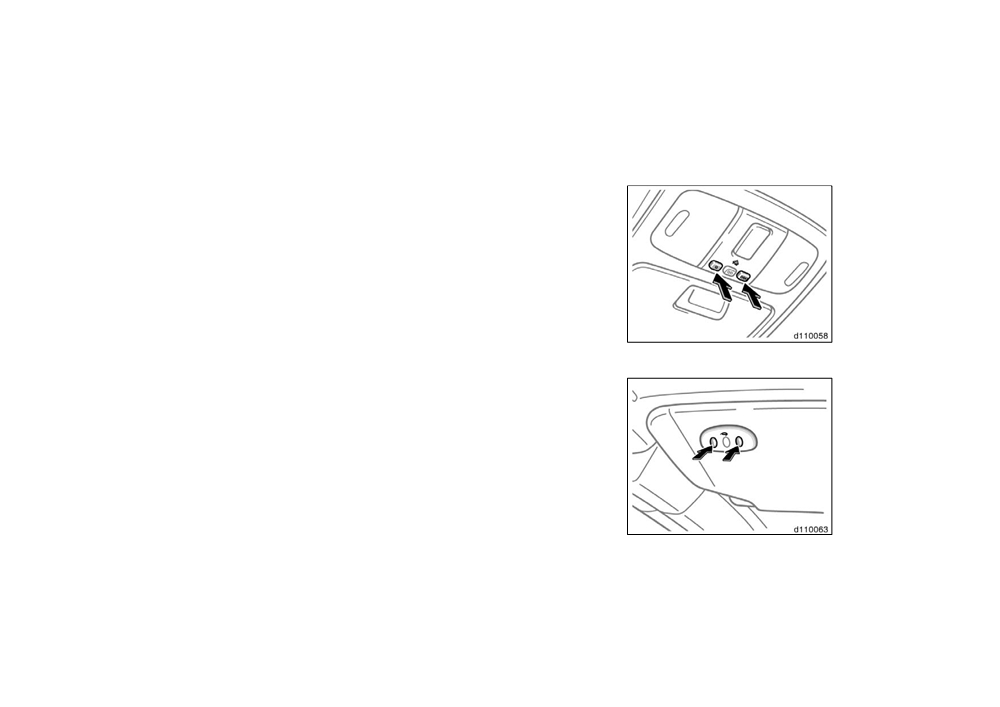

(c) Erasing the entire HomeLinkR

Refer to HomeLinkR on the internet at:

memory (all three programs)

WWW.HOMELINK.COM

This device complies with Part 15 of the

FCC Rules and with RSS−210 of the IC

To erase all previously programmed codes

Rules. Operation is subject to the fol-

at one time, press and hold down the

2

CAUTION

lowing two conditions:

(1) This device

outside buttons for

20 seconds until the

D When programming the HomeLinkR

may not cause harmful interference, and

indicator light flashes.

Universal Transceiver, you may be

(2) this device must accept any interfer-

If you sell your vehicle, be sure to erase

ence received, including interference

operating a garage door or other

the programs stored in the HomeLinkR

that may cause undesired operation.

device. Make sure people and ob-

memory.

jects are out of the way of the ga-

WARNING: This transmitter has been

For additional programming assistance

rage door or other device to pre-

tested and complies with FCC and IC

with

your

HomeLinkR Universal

vent potential harm or damage.

rules. Changes or modifications not

Transceiver call the:

expressly approved by the party re-

D Do not use this HomeLinkR Univer-

D Toyota Customer Experience Center at

sal Transceiver with any garage

sponsible for compliance could void

1−800−331−4331 (U.S.A.)

door opener that lacks the safety

the user’s authority to operate the

stop and reverse feature as re-

device.

D Toyota Canada Customer Interaction

quired by federal safety standards.

Centre at 1−888−869−6828 (Canada)

(This includes any garage door

opener model manufactured before

April

1,

1982.) A garage door open-

er which cannot detect an object

(signaling the door to stop and re-

verse), does not meet current feder-

al safety standards. Using a garage

door opener without these features

increases risk of serious injury or

death.

251

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Glove box

Auxiliary boxes

CAUTION

To reduce the chance of injury in

case of an accident or a sudden stop,

always keep the glove box door

closed while driving.

Center console

To use the glove box:

Open by pulling the lever.

Lock by inserting the master key and turn-

ing it clockwise.

Unlock by inserting the master key and

turning it counterclockwise.

With the instrument panel lights on, the

glove box light will come on when the

glove box is open.

Over head console

252

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Rear console box

To use the auxiliary box, open it as

UPPER TRAY

shown in the illustration.

To access the upper tray, raise the con-

sole box lid while pushing the lock re-

CAUTION

lease button.

To reduce the chance of injury in

case of an accident or a sudden stop,

always keep the auxiliary box closed

while driving.

NOTICE

Over head console box—During hot

weather, the interior of the vehicle

becomes very hot. Do not leave any-

thing flammable or deformable such

as a lighter, glasses, etc. inside.

253

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Cup holders

The cup holder is designed for holding

cups or drink−cans securely.

Front cup holder—

To use the front cup holder, open the lid.

A cup holder adapter is located among the

cup holders which are under the lid. To

hold the cups or drink−cans securely, ad-

just the size with the adapter.

CAUTION

D Do not place anything else other

than cups or drink−cans in the cup

Front

CONSOLE BOX

holder, as such items may be

thrown about in the compartment

To access the rear console box, pull up

and possibly injure people in the

the lock release lever while raising the

vehicle during sudden braking or in

rear console box lid.

an accident.

CAUTION

D To reduce the chance of injury in

case of an accident or sudden stop

To reduce the chance of injury in

while driving, keep the front cup

case of an accident or a sudden stop,

holder closed when it is not in use.

always keep the console box closed

while driving.

Rear

254

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Storage box

Grocery bag hooks

Cargo net

This box is designed to hold things like

This hook is designed to hang things

To secure belongings, hang the cargo

bottles.

like grocery bags.

net on the hooks.

NOTICE

NOTICE

To prevent damage to the hook, avoid

z Do not use the net to secure sharp

hanging heavy loads on it.

or heavy objects. The net will tear

off.

z Be sure not to twist the net when

hooking.

255

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Floor mat

Use a floor mat of the correct size.

CAUTION

If the vehicle carpet and floor mat have

2 holes, then they are designed for use

Observe the following precautions.

with locking clips. Fix the floor mat to the

Failure to do so may result in the

vehicle carpet using the clips. Lock the

floor mat slipping and interfering with

locking clips into the holes in the vehicle

the movement of the pedals during

carpet.

driving, resulting in an accident.

D Make sure the floor mat is properly

placed on the vehicle carpet and

the correct side faces upward.

D Do not place floor mats on top of

existing mats.

256

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Break−in period

Fuel

Drive gently and avoid high speeds.

FUEL TYPE

OCTANE RATING

Your vehicle does not need an elaborate

Your new vehicle must use only un-

Select Octane Rating 87

(Research Oc-

break−in. But following a few simple tips

leaded gasoline.

tane Number 91) or higher.

for the first

1600 km (1000 miles) can add

To help prevent gas station mix−ups, your

Use of unleaded gasoline with an octane

to the future economy and long life of

Toyota has a smaller fuel tank opening.

rating or research octane number lower

your vehicle:

The special nozzle on pumps with un-

than

87 may result in engine knocking.

D Avoid full throttle acceleration when

leaded fuel will fit it, but the larger stan-

Persistent knocking can lead to engine

starting and driving.

dard nozzle on pumps with leaded gas will

damage.

not.

D Avoid racing the engine.

If your engine knocks...

At a minimum, the gasoline you use

D Try to avoid hard stops during the first

If you detect heavy knocking even when

should meet the specifications of ASTM

300 km (200 miles).

using the recommended fuel, or if you

D4814 in the U.S.A. and CGSB 3.5−M93

hear steady knocking while holding a

D Do not drive slowly with the manual

in Canada.

steady speed on level roads, consult your

transmission in a high gear.

Toyota dealer.

D Do not drive for a long time at any

NOTICE

However, occasionally, you may notice

single speed, either fast or slow.

Do not use leaded gasoline. Use of

light knocking for a short time while accel-

D Do not tow a trailer during the first 800

leaded gasoline will cause the three−

erating or driving up hills. This is normal

km (500 miles).

way catalytic converter to lose its ef-

and there is no need for concern.

fectiveness and the emission control

system to function improperly. Also,

this can increase maintenance costs.

258

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Fuel pump shut off system

Operation in foreign countries

The fuel pump shut off system stops sup-

If you plan to drive your Toyota in

NOTICE

plying fuel to the engine to minimize the

another country...

z Do not use gasohol other than

risk of fuel leakage when the engine stalls

First, comply with the vehicle registration

stated above. It will cause fuel sys-

or an airbag inflates upon collision. To

laws.

tem damage or vehicle performance

restart the engine after the fuel pump shut

Second, confirm the availability of the cor-

problems.

off system activates, turn the engine

rect fuel

(unleaded and minimum octane

switch to “ACC” or “LOCK” once and start

z If driveability problems are encoun-

number).

it.

tered (poor hot starting, vaporizing,

engine knock, etc.), discontinue the

CAUTION

use.

z Take care not to spill gasohol dur-

Inspect the ground under the vehicle

ing refueling. Gasohol may cause

before restarting the engine. If you

paint damage.

find that fuel has leaked onto the

ground, the fuel system has been

FUEL TANK CAPACITY

damaged and is in need of repair. In

70 L (18.5 gal.,

15.4 Imp. gal.)

this case, do not restart the engine.

260

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Three−way catalytic converters

The three−way catalytic converter is an

NOTICE

z Keep your engine in good running

emission control device installed in the

order. Malfunctions in the engine

exhaust system.

A large amount of unburned gases

electrical system, electronic ignition

The purpose is to reduce pollutants in the

flowing into the three−way catalytic

system/distributor ignition system

exhaust gas.

converter may cause it to overheat

or fuel system could cause an ex-

and create a fire hazard. To prevent

tremely high three−way catalytic

this and other damage, observe the

CAUTION

converter temperature.

following precautions:

z If the engine becomes difficult to

D Keep people and combustible mate-

z Use only unleaded gasoline.

start or stalls frequently, take your

rials away from the exhaust pipe

z Do not drive with an extremely low

vehicle in for a check−up as soon

while the engine is running. The

fuel level; running out of fuel could

as possible. Remember, your Toyota

exhaust gas is very hot.

cause the engine to misfire, creat-

dealer knows your vehicle and its

D Do not drive, idle or park your ve-

ing an excessive load on the three−

three−way catalytic converter sys-

hicle over anything that may burn

way catalytic converter.

tem best.

easily such as grass, leaves, paper

z Do not allow the engine to run at

z To ensure that the three−way cata-

or rags.

idle speed for more than

20 min-

lytic converter and the entire emis-

utes.

sion control system operate proper-

ly, your vehicle must receive the

z Avoid racing the engine.

periodic inspections required by the

z Do not push−start or pull−start your

Toyota Maintenance Schedule. For

vehicle.

scheduled maintenance information,

z Do not turn off the ignition while

refer to the “Scheduled Maintenance

the vehicle is moving.

Guide” or “Owner’s Manual Supple-

ment”.

261

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

Content   ..  16  17  18  19   ..
