Ventilation

Defogging and defrosting

Press the

“A/C” button for dehumidified

heating or cooling. This setting clears the

For best results, set controls as follows:

—The inside of the windshield

front view more quickly.

For automatic operation—

For best results, set controls as follows:

D On humid days, do not blow cold air

—For automatic operation

Press in the “AUTO” button.

on the windshield—the difference be-

Temperature—Towards low temperature

tween the outside and inside tempera-

Temperature—Towards high temperature

Air intake—FRESH (outside air)

tures could make the fogging worse.

to heat; low temperature

Air conditioning—OFF

to cool

—The outside of the windshield

Air intake—FRESH (outside air)

For manual operation—

For best results, set controls as follows:

Air flow—WINDSHIELD

—For automatic operation

Fan speed—To the desired fan speed

—For manual operation

Temperature—Towards COLD

Temperature—Towards high temperature

Air intake—FRESH (outside air)

Fan speed—To the desired fan speed

Air intake—FRESH (outside air)

Air flow—PANEL

Temperature—Towards high temperature

Air flow—WINDSHIELD

Air conditioning—OFF

to heat; low temperature

—For manual operation

to cool

Air intake—FRESH (outside air)

Fan speed—To the desired fan speed

Air flow—WINDSHIELD

Temperature—Towards high temperature

Air intake—FRESH (outside air)

Pressing the windshield air flow button

Air flow—WINDSHIELD

turns on the defogging function with the

purpose of clearing the front view.

Pressing the windshield air flow button

When pressing the windshield air flow but-

turns on the defrosting function with the

ton, the air intake selects FRESH auto-

purpose of clearing the front view.

matically. This is to clean up the front

When pressing the windshield air flow but-

view more quickly. It is not possible to

ton, the air intake selects FRESH auto-

return to RECIRCULATE in this mode.

matically. This is to clean up the front

view more quickly. It is not possible to

return to RECIRCULATE in this mode.

232

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Side vents

Air conditioning filter—

Press the

“A/C” button for dehumidified

heating or cooling. This setting clears the

front view more quickly.

D To heat the vehicle interior while de-

frosting

the

windshield,

choose

floor/windshield air flow.

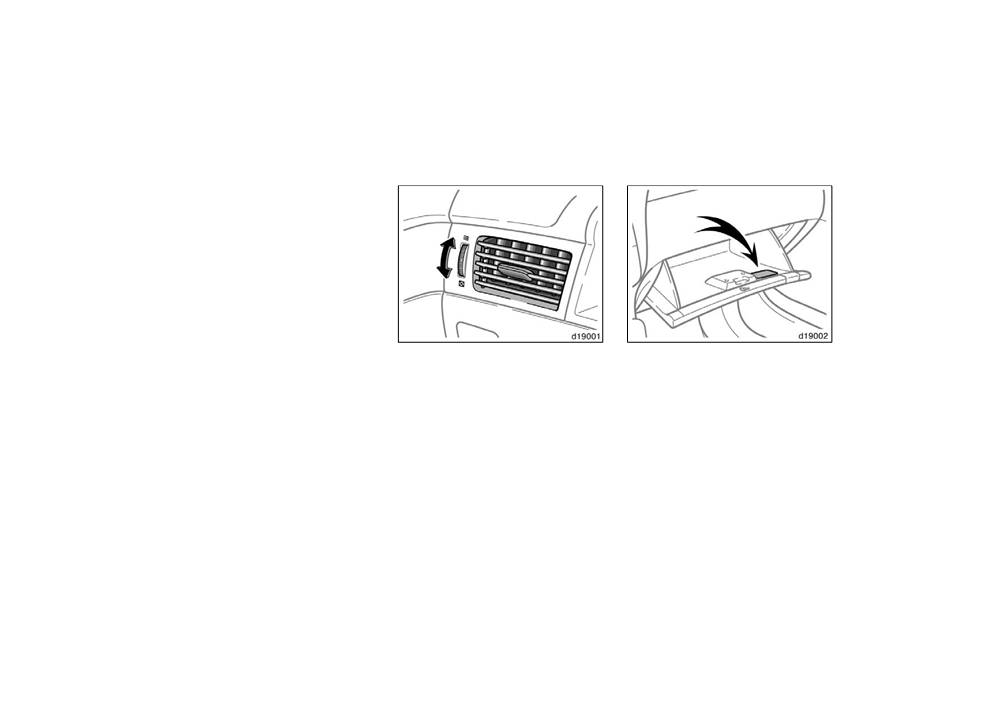

If air flow control is not satisfactory, check

The air conditioning filter information

the side vents. The side vents may be

label is placed in the glove box as

opened or closed as shown.

shown and indicates that a filter has

been installed.

The air conditioning filter prevents dust

from entering the vehicle through the air

conditioning vent.

233

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Checking, cleaning and

replacing the air conditioning

filter

The air conditioning filter may clog af-

ter long use. The filter may need to be

cleaned or replaced if the air flow of

the air conditioning and heater experi-

ences extreme reductions in operating

efficiency, or if the windows begin to

fog up easily in FRESH mode.

To maintain the air conditioning efficiency,

inspect, clean and replace the air condi-

tioning filter according to the maintenance

schedule. In dusty areas or areas with

heavy traffic flow, such as inner city or

desert areas, more frequent cleaning or

early replacement may be required.

(For

The air conditioning filter is behind the

1. Open the glove box. Remove the

scheduled maintenance information, please

glove box.

screw with a Phillips−head screw-

refer to the

“Scheduled Maintenance

Guide” or

“Owner’s Manual Supplement”.)

driver and slide the hook as shown.

234

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

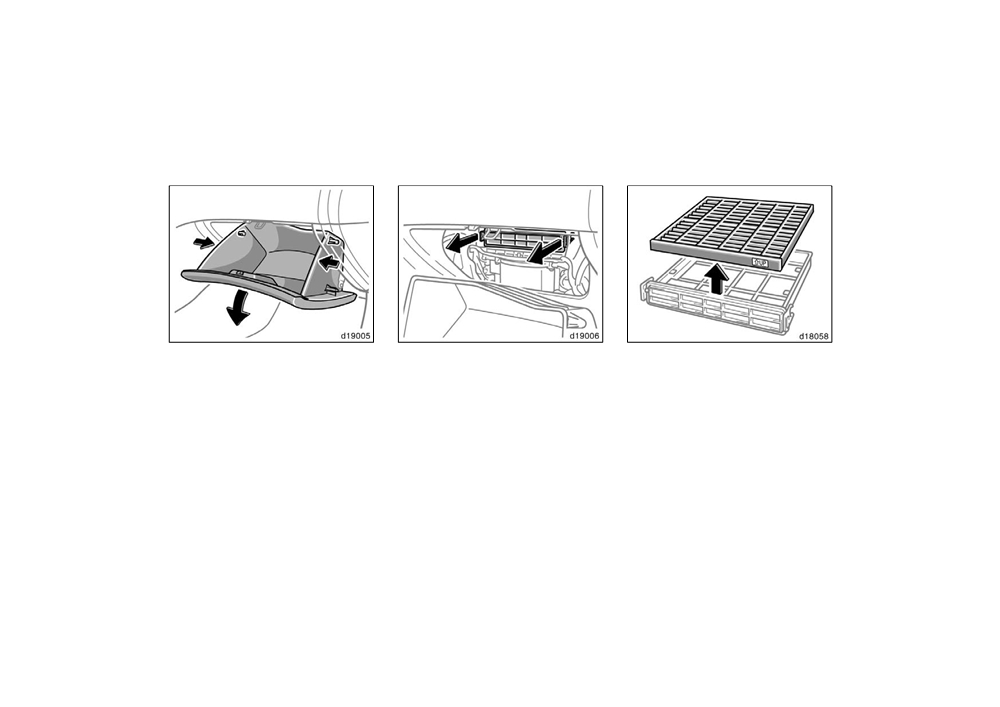

2. Push in each side of the glove box

3. Remove the filter case from the filter

4. Remove the filter from the filter

to disconnect the claws.

outlet as shown in the illustration.

case.

5. Inspect the filter on the surface.

If it is the just moderately dusty, it may

be cleaned by blowing compressed air

from the reverse surface. Do not wash or

oil the filter.

If it is dirty, it should be cleaned or re-

placed.

235

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

To clean the filter, blow compressed air

When installing the filter in the filter

through it from the bottom.

case, keep the “°UP” mark pointing up.

Hold the air gun

50 mm (2 in.) from the

NOTICE

filter and blow for approximately 2 minutes

at

500 kPa (5.0 kgf/cm2 or bar, 72 psi).

To prevent damage to the air condi-

If

it

is not available, have the filter

tioning system, do the following.

cleaned by your Toyota dealer.

z When using the air conditioning

system, make sure that a filter is

always installed.

z When cleaning the filter, do not

clean the filter with water.

236

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Multi−information displays—

When the engine switch is on, the last

SELECTING UNIT

previously used mode displayed just be-

You can select the unit between En-

fore the engine switch is off will appear.

glish/U.S. customary system and metric

If the electrical power source has been

unit.

disconnected from the multi−information

To select the unit A (English/U.S. custom-

display, the display will automatically be

ary system) or unit B

(metric unit), push

set to the initial mode.

and hold the

“H” and

“M” buttons beside

the clock for about

3 second.

CAUTION

The unit variations are as follows;

Do not adjust the display while the

Information

Unit A

Unit B

vehicle is moving. Be sure to adjust

the display only when the vehicle is

Average

and

stopped.

instantaneous

MPG

L/100km

The following information is displayed

fuel consumption

on the multi−information displays.

Driving range

mile

km

1. Cruise information

Average vehicle

2. Clock

MPH

km/h

speed

3. Outside temperature

Outside

_F

_C

temperature

This function is also linked with the auto-

matic air conditioning display.

238

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

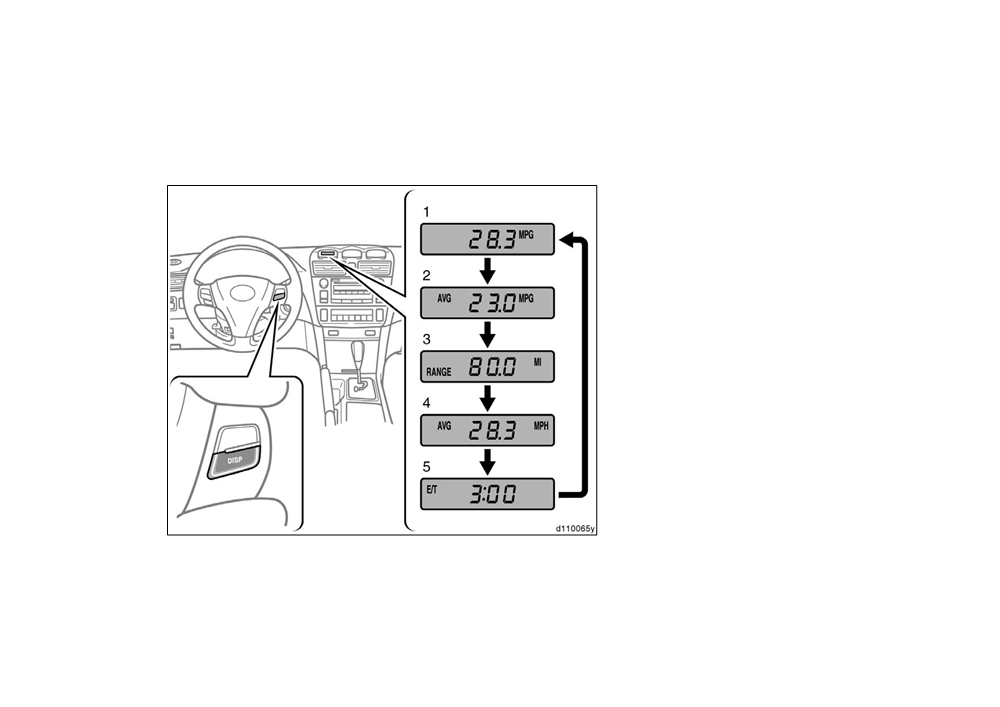

—Cruise information

The left side display indicates the

cruise information when the engine

switch is in the “ON” position.

Each time you push the “DISP” button

on the steering wheel, the display

toggles through the following informa-

tion.

1. Instantaneous fuel consumption

2. Average fuel consumption

3. Driving range

4. Average vehicle speed

5. Elapsed time

The displayed values in the display indi-

cate general driving conditions. Accuracy

varies with driving habits and road condi-

tions.

1. Instantaneous fuel consumption

(“MPG” or “L/100 km”)

The instantaneous fuel consumption is

calculated and displayed based on dis-

tance and fuel consumption for 2 sec-

onds with the engine running.

239

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

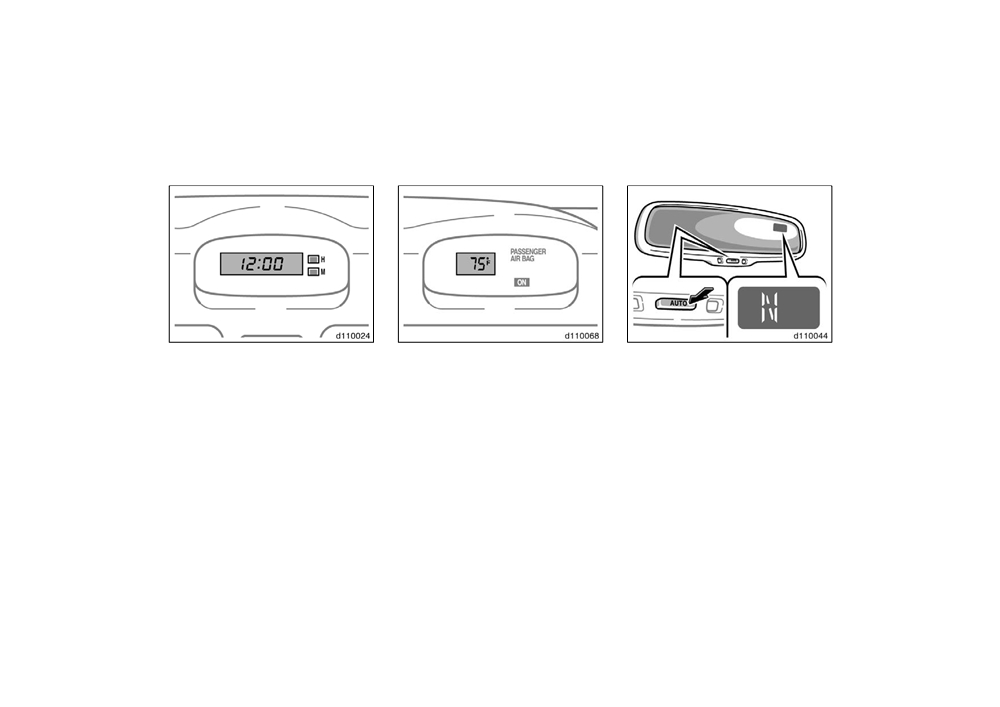

—Clock

—Outside temperature

Compass

The center display indicates the time

The right side display indicates the out-

The direction is indicated on the inside

when the engine switch is in the “ACC”

side air temperatures when the engine

rear view mirror.

or

“ON” position.

switch is in the “ON” position.

If the engine switch was turned off with

To reset the hour: Push the “H” button.

The displayed temperature ranges from

the system on, the system will automati-

To reset the minutes: Push the “M” button.

−30_C (−22_F) up to 50_C (122_F).

cally turn back on when the engine switch

is turned on.

If an abnormality exists in the connection

of the outside air temperature sensor, “−−”

Push the “AUTO” switch for longer than 3

will appear on the display. If

“−−” appears

seconds to turn the compass system on

on the display, contact your Toyota dealer.

and off.

There may be a case that

“−−” appears

momentarily when the ignition is quickly

turned to

“ON”. It is normal if it goes out

soon.

241

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

The compass indicates the direction

D The vehicle is in a place where the

that the vehicle is heading. In the

earth’s magnetic field is subject to in-

above case, it shows that the vehicle is

terference by artificial magnetic fields

heading north.

(underground parking, under a steel

tower, between buildings, roof parking,

Displays

Directions

near a crossing, near a large vehicle,

N

North

etc.).

NE

Northeast

D The vehicle is magnetized. (There is a

E

East

magnet or a metal object on or near

SE

Southeast

the inside rear view mirror.)

S

South

D The battery has been disconnected.

SW

Southwest

W

West

If your vehicle is out of the set zone,

NW

Northwest

refer

to

the

“CALIBRATING THE

COMPASS” below to set the zone number.

The compass sensor is in the inside

The compass may not show the correct

rear view mirror.

If the deviation is small, the compass

direction in the following conditions:

works to calibrate the direction automati-

D The vehicle is stopped immediately af-

cally while the vehicle is in motion.

NOTICE

ter turning.

For additional precision or for complete

Do not put magnets or a metal object

D The compass does not adjust while the

calibrating,

see

“CALIBRATING THE

on or near the inside rear view mirror

vehicle is stopped.

COMPASS” below.

of the vehicle. Doing this may cause

D The engine switch is turned off immedi-

malfunction of the compass sensor.

ately after turning.

D The vehicle is on an inclined surface.

242

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Samoa:

5

Guam:

8

Saipan:

8

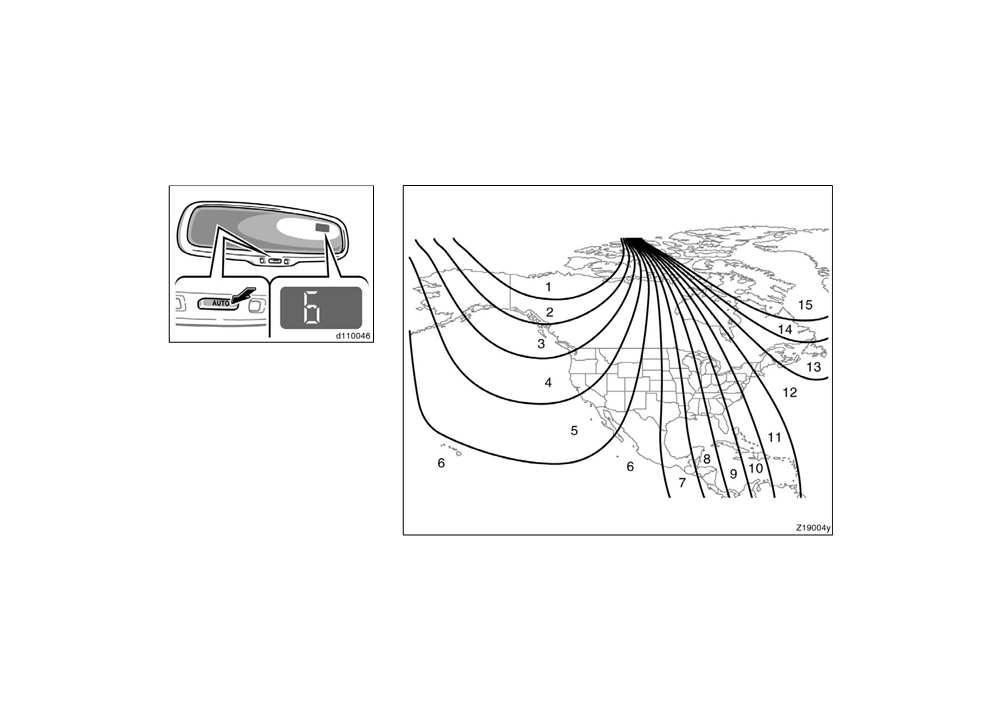

CALIBRATING THE COMPASS (deviation

calibration)

The direction display on the compass

deviates from the true direction deter-

mined by the earth’s magnetic field. The

angle of deviation varies according to the

geographic position of the vehicle.

To adjust this deviation, stop the vehicle,

then push and hold the switch until the

zone number appears on the display. Then

push the switch, referring to the following

map to select the number of the zone

where the vehicle is.

Zone numbers

243

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

After calibration, leaving the system for

several seconds returns it to compass

mode.

CAUTION

Do not adjust the display while the

vehicle is moving. Be sure to adjust

the display only when the vehicle is

stopped.

CALIBRATING THE COMPASS

(circling

Drive the vehicle in a circle at

8 km/h (5

calibration)

mph) or less. If there is not enough space

to drive in a circle, drive around the

Sometimes the direction display on the

block.

compass may not change after a turn. To

rectify this, stop the vehicle and push and

After driving

1 to

3 circles in the above

hold the switch until

“C” appears on the

method, calibration is completed when the

display.

direction is shown on the display.

If

“C” appears on the display because of

If calibration cannot be performed because

a drastic change in the magnetic field,

of the magnetized vehicle etc., take your

perform circling calibration.

vehicle to Toyota dealer.

244

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Portable ashtray

Perform circling calibration just after

you have purchased your Toyota. And

CAUTION

then always perform circling calibration

D When doing the circling calibration,

after the battery has been removed, re-

be sure to secure a wide space,

placed or disconnected.

and watch out for people and ve-

D Do not perform circling calibration of

hicles in the neighborhood. Do not

the compass in a place where the

violate any local traffic rules while

earth’s magnetic field is subject to in-

performing circling calibration.

terference by artificial magnetic fields

(underground parking, under a steel

D Do not adjust the display while the

tower, between buildings, roof parking,

vehicle is moving. Be sure to adjust

near a crossing, near a large vehicle,

the display only when the vehicle is

stopped.

etc.).

D During calibration, do not operate elec-

The ashtray can be removed and used

tric systems

(moon roof, power win-

outside the vehicle. To use the ashtray,

dows, etc.) as they may interfere with

raise the lid.

the calibration.

When finished with your cigarette, thor-

oughly extinguish it in the ashtray to pre-

vent other cigarette butts from catching

fire. After using the ashtray, close the lid

completely.

The cup holder lid cannot be closed while

the ashtray is installed.

To detach the ashtray, pull it out.

245

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Power outlets

The power outlets are designed for

CAUTION

power supply for car accessories.

The engine switch must be in the

“ACC”

To reduce the chance of injury in

or “ON” position for the power outlet to be

case of an accident or sudden stop

used.

while driving, always completely close

the ashtray after use.

NOTICE

z To prevent the fuse from being

blown, do not use the electricity

over the total vehicle capacity of

12V/120W.

z To prevent the battery from being

discharged, do not use the power

In the center console auxiliary box

outlets longer than necessary when

the engine is not running.

z Close the power outlet lids when

the power outlets are not in use.

Inserting anything other than an ap-

propriate plug that fits the outlet,

or allowing any liquid to get into

the outlet may cause electrical fail-

ure or short circuits.

In the rear console box

246

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

Content   ..  15  16  17  18   ..
