’05MY CELICA U (L/O 0409)
Dimensions and weights
Engine
Fuel
Overall length
mm (in.)
4330
(170.5)
Model:
Fuel type:
1ZZ−FE and 2ZZ−GE
Overall width
mm (in.)
1735
(68.3)
1ZZ−FE engine
Type:
Unleaded gasoline, Octane Rating
87
Overall height
mm (in.)
1305
(51.8)∗
4 cylinder in line,
4 cycle, gasoline
(Research Octane Number
91) or
Wheelbase
mm (in.)
2600
(102.4)
higher
Bore and stroke, mm (in.):
Front tread
mm (in.)
1490
(58.7)
1ZZ−FE engine
2ZZ−GE engine
Rear tread
mm (in.)
1480
(58.3)
79.0
91.5
(3.11
3.60)
Select premium unleaded gasoline with
2ZZ−GE engine
an Octane Rating of 91 (Research Oc-
Vehicle capacity weight
82.0
85.0
(3.23
3.35)
tane Number
96) or higher for opti-
(occupants + luggage)
mum engine performance
kg (lb.)
329
(725)
Displacement, cm3 (cu. in.):
1ZZ−FE engine
1794
(109.5)
Fuel tank capacity, L
(gal., Imp. gal.):
Towing capacity
2ZZ−GE engine
1796
(109.6)
55
(14.5,
12.1)
(trailer weight + cargo weight)
kg (lb.)
907
(2000)
∗: Unladen vehicle
262
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Service specifications
ENGINE
“Toyota Genuine Motor Oil” is used in
COOLING SYSTEM
your Toyota vehicle. Use Toyota approved
Valve clearance (engine cold), mm (in.):
Total capacity, L (qt., Imp. qt.):
“Toyota Genuine Motor Oil” or equivalent
1ZZ−FE engine
1ZZ−FE engine
to satisfy the following grade and
Intake
0.15—0.25 (0.006—0.010)
Manual transaxle
5.7
(6.0,
5.0)
viscosity.
Exhaust
0.25—0.35 (0.010—0.014)
Automatic transaxle
5.6
(5.9,
4.9)
Oil grade:
2ZZ−GE engine (on a roller side)
2ZZ−GE engine
API grade SL
“Energy−Conserving” or
Intake
0.08—0.18 (0.003—0.007)
Manual transaxle
5.9
(6.2,
5.2)
ILSAC multigrade engine oil
Exhaust
0.22—0.32 (0.009—0.013)
Automatic transaxle
5.8
(6.1,
5.1)

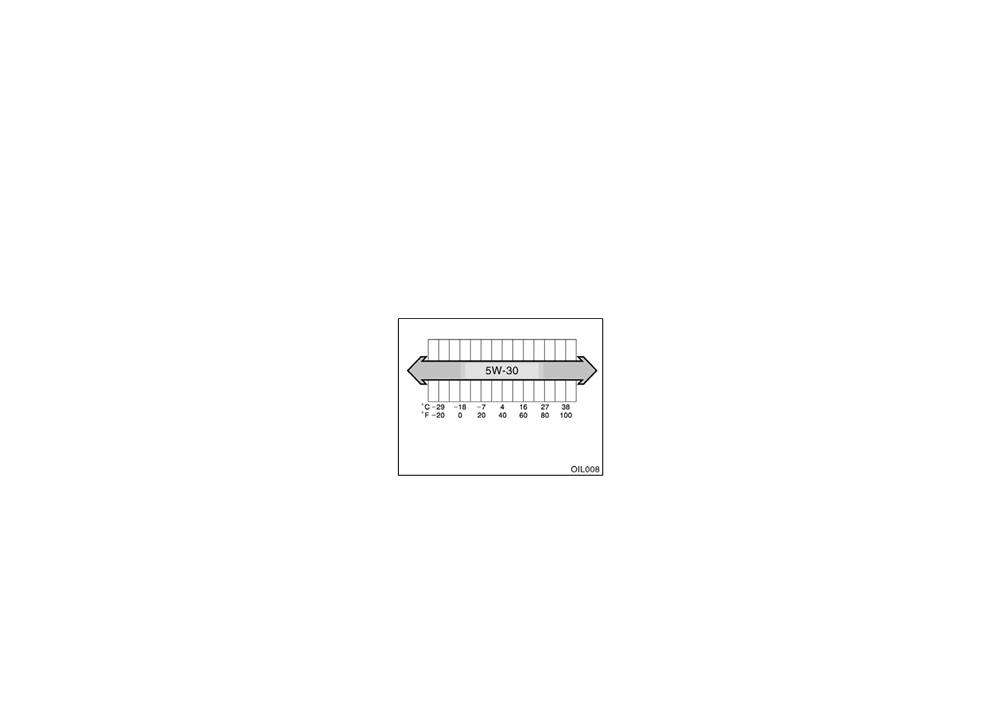

Recommended oil viscosity:
Spark plug type:
Coolant type:
SAE 5W−30
1ZZ−FE engine
“Toyota Super Long Life Coolant” is
DENSO SK16R11
used in your Toyota vehicle at factory
NGK
IFR5A11
fill. In order to avoid technical problems,
only use
“Toyota Super Long Life
2ZZ−GE engine
Coolant” or similar high quality ethylene
DENSO SK20R11
glycol based non−silicate, non−amine,
NGK
IFR6A11
non−nitrite, and non−borate coolant with
Spark plug gap, mm (in.):
long−life hybrid organic acid technology.
1.1
(0.043)
(Coolant with long−life hybrid organic
ENGINE LUBRICATION
acid technology is a combination of low
Outside temperature
phosphates and organic acids.)
Oil capacity
(drain and refill),
L (qt., Imp. qt.):
Do not use plain water alone.
1ZZ−FE engine
Please contact your Toyota dealer for
With filter
3.7
(3.9,
3.3)
further details.
Please contact your Toyota dealer for fur-
Without filter
3.5
(3.7,
3.1)
ther details.
2ZZ−GE engine
With filter
4.4
(4.8,
4.0)
Without filter
4.2
(4.6,
3.8)
263
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
BATTERY
AUTOMATIC TRANSAXLE
BRAKES
Open voltage∗ at 20_C (68_F):
Fluid capacity
(drain and refill),
Minimum pedal clearance when depressed
L (qt., Imp. qt.):
with the force of
490 N (50 kgf, 110 lbf)
12.6—12.8 V
Fully charged
1ZZ−FE engine
with the engine running, mm (in.):
12.2—12.4 V
Half charged
Up to 2.9 (3.1, 2.6)
85 (3.4)
11.8—12.0 V
Discharged
2ZZ−GE engine
Pedal free play, mm (in.):
∗: Voltage that is checked
20 minutes af-
Up to 3.5 (3.7, 3.1)
1—6 (0.04—0.24)
ter the key is removed with all the lights
Fluid type:
turned off
Pad wear limit, mm (in.):
Toyota Genuine ATF Type T−IV
1.0
(0.04)
Charging rates:
Change automatic transmission fluid only
5 A max.
Lining wear limit, mm
(in.):
as necessary.
1.0
(0.04)
CLUTCH
Generally, it is necessary to change auto-
Parking brake adjustment when pulled with
Pedal free play, mm (in.):
matic transmission fluid only if your ve-
the force of
196 N (20 kgf, 44 lbf):
5—15 (0.2—0.6)
hicle is driven under one of the Special
7—8 clicks
Fluid type:
Operating Conditions listed in your
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
“Scheduled Maintenance Guide” or
“Own-
SAE J1703 or FMVSS No.116 DOT 3
er’s Manual Supplement”. When changing
MANUAL TRANSAXLE
the automatic transmission fluid, use only
STEERING
Oil capacity, L (qt., Imp. qt.):
“Toyota Genuine ATF Type T−IV”
(ATF
Wheel free play:
1ZZ−FE engine
1.9
(2.0,
1.7)
JWS3309 or NWS6500) to aid in assuring
Less than 30 mm (1.2 in.)
2ZZ−GE engine
2.3
(2.4,
2.0)
optimum transaxle performance.
Power steering fluid type:
Oil type:
Notice: Using automatic transmission
Automatic transmission fluid DEXRONrII
Gear oil API GL−4 or GL−5
fluid other than
“Toyota Genuine ATF
or III
Recommended oil viscosity:
Type T−IV” may cause deterioration in
SAE 75W−90
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.
264
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Tires
Tire size and cold tire inflation pressure:
Standard tire
Tire inflation pressure
kPa (kgf/cm2 or bar, psi)
Model
Tire size
Wheel size
Front
Rear
195/60R15 88H
210
(2.1,
29)
210
(2.1,
29)
15
6 1/2JJ
1ZZ−FE engine
P195/60R15 87H
210
(2.1,
29)
210
(2.1,
29)
15
6 1/2JJ
205/55R15 87V
220
(2.2,
32)
220
(2.2,
32)
15
6 1/2JJ
2ZZ−GE engine
P205/55R15 87V
220
(2.2,
32)
220
(2.2,
32)
15
6 1/2JJ
205/50R16 87V
220
(2.2,
32)
220
(2.2,
32)
16
6 1/2JJ
Compact spare tire
Tire size
Tire inflation pressure
Wheel size
kPa (kgf/cm2 or bar, psi)
T125/70D16 96M
420
(4.2,
60)
16
4T
Wheel nut torque, N·m (kgf·m, ft·Ibf):
103
(10.5,
76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions” in Section 7−2.
265
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

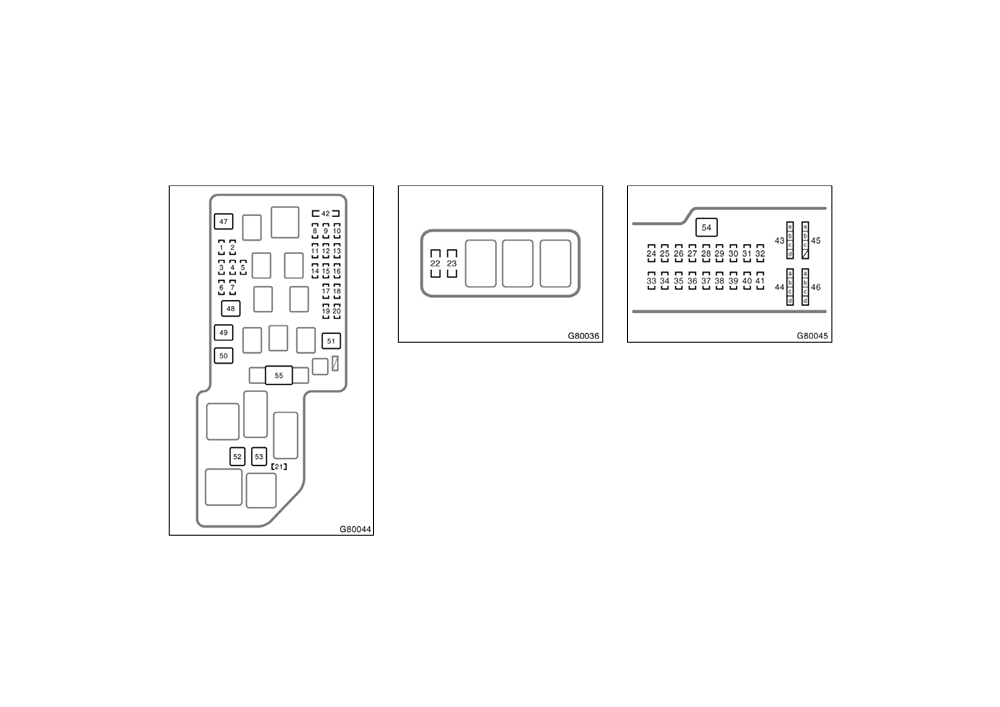

Fuses
Engine compartment
Instrument panel
Fuses (type A)
8. SPARE 30 A: Spare fuse
1. AUTO ANTENNA 15 A: Power antenna
9. HORN 10 A: Horn
2. HEAD LH UPR 10 A: No circuit
10. ALT−S 7.5 A: Charging system
3. HEAD RH UPR 20 A: No circuit
11. SPARE 15 A: Spare fuse
4. HEAD LVL DRL NO.1 7.5 A: Daytime
12. EFI NO.1 10 A: Multiport fuel injection
running light system, headlight beam
system/sequential multiport fuel injec-
level control system
tion system
5. HEAD RH LWR
15 A: Right−hand
13. DCC 25 A: “RADIO”,
“DOME”, “MPX−
headlight
(low beam)
B” and “ECU−B” fuses
6. HEAD LH LWR 15 A: Left−hand head-
14. SPARE 10 A: Spare fuse
light
(low beam)
15. EFI NO.2 10 A: Multiport fuel injection
Engine compartment
7. ABS NO.2 25 A: Anti−lock brake sys-
system/sequential multiport fuel injec-
tem
tion system, emission control system
266
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
16.
EFI
20 A: Multiport fuel injection sys-
27.
SRS−IG 7.5 A: SRS airbag system
Fuses (type B)
tem/sequential multiport fuel injection
28.
WASHER
15 A: Windshield washer,
42.
SPARE 7.5 A: Spare fuse
system,
“EFI NO.1” and
“EFI NO.2”
rear window washer
43.
a.
MPX−B 7.5 A: Wireless remote con-
fuses
29.
RADIO 15 A: Audio system
trol system
17.
ST
7.5 A: Starting system, multiport
b.
RR FOG 7.5 A: No circuit
30.
TURN 7.5 A: Turn signal lights
fuel injection system/sequential multi-
c.
DOME 7.5 A: Clock, interior light
port fuel injection system
31.
HTR 10 A: Air conditioning system
d.
ECU−B 7.5 A: Air conditioning sys-
18.
AM2 7.5 A: Starting system
32.
TAIL 10 A: Tail lights, instrument panel
tem, gauges and meters
lights, license plate lights, front side
19.
IG2
15 A: Starting system, multiport
44.
a.
WARNING 5 A: Charging system,
maker lights
fuel injection system/sequential multi-
gauges and meters
port fuel injection system
33.
CIG 15 A: Cigarette lighter
b.
ECU−IG 5 A: Cruise control system
c.
ABS−IG 5 A: Anti−lock brake sys-
20.
HAZ 10 A: Emergency flashers
34.
AM1
25 A: Starting system,
“CIG”,
tem
“ECU ACC”,
“SRS−IG”,
“WASHER”,
21.
ETCS 10 A: Electronic throttle control
d.
FAN RLY 5 A: Electric cooling fan
“WIPER”,
“BK/UP LP”,
“TENS RDC”,
system
“DEF RLY”, “BODY ECU−IG”, “TURN”,
45.
a.
PANEL1 7.5 A: Glove box light, in-
22.
HEAD RH UPR
10 A: Right−hand
“HTR”, “WARNING”, “FAN RLY”, “ABS−
strument panel lights
headlight
(high beam)
IG” and “ECU−IG” fuses
b.
PANEL2 7.5 A: Front fog lights, in-
23.
HEAD LH UPR 10 A: Left−hand head-
strument panel lights, instrument
35.
DOOR 20 A: Power door lock system
light
(high beam), daytime running light
cluster lights
36.
FR FOG 15 A: Front fog lights
system
c.
ECU−ACC 7.5 A: Clock, audio sys-
37.
OBD 7.5 A: On−board diagnosis sys-
tem, power rear view mirror con-
24.
S/ROOF 15 A: Electric moon roof
tem
trols, power antenna
25.
FL P/W 20 A: Power windows
38.
WIPER 25 A: Windshield wipers
26.
STOP
10 A: Stop lights, anti−lock
39.
MIR HTR 10 A: No circuit
brake system, high mounted stoplight,
multiport fuel injection system/sequen-
40.
RR WIPER 15 A: Rear window wiper
tial multiport fuel injection system, elec-
41.
FR P/W 20 A: Power windows
tronically controlled automatic transmis-
sion system, cruise control system
267
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
46. a. BK/UP LP 5 A: Back−up lights
b. DEF RLY 5 A: Power windows, rear
window defogger
c. BODY ECU−IG 5 A: Multiplex com-
munication system
d. TENS RDC 5 A: Electronically con-
trolled automatic transmission sys-
tem, shift lock control system, elec-
tric moon roof, power antenna
Fuses (type C)
47. HTR 50 A: Air conditioning system
48. RDI 30 A: Electric cooling fan
49. ABS NO.1 50 A: Anti−lock brake sys-
tem
50. CDS 30 A: Electric cooling fan
51. MAIN
40 A: Starting system, daytime
running light system,
“ST” fuse
52. A−PMP 50 A: Emission control system
53. H−LP CLN 50 A: No circuit
54. DEF 30 A: Rear window defogger
Fuses (type D)
55. ALT
120 A: Cooling system, electric
cooling fan, starting system, rear win-
dow defogger, tail lights,
“ABS NO.1”,
“ABS NO.2”,
“HTR”,
“FR P/W”,
“FL
P/W”,
“DOOR”,
“OBD”,
“STOP”,
“S/
ROOF”,
“MIR HTR”,
“FR FOG” and
“AM1” fuses
268
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
SECTION 9
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners
270
269
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Reporting safety defects for
U.S. owners
If you believe that your vehicle
To contact NHTSA, you may ei-
has a defect which could cause a
ther call the Auto Safety Hotline
crash or could cause injury or
toll−free at
1−800−424−9393
(or
death, you should immediately in-
366−0123 in Washington, D.C.
form the National Highway Traffic
area) or write to: NHTSA, U.S.
Safety Administration (NHTSA) in
Department of Transportation,
addition to notifying Toyota Motor
Washington, D.C. 20590. You can
Sales, U.S.A., Inc.
also obtain other information about
(Toll−free: 1−800−331−4331).
motor vehicle safety from the Hot-
line.
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.
270
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
U−9
Quick index
D If a service reminder indicator or warning buzzer comes on
83
D If your vehicle will not start
186
D If your engine stalls while driving
189
D If your vehicle overheats
190
D If you have a flat tire
191
D If your vehicle needs to be towed
202
D Tips for driving during break−in period
148
D How to start the engine
174
D General maintenance
217
D Complete index
NO TAG
Gas station information
Fuel type:
1ZZ−FE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher
2ZZ−GE engine: Premium UNLEADED gasoline, Octane Rating 91
(Research Octane Number 96) or higher
See page 148 for detailed information.
Fuel tank capacity:
55 L (14.5 gal., 12.1 lmp. gal.)
Engine oil:
API grade SL “Energy−Conserving” or ILSAC multigrade engine oil is
recommended.
See page 231 for detailed information.
Tire information: See pages 235 through 244.
Tire inflation pressure: See page 265.
Publication No. OM20888U
Part No. 01999-20888
Printed in Japan 01−0409−00
C
(
U)
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
WE REALLY CARE ABOUT YOU Ċ PLEASE BUCKLE UP
Toyota has made a special effort to encourage use of seat belts.
Toyota belts are:
D Comfortable
D Easy to use
D Convenient
We encourage you to use your belts every time you drive.
2005 CELICA from Sep. ’04 Prod. (OM20888U)
U
’05MY CELICA U (L/O 0409)
You should know as much about the quality and
importance of proper maintenance of your new
vehicle as the people who built it.
The Toyota authorized Repair Manual
tells you how to maintain your vehicle and
enables you to correctly perform your own
maintenance.
The best way to keep your new vehicle in top
running order is to maintain it properly from
the moment you drive it off the showroom
floor.
The Toyota authorized Repair Manual is
packed with literally everything you need to
know to perform your own maintenance in
virtually every area of your new vehicle.
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Maintenance procedures for the engine,
chassis, body, electrical system, and more,
are clearly explained and illustrated.
Periodic maintenance and tune−up
Where to obtain the
Periodic maintenance and tune−up helps to pre-
Repair Manual
vent small problems from growing into larger ones lat-
er on. The repair manual outlines exactly what main-
tenance is required and clearly explains how to do the
The repair manual for CELICA, may be pur-
work yourself step−by−step.
chased from any Toyota dealer or the Material
Areas covered include such things as spark plug re-
Distribution Center. To purchase the repair
placement, valve clearance adjustment and engine oil
manual, please contact your Toyota dealer or
and filter replacement.
call the Material Distribution Center toll−free
at
1−800−622−2033.
2005 CELICA from Sep. ’04 Prod. (OM20888U)
