Toyota Tercel (1999 year). Instruction - part 14
’99 TERCEL (U)

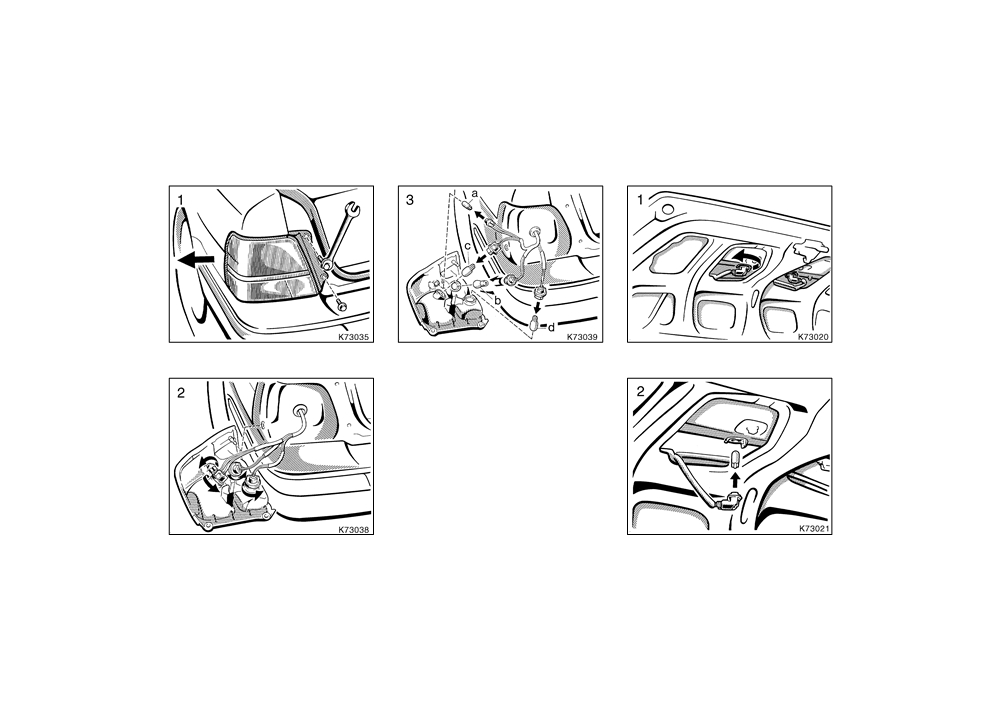

—Rear side marker, rear turn
signal, stop and tail, and
back−up lights
—License plate lights
Use a wrench.
a: Rear side marker light
b: Rear turn signal light
c: Stop and tail light
d: Back−up light
190
’99 TERCEL (U)

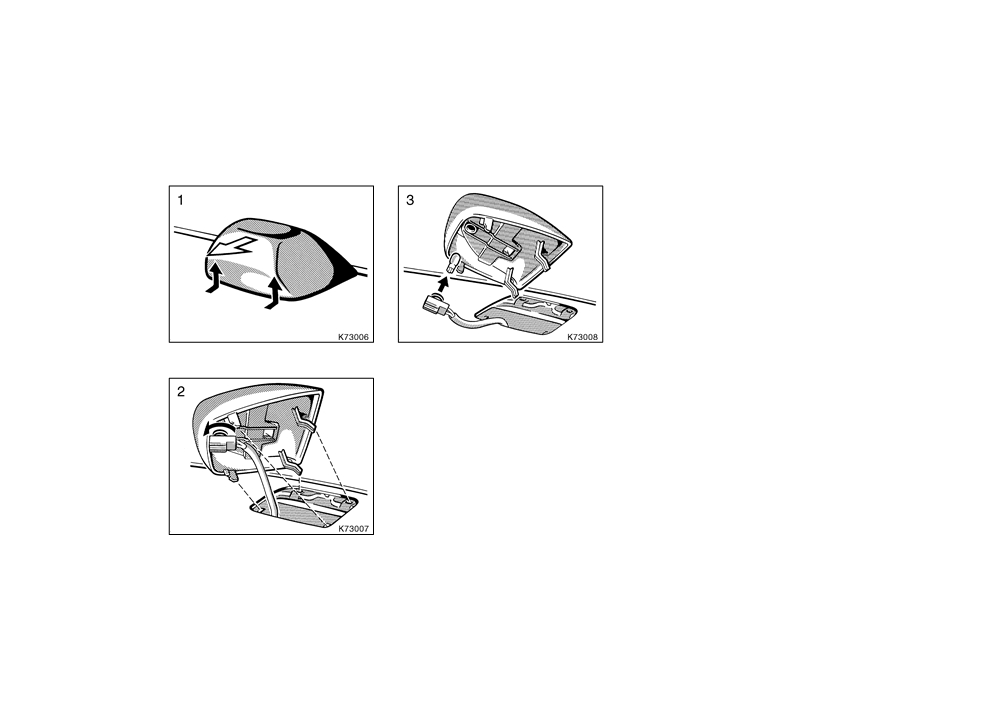

—High mounted stoplight
191
’99 TERCEL (U)
Dimensions and weight
Engine
Part 8
Overall length mm (in.)
4130 (162.6)
Model:
SPECIFICATIONS
5E−FE
Overall width mm (in.)
1660 ( 65.4)
Type:
Overall height mm (in.)
1375 ( 54.1)∗
D Dimensions and weight
4 cylinder in line,
4 cycle, gasoline
Wheelbase
mm (in.)
2380 ( 93.7)
D Engine
Bore and stroke, mm (in.):
Front tread
mm (in.)
1400 ( 55.1)
74.0
87.0
(2.91
3.43)
D Fuel
Rear tread
mm (in.)
1395 ( 54.9)
Displacement, cm3 (cu. in.):
D Service specifications
Vehicle capacity weight
1497 (91.3)
(occupants + luggage)
D Tires
kg (lb.)
352
(775)
D Fuses
∗: Unladen vehicle
192
’99 TERCEL (U)
Fuel
Service specifications
Fuel type:
ENGINE

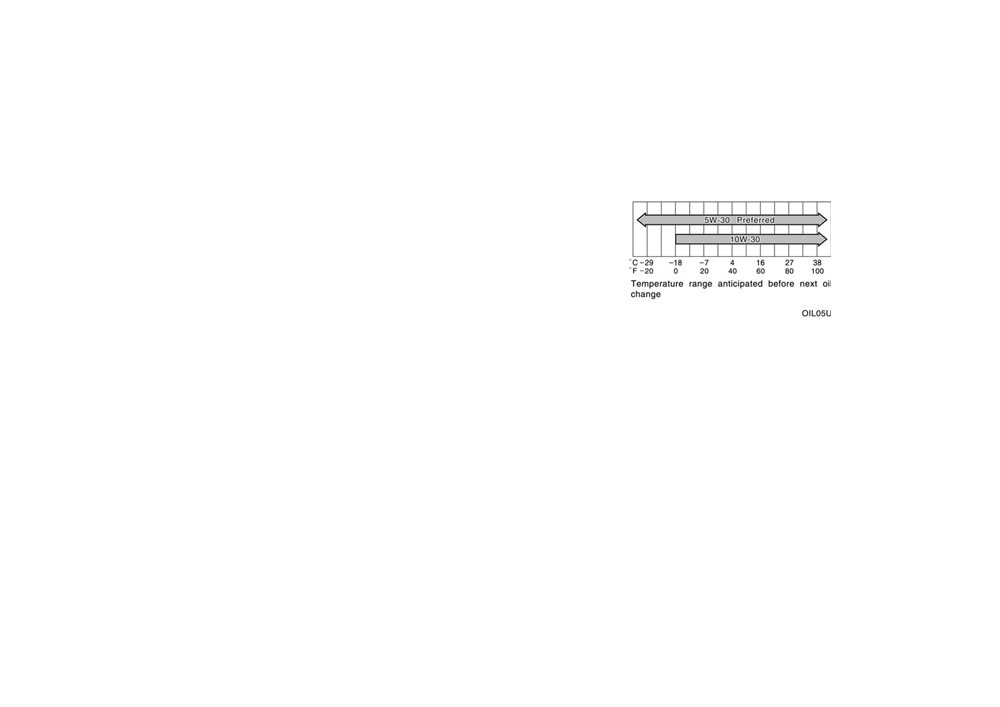

Recommended oil viscosity (SAE):
Unleaded gasoline, Octane Rating
87
Valve clearance (engine cold), mm (in.):
(Research Octane Number 91) or higher
Intake
0.15—0.25 (0.006—0.010)
Exhaust
0.31—0.41 (0.012—0.016)
Fuel tank capacity, L (gal., Imp. gal.):
45 (11.9, 9.9)
Spark plug type:
DENSO
K16TR11
NGK
BKR5EKB11
Spark plug gap, mm (in.):
1.1
(0.043)
Drive belt tension measured with Borroughs
drive belt tension gauge No.BT−33−73F
COOLING SYSTEM
(used belt), Ibf:
100 " 20
Total capacity, L
(qt., Imp. qt.):
ENGINE LUBRICATION
Automatic transmission
Vehicles sold in Puerto Rico
Oil capacity (drain and refill), L (qt., Imp. qt.):
4.8 (5.1,
4.2)
With filter
2.8 (3.0,
2.5)
Vehicles sold outside Puerto Rico
Without filter
2.6 (2.7,
2.3)
5.3 (5.6,
4.7)
Oil grade:
Manual transmission
API grade SJ,
”Energy−Conserving” or
4.9 (5.2,
4.3)
ILSAC multigrade engine oil is recom-
Coolant type:
mended.
”Toyota Long Life Coolant” or equivalent
With ethylene−glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
193
’99 TERCEL (U)
BATTERY
MANUAL TRANSAXLE
BRAKES
ĊMaintenance type battery
Oil capacity, L
(qt., Imp. qt.):
Minimum pedal clearance when depressed
Specific gravity reading at 20_C(68_F):
1.9 (2.0,
1.7)
with the pressure of 490 N (50 kgf, 110 lbf)
1.250—1.290
Fully charged
with the engine running, mm (in.):
Oil type:
1.160—1.200
Half charged
Gear oil API GL−4 or GL−5
With anti−lock brake system
1.060—1.100
Discharged
55 (2.2)
Recommended oil viscosity:
ĊNon−maintenance battery
Without anti−lock brake system
SAE 75W−90
Open voltage∗ at 20_C (68_F):
60 (2.4)
AUTOMATIC TRANSAXLE
12.6 V—12.8 V
Fully charged
Pedal freeplay, mm (in.):
3−speed type automatic transmission
12.2 V—12.4 V
Half charged
1—6 (0.04—0.24)
11.8 V—12.0 V
Discharged
Automatic transmission
Pad wear limit, in.
(mm):
Fluid capacity
(drain and refill),
∗: Voltage that is checked 20 minutes after
1.0
(0.04)
L (qt., Imp. qt.):
the key is removed with all the lights
Lining wear limit, in.
(mm):
Up to 2.5 (2.6, 2.2)
turned off
1.0
(0.04)
Differential
Charging rates:
Parking brake adjustment when pulled with
Fluid capacity, L
(qt., Imp. qt.):
Non−maintenance battery
5 A max.
the force of 196 N (20 kgf, 44 lbf):
1.4 (1.5,
1.2)
Maintenance type battery
5—8 clicks
4−speed type automatic transmission
Quick charge
15 A max.
Fluid type:
Fluid capacity
(drain and refill),
Slow charge
5 A max.
SAE J1703 or FMVSS No.116 DOT 3
L (qt., Imp. qt.):
CLUTCH
Up to 3.1 (3.3, 2.7)
STEERING
Pedal freeplay, mm (in.):
Fluid type:
Wheel freeplay:
5—15 (0.2—0.6)
Automatic transmission fluid D−II or
Less than 30 mm (1.2 in.)
Fluid type:
DEXRONrIII (DEXRONrII)
Power steering fluid type:
SAE J1703 or FMVSS No.116 DOT 3
Automatic transmission fluid
DEXRONrII or III
194
’99 TERCEL (U)
Tires
Fuses
Tire size:
Spare tire
T115/70D14 88M
T105/70D14 83M
Except spare tire
155SR13 (155/80R 79S)
P185/60R14 82H
P175/65R14 81S
Tire pressure, kPa (kgf/cm2 or bar, psi):
Spare tire
420 (4.2, 60)
Except spare tire
155SR13 (155/80R 79S)

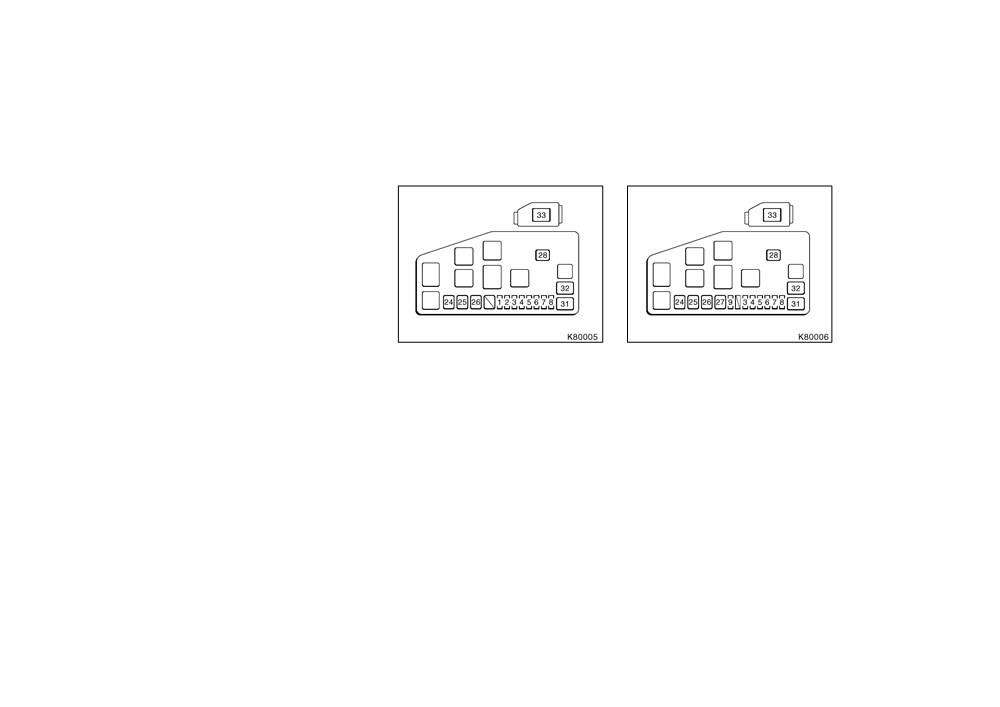

Engine compartment (U.S.A.)
Engine compartment (Canada)
Front
240 (2.4, 34)
Rear
220 (2.2, 32)
P185/60R14 82H
Fuses (type A)
6. DOME 10 A: Interior lights, open door
180 (1.8, 26)
warning light, clock, car audio system,
1. HEAD (LH) 10 A: Left−hand headlight
P175/65R14 81S
theft deterrent system, daytime running
2. HEAD (RH) 10 A: Right−hand headlight
200 (2.0, 28)
light system
3. AM2
15 A: Ignition system, charging
Wheel size:
7. OBD−II 7.5 A: On−board diagnosis sys-
system, multiport fuel injection sys-
tem
Spare tire
14
4T
tem/sequential multiport fuel injection
Except spare tire
8. ALT−S 5 A: Charging system
system, SRS airbag system, seat belt
155 SR13
13
4 1/2J
pretensioners, starter system
9. DRL 5 A: Daytime running light system
P185/60R14 82H
14
5 1/2J
4. HAZ−HORN
15 A: Horns, emergency
10. HEAD
(RH−LWR)
10 A: Right−hand
P175/65R14 81S
14
5 1/2J
flashers, theft deterrent system
headlight
(low beam)
Wheel nut torque, N·m (kgf·m, ft·lbf):
5. EFI
15 A: Multiport fuel injection sys-
11. HEAD
(LH−LWR)
10 A: Left−hand
103 (10.5,
76)
tem/sequential multiport fuel injection
headlight
(low beam)
system
12. HEAD
(RH−UPR)
10 A: Right−hand
headlight
(high beam)
195
’99 TERCEL (U)

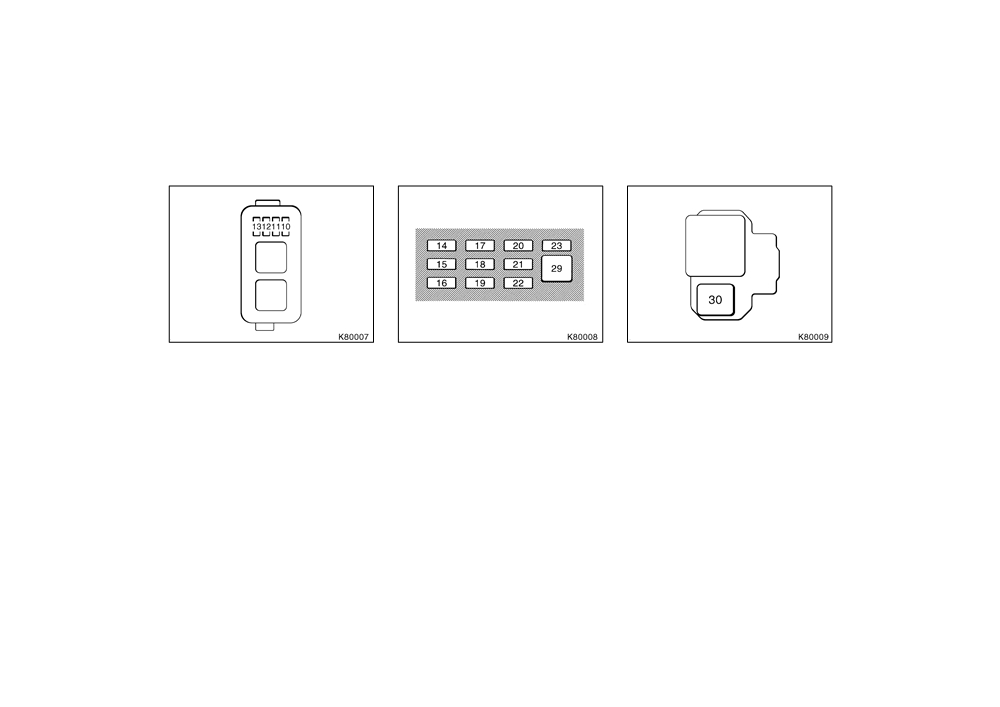

Engine compartment (Canada only)
Instrument panel
Instrument panel
13. HEAD
(LH−UPR)
10 A: Left−hand
17. GAUGE 10 A: Gauge and meters, ser-
21. CIG&RADIO
15 A: Cigarette lighter,
headlight
(high beam)
vice reminder indicator
(except head-
car audio system, clock, theft deterrent
light high beam indicator) and warning
system, shift lock control system, SRS
14. STOP 10 A: Stop lights, high mounted
buzzers
(except discharge, open door
airbag system, seat belt pretensioners
stoplight, anti−lock brake system, shift
and SRS warning lights), back−up
lock control system
22. IGN
5 A: Charging system, discharge
lights, rear window defogger, power
warning light, multiport fuel injection
15. A/C 10 A: Air conditioning system
windows
system/sequential multiport fuel injec-
16. TAIL
15 A: Tail lights, parking lights,
18. TURN 7.5 A: Turn signal lights
tion system, SRS airbag system, seat
license plate lights, instrument panel
belt pretensioners
19. WIPER
20 A: Windshield wipers and
lights, air conditioning system, emer-
washer
23. ECU−B 5 A: SRS airbag warning light
gency flashers, air conditioning system,
rear window defogger, car audio sys-
20. ECU−IG 5 A: Anti−lock brake system,
Fuses (type B)
tem, cigarette lighter, clock
air conditioning system, shift lock con-
24. CDS FAN 30 A: Electric cooling fans
trol system, daytime running light sys-
25. RAD FAN 30 A: Electric cooling fans
tem
196
’99 TERCEL (U)
26. HEATER 40 A: Air conditioning system,
‘‘A/C’’ fuses
27. DIMMER
30 A:
”HEAD RL
(LWR)”,
”HEAD LL (LWR)”,
”HEAD RH (UPR)”
and ”HEAD LH (UPR)” fuses
28. MAIN 30 A: Starter system
29. DEF 30 A: Rear window defogger
30. PWR
30 A: Power windows, power
door lock system
Fuses (type C)
31. ABS 60 A: Anti−lock brake system
32. AM1 50 A: ”DEF”, ”WIPER”, ”GAUGE”,
”ECU−IG”,
”TURN”,
”IGN”,
”PWR” and
”CIG&RADIO” fuses
33. ALT
100 A:
”ABS”,
”STOP”,
”TAIL”,
”ECU−B”,
”DEF”,
”AM1”,
”WIPER”,
”GAUGE”,
”ECU−IG”,
”TURN”,
”PWR”
and ”CIG&RADIO” fuses
197
’99 TERCEL (U)
Reporting safety defects
for U.S. owners
Part 9
If you believe that your vehicle has
To contact NHTSA, you may either
REPORTING SAFETY
a defect which could cause a crash
call the Auto Safety Hotline toll−free
DEFECTS FOR U.S.
or could cause injury or death, you
at 1−800−424−9393 (or 366−0123 in
should immediately inform the Na-
Washington, D.C. area) or write to:
OWNERS AND
tional Highway Traffic Safety Ad-
NHTSA. U.S. Department of Trans-
UNIFORM TIRE
ministration (NHTSA) in addition to
portation. Washington, D.C. 20590.
notifying Toyota Motor Sales,
You can also obtain other information
QUALITY GRADING
U.S.A., Inc.
about motor vehicle safety from the
(Toll−free: 1−800−331−4331).
Hotline.
D Reporting safety defects for U.S.
owners
If NHTSA receives similar com-
D Uniform tire quality grading
plaints, it may open an investiga-
tion, and if it finds that a safety de-
fect exists in a group of vehicles, it
may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual prob-
lems between you, your dealer, or
Toyota Motor Sales, U.S.A., Inc.
198
’99 TERCEL (U)
Uniform tire quality grading
This information has been prepared in ac-
Traction AA, A, B, C—The traction
Warning: The temperature grades for this
cordance with regulations issued by the
grades, from highest to lowest, are AA, A,
tire are established for a tire that is prop-
National Highway Traffic Safety Adminis-
B, and C, and they represent the tire’s
erly inflated and not overloaded. Exces-
tration of the U.S. Department of Trans-
ability to stop on wet pavement as mea-
sive speed, underinflation, or excessive
portation. It provides the purchasers and/
sured under controlled conditions on spe-
loading, either separately or in combina-
or prospective purchasers of Toyota
cified government test surfaces of asphalt
tion, can cause heat buildup and possible
vehicles with information on uniform tire
and concrete. A tire marked C may have
tire failure.
quality grading.
poor traction performance.
Your Toyota dealer will help answer any
Warning: The traction grade assigned to
questions you may have as you read this
this tire is based on braking
(straighta-
information.
head) traction tests and does not include
cornering
(turning) traction.
DOT quality grades—All passenger ve-
hicle tires must conform to Federal
Temperature A, B, C—The temperature
Safety Requirements in addition to
grades are A
(the highest), B, and C,
these grades. These quality grades are
representing the tire’s resistance to the
molded on the sidewall.
generation of heat and its ability to dissi-
pate heat when tested under controlled
Treadwear—The treadwear grade is a
conditions on a specified indoor laboratory
comparative rating based on the wear rate
test wheel. Sustained high temperature
of the tire when tested under controlled
can cause the material of the tire to de-
conditions on a specified government test
generate and reduce tire life, and exces-
course. For example, a tire graded
150
sive temperature can lead to sudden tire
would wear one and a half
(1−1/2) times
failure. The grade C corresponds to a lev-
as well on the government course as a
el of performance which all passenger car
tire graded
100. The relative performance
tires must meet under the Federal Motor
of tires depends upon the actual condi-
Vehicle Safety Standard No.
109. Grades
tions of their use, however, and may de-
B and A represent higher levels of perfor-
part significantly from the norm due to
mance on the laboratory test wheel than
variations in driving habits, service prac-
the minimum required by law.
tices and differences in road characteris-
tics and climate.
199
Seat Belt WarningEL (U)
WE REALLY CARE ABOUT YOU Ċ PLEASE BUCKLE UP
Toyota has made a special effort to encourage use of seat belts.
Toyota belts are:
D Comfortable
D Easy to use
D Convenient
We encourage you to use your belts every time you drive.
U
200
’99 TERCEL (U)
You should know as much about the quality and
importance of proper maintenance of your new
vehicle as the people who built it.
The Toyota authorized Repair Manual
tells you how to maintain your vehicle and
enables you to correctly perform your own
maintenance.
Repair Manual Information
The best way to keep your new vehicle in top
running order is to maintain it properly from
the moment you drive it off the showroom
floor.
The Toyota authorized Repair Manual is
packed with literally everything you need to
know to perform your own maintenance in
virtually every area of your new vehicle.
’99 TERCEL (U)
Maintenance procedures for the engine,
chassis, body, electrical system, and more,
are clearly explained and illustrated.
Periodic maintenance and tune−up
Where to obtain the
Periodic maintenance and tune−up helps to pre-
Repair Manual
vent small problems from growing into larger ones lat-
er on. The repair manual outlines exactly what main-
tenance is required, provides a schedule for its perfor-
The repair manual for Tercel, written in Eng-
mance, and clearly explains how to do the work your-
lish, may be purchased as applicable from any
self step−by−step.
Toyota dealer.
Areas covered include such things as spark plug re-
Pub. Name: 1999 Tercel Repair Manual
placement, valve clearance adjustment and engine oil
Pub. No.: RM659U
and filter replacement.
