3. Instrument cluster

■

History
If a screen other than “History” is displayed, select “History”.

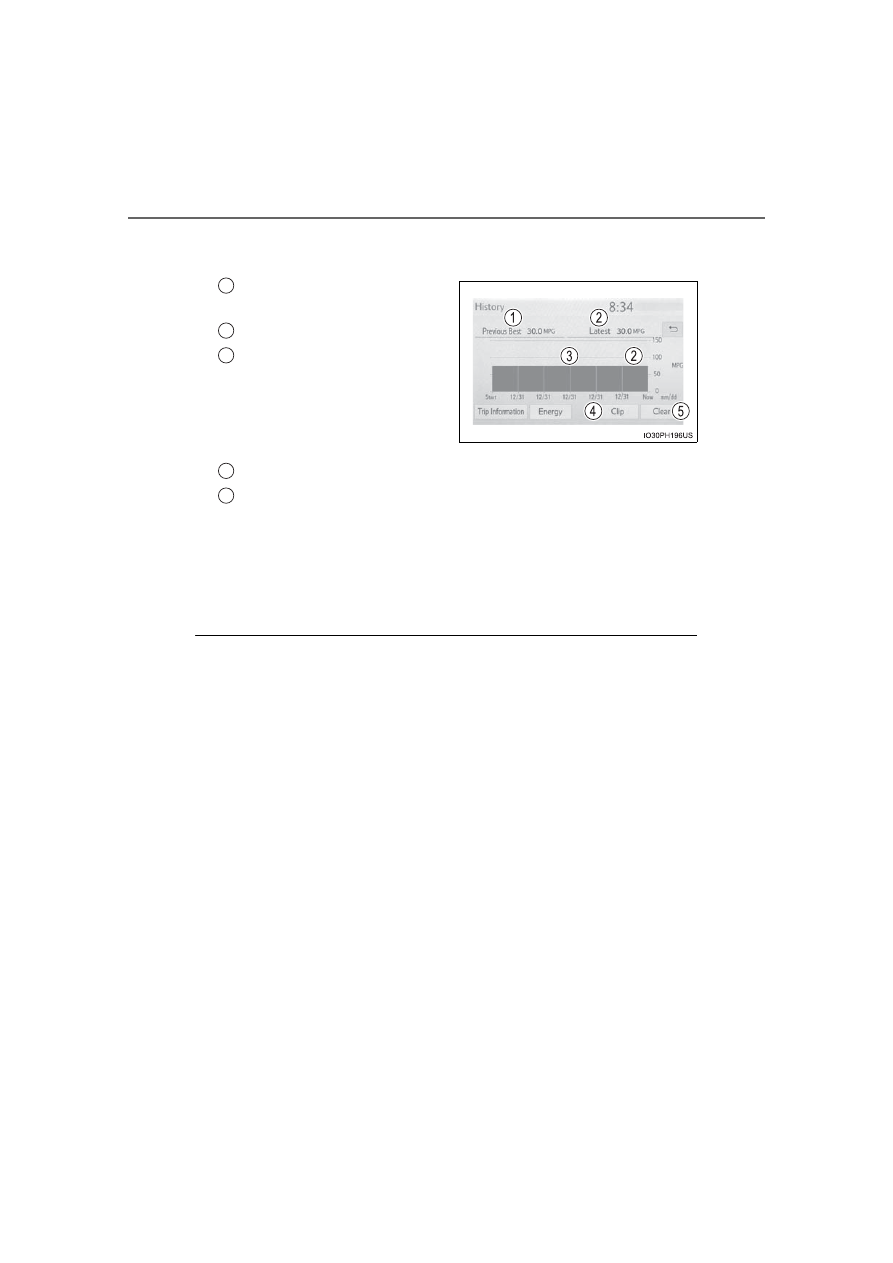

Best recorded fuel consump-
tion
Latest fuel consumption
Previous  fuel  consumption
record

Displays  the  daily  average  fuel
consumption.  (Instead  of  the
date, “Trip 1” through “Trip 5” will
be displayed.)

Updating the latest fuel consumption data
Resetting the history data

The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The  image  is  an  example  only,  and  may  vary  slightly  from  actual
conditions.

■

Updating the history data
Update the latest fuel consumption by selecting “Clip” to measure the current
fuel consumption again.

■

Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This  distance  is  computed  based  on  your  average  fuel  consumption. As  a
result, the actual distance that can be driven may differ from that displayed.

1

2
3

4
5

265

3. Instrument cluster

3

Instrument clus

ter

Energy monitor/consumption screen/detail

screen (vehicles with 11.6-inch display)

◆

Multi-information display

P. 218

◆

Audio system screen

■

Display  the  energy  monitor,  trip  information  or  past  record
screen

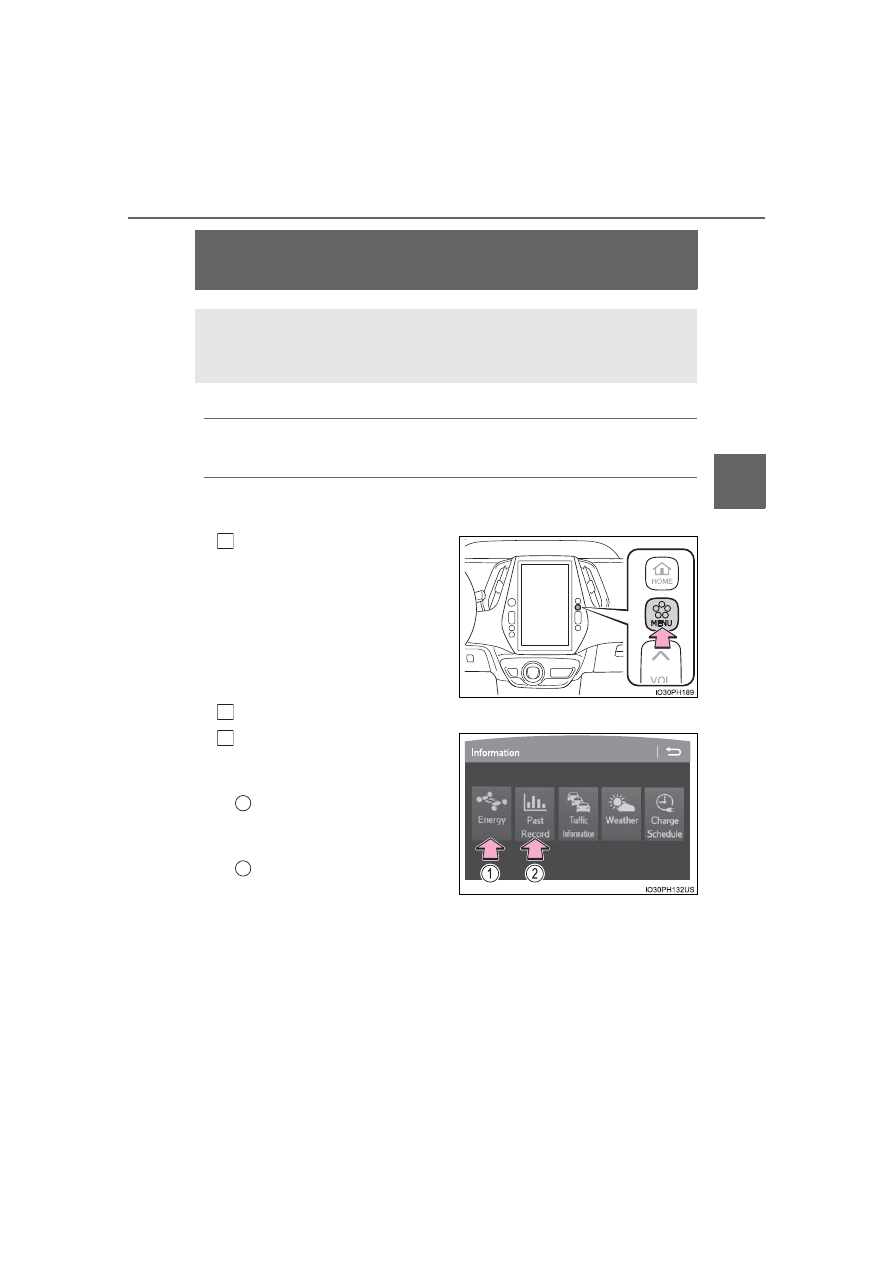

Press the “MENU” button.

Select “Info” on the screen
Display the “Energy monitor”,
“Trip  information”  or  “Past
record” screen.

“Energy Monitor”:
Select  “Energy”  on  the
screen.
“Trip  Information”  or  “Past
Record” screen:
Select  “Past  Record”  on
the screen.

“Trip Information” or “Past Record” screen will be displayed.

Press  the  “HOME”  button  and  select  “Info”  on  the  screen.  You  can
select “Energy” and “Past Record”.

You can view the status of your vehicle on the multi-information
display and the audio system screen

*

.

*

: For navigation system

1

2

3

1

2

266

3. Instrument cluster

■

Display the detail screen (

P. 271)

Display “Energy Monitor” screen.

Select

 on the upper right screen.

■

Function summary
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
The  flow  of  electric  energy  during  charging  is  displayed  when
charging from an external power source.
For vehicles equipped with a solar charging system, a guide for the
state of the solar charging system is displayed.

■

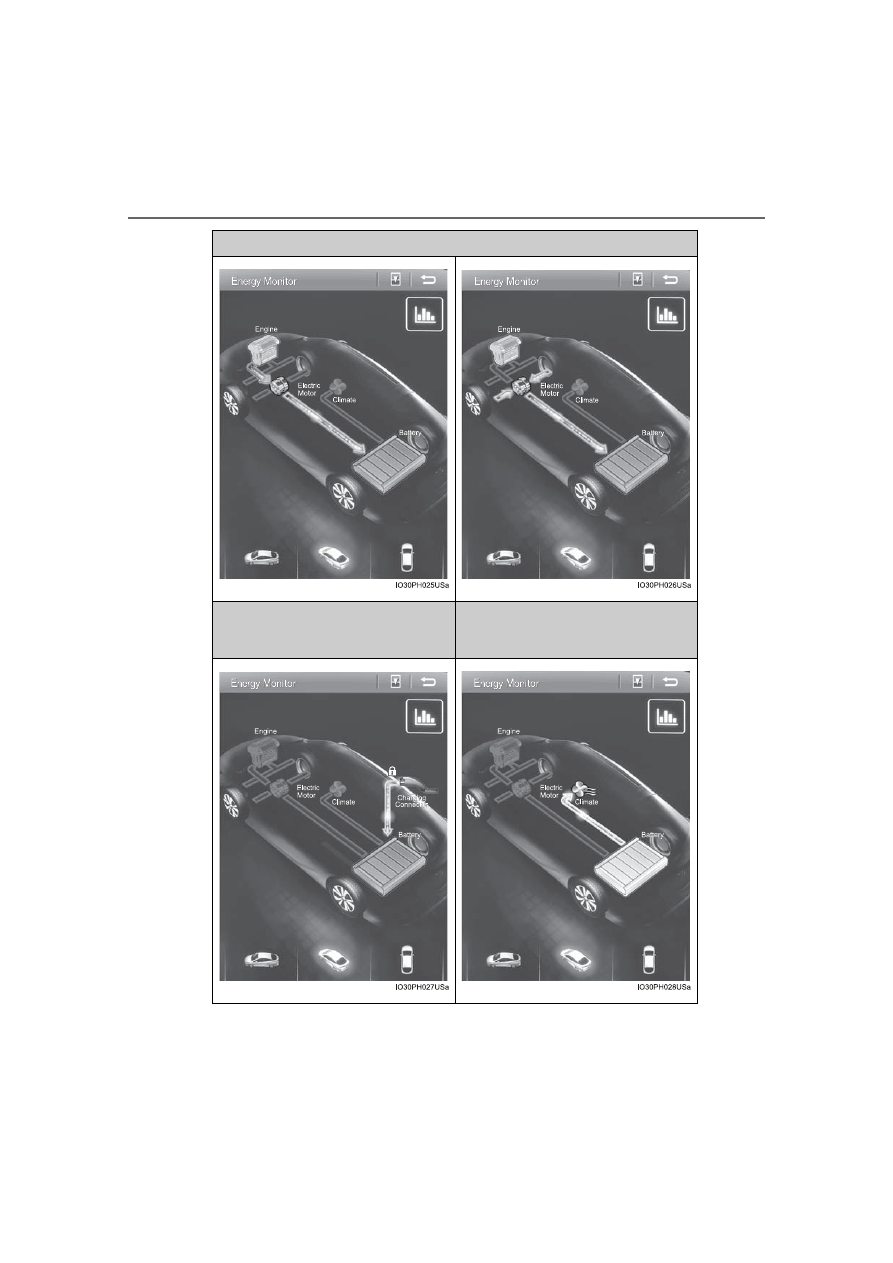

Flow of energy and display details
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.
● The  display  when  the  engine  is  operating  is  in  blue  while  the

engine is being warmed up and yellow afterwards.

● The arrow from the engine to the motor and tires is displayed in

red.

● The arrow indicating energy consumption is displayed in yellow

and the arrow indicating energy regeneration or charging is dis-
played  in  green.  Also,  the  hybrid  battery  (traction  battery)
changes color accordingly.

● There are icons

,

,

 on the lower side of the

screen.  The  screen  switches  to  each  point  of  view  when  you
select it.

● When you select

, this screen is displayed in the lower half of

the  screen,  it  will  be  displayed  together  with  the  navigation
screen.

● These  images  are  examples  only,  and  may  vary  slightly  from

actual conditions.

How to read the energy monitor

1

2

267

3. Instrument cluster

3

Instrument clus

ter

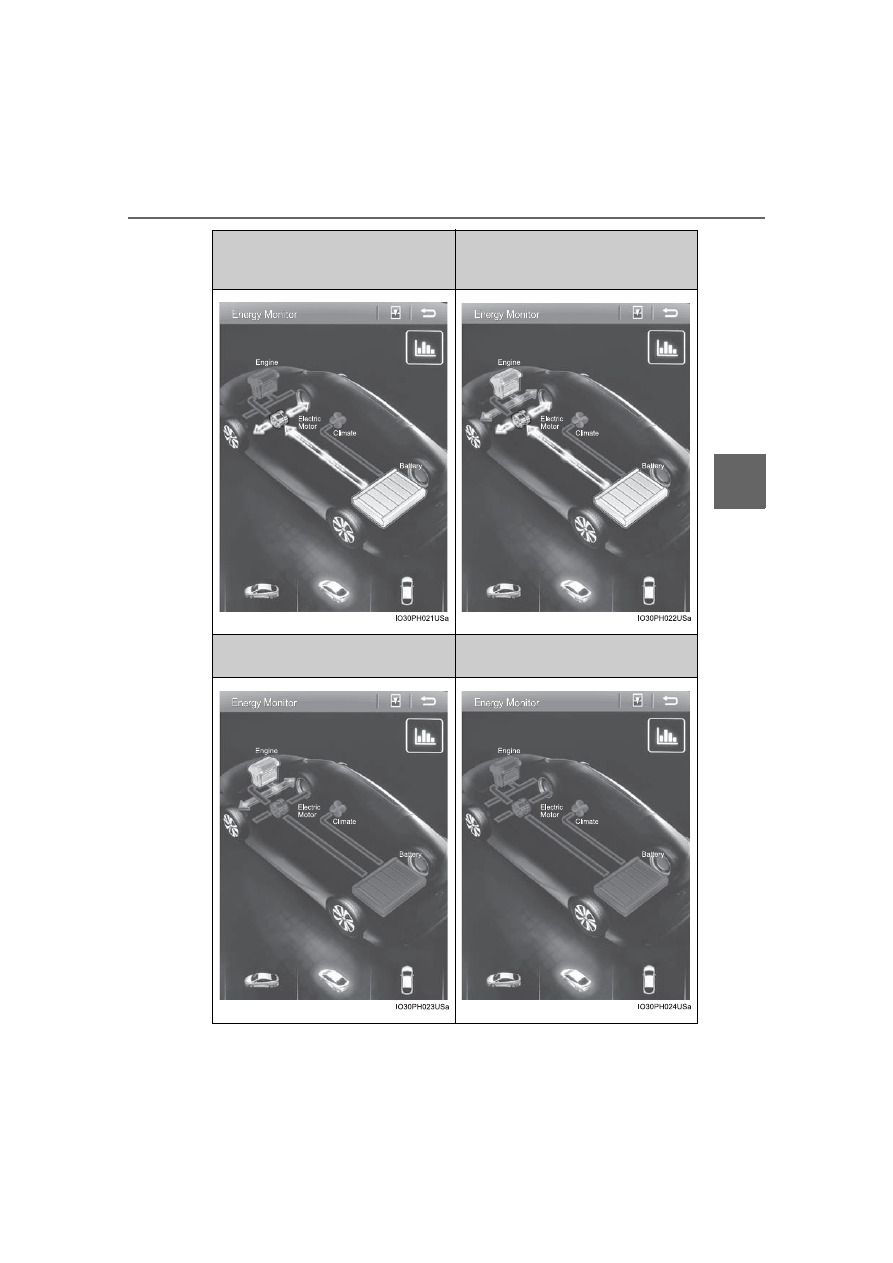

When the vehicle is powered by the
electric motor (traction motor)

When  the  vehicle  is  powered  by
both  the  gasoline  engine  and  the
electric motor (traction motor)

When the vehicle is powered by the
gasoline engine

When there is no energy flow

268

3. Instrument cluster

*

: When the air conditioning compressor is not operating, an arrow does not

appear and the bright point of light are not displayed.

When the vehicle is charging the hybrid battery (traction battery)

When  the  vehicle  is  charging  the

hybrid battery (traction battery) from

external power source

Air Conditioning System use

*

269

3. Instrument cluster

3

Instrument clus

ter

■

Trip information

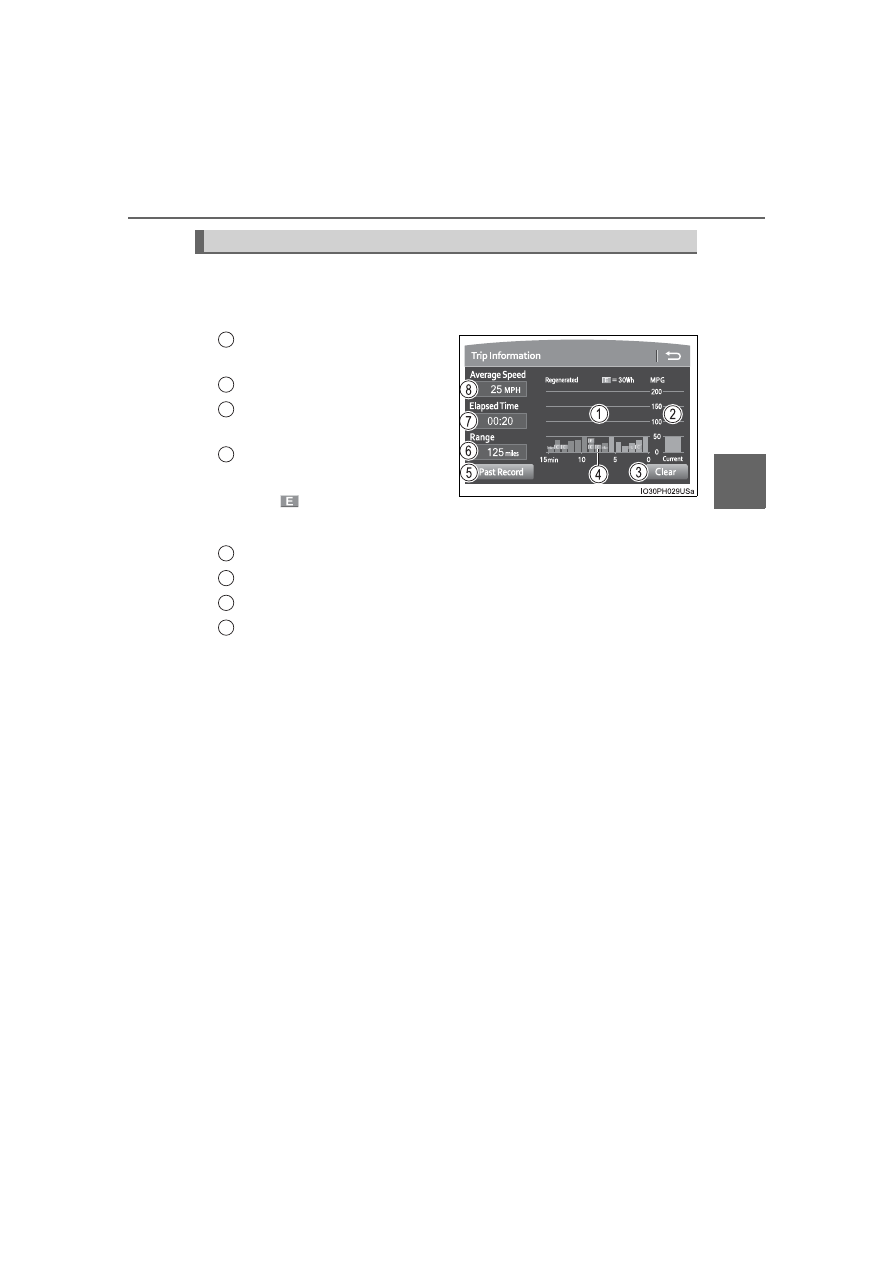

If the “Trip Information” screen does not appear, select “Trip Infor-
mation”.

Previous  fuel  consumption
per minute
Current fuel consumption
Reset  the  trip  information
data
Regenerated  energy  in  the
past 15 minutes

One

  symbol  indicates  30

Wh.
Up to 5 symbols are shown.

“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed

Average  fuel  consumption  for  the  past  15  minutes  is  divided  by  color
into past averages and averages attained since the power switch was
last turned to ON mode. Use the displayed average fuel consumption as
a reference.
The image is an example only, and may vary slightly from actual condi-
tions.

Fuel consumption

1

2
3

4

5
6
7
8

270

3. Instrument cluster

■

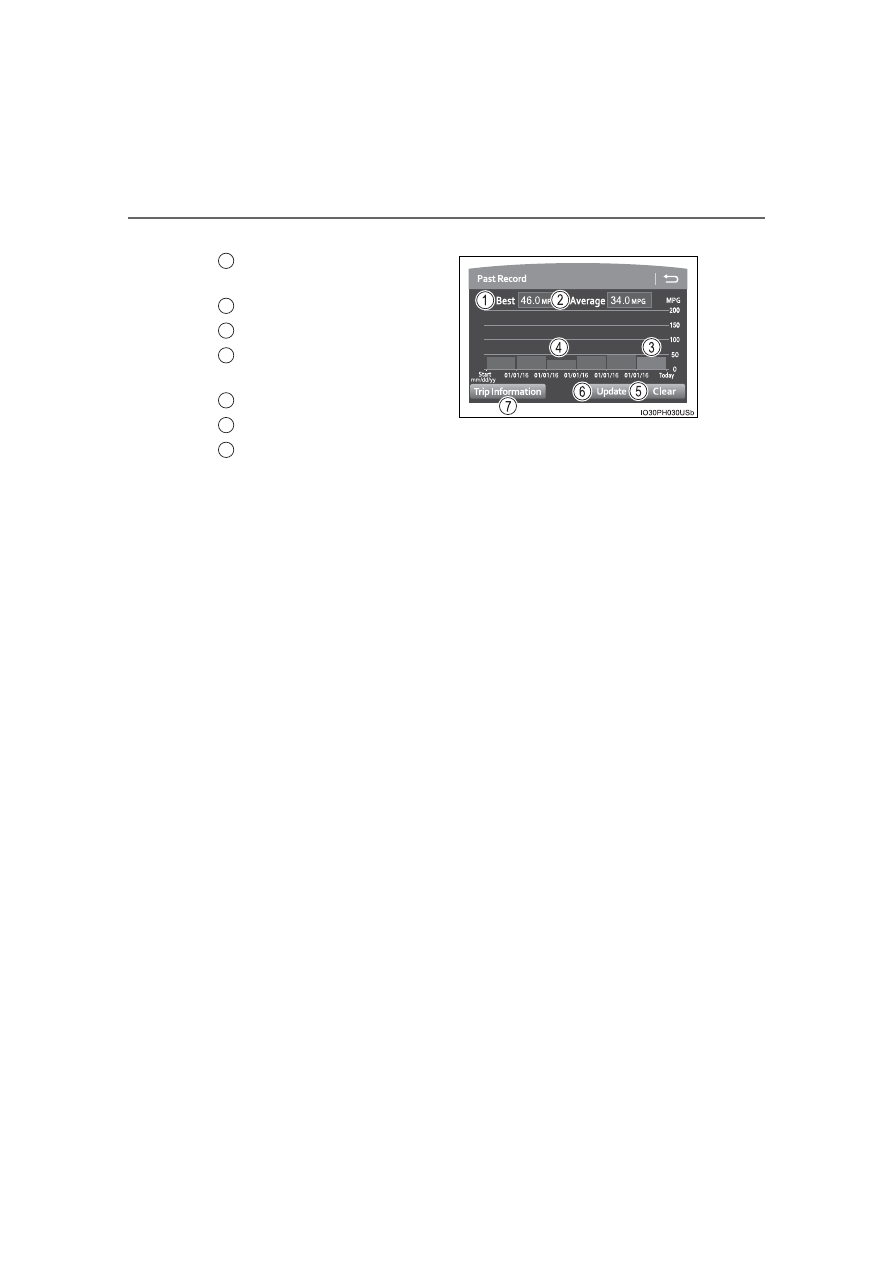

Past record

Best recorded fuel consump-
tion
Average fuel consumption
Current fuel consumption
Previous  fuel  consumption
record
Reset the past record data
Update the past record data
“Trip Information” screen appears

The  image  is  an  example  only,  and  may  vary  slightly  from  actual
conditions.

1

2
3
4

5
6
7

271

3. Instrument cluster

3

Instrument clus

ter

Displays information about each selected item.
When you select the “

”, and close the screen.

■

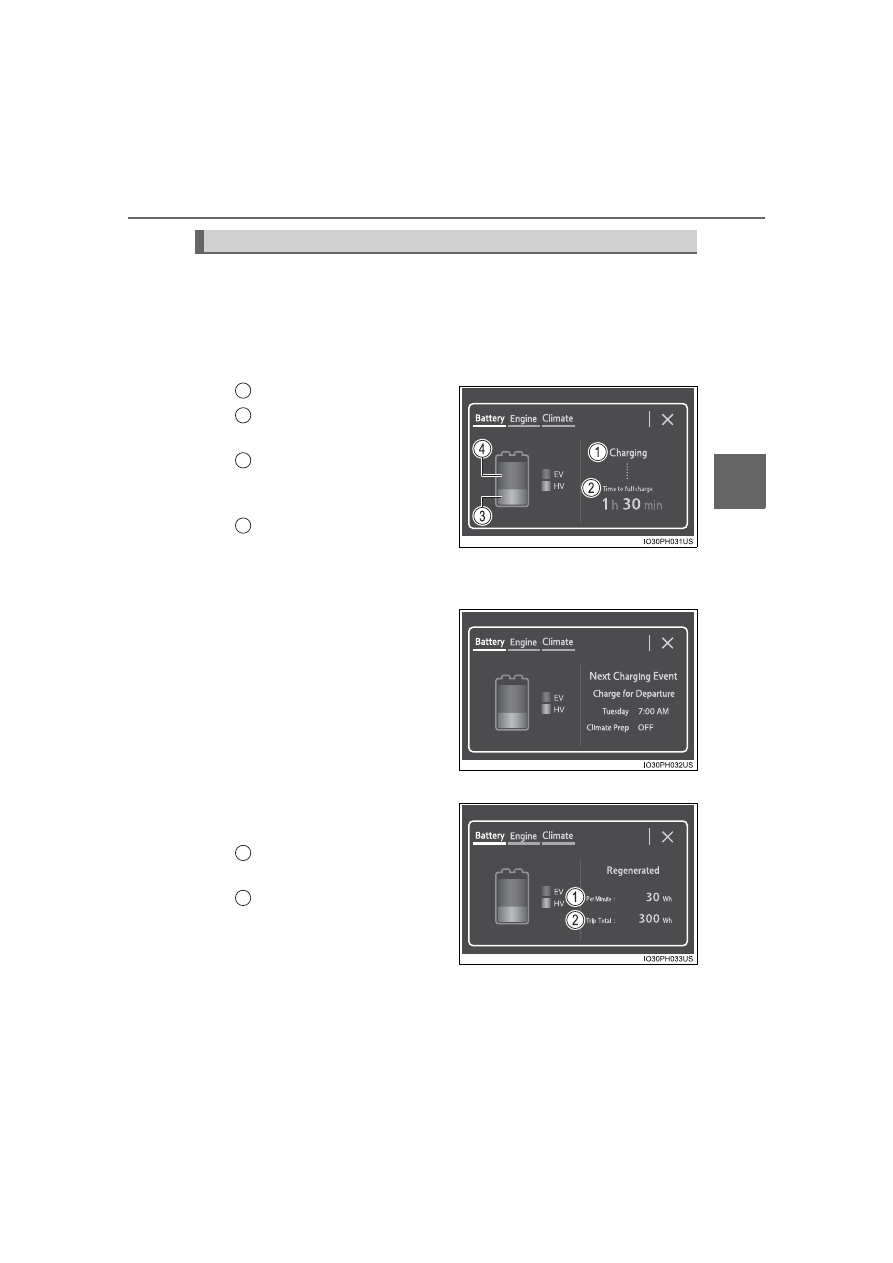

Select “Battery”
● Display of battery charging state

Displayed when charging from an external power supply.

Display of charge status
The  remaining  time  until
the charging completed
The  remaining  hybrid  bat-
tery

(traction

battery)

capacity of the HV mode
The  remaining  hybrid  bat-
tery

(traction

battery)

capacity of the EV mode

● Display the “Next Charging Event”

It  appears  when  the  timer
charging  function  is  waiting
to charge the external power
source.

● Regenerated amount of energy

It  appears  during  driving  or
parked.

Shows  the  energy  regen-
erated every minute.
Shows  the  energy  being
regenerated  while  hybrid
system is operating.

Every  time  the  power  switch
is  turned  to  off,  the  value  is
reset.

How to see the detail screen

1
2

3

4

1

2

272

3. Instrument cluster

■

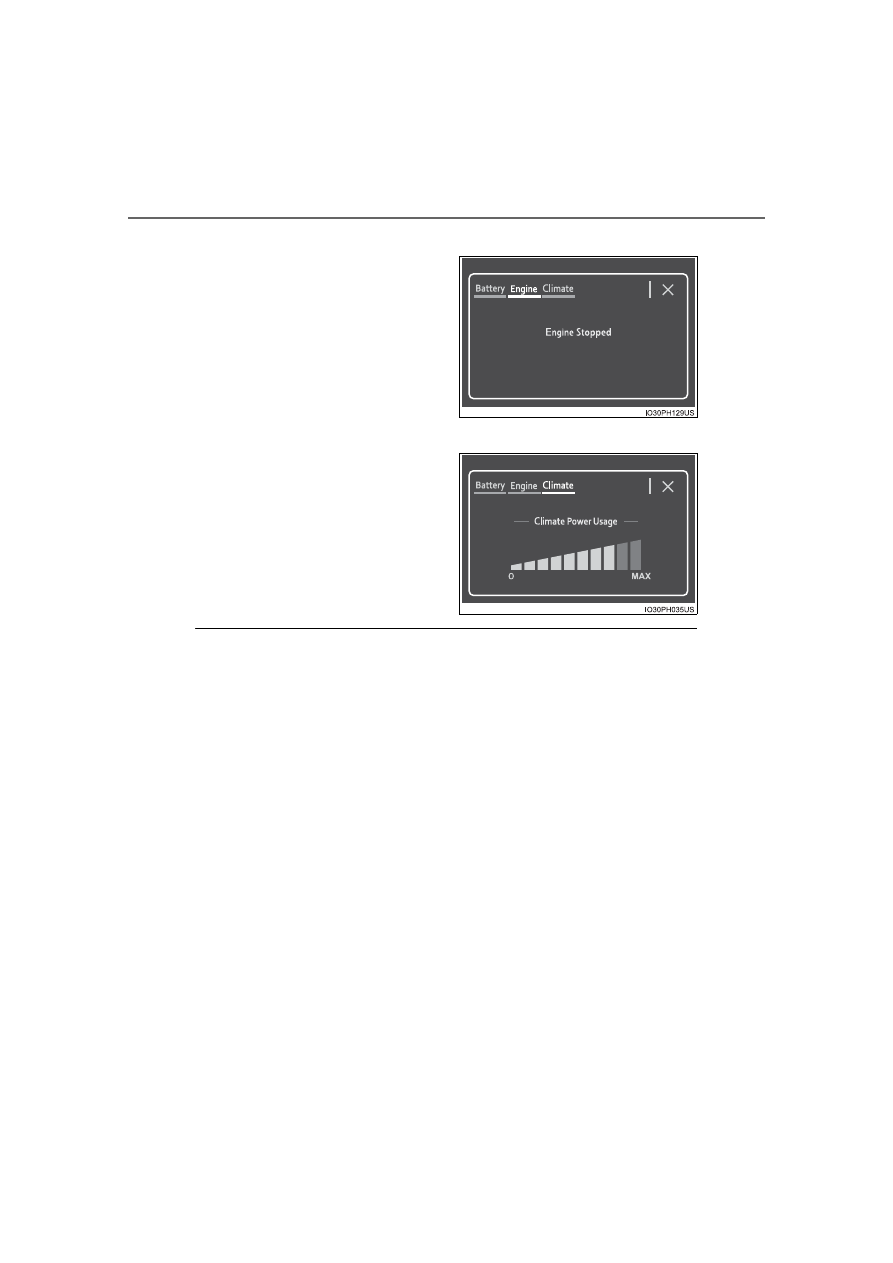

Select “Engine”
Display of the engine status.

■

Select “Climate”
Display  the  power  consump-
tion of the air conditioner

■

Resetting the data

●

Selecting “Clear” on the “Trip Information” screen will reset the trip informa-
tion data.

●

Selecting  “Clear”  on  the  “Past  Record”  screen  will  reset  the  past  record
data.

■

Updating the past record data
Selecting “Update” on the “Past Record” screen will update the past record
data.
Also, the average fuel consumption displayed in the multi-information display
will be reset at the same time.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This  distance  is  computed  based  on  your  average  fuel  consumption. As  a
result, the actual distance that can be driven may differ from that displayed.

■

Display of navigation screen during charging
After  the  power  switch  is  turned  to  ON  mode  during  charging,  the  power
switch will automatically turn off after approximately 100 seconds.

273

4

Operation of

each component

4-1. Key information

Keys .................................. 274

4-2. Opening, closing and

locking the doors

Side doors......................... 279
Back door.......................... 285
Smart key system ............. 290

4-3. Adjusting the seats

Front seats ........................ 299
Rear seats......................... 301
Head restraints.................. 303

4-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 306
Inside rear view mirror ...... 308
Outside rear view

mirrors............................. 310

4-5. Opening and closing the

windows

Power windows ................. 312

274

4-1. Key information

Keys

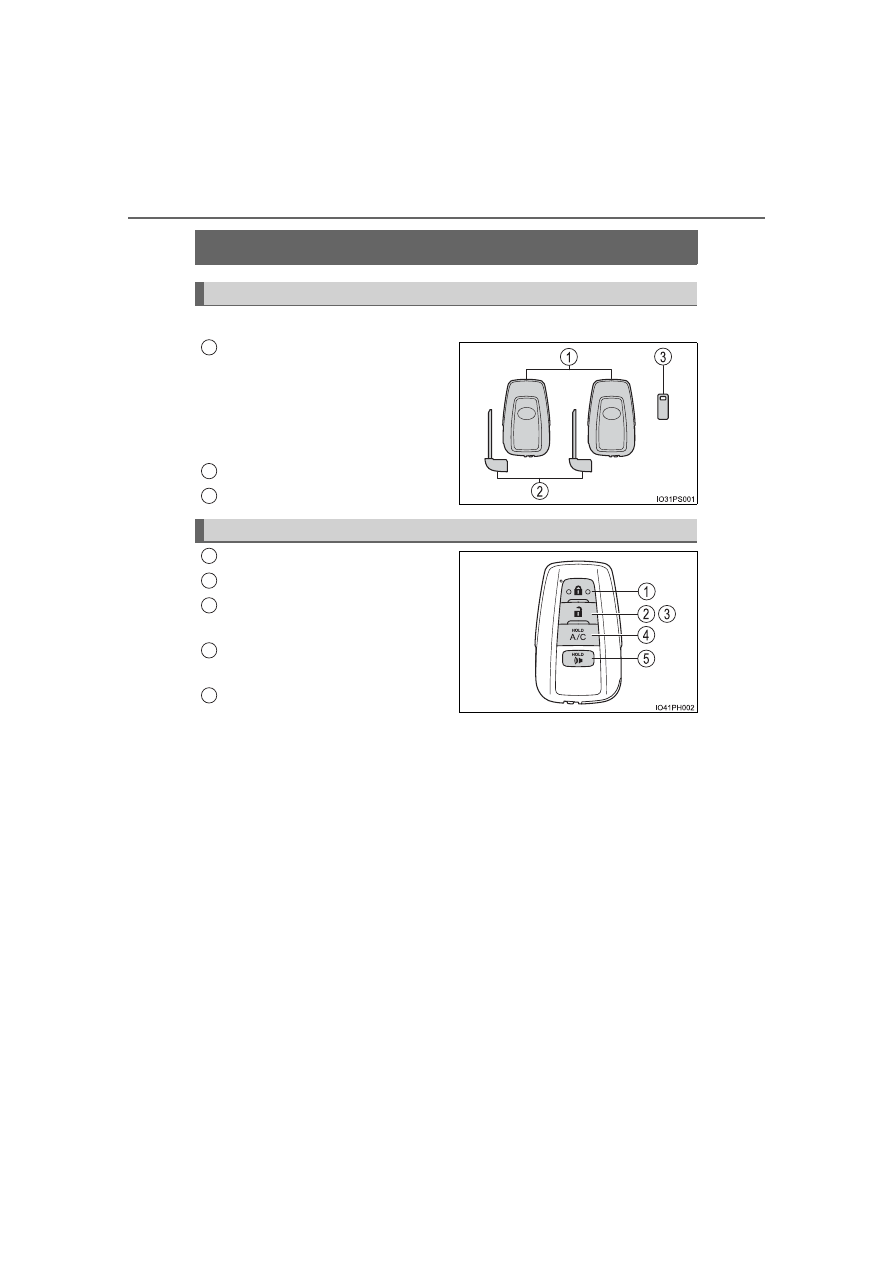

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(

P. 290)

• Operating  the  wireless  remote

control function

• Operating  the  Remote Air  Con-

ditioning System (

P. 522)

Mechanical keys
Key number plate

Locks all the doors (

P. 280)

Unlocks all the doors (

P. 280)

Opens the side windows

*



(

P. 280)

Operates  Remote  Air  Condi-
tioning System (

P. 522)

Sounds the alarm (

P. 275)

*

: This setting must be customized at your Toyota dealer.

The keys

1

2
3

Wireless remote control

1
2
3

4

5

275

4-1. Key information

4

Op
eration

 o

f each

 compo

nen
t

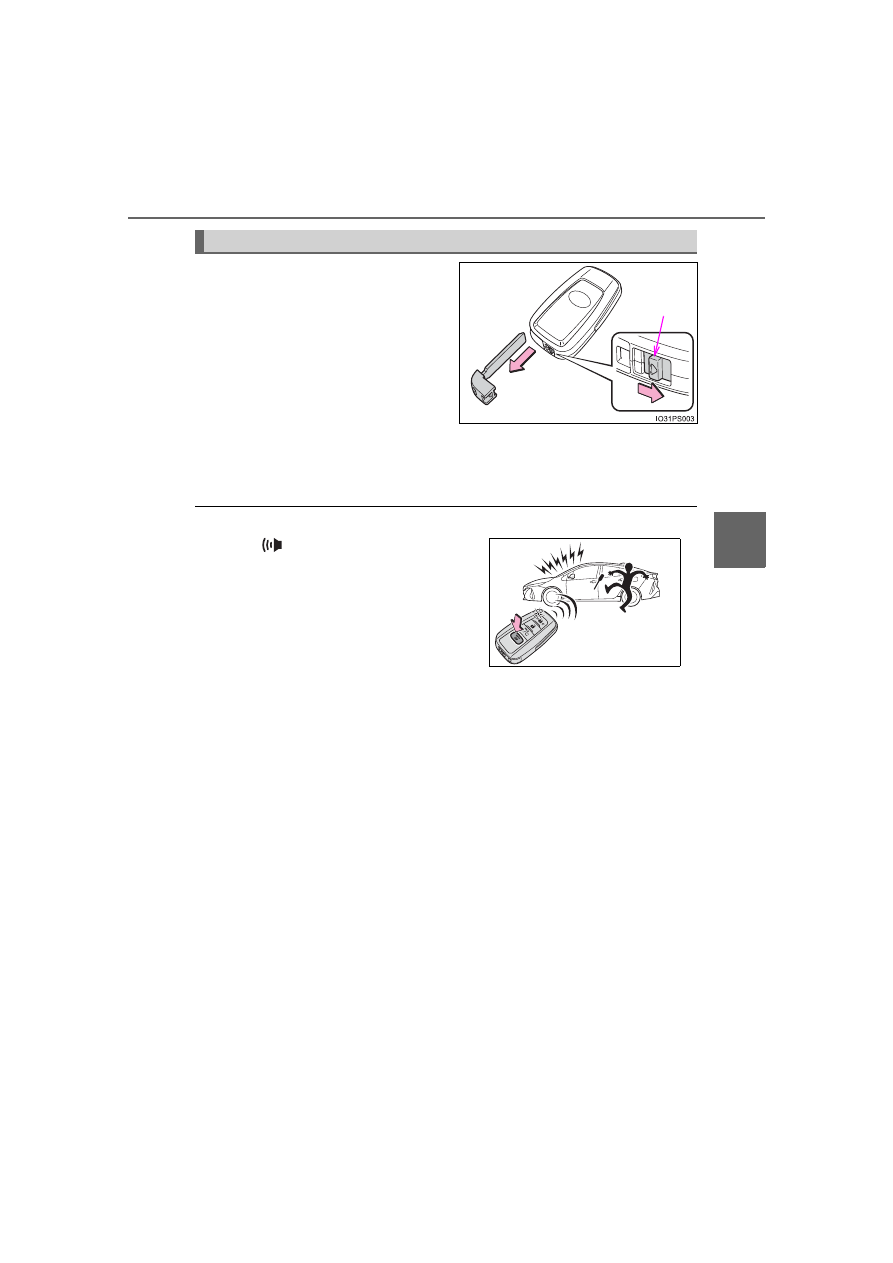

To  take  out  the  mechanical  key,
slide  the  release  lever  and  take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (

P. 699)

■

Panic mode

■

If you lose your mechanical keys
New  genuine  mechanical  keys  can  be  made  by  your  Toyota  dealer  using
another mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any  buttons  on  the  electronic  key  while  inside  the  aircraft  cabin.  If  you  are
carrying an electronic key  in your bag etc., ensure that the buttons  are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.

Using the mechanical key

Release
lever

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

IO41PH003

276

4-1. Key information

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin and a message
will  be  displayed  on  the  multi-information  display  when  the  hybrid  system
stops.

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate  that  the  electronic  key  battery  may  be  depleted.  Replace  the  battery
when necessary. (

P. 635)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
You can replace the battery by yourself (

P. 635). However, as there is a

danger  that  the  electronic  key  may  be  damaged,  it  is  recommended  that
replacement is carried out by your Toyota dealer.

●

To  avoid  serious  deterioration,  do  not  leave  the  electronic  key  within  3  ft.
(1 m) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Table lamps
• Induction cookers

277

4-1. Key information

4

Op
eration

 o

f each

 compo

nen
t

■

If a message regarding the state of the electronic key or power switch
mode, etc. is shown
To prevent trapping the electronic key inside the vehicle, leaving the vehicle
without turning off the power switch or other passengers from unintentionally
taking  the  key  out  of  the  vehicle,  etc.,  a  message  that  prompts  the  user  to
confirm the state of the electronic key or power switch mode may be shown
on the multi-information display. In those cases, follow the instructions on the
display immediately.

■

If “Key Battery Low Replace Key Battery” is displayed on the multi-infor-
mation display
The electronic key has a low battery. Replace the electronic key battery.
(

P. 635)

■

Replacing the battery
P. 635

■

Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer.

■

If “A New Key has been Registered Contact Your Dealer for Details” is
displayed on the multi-information display
This message will be displayed each time the driver’s door is opened when
the  doors  are  unlocked  from  the  outside  for  approximately  10  days  after  a
new electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered,  ask  your Toyota  dealer  to  check  if  an  unknown  electronic  key  (other
than those in your possession) has been registered.

■

If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.

278

4-1. Key information

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers.

●

Do not place the keys near medical electrical equipment such as low-fre-
quency therapy equipment or microwave therapy equipment, and do not
receive medical attention with the keys on your person.

■

Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances  that  are  turned  on.  Radio  waves  emitted  from  electric  appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly.  Visit  your  Toyota  dealer  immediately  with  all  remaining  electronic
keys that were provided with your vehicle.

279

4-2. Opening, closing and locking the doors

4

Op
eration

 o

f each

 compo

nen
t

Side doors

◆

Smart key system

Carry the electronic key to enable this function.

Grip the driver’s door handle
to  unlock  the  door.  Holding
the  driver’s  door  handle  for
approximately  2  seconds
unlocks all the doors.
Some  models,  grip  the  front
passenger’s  door  handle  to
unlock all the doors

*

.

Make sure to touch the sensor on the back of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.

*

: The door unlock settings can be changed. (

P. 283)

Touch the lock sensor (the indentation on the surface of the front
door handle) to lock the doors.

Check that the door is securely locked.

The  vehicle  can  be  locked  and  unlocked  using  the  entry  func-
tion, wireless remote control or door lock switches.

Unlocking and locking the doors from the outside

1

2
