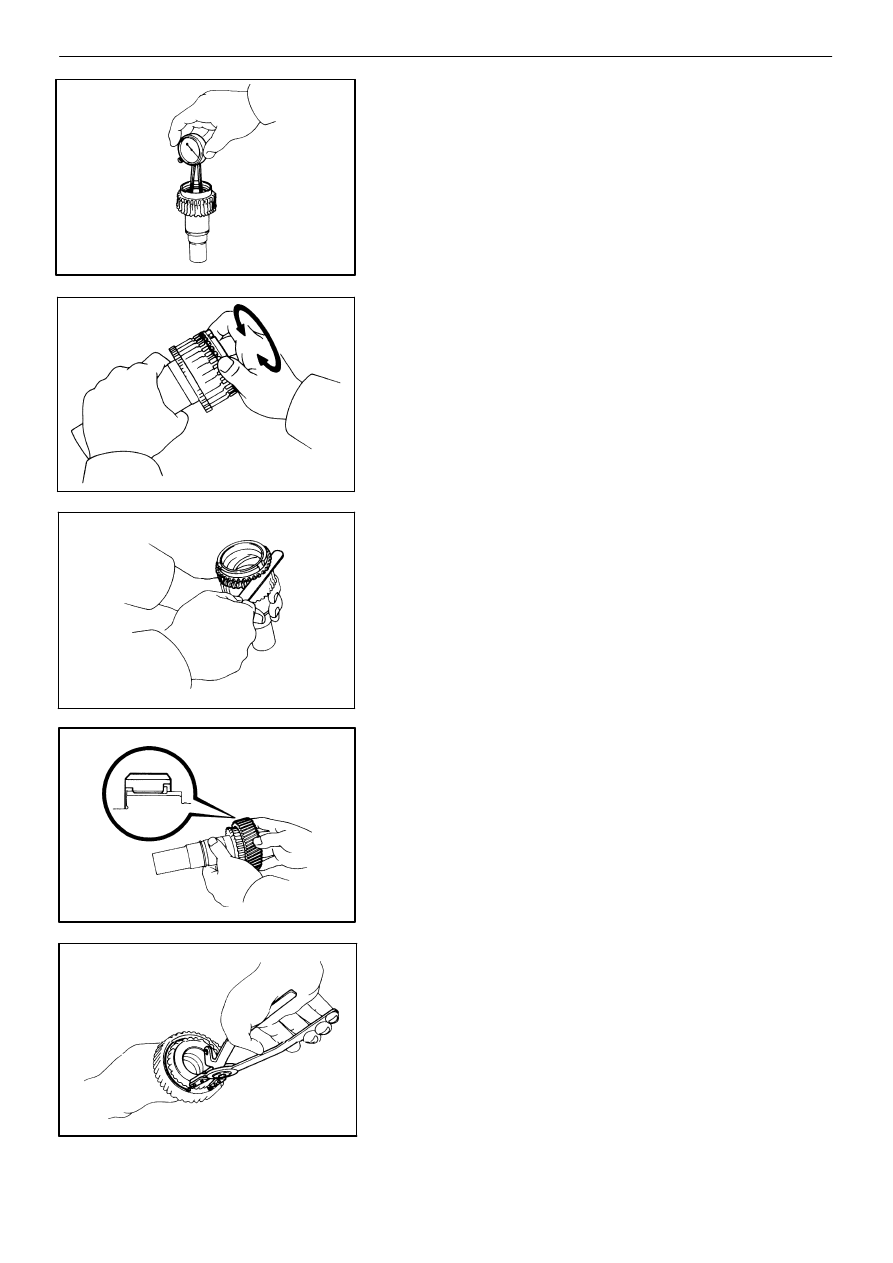

Using a dial indicator, measure the inside diameter

of the input shaft bushing.

Maximum inside diameter: 39.14 mm (1.5409 in.)

If the inside diameter exceeds the limit, replace the input

shaft.

2.

INSPECT SYNCHRONIZER RING
(a)

Turn the ring and push it in to check the braking

action.

(b)

Measure the clearance between the synchronizer

ring back and the input shaft spline end.

Standard clearance:  1.15 − 1.85 mm

(0.0453 − 0.0728 in.)

Minimum clearance:  0.8 mm (0.031 in.)

If the clearance is less than the limit, replace the syn-

chronizer ring.

ASSEMBLY OF INPUT SHAFT

INSTALL SUN GEAR

(a)

Install the sun gear to the input shaft.

HINT: Make sure to install the sun gear in the correct

direction.

(b)

Using snap ring pliers, install the snap ring.

TF−26

−

TRANSFER (A340F)

Component Parts (Input Shaft)

TF0493

TF0492

Snap Ring

Outer Bearing

Planetary Gear Assembly

Inner Bearing

TF0494

Planetary Gear

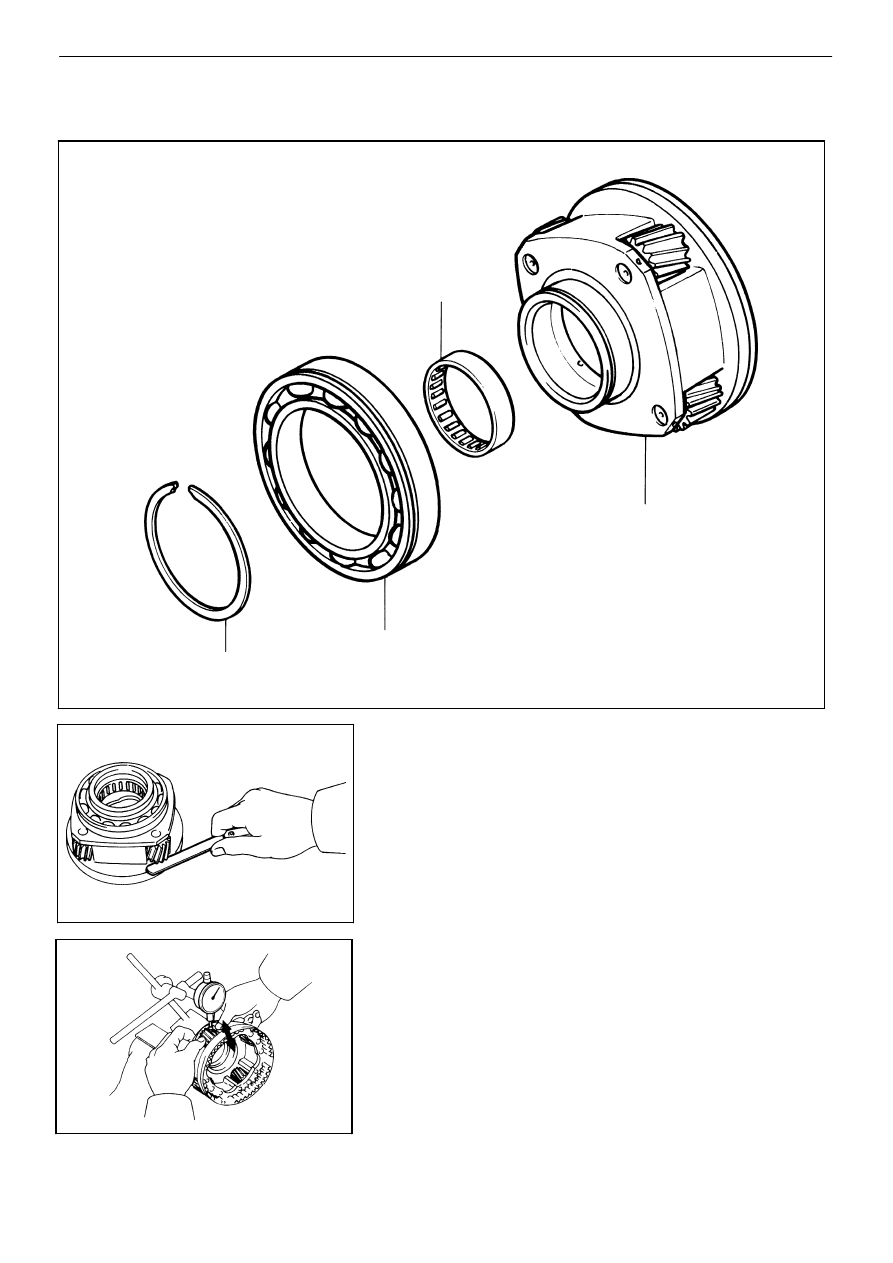

COMPONENTS

INSPECTION OF PLANETARY GEAR

1.

MEASURE PLANETARY PINION GEAR THRUST

CLEARANCE
Using a feller gauge, measure the planetary pinion

gear thrust clearance.

Standard clearance:  0.11 − 0.86 mm

(0.0043 − 0.0339 in.)

Maximum clearance:  0.86 mm (0.0339 in.)

If the clearance exceeds the limit, replace the planetary

gear assembly.

2.

CHECK OIL CLEARANCE OF PLANETARY PINION

GEAR
Using a dial indicator, measure the oil clearance of the

planetary pinion gear.

Standard clearance:  0.009 − 0.038 mm

(0.0004 − 0.0015 in.)

Maximum clearance:  0.038 mm (0.0015 in.)

If the clearance exceeds the limit, replace the planetary

gear assembly.

−

TRANSFER (A340F)

Component Parts (Planetary Gear)

TF−27

TF0496

SST

TF0497

SST

SST

TF0498

TF0495

Mark

Thickness mm (in.)

1
2
3
4
5

1.45 − 1.50 (0.0571 − 0.0591)
1.50 − 1.55 (0.0591 − 0.0610)
1.55 − 1.60 (0.0610 − 0.0630)
1.60 − 1.65 (0.0630 − 0.0650)
1.65 − 1.70 (0.0650 − 0.0669)

TF0495

3.

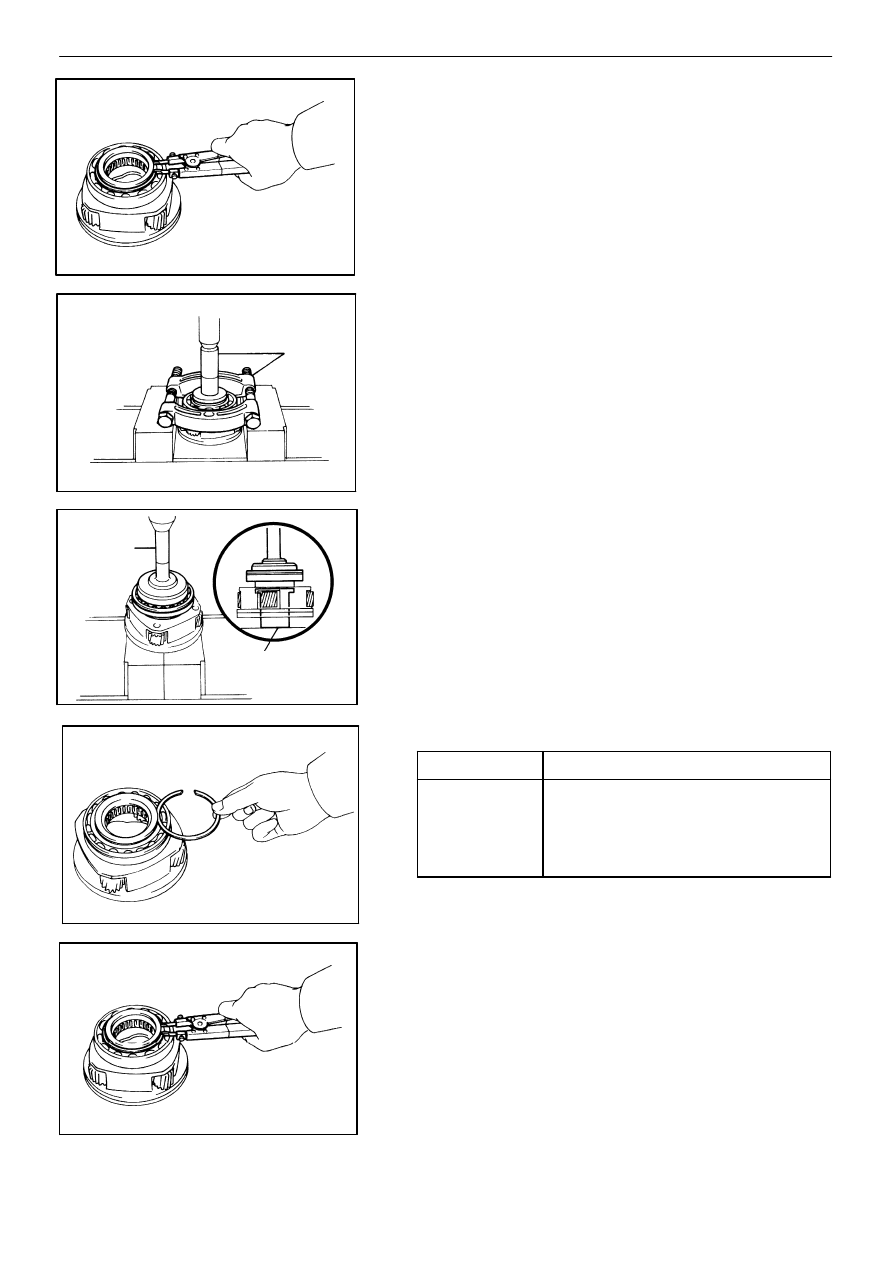

IF NECESSARY, REPLACE PLANETARY GEAR OUTER

BEARING
(a)

Using snap ring pliers, remove the snap ring.

(b)

Using SST and a press, remove the bearing.

SST

09554−30011 and 09555−55010

(c)

Using SST and a press, install a new bearing with

the outer race snap ring groove toward the front.

SST

09223−15010 and 09515−30010

(d)

Select a snap ring that will allow minimum axil play.

(e)

Using snap ring pliers, install the snap ring.

TF−28

−

TRANSFER (A340F)

Component Parts (Planetary Gear)

TF0499

SST

TF0538

SST

5.0 − 5.6 mm

SST

4.

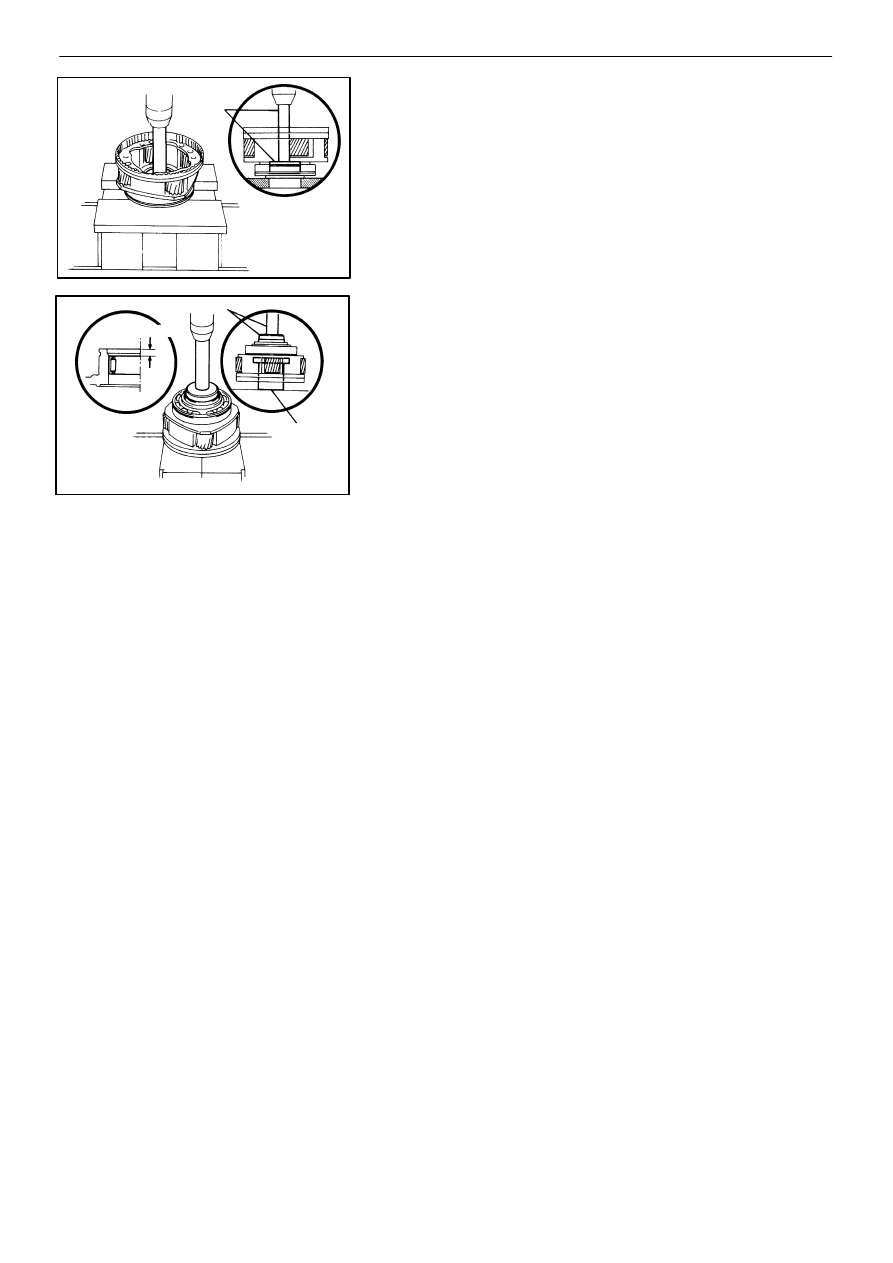

IF NECESSARY, REPLACE PLANETARY GEAR INNER

BEARING
(a)

Using SST and a press, remove the bearing.

SST

09550−10012 (09252−10010, 09557−10010)

(b)

Using SST and a press, install a new bearing.

SST

09550−10012 (09252−10010, 09557−10010)

and 09515−30010)

Bearing depth: 5.0 − 5.6 mm (0.197 − 0.220 in.)

−

TRANSFER (A340F)

Component Parts (Planetary Gear)

TF−29

TF0501

SST

TF0500

TF0625

♦ Non−reusable part

Front Companion Flange

♦ Oil Seal

♦ Oil Seal

Extension Housing

♦ Oil Seal

♦ Oil Seal

Front

Retainer

♦ O−Ring

♦ Oil Seal

♦ Oil Seal

Rear Companion Flange

Front Case

Oil Seal

Rear Case

Oil Seals

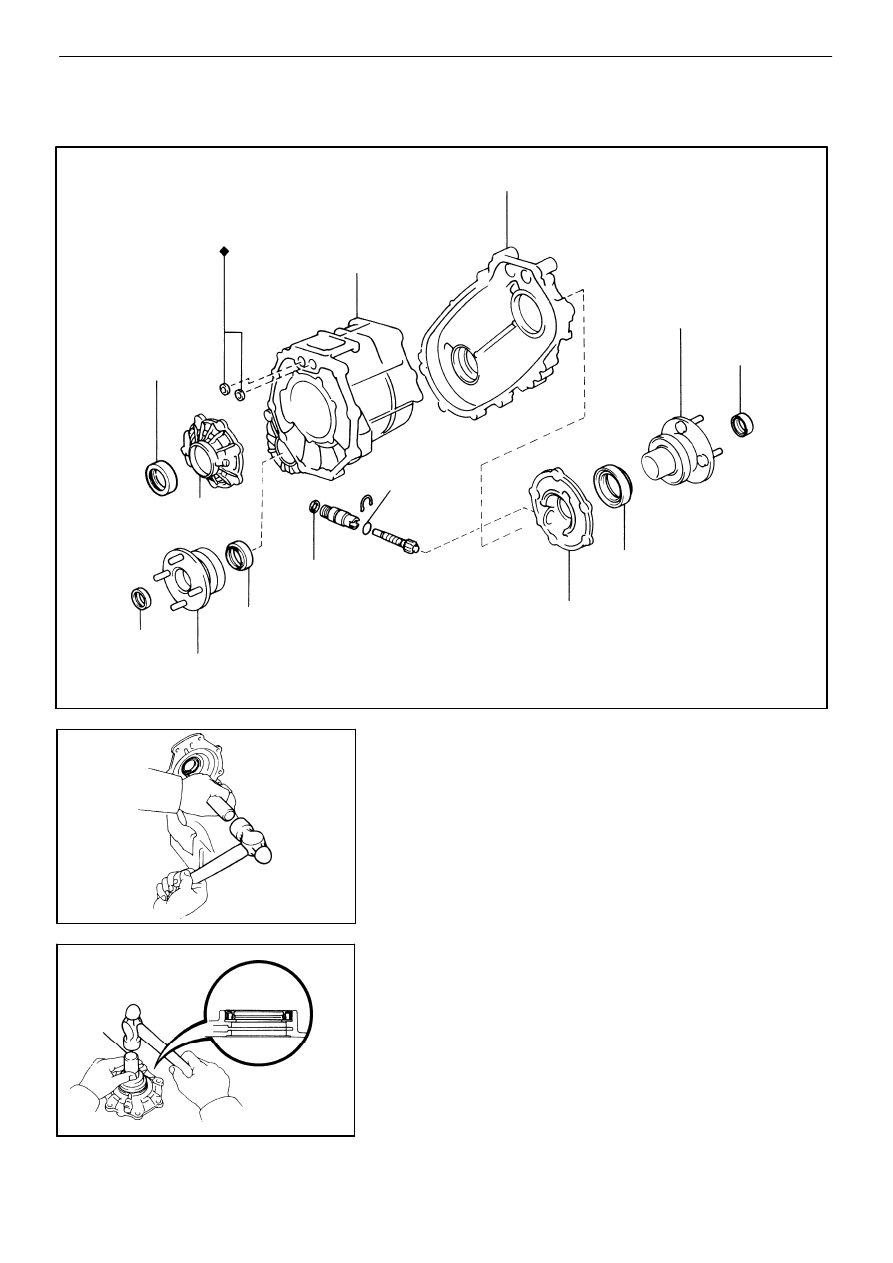

COMPONENTS

REPLACEMENT OF OIL SEALS

1.

IF NECESSARY, REPLACE FRONT RETAINER OIL

SEAL

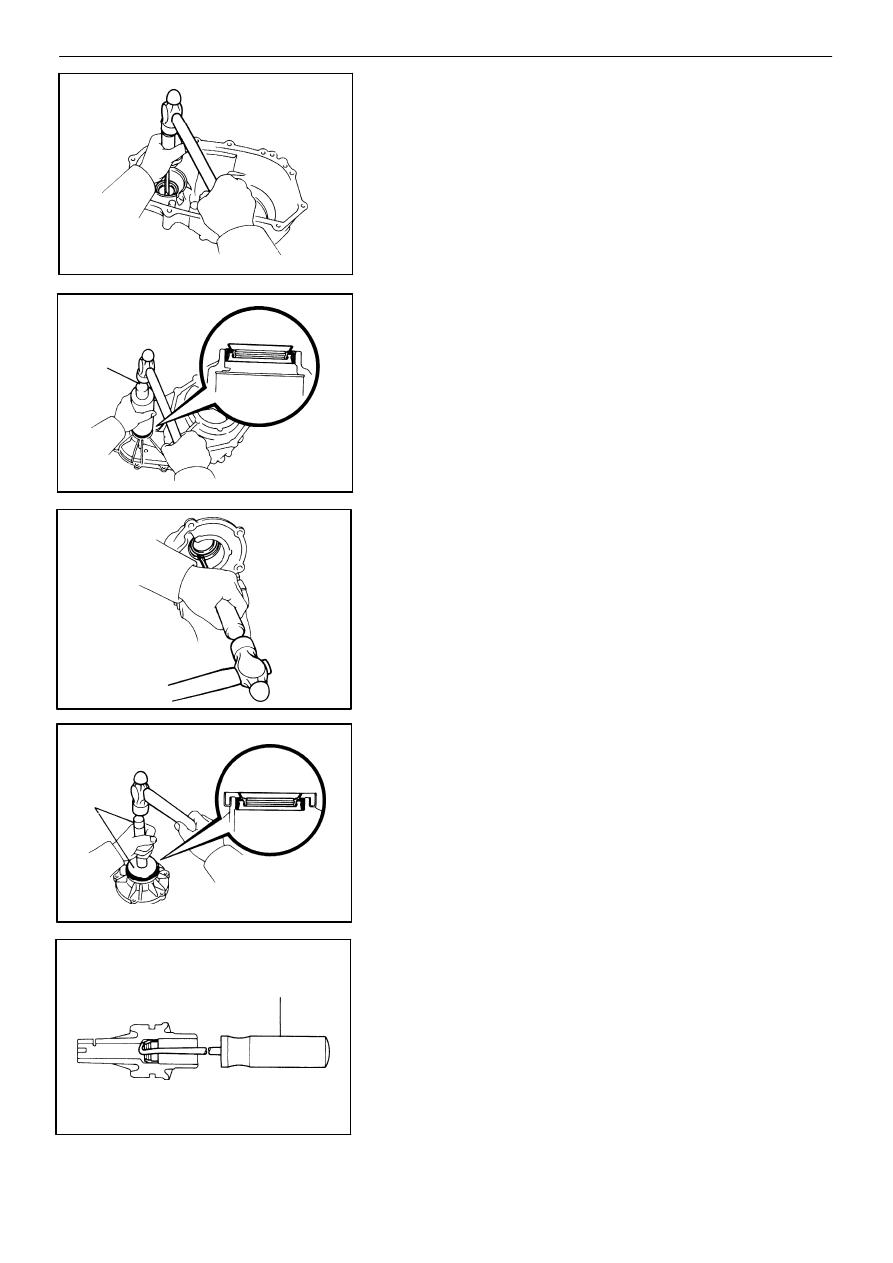

(a)

Using a screwdriver and hammer, drive out the oil

seal.

(b)

Using SST and a hammer, drive in a new oil seal

until its surface is flush with the retainer upper

surface.

SST

09223−22010

(c)

Coat the lip of the oil seal with MP grease.

TF−30

−

TRANSFER (A340F)

Component Parts (Oil Seals)

TF0503

SST

TF0504

TF0505

SST

AT8504

SST

TF0502

2.

IF NECESSARY, REPLACE FRONT CASE OIL SEAL
(a)

Using a screwdriver and hammer, drive out the oil

seal.

(b)

Using SST and a hammer, drive in a new oil seal

until its surface is flush with the case upper sur-

face.

SST

09316−60010 (09316−00010)

(c)

Coat the lip of the oil seal with MP grease.

3.

IF NECESSARY, REPLACE EXTENSION HOUSING

OIL SEAL
(a)

Using a screwdriver and hammer, drive out the oil

seal.

(b)

Using SST and a hammer, drive in a new oil seal

until its surface is flush with the housing upper

surface.

SST

09550−22010 (09550−00020, 09550−00031)

(c)

Coat the lip of the oil seal with MP grease.

4.

IF NECESSARY, REPLACE SPEEDOMETER DRIVEN

GEAR OIL SEAL
(a)

Using SST, pull out the oil seal.

SST

09921−00010

−

TRANSFER (A340F)

Component Parts (Oil Seals)

TF−31

TF0631

TF0530

TF0506

AT8505

SST

TF0630

SST

(b)

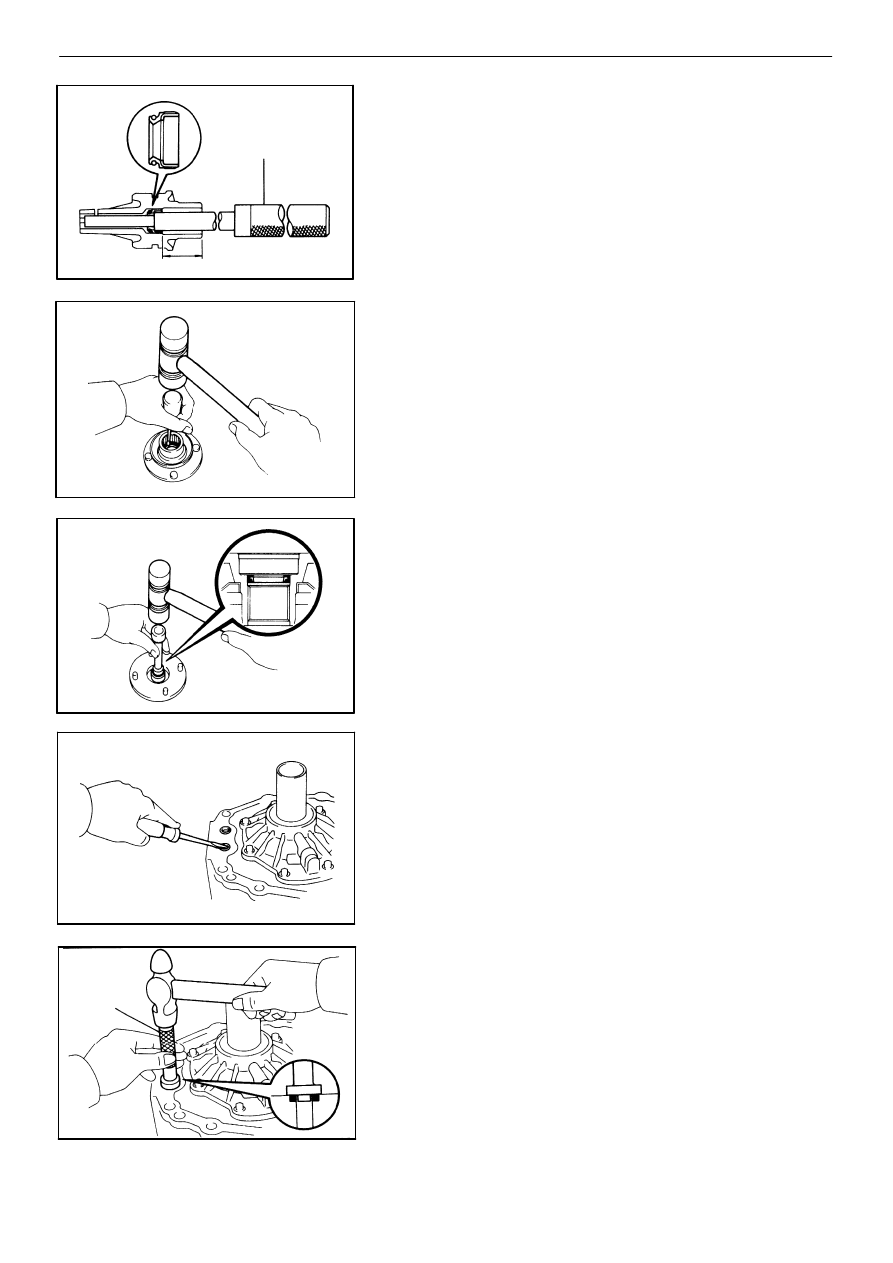

Using SST, drive a new oil seal into the sleeve.

SST

09201−60011

Oil seal depth: 25 mm (0.98 in.)

5.

IF NECESSARY, REPLACE FRONT AND REAR

COMPANION FLANGE OIL SEAL
(a)

Using a screwdriver and hammer, drive out the oil

seal.

(b)

Using a socket wrench and hammer, drive in a

new oil seal.

(c)

Coat the lip of the oil seal with MP grease.

6.

IF NECESSARY, REPLACE SHIFT FORK SHAFT OIL

SEALS
(a)

Using a screwdriver, pry out the oil seal.

(b)

Using SST and a hammer, drive in a new oil seal.

SST

09304−12012

Oil seal depth:

−0.5 − 0.5 mm

(−0.0197 − 0.0197 in.)

TF−32

−

TRANSFER (A340F)

Component Parts (Oil Seals)

TF0540

TF0553

TF0479

TF0507

TF0541

ASSEMBLY OF TRANSFER

(See page

TF−3

)

1.

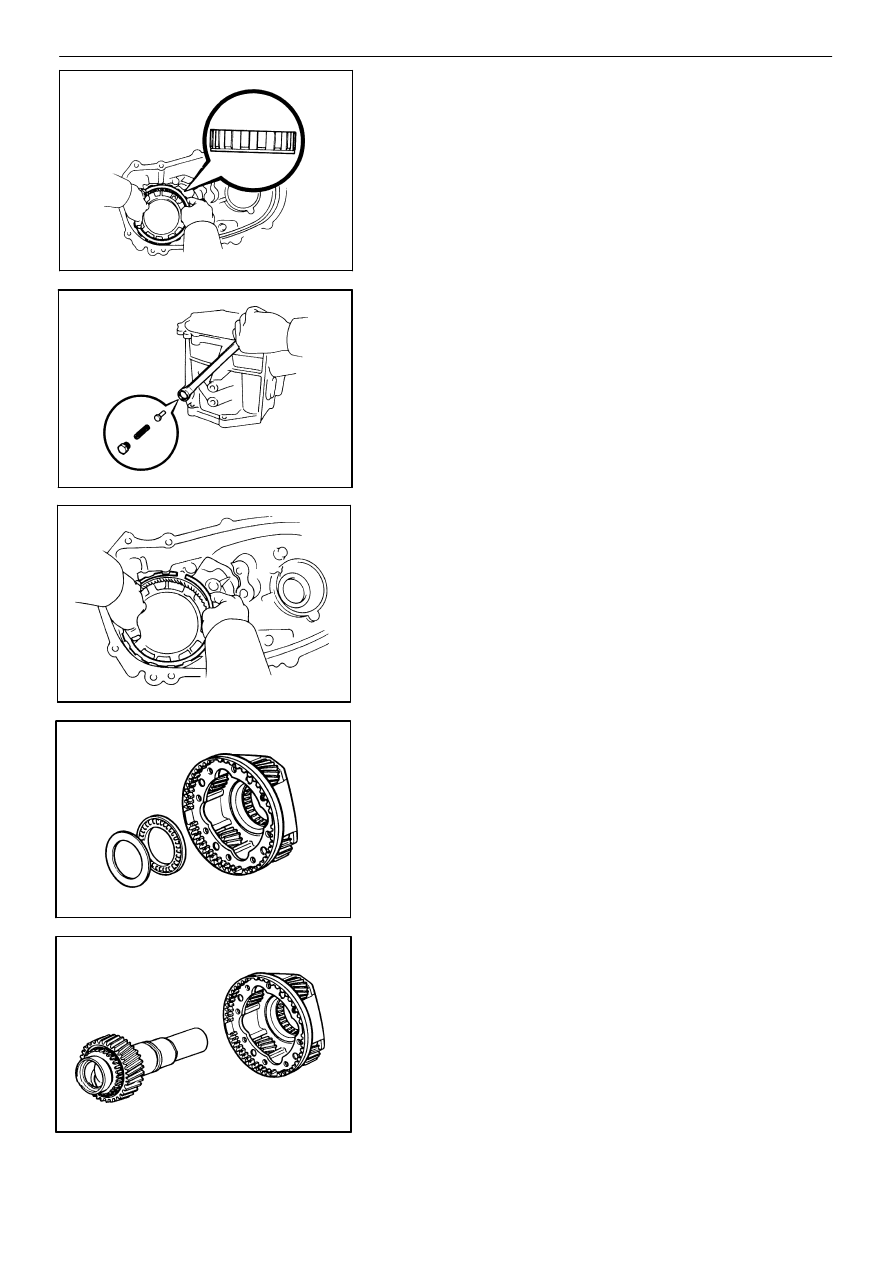

INSTALL PLANETARY RING GEAR
(a)

Install the planetary ring gear to the front case.

HINT: Make sure to install the ring gear in the correct

direction.

(b)

Install the pin and spring.

(c)

Apply liquid sealer to the plug.

Sealant:

Part No. 08833 − 00080, THREE BOND

1344, LOCTITE 242 or equivalent

(d)

Install and torque the plug.

Torque: 190 kg−cm (14 ft−lb, 19 N−m)

(e)

Install the snap ring.

HINT: Be sure the end gap of the snap ring is not

sligned with the upper side of the case.

2.

INSTALL INPUT SHAFT TO PLANETARY GEAR

ASSEMBLY
(a)

Apply gear oil to the thrust bearing and race.

(b)

Install the race and thrust bearing.

(c)

Install the input shaft into the planetary gear as-

sembly.

−

TRANSFER (A340F)

Assembly of Transfer
