Toyota Automatic Transmission A340 Series. Repair Manual - part 37

♦ Non−reusable part

TF0658
TF0632
TF0644

Needle Roller Bearing

Front Drive Hub Sleeve

Bearing

Drive Sprocket

Spacer

Synchronizer Ring

Shifting Key

Drive Sprocket

Needle Roller Bearing

Bearing

Front Drive Hub Sleeve

Spacer

BalI

Snap Ring

High and Low Hub Sleeve

High and Clutch Hub

w/ A.D.D.

Rear Output Shaft

Shifting Key

w/o A.D.D.

Rear Output Shaft Assembly

COMPONENTS

TF−18

−

TRANSFER (A340F)

Component Parts (Rear Output Shaft Assembly)

TF0620

TF0518

SST

TF0516

TF0518

SST

TF0549

DISASSEMBLY OF REAR OUTPUT SHAFT

ASSEMBLY

1.

MEASURE DRIVE SPROCKET THRUST CLEARANCE
Using a feeler gauge, measure the drive sprocket thrust

clearance.

Standard clearance:  0.10 − 0.25 mm

(0.0039 − 0.0098 in.)

Maximum clearance:  0.25 mm (0.0098 in.)

If the clearance exceeds the limit, replace the drive

sprocket.

2.

REMOVE HIGH AND LOW HUB SLEEVE ASSEMBLY
(a)

Using snap ring pliers, remove the snap ring.

(b)

Remove the hub sleeve.

(c)

Using a press, remove the clutch hub.

3.

(w/ A.D.D.)

REMOVE REAR BEARING, SPACER AND DRIVE

SPROCKET WITH FRONT DRIVE HUB SLEEVE

ASSEMBLY
(a)

Using SST and a press, remove the bearing.

SST

09950−00020

(b)

Remove the spacer and ball.

(c)

Remove the drive sprocket with front drive hub and

hub sleeve.

(d)

Remove the needle roller bearing.

(e)

Remove the synchronizer ring.

(w/o A.D.D.)

REMOVE REAR BEARING, SPACER AND DRIVE

SPROCKET WITH FRONT DRIVE HUB SLEEVE

ASSEMBLY
(a)

Using SST and a press, remove the bearing.

SST

09950−00020

−

TRANSFER (A340F)

Component Parts (Rear Output Shaft Assembly)

TF−19

TF0531

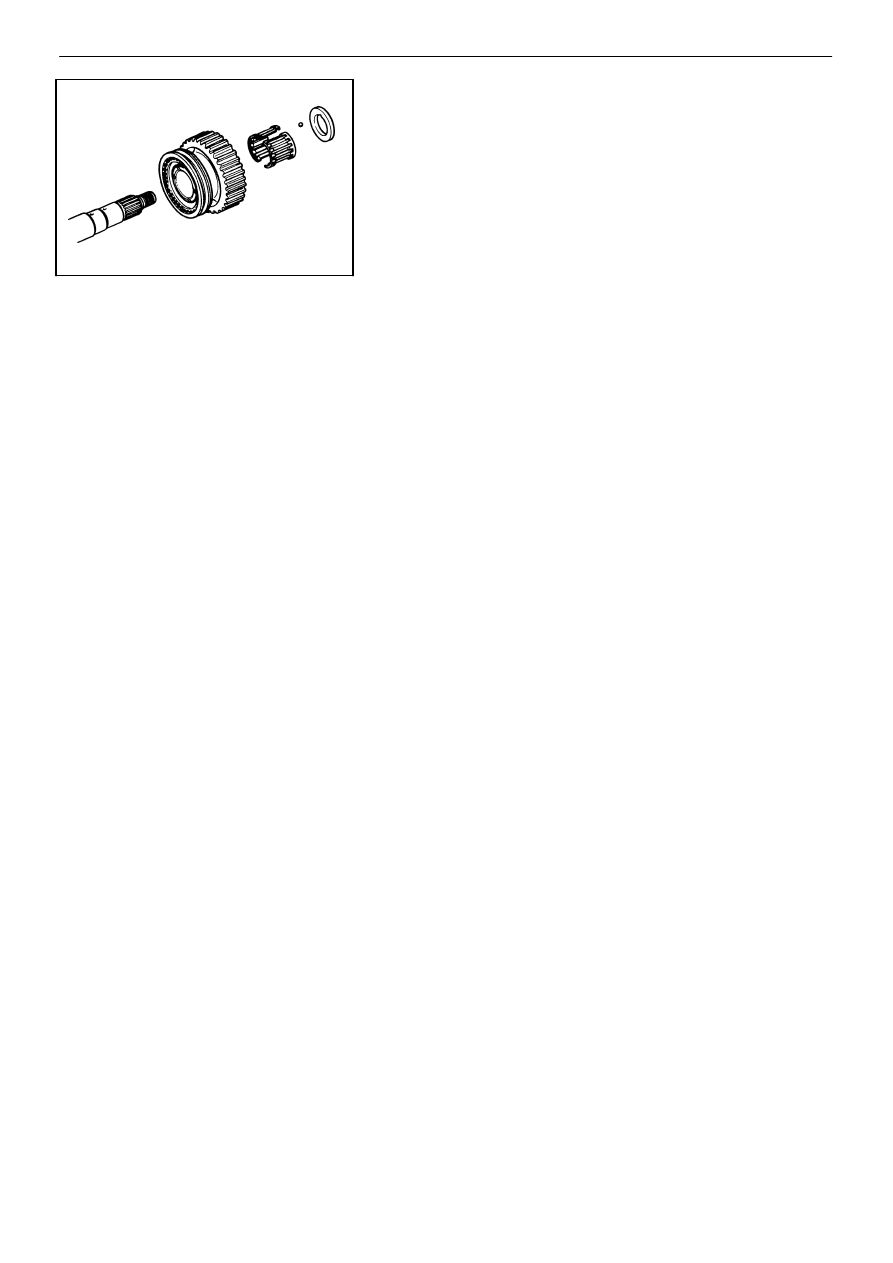

(b)

Remove the spacer and ball.

(c)

Remove the drive sprocket with front drive hub

and hub sleeve.

(d)

Remove the needle roller bearing.

4.

(w/ A.D.D.)

REMOVE SHIFTING KEYS AND KEY SPRINGS

FROM FRONT DRIVE HUB ASSEMBLY
Using screwdriver, remove the two shifting key springs

and three shifting keys.

TF−20

−

TRANSFER (A340F)

Component Parts (Rear Output Shaft Assembly)

TF0521

TF0523

TF0524

TF0522

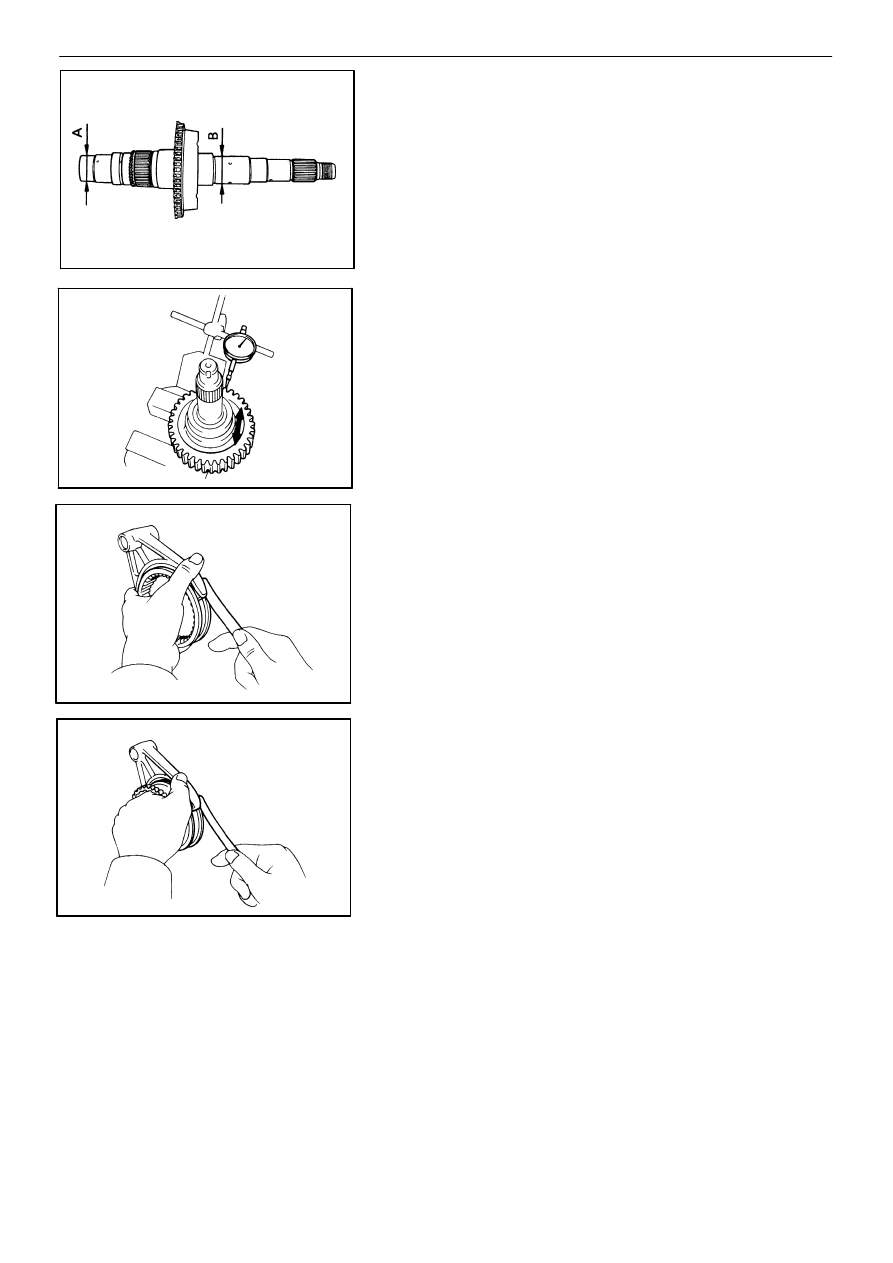

INSPECTION OF REAR OUTPUT SHAFT ASSEMBLY

1.

INSPECT REAR OUTPUT SHAFT
Using a micrometer, measure the outer diameter of the

rear output shaft journal surface.

Minimum diameter:

Part  A 27.98 mm (1.1016 in.)

B 36.98 mm (1.4559 in.)

2.

CHECK OIL CLEARANCE OF DRIVE SPROCKET
Using a dial indicator, measure the oil clearance between

the sprocket and shaft with the needle roller bearing

installed.

Standard clearance:  0.010 − 0.055 mm

(0.0004 − 0.0022 in.)

Maximum clearance:  0.055 mm (0.0022 in.)

If the clearance exceeds the limit, replace the drive

sprocket, rear output shaft or needle roller bearing.

3.

MEASURE CLEARANCE OF FRONT DRIVE SHAFT

FORK AND HUB SLEEVE
Using a feeler gauge, measure the clearance between the

front drive shaft fork and hub sleeve.

Maximum clearance: 1.0 mm (0.039 in.)

If the clearance exceeds the limit, replace the shift fork or

hub sleeve.

4.

MEASURE CLEARANCE OF HIGH AND LOW SHIFT

FORK AND HUB SLEEVE
Using a feeler gauge, measure the clearance between

the high and low shift fork and hub sleeve.

Maximum clearance: 1.0 mm (0.039 in.)

If the clearance exceeds the limit, replace the shift fork

or hub sleeve.

−

TRANSFER (A340F)

Component Parts (Rear Output Shaft Assembly)

TF−21

TF0620

Slots

TF0527

TF0624

Shifting

Key

TF0621

TF0532

SST

ASSEMBLY OF REAR OUTPUT SHAFT ASSEMBLY

1.

(w/ A.D.D.)

INSTALL FRONT DRIVE CLUTCH HUB AND HUB

SLEEVE
(a)

Install the front drive hub sleeve onto the clutch

hub.

HINT: Make sure to install the hub sleeve in the correct

direction.

(b)

Install the shifting keys and springs.

NOTICE: Install the key spring positioned so that

their end gaps are not in line.

(w/o A.D.D.)

INSTALL FRONT DRIVE CLUTCH HUB AND HUB

SLEEVE

Install the front drive hub sleeve onto the clutch hub.

HINT: Make sure to install the hub sleeve in the correct

direction.

2.

(w/ A.D.D.)

INSTALL DRIVE SPROCKET WITH FRONT DRIVE HUB

SLEEVE ASSEMBLY, SPACER AND REAR BEARING
(a)

Apply gear oil to the shaft and needle roller bearing.

(b)

Install the synchronizer ring.

(c)

Install the needle roller bearing in the drive sprock-

et.

(d)

Install the drive sprocket with the front drive hub

sleeve.

(e)

Place the synchronizer ring on the gear and align

the ring slots with the shifting keys.

(f)

Install the spacer to align it with the ball.

(g)

Using SST and a press, install the rear bearing with

the outer race snap ring groove toward the rear.

SST

09316−60010 (09316−00010, 09316−00070)

TF−22

−

TRANSFER (A340F)

Component Parts (Rear Output Shaft Assembly)

TF0690

Front

TF0516

TF0532

SST

TF0531

TF0550

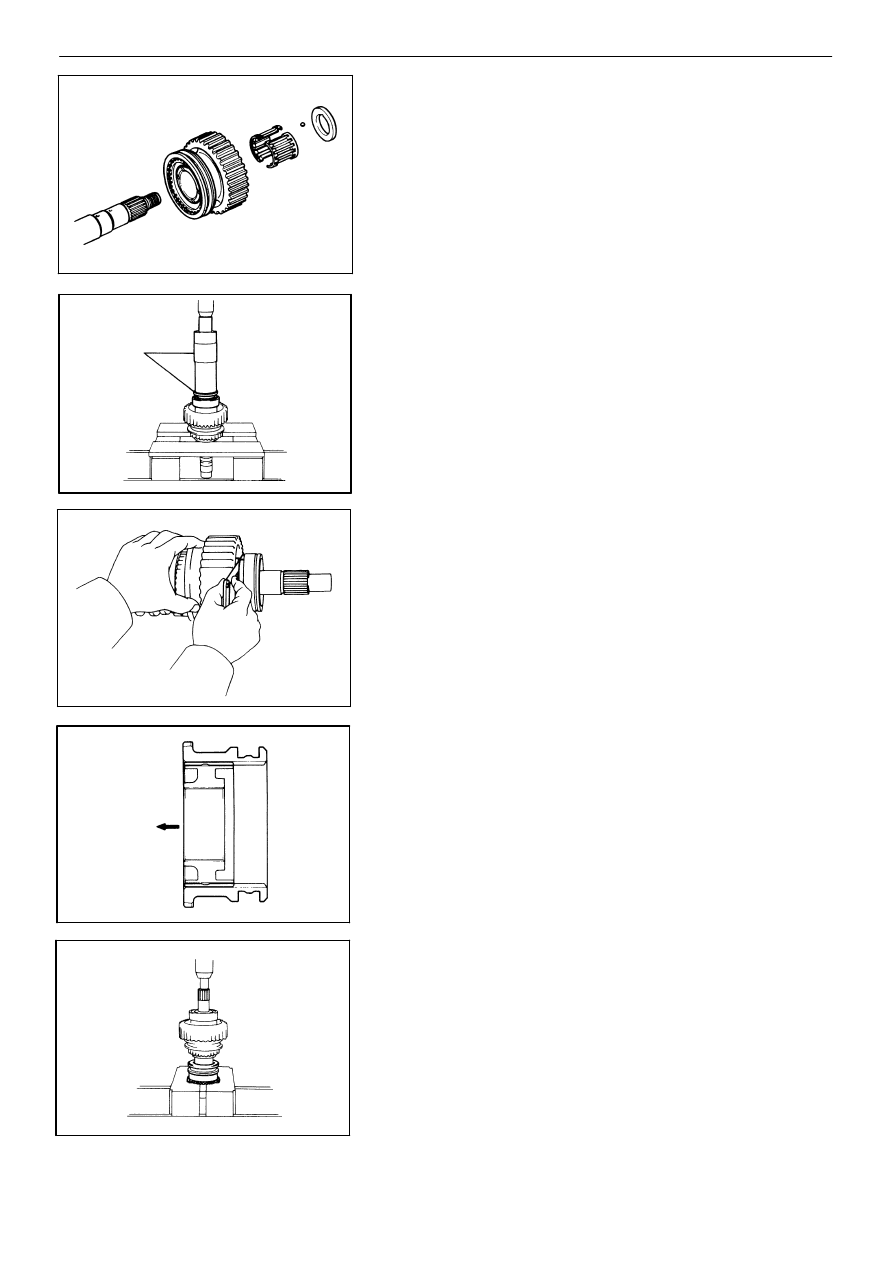

(w/o A.D.D.)

INSTALL DRIVE SPROCKET WITH FRONT DRIVE HUB

SLEEVE ASSEMBLY, SPACER AND REAR BEARING
(a)

Apply gear oil to the shaft and needle roller bearing.

(b)

Install the needle roller bearing in the drive sprocket.

(c)

Install the drive sprocket with the front drive hub

sleeve.

(d)

Install the spacer to align it with the ball.

(e)

Using SST and a press, install the rear bearing with

the outer race snap ring groove toward the rear.

SST

09316−60010 (09316−00010, 09316−00070)

3.

MEASURE DRIVE SPROCKET THRUST CLEARANCE
Using a feeler gauge, measure the drive sprocket thrust

clearance.

Standard clearance: 0.10 − 0.25 mm

(0.0039 − 0.0098 in.)

4.

INSPECT HIGH AND LOW CLUTCH HUB INTO HUB

SLEEVE
Install the clutch hub to the hub sleeve.

5.

INSTALL HIGH AND LOW HUB SLEEVE ASSEMBLY
Using a press, install the high and low hub sleeve as-

sembly.

−

TRANSFER (A340F)

Component Parts (Rear Output Shaft Assembly)

TF−23

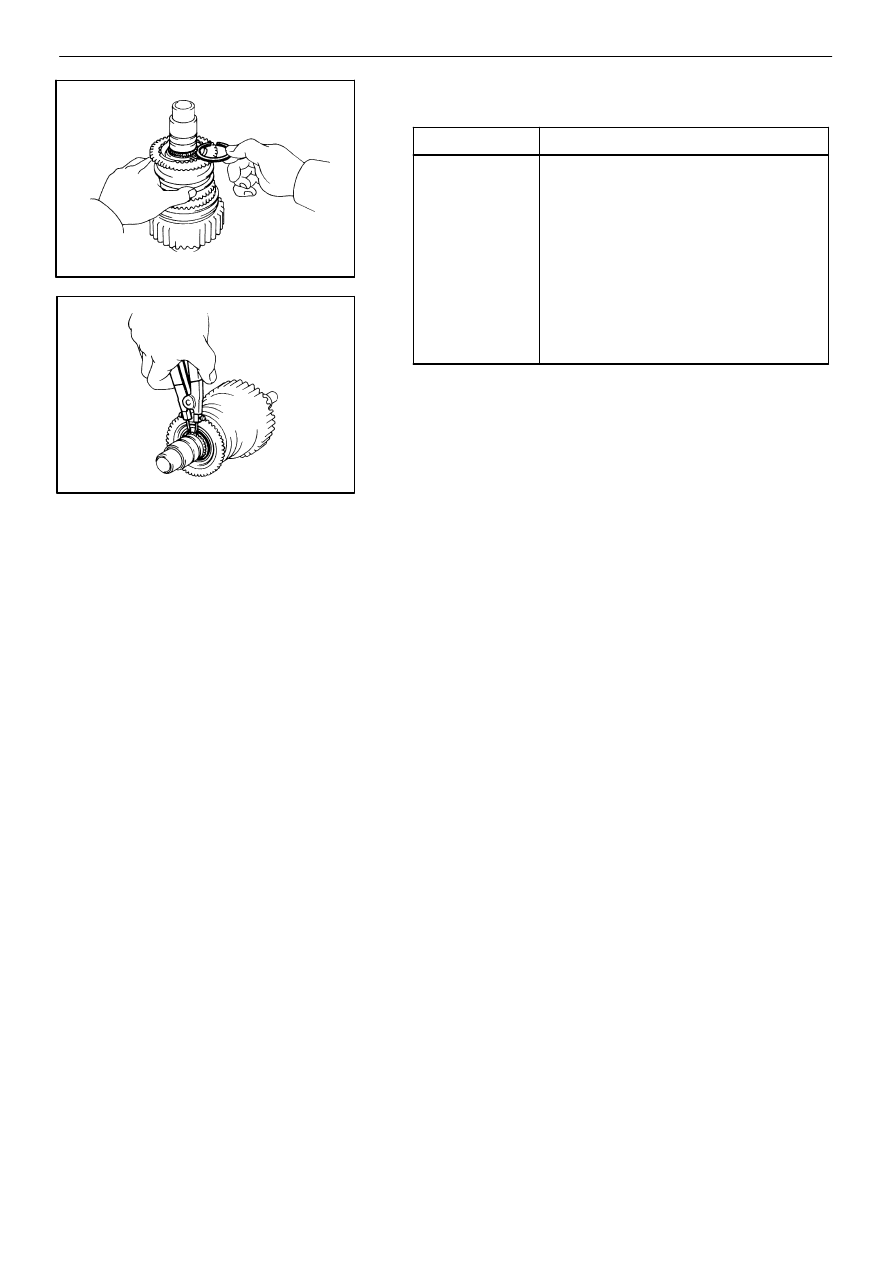

TF0517

TF0529

Mark

Thickness mm (in.)

A
B
C
D
E
F
G
H
J
K
L

2.10 − 2.15 (0.0827 − 0.0846)
2.15 − 2.20 (0.0846 − 0.0866)
2.20 − 2.25 (0.0866 − 0.0886)
2.25 − 2.30 (0.0886 − 0.0906)
2.30 − 2.35 (0.0906 − 0.0925)
2.35 − 2.40 (0.0925 − 0.0945)
2.40 − 2.45 (0.0945 − 0.0965)
2.45 − 2.50 (0.0965 − 0.0984)
2.50 − 2.55 (0.0984 − 0.1004)
2.00 − 2.05 (0.0787 − 0.0807)
2.05 − 2.10 (0.0807 − 0.0827)

6.

INSTALL SNAP RING
(a)

Select a snap ring that will allow minimum axial play.

(b)

Using snap ring pliers, install the snap ring.

TF−24

−

TRANSFER (A340F)

Component Parts (Rear Output Shaft Assembly)

TF0491

TF0551

TF1110

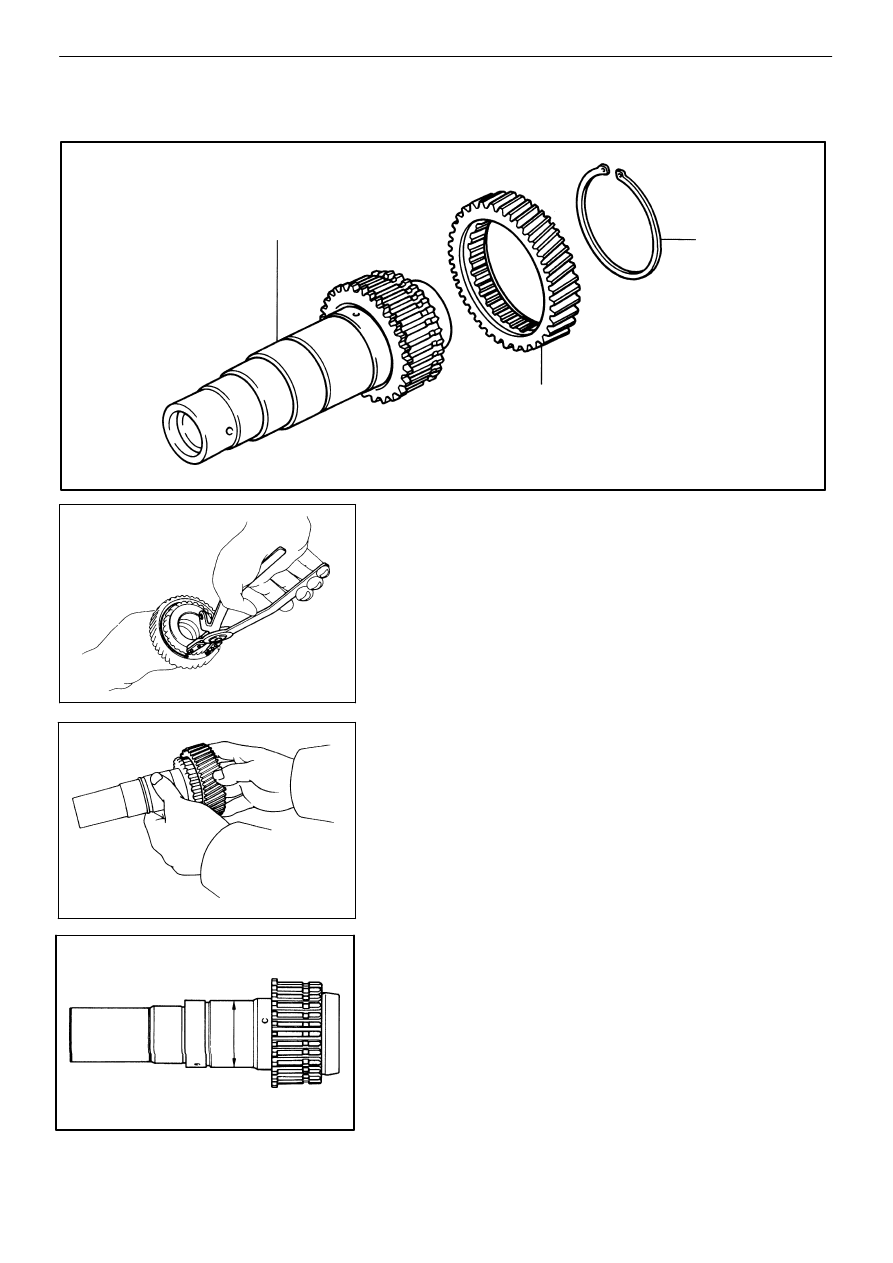

Sun Gear

Snap Ring

Input Shaft

TF0335

Input Shaft

COMPONENTS

DISASSEMBLY OF INPUT SHAFT

REMOVE SUN GEAR

(a)

Using snap ring pliers, remove the snap ring.

(b)

Remove the sun gear from the input shaft.

INSPECTION OF INPUT SHAFT

1.

INSPECT INPUT SHAFT
(a)

Using a micrometer, measure the outer diameter of

the input shaft journal surface.

Minimum diameter: 47.59 mm (1.8736 in.)

−

TRANSFER (A340F)

Component Parts (Input Shaft)

TF−25
