MULTIPLEX COMMUNICATION  –  MULTIPLEX COMMUNICATION SYSTEM

MP–9

MP

DIAGNOSIS SYSTEM

1.

DESCRIPTION
(a) The main body ECU controls the functions of the

multiplex communication system on the vehicle.
Data of the multiplex communication system and
the Diagnostic Trouble Codes (DTC) can be read
through the Data Link Connector 3 (DLC3) of the
vehicle.

2.

CHECK DLC3
(a) The ECU uses ISO 15765-4 for communication.

The terminal arrangement of the DLC3 complies
with ISO 15031-3 and matches the ISO 15765-4
format.

CAUTION:
*: Before measuring the resistance, leave the
vehicle as is for at least 1 minute and do not
operate the ignition switch, any other switches
or the doors.
If the result is not as specified, the DLC3 may have
a malfunction. Repair or replace the harness and
connector.

(b) Intelligent tester

HINT:
Connect the cable of the intelligent tester to the
CAN VIM, connect the CAN VIM to the DLC3, turn
the ignition switch ON and attempt to use the tester.
If the display indicates that a communication error
has occurred, there is a problem either with the
vehicle or with the tester.

• If communication is normal when the tester is

connected to another vehicle, inspect the DLC3
of the original vehicle.

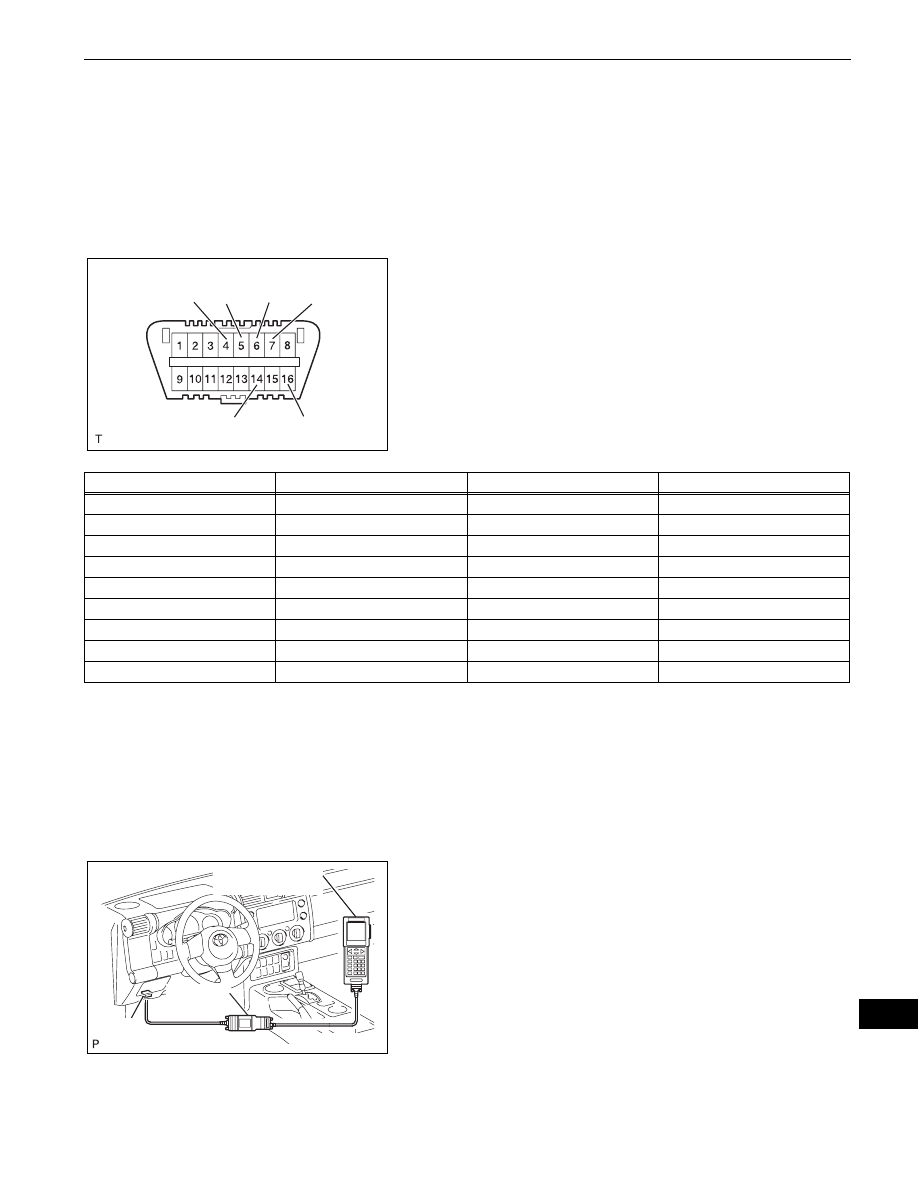

CG SG

BAT

SIL

CANH

CANL

H100769E16

Symbols (Terminal No.)

Terminal Description

Condition

Specified Condition

SIL (7) - SG (5)

Bus "+" line

During transmission

Pulse generation

CG (4) - Body ground

Chassis ground

Always

Below 1

SG (5) - Body ground

Signal ground

Always

Below 1

BAT (16) - Body ground

Battery positive

Always

11 to 14 V

CANH (6) - CANL (14)

HIGH-level CAN bus line

Ignition switch OFF*

54 to 69

CANH (6) - CG (4)

HIGH-level CAN bus line

Ignition switch OFF*

200

Ω or more

CANL (14) - CG (4)

LOW-level CAN bus line

Ignition switch OFF*

200

Ω or more

CANH (6) - BAT (16)

HIGH-level CAN bus line

Ignition switch OFF*

6 k

Ω or more

CANL (14) - BAT (16)

LOW-level CAN bus line

Ignition switch OFF*

6 k

Ω or more

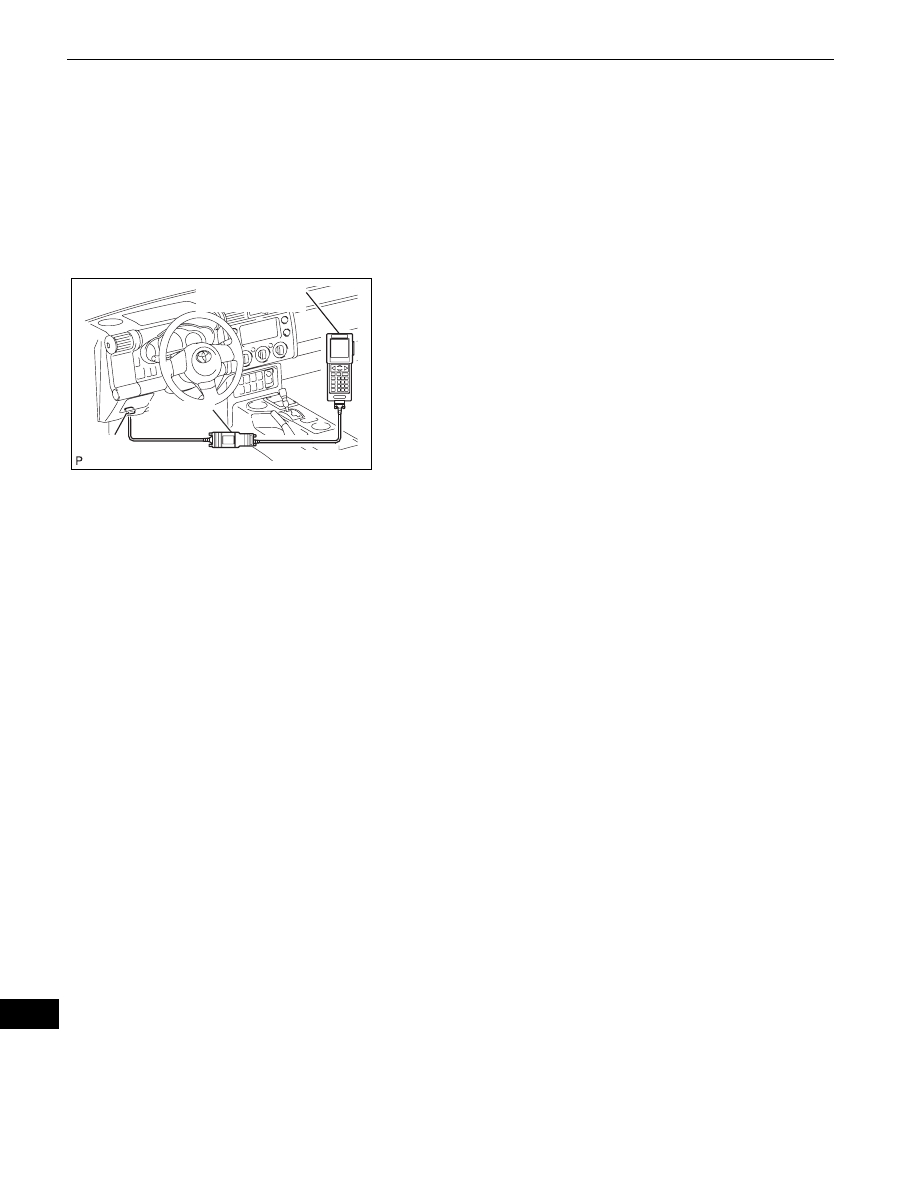

Intelligent Tester

DLC3

CAN VIM

H102157E03

MP–10

MULTIPLEX COMMUNICATION  –  MULTIPLEX COMMUNICATION SYSTEM

MP

If communication is still not possible when the
tester is connected to another vehicle, the
problem may be in the tester itself. Consult the
Service Department listed in the tester's
instruction manual.

3.

INSPECT BATTERY VOLTAGE
Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the
battery before proceeding.

DTC CHECK / CLEAR

1.

CHECK DTC
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Enter the following menus: DIAGNOSIS/OBD/

MOBD/BODY/DTC INFO.

(d) Check the DTCs on the tester screen.

HINT:
Refer to the intelligent tester operator's manual for
further details.

2.

CLEAR DTC
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Erase the DTCs by following the prompts on the

tester screen.

(d) Enter the following menus: DIAGNOSIS/OBD/

MOBD/BODY/DTC INFO.
HINT:
Refer to the intelligent tester operator's manual for
further details.

Intelligent Tester

DLC3

CAN VIM

H102157E03

MULTIPLEX COMMUNICATION  –  MULTIPLEX COMMUNICATION SYSTEM

MP–11

MP

DIAGNOSTIC TROUBLE CODE CHART

HINT:
If a malfunction code is displayed during the DTC check,
check the circuit corresponding to the code in the table below.
Proceed to the page given for the circuit.

MULTIPLEX COMMUNICATION SYSTEM

DTC No.

Detection Item

Trouble area

See page

B1214

Short to B+ in Door System

Communication Bus Malfunction

1. Back door ECU
2. Main Body ECU
3. Wire Harness

MP-11

B1215

Short to GND in Door System

Communication Bus Malfunction

1. Back door ECU
2. Main Body ECU
3. Wire Harness

MP-11

B1287

Back Door ECU Communication

Stop

1. Back door ECU
2. Wire Harness

MP-14

MP–12

MULTIPLEX COMMUNICATION  –  MULTIPLEX COMMUNICATION SYSTEM

MP

DESCRIPTION

When a +B short circuit or body ground short circuit is detected on the communication bus (BEAN), BEAN
is disabled and a DTC is output.

WIRING DIAGRAM

INSPECTION PROCEDURE

(a) Disconnect the back door ECU connector and check for

DTCs B1214 and B1215.

DTC

B1214

Short to B+ in Door System Communication
Bus Malfunction

DTC

B1215

Short to GND in Door System Communication
Bus Malfunction

DTC No.

DTC Detection Condition

Trouble Area

B1214

Communication circuit and +B battery system short

Back door ECU

Main body ECU

Wire harness

B1215

Door system communication circuit and body ground

short

Back door ECU

Main body ECU

Wire harness

1

CHECK DIAGNOSTIC TROUBLE CODE (BACK DOOR ECU)

Main Body ECU

Back Door ECU

MPX2

MPX2

B137556E01
