ME–60

METER  –  COMBINATION METER

ME

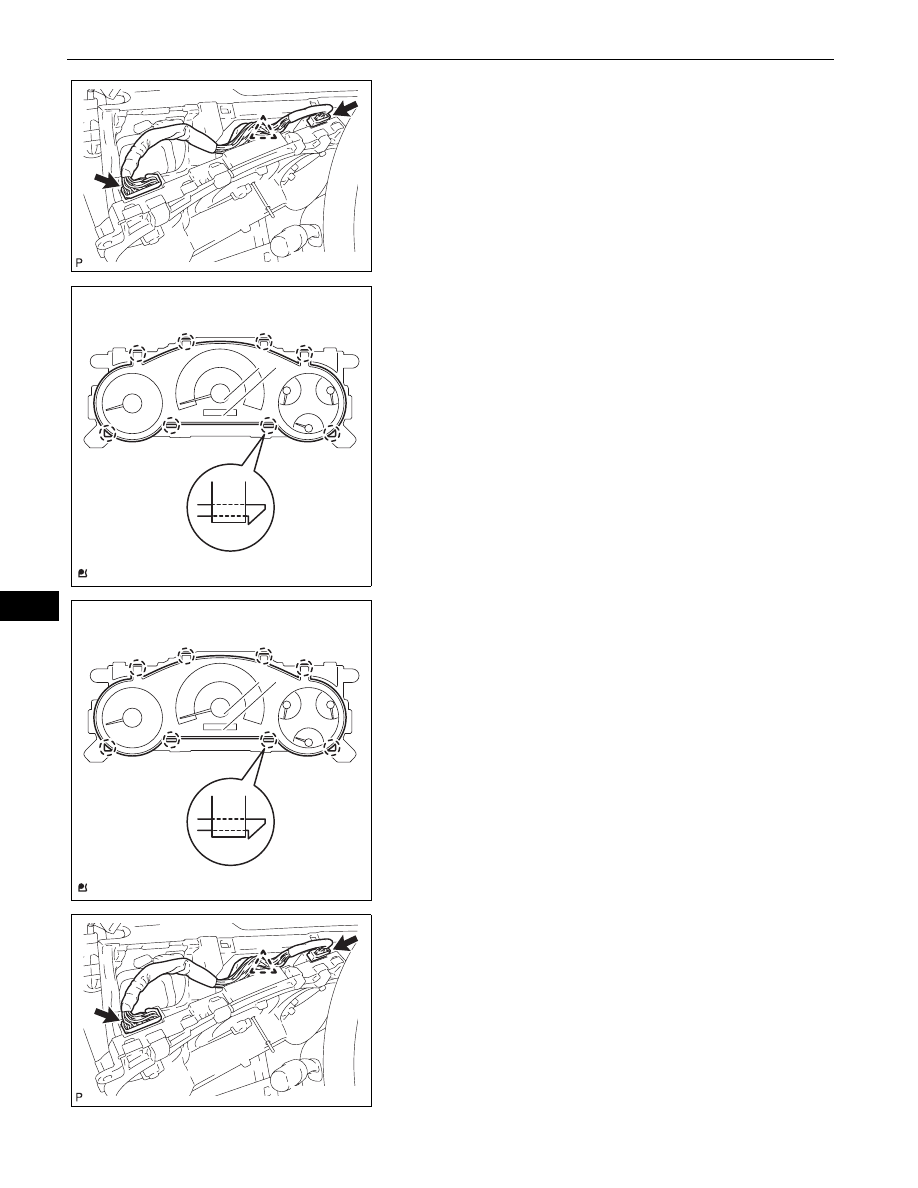

(b) Disconnect the 2 connectors and clamp and remove

the combination meter.

DISASSEMBLY

1.

REMOVE COMBINATION METER GLASS
(a) Disengage the 8 claws and remove the combination

meter glass.

REASSEMBLY

1.

INSTALL COMBINATION METER GLASS
(a) Engage the 8 claws and install the combination

meter glass.

INSTALLATION

1.

INSTALL COMBINATION METER ASSEMBLY
(a) Connect the 2 connectors and the clamp.

B133863

E127929

E127929

B133863

METER  –  COMBINATION METER

ME–61

ME

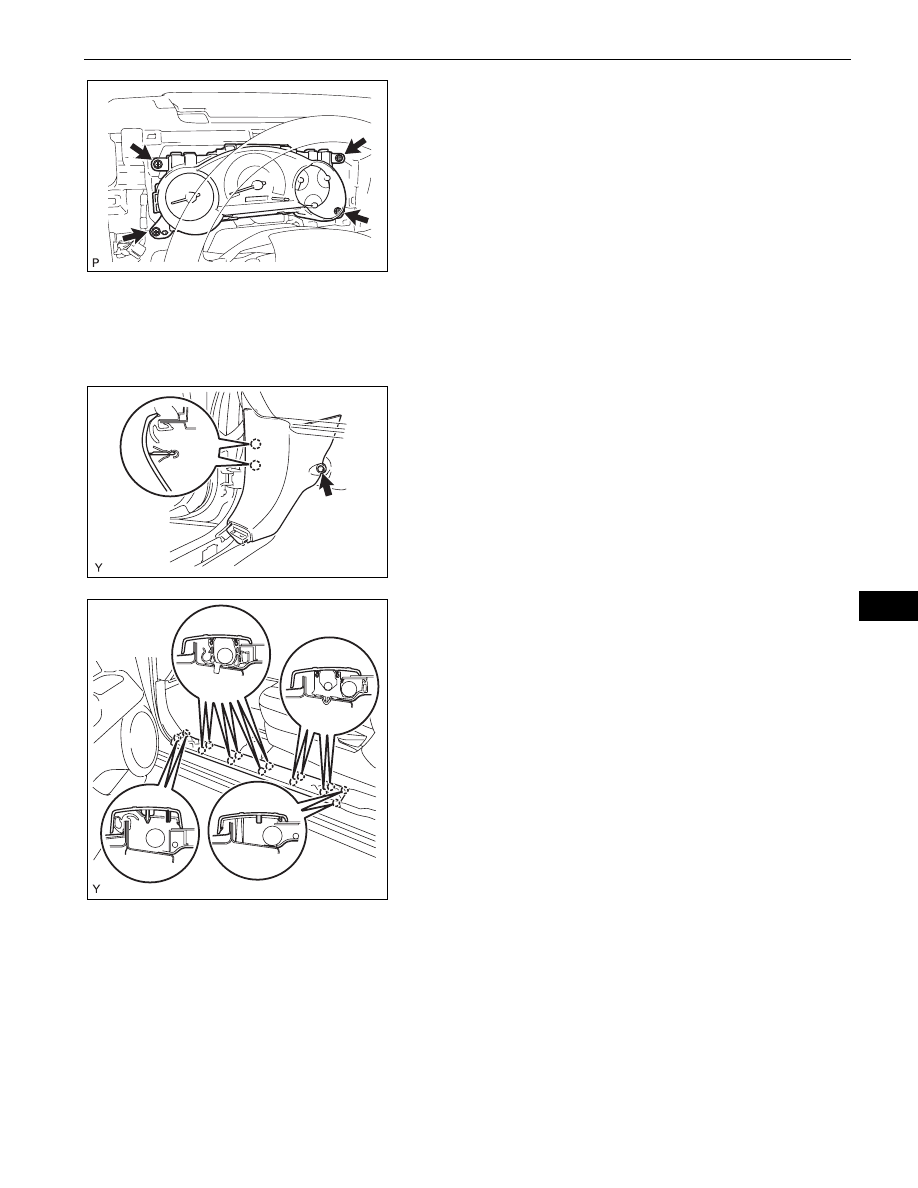

(b) Install the combination meter assembly with the 4

screws.
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

2.

INSTALL INSTRUMENT CLUSTER FINISH PANEL
(See page

IP-29

)

3.

INSTALL LOWER INSTRUMENT FINISH PANEL SUB-
ASSEMBLY LH (See page

IP-29

)

4.

INSTALL HOOD LOCK CONTROL LEVER SUB-
ASSEMBLY (See page

IP-30

)

5.

INSTALL NO. 1 INSTRUMENT PANEL REGISTER
ASSEMBLY (See page

IP-30

)

6.

INSTALL INSTRUMENT PANEL GARNISH LH (See
page

IP-33

)

7.

INSTALL COWL SIDE TRIM BOARD LH
(a) Engage the 2 claws and install the cowl side trim

board.

(b) Install the clip.

8.

INSTALL FOOTREST CLIP (See page

IR-2

)

9.

INSTALL FRONT FLOOR FOOTREST (See page

IR-2

)

10. INSTALL FRONT DOOR SCUFF PLATE LH

(a) Engage the 14 claws and install the door scuff plate.

11. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B133862

E129563

E129562

ME–62

METER  –  ACCESSORY METER

ME

BODY ELECTRICAL

METER

ACCESSORY METER

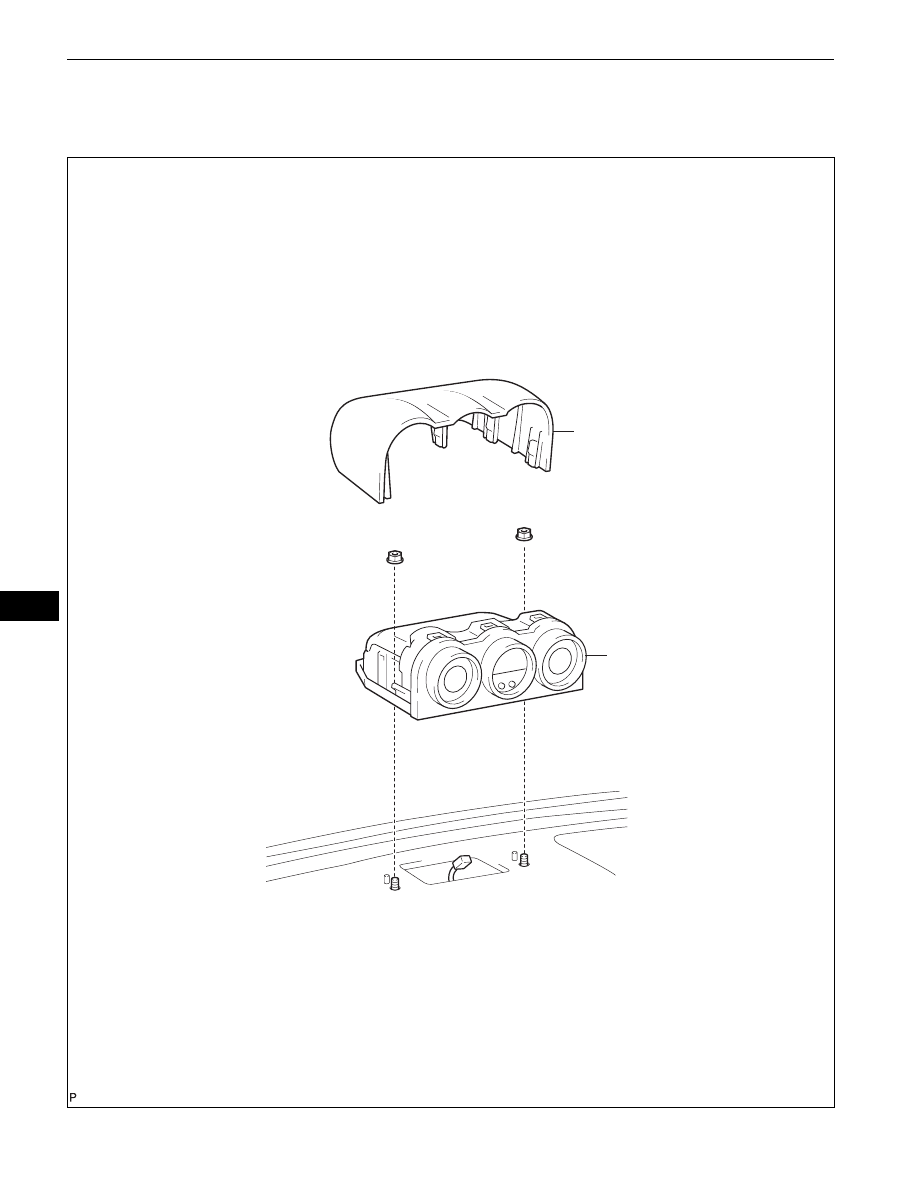

COMPONENTS

ACCESSORY METER
ASSEMBLY

METER COVER

B133883E01

METER  –  ACCESSORY METER

ME–63

ME

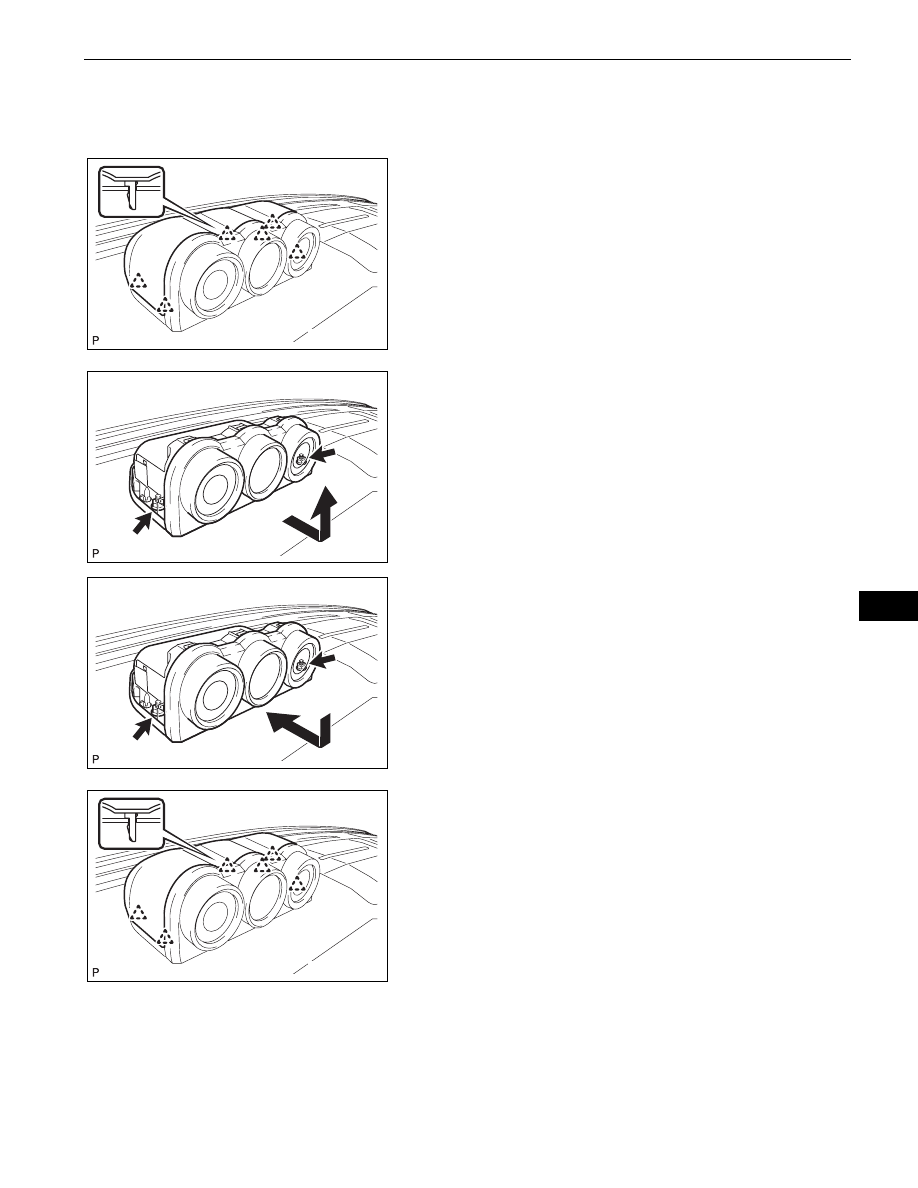

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE METER COVER
(a) Disengage the 6 clips and remove the meter cover.

3.

REMOVE ACCESSORY METER ASSEMBLY
(a) Remove the 2 nuts and remove the accessory

meter.

(b) Disconnect the connector.

INSTALLATION

1.

INSTALL ACCESSORY METER ASSEMBLY
(a) Connect the connector.
(b) Install the accessory meter with the 2 nuts.

2.

INSTALL METER COVER
(a) Engage the 6 clips and install the meter cover.

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B133867

B133868

B133869

B133867
