LU–14

1GR-FE LUBRICATION  –  OIL PUMP

LU

(b) Remove the timing chain cover by prying between

the timing chain cover and cylinder head or cylinder
block with a screwdriver.
NOTICE:
Be careful not to damage the contact surfaces of
the timing chain cover, cylinder block and
cylinder head.

(c) Remove the O-ring from the cylinder head LH.

33. REMOVE TIMING GEAR CASE OR TIMING CHAIN

CASE OIL SEAL (See page

EM-163

)

DISASSEMBLY

1.

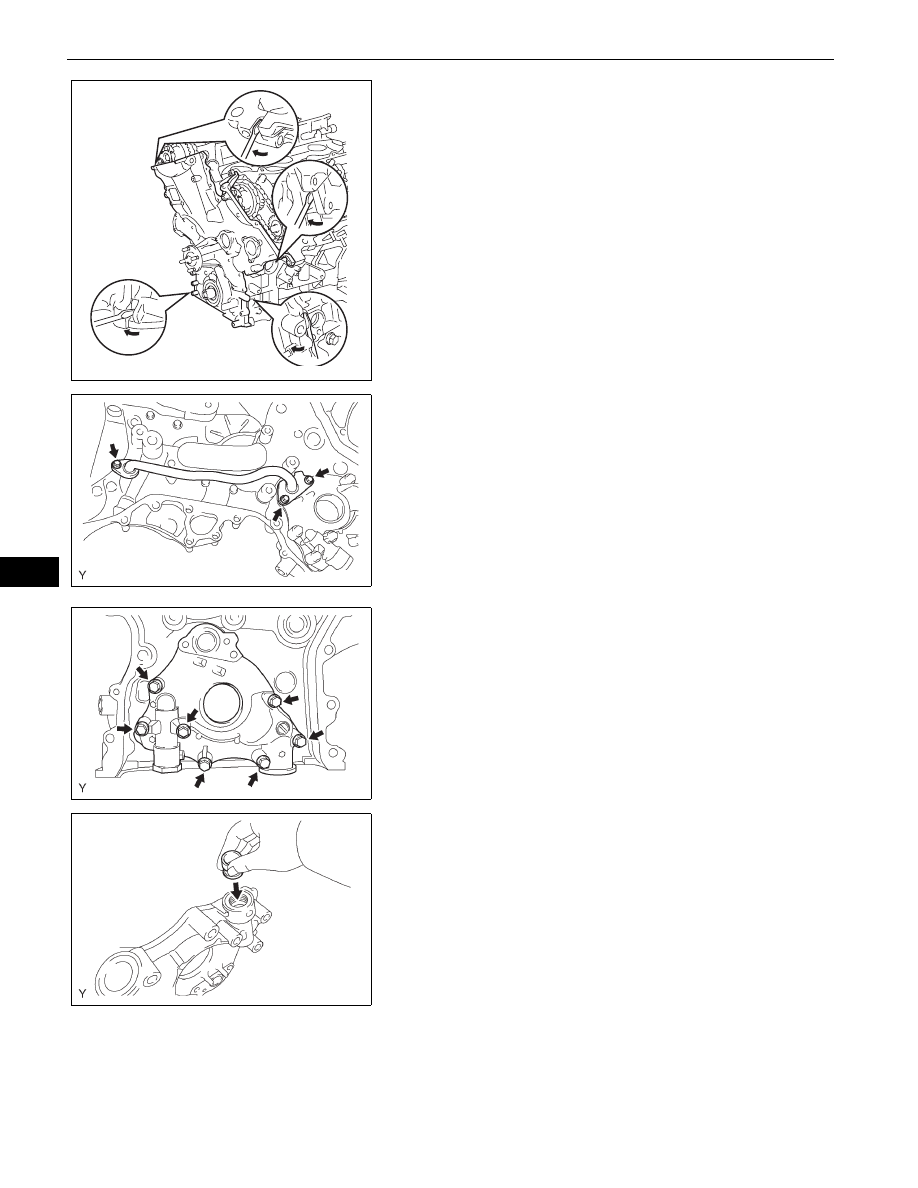

REMOVE OIL PUMP COVER
(a) Remove the 3 bolts, then remove the oil pipe.
(b) Remove the 2 O-rings.

(c) Remove the 7 bolts, then remove the oil pump

cover, drive rotor and driven rotor.

2.

REMOVE OIL PUMP RELIEF VALVE
(a) Remove the relief valve plug.
(b) Remove the relief valve spring and relief valve.

INSPECTION

1.

INSPECT OIL PUMP RELIEF VALVE
(a) Coat the valve with engine oil, then check that it falls

smoothly into the valve hole by its own weight.
If not, replace the relief valve. If necessary, replace
the oil pump assembly.

Y

A126430

A072931E01

A072932E01

A072933E01

1GR-FE LUBRICATION  –  OIL PUMP

LU–15

LU

2.

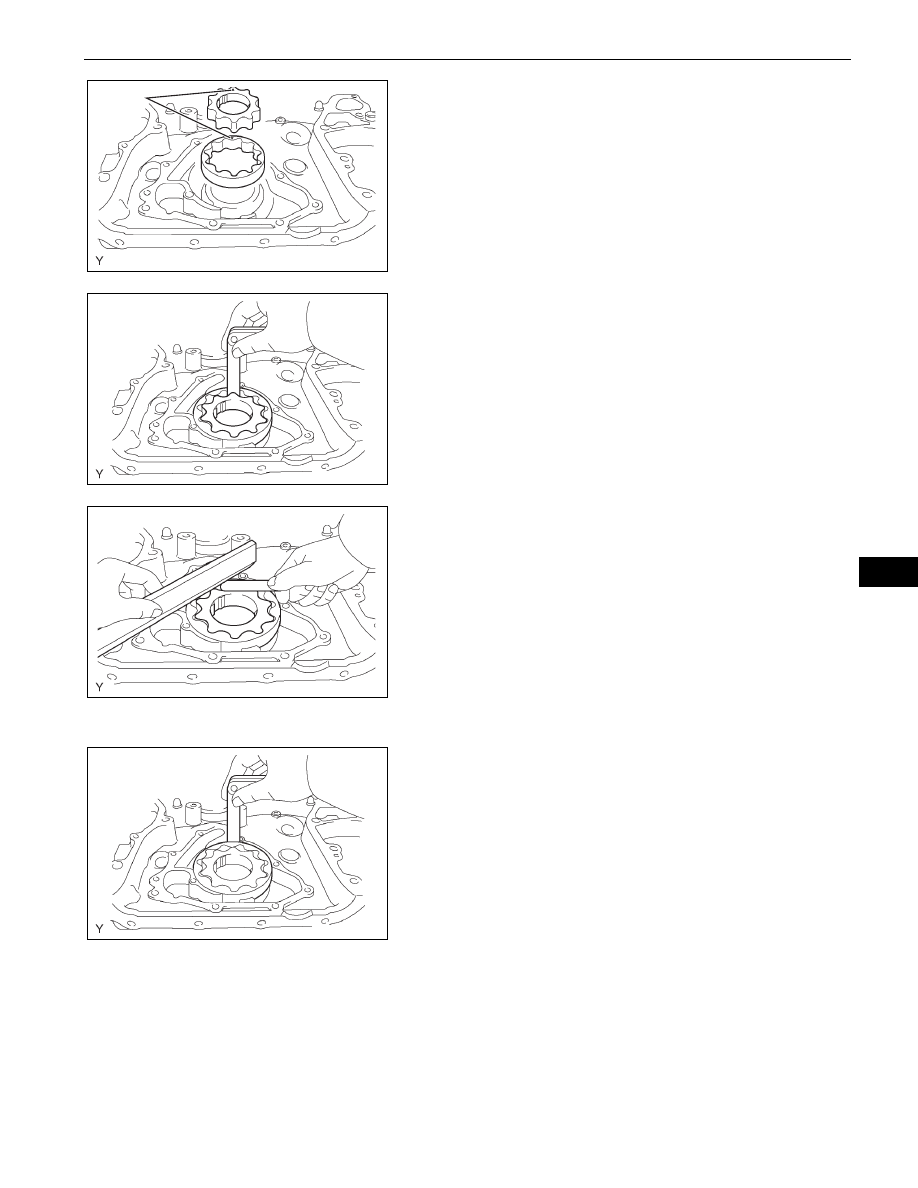

INSPECT OIL PUMP ROTOR SET
(a) Place the drive and driven rotors into the timing

chain cover with the marks facing upward.

(b) Check the rotor tip clearance.

(1) Using a feeler gauge, measure the clearance

between the drive and driven rotor tips.
Standard clearance:

0.06 to 0.16 mm (0.0024 to 0.0063 in.)

Maximum tip clearance:

0.16 mm (0.0063 in.)

If the clearance is greater than the maximum,
replace the drive and driven rotors together.

(c) Check the rotor side clearance.

(1) Using a feeler gauge and precision straight

edge, measure the clearance between the
rotors and precision straight edge.
Standard clearance:

0.03 to 0.09 mm (0.0012 to 0.0035 in.)

Maximum side clearance:

0.09 mm (0.0035 in.)

If the clearance is greater than the maximum,
replace the drive and driven rotors. If
necessary, replace the timing chain cover
assembly.

(d) Check the rotor body clearance.

(1) Using a feeler gauge, measure the clearance

between the driven rotor and body.
Standard clearance:

0.250 to 0.325 mm (0.0098 to 0.0128 in.)

Maximum body clearance:

0.325 mm (0.0128 in.)

If the clearance is greater than the maximum,
replace the drive and driven rotors. If
necessary, replace the timing chain cover
assembly.

Marks

A072934E05

A072936E01

A072937E01

A072935E01

LU–16

1GR-FE LUBRICATION  –  OIL PUMP

LU

REASSEMBLY

1.

INSTALL OIL PUMP RELIEF VALVE
(a) Coat the relief valve with engine oil and insert the

relief valve and spring into the valve hole.

(b) Install the relief valve plug.

Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

2.

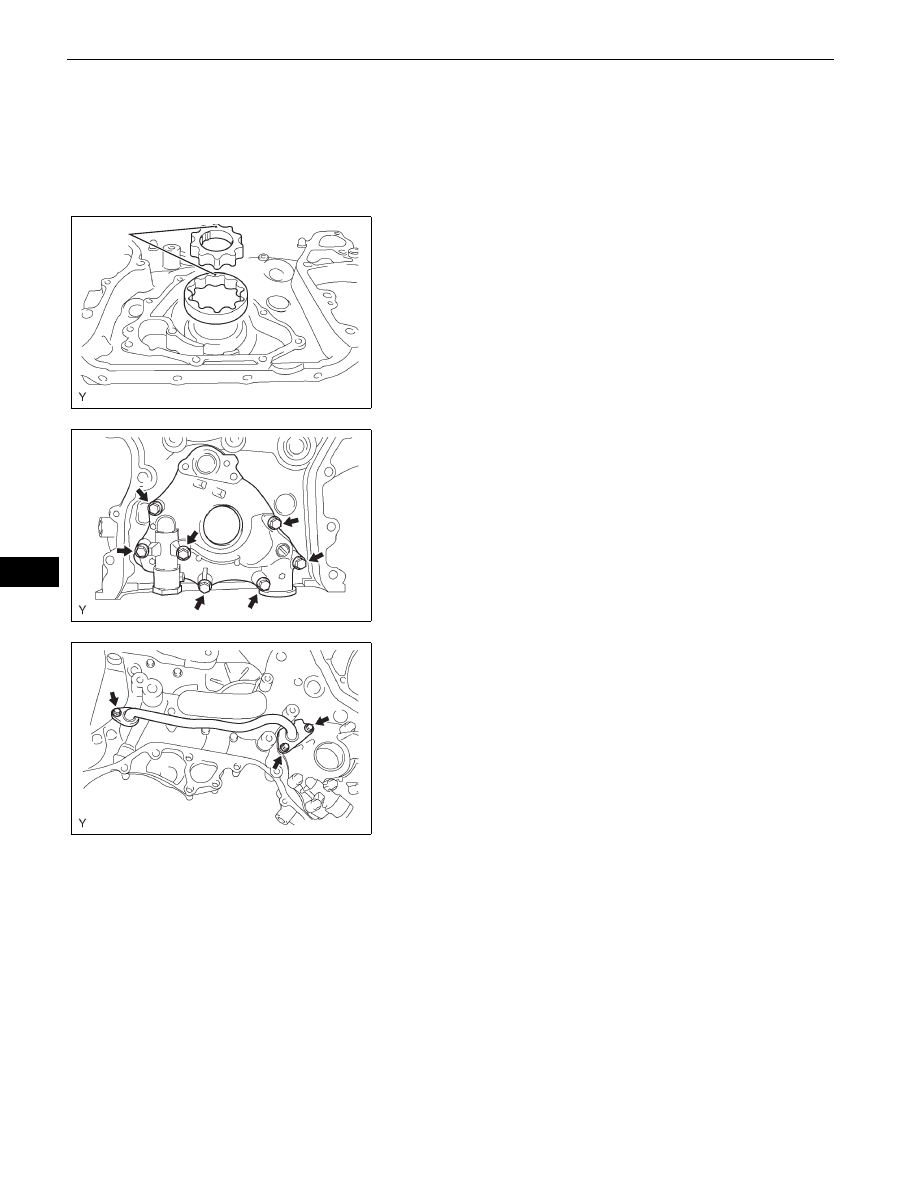

INSTALL OIL PUMP COVER
(a) Apply fresh engine oil to the drive and driven rotors.
(b) Place the drive and driven rotors into the timing

chain cover with the marks facing the oil pump
cover side.

(c) Install the oil pump cover with the 7 bolts.

Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

(d) Install a new O-ring onto the oil pump cover.
(e) Install a new O-ring onto the oil pipe.

(f)

Install the oil pipe with the 3 bolts.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

Marks

A072934E05

A072932E01

A072931E01

1GR-FE LUBRICATION  –  OIL PUMP

LU–17

LU

INSTALLATION

1.

INSTALL TIMING GEAR CASE OR TIMING CHAIN
CASE OIL SEAL (See page

EM-163

)

2.

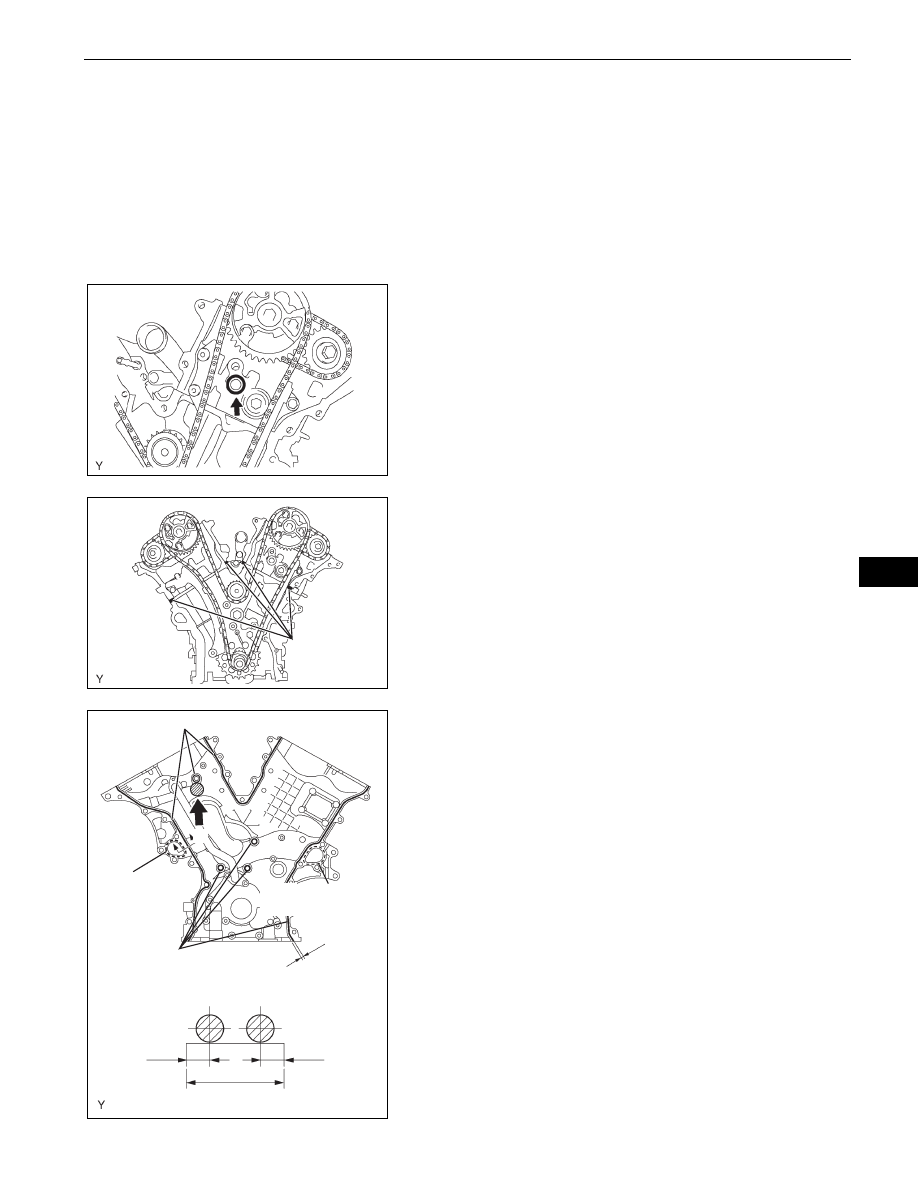

INSTALL TIMING CHAIN OR BELT COVER SUB-
ASSEMBLY
(a) Remove any old packing (FIPG) material.

HINT:
Do not drop any oil onto the contact surfaces of the
timing chain cover, cylinder head or cylinder block.

(b) Install a new O-ring onto the LH cylinder head as

shown in the illustration.

(c) Apply continuous beads of seal packing (diameter 3

to 4 mm (0.12 to 0.16 in.)) to the 4 locations shown
in the illustration.
Seal packing:

Toyota Genuine Adhesive 1344, Three Bond
1344 or the equivalent

(d) Apply continuous beads of seal packing (diameter 3

to 4 mm (0.12 to 0.16 in.)) to the timing chain cover
as shown in the illustration.
Seal packing:

Water pump part:

Toyota Genuine Seal Packing 1282B, Three
Bond 1282B or the equivalent

Other parts:

Toyota Genuine Adhesive 1344, Three Bond
1344 or the equivalent

NOTICE:

Install the timing chain cover within 3 minutes
of applying the seal packing. The timing chain
cover bolts and nuts must be tightened within
15 minutes of the installation. Otherwise, the
seal packing must be removed and reapplied.

Do not apply seal packing to portion A shown
in the illustration.

G036305E01

Seal Packing

G036306E01

Seal Packing

Seal Packing

Water Pump
Part

Water Pump Part

Seal Width 3 to 4 mm

3 to 4 mm

3 to 4 mm

16.7 mm

3 to 4 mm

B - B’

B

B

A

A076303E04
