Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 268

IN–28

INTRODUCTION  –  REPAIR INSTRUCTION

IN

4.

NOTICE FOR USING SWING ARM TYPE LIFT
(a) Follow safety procedures outlined in its instruction

manual.

(b) Use a swing arm equipped with a rubber

attachment.

(c) Set in the vehicle so as to make its center of gravity

as close as possible to the center of the lift. (L
becomes short.)

(d) Place the vehicle horizontally by adjusting the

height of the cradle, and match the groove of the
cradle and the safety stand support location
accurately.

(e) Be sure to lock the swing arms before lifting and

during work (if equipped with arm locks).

(f)

Lift the vehicle up off the ground. Stand at a safe
distance and shake the vehicle to check its stability.

INTRODUCTION  –  REPAIR INSTRUCTION

IN–29

IN

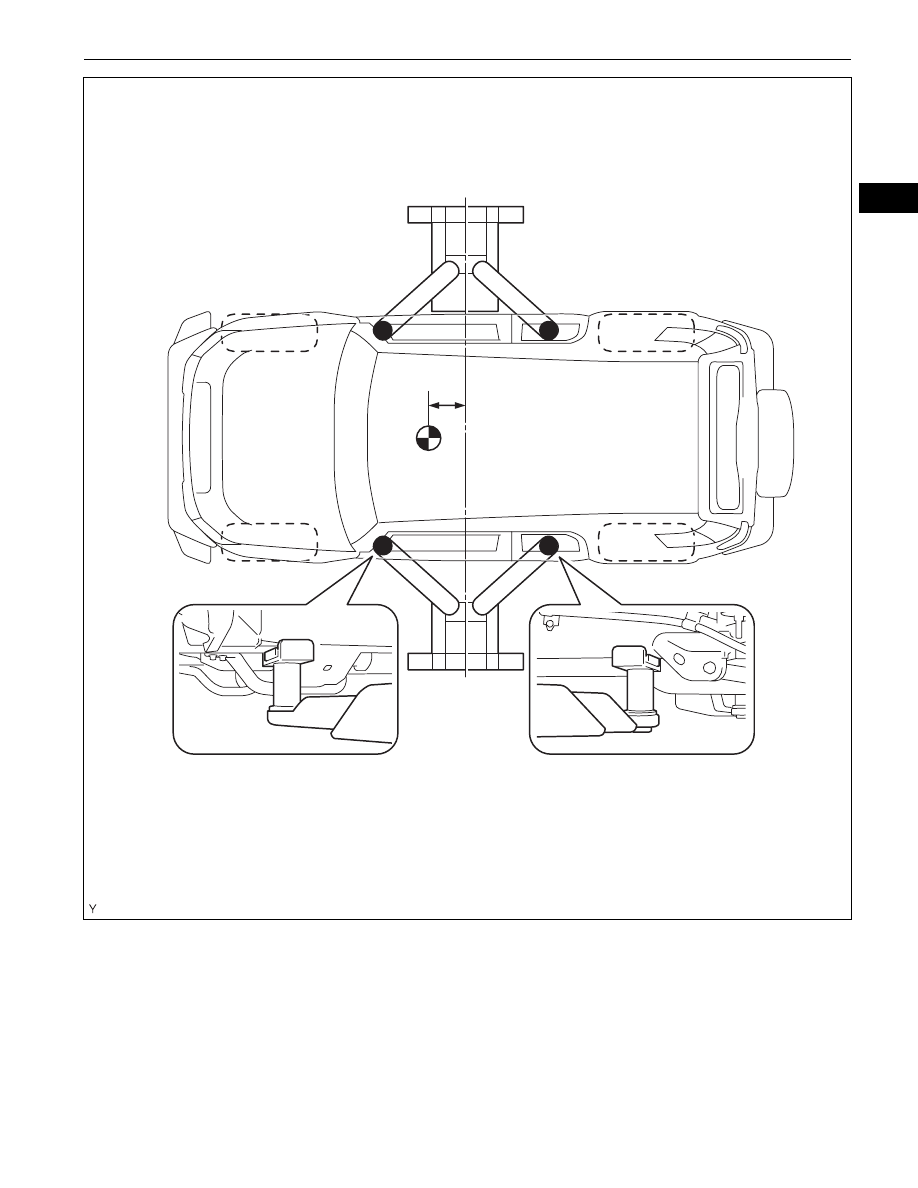

Center of Lift

L

Swing Arm Type Lift:

B144198E01

IN–30

INTRODUCTION  –  REPAIR INSTRUCTION

IN

CUSTOMIZE PARAMETERS

HINT:
The following can be customized.
NOTICE:
•

When the customer requests a change in a function,
first make sure that the function can be customized.

•

Be sure to make a note of the current settings before
customizing.

•

When troubleshooting a function, first make sure that
the function is set to the default setting.

1.

LIGHTING SYSTEM

Illuminated Entry

HINT:
Sensitivity adjustments are difficult to confirm. Check by
driving the customer's vehicle.

2.

POWER DOOR LOCK CONTROL SYSTEM

Power Door Lock Control System

3.

WIRELESS DOOR LOCK CONTROL SYSTEM

Wireless Door Lock Control System

Display (Item)

Default

Contents

Setting

LIGHTING TIME (Lighting Time)

15 (second)

Changes illumination duration
after door closure.
(It will quickly fade out in case of
turning the ignition switch ON)

7.5/ 15/ 30
(second)

/L ON / UNLOCK (Room light
illuminates when door key
unlocked.)

ON

Function to light up the room light,
when unlocking with the door key
cylinder.
(Room light illuminated when
interior light switch in DOOR
position)

ON / OFF

I/L ON/ACC OFF (Room light
illuminates when ignition switch
turned off)

ON

Illuminates light when ignition
switch turned on (ACC).
(Room light illuminated when
interior light switch in DOOR
position)

ON / OFF

Display (Item)

Default

Contents

Setting

UNLK/KEY TWICE

ON

Unlocks only driver side door
when driver side door key
cylinder turned to unlock once,
and unlocks all doors when
turned to unlock twice. For OFF
setting, turning it once unlocks all
doors.

ON / OFF

Display (Item)

Default

Contents

Setting

HAZARD ANS BACK

ON

When wireless lock switch on
transmitter pressed, illuminates
all hazard warning lights once.
When unlock switch pressed, all
hazard warning lights illuminate
twice

ON / OFF

WIRELESS OPER

ON

ON /OFF of wireless door lock
function

ON / OFF

ALARM FUNCTION

ON

Operates security alarm when
panic switch on transmitter
continuously pressed for 1
second

ON / OFF

INTRODUCTION  –  REPAIR INSTRUCTION

IN–31

IN

UNLOCK/2 OPER

ON

Function that unlocks driver side
door when unlock switch on
transmitter is pressed once, and
unlocks all doors when pressed
twice. If setting is OFF, pressing
unlock switch once makes all
doors unlock..

ON / OFF

AUTO LOCK DELAY

30 seconds

Time until relocking after
unlocking with wireless door lock
function

60 seconds / 30 seconds

OPEN DOOR WARN

ON

If a door is not completely closed
and LOCK is pressed, this
function sounds a buzzer for 10
seconds

ON / OFF

WIRELS BUZZ VOL

MID2

To adjust the volume of the
wireless buzzer

OFF / MIN / MID1/ MID2 /MID3 /

MAX

Display (Item)

Default

Contents
