Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 261

INTERIOR  –  ROOF HEADLINING

IR–47

IR

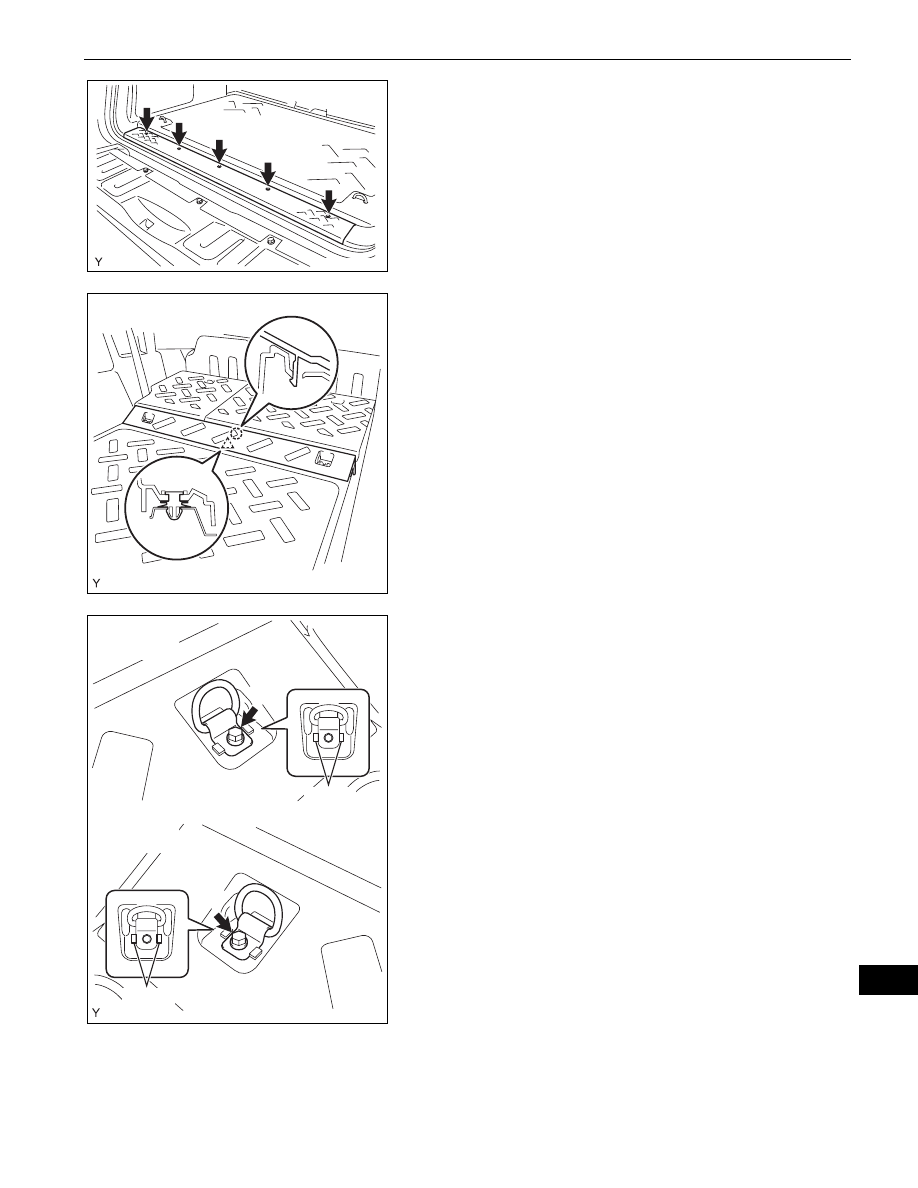

(b) Tighten the 5 screws.

49. INSTALL REAR FLOOR BOARD

(a) Engage the clip and claw and install the rear floor

board.

(b) Install the luggage hold belt striker with the bolt.

HINT:
Use the same procedure for both sides.

50. INSTALL REAR SEATBACK ASSEMBLY RH (See

page

SE-54

)

51. INSTALL REAR SEATBACK BOARD CARPET

ASSEMBLY RH (See page

SE-54

)

52. INSTALL REAR SEATBACK ASSEMBLY LH (See

page

SE-38

)

53. INSTALL REAR SEATBACK BOARD CARPET

ASSEMBLY LH (See page

SE-38

)

54. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B130592

B135075

for LH Side:

for RH Side:

Convex

Convex

B135074E01

INTRODUCTION  –  HOW TO USE THIS MANUAL

IN–1

IN

HOW TO USE THIS MANUAL

GENERAL INFORMATION

1.

GENERAL DESCRIPTION
(a) This manual is written in accordance with SAE

J2008.
(1) Diagnosis
(2) Removing / Installing, Replacing, Disassembling

/ Reassembling, Checking and Adjusting

(3) Final Inspection

(b) The following procedures are omitted from this

manual. However, these procedures must be
performed.
(1) Use a jack or lift to perform operations.
(2) Clean all removed parts.
(3) Perform a visual check.

2.

INDEX
(a) An alphabetical INDEX section is provided at the

end of the manual as a reference to help you find
the item to be repaired.

3.

PREPARATION
(a) Use of Special Service Tools (SST) and Special

Service Materials (SSM) may be required,
depending on the repair procedure. Be sure to use
SST and SSM when they are required and follow
the working procedures properly. A list of SST and
SSM is in the "Preparation" section of this manual.

4.

REPAIR PROCEDURES
(a) A component illustration is placed under the title

where necessary.

IN–2

INTRODUCTION  –  HOW TO USE THIS MANUAL

IN

(b) Non-reusable parts, grease application areas,

precoated parts and torque specifications are noted
in the component illustrations.
The following illustration is an example.

(c) Torque specifications, grease application areas and

non-reusable parts are emphasized in the
procedures.
HINT:
There are cases where such information can only
be explained by using an illustration. In these cases,
torque, oil and other information are described in the
illustration.

(d) Only items with key points are described in the text.

What to do and other details are explained using
illustrations next to the text. Both the text and
illustrations are accompanied by standard values
and notices.

(e) Illustrations of similar vehicle models are sometimes

used. In these cases, minor details may be different
from the actual vehicle.

(f)

Procedures are presented in a step-by-step format.

5.

SERVICE SPECIFICATIONS
(a) SPECIFICATIONS are presented in boldface text

throughout the manual. The specifications are also
found in the "Service Specifications" section for
reference.

Filter Cap

Float

Reservoir Tank

Slotted Spring Pin

15 (155,11)

Cylinder

Piston

Push Rod

Washer

Grommet

12 (120,9)

Gasket

: Specified torque

N*m (kgf*cm, ft.*lbf)

Non-reusable part

Clevis Pin

Clip

Clevis

Lock Nut

Boot

Snap Ring

Example:

N017080E11

Illustration

What to do and where to do it

Task heading

What work will be performed

Explanation text

•

How to perform the task

•

Information such as specifications and warnings, which are written
in boldface text

INTRODUCTION  –  HOW TO USE THIS MANUAL

IN–3

IN

6.

TERM DEFINITIONS

7.

INTERNATIONAL SYSTEM OF UNITS
(a) The units used in this manual comply with the

International System of Units (SI UNIT) standard.
Units from the metric system and the English
system are also provided.
Example:
Torque: 30 N*m (310 kgf*cm, 22 ft.*lbf)

CAUTION

Possibility of injury to you or other people.

NOTICE

Possibility of damage to components being repaired.

HINT

Provides additional information to help you perform repairs.
