Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 236

HO–6

HORN  –  HORN RELAY

HO

BODY ELECTRICAL

HORN

HORN RELAY

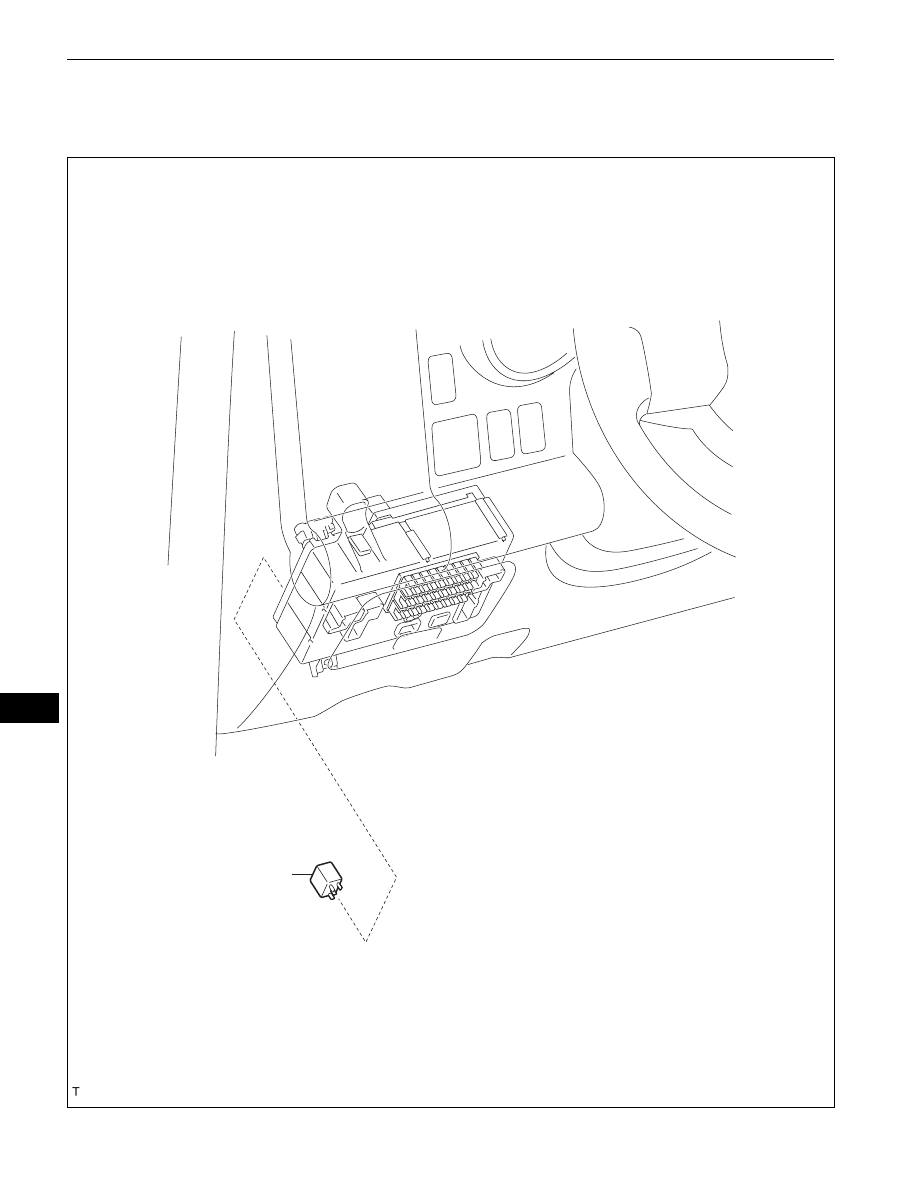

COMPONENTS

HORN RELAY

B138428E01

HORN  –  HORN RELAY

HO–7

HO

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

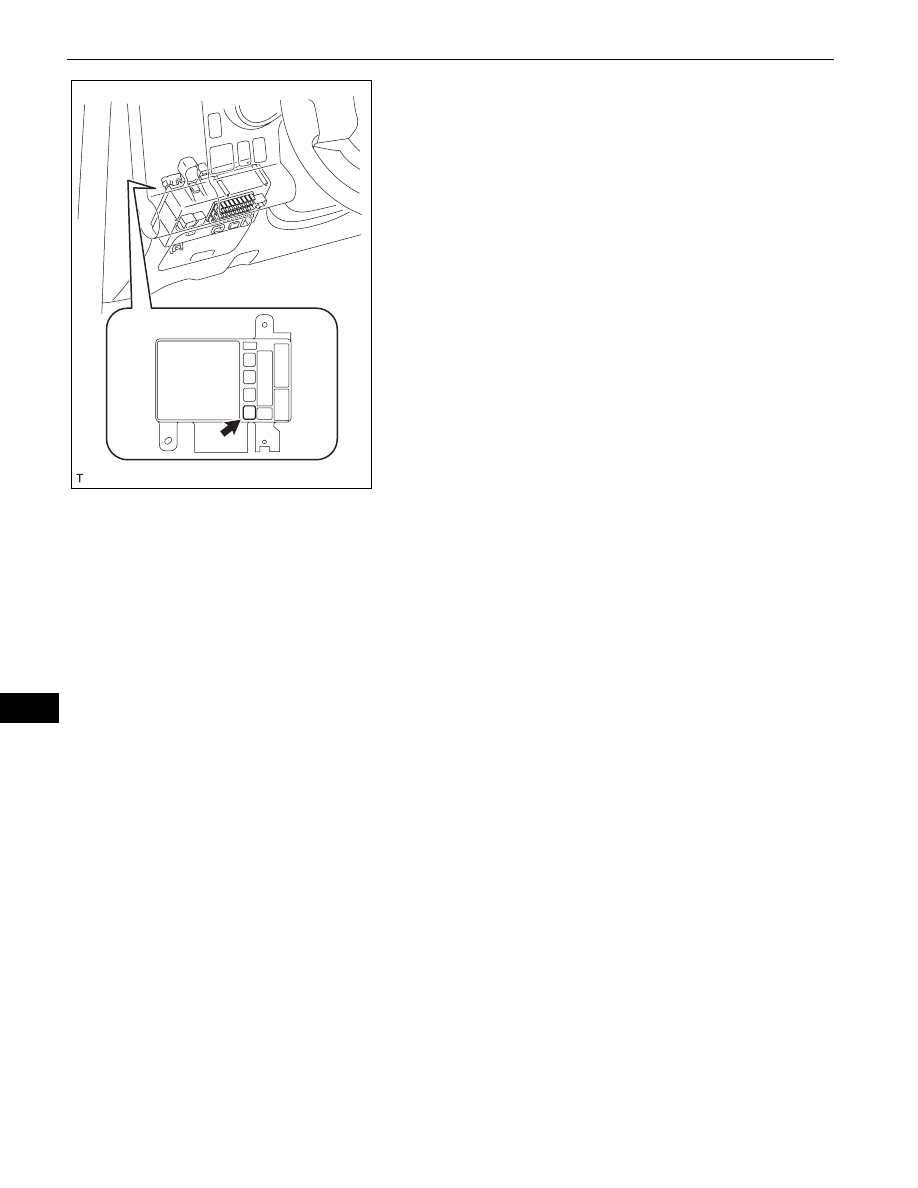

REMOVE HORN RELAY
(a) Remove the horn relay.

INSPECTION

1.

INSPECT HORN RELAY

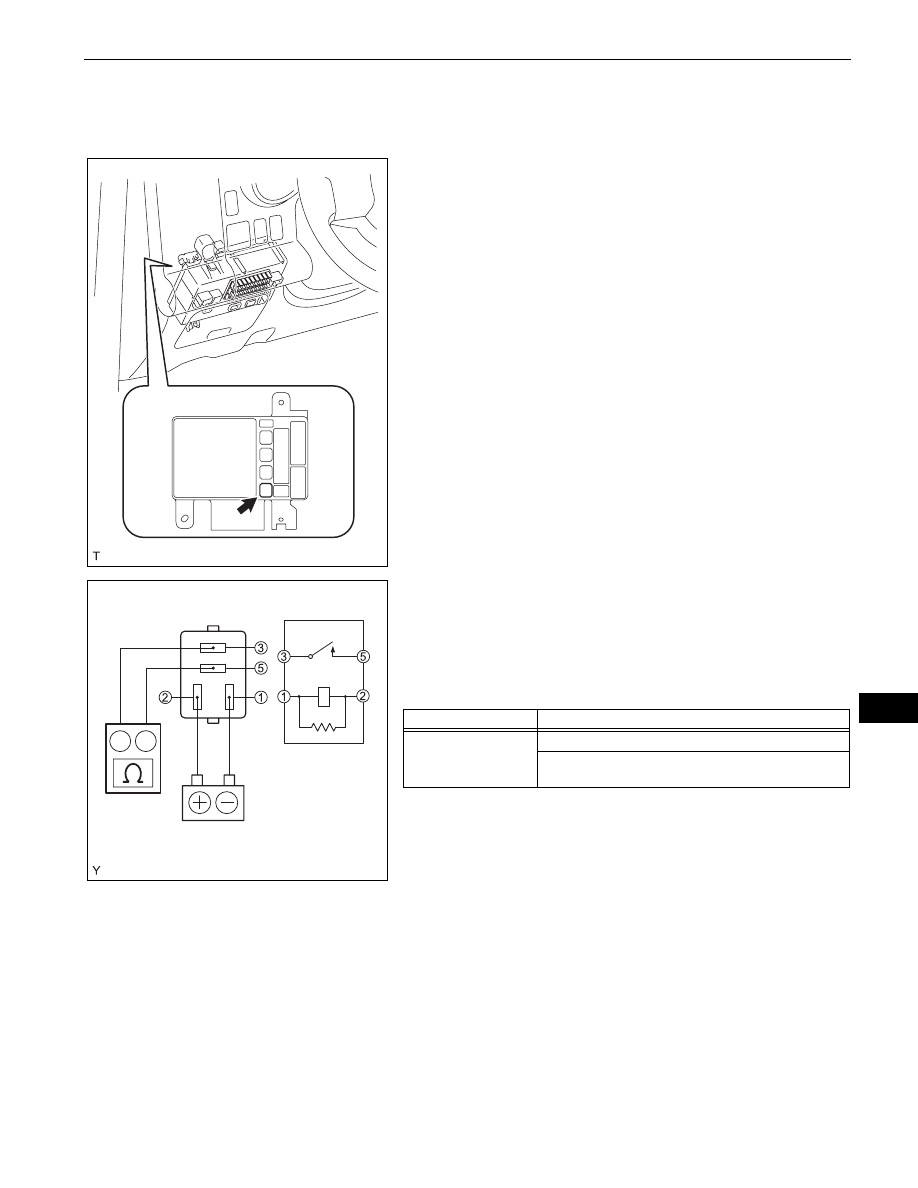

(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

If the result is not as specified, replace the horn
relay.

B138429

Battery

Ohmmeter

B130568E01

Tester Connection

Specified Condition

3 - 5

10 k

Ω or higher

Below 1

Ω

(Battery voltage applied to terminals 1 and 2)

HO–8

HORN  –  HORN RELAY

HO

INSTALLATION

1.

INSTALL HORN RELAY
(a) Install the horn relay.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B138429

HORN  –  LOW PITCHED HORN

HO–9

HO

BODY ELECTRICAL

HORN

LOW PITCHED HORN

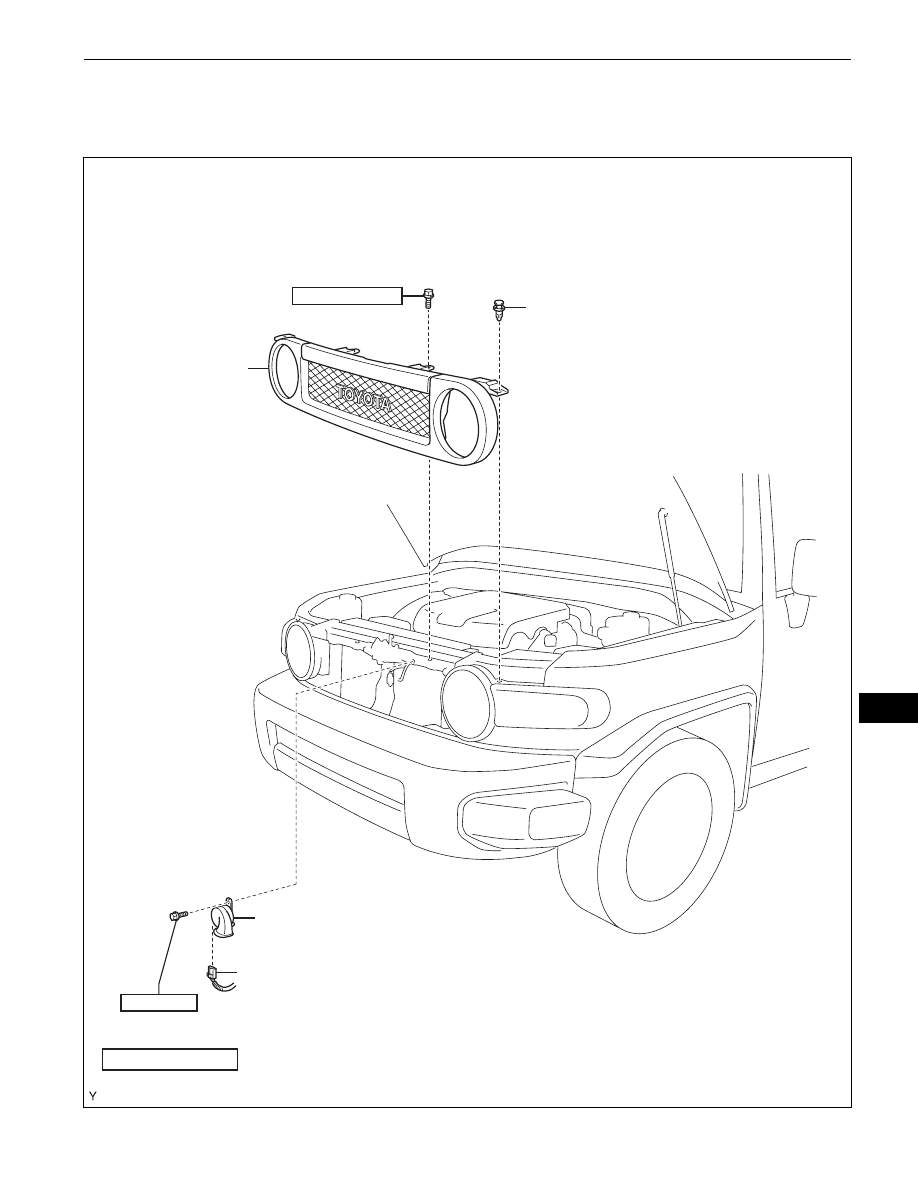

COMPONENTS

x2

x2

HORN CONNECTOR

CLIP

LOW PITCHED HORN ASSEMBLY

RADIATOR GRILLE

N*m (kgf*cm, ft*lbf)  : Specified torque

3.0 (30, 27 in.*lbf)

9.8 (100, 7)

B130569E01
