1GR-FE FUEL  –  FUEL TANK

FU–51

FU

10. CONNECT FUEL TANK BREATHER TUBE SUB-

ASSEMBLY

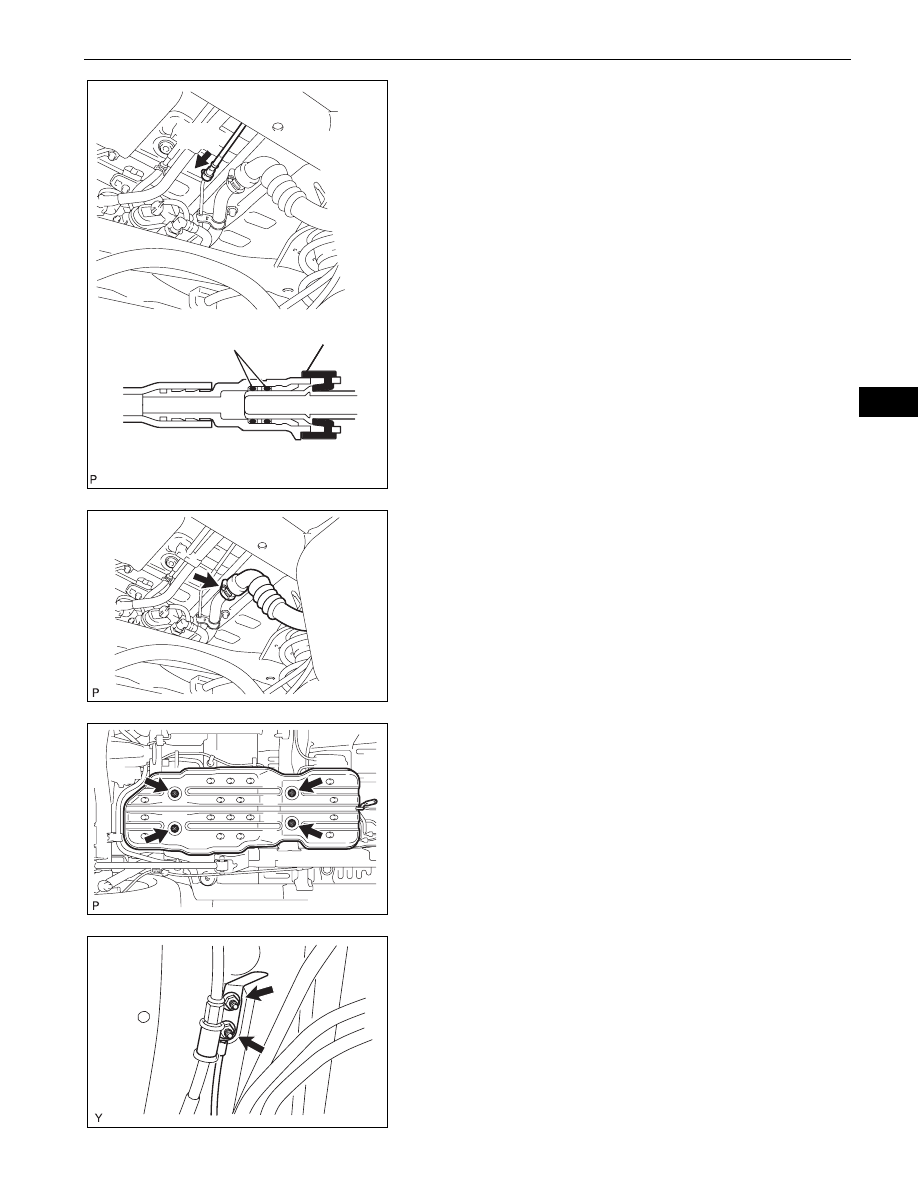

(a) Push the tube connector into the pipe until the

connector makes "click" sound.
NOTICE:

Check that there is no damage or foreign
objects on the connected part of the pipe.

After connecting, check if the pipe and the
connector are securely connected by pulling
them.

11. CONNECT FUEL TANK TO FILLER PIPE HOSE

(a) Connect the fuel tank to filler pipe hose, as shown in

the illustration, with the clamp.

12. INSTALL NO. 1 FUEL TANK PROTECTOR SUB-

ASSEMBLY
(a) Install the fuel tank protector with the 4 nuts.

Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

(b) Install the fuel tank protector bracket with the 2 nuts.

(for automatic transmission)
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

O-Ring

Retainer

PUSH

O-Ring

Retainer

O-Ring

Retainer

A129910E01

A129909

A129913

A137217

FU–52

1GR-FE FUEL  –  FUEL TANK

FU

(c) Install the fuel tank protector bracket with the nut.

(for manual transmission)
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

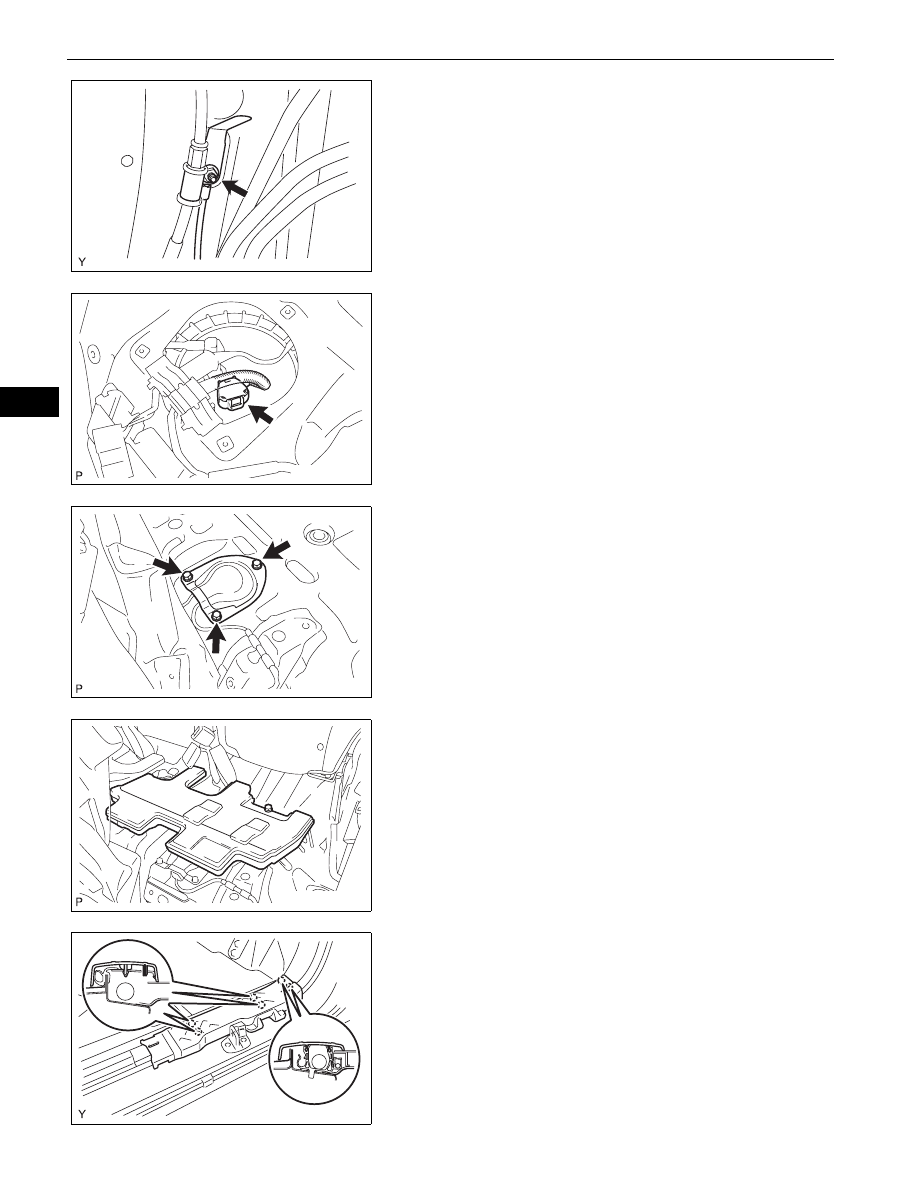

13. INSTALL REAR FLOOR SERVICE HOLE COVER

(a) Connect the connector.

(b) Install the 3 screws from the center floor.

(c) Install the center floor silencer pad LH.
(d) Install the floor carpet.

14. INSTALL REAR DOOR SCUFF PLATE LH

(a) Engage the 6 claws and install the rear door scuff

plate.

A138100

A129908

A129904

A129907

A130152

1GR-FE FUEL  –  FUEL TANK

FU–53

FU

15. INSTALL FRONT DOOR SCUFF PLATE LH

(a) Engage the 14 claws and install the front door scuff

plate.

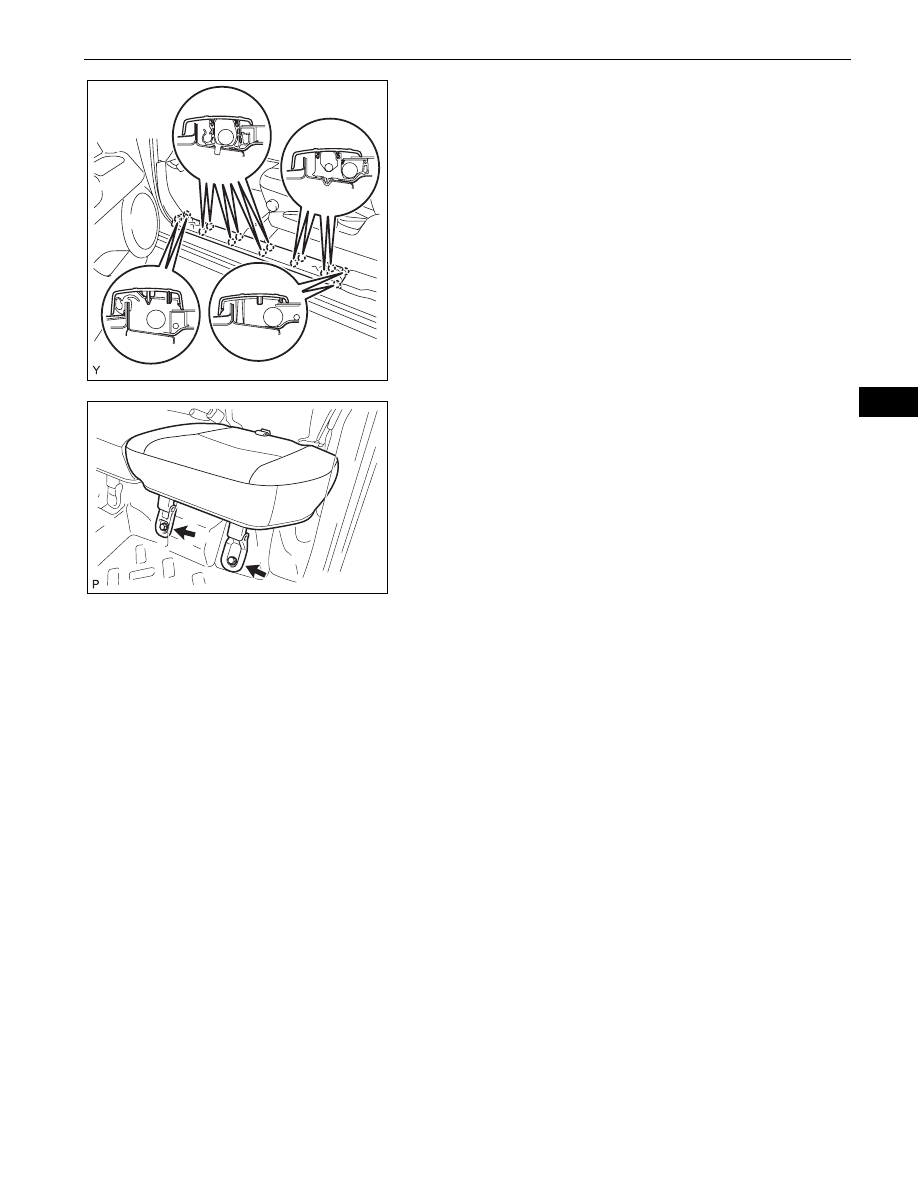

16. INSTALL REAR SEAT CUSHION ASSEMBLY LH

(a) Install the rear seat cushion assembly LH with the 2

bolts.
Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

17. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

18. CHECK FOR FUEL LEAKAGE (See page

FU-7

)

A130151

A129905

HORN  –  HORN SYSTEM

HO–1

HO

HORN SYSTEM

PRECAUTION

1.

DISCONNECT AND RECONNECT CABLE OF
NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable from the negative (-)
battery terminal, initialize the following systems after
the cable is reconnected.

(a) Before performing electronic work, disconnect the

cable from the negative (-) battery terminal in order
to prevent it from shorting and burning out.

(b) Before disconnecting and reconnecting the battery

cable, turn the ignition switch OFF and the headlight
dimmer switch OFF. Then loosen the terminal nut
completely. Do not damage the cable or terminal.

(c) When the battery cable is disconnected, the clock

and radio settings and stored DTCs are erased.
Therefore, before disconnecting the battery cable,
make a notes of them.

System Name

See procedure

METER / GAUGE SYSTEM

See page

ME-10

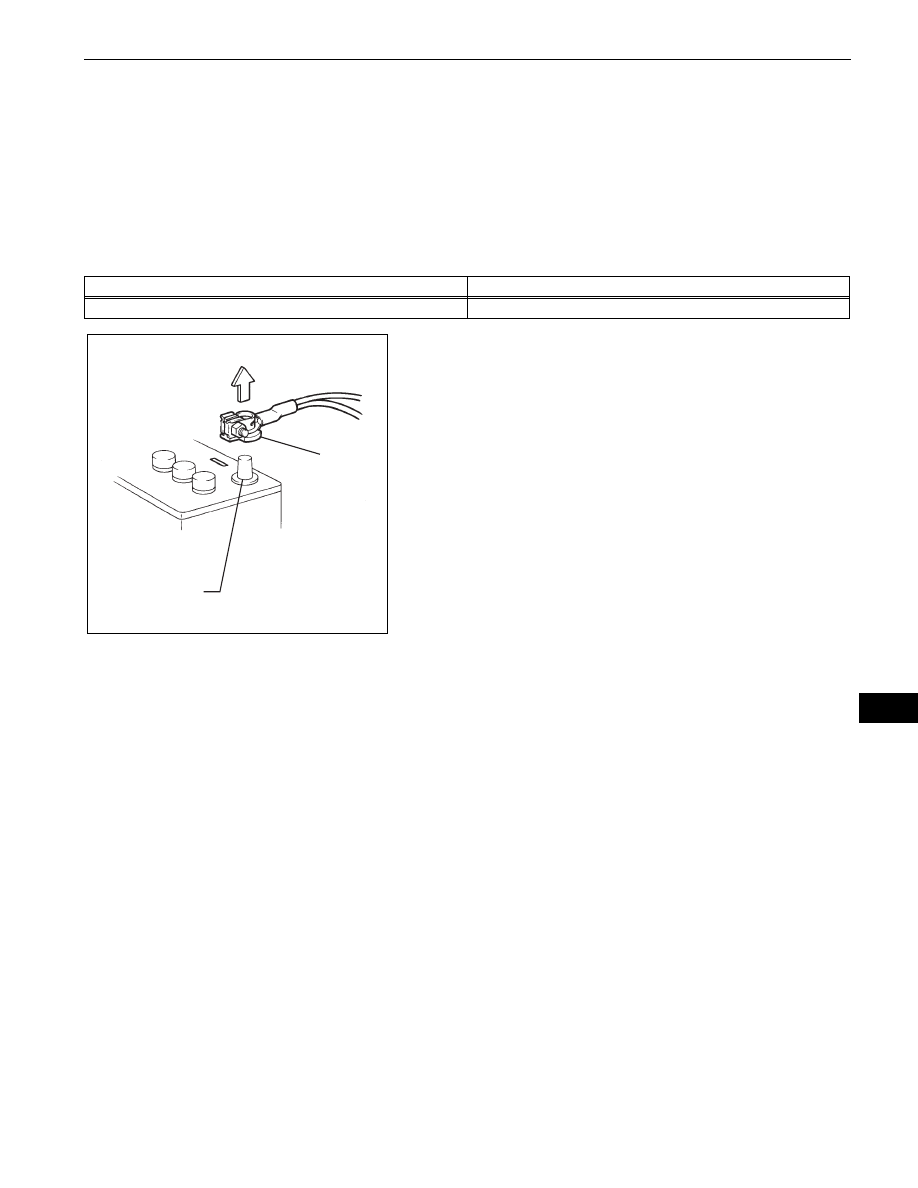

Negative (-)
Battery Terminal

Cable

D033496E01
