1GR-FE FUEL  –  FUEL TANK

FU–43

FU

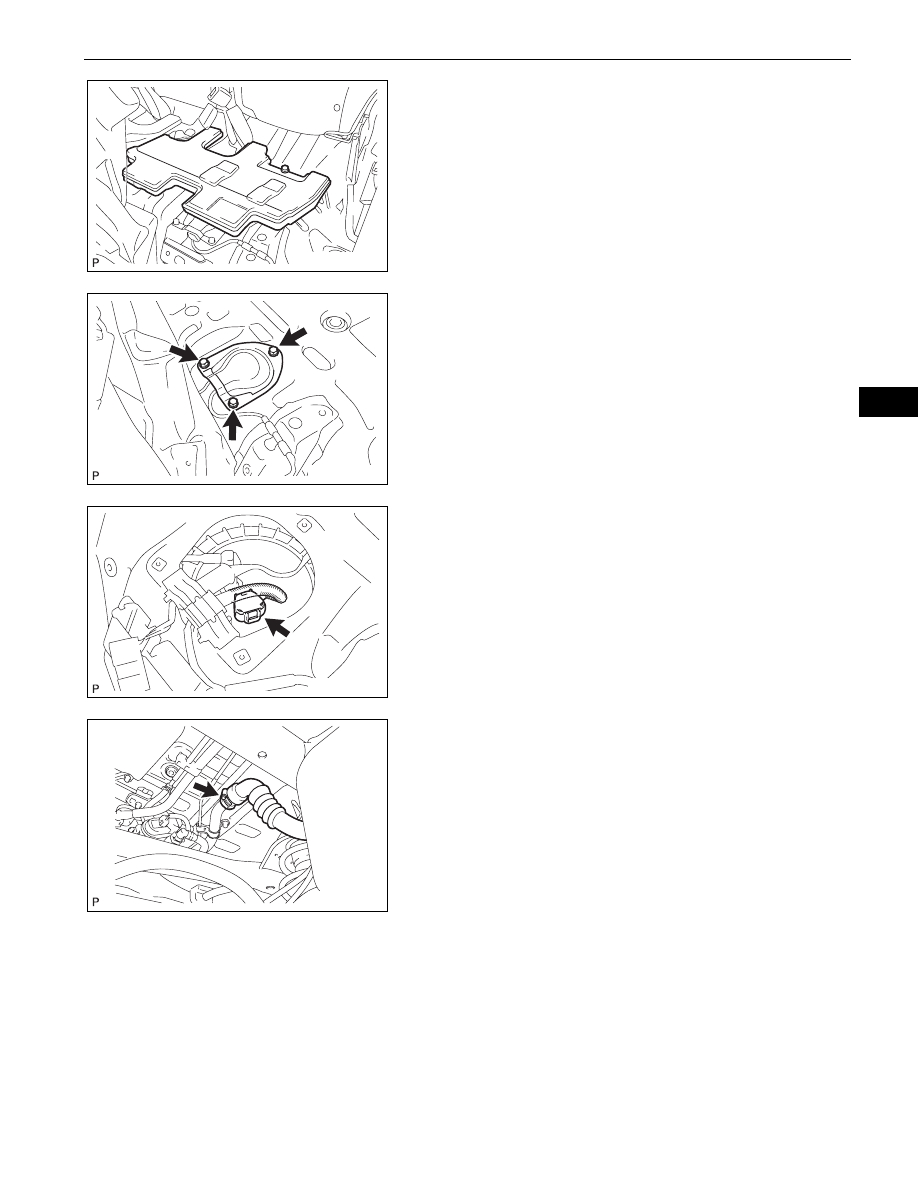

(b) Remove the center floor silencer pad LH.

(c) Remove the 3 screws from the center floor.

(d) Disconnect the connector.

7.

REMOVE FUEL TANK TO FILLER PIPE HOSE
(a) Loosen the clamp bolt, and disconnect the fuel tank

to filler pipe hose.

A129907

A129904

A129908

A129909

FU–44

1GR-FE FUEL  –  FUEL TANK

FU

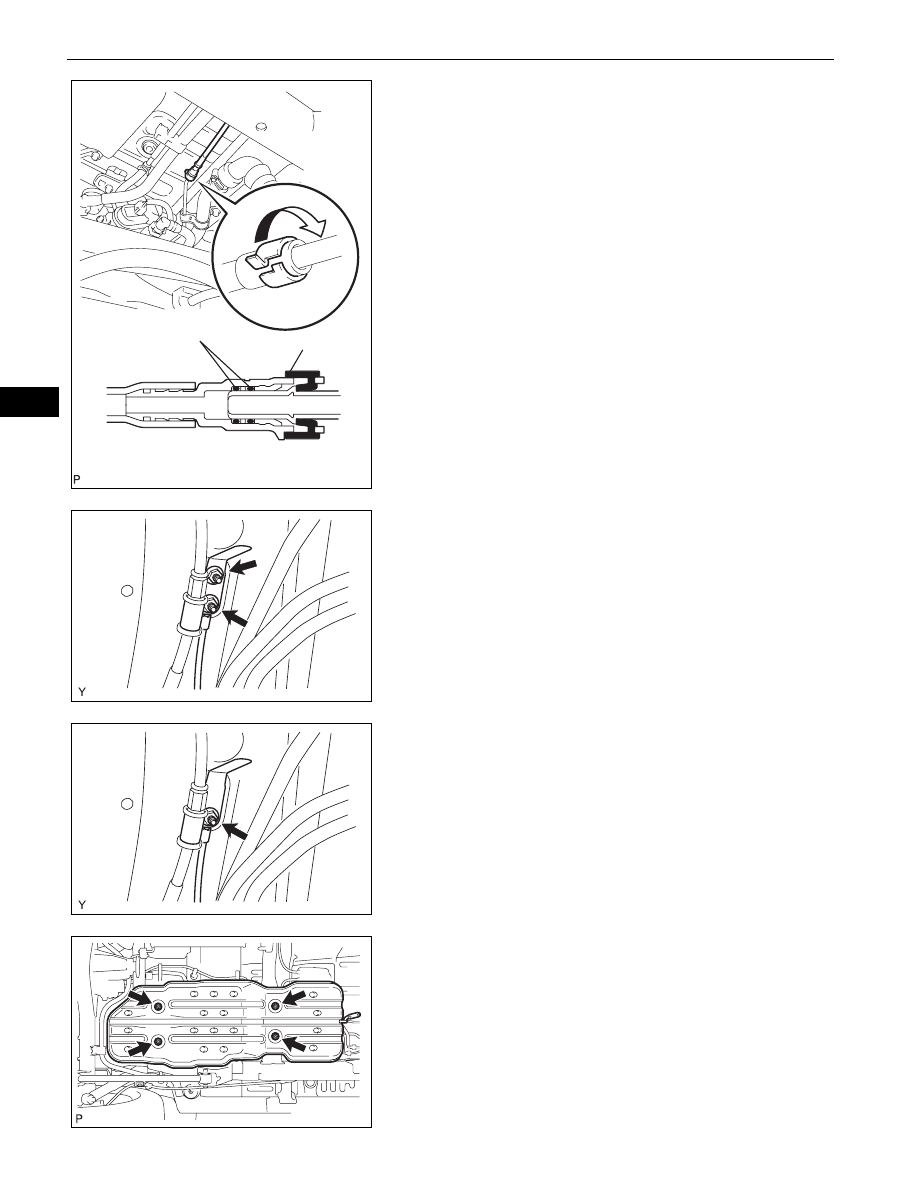

8.

REMOVE NO. 1 FUEL TANK BREATHER TUBE SUB-
ASSEMBLY
(a) Pinch the retainer to disengage the lock claws and

pull out the No.1 fuel tank breather tube.
NOTICE:
•

Check that there is no dirt or mud around the
quick connector before performing this work,
because the quick connector has an O-ring
which seals the pipe and the connector.
Clean the connector if necessary.

•

Do not use any tools in this work.

•

Do not bend or twist the nylon tube.

•

To protect the tube, cover it with a vinyl bag
after disconnecting it.

•

When the connector and the pipe are stuck,
turn the retainer carefully to free and then
disconnect the fuel tank tube.

9.

REMOVE NO. 1 FUEL TANK PROTECTOR SUB-
ASSEMBLY
(a) Remove the 2 nuts and the fuel tank protector

bracket. (for automatic transmission)

(b) Remove the nut and the fuel tank protector bracket.

(for manual transmission)

(c) Remove the 4 nuts and the fuel tank protector.

O-Ring

Retainer

A138099E01

A137217

A138100

A129913

1GR-FE FUEL  –  FUEL TANK

FU–45

FU

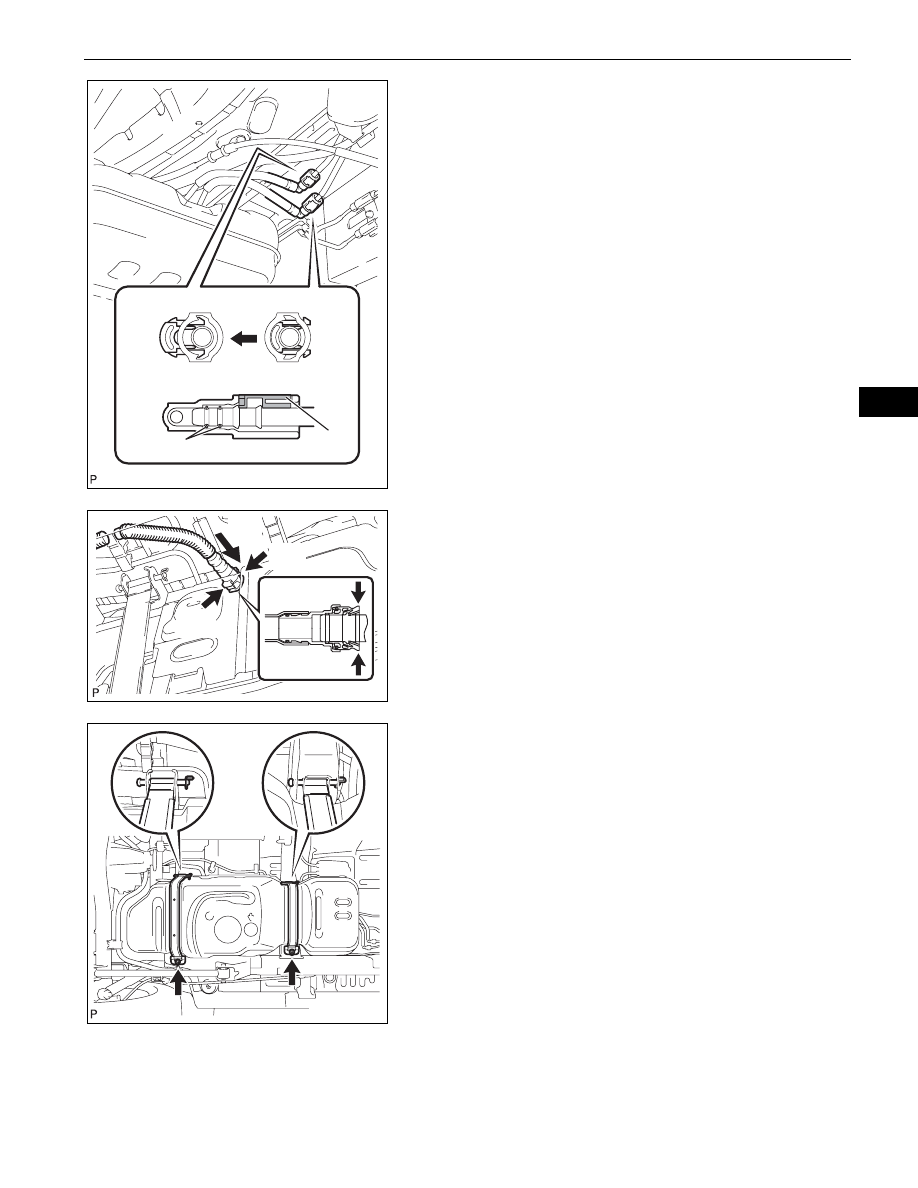

10. DISCONNECT FUEL TANK MAIN TUBE AND FUEL

TANK RETURN TUBE
(a) Pinch the retainer to disengage the lock claws and

pull out the 2 fuel tank tubes.
NOTICE:
•

Check that there is no dirt or mud around the
quick connector before performing this work,
because the quick connector has an O-ring
which seals the pipe and the connector.
Clean the connector if necessary.

•

Do not use any tools in this work.

•

Do not bend or twist the nylon tube.

•

To protect the tube, cover it with a vinyl bag
after disconnecting it.

•

When the connector and the pipe are stuck,
turn the retainer carefully to disconnect them.

11. DISCONNECT FUEL TANK VENT HOSE

(a) Disconnect the fuel tank breather tube from the fuel

tank.
(1) Push the connector deep inside.
(2) Pinch portion A, as shown in the illustration.
(3) Pull out the connector.

12. REMOVE FUEL TANK ASSEMBLY

(a) Hold the fuel tank using a mission jack.

(b) Remove the 2 fuel tank bands.

(1) Remove the 2 bolts.
(2) Remove the 2 clips and 2 pins, then remove

the 2 fuel tank bands.

UNLOCK

LOCK

O-Ring

Retainer

A129911E02

Push

Pinch

A

Pinch

A

A129912E01

A129914

FU–46

1GR-FE FUEL  –  FUEL TANK

FU

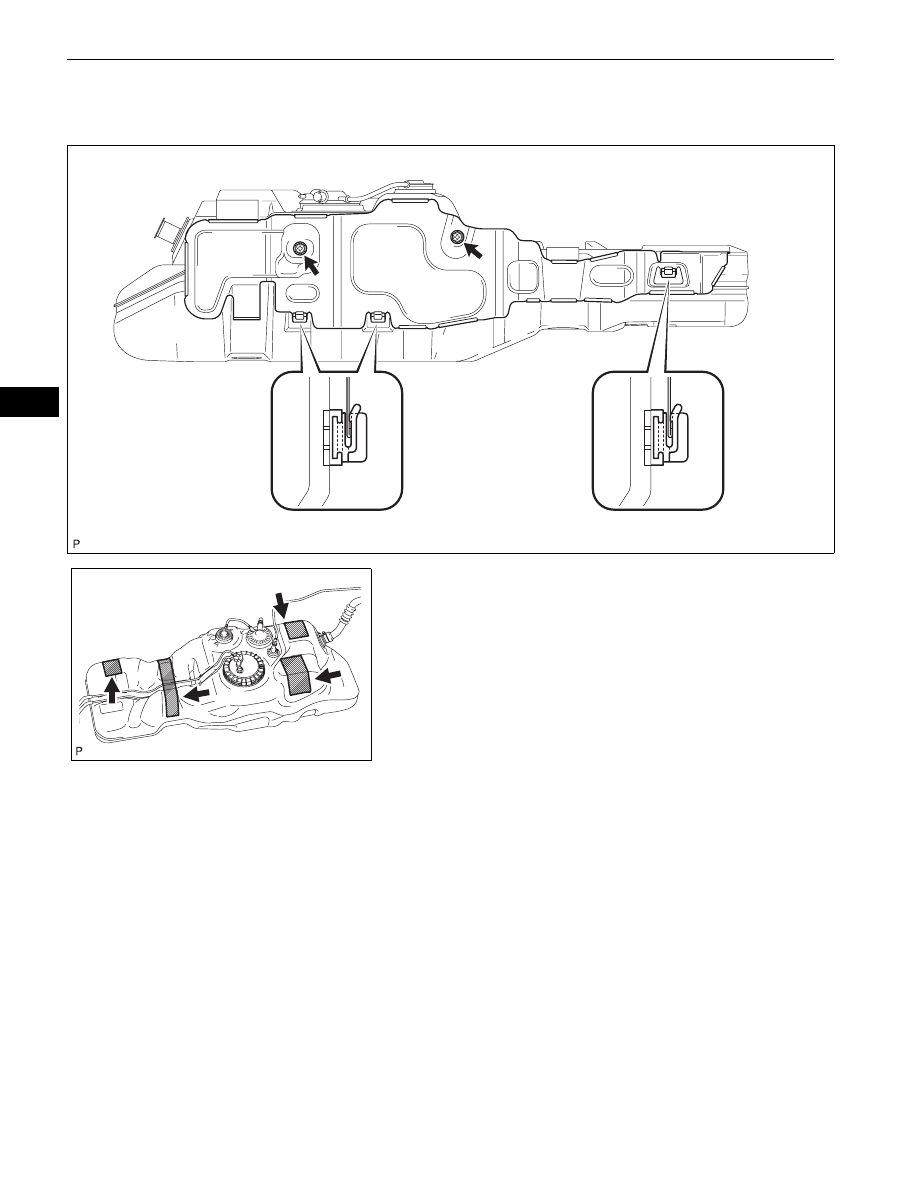

13. REMOVE NO. 3 FUEL TANK PROTECTOR

(a) Remove the 2 bolts and disengage the 3 claws,

then remove the No. 3 fuel tank protector.

14. REMOVE FUEL TANK CUSHION

(a) Remove the 4 fuel tank cushions from the fuel tank.

A129923

A129919
