1GR-FE FUEL  –  FUEL PUMP

FU–35

FU

8.

INSTALL NO.1 FUEL TANK PROTECTOR SUB-
ASSEMBLY (See page

FU-51

)

9.

INSTALL REAR FLOOR SERVICE HOLE COVER (See
page

FU-52

)

10. INSTALL REAR SEAT CUSHION ASSEMBLY LH (See

page

FU-53

)

11. INSTALL REAR DOOR SCUFF PLATE LH (See page

FU-52

)

12. INSTALL FRONT DOOR SCUFF PLATE LH (See page

FU-53

)

13. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

14. CHECK FOR FUEL LEAKAGE (See page

FU-7

)

FU–36

1GR-FE FUEL  –  FUEL PUMP RESISTOR

FU

ENGINE

1GR-FE FUEL

FUEL PUMP RESISTOR

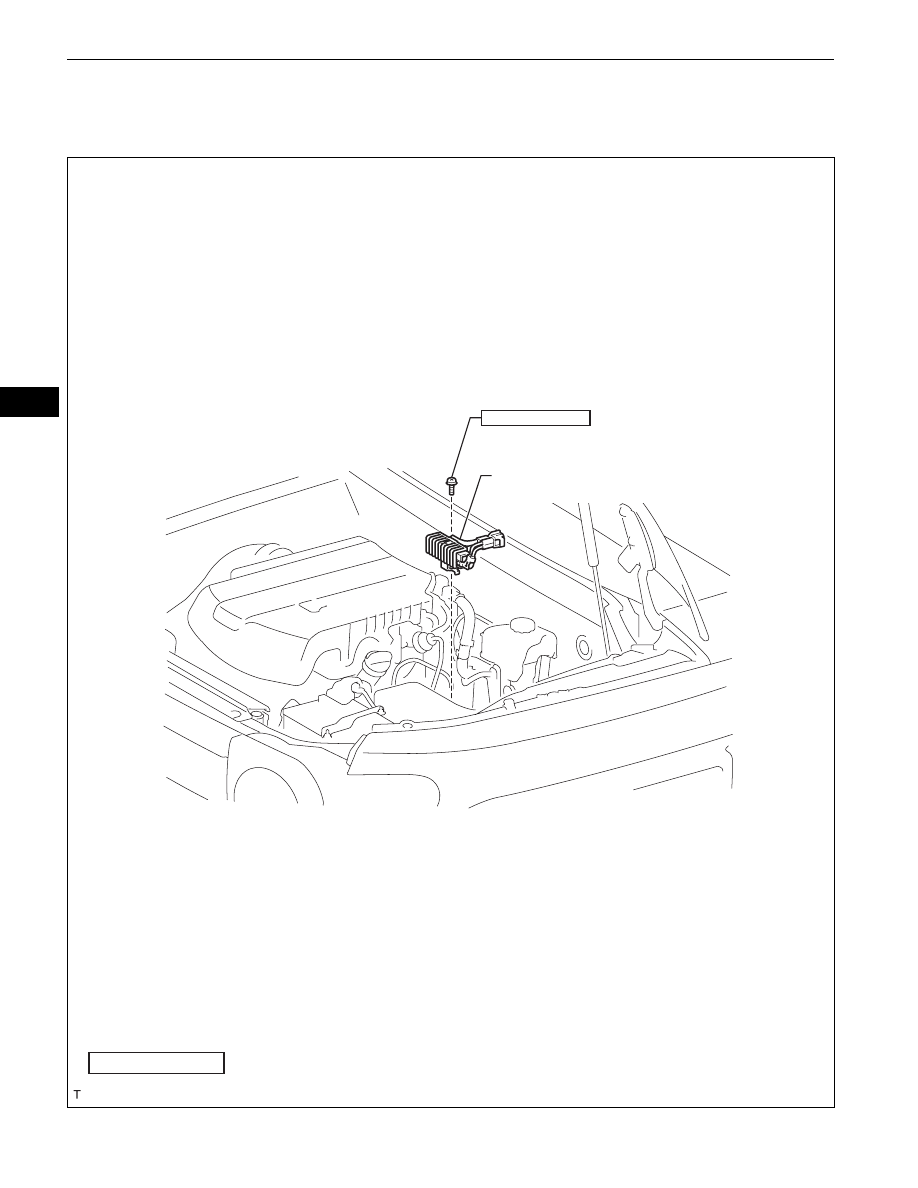

COMPONENTS

N*m (kgf*cm, ft*lbf)  : Specified torque

8.5 (87, 75 in.*lbf)

FUEL PUMP RESISTER

A126459E01

1GR-FE FUEL  –  FUEL PUMP RESISTOR

FU–37

FU

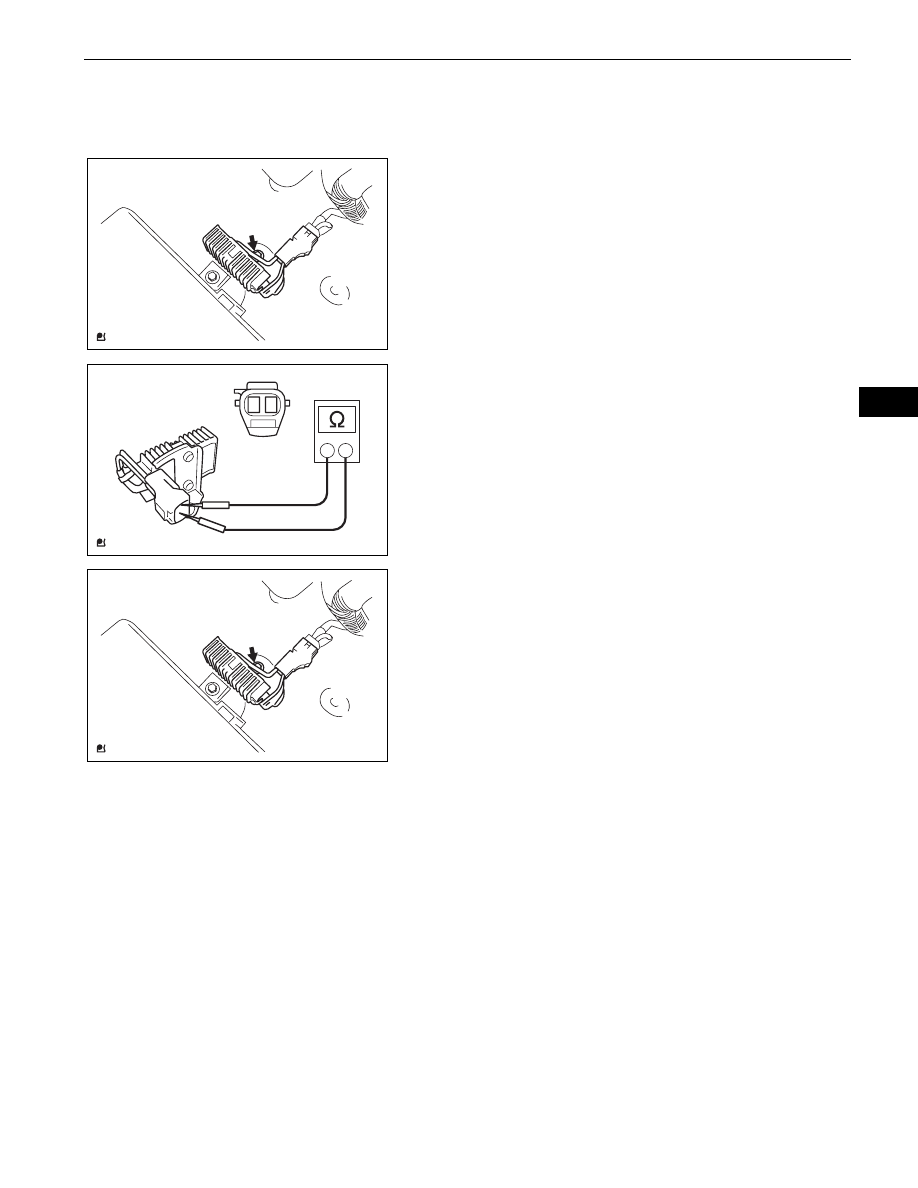

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE FUEL PUMP RESISTOR
(a) Disconnect the connector.
(b) Remove the bolt and the fuel pump resistor.

INSPECTION

1.

INSPECT FUEL PUMP RESISTER
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance:

0.941 to 0.999

Ω

If the result is not as specified, replace the fuel
pump resistor.

INSTALLATION

1.

INSTALL FUEL PUMP RESISTOR
(a) Install the fuel pump resistor with the bolt.

Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

(b) Connect the connector.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

A126379E01

2 1

Ohmmeter

A126380E01

A126379E01

FU–38

1GR-FE FUEL  –  FUEL TANK

FU

ENGINE

1GR-FE FUEL

FUEL TANK

COMPONENTS

37 (377, 27)

N*m (kgf*cm, ft*lbf)  : Specified torque

FRONT DOOR
SCUFF PLATE LH

REAR DOOR SCUFF PLATE LH

REAR SEAT CUSHION ASSEMBLY LH

CENTER FLOOR SILENCER PAD LH

37 (377, 27)

A129922E01
