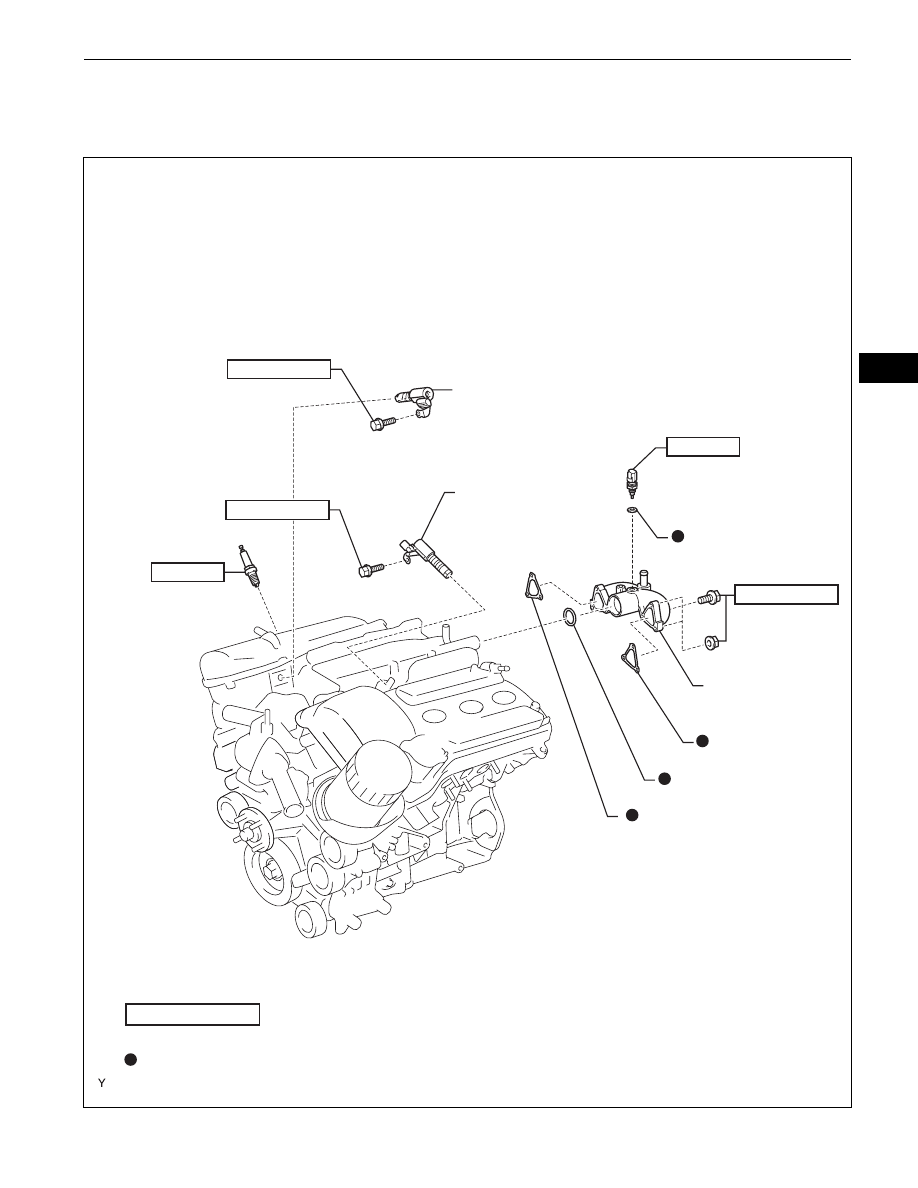

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM–119

EM

ENGINE

1GR-FE ENGINE MECHANICAL

ENGINE UNIT

COMPONENTS

CAMSHAFT TIMING
OIL CONTROL
VALVE ASSEMBLY

CAMSHAFT TIMING OIL CONTROL
VALVE ASSEMBLY

ENGINE COOLANT
TEMPERATURE SENSOR

SPARK PLUG

WATER BY-PASS
JOINT RR

9.0 (92, 80 in.*lbf)

20 (200, 14)

For Bank 1:

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

O-RING

GASKET

GASKET

For Bank 2:

9.0 (92, 80 in.*lbf)

20 (200, 14)

9.0 (92, 80 in.*lbf)

GASKET

x2

x4

x6

A126337E01

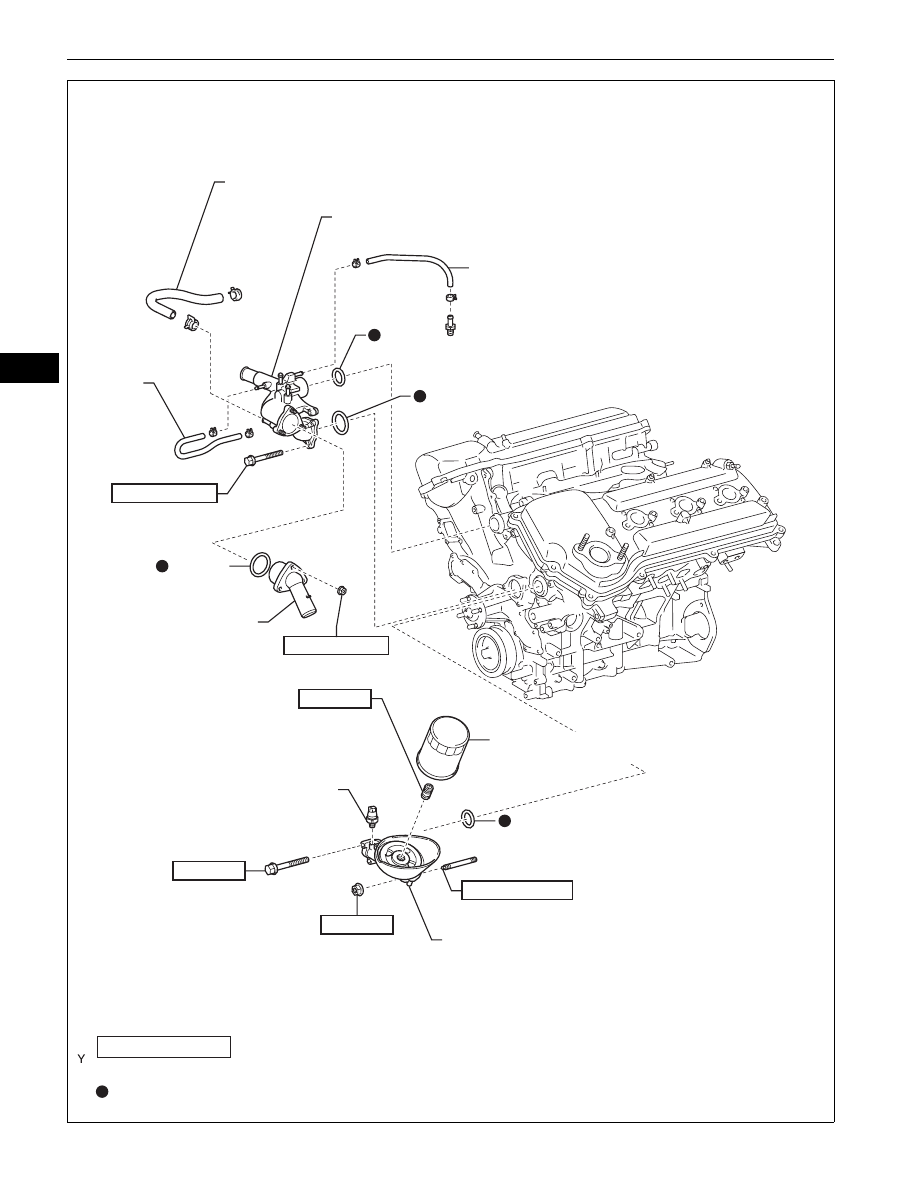

EM–120

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM

ENGINE OIL PRESSURE
SWITCH ASSEMBLY

NO. 2 WATER BY-PASS HOSE

NO. 3 WATER BY-PASS HOSE

OIL FILTER BRACKET SUB-ASSEMBLY

OIL FILTER SUB-ASSEMBLY

OIL FILTER UNION

WATER
BY-PASS
HOSE

WATER INLET

WITH THERMOSTAT
WATER INLET
SUB-ASSEMBLY

Non-reusable part

N*m (kgf*cm, ft*lbf)  : Specified torque

GASKET

O-RING

x5

19 (194, 14)

O-RING

9.0 (92, 80 in.*lbf)

10 (102, 7.4 in.*lbf)

30 (306, 22)

x3

x3

x2

GASKET

9.0 (92, 80 in.*lbf)

19 (194, 14)

A126336E01

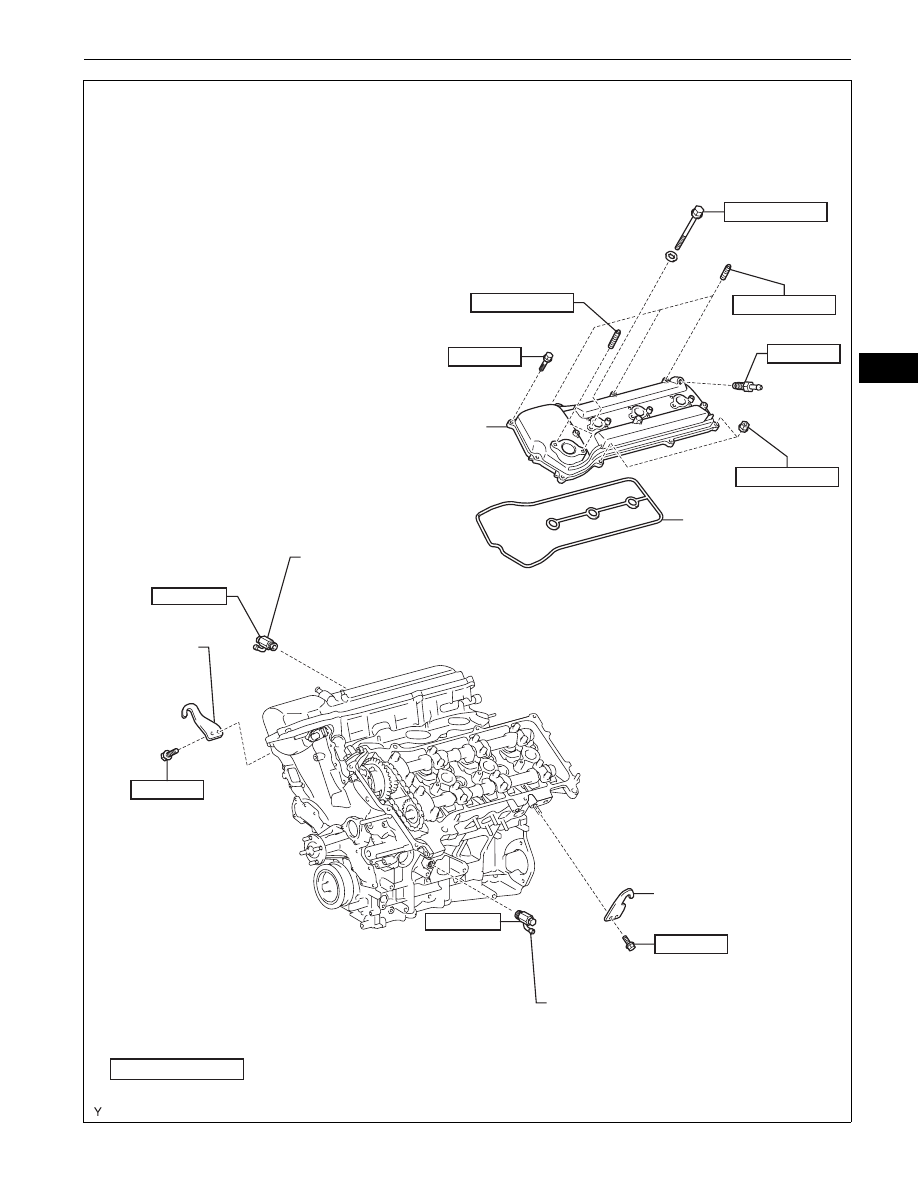

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM–121

EM

CYLINDER BLOCK WATER
DRAIN COCK SUB-ASSEMBLY

CYLINDER HEAD COVER
SUB-ASSEMBLY LH

CYLINDER BLOCK
WATER DRAIN COCK
SUB-ASSEMBLY

9.0 (92, 80 in.*lbf)

33 (336, 24)

N*m (kgf*cm, ft*lbf)  : Specified torque

GASKET

25 (255, 18)

NO. 2 ENGINE HANGER

x2

33 (336, 24)

x2

NO. 1 ENGINE
HANGER

25 (255, 18)

27 (275, 20)

6.0 (61, 53 in.*lbf)

9.0 (92, 80 in.*lbf)

x3

x7

6.0 (61, 53 in.*lbf)

10 (102, 7.4)

A126338E01

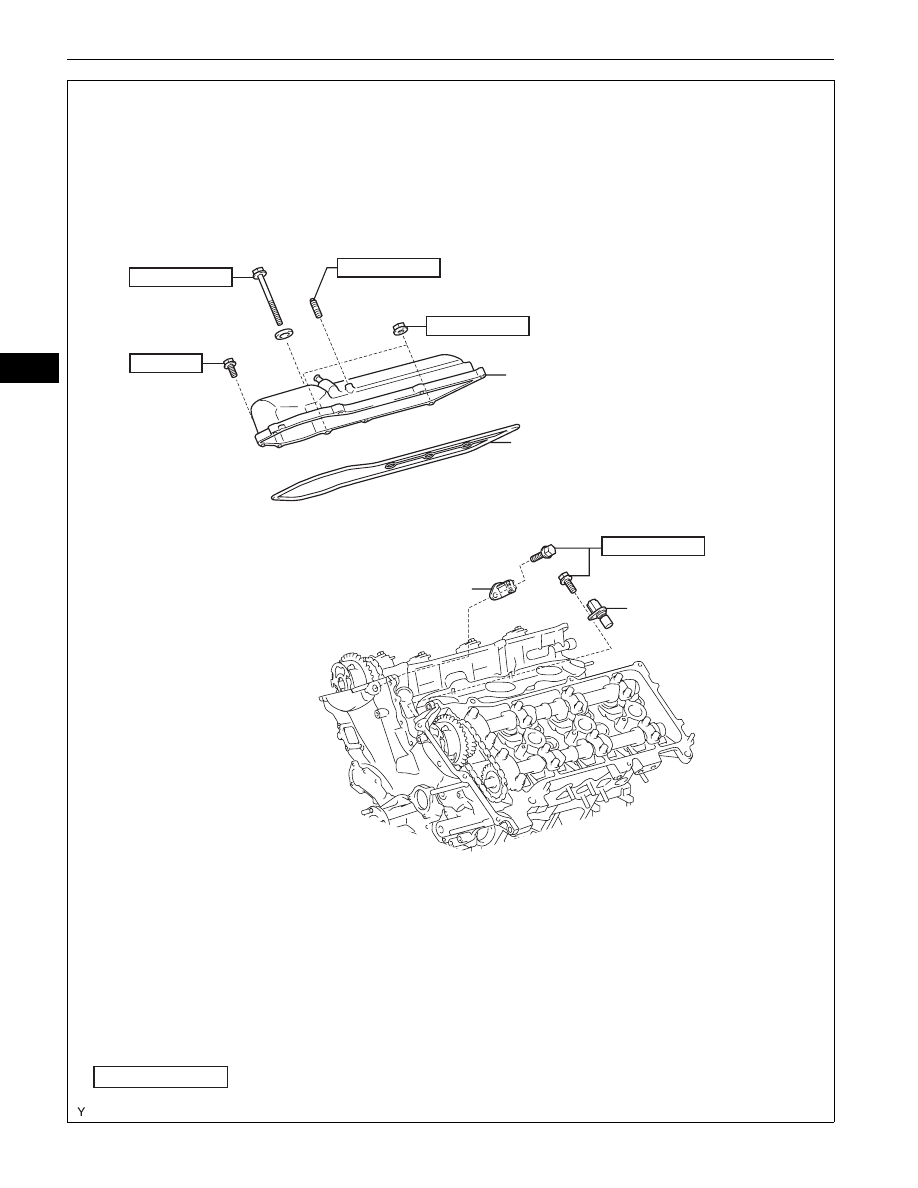

EM–122

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM

CYLINDER HEAD COVER
SUB-ASSEMBLY

VVT SENSOR

VVT SENSOR

8.0 (82, 71 in.*lbf)

10 (102, 7.4)

N*m (kgf*cm, ft*lbf)  : Specified torque

GASKET

9.0 (92, 80 in.*lbf)

x3

x7

6.0 (61, 53 in.*lbf)

9.0 (92, 80 in.*lbf)

A126339E01
