1GR-FE ENGINE MECHANICAL  –  CYLINDER HEAD

EM–81

EM

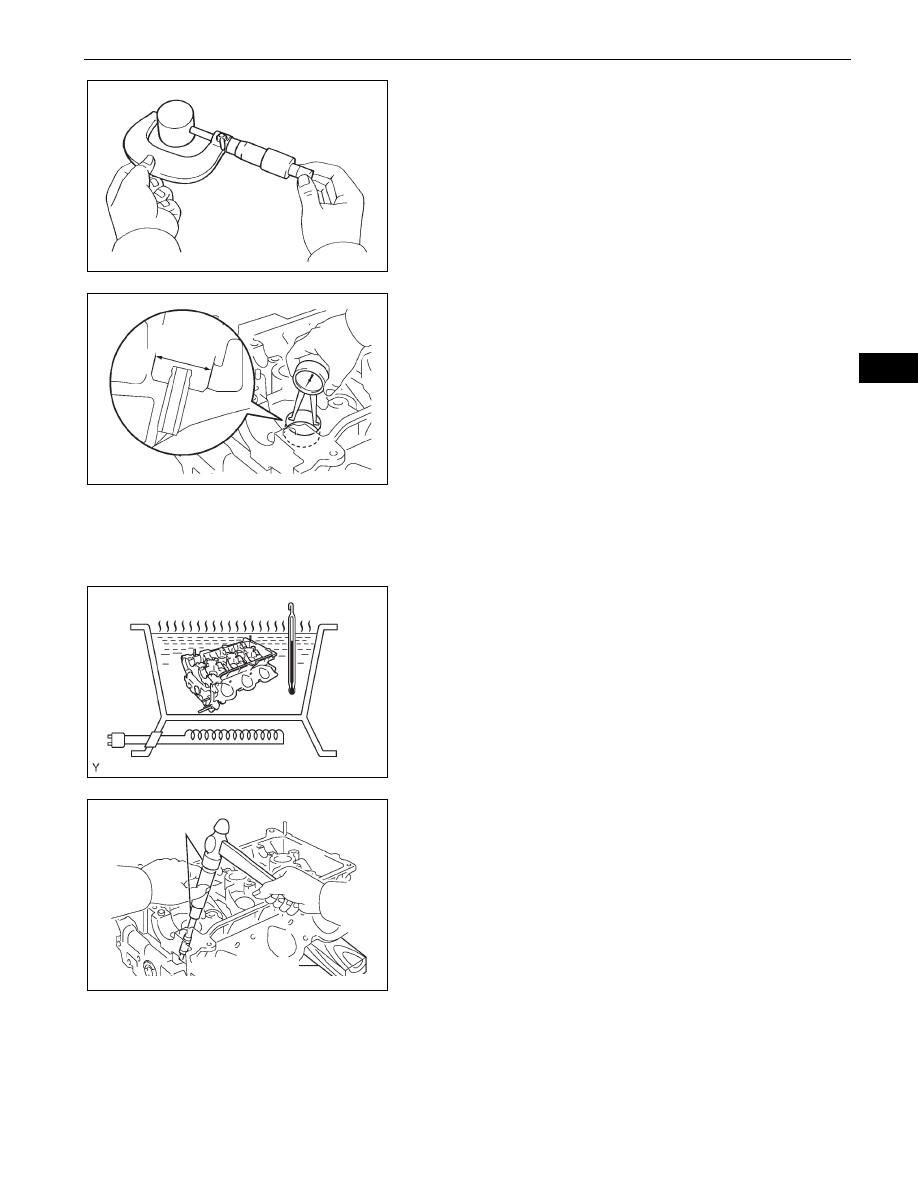

10. INSPECT VALVE LIFTER

(a) Using a micrometer, measure the valve lifter

diameter.
Valve lifter diameter:

30.966 to 30.976 mm (1.2191 to 1.2195 in.)

11. INSPECT VALVE LIFTER OIL CLEARANCE

(a) Using a caliper gauge, measure the lifter bore

diameter of the cylinder head.
Lifter bore diameter:

31.009 to 31.025 mm (1.2208 to 1.2215 in.)

(b) Subtract the valve lifter diameter measurement

(Step 16) from the lifter bore diameter
measurement.
Standard oil clearance:

0.033 to 0.059 mm (0.0013 to 0.0023 in.)

Maximum oil clearance:

0.08 mm (0.0031 in.)

If the oil clearance is greater than the maximum,
replace the valve lifter.
If necessary, replace the cylinder head.

REPLACEMENT

1.

REMOVE VALVE GUIDE BUSH
(a) Gradually heat the cylinder head to 80 to 100

°C

(176 to 212

°F).

(b) Place the cylinder head on a wooden block.
(c) Using SST, tap out the valve guide bush.

SST

09201-10000, 09201-01055, 09950-70010
(09951-07100)

P016860E01

Diameter

A075621E02

A075616E01

Wooden Block

SST

A075617E02

EM–82

1GR-FE ENGINE MECHANICAL  –  CYLINDER HEAD

EM

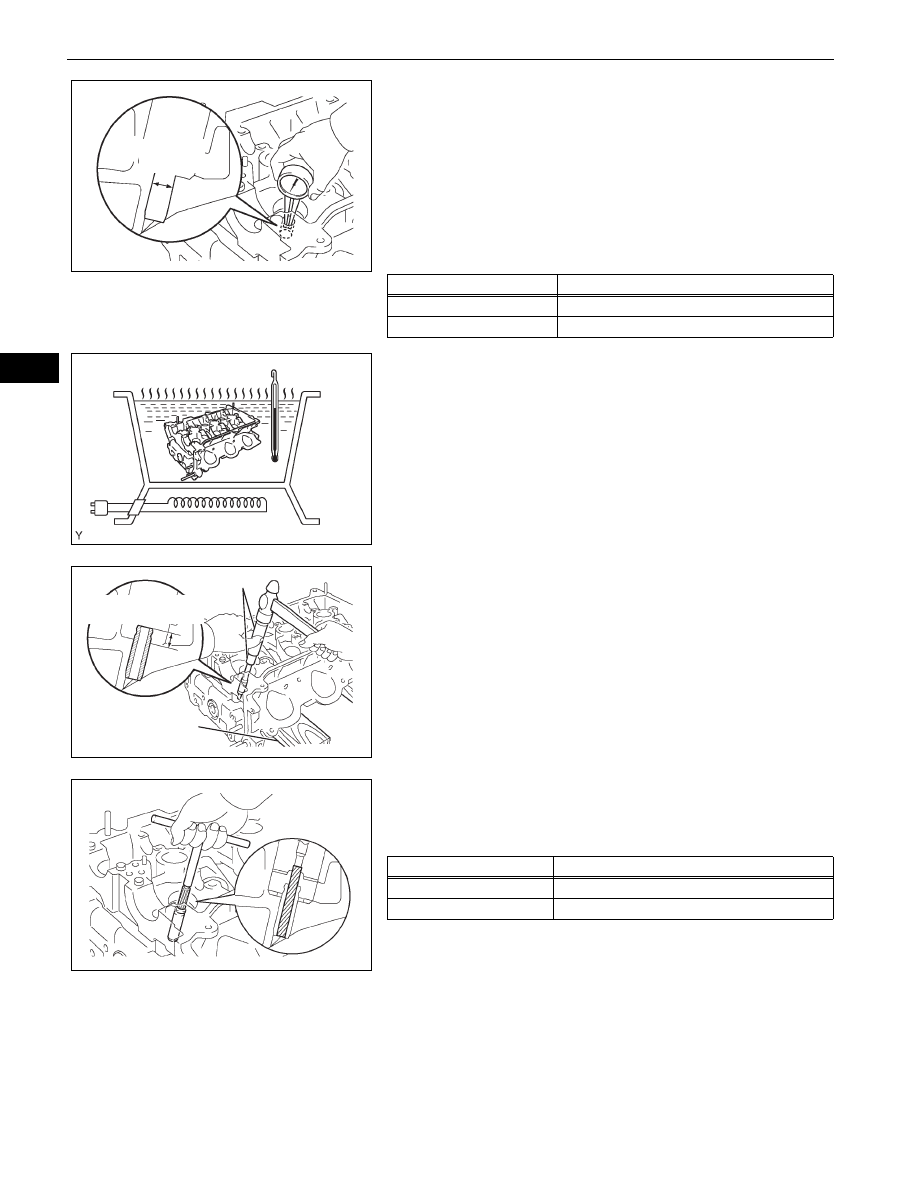

2.

INSTALL VALVE GUIDE BUSH
(a) Using a caliper gauge, measure the bush bore

diameter of the cylinder head.
Bush bore diameter:

10.295 to 10.315 mm (0.4053 to 0.4061 in.)

If the bush bore diameter of the cylinder head is
greater than 10.315 mm (0.4061 in.), machine the
bush bore to the dimension of 10.345 to 10.365 mm
(0.4073 to 0.4081 in.).
Valve guide bush diameter

(b) Gradually heat the cylinder head to 80 to 100

°C

(176 to 212

°F).

(c) Place the cylinder head on a wooden block.
(d) Using SST, tap in a new valve guide bush to the

specified protrusion height.
SST

09201-10000, 09201-01055, 09950-70010
(09951-07100)

Protrusion height:

9.3 to 9.7 mm (0.366 to 0.382 in.)

(e) Using a sharp 5.5 mm reamer, ream the valve guide

bush to the standard specified clearance between
the valve guide bush and valve stem.
Standard oil clearance:

Diameter

A075618E01

Item

mm (in.)

STD

10.333 to 10.344 (0.4068 to 0.4072)

O/S 0.05

10.383 to 10.394 (0.4088 to 0.4092)

A075616E01

SST

Protrusion Height

Wooden Block

A075619E03

A075620E01

Value guide

Specification

Intake

0.025 to 0.060 mm (0.0010 to 0.0024 in.)

Exhaust

0.030 to 0.065 mm (0.0012 to 0.0026 in.)

1GR-FE ENGINE MECHANICAL  –  CYLINDER HEAD

EM–83

EM

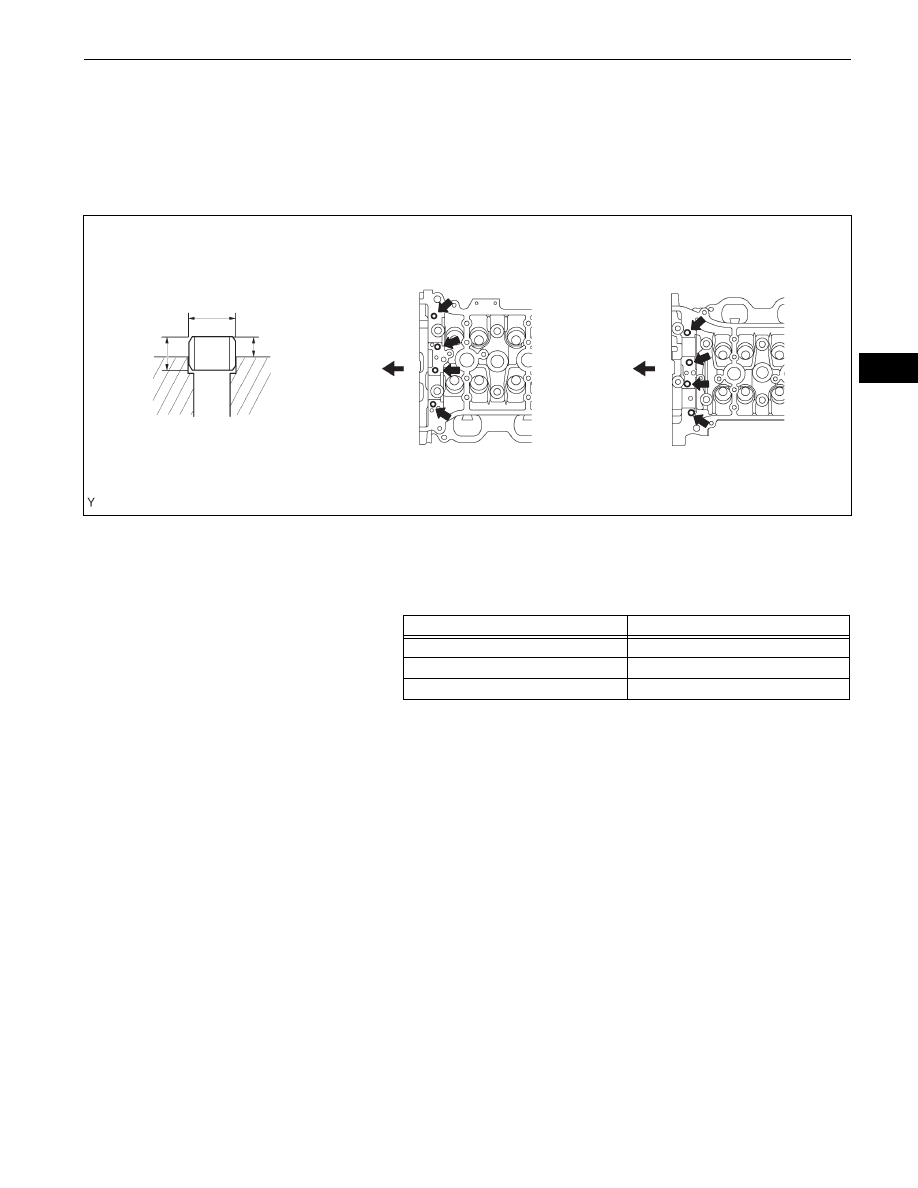

REASSEMBLY

1.

INSTALL RING PIN
(a) Using a plastic-faced hammer, tap in new ring pins

to the specified protrusion height.
Specified protrusion height:

2.7 to 3.3 mm (0.106 to 0.130 in.)

2.

INSTALL STRAIGHT PIN
(a) Using a plastic-faced hammer, tap in new straight

pins to the specified protrusion height.
Specified protrusion height

11 mm

8 mm

Protrusion
Height

Engine
Front

Engine
Front

Cylinder Head RH Side:

Cylinder Head LH Side:

A075625E04

Pin

Specification

A

17.5 to 19.5 mm (0.689 to 0.768 in.)

B

7.5 to 8.5 mm (0.295 to 0.335 in.)

C

7.0 to 9.0 mm (0.276 to 0.354 in.)

EM–84

1GR-FE ENGINE MECHANICAL  –  CYLINDER HEAD

EM

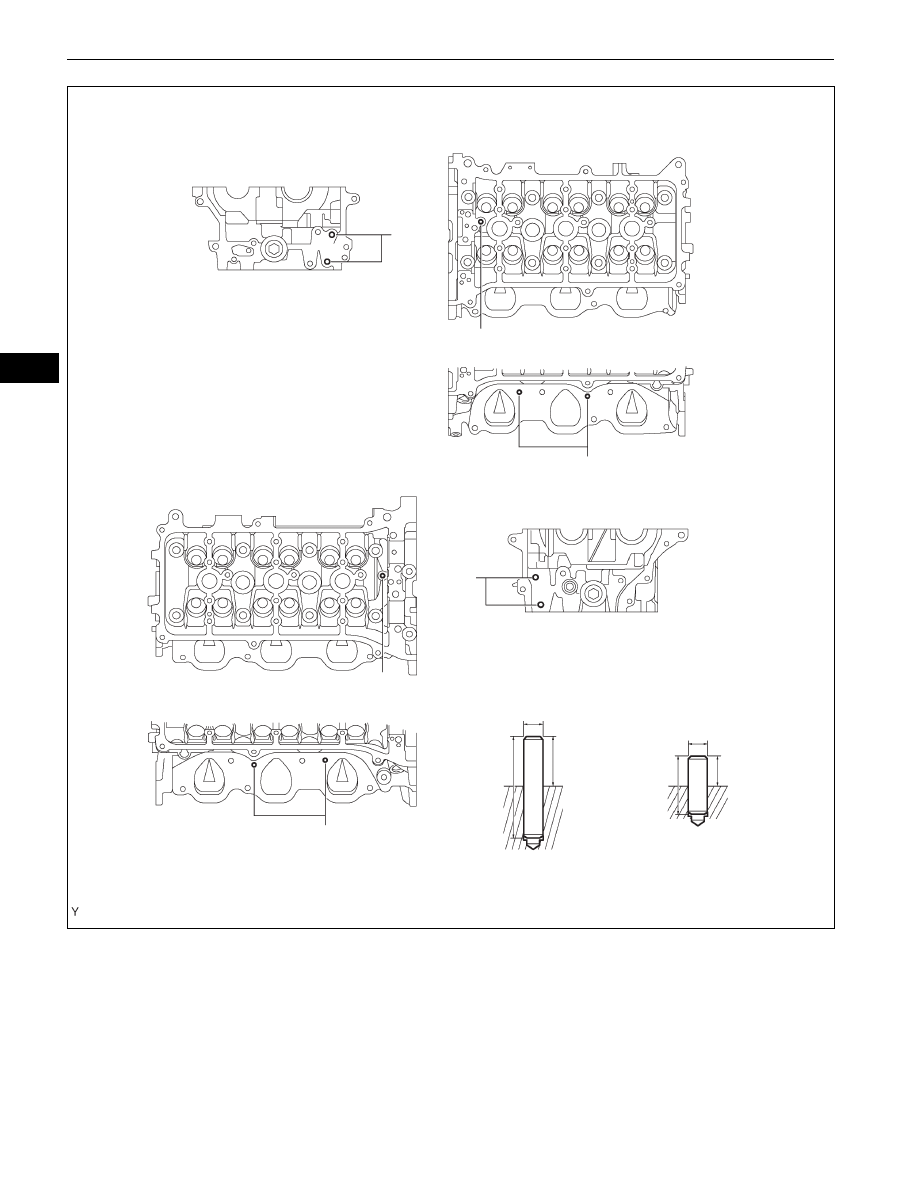

3.

INSTALL STUD BOLT
(a) Using "Torx" socket wrench E5 and E7, install the

stud bolts.
Torque: Stud bolt A

4.0 N*m (41 kgf*cm, 35 in.*lbf)
Stud bolt B
9.0 N*m (92 kgf*cm, 80 in.*lbf)
Stud bolt C
4.0 N*m (41 kgf*cm, 35 in.*lbf)

Cylinder Head RH Side:

Cylinder Head LH Side:

Front Side:

Front Side:

Upper Side:

Upper Side:

Intake Manifold Side:

B

A

A

A

C

C

B

Intake Manifold Side:

8 mm

34 mm

13.8 mm

5 mm

B and C

Protrusion
Height

Protrusion
Height

A075627E04
