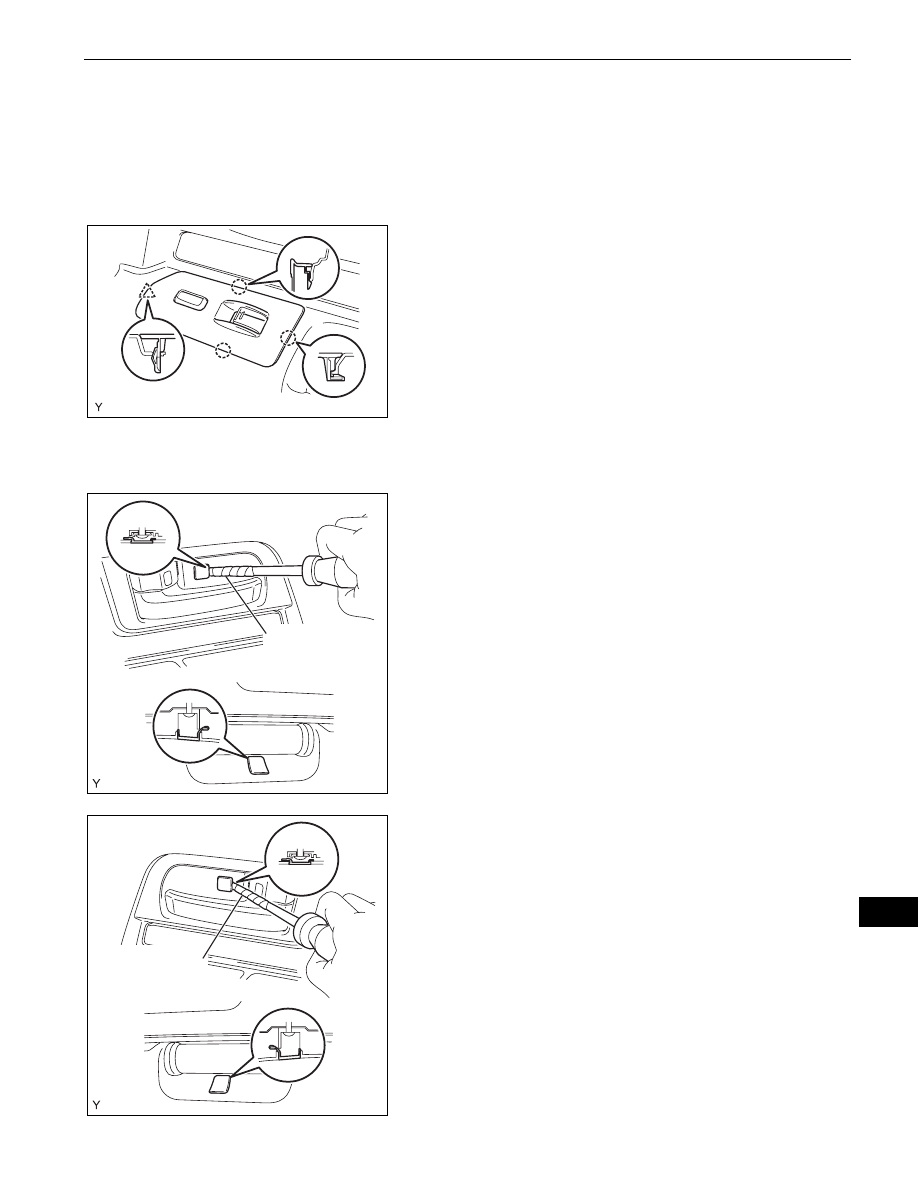

ENGINE HOOD / DOOR  –  FRONT DOOR

ED–9

ED

DISASSEMBLY

HINT:
•

Use the same procedure for both the RH and LH sides.

•

The procedure described below is for the RH side.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE FRONT ARMREST BASE UPPER PANEL
(a) Disengage the 3 claws and clip and remove the

front armrest base upper panel.

(b) Disconnect the connector.

3.

REMOVE POWER WINDOW REGULATOR MASTER
SWITCH ASSEMBLY (for Driver Side) (See page

WS-

25

)

4.

REMOVE POWER WINDOW REGULATOR SWITCH
ASSEMBLY (for Front Passenger Side) (See page

WS-29

)

5.

REMOVE DOOR CONTROL SWITCH (for Front
Passenger Side) (See page

DL-93

)

6.

REMOVE FRONT DOOR TRIM BOARD SUB-
ASSEMBLY
(a) for LH side:

Using a screwdriver with its tip wrapped in
protective tape, open the 2 covers.

(b) for RH side:

Using a screwdriver with its tip wrapped in
protective tape, open the 2 covers.

B135557

Protective Tape

B140030E01

Protective Tape

B135568E01

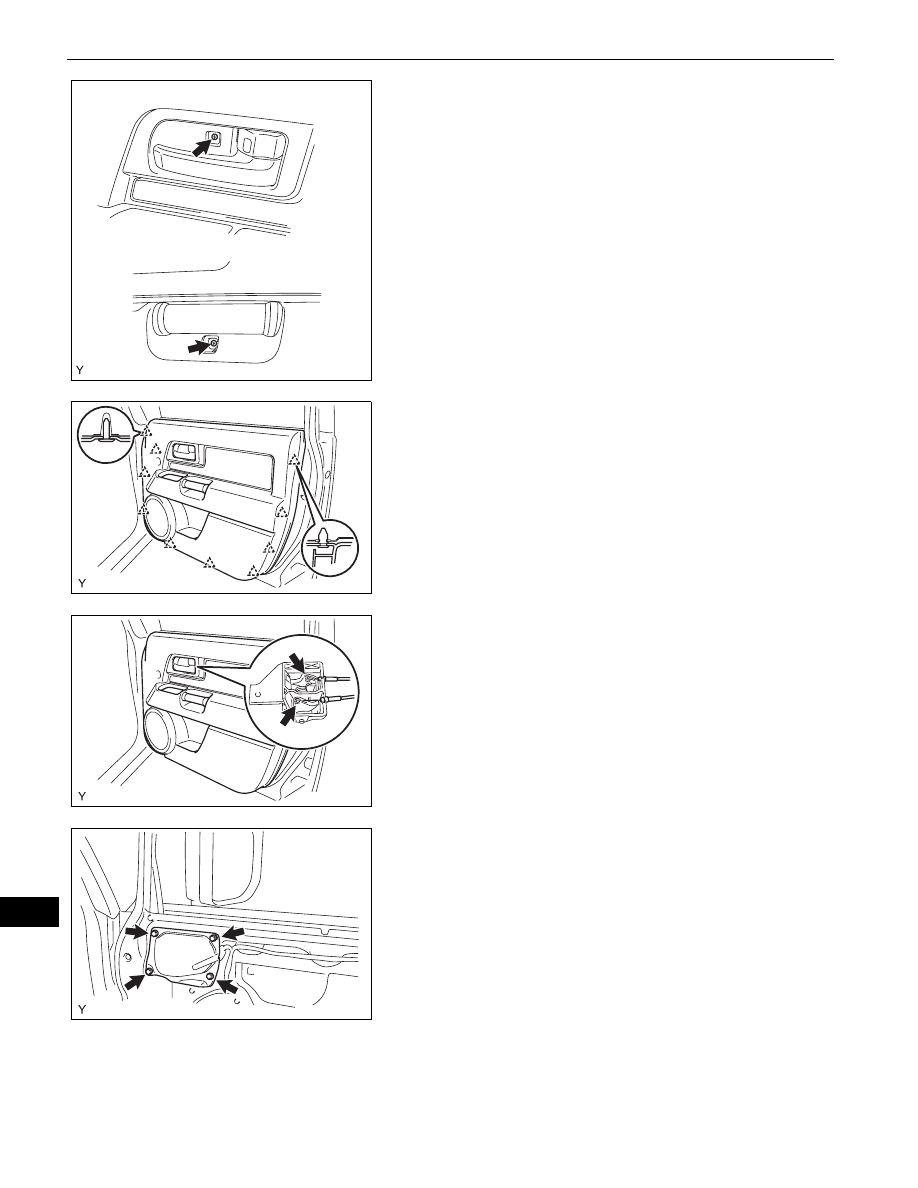

ED–10

ENGINE HOOD / DOOR  –  FRONT DOOR

ED

(c) Remove the 2 screws.

(d) Disengage the 10 clips.

(e) Disconnect the front door lock remote control cable

and front door inside locking cable and remove the
front door trim board.

7.

REMOVE FRONT NO.2 DOOR SERVICE HOLE
COVER
(a) Remove the 4 screws and front No. 2 door service

hole cover.

8.

REMOVE OUTER REAR VIEW MIRROR
HINT:
Use the same procedure as for the LH side (see page

MI-8

).

9.

REMOVE FRONT DOOR GLASS OUTER
WEATHERSTRIP ASSEMBLY
HINT:
Use the same procedure as for the LH side (see page

ET-39

).

10. REMOVE FRONT NO. 1 SPEAKER (See page

AV-58

)

B135570

B135571

B135572

B135573

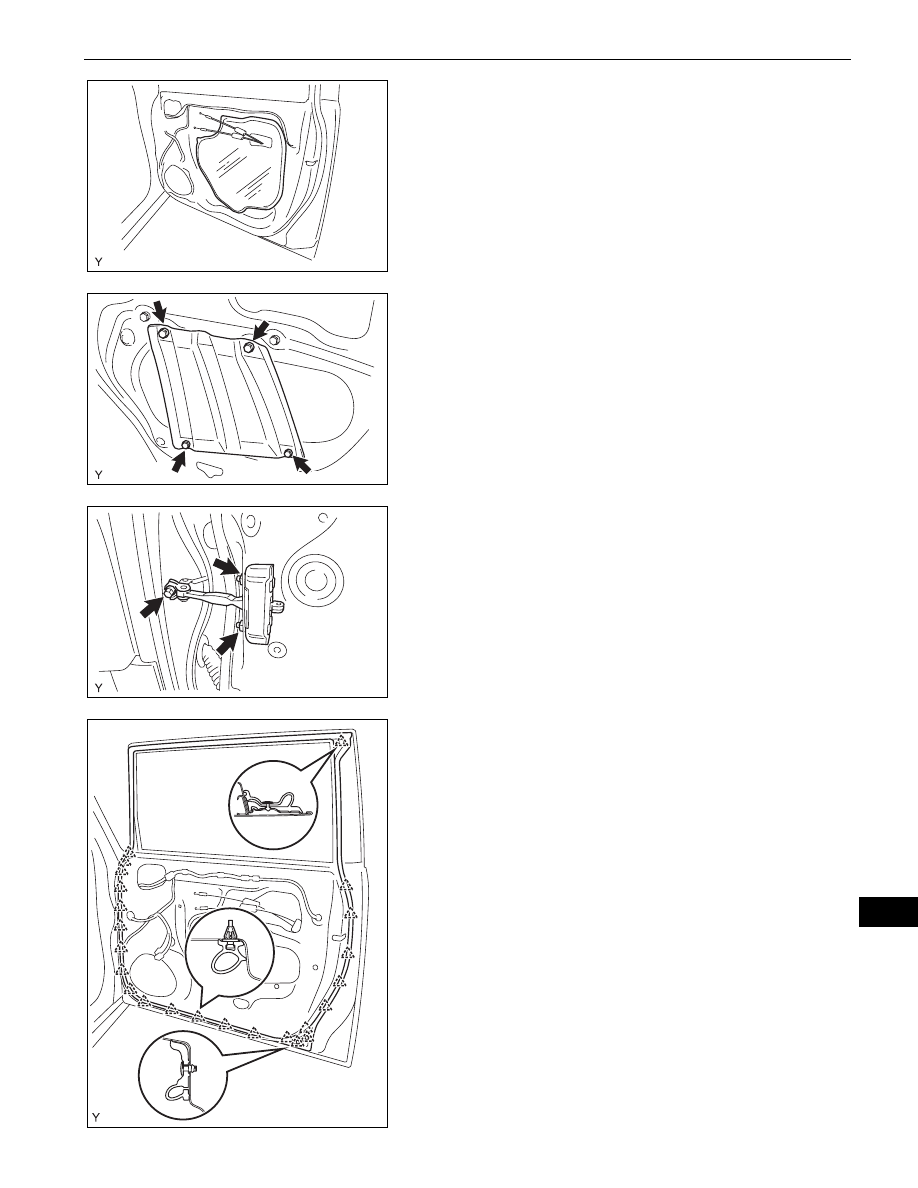

ENGINE HOOD / DOOR  –  FRONT DOOR

ED–11

ED

11. REMOVE FRONT DOOR SERVICE HOLE COVER

(a) Remove the front door service hole cover.

NOTICE:
Remove any tape remaining on the door side.

12. REMOVE FRONT DOOR INSIDE PANEL PLATE

(a) Remove the 4 screws and the front door inside

panel plate.

13. REMOVE FRONT DOOR CHECK ASSEMBLY

(a) Remove the 2 nuts and bolt, then remove the front

door check.
NOTICE:
Do not drop or damage the door check when
removing the bolts.
HINT:
Remove the door check through the service hole.

14. REMOVE FRONT DOOR WEATHERSTRIP

(a) Disengage the 24 clips and remove the front door

weatherstrip.
NOTICE:
Remove any tape remaining on the door side.

B135574

B135575

B138158

B138159

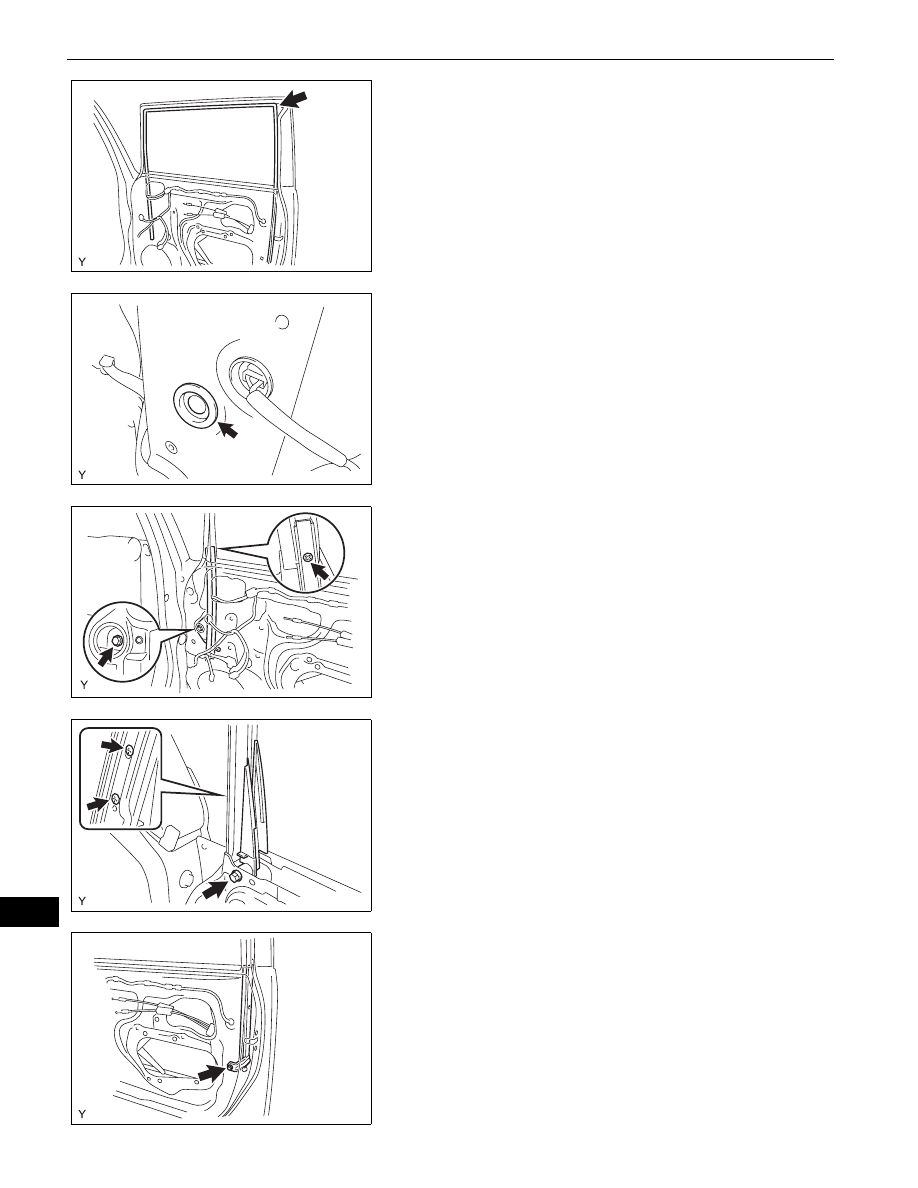

ED–12

ENGINE HOOD / DOOR  –  FRONT DOOR

ED

15. REMOVE FRONT DOOR GLASS RUN

(a) Remove the front door glass run.

16. REMOVE FRONT DOOR FRAME SUB-ASSEMBLY

FRONT LOWER
(a) Remove the hole plug.

(b) Remove the bolt and screw, then remove the front

door frame sub-assembly front lower.
NOTICE:
Do not drop or damage the front door frame
sub-assembly front lower when removing the
bolt and screw.

17. REMOVE FRONT DOOR LOWER FRAME BRACKET

GARNISH
(a) Remove the bolt and the 2 screws and remove front

door lower frame bracket garnish.

18. REMOVE FRONT DOOR WINDOW FRAME REAR

LOWER
(a) Remove the bolt, then remove the front door

window frame rear lower.
NOTICE:
Do not drop or damage the front door window
frame rear lower when removing the bolt.

B138160

B135578

B138161

B138162

B138163
