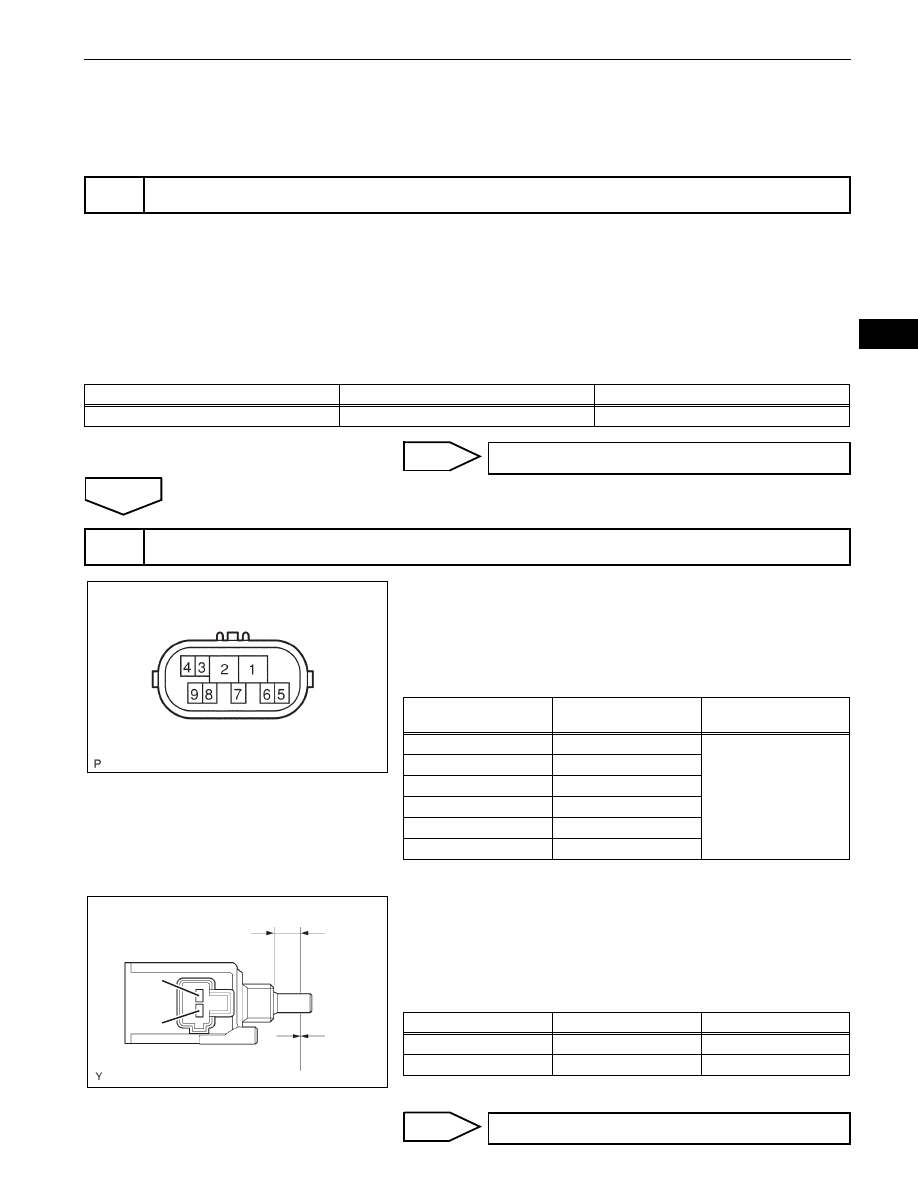

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–275

ES

Read freeze frame data using an intelligent tester. Freeze frame data record the engine condition when
malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle
was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and
other data, from the time the malfunction occurred.

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Select the following menu items: DIAGNOSIS /

ENHANCED OBD II / DATA LIST / PRIMARY /
STARTER SIG.

(d) Check the value displayed on the tester when the

ignition switch is turned to ON and START positions.

OK

OK

NG

(a) Inspect the Park/Neutral Position (PNP) switch (For

Automatic Transmission models).
(1) Disconnect the B35 PNP switch connector.
(2) Check the resistance when the transmission gear

selector lever is moved to each position.
Standard Resistance

(3) Reconnect the PNP switch connector.

(b) Inspect the clutch start switch (For Manual Transmission

models).
(1) Disconnect the A9 clutch start switch connector.
(2) Check the resistance when the clutch start switch is

ON and OFF.
Standard Resistance

(3) Reconnect the clutch start switch connector.

OK

1

READ VALUE USING INTELLIGENT TESTER (STARTER SIGNAL)

Ignition Switch Positions

ON

START

STARTER SIG

OFF

ON

CHECK FOR INTERMITTENT PROBLEMS

2

INSPECT PARK/NEUTRAL POSITION SWITCH OR CLUTCH START SWITCH

Component Side:

PNP Switch

A093221E10

Gear Selector Lever

Positions

Tester Connections

Specified Conditions

P

2 - 6, 4 - 5

Below 1

R

1  -  2

N

2 - 9, 4 - 5

D

2  -  7

2

2  -  3

L

2  -  8

8.0 +- 0.35 mm (0.315 +- 0.014 in)

1

2

ON OFF

Clutch Start Switch

A082259E13

Switch Positions

Tester Connections

Specified Conditions

ON (pushed)

1 - 2

Below 1

OFF (free)

1 - 2

10 k

 or higher

              Go to step 4

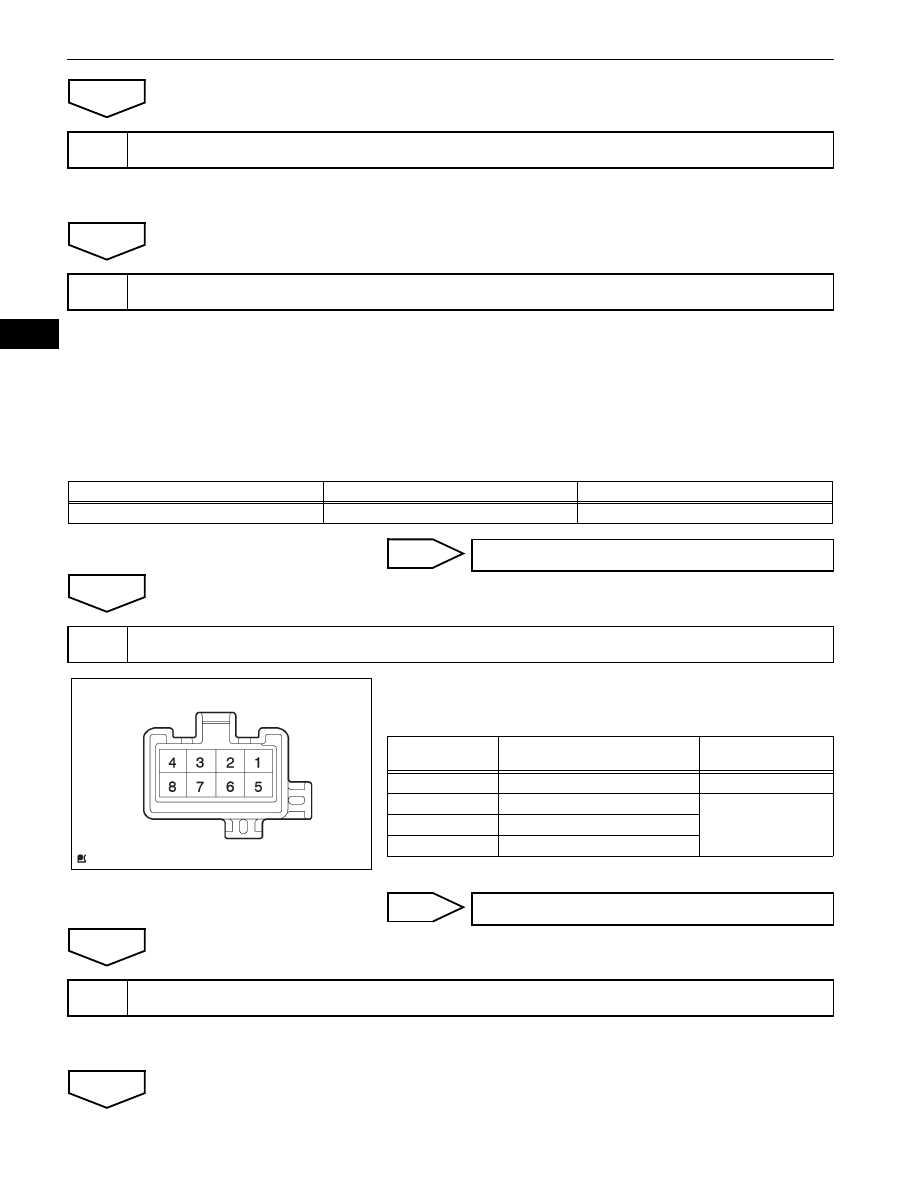

ES–276

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

NG

Replace the park/neutral position switch assembly (See page

AT-153

).

NEXT

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Select the following menu items: DIAGNOSIS /

ENHANCED OBD II / DATA LIST / PRIMARY /
STARTER SIG.

(d) Check the value displayed on the tester when the

ignition switch is turned to ON and START positions.

OK

OK

NG

(a) Disconnect the A1 ignition switch connector.
(b) Check the resistance.

Standard Resistance

(c) Reconnect the ignition switch connector.

OK

NG

Replace the ignition or starter switch assembly (See page

ST-

19

).

NEXT

3

REPLACE PARK / NEUTRAL POSITION SWITCH ASSEMBLY

4

READ VALUE USING INTELLIGENT TESTER (STARTER SIGNAL)

Ignition Switch Positions

ON

START

STARTER SIG

OFF

ON

SYSTEM OK

5

INSPECT IGNITION OR STARTER SWITCH ASSEMBLY

Component Side:

Ignition Switch

A056879E36

Ignition Switch

Positions

Tester Connections

Specified Conditions

LOCK

All Terminals

10 k

 or higher

ACC

2 - 3

Below 1

ON

2 - 3 - 4, 6 - 7

START

1 - 2 - 4, 6 - 7 - 8

              Go to step 7

6

REPLACE IGNITION OR STARTER SWITCH ASSEMBLY

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–277

ES

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Select the following menu items: DIAGNOSIS /

ENHANCED OBD II / DATA LIST / PRIMARY /
STARTER SIG.

(d) Check the value displayed on the tester when the

ignition switch is turned to ON and START positions.

OK

OK

NG

7

READ VALUE USING INTELLIGENT TESTER (STARTER SIGNAL)

Ignition Switch Positions

ON

START

STARTER SIG

OFF

ON

SYSTEM OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

ES–278

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

DESCRIPTION

DTC P0630 is set when the Vehicle Identification Number (VIN) is not stored in the Engine Control Module
(ECM) or the input VIN is not accurate. Input the VIN with an intelligent tester.

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

COMPONENT OPERATING RANGE

INSPECTION PROCEDURE

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Select the following menu items: DIAGNOSIS /

ENHANCED OBD II / DTC INFO / CURRENT CODES.

(d) Read DTCs.

Result

If any DTCs other than P0630 are output, troubleshoot
those DTCs first.

DTC

P0630

VIN not Programmed or Mismatch - ECM / PCM

DTC No.

DTC Detection Conditions

Trouble Areas

P0630

VIN not stored in ECM

Input VIN in ECM not accurate

ECM

Related DTCs

P0630: VIN not programmed

Required Sensors/Components (Main)

ECM

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

0.5 seconds

MIL Operation

Immediate

Sequence of Operation

None

Battery voltage

8 V or more

Ignition switch

ON

Starter

OFF

VIN code

Not programmed

VIN code

Programmed

1

READ CURRENT DTC

Display (DTC Output)

Proceed To

P0630

A

P0630 and other DTCs

B
