Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 79

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–271

ES

ECM CPU malfunction (P0607):

Electronic throttle control system power supply function of ECM malfunctions (P0657):

INSPECTION PROCEDURE

Read freeze frame data using an intelligent tester. Freeze frame data record the engine condition when
malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was
moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other
data, from the time the malfunction occurred.

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the tester ON.
(d) Enter the following menus: DIAGNOSIS / ENHANCED II

/ DTC INFO / CURRENT CODES.

(e) Read the DTC.

Result

B

A

Either A or B met

-

A. Following conditions met

CPU reset

1 time or more

Learned TP - learned APP

0.4 V or more

Throttle actuator

OFF

B. CPU reset

2 times or more

ETCS (Electronic Throttle Control System) power supply when ignition switch turned ON

7 V or more

1

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0604/P0606/P0607/P0657)

Display (DTC Output)

Proceed To

P0604, P0606, P0607, P0657

A

No output DTC

B

GO TO DTC CHART (See page

ES-57

)

REPLACE ECM (See page

ES-446

)

ES–272

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

DESCRIPTION

While the engine is being cranked, the positive battery voltage is applied to terminal STA of the ECM. If
the ECM detects the Starter Control (STA) signal while the vehicle is being driven, it determines that there
is a malfunction in the STA circuit. The ECM then illuminates the MIL and sets the DTC.
This monitor runs when the vehicle is driven at 12.4 mph (20 km/h) for over 20 seconds.

*

: A/T denotes Automatic Transmission models and M/T denotes Manual Transmission models.

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

DTC

P0617

Starter Relay Circuit High

DTC No.

DTC Detection Conditions

Trouble Areas

P0617

When conditions (a), (b) and (c) met for 20 seconds (1 trip
detection logic)
(a) Vehicle speed more than 12.4 mph (20 km/h)
(b) Engine speed more than 1,000 rpm
(c) STA signal ON

•

Park/Neutral Position (PNP) switch (A/T

*

)

•

Clutch start switch (M/T

*

)

•

Starter relay circuit

•

Ignition switch

•

ECM

Related DTCs

P0617: Starter signal

Required Sensors/Components (Main)

STARTER relay, PNP switch, Clutch start switch and Ignition switch

Required Sensors/Components (Related)

Vehicle Speed Sensor (VSS), Crankshaft Position (CKP) sensor

Frequency of Operation

Continuous

Duration

20 seconds

MIL Operation

Immediate

Sequence of Operation

None

Monitor runs whenever following DTCs not present

None

Battery voltage

10.5 V or more

Vehicle speed

12.4 mph (20 km/h) or more

Engine speed

1,000 rpm or more

Starter signal

ON

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–273

ES

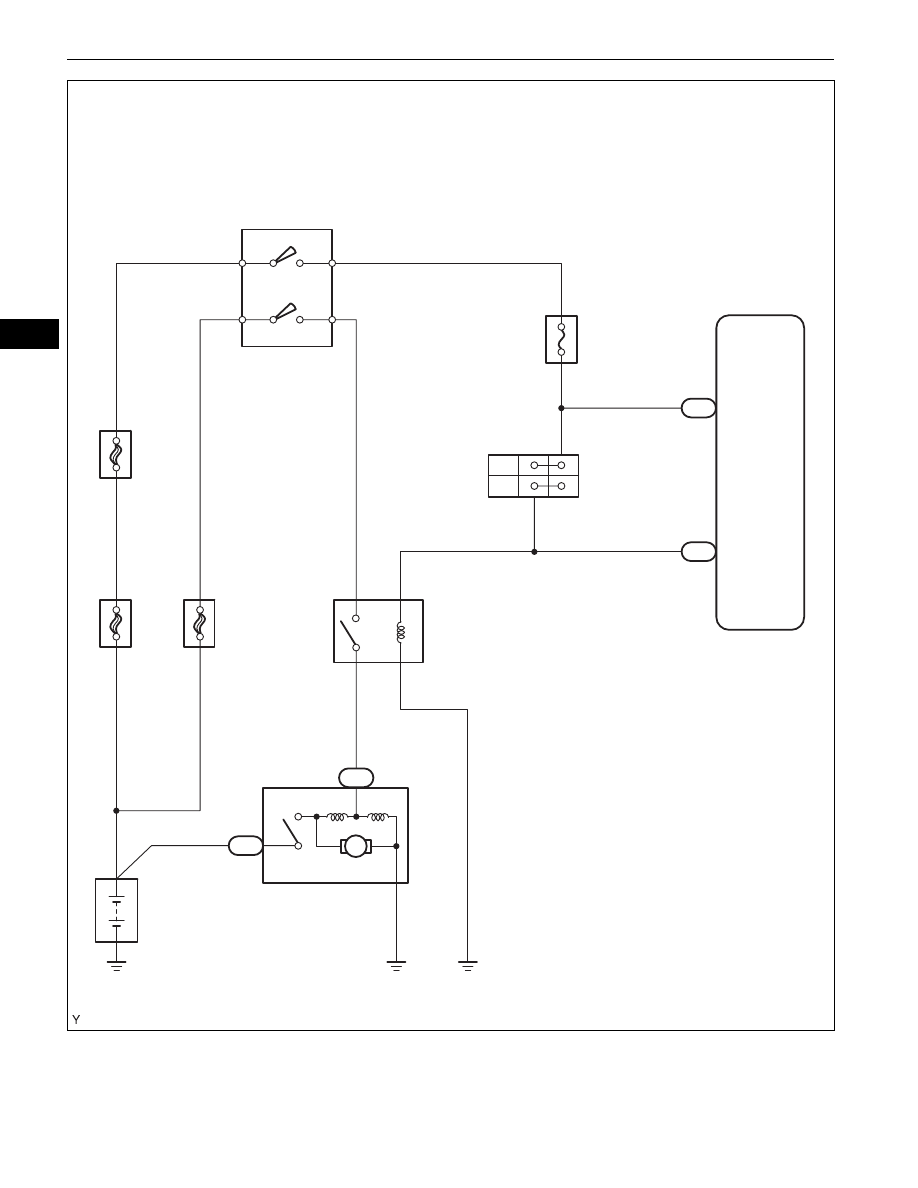

WIRING DIAGRAM

M

AM1

ALT

AM2

Battery

Starter

STA

A9

Clutch Start
Switch

STA

IG1

STA

ECM

E11

Clutch Start
Cancel Switch

ST1

ST2

AM1

AM2

A1

Ignition Switch

For Manual Transmission Models:

7

2

8

1

8

1

1

2

1

2

1

2

1

C4

1 C3

2

1

3

5

2

1

2

3

4

1

11
B3

A133423E01

ES–274

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

INSPECTION PROCEDURE

HINT:
•

The following troubleshooting flowchart is based on the premise that the engine is cranked normally. If
the engine will not crank, proceed to the problem symptoms table (See page

ES-28

).

M

P

N

ECM

NSW

STA

B35

Park/Neutral
Position Switch

A1

Ignition Switch

AM1

AM2

ALT

Battery

Starter

ST1

ST2

AM1

AM2

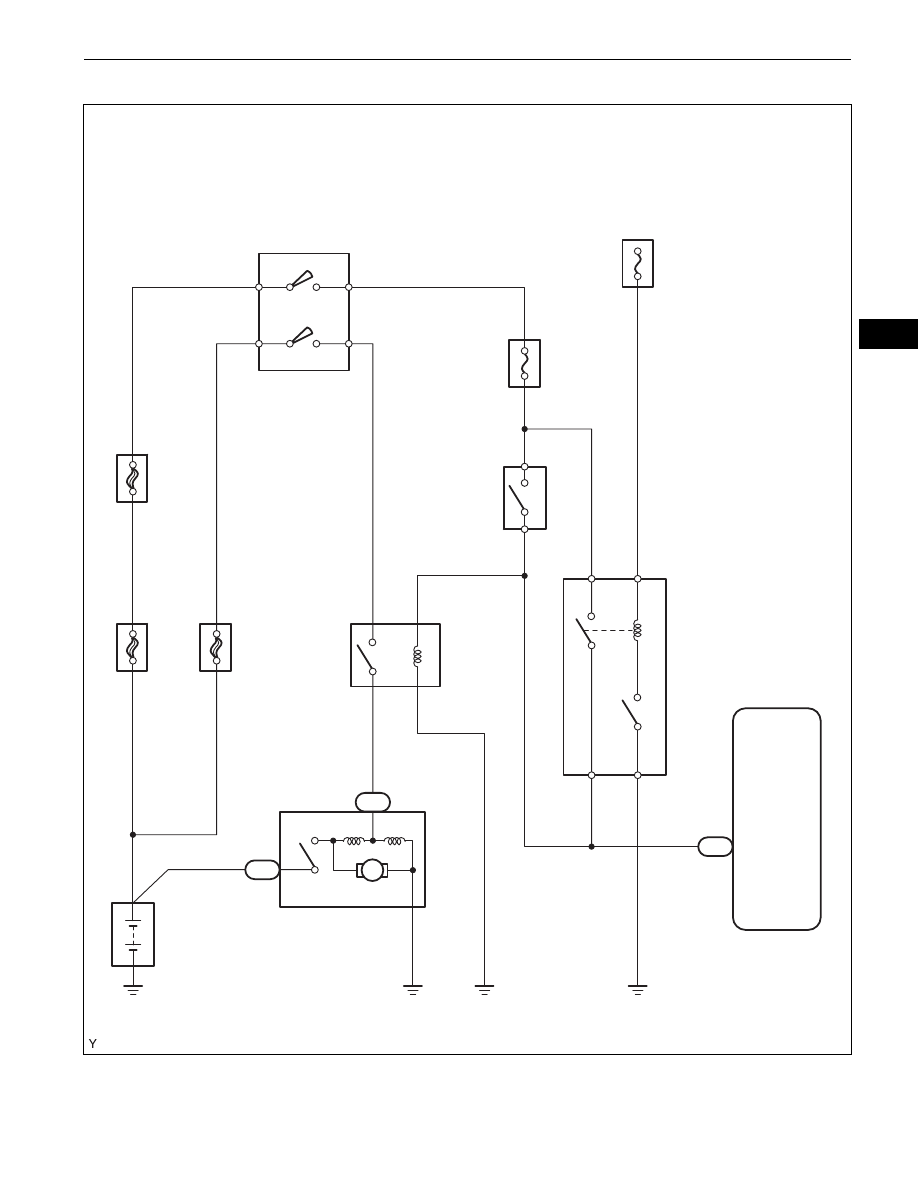

For Automatic Transmission Models:

STA

STA

8

1

7

2

1

2

1

2

1

2

1

C4

1 C3

2

1

3

5

4

5

11

B3

8

B2

A133424E01
