1GR-FE EMISSION CONTROL  –  CANISTER

EC–13

EC

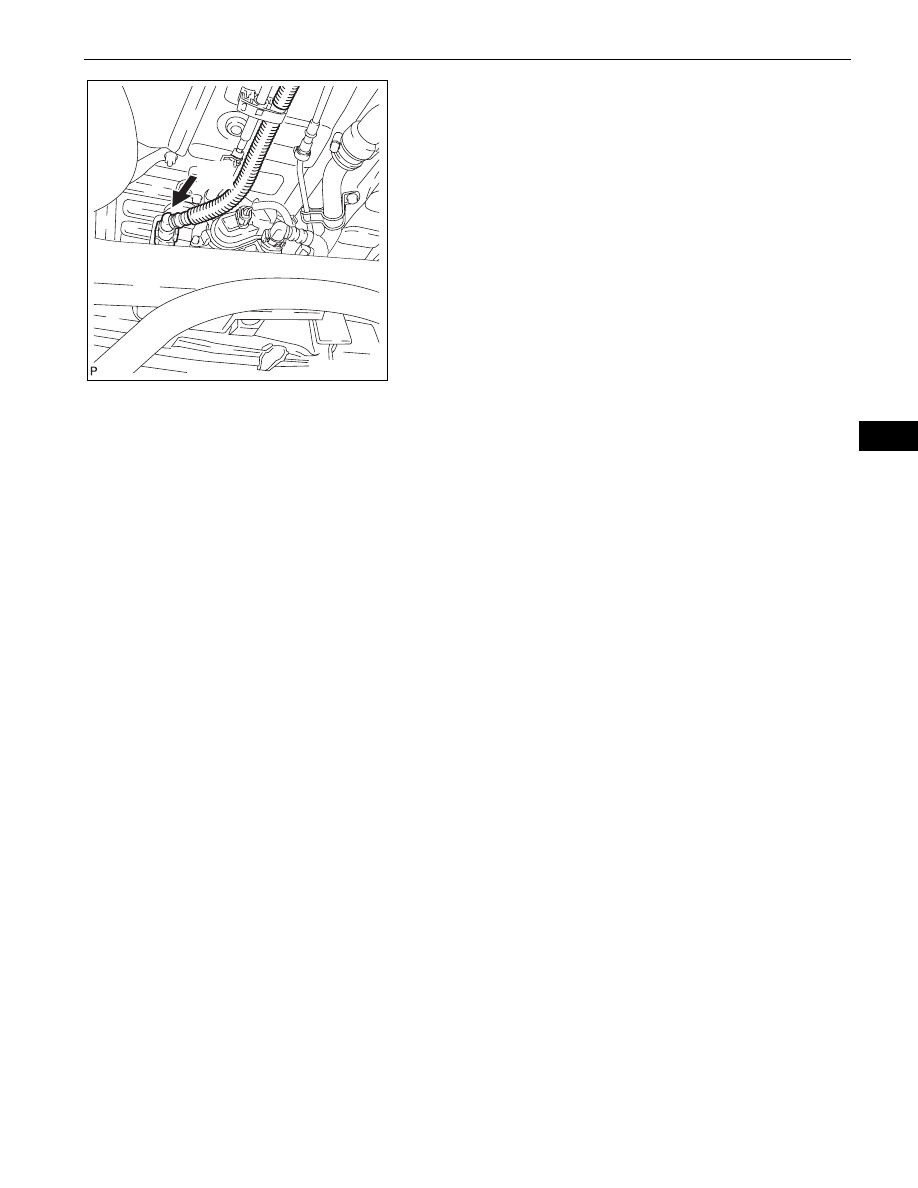

(e) Connect the fuel tank vent hose.

(1) Align the fuel tank vent hose connector with the

pipe, then push in the fuel tank vent connector
until the retainer makes a "click" sound to
connect the fuel tank vent hose to the charcoal
canister.
NOTICE:
•

Check that there are no scratches or
foreign objects on the disconnected
parts of the fuel tank vent connector and
pipe before performing the work.

•

After connecting the fuel tank vent hose,
check that the fuel tank vent hose is
securely connected by pulling the quick
connector.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

3.

CHECK FOR FUEL LEAKAGE (See page

FU-7

)

Push

A129925E02

EC–14

1GR-FE EMISSION CONTROL  –  VACUUM SWITCHING VALVE

EC

ENGINE

1GR-FE EMISSION CONTROL

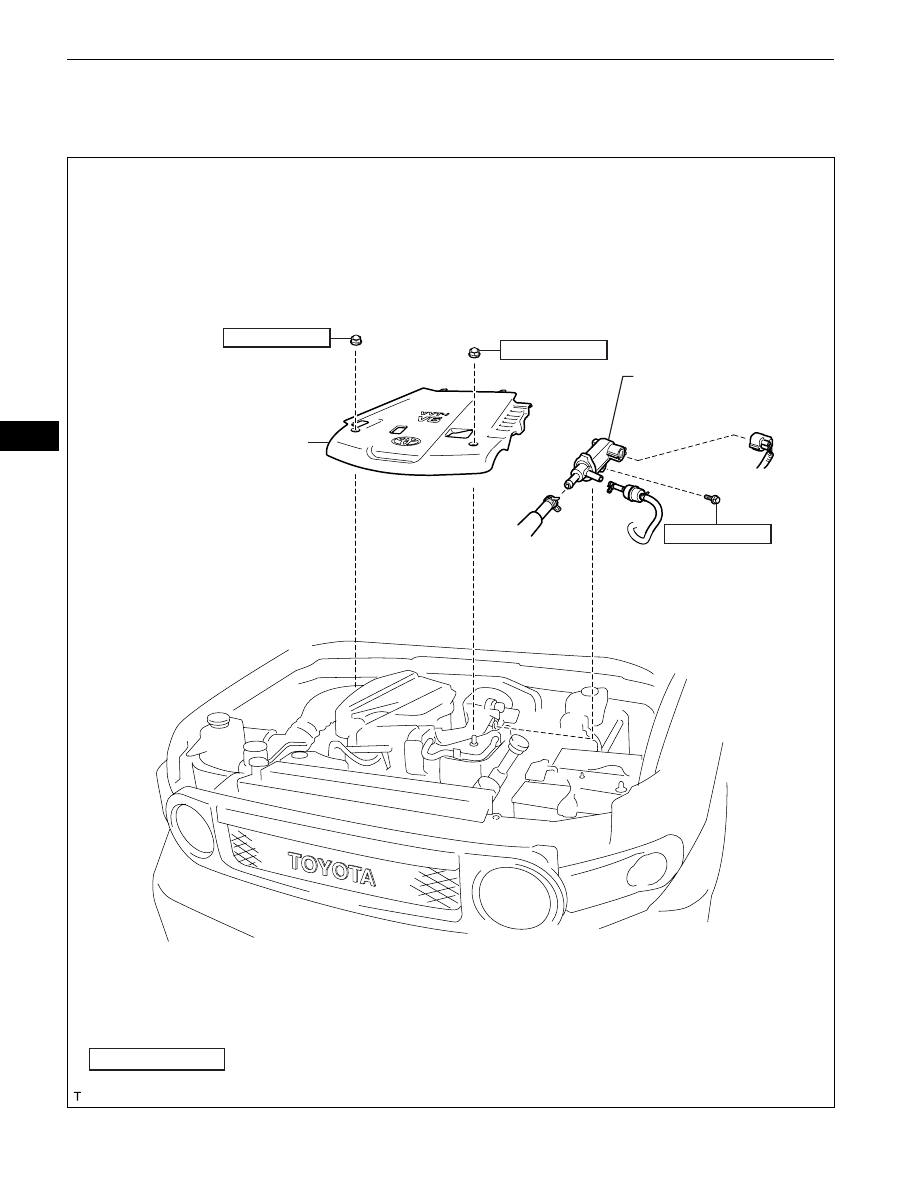

VACUUM SWITCHING VALVE

COMPONENTS

V-BANK COVER

N*m (kgf*cm, ft*lbf)  : Specified torque

9.0 (92, 80 in.*lbf)

7.5 (76, 66 in.*lbf)

7.5 (76, 66 in.*lbf)

DUTY VACUUM
SWITCHING VALVE

A129949E01

1GR-FE EMISSION CONTROL  –  VACUUM SWITCHING VALVE

EC–15

EC

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE V-BANK COVER (See page

ES-428

)

3.

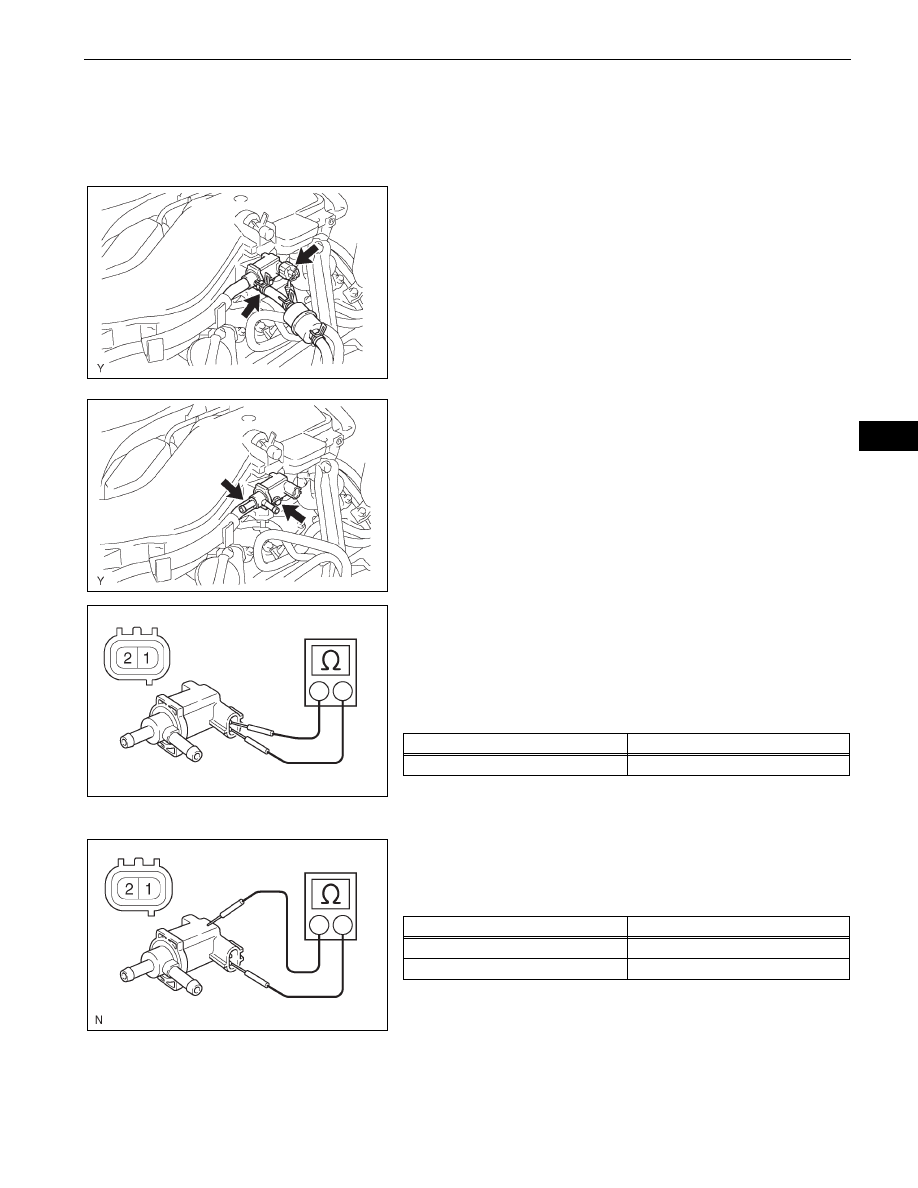

REMOVE DUTY VACUUM SWITCHING VALVE
(a) Disconnect the connector.
(b) Disconnect the fuel vapor feed hose.

(c) Remove the bolt, then separate the vacuum

switching valve from the intake air surge tank.

(d) Disconnect the hose, then remove the vacuum

switching valve.

INSPECTION

1.

INSPECT DUTY VACUUM SWITCHING VALVE
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

If the result is not as specified, replace vacuum
switching valve No. 1.

(b) Check vacuum switching valve No. 1 for ground.

(1) Using an ohmmeter, check the resistance

between each terminal and the body.
Standard resistance

If the result is not as specified, replace vacuum
switching valve No. 1.

G036125E01

G036126E01

Ohmmeter

G036146E01

Tester Connection

Specified Condition

1 - 2

26 to 30

Ω at 20°C (68°F)

Ohmmeter

G036147E01

Tester Connection

Specified Condition

1 - Body

10 M

Ω or higher

2 - Body

10 M

Ω or higher

EC–16

1GR-FE EMISSION CONTROL  –  VACUUM SWITCHING VALVE

EC

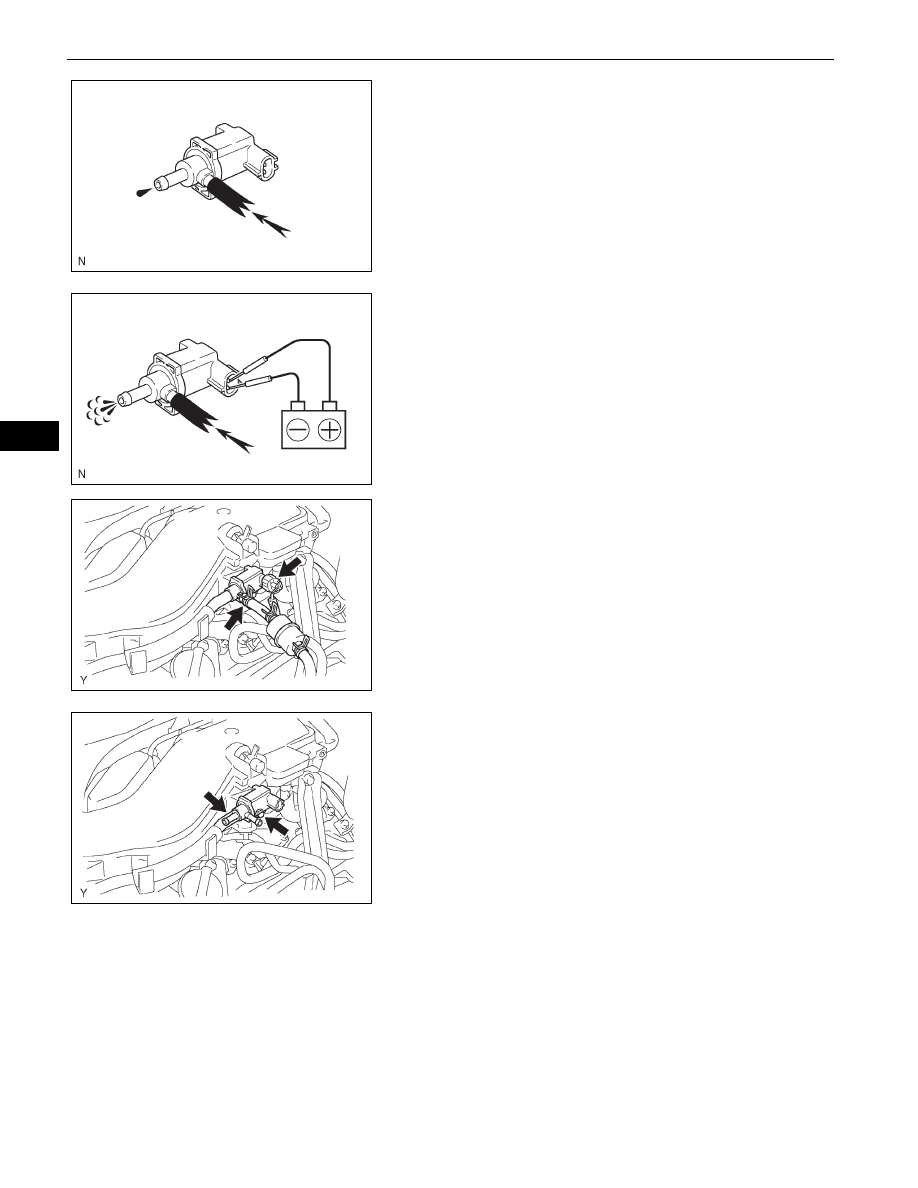

(c) Check the operation.

(1) Check that air does not flow from port E to port

F.
If the operation is not as specified, replace
vacuum switching valve No. 1.

(2) Apply battery voltage across the terminals.
(3) Check that air flows from port E to port F.

If the operation is not as specified, replace
vacuum switching valve No. 1.

INSTALLATION

1.

INSTALL DUTY VACUUM SWITCHING VALVE
(a) Connect the hose to the vacuum switching valve.
(b) Install the vacuum switching valve with the bolt.

Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

(c) Connect the vapor feed hose.
(d) Connect the connector.

2.

INSTALL V-BANK COVER (See page

ES-431

)

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

F

E

Air

A076688E03

F

E

Air

Air

Battery

A076689E06
