BO45W–02

BO–32

–

BODY

BACK DOOR

3585

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–26

).

PERFORM INITIALIZATION (See page

IN–20

)

Back door power window control system needs initialization when disconnecting the cable from the negative
battery terminal.

BO45X–01

H17899

150 mm (5.91 in.)

–

BODY

BACK DOOR STAY

BO–33

3586

BACK DOOR STAY

REPLACEMENT

1.

REMOVE BACK DOOR STAY

(a)

Slide the clip, then remove the back door stay from the
back door.

HINT:
While supporting the back door with your hand, remove the
back door stay.
(b)

Slide the clip, then remove the bolts and back door stay
from the body.

2.

IF NECESSARY, REPLACE BACK DOOR STAY

NOTICE:
When handling the back door stay.

Do not disassemble the back door stay because the
cylinder is filled with pressurized gas.

If the back door stay is to be replaced, drill a 2.0 – 3.0
mm (0.079 – 0.118 in.) hole in the bottom of the back
door stay as shown in the illustration to completely
release the high–pressure gas before disposing of it.

When drilling, chips may fly out so work carefully.

The gas is colorless, odorless and non–toxic.

When working, handle the back door stay carefully.
Never score or scratch the exposed part of the piston
rod, and never allow paint or oil to get on it.

Do not turn the piston rod and cylinder with the back
door stay fully extended.

3.

INSTALL BACK DOOR STAY

(a)

Install the bolts and back door stay to the body.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)

(b)

Install the bolts and back door stay to the back door.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)

BO45Y–01

H16690

Wiper Arm

Cowl Louver

Wiper Motor

Wiper Link

N·m (kgf·cm, ft·lbf) : Specified torque

20 (204, 15)

20 (204, 15)

Wiper Arm

5.5 (56, 49 in.·lbf)

Washer Nozzle

Washer Nozzle

Cap

Cap

Hood to Cowl Seal

5.5 (56, 49 in.·lbf)

5.5 (56, 49 in.·lbf)

BO–34

–

BODY

FRONT WIPER AND WASHER

3587

FRONT WIPER AND WASHER

COMPONENTS

BO45Z–01

H09481

H16691

–

BODY

FRONT WIPER AND WASHER

BO–35

3588

REMOVAL

1.

REMOVE WIPER ARMS

(a)

Using a screwdriver, remove the 2 caps.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 nuts and wiper arms.

2.

REMOVE COWL TOP VENTILATOR LOUVER

(a)

Using a clip remover, remove the 6 clips.

(b)

Remove the 8 screws and cowl top ventilator louver.

3.

REMOVE HOOD TO COWL TOP SEAL

Remove the hood to cowl top seal from the cowl top ventilator
louver.

4.

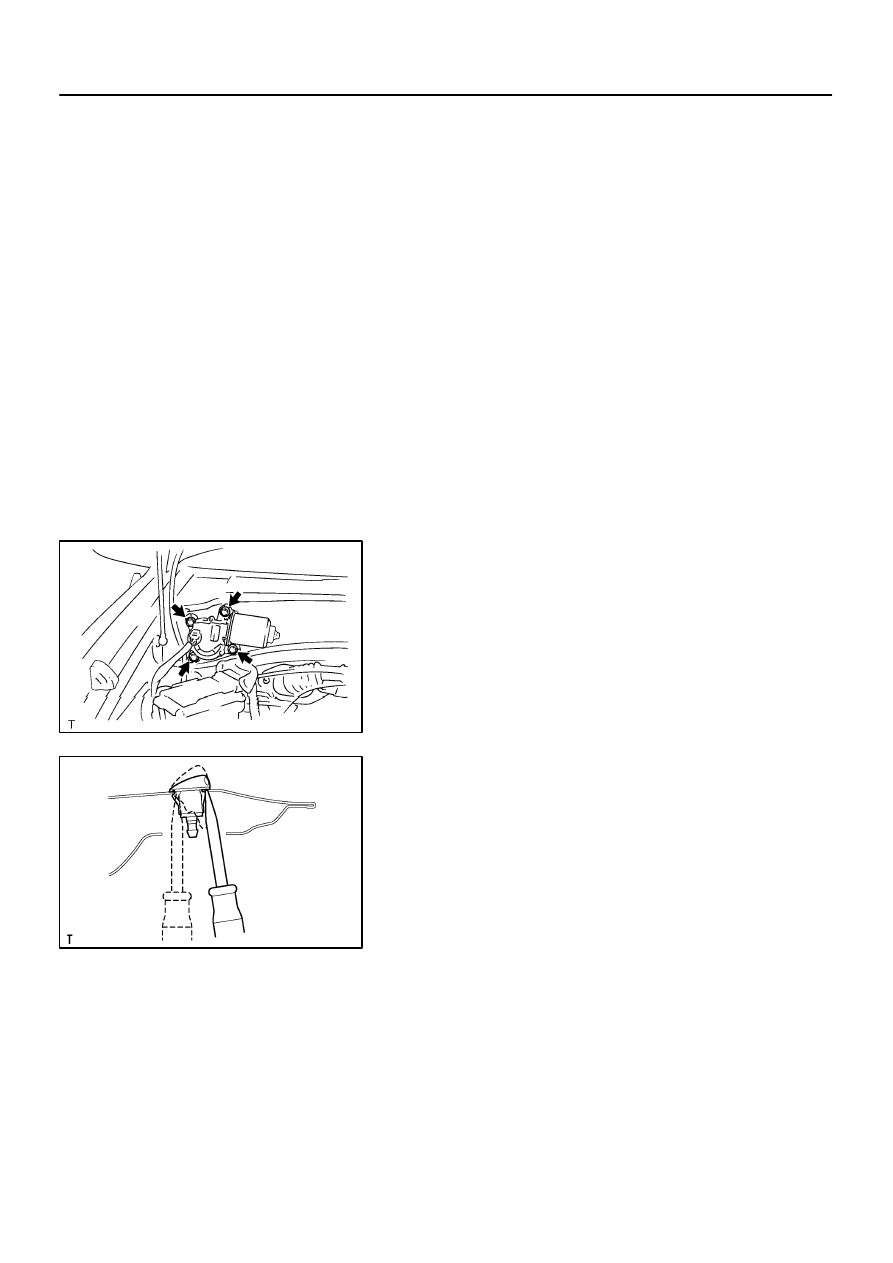

REMOVE WIPER MOTOR

(a)

Disconnect the connector.

(b)

Unfasten the 4 bolts.

(c)

Disconnect the wiper motor from the wiper link, then re-
move the wiper motor.

5.

REMOVE WIPER LINK

(a)

Remove the 6 bolts.

(b)

Remove the wiper link through the service hole.

6.

REMOVE WASHER NOZZLE

(a)

Disconnect the washer hose.

(b)

Using a screwdriver, remove the nozzle.

HINT:
Tape the screwdriver tip before use.
(c)

Employ the same manner described above to the other
side.
