Toyota Sequoia (2005). Manual - part 897

BO45S–01

BO–24

–

BODY

REAR DOOR

3577

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–24

).

BO45T–01

H16689

Back Door Side Garnish

Back Door Center Garnish

w/o Rear spoiler:
High Mount Stop Light

Outside Moulding

Back Door Hinge

w/ Rear spoiler:
Rear Spoiler

Back Door Hinge

Rear Wiper Arm

Wiper

Motor

Grommet

Rear Wiper
Motor

Service Hole Plug

Outside Moulding

Step Liner

Back Door Glass

Back Door Side
Garnish

Back Door Glass Run

Outer Weatherstrip

Back Door
Glass Guide Rail

Outer Cover

Power Window Regulator

Back Door
Glass Guide Rail

Outside Handle

Key Cylinder

Rear Light

Lower Stopper

Rear Light

Opening Hole Cover

Stopper Cushion

Back Door Lock Protector

Control
Cable

Stopper Cushion

: Specified torque

Strap Cover

Back Door Pull Strap

Back Door Trim Board

Inner Weatherstrip

No. 1 Service
Hole Cover

Opening Hole Cover

19.5 (199, 14.4)

8.0 (82, 71 in.·lbf)

5.5 (56, 49 in.·lbf)

5.5 (56, 49 in.·lbf)

8.0 (82, 71 in.·lbf)

N·m (kgf·cm, ft·lbf)

No. 2 Service
Hole Cover

Back Door
Handle
Protector

Licence Plate
        Light
             Assembly

Outside
Garnish

Washer Nozzle

Lower Stopper

Power Window
Regulator Motor

Back Door Lock

19.5 (199, 14.4)

8.0 (82, 71 in.·lbf)

–

BODY

BACK DOOR

BO–25

3578

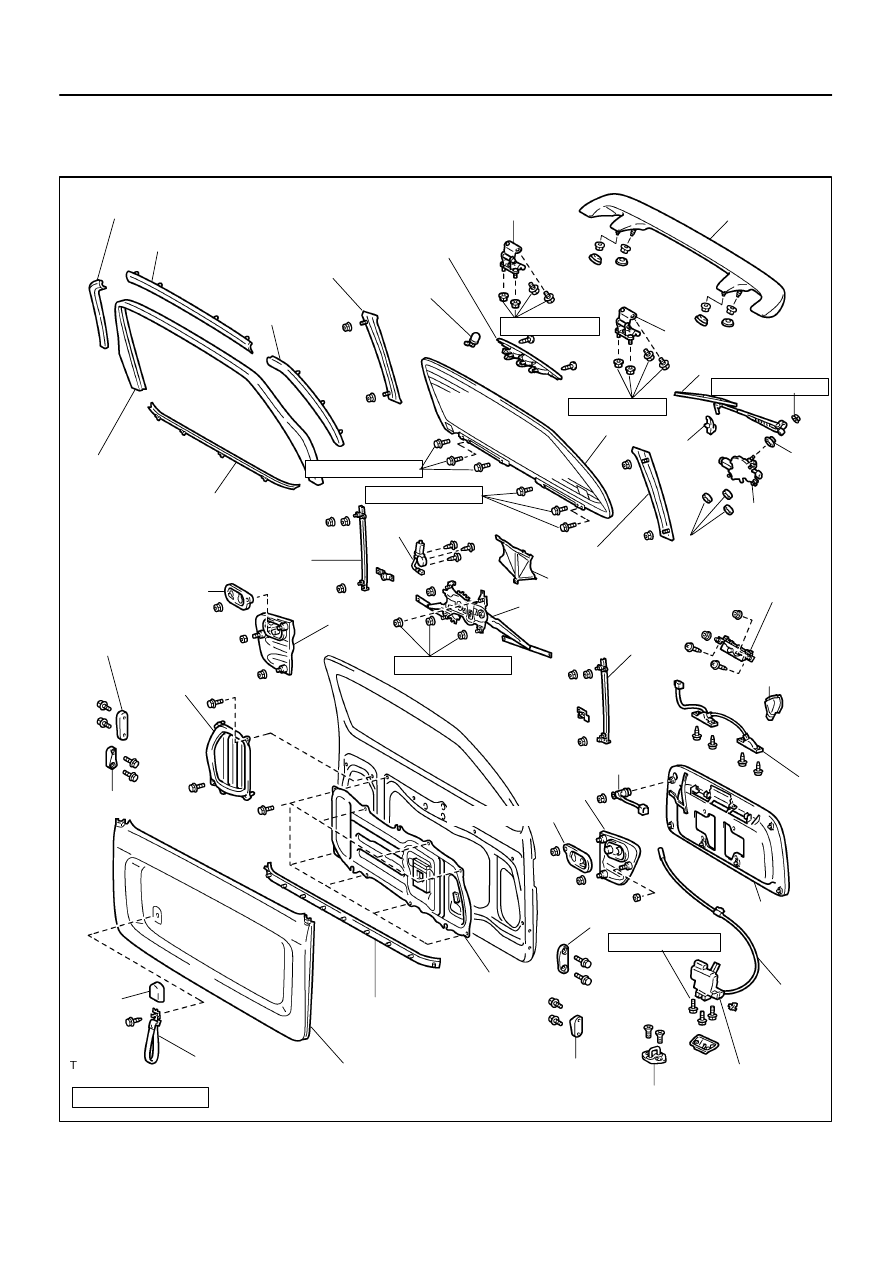

BACK DOOR

COMPONENTS

H16671

BO45U–01

H16672

H16673

H16674

5 Clips

H16675

3 Clips

BO–26

–

BODY

BACK DOOR

3579

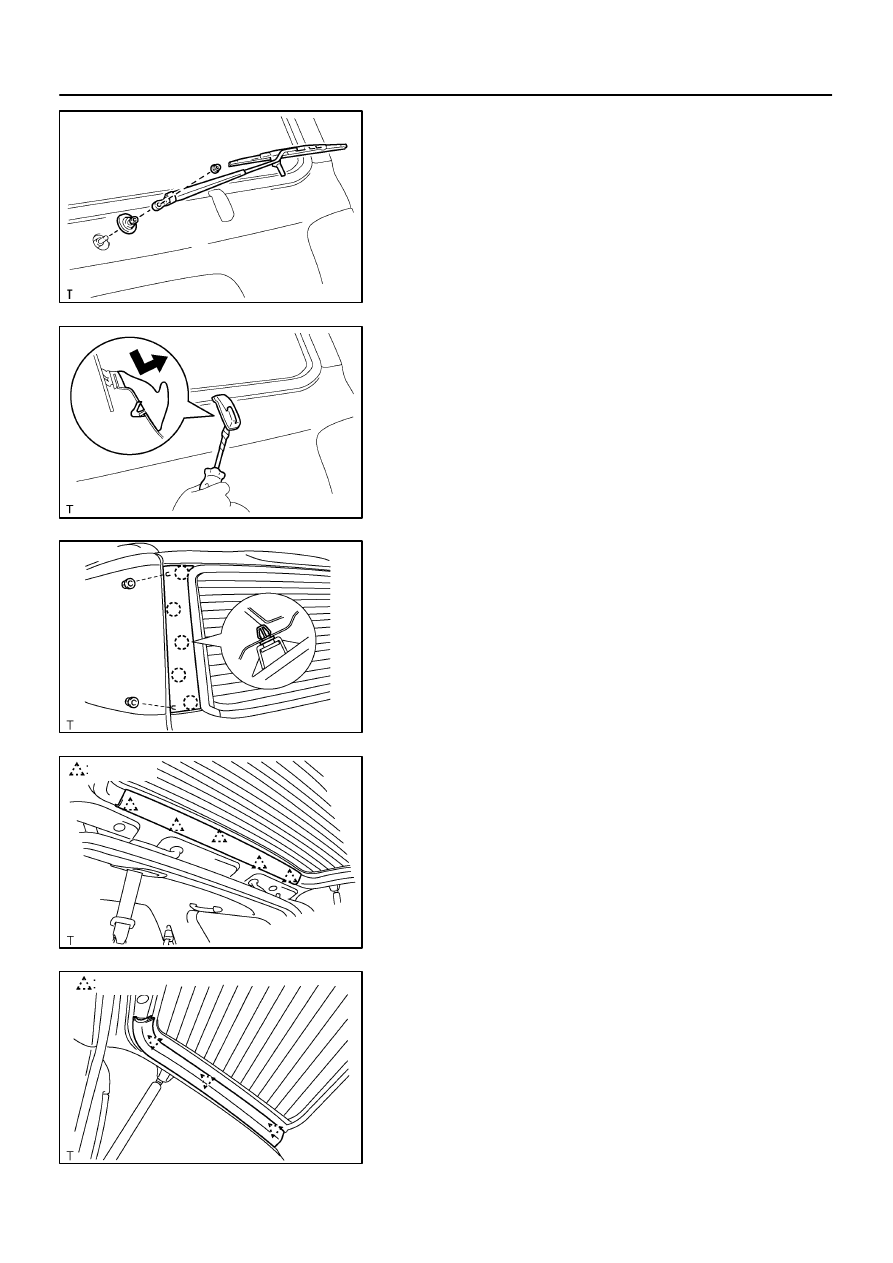

DISASSEMBLY

1.

REMOVE REAR WIPER ARM

(a)

Open the cover.

(b)

Remove the nut and rear wiper arm.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(c)

Remove the rear wiper motor grommet.

2.

REMOVE STEP LINER

Using a screwdriver, remove the step liner.
HINT:
Tape the screwdriver tip before use.

3.

REMOVE OUTSIDE MOULDING

(a)

Remove the 2 nuts.

(b)

Using a screwdriver, remove the outside moulding.

(c)

Employ the same manner described above to the other
side.

4.

REMOVE BACK DOOR PULL STRAP

(a)

Using a screwdriver, remove the strap cover.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the screw and back door pull strap.

5.

REMOVE BACK DOOR CENTER GARNISH

Using a screwdriver, remove the back door center garnish.
HINT:
Tape the screwdriver tip before use.

6.

REMOVE BACK DOOR SIDE GARNISH

(a)

Using a screwdriver, remove the back door side garnish.

HINT:
Tape the screwdriver tip before use.
(b)

Employ the same manner described above to the other
side.

H16676

10 Clips

H02440

–

BODY

BACK DOOR

BO–27

3580

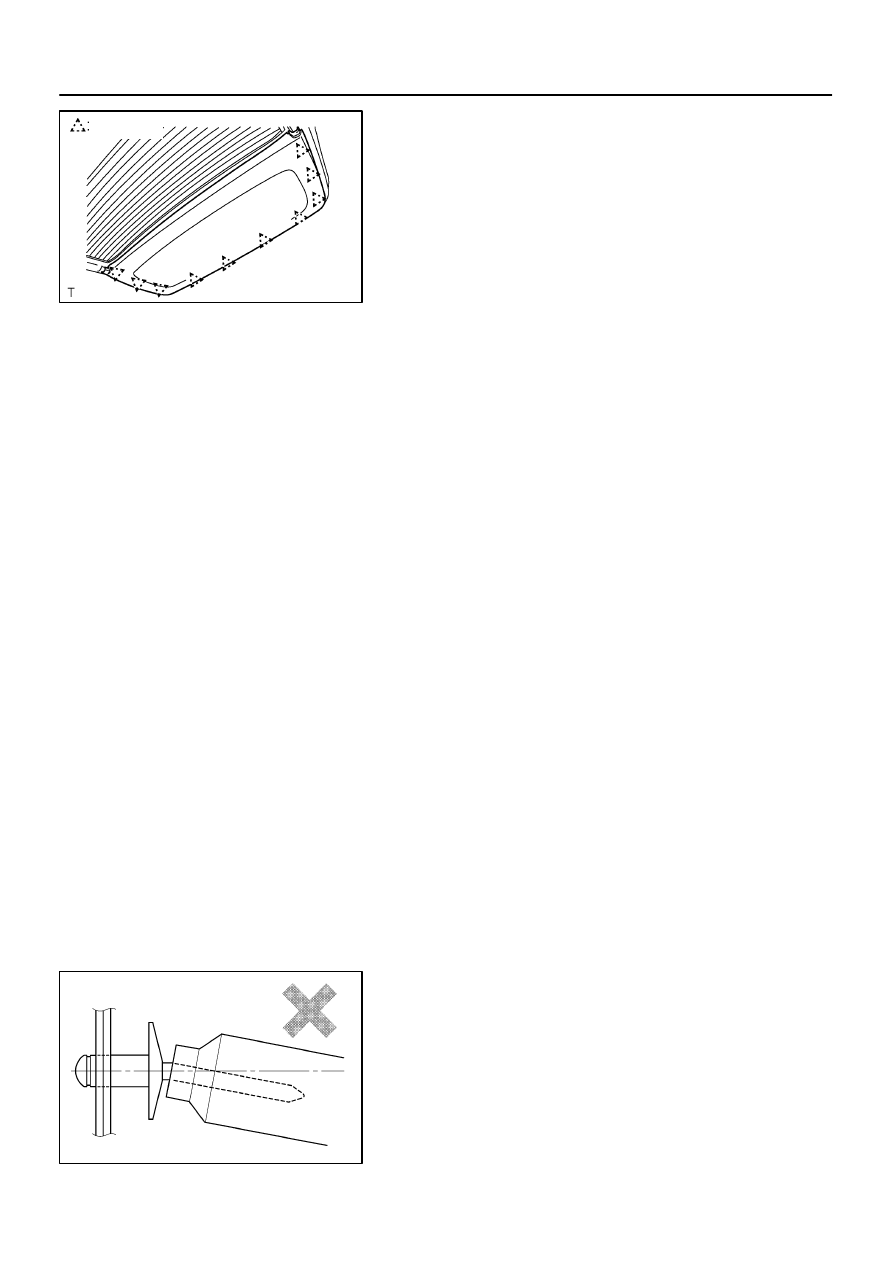

7.

REMOVE BACK DOOR TRIM BOARD

(a)

Insert a screwdriver between the back door and back
door trim board to pry the back door trim board out.

NOTICE:
Be careful not to damage the back door and back door trim
board.
HINT:
Tape the screwdriver tip before use.
(b)

Pull the back door trim board to remove it as shown in the
illustration.

8.

REMOVE INNER WEATHERSTRIP

Using a screwdriver, remove the inner weatherstrip from the
back door trim board.
HINT:
Tape the screwdriver tip before use.
9.

REMOVE NO. 1 SERVICE HOLE COVER

10.

REMOVE NO. 2 SERVICE HOLE COVER

11.

REMOVE BACK DOOR ECU

(a)

Using a drill of less than ø3.2 mm (0.126 in.), drill out the
2 rivet heads.

HINT:
Gentry and vertically put the drill to the rivets, and cut the rivet
flanges.
CAUTION:
Take care as the cut rivets are hot.
NOTICE:
Prizing the hole with a drill can lead to damage to the rivet
hole or the drill itself.
(b)

Remove the back door ECU.

HINT:
At the time of reassembly, please refer to the following item.
Using an air riveter with nose piece No. 1 or a hand riveter with
nose piece No. 1 to install new 3 rivets to the front door outside
lower moulding.

NOTICE:

At the time of reassembly, please refer to the follow-
ing items.

Do not prize a riveter, as riveter is damaged, it is not
tightened and the mandrel is bent.
