Toyota Sequoia (2005). Manual - part 895

BO45O–01

BO–16

–

BODY

FRONT DOOR

3569

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–10

).

BO45P–01

H16670

Rear Door
Quarter Window Glass

Upper Window Frame Moulding

Door Glass Run

Division Bar

Rear Door Weatherstrip

Door Glass

Quarter Window
Weatherstrip

Door Lock Striker

Outside Handle

Door Lock Outer Cover

Window Regulator Motor

No. 2 Rear Door
Weatherstrip

Door Hinge

Child Protection Cover

Door Lock

Cable Protection

Door Belt Moulding

Inner Weatherstrip

Door Trim

Courtesy Light

Inside Handle Bezel

Speaker

Upper Armrest Base Panel

Power Window Switch

Service Hole Cover

Inside Handle

Ash Tray

Window Regulator
Sub–assembly

Door Hinge

Door Check

 Precoated part

: Specified torque

N·m (kgf·cm, ft·lbf)

23 (230, 17)

23 (230, 17)

23 (230, 17)

23 (230, 17)

23 (230, 17)

30 (306, 22)

5.5 (56, 49 in.·lbf)

5.5 (56, 49 in.·lbf)

8.0 (82, 71 in.·lbf)

5.0 (51, 44 in.·lbf)

5.5 (56, 49 in.·lbf)

–

BODY

REAR DOOR

BO–17

3570

REAR DOOR

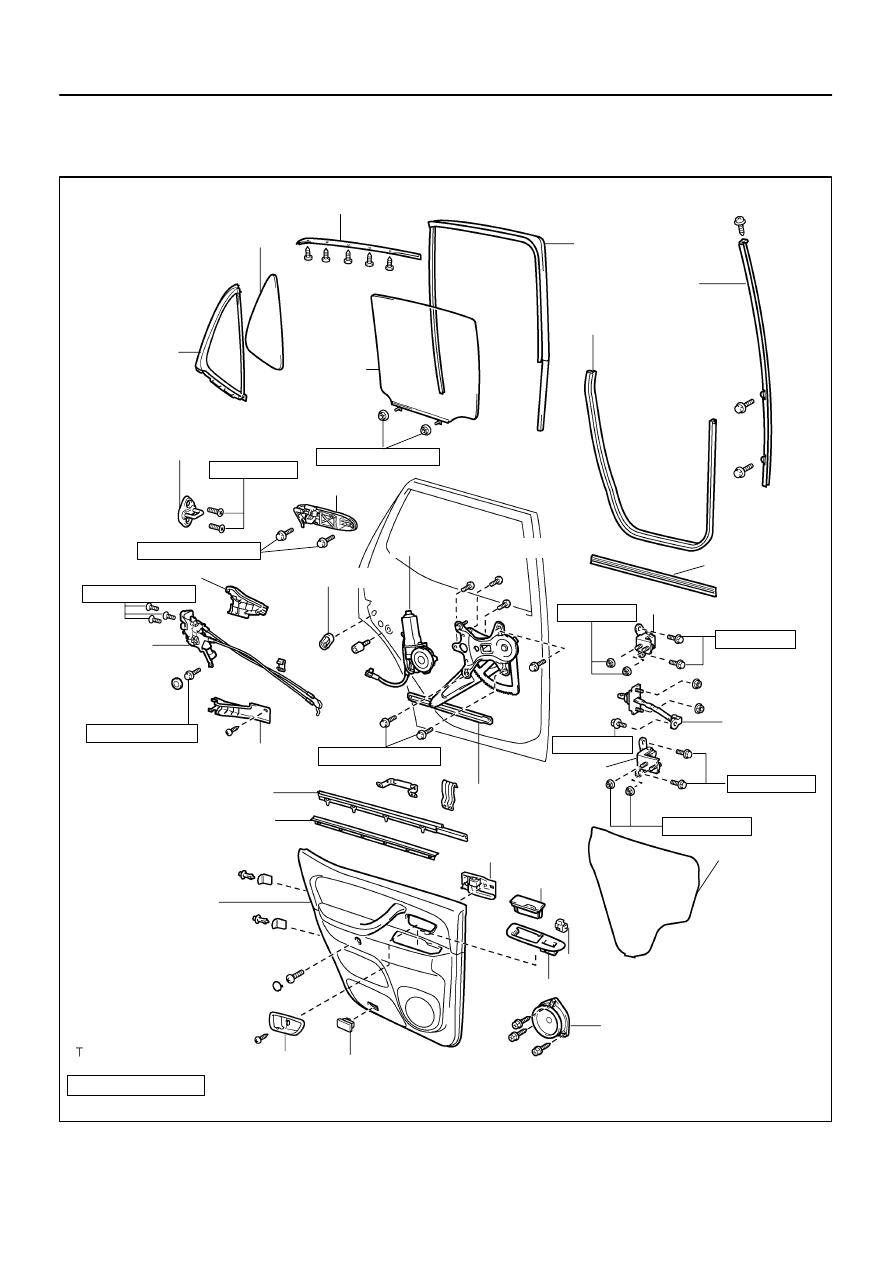

COMPONENTS

BO45Q–01

H04751

H16659

H16660

8 Clips

BO–18

–

BODY

REAR DOOR

3571

DISASSEMBLY

1.

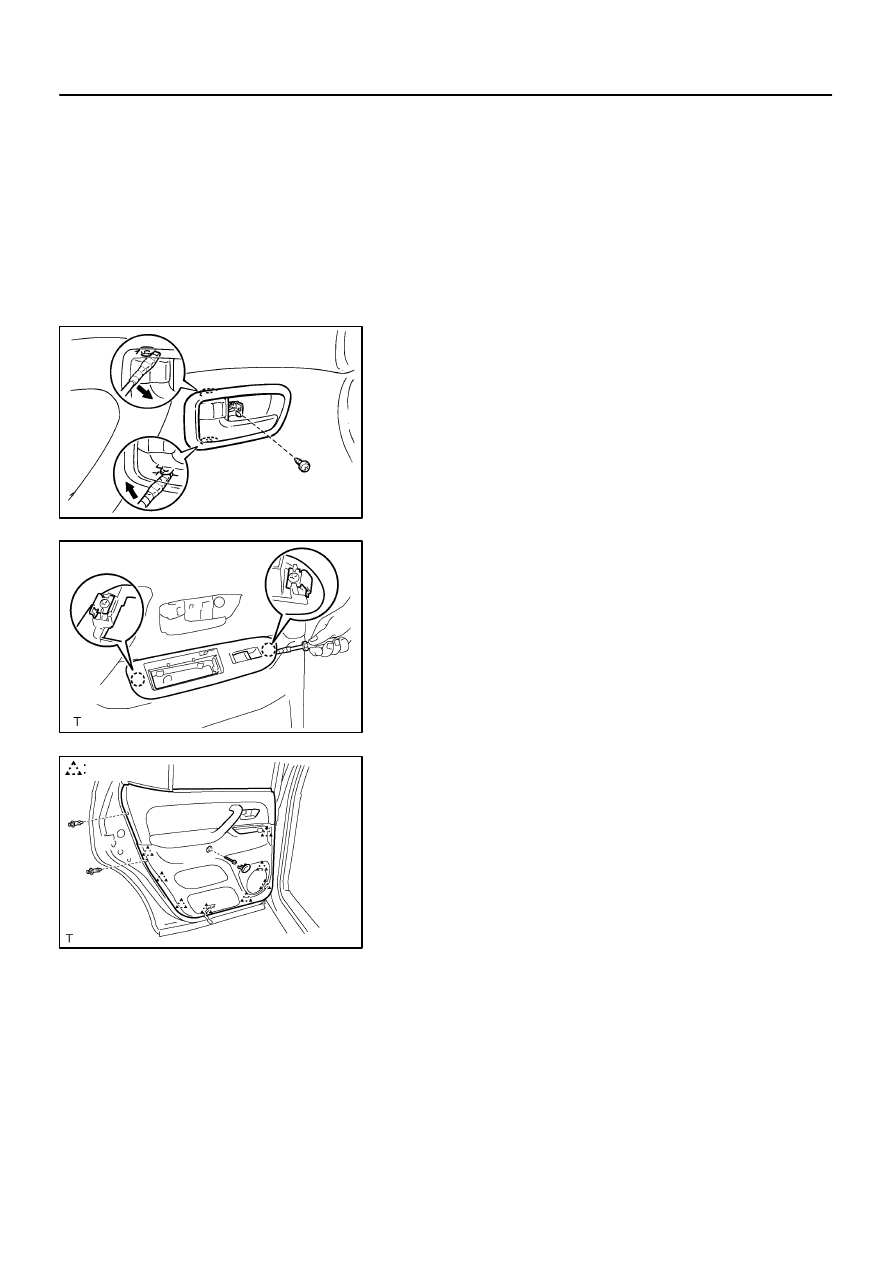

REMOVE INSIDE HANDLE BEZEL

(a)

Using a screwdriver, open the cover.

HINT:
Tape the screwdriver tip before use.

(b)

Remove the screw.

(c)

Using a screwdriver, remove the inside handle bezel as
shown in the illustration.

HINT:
Tape the screwdriver tip before use.
2.

REMOVE COURTESY LIGHT

3.

REMOVE UPPER ARMREST BASE PANEL WITH
POWER WINDOW SWITCH

(a)

Remove the ash tray.

(b)

Using a screwdriver, remove the upper armrest base pan-
el with power window switch.

(c)

Disconnect the connector.

(d)

Remove the power window switch from the upper armrest
base panel.

4.

REMOVE DOOR TRIM

(a)

Using a screwdriver, remove the cap.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the screw and 2 clips.

(c)

Insert a screwdriver between the door trim and door panel
to pry the door trim.

HINT:
Tape the screwdriver tip before use.
(d)

Pull the door trim upward to remove the door trim.

(e)

Remove the inner weatherstrip from the door trim.

5.

REMOVE SPEAKER

H16644

H16643

H05546

–

BODY

REAR DOOR

BO–19

3572

6.

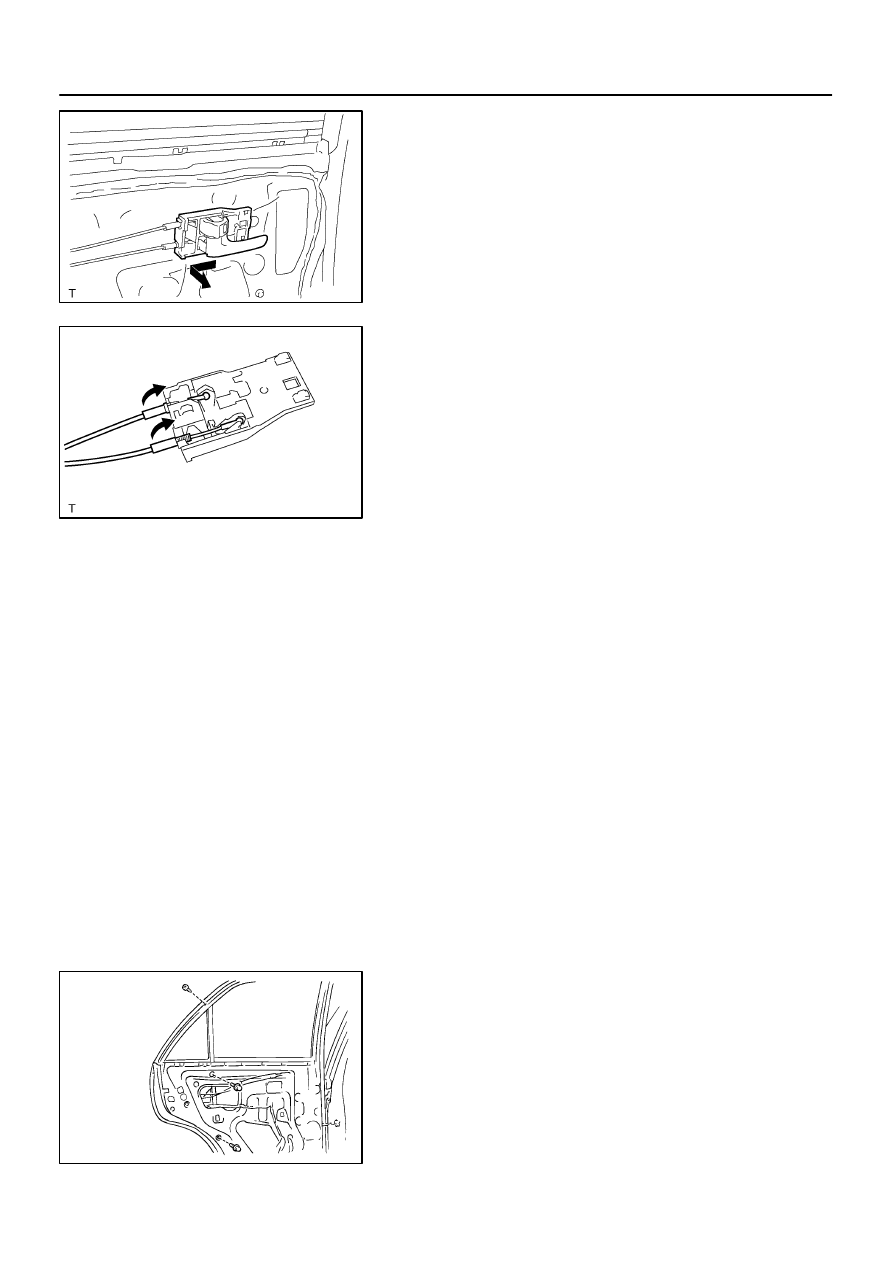

REMOVE INSIDE HANDLE

(a)

Slide the inside handle backward to remove it.

(b)

Disconnect the 2 cables from inside handle as shown in
the illustration.

7.

REMOVE SERVICE HOLE COVER

(a)

Using a clip remover, remove the clamp and grommets.

(b)

Remove the service hole cover.

NOTICE:
Do not tear the cover.
HINT:
At the time of reassembly, please refer to the following item.
Bring out the 2 control cables and wire harness through the ser-
vice hole cover.
8.

REMOVE DIVISION BAR

HINT:
Insert a shop rag inside the door panel to prevent scratching the
glass.
(a)

Open the door glass until the bolts appear in the service
hole.

(b)

Remove the 2 door glass set nuts.

(c)

Remove the door glass from the glass bracket and lower
the door glass into the door panel.

NOTICE:
Do not damage the door glass.
HINT:
Position the door glass toward the front as much as possible.
(d)

Remove the door glass run.

(e)

Remove the 2 bolts and screw.

(f)

Pull the division bar forward.
