BODY

HOOD SUPPORT

3561

HOOD SUPPORT

REPLACEMENT

1.

REMOVE HOOD SUPPORT

(a)

Remove the bolt and hood support from the hood.

HINT:
While supporting the hood by hand, remove the hood support
from the hood.
(b)

Remove the bolt and hood support.

2.

IF NECESSARY, REPLACE HOOD SUPPORT

NOTICE:
Handling the hood support

Do not disassemble the support as the cylinder is
filled with pressurized gas.

If the hood support is to be replaced, drill a 2.0 – 3.0
mm (0.079 – 0.118 in.) hole in the area shown in the il-
lustration to completely release the high pressure
gas before disposing of it.

When drilling, chips may fly out so work carefully.

The gas is colorless, odorless and non – toxic.

When working, handle the hood support carefully.
Never score or scratch the exposed part of the piston
rod, and allow any paint or oil to get on it.

Do not turn the piston rod and cylinder with the hood
support fully extended.

3.

INSTALL HOOD SUPPORT

(a)

Install the bolt and hood support to the body.
Torque: 22 N·m (224 kgf·cm, 16 ft·lbf)

(b)

Install the bolt and hood support to the hood.
Torque: 22 N·m (224 kgf·cm, 16 ft·lbf)

BO45L–02

H16656

Upper Window Frame Moulding

Door Glass Run

Front Door Weatherstrip

Door Glass

Rear Lower
Frame

Tweeter Speaker

Lower Frame
Bracket Garnish

No. 2 Glass Run

Front Lower
Frame

Door Belt Moulding

Outside Rear View Mirror

No. 2 Front Door
Weatherstrip

Outside Handle

Lock Cylinder

Cable Protector

Door Lock

Door Lock Outer Cover

Window Regular
Motor

Window Regular
              Sub–Assembly

Service Hole Cover

Inside Handle

Upper Armrest base panel

Power Window Switch

Speaker

Courtesy Light

 Precoated part

Inside Handle Bezel

Door Trim

Inner Weatherstrip

Door Hinge

Door

Check

Door Hinge

5.0 (51, 44 in.·lbf)

5.0 (51, 44 in.·lbf)

5.5 (56, 49 in.·lbf)

8.0 (82, 71 in.·lbf)

8.0 (82, 71 in.·lbf)

8.0 (82, 71 in.·lbf)

23 (235, 17)

23 (235, 17)

30 (306, 22)

: Specified torque

N·m (kgf·cm, ft·lbf)

–

BODY

FRONT DOOR

BO–9

3562

FRONT DOOR

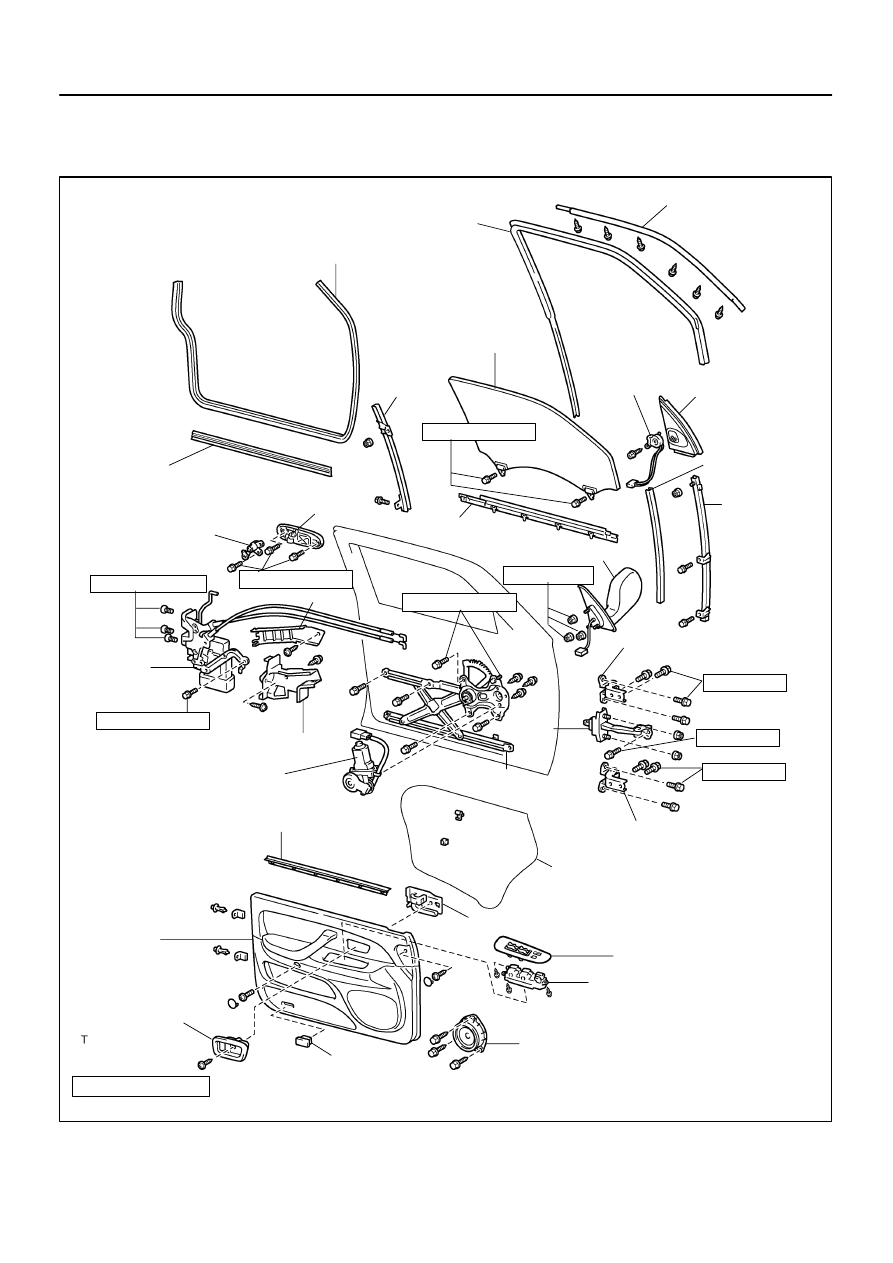

COMPONENTS

BO45M–01

H04751

H16641

H16642

8 Clips

BO–10

–

BODY

FRONT DOOR

3563

DISASSEMBLY

1.

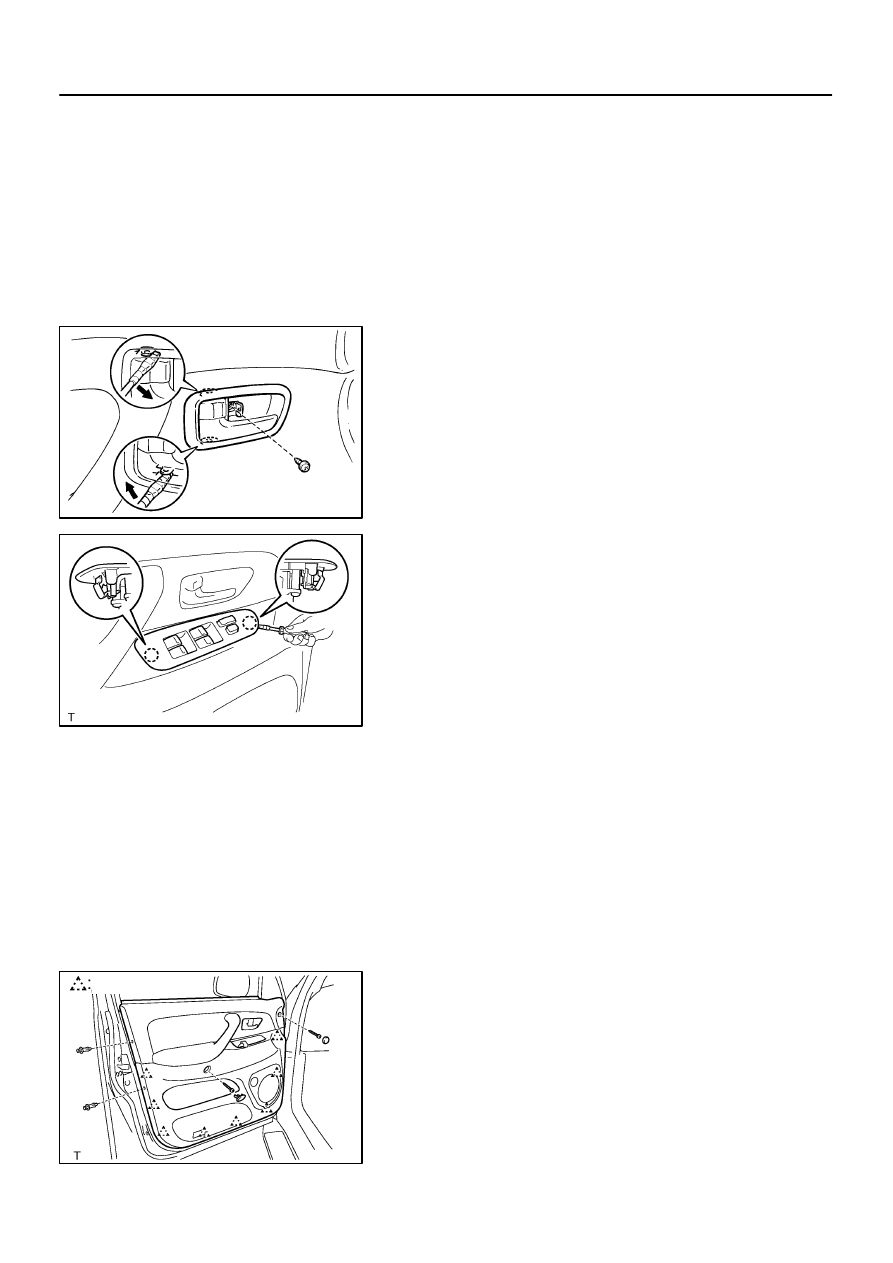

REMOVE INSIDE HANDLE BEZEL

(a)

Using a screwdriver, open the cover.

HINT:
Tape the screwdriver tip before use.

(b)

Remove the screw.

(c)

Using a screwdriver, remove the inside handle bezel as
shown in the illustration.

HINT:
Tape the screwdriver tip before use.
2.

REMOVE COURTESY LIGHT

3.

REMOVE UPPER ARMREST BASE PANEL WITH
POWER WINDOW SWITCH

(a)

Using a screwdriver, remove the upper armrest base pan-
el with power window switch.

HINT:
Tape the screwdriver tip before use.
(b)

Disconnect the connector.

(c)

Remove the 3 screws and power window switch from the
upper armrest base panel.

4.

REMOVE LOWER FRAME BRACKET GARNISH

Using a screwdriver, remove the lower frame bracket garnish.
HINT:
Tape the screwdriver tip before use.

5.

REMOVE DOOR TRIM

(a)

Using a screwdriver, remove the 2 caps.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 screws and 2 clips.

(c)

Insert a screwdriver between the door trim and door panel
to pry the door trim.

HINT:
Tape the screwdriver tip before use.
(d)

Pull the door trim upward to remove the door trim.

H16644

H16643

H16646

–

BODY

FRONT DOOR

BO–11

3564

(e)

Remove the inner weatherstrip from the door trim.

6.

REMOVE TWEETER SPEAKER

7.

REMOVE OUTSIDE REAR VIEW MIRROR
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

8.

REMOVE SPEAKER

9.

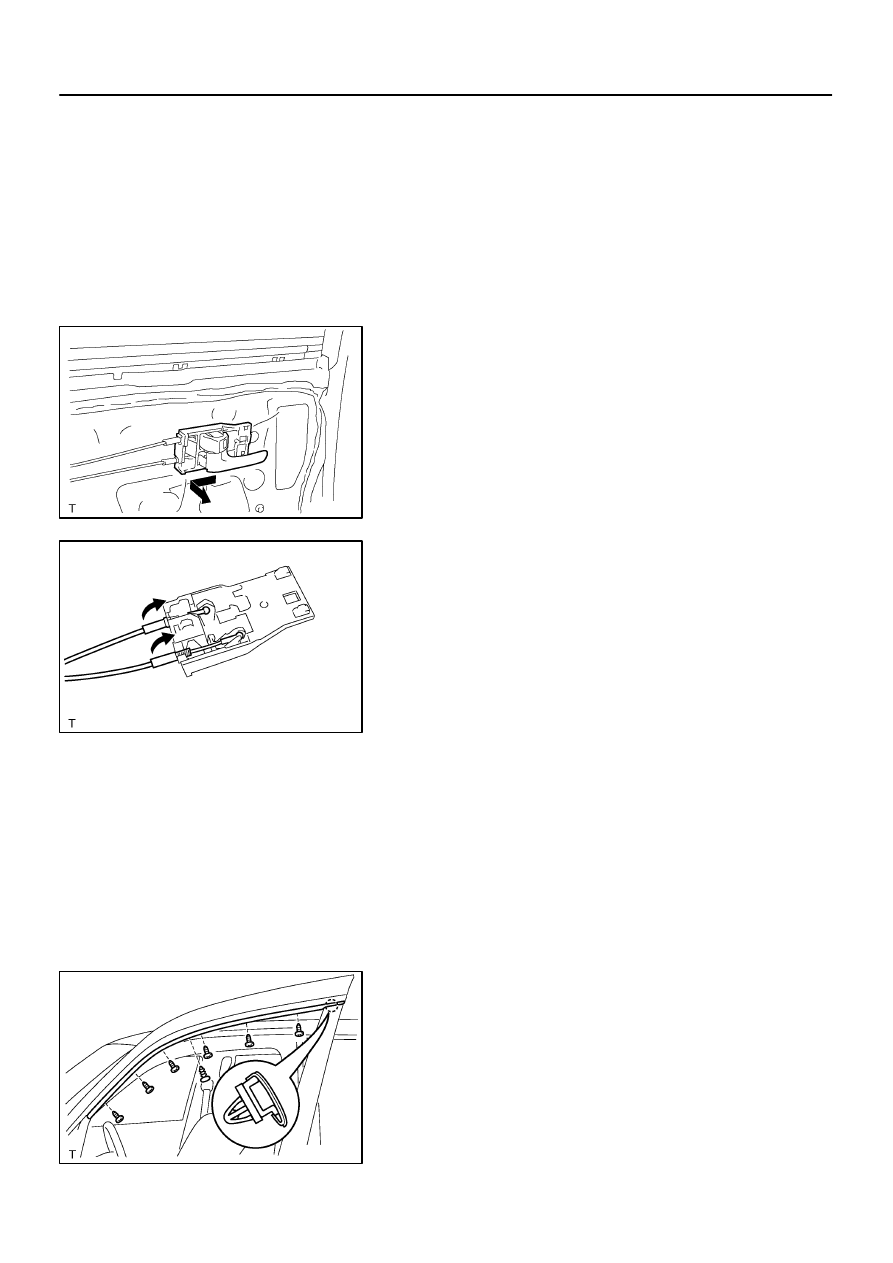

REMOVE INSIDE HANDLE

(a)

Slide the inside handle backward to remove it.

(b)

Disconnect the 2 cables from inside handle as shown in
the illustration.

10.

REMOVE SERVICE HOLE COVER

(a)

Using a clip remover, remove the clamp and grommets.

(b)

Remove the service hole cover.

NOTICE:
Do not tear the cover.
HINT:
At the time of reassembly, please refer to the following item.
Bring out the 2 control cables and wire harness through the ser-
vice hole cover.
11.

REMOVE DOOR GLASS

(a)

Open the door glass until the bolts appear in the service
hole.

(b)

Remove the 2 bolts.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

NOTICE:
Be careful not to drop the door glass.
(c)

Pull the door glass upward to remove it.

12.

REMOVE DOOR GLASS RUN

13.

REMOVE UPPER WINDOW FRAME MOULDING

(a)

Remove the 6 screws.

(b)

Using a screwdriver or clip remover, remove the upper
window frame moulding.

HINT:
Tape the screwdriver tip before use.
