BO0HY–04

BO–4

–

BODY

SRS AIRBAG

3557

SRS AIRBAG

PRECAUTION

The SEQUOIA is equipped with an SRS (Supplemental Restraint System) such as the driver airbag, front
passenger airbag and side airbag. Failure to carry out service operation in the correct sequence could cause
the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing
(including removal or installation of parts, inspection or replacement), be sure to read the precautionary no-
tices in the RS section.

BO45H–02

H24348

Front Bumper
Reinforcement

Front Bumper
Energy Absorber

Front Bumper Cover

Front Bumper
Hole Cover

Front Bumper
Hole Cover

3.0 (30, 27 in.·lbf)

50 (510, 37)

N·m (kgf·cm, ft·lbf) : Specified torque

3.0 (30, 27 in.·lbf)

7.0 (71, 62 in.·lbf)

50 (510, 37)

7.0 (71, 62 in.·lbf)

Fog Light

Fog Light

Side Support

Side Support

w/o Fog light:

w/o Fog light:

w/ Fog light:

w/ Fog light:

–

BODY

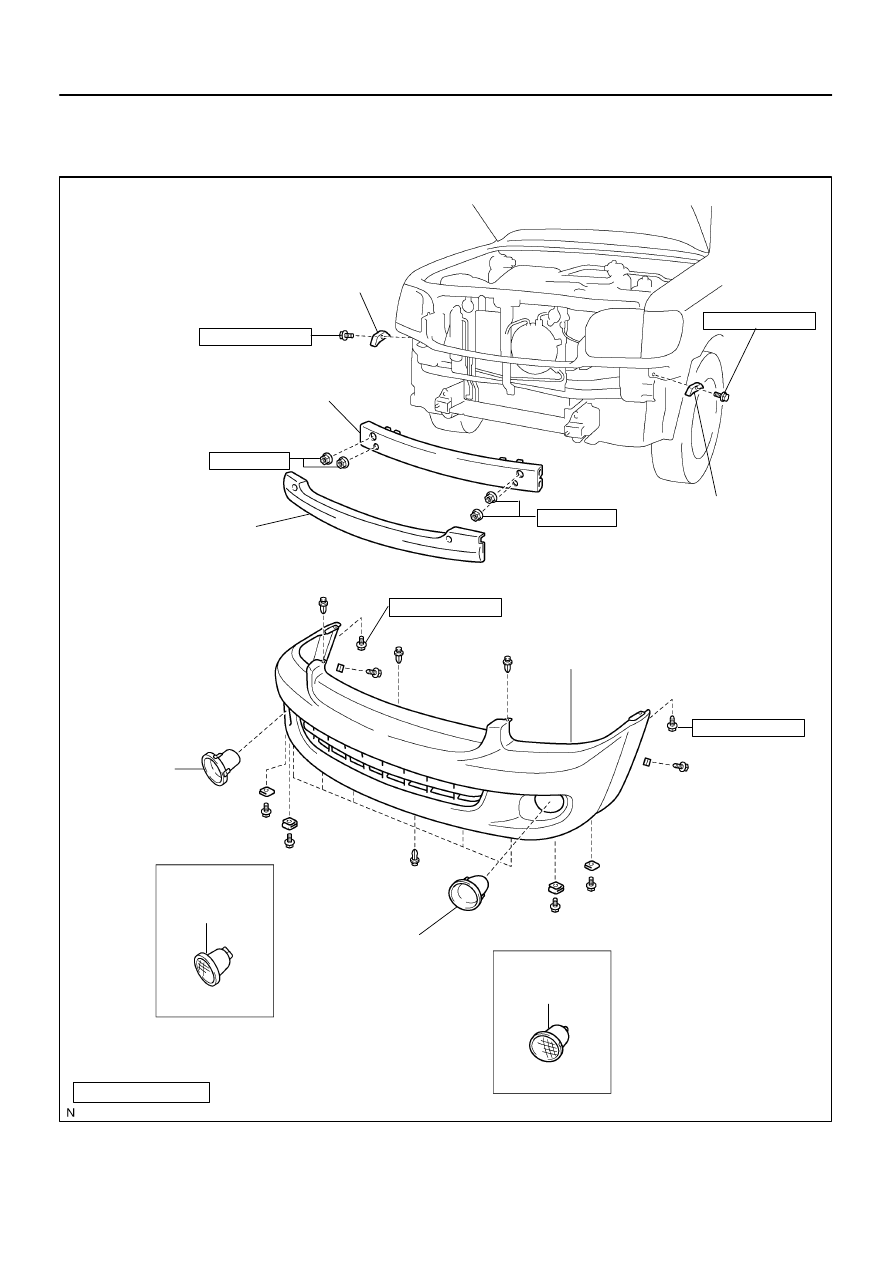

FRONT BUMPER

BO–5

3558

FRONT BUMPER

COMPONENTS

BO45I–02

H24349

N·m (kgf·cm, ft·lbf)

: Specified torque

Rear Bumper
Reinforcement

95 (970, 70)

7.0 (71, 62 in.·lbf)

Quarter Wheel Opening Moulding

Rear Bumper Cover

Rear Bumper Side Support

Reflex Reflector

Rear Bumper Protection

Rear Bumper Seal

Back Step Reinforcement

Rear Mud Guard

Rear Bumper Side Support

19 (195, 14)

19 (195, 14)

19 (195, 14)

19 (195, 14)

7.0 (71, 62 in.·lbf)

5.0 (50, 43 in.·lbf)

95 (970, 70)

5.0 (50, 43 in.·lbf)

7.0 (71, 62 in.·lbf)

7.0 (71, 62 in.·lbf)

Side Support

Rear Bumper Extension

7.0 (71, 62 in.·lbf)

7.0 (71, 62 in.·lbf)

95 (970, 70)

95 (970, 70)

x4

x4

x4

x4

Rear Mud Guard

BO–6

–

BODY

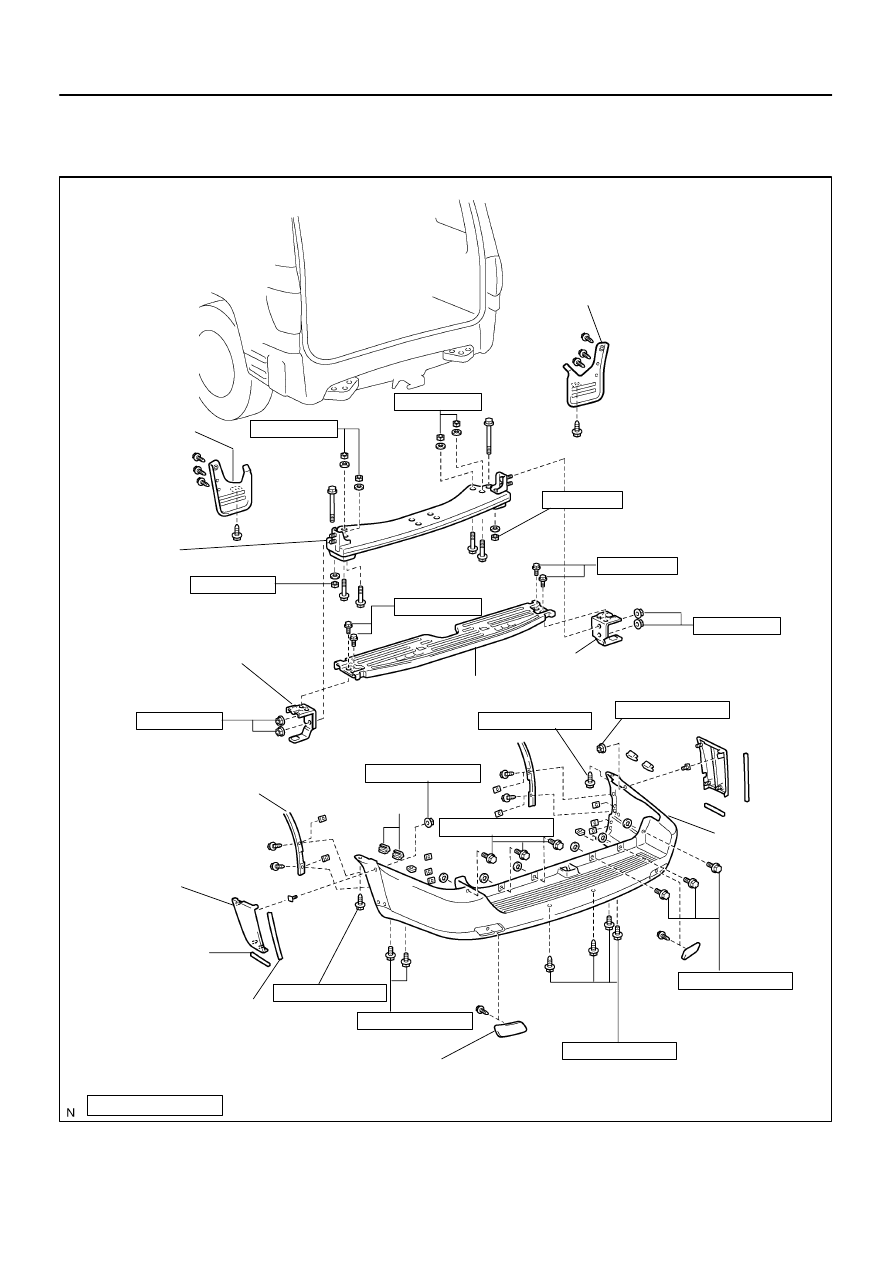

REAR BUMPER

3559

REAR BUMPER

COMPONENTS

N03433

Centering Bolt

Standard Bolt

BO45J–01

H09455

H09456

H09478

–

BODY

HOOD

BO–7

3560

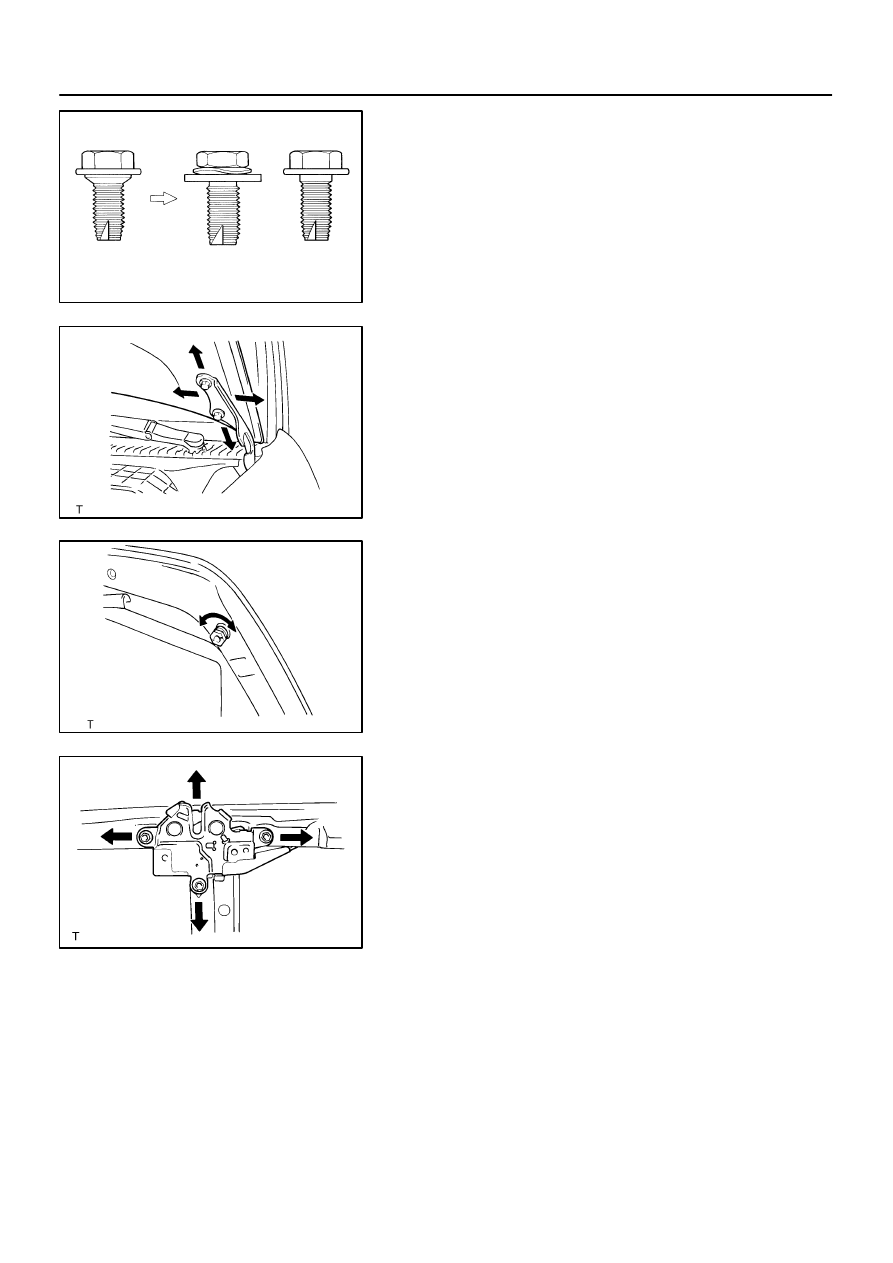

HOOD

ADJUSTMENT

HINT:
Since the centering bolt is used as the hood hinge set bolt, the
hood cannot be adjusted with it on. Substitute the standard bolt
for the centering bolt.

1.

ADJUST HOOD IN FORWARD/REARWARD

Adjust the hood by loosening the hood side hinge bolts.

Torque: 13 N·m (133 kgf·cm, 10 ft·lbf)

2.

ADJUST HOOD IN VERTICAL DIRECTIONS

(a)

Remove the bolts and increase or decrease the number
of washers between the hinge and hood.

(b)

Install the bolts again.
Torque: 13 N·m (133 kgf·cm, 10 ft·lbf)

3.

ADJUST FRONT EDGE OF HOOD IN VERTICAL
DIRECTION

Adjust the hood by turning the cushions.

4.

ADJUST HOOD LOCK

Adjust the lock by loosening the bolts.

Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
